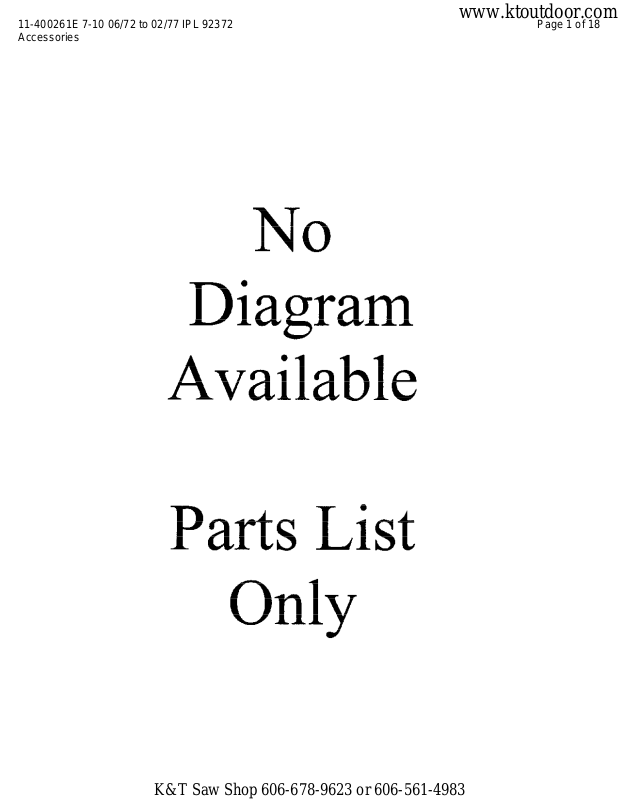

Page 1
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 1 of 18
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 2 of 18
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
62827 Wrench - Screwdriver
63746 Scrench
86419 Guide - Timing
69191 Kit - Pressure adaptor
84453 Kit - Piston tool
63432 Spark Plug (Standard)
63097 Spark Plug (Hotter)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 3 of 18
www.ktoutdoor.com

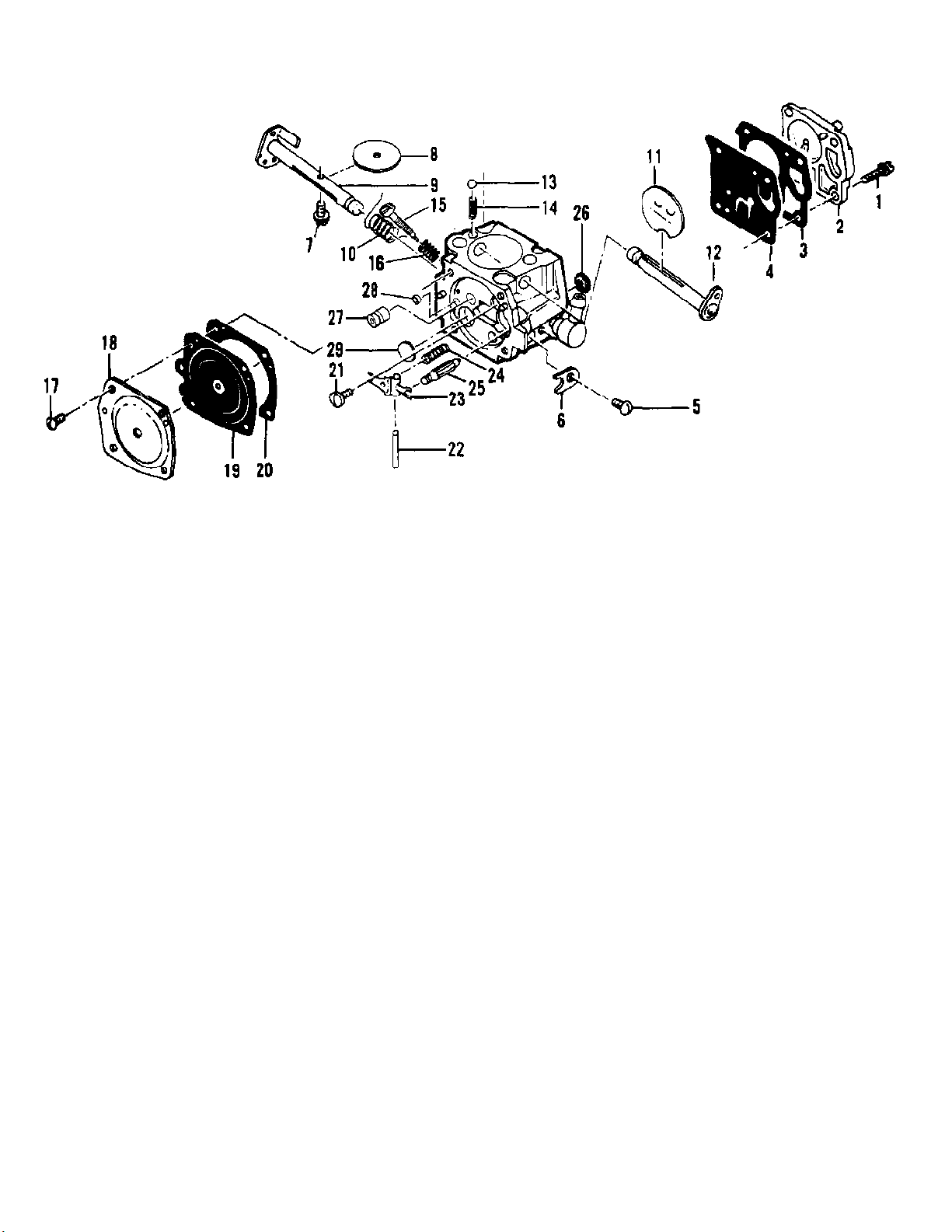

Carburetor Assembly (HS 165A)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 4 of 18
www.ktoutdoor.com
Carburetor Assembly (HS 165A)
Ref # Part Number DescriptionQty
91121 Carburetor Asy (HS 165A)1
1 52933 Screw - Pump cover4
2 66628 Cover - Pump1
3 66629 Gasket - Pump cover1
4 66630 Diaphragm - Fuel pump1
5 48780 Screw - Throttle shaft clip1
6 66646 Clip - Throttle shaft1
7 48780 Screw - Throttle plate1
8 51720 Plate - Throttle1
9 87922 Shaft Asy - Throttle1
10 67136 Spring - Throttle shaft1
11 65856 Plate - Choke1
12 83725 Shaft Asy - Choke1
13 100071 Ball - Choke friction1
14 48759 Spring - Choke friction1
15 88768 Needle - Idle mixture1
16 66626 Spring - Idle1
17 51721 Screw -Diaphragm cover4
18 83724 Cover - Diaphragm1
19 66632 Diaphragm - Metering1
20 66633 Gasket - Diaphragm1
21 66644 Screw - Inlet lever pin1
22 66636 Pin - Inlet lever1
23 66638 Lever - Inlet1
24 66404 Spring - Inlet lever1
25 66637 Needle - Inlet1
26 66623 Screen - Fuel inlet1
27 88771 Jet - H/S fuel (029)1
88772 Jet - H/S fuel (028)Alt
88781 Jet - H/S fuel (027)Alt
28 52928 Plug - Cup1
29 66622 Plug - Welch1
88774 Set - Gasket
88776 Set - Gasket & Diaphragm
88775 Kit - Repair
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 5 of 18
www.ktoutdoor.com

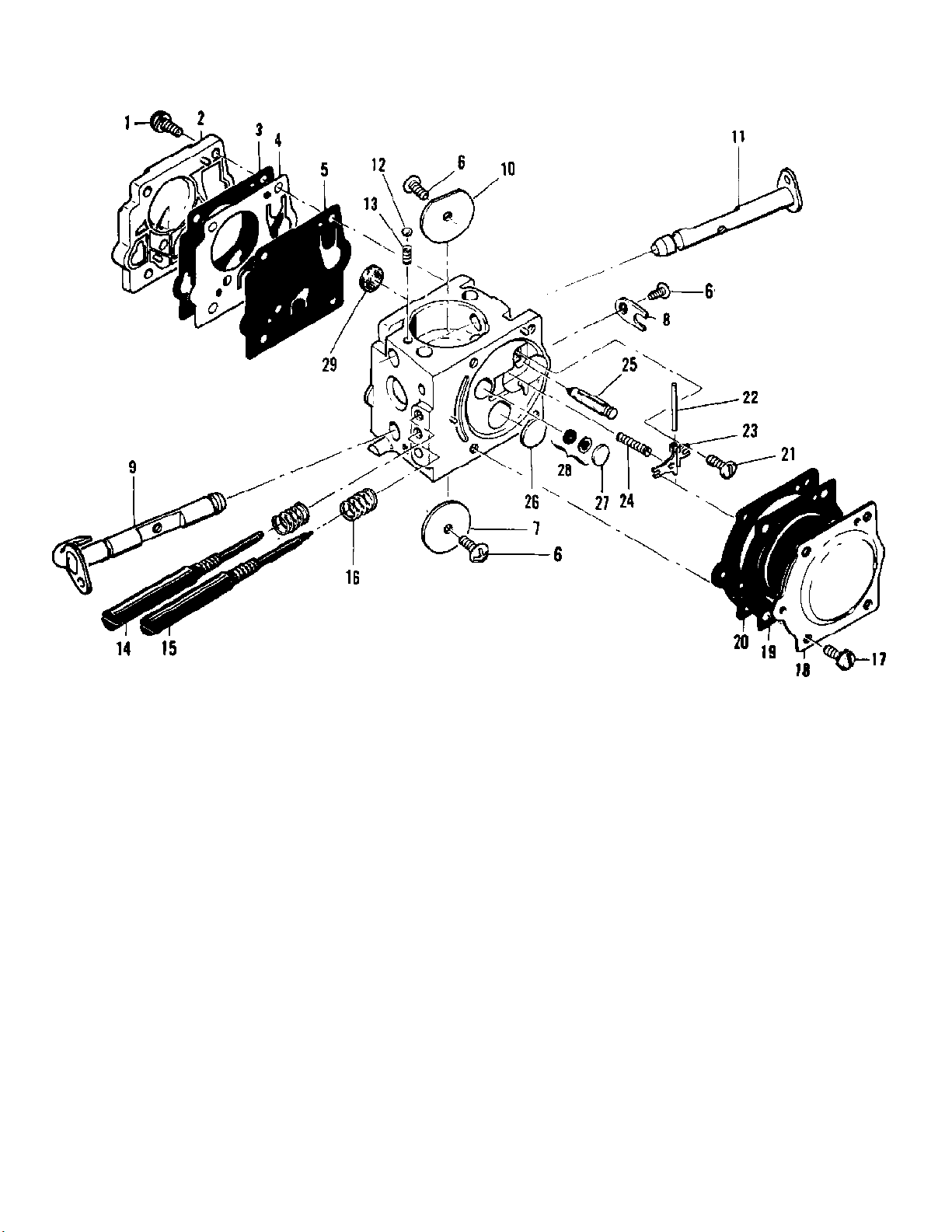

Carburetor Assembly (SDC 44)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 6 of 18
www.ktoutdoor.com
Carburetor Assembly (SDC 44)
Ref # Part Number DescriptionQty
87666 Carburetor - Walbro SDC 441
1 67501 Screw - Pump cover4
2 83760 Cover - Pump1
3 67495 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Asy - Throttle1
10 67490 Plate - Choke1
11 67488 Shaft Asy - Choke1
12 100302 Ball - Choke friction1
13 67504 Spring - Choke1
14 87915 Needle - High speed1
15 87916 Needle - Idle1
16 67502 Spring - Needle2
17 70798 Screw - Diaphragm cover4
18 83761 Cover - Diaphragm1
19 67499 Diaphragm - Metering1
20 67496 Gasket - Diaphragm1
21 67500 Screw - Lever pin1
22 67508 Pin - Lever1
23 67509 Lever - Metering1
24 67503 Spring - Lever1
25 67491 Valve - Needle1
26 71690 Plug - 3/81
27 69506 Plug - 5/161
28 83758 Kit - Valve & Seat Asy1
29 67507 Screen - Fuel1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 7 of 18
www.ktoutdoor.com

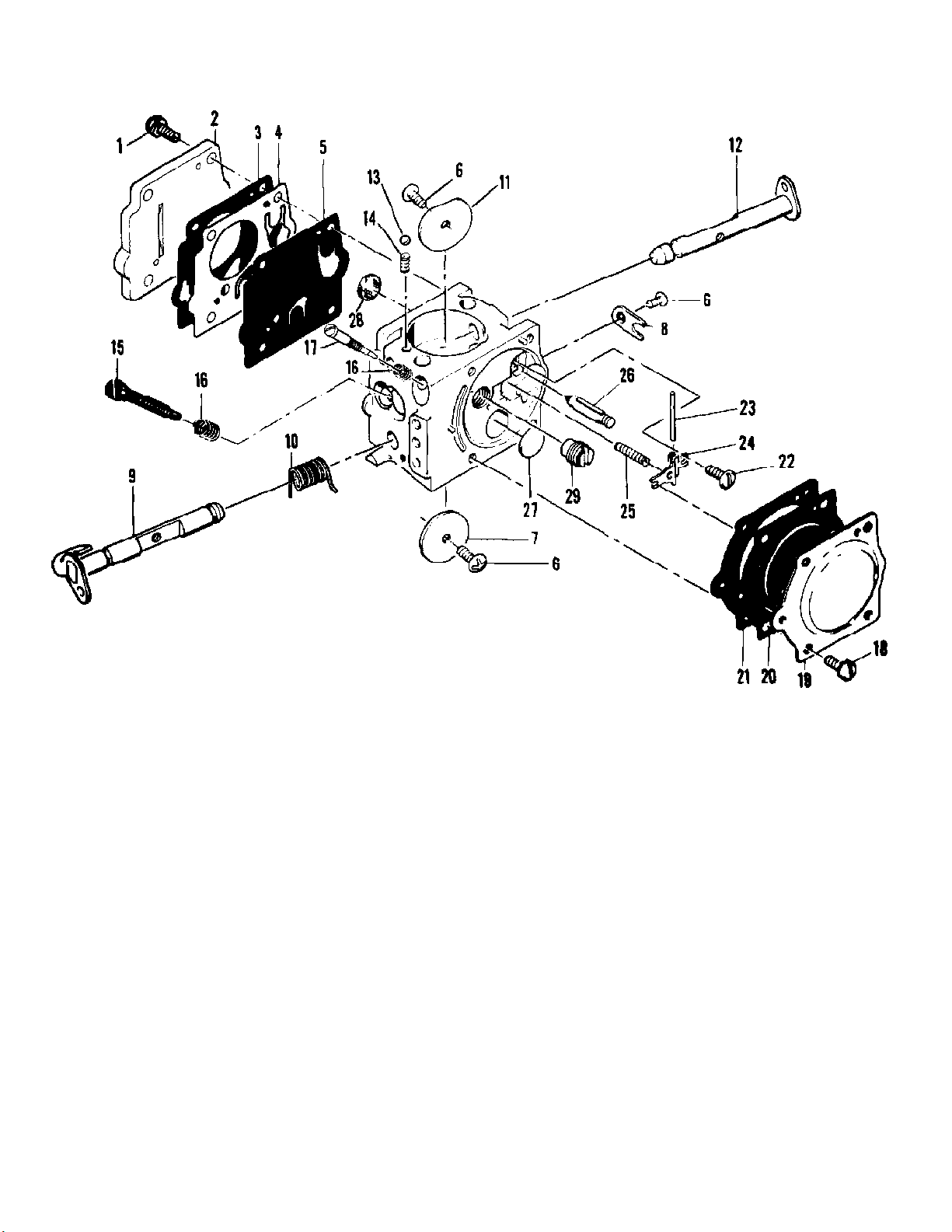

Carburetor Assembly (SDC 58)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 8 of 18
www.ktoutdoor.com
Carburetor Assembly (SDC 58)
Ref # Part Number DescriptionQty
91275 Carburetor Asy (SDC58)1
1 67501 Screw - Pump cover4
2 88731 Kit - Pump cover1
3 88617 Gasket - Cover1
4 67498 Diaphragm - Check valve1
5 83114 Diaphragm - Fuel pump1
6 47690 Screw - Plate3
7 83762 Plate - Throttle1
8 67489 Clip - Shaft1
9 67486 Shaft Asy - Throttle1
10 85981 Spring - Throttle return1
11 67490 Plate - Choke1
12 67488 Shaft Asy - Choke1
13 100302 Ball - Choke friction1
14 67504 Spring - Choke friction1
15 68106 Screw - Idle speed1
16 67502 Spring - Idle2
17 90345 Needle - Idle mixture1
18 70798 Screw - Diaphragm cover4
19 83761 Cover - Diaphragm1
20 67499 Diaphragm - Metering1
21 67496 Gasket - Diaphragm1
22 67500 Screw - Lever pin1
23 67508 Pin - Lever1
24 67509 Lever - Inlet1
25 67503 Spring - Lever1
26 67491 Valve - Needle1
27 71690 Plug - 3/81
28 67507 Screen - Fuel1
29 90350 Jet - H/S fuel (28)1
90351 Jet - H/S fuel (26) Alt
90349 Jet - H/S fuel (29) Alt
88619 Set - Gasket
88620 Kit - Repair
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 9 of 18
www.ktoutdoor.com

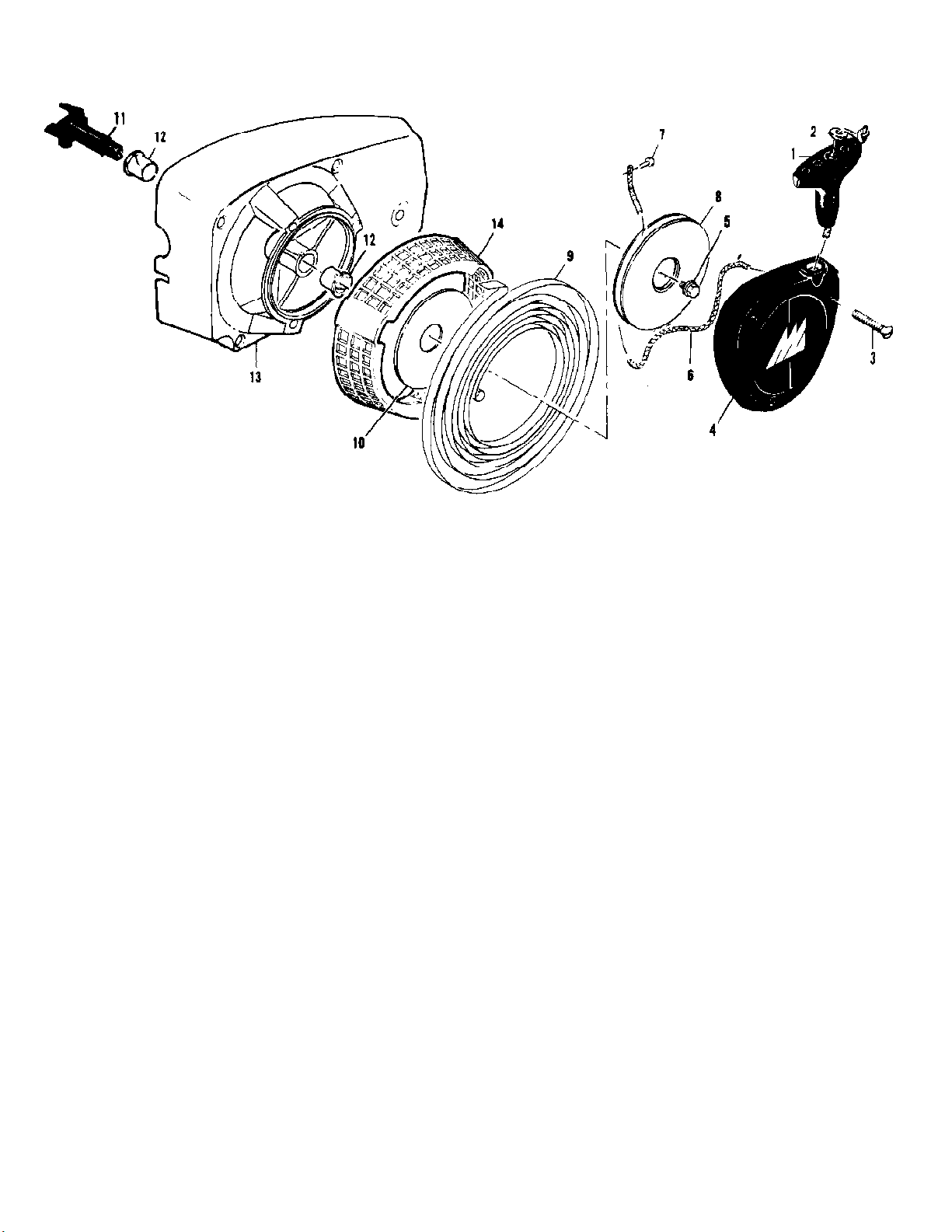

Fan Housing & Starter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 10 of 18
www.ktoutdoor.com
Fan Housing & Starter Assemblies
Ref # Part Number DescriptionQty
88150 Housing Asy - Fan1
87667 Housing Asy - Fan1
1 91255 Kit - Starter handle1
2 105490 Washer1
3 110646 Screw - Oval hd 8-32 x 1-1/83
4 88351 Cover - Starter1
4 87672 Cover - Starter1
5 110341 Screw - Hx hd 10-24 x 1/21
6 68162 Rope - Starter1
7 110470 Rivet - Rope1
8 85122 Drum - Starter1
9 87680 Spring - Rewind1
10 86053 Shield - Spring1
11 83748 Shaft - Starter1
12 57535 Bushing - Starter2
13 87693 Kit - Fan Housing1
14 87674 Guard - Sawdust1
13 89605 Housing - Fan1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 11 of 18
www.ktoutdoor.com

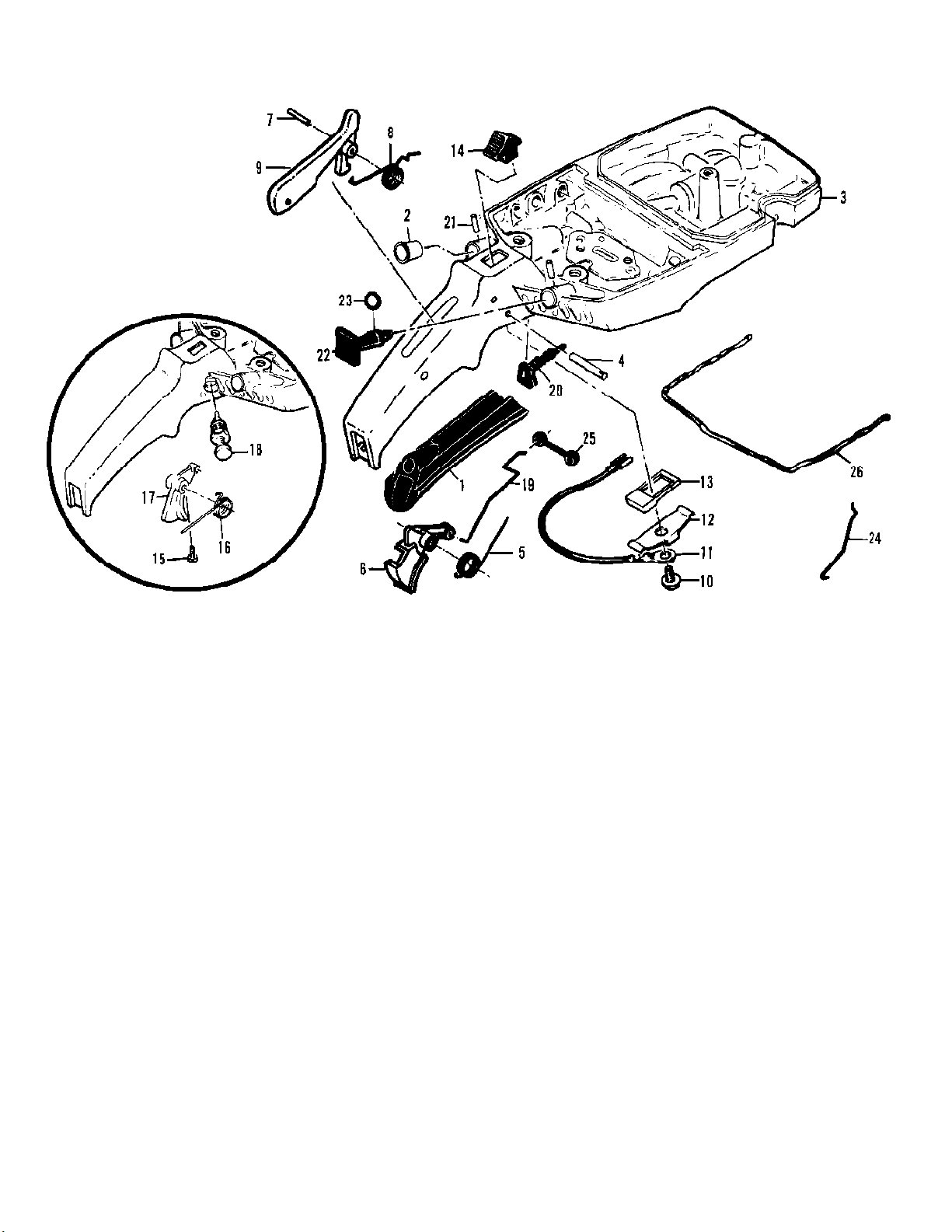

Fuel Tank Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 12 of 18
www.ktoutdoor.com
Fuel Tank Assembly
Ref # Part Number DescriptionQty
1 89320 Insert - Handle grip1
2 110893 Plug - Tapered cap1
3 89611A Kit - Fuel Tank/control1
3 84183A Kit - Fuel Tank/control1
4 110378 Pin - Roll 3/16 x 15/161
5 92152 Spring - Trigger1
6 92151 Trigger - Throttle1
7 105654 Pin - Roll 1/8 x 7/81
8 92154 Spring - Trigger release1
9 92153 Release - Trigger1
10 110706 Screw - Fil hd 8-18 x 1/21
11 62973A Wire Asy - Stop switch1
12 62451 Control - Switch1
13 62950A Base - Switch1
14 68846 Button - Switch1
15 110668 Screw - Fil hd 8-36 x 5/81
16 87178 Spring - Throttle return1
17 88796 Trigger1
18 85451 Latch Asy - Throttle1
19 85107 Rod - Throttle1
20 68522A Seal - Throttle rod1
21 105673 Pin - Roll 3/32 x 9/162
22 69041 Button - Choke1
23 105614 "O" Ring1
24 69042 Rod - Choke1
25 69043 Snubber - Rod1
26 69564 Seal - Airbox1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 13 of 18
www.ktoutdoor.com

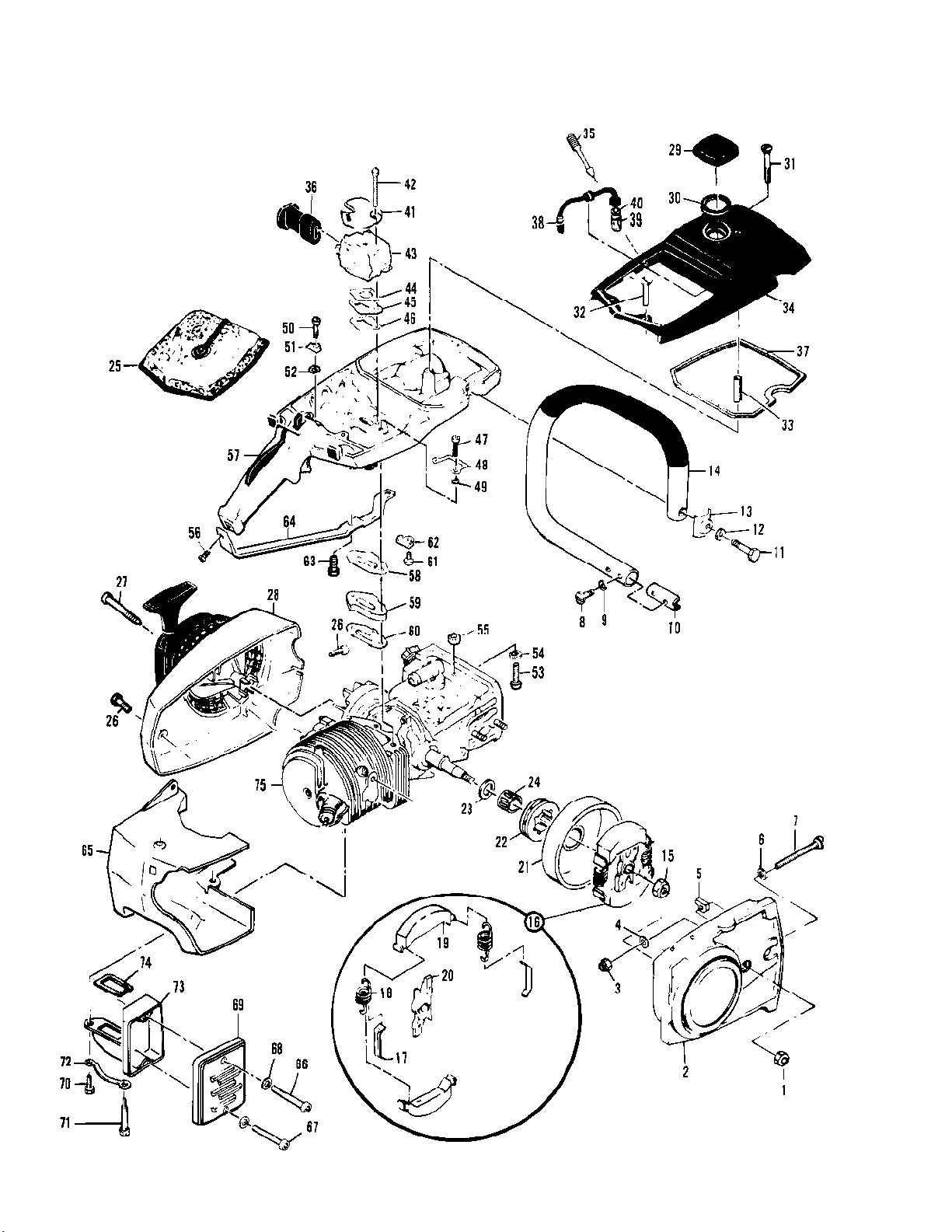

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 14 of 18
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 110961 Nut - Hx 5/16-242
2 88593 Guard Asy - Clutch1
3 102067 Nut - Hx 10-241
4 100002 Washer - #101
5 61705 Nut - Bar adj.1
6 110264 Washer - Plain1
7 102144 Screw - Adj.1
8 110865 Screw - Hx hd 10-24 x 7/82
9 100352 Washer - #102
10 89727 Retainer - Frame1
11 102130 Screw - Hx hd 1/4-20 x 1-1/21
12 100153 Washer - Lock 1/41
13 63484 Clamp - Frame1
14 87686A Frame & Grip Asy1
15 86113 Nut - Hx 3/8-24 (L.H.)1
16 87675 Clutch Asy1
17 64583 Retainer - Spring2
18 83223 Spring - Clutch2
19 67233 Shoe - Clutch2
20 89438 Rotor - Clutch1
21 86945 Drum - Spkt Asy 7T .354P1
22 86950 Sprocket - 7T .354P1
23 61692 Shim - Sprocket3
24 110971 Bearing - Sprocket1
25 69922 Filter - Air1
26 110741 Screw - Pan hd 10-24 x 1/22
27 87871 Screw - Special3
28 Fan Housing & Starter Asy See "Fan Housing &
Starter Assembly" illustration and parts list.
29 89322 Cap Asy - Fuel1
30 69767 Gasket1
31 110402 Screw - Oval hd 12-24 x 2-3/81
32 103579 Screw - Fil hd 10-24 x 12
33 87840 Spacer1
34 91127 Cover - Fuel tank1
34 69679 Cover - Fuel tank1
34 89604 Cover - Fuel tank1
34 88650 Cover - Fuel tank1
35 87932 Screw - Idle adjust1
36 87665 Boot - Carburetor adj.1
37 69345 Gasket - Cover1
38 64848 Hose Asy - Fuel1
39 63932 Filter - Fuel1
40 100440 Washer1
41 69952 Bracket - Air cleaner1
42 103357 Bolt - Hx hd 10-24 x 2-1/42
43 Carburetor Asy See "Carburetor Assembly (HS
165A), (SDC58) and (SDC 44)" illustration and parts
lists.
44 86189 Gasket - Carburetor1
45 84078 Spacer - Carburetor1
46 84081 Gasket - Spacer1
47 110567 Screw - Hx hd 12-24 x 1-1/42
48 68582 Plate - Lock1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 15 of 18
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
49 102115 Washer - #122
50 110568 Screw - Hx hd 12-24 x 1-1/81
51 69516 Plate - Lock1
52 64856 Washer - Special1
53 110713 Screw - Skt hd 10-24 x 7/81
54 100003 Washer - #101
55 69772 Spacer - Fuel tank1
56 110910 Screw - Hx hd 10-24 x 1-3/81
57 Fuel Tank Asy See "Fuel Tank Assembly" illustration
and parts list.
58 84082 Gasket - Fuel tank1
59 84080 Insulator - Fuel tank1
60 68594 Gasket - Insulator1
61 110566 Screw - Hx hd 10-24 x 5/81
62 68508 Plate - Lock1
63 110682 Screw - Hx hd 10-24 x 5/81
64 89603 Brace - Handle1
64 85007 Brace - Handle1
65 89602A Shroud1
65 85731A Shroud1
66 104534 Screw - Skt hd 10-24 x 1-3/81
67 101563 Screw - Skt hd 10-24 x 1-1/41
68 24236 Washer - Special2
69 88779 Cover - Muffler1
70 110529 Screw - Hx hd 10-24 x 1/21
71 68187 Screw - Special1
72 67922 Plate - Lock1
73 87663 Body - Duct Asy1
74 84007 Gasket - Spark arrester1
75 Powerhead Asy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 16 of 18
www.ktoutdoor.com

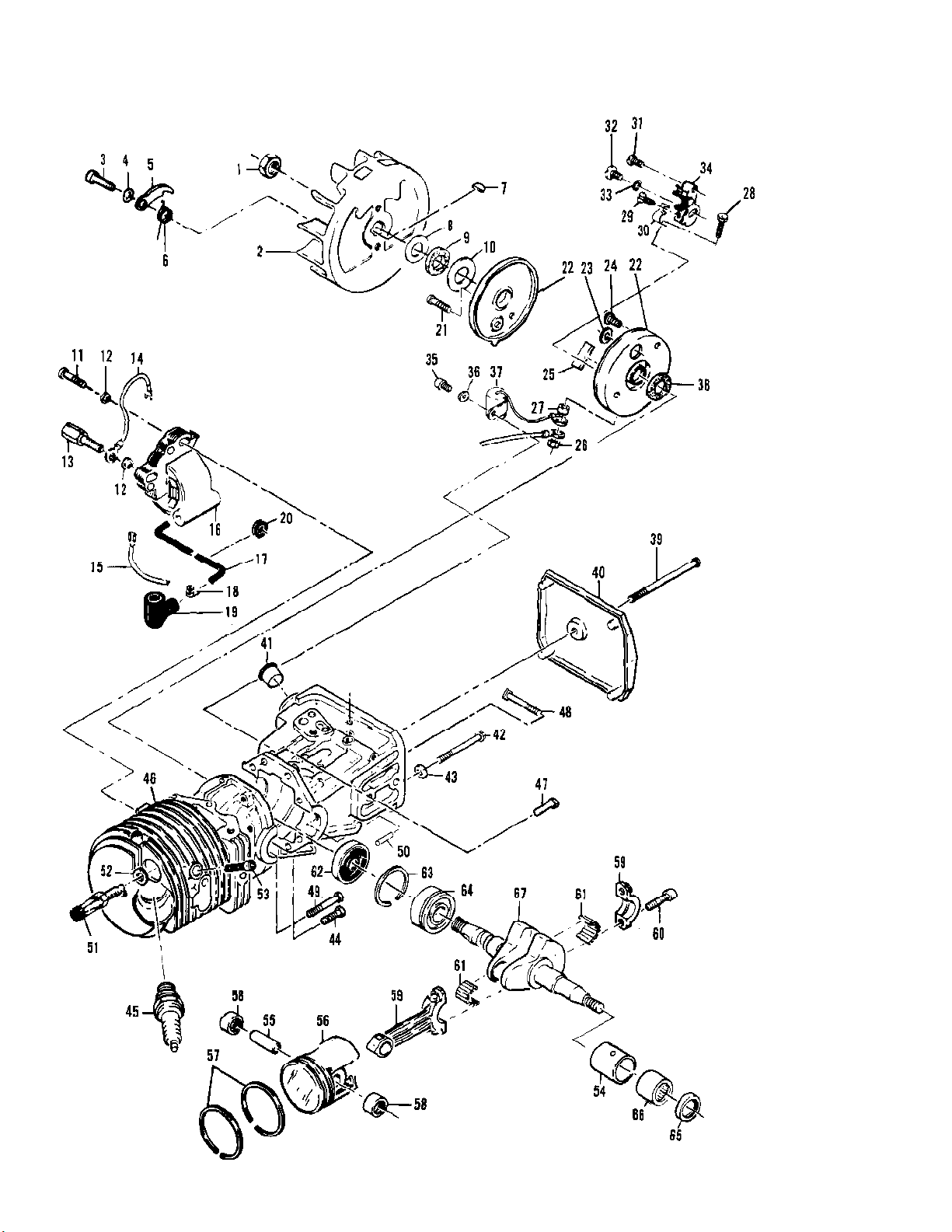

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 17 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110703 Nut - Hx 3/8-241
2 86068 Flywheel1
3 88804 Screw - Pawl pivot2
4 83241 Washer - Special2
5 67546 Pawl - Starter2
6 67545 Spring - Pawl2
7 100106 Key - Woodruff1
8 67057 Washer - Thrust1
9 67056 Seal - Breaker box cover1
10 67054 Washer - Thrust1
11 110127 Screw - Hx hd 10-24 x 7/8 (SEMS)1
12 100002 Washer - #102
13 83512 Stud - Special1
14 84686 Wire Asy - Ground1
15 69344 Wire Asy - Primary1
16 87246A Coil & Lamination1
17 50120 Wire Asy - Spark plug1
18 55061 Connector1
19 85758 Boot1
20 100268 Grommet1
21 110584 Screw - Pan hd 8-32 x 3/41
22 91852 Kit - Breaker Box & Cover1
23 91838 Washer1
24 110489 Screw - Pan hd 6-82 x 7/161
25 54184 Wiper - Cam1
26 100298 Nut - Hx 6-321
27 62365 Spacer - Breaker1
28 110346 Screw - Hx hd 6-32 x 3/41
29 110706 Screw - Pan hd 8-18 x 1/21
30 83126 Strap - Conduction1
31 110811 Screw - Pan hd 8-32 x 3/8
32 110969 Screw - Hx hd 8-32 x 1/21
33 105976 Washer - #81
34 88808 Breaker Asy1
35 110338 Screw - Hx hd 8-32 x 1/21
36 100080 Washer - #81
37 85358 Condenser1
38 67051 Seal - Breaker box1
39 110291 Screw - Pan hd 10-24 x 2-5/8 (D)1
40 83353 Cover - Oil tank (D)1
41 110892 Cap - Dust1
42 62105 Screw Asy - Sealing4
43 62842 Washer - Sealing4
44 110288 Screw - Hx hd 8-32 x 3/41
45 63432 Spark Plug1
46 89890 Crankcase Asy1
47 110288 Screw - Hx hd 8-32 x 3/42
48 62065 Bolt - Bar mounting2
49 110618 Screw - Hx hd 8-32 x 1-3/41
50 110851 Pin - Dowel1
51 87866 Valve - DSP1
52 85505 Washer - Valve1
53 110681 Screw - Skt hd 10-24 x 1/41
54 87152 Insert - Bearing1
55 69020 Pin - Piston1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 18
11-400261E 7-10 06/72 to 02/77 IPL 92372 Page 18 of 18
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
56 85239 Piston Asy1
57 89732 Ring Set - Piston (thin)1
58 110590 Bearing - Needle2
59 85352 Connecting Rod Asy1
60 61627A Screw - Skt hd special2
61 63225 Roller - Needle (set of 20)1
62 61618 Seal - Oil1
63 63464 Ring - Snap1
64 63429B Bearing - Ball1
65 110260 Seal - Oil1
66 104357 Bearing - Needle1
67 87699 Crankshaft1
87151 Needle Insert/Bearing Asy
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
