Ref # Part Number DescriptionQty
67091 Piston Assy 0.010 in. oversize
84470 Piston Assy 0.010 in. oversize
66048 Ring Set 0.010 in. oversize
67092 Piston Assy 0.020 in. oversize
84473 Piston Assy 0.020 in. oversize
66047 Ring Set 0.020 in. oversize
67093 Piston Assy 0.030 in. oversize
84474 Piston Assy 0.030 in. oversize
66045 Ring Set 0.030 in. oversize
84476 Piston Assy 0.050 in. oversize
69469 Ring Set 0.050 in. oversize
83209 Kit - Piston tool
84493 Kit - Rewind starter
83207 Kit - Piston tool
84760 Kit - Choke Installation
48711D Kit - Rewind starter
13639A Kit - Clutch, Drum, Sprocket, Bearing Assy - 10 tooth
13638A Kit - Clutch, Drum, Sprocket, Bearing Assy - 11 tooth
13637A Kit - Clutch, Drum, Sprocket, Bearing Assy - 12 tooth
48736A Drum, Sprocket, Bearing Assy - 10 tooth
48734A Drum, Sprocket, Bearing Assy - 11 tooth
48714A Drum, Sprocket, Bearing Assy - 12 tooth
48637 Sprocket - 10 tooth
48638 Sprocket - 11 tooth
48639 Sprocket - 12 tooth
60315 Clutch Assy
13553 Header - Exhaust
65712 Guide - Timing
48609 Header - Exhaust
47908 Kit - Muffler
48662 Kit - Mounting studs
68959 Kit - Vertical tuned exhaust
68960 Kit - Horizontal tuned exhaust
66409 Kit - Hi capacity needle and valve
68256 Kit - Split bearing retainer
66793 Decal - Kart McCulloch Powered
66794 Emblem - Kart McCulloch
65946 Manual - Owners
www.ktoutdoor.com
K&T Saw Shop 606-678-9623 or 606-561-4983
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
www.ktoutdoor.com
11-400170 MC 101 06/69 to 10/71 IPL 84478 Page 3 of 11
Carburetor Assembly (Part 1)
www.ktoutdoor.com
K&T Saw Shop 606-678-9623 or 606-561-4983
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
www.ktoutdoor.com
11-400170 MC 101 06/69 to 10/71 IPL 84478 Page 4 of 11

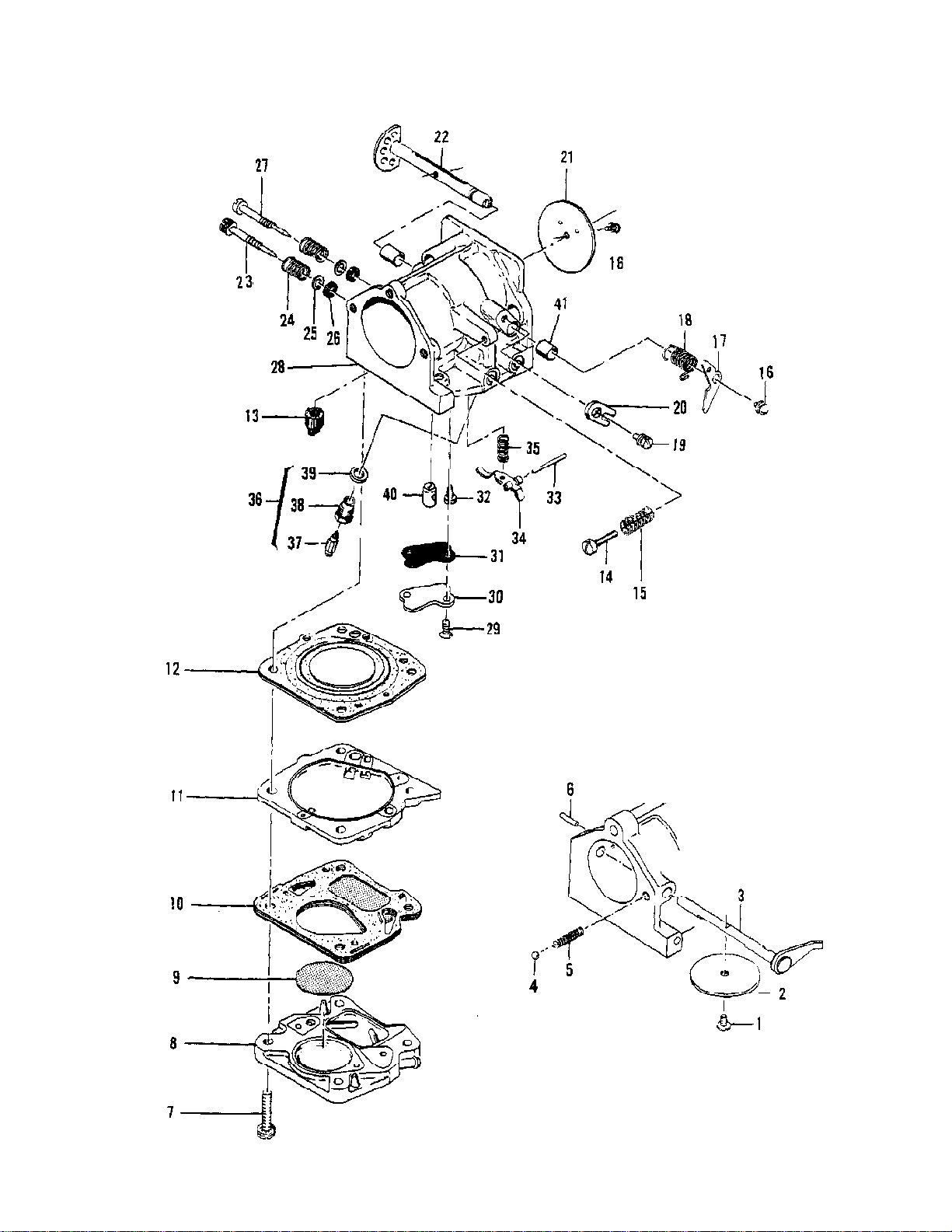

Carburetor Assembly (Part 1)
Ref # Part Number DescriptionQty
68886 Carburetor Assy1
82894 Carburetor Assy1
1 104814 Screw - Pan hd 4-40 x 1/4 (SEMS)1
2 65934 Plate - Choke1
3 82893 Shaft Assy - Choke1
4 100071 Ball - Choke detent1
5 52930 Spring - Choke detent1
6 101796 Pin - Groove1
7 104520 Screw - Pan hd 10-24 x 1/8 (SEMS)4
8 69169 Body - Fuel pump1
9 48911 Filter - Fuel1
10 57274B Diaphragm - Fuel pump1
11 69170 Plate - Diaphragm1
12 66092 Diaphragm - Carburetor1
13 53766A Valve - Check1
14 62910 Screw - Idle speed1
55397 Screw - Idle speed1
15 51705 Spring - Screw1
16 104814 Screw - Pan hd 4-40 x 1/4 (SEMS)2
17 50701A Arm - Throttle shaft1
18 65935 Spring - Throttle return1
19 110055 Screw - Fil hd 8-32 x 3/8 (SEMS)1
20 55082 Clip - Shaft1
21 65934 Plate - Throttle1
22 65932 Shaft Assy - Throttle1
23 68893 Needle - Main fuel1
24 52936 Spring - Needle2
25 52937 Washer - Packing2
26 52938 Packing - Needle2
27 67264 Needle - Idle fuel1
28 68907 Body Assy - Carburetor1
69812 Body Assy - Carburetor1
29 103460 Screw - Fl hd 4-40 x 1/42
30 66097 Cover - Capillary1
31 66098 Gasket - Cover1
32 104728 Screw - Bind hd 6-32 x 1/41
33 104305 Pin - Lever1
34 55688 Lever - Inlet1
35 57172 Spring - Lever1
36 60163A Set - Needle & Body1
37 63038 Needle - Valve1
38 58969 Body - Valve1
39 55689 Washer - Valve1
40 65611 Valve - Check1
68890 Valve - Check1
41 55062A Bushing - Shaft2
www.ktoutdoor.com
K&T Saw Shop 606-678-9623 or 606-561-4983
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
www.ktoutdoor.com
11-400170 MC 101 06/69 to 10/71 IPL 84478 Page 5 of 11
Carburetor Assembly (Part 2)
www.ktoutdoor.com
K&T Saw Shop 606-678-9623 or 606-561-4983
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
www.ktoutdoor.com
11-400170 MC 101 06/69 to 10/71 IPL 84478 Page 6 of 11

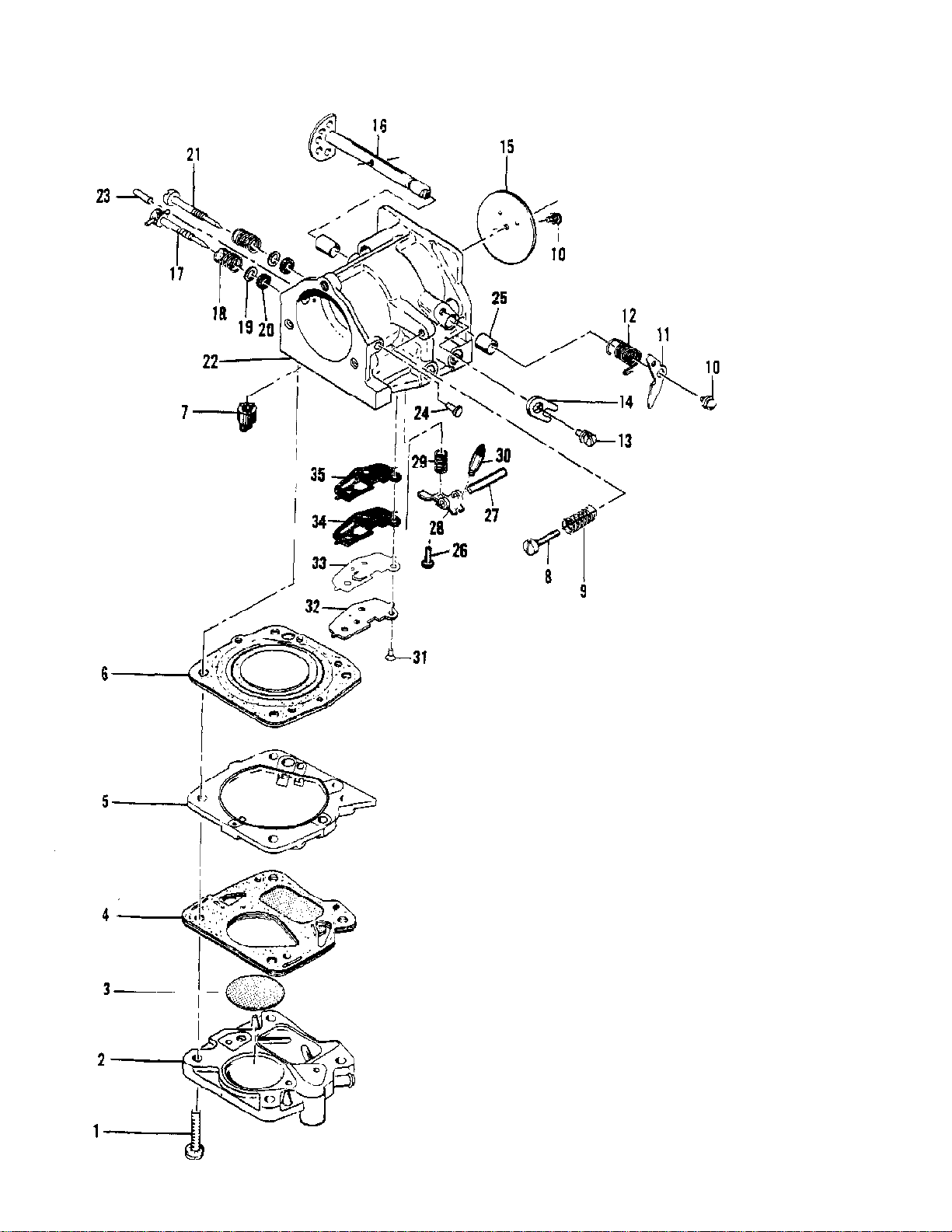

Carburetor Assembly (Part 2)
Ref # Part Number DescriptionQty
84446 Carburetor Assy1
1 104520 Screw Assy - Pan hd 10-24 x 7/8 (SEMS)4
2 84941 Body - Fuel pump1
3 48911 Filter - Fuel1
4 57274B Diaphragm Assy - Fuel pump1
5 69170 Plate - Diaphragm1
6 66092 Diaphragm - Carburetor1
7 53766A Valve - Check1
8 55397 Screw - Idle speed1
9 51705 Spring - Idle screw1
10 104814 Screw - Pan hd 4-40 x 1/4 (SEMS)2
11 50701A Arm - Throttle shaft1
12 65935 Spring - Throttle return1
13 110055 Screw - Fil hd 8-32 x 3/8 (SEMS)1
14 55082 Clip - Throttle shaft1
15 65934 Plate - Throttle1
16 65932 Shaft Assy - Throttle1
17 84940 Needle Assy - High speed adjustment1
18 67502 Spring - Needle2
19 52937 Washer - Packing2
20 52938 Ring - Packing2
21 84939 Needle - Idle adjustment1
22 84947 Body Assy - Carburetor1
23 101796 Pin - Choke plate1
24 48827 Plug - Choke shaft bore2
25 55062A Bushing - body2
26 104728 Screw - Lever pin1
27 104305 Pin - Lever1
28 84317 Lever - Inlet1
29 57172 Spring - Lever1
30 83753 Needle - Inlet valve1
31 84942 Screw - Circuit plate3
32 84938 Plate - Circuit1
33 84944 Diaphragm - Check valve1
34 84945 Gasket - Circuit plate1
35 84946 Gasket - Circuit plate1
www.ktoutdoor.com
K&T Saw Shop 606-678-9623 or 606-561-4983
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
www.ktoutdoor.com
11-400170 MC 101 06/69 to 10/71 IPL 84478 Page 7 of 11
General
www.ktoutdoor.com
K&T Saw Shop 606-678-9623 or 606-561-4983
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
www.ktoutdoor.com
11-400170 MC 101 06/69 to 10/71 IPL 84478 Page 8 of 11

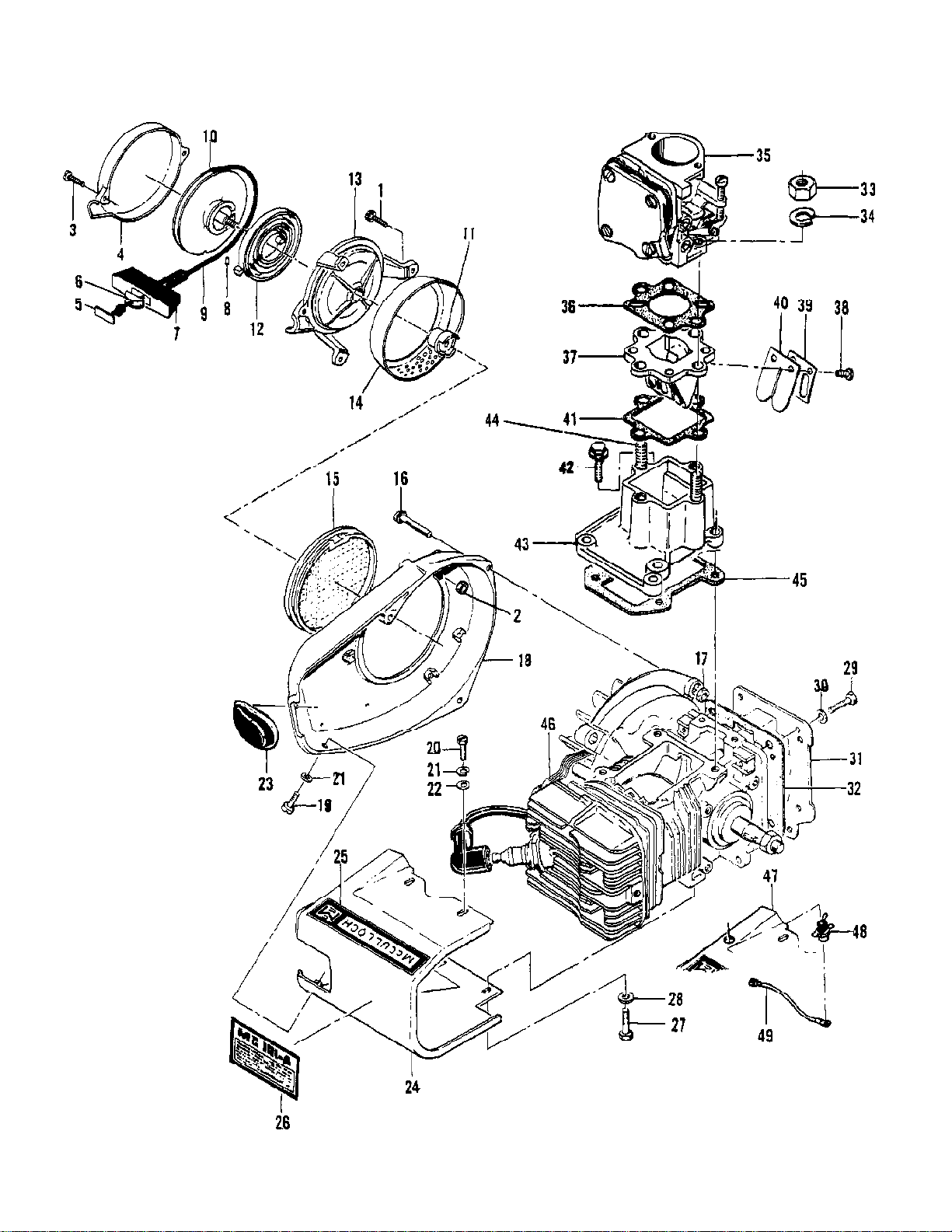

General
Ref # Part Number DescriptionQty
1 104815 Screw - Hex hd 10-24 x 7/8 (SEMS)3
2 101191 Nut - Hex 10-243
84211 Starter Assy1
3 104396 Screw - Pan hd 10-24 x 3/42
4 60647 Cover - Starter1
5 57232 Plate - Starter handle1
6 57231 Cup - Starter handle1
7 57230 Handle - Starter1
8 101136 Rivet - Rope1
9 28716 Rope - Starter1
10 57792 Drum - Starter1
11 57790 Ratchet - Starter1
12 51665 Spring - Rewind1
13 84212 Base - Starter1
14 50581A Guard1
15 55615 Guard1
16 104816 Screw - Hex hd 10-24 x 1-1/4 (SEMS)3
17 101326 Nut - Hex 10-242
18 47820 Fan Housing1
69822 Fan Housing1
84728 Fan Housing1
19 102500 Screw - Pan hd 10-24 x 1/21
20 102762 Screw - Hex hd 10-24 x 1/21
21 101194 Lockwasher - #103
22 100002 Washer - #103
23 57565 Cover Assy - Spark plug1
24 47904 Shroud - Cylinder1
25 48588A Nameplate1
26 66039 Nameplate1
84704 Nameplate1
27 100732 Screw - Hex hd 1/4-20 x 5/82
28 100005 Washer - 1/42
29 101982 Screw - Hex hd 1/4-20 x 14
30 13643 Washer - Special4
31 47803 Cover - Crankcase bottom1
32 65578 Gasket - Cover1
33 100249 Nut - Hex 1/4-282
34 100153 Lockwasher - 1/42
35 Carburetor Assy
36 65939 Gasket - Carburetor1
37 68091 Valve Assy - Reed1
38 101987 Screw - Rd hd 6-32 x 1/44
39 65904 Plate - Clamp2
40 68074 Valve - Reed2
41 65937 Gasket - Reed valve1
68894 Gasket - Reed valve1
42 103947 Screw - Hex hd 10-24 x 1 (SEMS)4
43 68889 Adapter Assy - Carburetor1
44 47868 Stud - Adapter2
45 48516 Gasket - Adapter1
46 Powerhead Assy
47 69762 Shroud1
48 58387 Stop Switch Assy1
49 53490 Wire Assy - Stop switch1
www.ktoutdoor.com
K&T Saw Shop 606-678-9623 or 606-561-4983
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
www.ktoutdoor.com
11-400170 MC 101 06/69 to 10/71 IPL 84478 Page 9 of 11
Powerhead Assembly
www.ktoutdoor.com
K&T Saw Shop 606-678-9623 or 606-561-4983
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
www.ktoutdoor.com
11-400170 MC 101 06/69 to 10/71 IPL 84478 Page 10 of 11

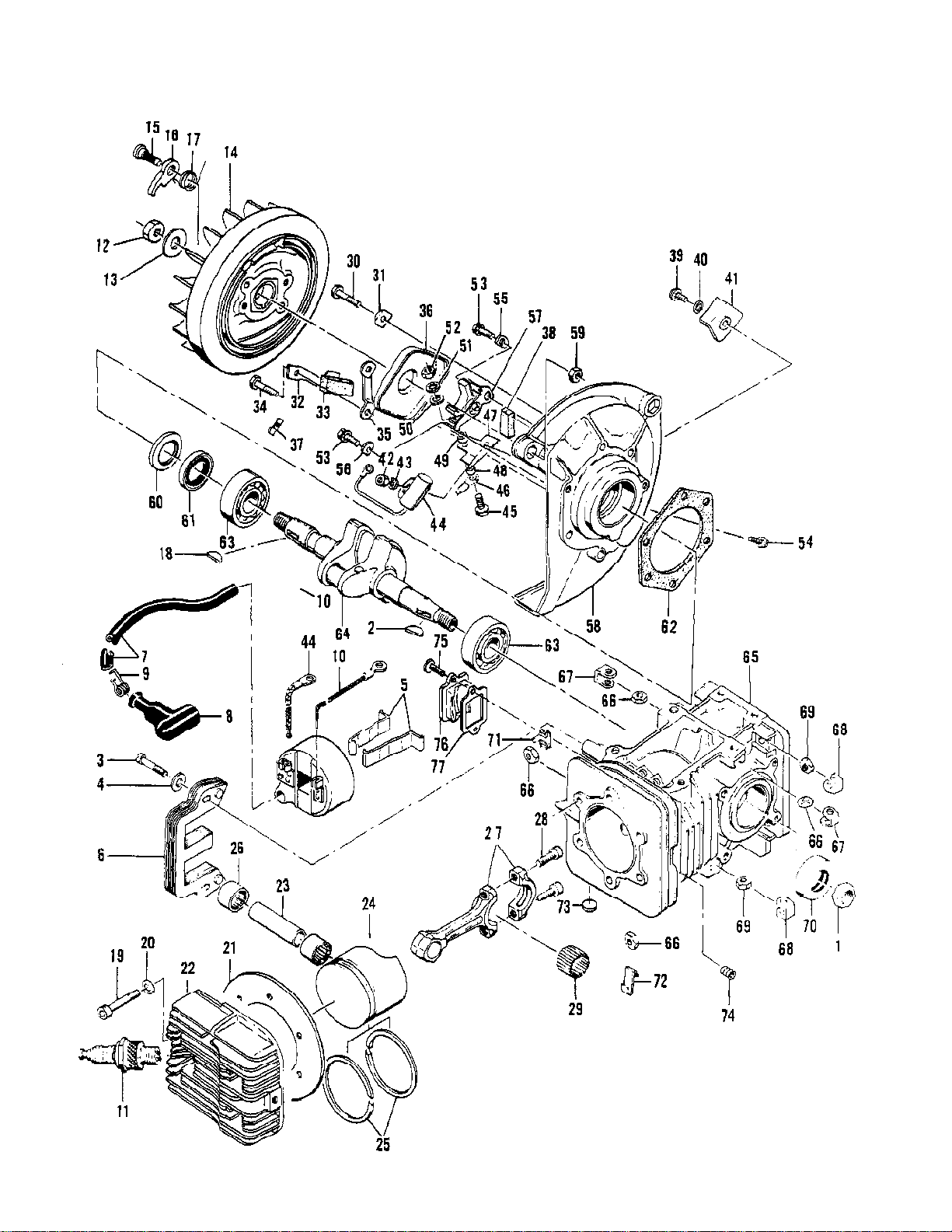

Powerhead Assembly
Ref # Part Number DescriptionQty
1 103746 Nut - Hex 3/8-241
2 103879 Key - Woodruff1
3 104815 Screw - Hex hd 10-24 x 7/8 (SEMS)2
4 100352 Washer - #102
5 51253 Retainer - Coil2
6 51251 Lamination Assy - Coil1
57643A Kit - Coil1
7 50120 Wire Assy - Spark plug1
8 55060 Boot1
9 55061 Connector1
10 101883 Wire Assy - Ground1
11 83563 Spark Plug - 14 mm 0.375 in. reach1
84536 Spark Plug - 14 mm 0.472 in. reach1
12 101179 Nut - Hex 7/16-201
13 101270 Washer - 7/161
14 68281 Flywheel Assy1
68282 Flywheel & Pawl Assy1
15 36144B Pin - Starter pawl2
16 24093 Pawl - Starter2
17 50582 Spring - Pawl2
18 103879 Key - Woodruff1
19 47905 Screw - Skt hd 10-24 x 1-15/326
20 24236 Washer - Special6
21 69760 Gasket - Cylinder head1
66038 Gasket - Cylinder head1
84459 Gasket - Cylinder head (Copper, no hole pattern)1
22 66023 Head - Cylinder1
84309 Head - Cylinder1
23 66034 Pin - Piston1
69408 Pin - Piston1
24 67089 Piston Assy1
84469 Piston Assy1
25 47865 Ring Set - Piston1
26 110107 Bearing - Needle2
104519 Bearing - Needle2
27 66049 Connecting Rod Assy1
69250 Connecting Rod Assy1
28 47819A Screw - Skt hd special2
29 69891 Roller - Needle24
69891 Roller - Needle24
30 102763 Screw - Hex hd 10-24 x 3/42
31 36388 Lockplate1
32 57815 Strap - Seal1
33 50664 Seal - Breaker box drain1
34 102763 Screw - Hex hd 10-24 x 3/44
35 55977 Clip - Breaker box cover2
36 55766B Cover & Gasket Assy - Breaker box1
37 104230 Speednut1
38 54184 Wiper - Felt1
39 110055 Screw - Fil hd 8-32 x 3/8 (SEMS)1
40 100080 Washer - #81
41 57829 Clamp - Ignition wire1
42 100251 Nut - Hex 8-321
43 100057 Lockwasher - #81
44 50074 Condenser1
www.ktoutdoor.com
K&T Saw Shop 606-678-9623 or 606-561-4983
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
www.ktoutdoor.com
11-400170 MC 101 06/69 to 10/71 IPL 84478 Page 11 of 11
Powerhead Assembly
Ref # Part Number DescriptionQty
45 110338 Screw - Hex hd 8-32 x 9/161
46 57766 Wire Assy - Primary1
47 55782A Insulator - Wire1
48 57769 Insulator - Screw1
49 57770A Insulator - Breaker spring1
50 100080 Washer - #81
51 104553 Lockwasher - #81
52 104551 Nut - Hex 8-321
53 104733 Screw - Fil hd 8-32 x 1/2 (SEMS)2
54 103748 Screw - Hex hd 8-32 x 1/21
55 57767A Lockplate1
56 55778E Washer - Breaker retainer1
57 57765B Breaker Assy1
58 47816A Cover Assy - Crankcase1
84193 Cover Assy - Crankcase1
59 101326 Nut - Hex 10-241
60 57898 Seal - Oil1
61 57897 Seal - Oil1
62 51240 Gasket - Cover1
63 66016 Bearing - Ball2
64 69346 Crankshaft1
65 66019 Crankcase Assy1
84534 Crankcase Assy1
66 101326 Nut - Hex 10-248
67 28053 Retainer - Nut2
68 18556A Retainer - Nut6
69 101143 Nut - Hex 1/4-206
70 104432 Seal - Oil1
71 104255 Retainer - Nut2
72 57063 Retainer - Nut4
73 110340 Plug - Expansion3
74 83374 Insert - Taplok2
75 110196 Screw - Pan hd 8-32 x 7/16 s/t1
76 65917 Cover - Boost port1
77 68924 Gasket - Cover1
