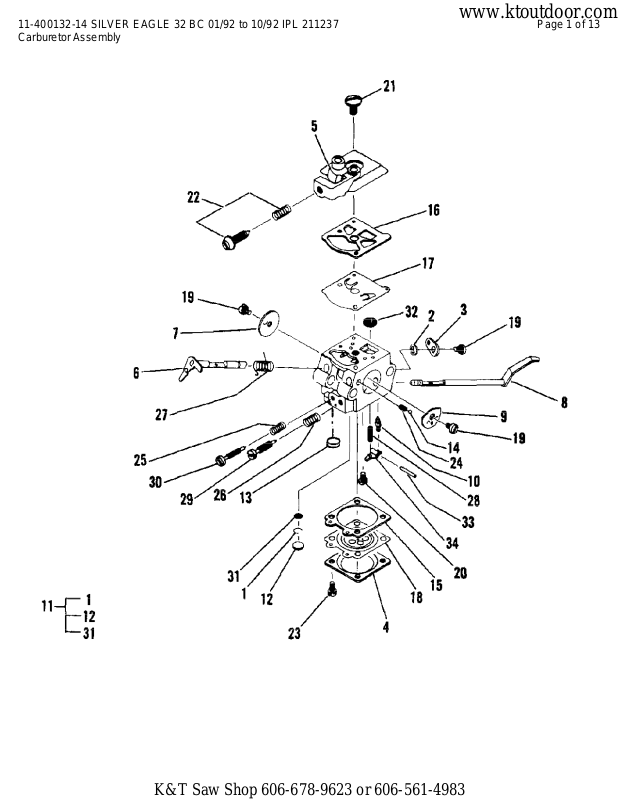

11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 1 of 13
www.ktoutdoor.com

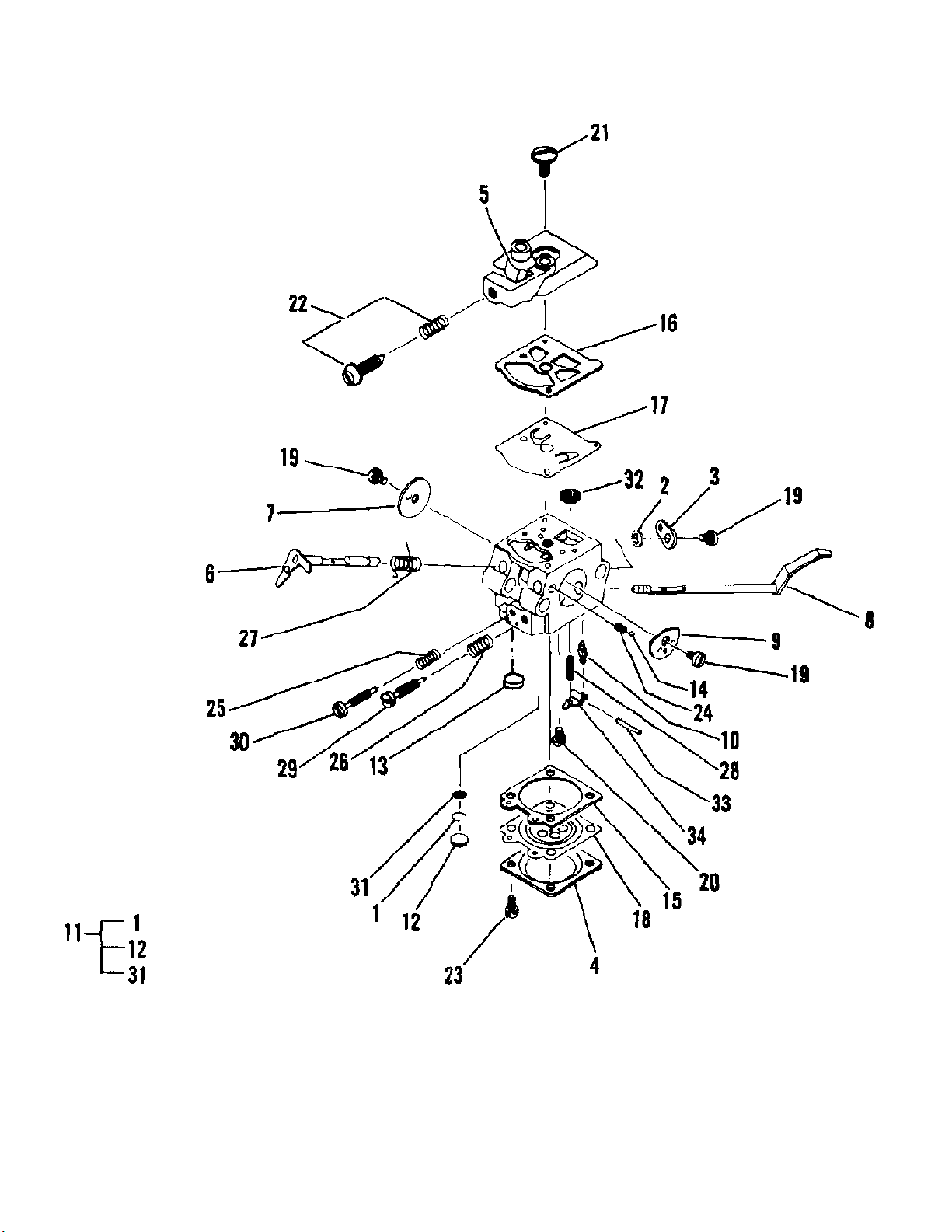

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 2 of 13
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
224033-02 Carburetor w/Choke
Walbro WT-231A
1 Ring, Screen Retainer1
2 Ring, Shaft Retainer1
3 Lever, Throttle1
4 Cover, Metering Lever1
5 Cover, Fuel Pump1
6 Shaft Assembly, Throttle1
7 Valve, Throttle1
8 Shaft Assembly, Choke1
9 Valve, Choke1
10 Valve, Inlet Needle1
11 Seat Assembly, Check Valve1
12 Plug, Cup 5mm1
13 Plug, Welch 5/161
14 Ball, Choke Friction1
15 Gasket, Metering Diaphragm1
16 Gasket, Fuel Pump1
17 Diaphragm, Fuel Pump1
18 Diaphragm Assembly, Metering1
19 Screw, Valve3
20 Screw, Metering Lever Pin1
21 Screw, Pump Cover1
22 Screw, Idle Adjust Kit1
23 Screw, Metering Cover4
24 Spring, Choke Friction1
25 Spring, Idle Needle1
26 Spring, High Speed Needle1
27 Spring, Throttle Return1
28 Spring, Metering Lever1
29 Needle, High Speed1
30 Needle, Idle1
31 Screen, Check Valve1
32 Screen, Fuel Inlet1
33 Pin, Metering Lever1
34 Lever, Metering1
300457 Kit, Carburetor Repair
224460 Kit, Gasket / Diaphragm
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 3 of 13
www.ktoutdoor.com

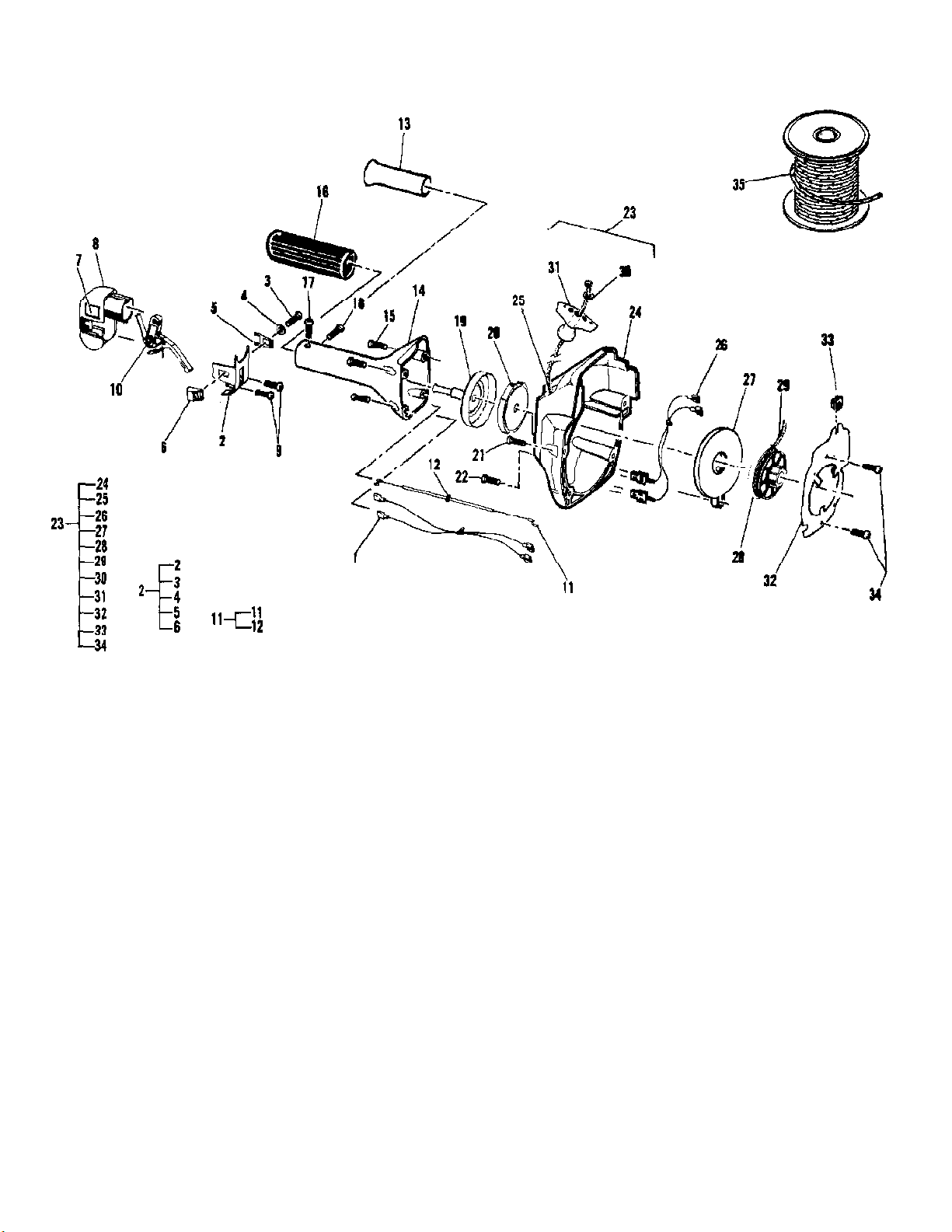

Clutch/Starter Housing Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 4 of 13
www.ktoutdoor.com
Clutch/Starter Housing Assembly
Ref # Part Number DescriptionQty
1 224204 Wire Assembly, Switch1
2 300064 Cover Assembly, Switch1
3 111069 Screw, 8-16 x .3751
4 105497 Washer, Flat (.180 IDmax)1
5 224246 Contact, Switch1
6 224245 Button, Stop Switch1
7 322081 Label, ON/OFF Switch1
8 224234 Trigger Housing Assembly1
9 111061 Screw, 6-19 x .622
10 300361 Trigger, Throttle1
11 300372 Throttle Cable Assembly1
12 111074 Nut, Speed .188 ID1
13 322234 Sleeve, Protecting1
14 224912 Housing, Clutch (Yellow)1
300014 Housing, Clutch (Grey)1
15 224919 Screw, 10-14 x 1.04
16 322140 Grip1
17 111070 Screw, 12-11 x .5 Torx (top)1
18 111059 Screw, 10-14 x .5 Torx1
19 224045 Drum Assembly, Clutch1
20 300459 Kit, Clutch1
21 111053 Screw, 10-24 x .884
22 223357 Screw, 8-161
23 224916 Starter Housing Assembly (Yel)1
24 300616 Housing / Guide, Rope (Yel)1
300013 Starter Housing Assembly (Grey)
300618 Housing / Guide, Rope (Grey)1
25 Guide, Rope Not available separately.1
26 300369 Wire Assembly1
27 300475 Package, Spring / Starter Rwnd1
28 219496 Pulley, Starter1
29 222869 Rope, Starter (46")1
30 218941 Washer, Nylon1
31 216792 Handle, Starter1
32 224927 Plate, Baffle1
33 215533-01 Grommet, H/T Lead1
34 223357 Screw, 8-162
35 300415 Rope, Bulk 250' Spool
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 5 of 13
www.ktoutdoor.com

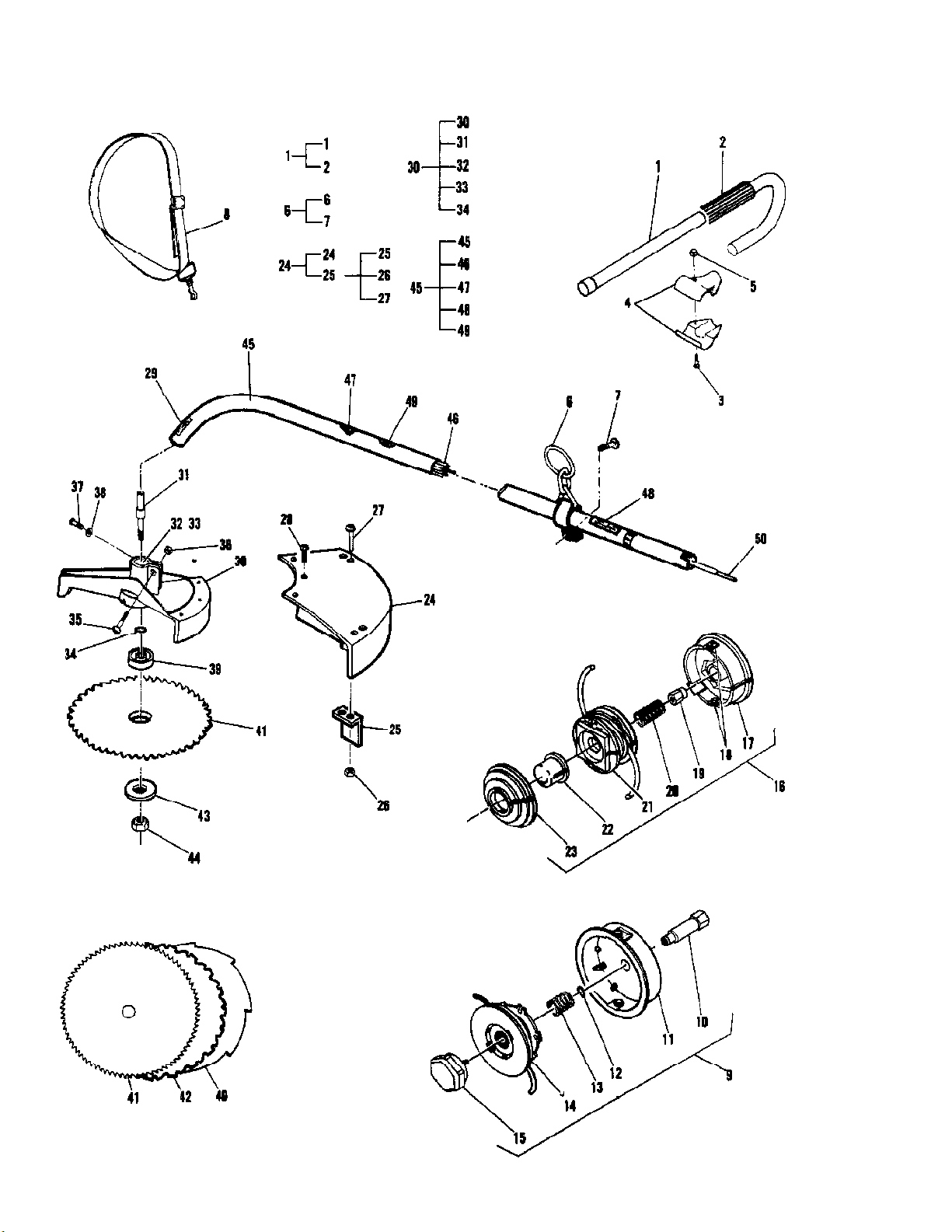

Shaft/Shield/Handle and Cutter Assemblies
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 6 of 13
www.ktoutdoor.com
Shaft/Shield/Handle and Cutter Assemblies
Ref # Part Number DescriptionQty
1 300541 Handle Assembly, Barrier1
2 322139 Grip1
3 217935 Screw, 10-24 x .50 Torx2
4 215337 Clamp, Handle2
5 218315 Nut2
6 218001 Ring Assembly, Harness1
7 Bolt M5 x 13 Hex Not available separately.1
8 224083 Harness1
9 225196 String Head Asy (Mc-M R/T)1
10 225193 Stud, Right Hand Thread1
11 300115 Housing / Eyelet Assembly1
12 111073 Ring, Retainer1
13 225206 Spring, Small1
14 322112 Spool Assembly, R/T 0.095"1
15 300002 Knob Assembly, R/T1
16 322123 String Head Assembly (M R/T)1
17 322124 Housing1
18 219759 Eyelet2
19 224907 Arbor, 3/8 x 24 R/H FEMALE1
20 223740 Spring1
21 224289 Spool w/Line1
22 224910 Button1
23 322125 Cover1
24 300318 Kit, Grass Shield (un-assem.)1
25 300628 Kit, Knife1
26 216682 Nut, Lock 10 24 Hex2
27 217936 Screw, 10-24 x .50 Torx2
28 224175 Screw, M6 x 153
29 322099 Label, Debris Shield Warning1
30 300388 Shield Assembly1
31 224081 Spindle1
32 224159 Washer, Flat1
33 217133 Bearing, Ball2
34 224158 Clip1
35 110588 Screw, 12-24 x 1.12 Hex1
36 110950 Nut, Lock 72-241
37 215874 Screw, M4 x 9.5 Torx1
38 217672 Washer, M4 Flat1
39 224154 Collar1
40 216513-02 Blade, Grass 08 Tooth1
41 216514-02 Blade, Brush, 80 Tooth1
42 224455 Pro Blade1
43 218075 Flange, Spindle1
44 110594 Nut, Lock 3/8-241
45 300430 Housing Assembly, Outer1
46 322281 Sleeve1
47 223408 Decal, Warning Shaft1
48 219030 Decal, Warning1
49 223407 Decal, Ear / Eye Cover1
50 322023 Shaft, Flex1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 7 of 13
www.ktoutdoor.com

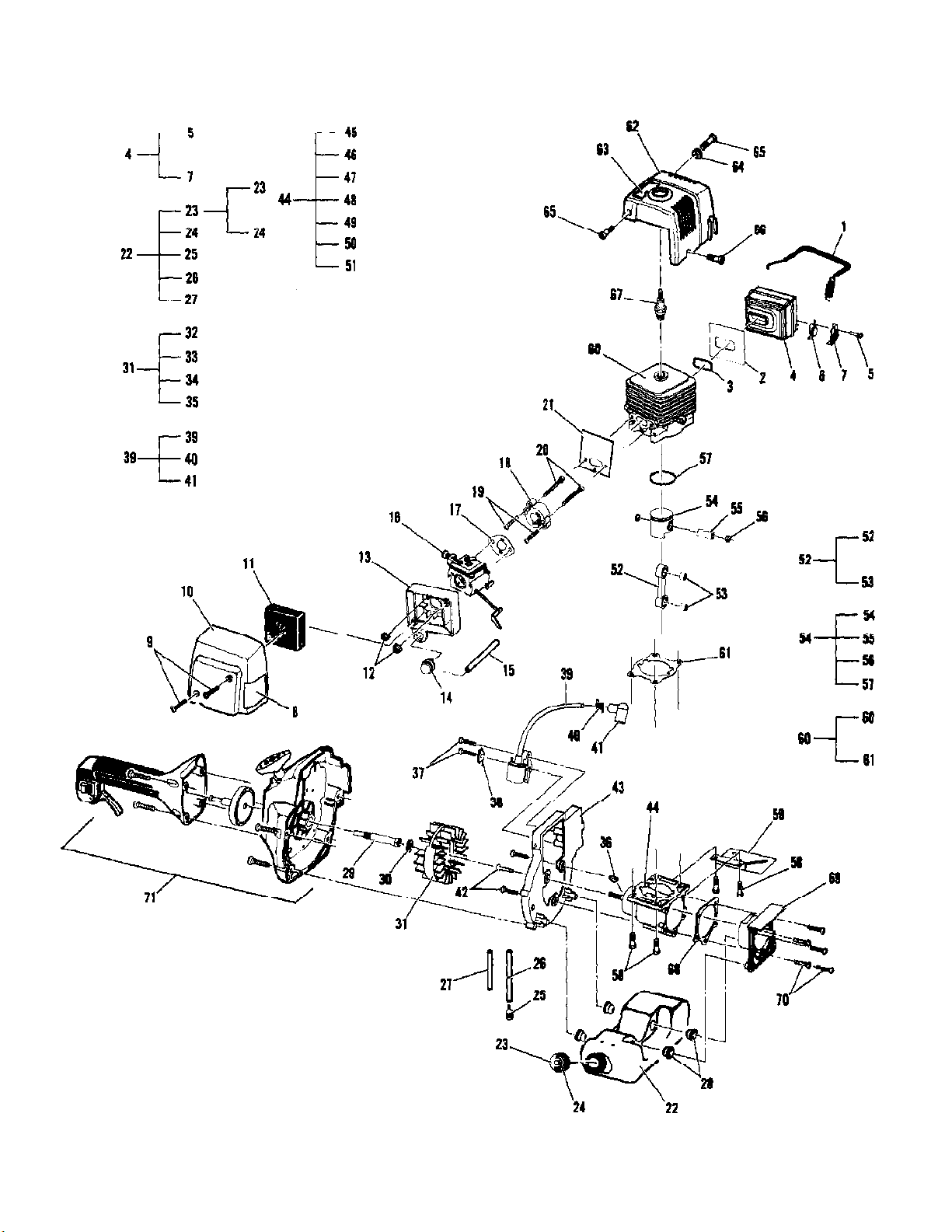

Powerhead/Engine Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 8 of 13
www.ktoutdoor.com
Powerhead/Engine Assembly
Ref # Part Number DescriptionQty
1 224044 Spring, Muffler1
2 224228 Gasket, Muffler1
3 224922 Gasket, Exhaust Port1
4 224034 Muffler Assembly1
5 111072 Screw, 8-18 x .31 PN HD Torx1
6 224040 Screen, Spark Arrestor1
7 322032 Cover, Spark Arrestor1
8 322101 Label, Choke1
9 111065 Screw, 10-14 x .6252
10 224236 Cover, Air Cleaner - Large (Blk)1
300302 Cover, Air Cleaner - Large (Grey)1
11 224239 Filter, Air1
12 111058 Nut, 10-24 Flange / Hex2
13 224238 Box, Air (Blk)1
300301 Box, Air (Grey)1
14 224242-02 Primer, Remote1
15 225163 Hose, Fuel1
16 Carburetor w/Choke See "Carburetor Assembly"
1
illustration and parts list.
17 218933 Gasket, Carburetor1
18 224041 Manifold, Carburetor1
19 111053 Screw, 10-24 x .882
20 111057 Screw, 10-24 SPL2
21 322081 Gasket, Manifold1
22 300669 Kit, Fuel Tank/Cap1
23 300700 Kit, Fuel Cap1
24 211242 Decal (OPEN SLOWLY)1
25 218985 Pickup, Fuel1
26 225162 Hose, Fuel1
27 225163 Hose, Fuel Return1
28 322105 Isolator, Fuel Tank4
29 224025 Adapter, Clutch1
30 105989 Washer, .32 ID1
31 224021 Flywheel / Pawl Assembly1
32 Pin, Starter Pawl2
33 Pawl2
34 Spring, Starter Pawl2
35 Washer, Starter Pawl2
36 102164 Key, Flywheel1
37 111053 Screw, 10-24 x .882
38 300321 Terminal Tab1
39 300519 Ignition Assembly1
40 102556 Connector, Spark1
41 95266 Boot, Spark Plug1
42 111054 Screw, 10-24 x .6253
43 224042 Shroud, Engine Machined1
44 224020 Crankcase / Shaft Assembly1
45 Crankshaft Assembly1
46 Crankcase, Machined1
47 Bearing 62021
48 Bearing 6202RS1
49 Seal1
50 Spacer1
51 O-Ring1
52 224009 Connecting Rod Assembly1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 9 of 13
www.ktoutdoor.com
Powerhead/Engine Assembly
Ref # Part Number DescriptionQty
53 91117 Bearing2
54 300661 Kit, Piston, 28cc Aluminum1
55 300482 Pin, Piston (10mm dia)1
56 215876 Ring, Retaining2
57 224224 Ring, Piston 35mm1
300663 Kit, Piston, 32cc Aluminum1
300482 Pin, Piston (10mm dia) See "Carburetor Assembly"
215876 Ring, Retaining2
224217 Ring, Piston 38mm1
58 111065 Screw, 10-24 x .6884
59 322030 Shield, Muffler1
60 300452 Kit, Cylinder 28cc Chrome1
61 224022 Gasket, Cylinder1
300453 Kit, Cylinder 32cc Chrome1
224022 Gasket, Cylinder1
62 224236 Cover, Cylinder / Muffler (Blk)1
300304 Cover, Cylinder / Muffler (Grey)1
63 322097 Label, Start Instructions1
64 322210 Washer, Plastic1
65 111067 Screw, 10-24 x .63 Torx2
66 111068 Screw, 10-14 x 1.38 Taptite1
67 62345 Spark Plug DJSJ1
68 224023 Gasket, Crankcase1
69 224024 Plug, Crankcase1
70 111065 Screw, 10-24 x .6885
71 Clutch / Starter Assemblies See "Clutch/Starter
1
illustration and parts list.
Housing Assembly" illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 10 of 13
www.ktoutdoor.com
Loctite Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 11 of 13
www.ktoutdoor.com
Loctite Kit
Ref # Part Number DescriptionQty
322235 LOCTITE KIT
322236 RETAINING COMPOUND 620 (10 ml)
322237 THREAD LOCKER 242 (10 ml)
322238 GASKET ELIMINATOR 518 (50 ml)
322239 BLACK MAX ADHESIVE 380 (01 oz)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 12 of 13
www.ktoutdoor.com
Service Tools
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400132-14 SILVER EAGLE 32 BC 01/92 to 10/92 IPL 211237 Page 13 of 13
www.ktoutdoor.com
Service Tools
Ref # Part Number DescriptionQty
215432 PRESSURE TEST TOOL
217720 KIT, TORX WRENCHES
222785 T-25 TORX DRIVE
