11-400176D 795L POWER UNIT IPL 89677 Page 1 of 17
www.ktoutdoor.com
Accessories
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400176D 795L POWER UNIT IPL 89677 Page 2 of 17
www.ktoutdoor.com
Accessories
Ref # Part Number DescriptionQty
63097 Spark Plug (Standard)
63432 Spark Plug (Cooler)
86419 Guide - Timing
84688 Kit - Spark arrester baffle (For Muffler Kit P/N 85205)
64797 Wrench - Spark plug
101522 Wrench - Muffler
90716 Valve - Muffler
62884 Piston Asy - 0.030 in. oversize Wide Ring
62423 Ring Set - 0.030 in. oversize Wide Ring
62877 Piston Asy - Standard size Thin Ring
58353 Ring Set - Standard size Thin Ring
62878 Piston Asy - 0.010 in. oversize Thin Ring
58394 Ring Set - 0.010 in. oversize Thin Ring
62879 Piston Asy - 0.020 in. oversize Thin Ring
58354 Ring Set - 0.020 in. oversize Thin Ring
62880 Piston Asy - 0.030 in. oversize Thin Ring
58395 Ring Set - 0.030 in. oversize Thin Ring
85205 Muffler Kit
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400176D 795L POWER UNIT IPL 89677 Page 3 of 17
www.ktoutdoor.com

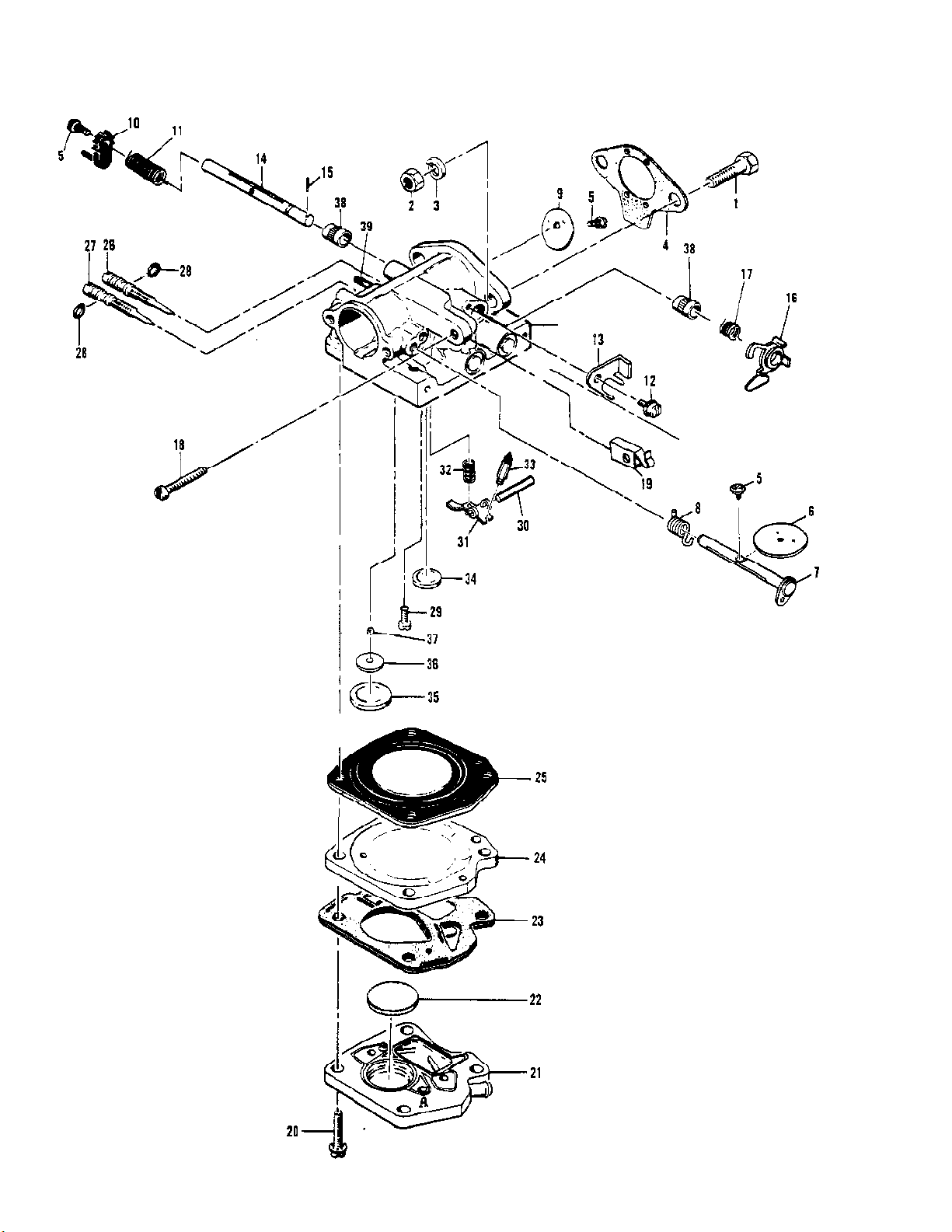

Carburetor Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400176D 795L POWER UNIT IPL 89677 Page 4 of 17
www.ktoutdoor.com
Carburetor Assembly
Ref # Part Number DescriptionQty
1 100882 Screw - Hx hd 1/4-20 x 3/42
2 103242 Nut - Hx 1/4-202
3 100005 Washer - 1/42
4 65586 Gasket - Carburetor1
87294 Carburetor Asy1
5 104814 Screw - Pan hd 4-40 x 1/43
6 55085 Plate - Choke1
7 84073 Shaft Asy - Choke1
8 55089 Spring - Choke shaft1
9 61360 Plate - Throttle1
10 61901 Arm - Throttle shaft1
11 61895 Spring - Idle governor1
12 110055 Screw - Fil hd 8-32 x 3/81
13 61891 Clip - Shaft1
14 61920 Shaft and Pin Asy1
15 110301 Pin - Groove1
16 61894A Cam Asy1
17 61906 Spring - Cam1
18 62910 Screw - Idle speed1
19 61108 Guide - Throttle rod1
20 104520 Screw - Pan hd 10-24 x 7/84
21 69169 Body - Fuel pump1
22 48911 Filter - Fuel1
23 57274B Diaphragm Asy - Pump1
24 48901 Plate - Diaphragm1
25 55067C Diaphragm - Carburetor1
26 87167 Needle - Idle adjustment1
27 53311 Needle - Main adjustment1
28 104001 "O" Ring2
29 104164 Screw - Pan hd 4-40 x 1/41
30 104305 Pin - Lever1
31 84317 Lever - Inlet1
32 57172 Spring - Lever1
33 83753 Needle - Inlet1
34 110179 Plug - Expansion 1/2 in.1
35 104407 Plug - Expansion 1 in.1
61155 Set - Ball & Seat1
36 61152 Seat1
37 61151 Ball1
38 55062A Bushing - Shaft2
39 47523 Tube - Collector hose1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400176D 795L POWER UNIT IPL 89677 Page 5 of 17
www.ktoutdoor.com

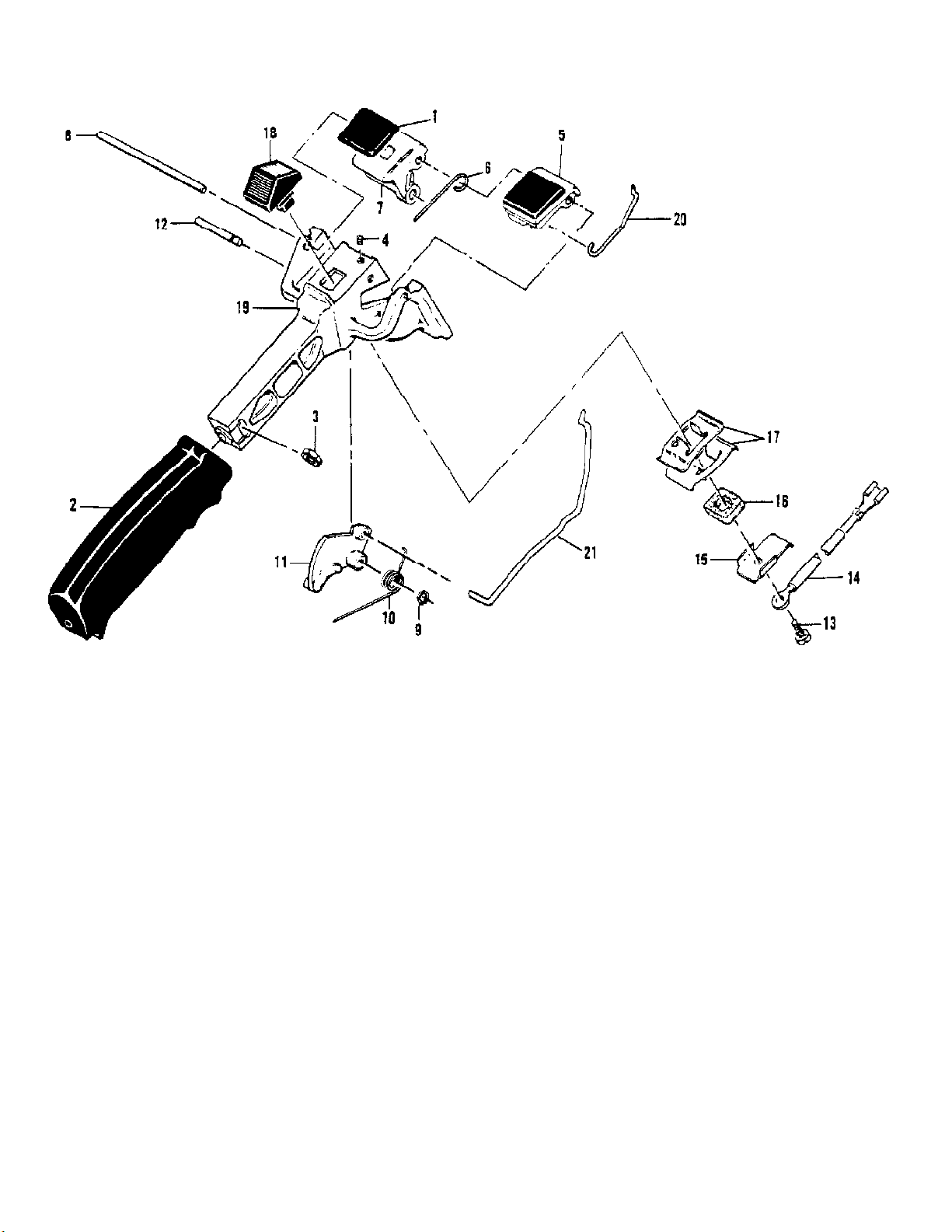

Handle & Control Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400176D 795L POWER UNIT IPL 89677 Page 6 of 17
www.ktoutdoor.com
Handle & Control Assembly
Ref # Part Number DescriptionQty
1 55670 Grommet2
89632 Handle & Control Asy1
64860 Handle & Control Asy1
2 55624A Grip - Handle1
3 101326 Nut - Hx 10-241
4 104484 Screw - Set 8-32 x 1/41
5 89635 Button - Choke1
5 89377 Button - Choke1
6 85573 Retainer - Oiler button1
7 89634 Button - Oiler control1
7 89378 Button - Oiler control1
8 51344A Shaft - Choke & Oiler buttons1
9 104501 Retainer - Trigger pin1
10 55674 Spring - Trigger pin1
11 63663 Trigger1
12 50507 Pin - Trigger1
13 110706 Screw - Fil hd 8-32 x 1/2 (SEMS)1
14 83661 Wire Asy - Stop switch1
15 51279 Contact - Switch1
16 51555 Insulator - Switch1
17 51554A Detent - Switch2
18 57718 Button - Switch1
19 55986 Handle1
20 84319 Pushrod - Choke1
21 61907 Pushrod - Throttle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400176D 795L POWER UNIT IPL 89677 Page 7 of 17
www.ktoutdoor.com

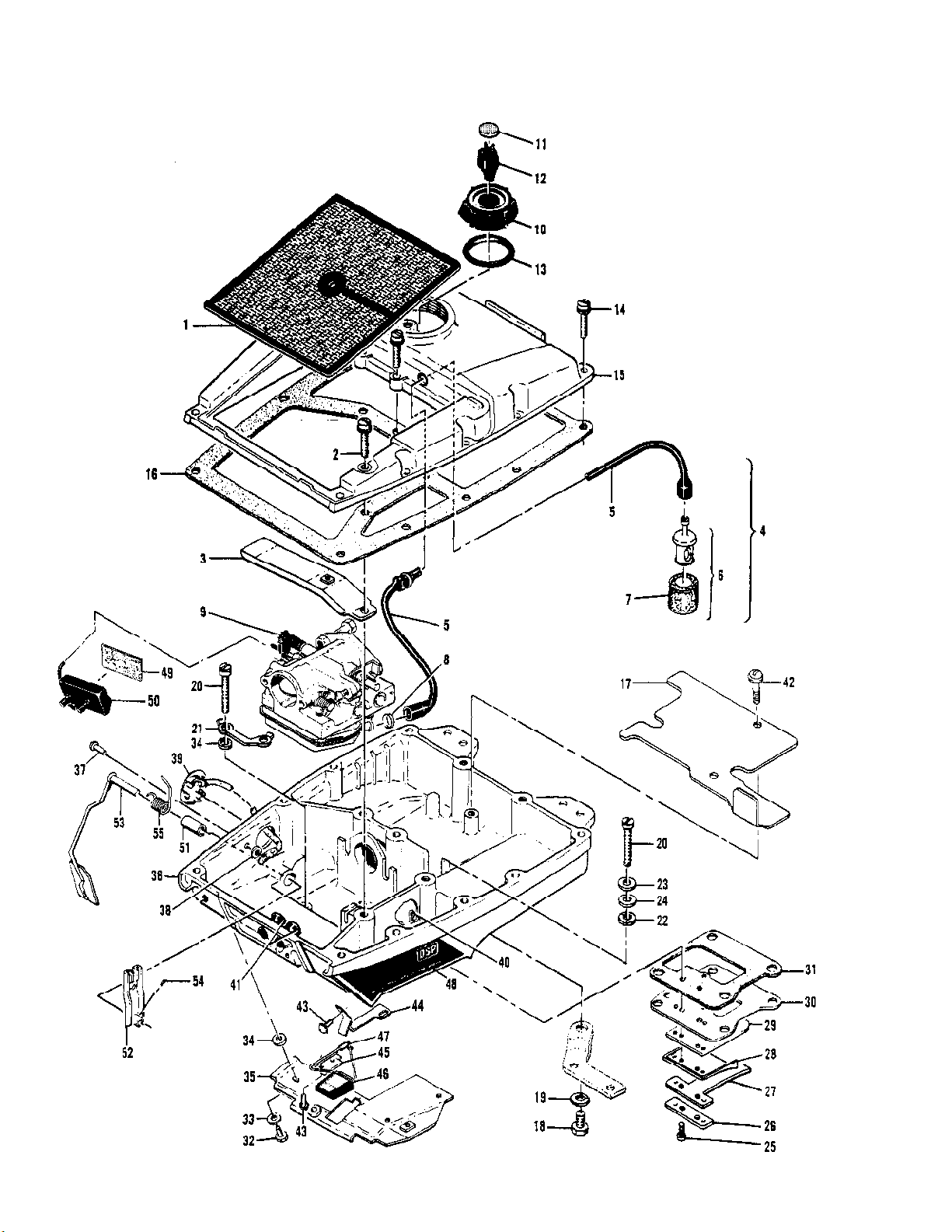

Fuel System
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400176D 795L POWER UNIT IPL 89677 Page 8 of 17
www.ktoutdoor.com
Fuel System
Ref # Part Number DescriptionQty
1 55498 Screen Asy - Air cleaner1
2 104396 Screw - Pan hd 10-24 x 3/41
3 55634 Anchor Asy1
4 63831 Hose Asy - Fuel1
5 63669 Hose - Fuel1
6 53679B Pickup Asy - Fuel1
7 61159 Filter - Fuel pickup1
8 91068 Clamp - Hose1
9 Carburetor Asy See "Carburetor Assembly"
illustration and parts list.
10 55934B Cap Asy - Fuel1
11 55063 Filter - Fuel cap1
12 53766A Valve - Fuel cap1
13 101348 "O" Ring1
14 104396 Screw - Pan hd 10-24 x 3/414
15 89636 Cover - Fuel tank1
15 89687 Cover - Fuel tank1
16 65632 Gasket - Fuel tank1
17 63650 Liner - Fuel tank1
18 102151 Screw - Hx hd 1/4-20 x 1/21
19 105043 Washer - Lock1
20 55948A Screw - Hx hd 10-24 x 1-1/84
21 68654 Plate - Lock1
22 68203 Washer - Insulating4
23 102189 Washer - #102
24 103744 Washer - Sealing2
25 103740 Screw - Hx hd 8-32 x 5/82
26 51480 Plate - Lock1
27 57658A Clamp - Reed1
28 66274 Deflector - Fuel1
29 48593 Valve - Reed1
30 53685C Plate - Reed1
31 65657 Gasket - Fuel tank1
32 102388 Screw - Hx hd 10-24 x 5/83
33 102189 Washer - #103
34 68203 Washer - Insulating2
35 63652 Shroud Asy - Cylinder1
36 89627 Bottom Asy - Fuel tank1
36 63873 Bottom Asy - Fuel tank1
37 104504 Rivet1
38 101871 Washer - 1/81
39 51396A Cover Asy - Adjustment hole1
40 104310 Pin - Cotter1
41 68258 Grommet2
42 110054 Screw - Pan hd 6-32 x 3/8 (SEMS)2
43 105249 Screw - 8 - 32 x 3/8 (SEMS)3
44 64582 Retainer - Lever1
45 63619 Plate - Lever retainer1
46 63914A Lever Asy - Compression release1
47 63827 Spring - Lever1
48 66269 Emblem - Fuel tank (DSP)1
49 58865 Absorber1
50 63651 Collector1
51 103708 Bushing1
52 61754 Lever Asy - Governing arm1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400176D 795L POWER UNIT IPL 89677 Page 9 of 17
www.ktoutdoor.com
Fuel System
Ref # Part Number DescriptionQty
53 55958 Arm Asy - Governing1
54 104154 Screw - Skt hd 8-32 x 1/41
55 61757 Spring - Governing1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400176D 795L POWER UNIT IPL 89677 Page 10 of 17
www.ktoutdoor.com

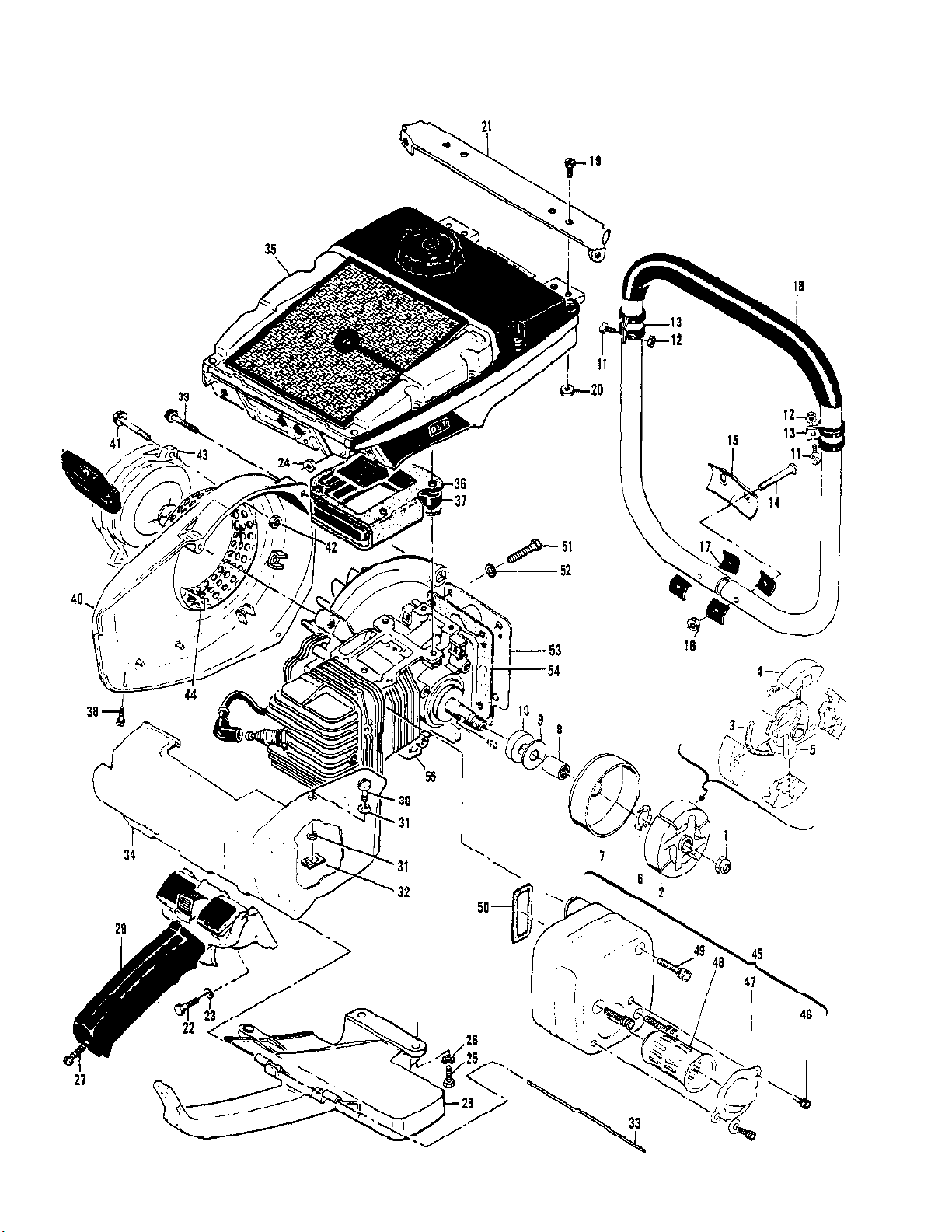

General
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400176D 795L POWER UNIT IPL 89677 Page 11 of 17
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
1 86113 Nut-Hx 3/8-24 Left hand1
2 89227 Clutch Asy1
3 85042 Spring-Clutch1
4 51464A Shoe-Clutch4
5 89226 Rotor Asy-Clutch1
6 103718 Spring - Thrust1
7 Drum-Clutch1
8 Bearing1
9 51420 Washer1
10 57785A Seal-Felt1
11 102761 Screw-Hx hd 10-24 x 7/82
12 105367 Nut-Hx 10-242
13 103923 Clamp-Frame2
14 102125 Screw-Hx hd 1/4-20 x 1-3/42
15 51362 Clamp-Frame1
16 105394 Nut-Hx 1/4-202
17 50062 Insulator-Frame4
18 60231A Frame & Grip Asy1
19 104393 Screw-Pan hd 10-24 x 3/84
20 101326 Nut-Hx 10-244
21 83363 Brace-Frame1
22 102761 Screw-Hx hd 10-24 x 7/82
23 102189 Washer-#102
24 102067 Nut-Hx 10-242
25 102121 Screw-Hx hd 1/4-20 x 7/82
26 100005 Washer-1/42
27 104397 Screw-Pan hd 10-24 x 7/81
28 89630 Brace-Handle1
28 57872 Brace-Handle1
29 Handle & Control Asy See "Handle & Control
Assembly" illustration and parts list.
30 51351 Screw-Special1
31 100005 Washer-1/42
32 103741 Retainer1
33 55885 Pin-Shroud1
34 89629 Shroud Asy1
34 66259 Shroud Asy1
35 Fuel System See "Fuel System" illustration and parts
list.
36 65625 Gasket-Fuel tank insulator1
37 53684A Insulator-Fuel tank1
38 102500 Screw-Pan hd 10-24 x 1/21
39 110910 Screw-Hx hd 10-24 x 1-3/83
40 89619 Housing - Fan1
40 89241 Housing - Fan1
41 110911 Screw-Hx hd 10-24 x 7/83
42 101326 Nut-Hx 10-243
43 Starter Asy See "Starter Assembly" illustration and
parts list.
44 84629 Guard-Sawdust1
45 84205 Muffler Asy1
46 110664 Screw-Skt hd 10-24 x 3/82
47 84203 Deflector1
48 84690 Baffle1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400176D 795L POWER UNIT IPL 89677 Page 12 of 17
www.ktoutdoor.com
General
Ref # Part Number DescriptionQty
49 110713 Screw-Skt hd 10-24 x 7/83
50 83379 Gasket-Muffler1
51 101982 Screw-Hx hd 1/4-20 x 14
52 100311 Washer4
53 89622 Cover-Crankcase bottom1
53 67254 Cover-Crankcase bottom1
54 65654 Gasket-Bottom cover1
55 Powerhead Asy See "Powerhead Assembly"
illustration and parts list.
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400176D 795L POWER UNIT IPL 89677 Page 13 of 17
www.ktoutdoor.com

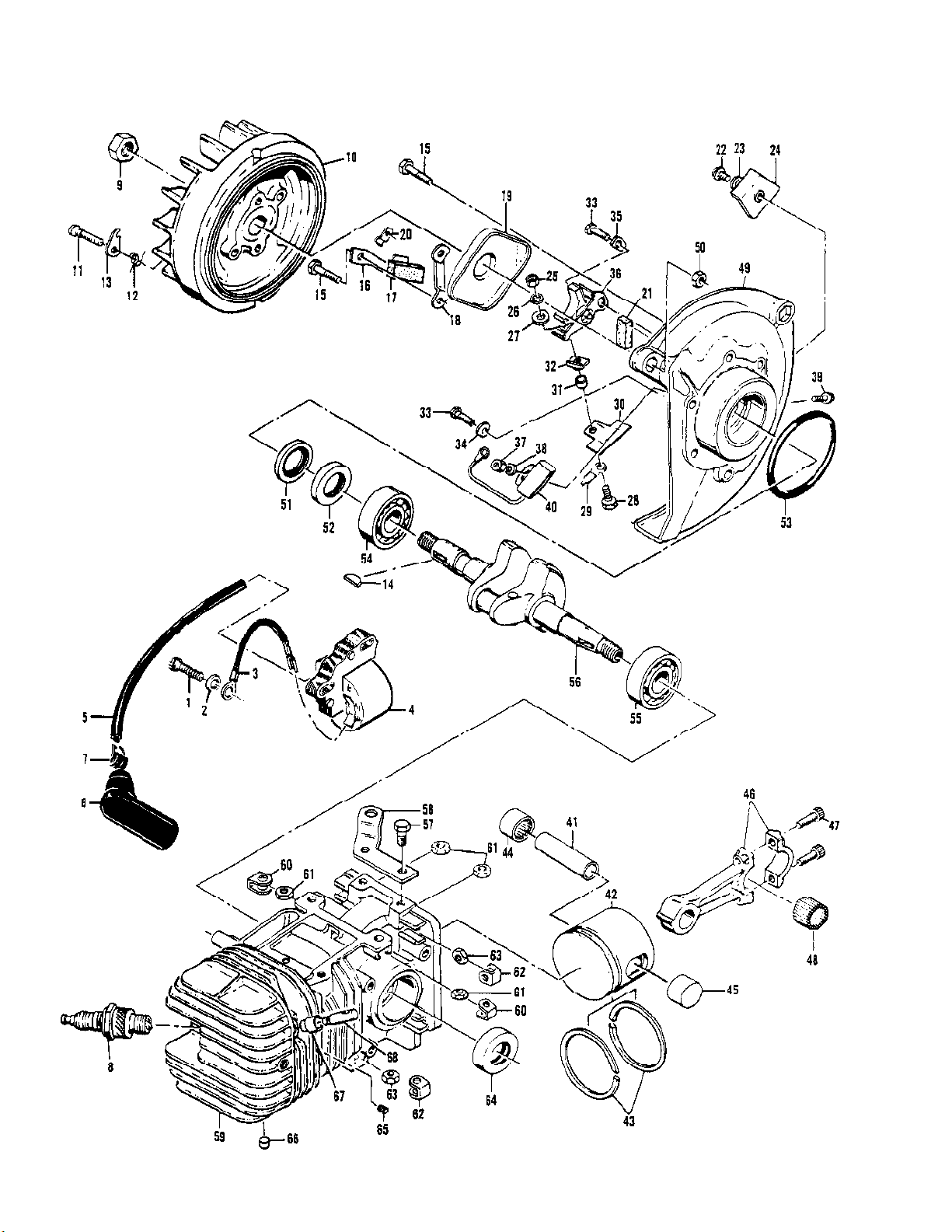

Powerhead Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400176D 795L POWER UNIT IPL 89677 Page 14 of 17
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
1 110887 Screw-Hx hd 10-24 x 12
2 100352 Washer - #102
3 63639 Wire Asy-Ground1
4 85243 Coil & Lamination Asy1
5 50120 Wire Asy-Spark plug1
6 55060 Boot1
7 55061 Connector1
8 63097 Spark Plug1
9 110655 Nut-Flange 7/16-201
10 68282 Flywheel & Pawl Asy1
11 36144B Pin - Starter pawl2
12 66351 Spring-Pawl2
13 24093 Pawl-Starter9
14 100106 Key-Woodruff1
15 110866 Screw-Hx hd 10-24 x 3/46
16 57815 Strap-Seal1
17 50664 Seal-Breaker box drain1
18 55977 Clip - Breaker box cover2
19 55766B Cover-Breaker box1
20 104230 Speednut1
21 54184 Wiper - Felt1
22 110055 Screw-Fil hd 8-32 x 3/8 (SEMS)1
23 100080 Washer-#81
24 57829 Clamp - Ignition wire1
25 104551 Nut-Hx 8-321
26 104553 Washer-#8 Lock1
27 100080 Washer-#81
28 110338 Screw-Hx hd 8-32 x 9/161
29 63628 Wire Asy-Primary1
30 55782A Insulator1
31 57769 Insulator-Ignition screw1
32 57770A Insulator-Breaker spring1
33 104733 Screw-Fil hd 8-32 x 1/2 (SEMS)2
34 57767A Plate - Lock1
35 55778E Washer - Breaker retainer1
36 88807 Breaker Asy1
37 100251 Nut-Hx 8-321
38 100057 Washer - #8 Lock1
39 103748 Screw - Hx hd 8-32 x 1/21
40 85358 Condenser1
41 69408 Pin-Piston1
42 62883 Piston Asy1
43 62422 Ring Set-Piston1
44 104519 Bearing - Needle1
45 62868 Bearing - Needle (closed end)1
46 47903 Connecting Rod Asy1
47 60210A Screw - Special2
48 69891 Roller - Needle24
49 84193 Crankcase Cover Asy1
50 101326 Nut - Hx 10-243
51 57897 Seal - Oil1
52 57898 Seal - Oil1
53 104523 "O" Ring1
54 100824 Bearing - Ball1
55 104490 Bearing - Ball1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 15
11-400176D 795L POWER UNIT IPL 89677 Page 15 of 17
www.ktoutdoor.com
Powerhead Assembly
Ref # Part Number DescriptionQty
56 58128 Crankshaft1
57 102762 Screw-Hx hd 10-24 x 1/22
58 53271 Bracket-Fuel tank mounting1
59 87273 Cyl/C'case Asy1
60 28053 Retainer - Nut2
61 101326 Nut - Hx 10-244
62 18556A Retainer - Nut6
63 105394 Nut - Hx 1/4-206
64 57732 Seal - Oil1
65 83374 Insert - Taplok2
66 110685 Plug - Cup3
67 86280 Body - DSP Valve1
68 86295 Valve - DSP1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 16
11-400176D 795L POWER UNIT IPL 89677 Page 16 of 17
www.ktoutdoor.com

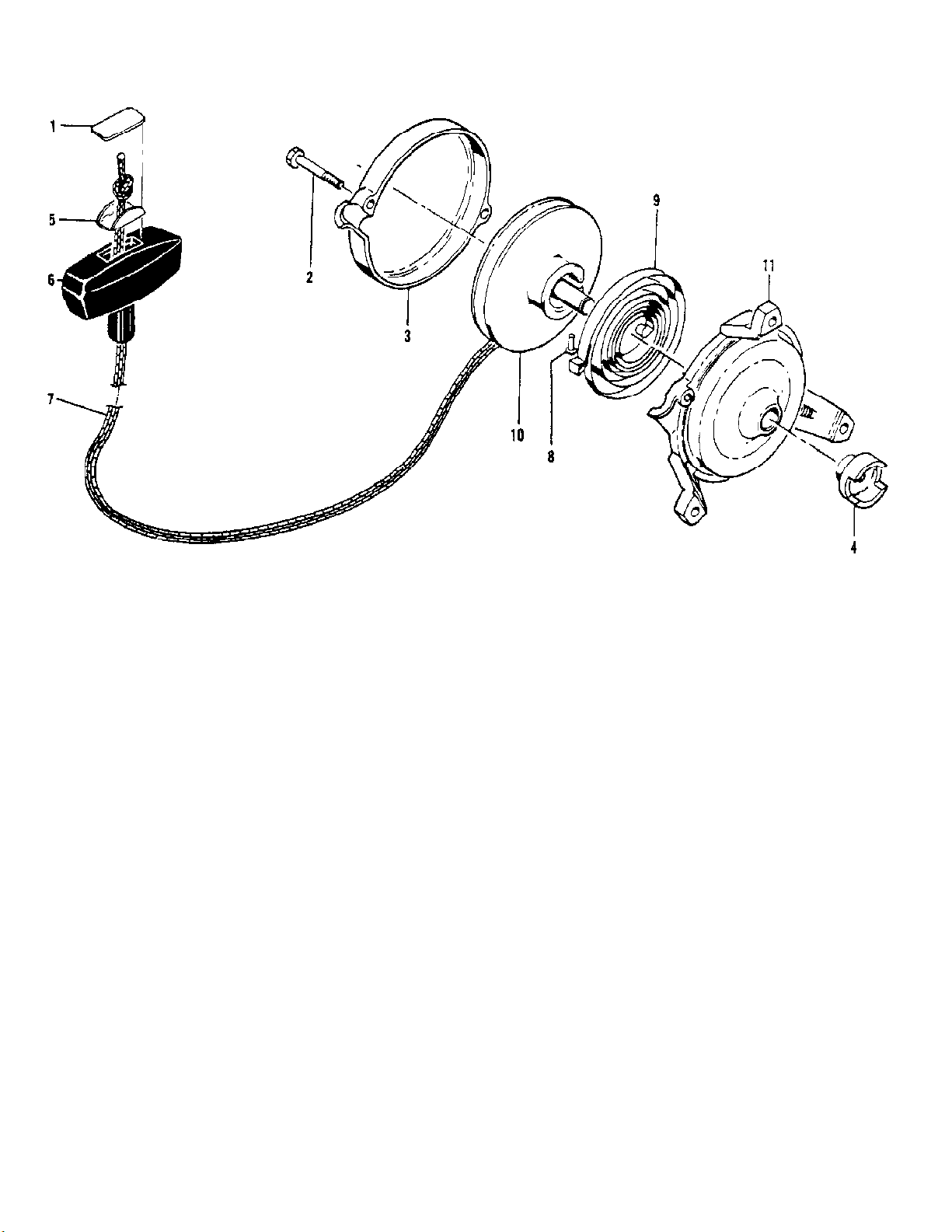

Starter Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 17
11-400176D 795L POWER UNIT IPL 89677 Page 17 of 17
www.ktoutdoor.com
Starter Assembly
Ref # Part Number DescriptionQty
89606 Starter Asy1
84211 Starter Asy1
1 57232 Plate - Starter handle1
2 104396 Screw - Pan hd 10-24 x 3/42
3 60647 Cover - Starter1
4 57790 Ratchet - Starter1
5 57231 Cup - Starter handle1
6 57230 Handle - Starter1
7 28716 Rope - Starter1
8 101136 Rivet1
9 51665 Spring - Rewind1
10 57792 Drum - Starter1
11 84212 Base - Starter1
K&T Saw Shop 606-678-9623 or 606-561-4983
Loading...
