OKI C801, C810, C830 User Guide

C800 Series

User’s Guide

C801

C810

C821

C830

PREFACE

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer.

While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or completeness of the information contained herein.

The most up-to-date drivers and manuals are available from: http://www.okiprintingsolutions.com

07094301 Iss. 2; Copyright © 2010. All rights reserved.

Oki is a registered trademark of Oki Electric Industry Company, Ltd. Oki Printing Solutions is a trademark of Oki Data Corporation.

Energy Star is a trademark of the United States Environmental Protection Agency. Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corporation. Apple, Macintosh, Mac and Mac OS are trademarks of Apple Inc.

Other product names and brand names are registered trademarks or trademarks of their proprietors.

As an Energy Star Program Participant, the manufacturer has determined that this product meets the Energy Star guidelines for energy efficiency.

This product complies with the requirements of the Council Directives 2004/ 108/EC (EMC), 2006/95/EC (LVD), 1999/5/EC (R&TTE) and 2009/125/EC (EuP) as amended where applicable, on the approximation of the laws of the member states relating to electromagnetic compatibility, low voltage, radio & telecommunications terminal equipment and energy using products.

The following cables were used to evaluate this product to achieve EMC directive 2004/108/EC compliance and configurations other than this may affect that compliance.

CABLE TYPE	LENGTH	CORE	SHIELD
	(METRE)
Power	2.0
USB	5.0
LAN	15.0
Parallel	1.8

Please note that Microsoft Windows XP was used to produce all screenshots in this manual. These screenshots may vary if you are using any other operating system, but the principle is the same.

Preface > 2

EMERGENCY FIRST AID

Take care with toner powder:

If swallowed, give small amounts of cold water and seek medical attention. DO NOT attempt to induce vomiting.

If inhaled, move the person to an open area for fresh air. Seek medical attention.

If it gets into the eyes, flush with large amounts of water for at least 15 minutes keeping eyelids open. Seek medical attention.

Spillages should be treated with cold water and soap to help reduce risk of staining skin or clothing.

MANUFACTURER

Oki Data Corporation, 4-11-22 Shibaura, Minato-ku, Tokyo 108-8551,

Japan

IMPORTER TO THE EU/AUTHORISED REPRESENTATIVE

Oki Europe Limited (trading as Oki Printing Solutions)

Oki Europe Limited Blays House

Wick Road Egham

Surrey TW20 0HJ

United Kingdom

For all sales, support and general enquiries contact your local distributor.

ENVIRONMENTAL INFORMATION

Emergency first aid > 3

CONTENTS

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Emergency first aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Manufacturer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Importer to the EU/authorised representative. . . . . . . . . . . . . . . . . . . . .3 Environmental Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Notes, cautions and warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Printer overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Paper recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Cassette trays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Multi purpose tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Face down stacker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Face up stacker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Duplex unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Loading paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Cassette trays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Multi purpose tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 C801 and C810 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 C821 and C830 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Printing settings in Windows (C801 and C810 only) . . . . . . . . . . . . . . .19

Printing preferences in windows applications . . . . . . . . . . . . . . . . . . . . . .19 Setup tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Job options tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Colour tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Setting from windows control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 General tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Advanced tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Printing settings in Mac OS X (C801 and C810 only) . . . . . . . . . . . . . . .24

Setting printing options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Setting printing options - saving driver settings . . . . . . . . . . . . . . . . . . . .25 Changing the default printer and paper size . . . . . . . . . . . . . . . . . . . . . . .25 Page setup options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Print options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Copies & pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Scheduler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 Paper handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 ColorSync. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Cover page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Duplex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Paper source. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Print quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 Colour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Printer setup options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Printer options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Print control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Contents > 4

Colour printing (C801 and C810 only) . . . . . . . . . . . . . . . . . . . . . . . . . .33

Factors that affect the appearance of prints . . . . . . . . . . . . . . . . . . . . . . .33 Tips for printing in colour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Printing photographic images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 Printing from Microsoft Office applications . . . . . . . . . . . . . . . . . . . . . .34 Printing specific colours (e.g. a company logo) . . . . . . . . . . . . . . . . . . .34 Adjusting the brightness or intensity of a print . . . . . . . . . . . . . . . . . . .34 Accessing the colour matching options. . . . . . . . . . . . . . . . . . . . . . . . . . .34 Setting the colour matching options . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Using the colour swatch feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Using the colour correct utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Menu functions - C801 and C810 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Operator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 How to change the settings - User. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 How to change the settings - Administrator . . . . . . . . . . . . . . . . . . . . . . .38 Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Information menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Shutdown menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Print menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Media menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Colour menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 System configuration menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Network menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43 Maintenance menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Usage menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 Administrator (Boot) menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 Print statistics menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Menu functions - C821 and C830 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Operator panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 How to change the settings - User. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 How to change the settings - Administrator . . . . . . . . . . . . . . . . . . . . . . .49 Configuration menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 Print information menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51 Print secure job. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Shutdown menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55 Admin setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 Administrator (boot) menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66 Print statistics menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

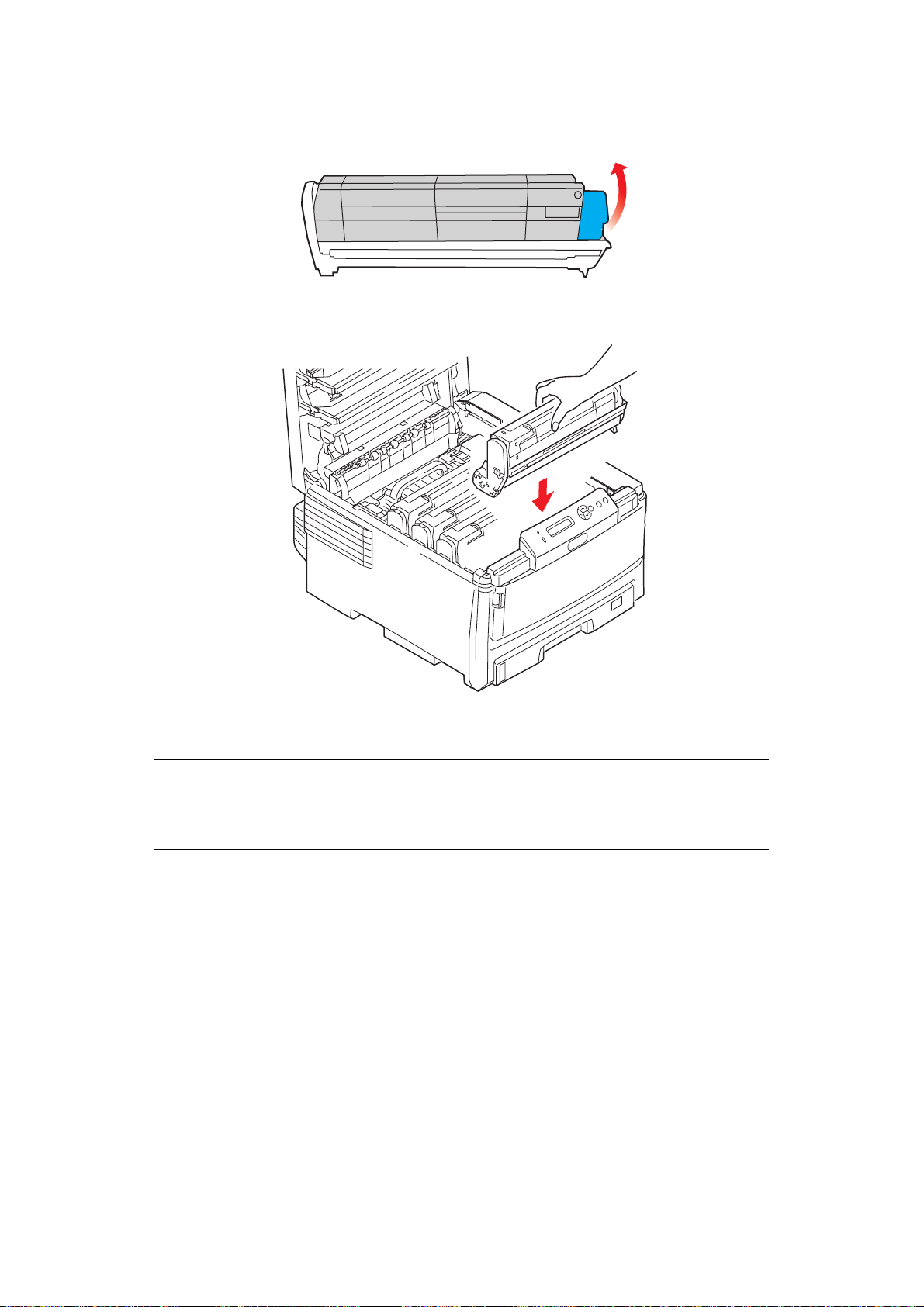

Replacing consumable items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70 Toner cartridge replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70 Image drum replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73 Transfer belt replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76 Fuser replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

...the unit casing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

...the LED head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

...the paper feed rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Installing upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Duplex unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83 Memory upgrade (C821 and C830) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84 Hard disk drive (C821 and C830) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87 Additional paper tray(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89 Storage cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Contents > 5

Adjusting printer drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90 Mac OS X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

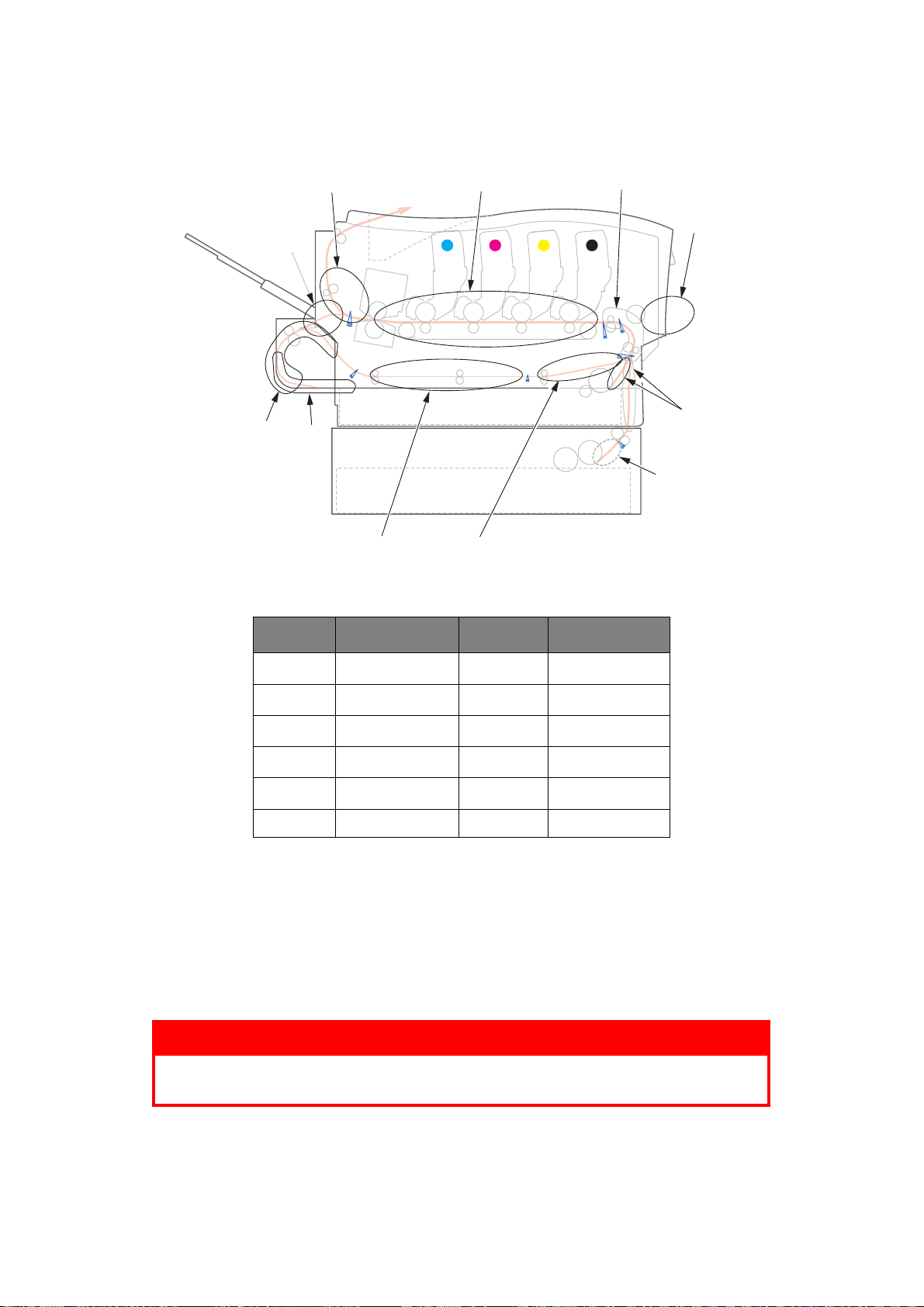

Major printer components and paper path . . . . . . . . . . . . . . . . . . . . . . . .92 Paper sensor error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93 Clearing paper jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93 Dealing with unsatisfactory printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102 Oki contact details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

Contents > 6

NOTES, CAUTIONS AND WARNINGS

NOTE

A note provides additional information to supplement the main text.

CAUTION!

A caution provides additional information which, if ignored, may result in equipment malfunction or damage.

WARNING!

A warning provides additional information which, if ignored, may result in a risk of personal injury.

For the protection of your product, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine original toner cartridges. Any other toner cartridge may not operate at all, even if it is described as “compatible”, and if it does work, your product's performance and print quality may be degraded.

Non-genuine original products may invalidate your warranty.

Specifications subject to change without notice. All trademarks acknowledged.

Notes, cautions and warnings > 7

INTRODUCTION

Congratulations on choosing this colour printer. Your new printer is designed with advanced features to give you clear, vibrant colour prints and crisp black and white pages at high speed on a range of print media for the office.

Your printer includes these features:

>Compact A3 desktop footprint;

>ProQ2400 multi-level technology produces subtler tones and smoother graduations of colour to lend photographic quality to your documents;

>600 x 600, 1200 x 600 dpi (dots per inch) and ProQ2400 print resolution for high quality image production showing the finest detail;

>Single Pass colour Digital LED technology for high speed processing of your printed pages;

>Profile Assistant utility allows you to download ICC profiles to the hard disc (Hard Disc Drive required) (C821 and C830);

>PostScript 3, PCL 5C, PCL 6 and Epson FX emulations for industry standard operation and wide compatibility with most computer software (C821 and C830);

>Secure encrypted printing (C821 and C830) - allows you to print confidential documents on printers that are shared with other users in a network environment;

>10Base-T and 100Base-TX network connection lets you share this valuable resource among users on your office network;

>Photo Enhance mode to improve printouts of photographic images (not available on PS drivers).

>“Ask Oki” – a user-friendly function for Windows that gives a direct link from your printer driver screen to a dedicated web site specific to the exact model you are using. This is where you’ll find all the advice, assistance and support you could need to help you get the best possible results from your Oki printer;

>Template Manager utility for Windows enables the design and print of Business cards, banners, labels with ease;

Additionally, the following optional features are also available:

>Automatic two-sided (duplex) printing for economical use of paper and compact printing of larger documents (standard on dn models);

>Additional paper trays for loading a further 530/1060 sheets to minimise operator intervention, or different paper stocks for letterhead stationery, alternative paper sizes or other print media;

>Additional memory allows printing of more complex pages. For example, high resolution banner printing (C821 and C830);

>Internal hard disk drive for Secure printing, storage of overlays, macros and downloadable fonts, and automatic collation of multiple copies of multipage documents and the download of ICC Profiles (C821 and C830);

>Storage cabinet.

Introduction > 8

PRINTER OVERVIEW

FRONT VIEW

8

	9		1
		12	2
		10

6

4 5

		7	3
	11	13
			6

14

	1.	Output stacker (face down).	5.	Front cover release lever.
		Standard printed copy delivery point.	6.	Multi-purpose tray release lever
		Holds up to 250 sheets at 80g/m².	7.	Top cover release button.
	2.	Operator panel.	8.	LED heads
		Menu driven operator controls and LCD	9.	Fuser
		display panel.
			10.Toner cartridges (C,M,Y,K).
	3.	Paper tray.
			11.ID units (C,M,Y,Y).
		Standard blank paper tray. Holds up to
			12.Duplex Unit (optional).
		300 sheets of 80g/m² paper.
	4.	Multi purpose tray.	13.Paper size dial.
		Used for feeding heavier paper stocks,	14.Paper level gauge.
		envelopes and other special media. Also
		for manual feeding of single sheets
		when required.

The LCD display language can be changed to show different languages. (See “Changing the display language” on page 10.)

Introduction > 9

REAR VIEW

This view shows the connection panel, the rear output stacker and the location of the optional duplex (two-sided printing) unit.

			6
				3
				4
			5	7
	1
	2
1. ON/OFF switch.		5.	Duplex unit (when fitted).
2.	AC power socket.	6.	Rear, face up, 100 sheet stacker.
3.	USB interface.	7.	Parallel Port.2

4.Network interface.1

1.The Network Interface may have a protective “plug” which must be removed before connection can be made.

2.C821 and C830.

When the rear paper stacker is folded down paper exits the printer through the rear of the printer and is stacked here face up. This is mainly used for heavy print media. When used in conjunction with the multi purpose feed tray, the paper path through the printer is essentially straight. This avoids bending the paper around curves in the paper path and enables feeding of up to 220g/m² media.

CHANGING THE DISPLAY LANGUAGE

The default language used by your machine for display messages is English. If required, this can be changed using the Panel Language Set-up utility.

Introduction > 10

PAPER RECOMMENDATIONS

Your printer will handle a variety of print media, including a range of paper weights and sizes, transparencies and envelopes. This section provides general advice on choice of media, and explains how to use each type.

The best performance will be obtained when using standard 75~90g/m² paper designed for use in copiers and laser printers.

Use of heavily embossed or very rough textured paper is not recommended.

Pre-printed stationery

CAUTION!

Pre-printed stationery can be used, but the ink must not offset when exposed to the high fuser temperatures used in the printing process.

Continued use of pre-printed stationery may cause the paper feed performance to degrade over time and paper jams may occur. Clean the paper feed rollers as described on page 81.

Envelopes

Envelopes should be handled by the Multi Purpose tray.

CAUTION!

Envelopes should be free from twist, curl or other deformations. They should also be of the rectangular “peel and seal” type, with glue that remains intact when subjected to hot roll pressure fusing used in this type of printer. Window envelopes are not suitable.

Transparencies

Transparencies should be handled by the Multi Purpose tray.

CAUTION!

Transparencies should be of the type designed for use in copiers and laser printers. In particular, avoid office transparencies designed for use by hand with marker pens. These will melt in the fuser and cause damage.

Labels

Labels should be handled by the Multi Purpose tray.

CAUTION!

Labels should also be of the type recommended for use in copiers and laser printers, in which the base carrier page is entirely covered by labels. Other types of label stock may damage the printer due to the labels peeling off during the printing process.

Paper recommendations > 11

CASSETTE TRAYS

	SIZE	DIMENSIONS	WEIGHT (G/M²)
	A6 (Tray 1 only)	105 x 148mm
	A5	148 x 210mm
	B5	182 x 257mm
			Light	64-82g/m²
	Executive	184.2 x 266.7mm
			Medium light	8390g/m²
	A4	210 x 297mm
			Medium	91-105g/m²
	B4	250 x 353mm	Heavy	106-128g/m²
			Ultra heavy1	129-203g/m²
	A3	420 x 297mm
			Ultra heavy2	204-220g/m²
	Letter	215.9 x 279.4mm
			(> 176g/m² - MP Tray only)
	Legal 13in.	216 x 330mm
	Legal 13.5in.	216 x 343mm
	Legal 14in.	216 x 356mm

If you have identical paper stock loaded in another tray (2nd/3rd tray if you have one, or multi purpose tray) you can have the printer automatically switch to the other tray when the current tray runs out of paper. When printing from Windows applications, this function is enabled in the driver settings. When printing from other systems, this function is enabled in the Print Menu.

If fitted, tray 2/3 may be removed and replenished while the machine is being fed from tray 1. Tray 1 cannot be removed while the machine is being fed from tray 2/3, because parts of tray 1 are used to guide paper fed from tray 2. This also applies to tray 2 when paper is being fed from tray 3.

MULTI PURPOSE TRAY

The multi purpose tray can handle the same sizes as the cassette trays but in weights up to 220g/m². For very heavy paper stock use the face up (rear) paper stacker. This ensures that the paper path through the printer is almost straight.

The multi purpose tray can feed paper widths as small as 64mm and lengths up to 1321mm (banner printing).

For paper lengths exceeding 431.8mm use paper stock up to 128g/m² and the face up (rear) paper stacker.

Use the multi purpose tray for printing on envelopes and transparencies. Up to 50 sheets of transparencies or 10 envelopes can be loaded at one time, subject to a maximum stacking depth of 10mm.

Paper or transparencies should be loaded print side up and top edge into the printer. Do not use the duplex (two-sided printing) function.

FACE DOWN STACKER

The face down stacker on the top of the printer can hold up to 250 sheets of 80g/m² standard paper, and can handle paper stocks up to 128g/m². Pages printed in reading order (page 1 first) will be sorted in reading order (last page on top, facing down).

Paper recommendations > 12

FACE UP STACKER

The face up stacker at the rear of the printer should be opened and the tray extension pulled out when required for use. In this condition paper will exit via this path, regardless of driver settings.

The face up stacker can hold up to 100 sheets of 80g/m² standard paper, and can handle stocks up to 220g/m².

Always use this stacker and the multi purpose feeder for paper stocks heavier than 128g/m².

DUPLEX UNIT

This option provides automatic two-sided printing on the same range of paper sizes as tray 2/3 (i.e. all cassette sizes except A6), using paper stocks from 64-105g/m².

NOTE:

The duplex unit comes as standard with dn & cdtn models.

Paper recommendations > 13

LOADING PAPER

CASSETTE TRAYS

1.Remove the paper tray from the printer.

2.Fan the paper to be loaded at the edges (1) and in the middle (2) to ensure that all sheets are properly separated, then tap the edges of the stack on a flat surface to make it flush again (3).

2

1

3

3.Load paper long edge feed (LEF) (letter headed paper - face down and top edge towards the right of the printer) (1) up to mark (a).

1

a

2

3

Loading paper > 14

4.Adjust the rear stopper, paper guides (2) and cassette tray roller (3) to the size and orientation of paper being used. For A6 paper, remove and re-install in the A6 position.

CAUTION!

>IMPORTANT: Set paper size dial (3) to the size and orientation of paper being used (A4 LEF in the above example).

>C801 and C810: GDI printers use the printer settings defined by the host (PC).

If the paper is oriented long-edge, the Long Edge Feed (LEF) checkbox must be enabled in the printer driver.

If the paper is oriented short-edge, the Long Edge Feed checkbox must be disabled in the printer driver.

If the driver setting doesn't match the paper orientation, the printer will display an error message indicating that a mismatch has occurred.

5.Close the paper tray gently.

If you have two trays and you are printing from the 1st (upper) tray, you can pull out the 2nd (lower) tray during printing to reload it. However, if printing from the 2nd (lower) tray, do not pull out the 1st (upper) tray. This will cause a paper jam.

If 3 trays are fitted this applies to trays 1 & 2 if printing from the 3rd (lower) tray.

For face down printing, make sure the face up (rear) stacker (3) is closed (the paper exits from the top of the printer). Stacking capacity is approximately 250 sheets, depending on paper weight.

For face up printing, make sure the face up (rear) stacker (3) is open and the paper support (4) is extended. Paper is stacked in reverse order and tray capacity is approximately 100 sheets, depending on paper weight.

Always use the face up (rear) stacker for heavy paper (card stock etc.).

CAUTION!

Do not open or close the rear paper exit while printing as it may result in a paper jam.

Loading paper > 15

To prevent paper jams:

>Do not leave space between the paper and the guides and rear stopper.

>Do not overfill the paper tray. Capacity depends on the type of paper stock.

>Do not load damaged paper.

>Do not load paper of different sizes or types at the same time.

>Do not pull the paper tray out during printing (except as described above for the 2nd tray).

MULTI PURPOSE TRAY

1.Open the multi purpose tray (1).

2.Fold out the paper supports (2).

1

3

2

4

3.Press gently down on the paper platform (3) to ensure it is latched down.

4.Load the paper and adjust the paper guides (4) to the size of paper being used.

>For single-sided printing on A4 headed paper load the paper into the multi purpose tray with pre-printed side up and left hand edge (LEF), top edge (SEF) into the printer.

>For two-sided (duplex) printing on A4 headed paper load the paper with preprinted side down and left hand edge (LEF), top edge (SEF) away from the printer. (Optional duplex unit must be installed for this function.)

>Envelopes should be loaded face up with top edge to the left and short edge into the printer. Do not select duplex printing on envelopes.

>Do not exceed the paper capacity of about 100 sheets or 10 envelopes. Maximum stacking depth is 10mm.

Loading paper > 16

5.Press the tray latch button (5) inwards to release the paper platform, so that the paper is lifted and gripped in place.

5

6.Set the correct paper size for the multi purpose tray in the Media Menu (see “Menu Functions”).

Loading paper > 17

OPERATION

C801 and C810

For full details of how to use the machine and any optional accessories to print jobs efficiently and effectively, please refer to the following chapters:

>“Printing settings in Windows (C801 and C810 only)” on page 19

>“Printing settings in Mac OS X (C801 and C810 only)” on page 24

>“Colour printing (C801 and C810 only)” on page 33

C821 and C830

For full details of how to use the machine and any optional accessories to print jobs efficiently and effectively, please refer to the Printing Guide and the Barcode Guide.

For full details of how to access and use the printer security features, please refer to the Security Guide.

Operation > 18

PRINTING SETTINGS IN WINDOWS (C801 AND C810 ONLY)

Your printer’s operator panel menus provide access to many options.

The Windows printer driver also contains settings for many of these items. Where items in the printer driver are the same as those in the operator panel menus, and you print documents from Windows, the settings in the Windows printer driver will override those items in the operator panel menus.

The illustrations in this chapter show Windows XP. Other Windows versions may appear slightly different, but the principles are the same.

PRINTING PREFERENCES IN WINDOWS APPLICATIONS

When you choose to print your document from a Windows application program a print dialogue box appears. This

dialogue usually specifies the name of the printer on which you will print your document. Next to the printer name is a

Properties button.

When you click Properties a new window opens which contains a short list of the printer settings available in the driver, which you can choose for this document.

The settings available from within your application are only those which you may want to change for specific applications or documents. Settings you change here will usually only last for as long as the particular application program is running.

SETUP TAB

When you click the Properties button from your application’s Print dialogue, the driver window opens to allow you to specify your printing preferences for the current document.

1

2

3

4

5

6

7

1.Paper size should be the same as the page size of your document (unless you wish to scale the printout to fit another size), and should also be the same as the size of paper you will feed into the printer.

2.You can choose the source of the paper to feed, which may be Tray 1 (the standard paper tray) or the multi purpose feeder. You can also click on the appropriate part of the screen graphic to select your preferred tray.

3.The setting for paper weight should match the type of paper on which you intend to print.

4.A variety of document finishing options can be selected, such as normal one page per sheet, or N-up (where N can be any number up to 16) for printing scaled down pages at more than one page per sheet. Booklet printing prints two pages per sheet on each side of the paper so that when folded they make up a booklet.

Poster printing will print large pages as tiles spread over multiple sheets.

Printing settings in Windows (C801 and C810 only) > 19

5.For two-sided printing, you can choose to flip the page by the long edge or the short edge.

6.If you have changed some printing preferences before and saved them as a set, you can recall them to avoid having to set them individually each time you need them.

7.A single on-screen button restores the default settings.

JOB OPTIONS TAB

1.The output resolution of the printed page can be set as follows.

>The ProQ2400 setting prints at 600 x 600dpi x 2 bit. This option requires the most printer memory and takes the longest to print.

>The Fine/Detail setting prints at 1200 x 600dpi and is adequate for all but the most discerning applications.

>The Normal setting prints at 600 x 600dpi and is suitable for most draft documents, where print quality is less critical.

2.You can print watermark text behind the main page image. This is useful for marking documents as draft, confidential, etc.

3.You can select up to 999 copies to print consecutively, although you will need to top up the paper tray during such a long print run.

4.Page orientation can be set to either portrait (tall) or landscape (wide).

5.The printed pages can be scaled to fit larger or smaller stationery.

6.Clicking the Advanced button gives you access to further settings. For example, you can elect to have black areas printed using 100%K toner (a more matte appearance).

7.A single on-screen button restores the default settings.

8.The quality of photographic images can be improved.

Printing settings in Windows (C801 and C810 only) > 20

COLOUR TAB

1

2

4

3

5

1.Control over the colour output of your printer may be performed automatically, or for advanced control, by manual adjustment. The automatic setting will be appropriate in most cases. The other options in this window only become visible when you select a choice other than Auto.

2.You can choose from a range of colour matching options, depending on the image source for your document. For example, a photograph taken on a digital camera might require different colour matching to a business graphic created in a spreadsheet application. Again, for most general purpose use, automatic is the best choice.

3.Printed output may be made lighter or darker, or the colours made more saturated and vibrant as required.

4.Black areas may be printed using cyan, magenta and yellow (composite black), giving a more glossy appearance, or using only black toner (true black), giving a more matte appearance. Choosing the automatic setting allows the driver to make the most appropriate choice depending on image content.

5.A single on-screen button restores the default settings.

Printing settings in Windows (C801 and C810 only) > 21

SETTING FROM WINDOWS CONTROL PANEL

When you open the driver properties window directly from Windows, rather than from within an application program, a somewhat more extensive range of settings is provided. Changes made here will generally affect all documents you print from Windows applications, and will be remembered from one Windows session to the next.

GENERAL TAB

1

2				3

1.This area lists some of the main features of your printer.

2.This button opens the same windows as described earlier for items which can be set from within application programs. Changes you make here, however, will become the new default settings for all Windows applications.

3.This button prints a test page to ensure that your printer is working.

ADVANCED TAB

1

2

3

54

76

98

10

11

1.You can specify which times of day your printer will be available.

2.Indicates current priority, from 1 (lowest) to 99 (highest). Highest priority documents will print first.

3.Specifies that documents should be spooled (stored in a special print file) before being printed. The document is then printed in the background, allowing your application program to become available more quickly.

4.This specifies that printing should not start until the last page has been spooled. If your application program needs a lot of time for further computation in the middle of

Printing settings in Windows (C801 and C810 only) > 22

printing, causing the print job to pause for more than a short period, the printer could prematurely assume that the document has finished. Selecting this option would prevent that situation, but printing will be completed a little later, as the start is delayed.

5.This is the opposite choice to the one above. Printing starts as soon as possible after the document begins spooling.

6.This specifies that the document should not be spooled, but printed directly. Your application will not normally be ready for further use until the print job is complete. This requires less disk space on your computer, since there is no spool file.

7.Directs the spooler to check the document setup and match it to the printer setup before sending the document to print. If a mismatch is detected, the document is held in the print queue and does not print until the printer setup is changed and the document restarted from the print queue. Mismatched documents in the queue will not prevent correctly matched documents from printing.

8.Specifies that the spooler should favour documents which have completed spooling when deciding which document to print next, even if completed documents are lower priority than documents which are still spooling. If no documents have completed spooling, the spooler will favour larger spooling documents over shorter ones. Use this option if you want to maximise printer efficiency. When this option is disabled the spooler chooses documents based only on their priority settings.

9.Specifies that the spooler should not delete documents after they are completed. This allows documents to be re submitted to the printer from the spooler instead of printing again from the application program. If you use this option frequently it will require large amounts of disk space on your computer.

10.Specifies whether advanced features, such as booklet printing, page order and pages per sheet, are available, depending on your printer. For normal printing keep this option enabled. If compatibility problems occur you can disable the feature. However, these advanced options may then not be available, even though the hardware might support them.

11.This button provides access to the same setup windows as when printing from applications. Changes made via the Windows Control Panel become the Windows default settings.

Printing settings in Windows (C801 and C810 only) > 23

PRINTING SETTINGS IN MAC OS X (C801 AND C810 ONLY)

The information in this section is based on Mac OS X Tiger (10.4). Other versions may appear slightly different, but the principles are the same.

SETTING PRINTING OPTIONS

You can choose your printer and select options for how you want your documents to print from the Print dialog box.

To set your printer options:

1.Open the document you want to print.

2.To change the paper size or page orientation, select File > Page Setup. For a description of each option, see “Page setup options” on page 25.

3.Close the Page Setup dialog box.

4.Select File > Print.

5.Select your printer from the Printer drop-down menu.

6.To change any printer driver settings, select the required options from the Settings drop-down menu. You can select more options from the Copies & Pages menu. For a description of these options, see “Print options” on page 26.

7.Click the Print button.

Printing settings in Mac OS X (C801 and C810 only) > 24

SETTING PRINTING OPTIONS - SAVING DRIVER SETTINGS

You can save a set of printer driver options to use for future documents.

1.Open the document you want to print.

2.To change the paper size or page orientation, select File > Page Setup.

3.Select Save As Default from the Settings drop-down menu.

4.Select File > Print.

5.To save the current printer driver settings as a preset, select Save As from the Preset menu.

6.Enter a name for your preset and click OK.

CHANGING THE DEFAULT PRINTER AND PAPER SIZE

The following steps describe how to change your default printer and the paper size options.

1.Select Apple menu > System Preferences.

2.Click the Print & Fax icon.

3.Select your printer in the Selected Printer in Print Dialog drop-down menu.

4.Select your required paper size in the Default Size in Page Setup drop-down menu.

PAGE SETUP OPTIONS

This section provides a description of the page setup options available to you.

Page Attributes

You can select Save As Default to use the current Page Setup settings as a standard for all documents.

Format for

Allows you to select your printer model before changing options such as Paper size and Orientation.

Printing settings in Mac OS X (C801 and C810 only) > 25

Paper Size

Select a paper size to match your document and the paper loaded in the printer. The paper margin is 4.2mm at all edges. To specify your own paper sizes, select Manage Custom

Sizes...

Scale

You can scale documents up or down to fit onto different paper sizes. To fit your document on a specific paper size, select Options in the Paper Handling drop-down menu in the Print Options dialog box (see “Print options” on page 26).

Orientation

You can select a portrait or landscape option. When using landscape, you can rotate the document 180 degrees.

PRINT OPTIONS

COPIES & PAGES

Copies

This option allows you to enter the number of copies to print. If you select Collate, all pages of the document will print before the next copy prints.

Pages

You can select whether to print all pages of a document or just a section of it.

LAYOUT

Pages per sheet

You can shrink multiple pages and print them on a single sheet of paper. For example, choosing 4-up will tile four of your document's pages across a single sheet of paper.

You can control the order in which the documents are tiled and also choose to surround each document page with a border.

Printing settings in Mac OS X (C801 and C810 only) > 26

Two-sided

You cannot use the two sided printing options in this panel. Use the options in the Duplex panel instead. Refer to “Duplex” on page 28.

SCHEDULER

This option lets you choose whether to print your document immediately, or defer printing until later. You can also assign a priority to a print job.

These features are useful if you are printing large documents that take a long time to print.

PAPER HANDLING

Page order

You can choose to print your document in the normal page order (1,2,3..) or reverse order (..3,2,1).

Print

This option allows you to choose whether to print only odd or even numbered pages. This is useful if you are using manual duplex for which you first print all odd pages, re-insert the paper in the printer and then print all even pages.

Destination paper size

Scale documents to fit on the size of paper in your printer. For example, you can take a document formatted for A3 and print it on A4 paper using an A4 printer.

Printing settings in Mac OS X (C801 and C810 only) > 27

COLORSYNC

Color conversion

For Color Conversion, Standard is the only option available for your printer model.

Quartz Filter

Choose a Quartz filter if you wish to apply a special effect to your print job, such as Sepia or Blue Tone.

COVER PAGE

Choosing a cover page may help you to identify your printed document in a large pile of paper. This is useful in a busy office with many people sharing the printer.

DUPLEX

Choosing duplex allows you to print on both sides of the paper, to save paper, weight, bulk and cost.

Long-Edge Binding prints pages that read like a normal book. Short-Edge Binding prints pages that read like a notepad.

Printing settings in Mac OS X (C801 and C810 only) > 28

PAPER SOURCE

This option allows you to select the paper tray to use for your print job.

PRINT QUALITY

Print quality

Use this option to select the print resolution. The ProQ2400 setting produces the best graphic images, but these images can take longer to print.

Photo Enhance

Use Photo Enhance to significantly improve quality when printing images. The printer driver analyses any photographic images and processes them to improve the overall appearance. This setting cannot be used together with the “ProQ2400” print quality setting.

Toner Saving

Toner saving uses less toner when printing your document. This is best suited to draft text documents as it lightens the print significantly.

Printing settings in Mac OS X (C801 and C810 only) > 29

COLOUR

Colour mode

	COLOUR MODE	DESCRIPTION
	Advanced Colour	The driver selects the most appropriate color
		settings.
	Manual	Allows you to manually adjust colour and black
		and white settings or select.
	Grayscale	Convert all colours to shades of grey.
Color matching

	COLOUR	DESCRIPTION
	Monitor (6500K) Perceptual	Optimised for printing photos. Colours are
		printed with emphasis on saturation.
	Monitor (6500K) Vivid	Optimised for printing photos, but with
		even more saturated colours.
	Monitor (9300K)	Optimised for printing graphics from
		applications such as Microsoft Office.
		Colours are printed with emphasis on
		Lightness.
	Digital Camera	Results will vary depending on the subject
		and conditions the image was taken.
	sRGB	The printer reproduces the sRGB colour
		space. This might be useful if colour
		matching from an sRGB input device such
		as a scanner or digital camera.
Black Finish

Use this option to control the way black is printed in colour documents. Select Composite Black (CMYK) to use all 4 toner colours to represent black. This option is recommended for color photos. Select True Black (K) to use 100% black toner to represent black. This option is recommended for text and business graphics.

Brightness / Saturation

This option allows you to increase brightness for a lighter print. Modify saturation to change the strength (or purity) of a colour.

Printing settings in Mac OS X (C801 and C810 only) > 30
