11-400101-10 TITAN 1230 WET/DRY VAC 09/90 to 05/95 IPL 224322 Page 1 of 2
www.ktoutdoor.com

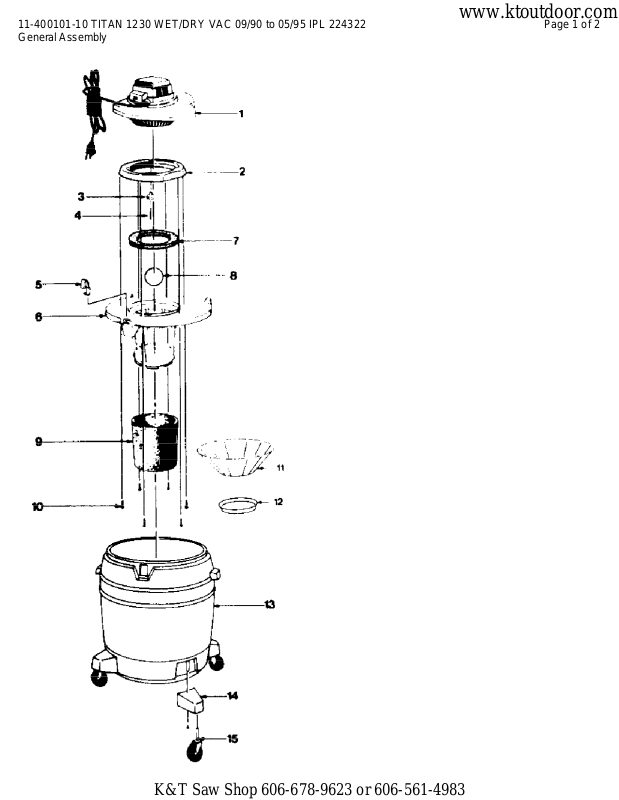

General Assembly
K&T Saw Shop 606-678-9623 or 606-561-4983
11-400101-10 TITAN 1230 WET/DRY VAC 09/90 to 05/95 IPL 224322 Page 2 of 2
www.ktoutdoor.com
General Assembly
Ref # Part Number DescriptionQty
1 224570 Power Unit1
2 224541 Adapter1
3 224542 Release Lever1
4 224543 Spring1
5 224544 Latch on Lid Cage3
6 224564 Lid Cage & Latches1
7 224546 Gasket1
8 224547 Ball Float1
9 224548 Foam Filter1
10 224549 Screw #10 x 3/4 Hex Head Type AB6
11 224667 Reusable Filter Disc Pkg. of 3, Includes mounting ring1
12 224551 Mounting Ring1
13 224656 Tank Assembly1
14 224565 Caster Foot1
15 224553 Caster Ea.4
224554 2-1/2" Wand Not shown on diagram2
224555 Blower Nozzle Not shown on diagram1
224556 2-1/2" Connector Not shown on diagram1
224557 6' x 2-1/2" Hose Not shown on diagram1
224563 Exhaust Diffuser Not shown on diagram1
224558 1-1/4" Wand Not shown on diagram2
224559 6" Square Nozzle 2-1/2" Not shown on diagram1
224560 7' x 1-1/4" Hose Not shown on diagram1
224561 10" Nozzle Not shown on diagram1
224562 10" Squeegee Insert Not shown on diagram1
