Page 1

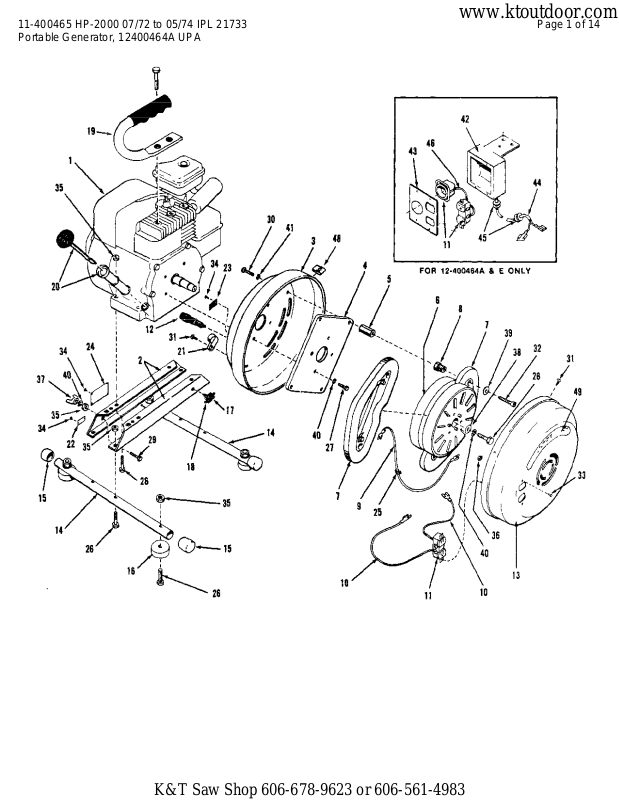

11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 1 of 14
www.ktoutdoor.com

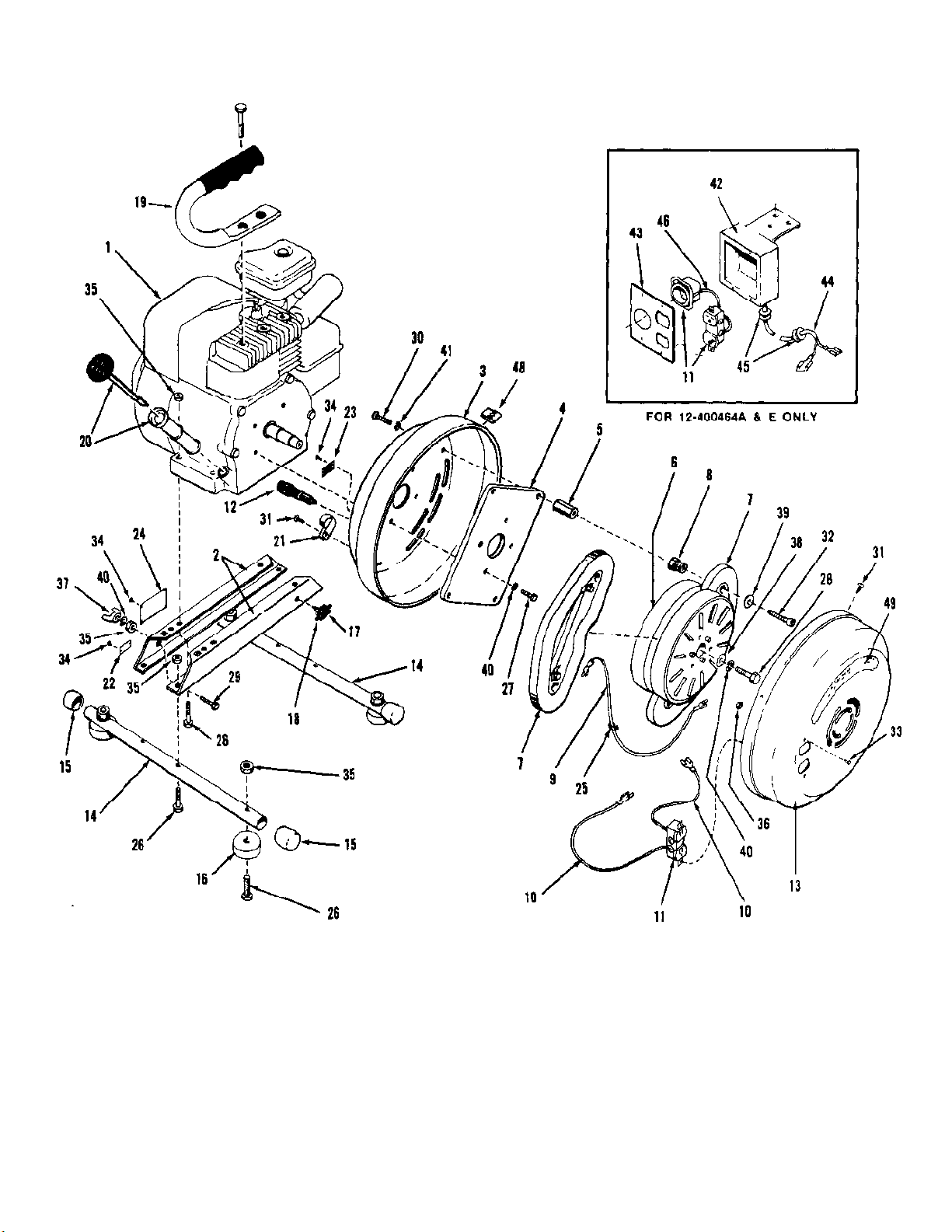

Portable Generator, 12400464A UPA
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 2
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 2 of 14
www.ktoutdoor.com
Portable Generator, 12400464A UPA
Ref # Part Number DescriptionQty
1 21728 Engine Assy.1
2 21601 Rail, Engine2
3 21602 Cover, Back1
4 21603 Plate, Stator Support1
5 21604 Post, Stator4
6 21731 Rotor Assy.1
7 21662 Stator Assy. Half2
8 21608 Screw, Adjusting4
9 21611 Wire Assy., Jumper1
10 21664 Wire Harness Set1
11 21626 Receptacle, 230V, Aust.1
12 21270 Holder, Fuse1
13 21612 Cover, Front1
14 21668 Base Support2
15 21669 Cap, End4
16 21190 Mount, Rubber4
17 21290 Holder, Spare Fuse1
18 21280 Fuse3
19 21671 Handle1
20 21636 Tube, Oil Fill & Dip Stick Assy.1
21 21637 Clamp, Oil Fill Tube1
22 21638 Tag, Ground1
23 21639 Tag, Fuse Not required in this model
24 21736 Tag, Serial Number1
25 21643 Keeper, Wire4
26 21050 Capscrew, Hex Hd, 5/16-18 x 1-1/212
27 21645 Capscrew, Hex Hd, 5/16-24 x 3/44
27 Retaining Bolts Engine to Back Cover1
28 21743 Capscrew, Hex Hd, 5/16-24 x 2-1/41
28 Rotor Retaining Bolt1
29 21647 Capscrew, Hex Hd, 5/16-18 x 11
30 21649 Capscrew, Hex Hd, 1/4-20 x 14
30 Stator Post Retaining Bolt1
31 21650 Screw, Pan #8 Type AB Sheet Metal, Phillips5
32 21651 Capscrew, Hex Soc. Hd, Nylok, 1/4-20 x 1-1/44
32 Stator Retaining Screw
33 21674 Screw, #8-32 x 3/8 Pan Hd, Phillips Not required in
this model
34 21652 Screw, Drive #2 x 3/16 Not required in this model
35 21080 Nut, Keps, 5/16-1813
36 21675 Nut, Hex, #8-32 Keps Not required in this model
37 21654 Nut, Wing, 5/16-181
38 21655 Washer, Flat, 5/16 x 1/4 thick1
39 21656 Washer, Flat, 1/4 x 1/8 thick4
40 21725 Washer, Lock Star 5/166
41 21030 Washer, Lock 1/44
42 21735 Receptacle Box/Bracket Assy.1
43 21738 Cover, Receptacle, Aust.1
44 21609 Wiring Cable Assy.1
45 21642 Grommet, Rubber2
46 21739 Wire Harness Set1
47 21733 Illustrated Parts List1
48 21726 Speed Nut4
49 21727 McCulloch Decal1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 3
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 3 of 14
www.ktoutdoor.com
Portable Generator, 12400464B UPA
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 4
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 4 of 14
www.ktoutdoor.com
Portable Generator, 12400464B UPA
Ref # Part Number DescriptionQty
1 21728 Engine Assy.1
2 21601 Rail, Engine2
3 21602 Cover, Back1
4 21603 Plate, Stator Support1
5 21604 Post, Stator4
6 21731 Rotor Assy.1
7 21662 Stator Assy. Half2
8 21608 Screw, Adjusting4
9 21611 Wire Assy., Jumper1
10 21664 Wire Harness Set1
11 21392 Receptacle, 230V, Std.2
12 21270 Holder, Fuse1
13 21666 Cover, Front1
14 21668 Base Support2
15 21669 Cap, End4
16 21190 Mount, Rubber4
17 21290 Holder, Spare Fuse1
18 21280 Fuse3
19 21671 Handle1
20 21636 Tube, Oil Fill & Dip Stick Assy.1
21 21637 Clamp, Oil Fill Tube1
22 21638 Tag, Ground1
24 21736 Tag, Serial Number1
25 21643 Keeper, Wire4
26 21050 Capscrew, Hex Hd, 5/16-18 x 1-1/212
27 21645 Capscrew, Hex Hd, 5/16-24 x 3/44
27 Retaining Bolts Engine to Back Cover1
28 21743 Capscrew, Hex Hd, 5/16-24 x 2-1/41
28 Rotor Retaining Bolt1
29 21647 Capscrew, Hex Hd, 5/16-18 x 11
30 21649 Capscrew, Hex Hd, 1/4-20 x 14
30 Stator Post Retaining Bolt1
31 21650 Screw, Pan #8 Type AB Sheet Metal, Phillips5
32 21651 Capscrew, Hex Soc. Hd, Nylok, 1/4-20 x 1-1/44
32 Stator Retaining Screw
33 21674 Screw, #8-32 x 3/8 Pan Hd, Phillips2
35 21080 Nut, Keps, 5/16-1813
36 21675 Nut, Hex, #8-32 Keps2
37 21654 Nut, Wing, 5/16-181
38 21655 Washer, Flat, 5/16 x 1/4 thick1
39 21656 Washer, Flat, 1/4 x 1/8 thick4
40 21725 Washer, Lock Star 5/166
41 21030 Washer, Lock 1/44
47 21733 Illustrated Parts List1
48 21726 Speed Nut4
49 21727 McCulloch Decal1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 5
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 5 of 14
www.ktoutdoor.com
Portable Generator, 12400464C UPA
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 6
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 6 of 14
www.ktoutdoor.com
Portable Generator, 12400464C UPA
Ref # Part Number DescriptionQty
1 21728 Engine Assy.1
2 21601 Rail, Engine2
3 21602 Cover, Back1
4 21603 Plate, Stator Support1
5 21604 Post, Stator4
6 21731 Rotor Assy.1
7 21662 Stator Assy. Half2
8 21608 Screw, Adjusting4
9 21611 Wire Assy., Jumper1
10 21664 Wire Harness Set1
11 21150 Receptacle, 115V, Std.2
12 21270 Holder, Fuse1
13 21666 Cover, Front1
14 21668 Base Support2
15 21669 Cap, End4
16 21190 Mount, Rubber4
17 21290 Holder, Spare Fuse1
18 21280 Fuse3
19 21671 Handle1
20 21636 Tube, Oil Fill & Dip Stick Assy.1
21 21637 Clamp, Oil Fill Tube1
22 21638 Tag, Ground1
24 21737 Tag, Serial Number1
25 21643 Keeper, Wire4
26 21050 Capscrew, Hex Hd, 5/16-18 x 1-1/212
27 21645 Capscrew, Hex Hd, 5/16-24 x 3/44
27 Retaining Bolts Engine to Back Cover1
28 21743 Capscrew, Hex Hd, 5/16-24x2-1/41
28 Rotor Retaining Bolt1
29 21647 Capscrew, Hex Hd, 5/16-18 x 11
30 21649 Capscrew, Hex Hd, 1/4-20 x 14
30 Stator Post Retaining Bolt1
31 21650 Screw, Pan #8 Type AB Sheet Metal, Phillips5
32 21651 Capscrew, Hex Soc. Hd, Nylok, 1/4-20 x 1-1/44
32 Stator Retaining Screw
33 21674 Screw, #8-32 x 3/8 Pan Hd, Phillips2
34 21652 Screw, Drive #2 x 3/168
35 21080 Nut, Keps, 5/16-1813
36 21675 Nut, Hex, #8-32 Keps2
37 21654 Nut, Wing, 5/16-181
38 21655 Washer, Flat, 5/16 x 1/4 thick1
39 21656 Washer, Flat, 1/4 x 1/8 thick4
40 21725 Washer, Lock Star 5/166
41 21030 Washer, Lock 1/44
47 21733 Illustrated Parts List1
48 21726 Speed Nut4
49 21727 McCulloch Decal1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 7
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 7 of 14
www.ktoutdoor.com
Portable Generator, 12400464D UPA
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 8
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 8 of 14
www.ktoutdoor.com
Portable Generator, 12400464D UPA
Ref # Part Number DescriptionQty
1 21728 Engine Assy.1
2 21601 Rail, Engine2
3 21602 Cover, Back1
4 21603 Plate, Stator Support1
5 21604 Post, Stator4
6 21731 Rotor Assy.1
7 21663 Stator Assy. Half2
8 21608 Screw, Adjusting4
9 21611 Wire Assy., Jumper1
10 21664 Wire Harness Set1
11 21150 Receptacle, 115V, 15A Std.1
12 21270 Holder, Fuse1
13 21666 Cover, Front1
14 21668 Base Support2
15 21669 Cap, End4
16 21190 Mount, Rubber4
17 21290 Holder, Spare Fuse1
18 21280 Fuse3
19 21671 Handle1
20 21636 Tube, Oil Fill & Dip Stick Assy.1
21 21637 Clamp, Oil Fill Tube1
22 21638 Tag, Ground1
24 21736 Tag, Serial Number1
25 21643 Keeper, Wire4
26 21050 Capscrew, Hex Hd, 5/16-18 x 1-1/212
27 21645 Capscrew, Hex Hd, 5/16-24 x 3/44
27 Retaining Bolts Engine to Back Cover1
28 21743 Capscrew, Hex Hd, 5/16-24x2-1/41
28 Rotor Retaining Bolt1
29 21647 Capscrew, Hex Hd, 5/16-18 x 11
30 21649 Capscrew, Hex Hd, 1/4-20 x 14
30 Stator Post Retaining Bolt1
31 21650 Screw, Pan #8 Type AB Sheet Metal, Phillips5
32 21651 Capscrew, Hex Soc. Hd, Nylok, 1/4-20 x 1-1/44
32 Stator Retaining Screw
33 21674 Screw, #8-32 x 3/8 Pan Hd, Phillips2
35 21080 Nut, Keps, 5/16-1813
36 21675 Nut, Hex, #8-32 Keps2
37 21654 Nut, Wing, 5/16-181
38 21655 Washer, Flat, 5/16 x 1/4 thick1
39 21656 Washer, Flat, 1/4 x 1/8 thick4
40 21725 Washer, Lock Star 5/166
41 21030 Washer, Lock 1/44
47 21733 Illustrated Parts List1
48 21726 Speed Nut4
49 21727 McCulloch Decal1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 9
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 9 of 14
www.ktoutdoor.com
Portable Generator, 12400464E UPA
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 10
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 10 of 14
www.ktoutdoor.com
Portable Generator, 12400464E UPA
Ref # Part Number DescriptionQty
1 21728 Engine Assy.1
2 21601 Rail, Engine2
3 21602 Cover, Back1
4 21603 Plate, Stator Support1
5 21604 Post, Stator4
6 21731 Rotor Assy.1
7 21662 Stator Assy. Half2
8 21608 Screw, Adjusting4
9 21611 Wire Assy., Jumper1
10 21664 Wire Harness Set1
11 21627 Receptacle, 230V, Gardy1
11 21392 Receptacle, 230V, Std.1
12 21270 Holder, Fuse1
13 21612 Cover, Front1
14 21668 Base Support2
15 21669 Cap, End4
16 21190 Mount, Rubber4
17 21290 Holder, Spare Fuse1
18 21280 Fuse3
19 21671 Handle1
20 21636 Tube, Oil Fill & Dip Stick Assy.1
21 21637 Clamp, Oil Fill Tube1
22 21638 Tag, Ground1
24 21736 Tag, Serial Number1
25 21643 Keeper, Wire4
26 21050 Capscrew, Hex Hd, 5/16-18 x 1-1/212
27 21645 Capscrew, Hex Hd, 5/16-24 x 3/44
27 Retaining Bolts Engine to Back Cover1
28 21743 Capscrew, Hex Hd, 5/16-24 x 2-1/41
28 Rotor Retaining Bolt1
29 21647 Capscrew, Hex Hd, 5/16-18 x 11
30 21649 Capscrew, Hex Hd, 1/4-20 x 14
30 Stator Post Retaining Bolt1
31 21650 Screw, Pan #8 Type AB Sheet Metal, Phillips5
32 21651 Capscrew, Hex Soc. Hd, Nylok, 1/4-20 x 1-1/44
32 Stator Retaining Screw
35 21080 Nut, Keps, 5/16-1813
37 21654 Nut, Wing, 5/16-181
38 21655 Washer, Flat, 5/16 x 1/4 thick1
39 21656 Washer, Flat, 1/4 x 1/8 thick4
40 21725 Washer, Lock Star 5/166
41 21030 Washer, Lock 1/44
42 21735 Receptacle Box/Bracket Assy.1
43 21635 Cover, Receptacle, Eur.1
44 21610 Wiring Cable Assy.1
45 21642 Grommet, Rubber2
46 21621 Wire Harness Set1
47 21733 Illustrated Parts List1
48 21726 Speed Nut4
49 21727 McCulloch Decal1
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 11
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 11 of 14
www.ktoutdoor.com

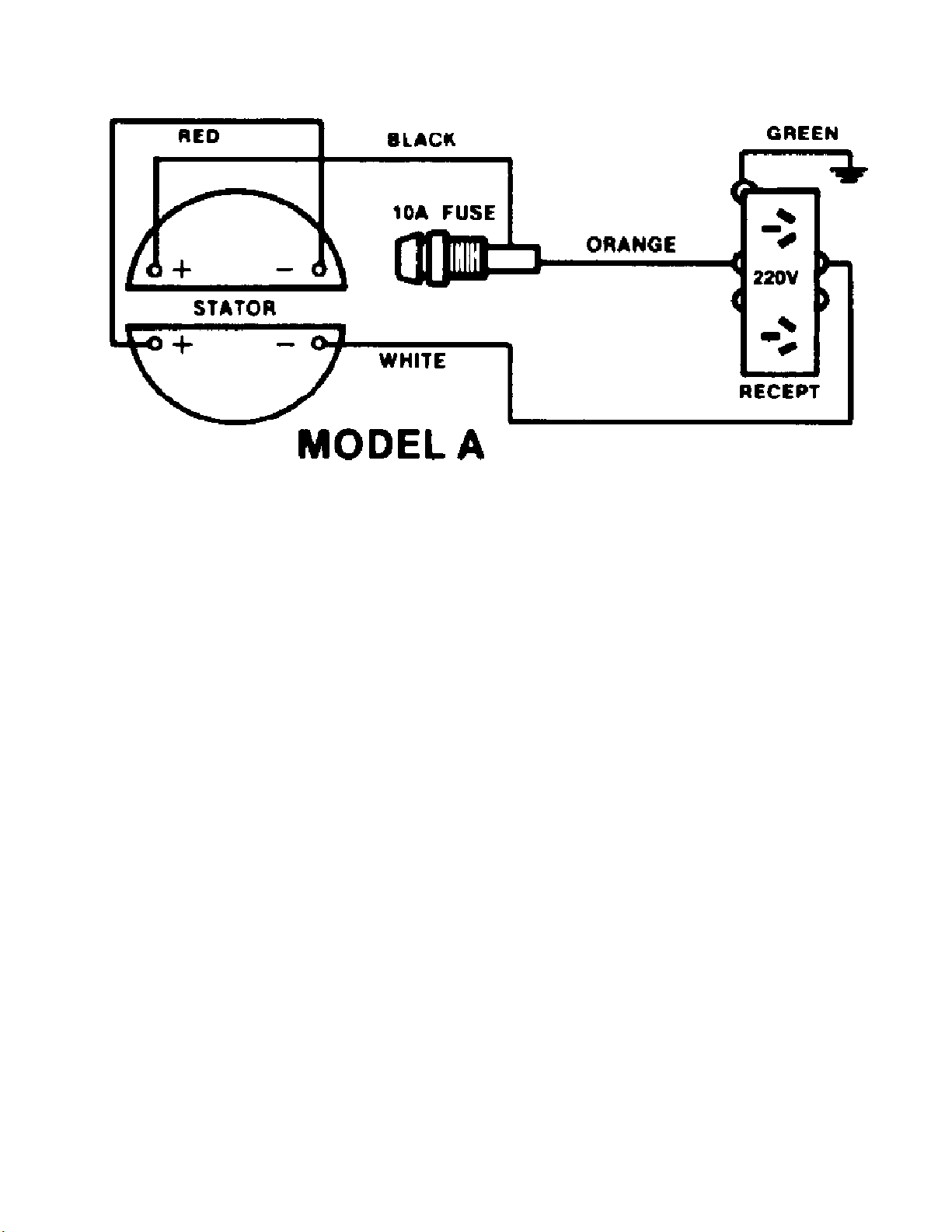

Wiring Schematic (Model A)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 12
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 12 of 14
www.ktoutdoor.com

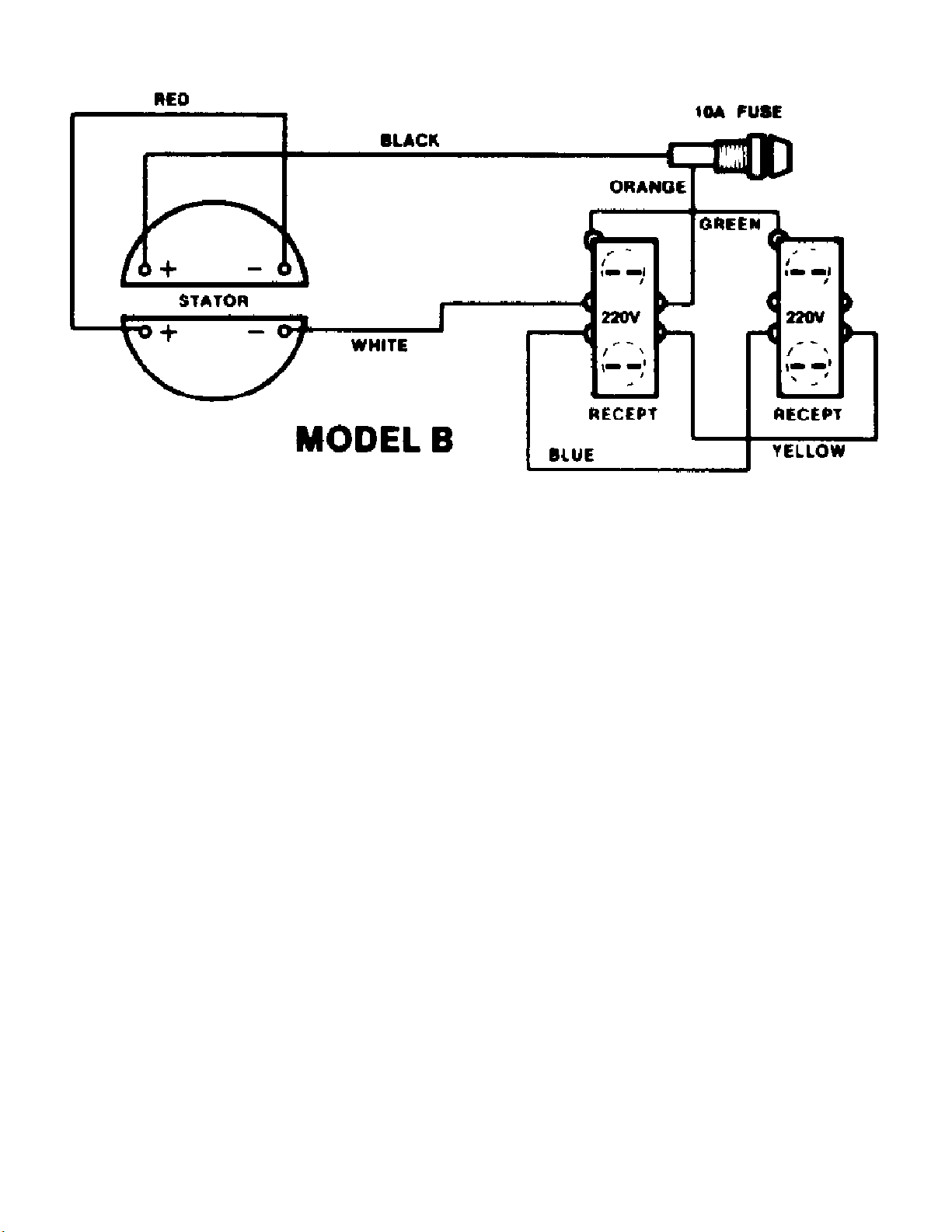

Wiring Schematic (Model B)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 13
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 13 of 14
www.ktoutdoor.com

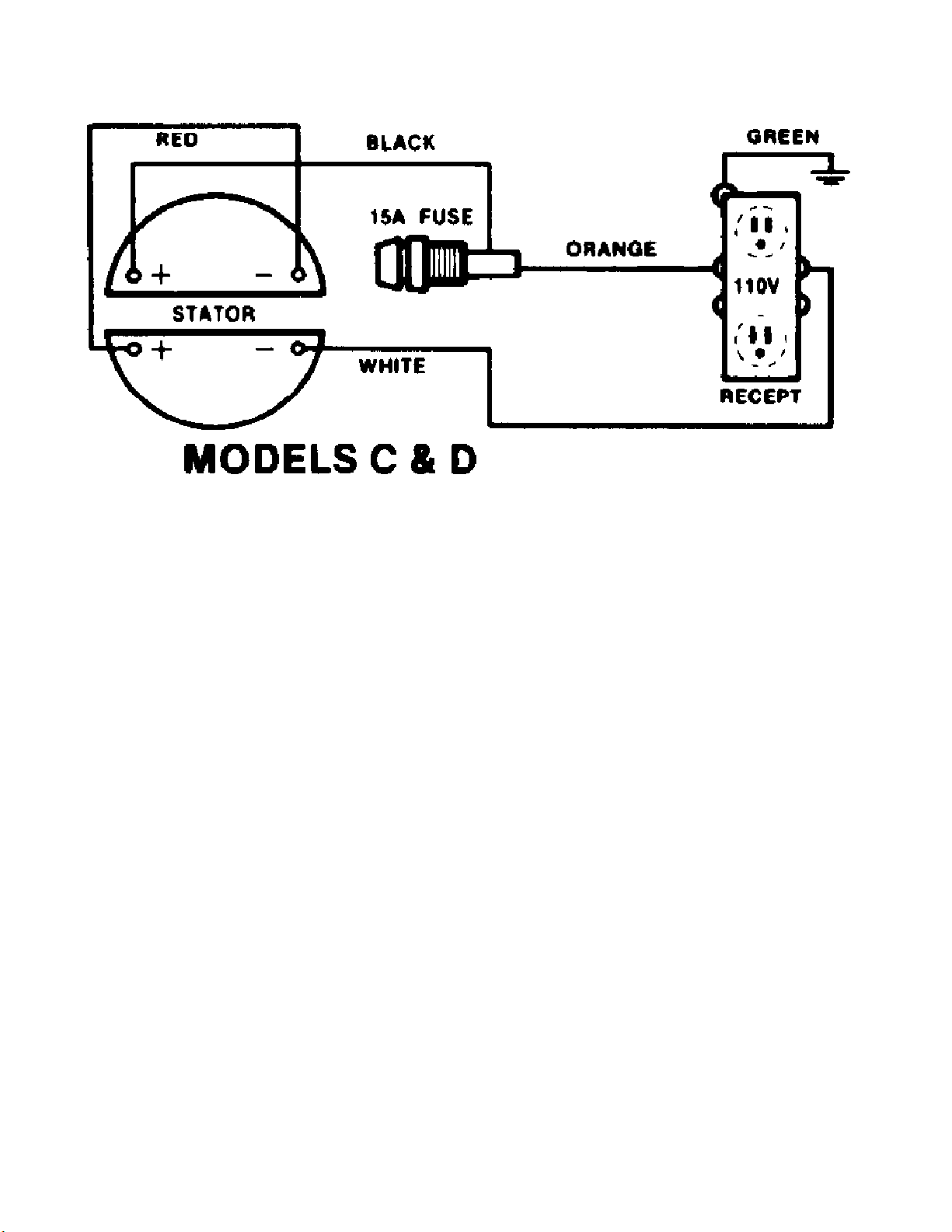

Wiring Schematic (Model C & D)
K&T Saw Shop 606-678-9623 or 606-561-4983
Page 14
11-400465 HP-2000 07/72 to 05/74 IPL 21733 Page 14 of 14
www.ktoutdoor.com

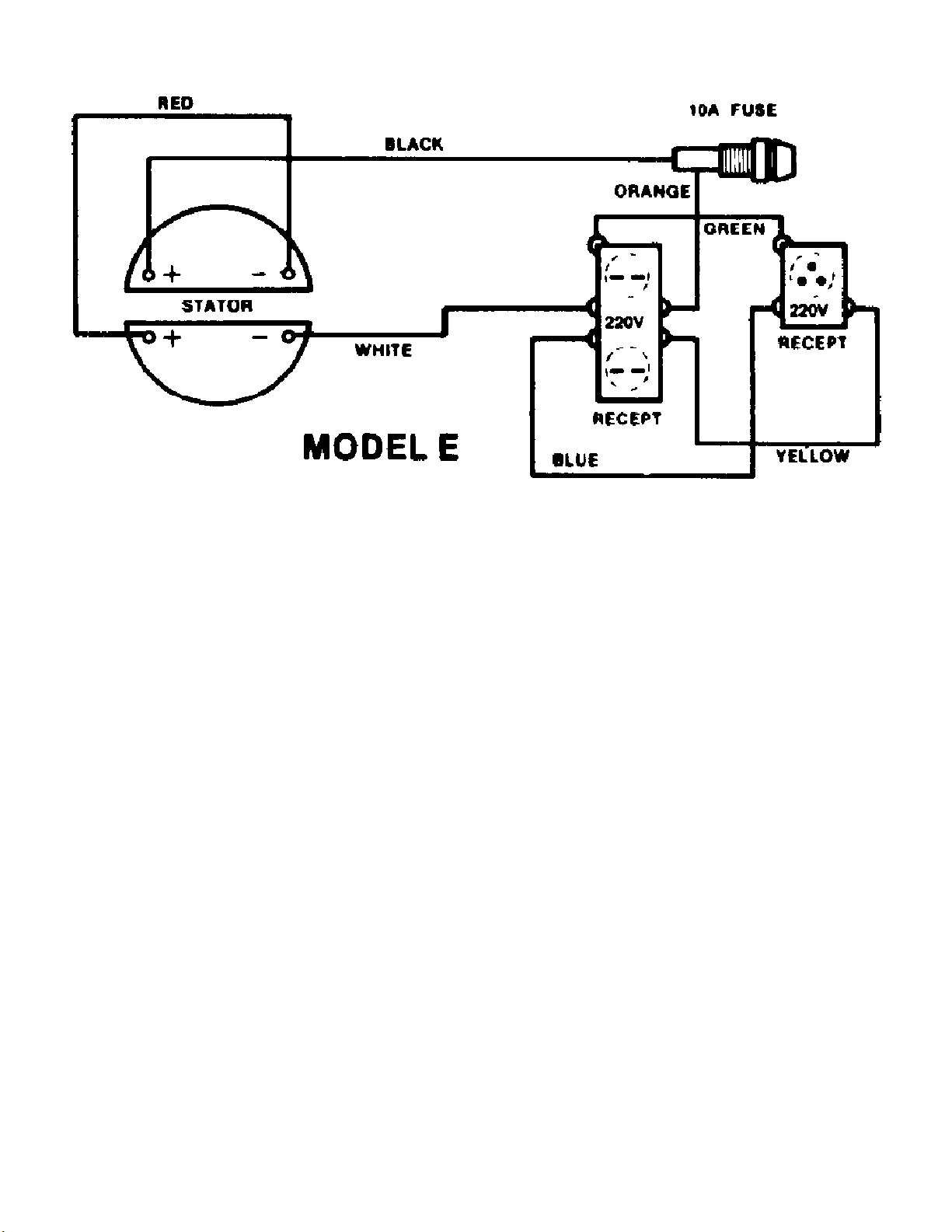

Wiring Schematic (Model E)
K&T Saw Shop 606-678-9623 or 606-561-4983
