11-400090C MAC 21SP 10/86 to 11/89 IPL 219722 Page 1 of 11

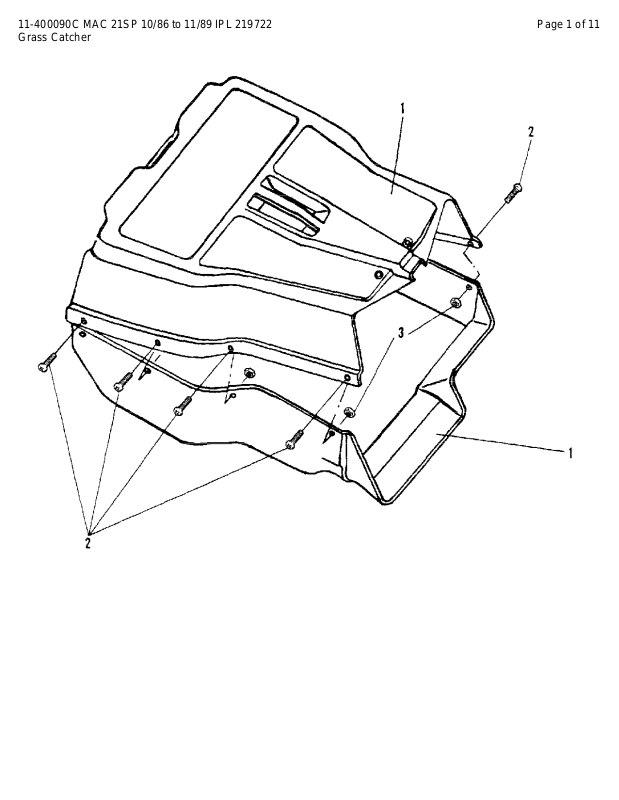

Grass Catcher
11-400090C MAC 21SP 10/86 to 11/89 IPL 219722 Page 2 of 11
Grass Catcher
Ref # Part Number DescriptionQty
1 219653 Catcher Kit1
2 219701 Screw - 10-24 x 3/410
3 219679 Nut - 10-2410
11-400090C MAC 21SP 10/86 to 11/89 IPL 219722 Page 3 of 11
Handlebar Assembly
11-400090C MAC 21SP 10/86 to 11/89 IPL 219722 Page 4 of 11
Handlebar Assembly
Ref # Part Number DescriptionQty
1 219601 Handlebar-Upper (Push Mower)1
219602 Handlebar-Upper (Self Propelled Mower)1
2 219603 Handlebar-Lower1
3 219604 Handlebar Knob2
4 219605 Engine Control Lever1
5 219606 Bail Up-Stop Bracket-L.H.1
219607 Bail Up-Stop Bracket-R.H.1
6 219608 Saddle Bolt 5/16 - 18 x 2"2
7 219671 Screw - 10-32 x 1/2"2
8 219609 Handle Panel1
9 219610 Cable-Zone Restart1
10 219671 Screw - 10-32 x 1/2"1
11 219611 Throttle Control1
12 219612 Clamp - Throttle1
13 219672 Screw - 10 x 5/81
14 219673 Capscrew - Hex Hd 1/4-20 x 2"1
15 219674 Nut - 1/4-201
16 219613 Cable Tie2
17 219614 Rope Guide2
18 219615 J-Bolt1
19 219675 Nut - 1/4-201
20 219616 Drive Control Lever1
21 219617 Drive Cable Assembly1
22 219676 Capscrew-Hx Hd 5/16-18 x 1 1/2"1
23 219677 Nut - 5/16-181
24 219678 Screw - 10-24 x 3/4" Rd Hd1
25 219679 Nut - 10-241
