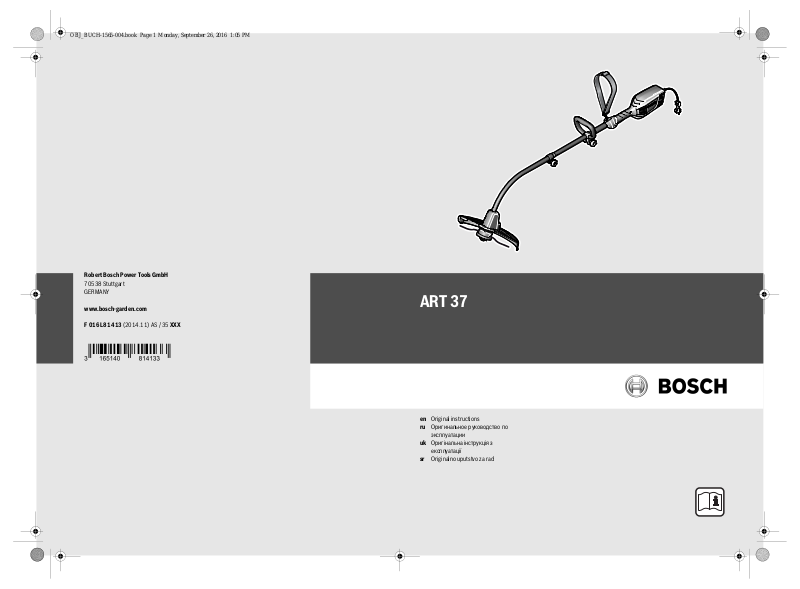

OBJ_BUCH-1565-004.book Page 1 Monday, September 26, 2016 1:05 PM
Robert Bosch Power Tools GmbH
70538 Stuttgart
GERMANY
ART 37
www.bosch-garden.com
F 016 L81 413 (2014.11) AS / 35 XXX
en Original instructions
ru Оригинальное руководство по эксплуатации
uk Оригінальна інструкція з експлуатації
sr Originalno uputstvo za rad
OBJ_BUCH-1565-004.book Page 2 Monday, September 26, 2016 1:05 PM
2 |
English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3 Русский . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Страница 9 Українська. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Сторінка 16 Srpski. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Strana 22
|
F 016 L81 413 | (26.9.16) |
|
|
Bosch Power Tools |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OBJ_BUCH-1565-004.book Page 3 Wednesday, September 28, 2016 11:44 AM
English
Safety Notes
Warning! Read these instructions carefully, be familiar with the controls and the proper use of the machine. Please keep the instructions safe for later use!
Explanation of symbols
General hazard safety alert.
Read instruction manual.
Pay attention that bystanders are not injured through foreign objects thrown from the machine.
Warning: Keep a safe distance from the machine when operating.
Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled and before leaving the garden product unattended for any period. Keep the supply flexible cord away from the cutting line.
Wear eye and ear protection.
Do not work in the rain or leave the trimmer outdoors whilst it is raining.
English | 3
Beware of thrown or flying objects to bystanders.
Warning: Keep a safe distance from the machine when operating.
Operation
This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine.
Never allow children or people unfamiliar with these instructions to use the trimmer. Local regulations may restrict the age of the operator. When not in use, store the trimmer out of reach of children.
Never operate the trimmer with missing or broken guards or shields or without guards or shields in position.
Before use check the supply and extension cord for signs of damage or ageing. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the trimmer if the cord is damaged or worn.
|
Bosch Power Tools |
|
|
F 016 L81 413 | (28.9.16) |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OBJ_BUCH-1565-004.book Page 4 Wednesday, September 28, 2016 11:44 AM
4 | English
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Keep extension cords away from cutting elements.
Before using the machine and after impact, check for signs of wear or damage and repair if necessary.
Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine.
Always wear long heavy trousers, boots and gloves. Do not wear loose clothing, jewellery, short trousers, sandals or go barefoot. Secure hair so that it is above shoulder level to avoid entanglement with moving parts.
Wear safety eye protection and ear defenders when operating the machine.
Keep firm footing and balance. Do not overreach.
Never work with this trimmer while people, especially children or pets are nearby.
The operator or user is responsible for accidents or hazards occurring to other people or their property.
Wait until the cutting head has completely stopped before touching it. The head continues to rotate after the trimmer is switched off, the cutting system can cause injury/damage.
Work only in daylight or in good artificial light.
Avoid operating the trimmer in bad weather conditions especially when there is a risk of lightning.
Operating the trimmer in wet grass decreases the efficiency of performance.
Switch off when transporting the trimmer to and from the area to be worked on.
Switch on the trimmer with hands and feet well away from the rotating line.
Do not put hands or feet near the cutting system.
Never fit metal cutting elements to this trimmer.
Inspect and maintain the trimmer regularly.
Have the trimmer repaired only by an authorized customer service agent.
Always ensure that the ventilation slots are kept clear of debris.
Take care against injury from the blade fitted for cutting the nylon line length. After feeding line always return the trimmer to its horizontal operating position before switching on.
Switch off and remove the plug from the socket:
–whenever you leave the machine unattended for any period
–before replacing the cutting lline
–if the cable is tangled
–before cleaning or working on the trimmer
After use, disconnect the machine from the mains and check for damage.
Store the machine in a secure, dry place out of the reach of children. Do not place other objects on top of the machine.
|
F 016 L81 413 | (28.9.16) |
|
|
Bosch Power Tools |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OBJ_BUCH-1565-004.book Page 5 Wednesday, September 28, 2016 11:44 AM
Replace worn or damaged parts for safety.
Ensure replacement parts fitted are Bosch approved.
Do not operate the machine without the trimmer attachment fitted.
Electrical Safety
Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.
The cutting line continues to rotate for a few seconds after the trimmer is switched off.
Caution – do not touch rotating cutting line.
Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V). Only use approved extension cables. Contact your Bosch Service Centre for details.
It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.
For products not sold in GB: WARNING: For your safety, it is required that the plug attached to the machine is connected with the extension cord. The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.
English | 5
The connection lead must be inspected for signs of damage at regular intervals and may only be used if in perfect condition.
If the supply cord is damaged, it must be replaced by a Bosch Service Centre.
Extension cords/leads should only be used if they comply with H05VV-F or H05RN-F types.
Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less.
Symbols
The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.
Symbol Meaning
Wear protective gloves
Do not use flowing water to clean the machine
|
Bosch Power Tools |
|
|
F 016 L81 413 | (28.9.16) |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OBJ_BUCH-1565-004.book Page 6 Wednesday, September 28, 2016 11:44 AM
6 | English
Symbol Meaning
Movement direction
Reaction direction
Switching On
Switching Off
Prohibited action
Accessories/Spare Parts
Intended Use
The machine is intended for the cutting of grass and weeds under bushes, as well as on slopes and edges that can not be reached with the lawn mower.
Intended use is related to operation within 0 °C and 40 °C ambient temperature.
Technical Data
Trimmer |
|
ART 37 |
Article number |
|
0 600 878 M.. |
Rated power |
W |
1000 |
No-load speed |
min-1 |
9000 |
Cutting line feed |
|
Bump feed |
Adjustable handle |
|
|
Cutting line diameter |
mm |
2.0 |
Cutting diameter |
cm |
37 |
Cutting spool capacity |
m |
7 |
Weight according to EPTA- |
kg |
4.6 |
Procedure 01:2014 |
||
Protection class |
|
/II |
Serial number |
see type plate on the |
|
|
|
garden product |
|
|
|
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.
Noise/Vibration Information
Sound emission values determined according to EN 50636-2-91.
Typically the A-weighted noise levels of the product are: Sound pressure level 83 dB(A); sound power level
103 dB(A). Uncertainty K =2,5 dB.
Vibration total values ah (triax vector sum) and uncertainty K determined according to EN 60335:
ah =4,8 m/s2, K=1,5 m/s2.
Mounting and Operation
Do not connect the machine to the mains socket before it is completely assembled.
The cutting line continues to rotate for a few seconds after the trimmer is switched off. Allow the motor/cutting line to stop rotating before switching “on” again.
Do not rapidly switch off and on.
Do not hand bump the line feed as it could be hot.
Remove any grass from spool cover when changing line or spool.
Only use Bosch approved cutting elements. Cutting performance will vary with different cutting elements.
Use the original spring when replacing spool.
Action |
Figure |
Page |
Delivery Scope |
1 |
27 |
Connecting the Shaft |
2 |
27 |
Mounting the Auxiliary Handle |
3 |
27 |
Mounting the Cutting Guard |
4 |
28 |
Attaching the Shoulder Strap |
5 |
28 |
Connecting the Extension Lead |
6 |
28 |
Starting |
7 |
29 |
Stopping |
7 |
29 |
Working Advice |
8 |
29 |
Feeding the Line |
9 |
30 |
Replacing the Line Spool |
10 |
31 |
Winding Line on Spool |
11 |
32 |
Fitting Spool into Spool Holder |
12 |
33 |
Maintenance, Cleaning and Storage |
13 – 14 |
33 – 34 |
Selecting Accessories |
15 |
34 |
|
|
|
|
F 016 L81 413 | (28.9.16) |
|
|
Bosch Power Tools |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OBJ_BUCH-1565-004.book Page 7 Wednesday, September 28, 2016 11:44 AM
English | 7
Troubleshooting
Problem |
Possible Cause |
Corrective Action |
Trimmer fails to operate |
Power turned off |
Turn power on |
|
|
|
|
Mains socket faulty |
Use another socket |
|
|
|
|
Extension cable damaged |
Inspect cable, replace if damaged |
|
|
|
|
Fuse faulty/blown |
Replace fuse |
|
|
|
Trimmer runs intermittently |
Extension cable damaged |
Inspect cable, replace if damaged |
|
|
Contact Service Agent |
|
|
|
|
Internal wiring of machine damaged |
Contact Service Agent |
|
|
|
Garden product labours |
Grass too high |
Cut in stages |
|
|
|
Machine does not cut |
Cutting line too short/broken off |
Replace cutting line |
|
|
|
Line can not be fed |
Spool empty |
Replace the spool |
|
|
|
|
Line inside the spool entangled |
Inspect the spool, rewind if necessary |
|
|
|
Line retracts into spool |
Line not bump fed |
Rewind spool (see figure 11) |
|
|
|
Line keeps breaking |
Line inside the spool entangled |
Inspect the spool, rewind if necessary |
|
|
|
|
Trimmer used incorrectly |
Only trim with the tip of the line, avoid |
|
|
stones, walls and other hard objects. Feed |
|
|
the line regularly to maintain full cutting |
|
|
width. |
|
|
|
After-sales Service and Application
Service
www.bosch-garden.com
In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.
Great Britain
Robert Bosch Ltd. (B.S.C.) P.O. Box 98
Broadwater Park
North Orbital Road Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: (0844) 7360109
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd. Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center Inside Australia:
Phone: (01300) 307044 Fax: (01300) 307045 Inside New Zealand: Phone: (0800) 543353 Fax: (0800) 428570 Outside AU and NZ: Phone: +61 3 95415555 www.bosch.com.au
|
Bosch Power Tools |
|
|
F 016 L81 413 | (28.9.16) |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OBJ_BUCH-1565-004.book Page 8 Wednesday, September 28, 2016 11:44 AM
8 | English
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng – BSC Service Centre
35 Roper Street, New Centre Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126 E-Mail: bsctools@icon.co.za
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com
Disposal
Do not dispose of garden products into household waste!
Only for EC countries:
According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Subject to change without notice.
|
F 016 L81 413 | (28.9.16) |
|
|
Bosch Power Tools |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OBJ_BUCH-1565-004.book Page 9 Wednesday, September 28, 2016 11:44 AM
Русский
В состав эксплуатационных документов, предусмотренных изготовителем для продукции, могут входить настоящее руководство по эксплуатации, а также приложения.
Информация о подтверждении соответствия содержится в приложении.
Информация о стране происхождения указана на корпусе изделия и в приложении.
Дата изготовления указана на последней странице обложки Руководства.
Контактная информация относительно импортера содержится на упаковке.
Срок службы изделия
Срок службы изделия составляет 7 лет. Не рекомендуется к эксплуатации по истечении 5 лет хранения с даты изготовления без предварительной проверки (дату изготовления см. на этикетке).
Перечень критических отказов и ошибочные действия персонала или пользователя
–не использовать с поврежденной рукояткой или поврежденным защитным кожухом
–не использовать при появлении дыма непосредственно из корпуса изделия
–не использовать с перебитым или оголенным электрическим кабелем
–не использовать на открытом пространстве во время дождя (в распыляемой воде)
–не включать при попадании воды в корпус
–не использовать при сильном искрении
–не использовать при появлении сильной вибрации
Критерии предельных состояний
–перетёрт или повреждён электрический кабель
–поврежден корпус изделия
Тип и периодичность технического обслуживания
Рекомендуется очистить инструмент от пыли после каждого использования.
Хранение
–необходимо хранить в сухом месте
–необходимо хранить вдали от источников повышенных температур и воздействия солнечных лучей
–при хранении необходимо избегать резкого перепада температур
–хранение без упаковки не допускается
–подробные требования к условиям хранения смотрите в ГОСТ 15150 (Условие 1)
Транспортировка
–категорически не допускается падение и любые механические воздействия на упаковку при транспортировке
Русский | 9
–при разгрузке/погрузке не допускается использование любого вида техники, работающей по принципу зажима упаковки
–подробные требования к условиям транспортировки смотрите в ГОСТ 15150 (Условие 5)
Указания по безопасности
Внимание! Внимательно прочитайте следующие указания. Ознакомьтесь с элементами управления и правильным пользованием садового инструмента. Сохраняйте руководство по эксплуатации для дальнейшего использования.
Пояснение пиктограмм
Общее указание на наличие опасности.
Прочитайте руководство по эксплуатации.
Следите за тем, чтобы отбрасываемые работающей машиной предметы не травмировали находящихся вблизи людей.
Предупреждение:
Выдерживайте безопасное расстояние до садового инструмента, когда он работает.
Выключайте триммер и вытаскивайте штепсельную вилку из розетки перед
изменением настроек на триммере или его очисткой, если запутался шнур питания
или если Вам нужно оставить триммер без присмотра даже на
|
Bosch Power Tools |
|
|
F 016 L81 413 | (28.9.16) |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OBJ_BUCH-1565-004.book Page 10 Wednesday, September 28, 2016 11:44 AM
10 | Русский
короткое время. Не допускайте
попадания шнура под леску.
Обязательно надевайте средства защиты органов
слуха и защитные очки.
Не работайте в дождь и не оставляйте триммер в дождь на улице.
Следите за тем, чтобы чужеродные предметы, отлетающие от триммера, не травмировали находящихся поблизости людей.
Предупреждение: Выдерживайте безопасное расстояние до садового инструмента, когда он работает.
Эксплуатация
Этот садовый инструмент не предназначен для использования лицами (включая детей) с ограниченными психическими или сенсорными способностями, с нарушениями психического здоровья, а также с недостаточным опытом/знаниями, исключая случаи, когда эксплуатация осуществляется такими лицами под наблюдением ответственного за их безопасность либо после получения от ответственного за безопасность соответствующих разъяснений относительно
эксплуатации данного садового инструмента.
Необходимо проследить, чтобы дети не играли с садовым инструментом.
Никогда не позволяйте пользоваться триммером детям или лицам, не знакомым с этими указаниями. Национальные предписания могут ограничивать возраст оператора. Если Вы не пользуетесь триммером, храните его в недоступном для детей месте.
Никогда не работайте с триммером, если отсутствуют или повреждены крышки или защитные приспособления или если они неправильно установлены.
Перед началом работы проверяйте шнур или удлинитель на предмет повреждений и наличие признаков старения. При повреждении шнура питания во время работы немедленно вытащите штепсельную вилку из розетки. НЕ ПРИКАСАЙТЕСЬ К ШНУРУ, ПОКА ШТЕПСЕЛЬНАЯ ВИЛКА ЕЩЕ ВСТАВЛЕНА В РОЗЕТКУ. Не работайте с триммером, если шнур поврежден или износился.
При необходимости замены шнура питания обращайтесь во избежание опасности к производителю, в авторизированную сервисную мастерскую производителя или к квалифицированному специалисту.
|
F 016 L81 413 | (28.9.16) |
|
|
Bosch Power Tools |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OBJ_BUCH-1565-004.book Page 11 Wednesday, September 28, 2016 11:44 AM
Держите удлинитель вдали от
режущих элементов.
Перед началом работы и после удара проверьте садовый инструмент на предмет износа и повреждений и при необходимости отдайте его в ремонт.
Не пользуйтесь садовым инструментом, если Вы устали или больны, или находитесь под действием спиртных напитков, наркотических средств или медикаментов.
Надевайте длинные, прочные штаны, прочную обувь и рукавицы. Не надевайте свободную одежду, украшения, короткие штаны, сандалии и не работайте без обуви. Чтобы волосы не запутались в движущихся деталях, подвязывайте их выше уровня плеч.
При обслуживании садового
инструмента надевайте защитные очки и наушники.
Всегда сохраняйте устойчивое положение и равновесие. Не перенапрягайтесь.
Никогда не пользуйтесь триммером, если поблизости находятся другие люди, в особенности дети, или домашние животные.
Оператор или пользователь ответственен за несчастные случаи и ущерб, нанесенный другим лицам или их имуществу.
Русский | 11
Прежде чем прикоснуться к вращающейся леске, подождите, пока она полностью не остановится. Леска продолжает вращаться некоторое время после выключения триммера и может причинить телесные повреждения.
Работайте только при дневном освещении или хорошем искусственном освещении.
Не работайте с триммером при плохих погодных условиях, в частности, когда собирается гроза.
Использование триммера на влажной траве снижает эффективность работы.
Перед транспортировкой триммера от места/к месту работы выключайте его.
Включайте триммер только тогда, когда руки и ноги будут находиться на достаточном расстоянии от вращающейся лески.
Не подставляйте руки и ноги под вращающуюся леску.
Никогда не используйте металлические режущие элементы для этого триммера.
Регулярно проверяйте триммер и выполняйте работы по его техобслуживанию.
Отдавайте триммер в ремонт только в авторизированные сервисные мастерские.
Постоянно следите за чистотой вентиляционных шлицев.
|
Bosch Power Tools |
|
|
F 016 L81 413 | (28.9.16) |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
