Instruction manual
Thank you for purchasing the PlayStation®2 online pack. Your PlayStation®2 computer entertainment system includes a pre-installed network adaptor (Ethernet/modem).*
You can play PlayStation®2 format CD-ROM and DVD-ROM discs, PlayStation® format
CD-ROM discs, audio CDs and DVD video discs with NTSC 1 designation with this system.
Before using this product, carefully read this manual and retain it for future reference.
Mode d’emploi
Nous vous remercions d'avoir fait l'acquisition du PlayStation®2 online pack. Votre système de loisir interactif PlayStation®2 est fourni avec un adaptateur réseau (Éthernet/modem) installé.*
Avec ce système, vous pouvez lire des disques CDROM et DVD-ROM au format PlayStation®2, des CDROM au format PlayStation®, des CD audio et des disques DVD vidéo portant la désignation NTSC 1. Avant d’utiliser ce produit, lisez attentivement ce mode d’emploi et conservez-le pour pouvoir vous y reporter ultérieurememt.
Manual de instrucciones
Gracias por adquirir PlayStation®2 online pack. Su sistema de entretenimiento computarizado
PlayStation®2 incluye un adaptador de red (Ethernet/ modem) preinstalado.*
Con este sistema, puede reproducir DVD-ROM y CDROM de formato PlayStation®2,
CD-ROM de formato PlayStation®, CD audio y discos de vídeo DVD con la designación NTSC 1.
Antes de utilizar este producto, lea detenidamente este manual y consérvelo para consultarlo en el futuro.
*The network adaptor is not for individual resale.
*L'adaptateur réseau ne peut être revendu séparément.
*El adaptador de red no puede ser revendido individualmente.
SCPH-39001/N / 97013
SCPH-39010/N / 97015
|
|
3-084-043-11(2) |
US P.2 |
FR P.32 |
ES P.62 |
English |
Français |
Español |
MEMORY CARD slots |
Fentes pour MEMORY |
|
CARD (carte mémoire) |
||
“ ” product family |
Logo de la gamme de |
|
produits “ ” |
||
logo |
||
1(standby)/RESET |
Bouton 1(veille)/ |
|
button and 1 indicator |
RESET et indicateur 1 |
Ranuras para MEMORY CARD (tarjeta de memoria)
Logotipo de la familia de productos “
”
Botón 1(espera) / RESET (reinicio) e indicador 1
A(open) button and
Aindicator
Disc tray
Controller ports
L2 button, R2 button,
L1 button, R1 button
Directional buttons
¢ button, abutton,button, sbutton
START button
ANALOG mode button
SELECT button
Left analog stick, right analog stick, L3 button, R3 button
Bouton A(ouvrir) et |
Botón A(abrir) e |
indicateur A |
indicador A |
Compartiment à |
Bandeja del disco |
disque |
|
Ports de manette |
Puertos de control |
Touche L2, touche R2, |
Botón L2, botón R2, |
touche L1, touche R1 |
botón L1, botón R1 |
Touches directionnelles |
Botones de dirección |
Touche ¢ , touche a, |
Botón ¢ , botón a, |
touche , touche s |
botón , botón s |
Touche START |
|
(de mise en marche) |
Botón START (inicio) |
Touche de mode |
Botón modo ANALOG |
ANALOG (analogique) |
(analógico) |
Touche SELECT |
Botón SELECT |
(de sélection) |
(selección) |
Manche analogique |
Joystick analógico |
gauche, manche |
izquierdo, joystick |
analogique droit, |
analógico derecho, |
touche L3, touche R3 |
botón L3, botón R3 |
© 2003 Sony Computer Entertainment Inc. All rights reserved.
2
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not disassemble. Refer servicing to qualified personnel only.
Caution
The use of optical instruments with this product will increase eye hazard. As the laser beam used in this unit is harmful to eyes, do not attempt to disassemble the cabinet.
Refer servicing to qualified personnel only.
This label is located on the Laser protective housing inside the enclosure of the PlayStation®2 console.
This graphical symbol with supplemental marking is located on the right surface of the PlayStation®2 console (when it is in a vertical position).
This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the console.
Caution
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord.
For questions about AWG numbers, contact our technical support line at 1-800-345-7669.
Information
PlayStation®2 console and network adaptor
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and receiver.
–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
–Consult the dealer or an experienced radio/TV technician for help.
If you have questions about this product, call our technical support line at 1-800-345-7669, or write to: Sony Computer Entertainment America
Consumer Services/Technical Support
PO Box 5888, San Mateo, CA 94402-0888 U.S.A.
Trade Name : |
SONY |
Model No. : |
SCPH-39001/N |
|
SCPH-39010/N |
Responsible Party : |
Sony Electronics Inc. |
Address : |
680 Kinderkamack Road |
|
Oradell, NJ 07649 U.S.A. |
Telephone No. : |
201-930-6972 |
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Network adaptor
For customers in the USA
This network adaptor complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom surface of this network adaptor is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.
The Ringer Equivalence Number (REN) is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.
A jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA.
This product uses the “RJ-11C” telephone jack.
If this equipment causes harm to the telephone network, the telephone company will, when practical, notify you in advance that temporary discontinuance of service may be required. If advance notice is not practical, the telephone company will notify you as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is warranted.
The telephone company may make changes to its facilities, equipment, operations or procedures that could affect the operation of equipment. If this happens, the telephone company will provide advance notice so you can make the necessary modifications to maintain uninterrupted service.
If you have questions about this product, call our technical support line at 1-800-345-7669, or write to:
Sony Computer Entertainment America
Consumer Services/Technical Support
PO Box 5888, San Mateo, CA 94402-0888 U.S.A.
This equipment cannot be used on telephone company provided coin service. Connection to party line service is subject to state tariffs.
Repair of this product should be made only by an authorized Sony Service Center. For the Sony Service Center nearest you, call 1-800-345-7669.
Telephone Consumer Protection Act of 1991
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone facsimile machine unless such message clearly contains, in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification of the business, other entity, or individual sending the message, and the telephone number of the sending machine or such business, other entity, or individual. In order to program this information into your facsimile machine, see your facsimile software documentation.
For customers in Canada
This product is Industry Canada label identified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection.
The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority or an electrician.
NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface.
The terminals on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Number of all the devices does not exceed five (5.0).
The Ringer Equivalence Number for this equipment is 0.1.
The term “IC:” before the certification/registration number only signifies that the Industry Canada technical specifications were met.
Before operating your PlayStation®2 console
A very small percentage of individuals may experience epileptic seizures when exposed to certain light patterns or flashing lights. Exposure to certain patterns or backgrounds on a television screen or while playing video games, including games played on the PlayStation®2 console, may induce an epileptic seizure in these individuals. Certain conditions may induce previously undetected epileptic symptoms even in persons who have no history of prior seizures or epilepsy.
If you, or anyone in your family, has an epileptic condition, consult your physician prior to playing. If you experience any of the following symptoms while playing a video game - dizziness, altered vision, eye or muscle twitches, loss of awareness, disorientation, any involuntary movement, or convulsions - IMMEDIATELY discontinue use and consult your physician before resuming play.
Owner’s record
The model and serial numbers of the PlayStation®2 console are located on the left side of the console (when placed in the horizontal position). The serial number of the network adaptor is located on the network adaptor rear. Record the serial numbers in the spaces provided below. Refer to these numbers whenever you call for technical assistance at 1-800-345-7669.
Model No. SCPH-39001/N SCPH-39010/N
Serial No.
PlayStation®2 console ___________________________
Network adaptor ___________________________
Important notice
Before attaching the network adaptor to other PlayStation®2 consoles, review the list of serial numbers below. A small percentage of PlayStation®2 consoles may not be compatible with this network adaptor. If the serial number of the PlayStation®2 console (found on the console rear) matches any of the numbers in this list, contact our technical support line at 1-800-345-7669 for further information.
Serial numbers
3369556 – 3369651
3372352 – 3372651
3379084 – 3380151
3380260 – 3381867
3381976 – 3382083
3383152 – 3383691
3384652 – 3385191
3386152 – 3386907
3388192 – 3389271
3391084 – 3392055
3393868 – 3394407
3394516 – 3394731
3397192 – 3398055
3399868 – 3400947
3403192 – 3403839
3404692 – 3405339
3406192 – 3406515
3406624 – 3406839
3414661 – 3416388
3417661 – 3418740
3419173 – 3419280
3419821 – 3419928
3420661 – 3421308
3421417 – 3421524
3421633 – 3422064
3423661 – 3424848
3425161 – 3425268
3434377 – 3434592
|
Precautions |
|
|
|
3 |
|
|
|
|
|
|
Safety
This product has been designed with the highest concern for safety. However, any electrical device, if used improperly, has the potential for causing fire, electrical shock or personal injury. To ensure accident-free operation, follow these guidelines:
•Observe all warnings, precautions and instructions.
•Stop use immediately if the device functions in an abnormal manner, or produces unusual sounds or smells.
•Never connect cables of types other than those specified in this manual to the line connector and network connector. Connect only cables of the proper type for each connector.
•If the device does not function properly, contact our technical support line at 1-800-345-7669 for assistance.
Use and handling
•Do not throw or drop the console or network adaptor, or subject either item to strong physical shock.
•Do not place the console or network adaptor on surfaces that are unstable, tilted or subject to vibration.
•Never move or change the position of a console while it is turned on.
•Do not expose the console or network adaptor to high temperatures, high humidity or direct sunlight (use in an environment where temperatures range 5°C – 35°C/41°F – 95°F).
•Do not place the console or network adaptor in locations subject to sudden temperature change (e.g. temperature changes of 10°C/18°F per hour or more).
•Do not leave the console or network adaptor in a car with its windows closed (particularly in summer) as this may warp the product exterior or cause the product to malfunction.
•Do not use the console in a dusty location.
•Do not allow liquid or small particles to get into the console or network adaptor.
•Do not place the console close or network adaptor to magnetic fields such as those produced by magnets, loudspeakers or television sets.
•Do not put heavy objects on the console or network adaptor.
•Do not touch the metal parts or insert foreign objects into the connectors of the console or the network adaptor.
•When you do not intend to use the console for an extended period of time, disconnect the power plug for the PlayStation®2 console from the electrical outlet and the telephone cord from the wall jack.
•When disconnecting the power plug from an electrical outlet, pull it out by grasping the plug. Never pull the cord itself.
•Do not connect any unauthorized internal peripheral to the network adaptor.
•Do not place any rubber or vinyl materials on the exterior of the console or network adaptor for an extended period of time. Doing so may damage the plastic surface.
Do not touch the connectors on the console or network adaptor
Do not touch the metal parts of, or insert foreign objects into, the connectors on the console or the network adaptor. Do not leave the network adaptor unattached from the console for extended periods of time. Note that keeping the network adaptor attached to the console helps to protect the network adaptor connectors as well as those within the console's expansion bay.
Do not expose the console to cigarette smoke or dust
When setting up the PlayStation®2 console, avoid places subject to excessive cigarette smoke or dust. Cigarette smoke residue or dust build-up on internal components such as the lens, may cause the console to malfunction.
Cleaning the vents
Dust can accumulate in both the front and rear vents of the PlayStation®2 console. Check the vents from time to time and remove any accumulated dust with a lowpowered vacuum cleaner.
Disc handling
•Do not leave discs near a heat source, in direct sunlight, or in high humidity.
•Store discs in their cases when they are not being used. Stacking discs or standing them at an angle without putting them in their cases can cause the discs to warp.
•Do not touch the disc surface when handling a disc; hold it by the edges.
•Do not stick paper or tape onto the disc.
•Do not write on the disc with a marker, etc.
•Fingerprints or dust on the disc can distort the picture or reduce sound quality. Make sure discs are always clean before use.
•Clean discs using a soft cloth, lightly wiping from the center outwards.
•Do not use solvents such as benzine, commercially available cleaners not intended for CDs or anti-static spray intended for vinyl LPs as these may damage your disc.
Moisture condensation
If the console or the disc is brought directly from a cold location to a warm one, moisture may condense on the lens inside the console or on the disc. Should this occur, the console may not operate properly. In this case, remove the disc and do not put the disc back in until the moisture evaporates. (This could take several hours.) If the console still does not operate properly, call 1-800-345-7669 for technical assistance.
Cleaning the console and network adaptor
For safety reasons, before cleaning the console and network adaptor, 1) turn off the PlayStation®2 console using the MAIN POWER switch on the console rear, 2) disconnect the power plug from the electrical outlet and, 3) remove the telephone cord and/or network cable from the network adaptor.
•Do not use paint thinner, solvents or other chemicals to clean the exterior of the console or network adaptor, as these may damage the surface. When using a commercially available cleaning cloth, follow the instructions supplied with the cloth.
•If the exterior of the console or network adaptor becomes dirty, soak a soft cloth in a mild detergent solution diluted with water, tightly squeeze the cloth to remove the excess liquid, wipe the affected area of the exterior, and finish by wiping with a dry cloth.
Never disassemble the console or network adaptor
•Use your PlayStation®2 console and network adaptor according to the instructions in this manual. No authorization for the analysis or modification of the PlayStation®2 console or network adaptor, nor the analysis and use of either product’s circuit configurations, is provided.
•There are no user-serviceable components inside the PlayStation®2 console or network adaptor. Disassembling the console will void the warranty. Additionally, there is a risk of exposure to laser radiation as well as to electrical shock hazards.
Notes on using the network adaptor
Basic usage
•A dial-up or Broadband Internet connection is required to use the network adaptor.
•A telephone cord or network cable (not included) is required to connect to a network.
For specific requirements, see connection details below.
•The network adaptor start-up disc may not work with all Internet service providers.
•When you connect to a network, the Internet service provider may charge a usage fee. In some cases, usage charges may be more than anticipated. For details, refer to the instructions provided with the software in use or contact your Internet service provider.
•The network adaptor is marked with the letters
“
” to indicate that it can be used in conjunction with the internal hard disk drive (for PlayStation®2) (sold separately). Internal hard disk drive release date to be determined. Check for availability.
•Parents are encouraged to monitor children in using the network adaptor to ensure safe and responsible Internet usage.
Connecting to a telephone line
Do not connect a cord of any type other than a home-use phone cord to the LINE connector of the network adaptor. If you connect a telephone cord or network cable of a type other than that specified to the line connector, too much electrical current may pass through the connector, causing a malfunction, excessive heat or fire in the connector. Never connect phone cords of the following types (especially a phone cord for a home or business telephone network) to the line connector:
•An ISDN (digital) compatible public phone
•A PBX phone
•A cellular phone or car phone
•A home or business telephone network phone
US
started Getting
4 |
|
|
Precautions (continued) |

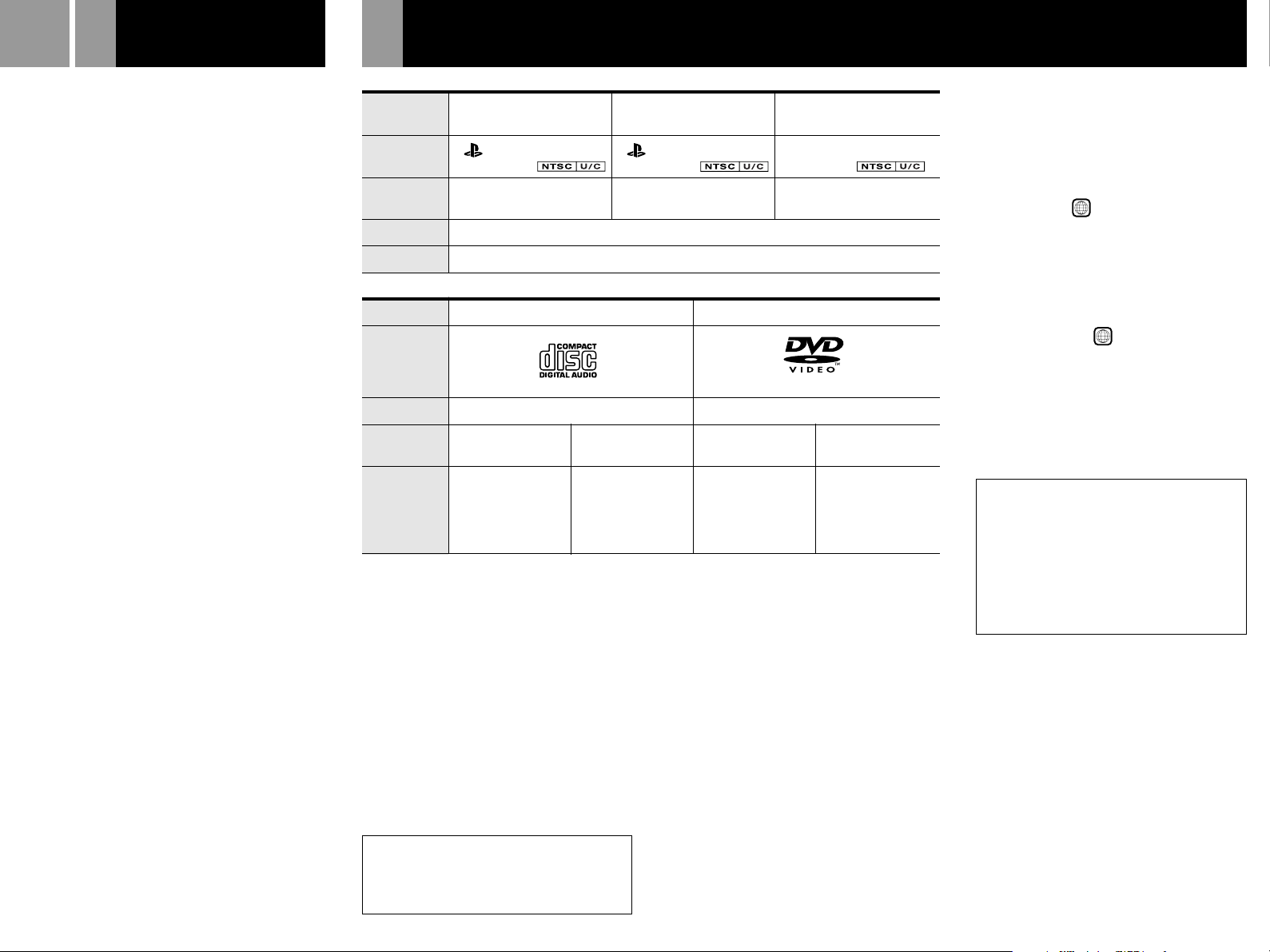

Discs that can be |
played with the PlayStation®2 console |
|
|
|
|
|
|
Connecting with a network cable
Do not connect network cables or telephone cords of the following types to the NETWORK connector; too much electrical current may pass through the connector, causing a malfunction, excessive heat or fire in the connector:
•Network cables of types other than 100Base-TX and 10Base-T
•A normal telephone line
•An ISDN (digital) compatible public phone
•A PBX phone
•A home or business telephone network phone
•Other types of telephone lines
Telephone line usage
•If a telephone call is received while the modem is in use, the modem connection may fail unless call waiting has been disabled in your network settings. For details on creating or editing network settings, refer to the instruction manual supplied with the network adaptor start-up disc.
•The modem and the telephone cannot be used at the same time.
Notes on safety when using the analog controller (DUALSHOCK®2) and analog controller (DUALSHOCK®)
•Stop using this console immediately if you begin to feel tired or if you experience discomfort or pain in your hands and/or arms while operating the controller. If the condition persists, consult a doctor.
•Do not attempt to operate the controller in any way except with your hands. Do not bring the controller into close contact with your head, face or near the bones of any other part of your body.
•The vibration function of the analog controller (DUALSHOCK®2) or the analog controller (DUALSHOCK®) can aggravate injuries.
Do not use the vibration function of the analog controller (DUALSHOCK®2) and analog controller (DUALSHOCK®) supported by software if you have any ailment in the bones or joints of your hands or arms.
•Do not use the analog controller (DUALSHOCK®2) or the analog controller (DUALSHOCK®) with software that supports the vibration function if you have injuries or ailments to the bones or muscles of your fingers, hands, wrists or arms. The vibration of the controller may aggravate such conditions.
•Avoid prolonged use of the analog controller (DUALSHOCK®2) and analog controller (DUALSHOCK®). Take a break at about 30 minute intervals.
|
PlayStation®2 format |
|
PlayStation®2 format |
PlayStation® format |
|
DVD-ROM |
|
CD-ROM |
CD-ROM |
Disc logo |
“ ”, PlayStation®2 logo |
“ |
”, PlayStation®2 logo |
PlayStation® logo and |
|
and |
|
and |
designation |
|
designation |
|
designation |
|
Disc color |
Silver |
|
Blue |
Black |
Contents |
|
|
Audio and video |
|
Disc size |
|
|
12 cm |
|
|
|
|
|
|
|
|
Audio CDs |
DVD videos |
|||||||||
Disc logo |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The “DVD VIDEO” logo is a trademark. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Contents |
|
|
|
Audio |
Audio and video |
|||||||
Disc size |
12 cm |
|
|
|
|
|
|
|
8 cm*1 |
12 cm |
8 cm*2 |
|
|
|
|
|
|
|
|
|
|
(CD single) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Play time*3 |
74 min |
|
|
|
|
|
|
|
20 min |
4 hrs |
80 min |
|
|
|
|
|
|
|
|
|
|
|
(single-sided) / |
(single-sided) / |
|
|
|
|
|
|
|
|
|
|
|
8 hrs |
160 min |
|
|
|
|
|
|
|
|
|
|
|
(double-sided) |
(double-sided) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*1 When you position the console vertically and play an 8 cm audio CD, be sure to use an optional adaptor. *2 When playing an 8 cm DVD, always place the console in the horizontal position.
*3 Actual play time varies depending upon disc content.
Software compatible with the network adaptor
PlayStation®2 format software that is compatible with the network adaptor (for PlayStation®2) can be used with the network adaptor installed in the PlayStation®2 console rear.
Network adaptor requirements
Usage of the network adaptor may vary depending on the software in use. Hardware requirements may also vary. For details, refer to the appropriate software manual.
PlayStation®2 format software compatible with the network adaptor (for PlayStation®2) is required to use the network adaptor.
Note
This product includes the network adaptor start-up disc. To enable online connectivity you must use the start-up disc to create network settings. For details, refer to the instruction manual supplied with the start-up disc. Note that a memory card (8MB) (for PlayStation®2) (sold separately) is required to save network settings.
DVD video systems and regional restrictions
•This console conforms to the NTSC broadcast standard. You cannot play discs recorded for other broadcast standards (such as PAL or SECAM) on this console.
•Some DVD videos are marked with region
numbers such as 1 . The number contained within the symbol represents the region number of DVD players on which the disc can be played. DVD videos that do not bear this symbol, or that do not display the number 1 cannot be played on your console.
•DVDs with the ALL label can also be played on this console.
If you attempt to play any other DVDs, a message stating “This disc cannot be played due to regional restrictions” will appear on the screen.
•Some DVDs that have no region code markings may still be subject to area restrictions and may not be playable on the console.
Note on playback operations of DVD video
This console plays back DVD video as originally designed by the software producers. Some of the playback features of this console may not have been incorporated into the DVD video design. As a result some playback features may not be available with certain software. Please refer to the instructions supplied with your DVD video for details.
Specially shaped discs
Do not use irregularly shaped CDs (for example, heartor star-shaped CDs) as they may cause the console to malfunction.
Table of contents
|
WARNING / Precautions |
2 |
|
|
|
|
Discs that can be played with the PlayStation®2 console |
4 |
|
|
|
Getting started |
Important safeguards |
6 |
|
||
|
|
|
|
Checking the package contents |
8 |
|
|
|
|
Part names |
8 |
|
|
|
Connection |
Positioning the console |
9 |
|
|
Connecting your console to a TV set |
10 |
|
|
|
|
Connecting digital audio components |
11 |
|
|
|
|
Connecting other digital devices |
12 |
|
|
|
|
Connecting the network adaptor to a phone line |
12 |
|
|
|
|
Connecting the network adaptor with a network cable |
13 |
|
|
|
|
Removing the network adaptor from the console |
13 |
|
|
|
|
Reattaching the network adaptor to the console |
14 |
|
|
|
|
Using the Main menu |
15 |
|
|
|
|
5
US
|
Playing a game |
16 |
Getting |
|
|
||
|
Using the analog controller |
17 |
|
|
started |
||
|
|
||
Games / Audio CDs |
Using memory cards |
18 |
|
|
|
|
|
|
Playing an audio CD |
18 |
|
|
|
|
|
|
Playing a DVD video |
19 |
|
|
|
|
|
|
Using the Control Panel |
20 |
|
|
|
|
|
DVD videos |
Settings and adjustments for the DVD player |
23 |
|
|
|
|
|
|
Troubleshooting |
27 |
|
|
|
|
|
|
Specifications |
29 |
|
|
|
|
|
Additional |
Glossary |
29 |
|
|
|
information
LIMITED WARRANTY |
30 |
|
6
Important safeguards
For your protection, please read these safety instructions completely before operating the PlayStation®2 console and network adaptor, and keep this manual for future reference.
Carefully observe all warnings, precautions and instructions on the console, or those described in the instruction manual and adhere to them.
USE
Power sources
This console should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those units designed to operate from battery power, or other sources, refer to the operating instructions.
Grounding or polarization
The console is equipped with a polarized AC power cord plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in.
Overloading
Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock.
Liquid and foreign objects
Never push objects of any kind, other than authorized items, into the console or network adaptor openings as they may touch dangerous voltage points or short out parts that could result in a fire or electrical shock. Never spill liquid of any kind on the console or network adaptor.
Attachments
Cleaning
Refer to the precautions section of this manual (page 3) for a complete description of a safe method for cleaning the exterior of the console and network adaptor.
INSTALLATION
Water and moisture
Do not use the powerline operated console near water – for example, near a bathtub, kitchen sink, in a wet basement or near a swimming pool.
Power cord protection
Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against it, paying particular attention to the plugs, receptacles, and the point where the cord exits from the console.
Ventilation
The slots and openings in the console exterior are provided for necessary ventilation. To ensure reliable operation of the console, and to protect it from overheating, these slots and openings must never be blocked or covered.
–Never cover the slots and openings with a cloth or other materials.
–Never block the slots and openings by placing the console on a bed, sofa, rug or other similar surface.
Accessories
Do not place the console or network adaptor on an unstable cart, stand, bracket or table. The console or network adaptor may fall, causing serious injury to a child or an adult, and serious damage to the console or network adaptor.
Use only the vertical or horizontal stand or other accessories recommended by the manufacturer to stabilize the console.
Do not use attachments not recommended by the manufacturer, as they may cause hazards.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
–Never place the console in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.
–Do not place the console or network adaptor near or over a radiator or heat register, or where either item is exposed to direct sunlight.
–If liquid has been spilled or objects have fallen onto the console or network adaptor.
–If the console or network adaptor has been exposed to rain or water.
ANTENNAS
Outdoor antenna grounding – If an outdoor antenna or cable system is installed, follow the precautions below.
An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and requirements for the grounding electrode.
Antenna lead-in wire
Ground clamp
Antenna
discharge unit (NEC Section 810-20)
Electric service equipment
Ground clamps
Grounding conductors (NEC Section 810-21)
Power service grounding electrode system
(NEC Art 250, Part H)
NECNational Electrical Code
Lightning
For added protection of this console during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet, disconnect the phone cord and/or network cable and disconnect the antenna or cable system. This will prevent damage to the console due to lightning and powerline surges. Do not touch the console or network adaptor during a lightning storm as this may expose you to the risk of electrical shock.
SERVICE
FRAYED OR TAUT AC power cord
Damage requiring service
Unplug the console from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
– When the AC power cord or plug is damaged or frayed.
CRACKED PLUG
–If the console or network adaptor has been subject to excessive physical shock by being dropped, or the console or network adaptor exterior has been damaged.
–If the console or network adaptor does not operate normally when following the instruction manual. Adjust only those controls that are specified in the instruction manual. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the console to normal operation.
–When the console or network adaptor exhibits a distinct change in performance – this indicates a need for service.
Servicing
Do not attempt to service the console or network adaptor yourself, as removing the exterior casing may expose you to dangerous voltage or other hazards.
Refer all servicing to an authorized service center. Call 1-800-345-7669 to receive instructions on obtaining repair/ replacement services.
Replacement parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
Safety check
Upon completion of any service or repairs to the console or network adaptor, ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the unit is in safe operating condition.
7
US
started Getting
8 |
|
|
Checking the package contents |
|
|
|
|
Part names
Check that you have the following items: |
|
• Console |
• AV cable (integrated audio/video) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
• Analog controller (DUALSHOCK®2) |
|
|
• AC power cord |
||||||||||||||||||||||||||||||||||||||||||
•PlayStation®2 format software (1 set)
•Instruction manual
If any items are missing, contact our technical support line at 1-800-345-7669.
PlayStation®2 Console
Front
MEMORY CARD slots
“
” product family logo
1(standby)/RESET button and
1 indicator
A(open) button and
Aindicator
Disc tray
Controller ports
L2 button, R2 button,
L1 button, R1 button
Directional buttons
¢ button, a button,button, s button
START button
ANALOG mode button
SELECT button
Left analog stick, right analog stick, L3 button, R3 button
Rear
Network adaptor
MAIN POWER switch
~ AC IN connector
AV MULTI connector
DIGITAL OUT (OPTICAL) connector
Network adaptor
Front
Line connector
Connect phone cord here for dial-up modem use only.
Network connector
LINE NETWORK Insert network cable (100Base-TX/10Base-T) here for Ethernet connection.
Buzzer port
Mounting screws
To fasten the network adaptor to the
PlayStation®2 console.
Rear
Console connector
Connect to the expansion bus connector of the PlayStation®2 console.
HDD data connector
HDD power connector
Warning
Never connect phone cords or network cables of types other than those specified in this manual to the line connector and network connector. For details, see “Connecting the network adaptor to a phone line” (page 12) or “Connecting the network adaptor with a network cable” (page 13).
PlayStation®2 Console
Rear (with network adaptor removed)
Expansion bus connector
|
Positioning the console |
|
9 |
|
|
|
|
You can position the console either horizontally or vertically.
When positioning the console vertically, use the SCPH-10040 U vertical stand (for PlayStation®2) (sold separately). If a vertical stand (for PlayStation®2) is not available, set the console in the horizontal position as shown below. When positioning the console horizontally, you can use the SCPH-10110 U horizontal stand (for PlayStation®2) (sold separately).
The ” ” product family logo located on the disc tray
The “ ” product family logo on the disc tray can be rotated to match the horizontal or vertical positioning of the console.
US
started Getting
Horizontal position |
Vertical position |
Notes
•Do not place the console in any position other than the horizontal or vertical positions as doing so may damage it.
•Do not change the position of the console (from horizontal to vertical or vice versa) while it is in operation. Doing so may damage the disc or cause the console to malfunction.
EXPANSION BAY
10
Connecting your console to a TV set
This section explains the connecting method for listening to sound through your TV speakers. When connecting to audio equipment with digital connectors, see “Connecting digital audio components” on page 11.
Connecting to a TV with audio/video inputs
Connect your PlayStation®2 console to the TV using the supplied AV cable (integrated audio/video). When connecting the cords, be sure to match the color-coded cords to the appropriate jacks on the components: yellow (video) to yellow, red (right audio) to red and white (left audio) to white.
After connecting
Set your TV to the appropriate video input mode. Refer to the instruction manual for your TV.
When connecting to a wide screen TV (16:9 aspect ratio)
Set “Screen Size” in the System Configuration menu to “16:9.” For details on the System Configuration menu, see page 15.
If your TV is monaural
Do not connect the red plug. If you want to hear both left and right sounds from a monaural TV, use a commercially available dual phono to single phono (stereo to monaural) type audio cable (sold separately).
MAIN POWER switch
~ AC IN connector
DIGITAL OUT (OPTICAL)
connector
To AV MULTI OUT
connector
AV cable (integrated audio/video) |
AC power cord |
Do not connect your PlayStation®2 console to a projection TV
Static, non-moving images, such as DVD menus, configuration displays or paused images may leave a faint image permanently on the TV screen if left on for extended periods of time.
Projection TVs are more susceptible to this than other types of displays. Do not operate the console in such a manner that this could occur.
Note about bouncing effect
Some TVs or monitors may experience a bouncing effect in their pictures when using the PlayStation®2 console. There is nothing wrong with the PlayStation®2 console or the way it is manufactured. The problem technically lies within the television. If you encounter such a problem with your television/monitor, please contact our technical support line at 1-800-345-7669.
Connecting to a VCR
Connect your PlayStation®2 console to the VCR using the supplied AV cable (integrated audio/ video) matching the plug colors.
If your VCR is monaural, do not connect the red plug.
However, when playing a DVD video, do not connect the console to a VCR. If you do, picture quality may be reduced. Connect the console directly to the TV.
After connecting
Set your TV and VCR adjustments appropriately.
Refer to the instruction manuals for your TV and VCR.
When playing a DVD video
|
VCR |
|
|
|
|
|
|
|
Connect directly |
|
|
|
|
||
PlayStation®2 |
|
TV |
|
console |
|
||
|
|
||
|
|
|
|
|
|
|
|
Connecting to a TV with an S VIDEO input connector
Connect your PlayStation®2 console to the
S VIDEO input connector on the TV using the SCPH-10060 U S VIDEO cable (sold separately). You will get a better picture than when using the AV cable (integrated audio/video).
After connecting
Set your TV to the appropriate video input mode (such as “S VIDEO”).
To S VIDEO input
To audio input (left)
To AV MULTI OUT connector
To audio input (right)
Connecting to a TV with an antenna input
Connect your PlayStation®2 console to the antenna input on the TV using the SCPH-10071 RFU adaptor (sold separately). In this case, the sound will be monaural.
After connecting
Set the channel switch on the RFU adaptor and the channel selector of your TV to VHF channel CH 3 or CH 4, whichever is not active in your area.
To antenna |
To AV MULTI OUT |
input |
connector |
C
Connecting to a TV with component video input connectors
If your monitor or projector has component video input connectors (Y, CB/PB, CR/PR), connect your PlayStation®2 console using the SCPH-10100 U component AV cable (for PlayStation®2) (sold separately). This will provide the best picture.
Before connecting
If you connect your PlayStation®2 console to a television using the component AV cable without first setting the “Component Video
Out” option under the “System Configuration” To audio input
menu to “Y Cb/Pb Cr/Pr,” the TV screen might not display properly. Before connecting your console with the component AV cable, first use the supplied AV cable (integrated audio/video) and make sure that the “Component Video Out” option is set to
“Y Cb/Pb Cr/Pr.”
Note
The PlayStation®2 console is not compatible with HDTV unless the proper software and connecting devices are used.
Refer to the instruction manual for your TV for details.
To AV MULTI OUT
connector
To component video input connectors
When turning on the console for the first time
The initial setup screen appears.
Set “Language,” “Time Zone” and “Daylight Savings Time (Summer Time)” according to the instructions on the screen.
Settings can be adjusted later in the System Configuration menu. For details, see “Using the System Configuration menu” on page 9.
|
Connecting digital audio components |
|
11 |
|
|
|
|
This section explains how to connect the PlayStation®2 console to audio equipment with digital connectors (such as Dolby Digital optical (AC-3) output). Using digital receivers and amplifiers, you can enjoy features such as multi-channel sound and surround sound.
Connecting to a receiver or amplifier, “MD (Minidisc)” deck or “DAT (Digital Audio Tape)” deck with a digital connector
Use a commercially available optical digital cable (sold separately) and set “DIGITAL OUT (OPTICAL)” in the System Configuration menu to “On” (the default setting).
For details on the System Configuration menu, see page 15.
Rear panel
|
|
Receiver or amplifier, |
|
MAIN |
MD deck or DAT deck |
|
POWER |
|
|
~ |
DIGITAL INPUT |
|
AC IN |
|
DIGITAL OUT |
AV MULTI OUT |
OPTICAL |
(OPTICAL) |
Notes
•Refer also to the instructions supplied with the component to be connected.
•You cannot directly make digital audio recordings of discs recorded in Dolby Digital format or DTS format using an MD or a DAT deck.
Connecting to an audio component with a built-in DTS* or Dolby Digital** decoder (DVD video only)
By connecting to audio equipment with a builtin DTS or Dolby Digital decoder (sold separately), you can playback sound recorded on your DVD video in Dolby Digital (AC-3) or DTS format to reproduce the effect of listening in a movie theater or concert hall.
Connect the component via the DIGITAL OUT (OPTICAL) connector using an optical digital cable (sold separately).
PlayStation®2
console
Optical digital cable (sold separately)
Audio component with a built-in DTS or Dolby Digital decoder
Speakers
Setups for the DVD player on your PlayStation®2 console
Some setup adjustments are necessary for the DVD player depending on the components to be connected.
For details on using the Setup display, see page 23.
•When you connect an audio component with a built-in DTS decoder
Set “DIGITAL OUT (OPTICAL)” to “On” and then set “DTS” to “On” in the “Audio Setup” display.
•When you connect an audio component with a built-in Dolby Digital decoder
Set “DIGITAL OUT (OPTICAL)” to “On” and then set “Dolby Digital” to “On” in the “Audio Setup” display.
Note
Refer to the operating and setup instructions for the audio components to be connected.
*“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
**Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works. ©1992-1997 Dolby Laboratories. All rights reserved.
US
Connection
12
Connecting other digital devices
Connecting a device using the Universal Serial Bus (USB) interface
The two
USB connectors on the front of the console can be used to connect USB-compatible devices. Also refer to the instructions supplied with the device to be connected.
USB connectors
Note
Not all USB-compatible products work with the PlayStation®2 console. See the appropriate USBcompatible product’s user manual for more information.
Connecting a device using the i.LINK interface
The
S400 i.LINK connector on the front of the console can be used to connect an i.LINKcompatible (IEEE 1394) device. Refer also to the instructions supplied with the device to be connected.
The
S400 i.LINK connector does not supply power to external devices. Some external devices that require power from the
S400 i.LINK connector will not function properly when connected to the PlayStation®2 console.
The PlayStation®2
S400 i.LINK connector supports transfer rates up to 400 Mbps. However, the actual transfer rate will vary, depending upon the transfer rate of the connected i.LINK-compatible device.
S400 i.LINK connector
Note
Not all i.LINK products work with the PlayStation®2 console. Refer also to the appropriate i.LINK product’s user manual for more information.
i.LINK is a trademarked version of the IEEE 1394-1995 standard and its revisions.
i.LINK and the i.LINK logo “
” are trademarks.
Connecting the network adaptor to a phone line
You can connect to a network through a telephone line by inserting a telephone cord into the LINE connector on the network adaptor installed in the PlayStation®2 console.
LINE connector
Telephone cord
1 ... Insert a telephone cord (not included) into the LINE connector of the network adaptor.
2 ... Plug the telephone cord into a telephone wall jack.*
*Do not connect any type of cord other than a home-use phone cord to the LINE connector.
If you connect a telephone cord or network cable of a type other than that specified to the line connector, too much electrical current may pass through the connector, causing a malfunction, excessive heat or fire in the connector. Never connect phone cords of the following types (especially a phone cord for a home or business telephone network) to the line connector:
•An ISDN (digital) compatible public phone
•A PBX phone
•A cellular phone or car phone
•A home or business telephone network phone
Telephone wall jack
Telephone wall jacks
The network adaptor can be connected to telephone cords with standard RJ-11C telephone connectors. In some cases you may need to use an adaptor to connect to your phone line. For details, contact your local telephone company.
Caution
•When you connect to a network you may be charged a connection fee by the local telephone company and a usage fee by the Internet service provider. In some cases, usage charges may be more than anticipated. For details, refer to the instructions provided with the software or contact your Internet service provider.
•If you have call waiting, you may be disconnected or the software may function abnormally if a call is received while you are connected to a network.
•When you are using a fax machine or a telephone on the same line, you will not be able to connect to a network using the line connector.
•When the network adaptor is connected to a network, you will not be able to use your phone or fax machine.
•When the network adaptor is not in use, connect the phone line to the device it is normally used for.
Connecting the network adaptor with a network cable
You can connect the PlayStation®2 console to a network through the NETWORK connector on a network adaptor installed in the PlayStation®2 console.
You can connect to a 100 mbps network using 100Base-TX cable or to a 10 mbps network using 10Base-T cable. For details, refer to the instructions supplied with the network device you are connecting to (such as a router, DSL modem or cable modem).
Warning
There is a protective sticker on the network connector to help prevent accidental connection of the wrong type of cable. Remove the sticker the first time you use the network connector. After you have removed the sticker, be careful not to connect cables of the wrong type to the network connector.
Do not connect network cables or telephone cords of the following types to the network connector; too much electrical current may pass through the connector, causing a malfunction, excessive heat or fire in the connector:
•Network cables of types other than 100Base-TX and 10Base-T
•Normal telephone lines
•An ISDN (digital) compatible public phone
•A PBX phone
•A home or business telephone network phone
•Other types of telephone lines
Note
When you connect to a network, the Internet service provider may charge a usage fee. In some cases, the usage charges may be more than anticipated. For details, refer to the instructions provided with the software in use or contact your Internet service provider.
Removing the network adaptor from the console 13
The network adaptor can be removed from the console. It should only be removed for the purpose of installing an authorized expansion bay peripheral.
Caution
• For safety reasons, turn off the console using the main power switch on the console rear, and disconnect the power plug for the console from the electrical outlet before removing the network adaptor.
• The network adaptor serves as a protective cover for the expansion bay and the expansion bus connector, which is located within the expansion bay. Do not leave the expansion bay uncovered for an extended period of time. If your network adaptor is lost or damaged, or for any questions or problems concerning the network adaptor, contact our technical support line at 1-800-345-7669.
• Do not connect any unauthorized internal peripheral to the network adaptor, and do not insert foreign objects into the expansion bay. Doing so may damage the console, or cause a malfunction.
1 ... Check that the 1(standby) indicator on the PlayStation®2 console front is lit up in red, and turn off the PlayStation®2 console using the MAIN POWER switch on the console rear.
2 ... Disconnect the power plug for the PlayStation®2 console from the electrical outlet.
3 ... Disconnect the telephone cord and/or network cable from the network adaptor.
Note
The network adaptor included in the PlayStation®2 online pack is intended only for use with the PlayStation®2 console provided.
4 ... Loosen the mounting screws.
Turn the mounting screws in a counterclockwise direction using a coin.
Note
Do not use a screwdriver to loosen the mounting screws.
PlayStation®2 console rear
Mounting screw
5 ... Remove the network adaptor from the console.
Remove the network adaptor by pulling it away from the console.
Network adaptor
US
Connection
14 |
|
|
Reattaching the network adaptor to the console |
|
|
|
|
|
|
|
|
|
|
Caution
• For safety reasons, do not connect the power plug for the console to an electrical outlet until the network adaptor has been reattached.
• When installing an authorized internal peripheral in the console’s expansion bay, refer to the instructions supplied with the peripheral product.
1 ... Place the network adaptor over the expansion bay so that the mounting screws line up with the holes in the console. (The expansion bay is located on the lower left side of the PlayStation®2 console rear.)
Network adaptor
2 ... Fasten the network adaptor to the PlayStation®2 console.
Turn the mounting screws in a clockwise direction using a coin. Do not overtighten.
Notes
•Do not use a screwdriver to tighten the mounting screws.
•Do not fasten the mounting screws too tightly, as this may damage the screws or console.
Mounting screw
|
Using the Main menu |
|
15 |
|
|
|
|
When turning on the console without first inserting a disc, the Main menu appears on the TV screen.
You can move to the System Configuration menu or the Browser screen from the Main menu.
Using the System Configuration menu
Using the System Configuration menu, you can change or update your system settings for the PlayStation®2 console.
Changes to these settings are saved and remain in effect even after you turn off the console.
1 ...... Select “System Configuration” using the up and down directional buttons and press the button.
The System Configuration menu appears on the TV screen.
2 ...... Select the item you want using the up and down directional buttons and press the button.
The default settings are underlined.
xClock Adjustment
Sets the clock.
1 ...... Use the up and down directional buttons to set the month and then press the right directional button.
Use the same method to set the day, year, hour, minute and second. To return to the previous menu, press the left directional button.
2 ...... Press the button in time with an accurate clock.
You can select optional settings for the clock
Select “Clock Adjustment” using the up and down directional buttons and press the ¢ button. You can set the optional items.
Time Format
•12 hour clock
•24 hour clock
Date Format
•MM/DD/YYYY
•DD/MM/YYYY
•YYYY/MM/DD
Time Zone
Select your country or region to set the time zone.
Daylight Savings Time (Summer Time)
Set this item to “Daylight Savings Time (Summer Time)” when daylight savings time is in effect.
•Standard (Winter Time)
•Daylight Savings (Summer Time) x Screen Size
Selects the display mode according to the TV to be connected.
•4:3 : select this when you connect a standard TV to the console.
•Full : select this when you connect a standard TV to the console. The black margins on the upper and lower portions of the screen are cut off.
•16:9 : select this when you connect a widescreen TV to the console.
x DIGITAL OUT (OPTICAL)
Selects whether to output signal via the DIGITAL OUT (OPTICAL) connector.
•On : select this when you connect with an optical digital cable (sold separately). Normally select this option.
•Off : select this when you do not want sound signal to be output via the DIGITAL OUT (OPTICAL) connector.
x Component Video Out
If your TV, monitor or projector has a RGB input connector or component video input connectors (Y, CB/PB, CR/PR) that conform to the output signals of the console, set this item. When connecting the console using the supplied AV cable (integrated audio/video) or S VIDEO cable (sold separately), you do not need to set this item.
•Y Cb/Pb Cr/Pr : select this when you connect the console to the component video input connectors.
•RGB : select this when you connect the console to the RGB input connector.
Note
You can output PlayStation® and PlayStation®2 format software in either RGB or Y Cb/Pb Cr/Pr format. However, the PlayStation®2 console has been designed to override the “Component Video Out” setting in the System Configuration menu and output all DVD video software in Y Cb/Pb Cr/Pr.
x Language
Selects the language for the on-screen display.
•English
•French
•Spanish
•German
•Italian
•Dutch
•Portuguese
Using the Browser screen
You can do the following operations using the Browser screen.
•Checking/copying/deleting game data on the memory card (8MB) (for PlayStation®2) or memory card
•Starting PlayStation® or PlayStation®2 format software
•Playing an audio CD
•Playing a DVD video
Select “Browser” using the up and down directional buttons and press the button. The Browser screen appears on the TV screen. The memory card (8MB) (for PlayStation®2), memory card or discs inserted in the console are displayed as icons.
Checking/copying/deleting game data
You can copy game data from one memory card (8MB) (for PlayStation®2) or memory card to another or delete data you no longer wish to keep. You cannot, however, copy game data of the PlayStation®2 format software to the SCPH1020 U memory card.
Insert the memory card (8MB) (for PlayStation®2) or memory card in advance.
1 ...... Select the icon of the memory card (8MB) (for PlayStation®2) or memory card where the game data you want to check/copy/ delete is saved, and then press the button.
2 ...... Check/copy/delete game data according to the instructions on the screen.
Note
While copying or deleting game data, do not remove the memory card (8MB) (for PlayStation®2) or memory card.
Checking version information
You can check the version of the console, Browser, CD Player, PlayStation® Driver and DVD Player.
Press the ¢ button in the Main menu.
Auto-diagnosis feature
The PlayStation®2 console automatically adjusts console settings for best possible disc playback. However, you can also manually start the autodiagnosis feature whenever necessary.
1 ...... Select “Console” using the up and down directional buttons and press the ¢ button.
2 ...... Select “On” using the up and down directional buttons and press the button.
3 ...... Insert a disc.
The console automatically starts the diagnosis.
Note
The diagnosis setting automatically returns to “Off” (default setting) when you press the 1/RESET button or start playing a PlayStation® format disc, PlayStation®2 format disc or a DVD video disc.
Setting the PlayStation® Driver
The PlayStation® Driver is a program for loading PlayStation® format software.
1 ...... Select “PlayStation® Driver” using the up and down directional buttons and press the ¢ button.
2 ...... Select the item you want using the up and down directional buttons and press the button.
Disc Speed
•Standard: normally select this position.
•Fast: loading time for a PlayStation® format software disc can be shortened.
Depending on the software, there may be no effect or the software may unexpectedly fail. In this case, select “Standard.”
Texture Mapping
•Standard: normally select this position.
•Smooth: you can make the display smoother when playing certain PlayStation® format software titles.
Depending on the software, there may be no effect. In this case, select “Standard.”
Note
The “PlayStation® Driver” setting automatically returns to “Standard” (default setting) when you press the 1/RESET button or turn off the console.
US
Connection
16
Playing a game
Starting a game
1Turn on the console using the MAIN POWER switch on the back of the console.
The 1(standby) indicator on the front of the console lights up in red to indicate that the console is now in standby mode.
4 Press the A(open) button.
The disc tray opens.
5Place a disc on the disc tray with the label side facing up (data side down).
2 Press the 1 (standby) /RESET button.
The 1indicator turns green and the start-up screen appears.
3Plug the analog controller (DUALSHOCK®2) or analog controller (DUALSHOCK®) into the console.
6 Press the A button.
The disc tray closes. Screen 2 or 3 appears and the game is ready to begin.
Note
Set the analog controller (DUALSHOCK®2) or analog controller (DUALSHOCK®) to the appropriate mode for the software (page 17). See the appropriate software manual for details.
1
2 3
4,6
5
Restarting a game
Press the 1/RESET button very briefly. (Be sure not to hold the button down for any length of time, as that will put the console in standby mode.)
Be careful not to accidentally press the 1/ RESET button while playing a game, or the game will restart.
Screens that appear at start-up
When turning on the console without first inserting a disc
Screen 1 appears.
•When you insert a PlayStation®2 or PlayStation® format disc after screen 1 has appeared, screen 2 or 3 will appear and you can start the game.
•You can move to the System Configuration menu or the Browser screen from screen 1. (For details, see “Using the Main menu” on page 15.)
When turning on the console with a disc already inserted
Depending on the type of disc inserted, screen 2, 3 or 4 will appear.
If screen 4 appears, it is possible that the inserted disc is not a PlayStation® or PlayStation®2 format disc. Check the disc type (page 4).
1 No disc is inserted (Main menu).
2PlayStation®2 format DVD-ROM / CD-ROM is inserted.
3 PlayStation® format CD-ROM is inserted.
4A disc that cannot be played with the PlayStation®2 console is inserted.
Ending a game
1 ...... Press the Abutton. The disc tray opens.
2 ...... Remove the disc.
3 ...... Press the Abutton. The disc tray closes.
4 ...... Press the 1/RESET button for about two seconds.
The 1indicator turns red and the console enters standby mode.
4
1,3
2
Notes
•When playing an online software title, you can use the 1/reset button on the console front to quit the title. Note that you cannot use this button to restart the title.
•To quit an online software title, follow the on-screen instructions or the instructions in the software manual.
•If you cannot find instructions, you can quit by pressing the 1/reset button. The 1indicator will turn red when the console has entered standby mode.
•If you are not able to quit using the method above, you can force the software to quit by pressing and holding down the 1/reset button until the 1indicator turns red.
When not intending to play a game for an extended period of time
Turn the power off at the MAIN POWER switch on the back of the console, disconnect the power plug from the electrical socket and the telephone cord and/or network cable from the wall jack.
Changing from one game to another
There is no need to turn off the console when you want to change games.
1 ...... Press the Abutton. The disc tray opens.
2 ...... Remove the disc.
3 ...... Place a new disc in the disc tray.
4 ...... Press the Abutton. The disc tray closes.
5 ...... Press the 1/RESET button briefly to reset. (Warning: holding the 1/RESET button down for any length of time may cause the console to go into standby mode.)
After the start-up screen, screen 2 or 3 appears and the game begins.
5
1,4
2,3
Note
With a multi-disc game, follow steps 1 through 4 to switch discs. Refer to the software manual for details.
|
|
Using the analog |
|
controller |
|
17 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Differences between the analog controller (DUALSHOCK®2) and analog controller (DUALSHOCK®)
1Analog controller (DUALSHOCK®2) (supplied / sold separately)
•The analog controller (DUALSHOCK®2) can be used with PlayStation®2 and PlayStation® format software.
•You can switch between digital and analog modes. When the controller is in analog mode, the following buttons and sticks may operate in analog fashion depending on the features supported by the software title. Refer to the software manual for details.
PlayStation®2 format software
Directional buttons / ¢ , a, , sbuttons / left analog stick / right analog stick / L1, R1, L2, R2 buttons
PlayStation® format software
Left analog stick / right analog stick
•You can enjoy the vibration function.
2Analog controller (DUALSHOCK®) (sold separately)
•The analog controller (DUALSHOCK®) can be used with PlayStation®2 and PlayStation® format software.
•You can switch between digital and analog modes. When in analog mode, you can enjoy the analog operation of the left analog stick and right analog stick.
PlayStation®2 format software
Left analog stick / right analog stick
PlayStation® format software
Left analog stick / right analog stick
•You can enjoy the vibration function.
Mode switching and the mode indicator
The analog controller (DUALSHOCK®2) and analog controller (DUALSHOCK®) can be switched between two modes by pressing the ANALOG mode button.
Each time the ANALOG mode button is pressed, the mode changes as follows:
Digital mode (indicator: off)
Xx
Analog mode (indicator: red)
Note
Switch to the appropriate mode for use.
Note, however, that some software makes this adjustment automatically. In such cases, the ANALOG mode button is overridden by the software. For details, refer to the software manual.
Vibration function |
|
US |
|
a vibration function when the function is |
/Games |
||
The analog controller (DUALSHOCK®2) and |
|
||
analog controller (DUALSHOCK®) both feature |
|
||
supported by the software title. The vibration |
Audio |
||
function can be set to ON or OFF on the |
|||
|
|||
software option screen. |
CDs |
||
Notes |
|||
|
|||
•When the analog controller (DUALSHOCK®2) and analog controller (DUALSHOCK®) is not being used, turn the console off or unplug the controller from the console.
•Before using the vibration function, please read “Notes on safety when using the analog controller (DUALSHOCK®2) and analog controller (DUALSHOCK®)” on page 3.
Before using the analog controller (DUALSHOCK®2) and analog controller (DUALSHOCK®)
After turning the console on, rotate the left and right analog sticks once with your thumbs before starting a game. Do not twist the analog sticks, but rotate as if drawing a circle as shown in the diagram above.
Digital mode (indicator: off) |
Analog mode (indicator: red) |
|||
|
|
L2 button |
R2 button |
|
L2 button |
R2 button |
L1 button |
R1 button |
|
SELECT |
START |
|||
L1 button |
R1 button |
button |
button |
|
SELECT |
START |
|
¢ button |
|
button |
button |
|
||
|
|
|||
|
¢ button |
|
|
|
|
|
Directional |
abutton |
|
Directional |
a button |
buttons |
|
|
|
|
|||
buttons |
|
|
button |
|
|
|
|
||
|
button |
Left analog stick / |
sbutton |
|
|
sbutton |
L3 button* |
Right analog stick / |
|
|
ANALOG mode button |
R3 button* |
||
ANALOG mode button |
Mode indicator: Off |
Mode indicator: Red |
||
|
||||
* The R3 button and the L3 button function when the stick is pressed.
18
Using memory cards
You can save and load game or other data using the memory card (8MB) (for PlayStation®2) or memory card (each sold separately).
Differences between the memory card (8MB) (for PlayStation®2) and memory card
When playing PlayStation®2 format software, use the memory card (8MB*) (for PlayStation®2) (1).
When playing PlayStation® format software, use the memory card (2).
For the PlayStation® game console, units of game data are described as “memory blocks,” however for the PlayStation®2 console, they are described as “KB” (kilobytes).
* 8 MB = 8,000 KB
1Memory card (8MB) (for PlayStation®2) (sold separately)
The memory card (8MB) (for PlayStation®2) can save and load PlayStation®2 format software game data. Each memory card (8MB) (for PlayStation®2) can save about 8 MB of game data, but some of this may be used as file control information.
The memory card (8MB) (for PlayStation®2) uses MAGICGATE, a technology that helps protect copyrighted content through data encryption and hardware authentication.
is a term of copyright protection technology developed by Sony Group.
does not guarantee compatibility with other products bearing the"MagicGate" trademark.
2 Memory card (sold separately)
The memory card can save and load PlayStation® format software game data. Each memory card can save 120 KB (15 memory blocks) of game data.
Note
You cannot copy data to a memory card (8MB) (for PlayStation®2) or memory card that does not have enough memory available. Before playing, check how much space is needed to save the game and how much space is available on the memory card (8MB) (for PlayStation®2) or memory card. Check the appropriate software manual to determine the amount of space needed to save the data for a given game.
Inserting the memory card (8MB) (for PlayStation®2) and memory card
Insert the memory card (8MB) (for PlayStation®2) or the memory card into the MEMORY CARD slot, with the arrow side up.
MEMORY CARD slot 1 MEMORY CARD slot 2
Notes on using the memory card (8MB) (for PlayStation®2) or memory card with a multitap
•When using PlayStation®2 format software, use the SCPH-10090 U multitap
(for PlayStation®2).
When using PlayStation® format software, use the SCPH-1070 U multitap.
•When you insert the SCPH-1070 U multitap into controller port 1, do not insert the memory card (8MB) (for PlayStation®2) or memory card into MEMORY CARD slot 1 of the PlayStation®2 console. This also applies when you insert a multitap into controller port 2. If you do so, the data may be lost.
Copying/deleting game data
You can copy game data from one memory card (8MB) (for PlayStation®2) or memory card to another or delete data you no longer wish to keep.
You cannot, however, copy game data of the PlayStation®2 format software to the memory card.
You can check, copy and delete game data in the Browser screen. For details on the browser, see “Checking/copying/deleting game data” on page 15.
Note
You cannot save or load game data in the Browser screen. For details on game data saving or loading, refer to the software manual.
Playing an audio CD
Playing an audio CD
1 Press the A(open) button.
The disc tray opens.
2Place a disc on the disc tray with the label side facing up (data side down).
3Press the A button.
The disc tray closes.
4Select the audio CD icon in the Browser screen (page 15), then press the button.
The “Audio CD” screen appears.
5Select the icon number using the directional buttons, then
press the button.
The CD operation screen appears and playback starts.
Operating the CD player
While a disc is playing, select the button in the CD operation screen using the right and left directional buttons. Then press the button.
NStart playing.
XPause.
xStop playing.
.Find the beginning of the current or previous track.
M Fast Forward.
m Fast Reverse.
> Find the beginning of the next track.
Music discs encoded with copyright protection technologies
The audio CD playback feature of this product is designed to conform to the Compact Disc (CD) standard. Recently, some record companies have started marketing music discs encoded with copyright protection technologies. Some of these music discs do not conform to the CD standard and may not be playable on this product.
Playing in various modes
You can change between various play modes. As a default setting, ”Normal” is selected for “Play mode,” and “Off” is selected for “Repeat.”
Select the audio CD icon in the Browser screen, then press the f button to change the settings.
To play the desired tracks in a specified order
1 ... Select “Play mode” using the up and down directional buttons and press the button.
2 ...... Select “Program” using the right and left directional buttons and press the button.
3 ...... Select the number of the specific track using the directional buttons then press the button.
Repeat this step until you have selected all the tracks you want to play.
4 ...... Press the abutton to return to the Browser screen.
To play the tracks in random order
1 ...... Select “Play mode” using the up and down directional buttons and press the button.
2 ...... Select “Shuffle” using the right and left directional buttons and press the button.
3 ...... Press the abutton to return to the Browser screen.
To play all tracks repeatedly
1 ...... Select “Repeat” using the up and down directional buttons and press the button.
2 ...... Select “All” using the right and left directional buttons and press the button.
3 ...... Press the abutton to return to the Browser screen.
To play a track repeatedly
1 ...... Select “Repeat” using the up and down directional buttons and press the button.
2 ...... Select “1” using the right and left directional buttons and press the button.
3 ...... Press the abutton to return to the Browser screen.
Playing a DVD video |
19 |
Playing a DVD video
Depending on the DVD video, some operations may be different or restricted. Refer to the instructions supplied with your disc.
1Turn on the console using the MAIN POWER switch on the
back of the console.
The 1 (standby) indicator on the front of the console lights up in red to indicate that the console is now in standby mode.
2Press the 1 (standby) /RESET button.
The 1indicator turns green and the start-up screen appears.
3 Press the A(open) button.
The disc tray opens.
4Place a disc on the disc tray with the label side facing up (data side down).
5Press the Abutton.
The disc tray closes and the console starts playback.
Notes
•Depending on the DVD, a DVD menu or Title menu may appear on the TV screen (see page 21).
•If you press the Abutton after playback, the Browser screen appears.
•When playing a DVD video, do not connect the console to a VCR. If you do, picture quality may be reduced. Connect the console directly to the TV.
If you experience problems playing a DVD video:
In rare instances, certain DVD videos may not operate properly with PlayStation®2. This is primarily due to variations in the manufacturing process or software encoding of the DVD video software. If you experience problems, try restarting your DVD video. If problems persist, for more information call the publisher of the DVD video or contact SCEA's customer service.
Operating the DVD player directly with a controller
You can operate the DVD player directly with the buttons on a controller when the Control Panel (page 20) is not displayed. You can also operate the DVD player using the DVD remote control (for PlayStation®2) (sold separately). For detailed instructions, refer to the instruction manual supplied with the SCPH-10171 DVD remote control (for PlayStation®2) with IR receiver unit.
This console is equipped with DVD Player software that is compatible with the DVD remote control (for PlayStation®2). You can use the DVD remote control simply by inserting the IR receiver unit (supplied with the DVD remote control) into a controller port of the console. No memory card (8MB) (for PlayStation®2) is required when using the DVD remote control (for PlayStation®2) with this console.
L2 button: |
(Search) |
R2 button: |
(Search) |
(Page 22) |
|
(Page 22) |
|
L1 button: .(Previous)
DUALSHOCK2
Directional buttons:
Cursor control
L3 button*: |
(Subtitle Options) |
(Page 21) |
|
SELECT button: Display the Control Panel (Page 20)
R1 button: >(Next)
¢ button: |
(DVD Menu) |
(Page 21) |
|
a button: Cancel / x (Stop)
button: Enter
sbutton:
(Title Menu) (Page 21)
R3 button*:
(Audio Options) (Page 21)
START button:
N(Play) / X(Pause)
*When using a controller without the L3 or R3 button, select the
(Subtitle Options) function or the
(Audio Options) function using the Control Panel (see page 20).
To |
Operation |
|
|
Stop |
Press the abutton. |
|
|
Pause |
Press the START button. |
|
|
Resume play after pause |
Press the START button. |
|
|
Go to the next chapter in continuous play mode |
Press the R1 button. |
|
|
Go back to the preceding chapter in continuous |
Press the L1 button twice. |
play mode |
|
|
|
You can also operate various DVD functions using the on-screen menu (Control Panel). For details, see “Using the Control Panel” (page 20).
Playback from the last stopping point (Resume Play)
The DVD player remembers the point where you stopped the disc, and you can resume playback from that point.
1 ...... While playing a disc, press the abutton to stop playback.
“Press [Play] to resume viewing. To start from the beginning, press [Stop] and then [Play].” appears, and then the Control Panel (page 20) is displayed on the TV screen.
If the message “Resume function cannot be used here. Play will restart from the beginning.” appears, Resume Play is not available.
2 ...... Select N(Play) using the directional buttons and press the button.
The DVD player starts playback from the point where you stopped the disc in step 1.
To play from the beginning of the disc
After step 1, select x(Stop) and press the button. The point where you stopped playing is cleared.
Select N(Play) and press the button.
Notes
•Resume Play may not be available on some DVDs.
•Depending on where you stop the disc, the console may resume playback from a slightly different point.
•The point where you stopped playing is cleared when:
–you open the disc tray
–you shift to standby mode by pressing and holding down the 1/RESET button on the front of the console
–you turn the power off using the MAIN POWER switch on the back of the console
–you start playback after selecting a title or chapter.
US
videos DVD / CDs Audio / Games
20
Using the Control Panel
Using the Control Panel
You can enjoy various functions using the onscreen menu (Control Panel).
The possible functions are different depending on the disc.
1 Press the SELECT button.
The Control Panel appears on the TV screen.
2Select the item you want using the directional buttons.
3Press the button.
For details on each Control Panel display item, see pages 21-26.
You can select some items directly with the controller
See page 19.
Control Panel item list
1
DVD Menu (page 21)
Some DVDs allow you to select the disc contents using a menu. When you play these DVDs, you can select the language for the subtitles, the language for the sound, etc., using the DVD menu.
2
Title Menu (page 21)
A DVD is divided into long sections of a movie or a music feature called “titles.” When you play a DVD that contains several titles, you can select the title you want using the Title menu.
3OReturn (page 21)
You can return to the previous screen in the DVD menu or Title menu.
4
Audio Options (page 21)
If the DVD is recorded with multilingual tracks, you can select the language you want to hear while playing the DVD.
5
Angle Options (page 21)
With DVDs on which various angles (multi-angles) for a scene are recorded, you can select among the various angles available.
6
Subtitle Options (page 21)
With DVDs on which subtitles are recorded, you can change the language whenever you want while playing the DVD, and turn it on and off whenever you want.
7
Go to Title (page 22)
You can select the number of the title you want to search for.
8
Setup (page 23)
Using the Setup display, you can do the initial setup, adjust the picture and sound and set the various outputs. You can also set a language for the subtitles and the Setup display, restrict playback by children, and so on.
9
Chapter Display (page 22)
While playing a disc, you can check the current title number and current chapter number on the TV screen.
0
Help (page 22)
The list of the direct buttons on the controller is displayed on the TV screen.
qa Go to Chapter (page 22) /Number buttons
You can select the number of the chapter you want to search for.
qs .Previous
You can go to the previous chapter in continuous play mode.
qd
/
Search (page 22)
You can locate a particular point on the DVD quickly by monitoring the picture.
qf >Next
You can go to the next chapter in continuous play mode.
qg NPlay qh XPause qj xStop
qk
Slow (page 22)
You can locate a point on the DVD slowly by watching the screen.
Using the DVD menu
Some DVDs allow you to select the disc contents using a menu. When you play these DVDs, you can select the language for the subtitles, the language for the sound, etc., using the DVD menu.
1 ...... Select
(DVD Menu) using the directional buttons and press the button.
The DVD menu appears on the TV screen. The contents of the menu vary from disc to disc.
2 ...... Press the directional buttons to select the item you want to change.
3 ...... To change other items, repeat step 2.
4 ...... Press the button.
You can display the DVD menu directly
Press the ¢ button on the controller when the Control Panel is not displayed.
If you want to select the language for the DVD menu
You can change this setting by choosing “Language Setup” and then “DVD Menu.” For details, see page 24.
To return to the previous screen in the DVD menu
Select O(Return) and press the button. This function may not be available on some DVDs.
Notes
•A DVD menu may not be available on some DVDs.
•Depending on the DVD, the “DVD menu” may be referred to as a “menu” in the instructions supplied with the disc.
Using the Title menu
A DVD is divided into long sections of a movie or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the Title menu.
1 ...... Select
(Title Menu) using the directional buttons and press the button.
The Title menu appears on the TV screen. The contents of the menu vary from disc to disc.
2 ...... Press the directional buttons to select the title you want to play.
3 ...... Press the button.
The console starts playing the selected title.
You can display the Title menu directly
Press the sbutton on the controller when the Control Panel is not displayed.
To return to the previous screen in the Title menu
Select O(Return) and press the button. This function may not be available on some DVDs.
Notes
•On some DVDs, you may not be able to select the title.
•On some DVDs, the “Title menu” may be referred to as a “menu” or “title” in the instructions supplied with the disc. “Press ENTER.” may also be expressed as “Press SELECT.”
Changing the audio language
If the DVD is recorded with multilingual tracks, you can select the language you want to hear when playing the DVD.
The languages you can select are different depending on the DVD.
Select
(Audio Options) using the directional buttons and press the button.
Each time you press the button, the language changes.
You can select “Audio Options” directly
Press the R3 button on the controller when the Control Panel is not displayed. Each time you press the button, the language changes.
Notes
•Due to the programming on some DVDs, you may not be able to change languages even if multilingual tracks are recorded on the DVD.
•When playing a DVD, the audio settings may change when you change titles.
Changing the viewing angle
With DVDs on which various angles (multiangles) for a scene are recorded, you can change the angles. For example, while playing a scene of a train in motion, you can display the view from either the front of the train, the left window of the train or from the right window without having the train’s movement interrupted.
Select
(Angle Options) using the directional buttons and press the button.
Each time you press the button, the angle changes.
Notes
•The number of angles varies from disc to disc or from scene to scene. The number of angles that can be changed on a scene is equal to the number of angles recorded for that scene.
•Due to the programming on some DVDs, you may not be able to change angles even if multiple angles are recorded on the DVD.
|
|
|
21 |
|
|
|
|
|
|
|
|
|
||
Displaying subtitles |
|
US |
||
With DVDs on which subtitles are recorded, |
|
DVD |
||
|
|
|||
you can turn the subtitles on and off whenever |
|
videos |
||
you want while playing the DVD. |
|
|||
|
|
|||
With DVDs on which multilingual subtitles are |
|
|
||
recorded, you can also change the subtitle |
|
|
||
language whenever you want while playing the |
|
|
||
DVD. For example, you can select the language |
|
|
||
you want to practice and turn the subtitles on |
|
|
||
for better understanding. |
|
|
||
Select |
(Subtitle Options) using the |
|
|
|
directional buttons and press the button.
You can select the subtitle language, and turn it on or off.
The languages you can select are different depending on the DVD.
You can select “Subtitle Options” directly
Press the L3 button on the controller when the Control Panel is not displayed. You can select the subtitle language, and turn it on or off.
Notes
•When playing a DVD on which no subtitles are recorded, no subtitles appear.
•Due to the programming on some DVDs, you may not be able to turn the subtitles on even if there are subtitles recorded on the DVD.
•Depending on the DVD, you may not be able to turn the subtitles off.
•The type and number of languages for subtitles vary from disc to disc.
•Due to the programming on some DVDs, you may not be able to change the subtitles even if multilingual subtitles are recorded on the DVD.
•When playing a DVD, the subtitle settings may change when you change titles.
22 |
|
|
Using the Control Panel (continued) |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Searching for a title
You can select the number of the title you want to search for using the number buttons.
1 ...... Select
(Go to Title) using the directional buttons and press the button.
“Go to Title - -” appears on the TV screen.
2 ...... Enter the number of the title in 2 digits using the number buttons.
The DVD player starts playback at the selected title.
Displaying information while playing a disc
While playing a disc, you can check the current title number and current chapter number on the TV screen.
Select
(Chapter Display) using the directional buttons and press the button.
Each time you press the button, you can turn the display on and off.
Displaying the list of direct button functions (Help)
The list of the direct buttons on the controller can be displayed on the TV screen.
Select
(Help) using the directional buttons and press the button.
To turn off the list
Press the button.
Searching for a chapter
You can select the number of the chapter you want to search for using the number buttons.
Enter the number of the chapter in 2 digits using the number buttons.
The DVD player starts playback at the selected chapter.
Finding a particular point on a disc (Search)
You can locate a particular point on a disc quickly by monitoring the picture or playing back slowly.
Note
Depending on the DVD, you may not be able to do some of the operations described.
Locating a point quickly (Search)
1 |
...... While a disc is playing, select |
(Search |
|
|
forward) or |
(Search backward) using |
|
|
the directional buttons. |
|
|
2 |
...... Keep the button pressed until you locate |
||
|
the point you are looking for. |
|
|
When you find the point you want, release the button to return to normal playback speed.
You can also use the direct buttons
Press the R2 (forward) or L2 (backward) buttons on the controller when the Control Panel is not displayed.
Locating a point slowly by watching the screen (Slow-motion play)
1 ...... |
While a disc is playing, select |
(Slow) |
|
using the directional buttons. |
|
2 ...... |
Press the button. |
|
|
Slow-motion playback starts. |
|
When you find the point you want, select N(Play) and press the button to return to the normal speed.
You can also resume playback by pressing the START button.
Settings and adjustments for the DVD player
Using the Setup display |
Setup display item list |
||||||
Using the Setup display, you can change the |
The default settings are underlined. |
||||||
initial settings, adjust the picture and sound |
|
|
|
|
|
|
|
and set various other output options. You can |
|
|
|
|
|
|
|
also choose a language for subtitles, restrict |
|
|
|
|
|
|
|
playback by children, and so on. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 Press the SELECT button to show the Control Panel on the TV screen.
2 Select
(Setup) using the directional buttons and press the button.
The Setup display appears on the TV screen.
3 Select the category you want using the directional buttons.
4 Press the button.
The selected category is highlighted.
5Select the item you want using the directional buttons.
6 Press the button.
After changing DVD settings
To save your changes, be sure to eject the DVD before pressing the 1/RESET button or turning off the unit with the MAIN POWER switch. Please note that changes will not be saved if you reset or turn off the console without first ejecting the DVD.
23
US
videos DVD
24 |
|
|
Settings and adjustments for the DVD player (continued) |
|
|
|
|
Setting language options (Language Setup)
“Language Setup” allows you to choose from among various languages for the on-screen display or audio track.
The default settings are underlined.
Select “Language Setup” in the Setup display.
Notes
•When you select a language that is not recorded on the DVD, one of the recorded languages is automatically selected for the “DVD Menu,” “Audio” and “Subtitles” settings.
•Depending on the DVD, the console may not start playing the language you have selected in the “DVD Menu,” “Audio” or “Subtitles.”
x OSD
Selects the language for the on-screen display.
•English
•French
•German
•Italian
•Spanish
•Dutch
•Portuguese
x DVD Menu
Selects the language for the DVD menu.
•English
•French
•German
•Italian
•Spanish
•Dutch
•Danish
•Swedish
•Finnish
•Norwegian
•Portuguese
•Russian
•Chinese
•Japanese
•Language Options
When you select “Language Options,” the language list is displayed. Select the language from the list.
xAudio
Selects the language for the audio track.
•English
•French
•German
•Italian
•Spanish
•Dutch
•Danish
•Swedish
•Finnish
•Norwegian
•Portuguese
•Russian
•Chinese
•Japanese
•Language Options
When you select “Language Options,” the language list is displayed. Select the language from the list.
xSubtitles
Selects the language for the subtitles.
•Audio Follow*
•English
•French
•German
•Italian
•Spanish
•Dutch
•Danish
•Swedish
•Finnish
•Norwegian
•Portuguese
•Russian
•Chinese
•Japanese
•Language Options
When you select “Language Options,” the language list is displayed. Select the language from the list.
*When you select “Audio Follow,” the language for the subtitles changes according to the language you selected for the audio track.
After changing DVD settings
To save your changes, be sure to eject the DVD before pressing the 1/RESET button or turning off the unit with the MAIN POWER switch. Please note that changes will not be saved if you reset or turn off the console without first ejecting the DVD.
Setting TV display options (Screen Setup)
“Screen Setup” allows you to set various options for your TV display.
The default settings are underlined.
Select “Screen Setup” in the Setup display.
x TV Type
Selects the aspect ratio of the TV to be connected.
You can change this setting only when the DVD is stopped.
•16:9: Select this option when using a widescreen TV, or a standard TV that displays in wide mode.
•4:3 Letter Box: Select this option when using a standard TV. This setting displays a wide picture with margins on the upper and lower portions of the screen.
•4:3 PAN SCAN: Select this option when using a standard TV. Displays a wide picture adjusted to match the height of the screen, automatically cutting off the portions at left and right that do not fit.
16:9
4:3 Letter Box
4:3 PAN SCAN
Note
Depending on the DVD, “4:3 Letter Box“ may be selected automatically instead of “4:3 PAN SCAN” and vice versa.
x DNR (Digital Noise Reduction)
If the playback picture has noise or interference, set this item to “DNR1” or “DNR2.”
•Off: Normally select this position.
•DNR1: makes the picture clear by reducing noise.
•DNR2: makes the picture even clearer by reducing noise.
Notes
•When you select “DNR2,” an afterimage may appear. In this case, select ”Off.”
•Depending on the DVD, the DNR function may produce limited results.
x Outline Sharpening
Makes the outline of the picture sharpened or softened. The higher the value, the sharper the outline.
•+2
•+1
•0 : Normally select this position.
•-1
•-2
x Display
Displays or turns off the playing status information on the TV screen.
•On : When you operate the DVD player, the playing status appears for a few seconds on the TV screen.
•Off : The playing status is not displayed.
After changing DVD settings
To save your changes, be sure to eject the DVD before pressing the 1/RESET button or turning off the unit with the MAIN POWER switch. Please note that changes will not be saved if you reset or turn off the console without first ejecting the DVD.
Setting viewer options (Custom Setup)
“Custom Setup” allows you to set the playback conditions.
The default settings are underlined.
Select “Custom Setup” in the Setup display.
xPause Mode
Selects the picture in pause mode.
•Auto : A picture, including subjects that move dynamically, is output without any jitter. Normally select this position.
•Frame : A picture including subjects that do not move dynamically is output with high resolution.
xParental Control
Playback of some DVDs can be restricted.
The Parental Control function allows you to set a playback restriction level and a password to prevent children from viewing certain content.
Select “Custom Setup” in the Setup display.
1 ...... Select “Parental Control” using the directional buttons, then press the button.
xWhen you have not entered a password
The display for entering a password appears.
xWhen you have already registered a password
The display for confirming the password appears. Skip step 2.
2 ...... Enter a password in 4 digits using the number buttons.
3 ...... To confirm your password, enter it again using the number buttons.
You can set the Parental Control level and change the password.
4 ...... Select “Region” using the directional buttons, then press the button.
5 ...... Select a geographic region to set the standard Parental Control level for that region using the directional buttons, then press the button.
6 ...... Select “Level” using the directional buttons, then press the button.
7 ...... Select the level you want using the directional buttons, then press the button.
The lower the value, the more strict the restriction.
To turn off the Parental Control function and play the DVD after entering your password
Set “Level” to “Off” in step 7, then press the button.
25
To change the password |
US |
|
1 ...... After step 3, select “Change Password” |
||
DVD |
||
using the directional buttons, then press |
||
|
||
the button. |
videos |
|
The display for changing the password |
||
|
||
appears. |
|
|
2 ...... Follow steps 2 and 3 to enter a new |
|
|
password. |
|
|
Playing a disc which is protected by |
|
|
Parental Control |
|
|
1 ...... Insert the disc and press the START |
|
|
button. |
|
|
The Parental Control display appears. |
|
|
2 ...... Enter your 4-digit password using the |
|
|
number buttons. |
|
|
The DVD player starts playback. |
|
|
When you stop playing the DVD, the |
|
|
Parental Control level returns to the |
|
|
original setting. |
|
|
If you forget your password |
|
|
Press the SELECT button and enter the 4-digit |
|
|
number “7444” whenever the Parental Control |
|
|
display asks you for your password. The old |
|
|
password is deleted. |
|
Notes
•When you play DVDs that do not have the Parental Control function, playback cannot be restricted on this DVD player.
•If you do not set a password, you cannot change the Parental Control settings.
•Depending on the DVD, you may be asked to change the Parental Control level while playing the disc. In this case, enter your password, then change the level. When you stop playing the DVD, the Parental Control level returns to the original setting.
After changing DVD settings
To save your changes, be sure to eject the DVD before pressing the 1/RESET button or turning off the unit with the MAIN POWER switch. Please note that changes will not be saved if you reset or turn off the console without first ejecting the DVD.
26 |
|
|
Settings and adjustments for the DVD player (continued) |
|
|
|
|
Setting sound options (Audio Setup)
“Audio Setup” allows you to adjust your audio settings according to the playback conditions. The default settings are underlined.
Select “Audio Setup” in the Setup display.
x Audio Digital Out
Switches the methods of outputting audio signals when you, connect 1. a digital component such as a receiver (amplifier) with a digital connector, 2. an audio component with a built-in decoder (Dolby Digital or DTS), 3. a DAT or MD deck, via the DIGITAL OUT (OPTICAL) connector using an optical digital cable. For connection details, see page 11.
You cannot adjust “Dolby Digital” and “DTS” if you set “DIGITAL OUT (OPTICAL)” to “Off.”
x DIGITAL OUT (OPTICAL)
Selects whether to output signal via the DIGITAL OUT (OPTICAL) connector.
•On : select this when you connect with an optical digital cable (sold separately). Normally select this option.
When you select “On,” you can set “Dolby Digital” and “DTS.”
•Off : select this when you do not want sound signal to be output via the DIGITAL OUT (OPTICAL) connector.
Note
When you select “Off,” you cannot set “Dolby Digital” and “DTS.”
xDolby Digital
Selects the Dolby Digital signals to be output via the DIGITAL OUT (OPTICAL) connector.
•On : when the console is connected to an audio component with a built-in Dolby Digital decoder.
If the console is connected to an audio component without a built-in Dolby Digital decoder, do not turn this option on. If you select this option by mistake, when you play a Dolby Digital audio track, a loud noise (or no sound) will come out from the speakers, possibly hurting your ears or damaging the speakers.
•Off : when the console is connected to an audio component without a built-in Dolby Digital decoder.
xDTS
Selects the DTS signals to be output via the DIGITAL OUT (OPTICAL) connector.
•On : when the console is connected to an audio component with a built-in DTS decoder.
If the console is connected to an audio component without a built-in DTS decoder, do not turn this option on. If you select this option by mistake, when you play a DTS audio track, a loud noise (or no sound) will come out from the speakers, possibly hurting your ears or damaging the speakers.
•Off : when the console is connected to an audio component without a built-in DTS decoder.
x Audio Track Auto Select Mode
Gives the audio track which contains the highest number of channels priority when you play a DVD on which multiple audio formats (PCM, DTS or Dolby Digital format) are recorded.
•On : Priority given.
•Off : No priority given.
Notes
•When you set this item to “On,” the language may change depending on the “Audio” settings in “Language Setup.”
The “Audio Track Auto Select Mode“ setting has higher priority than the “Audio” settings in “Language Setup” (page 24).
•If you set “DIGITAL OUT (OPTICAL)” to “On” and “DTS” to “Off” in “Audio Setup,” the DTS audio track is not played even if you set this item to “On” and the highest-numbered audio channel is recorded in DTS format.
•If PCM, DTS and Dolby Digital audio tracks have the same number of channels, the console selects PCM, Dolby Digital and DTS audio tracks in this order.
•Depending on the DVD, the audio channel with priority may be predetermined. In this case, you cannot give priority to the DTS or Dolby Digital format by selecting “On.”
x DVD Video Volume
If the audio output level of the DVD is low, you can turn up the volume of the DVD. (Note: DIGITAL OUT (OPTICAL) must be set to “Off” to access this function.)
•+2 : You can turn up the volume.
•+1 : You can turn up the volume.
•Standard : Original audio volume. Normally select this position.
Note
Depending on the DVD, the sound may be distorted if you select “+1” or “+2.”
After changing DVD settings
To save your changes, be sure to eject the DVD before pressing the 1/RESET button or turning off the unit with the MAIN POWER switch. Please note that changes will not be saved if you reset or turn off the console without first ejecting the DVD.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Troubleshooting
Please go through this section if you experience difficulty in operating the PlayStation®2 console.
•If you experience any of the following difficulties, use this troubleshooting guide to help remedy the problem before requesting repair. Should any problem persist, contact our technical support line at 1-800-345-7669 for assistance.
•Make sure the AC power cord is connected to the console and the wall outlet, and the TV (or VCR) or the supplied accessories are connected to the console correctly.
Power
The power is not turned on.
,Make sure the AC power cord is connected securely.
,The console is not turned on. Turn on the console using the MAIN POWER switch on the back of the console.
There is no picture.
,Make sure the console is connected to the TV (or VCR) with the AV cable (integrated audio/video).
,Make sure the console and the TV (or VCR) are turned on.
,Make sure you have selected the video input on the TV (or VCR).
,Make sure the AV cable (integrated audio/ video) is connected securely.
,Make sure the inserted disc can be played with this console. (see page 4)
,Make sure the disc is placed with the label side facing up (data side down).
,The disc is not inserted correctly.
,The console is in pause mode.
,Try another set of AV cables .
Picture noise appears.
,The console is placed on an unstable surface. Place the console on a stable and flat surface. Do not shake or vibrate the console.
,Clean the disc.
,Moisture has condensed inside the console. (see page 3)
,If the video signal from the console has to go through the VCR to get to the TV, the copy protection applied to some DVD videos could affect picture quality. When playing a DVD video, connect the console to the TV directly. (see page 10)
The aspect ratio cannot be changed according to the TV when playing wide picture DVD videos.
,Depending on the disc, the aspect ratio is fixed.
,Make sure the console is connected to the TV directly. (The selector or receiver (amplifier) may not be connected between the console and the TV.)
,Depending on the TV, the aspect ratio is fixed.
Sound
There is no sound.
,Make sure the console is connected to the TV (or VCR) with the AV cable (integrated audio/video).
,Make sure the console and the TV (or VCR) are turned on.
,Make sure you have selected the video input on the TV (or VCR).
,Make sure the TV volume is set properly or “mute” is not selected on the TV.
,Make sure the AV cable (integrated audio/ video) is connected securely.
,Make sure the inserted disc can be played with this console. (see page 4)
,Make sure the disc is placed with the label side facing up (data side down).
,Make sure you have connected the console to the audio input connectors on the receiver (amplifier) correctly. Refer also to the instructions supplied with your amplifier.
,Try another set of AV cables.
,Check the speaker connections and settings. Refer also to the instructions supplied with your amplifier.
,Make sure you select the appropriate input on the receiver (amplifier) so that you can listen to sound from the console. Refer also to the instructions supplied with your amplifier.
,The console is in pause mode.
,The console is in search/slow-motion mode (when playing a DVD video).
,The system setting is not correct for when the console is connected to audio equipment with DIGITAL OUT (OPTICAL) connectors. (see page 11)
Poor sound quality.
,The console is placed on an unstable surface. Place the console on a stable and flat surface. Do not shake or vibrate the console.
,Clean the disc.
,Moisture has condensed on the disc. (see page 3)
,You are playing an audio CD or a DVD with DTS audio tracks.
You can play an audio CD or DVD with DTS audio tracks only when the console is connected to audio equipment with a DTS decoder.
The surround effect is difficult to hear when you are playing a DVD video with a Dolby Digital audio track.
,Check the speaker connections and settings. Refer to the operating manual of your receiver (amplifier).
,Depending on the DVD, the output signal may not comprise the entire 5.1 channel range. It may be monaural or stereo even if the audio track is recorded in Dolby Digital.
The sound comes from the center speaker only.
,Depending on the disc, the sound may come from the center speaker only.
|
|
27 |
|
|
|
|
|
|
|
|
|
Operation |
|
US |
|
The controller does not function. |
|
DVD |
|
|
|
||
, Make sure the controller is connected to the |
|
videos |
|
, Make sure the analog controller |
|
||
console. |
|
|
|
(DUALSHOCK®2) or the analog controller |
/ |
||
|
Additional |
||
(DUALSHOCK®) is set to the appropriate |
|
||
|
|
||
mode for the software. (see page 17) |
|
|
|
, Try another set of controllers. |
|
information |
|
, Make sure the disc is placed with the label |
|
||
The software title does not start. |
|
|
|
, Make sure the inserted disc can be played |
|
|
|
with this console. (see page 4) |
|
|
|
side facing up (data side down). |
|
|
|
, Make sure the disc is inserted correctly. |
|
|
|
, Clean the disc. |
|
|
|
, Moisture has condensed on the disc. (see |
|
|
|
page 3) |
|
|
|
, Try another copy of the disc. |
|
|
|
You cannot save data on the memory card (8MB) (for PlayStation®2) or memory card.
,Make sure the memory card (8MB) (for PlayStation®2) or memory card is inserted securely.
,Make sure you are playing the game correctly.
Refer to the appropriate software manual.
,Make sure there are empty blocks on the memory card (8MB) (for PlayStation®2) or memory card.
,Try another memory card (8MB) (for PlayStation®2) or memory card.
The console does not function properly.
,Static electricity, etc. may affect the console’s operation.
Turn off the MAIN POWER switch and then turn it back on.
1 indicator flashes in red and the console does not work.
,A flashing red light indicates a console “fault” condition and the unit will not operate. Remove any obstructions from the vents to allow the console to cool down. Resume play after the console returns to standby mode.
28 |
|
|
Troubleshooting (continued) |
|
|
|
|
The disc tray does not open.
,Make sure the AC power cord is connected securely.
,Make sure the console is turned on. Turn on the console using the
MAIN POWER switch on the back of the console.
DVD video operation
The console does not play from the beginning when playing a disc.
,Resume Play has been selected. Press the Stop button before you start playing (see page 19).
,Depending on the disc, a Title menu or a DVD menu automatically appears.
The disc does not play even if the DVD title is selected.
,A Parental Control level has been set on the disc (see page 25).
Playback stops automatically.
,The disc may contain an auto pause signal. While playing such a disc, the console stops playback at the signal.
You cannot perform some functions such as Stop, Search or Slow-motion Play.
,Depending on the disc, you may not be able to do some of the operations above.
The language for the audio track cannot be changed.
,Multilingual tracks are not recorded on the DVD.
,Changing the language for the track is prohibited on the DVD.
The subtitle language cannot be changed.
,Multilingual subtitles are not recorded on the DVD.
,Changing the language for the subtitles is prohibited on the DVD.
The subtitles cannot be turned off.
,Depending on the DVD, you may not be able to turn the subtitles off.
The angles cannot be changed when you play a DVD.
,Multi-angles are not recorded on the DVD.
,Changing the angles is prohibited on the DVD.
Networking
A connection to the network cannot be established (Ethernet or modem).
,The power plug for the PlayStation®2 console is not fully inserted into the electrical outlet.
Check that the power plug is fully inserted into the electrical outlet.
,The network adaptor is not properly installed in the console.
Check that the network adaptor is properly installed in the console.
,A PlayStation®2 format software disc compatible with the network adaptor is not inserted in the console.
Insert a PlayStation®2 format software disc compatible with the network adaptor in the console.
,You are using PlayStation®2 format software that is not compatible with the network adaptor.
Insert a PlayStation®2 format software disc compatible with the network adaptor in the console.
,The network settings are not correct.
Refer to the instructions for the software in use and adjust the settings as necessary.
,The network is busy.
Wait a few minutes, and try to access the network again.
A connection to the network cannot be established (Ethernet only).
,The network cable is not properly connected.
Check that the network cable is properly connected.
,The type of network cable is not correct. Use the correct type of cable. For details refer to the instructions for the network device (router, DSL modem, etc.) you are connecting to.
,The port or settings for the network device (router, DSL modem, etc.) are not correct. Refer to the instructions for the network device and make the appropriate connections or settings.
A connection to the network cannot be established (modem only).
,The telephone cord is not properly connected.
Check that the telephone cord is properly connected.
,The telephone line is already in use. Check that the telephone line is not being used.
,The line you are using is not a home-use phone line.
PBX phone lines, home network and business telephone lines cannot be used to connect to a network.
,You are using software that can only be used with certain providers.
Depending on the telephone company you are using, you may not be able to establish a connection when using software that requires connection to certain Internet service providers. For details, refer to the instructions for the software in use, or contact your Internet service provider.
The data transmission rate is slow (modem only).
,Interference is being generated at your location.
Do not run your telephone cord near electronic devices such as microwave ovens, PC monitors, TVs, radios or speakers that generate telephone line noise. You should also avoid using general-use extension phone cords (audio-only type), or cords with other phones or fax machines connected.
,Interference is being generated at a point between your location (home) and the telephone company.
Use the same telephone line to call a friend and listen for interference from radio transmissions or other noise. Also, check for an echo effect when you speak. If it is clear that there is a problem with the public telephone lines, contact your local telephone company for assistance.
The connection suddenly fails (modem only).
,You have call waiting.
When you receive a call on a line with call waiting, the modem may be disconnected. Temporarily disable the call waiting feature. Contact your local phone company for assistance.
A connection cannot be established and, after trying numerous times, the modem stopped redialing (modem only).
,There are limitations on how many times a device can dial a number. Once the maximum number of tries has been made, the device stops trying to redial.
Turn off the console, wait a few minutes and then try again.
Loading...
