2-103-459-01(1)

TFT LCD Color Computer Display

Operating Instructions

SDM-HS74 SDM-HS94 SDM-HS74P SDM-HS94P

Owner’s Record

The model and serial numbers are located at the rear of the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your dealer regarding this product. Model No.

Serial No.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Dangerously high voltages are present inside the unit. Do not open the cabinet. Refer servicing to qualified personnel only.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

NOTICE

This notice is applicable for USA/Canada only. If shipped to USA/Canada, install only a UL LISTED/CSA LABELLED power supply cord meeting the following specifications: SPECIFICATIONS

Plug Type Nema-Plug 5-15p Cord Type SVT or SJT, minimum 3 × 18 AWG Length Maximum 15 feet Rating Minimum 7 A, 125 V

NOTICE

Cette notice s’applique aux Etats-Unis et au Canada uniquement. Si cet appareil est exporté aux Etats-Unis ou au Canada, utiliser le cordon d’alimentation portant la mention UL LISTED/CSA LABELLED et remplissant les conditions suivantes: SPECIFICATIONS

Type de fiche Fiche Nema 5-15 broches Cordon Type SVT ou SJT, minimum 3 × 18 AWG Longueur Maximum 15 pieds Tension Minimum 7 A, 125 V

As an

ENERGY STAR Partner, Sony

Corporation has determined that this product meets the guidelines for energy efficiency.

ENERGY STAR

IMPORTANTE

Para prevenir cualquier mal funcionamiento y evitar daños, por favor, lea detalladamente este manual de instrucciones antes de conectar y operar este equipo.

If you have any questions about this product, you may call;

Sony Customer Information Services Center 1-800-222-7669 or http://www.sony.com/

Declaration of Conformity

Trade Name: SONY Model: SDM-HS74

Responsible Party: Sony Electronics Inc. Address: 16450 W. Bernardo Dr,

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SDM-HS94 SDM-HS74P SDM-HS94P

San Diego, CA 92127 U.S.A.

Table of Contents

• Macintosh is a trademark licensed to Apple Computer, Inc., registered in the U.S.A. and other countries.

• Windows trademarks of Microsoft Corporation in the United States and other countries.

• IBM PC/AT and VGA are registered trademarks of IBM Corporation of the U.S.A.

• VESA and DDC Video Electronics Standards Association.

•

ENERGY STAR is a U.S. registered

mark.

• Adobe and Acrobat are trademarks of Adobe Systems Incorporated.

• All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies.

•Furthermore, “” and “” are not mentioned in each case in this manual.



and MS-DOS are registered



are trademarks of the

Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Identifying parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Step 1: Connect the display to your computer . . . . . . . . . . . . . . . . . 7 Step 2: Connect the power cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Step 3: Secure the cords and replace the back cover . . . . . . . . . . . 8 Step 4: Turn on the monitor and computer . . . . . . . . . . . . . . . . . . . 9

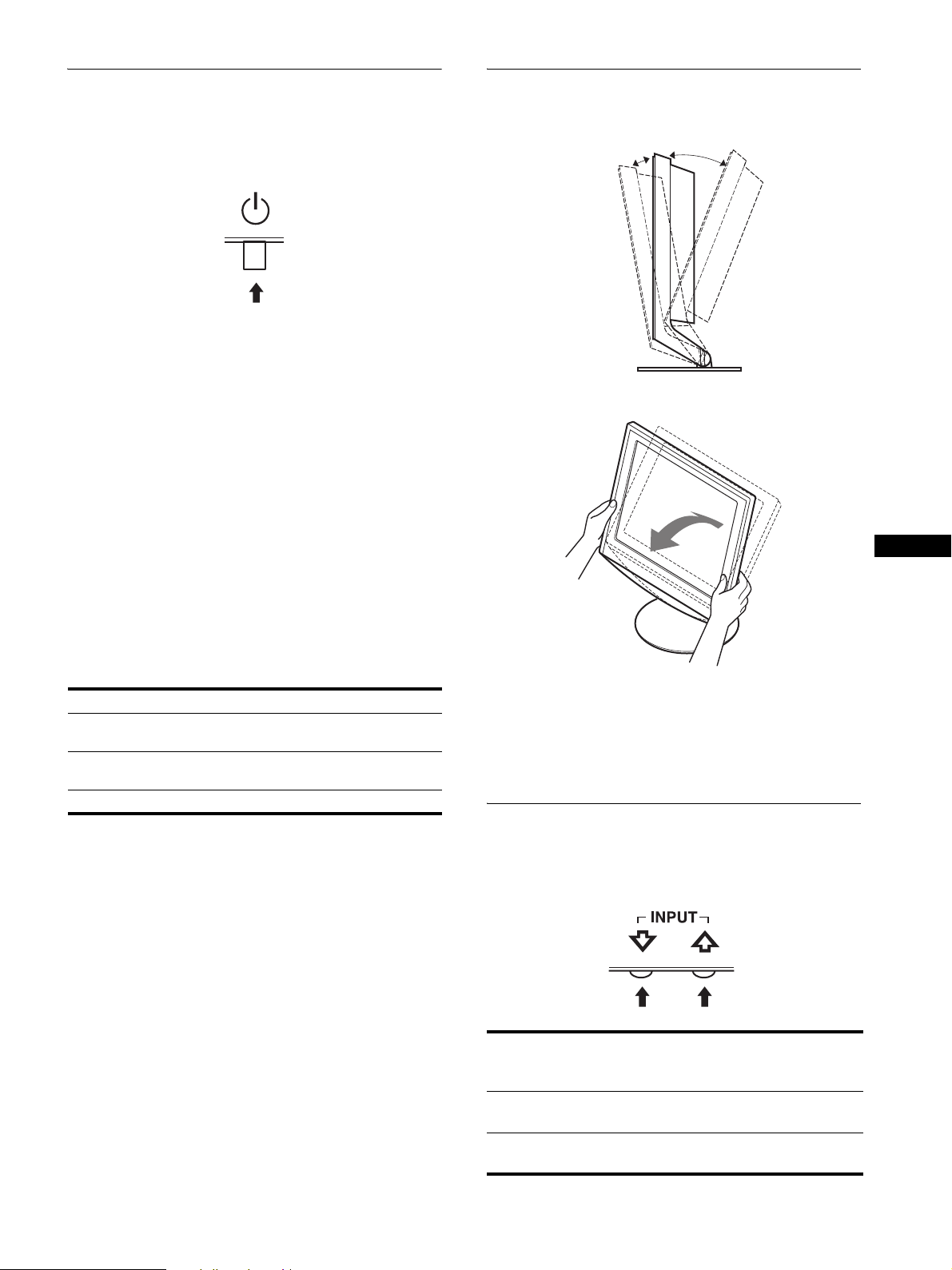

Adjusting the tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Selecting the input signal (INPUT button). . . . . . . . . . . . . . . . . . . . . 9

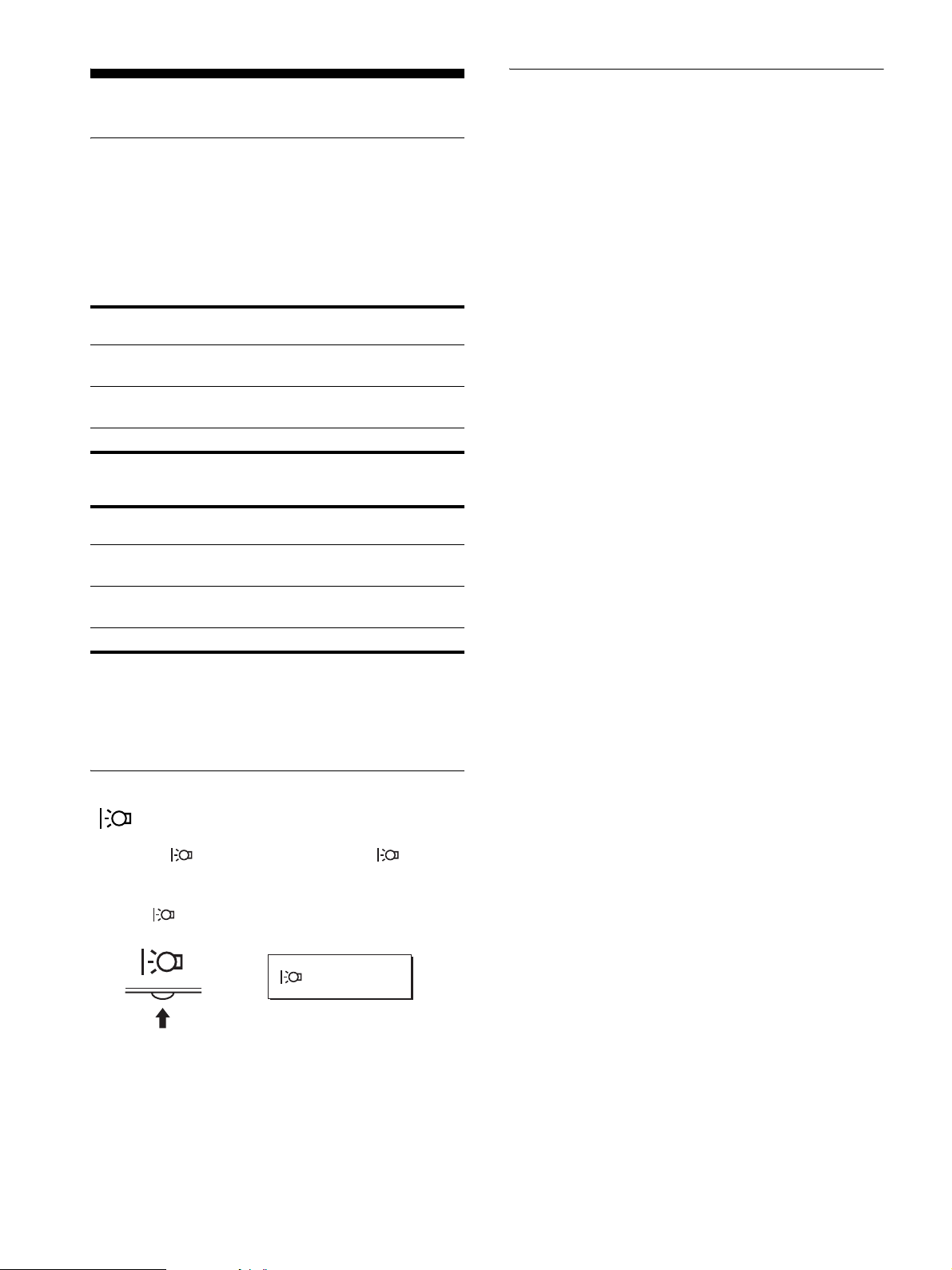

Customizing Your Monitor . . . . . . . . . . . . . . . . . . . . . . .10

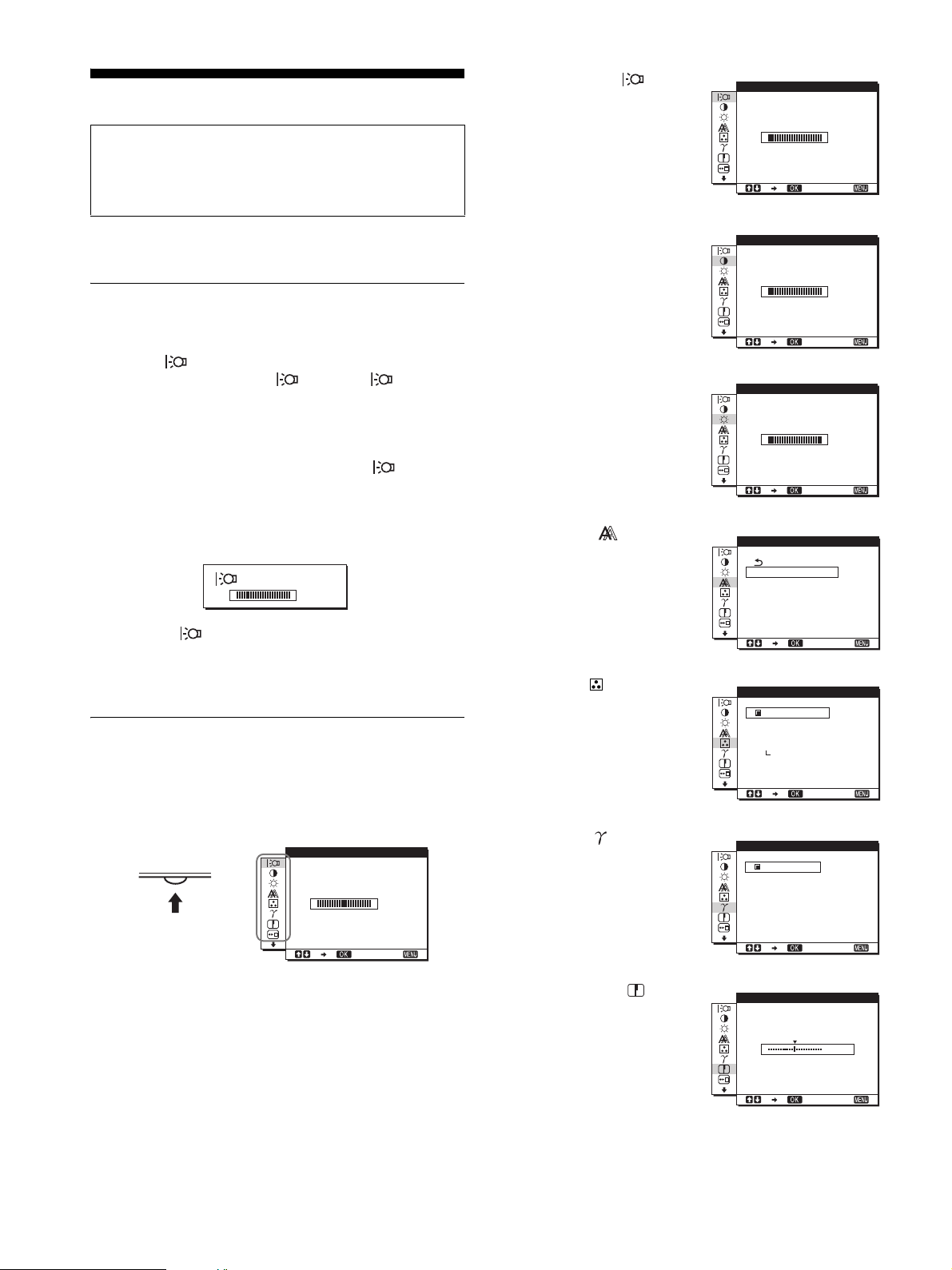

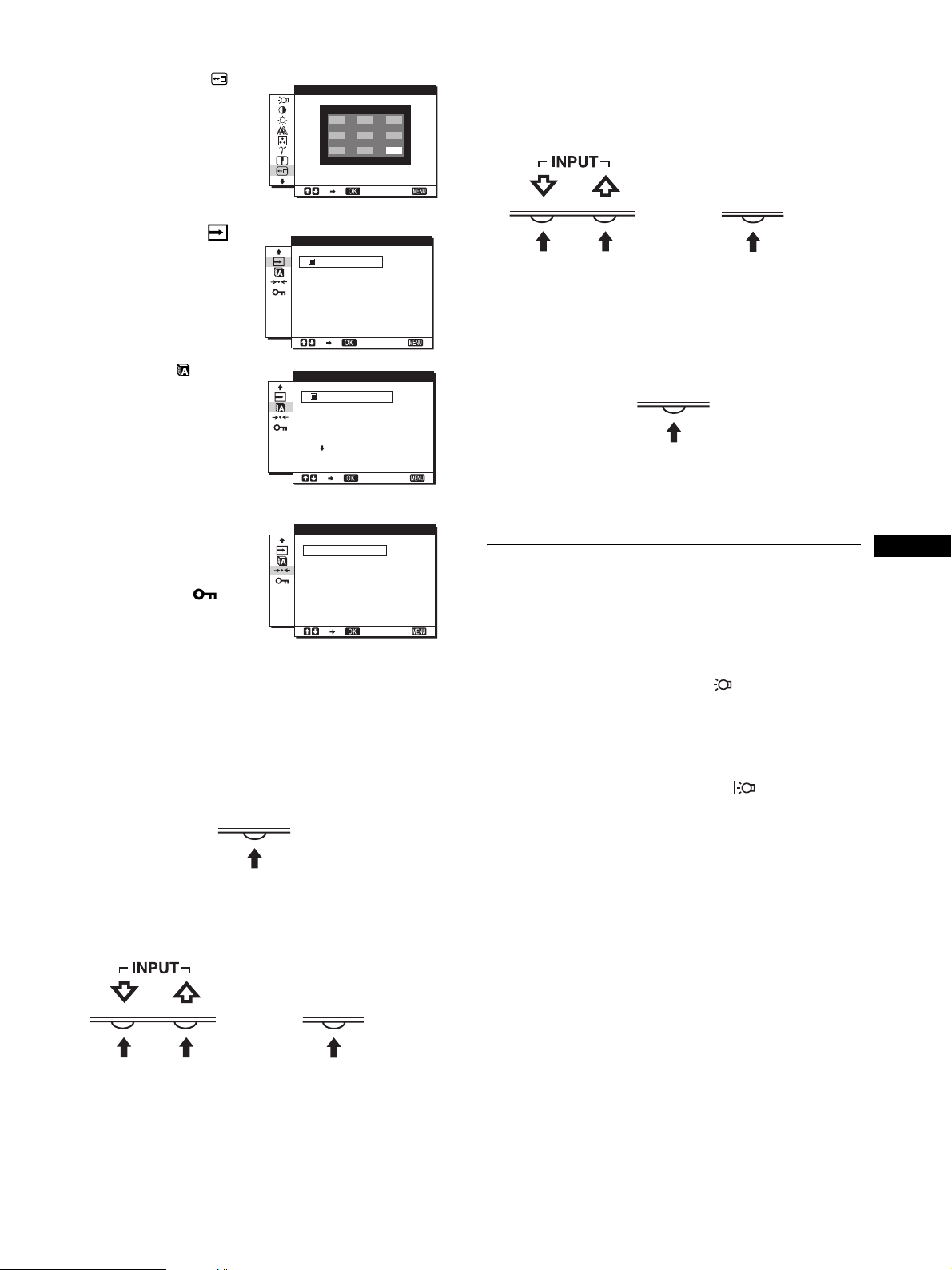

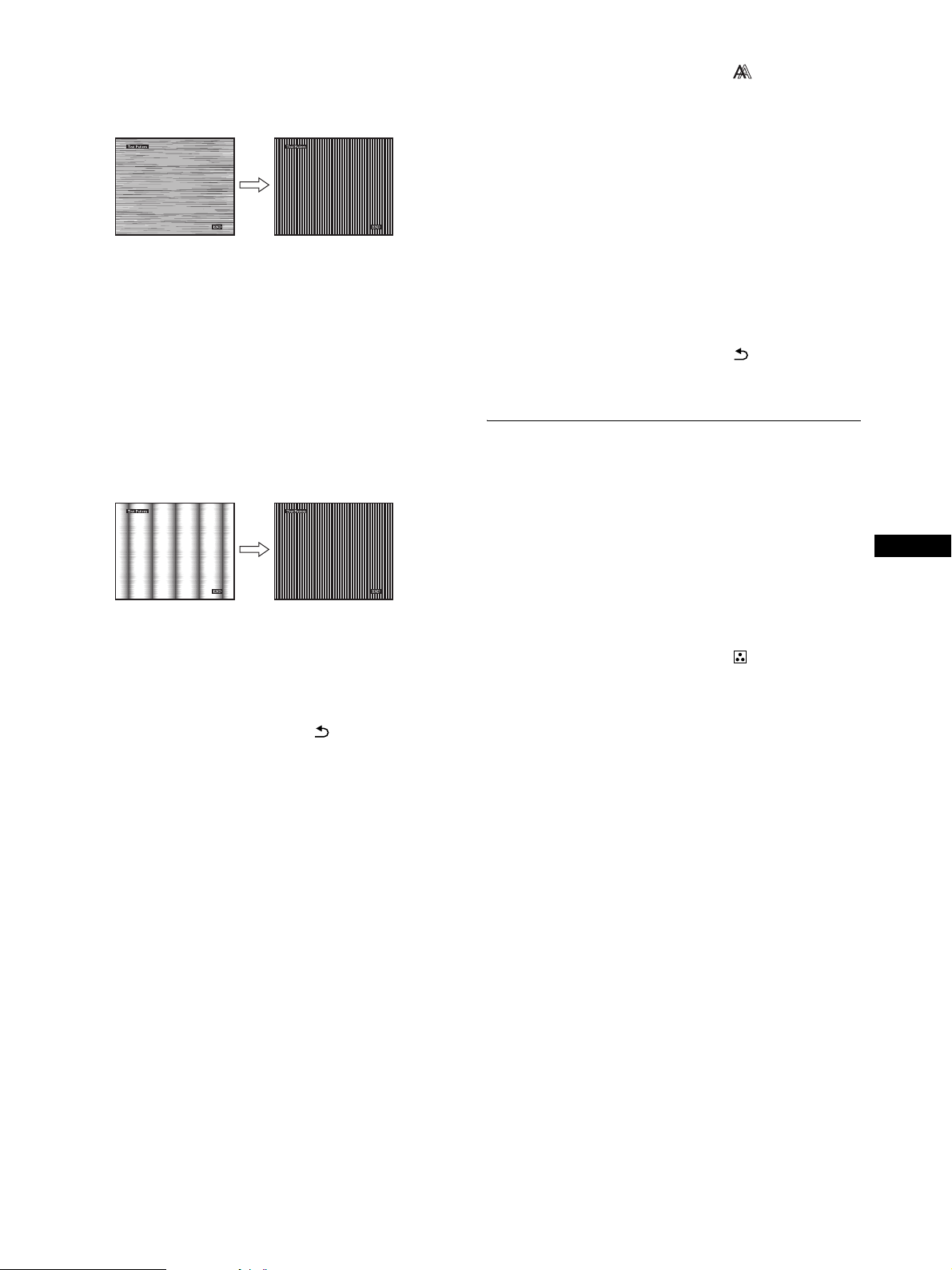

Adjusting to the desired brightness. . . . . . . . . . . . . . . . . . . . . . . . . 10 Navigating the menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Adjusting the backlight (BACKLIGHT) . . . . . . . . . . . . . . . . . . . . . . 11 Adjusting the contrast (CONTRAST) . . . . . . . . . . . . . . . . . . . . . . . 12 Adjusting the black level of an image (BRIGHTNESS). . . . . . . . . . 12 Adjusting the picture’s sharpness and centering (SCREEN) (analog RGB signal only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Adjusting the color temperature (COLOR) . . . . . . . . . . . . . . . . . . . 13 Changing the gamma setting (GAMMA). . . . . . . . . . . . . . . . . . . . . 14 Adjusting the sharpness (SHARPNESS) . . . . . . . . . . . . . . . . . . . . 14 Changing the menu’s position (MENU POSITION) . . . . . . . . . . . . 14 Changing the input automatically (INPUT SENSING) . . . . . . . . . . 14 Selecting the on-screen menu language (LANGUAGE). . . . . . . . . 15 Additional settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Power saving function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Reducing the power consumption ( mode) . . . . . . . . . . . . . . . . 16 Automatic picture quality adjustment function (analog RGB signal only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

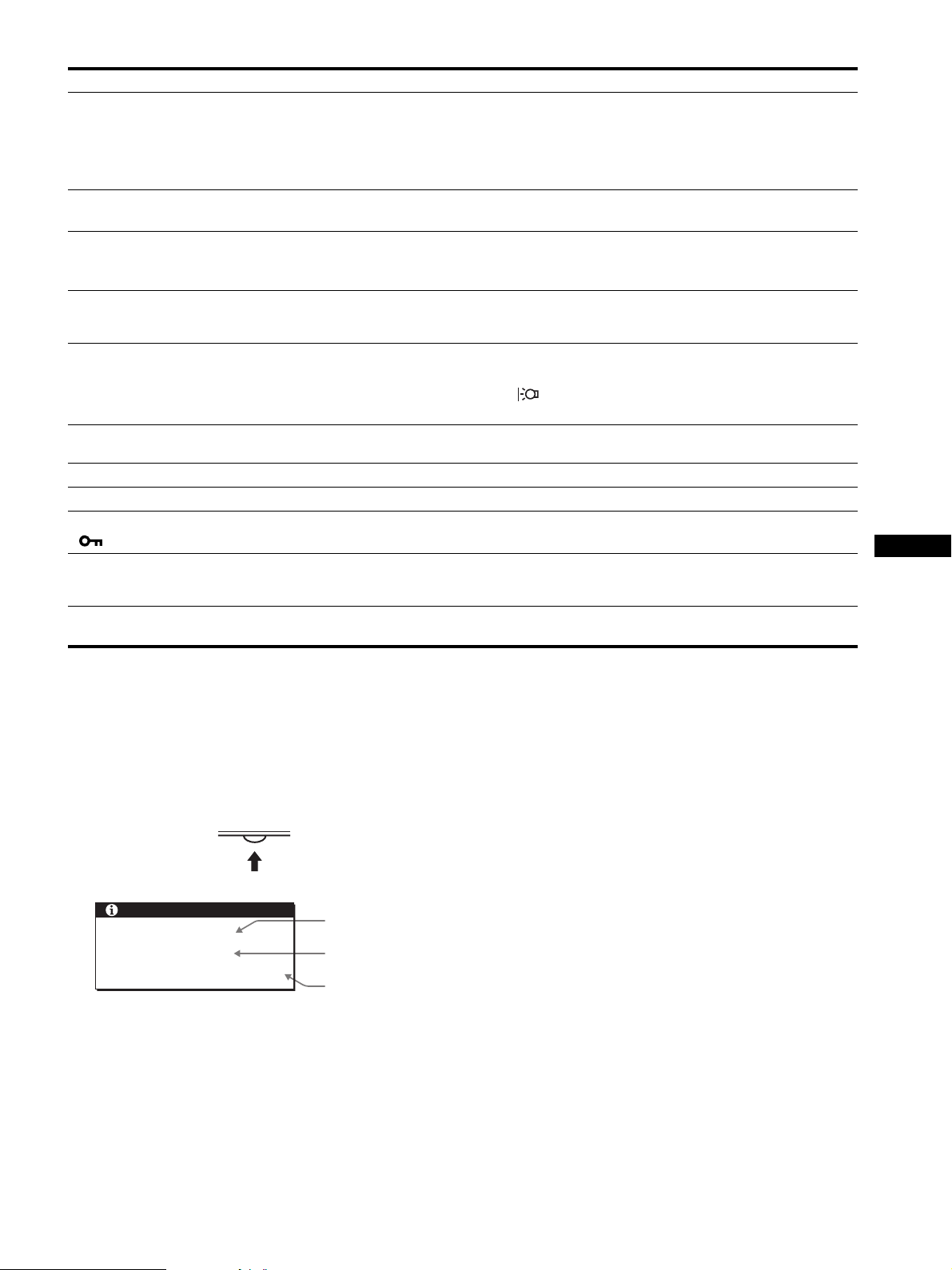

On-screen messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Trouble symptoms and remedies . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Self-diagnosis function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

http://www.sony.net/

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Precautions

Warning on power connections

• Use the supplied power cord. If you use a different power cord, be sure that it is compatible with your local power supply.

For the customers in the U.S.A.

If you do not use the appropriate cord, this monitor will not conform to mandatory FCC standards.

For the customers in the UK

If you use the monitor in the UK, be sure to use the appropriate UK power cord.

Example of plug types

for 100 to 120 V AC for 200 to 240 V AC for 240 V AC only

The equipment should be installed near an easily accessible outlet.

Installation

Do not install or leave the monitor:

• In places subject to extreme temperatures, for example near a radiator, heating vent, or in direct sunlight. Subjecting the monitor to extreme temperatures, such as in an automobile parked in direct sunlight or near a heating vent, could cause deformations of the casing or malfunctions.

• In places subject to mechanical vibration or shock.

• Near any equipment that generates a strong magnetic field, such as a TV or various other household appliances.

• In places subject to inordinate amounts of dust, dirt, or sand, for example near an open window or an outdoor exit. If setting up temporarily in an outdoor environment, be sure to take adequate precautions against airborne dust and dirt. Otherwise irreparable malfunctions could occur.

Handling the LCD screen

• Do not leave the LCD screen facing the sun as it can damage the LCD screen. Take care when you place the monitor by a window.

• Do not push on or scratch the LCD screen. Do not place a heavy object on the LCD screen. This may cause the screen to lose uniformity or cause LCD panel malfunctions.

• If the monitor is used in a cold place, a residual image may appear on the screen. This is not a malfunction. The screen returns to normal as the temperature rises to a normal operating level.

• If a still picture is displayed for a long time, a residual image may appear for a while. The residual image will eventually disappear.

• The LCD panel becomes warm during operation. This is not a malfunction.

Note on the LCD (Liquid Crystal Display)

Please note that the LCD screen is made with highprecision technology. However, black points or bright points of light (red, blue, or green) may appear constantly on the LCD screen, and irregular colored stripes or brightness may appear on the LCD screen. This is not malfunction. (Effective dots: more than 99.99%)

Maintenance

• Be sure to unplug the power cord from the power outlet before cleaning your monitor.

• Clean the LCD screen with a soft cloth. If you use a glass cleaning liquid, do not use any type of cleaner containing an anti-static solution or similar additive as this may scratch the LCD screen’s coating.

• Clean the cabinet, panel, and controls with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine.

• Do not rub, touch, or tap the surface of the screen with sharp or abrasive items such as a ballpoint pen or screwdriver. This type of contact may result in a scratched picture tube.

• Note that material deterioration or LCD screen coating degradation may occur if the monitor is exposed to volatile solvents such as insecticide, or if prolonged contact is maintained with rubber or vinyl materials.

Transportation

• Disconnect all cables from the monitor and grasp the support and base sections of the display stand firmly with both hands when transporting. If you drop the monitor, you may be injured or the monitor may be damaged.

• When you transport this monitor for repair or shipment, use the original carton and packing materials.

Disposal of the monitor

• Do not dispose of this monitor with general household waste.

• The fluorescent tube used in this monitor contains mercury. Disposal of this monitor must be carried out in accordance to the regulations of your local sanitation authority.

Identifying parts and controls

See the pages in parentheses for further details. The 1 (power) switch and the control buttons are on the lower right part of the front of the monitor.

Front of the LCD display

INPUT

SDM-HS94/SDM-HS94P

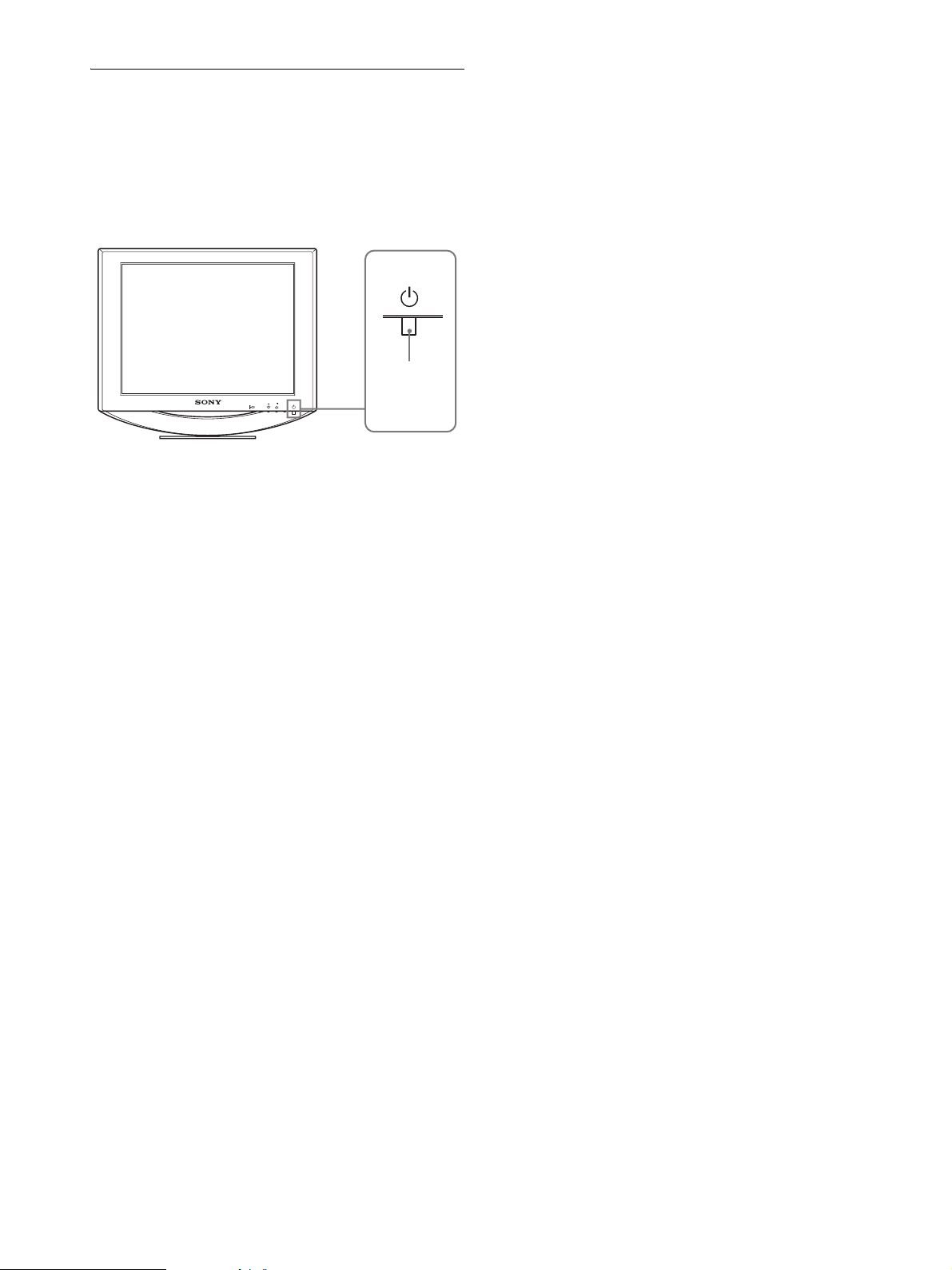

1 1 (Power) switch and indicator (pages 9, 16, 20)

To turn the display on or off, press the 1 (power) switch upward. The power indicator lights up in green when the display is turned on, and lights up in orange when the monitor is in power saving mode.

Rear of the display

SDM-HS74/SDM-HS74P

Press upward to turn the display on or off.

12345

2 MENU button (pages 10, 11)

This button displays or closes the main menu.

3 m/M buttons (page 11)

These buttons function as the m/M buttons when selecting the menu items and making adjustments. Also these buttons switch the video input signal between INPUT1 and INPUT2 when two computers are connected to the monitor. (Only available when menu is turned off.)

4 OK button (page 11)

This button selects the item or executes the settings in the menu.

5 button (page 10)

This button is used to change the brightness of the screen.

6 Security Lock Hole

The security lock hole should be applied with the Kensington Micro Saver Security System. Micro Saver Security System is a trademark of Kensington.

Rear of the LCD display

Remove the back cover.

SDM-HS74/SDM-HS74P

7 Back cover (page 8)

Remove this cover when you connect/disconnect cables or cords.

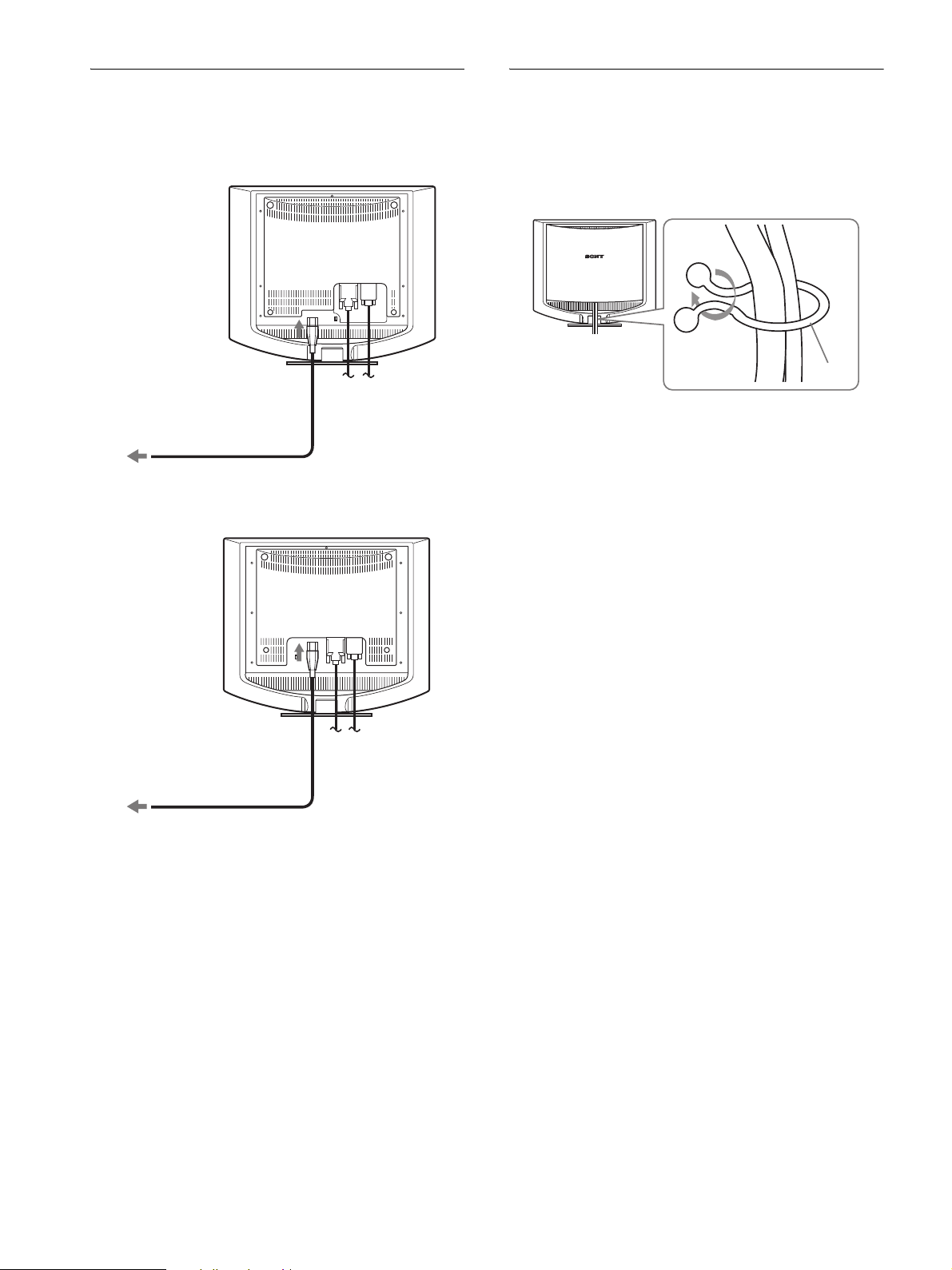

8 AC IN connector (page 8)

Connect the power cord (supplied).

9 DVI-D input connector (digital RGB) for INPUT1

(page 7)

This connector inputs digital RGB video signals that comply with DVI Rev.1.0.

0 HD15 input connector (analog RGB) for INPUT2

(page 7)

This connector inputs analog RGB video signals (0.7 Vp-p, positive) and SYNC signals.

SDM-HS94/SDM-HS94P

Setup

Before using your monitor, check that the following items are included in your carton:

• LCD display

•Power cord

• HD15-HD15 video signal cable (analog RGB)

• DVI-D video signal cable (digital RGB)

• Cord strap

• CD-ROM (utility software for Windows/Macintosh, Operating Instructions, etc.)

• Warranty card

• Quick Setup Guide

Step 1:Connect the display to your

computer

Turn off the monitor and computer before connecting.

Notes

• Do not touch the pins of the video signal cable connector as this might bend the pins.

• Check the alignment of the HD15 connector to prevent bending the pins of the video signal cable connector.

Connect a computer equipped with a DVI output connector (digital RGB)

Using the supplied DVI-D video signal cable (digital RGB), connect the computer to the monitor’s DVI-D input connector (digital RGB)

Connect a computer equipped with an HD15 output connector (analog RGB)

Using the supplied HD15-HD15 video signal cable (analog RGB), connect the computer to the monitor’s HD15 input connector (analog RGB).

Connect the computer according to the following illustrations.

x Connecting to an IBM PC/AT or compatible

computer

to the HD15 input connector (analog RGB)

to the computer’s HD15 output connector (analog RGB)

HD15-HD15 video signal

IBM PC/AT or compatible computer

cable (analog RGB) (supplied)

x Connecting to a Macintosh computer

When connecting this monitor to a Macintosh computer, use the Macintosh adapter (not supplied) if necessary. Connect the Macintosh adapter to the computer before connecting the cable.

to the computer’s DVI output connector (digital RGB)

to the DVI-D input connector (digital RGB)

DVI-D video signal cable (digital RGB) (supplied)

to the computer’s HD15 output connector (analog RGB)

Macintosh computer

to the HD15 input connector (analog RGB)

HD15-HD15 video signal cable (analog RGB) (supplied)
