LED TV
Chassis : HWL60
Model : HG24EE690AB
HG28EE690AB
HG32EE690DB
HG40EE690DB
HG49EE690DB
HG55EE690DB
SERVICE Manual
Hospitality Displays |
|
Contents |
|
|
|
1. Precautions
2. Product specifications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
HG28EE690AB
|
|
Contents |
|
1. Precautions.................................................................................................................... |
1-1 |
||
1-1. |
Safety Precautions .............................................................................................................. |
1-1 |
|
|
1-1-1. Warnings................................................................................................................... |
1-1 |
|
|
1-1-2. Servicing the LED TV................................................................................................ |
1-1 |
|
|
1-1-3. |
Fire and Shock Hazard.............................................................................................. |
1-1 |
|
1-1-4. |
Product Safety Notices.............................................................................................. |
1-2 |
1-2. |
Servicing Precautions.......................................................................................................... |
1-3 |
|
|
1-2-1. |
General Servicing Precautions.................................................................................. |
1-3 |
1-3. |
Static Electricity Precautions................................................................................................ |
1-4 |
|
1-4. |
Installation Precautions........................................................................................................ |
1-5 |
|
2. Product Specifications................................................................................................. |
2-1 |
||
2-1. |
Product information.............................................................................................................. |
2-1 |
|
2-2. |
Product specification............................................................................................................ |
2-3 |
|
|
2-2-1. |
Specifications............................................................................................................ |
2-3 |
|
2-2-2. |
Detailed Specifications.............................................................................................. |
2-5 |
2-3. |
Accessories....................................................................................................................... |
2-29 |
|
2-4. |
Viewing the Functions........................................................................................................ |
2-30 |
|
|
2-4-1. |
Hotel Plug & Play.................................................................................................... |
2-30 |
|
2-4-2. |
Menu Items.............................................................................................................. |
2-32 |
3. Disassembly and Reassembly..................................................................................... |
3-1 |
3-1. Disassembly and Reassembly............................................................................................. |
3-1 |
4. Troubleshooting............................................................................................................ |
4-1 |
4-1. Previous Check ................................................................................................................... |
4-1 |
4-2. How to Check Fault Symptom.............................................................................................. |
4-4 |
4-2-1. Video......................................................................................................................... |
4-4 |
4-2-2. WIFI / Bluetooth Module............................................................................................ |
4-6 |
4-2.3. SMPS POWER.......................................................................................................... |
4-8 |
4-3. Factory Mode Adjustments................................................................................................. |
4-12 |
4-3-1. Detail Factory Option............................................................................................... |
4-12 |
4-3-2. Entering Factory Mode............................................................................................ |
4-18 |
4-3-3. Factory Data............................................................................................................ |
4-19 |
4-4. White Balance.................................................................................................................... |
4-35 |
4-4-1. Calibration............................................................................................................... |
4-35 |
4-4-2. Service Adjustment.................................................................................................. |
4-35 |
4-4-3. Adjustment............................................................................................................... |
4-37 |
4-5. RS-232C............................................................................................................................ |
4-38 |
4-6. Software Upgrade.............................................................................................................. |
4-39 |
4-6-1. Main S/W Upgrade.................................................................................................. |
4-39 |
4-6-2. SUBMICOM Upgrade.............................................................................................. |
4-41 |
4-6-3. Check S/W Version................................................................................................. |
4-43 |
4-7. Factory Mode £ Control £ EDID....................................................................................... |
4-44 |
4-8. Dimensions........................................................................................................................ |
4-45 |
|
4-8-1. |
Front view / Side view............................................................................................. |
4-45 |
4-8-2. |
Base Stand detail.................................................................................................... |
4-47 |
5. Wiring Diagram.............................................................................................................. |
5-1 |
|
5-1. |
Wiring Diagram.................................................................................................................... |
5-1 |
5-2. |
Connector............................................................................................................................. |
5-6 |
5-3. |
Connector Functions.......................................................................................................... |
5-14 |
ANNEX. Exploded View & Part List [HG24EE690ABXEN WA01]....................... |
ANNEX-1 |
|
1-1. |

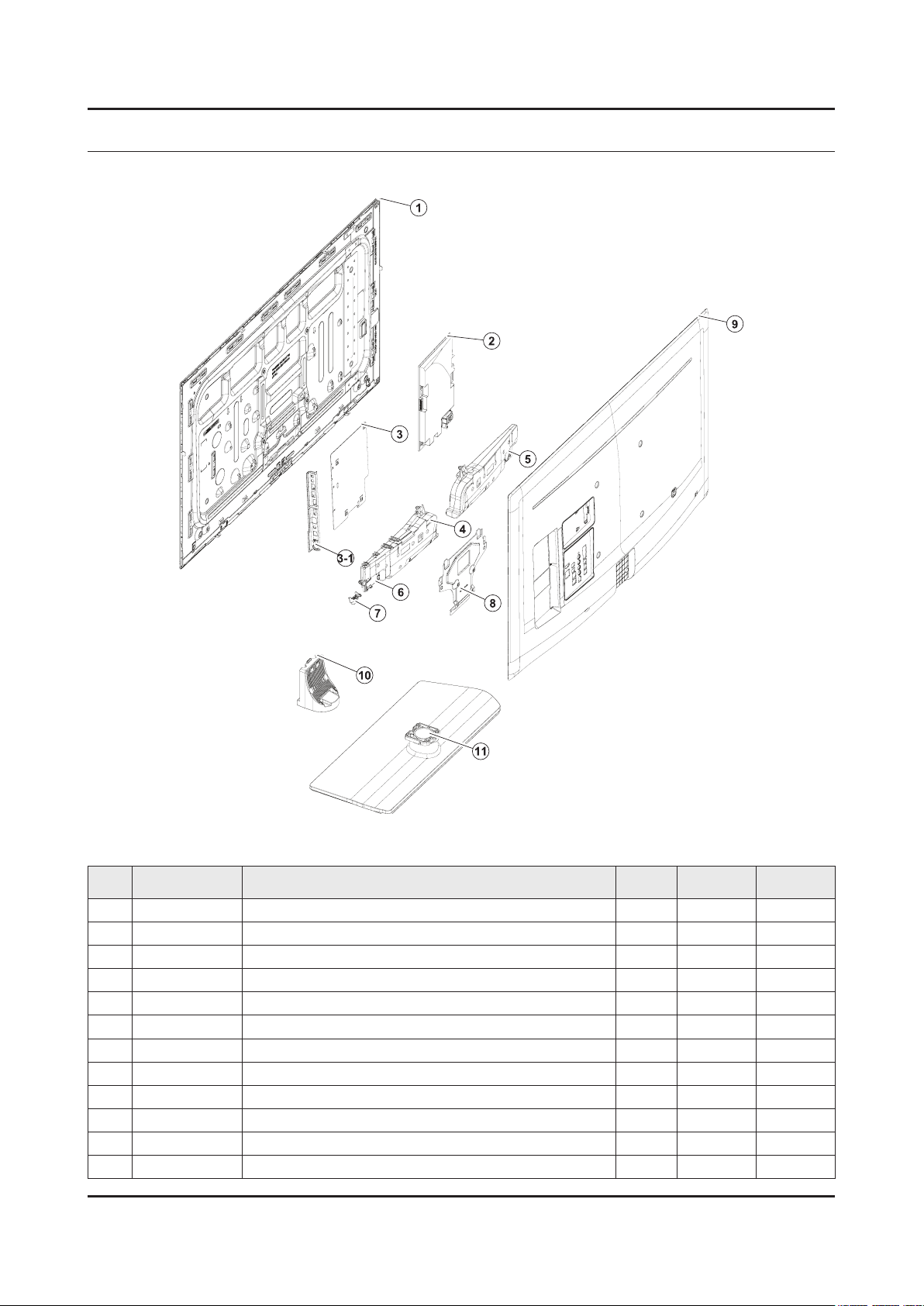

Exploded View.......................................................................................................... |
ANNEX-1 |
|
1-1-1. Part List.......................................................................................................... |
ANNEX-1 |
2-1. |
Electrical Parts List.................................................................................................... |
ANNEX-2 |
ANNEX. Exploded View & Part List [HG28EE690ABXEN WA01]....................... |
ANNEX-1 |
|
1-1. |
Exploded View.......................................................................................................... |
ANNEX-1 |
|
1-1-1. Part List.......................................................................................................... |
ANNEX-1 |
2-1. |
Electrical Parts List.................................................................................................... |
ANNEX-2 |
ANNEX. Exploded View & Part List [HG32EE690DBXEN AA01]........................ |
ANNEX-1 |
|
1-1. |
Exploded View.......................................................................................................... |
ANNEX-1 |
|
1-1-1. Part List.......................................................................................................... |
ANNEX-1 |
2-1. |
Electrical Parts List.................................................................................................... |
ANNEX-2 |
ANNEX. Exploded View & Part List [HG40EE690DBXEN FA01.......................... |
ANNEX-1 |
|
1-1. |
Exploded View.......................................................................................................... |
ANNEX-1 |
|
1-1-1. Part List.......................................................................................................... |
ANNEX-1 |
2-1. |
Electrical Parts List.................................................................................................... |
ANNEX-2 |
ANNEX. Exploded View & Part List [HG49EE690DBXEN CA01]........................ |
ANNEX-1 |
|
1-1. |
Exploded View.......................................................................................................... |
ANNEX-1 |
|
1-1-1. Part List.......................................................................................................... |
ANNEX-1 |
2-1. |
Electrical Parts List.................................................................................................... |
ANNEX-2 |
ANNEX. Exploded View & Part List [HG55EE690DBXEN AA01]........................ |
ANNEX-1 |
|
1-1. |
Exploded View.......................................................................................................... |
ANNEX-1 |
|
1-1-1. Part List.......................................................................................................... |
ANNEX-1 |
2-1. |
Electrical Parts List.................................................................................................... |
ANNEX-2 |
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable International and/or domestic law.
© 2016 Samsung Electronics Co.,Ltd. All rights reserved.
Printed in Korea
3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
1.Disconnect the LED TV from the power source before disassembly.
2.Follow these directions carefully.
-- Use the Samsung Service tool to disassemble the cabinet.
CAUTION |
• Recommend to use the Samsung Service tool. |
|
-- Recommended Torque for Cabinet/Stand screws : 22.0 ~ 26.5lbf |
||
|
•A strength of Torque can be changed depending on the situation.
3-1. Disassembly and Reassembly
24 inches
Description |
Picture Description |
1 Place TV face down on cushioned table.
2 |
Remove screws of ASSY COVER REAR. |
|
• 24" : 4EA |
||
|
|
|
|
Screws |
|
|
6003-001782 |
|
|
SCREW-TAPTYPE : M4 x L12, ZPC(BLK) |
|
|
|
|
3 |
Remove the ASSY COVER REAR and ASSY STAND |
|
P-BOTTOM. |
||
4 Remove the Power Cables and Speaker Cables. |
Power Cable |
Power Cable
Speaker Cable
3-1
3. Disassembly and Reassemble
Description |
Picture Description |
|
|
Remove the LVDS Cable, Panel Wire Cable and ASSY |
LVDS Cable |
BOARD P-FUNCTION JOG &NETWORK-WLAN CLIENT |
|
Cable. |
|
|
LVDS Cable |
ASSY BOARD |
Panel Wire Cable |
P-FUNCTION JOG / |
|
NETWORK-WLAN |
|
CLIENT |
|
5 |
Remove the 4 screws of ASSY PCB MAIN. |
Remove the 3 screws of DC VSS-LED TV PD BD. |
Screws
6001-003016
SCREW-MACHINE : M3 x L5, ZPC(WHT)
6 Remove the ASSY SPEAKER P-FRONT (L/R).
7 Remove the ASSY BOARD P-FUNCTION JOG. |
Cable |
8 Remove the NETWORK-WLAN CLIENT.
Cable
3-2
|
|
3. Disassembly and Reassemble |
|
|
|
|
|
|
|
Description |
Picture Description |
|
|
|
9 |
Completed disassembly. |
|
• Panel. |
|
|
|
|
|
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
3-3
3. Disassembly and Reassemble
28 inches
Description |
Picture Description |
1 Place TV face down on cushioned table.
2 |
Remove the screws from the GUIDE-STAND. |
|
• 28" : 3 EA |
||
|
|
|
|
Screws |
|
|
6003-001782 |
|
|
SCREW-TAPTYPE : M4 x L12, ZPC(BLK) |
|
|
|
|
3 |
Remove screws from the ASSY STAND P-BOTTOM. |
|
4 |
Remove the screws from the ASSY COVER P-REAR. |
(In this step, two types of screws are used.) |
• 28" : 10 EA / 2 EA
Screws
6003-001782
SCREW-TAPTYPE : M4 x L12, ZPC(BLK)
6001-002755
SCREW-MACHINE : M3 x L6, ZPC(BLK)
Remove the ASSY COVER P-REAR.
3-4
|
|
3. Disassembly and Reassemble |
|
5 |
Description |
Picture Description |
|
Remove the Power Cables and Speaker Cables. |
Power Cable |
||
|
|||
|
|
Power Cable |
|
|
|
Speaker Cable |
|
|
Remove the LVDS Cable, Panel Wire Cable and ASSY |
|
|
|
BOARD P-FUNCTION JOG Cable. |
Panel Wire Cable |
|
|
|
||
|
|
LVDS Cable |
|
|
|
LVDS Cable |
|
|
|
ASSY BOARD |
|
|
|
P-FUNCTION |
|
|
|
JOG |
|
6 |
Remove the 4 screws of ASSY PCB MAIN. |
|
|
Remove the 5 screws of DC VSS-LED TV PD BD. |
|
||
|
Screws |
|
|
|
6001-003016 |
|
|
|
SCREW-MACHINE : M3 x L5, ZPC(WHT) |
|
|
7 |
Remove the ASSY SPEAKER P-FRONT (L/R). |
|
|
9 |
Remove the ASSY BOARD P-FUNCTION JOG and |
|
|
NETWORK-WLAN CLIENT. |
|
||
|
|
NETWORK-WLAN CLIENT |
|
|
|
ASSY BOARD P-FUNCTION JOG |
|
|
|
3-5 |
3. Disassembly and Reassemble
Description |
Picture Description |
10 Completed disassembly.
• Panel.
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
3-6
|
|
|
3. Disassembly and Reassemble |
32 / 40 / 49 / 55 inches |
|
||
|
|
Description & Screws |
Picture Description |
1 |
Place TV face down on cushioned table. |
|
|
2 |
Remove the screws from the ASSY GUIDE |
|
|
P-STAND. |
|
||
|
• |
32" : 3 EA |
|
|
|
Screws |
|
|
|
6003-001782 |
|
|
|
SCREW-TAPTYPE : M4 x L12, ZPC(BLK) |
|
|
• |
40" : 4 EA |
|
|
• |
49" : 4 EA |
|
|
• |
55" : 4 EA |
|
|
|
Screws |
|
|
|
6003-001782 |
|
|
|
SCREW-TAPTYPE : M4 x L12, ZPC(BLK) |
|
3 |
Remove the ASSY STAND P-BOTTOM. |
|
|
|
|
|
3-7 |
3. Disassembly and Reassemble |
|
|
|
|||
|
|
Description & Screws |
Picture Description |
|||
4 |
Remove screws from the ASSY COVER REAR. |
|
|
|||
(In this step, two types of screws are used.) |
|
|
||||
|
• |
32" : 1 EA ( |
) / 3 EA ( |
) |
|
|
|
• |
40" : 1 EA ( |
) / 4 EA ( |
) |
|
|
|
• |
49" : 1 EA ( |
) / 4 EA ( |
) |
|
|
|
• |
55" : 1 EA ( |
) / 4 EA ( |
) |
|
|
|
|
Screws |
|
|
|
|
|
|
6003-001782 |
|
|
|
|
|
|
SCREW-TAPTYPE : M4 x L12, ZPC(BLK) |
|
|
||
|
|
6001-002621 |
|
|
|
|
|
|
SCREW-MACHINE : M4 x L8, ZPC(BLK) |
|
|
||
5 |
Remove the ASSY COVER P-REAR. |
|
|
|||
• |
Insert the SVC JIG-ASSY MISC P-JIG at |
|
|
|||
|
|
the indicated positions to release bottom left |
|
|
||
|
|
corners of the rear cover. |
|
|
||
|
|
SVC JIG-ASSY MISC P-JIG |
1 Insert the disassembly Jig |
|
||
|
|
|
|
BN81-12884* |
|
|
|
|
|
|
|
2 Move it to the side |
|
|
• SVC JIG-ASSY MISC P-JIG should be fully |
|
|
|||
|
|
inserted and then pry to release the rear |
|
Direction |
||
|
|
cover mounting clips. |
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Open |
|
3-8
3. Disassembly and Reassemble
Description & Screws |
Picture Description |
• Move indicated direction. |
Jig Direction |
|
2 |
Direction |
1 |
Jig |
|
•Gently lift up the ASSY COVER P-REAR as shown in the picture. (It can be opened when the 3 edges are disassembled.)
JIG open
Press SET
6 |
Remove all Cables. |
LEAD CONNECTOR-POWER Cable |
|
• |
LEAD CONNECTOR-POWER Cable |
|
|
|
• |
LEAD CONNECTOR-BLU Cable |
|
3 |
Direction |
|
Jig |
||
|
LEAD CONNECTOR-BLU Cable
3-9
3. Disassembly and Reassemble
|
Description & Screws |
Picture Description |
|
|
|
• |
FFC CABLE |
FFC CABLE |
• |
ASSY SPEAKER P-FRONT Cable |
ASSY SPEAKER P-FRONT Cable |
• |
ASSY BOARD P-FUNCTION TACT Cable |
|
ASSY BOARD P-FUNCTION TACT Cable
7 |
Remove the ASSY PCB MAIN BOARD. |
|
• |
Locking |
|
|
• |
Bottom chassis Guide Fixing Hole |
Locking
• Gently lift up (Bottom Right corner) to release |
|
||
Locking |
|||
the |
Locking. |
||
|
|||
3-10
3. Disassembly and Reassemble
Description & Screws |
Picture Description |
•Use both hands to hold the board and slide Up to release the board.
8 |
Remove the DC VSS-PD BOARD. |
|
• |
Locking |
|
|
• |
Bottom chassis Guide Fixing Hole |
Locking
Locking
• Gently lift up (Bottom Right corner) to release |
|
||
the |
Locking. |
|
|
Locking |
|||
|
|
||
•Use both hands to hold the board and slide Up to release.
3-11
3. Disassembly and Reassemble
Description & Screws |
Picture Description |
9 Remove the ASSY SPEAKER P-FRONT(R/L).
|
ASSY SPEAKER P-FRONT(R/L) |
|
|
10 |
Remove the ASSY BOARD P-FUNCTION TACT, NETWORK-WLAN CLIENT |
NETWORK-WLAN CLIENT. |
ASSY BOARD P-FUNCTION TACT
11 • |
32" : 3 EA |
Remove the Bracket-Stand Link. |
|
• |
40" : 3 EA |
• |
49" : 3 EA |
• |
55" : 3 EA |
Screws
6001-003016
SCREW-MACHINE : M3 x L5, ZPC(WHT)
12 Completed disassembly.
• Panel
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
3-12
ANNEX. Exploded View & Part List
ANNEX. Exploded View & Part List [HG32EE690DBXEN AA01]
1-1. Exploded View
1-1-1. Part List
No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
1 |
BN95-02613A |
PRODUCT LCD-AUO; CY-KK032BGAV1V/H,K5500,B |
1 |
SA |
|
2 |
BN44-00869A |
DC VSS-PD BOARD; L32E1P_KPN,AC/DC,82W,100 |
1 |
SA |
|
3 |
BN94-11085B |
ASSY PCB MAIN; HTV_E690 |
1 |
SA |
|
3-1 |
BN63-15811A |
COVER-TERMINAL SIDE; 40HE690,HIPS,MOLD,HB |
1 |
SNA |
|
4 |
BN96-39969A |
ASSY SPEAKER P-FRONT; TV-SPK,K5500,6ohm,1 |
1 |
SA |
|
5 |
BN96-30218D |
NETWORK-BLUETOOTH; WIBT40A,34.79x28x7.7mm |
1 |
SA |
|
|
|
|
|
|
|
6 |
BN59-01174D |
NETWORK-WLAN CLIENT; WIDT30Q,58x31.45x8.5 |
1 |
SA |
|
|
|
|
|
|
|
7 |
BN96-39802B |
ASSY BOARD P-FUNCTION TACT; K6200/K5500/K |
1 |
SA |
|
|
|
|
|
|
|
8 |
BN61-14011A |
BRACKET-STAND LINK; 32HE690,EGI-SECC,T1.2 |
1 |
SNA |
|
|
|
|
|
|
|
9 |
BN96-41209A |
ASSY COVER P-REAR; 32EE690,PC+ABS+ED20%,V |
1 |
SA |
|
|
|
|
|
|
|
10 |
BN96-41335A |
ASSY GUIDE P-STAND; 32EE690,EUROPE,PC+GF2 |
1 |
SA |
|
|
|
|
|
|
|
11 |
BN96-31875A |
ASSY STAND P-BOTTOM; 32HC670,PC+ABS,BK000 |
1 |
SA |
|
|
|
|
|
|
|
ANNEX-1
ANNEX. Exploded View & Part List
2-1. Electrical Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
|
|
|
HG32EE690DBXEN (AA01) |
|
|
|
|
|
|
|
|
|
|
1 |
R001A |
BN90-08562A |
ASSY COVER REAR;HTV_E690 |
1 |
SNA |
|
0.2 |
SCREW |
6001-002621 |
SCREW-MACHINE;BH,+,M4,L8,ZPC(BLK),SWRCH1 |
3 |
SA |
|
|
|
|
|
|
|
|
0.2 |
SCREW |
6003-001782 |
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
1 |
SA |
|
|
|
|
|
|
|
|
0.2 |
R001A |
BN96-41209A |
ASSY COVER P-REAR;32EE690,PC+ABS+ED20%,V |
1 |
SA |
|
..3 |
R001 |
BN63-15812A |
COVER-REAR;32HE690,PC+ABS+ED20%,MOLD,V-1 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
0103-010818 |
RESIN PC ABS;CM20G/BK00749,BLACK,BK0007, |
957 |
SNA |
|
..3 |
|
BN64-03636A |
INLAY-TERMINAL SIDE;32EE690,PET,T0.125,W |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
T0071 |
BN64-03637A |
INLAY-TERMINAL;32EE690,PS,T0.3,W122.9,L1 |
1 |
SNA |
|
..3 |
|
BN68-03518H |
LABEL-STICKER CI SLOT;WW,ALL,PET,T0.1,W1 |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN68-07835C |
LABEL-STICKER LICENSE;40K5500,PET,T0.125 |
1 |
SNA |
|
1 |
S001A |
BN90-08583A |
ASSY STAND;HE690 |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
SB04A |
BN96-31875A |
ASSY STAND P-BOTTOM;32HC670,PC+ABS,BK000 |
1 |
SA |
|
|
|
|
|
|
|
|
..3 |
SCREW |
6003-001782 |
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
4 |
SA |
|
..3 |
SCREW |
6003-001785 |
SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC |
7 |
SA |
|
|
|
|
|
|
|
|
..3 |
|
BN60-01083A |
SPACER-FOAM;PE FOAM,L50M,GRAY,T1,W15 |
1 |
SNA |
|
..3 |
|
BN61-04692A |
ADHESIVE-AA;SHEET,CLEAR,C043 |
0 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN61-08217A |
BRACKET-STAND SWIVEL;EGI-SECC PL,T1.6,NA |
1 |
SNA |
|
..3 |
|
BN61-08218A |
BRACKET-STAND SWIVEL;SECC,T3,NATURAL,20/ |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN61-08224A |
HOLDER-STAND SWIVEL;UE5000 32" HOTEL,ACE |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN61-08225A |
HOLDER-STAND SWIVEL;UE5000 40/46" HOTEL, |
1 |
SNA |
|
..3 |
|
BN61-09174A |
BRACKET-STAND BOTTOM;EGI-SECC,T1.2,NATUR |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
SG01 |
BN61-10511A |
GUIDE-STAND NECK;UH5000-32,PC+GF20%,MOLD |
1 |
SNA |
|
...4 |
|
0103-007285 |
RESIN PC;HF3200H,K21294,BK0007,V-2 |
110 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN68-00513D |
LABEL-RESIN;resin,-,ART,-,W10,L25,-,-,-, |
2 |
SNA |
|
|
|
|
|
|
|
|
..3 |
CCM1 |
BN63-04755B |
SHEET-PROTECTION COVER;AMBER,PE,T0.05,W2 |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN63-12127A |
COVER-STAND TOP;UH5000-32",PC+ABS,MOLD,V |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
0103-005041 |
RESIN PC ABS;FR3200TV,901408,BK0008,1.2m |
520 |
SNA |
|
...4 |
|
BN68-00513D |
LABEL-RESIN;resin,-,ART,-,W10,L25,-,-,-, |
2 |
SNA |
|
|
|
|
|
|
|
|
..3 |
RF01 |
BN67-00327D |
FOOT-RUBBER;STAND,Si,GRAY,W13,L13,T2 |
8 |
SNA |
|
..3 |
|
BN69-08751B |
PACKING SHRINKAGE;STAND,PLASTIC OTHERS,P |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN74-00031A |
GREASE;SMART F & S FLC-512,WHITE |
0 |
SNA |
|
0.2 |
SG01A |
BN96-41335A |
ASSY GUIDE P-STAND;32EE690,EUROPE,PC+GF2 |
1 |
SA |
|
|
|
|
|
|
|
|
..3 |
SG03 |
BN61-14013A |
GUIDE-STAND;32HE690,PC+GF20%,MOLD,V-2,BK |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN68-05603A |
LABEL-E PASS;ART PAPER 90G,W/W |
3 |
SNA |
|
..3 |
|
BN69-08751A |
PACKING SHRINKAGE;STAND,PLASTIC OTHERS,P |
0 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN96-29120B |
ASSY ACCESSORY-SCREW;LEDTV 23,BN69-09241 |
1 |
SNA |
|
...4 |
SCREW |
6003-001782 |
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
7 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
BN69-09241B |
BAG SCREW;LDPE,0.05,70,90,TRP,Vinyl pack |
1 |
SNA |
|
|
|
|
|
|
|
|
1 |
|
BN91-18136A |
ASSY SHIELD;HTV_E690 |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
SCREW |
6001-003081 |
SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH |
3 |
SA |
|
|
|
|
|
|
|
|
0.2 |
|
BN02-00102B |
TAPE-SINGLE FACE;FILAMENT,#8917,T0.15,W2 |
0 |
SNA |
|
0.2 |
|
BN39-02217B |
LEAD CONNECTOR-POWER;32K5500,UL21016,12P |
1 |
SA |
|
|
|
|
|
|
|
|
0.2 |
|
BN39-02262A |
LEAD CONNECTOR-SUB ASSY;HG32EE690,UL2101 |
1 |
SA |
|
ANNEX-2
ANNEX. Exploded View & Part List
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
0.2 |
|
BN44-00869A |
DC VSS-PD BOARD;L32E1P_KPN,AC/DC,82W,100 |
1 |
SA |
|
|
|
|
|
|
|
|
0.2 |
WIFI |
BN59-01174D |
NETWORK-WLAN CLIENT;WIDT30Q,58x31.45x8.5 |
1 |
SA |
|
0.2 |
CB18 |
BN61-14011A |
BRACKET-STAND LINK;32HE690,EGI-SECC,T1.2 |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
BT |
BN96-30218D |
NETWORK-BLUETOOTH;WIBT40A,34.79x28x7.7mm |
1 |
SA |
|
0.2 |
|
BN96-39802B |
ASSY BOARD P-FUNCTION TACT;K6200/K5500/K |
1 |
SA |
|
|
|
|
|
|
|
|
0.2 |
|
BN96-39969A |
ASSY SPEAKER P-FRONT;TV-SPK,K5500,6ohm,1 |
1 |
SA |
|
0.2 |
|
BN96-40209D |
FFC CABLE;40K5500,Wrinkle,L250,51P |
1 |
SA |
|
|
|
|
|
|
|
|
1 |
M0017 |
BN91-18138B |
ASSY CHASSIS;HTV_E690 |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
M0014 |
BN94-11085B |
ASSY PCB MAIN;HTV_E690 |
1 |
SA |
|
|
|
|
|
|
|
|
..3 |
|
BN62-00365B |
HEAT SINK-PS;S9_FRC,A1050,W60,L70,BLACK, |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN63-15811A |
COVER-TERMINAL SIDE;40HE690,HIPS,MOLD,HB |
1 |
SNA |
|
..3 |
|
BN97-10015A |
ASSY DRM-KEY;EU,X14H,HDCP, MAC, CI+ |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN46-00109H |
KEY CODE-CERTIFICATION;MAC,TV/AV,General |
1 |
SNA |
|
...4 |
|
BN46-00110P |
KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN46-00115K |
KEY CODE-CERTIFICATION;CI+,TV,X14, EU |
1 |
SNA |
|
..3 |
|
BN97-11284K |
ASSY SMD;HTV_690 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
0202-001899 |
SOLDER-CREAM;M705-GRN360-K2-VT,20-38um,S |
5 |
SNA |
|
|
|
|
|
|
|
|
...4 |
DS01A |
0401-001056 |
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO |
4 |
SA |
|
...4 |
DS01A |
0401-001099 |
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0403-001783 |
DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO |
7 |
SNA |
|
...4 |
|
0404-001089 |
DIODE-SCHOTTKY;RB551V-30,20V,500mA,SOD-3 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0404-001404 |
DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, |
5 |
SA |
|
...4 |
|
0404-001881 |
DIODE-SCHOTTKY;SS3040-HE,40V,3000mA,SOD- |
5 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0406-001200 |
DIODE-TVS;RClamp0504F,6V,1MAV,TP |
3 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0406-001239 |
DIODE-TVS;RClamp0502B,6V,1MAV,5A,TP |
3 |
SA |
|
...4 |
|
0406-001290 |
DIODE-TVS;3.0SMCJ20A,22.2V,24.5V,5MAV,30 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
0406-001628 |
DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
2 |
SA |
|
...4 |
|
0406-001635 |
DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
12 |
SA |
|
|
|
|
|
|
|
|
...4 |
DS01A |
0407-000114 |
DIODE-SWITCHING;KDS184,80V,100mA,SOT-23, |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
0501-000445 |
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT |
3 |
SC |
|
|
|
|
|
|
|
|
...4 |
|
0505-002560 |
FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0505-002598 |
FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh |
1 |
SA |
|
...4 |
|
0505-002893 |
FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0505-002917 |
FET-SILICON;AO3406,N,30V,3.6A,1.4W,SOT-2 |
2 |
SA |
|
...4 |
|
0505-003397 |
FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, |
9 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0801-002780 |
IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0801-003330 |
IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x |
3 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0909-001032 |
IC-REAL TIME CLOCK;PCF8563,SOP,8P,4.9x3. |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1001-001998 |
IC-ANALOG MULTIPLEX;NX3DV221GM,USB switc |
1 |
SA |
|
...4 |
|
1006-001509 |
IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1103-001561 |
IC-EEPROM;S-24C02DI-J800,2Kbit,256X8bit, |
2 |
SA |
|
...4 |
|
1103-001564 |
IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8, |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1105-002528 |
IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866, |
1 |
SA |
|
...4 |
|
1105-002534 |
IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1201-003690 |
IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1203-004364 |
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
1 |
SA |
|
...4 |
|
1203-006017 |
IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
1 |
SA |
|
|
|
|
|
|
|
|
ANNEX-3
ANNEX. Exploded View & Part List
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
...4 |
|
1203-006109 |
IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
1 |
SA |
|
...4 |
|
1203-006141 |
IC-POSI.FIXED REG.;S-1172B33-U5T1G,SOT-8 |
1 |
SA |
|
...4 |
|
1203-007238 |
IC-PWM CONTROLLER;TPS54427,DDA,8P,4.8x3. |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
1203-007242 |
IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8,7 |
1 |
SA |
|
...4 |
|
1203-007694 |
IC-DC/DC CONVERTER;SN1106041DDAR,DDA,8,5 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1203-007984 |
IC-DC/DC CONVERTER;AOZ3015PI,SO-8,8,6.2x |
1 |
SA |
|
...4 |
|
1203-008102 |
IC-POSI.FIXED REG.;S-13A1D12-E800,HSOP,8 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
1203-008104 |
IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 |
2 |
SNA |
|
...4 |
|
1203-008105 |
IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
1203-008118 |
IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1203-008183 |
IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
1 |
SA |
|
...4 |
|
1203-008448 |
IC-DC/DC CONVERTER;A8305SESTR-T,QFN,16,3 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
1204-003535 |
IC-DECODER;SEMS31T,PBGA,709P,23x23mm,PLA |
1 |
SA |
|
...4 |
|
1205-003201 |
IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm |
5 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1205-004447 |
IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3x1.65 |
2 |
SA |
|
...4 |
|
1205-004983 |
IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0x4. |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1205-005595 |
IC-ETHERNET CONTROLLER;RTL8304MB-CG,QFN, |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1405-001271 |
VARISTOR;35V,20VDC,5A,1005,TP,100V,10pF |
29 |
SA |
|
...4 |
|
2007-000070 |
R-CHIP;0ohm,5%,1/10W,TP,1608 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000137 |
R-CHIP;2Kohm,5%,1/16W,TP,1005 |
15 |
SNA |
|
...4 |
|
2007-000138 |
R-CHIP;100ohm,5%,1/16W,TP,1005 |
47 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000140 |
R-CHIP;1Kohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-000141 |
R-CHIP;2.2Kohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000143 |
R-CHIP;4.7Kohm,5%,1/16W,TP,1005 |
55 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000148 |
R-CHIP;10Kohm,5%,1/16W,TP,1005 |
57 |
SA |
|
...4 |
|
2007-000153 |
R-CHIP;22Kohm,5%,1/16W,TP,1005 |
4 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000155 |
R-CHIP;27Kohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-000157 |
R-CHIP;47Kohm,5%,1/16W,TP,1005 |
13 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000162 |
R-CHIP;100Kohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-000171 |
R-CHIP;0ohm,5%,1/16W,TP,1005 |
30 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000172 |
R-CHIP;10ohm,5%,1/16W,TP,1005 |
4 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000173 |
R-CHIP;22ohm,5%,1/16W,TP,1005 |
17 |
SNA |
|
...4 |
|
2007-000174 |
R-CHIP;47ohm,5%,1/16W,TP,1005 |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000242 |
R-CHIP;1.5Kohm,5%,1/16W,TP,1005 |
2 |
SNA |
|
...4 |
|
2007-000539 |
R-CHIP;200ohm,5%,1/10W,TP,1608 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000695 |
R-CHIP;3.3ohm,5%,1/10W,TP,1608 |
1 |
SNA |
|
...4 |
|
2007-000803 |
R-CHIP;36Kohm,1%,1/10W,TP,1608 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000831 |
R-CHIP;39Kohm,5%,1/16W,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000932 |
R-CHIP;470ohm,5%,1/16W,TP,1005 |
5 |
SNA |
|
...4 |
|
2007-001116 |
R-CHIP;680ohm,1%,1/10W,TP,1608 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-001125 |
R-CHIP;68Kohm,1%,1/10W,TP,1608 |
1 |
SA |
|
...4 |
|
2007-001168 |
R-CHIP;75ohm,5%,1/4W,TP,3216 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-001288 |
R-CHIP;18ohm,5%,1/16W,TP,1005 |
6 |
SA |
|
...4 |
|
2007-001292 |
R-CHIP;33ohm,5%,1/16W,TP,1005 |
13 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-001295 |
R-CHIP;39ohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-001301 |
R-CHIP;68ohm,5%,1/16W,TP,1005 |
3 |
SA |
|
...4 |
|
2007-001333 |
R-CHIP;18Kohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
ANNEX-4
ANNEX. Exploded View & Part List
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
...4 |
|
2007-002970 |
R-CHIP;56ohm,5%,1/16W,TP,1005 |
4 |
SA |
|
...4 |
|
2007-007001 |
R-CHIP;3.9Kohm,5%,1/16W,TP,1005 |
1 |
SA |
|
...4 |
|
2007-007107 |
R-CHIP;100Kohm,1%,1/16W,TP,1005 |
3 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007135 |
R-CHIP;18Kohm,1%,1/16W,TP,1005 |
4 |
SNA |
|
...4 |
|
2007-007136 |
R-CHIP;4.7Kohm,1%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007138 |
R-CHIP;27Kohm,1%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-007139 |
R-CHIP;47Kohm,1%,1/16W,TP,1005,T0.35 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007142 |
R-CHIP;10Kohm,1%,1/16W,TP,1005 |
3 |
SNA |
|
...4 |
|
2007-007156 |
R-CHIP;1ohm,5%,1/16W,TP,1005 |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007306 |
R-CHIP;100ohm,1%,1/16W,TP,1005 |
4 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007311 |
R-CHIP;22Kohm,1%,1/16W,TP,1005 |
6 |
SA |
|
...4 |
|
2007-007312 |
R-CHIP;20Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007316 |
R-CHIP;3.3Kohm,1%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-007318 |
R-CHIP;1Kohm,1%,1/16W,TP,1005 |
30 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007470 |
R-CHIP;7.5Kohm,1%,1/16W,TP,1005 |
2 |
SNA |
|
...4 |
|
2007-007488 |
R-CHIP;75Kohm,1%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007517 |
R-CHIP;240ohm,1%,1/16W,TP,1005 |
3 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007538 |
R-CHIP;56Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
...4 |
|
2007-007617 |
R-CHIP;2.49Kohm,1%,1/10W,TP,1608 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007671 |
R-CHIP;11Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
...4 |
|
2007-007766 |
R-CHIP;2Kohm,1%,1/16W,TP,1005 |
3 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007942 |
R-CHIP;1Mohm,1%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-008015 |
R-CHIP;75ohm,1%,1/16W,TP,1005 |
5 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-008275 |
R-CHIP;30Kohm,1%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-008294 |
R-CHIP;33ohm,1%,1/16W,TP,1005 |
1 |
SA |
|
...4 |
|
2007-008332 |
R-CHIP;11.5Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-008779 |
R-CHIP;0ohm,1%,1/16W,TP,1005 |
2 |
SA |
|
...4 |
|
2007-009753 |
R-CHIP;52.3Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2011-001261 |
R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. |
8 |
SA |
|
...4 |
|
2011-001344 |
R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 |
4 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2011-001345 |
R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,2 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2011-001449 |
R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1.0x1.0 |
5 |
SA |
|
...4 |
|
2011-001506 |
R-NETWORK;10Kohm,5%,1/16W,L,CHIP,4P,TP,1 |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2011-001527 |
R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, |
3 |
SNA |
|
...4 |
|
2011-001587 |
R-NETWORK;100ohm,5%,1/16W,L,CHIP,4P,TP,1 |
4 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000233 |
C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 |
8 |
SA |
|
...4 |
AD480 |
2203-000278 |
C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 |
5 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000386 |
C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000425 |
C-CER,CHIP;0.018nF,5%,50V,C0G,TP,1005 |
4 |
SA |
|
...4 |
AD480 |
2203-000438 |
C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 |
9 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000489 |
C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 |
9 |
SA |
|
...4 |
AD480 |
2203-000530 |
C-CER,CHIP;2.7nF,10%,50V,X7R,TP,1005,- |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000575 |
C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 |
3 |
SNA |
|
...4 |
AD480 |
2203-000585 |
C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000627 |
C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1005 |
3 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000679 |
C-CER,CHIP;0.027nF,5%,50V,C0G,TP,1005 |
2 |
SA |
|
...4 |
AD480 |
2203-000714 |
C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
ANNEX-5
ANNEX. Exploded View & Part List
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000812 |
C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 |
7 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000995 |
C-CER,CHIP;0.047nF,5%,50V,C0G,TP,1005 |
2 |
SA |
|
...4 |
AD480 |
2203-001634 |
C-CER,CHIP;33nF,10%,50V,X7R,TP,1608 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-002285 |
C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 |
28 |
SNA |
|
...4 |
AD480 |
2203-002525 |
C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 |
4 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-002711 |
C-CER,CHIP;100nF,10%,25V,X7R,TP,1608 |
2 |
SA |
|
...4 |
AD480 |
2203-003019 |
C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-005083 |
C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 |
8 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-005249 |
C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 |
14 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-005344 |
C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,0.5T |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-005968 |
C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 |
4 |
SNA |
|
...4 |
AD480 |
2203-006048 |
C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 |
120 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006126 |
C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 |
14 |
SNA |
|
...4 |
AD480 |
2203-006158 |
C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,T0. |
19 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006260 |
C-CER,CHIP;220nF,10%,10V,X5R,TP,1005 |
8 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006324 |
C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 |
5 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006348 |
C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. |
7 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006361 |
C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 |
16 |
SC |
|
...4 |
AD480 |
2203-006474 |
C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,2012 |
24 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006562 |
C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 |
14 |
SNA |
|
...4 |
AD480 |
2203-006824 |
C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 |
5 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006842 |
C-CER,CHIP;0.47nF,5%,50V,C0G,TP,1005 |
1 |
SNA |
|
...4 |
AD480 |
2203-006890 |
C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 |
30 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006960 |
C-CER,CHIP;1000nF,10%,50V,X7R,TP,2012 |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-007176 |
C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 |
8 |
SNA |
|
...4 |
AD480 |
2203-007240 |
C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-007269 |
C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 |
26 |
SA |
|
...4 |
AD480 |
2203-007270 |
C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 |
5 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-007306 |
C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 |
6 |
SNA |
|
...4 |
AD480 |
2203-007513 |
C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 |
7 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-007544 |
C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,T0. |
8 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-008315 |
C-CER,CHIP;22000nF,20%,25V,X5R,TP,2012,T |
6 |
SA |
|
...4 |
|
2402-001268 |
C-AL,SMD;100uF,20%,25V,WT,TP,8x6.3mm |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2409-001168 |
C-EDL;200000uF,3.3V,0.01mA,TP,6.8x11.3mm |
1 |
SA |
|
...4 |
|
2503-001051 |
C-NETWORK;100nFx4,20%,16V,2012 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2703-000158 |
INDUCTOR-SMD;1uH,10%,0.4Ohm,50mA,45,Mult |
4 |
SA |
|
...4 |
|
2703-000213 |
INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2703-000408 |
INDUCTOR-SMD;3.3uH,20%,0.28Ohm,500mA,10, |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2703-001938 |
INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 |
3 |
SA |
|
...4 |
|
2703-003149 |
INDUCTOR-SMD;2.2uH,20%,0.055Ohm,3000mA,W |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2703-003713 |
INDUCTOR-SMD;1.5uH,20%,7366,0.015Ohm,700 |
3 |
SA |
|
...4 |
|
2703-003790 |
INDUCTOR-SMD;4.7uH,20%,8080,0.025Ohm,450 |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2703-003930 |
INDUCTOR-SMD;4.7uH,20%,0.072Ohm,2450mA,W |
6 |
SA |
|
...4 |
|
2703-005198 |
INDUCTOR-SMD;15uH,20%,3T,0.123Ohm,2500mA |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2801-003326 |
CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2801-003856 |
CRYSTAL-SMD;0.032768MHz,20ppm,28-ACP,7pF |
2 |
SNA |
|
...4 |
|
2801-004734 |
CRYSTAL-SMD;25.000000MHz,20ppm,28-AAN,12 |
1 |
SA |
|
|
|
|
|
|
|
|
ANNEX-6
ANNEX. Exploded View & Part List
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
...4 |
|
3301-000314 |
BEAD-SMD;120ohm,1608,TP,120ohm/100MHz |
9 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
3301-001687 |
CORE-FERRITE BEAD;47ohm,1608,TP,1000ohm/ |
3 |
SNA |
|
...4 |
|
3301-002039 |
BEAD-SMD;26ohm,1608,TP |
39 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3601-001374 |
FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL |
2 |
SA |
|
...4 |
|
3601-001376 |
FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,Hi |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
3701-001746 |
CONNECTOR-DSUB;15P,3R,FEMALE,STARAIGHT,A |
1 |
SA |
|
...4 |
|
3701-001856 |
CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5mm,BLK |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3701-001861 |
CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5mm,BLK |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3707-001104 |
CONNECTOR-OPTICAL;ANGLE,SPDIF |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3708-003073 |
CONNECTOR-FPC/FFC/PIC;51P,0.5mm,SMD-A,AU |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3710-003908 |
CONNECTOR-SOCKET;64P,2R,0.5mm,SMD-S,AU,B |
1 |
SA |
|
...4 |
EH01 |
3711-008131 |
HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
EH01 |
3711-008558 |
HEADER-BOARD TO CABLE;BOX,26P,2R,1.25mm, |
1 |
SA |
|
...4 |
EH01 |
3711-008859 |
HEADER-BOARD TO CABLE;BOX,12P,2R,2mm,ANG |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3722-003199 |
JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3722-003229 |
JACK-MODULAR;8P/8C,Y,STRAIGHT,NONE,AU,1P |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3722-003246 |
JACK-MODULAR;6P/6C,RJ12,Y,STRAIGHT,NONE, |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3722-003457 |
JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1x1 |
2 |
SA |
|
...4 |
JACK PIN |
3722-003546 |
JACK-PIN;5P,NI/SN,BLU/GRN/RED/WHT/YEL,SM |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3722-003617 |
JACK-PHONE;2P/14C,SN,BLK,STRAIGHT,3.6PI, |
1 |
SA |
|
...4 |
|
3722-003657 |
JACK-PHONE;1P/7C,AU,BLK,ANGLE,3.6PI,10x1 |
3 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
3722-003667 |
JACK-PHONE;1P/7C,NI/SN,BLK,STRAIGHT,3.6P |
1 |
SA |
|
...4 |
ET01 |
BN40-00318A |
TUNER-DTV AIR CABLE SAT;DNTS243H5A,DVB-T |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
BN41-02517A |
PCB-MAIN;HE690_EU,FR-4,4L,1.2T,192x214mm |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
CB07 |
BN61-13312B |
BRACKET-SCREWLESS PCB;55KS8000,SK5,T0.3, |
4 |
SNA |
|
...4 |
|
BN97-08394A |
ASSY MICOM-SPI;U92B,W25Q40CLSSIP,1107-00 |
1 |
SNA |
|
|
|
|
|
|
|
|
....5 |
|
1107-002226 |
IC-NOR FLASH;W25Q40CLSSIP,4Mbit,SOIC,8P, |
1 |
SA |
|
...4 |
|
BN97-11269A |
ASSY MICOM-MAIN;T-MS14KDEUCB,'16 X14H Ho |
1 |
SNA |
|
|
|
|
|
|
|
|
....5 |
|
1107-002290 |
IC-EMMC;MTFC4GMCAM-1M WT,4Gbyte,BGA,153P |
1 |
SA |
|
...4 |
|
BN97-11270A |
ASSY MICOM-SUB;T-MS14KDEUSB,'16 X14H Hot |
1 |
SNA |
|
|
|
|
|
|
|
|
....5 |
|
0903-001879 |
IC-MICROCONTROLLER;WT61P808,LQFP,48P,7x7 |
1 |
SA |
|
|
|
|
|
|
|
|
1 |
|
BN92-20919M |
ASSY P/MATERIAL;HTV_HE690 |
1 |
SNA |
|
0.2 |
|
6902-001953 |
BAG ROLL;HDPE/PE FOAM,HDPE T0.018mm,T0.2 |
2 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
|
6902-002233 |
BAG AIR;LDPE,-,T0.2,W900,L1850,TRP,-,-,- |
1 |
SNA |
|
0.2 |
|
6922-000003 |
BAND;PP,T0.8,W18,L1650M,TRP,DA69-90145A |
0 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
|
BN02-00319B |
TAPE-SINGLE FACE;OPP,T0.05,W75,L800M,CLE |
2 |
SNA |
|
0.2 |
|
BN68-02422B |
LABEL WARNING;ALL,ART PAPER,T0.05,W240,L |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
|
BN69-00257B |
PAD-DP SHEET;AMBER,CB,SW4,,W1130,L820,,, |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
|
BN69-03982N |
PACKING ANGLE;ALL,PAPER,-,-,-,-,-,-,- |
1 |
SNA |
|
0.2 |
|
BN69-05418N |
WRAP;T0.017,750,2000000,2000000,750 |
7 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
|
BN69-06640E |
PAD-PACKING;TRUCK PAD,CB,-,,W410,L2500,, |
1 |
SNA |
|
0.2 |
|
BN69-14229A |
CUSHION-SET;32HE690,EPS,16.7g/l,WHT |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
0103-005099 |
RESIN EPS;BASF303,Natural,Natural |
278 |
SNA |
|
0.2 |
|
BN69-14429V |
PALLET;32" EE690,WOOD,-,1180,915,H144,4- |
1 |
SNA |
|
|
|
|
|
|
|
|
1 |
ACCE1 |
BN92-20926D |
ASSY ACCESSORY;HTV_HE690 |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
|
BN96-41252D |
ASSY ACCESSORY-MANUAL CABLE;HG40EE690DBX |
1 |
SNA |
|
..3 |
|
3709-001791 |
CONNECTOR-CARD SLOT;64P,0.5mm,SMD-A,AU,P |
1 |
SA |
|
|
|
|
|
|
|
|
ANNEX-7
ANNEX. Exploded View & Part List
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
..3 |
T0268 |
3903-001118 |
CBF-POWER CORD;DT,EU,Angle,2P(C7),250V,2 |
1 |
SA |
|
..3 |
|
4301-000121 |
BATTERY-MN;1.5V,R03,10.5x44.5m,7.5g,AAA |
2 |
SNA |
|
..3 |
|
6902-001962 |
BAG PE;LDPE,BIOBASED,T0.05,W400,L300,TRP |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
REMOCON |
AA59-00818A |
REMOCON-TV;2012 TV,Samsung,44KEY,3V,HB46 |
1 |
SC |
|
..3 |
T0568 |
BN39-00864A |
LAN CABLE;Bordeaux Plus HOTEL,4P,L1000,U |
1 |
SA |
|
|
|
|
|
|
|
|
..3 |
HOLDER-WIRE |
BN61-08370A |
HOLDER-STAND CABLE;26UE4000,PA66,MOLD |
1 |
SA |
|
..3 |
T0527 |
BN68-00513A |
LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN68-02839P |
LEAFLET-WARRANTY;TV,Samsung,Turkish,Turk |
1 |
SNA |
|
..3 |
|
BN68-03019F |
LEAFLET-REGULATORY GUIDE;HTV/MFM,Samsung |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN68-04972G |
LEAFLET-REGULATORY GUIDE;LFD/MON,Samsung |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN68-07598A |
LEAFLET-FICHE;ALL,W/P,0 |
1 |
SNA |
|
..3 |
|
BN68-08084G |
LEAFLET-QUICK SETUP GUIDE;E690, 32/40/49 |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
ACCESSORY- |
BN96-23066A |
ASSY ACCESSORY-SCREW;LED, LCD TV HOTEL,S |
1 |
SA |
|
HOTEL SCRE |
|
|||||
|
|
|
|
|
|
|
..3 |
EH03A |
BN96-40460A |
ASSY HOLDER P-RING;55KS7500,ABS,BLACK,V- |
1 |
SNA |
|
...4 |
|
6902-001404 |
BAG PE;LDPE,T0.05,W80,L100,TRP,Bio. N |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN61-13518A |
HOLDER-WALL RING;55KS7500,ABS,MOLD,BK000 |
4 |
SA |
|
1 |
|
BN92-20943A |
ASSY BOX;HTV_E690 |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
|
BH68-00662A |
LABEL BOX;ALL,ART PAPER,W60,L110,WHT,NO |
1 |
SNA |
|
0.2 |
|
BN69-14480A |
BOX UNIT;32HE690,CB,DW2,F1,L903,W104,H51 |
1 |
SNA |
|
|
|
|
|
|
|
|
1 |
|
BN92-20945A |
ASSY LABEL;HTV_E690 |
1 |
SNA |
|
0.2 |
|
BN68-06708G |
LABEL-RATING;Monitor,WW,PP,T0.161,W93,L7 |
1 |
SNA |
|
0.2 |
|
BN68-07519A |
LABEL-ENERGY;ALL JORDAN,WW,PP,T0.135,W60 |
1 |
SNA |
|
|
|
|
|
|
|
|
1 |
PANEL |
BN95-02613A |
PRODUCT LCD-AUO;CY-KK032BGAV1V/H,K5500,B |
1 |
SA |
|
0.2 |
SCREW |
6001-003075 |
SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 |
2 |
SA |
|
|
|
|
|
|
|
|
0.2 |
|
BN68-05722A |
LABEL-E PASS;POLYPROPYLENE,NON-COATING |
1 |
SNA |
|
0.2 |
|
BN74-00053E |
TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W20, |
0 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
|
BN90-08186A |
ASSY MISC-BLU;Y16,LCM |
1 |
SNA |
|
..3 |
|
BN02-00074E |
TAPE SINGLE FACE;U7201,PET,T0.05,W10,L20 |
2 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN61-13746A |
OPTICAL SHEET-REFLECTOR;16Y_K5500_32INCH |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN61-13747A |
LGP;16Y_K5500_32INCH_LGP,PMMA,Left LED,2 |
1 |
SNA |
|
..3 |
|
BN61-13748A |
OPTICAL SHEET-COMPLEX;16Y_K5500_32INCH_C |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN61-14144A |
FRAME-MIDDLE LEFT;32K5500,STS304,PRESS,G |
1 |
SNA |
|
..3 |
|
BN96-39513A |
ASSY LED BAR P;32 K6200(AUO),ALUMINUM,70 |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN96-40331B |
ASSY CHASSIS REAR P;32K5500,EGI-SECC |
1 |
SNA |
|
...4 |
|
BN02-00040B |
TAPE DOUBLE FACE;NNB 32/40/46/55",PET,T0 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN02-00102B |
TAPE-SINGLE FACE;FILAMENT,#8917,T0.15,W2 |
0 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN02-00352D |
TAPE-SINGLE FACE;PET,T0.05,W20,L50M,BLAC |
0 |
SNA |
|
...4 |
|
BN02-00438D |
TAPE SINGLE FACE;-,-,PET,-,T0.1,W5,L360, |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN02-00515A |
TAPE SINGLE FACE;32K5500,ACRYL FOAM,T0.2 |
1 |
SNA |
|
...4 |
|
BN39-02177A |
LEAD CONNECTOR-BLU;32 K6200,UL21016,8P,4 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN60-00472E |
SPACER-FOAM;Y16 K5500,PU FOAM,-,-,-,BLAC |
1 |
SNA |
|
...4 |
|
BN60-00554R |
SPACER-SILICONE;Y15 VD,Si,L10,ID3,BLACK, |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN60-00686C |
SPACER-PET;Y16 models,PET,-,-,-,BLACK,T0 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN60-01239J |
SPACER-SILICONE;Y16 K5500,Si,-,-,-,BLACK |
1 |
SNA |
|
...4 |
|
BN61-08235A |
HOLDER-LGP;SNB,SWRCH10A,EXTRUSION,BLACK, |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN61-13474A |
FRAME-MIDDLE TOP LEFT;40K5500,TPV,HB,BK0 |
1 |
SNA |
|
ANNEX-8
ANNEX. Exploded View & Part List
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
....5 |
|
0103-010669 |
RESIN TPE;5402PV/5409H,Black,BK0008,HB,T |
0 |
SNA |
|
...4 |
|
BN61-13475A |
FRAME-MIDDLE TOP RIGHT;40K5500,TPV,HB,BK |
2 |
SNA |
|
...4 |
|
BN61-13476A |
FRAME-MIDDLE BOTTOM LEFT;40K5500,TPV,HB, |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN61-13477A |
FRAME-MIDDLE BOTTOM RIGHT;40K5500,TPV,HB |
1 |
SNA |
|
...4 |
|
BN61-13557A |
BRACKET-WIRE;55KS7000,SW-C,T1,60,SILVER |
6 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
BN61-13557B |
BRACKET-WIRE;55KS7000,SW-C,T1,232,SILVER |
1 |
SA |
|
...4 |
|
BN63-15792A |
INSULATOR-SOURCE PCB;32K5500,PET,BLACK,L |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN63-15944A |
INSULATOR-SMPS;32K5500,PC,BLACK,L169.9,W |
1 |
SNA |
|
...4 |
CC04 |
BN64-03392B |
CHASSIS-REAR;32K5500,EGI-SECC,PRESS,T0.5 |
1 |
SNA |
|
|
|
|
|
|
|
|
....5 |
CB20 |
BN61-13521A |
BRACKET-WALL;32K5500,CR-SPCC,T1.2,L10.5, |
4 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
|
BN96-30379B |
ASSY OPEN CELL;T320HVN05.4,16:9,32inch F |
1 |
SNA |
|
..3 |
|
BN81-09514A |
A/S-ADHESIVE ACF;T500HVN05.0,47.COF21.00 |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN81-09515A |
A/S-ADHESIVE ACF;T500HVN05.0,47.23T01.00 |
1 |
SNA |
|
..3 |
|
BN81-13083A |
A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,46 |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN81-13084A |
A/S-SOURCE PCB RIGHT;SOURCE PCB RIGHT,55 |
1 |
SNA |
|
..3 |
|
BN81-13085A |
A/S-POLARIZER CF;POLARIZER CF,66.C4S50.3 |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN81-13086A |
A/S-SOURCE PCB LEFT;SOURCE PCB LEFT,55.3 |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN81-13087A |
A/S-POLARIZER TFT;POLARIZER TFT,66.T4S42 |
1 |
SNA |
|
0.2 |
TCON |
BN96-30386B |
ASSY T CON P;55.32T,T320HVN05.0,10,16:9, |
1 |
SA |
|
|
|
|
|
|
|
|
0.2 |
|
BN96-30782H |
FFC CABLE;J5000,Straight,L58,60P |
2 |
SNA |
|
0.2 |
|
BN96-40350C |
ASSY CHASSIS FRONT P;32K5500,PC+ABS+ED18 |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN60-01435A |
SPACER-CONDUCTIVE;32K5500,PU FOAM,L715,B |
1 |
SNA |
|
..3 |
|
BN60-01435B |
SPACER-CONDUCTIVE;32K5500,CONDUCTIVE FAB |
2 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN60-01436B |
SPACER-CONDUCTIVE;32K5500,CONDUCTIVE FAB |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN63-10118A |
GASKET-TAPE;60 FLED,Conductive Fabric,T0 |
2 |
SNA |
|
..3 |
|
BN63-11118B |
SHEET-PROTECTION COVER;Y13 SNB F8.5K,PET |
2 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN63-11118F |
SHEET-PROTECTION COVER;K6200,PET,T0.04,W |
1 |
SNA |
|
..3 |
|
BN63-12151A |
GASKET-EMI;CY-MH270BGLV1V,Conductive Fab |
2 |
SNA |
|
|
|
|
|
|
|
|
..3 |
AC155 |
BN64-03384A |
CHASSIS-FRONT;32K5500,PC+ABS+ED18%,V-1,M |
1 |
SNA |
|
...4 |
|
0103-010808 |
RESIN PC ABS;NH-1210/K21294,BLACK,BK0007 |
121 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN63-11118B |
SHEET-PROTECTION COVER;Y13 SNB F8.5K,PET |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN63-11118F |
SHEET-PROTECTION COVER;K6200,PET,T0.04,W |
1 |
SNA |
|
..3 |
|
BN74-00053J |
TAPE-SINGLE FACE;PAPER,3M2307,T0.14,W25, |
0 |
SNA |
|
|
|
|
|
|
|
|
ANNEX-9
ANNEX. Exploded View & Part List
ANNEX. Exploded View & Part List [HG24EE690ABXEN WA01]
1-1. Exploded View
1-1-1. Part List
No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
1 |
BN96-32049E |
ASSY COVER P-FRONT; 24H4000,PC+ABS,V0,BK0 |
1 |
SA |
|
|
|
|
|
|
|
2 |
BN07-01378A |
LCD-PANEL; V236BJ1-LE2,CMN61E2,544.80x320 |
1 |
SA |
|
|
|
|
|
|
|
3 |
BN96-32050D |
ASSY BRACKET P-PCB; 24H4000/4003/4070,SEC |
1 |
SNA |
|
|
|
|
|
|
|
4 |
BN61-12149A |
COVER-TERMINAL SIDE; HIPS,HIPS,MOLD,BLACK |
1 |
SNA |
|
|
|
|
|
|
|
5 |
BN94-11078B |
ASSY PCB MAIN; HTV_E690 |
1 |
SA |
|
|
|
|
|
|
|
6 |
BN44-00746D |
DC VSS-PD BOARD; L23S0DMN_FPN,AC/DC,53W, |
1 |
SA |
|
|
|
|
|
|
|
7 |
BN59-01174D |
NETWORK-WLAN CLIENT; WIDT30Q,58x31.45x8.5 |
1 |
SA |
|
8 |
BN96-36293B |
ASSY BOARD P-FUNCTION JOG; HD690,CT15SE9 |
1 |
SA |
|
9 |
BN96-30339B |
ASSY SPEAKER P-FRONT; TV-SPK,TD310,12ohm, |
1 |
SA |
|
10 |
BN96-36072D |
ASSY COVER P-REAR; 24HD690,V1,EU,SEH |
1 |
SA |
|
11 |
BN96-31786C |
ASSY STAND P-BOTTOM; 24H4000/4003/4070,PC |
1 |
SA |
|
ANNEX-1
ANNEX. Exploded View & Part List
2-1. Electrical Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
|
|
|
HG24EE690ABXEN (WA01) |
|
|
|
|
|
|
|
|
|
|
1 |
|
BN90-05990C |
ASSY COVER FRONT;UH4100,23.6/24 |
1 |
SNA |
|
0.2 |
F001A |
BN96-32049E |
ASSY COVER P-FRONT;24H4000,PC+ABS,V0,BK0 |
1 |
SA |
|
|
|
|
|
|
|
|
..3 |
AS080 |
BN63-04755Q |
SHEET-PROTECTION COVER;32UD6500,PE,T0.05 |
0 |
SNA |
|
|
|
|
|
|
|
|
..3 |
F001 |
BN63-12173D |
COVER-FRONT;24H4000/4003/4070,PC+ABS,MOL |
1 |
SNA |
|
1 |
S001A |
BN90-05991B |
ASSY STAND;UH4000,24,Europe |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
SB04A |
BN96-31786C |
ASSY STAND P-BOTTOM;24H4000/4003/4070,PC |
1 |
SA |
|
..3 |
CCM1 |
BN63-02183D |
SHEET-PROTECTION COVER;Rhcm,PE,T0.04,W68 |
0 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN63-12195C |
COVER-STAND TOP;24H4000/4003/4070,PC+ABS |
1 |
SNA |
|
...4 |
|
0103-005041 |
RESIN PC ABS;FR3200TV,901408,BK0008,1.2m |
360 |
SNA |
|
|
|
|
|
|
|
|
..3 |
RF01 |
BN67-00327D |
FOOT-RUBBER;STAND,Si,GRAY,W13,L13,T2 |
5 |
SNA |
|
1 |
R001A |
BN90-07452A |
ASSY COVER REAR;HG24ED690ABXEN |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
SCREW |
6003-001782 |
SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR |
4 |
SA |
|
|
|
|
|
|
|
|
0.2 |
R001A |
BN96-36072D |
ASSY COVER P-REAR;24HD690,V1,EU,SEH |
1 |
SA |
|
..3 |
CB19 |
BN61-08997A |
BRACKET-VESA;EGI-SECC,T0.8,NATURAL |
4 |
SNA |
|
|
|
|
|
|
|
|
..3 |
R001 |
BN63-13957E |
COVER-REAR;24HD690,MPPE,MOLD,V-1,BK0020, |
1 |
SNA |
|
...4 |
|
0103-009565 |
RESIN MPPE;ST85HF,1D129A,BK0020,V-1 |
1 |
590 |
|
|
|
|
|
|
|
|
..3 |
|
BN68-05653Y |
INLAY-TERMINAL SIDE;HD690,PET,T0.125 |
1 |
SNA |
|
1 |
|
BN91-18128A |
ASSY LCD;HTV_E690 |
1 |
SNA |
|
|
|
|
|
|
|
|
0.2 |
PANEL |
BN07-01378A |
LCD-PANEL;V236BJ1-LE2,CMN61E2,544.80x320 |
1 |
SA |
|
|
|
|
|
|
|
|
1 |
M0017 |
BN91-18131B |
ASSY CHASSIS;HTV_E690 |
1 |
SNA |
|
0.2 |
M0014 |
BN94-11078B |
ASSY PCB MAIN;HTV_E690 |
1 |
SA |
|
|
|
|
|
|
|
|
..3 |
|
0202-001608 |
SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. |
0 |
SNA |
|
..3 |
|
BN61-12149A |
COVER-TERMINAL SIDE;HIPS,HIPS,MOLD,BLACK |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
0103-004631 |
RESIN HIPS;HF-1690H,K21294,BK0007,1.5mm |
14 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN62-00273B |
HEAT SINK-ES;TV Echo-P,A6063,W40,L40,BLA |
1 |
SNA |
|
|
|
|
|
|
|
|
..3 |
|
BN97-10015A |
ASSY DRM-KEY;EU,X14H,HDCP, MAC, CI+ |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN46-00109H |
KEY CODE-CERTIFICATION;MAC,TV/AV,General |
1 |
SNA |
|
...4 |
|
BN46-00110P |
KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
BN46-00115K |
KEY CODE-CERTIFICATION;CI+,TV,X14, EU |
1 |
SNA |
|
..3 |
|
BN97-11284P |
ASSY SMD;HTV_690 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
0202-001830 |
SOLDER-CREAM;LFM-48W TM-HP,D20~38um,96.5 |
4 |
SNA |
|
...4 |
DS01A |
0401-001056 |
DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO |
5 |
SA |
|
|
|
|
|
|
|
|
...4 |
DS01A |
0401-001099 |
DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
DR01A |
0402-001614 |
DIODE-RECTIFIER;S1G,400V,1A,DO-214AC,TP |
1 |
SA |
|
...4 |
|
0403-001783 |
DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO |
6 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
0404-001089 |
DIODE-SCHOTTKY;RB551V-30,20V,500mA,SOD-3 |
1 |
SA |
|
...4 |
|
0404-001404 |
DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, |
3 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0404-001881 |
DIODE-SCHOTTKY;SS3040-HE,40V,3000mA,SOD- |
3 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0406-001200 |
DIODE-TVS;RClamp0504F,6V,1MAV,TP |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0406-001290 |
DIODE-TVS;3.0SMCJ20A,22.2V,24.5V,5MAV,30 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
0406-001628 |
DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP |
1 |
SA |
|
...4 |
|
0406-001635 |
DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 |
10 |
SA |
|
|
|
|
|
|
|
|
...4 |
DS01A |
0407-000114 |
DIODE-SWITCHING;KDS184,80V,100mA,SOT-23, |
1 |
SNA |
|
ANNEX-2
ANNEX. Exploded View & Part List
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
...4 |
|
0501-000445 |
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT |
4 |
SC |
|
|
|
|
|
|
|
|
...4 |
|
0505-002560 |
FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 |
1 |
SA |
|
...4 |
|
0505-002598 |
FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0505-002893 |
FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 |
1 |
SA |
|
...4 |
|
0505-002917 |
FET-SILICON;AO3406,N,30V,3.6A,1.4W,SOT-2 |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0505-003397 |
FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, |
5 |
SA |
|
...4 |
|
0801-002780 |
IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER |
3 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0801-003330 |
IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
0909-001032 |
IC-REAL TIME CLOCK;PCF8563,SOP,8P,4.9x3. |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1006-001509 |
IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1103-001561 |
IC-EEPROM;S-24C02DI-J800,2Kbit,256X8bit, |
2 |
SA |
|
...4 |
|
1103-001564 |
IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8, |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1105-002528 |
IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866, |
1 |
SA |
|
...4 |
|
1105-002534 |
IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1201-003671 |
IC-AUDIO AMP;NTP7414,MLF,48P,7x7mm,DUAL, |
1 |
SA |
|
...4 |
|
1203-004364 |
IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1203-006017 |
IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1203-006109 |
IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 |
1 |
SA |
|
...4 |
|
1203-007211 |
IC-POSI.FIXED REG.;G9915-12T45U,TO-252,3 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1203-007238 |
IC-PWM CONTROLLER;TPS54427,DDA,8P,4.8x3. |
2 |
SNA |
|
...4 |
|
1203-007242 |
IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8,7 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1203-007694 |
IC-DC/DC CONVERTER;SN1106041DDAR,DDA,8,5 |
1 |
SA |
|
...4 |
|
1203-007697 |
IC-DC/DC CONVERTER;LNBH26SPQR,QFN,24,4x4 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1203-007984 |
IC-DC/DC CONVERTER;AOZ3015PI,SO-8,8,6.2x |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1203-008104 |
IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 |
2 |
SNA |
|
...4 |
|
1203-008105 |
IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
1203-008118 |
IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 |
1 |
SA |
|
...4 |
|
1203-008183 |
IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1204-003535 |
IC-DECODER;SEMS31T,PBGA,709P,23x23mm,PLA |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1205-003201 |
IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1205-004447 |
IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3x1.65 |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
1405-001271 |
VARISTOR;35V,20VDC,5A,1.0x0.5mm,TP,100V, |
17 |
SA |
|
...4 |
|
2007-000137 |
R-CHIP;2Kohm,5%,1/16W,TP,1005 |
15 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000138 |
R-CHIP;100ohm,5%,1/16W,TP,1005 |
44 |
SA |
|
...4 |
|
2007-000141 |
R-CHIP;2.2Kohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000143 |
R-CHIP;4.7Kohm,5%,1/16W,TP,1005 |
37 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000148 |
R-CHIP;10Kohm,5%,1/16W,TP,1005 |
55 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000153 |
R-CHIP;22Kohm,5%,1/16W,TP,1005 |
4 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000155 |
R-CHIP;27Kohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-000157 |
R-CHIP;47Kohm,5%,1/16W,TP,1005 |
12 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000162 |
R-CHIP;100Kohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-000171 |
R-CHIP;0ohm,5%,1/16W,TP,1005 |
19 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000172 |
R-CHIP;10ohm,5%,1/16W,TP,1005 |
3 |
SNA |
|
...4 |
|
2007-000173 |
R-CHIP;22ohm,5%,1/16W,TP,1005 |
13 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000174 |
R-CHIP;47ohm,5%,1/16W,TP,1005 |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000242 |
R-CHIP;1.5Kohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-000539 |
R-CHIP;200ohm,5%,1/10W,TP,1608 |
1 |
SA |
|
|
|
|
|
|
|
|
ANNEX-3
ANNEX. Exploded View & Part List
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
...4 |
|
2007-000695 |
R-CHIP;3.3ohm,5%,1/10W,TP,1608 |
5 |
SNA |
|
...4 |
|
2007-000803 |
R-CHIP;36Kohm,1%,1/10W,TP,1608 |
1 |
SA |
|
...4 |
|
2007-000831 |
R-CHIP;39Kohm,5%,1/16W,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-000932 |
R-CHIP;470ohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-001116 |
R-CHIP;680ohm,1%,1/10W,TP,1608 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-001125 |
R-CHIP;68Kohm,1%,1/10W,TP,1608 |
1 |
SA |
|
...4 |
|
2007-001292 |
R-CHIP;33ohm,5%,1/16W,TP,1005 |
16 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-001301 |
R-CHIP;68ohm,5%,1/16W,TP,1005 |
2 |
SA |
|
...4 |
|
2007-001313 |
R-CHIP;330ohm,5%,1/16W,TP,1005 |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-001325 |
R-CHIP;3.3Kohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-001333 |
R-CHIP;18Kohm,5%,1/16W,TP,1005 |
2 |
SNA |
|
...4 |
|
2007-002970 |
R-CHIP;56ohm,5%,1/16W,TP,1005 |
4 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007001 |
R-CHIP;3.9Kohm,5%,1/16W,TP,1005 |
1 |
SA |
|
...4 |
|
2007-007107 |
R-CHIP;100Kohm,1%,1/16W,TP,1005 |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007135 |
R-CHIP;18Kohm,1%,1/16W,TP,1005 |
2 |
SNA |
|
...4 |
|
2007-007136 |
R-CHIP;4.7Kohm,1%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007138 |
R-CHIP;27Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007142 |
R-CHIP;10Kohm,1%,1/16W,TP,1005 |
1 |
SNA |
|
...4 |
|
2007-007156 |
R-CHIP;1ohm,5%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007306 |
R-CHIP;100ohm,1%,1/16W,TP,1005 |
2 |
SNA |
|
...4 |
|
2007-007311 |
R-CHIP;22Kohm,1%,1/16W,TP,1005 |
5 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007312 |
R-CHIP;20Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
...4 |
|
2007-007316 |
R-CHIP;3.3Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007318 |
R-CHIP;1Kohm,1%,1/16W,TP,1005 |
31 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007470 |
R-CHIP;7.5Kohm,1%,1/16W,TP,1005 |
2 |
SNA |
|
...4 |
|
2007-007488 |
R-CHIP;75Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007517 |
R-CHIP;240ohm,1%,1/16W,TP,1005 |
3 |
SNA |
|
...4 |
|
2007-007538 |
R-CHIP;56Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007671 |
R-CHIP;11Kohm,1%,1/16W,TP,1005 |
2 |
SA |
|
...4 |
|
2007-007766 |
R-CHIP;2Kohm,1%,1/16W,TP,1005 |
3 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-007942 |
R-CHIP;1Mohm,1%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-008015 |
R-CHIP;75ohm,1%,1/16W,TP,1005 |
3 |
SA |
|
...4 |
|
2007-008275 |
R-CHIP;30Kohm,1%,1/16W,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2007-008332 |
R-CHIP;11.5Kohm,1%,1/16W,TP,1005 |
1 |
SA |
|
...4 |
|
2007-008779 |
R-CHIP;0ohm,1%,1/16W,TP,1005 |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2011-001261 |
R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. |
2 |
SA |
|
...4 |
|
2011-001262 |
R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. |
3 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2011-001344 |
R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 |
3 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2011-001449 |
R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1.0x1.0 |
5 |
SA |
|
...4 |
|
2011-001527 |
R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, |
4 |
SNA |
|
|
|
|
|
|
|
|
...4 |
|
2011-001587 |
R-NETWORK;100ohm,5%,1/16W,L,CHIP,4P,TP,1 |
2 |
SNA |
|
...4 |
AD480 |
2203-000233 |
C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 |
7 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000278 |
C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 |
5 |
SA |
|
...4 |
AD480 |
2203-000386 |
C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000425 |
C-CER,CHIP;0.018nF,5%,50V,C0G,TP,1005 |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000438 |
C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 |
8 |
SA |
|
...4 |
AD480 |
2203-000489 |
C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 |
6 |
SA |
|
|
|
|
|
|
|
|
ANNEX-4
ANNEX. Exploded View & Part List
Level |
Location No. |
Code No. |
Description & Specification |
Q’ty |
SA/SNA |
Remark |
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000530 |
C-CER,CHIP;2.7nF,10%,50V,X7R,TP,1005,- |
2 |
SNA |
|
...4 |
AD480 |
2203-000627 |
C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1005 |
1 |
SNA |
|
...4 |
AD480 |
2203-000679 |
C-CER,CHIP;0.027nF,5%,50V,C0G,TP,1005 |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000714 |
C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005 |
4 |
SA |
|
...4 |
AD480 |
2203-000812 |
C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-000995 |
C-CER,CHIP;0.047nF,5%,50V,C0G,TP,1005 |
5 |
SA |
|
...4 |
AD480 |
2203-001634 |
C-CER,CHIP;33nF,10%,50V,X7R,TP,1608 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-002285 |
C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 |
13 |
SNA |
|
...4 |
AD480 |
2203-002525 |
C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-002711 |
C-CER,CHIP;100nF,10%,25V,X7R,TP,1608 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-005083 |
C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 |
3 |
SA |
|
...4 |
AD480 |
2203-005249 |
C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 |
13 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-005344 |
C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,0.5T |
2 |
SNA |
|
...4 |
AD480 |
2203-005642 |
C-CER,CHIP;0.22nF,5%,50V,NP0,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006048 |
C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 |
99 |
SA |
|
...4 |
AD480 |
2203-006126 |
C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 |
6 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006158 |
C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,T0. |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006260 |
C-CER,CHIP;220nF,10%,10V,X5R,TP,1005 |
8 |
SA |
|
...4 |
AD480 |
2203-006324 |
C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 |
3 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006348 |
C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. |
5 |
SA |
|
...4 |
AD480 |
2203-006361 |
C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 |
13 |
SC |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006474 |
C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,2012 |
23 |
SA |
|
...4 |
AD480 |
2203-006562 |
C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 |
18 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006636 |
C-CER,CHIP;220nF,10%,25V,X7R,TP,1608 |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006824 |
C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 |
5 |
SNA |
|
...4 |
AD480 |
2203-006842 |
C-CER,CHIP;0.47nF,5%,50V,C0G,TP,1005 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-006890 |
C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 |
28 |
SA |
|
...4 |
AD480 |
2203-006960 |
C-CER,CHIP;1000nF,10%,50V,X7R,TP,2012 |
1 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-007176 |
C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 |
6 |
SNA |
|
...4 |
AD480 |
2203-007240 |
C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( |
2 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-007269 |
C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 |
28 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-007270 |
C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 |
4 |
SNA |
|
...4 |
AD480 |
2203-007306 |
C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 |
2 |
SNA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-007401 |
C-CER,CHIP;10000nF,10%,50V,X5R,TP,3225 |
2 |
SA |
|
...4 |
AD480 |
2203-007513 |
C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
AD480 |
2203-007544 |
C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,0.5 |
4 |
SA |
|
...4 |
AD480 |
2203-008096 |
C-CER,CHIP;2200nF,10%,50V,X5R,TP,2012,1. |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2409-001168 |
C-EDL;200000uF,3.3V,0.01mA,TP,6.8x11.3mm |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2503-001051 |
C-NETWORK;100nFx4,20%,16V,2012 |
1 |
SA |
|
...4 |
|
2703-000158 |
INDUCTOR-SMD;1uH,10%,0.4Ohm,50mA,45,Mult |
4 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2703-000213 |
INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M |
1 |
SA |
|
...4 |
|
2703-000408 |
INDUCTOR-SMD;3.3uH,20%,0.28Ohm,500mA,10, |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2703-001938 |
INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 |
1 |
SA |
|
...4 |
|
2703-003149 |
INDUCTOR-SMD;2.2uH,20%,0.055Ohm,3000mA,W |
1 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2703-003713 |
INDUCTOR-SMD;1.5uH,20%,7366,0.015Ohm,700 |
3 |
SA |
|
|
|
|
|
|
|
|
...4 |
|
2703-003790 |
INDUCTOR-SMD;4.7uH,20%,8080,0.025Ohm,450 |
2 |
SA |
|
...4 |
|
2703-003930 |
INDUCTOR-SMD;4.7uH,20%,0.072Ohm,2450mA,W |
4 |
SA |
|
|
|
|
|
|
|
|
ANNEX-5
Loading...
