30” Bottom Mount Refrigerator
KFN 9855 iDE LI/ KFN 9855 iDE RE
8mieleusa.com
Specification Sheets TRS 06152017
Bottom Mount Refrigerator
KFN 9855 iDE LI / KFN 9855 iDE RE
KFN 9855 iDE LI / KFN 9855 iDE RE Features:
•DynaCool
•Easy Sensor Controls
•Plumbed Ice Maker
•Super Freeze function
•Bottle Rack
•Sabbath Mode
•Energy Star Qualified
SPECIFICATIONS
KFN 9855 iDE LI (Left Hinge) - Item 38985552CDN
KFN 9855 iDE RE (Right Hinge) - Item 38985551CDN
|
Overall Unit Width |
297/8” (759 mm) |
|
|
|
Overall Unit Height |
7913/16” (2,027 mm) |
|
|
|
Overall Unit Depth |
24” (610 mm) |
||
|
Niche |
|
|
|
|
|
|
|
|
|
Minimum Cabinet Opening Width |
30 ” (762 mm) |
||
|
|
|
|
|
|
Minimum Cabinet Opening Height |
80” (2,032 mm) |
||
|
|
|
|
|
|
Minimum Cabinet Opening Depth |
24” (610 mm) |
||
|
|
|
|
|
|
Interior Volume |
|
|
|
|
Fresh Food Volume |
9.8 cu-ft (277.5 L) |
||
|
|
|
|
|
|
Freezer Volume |
4.3 cu-ft (127 L) |
||
|
Plumbing |
|
|
|
|
|
Connect to a cold water supply only. Must |
||
|
|
be connected to a shut-off valve. The water |
||
|
|
shut-off valve must be accessible after |
||
|
Water Supply Requirements |
installation. The water pressure must be |
||
|
between 22 psi (1.5 bar) and may not exceed |
|||
|
|
|||
|
|
87 psi (6 bar). If the pressure is higher than |
||
|
|
87 psi (6 bar), a pressure reducing valve |
||
|
|
must be installed. |
||
|
|
|
||
|
|
Unit comes with a male 3/4” BPT connection |
|
|
|
|
on back of unit. The connection parts |
||
|
Water Connection Line |
included with the appliance permit the |
||
|
connection of various water lines (included |
|||
|
|
|||
|
|
1/4” compression fitting). Water line is not |
||
|
|
included. |
||
|
Electrical |
|
|
|
|
|
110V / 120V, 60Hz, 15A (single) |
||
|
Electrical Requirements - Volts/Amps |
110V / 120V, 60Hz, 20A (2 Individual units |
||
|
|
installed side-by-side, using a Duplex outlet) |
||
|
|
|
|
|
|
Power Cord - Plug |
Yes - NEMA 5-15 plug, 6’ 6” (2 m) |
||
|
|
|
|
|
|

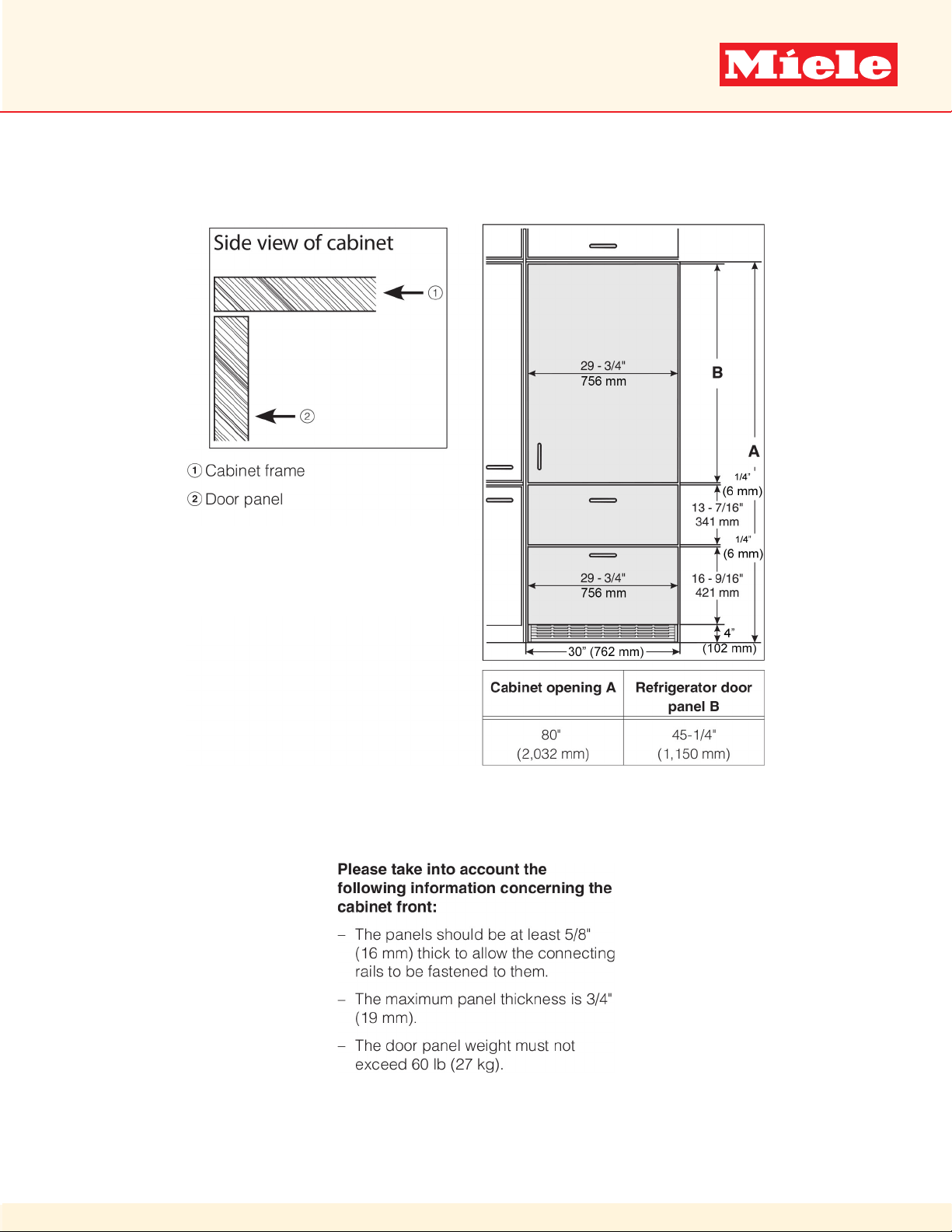

Custom Panel - Refer to manual for further detail |
|
|
|
|
Maximum Refrigerator Door Panel Weight |
Door Panel - 60 lbs (27 kg) |
||
|
|
|
|
|
|
Maximum Freezer Door Panel Weight Each |
Door Panel - 26.5 lbs (12 kg) |
||
|
|
|
|
|
|
Maximum Panel Thickness |
3/4” (19 mm) |
||
|
|
|
|
|
|
Minimum Panel Thickness |
5/8” (16 mm) |
||
|
Shipping |
|
|
|
|
Shipping Weight |
345 lbs (156.5 kg) |
||
|
|
|
|
|
|
Shipping Dimension |
325/16” W x 8211/16” H x 291/8” D |
||
|
Support |
|
|
|
|
Call Miele |
800.843.7231 |
|
|
|
|
|
|
|
|
Miele Website |
8www.mieleusa.com |
||
|
|
|
|
|
|
20/20 Link |
82020technologies.com |
||
KFN 9855 iDE LI / KFN 9855 iDE RE
Page 2 of 8 Specification Sheets TRS 06152017
Bottom Mount Refrigerator
KFN 9855 iDE LI / KFN 9855 iDE RE
Unit Dimension
29-7/8” 55-1/4”
(759 mm)
Power Cord exits at the top right when looking at the rear of the unit.
KFN 9855 iDE LI / KFN 9855 iDE RE
Page 3 of 8
Specification Sheets TRS 06152017
