Operating and installation instructions
Fridge freezer
To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed and used for the first time.
en-GB |
M.-Nr. 10 360 590 |
Contents |
|
Warning and Safety instructions.......................................................................... |
5 |
Caring for the environment ................................................................................ |
12 |
How to save energy............................................................................................. |
13 |
Guide to the appliance........................................................................................ |
15 |
Accessories ......................................................................................................... |
17 |
Accessories supplied ............................................................................................ |
17 |
Optional accessories............................................................................................. |
17 |
Using for the first time ........................................................................................ |
19 |
Before using for the first time ................................................................................ |
19 |
Connecting the appliance ..................................................................................... |
19 |
Switching on and off ........................................................................................... |
20 |
Touch display ........................................................................................................ |
20 |
Switching on.......................................................................................................... |
20 |
Start screen ........................................................................................................... |
21 |
Switching off.......................................................................................................... |
22 |
Switching off for longer periods of time ................................................................ |
24 |
The correct temperature..................................................................................... |
25 |
. . . in the refrigerator section ................................................................................ |
25 |
. . . in the freezer section ....................................................................................... |
25 |
Temperature display .............................................................................................. |
26 |
Setting the temperature......................................................................................... |
26 |
Temperature range ........................................................................................... |
27 |
Using Super cool, Super freeze and DynaCool ................................................ |
28 |
Super freeze function ....................................................................................... |
28 |
Super cool function ........................................................................................... |
28 |
DynaCool function ............................................................................................ |
29 |
Switching a function on or off ............................................................................... |
29 |
Displaying a selected function ......................................................................... |
30 |
Temperature and door alarm.............................................................................. |
31 |
Temperature alarm................................................................................................. |
31 |
Door alarm............................................................................................................. |
32 |
Selecting further settings ................................................................................... |
33 |
Settings overview .................................................................................................. |
33 |
2
|
Contents |
Explanation of the different Settings ..................................................................... |
35 |
Switching Party mode on or off .................................................................... |
35 |
Switch Holiday mode on/off............................................................................. |
36 |
Using the minute minder (QuickCool timer) ................................................ |
37 |

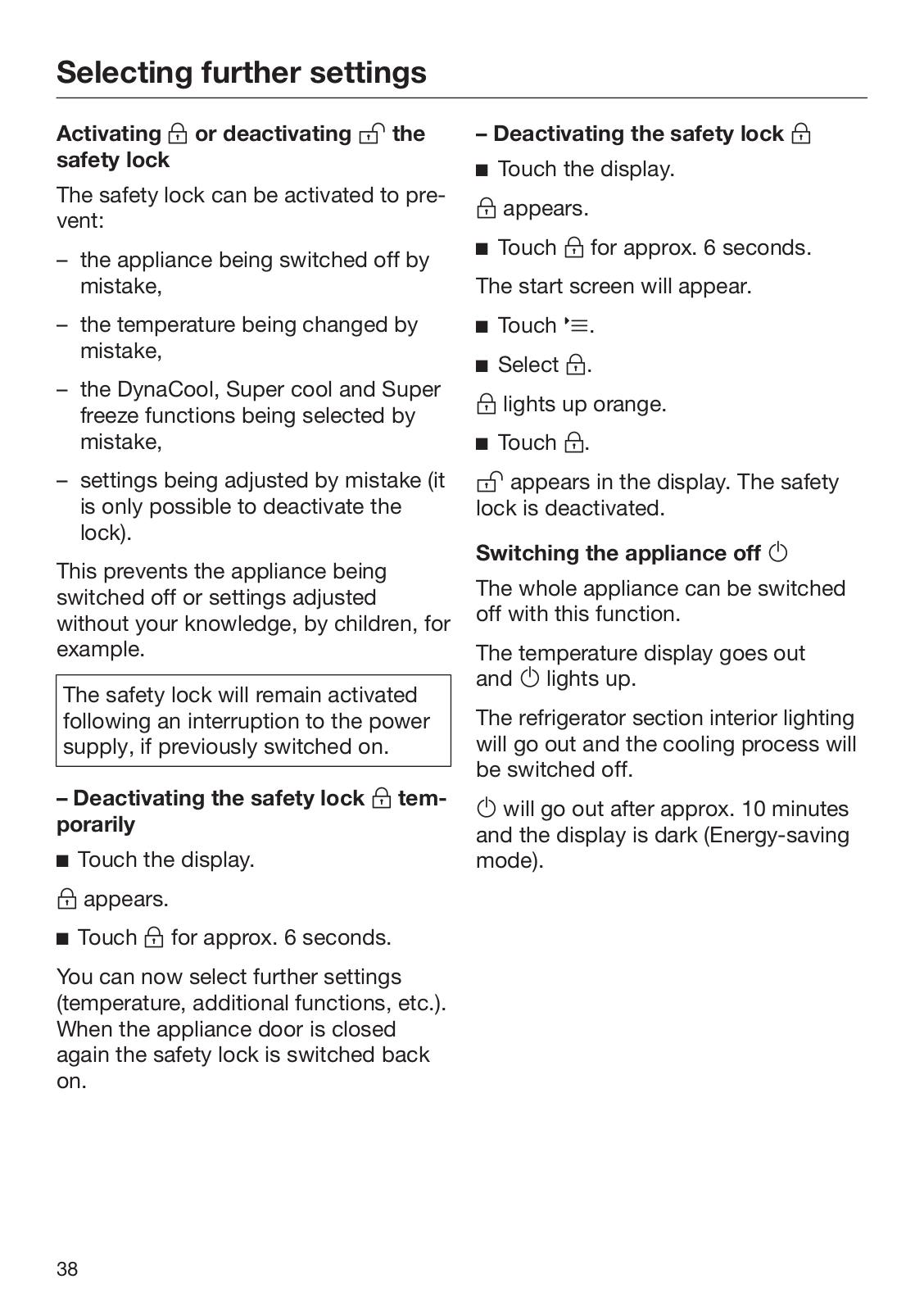

Activating or deactivating the safety lock .............................................. |
38 |
Switching the appliance off ......................................................................... |
38 |

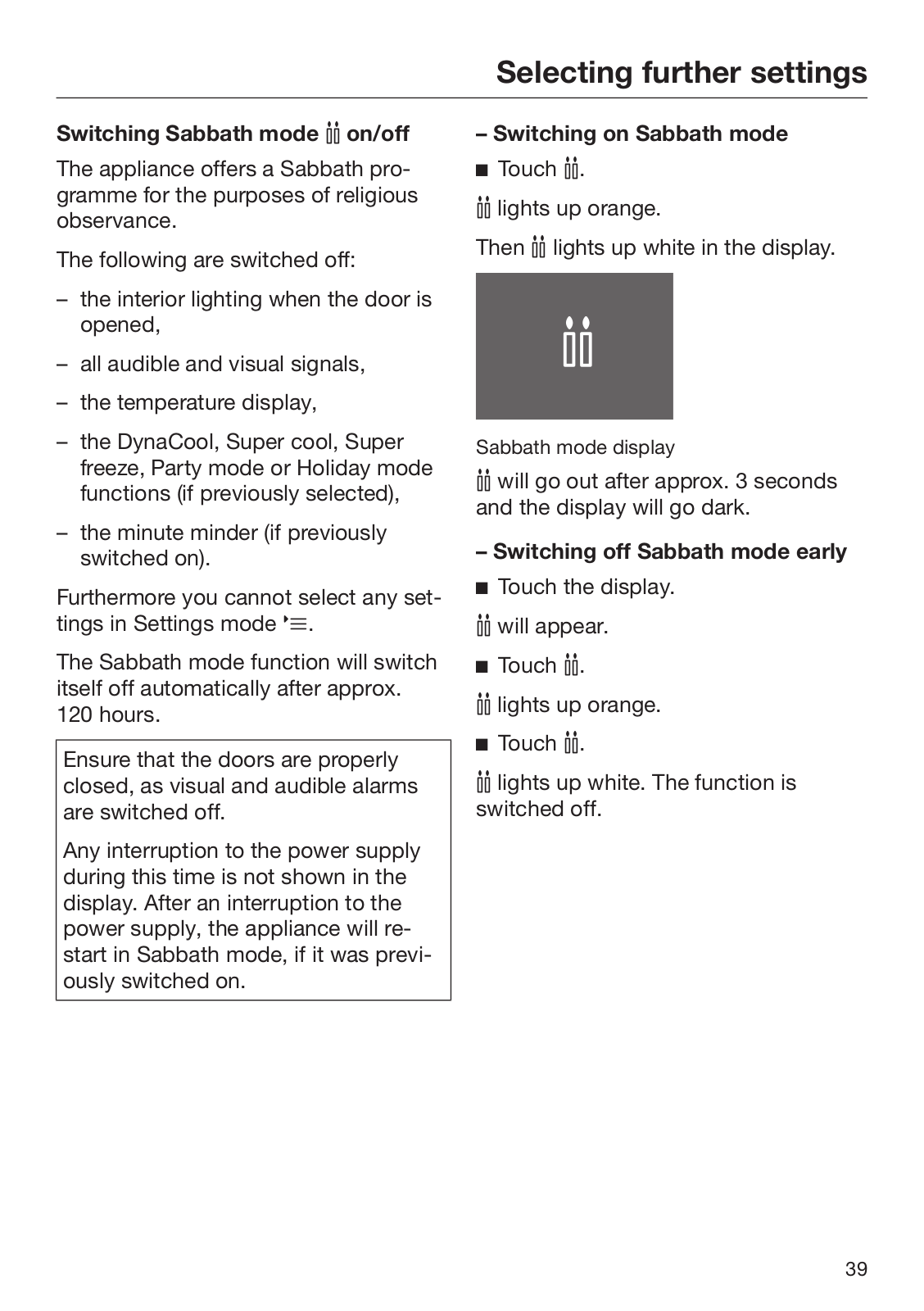

Switching Sabbath mode on/off ................................................................... |
39 |
Setting the duration before the door alarm sounds ..................................... |
40 |
Switching the sensor tone on / off ......................................................... |
40 |
Setting the volume / Switching off alarms and audible tones ..................... |
40 |
Setting the display brightness ..................................................................... |
41 |
Setting the temperature unit °C/°F ................................................................... |
41 |
Switching off Demo mode ............................................................................. |
41 |
Resetting to the factory default settings .................................................... |
41 |
Accessing Information ................................................................................... |
41 |
Replace charcoal filter reminder.................................................................. |
42 |
Storing food in the refrigerator section............................................................. |
43 |
Different storage zones ......................................................................................... |
43 |
Food which is not suitable for storage in the refrigerator section ......................... |
44 |
When shopping for food........................................................................................ |
44 |
Storing food correctly............................................................................................ |
44 |
Adjusting the interior fittings (refrigerator section) ......................................... |
45 |
Adjusting the door shelf / bottle shelf ................................................................... |
45 |
Moving the shelves................................................................................................ |
45 |
Adjusting or removing the bottle holder ................................................................ |
45 |
Adjusting the bottle rack ....................................................................................... |
46 |
Moving the charcoal filters .................................................................................... |
46 |
Freezing and storing food................................................................................... |
47 |
Maximum freezing capacity .................................................................................. |
47 |
Freezing fresh food................................................................................................ |
47 |
Storing frozen food................................................................................................ |
47 |
Home freezing ....................................................................................................... |
48 |
Before placing food in the freezer section........................................................ |
49 |

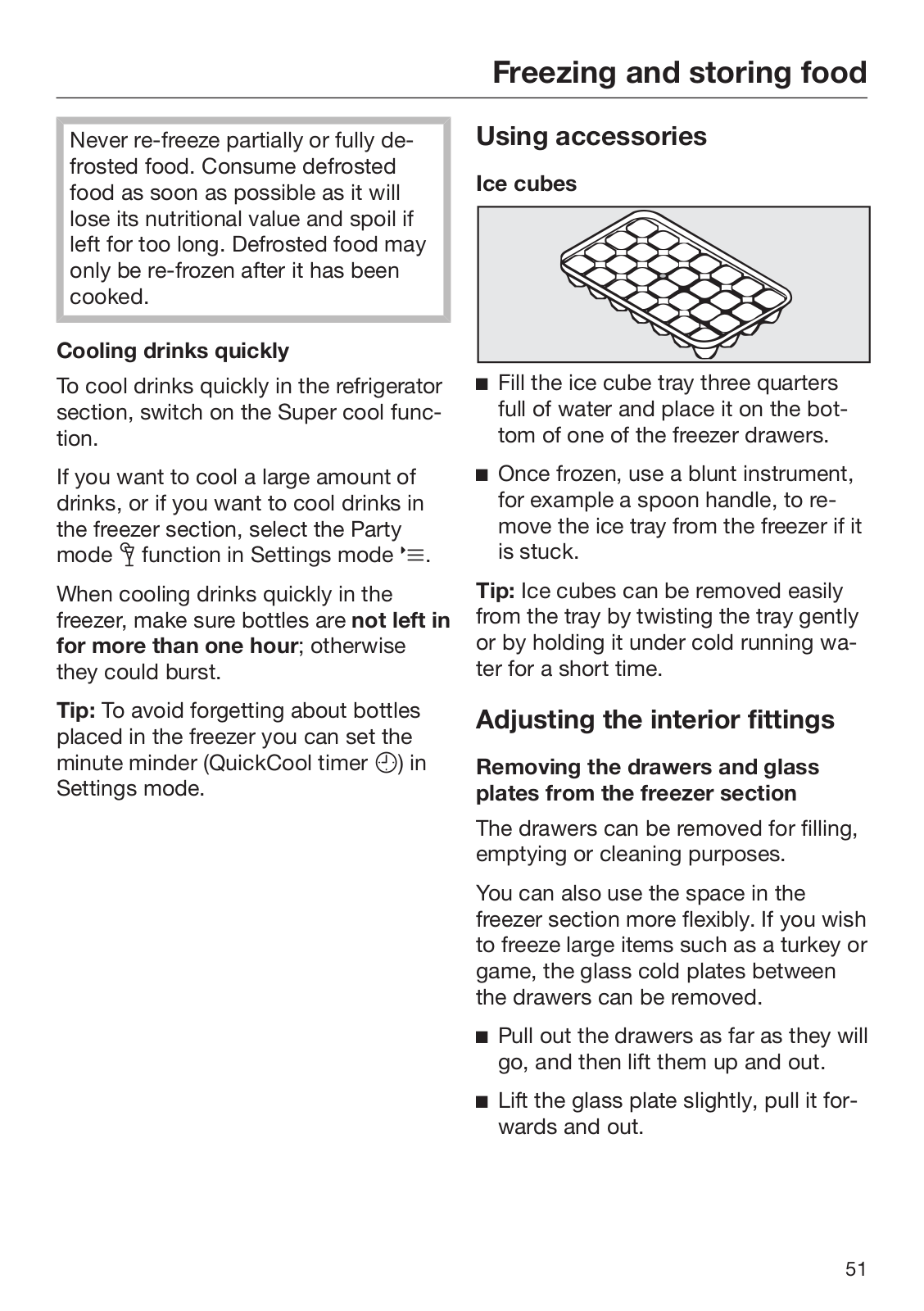

Using accessories ................................................................................................. |
51 |
Adjusting the interior fittings.................................................................................. |
51 |

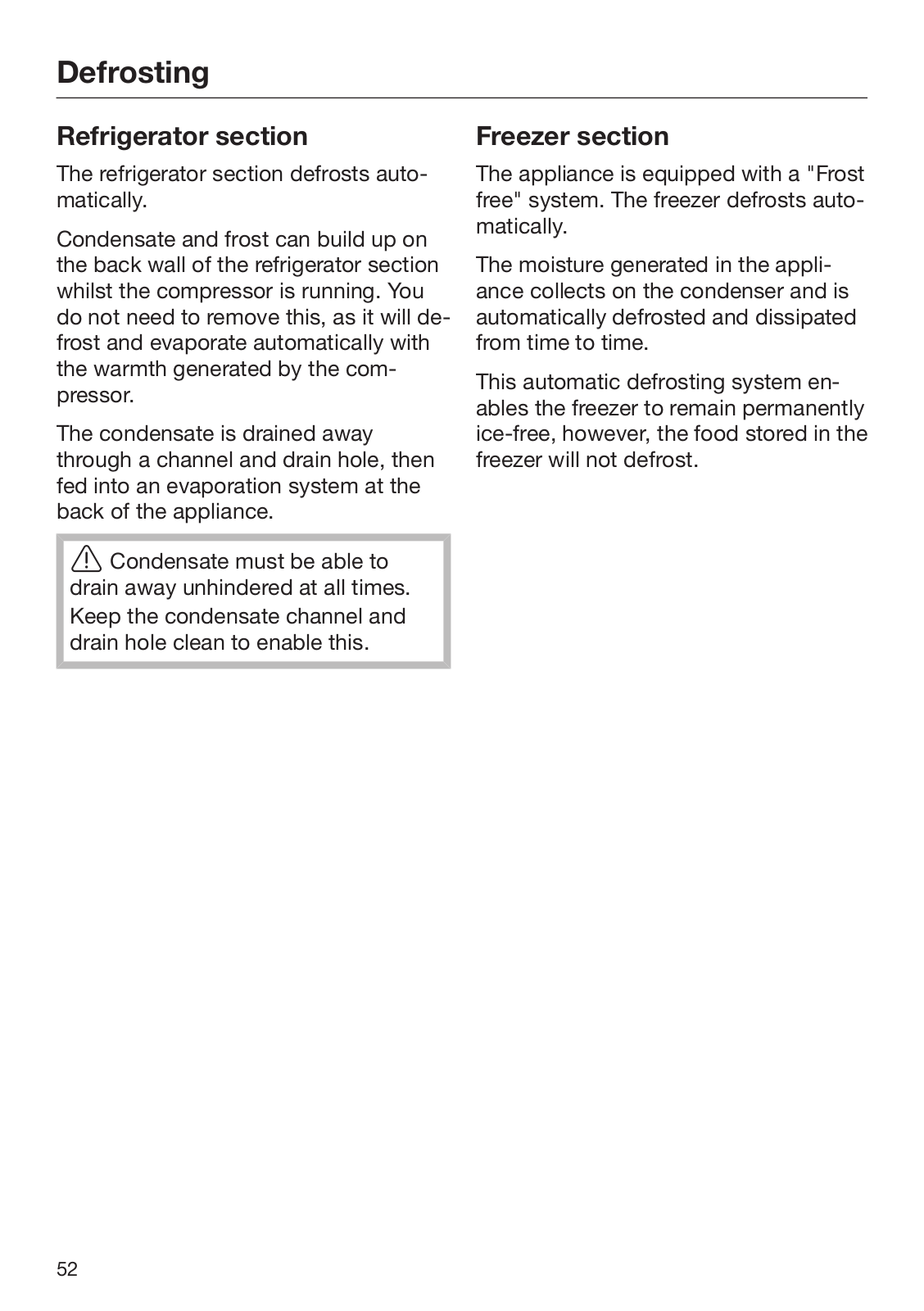

Defrosting............................................................................................................. |
52 |
Cleaning and care ............................................................................................... |
53 |
Cleaning agents..................................................................................................... |
53 |
Preparing the appliance for cleaning..................................................................... |
54 |
3
Contents |
|
Cleaning the interior and accessories ................................................................... |
55 |
Cleaning appliance doors and side panels ........................................................... |
56 |
Cleaning the ventilation gaps ................................................................................ |
56 |
Cleaning the compressor and metal grille at the back of the appliance............... |
57 |
Cleaning the door seals......................................................................................... |
57 |
After cleaning ........................................................................................................ |
58 |

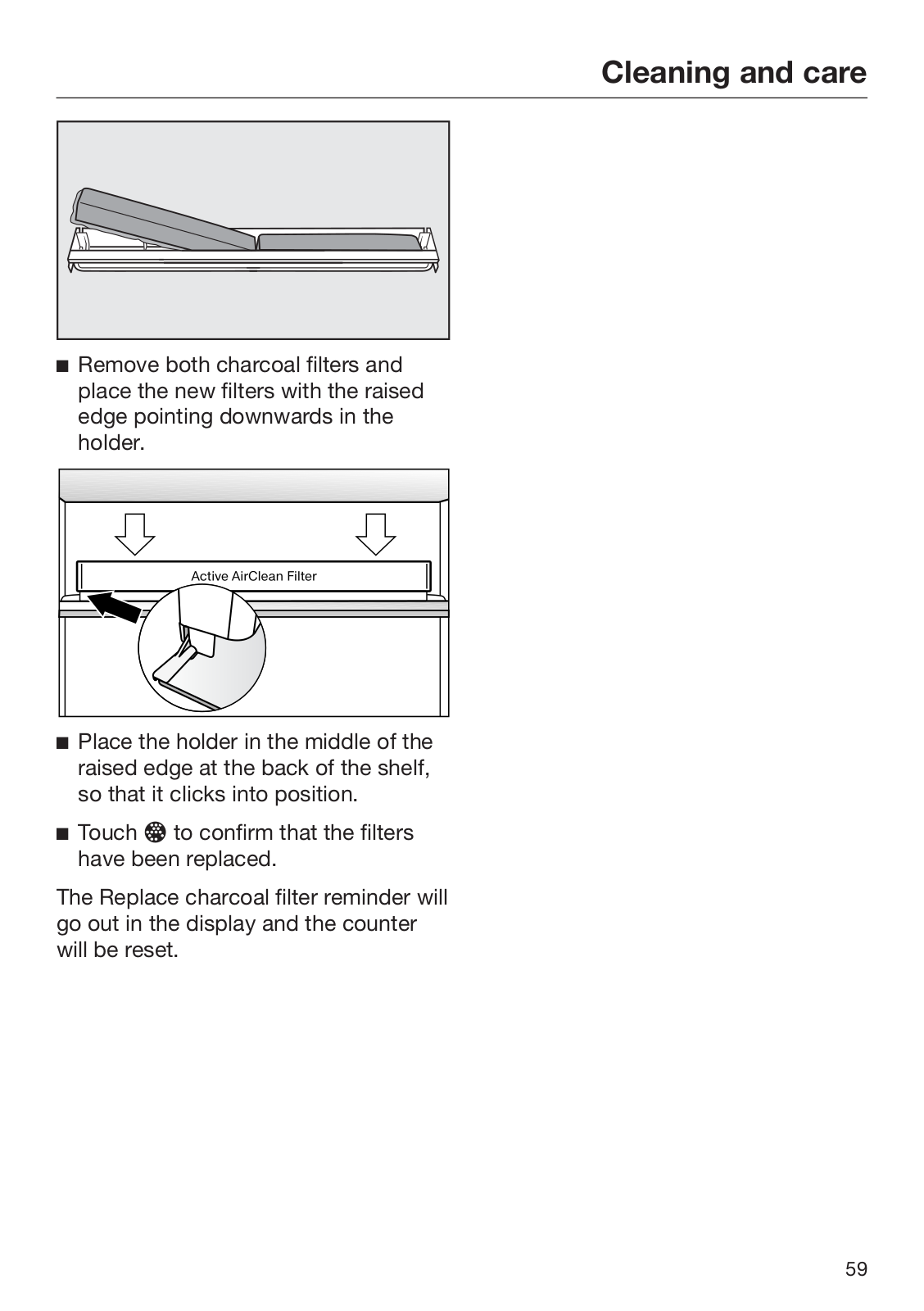

Replacing the charcoal filters ................................................................................ |
58 |
Problem solving guide ........................................................................................ |
60 |
Noises................................................................................................................... |
69 |
After Sales / Guarantee....................................................................................... |
70 |
Information for test institutes............................................................................. |
71 |

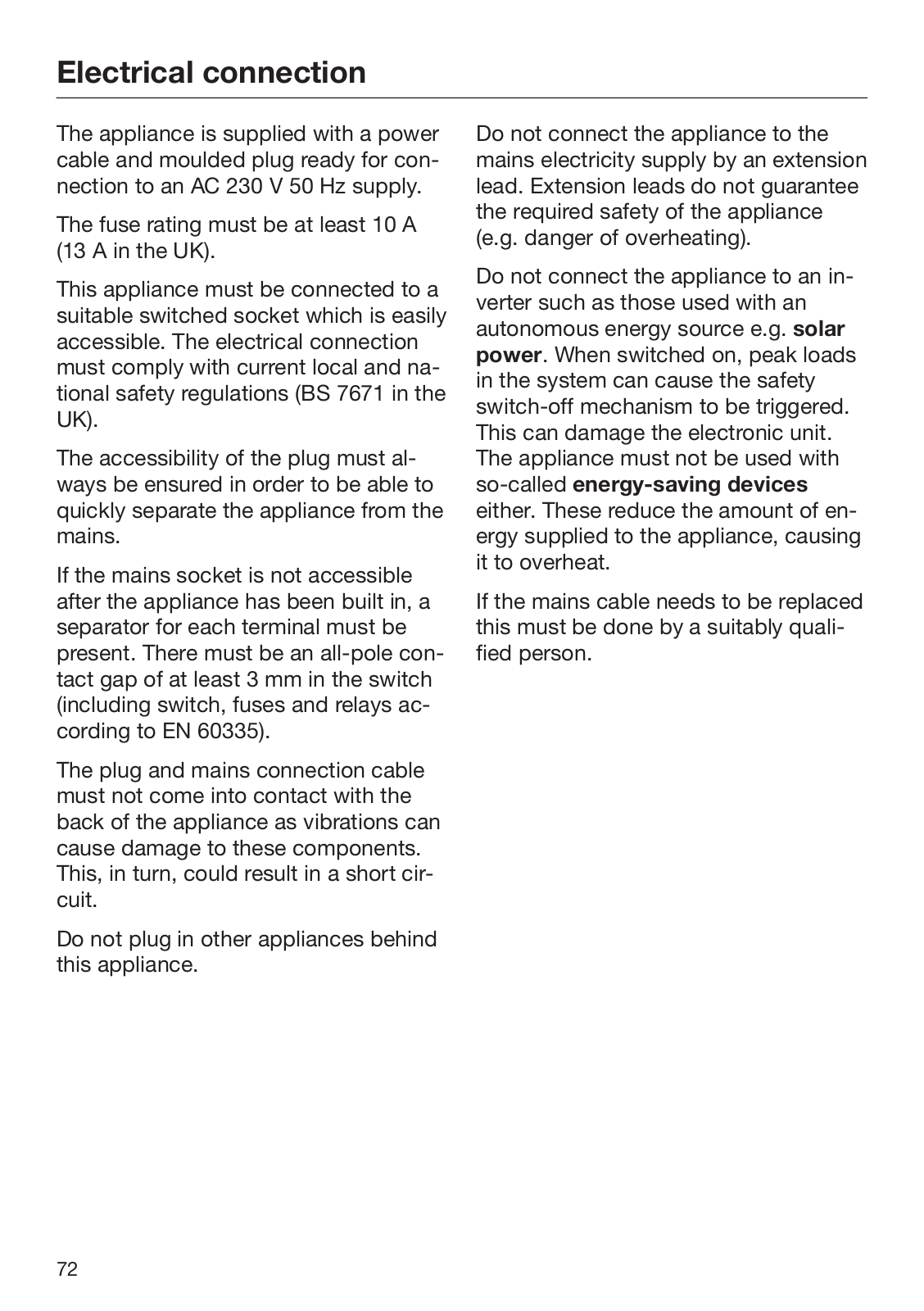

Electrical connection .......................................................................................... |
72 |
Installation............................................................................................................ |
73 |
Location................................................................................................................. |
73 |

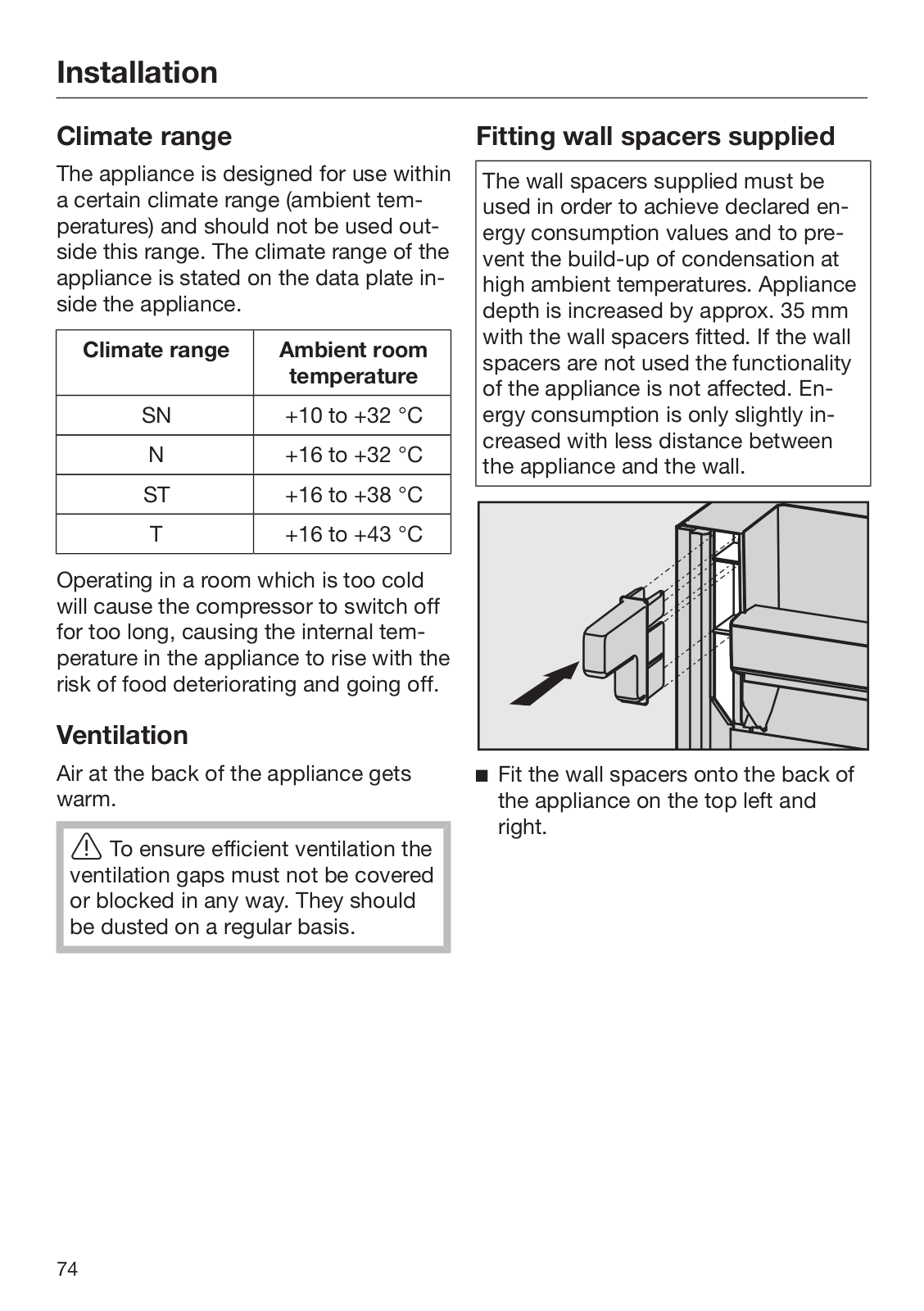

Climate range ........................................................................................................ |
74 |
Ventilation.............................................................................................................. |
74 |
Fitting wall spacers supplied................................................................................. |
74 |
Installation ............................................................................................................. |
75 |

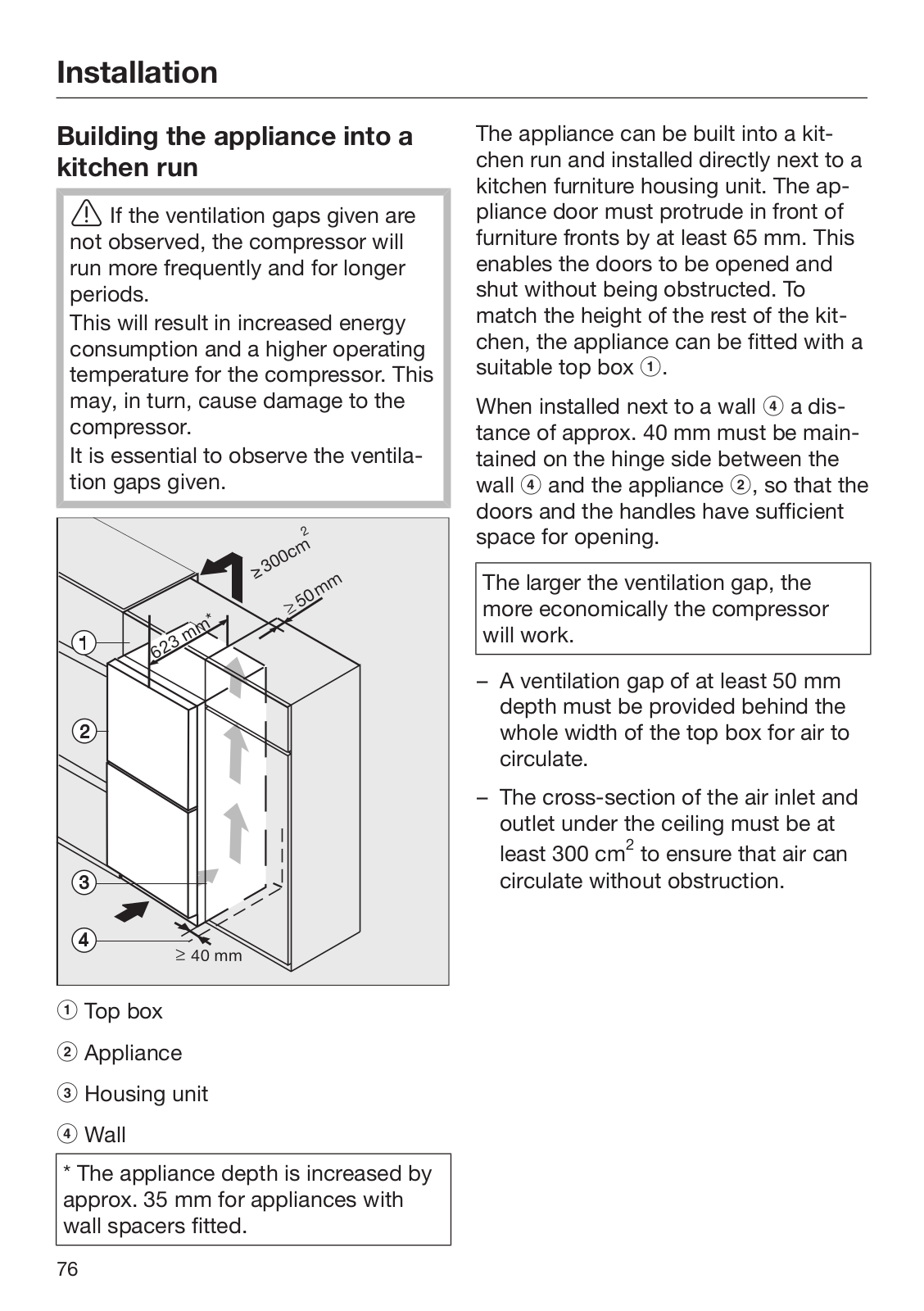

Building the appliance into a kitchen run .............................................................. |
76 |
Appliance dimensions ........................................................................................... |
77 |

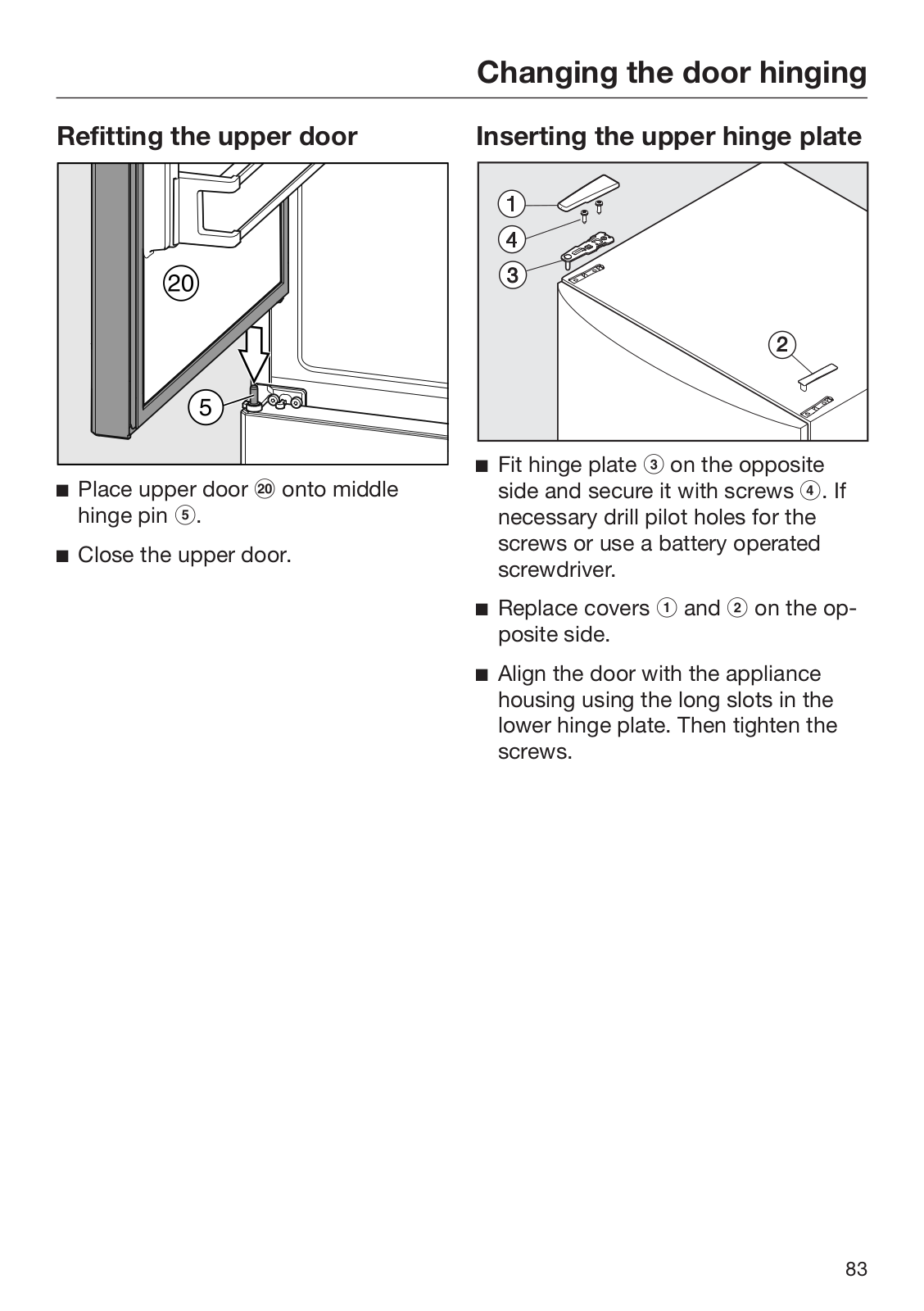

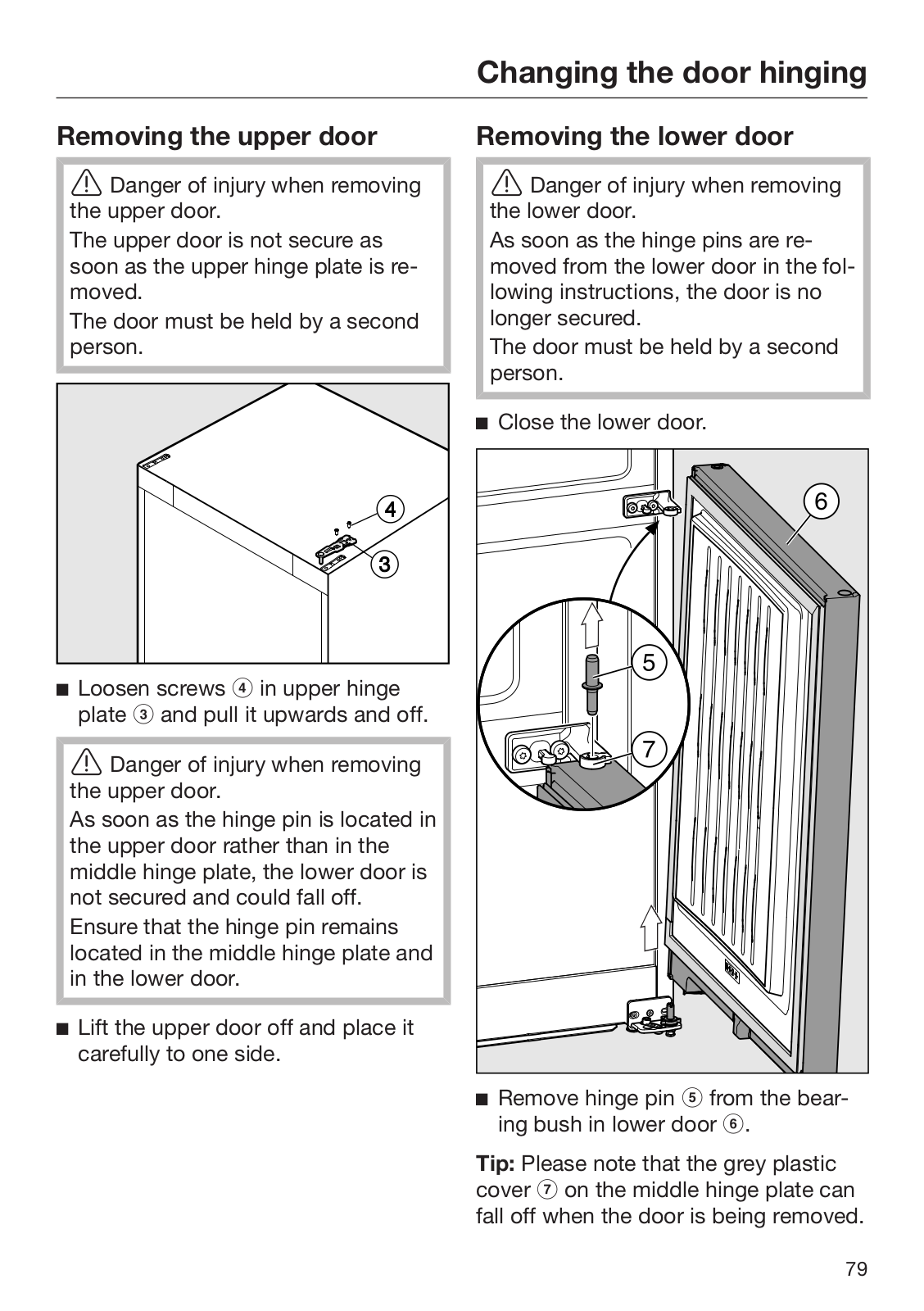

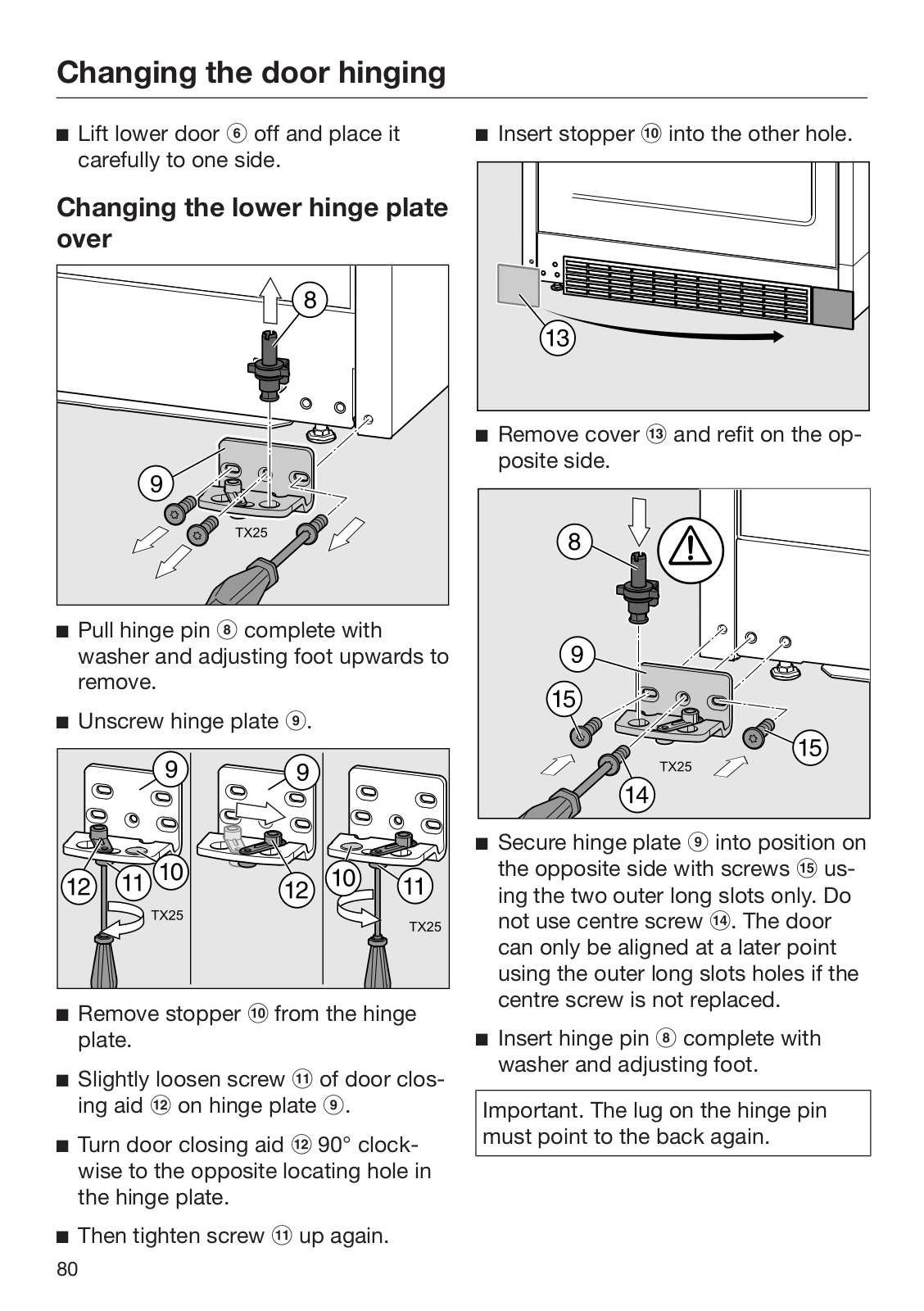

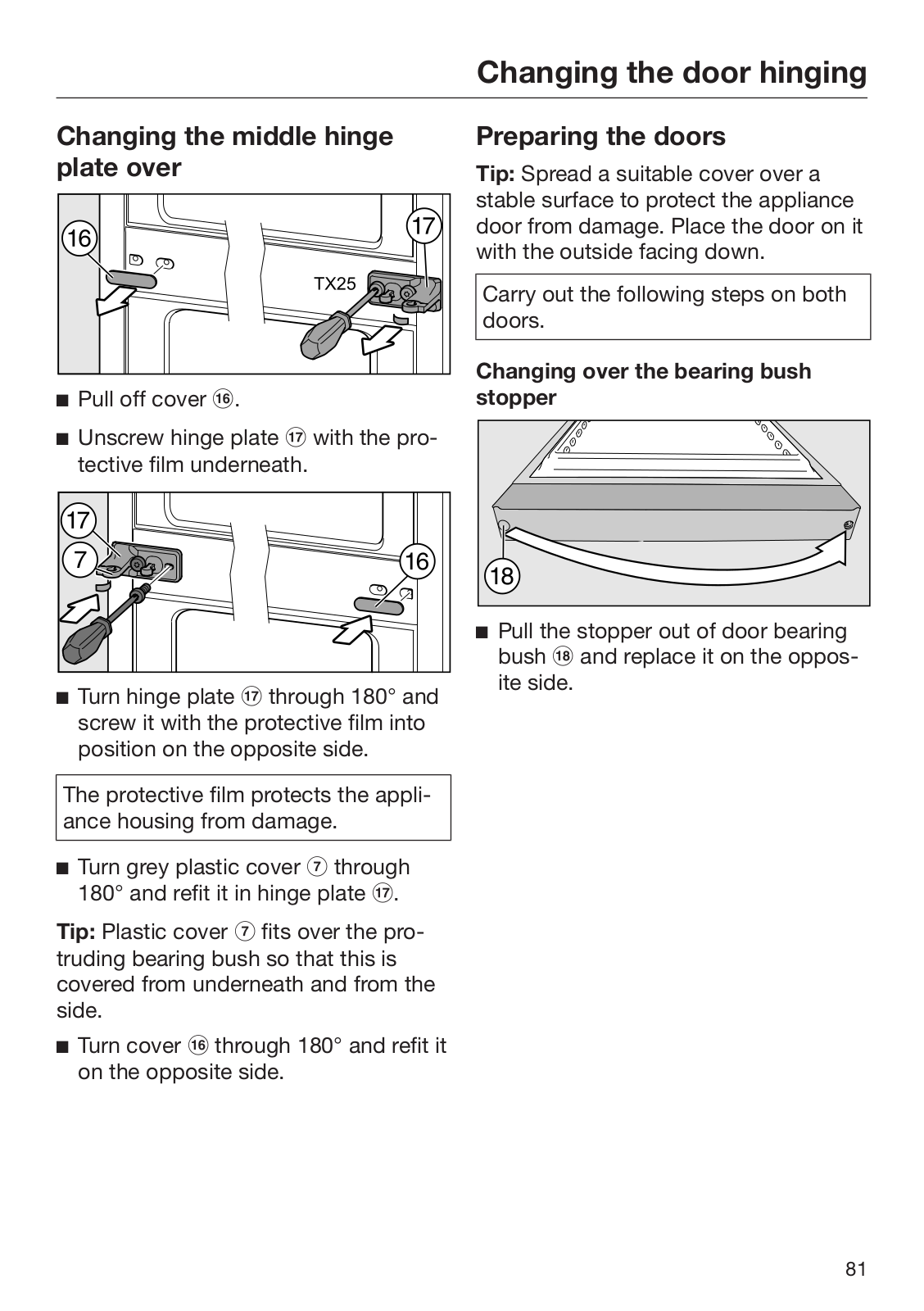

Changing the door hinging................................................................................. |
78 |
Aligning the appliance doors.............................................................................. |
84 |
4
Warning and Safety instructions
This appliance complies with all statutory safety requirements. Please note that inappropriate use can lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the first time. They contain important notes on installation, safety, use and maintenance.
Miele cannot be held liable for non-compliance with these instructions.
Keep these instructions in a safe place and ensure that new users are familiar with the contents. Pass them on to any future owner.
Correct application
This appliance is intended for use in domestic households and similar working and residential environments.
It is not intended for outdoor use.
This appliance is intended for domestic use only for cooling and storing food and drink as well as for storing deep frozen food, freezing fresh food and for making ice.
Any other usage is not supported by the manufacturer and could be dangerous.
This appliance is not suitable for storing and keeping cool medicines, blood plasma, laboratory preparations or other such materials or products. Incorrect use of the appliance for such purposes can cause deterioration of the items stored. The appliance is not suitable for use in areas where there is a risk of explosion.
Miele cannot be held liable for damage resulting from improper or incorrect use of the appliance.
5
Warning and Safety instructions
The appliance can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised whilst using it, or have been shown how to use it in a safe way and recognise and understand the consequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the appliance unless they are constantly supervised.
Children 8 years and older may only use the appliance unsupervised if they have been shown how to use it in a safe way and recognise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the appliance unsupervised.
Please supervise children in the vicinity of the appliance and do not let them play with it.
Danger of suffocation. Packaging, e.g. plastic wrappings, must be kept out of the reach of babies and children. Whilst playing, children could become entangled in packaging or pull it over their head and suffocate.
Technical safety
The coolant system is tested for leaks. This appliance complies
with statutory safety requirements and the appropriate EU
guidelines.
6
Warning and Safety instructions
This appliance contains the coolant Isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect.
The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance.
Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.
In the event of any damage:
–avoid naked flames or anything which creates a spark,
–disconnect the appliance from the mains electricity supply,
–ventilate the room where the appliance is located for several minutes, and
–contact the Miele Service Department.
The more coolant there is in an appliance, the larger the room it should be installed in. In the event of a leakage, if the appliance is in a small room, there is the danger of combustible gases building up. For every 8 g of coolant at least 1 m3 of room space is required. The amount of coolant in the appliance is stated on the data plate inside the appliance.
To avoid the risk of damage to the appliance, make sure that the connection data (fuse rating, frequency and voltage) on the data plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult a qualified electrician if in any doubt.
The electrical safety of this appliance can only be guaranteed when correctly earthed. It is essential that this standard safety requirement is met. If in any doubt please have the electrical installation tested by a qualified electrician.
7
Warning and Safety instructions
Reliable and safe operation of this appliance can only be assured if it has been connected to the mains electricity supply.
If the electrical connection cable is faulty it must only be replaced by a Miele authorised service technician to protect the user from danger.
Do not connect the appliance to the mains electrical supply by a multi-socket adapter or extension lead. These are a fire hazard and do not guarantee the required safety of the appliance.
Do not use in a damp or wet environment (e.g. garage or utility room). Moisture could reach live components or the electrical connection and cause a short circuit.
This appliance must not be used in a non-stationary location (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check the appliance for visible signs of damage.
The appliance must be isolated from the electricity supply during installation, maintenance and repair work.
Unauthorised installation, maintenance and repairs can cause considerable danger for the user.
Installation, maintenance and repairs must only be carried out by a Miele authorised technician.
While the appliance is under guarantee, repairs should only be undertaken by a Miele authorised service technician. Otherwise the guarantee is invalidated.
Miele can only guarantee the safety of the appliance when genuine original Miele replacement parts are used. Faulty components must only be replaced by Miele spare parts.
8
Warning and Safety instructions
Correct use
The appliance is designed for use within a certain climate range (ambient temperatures), and should not be used outside this range. The climate range for your appliance is stated on the data plate inside the appliance. Installing it in a room with too low an ambient temperature, e.g. a garage, will lead to the appliance switching off for longer periods so that it cannot maintain the required temperature.
Do not cover or block the air vents as this could impair the efficiency of the appliance, increase the electricity consumption and could cause damage to the components.
If storing food which contains a lot of fat or oil in the appliance or the door, make sure that it does not come into contact with plastic components as this could cause stress cracks or break the plastic.
Do not store explosive materials in the appliance or any products containing propellants (e.g. spray cans). Electrical components could cause flammable vapours to ignite. Danger of fire and explosion.
Do not operate any electrical equipment (e.g. an electric ice cream maker) inside the appliance. Danger of sparking and explosion.
Do not store cans or bottles containing carbonated drinks or liquids which could freeze in the freezer. The cans or bottles could explode.
Danger of injury and damage to the appliance.
When cooling drinks quickly in the freezer, make sure bottles are not left in for more than one hour; otherwise they could burst, causing injury or damage.
Never handle frozen food or the metal parts of the appliance with wet hands. Your hands may freeze to the frozen food or to the metal. Danger of frost burn.
9
Warning and Safety instructions
Do not take ice cubes out with your bare hands and never place ice cubes or ice lollies in your mouth straight from the freezer. The very low temperature of the frozen ice or lollies can cause frost burn to the lips and tongue.
Do not refreeze partially or fully defrosted food. Consume defrosted food as soon as possible, as it will lose its nutritional value and spoil if left for too long. Defrosted food may only be re-frozen after it has been cooked.
Observe the manufacturer's "use-by" dates and storage instructions given on food to avoid the risk of food poisoning. Storage times will depend on several factors, including the freshness and quality of the food, as well as the temperature at which it is stored.
Only use genuine original Miele accessories and spare parts with this appliance. Using accessories or spare parts from other manufacturers will invalidate the guarantee, and Miele cannot accept liability.
Cleaning and care
Do not use any oils or grease on the door seals, as these will cause the seals to deteriorate and become porous with time.
Do not use a steam cleaning appliance to clean or defrost this appliance.
Steam could reach electrical components and cause a short circuit.
Sharp edged or pointed objects will damage the evaporator, causing irreversible damage to the appliance. Do not use sharp edged or pointed objects to
–remove frost and ice,
–separate frozen foods or remove ice trays.
Do not place electric heaters or candles in the appliance to defrost it. These can damage the plastic parts.
10
Warning and Safety instructions
Do not use defrosting sprays or de-icers, as they could contain substances which could damage the plastic parts or which might cause the build-up of gases and pose a danger to health.
Transporting the appliance
Always transport the appliance in an upright position and in its original transport packaging to avoid damage in transit.
Danger of injury and damage. The appliance is very heavy and must be transported by two people.
Disposal of your old appliance
Before disposing of an old appliance, first make the door latch or lock unusable.
This way you will prevent children from accidentally locking themselves in and endangering their lives.
Splashes of coolant can damage the eyes. Be careful not to damage any part of the pipework whilst awaiting disposal, e.g. by
–puncturing the coolant channels in the condenser,
–bending any pipework, or
–scratching the surface coating.
Symbol on the compressor (depending on model)
This information is only relevant for recycling. In normal operation there is no risk.
The oil in the compressor can be fatal if swallowed or if it penet-
rates the airways.
11
Caring for the environment
Disposal of the packing mater-
ial
The packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.
Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.
Disposal of your old appliance
Electrical and electronic equipment often contain valuable materials. They also contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of it with your household waste.
Please dispose of it at your local community waste collection / recycling centre.
Take care not to damage the pipework at the back of it before or during transportation to an authorised collection depot.
In this way, coolant in the pipework and oil in the compressor will be contained, and will not leak into the environment.
Please ensure that your old appliance presents no danger to children while being stored awaiting disposal. See "Warning and Safety instructions" for more information.
12
|
|
|
How to save energy |
|
|
Normal energy consump- |
|
Increased energy con- |
|
|
|
|||
|
tion |
|
sumption |
|
|
|
|
|
|
Installation site / |
In a ventilated room. |
|
In an enclosed, unventilated |
|
Maintenance |
|
|
room. |
|
|
|
|
|
|
|
Protected from direct sun- |
|
In direct sunlight. |
|
|
light. |
|
|
|
|
|
|
|
|
|
Not near to a heat source |
|
Near to a heat source (radi- |
|
|
(radiator, oven). |
|
ator, oven). |
|
|
|
|
|
|
|
Where the ideal ambient |
|
Where there is a high ambi- |
|
|
room temperature is approx. |
|
ent room temperature. |
|
|
20 °C. |
|
|
|
|
|
|
|
|
|
Ventilation gaps uncovered |
|
Ventilation gaps covered or |
|
|
and dusted regularly. |
|
dusty. |
|
|
|
|
|
|
|
Compressor and metal grille |
|
Dust build-up on the com- |
|
|
(heat exchanger) at the back |
|
pressor and metal grille (heat |
|
|
of the appliance dusted at |
|
exchanger). |
|
|
least once a year. |
|
|
|
|
|
|
|
|
Temperature |
Refrigerator section 4 to |
|
The lower the temperature, |
|
setting |
5 °C |
|
the higher the energy con- |
|
|
|
|
sumption. |
|
|
|
|
|
|
|
Freezer section -18 °C |
|
|
|
|
|
|
|
|
13
How to save energy
|
Normal energy consump- |
Increased energy con- |
|
tion |
sumption |
|
|
|
Use |
Drawers and shelves ar- |
|
|
ranged as they were when |
|
|
the appliance was delivered. |
|
|
|
|
|
Only open the door when |
Frequent opening of the |
|
necessary and for as short a |
door for long periods will |
|
time as possible. Store food |
cause a loss of coldness. |
|
in an organised way. |
The appliance will cool down |
|
|
and the compressor will run |
|
|
for longer periods. |
|
|
|
|
Take an insulated cool bag |
Hot food or food at room |
|
when shopping and load |
temperature raises the tem- |
|
food in the appliance as |
perature inside the appli- |
|
soon as possible. |
ance. The appliance will cool |
|
Replace any food removed |
down and the compressor |
|
as quickly as possible, be- |
will run for longer periods. |
|
fore it begins to thaw. |
|
|
Allow hot food and drinks to |
|
|
cool down before placing |
|
|
them in the appliance. |
|
|
|
|
|
Store food covered or pack- |
The evaporation or condens- |
|
aged. |
ation of liquids will cause a |
|
|
loss of coldness. |
|
|
|
|
Place frozen food in the refri- |
|
|
gerator to defrost. |
|
|
|
|
|
Do not over-fill the appliance |
Poor air circulation will |
|
to allow air to circulate. |
cause a loss of coldness. |
|
|
|
14
Guide to the appliance
a Control panel with display
b Interior lighting
c Door shelf
d Fan
e Adjustable shelf
f Bottle rack
g Condensate channel and drain hole
h Fruit and vegetable drawers
i Bottle shelf with bottle holder
j Recessed handle
k Frost Free module
l Freezer drawers
For easier installation there are transport handles on the back at the top and transport wheels underneath the appliance.
This drawing is for illustration purposes only.
15
Guide to the appliance
Symbols in the display
Operation
Symbol |
|
Function |
|
|
|
|
|
|
Standby |
For switching on the whole appliance; |
|
|
|
|
For switching on the refrigerator section |
|
|
|
separately |
|
|
|
|
|
Settings mode |
For selecting settings (see "Selecting further |
|
|
|
|
settings") |
|
|
|
|
/ |
Minus / Plus |
For altering a setting (e.g. temperature) |
|
|
|
|
|
OK |
|
For confirming a setting |
|
|
|
|
|
/ |
Navigation arrow |
For scrolling in Settings mode to select a |
|
|
|
Left / right |
setting |
|
|
|
|
|
Back |
For exiting a menu |
|
|
|
|
|
Information |
|
||
|
|
|
|
Symbol |
|
Meaning |
|
|
|
|
|
|
Standby |
The appliance is connected to the electrical |
|
|
|
|
supply but is not switched on. |
|
|
|
The refrigerator section is switched off sep- |
|
|
|
arately. |
|
|
|
|
|
Freezer section |
Identifies the freezer section temperature |
|
|
|
|
display. |
|
|
|
|
|
Super cool (refrigerator |
Function can be selected depending on sec- |
|
|
|
section) / Super freeze |
tion (see "Using Super cool, Super freeze |
|
|
(freezer section) |
and DynaCool"). |
|
|
|
|
|
DynaCool (refrigerator |
Function can be selected depending on sec- |
|
|
|
section) |
tion (see "Using Super cool, Super freeze |
|
|
|
and DynaCool"). |
|
|
|
|
|
Temperature alarm |
Alarm (see "Problem solving guide - Display |
|
|
|
|
warnings"). |
|
|
|
|
|
Door alarm |
Alarm (see "Problem solving guide - Display |
|
|
|
|
warnings"). |
|
|
|
|
|
|
Power failure |
Alarm (see "Problem solving guide - Display |
|
|||
|
|
|
warnings"). |
|
|
|
|
16
Accessories
Accessories supplied
Bottle holder
The flexible ribs grip the bottles securely when the door is opened and closed.
Ice cube tray
Optional accessories
A range of useful Miele accessories and care products are available for your appliance.
These products and other useful accessories can be ordered via the internet, from Miele (see back cover for contact details) or from your Miele dealer.
Miele-Onlineshop: shop.miele.de
Bottle rack
Bottles can be stored horizontally using the bottle rack to save space.
The bottle rack can be placed at different positions in the appliance.
17
Accessories
KKF-FF Active AirClean charcoal filters with holder
Charcoal filters neutralise unpleasant odours in the refrigerator section for improved air quality.
The charcoal filter holder clips onto the protective strip at the back of the shelf and can be moved as necessary.
KKF-RF
Active AirClean replacement filters
Replacement filters to fit the Active AirClean holder are available. We recommend replacing the charcoal filters every 6 months.
Multi-purpose microfibre cloth
The microfibre cloth is suitable for removing fingerprints and light soiling from surfaces such as stainless steel, glass, plastic and chrome without the use of chemicals.
18
Using for the first time
Before using for the first time
Packaging material
Remove all packaging material from the inside of the appliance.
Protective foil
The side panels, and appliance doors where applicable, have a protective foil.
Carefully peel the protective foil off.
Cleaning
Please refer to the relevant instructions in "Cleaning and care".
Clean the inside of the appliance and the accessories.
Connecting the appliance
Connect the appliance to the mains electricity supply.
Standby
will appear in the display.
19
Switching on and off
Touch display |
Switching on |
The display can be scratched by pointed or sharp objects, e.g. pens. Only touch the display with your finger tips.
Touching the display with your finger creates a tiny charge which releases an electrical impulse. This impulse is recognised by the touch display.
The touch display does not react if you touch it with an object.
It is possible for the touch display to not react to finger contact if your fingers are cold.
To enable the temperature to get sufficiently cold inside the appliance, allow the appliance to run for approx.
2 hours before placing food in it.
Do not place food in the freezer section until the temperature is at least -18 °C.
Standby
Touch briefly.
The welcome message
Miele - Willkommen will appear in the display for approx. 3 seconds.
If this does not happen and appears in the display, the safety lock is still activated (see "Selecting further settings - Activating or deactivating the safety lock - Deactivating the safety lock temporarily").
20
Switching on and off
5 °C
-18 °C
Start screen
The display changes to the start screen.
The interior lighting will come on and become brighter until the maximum brightness is reached. The appliance is switched on and begins to cool down to the following pre-set temperatures:
–Temperature in the refrigerator section = 5 °C
–Temperature in the freezer section = -18 °C
Start screen
5 °C
-18 °C
The start screen is the screen from which all settings can be selected.
The display is divided into several fields for this purpose:
The temperature display for the refrigerator section is in the upper field.
Touch the temperature display to access the refrigerator section display. Here you can set or change the temperature (see "The correct temperature - Setting the temperature") as well as select the Super cool function and/or the DynaCool function (see "Using Super cool, Super freeze and DynaCool").
The temperature display for the freezer section is in the lower field.
This is also identified by .
Touch the temperature display to access the freezer section display. Here you can set or change the temperature as well as select the Super freeze function (see "Using Super cool, Super freeze and DynaCool").
Settings mode is in the right field.
Touch the symbol to access Settings mode. Here further settings can be selected (see "Selecting further settings").
21
Switching on and off
Switching off
You can switch the appliance off in Settings mode (see "Selecting further settings").
5 °C
-18 °C
Start screen
Touch .
Settings mode
Use the or arrow sensors until
is displayed.
Switching off
Touch .
The temperature display goes out and
lights up.
The refrigerator section interior lighting will go out and the cooling process will be switched off.
will go out after approx. 10 minutes. The display goes dark and switches to energy-saving mode.
Switching off the refrigerator section separately
The refrigerator section can be switched off without having to switch off the freezer section.
Tip: We recommend using the Holiday mode function if you are away on holiday (see "Selecting further settings - Switching Holiday mode on/off"), so that the appliance operates at lower power rather than being switched off completely.
If the Party mode , DynaCool or Super cool functions have been previously selected, these will be switched off automatically.
5 °C
-18 °C
Standby
Touch the temperature display in the field for the refrigerator section.
5°C
OK
Refrigerator section display
Touch or until is displayed.
Touch .
Touch OK to confirm your entry.
22
Switching on and off
-18 °C
Start screen - refrigerator section switched
off
The temperature display for the refrigerator section goes out and lights up.
The refrigerator section is switched off. The temperature in the freezer section is still displayed. The interior lighting in the refrigerator goes out.
Switching the refrigerator section on
separately (if previously switched off)
-18 °C
Start screen - refrigerator section switched
off
Touch in the field for the refrigerator section.
4°C
OK
Refrigerator section display
Touch or until 4 °C is displayed.
Touch OK to confirm your entry.
The refrigerator section is switched on and begins to cool down to the temperature set. When the door is opened the interior lighting comes on.
23
Switching on and off
Switching off for longer periods of time
If, during a long absence, the appliance is switched off but not cleaned and the door(s) left shut, there is a danger of mould building up inside the appliance.
It is essential to clean the appliance.
If the appliance is not going to be used for a longer period of time, e.g. whilst on holiday:
switch the appliance off,
disconnect it from the mains,
clean the appliance and
leave the door(s) ajar to air the appliance and avoid odours building up inside the appliance.
It is also advisable to carry out the last two instructions if you are switching the refrigerator section off for a longer period of time.
24
The correct temperature
It is very important to set the correct temperature for storing food in the appliance. Micro-organisms will cause food which is not stored at the correct temperature to deteriorate rapidly. Temperature influences the growth rate of these micro-organisms. Reducing the temperature reduces their growth rate.
The temperature in the appliance will rise:
–the more often the door is opened and the longer it is kept open,
–the more food that is stored in it,
–the warmer the food is which is being put into it,
–the higher the ambient temperature surrounding the appliance. The appliance is designed for use within specific ambient temperatures (climate range). Do not use in ambient temperatures for which it is not designed.
. . . in the refrigerator section
We recommend a temperature of 4 °C in the refrigerator section.
. . . in the freezer section
To freeze fresh food and to store frozen food for a long time, a temperature of
-18 °C is required. At this temperature the growth of micro-organisms is generally halted. As soon as the temperature rises above -10 °C, the micro-organ- isms become active in the food again so that it cannot be kept as long. For this reason, partially defrosted or fully defrosted food must not be re-frozen. Food may be re-frozen once it has been cooked, as the high temperatures achieved when cooking destroy most micro-organisms.
25
The correct temperature
Temperature display
5 °C
-18 °C
Start screen
In normal operation the upper temperature display shows the average, current temperature in the refrigerator section and the lower temperature display the lowest temperature in the freezer section.
Depending on the ambient temperature and the temperature setting, it can take the appliance a few hours to reach the temperature required and for this temperature to then be shown as a constant temperature in the display.
If the temperature in the freezer remains above -18 °C for a long time, check that the frozen food has not started to defrost.
If it has, check that the food is safe to use and if it is, then use it as soon as possible or cook it before freezing it again.
Setting the temperature
The temperatures for the refrigerator and freezer sections can be set independently of one another.
Touch the temperature display for the section you want to change.
The previously set temperature will appear.
4°C
OK
Refrigerator section display
-18°C
OK
Freezer section display
Use the and arrow buttons to set the temperature higher or lower.
26
The correct temperature
Touch OK immediately after setting the temperature to confirm your entry.
Or wait approx. 8 seconds after the sensors were last touched. The temperature will then be adopted automatically.
Tip: The newly set temperature can also be confirmed and adopted by closing the appliance door.
The temperature display will then change to the current temperature in the appliance.
Temperature range
–The temperature in the refrigerator section can be adjusted from 1 °C to 9 °C.
–The temperature in the freezer section can be adjusted from -15 °C to -26 °C.
Tip: If you have adjusted the temperature, wait for approx. 6 hours if the appliance is not very full and for approx. 24 hours if the appliance is full before checking the temperature display, as it will take this long for the appliance to give an accurate reading.
If, after this time, the temperature is still too high or too low, you will need to adjust it again.
27
Loading...
