USER GUIDE
Compact Microwave
NS-MW07WH0/NS-MW07BK0
Before using your new product, please read these instructions to prevent any damage.
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 GROUNDING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 INSTALLATION GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cookware and cooking materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Materials you can use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Materials to be avoided . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

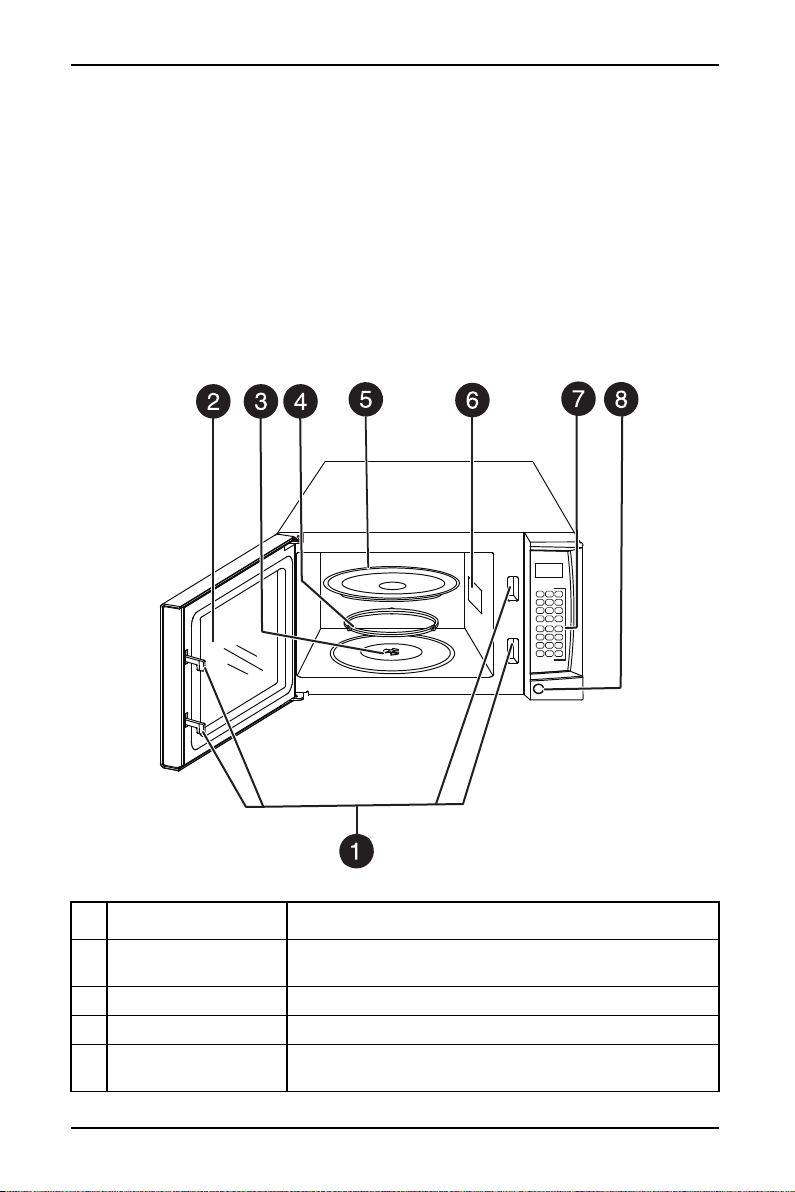

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Setting up your microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Installing the turntable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Setting the clock and the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Using the kitchen timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cooking with your microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Microwave cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Cooking quickly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Cooking with the auto menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Using a memorized procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Defrosting in your microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Defrosting by time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Defrosting by weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Changing other microwave settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Using the child lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Checking the time or power level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Cleaning and maintaining your microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Cleaning the outside of your microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Cleaning the inside of your microwave . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Obtaining replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
2 |
www.insigniaproducts.com |
Compact Microwave
Compact Microwave
Introduction
Congratulations on your purchase of a high-quality Insignia product. Your NS-MW07WH0 or NS-MW07BK0 represents the state of the art in microwave design and is designed for reliable and trouble-free performance.
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
1Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3Do not operate the oven if it is damaged. It is very important that the oven door close properly and that there is no damage to the
a)Door (including any dents),
b)Hinges and latches (broken or loosened),
c)Door seals and sealing surfaces.
4The oven should not be adjusted or repaired by anyone except qualified service personnel
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:
1Read all instructions before using the appliance.
2Read and follow the specific PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY on page 3.
3This appliance must be grounded. Connect only to properly grounded outlet. See GROUNDING INSTRUCTIONS on page 6.
4Install or locate this appliance only in accordance with the provided installation instructions.
5Do not operate the oven when empty.
6Some products such as whole eggs and sealed containers -for example, closed glass jarsare able to explode and should not be heated in this oven.
www.insigniaproducts.com |
3 |
NS-MW07WH0/NS-MW07BK0
7Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
8As with any appliance, close supervision is necessary when used by children.
9To reduce the risk of fire in the oven cavity:
a)Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
b)Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c)If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord or shut off power at the fuse circuit breaker panel.
d)Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
10Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to person:
a)Do not overheat the liquid.
b)Stir the liquid both before and halfway through heating it.
c)Do not use straight-sided containers with narrow necks.
d)After heating, allow the container to stand in the microwave oven for a short time before removing the container.
e)Use extreme care when inserting a spoon or other utensil into the container.
11Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in microwave oven.
12Do not cover or block any openings on the appliance.
13Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
14Do not operate this appliance if it has a damaged cord or a plug, if it is not working properly or if it has been damaged or dropped.
15Do not immerse cord or plug in water. Keep cord away from heated surface. Do not let cord hang over edge of table or counter.
16This appliance should be serviced only by qualified service personnel, contact nearest authorized service facility for examination, repair, or adjustment.
17When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
4 |
www.insigniaproducts.com |
Compact Microwave
18This equipment has been tested and found to comply with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.
19This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
SAVE THESE INSTRUCTIONS
www.insigniaproducts.com |
5 |
NS-MW07WH0/NS-MW07BK0
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.
WARNING: Improper use of the grounding plug can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded and if it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. It is recommended that a separate circuit serving only the oven be provided. The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall outlet properly installed and grounded.
Power Cord
1A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3If long cord or extension cord is used:
a)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
b)The extension cord must be a grounding-type 3-wire cord, and the longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.
INSTALLATION GUIDELINES
1Make sure that all the packing materials are removed from the inside of the door.
2This microwave oven must be placed on a flat surface.
3For correct operation, the oven must have sufficient air flow. Allow 8 in.
(20 cm) of space above the oven, 4 in. (10 cm) at back and 2 in. (5 cm) at both sides. Do not cover or block any openings on the appliance. Do not remove feet on which oven stands.
4The appliance shall be only used on a countertop over 3 feet (91.4 cm) above the floor.
5Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
6 |
www.insigniaproducts.com |
Compact Microwave
6Make sure that the power cord is undamaged and does not run under the oven or over any hot or sharp surface.
7The socket must be readily accessible so the microwave oven can be easily unplugged in an emergency.
Cookware and cooking materials
WARNING: Tightly-closed containers can explode. Open closed containers and pierce plastic pouches before cooking.
Cookware and other materials must fit on the turntable. Always use oven mitts or pot holders because cookware may become hot.
See Materials you can use and Materials to be avoided on page 8 as a guide, then test before using.
Note: To make sure that a dish is safe for microwaving, place the empty dish in your microwave and cook on HIGH for 30 seconds. If the dish becomes very hot, you should not use it in your microwave.
Materials you can use
MATERIAL |
REMARKS |
|
|
Browning dish |
Use to brown the exterior of small items such as steaks, |
|
chops, or pancakes. Follow the directions provided with |
|
your browning dish. Incorrect usage may cause the |
|
turntable to break. |
|
|
Dinnerware |
Use microwave-safe only. Follow the manufacturer's |
|
instructions. Do not use cracked or chipped dishes. |
|
|
Glassware |
Use heat-resistant oven glassware only. Make sure there |
|
is no metallic trim. Do not use cracked or chipped dishes. |
|
|
Oven cooking bags |
Follow the manufacturer’s instructions. Do not close with |
|
a metal tie. Make slits to let steam escape. |
|
|
Paper plates and cups |
Use for short–term cooking/warming at low |
|
temperatures. Do not use recycled paper, which may |
|
contain metal and could ignite. |
|
|
Paper towels |
Use to cover food for reheating and absorbing fat. These |
|
absorb excess moisture and prevent spattering. Do not |
|
use recycled paper towels, which may contain metal and |
|
could ignite. |
|
|
Parchment paper |
Use as a cover to prevent splattering or a wrap for |
|
steaming. |
|
|
Plastic |
Use only if labeled “microwave safe.” Follow the |
|
manufacturer’s instructions. Some plastic containers |
|
soften as the food inside gets hot. “Boiling bags” and |
|
tightly closed plastic bags should be slit, pierced, or |
|
vented, as indicated on the package. |
|
|
www.insigniaproducts.com |
7 |
|
|
|
NS-MW07WH0/NS-MW07BK0 |
|
|
|
|
|
|
|
MATERIAL |
REMARKS |
|
|
|
|
|
|
|
|
Plastic wrap |
Use microwave-safe only. Use to cover food during |
|
|
|
|
|
cooking to retain moisture. Do not let plastic wrap touch |
|
|
|
|
food. |
|
|
|
|
|
|
|
Thermometers |
Use only those labeled “microwave safe” and follow all |
|
|
|
|
|
directions. Check the food in several places. |
|
|
|
|
Conventional thermometers can be used on microwaved |
|
|
|
|
food after the food has been removed from your |
|
|
|
|
microwave. |
|
|
|
|
|
|
|
Wax paper |
Use as a cover to prevent splattering and retain moisture. |
|
|
|
|
|
|
|
Materials to be avoided |
||||
|
|
|
||
|
MATERIAL |
REMARKS |
|
|
|
|
|
|
|
|
Aluminum tray |
May cause arcing. Use a microwave-safe dish instead. |
|
|
|
|
|
|
|
|
Food carton with |
May cause arcing. Use a microwave-safe dish instead. |
|
|
|
metal handle |
|
|
|
|
|
|
|
|
|
Glass jars/bottles |
Regular glass is too thin to be used in a microwave. It can |
|
|
|
|
|
shatter and cause damage and injury. |
|
|
|
|
|
|
|
Metal or metal |
Metal shields the food from microwave energy. The |
|
|
|
trimmed utensils |
metal trim may cause arcing. |
|
|
|
|
|
|
|
|
Metal twist ties |
May cause arcing and could cause a fire in your |
|
|
|
|
|
microwave. |
|
|
|
|
|
|
|
Paper bags |
May cause a fire hazard, except for popcorn bags that are |
|
|
|
|
|
designed for microwave use. |
|
|
|
|
|
|
|
Plastic foam |
Plastic foam may melt or contaminate the liquid inside |
|
|
|
|
|
when exposed to high temperature. |
|
|
|
|
|
|
|
Plastic storage and |
Containers such as margarine tubs can melt in your |
|
|
|
food containers |
microwave. |
|
|
|
|
|
|
|
|
Wood |
Wood dries out when used in your microwave and may |
|
|
|
|
|
split or crack. |
|
|
|
|
|
|
8 |
www.insigniaproducts.com |
