User Guide | Guide de l’utilisateur | Guía del Usuario
Stereo Receiver | Récepteur stéréo | Receptor estéreo
NS-R2000
Insignia NS-R2000
Stereo Receiver
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Safety information . . . . . . . . . . . . . . . . . . . . . . . . .1 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Setting up your receiver . . . . . . . . . . . . . . . . . . . . .4 Using your receiver . . . . . . . . . . . . . . . . . . . . . . . .7 Maintaining. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .13 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Français. . . . . . . . . . . . . . . . . . . . . . . . 16 Español . . . . . . . . . . . . . . . . . . . . . . . . 34
Congratulations on your purchase of a high-quality Insignia product. Your NS-R2000 represents the state of the art in stereo receiver design and is designed for reliable and trouble-free performance.
CAUTION
Risk of Electric Shock
Do Not Open
Warning
To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage
within your receiver’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying your receiver.
Warning
To prevent fire or electric shock hazard, do not expose this receiver to rain or moisture.
Caution
Your receiver should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on your receiver.
Caution
Do not block any ventilation openings. Install in accordance with these instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of your receiver and to protect it from over-heating.
The openings should never be blocked by placing your receiver on a bed, sofa, rug, or other similar surface. This receiver should not be placed in a built-in installation such as a bookcase or rack unless correct ventilation is provided or these instructions have been adhered to.
Caution
We recommend that most appliances be placed upon a dedicated circuit—a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this manual for power requirements.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.
Periodically examine your receiver cord, and if its appearance indicates damage or deterioration, unplug it, discontinue use of your receiver, and have the cord replaced with an exact replacement part by an authorized service provider.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits your receiver.
To disconnect power from the outlet, pull out the plug. When installing your receiver, make sure that the plug is easily accessible.
Caution
Read and observe all warnings and instructions in this manual and those marked on your receiver. Retain this manual for future reference.
This receiver has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in this receiver will protect you if you observe the following procedures for installation, use, and servicing. This receiver does not contain any parts that can be repaired by you.
Do not remove the cabinet cover or you may be exposed to dangerous voltage. Refer servicing to qualified service personnel only.
•All of these safety and operating instructions should be read before your receiver is operated.
•The safety, operation, and use instructions should be retained for future reference.
•All warnings on your receiver and in the operating instructions should be adhered to.
•All operation and use instructions should be followed.
•Do not use this receiver near water. For example, do not use this receiver near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, and other areas located near water.
•Clean only with dry cloth. Unplug this receiver from the wall outlet before cleaning. Do not use liquid cleaners.
www.insignia-products.com |
1 |
Insignia NS-R2000 Stereo Receiver
• Do not block any ventilation openings. Install |
|
Reference |
Grounding component |
|||
in accordance with these instructions. Slots |
|
|||||
|
|
|
||||
and openings in the cabinet are provided for |
|
|
|
|||
2 |
Power service grounding |
|||||
ventilation, to ensure reliable operation of |
||||||
|
|
electrode system |
||||
your receiver, and to protect it from |
|
|
||||
|
|
(NEC Art 250, Part H) |
||||
over-heating. The openings should never be |
|
|
||||
|
|
|
||||
blocked by placing your receiver on a bed, |
3 |
Ground clamp |
||||
sofa, rug or other similar surface. This |
|
|
|
|||
4 |
Grounding conductors (NEC |
|||||
receiver should not be placed in a built-in |
||||||
installation such as a bookcase or rack |
|
|
Section 810-21) |
|||
unless correct ventilation is provided or these |
|
|
|
|||
5 |
Antenna discharge unit (NEC |
|||||
instructions have been adhered to. |
||||||
|
|
Section 810-20) |
||||
• Do not install near any heat sources such as |
|
|
|
|||
6 |
Ground clamp |
|||||
radiators, heat registers, stoves, or other |
||||||
electronic devices (including amplifiers) that |
|
|
|
|||
7 |
Antenna lead-in wire |
|||||
produce heat. |
||||||
|
|
|
||||
• Do not defeat the safety purpose of the |
• Use No. 10AWG (5.3 mm2) copper, |
|||||
polarized or grounding-type plug. A polarized |
|
No. 8AWG (8.4 mm2) aluminum, |
||||
plug has two blades with one wider than the |
|
No. 17AWG (1.0 mm2) copper-clad steel |
||||
other. A grounding type plug has two blades |
|
|||||
|
or bronze wire, or larger, as a ground wire. |
|||||
and a third grounding prong. The wide blade |
|
|||||
or the third prong are provided for your safety. |
• Secure the antenna lead-in and ground |
|||||
If the provided plug does not fit into your |
|
wires to the house with stand-off |
||||
outlet, consult an electrician for replacement |
|
insulators spaced from 4-6 feet |
||||
of the obsolete outlet. |
|
(1.22-1.83 meter) apart. |
||||
• Protect the power cord from being walked on |
• Mount the antenna discharge unit as |
|||||
or pinched particularly at plugs, receptacles, |
|
close as possible to where the lead-in |
||||
and the point where they exit from your |
|
enters the house. |
||||
receiver. |
• Use a jumper wire not smaller than |
|||||
• Use only attachments or accessories |
|
No. 6AWG (13.3 mm2) copper, or the |
||||
specified by Insignia. |
|
equivalent, when a separate |
||||
• Use only with the cart, |
|
antenna-grounding electrode is used. See |
||||
stand, tripod, bracket, or |
|
ANSI/NFPA70. |
||||
table specified by |
• Unplug this receiver during lightning storms |
|||||
Insignia, or sold with this |
or when unused for long periods of time. |
|||||
receiver. When a cart is |
• Refer all servicing to qualified service |
|||||
used, use caution when |
||||||
personnel. Servicing is required when your |
||||||
moving the cart/receiver |
||||||
receiver has been damaged in any way, such |
||||||
combination to avoid |
|
|
||||
as power-supply cord or plug is damaged, |
||||||
injury from tip-over. |
||||||
liquid has been spilled or objects have fallen |
||||||
• If an outside antenna or cable system is |
into your receiver, your receiver has been |
|||||
connected to your receiver, make sure that |
exposed to rain or moisture, does not operate |
|||||
the antenna or cable system is grounded to |
normally, or has been dropped. |
|||||
provide some protection against voltage |
• When replacement parts are required, be |
surges and built-up static charges. Article |
sure the service technician uses replacement |
|
810 of the National Electrical Code, |
||
parts specified by the manufacturer or have |
||
ANSI/NFPA 70, provides information with |
||
the same characteristics as the original part. |
||
regard to proper grounding of the mast and |
||
Unauthorized substitutions may result in fire, |
||
supporting structure, grounding of the lead-in |
||
electric shock, or other hazards. |
||
wire to an antenna discharge unit, size of |
||
• Upon completion of any service or repairs to |
||
grounding conductors, location of |
||
this receiver, ask the service technician to |
||
antenna-discharge unit, connection to |
||
perform safety checks to determine that your |
||
grounding electrodes, and requirements for |
||
receiver is in proper operation condition. |
||
the grounding electrode. |
||
|
|
7 |
|
6 |
|
5 |
|
4 |
|
3 |
1 |
2 |
|
Reference |
Grounding component |
|
|
|
|
|
1 |
Electric service equipment |
||
2 |
|
|
|
|
www.insignia-products.com |
Insignia NS-R2000 Stereo Receiver
Features |
|
|
|
|
|
|
Florescent display |
|
||||||
Front controls |
|
|
|
|
|
|
1 |
2 3 |
4 5 6 7 |
|||||
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
|
|
|
|
|
|
Item |
Description |
|
|
|
|
|
|
1 |
Input, frequency, volume level, |
|
|
|
|
|
|
|
operating information |
|
|
|
|
|
|
2 |
STEREO indicator |
|
|
14 |
15 |
16 17 18 19 20 21 22 23 |
|
3 |
TUNED indicator |
|
|
|
|
|
|
4 |
SLEEP indicator |
|
|
|
Item |
Description |
|
5 |
MEMORY indicator |
|
|
|
1 |
POWER button |
|
6 |
Preset number, sleep time display |
|
|
|
2 |
STANDBY/POWER ON button |
|
7 |
DIRECT indicator |
|
|
|
3 |
SLEEP button |
Back |
|
|
|
|
|
4 |
DIMMER button |
|
|
|
|
|
|
5 |
STANDBY indicator |
1 |
2 |
3 |
4 |
5 |
6SPEAKER indicator
7Remote sensor
8 |
INPUT SELECTOR buttons |
|
|
|
|
|
|
|
|
9 |
Florescent display |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
10 |
TONE DIRECT button |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
11 |
PRESETS button |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
12 |
MUTE button |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13 |
MASTER VOLUME control knob |
|
|
|
|
|
|
|
|
|
|
|
|
Item |
Description |
|
|||
14 |
HEADPHONE jack |
|
|||||||
|
|
|
|
|
|
|
|
|
|
15 |
SPEAKER A and SPEAKER B buttons |
|
|
|
|
|
|
|
|
|
|
1 |
AM and FM antenna jacks |
|
|||||
16 |
|
|
|
|
|
|
|
|
|
ADJUST / buttons |
|
|
2 |
PHONO jacks |
|
||||
|
|
|
|
|
|
|
|
|
|
17 |
TONE MODE button |
|
|
3 |
AUDIO jacks |
|
|||
|
|
|
|
|
|
|
|
|
|
18 |
BALANCE button |
|
|
4 |
Speaker jacks |
|
|||
|
|
|
|
|
|
|
|
|
|
19 |
MEMORY button |
|
|
5 |
AC power cord |
|
20TUNING/PRESET / buttons
21TUNING/PRESET MODE button
22FM MODE button
23BAND button
www.insignia-products.com |
3 |
Insignia NS-R2000 Stereo Receiver
1 |
11 |
2 |
|
3 |
12 |
4 |
13 |
5 |
14 |
6 |
15 |
7 |
16 |
|
8 |
|
|
9 |
17 |
|
10 |
||
|
Your box includes the following:
•One receiver
•One remote control with two batteries
•This User Guide
•AM and FM antennas
Warning
Do not plug the AC cord into the AC outlet until all connections are completed.
Note
Be sure to observe the color coding when connecting audio and speaker cords.
Note
Make connections firmly and correctly. Failure to do this can cause loss of sound, add noise to the sound, or damage your receiver.
•Install your receiver on a stable flat surface. Position your receiver so that it can have a direct line of sight to the remote control.
•Do not expose your receiver to extremes of temperature or humidity.
•Avoid placing your receiver on a hot surface such as on top of other hot running equipment. Make sure that there is adequate ventilation to your receiver.
Item Description
1POWER ON button
2Numeric keypad
3PRESETS button
4TUNING/PRESET button
5FM MODE button
6 |
VOLUME / buttons |
|
7SPEAKER A button
8Input selector buttons
9DIMMER button
10SLEEP button
11STANDBY button
12MEMORY button
13TUNING/PRESETbutton
14TUNING/PRESET MODE button
15MUTE button
16SPEAKER B button
17 |
TREBLE/BASE / buttons |
|
Caution
Do not install this receiver in a confined space such as a bookcase.
Note
Connect the AC cord only after the speakers, antenna, and all optional equipment have been connected. Never make or change any connections with the power turned on.
2 |
3 |
|
1
4 |
Item Description
1 |
FM (indoor) antenna |
2 FM (outdoor) antenna
3 AM loop antenna
4 |
www.insignia-products.com |
Insignia NS-R2000 Stereo Receiver
Item Description
4 Antenna jacks
To connect the antennas:
1 Connect the FM antenna to your receiver.
Note
If you are using an indoor FM antenna, change the position of the antenna until you get the best reception of your favorite FM stations.
Note
To improve reception, you may use a 75 Ω outdoor antenna instead of an indoor antenna. Disconnect the indoor antenna before replacing it with an outdoor antenna.
2 Connect the AM loop antenna to the receiver.
Note
Place the AM loop antenna as far as possible from the receiver, television, speaker cords, and the AC cord. Change the position of the antenna until you get the best reception of your favorite AM stations.
Note
To improve reception, you may use an outdoor AM antenna instead of a loop AM antenna. Disconnect the indoor antenna before replacing it with an outdoor antenna.
1 |
2 |
|
Connecting a CD player |
3 |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Item |
Description |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
1 |
Tape play. |
||
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
2 |
Tape record. |
|
|
|
|
|
|
|
|
|
|
|
1
1
|
|
|
|
|
|
|
2 |
|
|
|
|
|
|
|
|
|
2 |
|
|
Item Description
1 RCA audio cords.
2 CD Player
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Item |
|
Description |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
Tape/MD play. |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
|
|
Tape/MD record. |
|
||
|
|
|
|
|
|
|
|
|
|
www.insignia-products.com |
5 |
Item Description
3 |
MD recorder or other device. |
Insignia NS-R2000 Stereo Receiver

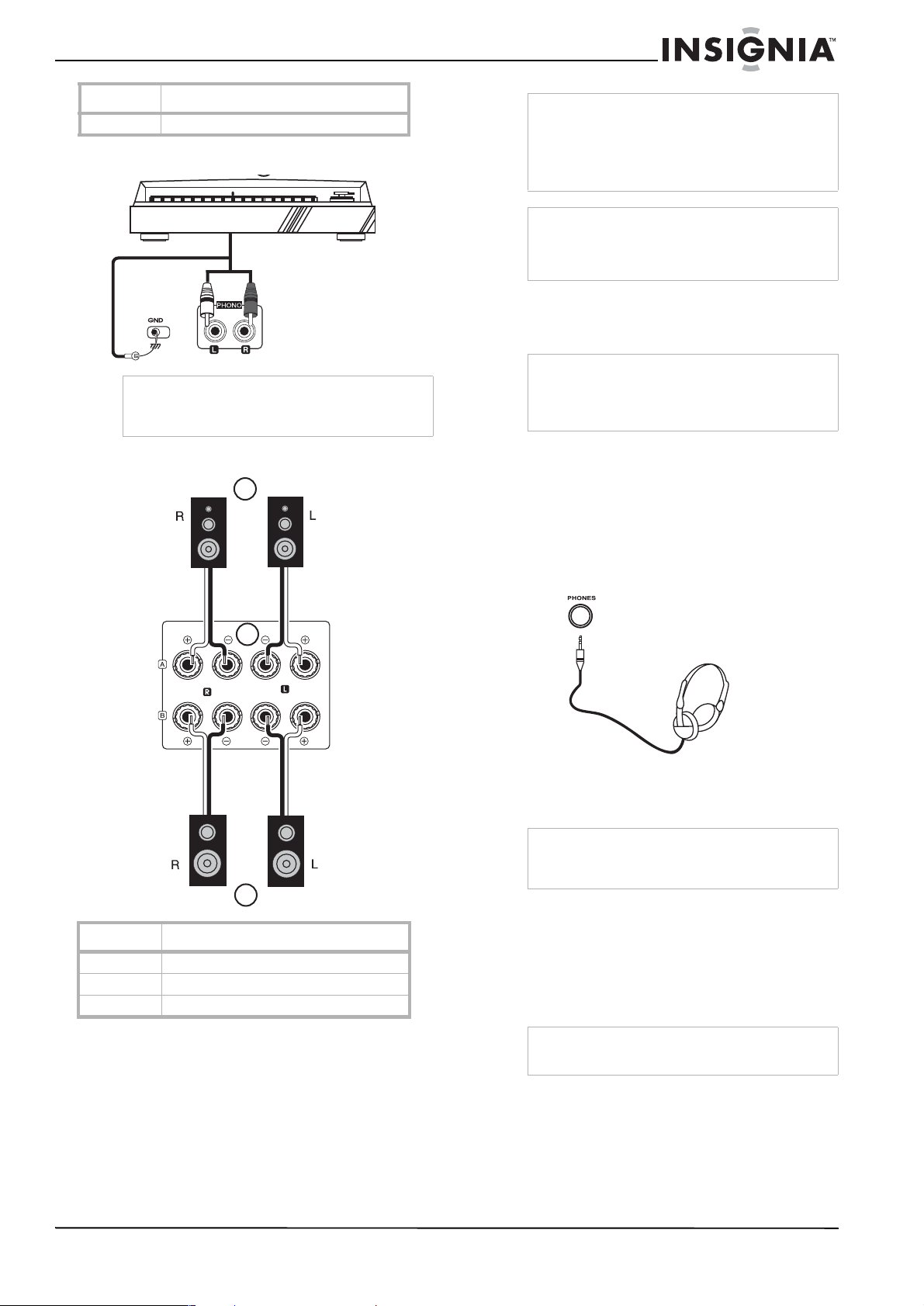

To connect your speakers:
•Connect your speaker cables to the receiver.
Notes
•If you have only one pair of speakers, connect them to the SPEAKER A terminals.
•Connect a second pair of speakers to the SPEAKER B terminals.
Note
To connect a turntable with an MC type cartridge, use a separate head amplifier or step-up transformer.
1
2
3
Item Description
1Speaker A.
2Speaker jacks.
3Speaker B.
Caution
Use speakers with an impedance of 8 Ω or more if using only the SPEAKER A or SPEAKER B terminals. Use speakers with an impedance of 16 Ω or more if using both the SPEAKER A or SPEAKER B terminals.
Caution
Do not let the bare speaker wires touch each other or any metal part of this receiver. Doing so may damage the receiver or speaker.
Be sure to connect the speakers firmly and correctly according to the channel (left and right) and the polarity (+ and -). If you do not make the connections correctly, you will not hear any sounds from the speakers.
If the sound is unnatural and lacks bass, the speaker polarity is incorrect.
To connect your headphones:
•Insert the headphone plug into the headphone jack on the receiver.
Notes
To hear sound from the headphones, make sure the SPEAKER A and SPEAKER B buttons are set to off.
To connect your receiver to power:
•Plug the power cord into an AC outlet.
Caution
Do not use Ni-Cd rechargeable batteries in this remote control.
To install the batteries: 1 Remove the cover.
6 |
www.insignia-products.com |
Insignia NS-R2000 Stereo Receiver
2 Load two type AAA batteries into the |
Use the remote control within about 23 feet |
compartment matching the polarity indicated. |
(7 meters) of the receiver and within 30 degrees |
|
of perpendicular to the front of the receiver. |
3 Replace the cover.
Caution
•Do not expose the remote control to shock. In addition, do not expose the remote control to liquids, and do not place in an area with high humidity.
•Do not place the remote control under direct sunlight. The heat may cause deformation of the remote control.
•The remote control may not work properly if the remote sensor window of the receiver is under direct sunlight or strong lighting. In such a case, change the angle of the lighting or receiver, or operate the remote control closer to the remote sensor window.
Note
Remove the batteries if they are not to be used for a long period of time.
Use the remote control by pointing it towards the receiver’s remote sensor window. Objects between the remote control and sensor window may prevent proper operation.
Tip
The following settings are stored in memory before the receiver is turned off:
•INPUT SELECTOR settings
•Preset stations.
If the electricity fails or the AC power cord is unplugged for more than two weeks, your memory is cleared.
To listen to a program:
1 Press the POWER button on the receiver to put the receiver in Standby mode. The STANDBY indicator lights up.
Tip
You can turn the receiver off by pressing the
POWER button on the receiver while it is in
Standby mode.
2Press the POWER ON button on the remote control to turn the receiver on.
23’ (7m)
OR
Tip
You can put the receiver in Standby mode by pressing the STANDBY button on the remote control when the receiver is on.
Tip
With the receiver in Standby mode, you can also turn the power on by pressing an Input Selector button.
www.insignia-products.com |
7 |
|
|
|
|
|
|
|
Insignia NS-R2000 Stereo Receiver |
|
3 To hear sound from the speakers, press the |
6 Turn the MASTER VOLUME dial or press the |
|||||
|
|
SPEAKER A or SPEAKER B button to turn |
VOLUME / buttons to adjust the sound |
||||
|
|
the corresponding speakers on. The |
level. |
||||
|
|
corresponding SPEAKER indicator lights up |
|
||||
|
|
and sound can be heard from the speakers. |
|
OR |
OR |
|
-OR-
To heard sound from headphones, press the
SPEAKER A or SPEAKER B button to turn the corresponding speakers off. The corresponding SPEAKER indicator goes off and sound can be heard from the headphones.
4Press an Input Selector button to select the input source.
-OR-
Press the MUTE button to turn the sound off. MUTE flickers on the display. Press the MUTE button again to turn the sound back on.
OR
OR
Note
Each time the tuner or the FM/AM button is pressed, the band changes as follows:
•FM
•AM
5 Run the component for playback.
To adjust the tone:
1Press the TONE MODE button to enter the tone mode. The tone mode is displayed for several seconds.
Note
Each time the TONE MODE button is pressed, the corresponding tone mode is selected and shown for three seconds as follows:
•BASS
•TRBL
Note
Each time the ton direct function is activated, the tone mode cannot be entered and TON DIR flickers for two seconds.
8 |
www.insignia-products.com |
Insignia NS-R2000 Stereo Receiver
2 Within the tone mode, press the or to |
Listening to radio broadcasts |
adjust the tone. |
Auto tuning |
|
|
|
To auto tune a radio station: |
|
1 Press TUNER on the receiver or FM/AM on |
|
the remote control to select the band. |
OR |
|
OR
Note
•If the tone display disappears, start again from step 1.
•When pressing the TREBLE up/down or BASS up/down buttons, you can skip step 1.
•Extreme settings at high volume may damage your speakers.
•In general, the bass and treble levels are adjusted to 0.
3Press the TONE DIRECT button to listen to a program without the tone effect.
Note
•TON DIR is displayed, DIRECT lights up and the sound bypasses the tone circuitry.
•To cancel the tone direct function, press this button again. TON CTRL and DIRECT turns off.
To adjust the sound volume balance:
1Press Balance. BAL and the balance level are displayed for three seconds.
1 2
Item Description
1Band
2Frequency
Each time this button is pressed, the band changes from AM to FM, and vice versa. When the tuner is selected by pressing the TUNER or the FM/AM button, you can select the band by pressing the BAND button on the front panel as well.
2 Press T/P MODE to select the tuning mode.
OR
2 Adjust the sound volume balance between the left and right speakers.
Note
•If the balance display disappears, start again from step 1.
•In general, the balance levels are adjusted to 0.
Note
Each time this button is pressed, the mode changes as follows:
•TUNING mode—PRESET turns off.
•PRESET mode—PRESET lights up..
www.insignia-products.com |
9 |
|
|
|
|
|
|
|
Insignia NS-R2000 Stereo Receiver |
|
3 Press and hold the TUNING/PRESET / |
2 Press T/P MODE to select the tuning mode. |
|||||
|
|
buttons for more than 0.5 seconds. |
|
OR
OR
The tuner searches until a station of sufficient strength has been found. The display shows the tuned frequency and TUNED.
If the station found is not the station you want to listen to, repeat this procedure.
Weak stations are skipped during auto tuning.
Manual tuning
Manual tuning is useful when you already know the frequency of the station you want to listen to.
To manually tune a radio station:
1Press TUNER on the receiver or FM/AM on the remote control to select the band.
PRESETS turns off.
3Press the TUNING/PRESET / buttons repeatedly until the right frequency has been reached.
OR
OR
Presetting
To preset a radio station:
1 Tune to the station with auto or manual tuning.
2 Press the MEMORY button. MEM flickers for five seconds.
OR
1 2
Item Description
1 Band
2 Frequency
Each time this button is pressed, the band changes from AM to FM.
10 |
www.insignia-products.com |
Insignia NS-R2000 Stereo Receiver
3 Select a preset number between 1 and 30, |
3 Press the PRESET / buttons on the |
then press the MEMORY button. |
receiver. |
OR
Notes
•When using the numeric keypad on the remote control, press the number you want. If your number is greater than nine, enter the first digit, then enter the second digit within two seconds.
•The station has been stored in memory. When using the numeric keypad, the station is stored automatically without pressing the MEMORY button.
•A stored frequency is erased from memory by storing another frequency in its place.
•If MEM goes off, start again from step 2.
4Repeat this procedure to memorize additional stations.
Tuning to preset stations
To tune to a preset station:
1Select the tuner as the input source.
2Press T/P MODE to select the preset mode.
OR
OR
-OR-
Enter the preset number using the numeric keypad.
Notes
When using the numeric keypad on the remote control, press the number you want. If your number is greater than nine, enter the first digit, then enter the second digit within two seconds.
Scanning preset stations in sequence
To scan preset stations:
1Press the PRESETS button on the remote control.
OR
The receiver starts scanning the stations in the preset sequence. Each station is sampled for five seconds.
2Press the PRESETS button again to stop scanning.
PRESETS lights up.
www.insignia-products.com |
11 |
Insignia NS-R2000 Stereo Receiver
Listening to FM stereo broadcasts |
Recording on AUX |
To listen to FM stereo broadcasts:
•While listening to an FM broadcast, press the FM MODE button.
To record on the auxiliary device:
1Select the recording input source (this cannot be AUX).
OR
Note
Each time this button is pressed, the FM mode changes as follows:
•Stereo mode—ST lights up
•Mono mode—ST turns off.
Note
If an FM stereo broadcast is poor due to a weak broadcast signal, select the FM mono mode to reduce the noise. The FM broadcasts are reproduced in monaural sound.
Notes
•The volume, tone (bass and treble), and balance settings have no effect on the recording signals.
•When you select tuner, CD, or PHONO as a recording source, recording may be made on TAPE or AUX, or both simultaneously.
Recording on tape
To record on tape:
1Select the recording input source (this cannot be TAPE).
OR
OR
2Start recording on the auxiliary device.
3Start play on your input device.
The sleep timer automatically turns the receiver off after a specified period of time.
To use the sleep timer:
•Press the SLEEP button to specify the amount of time you want the receiver to play.
OR
Each time this button is pressed, the time changes as follows:
•10 minutes
•20 minutes
•30 minutes
•60 minutes
•90 minutes
•OFF
Note
While operating the sleep timer, the lights up.
2Start recording on the tape recorder.
3Start play on your input device.
12 |
www.insignia-products.com |
Insignia NS-R2000 Stereo Receiver
Adjusting the display brightness |
|
Category |
Problem |
Possible Solution |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
To adjust the display brightness: |
|
|
|
|
|
|
||||||||||||
|
No sound |
1 |
The speaker |
1 |
Check the |
|||||||||||||
• Press the DIMMER button to specify the |
|
|
|
cords are |
|
speaker |
||||||||||||
|
brightness of the display. |
|
|
|
|
|
2 |
disconnected. |
2 |
connections. |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The volume is |
Adjust the |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
adjusted too low. |
|
volume. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
The MUTE button |
3 |
Press the MUTE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
on the remote |
|
button to cancel |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
control is pressed |
|
the muting effect. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
to ON. |
4 |
Press the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
Speakers are not |
|
SPEAKER A or |
|
|
|
|
OR |
|
|
|
|
|
|
|
|
|
switched on. |
|
SPEAKER B |
||
|
|
|
|
|
|
|
|
|
|
|
|
5 |
Incorrect |
|
button to ON. |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
selection of the |
Select the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
input source. |
|
desired input |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
Incorrect |
6 |
source correctly. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
connections |
Make |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
between the |
|
connections |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
components. |
|
correctly. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Each time this button is pressed, the |
|
Stations |
1 |
No antenna is |
1 |
Connect an |
|||||||||||
|
|
cannot be |
|
connected. |
|
antenna. |
||||||||||||
|
brightness changes as follows: |
|
|
|
||||||||||||||
|
|
received |
2 |
The desired |
2 |
Tune in the |
||||||||||||
|
• |
|
ON |
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
station frequency |
|
desired station |
||
|
• |
|
dimmer |
|
|
|
|
|
|
|
|
|
is not tuned in. |
3 |
frequency. |
|||
|
• |
|
OFF |
|
|
|
|
|
|
|
|
3 The antenna is in |
Move the |
|||||
|
|
|
|
|
|
|
|
|
|
|
wrong position. |
|
antenna and retry |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
tuning. |
|
|
Note |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Preset |
1 |
An incorrect |
1 |
Memorize the |
||
|
|
|
If the display is off, pressing any button turns the |
|
||||||||||||||
|
|
|
display on. |
|
|
|
|
|
|
|
stations |
|
station frequency |
|
correct station |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
cannot be |
|
has been |
|
frequency. |
Maintaining |
|
|
|
|
|
|
2 |
|
||||||||||
|
|
|
|
|
|
|
received |
The memorized |
|
stations again. |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
memorized. |
2 |
Memorize the |
|
To clean this receiver, wipe with a soft, dry cloth. |
|
|
|
stations are |
|
|
||||||||||||
|
|
|
cleared. |
|
|
|||||||||||||
If the surfaces are extremely dirty, use a soft |
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|||||||||||||
cloth dipped in a soap and water solution or a |
|
Poor FM |
1 |
No antenna is |
1 |
Connect an |
||||||||||||
weak detergent solution. |
|
|
|
|
|
|
|
reception |
2 |
connected. |
2 |
antenna. |
||||||
• Never use alcohol, paint thinner, or benzine |
|
|
The antenna is |
Change the |
||||||||||||||
|
to clean this receiver. |
|
|
|
|
|
|
|
|
|
not positioned for |
|
position of the |
|||||
|
|
|
|
|
|
|
|
|
|
the best |
|
antenna. |
||||||
• Before using a chemically treated cloth, read |
|
|
|
|
||||||||||||||
|
|
|
reception. |
|
|
|||||||||||||
|
the instructions that came with the cloth |
|
|
|
|
|
|
|||||||||||
|
|
Continuous |
Weak signals. |
1 |
Change the |
|||||||||||||
|
carefully. |
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
hissing |
|
|
|
position of the |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Troubleshooting |
|
|
|
|
|
|
|
noise during |
|
|
|
antenna. |
||||||
|
|
|
|
|
|
|
FM |
|
|
2 |
Install an outdoor |
|||||||
If a problem occurs, run through the table below |
|
reception, |
|
|
|
FM antenna. |
||||||||||||
|
especially |
|
|
|
|
|||||||||||||
before contacting Insignia. |
|
|
|
|
|
|
|
when a |
|
|
|
|
||||||
If the problem persists, attempt to solve it by |
|
stereo |
|
|
|
|
||||||||||||
|
broadcast is |
|
|
|
|
|||||||||||||
switching the receiver off and on again. If this |
|
|
|
|
|
|||||||||||||
|
received. |
|
|
|
|
|||||||||||||
fails to resolve the problem, contact Insignia. |
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|||||||||||||
Under no circumstances should you attempt to |
|
Continuous |
Noise is caused by |
1 |
Keep the receiver |
|||||||||||||
repair the receiver yourself as this could void the |
|
or |
motors, fluorescent |
|
away from noise |
|||||||||||||
warranty. |
|
|
|
|
|
|
|
|
|
|
intermittent |
lamps, or lightning. |
|
sources. |
||||
|
|
|
|
|
|
|
|
|
|
hissing |
|
|
2 |
Install an outdoor |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
noise during |
|
|
|
AM antenna. |
Category |
|
Problem |
Possible Solution |
|
|
|
||||||||||||
|
|
AM |
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
reception, |
|
|
|
|
No power |
|
1 |
The AC power |
1 |
|
Connect the cord |
|
especially at |
|
|
|
|
||||||
|
|
|
|
cord is |
|
|
|
securely. |
|
night. |
|
|
|
|
||||
|
|
|
|
disconnected. |
2 |
|
Check the outlet |
|
|
|
|
|
|
|||||
|
|
|
2 |
|
|
No |
1 |
Incorrect |
1 |
Make |
||||||||
|
|
|
Poor connection |
|
|
|
using a lamp or |
|
||||||||||
|
|
|
|
|
|
|
recording |
|
selection |
|
connections |
|||||||
|
|
|
|
at AC wall outlet |
|
|
|
another |
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
between the |
|
correctly. |
||||||
|
|
|
|
or the outlet is |
|
|
|
appliance. |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
components. |
2 |
Operate each |
||||||
|
|
|
|
inactive. |
|
|
|
|
|
|
|
|
2 |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Incorrect |
|
component |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
operation of each |
|
correctly. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
component for |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
playback and |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
recording. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
www.insignia-products.com |
13 |
|
|
|
|
|
|
|
|
|
|
|
|
Insignia NS-R2000 Stereo Receiver |
|
|
|
|
|
Legal notices |
|||||||
|
Category |
|
Problem |
Possible Solution |
||||||||
|
|
|
|
|
|
|
|
|||||
|
Remote |
|
1 |
Batteries are not |
1 |
Replace the |
FCC Part 15 |
|||||
|
control unit |
|
|
loaded or are |
|
batteries. |
This device complies with Part 15 of the FCC Rules. |
|||||
|
does not |
|
|
exhausted. |
2 |
Remove the |
||||||
|
operate. |
|
2 |
The remote |
|
obstacle. |
Operation of this product is subject to the following two |
|||||
|
|
|
conditions: (1) this device may not cause harmful |
|||||||||
|
|
|
|
|
|
sensor is |
|
|
||||
|
|
|
|
|
|
|
|
interference, and (2) this device must accept any interference |
||||
|
|
|
|
|
|
obstructed. |
|
|
received, including interference that may cause undesired |
|||
|
|
|
|
|
|
|
|
|
|
|
|
operation. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note |
|
|
|
• Design and specifications are subject to |
|
|
|
change without notice. |
|
|
|
• Weight and dimensions shown are |
|
|
|
approximate. |
|
|
|
• Specifications and external appearance may |
|
|
|
be changed for the sake of improvement. |
|
|
|
|
|
|
|
||
Amplifier |
Power output, stereo mode, 8 Ω, THD 1%, |
||
|
40 Hz~20 kHz: 2×100 W |
||
|
|
||
|
Total harmonic distortion, 8 Ω, 100 W, 40 Hz~20 kHz: |
||
|
0.04% |
||
|
|
||
|
Intermodulation distortion 60 Hz, 7 kHz= 4:1 SMPTE, |
||
|
8Ω, 100 W: 0.02 % |
||
|
Input sensitivity, 47 kΩ, Phono (MM): 2.5 mV |
||
|
|
||
|
Input sensitivity, 47 kΩ, Line (CD, TAPE, AUX): 200 mV |
||
|
|
||
|
Signal to noise ratio, IHF “A” weighted, Phono (MM): |
||
|
70 dB |
||
|
|
||
|
Signal to noise ratio, IHF “A” weighted, Line (CD, TAPE, |
||
|
AUX): 95 dB |
||
|
|
||
|
Frequency response Phono (MM), RIAA, 30 Hz~20 kHz: |
||
|
8 dB +/- 3 dB |
||
|
|
||
|
Frequency response Line (CD, TAPE, AUX), |
||
|
20 Hz~100 kHz: 8 dB +/- 3 dB |
||
|
|
||
|
Output level TAPE/AUX OUT, 2.2 kΩ: 200 mV |
||
|
|
||
|
Bass/Treble control, 100 Hz/10 kHz: ±10 dB |
||
|
|
||
FM Tuner |
Tuning frequency range: 87.5~108 MHz |
||
|
|
||
|
Usable sensitivity, THD 3%, S/N 30 dB: 15 dBf |
||
|
|
||
|
50 dB quieting sensitivity, mono/stereo: 25.2 / 45.2 dBf |
||
|
|
||
|
Signal to noise ratio, 65 dBf, mono/stereo: 68/65 dB |
||
|
|
||
|
Total harmonic distortion, 65 dBf,1 kHz, mono/stereo: |
||
|
0.5 / 0.8% |
||
|
|
||
|
Frequency response, 20 Hz~14 kHz: 8 dB +/- 3 dB |
||
|
|
||
|
Stereo separation, 1 kHz: 40 dB |
||
|
|
||
|
Capture ratio: 4 dB |
||
|
|
||
|
IF rejection ratio: 80 dB |
||
|
|
||
AM |
Tuning frequency range: 520~1710 kHz |
||
Tuner |
|
|
|
Usable sensitivity: 800 µV/m |
|||
|
|||
|
|
||
|
Signal to noise ratio: 40 dB |
||
|
|
||
|
Selectivity: 25 dB |
||
|
|
||
General |
Power supply: 120 V ~ 60 Hz |
||
|
|
||
|
Power consumption: 2.5 A |
||
|
|
||
|
Dimensions (W×H×D, including protruding parts): |
||
|
17-3/8×5-1/2×14-3/4 inches (440×141×376 mm) |
||
|
|
||
|
Weight (Net): 19.8 lbs (9.0 kg) |
||
|
|
|
This equipment has been tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced technician for help.
FCC warning
Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment.
Canada ICES-003 statement
This Class B digital apparatus complies with Canadian ICES-003.
Copyright
© 2007 Insignia. Insignia and the Insignia logo are trademarks of Best Buy Enterprise Services, Inc. Other brands and product names are trademarks or registered trademarks of their respective holders. Specifications and features are subject to change without notice or obligation.
For service and support call (877) 467-4289.
14 |
www.insignia-products.com |
Insignia NS-R2000 Stereo Receiver
Warranty |
WARRANTY IS YOUR EXCLUSIVE REMEDY. INSIGNIA |
|
REPAIR REPLACEMENT AS PROVIDED UNDER THIS |
|
SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR |
1-year limited warranty |
CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY |
EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, |
|
Insignia Products (“Insignia”) warrants to you, the original |
INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF |
purchaser of this new NS-R2000 (“Product”), that the |
USE OF YOUR PRODUCT, LOST BUSINESS OR LOST |
Product shall be free of defects in the original manufacture of |
PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER |
the material or workmanship for a period of one (1) year from |
EXPRESS WARRANTIES WITH RESPECT TO THE |
the date of your purchase of the Product (“Warranty Period”). |
PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES |
This Product must be purchased from an authorized dealer |
FOR THE PRODUCT, INCLUDING, BUT NOT LIMITED TO, |
of Insignia brand products and packaged with this warranty |
ANY IMPLIED WARRANTIES OF AND CONDITIONS OF |
statement. This warranty does not cover refurbished |
MERCHANTABILITY AND FITNESS FOR A PARTICULAR |
Product. If you notify Insignia during the Warranty Period of a |
PURPOSE, ARE LIMITED IN DURATION TO THE |
defect covered by this warranty that requires service, terms |
WARRANTY PERIOD SET FORTH ABOVE AND NO |
of this warranty apply. |
WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL |
How long does the coverage last? |
APPLY AFTER THE WARRANTY PERIOD. SOME STATES, |
PROVINCES AND JURISDICTIONS DO NOT ALLOW |
|
The Warranty Period lasts for 1 year (365 days) from the date |
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY |
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO |
|
you purchased the Product. The purchase date is printed on |
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL |
the receipt you received with the Product. |
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, |
What does this warranty cover? |
WHICH VARY FROM STATE TO STATE OR PROVINCE TO |
PROVINCE. |
|
During the Warranty Period, if the original manufacture of the |
|
material or workmanship of the Product is determined to be |
|
defective by an authorized Insignia repair center or store |
|
personnel, Insignia will (at its sole option): (1) repair the |
|
Product with new or rebuilt parts; or (2) replace the Product |
|
at no charge with new or rebuilt comparable products or |
|
parts. Products and parts replaced under this warranty |
|
become the property of Insignia and are not returned to you. |
|
If service of Products or parts are required after the Warranty |
|
Period expires, you must pay all labor and parts charges. |
|
This warranty lasts as long as you own your Insignia Product |
|
during the Warranty Period. Warranty coverage terminates if |
|
you sell or otherwise transfer the Product. |
|
How to obtain warranty service? |
|
If you purchased the Product at a retail store location, take |
|
your original receipt and the Product to the store you |
|
purchased it from. Make sure that you place the Product in |
|
its original packaging or packaging that provides the same |
|
amount of protection as the original packaging. If you |
|
purchased the Product from an online web site, mail your |
|
original receipt and the Product to the address listed on the |
|
web site. Make sure that you put the Product in its original |
|
packaging or packaging that provides the same amount of |
|
protection as the original packaging. |
|
Where is the warranty valid? |
|
This warranty is valid only to the original purchaser of the |
|
product in the United States and Canada. |
|
What does the warranty not cover? |
|
This warranty does not cover:
•Customer instruction
•Installation
•Set up adjustments
•Cosmetic damage
•Damage due to acts of God, such as lightning strikes
•Accident
•Misuse
•Abuse
•Negligence
•Commercial use
•Modification of any part of the Product, including the antenna
This warranty also does not cover:
•Damage due to incorrect operation or maintenance
•Connection to an incorrect voltage supply
•Attempted repair by anyone other than a facility authorized by Insignia to service the Product
•Products sold as is or with all faults
•Consumables, such as fuses or batteries
•Products where the factory applied serial number has been altered or removed
www.insignia-products.com |
15 |
