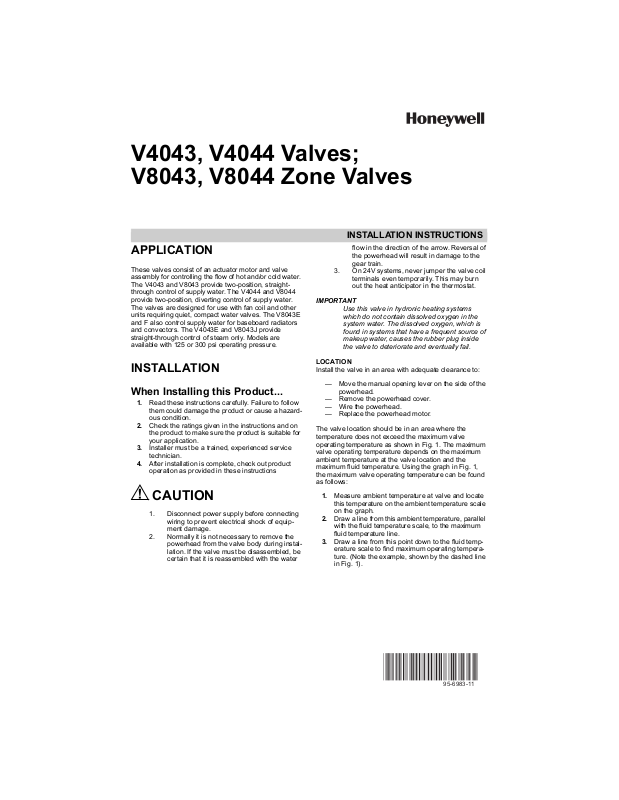

Honeywell V8044A Installation Manual

V4043, V4044 Valves;

V8043, V8044 Zone Valves

					INSTALLATION INSTRUCTIONS
	APPLICATION				the powerhead will result in damage to the
					flow in the direction of the arrow. Reversal of
	These valves consist of an actuator motor and valve				gear train.
				3.	On 24V systems, never jumper the valve coil
	assembly for controlling the flow of hot and/or cold water.				terminals even temporarily. This may burn
	The V4043 and V8043 provide two-position, straight-				out the heat anticipator in the thermostat.
	through control of supply water. The V4044 and V8044
	provide two-position, diverting control of supply water.		IMPORTANT
	The valves are designed for use with fan coil and other				Use this valve in hydronic heating systems
	units requiring quiet, compact water valves. The V8043E				which do not contain dissolved oxygen in the
	and F also control supply water for baseboard radiators				system water. The dissolved oxygen, which is
	and convectors. The V4043E and V8043J provide				found in systems that have a frequent source of
	straight-through control of steam only. Models are				makeup water, causes the rubber plug inside
	available with 125 or 300 psi operating pressure.				the valve to deteriorate and eventually fail.
	INSTALLATION		LOCATION
			Install the valve in an area with adequate clearance to:
	When Installing this Product...		— Move the manual opening lever on the side of the
				powerhead.
	1. Read these instructions carefully. Failure to follow		— Remove the powerhead cover.
			—	Wire the powerhead.
	them could damage the product or cause a hazard-
			— Replace the powerhead motor.
	ous condition.
	2. Check the ratings given in the instructions and on		The valve location should be in an area where the
	the product to make sure the product is suitable for
			temperature does not exceed the maximum valve
	your application.
			operating temperature as shown in Fig. 1. The maximum
	3. Installer must be a trained, experienced service
			valve operating temperature depends on the maximum
	technician.
			ambient temperature at the valve location and the
	4. After installation is complete, check out product
			maximum fluid temperature. Using the graph in Fig. 1,
	operation as provided in these instructions
			the maximum valve operating temperature can be found
	CAUTION		as follows:
			1. Measure ambient temperature at valve and locate
				this temperature on the ambient temperature scale
	1.	Disconnect power supply before connecting	2.	on the graph.
				Draw a line from this ambient temperature, parallel
		wiring to prevent electrical shock of equip-
				with the fluid temperature scale, to the maximum
		ment damage.
				fluid temperature line.
	2.	Normally it is not necessary to remove the	3.
				Draw a line from this point down to the fluid temp-
		powerhead from the valve body during instal-

	lation. If the valve must be disassembled, be	erature scale to find maximum operating tempera-
		ture. (Note the example, shown by the dashed line
	certain that it is reassembled with the water
		in Fig. 1).

95-6983-11

V4043, V4044 VALVES; V8043, V8044 ZONE VALVES

AMBIENT TEMPERATURE

210

(99)

200

(93)

190

(88)

180

(82)

170

(77)

160

(71)

150

(66)

140

(60)

130

(54)

120

(49)

110

(43)

100

(38)

90

(32)

80

(27)

MAXIMUM AMBIENT

TEMPERATURE LINE

EXAMPLE: 150°F (66°C) IS THE AMBIENT TEMPERATURE AT THE VALVE, 235F (113C) IS MAXIMUM FLUID TEMPERATURE.

MAXIMUM FLUID TEMPERATURE LINE

DEGREES F	70	80	90	100	110	120	130	140	150	160	170	180	190	200	210	220	230	240	250
DEGREES C	(21)	(27)	(32)	(38)	(43)	(49)	(54)	(60)	(66)	(71)	(77)	(82)	(88)	(93)	(99)	(104)	(110)	(116)	(121)
								FLUID TEMPERATURE											M8164

Fig. 1. Maximum temperature characteristics of valves.

MOUNTING

The valve can be mounted in any position on a vertical line. If the valve is mounted horizontally; the powerhead must be even with or above the center line of the piping. Make sure that enough room is provided above the powerhead to remove the cover for servicing.

HORIZONTAL

PIPING

VERTICAL

PIPING

M10162A

Fig. 2. Mounting positions.

Mount the valve directly in the tube or pipe. Make sure that the flow through the valve is in the direction indicated by the arrow stamped on the valve body.

On diverting valves, the three fittings or ports are labeled on the bottom of the valve body casting. See Fig. 3. Port AB is the inlet port and is open at all times. Port A is closed when the valve is de-energized; port B is open

when the valve is de-energized. Refer to the equipment manufacturer’s instructions to determine which port (A or B) should be connected to the coil bypass.

Fig. 3. Inlet and outlet ports on straight-through and diverting valves.

FLARE FITTING MODELS

Use new, properly reamed pipe, free from chips. The valve body is threaded for standard 5/8 in. OD copper, 45 degree SAE flare fitting nuts. These nuts are not furnished with the valve and must be obtained separately.

SWEAT COPPER MODELS

1.Use new, properly reamed pipe, free from dents or corrosion.

2.Place the valve onto the pipe. Set the manual opening lever to MAN. OPEN position before applying heat. This protects the plug inside the valve by removing it from the seat.

95-6983—11

2

3.IMPORTANT: Take care not to burn the plastic portion of the composite adapter plate when soldering.

4.Sweat the joints, keeping the outer surface free from solder. DO NOT use silver solder because of the high melting temperature required.

To Install Replacement Powerhead

SYSTEMS WITH OLD STYLE VALVE BODIES (SERIES 1-5)

To install a replacement powerhead in a system with an old style body (series 1-5), the valve body must be converted to accept the new powerhead using Part No. 40003918 Conversion Kit. The kit includes a metal plate with a driveshaft and rubber plug, O-ring, and four screws.

IMPORTANT

Converting the valve body for use with the new powerhead does not require removal of the valve body from the pipeline. However, it is necessary to drain the water from the system before beginning the conversion.

A

V4043, V4044 VALVES; V8043, V8044 ZONE VALVES

1.Disconnect the power supply before connecting the wiring to prevent electrical shock or equipment damage.

2.Disconnect the leadwires to the powerhead at the terminal block or conduit connection. Remove the conduit or cable connector if fitted. Label each wire for rewiring later.

3.Drain the water from the system.

4.Remove the old powerhead from the valve body (Fig. 4)

a.Place the manual opening lever (normally closed models only) on the old powerhead in the MAN. OPEN position (see Fig. 4A).

b.Remove the cover (Fig. 4B).

c.With the cover off, remove the four screws securing the powerhead to the valve body.

d.Lift the powerhead off the valve body (Fig. 4C).

e.Remove the O-ring from the top of the valve body.

C

MAN

OPEN

AUTO

MANUAL

OPENING

LEVER

A

B

A

B

COVER

RETAINING

SCREW

			1051			6
	V8043F			CY
	24V	50/60
				60	CY
			@
	.32 AMP
	MADE	IN CANADA

		1051			6
V8043F			CY
24V	50/60		60	CY
		@
.32 AMP
MADE	IN CANADA

A

B

M10174

Fig. 4. Remove old powerhead from systems using old style valve bodies

5.Install 40003918 Conversion Kit (Fig. 5)

a.Insert the new O-ring in the valve body.

b.Place metal plate with the rubber plug on top of the valve body. Make sure the guide pins on the underside of the metal plate fit into the recesses on the valve body.

c.Secure the metal plate to the valve body with the four screws (two sets) provided. One set of screws has heads with recessed threads to

insert screws for mounting the new powerhead; insert this set into the larger screw openings. The other set has domed heads; insert this set into the smaller screw openings. Each set of screws must be inserted in opposite corners of the metal plate so the screws sit flat on the plate. Make sure the guide pins on the plate fit into the recesses on the valve body.

3	95-6983—11

V4043, V4044 VALVES; V8043, V8044 ZONE VALVES

	HEX-NUT SCREW
	WITH DOMED HEADS (2)
	HEX-NUT SCREWS
	WITH RECESSED
	THREADS AND
	SHOULDER SHANK (2)
	BRASS
	ADAPTER
	PLATE
	O RING
	LOCATING
	RECESSES (3)
	A
	B
VALVE	M32317
BODY

Fig. 5a. Install 40003918 conversion kit with brass adapter plate.

HEX-NUT SCREW

WITH DOMED HEADS (2)

HEX-NUT SCREWS

WITH RECESSED

THREADS AND

SHOULDER SHANK (2)

STEEL

PLATE

PLASTIC

PLATE

	O RING
	LOCATING
	RECESSES (3)
	A
	B
VALVE
BODY	M32316

Fig. 5b. Install conversion kit with composite (steel & plastic) adapter plate.

6. Install new powerhead (see Fig. 6)

a. Place the manual opening lever (normally closed models only) on the new powerhead in the MAN. OPEN position.

b. Fit the powerhead onto the valve body, ensuring that the shaft seats correctly. The powerhead should be aligned so that the manual opening lever or slot for lever is at the port A end of the valve body.

c.Secure the powerhead to the valve body with the two screws provided.

d.If fitted, reconnect the conduit or cable. Reconnect the leadwires at the powerhead.

e.Replace the powerhead cover.

7.Turn on power.

SECURING

SCREW (2)

				1036			6
	V8043F				CY
	24V		50/60
					60	CY
				@
	.32	AMP
				CANADA
	MADE		IN

REMOVABLE

HEAD

SHAFT

A

B

REMOVABLE HEAD

VALVE BODY ASSEMBLY

M10173

Fig. 6. Install new powerhead.

SYSTEMS WITH NEW STYLE VALVE BODIES (SERIES 6)

IMPORTANT

On a new style valve body that has been converted to accept the new powerhead, it is not necessary to drain the system if the valve body remains in the pipeline.

1.Disconnect the power supply before connecting the wiring to prevent electrical shock or equipment damage.

2.Disconnect the leadwires to the powerhead at the terminal block or conduit connection. Remove the conduit or cable connector, if fitted. Label each wire for rewiring later.

3.Remove the old powerhead (see Fig. 7):

a.Place the manual opening lever (normally closed models only) on the old powerhead in the MAN. OPEN position (Fig. 7A).

b.Remove the screw securing the cover to the powerhead (Fig. 7B).

c.Lift off the cover from the powerhead.

d.Remove the two screws securing the powerhead to the valve body (Fig. 6).

e.Lift the powerhead off the valve body.

95-6983—11

4
