SAFETY INFORMATION
Before the installation and use, read this manual carefully:
•For your personal safety and the safety of your property
•For the respect of the environment
•For the correct operation of the appliance.
Always keep these instructions with the appliance also if you move or sell it.
The manufacturer is not responsible if incorrect installation or use results in damage.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in safe way and understand the hazards involved. Children shall not play with the appliance.
•Keep all packaging away from children. There is the risk of suffocation or physical injury.
•Keep children and animals away from the appliance when the door is open or the appliance is in the operation, because it becomes hot. There is the risk of injury or other permanent disability.
•If the appliance has Child Lock or Key Lock (Control Lock) function, use it. It prevents children and animals from accidental operation of the appliance.
General safety
•Do not change the specifications of this appliance. There is the risk of injury and damage to the appliance.
•Do not let the appliance stay unattended during operation.
•Switch off the appliance after each use.
Installation
•Only an approved electrician can install and connect the appliance. Contact an approved service centre. This is to prevent the risks of structural damage or physical injury.
•Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary, contact the supplier.
•Remove all packaging, stickers and layers from the appliance before first use. Do not remove the rating plate. It can invalidate the guarantee.
•Fully obey the laws, ordinances, directives and standards in force in the country where you use the appliance (safety regulations, recycling regulations, electrical or gas safety rules etc.).
•Make sure that the appliance is disconnected from the power supply during the installation.
•Be careful when you move the appliance. The appliance is heavy. Always use safety gloves. Do not pull the appliance by the handle.
•The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all
poles. The isolation device must have a contact opening width of minimum 3 mm.
•You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
•The shock protection parts must be fixed in such a way that they cannot be undone without tools.
•Before the installation, make sure that the kitchen cabinet has the recess dimensions applicable.
•Make sure that the appliance is installed below and adjacent safe structures.
•Keep the minimum distances to the other appliances and units.
•Install the appliance with its back and one side close to the higher appliance. The other side must be close to appliance with the same height.
•The appliance cannot be positioned on a base.
•Built in ovens and built in cooking surfaces are attached with special connection system. To prevent damage to the appliance, only use an appliance with the appliances from the same manufacturer.
Electrical connection
•The appliance must be earthed.
•Make sure that the electrical data on the rating plate agree with your domestic power supply.
•Information on the voltage is on the rating plate.
•Always use a correctly installed shockproof socket.
•When you connect electrical appliances to mains sockets, do not let cables touch or come near the hot appliance door.
•Do not use multi-way plugs, connectors and extension cables. There is the risk of fire.
•Do not replace or change the mains cable. Contact the service centre.
•Make sure not to squash or cause damage to the mains plug (if applicable) and cable behind the appliance.
•Make sure that the mains connection is accessible after the installation.
electrolux 3
•Do not pull the mains cable to disconnect the appliance. Always pull the mains plug
– if applicable.
Use
•The appliance is only for domestic use. Do not use the appliance for commercial and industrial use.
•Only use the appliance for domestic cooking tasks. This is to prevent physical injury to persons or prevent damage to property.
•Do not use the appliance as a work surface or storage surface.
•Do not put flammable products or items that are wet with flammable products, and/or fusible objects (made of plastic or aluminium) in, near or on the appliance. There is the risk of explosion or fire.
•The interior of the appliance becomes hot during use. There is the risk of burns. Do not touch the heating elements in the appliance. Use gloves when you insert or remove the accessories or pots.
•Be careful when you remove or install the accessories to prevent damage to the oven enamel.
•Always stay away from the appliance when you open the door while the appliance is in operation. Hot steam can release. There is the risk of skin burns.
•Discoloration of the enamel has no effect on the performance of the appliance so it is not a defect in the sense of the warranty law.
•To prevent damage or discoloration to the enamel:
–do not put any objects directly on the appliance floor and do not cover it with aluminium foil;
–do not put hot water directly into the appliance;
–do not keep moist dishes and food in the appliance after you finish the cooking.
•Do not use this appliance if it is in contact with water. Do not operate the appliance with wet hands.
•Do not apply pressure on the open door.
•Always close the appliance door when you cook, even while grilling.
4 electrolux
Care and cleaning
•Before maintenance, switch off the appliance and disconnect the appliance from the power supply.
•Before maintenance, make sure that the appliance is cold. There is the risk of burns. There is the risk that the glass panels can break.
•Keep the appliance clean at all times. A build-up of fats or other foodstuff can result in a fire.
•Regular cleaning prevents the surface material from deteriorating
•Use a deep baking tray for very moist cakes to prevent that fruit juices cause stains that can be permanent.
•For your personal safety and the safety of your property, only clean the appliance with water and a soap. Do not use flammable products or products that can cause corrosion.
•Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, abrasive sponges and stain removers
•If you use an oven spray, follow the instructions from the manufacturer.
•Do not clean the glass door with abrasive cleaning agents or metal scraper. Heat resistant surface of the inner glass can break and shatter.
•When the door glass panels are damaged they become weak and can break. You must replace them. Contact the service centre.
•Be careful when you remove the door from the appliance. The door is heavy!
•Do not clean catalytic enamel (if applicable).
Pyrolytic cleaning
•Do not leave the appliance unattended during Pyrolytic cleaning.
•Do not try to open the door and do not cut the power supply during Pyrolytic cleaning.
•Keep children away during pyrolytic cleaning. The appliance becomes very hot. There is the risk of burns.
•During pyrolytic cleaning, stubborn dirt can cause discoloration to the enamel. Discoloration to the enamel has no effect on the performance of the appliance
Risk of fire
•Open the door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air. There is the risk of fire.
•Do not let sparks or open flames come near the appliance when you open the door.
•Do not put flammable products or items that are wet with flammable products, and/or fusible objects (made of plastic or aluminium) in, near or on the appliance.
Oven lamp
•Bulb lamps used in this appliance are special lamps selected for household appliances use only. They cannot be used for the full or partial illumination of a household room.
•If it becomes necessary to replace the lamp use one of the same power and specifically designed for household appliances only.
•Disconnect the appliance from the power supply before the replacement of the oven lamp. There is the risk of electrical shock.
Service centre
•Only an approved engineer can repair or work on the appliance. Contact an approved service centre.
•Use only original spare parts.
Disposal of the appliance
•To prevent the risk of physical injury or damage
–Disconnect the appliance from the power supply.
–Cut off the mains cable and discard it.
–Discard the door catch. This prevents children or small animals from being closed inside of the appliance. There is the risk of suffocation.
electrolux 5
PRODUCT DESCRIPTION

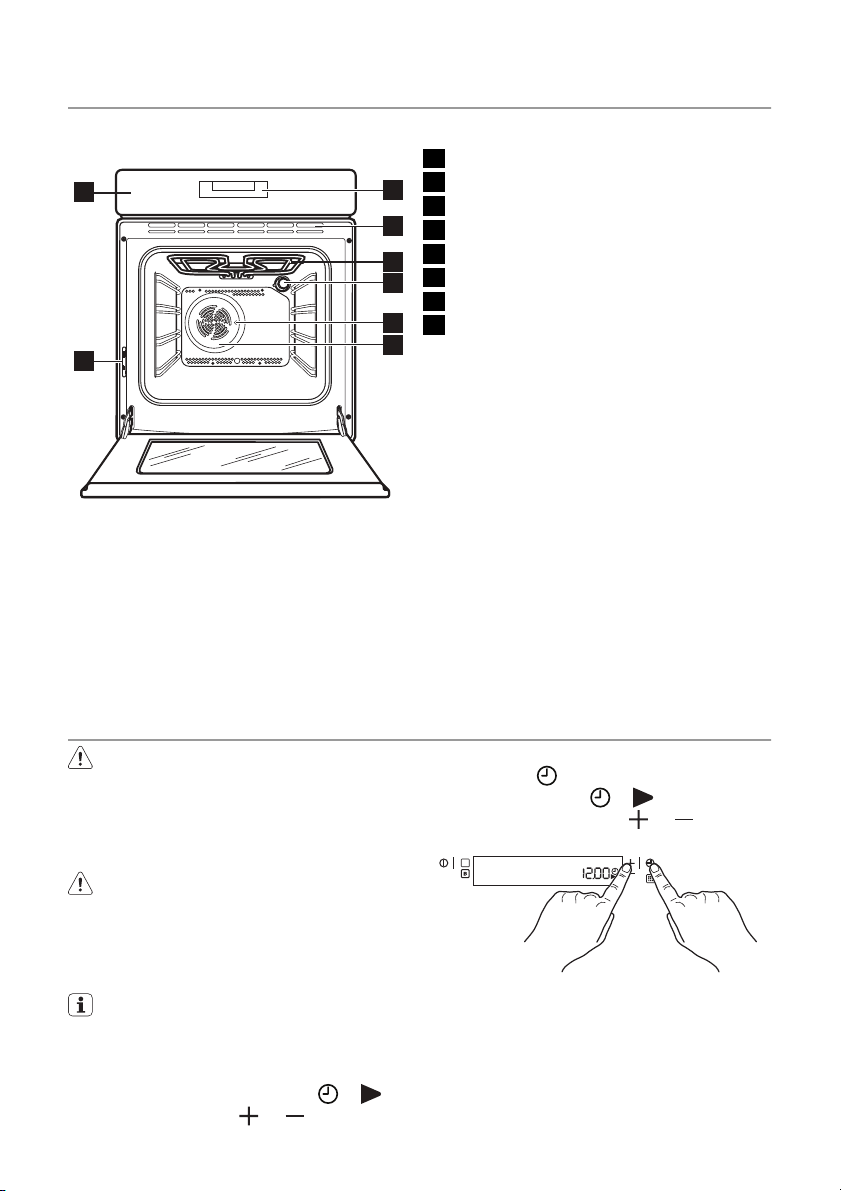

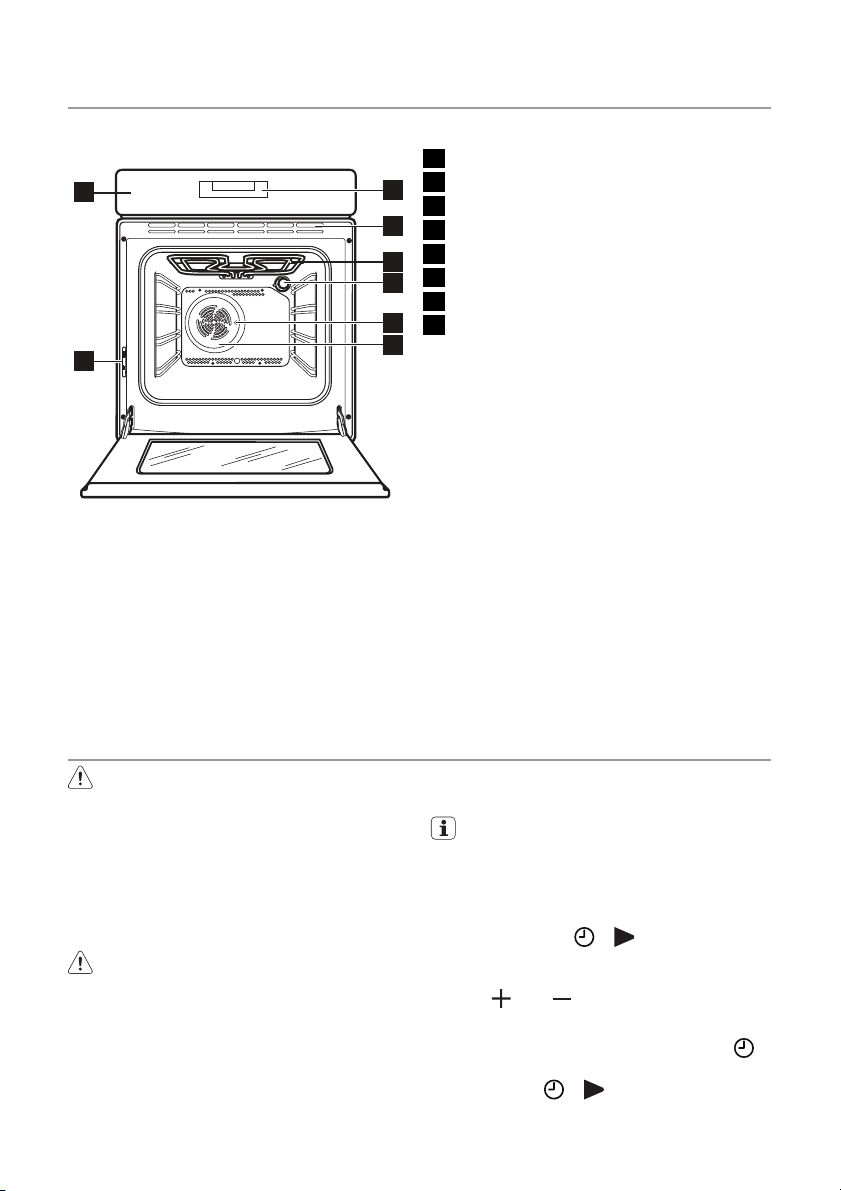

General overview |
|
|
|
|
|
|
1 |
Control panel |
|
1 |
2 |
2 |
Electronic programmer |
|
3 |
Ventilation openings |
|||
|
|
|||
|
3 |
4 |
Grill |
|
|
4 |
5 |
Oven lamp |
|
|
6 |
Turnspit hole |
||
|
5 |
|||
|
7 |
Fan |
||
|
|
|||
|
6 |
8 |
Rating plate |
|
8 |
7 |
|
|
|
|
|
|
Oven accessories
•Wire shelf
For cookware, cake tins, roasts.
•Flat baking tray
For cakes and biscuits.
•Deep roasting pan
To bake and roast or as pan to collect fat.
•Turn spit
For roasting larger joints of meat and poultry.
•Replaceable telescopic runners
To put shelves or trays on it.
BEFORE FIRST USE
Warning! Refer to "Safety information" chapter.
Initial Cleaning
•Remove all parts from the appliance.
•Clean the appliance before first use.
Caution! Do not use abrasive cleaning agents! This can damage the surface. Refer to chapter "Care and Cleaning".
Setting and changing the time
Set the time first to operate the oven.
When you connect the oven to the electrical supply or after a power cut, the symbol for
the time |
and |
automatically flashes. |
|||
Set the correct time with |
or |
|
. |
||
|
Changing the time
1.Touch again and again until the symbol and flashes.
2. Set the correct time with |
or |
|
. |
|
1
2
The clock shows the time and the flashing stops after approximately 5 seconds .
Important! It is possible to set the time of day only when the oven is switched off.
6 electrolux
Preheating
1.Set function and maximum temperature.
2.Run an empty oven for 45 minutes.
3.Set function and maximum temperature.
4. Run an empty oven for 15 minutes. This is to burn off any residue from the cavity surface. Accessories can become more hot than in normal use. During this period an odour and smoke can be emitted. This is normal. Make sure the airflow is sufficient.
DAILY USE
Warning! Refer to "Safety information" chapter.

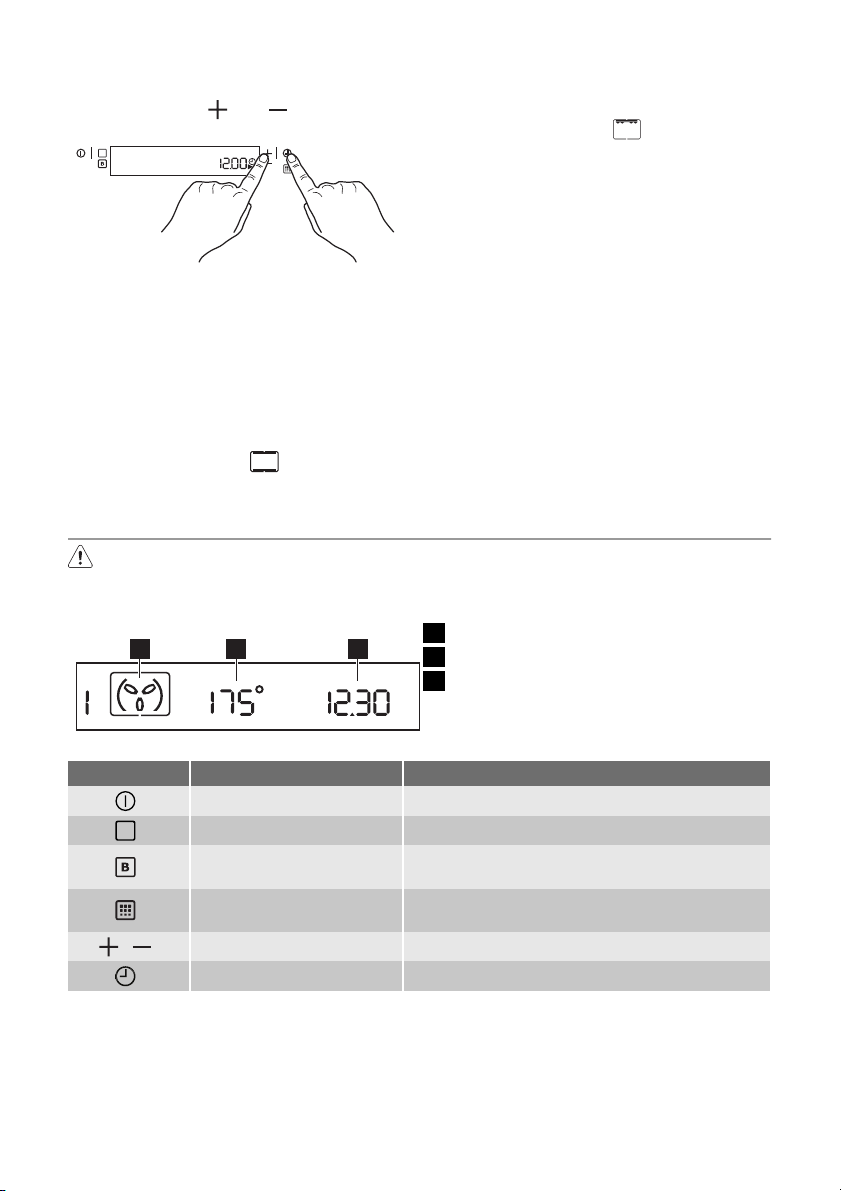

The display |
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Cooking function |
|
|
|
|
|
|
|
|
|
|
|
1 |
||
|
|
1 |
|
2 |
|
3 |
|
|
|
|
|||
|
|
|
|
|
|
2 |
Temperature |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Time |
|
|
|
|
|
|
|
|
|
|
|
3 |
||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Button |
|
Function |
|
Description |
||
|
|
|
|
ON/OFF |
|
To switch the appliance on or off. |
|
|
|
|
|
|
|
|
|
|
|
SELECTOR |
|
To set the oven function. |
|
|
|
|
|
|
|
|
|
|
|
RAPID HEAT UP |
|
To switch the rapid heat-up function on. |
|
|
|
|
|
|
|
|
|
|
|
PYROLYTIC CLEANING |
|
To start the Pyrolytic cleaning. |
|
|
|
|
|
|
|
/ |
|
|
|
PLUS, MINUS |
|
To adjust the values (temperature and time). |
|
|
|
|
|||
|
|
|
|
CLOCK |
|
To set the clock function. |
|
|
|
|
|
|
|
Touch controls
Touch controls control all the oven functions. Use the touch controls to set combination of cooking function, cooking temperature and automatic timing .
Make sure you touch just one control at a time.
To set a cooking function touch and hold.
Setting the oven function
2 1
1.Touch again and again until the symbol for the necessary oven function flashes.
The display shows an automatic temperature. If you do not change the temperature in approximately 5 seconds, the appliance starts to operate.
2.To change the temperature, touch or button.
If you start an oven function, the symbol of the temperature flashes.
The symbol shows that the temperature in the appliance increases. When the appliance is at the set temperature, an acoustic signal sounds and the symbol of the temperature stops to flash.
If there is a power cut, the programmer keeps all the settings for approximately 3 minutes. After more than 3 minutes

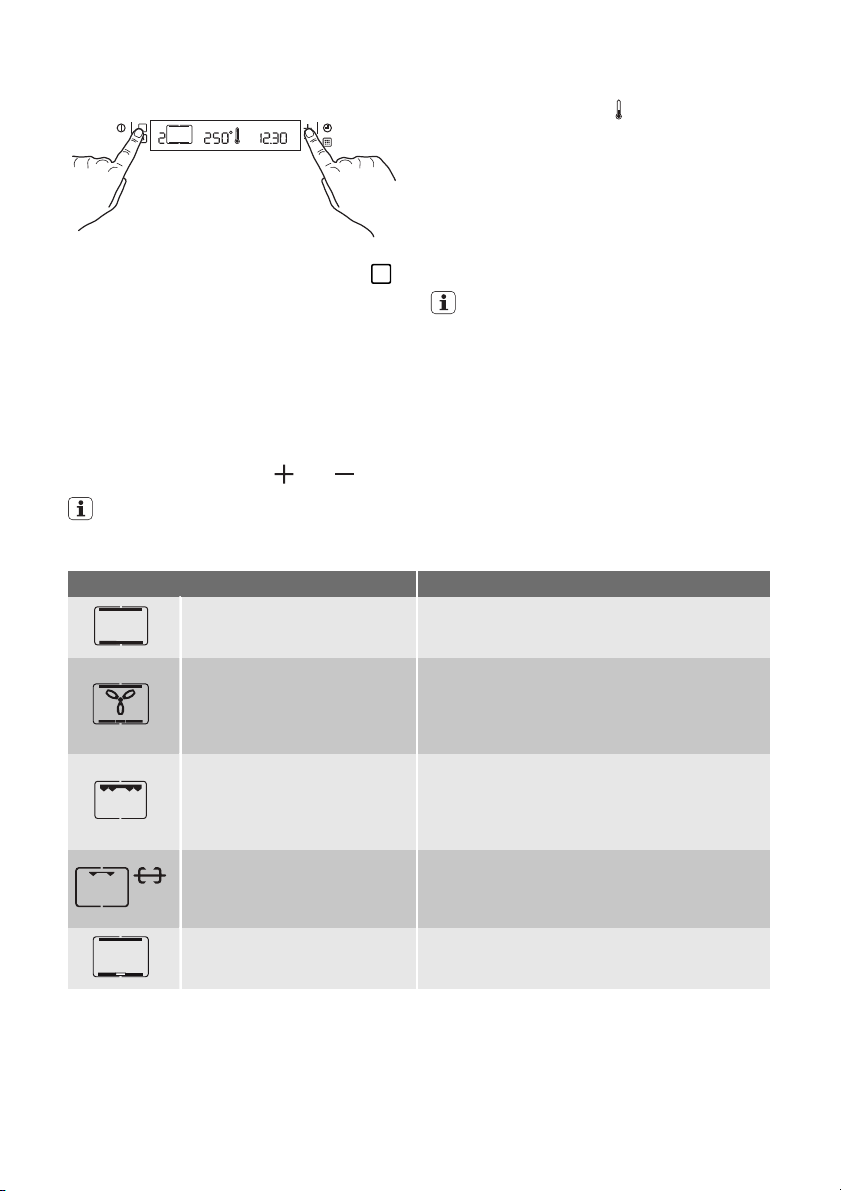

Oven functions
Oven Function
Conventional cooking
Fan forced cooking
Full Grill
Turnspit
Meat cooking
Thermal grilling
Keep warm
Defrosting
Pyrolytic cleaning
electrolux 7
without power supply, you have to do the settings (also the time of day) again.
Application
Heats both from the top and bottom element. To bake and roast on one oven level.
To roast or roast and bake the food that requires the same cooking temperature, using more than one shelf, without flavour transference.
The full grill element is on. To grill flat food items in large quantities. To make toasts.
For grilled meat or for kebabs and smaller pieces of meat. Preset temperature: 200 °C — 250 °C.
To roast the meat. The heat comes from the upper and lower heating elements.
The grill element and the oven fan supply hot air around the food. To cook large pieces of meat.
Important! Maximum temperature for this function: 200 °C.
To keep the food warm.
To defrost frozen food.
Suitable for defrosting delicate food, e.g. cream filled gateaux, iced cakes, pastries, bread and other food made of yeast.
To remove stubborn dirt.
Residual Heat function
With Duration function, the oven automatically switches off some minutes before the time period is completed. The oven uses the residual heat to complete the cooking without energy consumption.
Important! Residual heat function is applicable only if the Duration is more than 15 minutes.

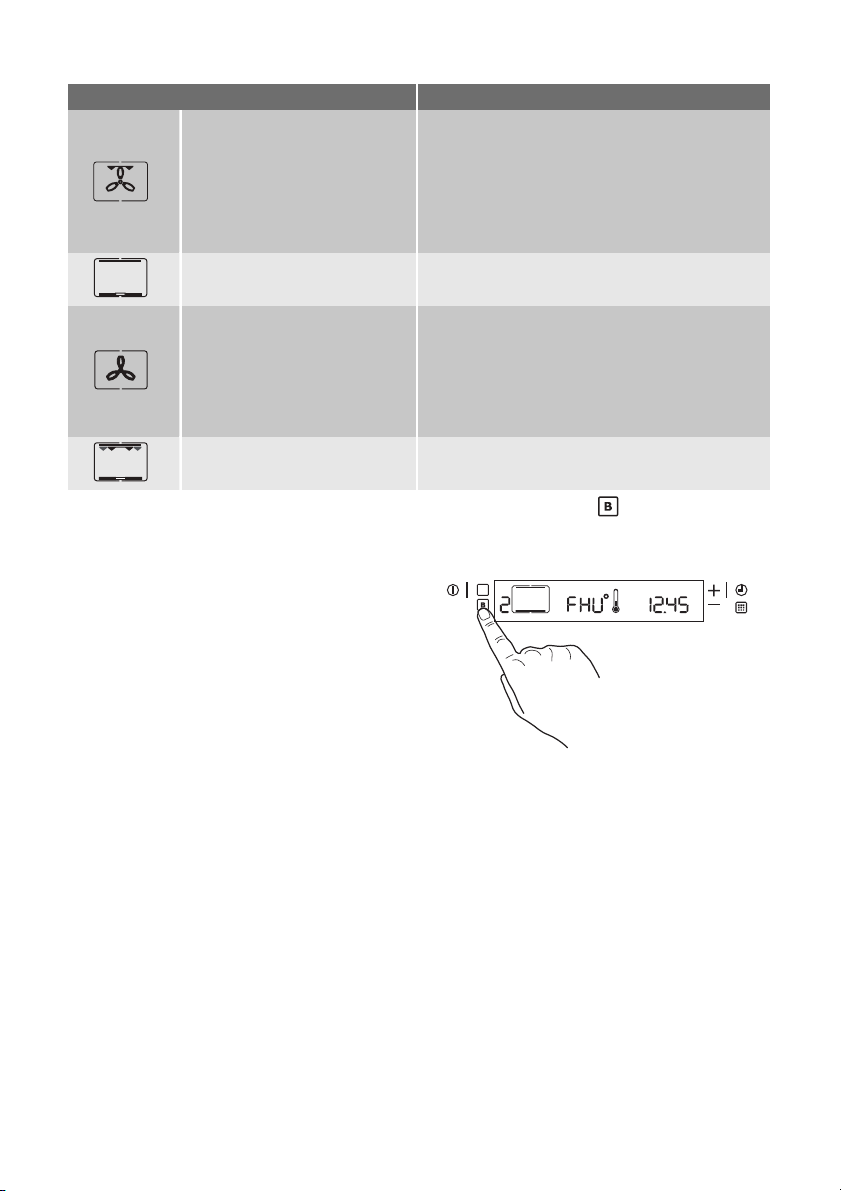

Rapid heat-up function
With Rapid heat-up function you decrease the pre-heating time. You can use it with each cooking function.
Important! Do not put the food into the oven, until Rapid heat up is completed.
1.Set an oven function.
If necessary, change the recommended temperature.
2.Press button. The display shows "FHU" and Rapid heat-up function operates.
8 electrolux
3.When Rapid heat up is completed, an acoustic signal sounds and "FHU" goes out.
At this time the appliance continues to heat in the set oven function and oven temperature.
4. Put the food in the oven.

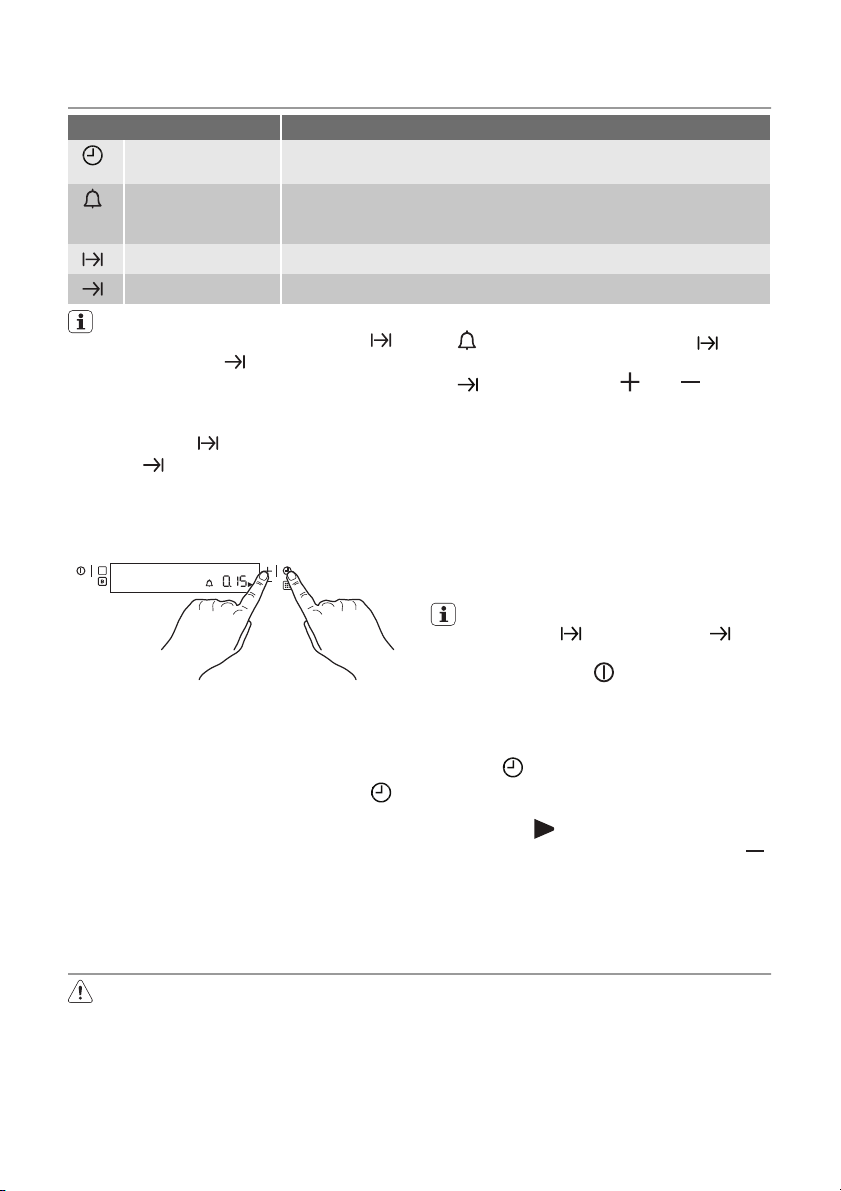

CLOCK FUNCTIONS
Clock function |
Application |
||
|
|
Time of day |
Shows the time. To set, change or check the time. |
|
|
|
|
|
|
Minute minder |
To set a countdown time. |
|
|
|
A signal sounds, after the time period is completed. |
|
|
|
This function has no effect on the operation of the oven. |
|
|
Duration |
To set how long the oven has to be in operation. |
|
|
|
|
|
|
End |
To set the switch-off time for an oven function. |
|
|
|
|
|
Duration |
and End |
can be used at |
3. |
To set the time for Minute minder |
, |
|
|||||||||||
|
the same time, if the oven is to be |
|
Duration |
|
or End |
, touch |
|
or |
|
|
||||||||
|
|
|
|
|||||||||||||||
|
switched on and off automatically later. |
|
button. |
|
|
|
|
|
|
|
||||||||
|
In this case first set Duration |
, then |
|
The related clock function symbol |
|
|
|
|||||||||||
|
End |
. |
|
|
|
|
|
|
|
comes on. |
|
|
|
|
|
|||
Setting the clock functions |
|
|
When the time period is completed, the |
|||||||||||||||
|
|
symbol for the clock function flashes |
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
1 |
|
|
and an acoustic signal sounds for 2 mi- |
|||||||
|
|
|
|
|
|
|
|
|
|
nutes. Touch any sensor field to stop |
||||||||
|
|
|
|
|
|
|
|
|
|
the acoustic signal. |
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
2 |
|
|
|
With the functions Duration |
and End |
|||||||||
|
|
|
|
|
|
4. |
the appliance stops automatically. |
|||||||||||
|
|
|
|
|
|
|
|
|
|
Touch |
to deactivate the appliance. |
|||||||
|
|
|
|
|
|
|
|
|
|
Cancelling the clock functions |
|
|
|
|
||||
1. Set an oven function and a temperature |
1. |
Touch |
again and again until the sym- |
|||||||||||||||
|
(not necessary for the Minute Minder). |
|
bol for the necessary clock function and |
|||||||||||||||
|
Refer to "Setting the oven function". |
|
flashes. |
|
|
|
|
|
||||||||||
2. Touch |
|
again and again until the sym- |
2. |
Touch " |
|
" again and again until the |
||||||||||||
|
|
|||||||||||||||||
|
bol for the necessary clock function |
|
time is "00:00". |
|
|
|
|
|
||||||||||
|
flashes. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1
2
electrolux 9

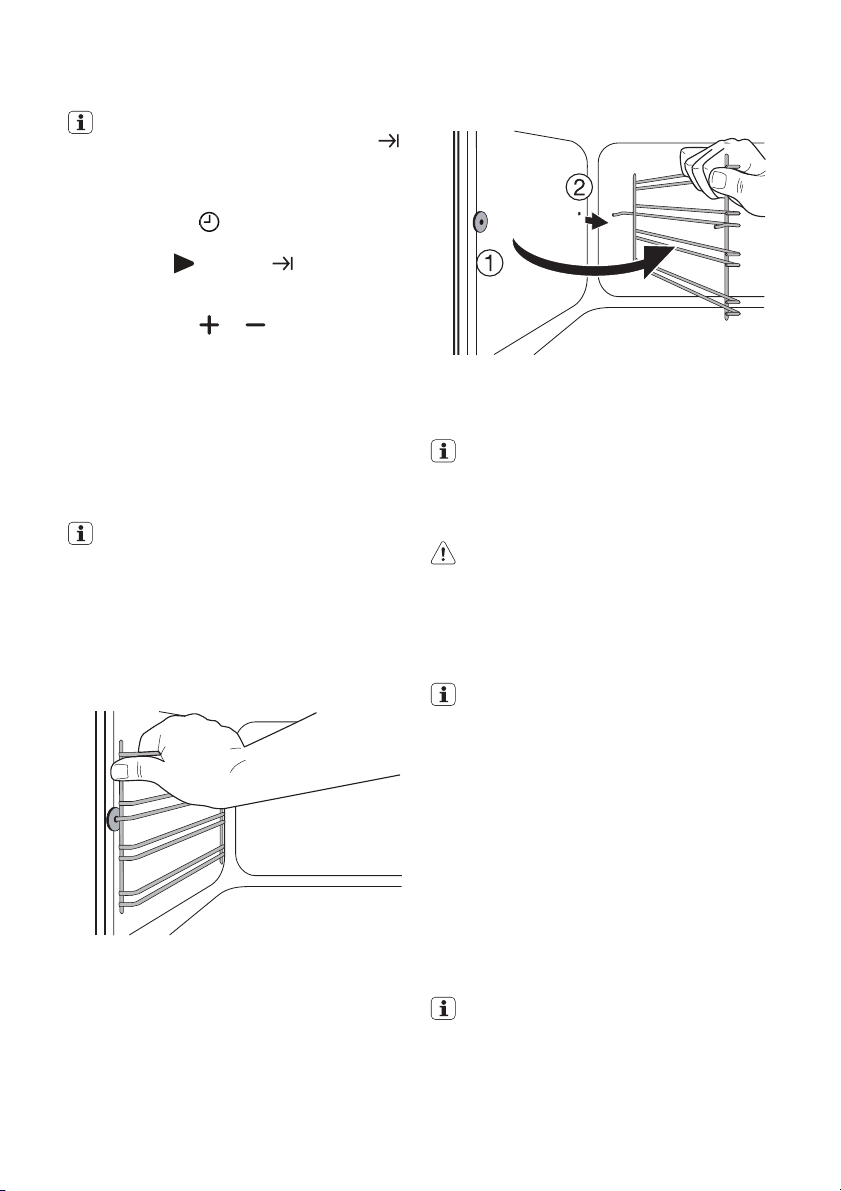

2.Put the oven shelf on the telescopic runners and carefully push them in the appliance.
Make sure you push back the telescopic runners fully in the appliance before you close the oven door.
°C

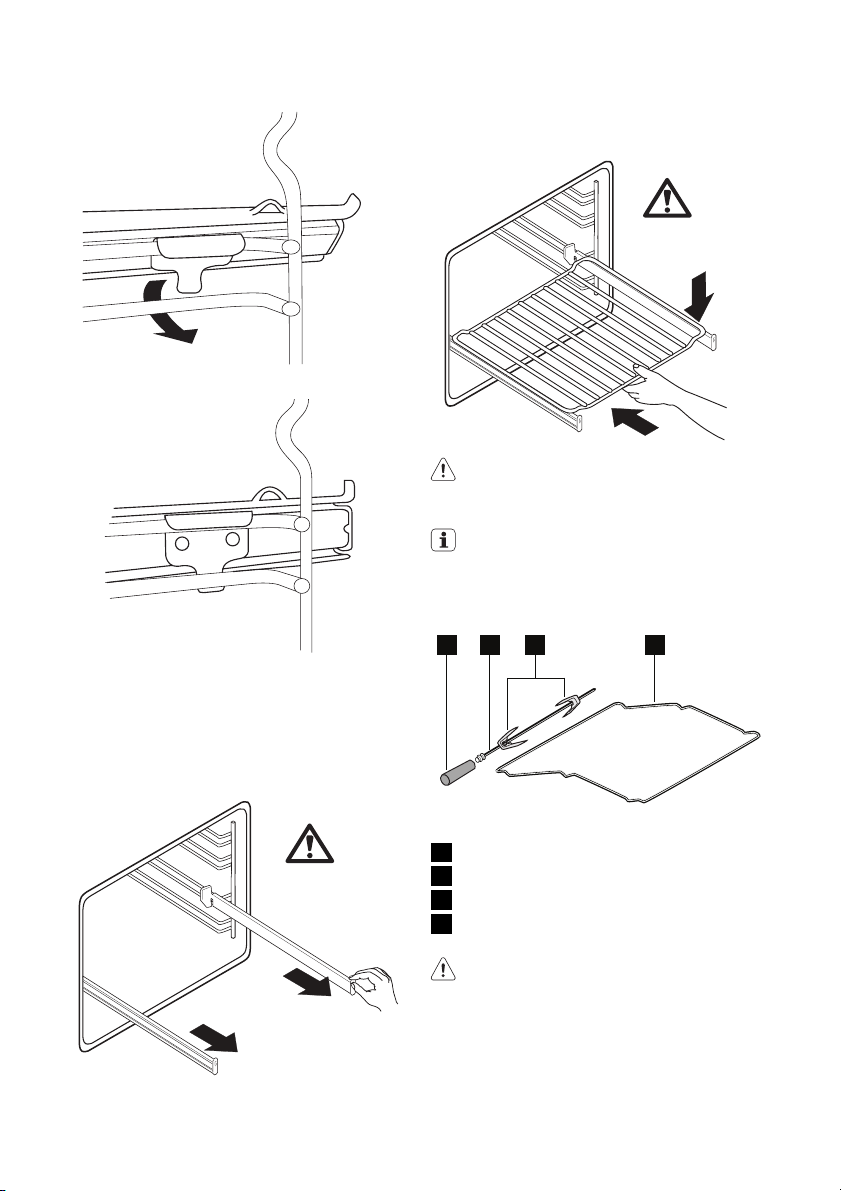

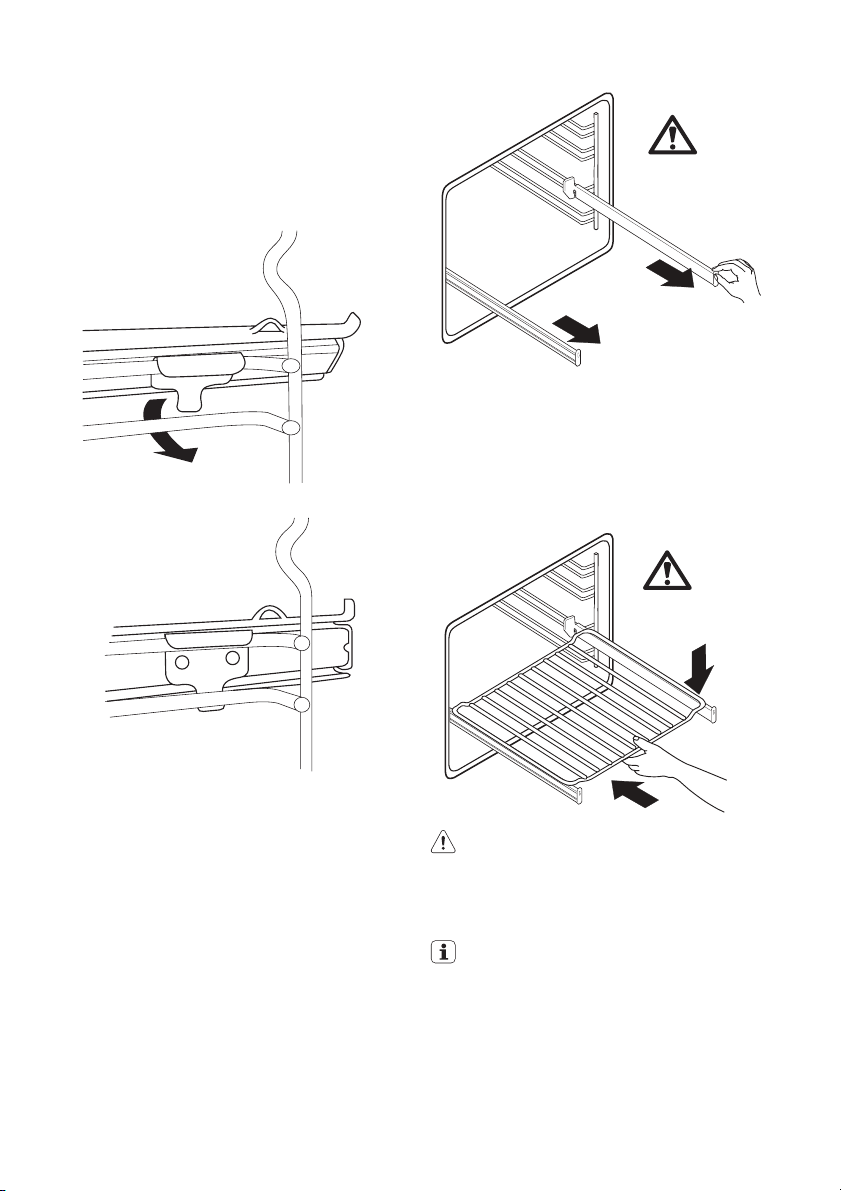

Using telescopic runners
With telescopic runners you can put and remove the shelves more easily.
1.Pull out the right and left hand telescopic runners.
Caution! Do not clean the telescopic runners in the dishwasher. Do not lubricate the telescopic runners.
It is possible to buy the telescopic runners separately.
Turnspit
1 |
|
2 |
|
|
3 |
|
4 |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
°C
1Handle
2Spit
3Forks
4 Turnspit frame
Warning! The forks and the spit of the turnspit are sharp (if supplied). Be careful when you operate it.
1.Install the deep roasting pan in the first shelf position from the bottom.
10 electrolux
2.Install the turnspit frame on the second shelf position from the bottom.
3.Install the first fork in the spit.
4.Put the food to be grilled.
5.Install the second fork.
Use the screws to tighten the forks.

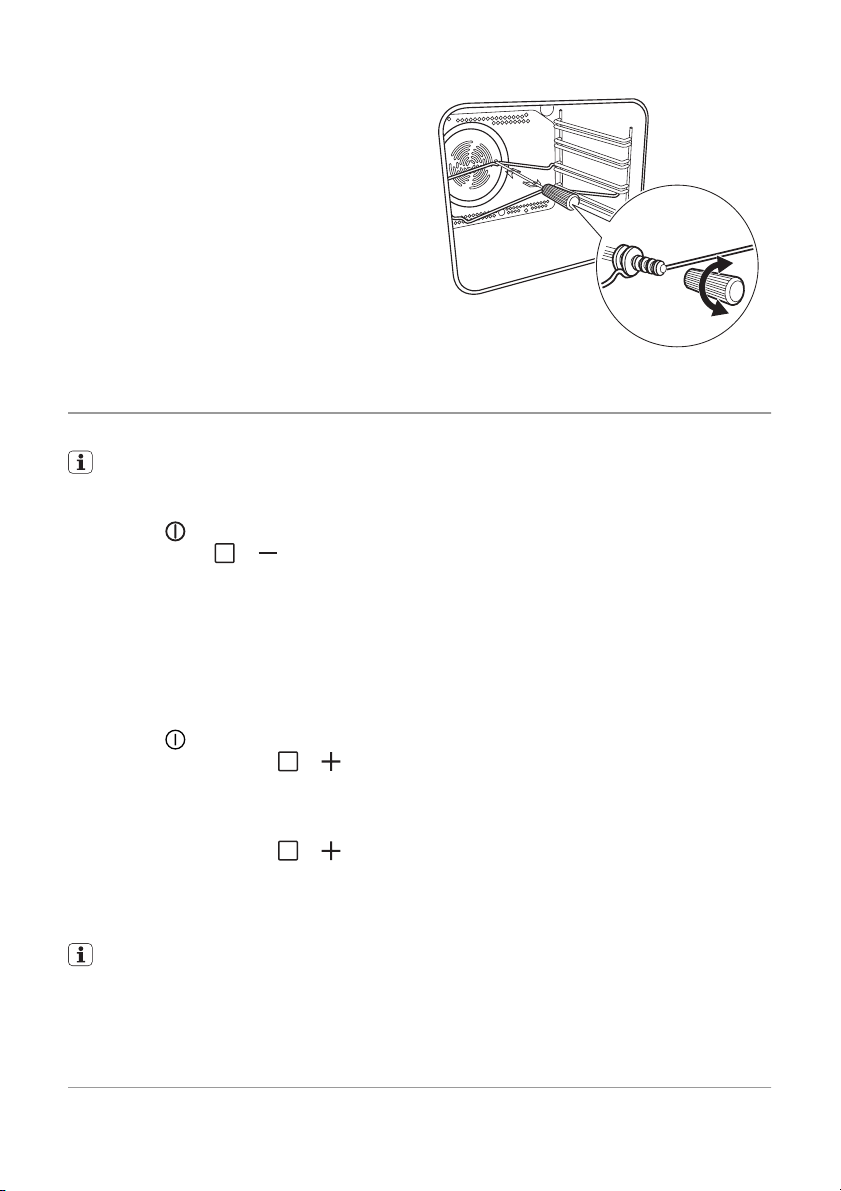

6.Install the point of the spit in the turnspit hole (refer to "Product description").
7.Install the front part of the spit on the spit frame.
8.Remove the handle.
9.Set the oven function and a temperature (refer to "Cooking tables").
ADDITIONAL FUNCTIONS
Child lock
When the Child Lock is set, you cannot operate the appliance.
Activating the Child Lock
1. |
Press |
to deactivate the appliance. |
||
2. |
Press |
and |
|
at the same time, until |
|
||||
|
the display shows “SAFE”. The Child |
|||
|
Lock is on. |
|
|
Deactivating the Child Lock
To deactivate the Child Lock, do the same steps again.
Control Beep |
|
|
||
Deactivating the control beep |
|
|||
1. |
Press |
to deactivate the appliance. |
||
2. |
Press and hold the |
and |
buttons |
at the same time, until a sound operates (approximately 2 seconds).
The control beep does not operate.
Activating the control beep
1. Press and hold the and buttons at the same time, until a sound operates (approximately 2 seconds).
2. The control beep operates again.
Automatic switch-off
The appliance deactivates automatically after some time:
•If you do not deactivate the appliance
•If you do not change the oven temperature.
The oven deactivates when the oven temperature is:
30 - 115 °C |
after |
12.0 hours |
120 - 195 °C |
after |
8.5 hours |
200 - 245 °C |
after |
5.5 hours |
250 - max °C |
after |
3.0 hours |
After an automatic switch-off, deactivate the oven fully. Then you can activate it again.
Error code
If some parameters are not correct, the control unit stops the functions which operate and the display shows the related error code. Refer to "What to do if" chapter.
Cooling fan
When the appliance operates, the cooling fan switches on automatically to keep the surfaces of the appliance cool. If you switch off the appliance, the cooling fan continues to operate until the appliance cools down.
Safety thermostat
To prevent dangerous overheating (due to incorrect use of the appliance or defective components), the oven has a safety thermostat, which interrupts the power supply. The oven switches back on again automatically, when the temperature drops.
electrolux 11
HELPFUL HINTS AND TIPS
•The appliance has four shelf levels. Count the shelf levels from the bottom of the appliance floor.
•The appliance has a special system which circulates the air and constantly recycles the steam. With this system you can to cook in a steamy environment and keep the food soft inside and crusty outside. It decreases the cooking time and energy consumption to a minimum.
•Moisture can condense in the appliance or on the glass doors. This is normal. Always stand back form the appliance when you open the appliance door while cooking. To decrease the condensation, run the appliance for 10 minutes before cooking.
•Wipe away moisture after every use of the appliance.
•Do not put the objects directly on the appliance floor and do not cover the components with aluminium foil when you cook. This can change the baking results and damage the enamel coating.
Baking cakes
•The best temperature for baking cakes is between 150°C and 200°C.
•Preheat the oven for approximately 10 minutes before baking.
•Do not open the oven door before 3/4 of the set cooking time is up.
•If you use two baking trays at the same time, keep one level empty between them.
Cooking meat and fish
•Do not cook meat with weight below 1 kg. Cooking too small quantities makes the meat too dry.
•To keep the red meat well cooked outside and juicy inside set the temperature between 200°C-250°C.
•For white meat, poultry and fish set the temperature between 150°C-175°C.
•Use a dripping pan for very fatty food to prevent the oven from stains that can be permanent.
•Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.
•To prevent too much smoke in the oven during roasting, add some water into the dripping pan. To prevent the smoke condensation, add water each time after it dries up.
Cooking times
Cooking times depend on the type of food, its consistency, and volume.
Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.
Baking and roasting table
CAKES
|
Conventional |
|
Fan forced |
|
|||
TYPE OF DISH |
cooking |
|
cooking |
Cooking |
|||
Level |
Temp |
|
Level |
|
Temp |
time [min] |
|
|
|
|
|||||
|
|
[°C] |
|
|
|
[°C] |
|
|
|
|
|
|
|
|
|
Whisked recip- |
2 |
170 |
|
2 (1 |
|
165 |
45-60 |
ies |
|
|
|
and 3) |
|
|
|
Shortbread |
2 |
170 |
|
2 (1 |
|
160 |
24-34 |
dough |
|
|
|
and 3) |
|
|
|
Butter-milk |
1 |
170 |
|
2 |
|
165 |
60-80 |
cheese cake |
|
|
|
|
|
|
|
Apple cake (Ap- |
1 |
170 |
|
2 (1 |
|
160 |
100-120 |
ple pie) |
|
|
|
and 3) |
|
|
|
|
|
|
|
|
|
|
|
Notes
In cake mould
In cake mould
In cake mould 26 cm
2 cake moulds of 20 cm on the wire shelf
12 electrolux |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Conventional |
|
Fan forced |
|
|||
TYPE OF DISH |
cooking |
|
cooking |
Cooking |
|||
Level |
Temp |
|
Level |
|
Temp |
time [min] |
|
|
|
|
|||||
|
|
[°C] |
|
|
|
[°C] |
|
|
|
|
|
|
|
|
|
Strudel |
2 |
175 |
|
2 |
|
150 |
60-80 |
Jamtart |
2 |
170 |
|
2 (1 |
|
160 |
30-40 |
|
|
|
|
and 3) |
|
|
|
Fruit cake |
2 |
170 |
|
2 |
|
155 |
60-70 |
Sponge cake |
2 |
170 |
|
2 |
|
160 |
35-45 |
(Fatless sponge |
|
|
|
|
|
|
|
cake) |
|
|
|
|
|
|
|
Christmas |
2 |
170 |
|
2 |
|
160 |
50-60 |
cake/Rich fruit |
|
|
|
|
|
|
|
cake |
|
|
|
|
|
|
|
Plum cake |
2 |
170 |
|
2 |
|
165 |
50-60 |
|
|
|
|
|
|
|
|
Small cakes |
3 |
170 |
|
3 (1 |
|
165 |
20-30 |
|
|
|
|
and 3) |
|
|
|
Biscuits |
3 |
150 |
|
3 (1 |
|
140 |
20-30 |
|
|
|
|
and 3) |
|
|
|
Meringues |
3 |
100 |
|
3 |
|
115 |
90-120 |
Buns |
3 |
190 |
|
3 |
|
180 |
15-20 |
|
|
|
|
|
|
|
|
Choux |
3 |
190 |
|
3 (1 |
|
180 |
25-35 |
|
|
|
|
and 3) |
|
|
|
Plate tarts |
3 |
180 |
|
2 |
|
170 |
45-70 |
Victoria sand- |
1 or 2 |
180 |
|
2 |
|
170 |
40-55 |
wich |
|
|
|
|
|
|
|
1) Preheat for 10 minutes. |
|
|
|
|
|
|
|
BREAD AND PIZZA |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
Conventional |
|
Fan forced |
|
|||
TYPE OF DISH |
cooking |
|
cooking |
Cooking |
|||
Level |
Temp |
|
Level |
|
Temp |
time [min] |
|
|
|
|
|||||
|
|
[°C] |
|
|
|
[°C] |
|
|
|
|
|
|
|
|
|
White bread |
1 |
190 |
|
1 |
|
195 |
60-70 |
|
|
|
|
|
|
|
|
Rye bread |
1 |
190 |
|
1 |
|
190 |
30-45 |
Bread rolls |
2 |
190 |
|
2 (1 |
|
180 |
25-40 |
|
|
|
|
and 3) |
|
|
|
|
|
|
|
|
|
|
|
Pizza |
1 |
190 |
|
1 |
|
190 |
20-30 |
|
|
|
|
|
|
|
|
Scones |
3 |
200 |
|
2 |
|
190 |
10~20 |
|
|
|
|
|
|
|
|
Notes
On baking tray
In cake mould 26 cm
In cake mould 26 cm In cake mould 26 cm
In cake mould 20 cm
In bread tin 1)
On flat baking tray
On flat baking tray1)
On flat baking tray
On flat baking tray1)
On flat baking tray1)
In cake mould 20 cm
Left + right in cake mould 20 cm
Notes
1-2 pieces, 500 gr one piece1)
In bread tin
6-8 rolls on flat baking tray
1)
On deep roasting pan1)
On flat baking tray1)
1) Preheat for 10 minutes.
|
|
|
|
|
|
|
|
|
|
|
electrolux 13 |
FLANS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Conventional |
|
Fan forced |
|
|
|
|
|||
TYPE OF DISH |
|
cooking |
|
cooking |
|
Cooking |
|
Notes |
|||
|
Level |
Temp |
|
Level |
|
Temp |
|
time [min] |
|
||
|
|
|
|
|
|
|
|||||
|
|
|
[°C] |
|
|
|
[°C] |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pasta flan |
2 |
180 |
2 |
180 |
|
40-50 |
|
In mould |
|||
Vegetable flan |
2 |
200 |
2 |
200 |
|
45-60 |
|
In mould |
|||
Quiches |
1 |
190 |
1 |
190 |
|
40-50 |
|
In mould |
|||
Lasagne |
2 |
200 |
2 |
200 |
|
25-40 |
|
In mould |
|||
Cannelloni |
2 |
200 |
2 |
200 |
|
25-40 |
|
In mould |
|||
Yorkshire pud- |
2 |
220 |
2 |
210 |
|
20-30 |
|
6 pudding mould 1) |
|||
ding |
|
|
|
|
|
|
|
|
|
|
|
1) Preheat for 10 minutes. |
|
|
|
|
|
|
|
|
|
||
MEAT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Conventional |
|
Fan forced |
|
|
|
|
|||
TYPE OF DISH |
|
cooking |
|
cooking |
|
Cooking |
|
Notes |
|||
|
Level |
Temp |
|
Level |
|
Temp |
|
time [min] |
|
||
|
|
|
|
|
|
|
|||||
|
|
|
[°C] |
|
|
|
[°C] |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Beef |
2 |
200 |
|
2 |
|
190 |
|
50-70 |
|
On wire shelf and deep |
|
|
|
|
|
|
|
|
|
|
|
|
roasting pan |
Pork |
2 |
180 |
|
2 |
|
180 |
|
90-120 |
|
On wire shelf and deep |
|
|
|
|
|
|
|
|
|
|
|
|
roasting pan |
Veal |
2 |
190 |
|
2 |
|
175 |
|
90-120 |
|
On wire shelf and deep |
|
|
|
|
|
|
|
|
|
|
|
|
roasting pan |
English roast |
2 |
210 |
|
2 |
|
200 |
|
44-50 |
|
On wire shelf and deep |
|
beef rare |
|
|
|
|
|
|
|
|
|
|
roasting pan |
English roast |
2 |
210 |
|
2 |
|
200 |
|
51-55 |
|
On wire shelf and deep |
|
beef medium |
|
|
|
|
|
|
|
|
|
|
roasting pan |
English roast |
2 |
210 |
|
2 |
|
200 |
|
55-60 |
|
On wire shelf and deep |
|
beef well done |
|
|
|
|
|
|
|
|
|
|
roasting pan |
Shoulder of |
2 |
180 |
|
2 |
|
170 |
|
120-150 |
|
On deep roasting pan |
|
pork |
|
|
|
|
|
|
|
|
|
|
|
Shin of pork |
2 |
180 |
|
2 |
|
160 |
|
100-120 |
|
2 pieces on deep roasting |
|
|
|
|
|
|
|
|
|
|
|
|
pan |
Lamb |
2 |
190 |
|
2 |
|
190 |
|
110-130 |
|
Leg |
|
Chicken |
2 |
200 |
|
2 |
|
200 |
|
70-85 |
|
Whole on deep roasting |
|
|
|
|
|
|
|
|
|
|
|
|
pan |
Turkey |
1 |
180 |
|
1 |
|
160 |
|
210-240 |
|
Whole on deep roasting |
|
|
|
|
|
|
|
|
|
|
|
|
pan |
Duck |
2 |
175 |
|
2 |
|
160 |
|
120-150 |
|
Whole on deep roasting |
|
|
|
|
|
|
|
|
|
|
|
|
pan |
Goose |
1 |
175 |
|
1 |
|
160 |
|
150-200 |
|
Whole on deep roasting |
|
|
|
|
|
|
|
|
|
|
|
|
pan |
Rabbit |
2 |
190 |
|
2 |
|
175 |
|
60-80 |
|
Cut in pieces |
|
Hare |
2 |
190 |
|
2 |
|
175 |
|
150-200 |
|
Cut in pieces |
|
|
|
|
|
|
|
|
|
|
|
|
|
14 electrolux |
|
|
|
|
|
||
|
Conventional |
||
TYPE OF DISH |
cooking |
||
Level |
Temp |
||
|
|||
|
|
[°C] |
|
|
|
|
|
Pheasant |
2 |
190 |
|
|
|
|
|
|
Cooking |
Level |
Temp |
time [min] |
|
[°C] |
|
|
|
|
2 |
175 |
90-120 |
|
|
|
FISH
|
Conventional |
|
Fan forced |
|
|||
TYPE OF DISH |
cooking |
|
cooking |
Cooking |
|||
Level |
Temp |
|
Level |
|
Temp |
time [min] |
|
|
|
|
|||||
|
|
[°C] |
|
|
|
[°C] |
|
|
|
|
|
|
|
|
|
Trout/Sea |
2 |
190 |
|
2 (1 |
|
175 |
40-55 |
bream |
|
|
|
and 3) |
|
|
|
Tuna fish/Sal- |
2 |
190 |
|
2 (1 |
|
175 |
35-60 |
mon |
|
|
|
and 3) |
|
|
|
|
|
|
|
|
|
|
|
Grilling
Notes
Whole on deep roasting pan
Notes
3-4 fishes
4-6 fillets
Preheat the empty oven for 10 minutes, before cooking.
|
|
Quantity |
|
|
Grilling |
|
Cooking time in mi- |
|||||||
|
|
|
|
|
|
|
|
|
|
|
nutes |
|
||
TYPE OF DISH |
|
Pieces |
|
g |
|
level |
|
|
Temp. |
|
1st side |
|
|
2nd side |
|
|
|
|
|
|
|
|
|
(°C) |
|
|
|
|
|
Fillet steaks |
|
4 |
|
800 |
3 |
|
250 |
|
12-15 |
|
|
12-14 |
||
Beef steaks |
|
4 |
|
600 |
3 |
|
250 |
|
10-12 |
|
|
6-8 |
||
Sausages |
|
8 |
|
/ |
3 |
|
250 |
|
12-15 |
|
|
10-12 |
||
Pork chops |
|
4 |
|
600 |
3 |
|
250 |
|
12-16 |
|
|
12-14 |
||
Chicken (cut in 2) |
|
2 |
|
1000 |
3 |
|
250 |
|
30-35 |
|
|
25-30 |
||
Kebabs |
|
4 |
|
/ |
3 |
|
250 |
|
10-15 |
|
|
10-12 |
||
Breast of chicken |
|
4 |
|
400 |
3 |
|
250 |
|
12-15 |
|
|
12-14 |
||
Hamburger |
|
6 |
|
600 |
3 |
|
250 |
|
20-30 |
|
|
|
||
Fish Fillet |
|
4 |
|
400 |
3 |
|
250 |
|
12-14 |
|
|
10-12 |
||
Toasted sandwich- |
|
4-6 |
|
/ |
3 |
|
250 |
|
5-7 |
|
|
/ |
||
es |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Toast |
|
4-6 |
|
/ |
3 |
|
250 |
|
2-4 |
|
|
2-3 |
||
Thermal grilling |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Warning! Use this function with a |
|
|
|
|
|
|
|
|
|
|
||||
maximum temperature of 200°C. |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
Quantity |
|
|
Grilling |
|
Cooking time in mi- |
|||||||
|
|
|
|
|
|
|
|
|
|
|
nutes |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TYPE OF DISH |
Pieces |
|
g |
|
level |
|
|
Temp. |
|
1st side |
|
|
2nd side |
|
|
|
|
|
|
|
|
|
|
(°C) |
|
|
|
|
|
Rolled joints (turkey) |
1 |
|
1000 |
|
3 |
|
|
200 |
30-40 |
|
|
20-30 |
||
Chicken (cut in two) |
2 |
|
1000 |
|
3 |
|
|
200 |
25-30 |
|
|
20-30 |
||
Chicken drumsticks |
6 |
|
- |
|
3 |
|
|
200 |
15-20 |
|
|
15-18 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
electrolux 15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
Quantity |
|
|
Grilling |
|
|
Cooking time in mi- |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
nutes |
|||
TYPE OF DISH |
Pieces |
|
|
g |
|
level |
|
|
|
Temp. |
|
|
1st side |
|
|
2nd side |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(°C) |
|
|
|
|
|
|
|
|
Quail |
4 |
|
|
500 |
|
3 |
|
|
200 |
|
|
25-30 |
|
|
20-25 |
|||||||
Vegetable gratin |
- |
|
|
- |
|
|
|
3 |
|
|
200 |
|
|
20-25 |
|
|
- |
|||||
pieces. Scallops |
- |
|
|
- |
|
|
|
3 |
|
|
200 |
|
|
15-20 |
|
|
- |
|||||
Mackerel |
2-4 |
|
|
- |
|
|
|
3 |
|
|
200 |
|
|
15-20 |
|
|
10-15 |
|||||
Fish slices |
4-6 |
|
|
800 |
|
3 |
|
|
200 |
|
|
12-15 |
|
|
8-10 |
|||||||
Turnspit |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Preheat the empty oven for 10 mi- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
nutes, before cooking. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
TYPE OF DISH |
|
|
Quantity |
|
|
|
|
|
|
|
|
temp.°C |
|
|
Cooking time in |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
minutes |
||
Poultry |
|
|
1000 |
|
|
|
|
|
2 |
|
|
250 |
|
|
|
|
|
50-60 |
||||
Roasts |
|
|
800 |
|
|
|
|
|
2 |
|
|
250 |
|
|
|
|
|
50-60 |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Information on acrylamides
Important! According to the newest scientific knowledge, if you brown food (specially the one which contains starch),
acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.
CARE AND CLEANING
Warning! Refer to "Safety information" chapter.
•Clean the front of the appliance with a soft cloth with warm water and cleaning agent.
•To clean metal surfaces use a usual cleaning agent
•Clean the oven interior after each use. Thus you can remove dirt more easily and it does not burn on.
•Clean stubborn dirt with a special oven cleaner.
•Clean all oven accessories (with a soft cloth with warm water and cleaning agent) after each use and let them dry.
•If you have nonstick accessories, do not clean them using an aggressive agents, sharp edged objects or dishwasher. It can destroy nonstick coating!
Stainless steel or aluminium appliances:
Clean the oven door with a wet sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or abrasive materials as they can damage the oven surface. Clean the oven control panel with the same precautions
Pyrolytic cleaning
Warning! The appliance becomes very hot. There is the risk of burns.
Important! Do not use Pyrolytic cleaning function and the hob at the same time (if it is installed with the appliance). It can cause a damage to the appliance.
Before Pyrolytic cleaning:
1.Remove all removable parts and excess spillage from the appliance.
2.Remove the worst of the dirt manually.
3.Close the oven door correctly.
16 electrolux
Using the Pyrolytic cleaning
1.Press again and again until the display shows .
–The display shows PYRO 1 or PYRO 2.
–In 3 seconds the display shows a message to remove all removable parts from the appliance.
2.Press or to set the duration for the Pyrolytic cleaning:
–P1 2:00 for a low degree of dirt
–P2 2:30 for a high degree of dirt.
3.Press to start the Pyrolytic cleaning. The bars on the symbol come on one by one to show that the temperature in the appliance increases.
When the appliance is at the preset temperature, the door locks and the display shows
.
When the Pyrolytic cleaning is completed, the display shows the time of day. The oven door is locked. When the appliance cools down, an acoustic signal sounds and the door unlocks.
To stop the pyrolytic cleaning at any time, press .
End time for Pyrolytic cleaning
You can set the end time for Pyrolytic cleaning with the clock function End
.
1.Do again step 1, 2 and 3 from above procedure.
2.Press .
3.The display shows an arrow and the symbol . The display shows the time for the end of Pyrolytic cleaning.
4.Press or to adjust the time for the end of the Pyrolytic cleaning.
Pyro reminder
The reminder function tells the user when pyrolytic cleaning is necessary.
An acoustic signal sounds and the display shows "Pyro" for approximately 15 seconds.
Set the Pyrolytic cleaning function.
The display shows the reminder message when the appliance is off until you clean the appliance with the Pyrolytic cleaning.

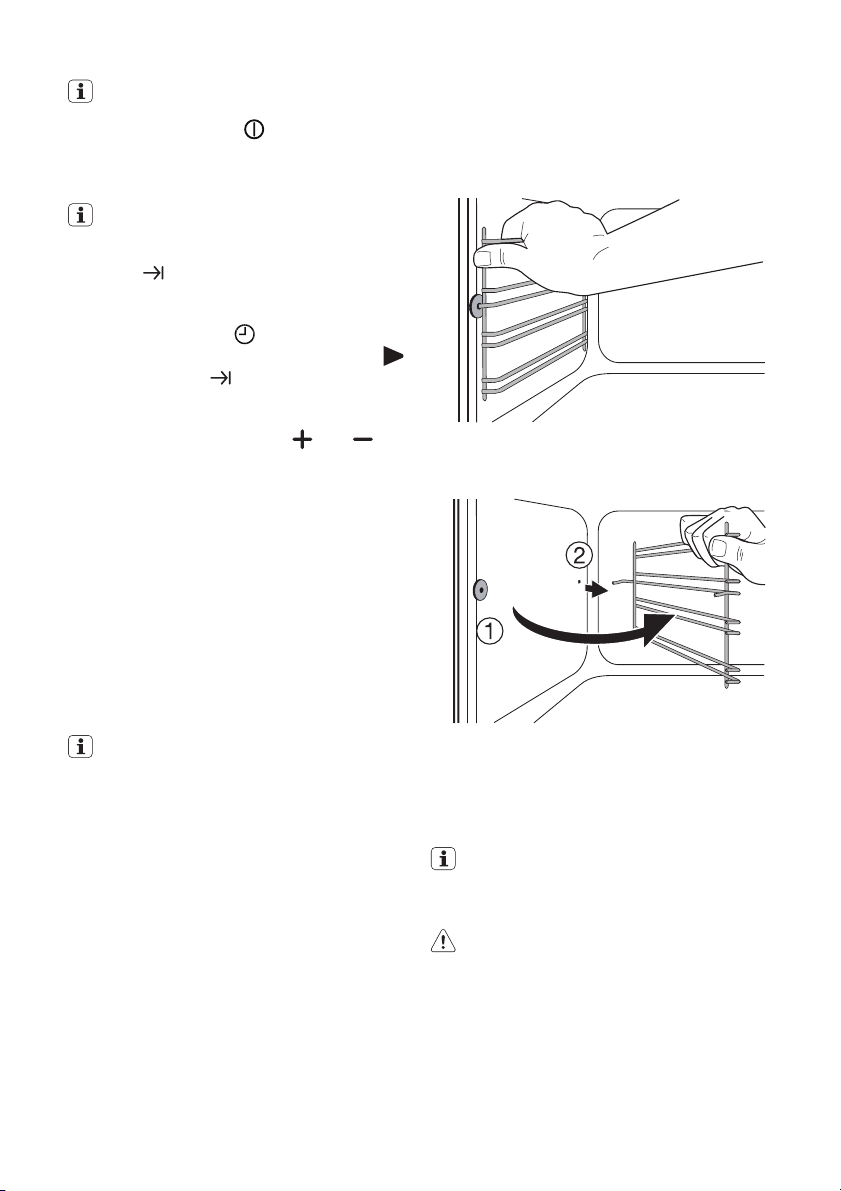

Shelf Support Rails
Removing the shelf support rails
1.Pull the front of the shelf support rail away from the side wall.
2.Pull the rear shelf support rail away from the side wall and remove it.
Installing the shelf support rails
Install the shelf support rails in opposite sequence.
The rounded ends of the shelf support rails must point to the front!
Oven lamp
Warning! Be careful! There is the risk of electrical shock!
Before you change the oven lamp:
•Switch off the oven.
•Remove the fuses in the fuse box or switch off the circuit breaker.
Put a cloth on the bottom of the oven for protection of the oven light and glass cover.
1.Turn the glass cover anti-clockwise to remove it.
2.Clean the glass cover.
3.Replace the oven light bulb with applicable 300°C heat-resistant oven light bulb.
Use the same oven lamp type.
4.Install the glass cover.
Cleaning the oven door
The oven door has three panels of glass. You can remove the oven door and the internal panels of glass to clean them.
The oven door can close if you try to remove the panels of glass before you remove the oven door.

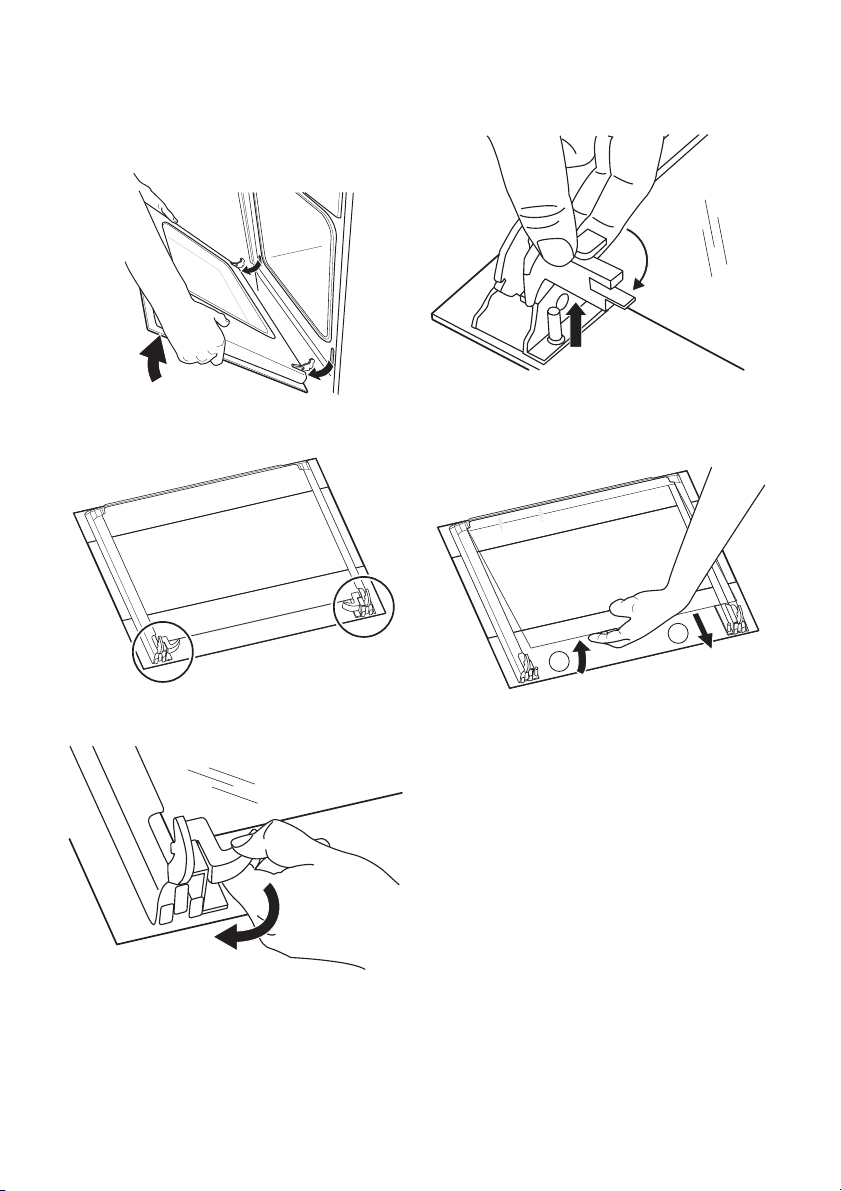

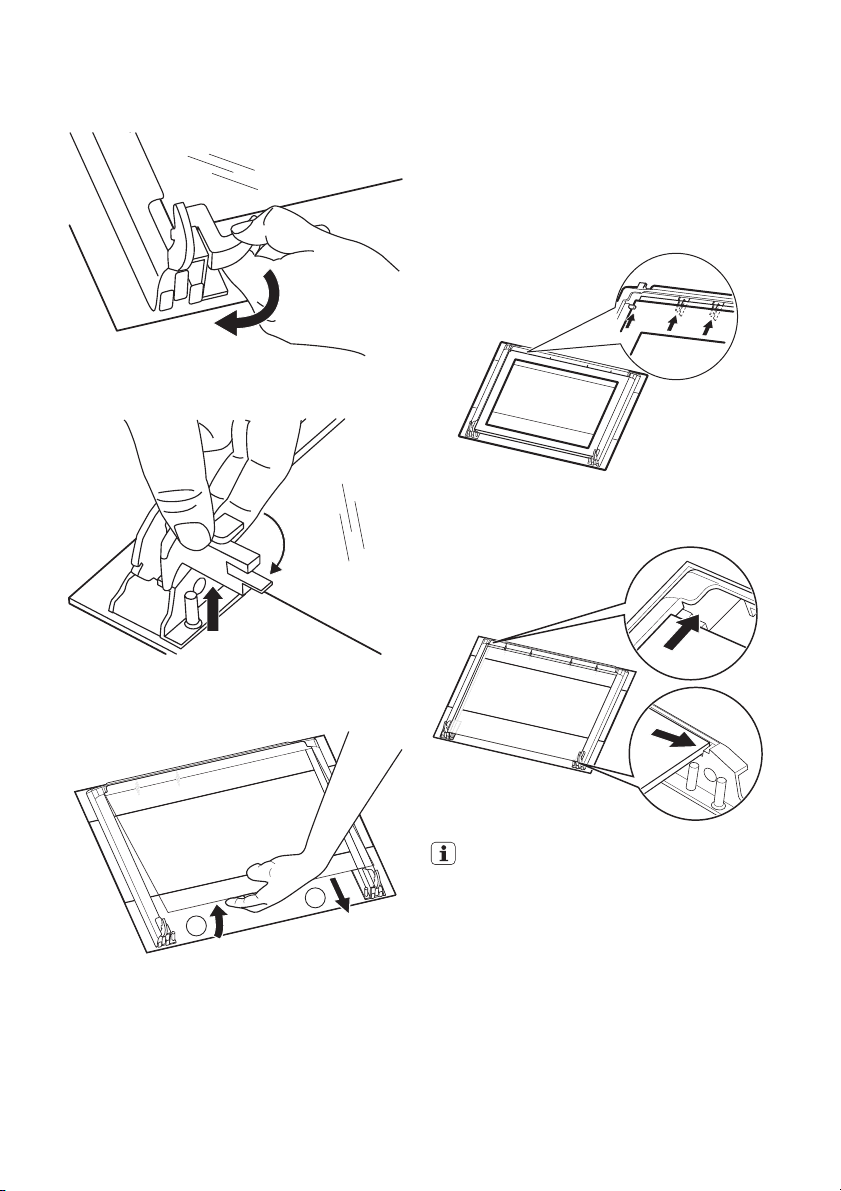

Removing the oven door and the glass panel

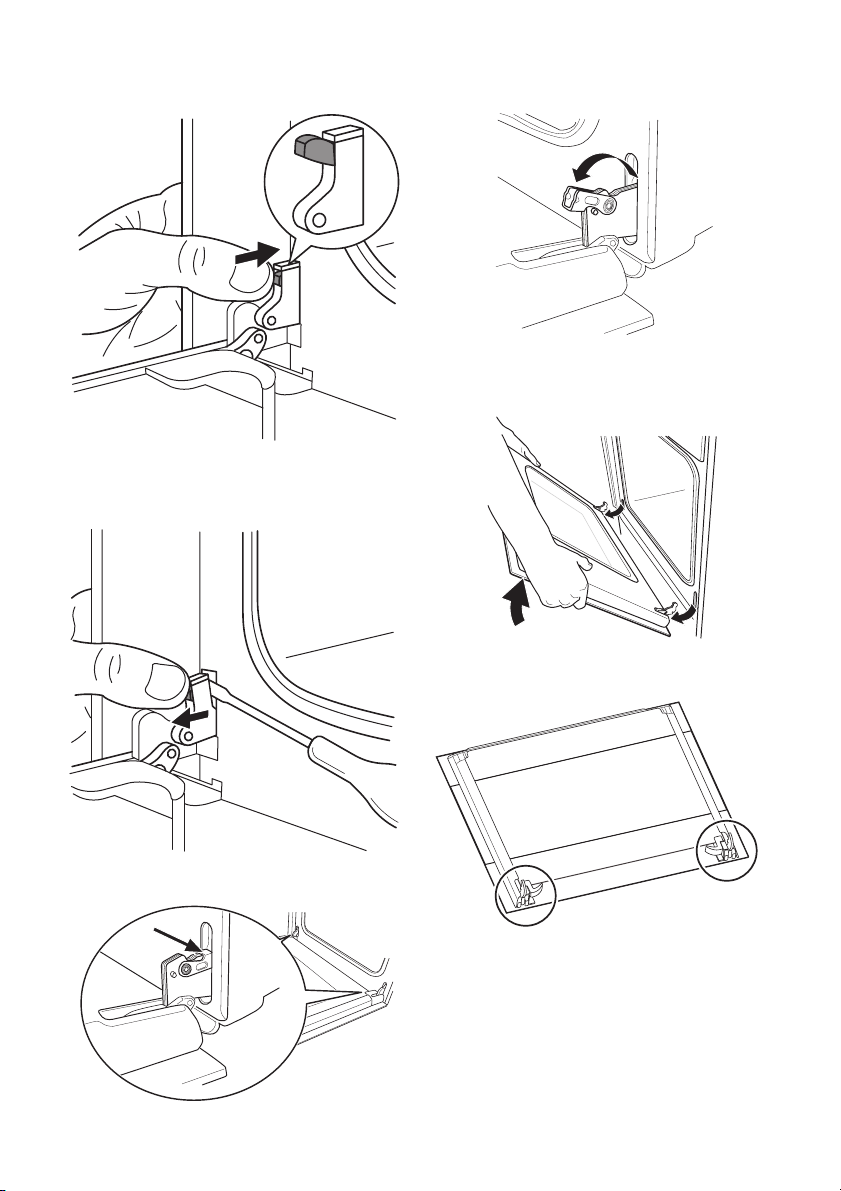

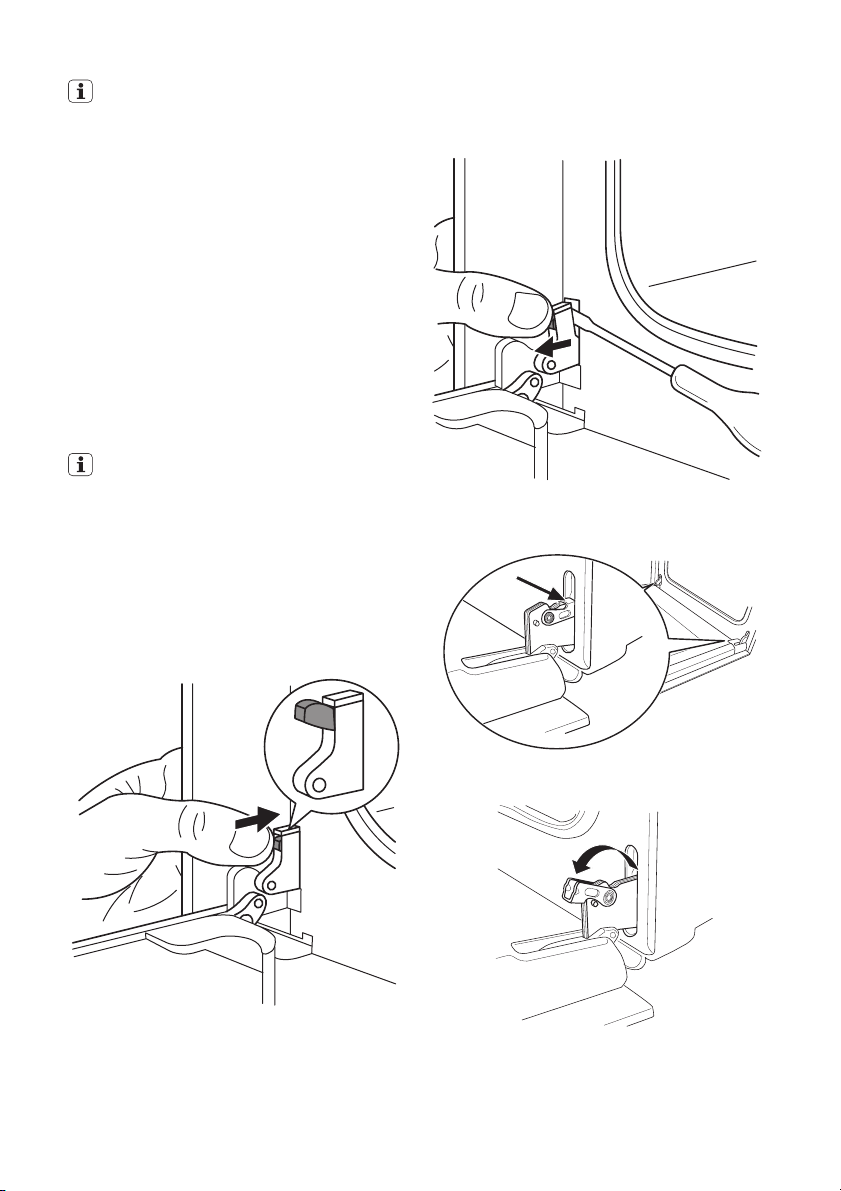

1.Fully open the door and identify the hinge to the left side of the door.
2.Push lightly the tightening component until it pulls back.
electrolux 17
3.Hold the pushed component with one hand and use a screwdriver with the other hand to remove the left side of the door from its seat.
4.Identify the hinge to the right side of the door.
5. Turn the lever on the hinge.
18 electrolux
6.Close the oven door to the first opening position (halfway). Then pull forward and remove the door from its seat.
9.Turn the two fasteners by 90° and remove them from their seats.
90°
7.Put the door on a soft cloth on a stable surface.
10.Carefully lift (step 1) and remove (step 2) the panels of glass one by one. Start from the top panel of glass.
8.Release the locking system to remove the panels of glass.
2
1
Clean the glass panels with water and soap. Dry the glass panels carefully.
Installing the door and the glass panels
When the cleaning is completed, install the glass panels and the oven door. Do the above steps in the opposite sequence. The middle panel has a decorative frame. When you install this panel, make sure that the screen-printing zone looks to the inner side of the door. Make sure that after the installation the surface of the glass panel frame on the screen-printing zones is not rough when you touch it.

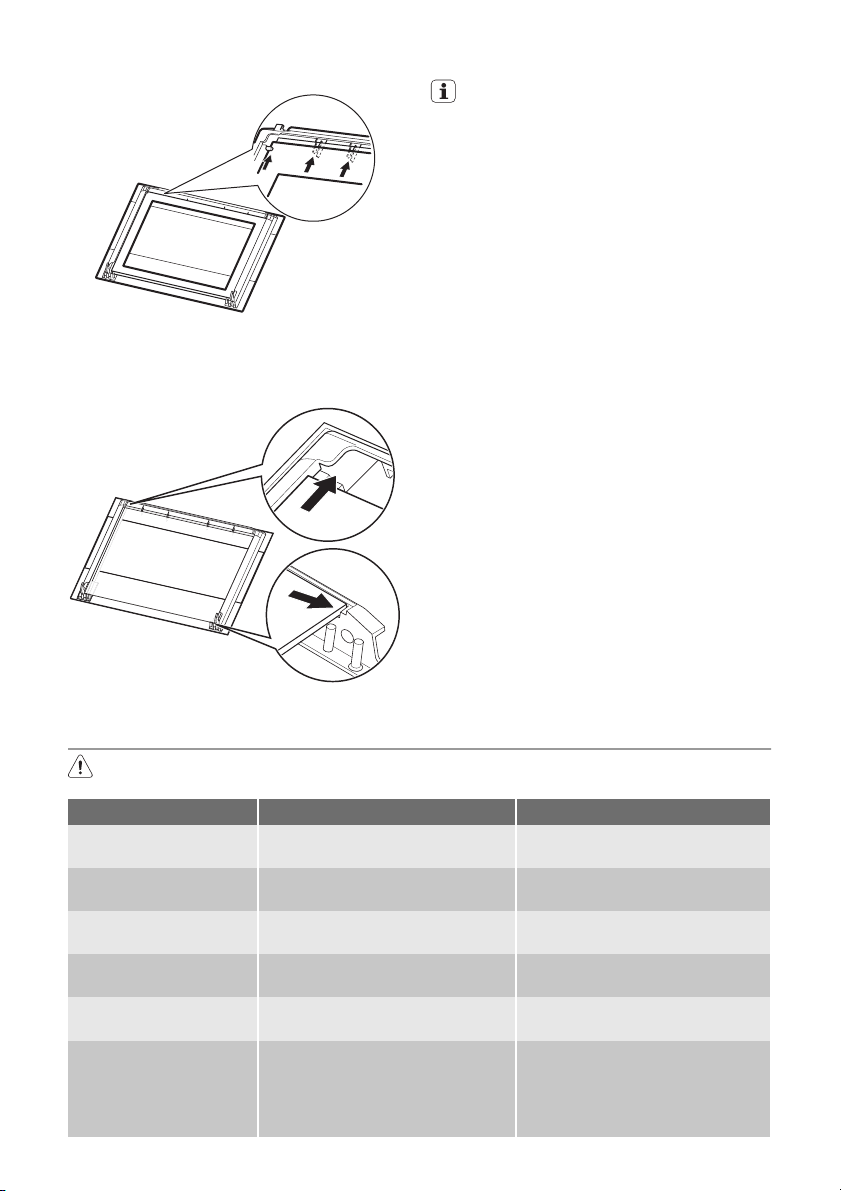

Make sure that you install the middle panel of glass in the seats correctly (refer to the illustration).
Make sure that you install the top panel of glass in the seats correctly (refer to the illustration).
electrolux 19
Stainless steel or aluminium appliances:
Clean the oven door with a wet sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or abrasive materials as they can damage the oven surface. Clean the oven control panel with the same precautions
WHAT TO DO IF…
Warning! Refer to "Safety information" chapter.
Problem |
Possible cause |
The appliance does not |
The appliance is deactivated. |
heat up. |
|
|
The clock is not set. |
|
The necessary settings are not set. |
|
The automatic switch-off is on. |
|
The Child lock is on. |
|
The fuse in the fuse box is re- |
|
leased. |
The oven lamp does not |
The oven lamp is defective. |
operate. |
|
Remedy
Activate the appliance.
Set the clock.
Do a check of the settings.
Refer to "Automatic switch-off".
Refer to "Deactivating the Child Lock".
Do a check of the fuse.
If the fuse is released more than one time, contact a qualified electrician.
Replace the oven lamp.
20 electrolux
Problem
The oven fan makes noise.
Steam and condensation collect on the food and in the appliance.
The display shows or
, the appliance does not heat up and there is no air circulation.
The display shows the error code "F...".
Possible cause
Shelves or trays are in contact with the oven back panel.
You left the dish in the appliance for too long.
Demo mode is on.
There is an electronic error.
Remedy
Put shelves or trays correctly.
Do not let the dishes stay in the appliance for longer than 15-20 minutes after the cooking is completed.
Deactivate the appliance. Press
for approximately 2 seconds. An acoustic signal sounds. Press
and hold the buttons and
at the same time until the acoustic signal sounds and the indicator goes out.
Write down the error code and contact the Service Centre.
If you cannot find a solution to the problem yourself, contact your dealer or the service centre.
We recommend that you write the data here:
Model (MOD.)
Product number (PNC)
Serial number (S.N.)
The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity.
.........................................
.........................................
.........................................
TECHNICAL DATA
Voltage |
230 V |
Frequency |
50 Hz |
|
|

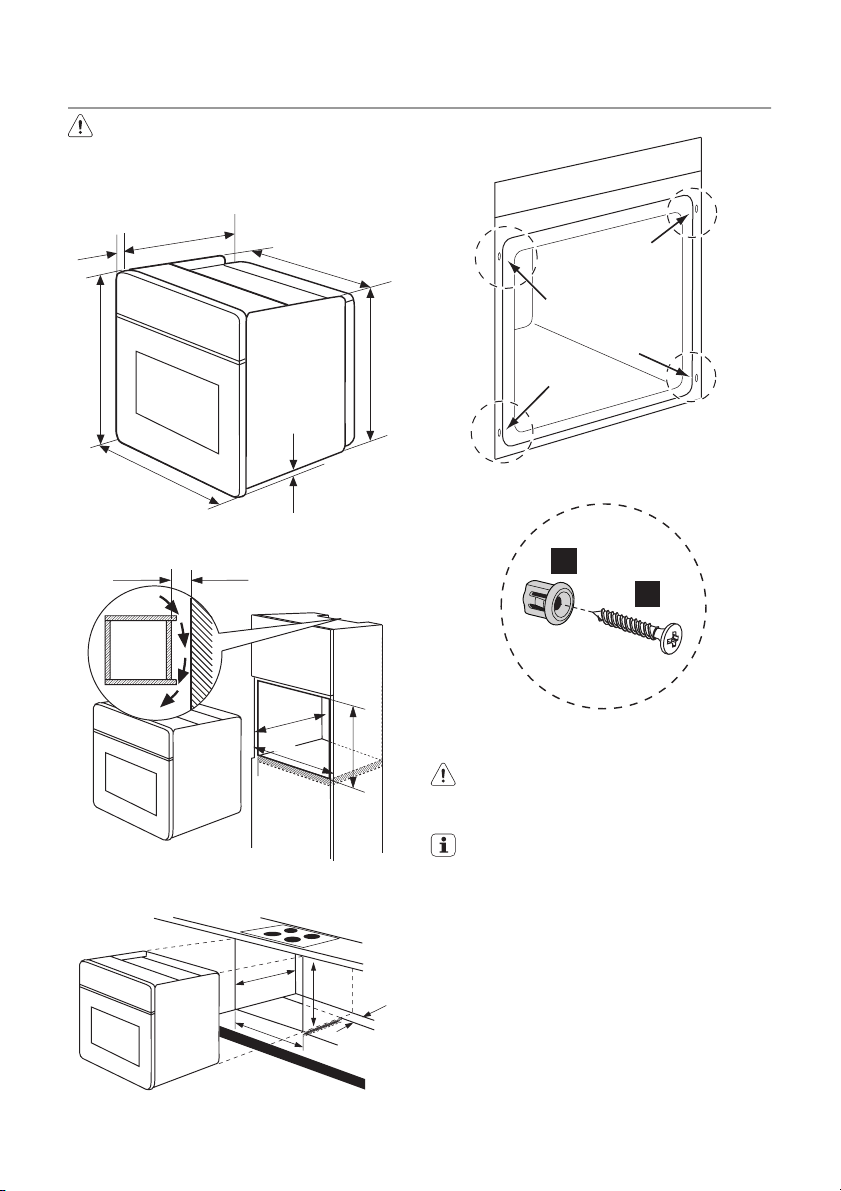

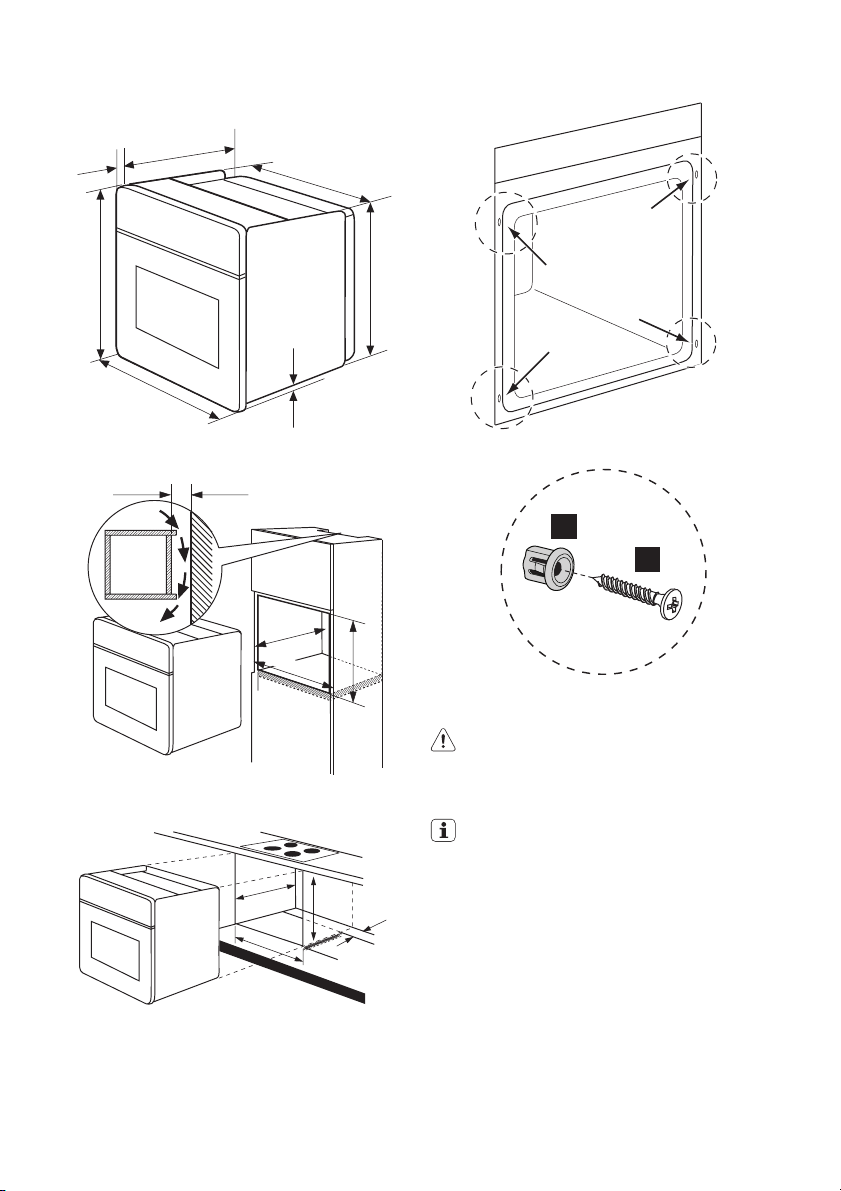

INSTALLATION
Warning! Refer to "Safety information" Building In chapter.
540 20
590
560
570
2
594
electrolux 21
50
550 |
min |
|
|
|
580 |
||
560÷570 |
|||
|
550 |
min |
593 |
|
|
|
||
|
|
80÷100 |
|
560- |
|
||
|
|
||
|
570 |
|
|
A
B
Electrical installation
Warning! Only a qualified and competent person must do the electrical installation.
The manufacturer is not responsible if you do not follow safety precautions from chapter "Safety information".
This appliance is supplied with a main plug and a main cable.
The cable
Cable types applicable for installation or replacement: H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F.
For the section of the cable refer to the total power (on the rating plate) and to the table:
Total power |
|
Section of the cable |
maximum 1380 W |
|
3 x 0,75 mm² |
maximum 2300 W |
|
3 x 1 mm² |
maximum 3680 W |
|
3 x 1,5 mm² |
|
|
|
The hearth cord (green/yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).
