Page 1
Built-In Electric Oven
Operating Instructions
822 947 924-B-120405-07
EON 6640
g
Page 2
Dear customer,
Please read these operating instructions carefully.
Pay particular attention to the section “Safety information” on the first few pages. Please retain these
operating instructions for later reference. Pass them
on to possible new owners of the appliance.
The following symbols are used in the
text:
1 Safety instructions
Warning: Information concerning your personal safety.
Important: Information on how to avoid damaging the appliance.
3 Information and practical tips
2 Environmental information
1. These numbers indicate step by step how to use
the appliance.
2. …
3. …
These operating instructions contain information on
steps you can take yourself to rectify a possible malfunction. Refer to the section “What to do if...”.
2
Page 3
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description of the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
General Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Oven Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Oven accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Setting the Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Initial Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cooking with the Rings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Switching on the dual fry/cook area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Switching the Oven On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Oven Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Inserting the general purpose pan, grill, and tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Inserting/Removing the Fat Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Clock Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Mechanical Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Uses, Tables and Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Baking Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Roasting Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Meat Probe Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Infrared Grilling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Turbo grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Preserving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Drying with Hot Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Exterior of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Oven Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Fat Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Shelf Support Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Oven Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Oven Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Oven Door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Oven Door Glass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Oven Interior Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Regulations, Standards, Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
3
Page 4
1 Safety
Electrical Safety
• The appliance may only be connected by a regis-
tered specialist.
• In the event of any faults or damage to the appli-
ance: remove fuses or switch off.
• It is not permissible to clean the appliance with a
steam or high pressure cleaner for safety reasons!
• Repairs to the appliance may only be carried out
by specialists. Repairs carried out by inexperi-
enced persons may cause injury or serious malfunctioning. If your appliance needs repairing,
please contact your local AEG Service Force Centre or your specialist dealer.
Child Safety
• Never leave children unsupervised when the appli-
ance is in use.
Safety whilst Using
• This appliance is intended to be used for cooking,
roasting and baking food in the home.
• Take care when connecting electric appliances to
sockets nearby. Do not allow connecting leads to
come into contact with or to catch beneath the hot
oven door.
• Warning: Risk of burns! The interior of the oven
becomes hot during use.
• Using ingredients containing alcohol in the oven
may create an alcohol-air mixture that is easily ignited. In this case, open the door carefully. Do not
have embers, sparks or naked flames in the vicinity
when opening the door.
To Avoid Damaging Your Appliance
• Do not line your oven with aluminium foil and do
not place a baking tray or dish on the oven floor,
otherwise the oven enamel will be damaged by the
resulting build up of heat.
• Juice from fruit that drips from baking trays will
leave marks that cannot be removed. For very
moist cakes, use the universal baking tray.
• Do not put any weight on the oven door when it is
open.
• Never pour water directly into the hot oven. The
enamel may be damaged.
• Using force, especially on the edges of the front
glass panel, may break the glass.
• Do not store inflammable objects in the oven. They
may ignite when the oven is switched on.
• Do not store moist food in the oven. The enamel
may be damaged.
4
Page 5
Disposal
2
Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging
materials in the appropriate container at the
community waste disposal facilities.
2 Old appliance
The symbol W on the product or on its pack-
aging indicates that this product may not be
treated as household waste. Instead it shall be
handed over to the applicable collection point
for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
5
Page 6
Description of the Appliance
General Overview
Control panel
Door handle
Full glass door
6
Page 7
Control Panel
Oven Power Indicator
Ring Switches
Oven Features
Temperature Pilot Light
Oven Functions Temperature selector
Clock function buttons
Ring Switches
Top heat and heating elements
Oven lighting
Shelf positions
Meat probe socket
Fat Filter
Oven lighting
Rear wall heating
element
Bottom Heat
Oven shelf runners, removable
7
Page 8
Oven accessories
Combination shelf
For dishes, cake tins, items for roasting and grilling.
Baking tray
For cakes and biscuits.
General purpose pan
For roasting, or as a receptacle for grease.
Meat probe
For determining exactly how far joints of meat are
cooked.
8
Page 9
Before Using for the first time
Setting the Time
3 The oven only operates when the clock has
been set.
The clock display flashes when the appliance is first
connected, or after a power failure.
1. Press the H buttons briefly.
2. Start setting the current time within 5 seconds, us-
ing the + or - buttons.
The appliance is now ready to use.
9
Page 10
Initial Cleaning
Before using the oven for the first time you should
clean it thoroughly.
1 Caution: Do not use any caustic, abrasive
cleaners! The surface could be damaged.
3 To clean metal fronts use commercially availa-
ble cleaning agents.
1. Turn the oven function switch to oven lighting L.
2. Remove all accessories and the shelf support rails
and wash them with warm water and washing up
liquid.
3. Then wash out the oven with warm water and
washing-up liquid, and dry.
4. Wipe the front of the appliance with a damp cloth.
10
Page 11
Using the Rings
3
Also refer to the operating instructions for your
built-in hob. It contains important information
on ovenware, operation, cleaning and care.
Heat settings
• Heat settings can be set from 1-9.
• Intermediate positions are possible for settings 2-
7.
1 = lowest output
9 = highest output
Z = double ring switching
2 Switch the cooking zone off approx. 5-10 min-
utes before cooking is finished to make use of
the residual heat. This saves electricity.
front left rear left rear right front right
Ring Switches
11
Page 12
Cooking with the Rings
1. For heating up/browning, select a high heat
setting.
2. As soon as steam starts to form or the oil is hot,
turn back to the heat setting necessary for further
cooking.
3. To stop cooking, turn back to the zero position.
Switching on the dual fry/cook area
1 The control for the dual fry/cook area is
switched on by turning to the right, and cannot be turned past the stop!
1. Turn the dual fry/cook control to the right. Continue
turning to Position 9, and onto the Z symbol (you
will feel a slight resistance). The stop position will
then be clearly detectable.
2. Finally, turn back to the desired setting.
3. After cooking, turn back to the OFF position.
3 To use the dual fry/cook area again after-
wards, the larger ring must be switched back
on.
12
Page 13
Using the Oven
Switching the Oven On and Off
Oven Power Indicator
Temperature Pilot Light
Oven Functions
1. Turn the oven functions switch to the required
function.
2. Turn the temperature selection switch to the re-
quired temperature.
The red oven power indicator is illuminated while
the oven is in use.
The red temperature pilot light is illuminated while
the oven is heating up.
3. To switch off the oven, turn the oven functions
switch and the temperature selection switch to the
zero position.
3 Cooling fan
The fan switches on automatically in order to
keep the appliance’s surfaces cool. When the
oven is switched off, the fan continues to run
to cool the appliance down, then switches itself off automatically.
Temperature selector
13
Page 14
Oven Functions
The oven has the following functions:
L Oven lighting
With this function you can illuminate the oven interior, e.g., for cleaning.
The heating element is not in use.
¥ Hot Air
For roasting and baking on up to three levels simultaneously.
Set oven temperatures 20-40 °C lower than when
using conventional.
The rear wall heating element is used and in addition
the fan is switched on.
¦ Pizza Setting
For baking pizza, fruit flans, quiches and flat sweet
or savoury pies.
The rear wall heating element and bottom heat are
used and in addition the fan is switched on.
¼ Turbo All-Round Grill
For roasting larger joints of meat or poultry on one
level. The function is also suitable for gratinating
and browning.
The grill heater elements and the ventilator operate
simultaneously.
¸ Infrared Grill
For grilling flat foods that are arranged in the middle
of the shelf such as steaks, escalopes, fish or for
toasting.
The grill heating element is in use.
º Infrared Wide-Area Grill
For grilling flat foods in larger quantities, such as
steaks, escalopes, fish or for toasting.
Top heat and the grill element are used.
O Top Heat
For browning foods topped with breadcrumbs
and foods cooked au gratin.
The top heating element is in use.
U Bottom Heat
For crisping cakes that require a crisp base.
The bottom heating element is in use.
¡ Conventional
For baking or roasting on one level.
The conventional heating elements are in use.
14
Page 15
Inserting the general purpose pan, grill, and tray
Inserting the general purpose pan and
tray:
The trays have a little bulge on the left and right edges. These are provided as positioning guides and
must always be located towards the rear when inserting the tray.
For grills:
Insert the tray at the desired position.
Inserting/Removing the Fat Filter
The fat filter protects the rear wall heating element
against splashes of fat when roasting.
Inserting the fat filter
Holding the fat filter by the tab, insert the two retainers into the opening on the rear wall of the oven
(fan opening) from the top downwards.
Removing the fat filter
Take hold of the tab on the fat filter and remove by
pulling upwards.
15
Page 16
Clock Functions
Countdown
Time/Core Temperature Display Function DisplayFunction Display
Settings buttons
Cooktime
End Time
Countdown G
To set a countdown. A signal sounds after the time
has elapsed.
This function does not affect the functioning of the
oven.
Cook time d
To set how long the oven is to be in use.
End time e
To set when the oven is to switch off again.
Manual Operation H
The H button is pressed to switch the oven from Automatic to Manual operation.
Meat Probe
For setting the core temperature in meat at which the
oven should be switched off.
Manual operation button
Display Symbols:
A AUTO
The "AUTO" sign lights up when an automatic program has been set, and flashes when the program is
completed.
B Operation
The appliance is in operation, or ready for use.
G Bell
The Bell symbol appears when the Countdown function has been set.
3 General Hints
• After a Clock function has been selected, the required time can be set within 5 seconds, using
the + or - buttons.
• After the Cook Time d/End e-function has been
used, press the H button to change from Automatic back to Manual operation.
16
Page 17

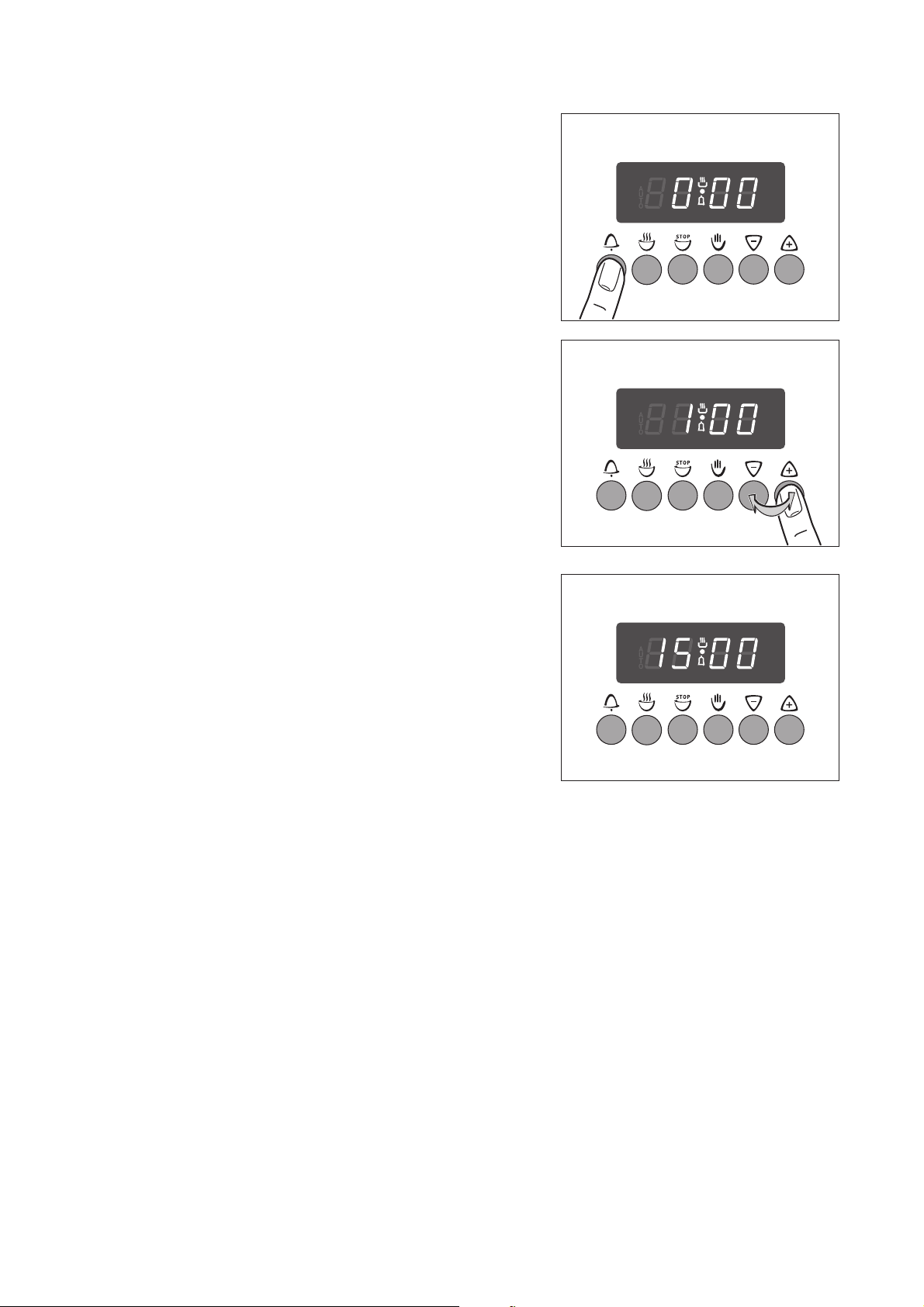

Countdown G
1. Press the countdown G button.
2. Using the + or - buttons, set the desired time.
3 By pressing the countdown button again G
you are able to see the remaining time.
Several seconds after the countdown function has
been set the time display will again show the current
time.
After the countdown is complete an acoustic signal
will sound for approx. 7 minutes.
Press any button to switch off the signal.
17
Page 18

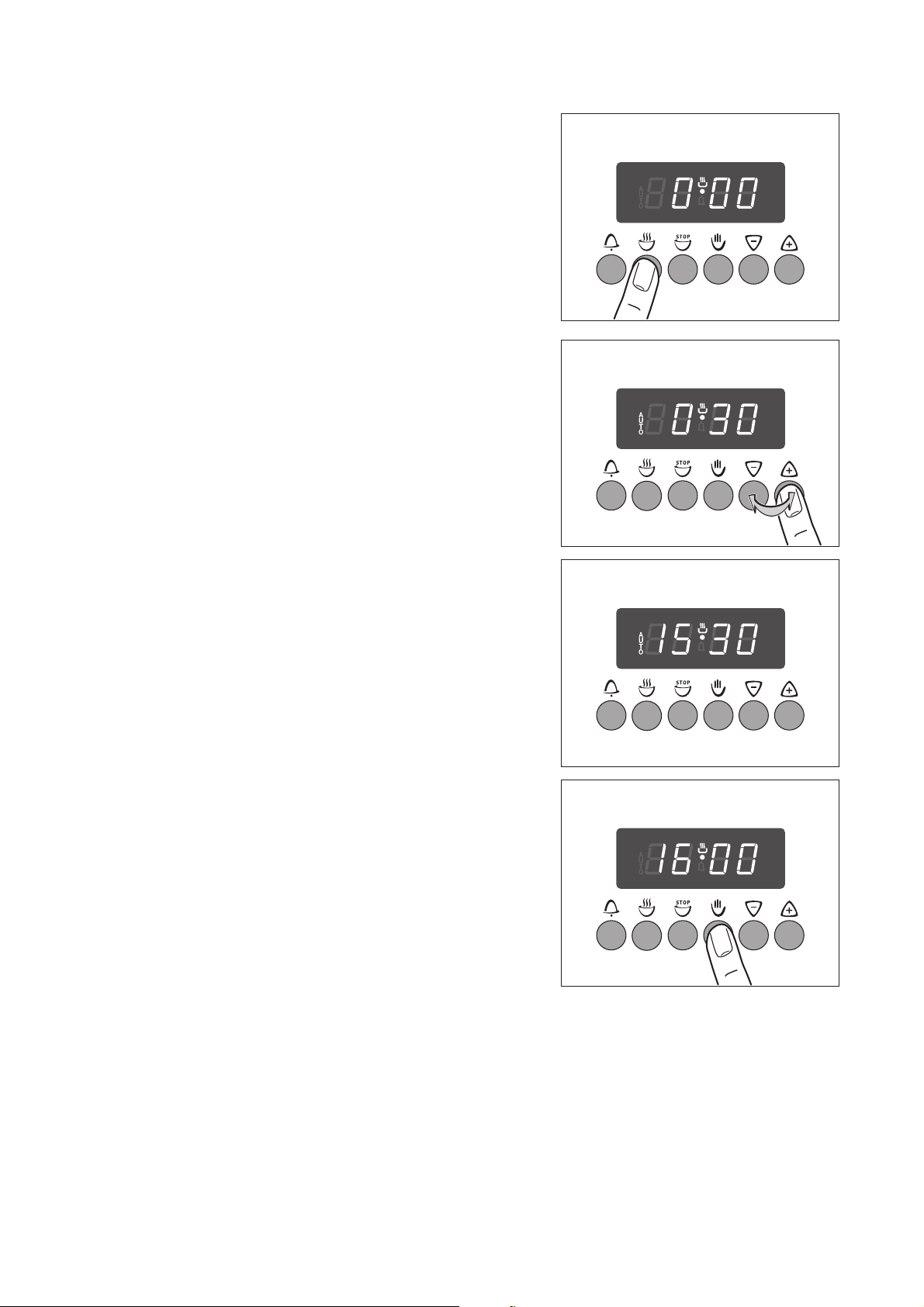

Cook Time d
1. Press the Cook Time d button.
2. Using the + or - buttons, set the desired cooking
time (max. 10 hours).
The display will switch back to the time after approx.
5 seconds have lapsed. The “AUTO” symbol indicates that the oven is switched to the automatic operation mode.
When the period of time has lapsed, a signal will
sound for 7 minutes and the oven will switch itself
off.
3. Switch off the acoustic signal and the pro-
gramme by pressing the Manual Set H button.
Turn the oven function and temperature selection
switches to OFF.
18
Page 19
End e
1. Press the End e button.
2. Using the + or - buttons, set the desired time that
the oven should switch itself off.
The “AUTO” symbol will light up and the time will be
shown in the display.
The oven will automatically switch itself on.
When the time has lapsed, the “AUTO” symbol will
flash and a signal will sound for 7 minutes and the
oven will switch itself off.
3. Switch off the programme by pressing the Man-
ual Set H button.
Turn the oven function and temperature selection
switches to OFF.
19
Page 20

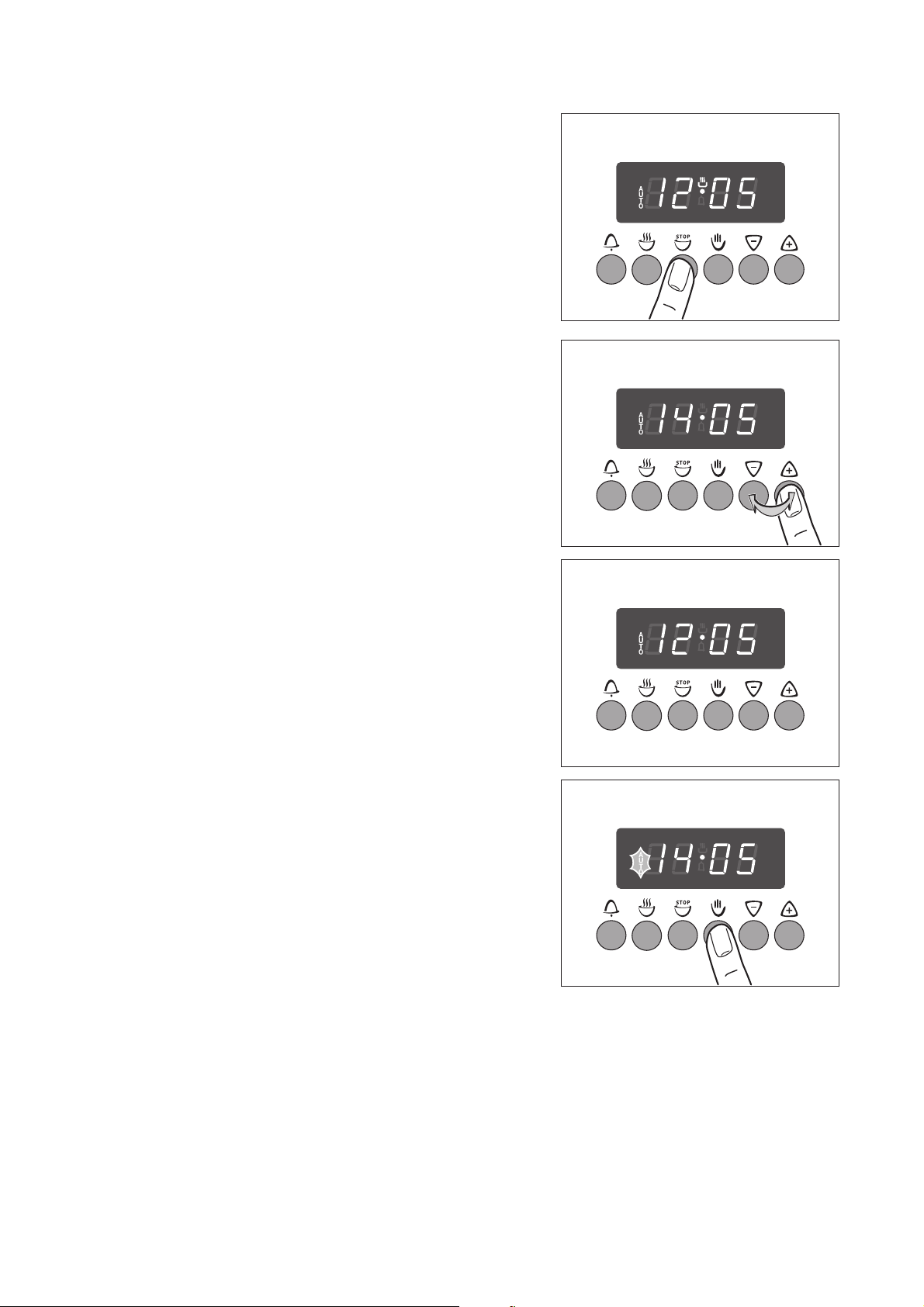

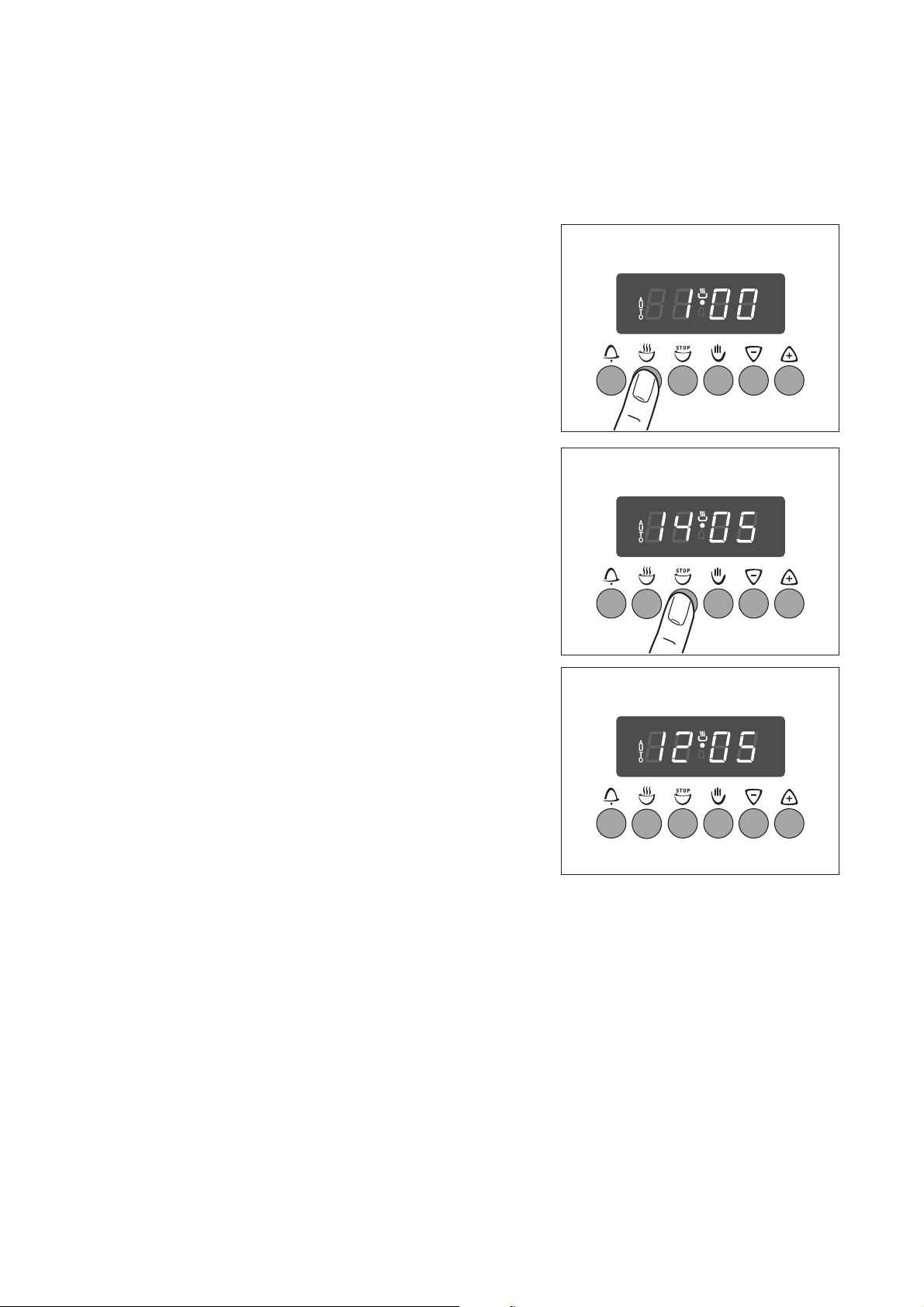

Cook Time d and End e functions combined
3 Cook Time d and End e can be used simulta-
neously if the oven is to automatically switch
on and off at a later time.
1. Select the oven functions and temperature.
2. Using the Cook Time d function, set the period of
time that the dish requires to cook.
e.g. 1 hour.
3. Using the End e function, set the time at which the
dish is to be ready.
e.g.: 14:05 hours.
The “AUTO” symbol will light up and the time will be
shown in the display.
e.g. 12:05 hours.
The oven will automatically switch itself on at the appropriate time as calculated.
e.g. at 13:05 hours.
And will switch itself off after the Cook Time stated
has elapsed.
e.g. at 14.05 hours.
4. Switch off the programme by pressing the Man-
ual Set H button.
Turn the oven function and temperature selection
switches to OFF.
20
Page 21

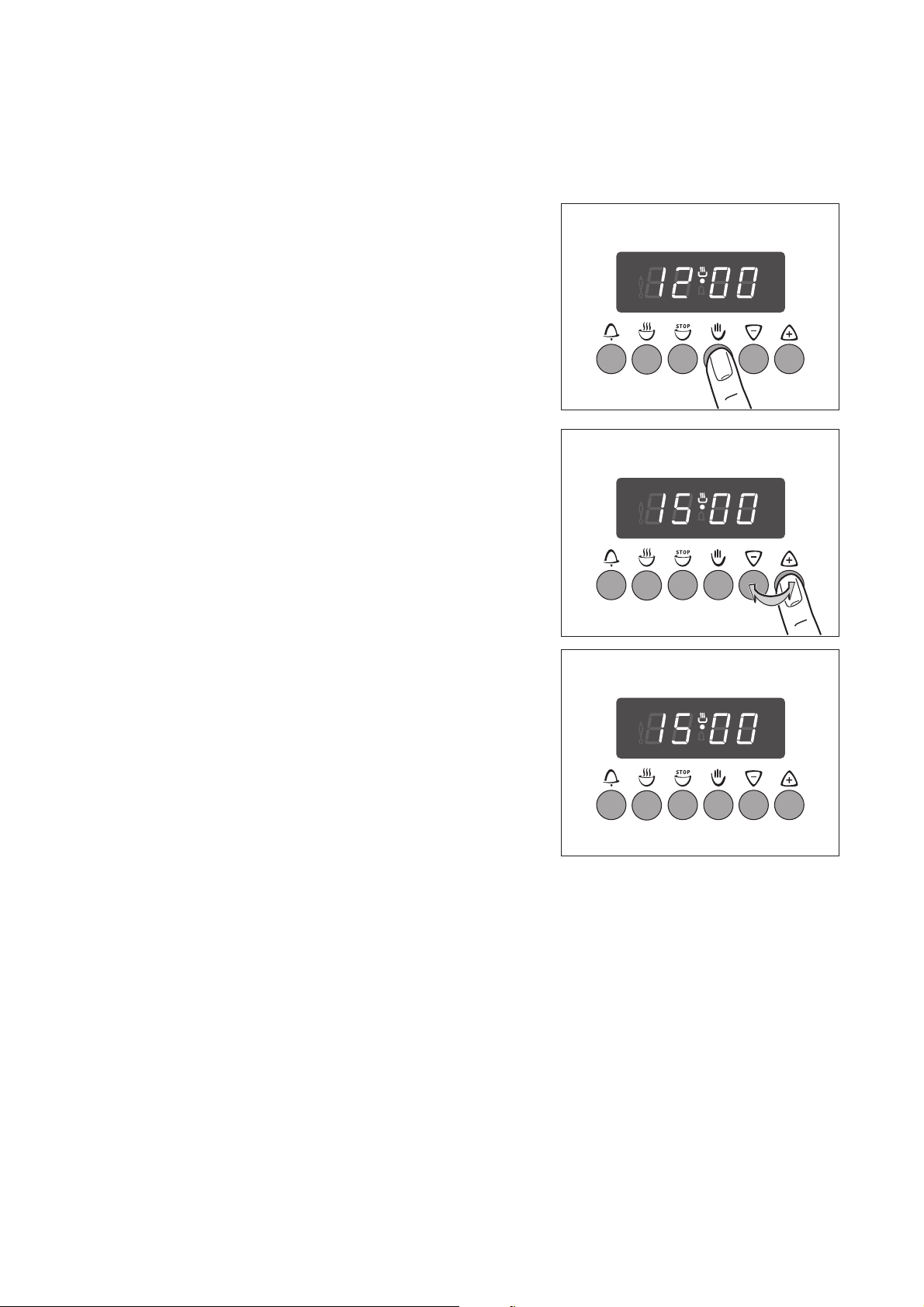

Changing the time
3 The time can only be changed if no automatic
function (Cook Time d or End e) has been
set.
1. Briefly press the Manual Set H button.
2. Using the + or - buttons, set the current time.
After 5 seconds the clock will display the time set.
The appliance is now ready to be used.
21
Page 22

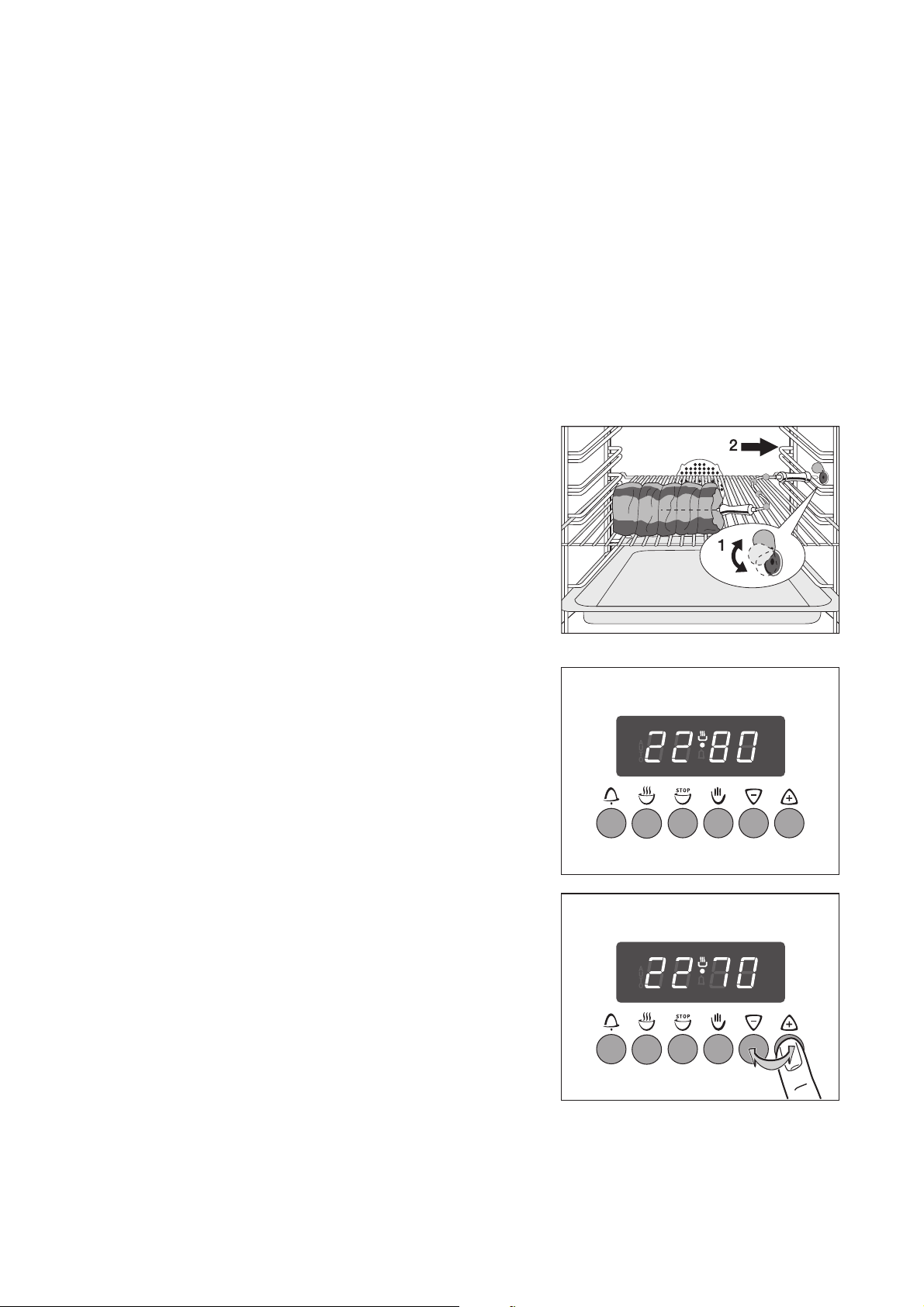

Meat probe
Ensures that the oven switches itself off at the exact
moment in which a set core temperature is attained.
The meat probe is best used together with the upper/lower elements and hot air functions.
Please take note of two temperatures:
– The oven temperature: see Roasting Chart
– The core temperature: see Meat Probe Chart.
1 Attention: Only the meat probe supplied may
be used. If the meat probe needs to be replaced, be sure to use nothing other than a
part produced by this manufacturer.
1. Insert the tip of the meat probe into the meat such
that the tip is located in the center of the meat.
2. Completely insert the meat probe’s plug into the
socket located in the side wall of the oven.
On the right, 80 will appear as the suggested temperature. On the left, the current core temperature
will be displayed, e.g. 22.
3. Setting the desired oven function and temperature.
4. Set the desired core temperature using the + or -
buttons, e.g. 70.
22
Page 23

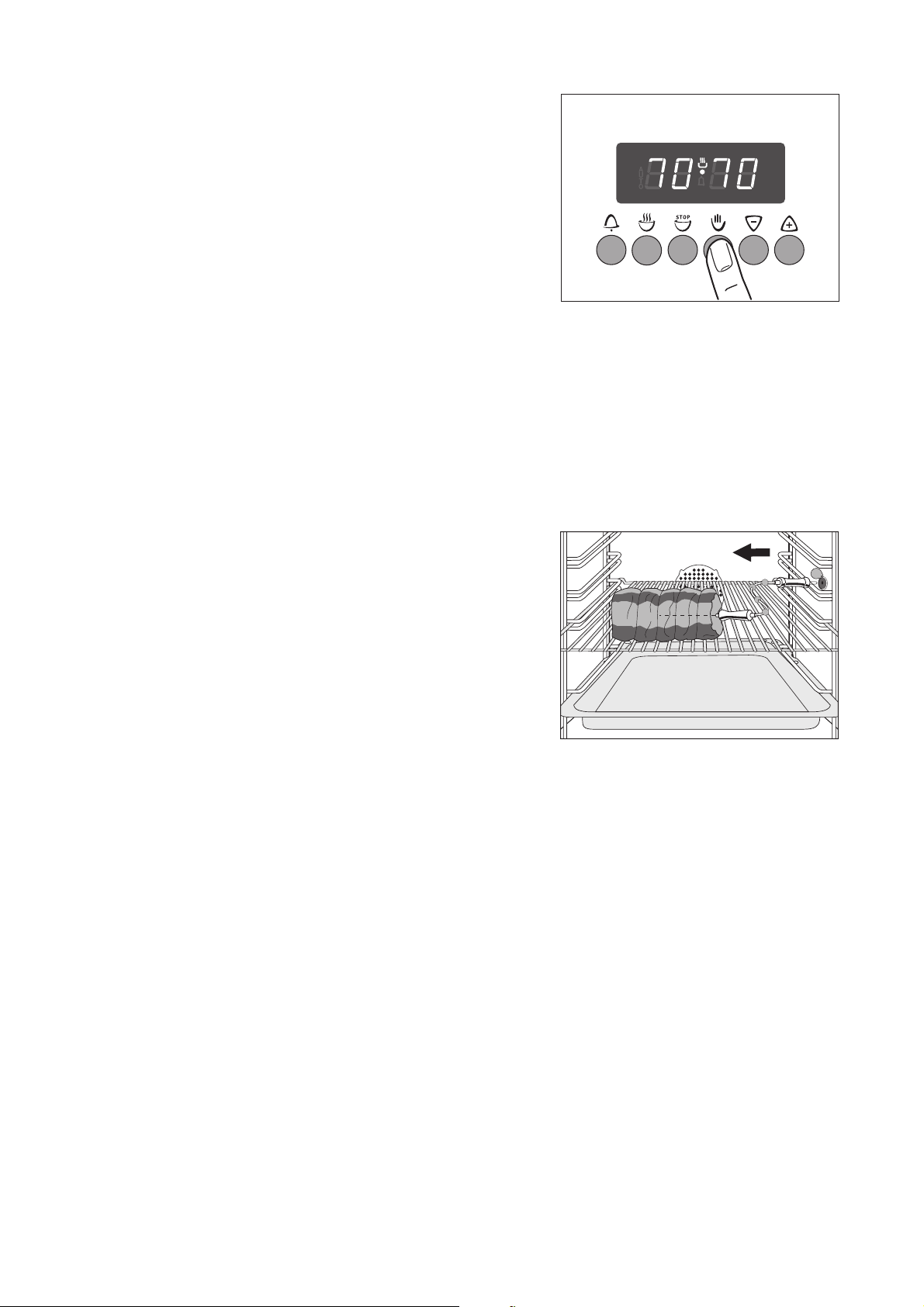

5. As soon as the current core temperature equals
the set core temperature, a signal will sound and
the oven will automatically switch itself off.
To switch off the signal, press the H button.
3 When the core temperature gauged within the
meat falls below the set core temperature, the
oven automatically switches itself on again in
order to keep the meat warm.
1 Warning: The meat probe is hot. There is a
risk of being burned when removing the plug
and the tip of the meat probe.
6. Remove the meat probe’s plug from the socket
and remove the meat from the oven with the meat
probe still inserted.
7. Switch off the oven functions and temperature.
Switch off the appliance if required.
Changing the core temperature:
Even after the temperature has been set it can be
changed by pressing + or - a number of times.
23
Page 24

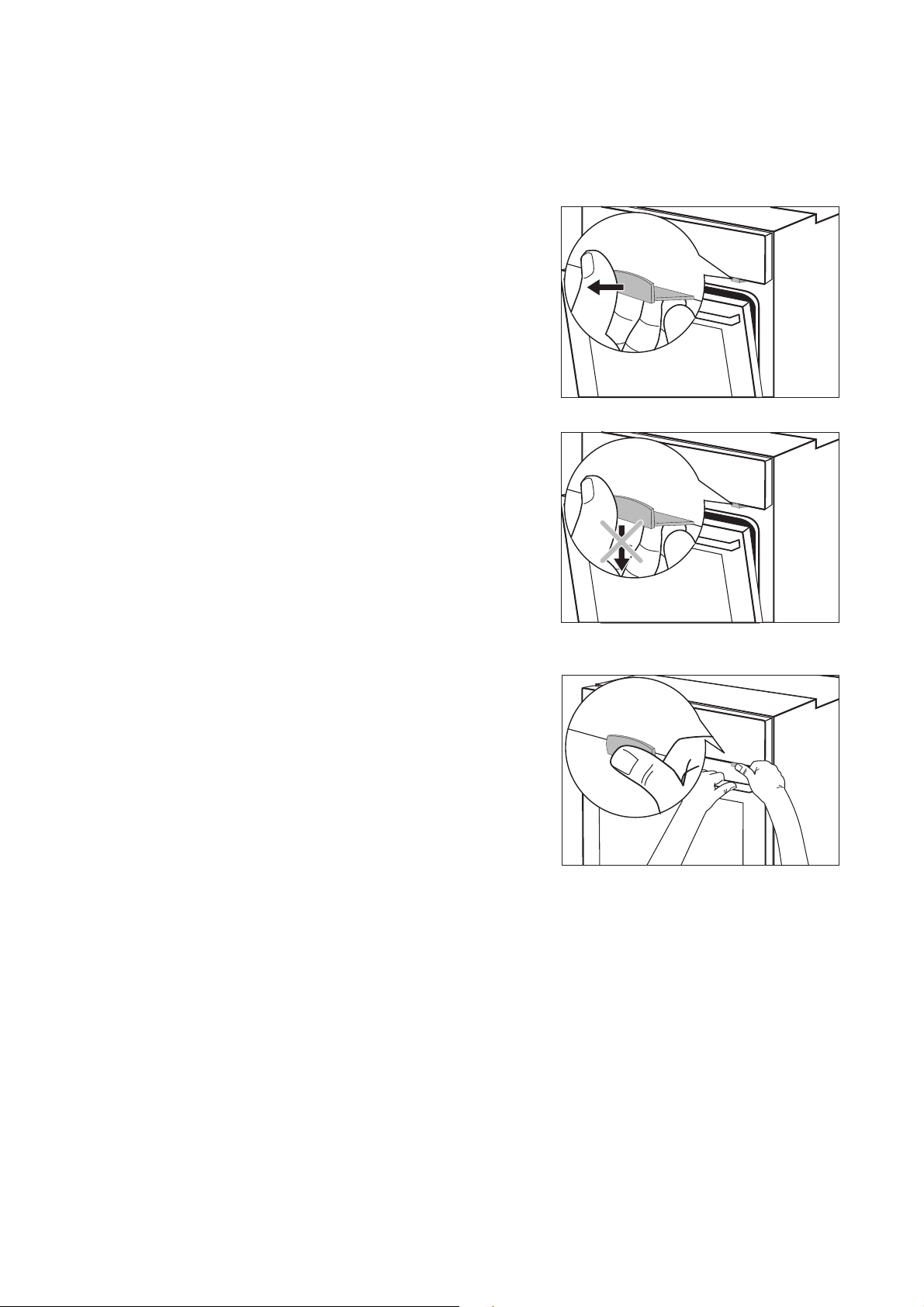

Mechanical Door Lock
When the appliance is delivered, the door lock is deactivated.
Activate the door lock
Pull the safety catch forwards until it locks in place.
Open the oven door:
1. Shut the door.
2. Press the safety catch and keep it depressed.
3. Open the doors.
Close the oven door
Close the door without pressing the safety catch.
Deactivating the door lock
Press the safety catch back into the panel.
3 Switching off the appliance does not cancel
the mechanical door lock.
24
Page 25
Uses, Tables and Tips
Baking
For baking use the hot air ¥ oven function or
conventional ¡.
3 When baking, remove the fat filter, as other-
wise the baking time will be longer and the
surface will be browned unevenly.
Baking tins
• Cake tins made of dark metal and coated tins are
suitable for conventional ¡.
• Light metal tins, glass and ceramic moulds are also
suitable for hot air ¥.

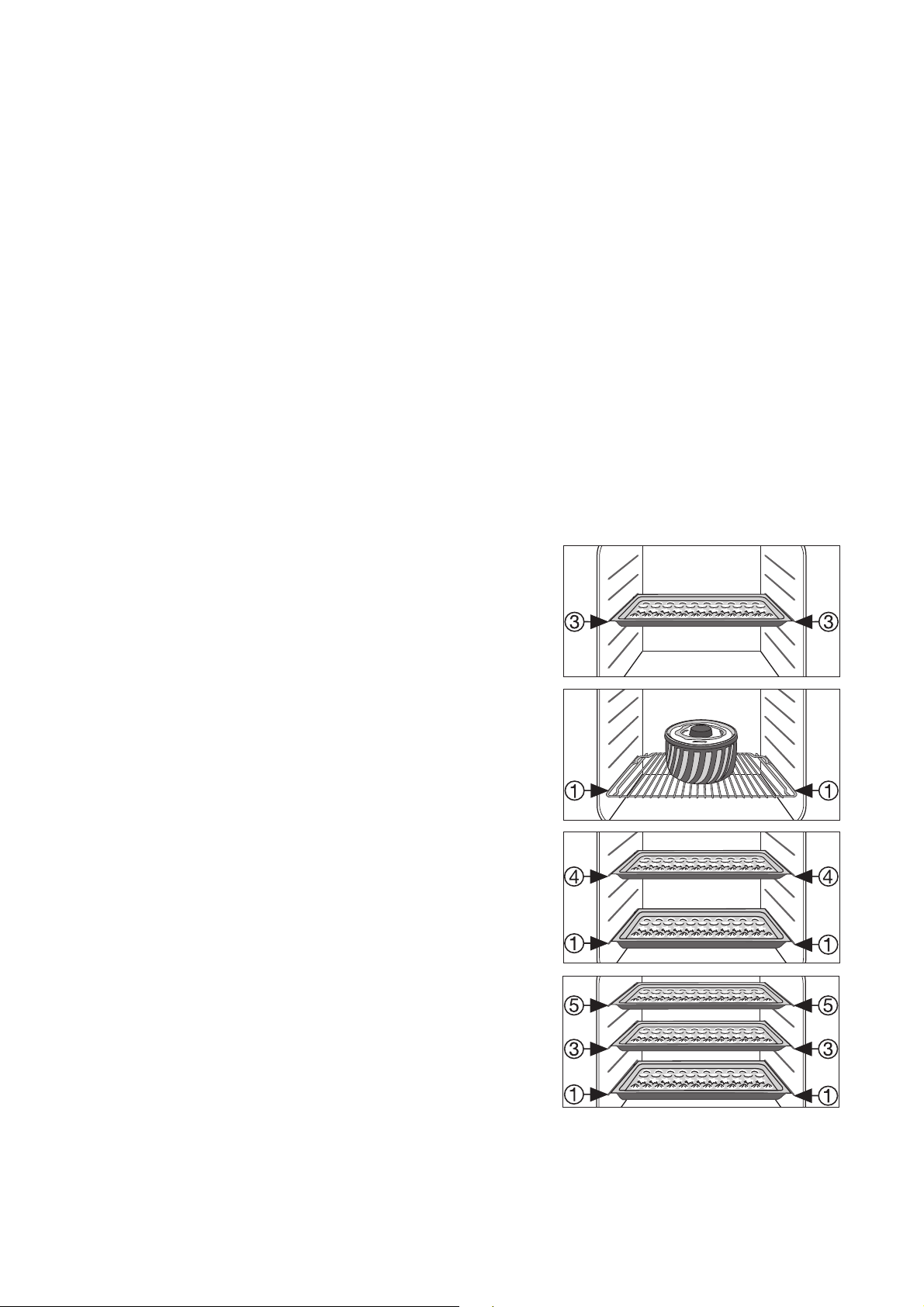

Shelf positions
• It is possible to bake on one level using
conventional ¡.
• Using hot air ¥ you can bake dry, flat items and
biscuits on up to three baking trays simultaneously.
1 Baking tray:
e.g., shelf position 3
1 Cake tin:
e.g., shelf position
2 Baking trays:
shelf positions 1 and 4
3 Baking trays:
shelf positions 1, 3 and 5
25
Page 26
General Information
• Always count the shelf positions from the bottom
upwards.
• Insert baking trays with the sloped edge to the
front!
• Always place cake tins in the middle of the shelf.
• Using hot air ¥ or conventional ¡ you can also
bake with two cake tins simultaneously by placing
them side by side on the shelf. There is no significant increase in baking time.
3 When frozen foods are used the trays inserted
may distort during cooking. This is due to the
large difference in temperature between the
freezing temperature and the temperature in
the oven. Once the trays have cooled the distortion will disappear again.
Notes on the baking tables
In the tables you will find information on temperatures, cooking times and shelf positions for a selection of dishes.
• The temperatures and cooking times are for guidance only since these are dependent on the mixture, quantity and cake tin used.
• When using for the first time we recommend setting the lower temperature and only select a higher
temperature if necessary, e.g., if increased browning is required or the cooking time is too long.
• If you cannot find specific information for one of
your own recipes, use information given in a similar
recipe for guidance.
• When cakes are baked on trays or in tins on more
than one oven position at once the baking time
may be increased by 10-15 minutes.
• Items that might drip (e.g., pizzas, fruit flans)
should only be prepared on one level.
Variations in the height of the item to be baked can
lead to different degrees of browning at the start of
baking. In this case please do not change the tem-
perature setting. Differences in the degree of
browning will balance out during baking.
2 For longer cooking times switch off the oven
approx. 10 minutes before the end of the
cooking time to make use of the residual heat.
Unless otherwise stated, the information in the
tables assumes starting with a cold oven.
26
Page 27
Baking Table
The stated baking times are for guidance only.
Recommended cooking methods, shelf positions
and temperatures are printed in bold type.
Hot Air ¥ Conventional ¡
Type of pastry or
cake
Sponge base
Pudding bowl or ringshaped cakes
Madeira cake
(square/rectangular
baking tin)
Flan case 150-170 3 170-190 2 20-25
Apple flan, very thin 150-170 1 170-190* 1 45-60
Fairy cakes 150-170 3 180-190 3 20-30
Shortcrust pastry
Large cheesecake 140-160 1 170-190 1
Covered fruit pie 150-170 1 170-190 1 50-60
Cheesecake on the
tray
Puff pastry
French apple tart 150-170* 1 190-200* 1 40-50
Sponge cake
Sponge cake (DIN) 150-170 1 160-180 2 25-40
Flan case 150-160* 3 170-180* 3 25-30
Swiss roll 150-170* 3 180-200* 3 10-15
Yeast dough
Pudding bowl/ringshaped cakes
Plaited roll/ring, plaited Danish pastry
Butter cake/sugar
cake
sugar-topped cakes
Sponge cake with
crumble topping
Apple crumble (DIN) 150-170 3 170-190 3 35-50
Cheesecake (tray) 150-170 3 170-190 3 45-50
Fruit loaf (500 g flour) 150-170* 3 160-180* 3 40-70
Pizza
(round baking sheet)
Temperature in
°C
150-170 1 160-180 1 50-70
140-160 1 150-170 1 70-80
--- --- 160-180 2 50-70
150-170 1 160-180 1 45-60
150-170 3 170-190 3 30-40
160-180 3 190-200* 3 25-30
150-170 3 180-190 3 20-40
230-250* 1 250-270* 1 10-25
Shelf
position
Temperature in
°C
Shelf
position
Baking time in
10 mins. standing
minutes
60-90 +
time
27
Page 28
Hot Air ¥ Conventional ¡
Type of pastry or
cake
Biscuits
Meringues 80-90* 3 80-90 3 150-180
Macaroons 100-120 3 3 20-30
Small piped biscuits 140-160 --- 150-170 3 15-30
Anzac nutties --- --- 160-180 2 25-35
Items made with puff
pastry
Danish pastries 160-180* 3 170-190* 3 20-40
Choux pastry
Cream puffs 160-180 3 190-210* 3 25-40
Shortcrust and rich pastries
Swiss apple pie --- --- 210-230* 1 35-50
Swiss cheese pie --- --- 210-230* 1 40-50
Spinach/vegetable
quiche, quiche lorraine
Bread and bread rolls
Herb bread 170-190* 3 190-210* 3 45-60
Tinned white loaf 170-190* 2 180-200* 1 40-50
Unleavened bread,
pitta bread
Pasta bake 180-200 1
Potato gratin 180-200 2
Dishes au gratin
Hawaiian toast 200-220 3 240-260 3 14-16
* Pre-heat the oven
Temperature in
°C
160-180* 3 180-200* 3 20-30
--- --- 190-210* 1 40-60
--- --- 230-250* 2 15-25
Shelf
position
Temperature in
°C
Shelf
position
Baking time in
minutes
Frozen Foods
Hot Air ¥ + Conventional ¡
Type of pastry
or cake
Pizza (frozen)
Also observe the manufacturer’s instructions for all other frozen products.
28
Temperature
in °C
Follow the manufactur-
er’s instructions as stat-
ed on the package
Shelf position
Lay on the grill tray,
insert baking tray below (shelf
position in accordance with
the manufacturer’s instruc-
tions as stated on the pack-
age)
Baking time
in minutes
Follow the manufacturer’s
instructions as stated on
the package
Page 29
Pizza Setting
The stated baking times are for guidance only
Pizza Setting ¦
Type of pastry or cake Temperature in °C Shelf position
Shortcrust pastry
Large cheesecake
(750 g soft cheese,
loose-bottomed tin, 26 cm)
Covered fruit pie 150-160 2 45-60
Cheesecake on the tray 150-160 2 45-55
Blackcurrant cake,
initial baking for base
Blackcurrant cake finish baking 150-160 2 30
Puff pastry
French apple tart 160-170* 2 40-45
Yeast dough
Cheesecake 150-160 2 35-45
Pizza 220* 1 15-20
Biscuits
Anzac nutties 160-170 1 25
Shortcrust and rich pastries
Spinach quiche 190-200 2 30-35
Bread and bread rolls
Unleavened bread 200-220* 2 21
Soufflés and dishes au gratin
Baked cabbage with a crispy topping
Macaroni and leek cheese 180-200 1 37
* Pre-heat the oven
150-160 2
160-170 2 15
180-200 1 30
Baking time
in minutes
60-90 +
10 mins. standing
time
Frozen foods Pizza setting ¦
Type of pastry or cake Temperature in °C Shelf position
Lay on the grill tray,
Follow the manufactur-
Frozen pizza
Also observe the manufacturer’s instructions for all other frozen products.
er’s instructions
as stated on the
package
insert baking tray below
(shelf position in accord-
ance with the manufactur-
er’s instructions as stated
on the package)
Baking time
in minutes
Follow the manufac-
turer’s instructions
as stated on the
package
29
Page 30
Roasting
For roasting use the hot air ¥ oven function.
Ovenware for roasting
• Any heat-resistant dish is suitable for roasting (Refer to the manufacturer's instructions!).
• If the dish has plastic handles, check that they are
heat-resistant (refer to manufacturer's instructions!).
• You can roast large roasting joints directly in
the universal tray or on the shelf with the universal tray inserted below (e.g., turkey, goose, 3-
4 chickens, 3-4 knuckles of veal).
• We recommend roasting all lean forms of meat in a
casserole dish with a lid (e.g., veal, marinated
beef, pot roast, frozen meat). In this way the meat
will retain its juices.
• You can roast all forms of meat that are to be
browned or crisped in a casserole dish without a
lid (e.g., pork joints, meat loaf, lamb joints, mutton,
duck, 1-2 knuckles of veal, 1-2 chickens, small
poultry, sirloin, fillet, game).
3 If you use dishes for roasting the oven will not
get so dirty!
Notes on the roasting table
Information is given in the table on suitable oven
functions, temperature settings, cooking times and
shelf positions for various types of meat. The information is for guidance.
• We recommend roasting meat and fish in the oven
from a weight of 1kg.
• To stop meat juices or fat burning onto dishes or
the oven, we recommend adding a little liquid to
the roasting dish.
• Turn the joint as required (after 1/2 - 2/3 of the
cooking time).
3 Baste large joints and poultry with meat juices
several times during cooking. This will produce better roasting results.
2 Switch the oven off approx. 10 minutes before
the end of the roasting time to make use of the
residual heat.
30
Page 31
Roasting Table
Insert either the tray or universal tray into the 1st
shelf support rail.
Hot Air ¥
Food to be roasted Temperature in °C Shelf position
1 Level 2 Levels
Pork
1 kg Pork joint
(spare rib/ham joint, roasting joint),
per cm thickness
Smoked pork loin, per cm thickness
Meat loaf 160-170 2 --- 60-70
Beef
Beef joint, per cm thickness 150-160 2 --- 18-20
Fillet of beef, per cm thickness 190-200* 2 --- 6-8
Sirloin, per cm thickness 190-200* 2 --- 8-10
Vea l
Veal joint, per cm thickness 170-180 2 --- 14-17
Lamb
Leg of lamb (1800 g) 170-180 2 --- 90
Roasting smaller items on the baking tray
Sausages “cordon bleu” 220-230* 3 4+1 5-8
Sausages 220-230* 3 4+1 12-15
Escalope or chop coated with
breadcrumbs
Rissoles 210-220* 3 4+1 15-20
Fish
Trout weighing 200-250 g 190-200 3 --- 20-25
4 Trout fillets
(weight 200 g)
Perch fillet coated with breadcrumbs
(total weight approx. 1 kg)
Poultry
Chicken 150-160 2 --- 55-60
1 kg Turkey roast, per cm thickness 150-160 2 --- 11-15
Duck (2000-2500 g) 150-160 2 --- 90-120
Goose (4500 g 150-160 2 --- 150-180
* Pre-heat the oven
150-160 2 --- 14-20
150-160 2 --- 10-15
220-230* 3 4+1 15-20
170-180 3 --- 20-25
190-200 3 --- 25-30
Roasting time
in minutes
31
Page 32
Meat Probe Table
Food to be Cooked Meat Core Temperature
Beef
Rib steak or fillet steak rare
medium
well done
Pork
Shoulder of pork, ham joint, neck 80 - 82 °C
Chop (saddle), smoked pork loin 75 - 80 °C
Meat loaf 75 - 80 °C
Vea l
Roast veal 75 - 80 °C
Knuckle of veal 85 - 90 °C
Mutton / lamb
Leg of mutton 80 - 85 °C
Saddle of mutton 80 - 85 °C
Roast lamb, leg of lamb 75 - 80 °C
Game
Saddle of hare 70 - 75 °C
Leg of hare 70 - 75 °C
Whole hare 70 - 75 °C
Saddle of venison 70 - 75 °C
Leg of venison 70 - 75 °C
45 - 50 °C
60 - 65 °C
75 - 80 °C
32
Page 33
Grilling
For grilling use the infrared grill ¸ oven function or
infrared wide-area grill º with temperature setting.
1 Warning: Always close the oven door when
grilling.
3 Always pre-heat the empty oven using the grill
functions for 5 minutes!
Ovenware for grilling
• Use the shelf unit and universal tray together for
grilling.
Shelf positions
• For grilling flat foods you should mostly use the 4th
shelf position from the bottom.
Notes on the grilling table
The grilling times are only for guidance and will vary
depending on the type and quality of meat or fish.
• Grilling is particularly suitable for flat pieces of
meat and fish.
• Turn the food approx. halfway through grilling.
Infrared Grilling
Food for grilling Function
4-8 Pork chops
2-4 Pork chops Infrared grill 275 1 4 12 12
marinated pork steaks
Fillet steak, rare Infrared grill 275 1 4 5-7 4-6
4 fillet steaks, medium
2 Half chicken pieces Infrared grill 250 1 4 15-20 15-20
4 Half chicken pieces
1-4 Chicken thighs
4-6 Chicken thighs
Grilled sausage,
up to 6 items
Grilled sausage,
more than 6 items
Coiled sausages,
up to 4 items
Coiled sausages,
up to 6 items
Whole fish
Toast (without topping)
Infrared
wide-area grill
Infrared
wide-area grill
Infrared
wide-area grill
Infrared
wide-area grill
Infrared
wide-area grill
Infrared
wide-area grill
Infrared grill 275 1 4 5-10 5
Infrared
wide-area grill
Infrared grill 275 1 4 10 9
Infrared
wide-area grill
Infrared
wide-area grill
Infrared
wide-area grill
Temperature
in °C
275 1 4 15 10
275 1 4 12 12
275 1 4 6-8 5-7
250 1 3 15-20 15-20
250 1 4 20 10
250 1 4 20 15
275 1 4 5-10 5
275 1 4 10 9
250 1 3 10 ---
275 1 4 1-2 1-2
Universal tray Grill tray
Shelf positions 1. Page 2. Page
Grilling time
in minutes
33
Page 34
Turbo grilling
Function: Turbo grill ¼
Turn
after ...
minutes
Dish
Chicken
(900-1000 g)
Stuffed pork roasting joint
(2000 g)
Temperature
in °C
Universal tray Grill tray
Shelf positions
Grilling time
in minutes
160 1 2 50-60 25-30
160 1 2 90-95 45
Pasta bake 180 --- 2 30 ---
Potato bake
au gratin
200 1 3 20-23 ---
Gnocchi au gratin 180 1 3 20-23 ---
Cauliflower cheese 200 --- 3 15 ---
34
Page 35
Preserving
When preserving use the bottom heat oven
function U.
Preserving jars
• When preserving use only commercially available
jars that are the same size.
3 Jars with twist-off tops or with a bayonet
fastening and metal containers are not suitable.
Shelf positions
• Use the 1st shelf position from the bottom for
preserving.
Preserving Table
The states preserving times and temperatures are for
guidance
Preserves
Temperature
in
°C
Cooking time until
bubbles form
Mins.
Notes on preserving
• Use the baking tray for preserving. There is room
for up to six jars, each with a capacity of 1 litre.
• The jars should all be filled to the same level and
closed.
• Position the jars on the baking tray so that they do
not come into contact with one another.
• Pour approx. 1/2 litre of water into the baking tray
to create sufficient moisture in the oven.
• As soon as bubbles begin to appear in the first jars
(for 1-litre jars this takes about 35-60 minutes),
switch off the oven or reduce the temperature to
100 °C (see table).
Continued cook-
ing
at 100 °C
Mins.
Standing time
with oven
switched off
Soft fruit
Strawberries, blueberries, raspberries, ripe
gooseberries
Unripe gooseberries 160-170 35-45 10-15 -
Fruit with stones
Pears, quinces, plums 160-170 35-45 10-15 -
Vegetables
Carrots 160-170 50-60 5-10 60
Mushrooms 160-170 40-60 10-15 60
Gherkins 160-170 50-60 - -
Mixed Pickles 160-170 50-60 15 -
Kohlrabi, peas, asparagus
Beans 160-170 50-60 - -
Plum purée
160-170 35-45 - -
160-170 50-60 15-20 -
160-170
50
45
-6-8 timer
-
-
35
Page 36
Drying with Hot Air
Use shelves lined with greaseproof paper or baking
paper.
You will achieve a better result if you switch the oven
off half way through the drying time.
Open and leave to cool, preferably overnight. Then
finish drying the dried food.
Temperature in °C
Time in hours
(approximate guide)
Vegetables
Beans 60-70 6-8
Peppers (strips) 60-70 5-6
Vegetables for making soup 60-70 5-6
Mushrooms 50-60 6-8
Herbs 40-50 2-3
Fruit
Plums 60-70 8-10
Apricots 60-70 8-10
Sliced apple 60-70 6-8
Pears 60-70 6-9
36
Page 37
Cleaning and Care
1
Warning: For safety reasons cleaning the appliance with a steam jet cleaner or high-pressure water cleaner is not permissible!
Exterior of the Appliance
• Wipe the front of the appliance with a soft cloth
dipped in warm soapy water.
• Do not use scourers, caustic cleaners or abrasive
items.
• Use commercially available cleaners for metal
fronts.
Oven Interior
1 Warning: The oven must be switched off and
cold before cleaning.
Clean the appliance after each use. This is the easiest way to remove spills and prevents them being
burnt on.
1. Switch on the oven lighting when cleaning.
2. Every time you use the oven, wipe it out afterwards
with water and washing-up liquid, then dry. Do not
use any abrasive items.
3. Remove stubborn marks with special oven clean-
ers.
1 Important: Always follow the manufacturer's
instructions when using oven spray!
Accessories
Wash all slide-in units (shelf unit, baking tray, shelf
support rails etc.) after each use and dry well. Soak
briefly to make them easier to clean.
Fat Filter
1. Clean the fat filter in hot water and washing up liq-
uid or in the dishwasher.
2. Badly burned on soiling can be removed by boiling
the filter in a little water to which 2-3 tablespoonsful
of dishwasher cleaner has been added.
37
Page 38

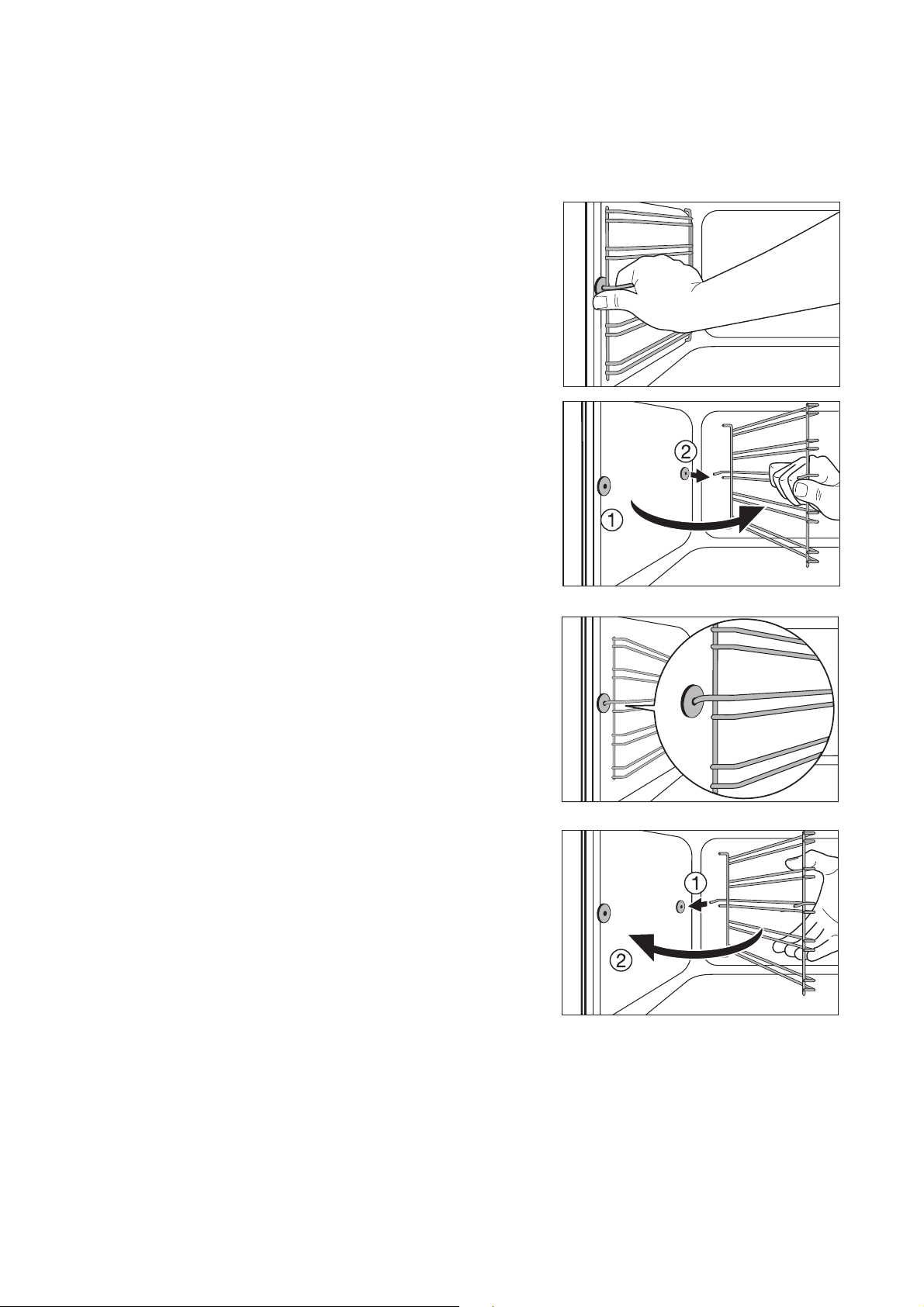

Shelf Support Rails
The shelf support rails on the left and right hand
sides of the oven can be removed for cleaning the
side walls.
Removing the shelf support rails
First pull the front of the rail away from the oven wall
(1) and then unhitch at the back (2).
Fitting the shelf support rails
3 Important! The rounded ends of the guide
rails must be pointing forwards!
To re-insert, first hook the rail into place at the back
(1) and then insert the front and press into place (2).
38
Page 39
Oven Lighting
1 Warning: Risk of electric shock! Prior to
changing the oven light bulb:
– Switch off the oven!
– Disconnect from the electricity supply.
3 Place a cloth on the oven floor to protect the
oven light and glass cover.

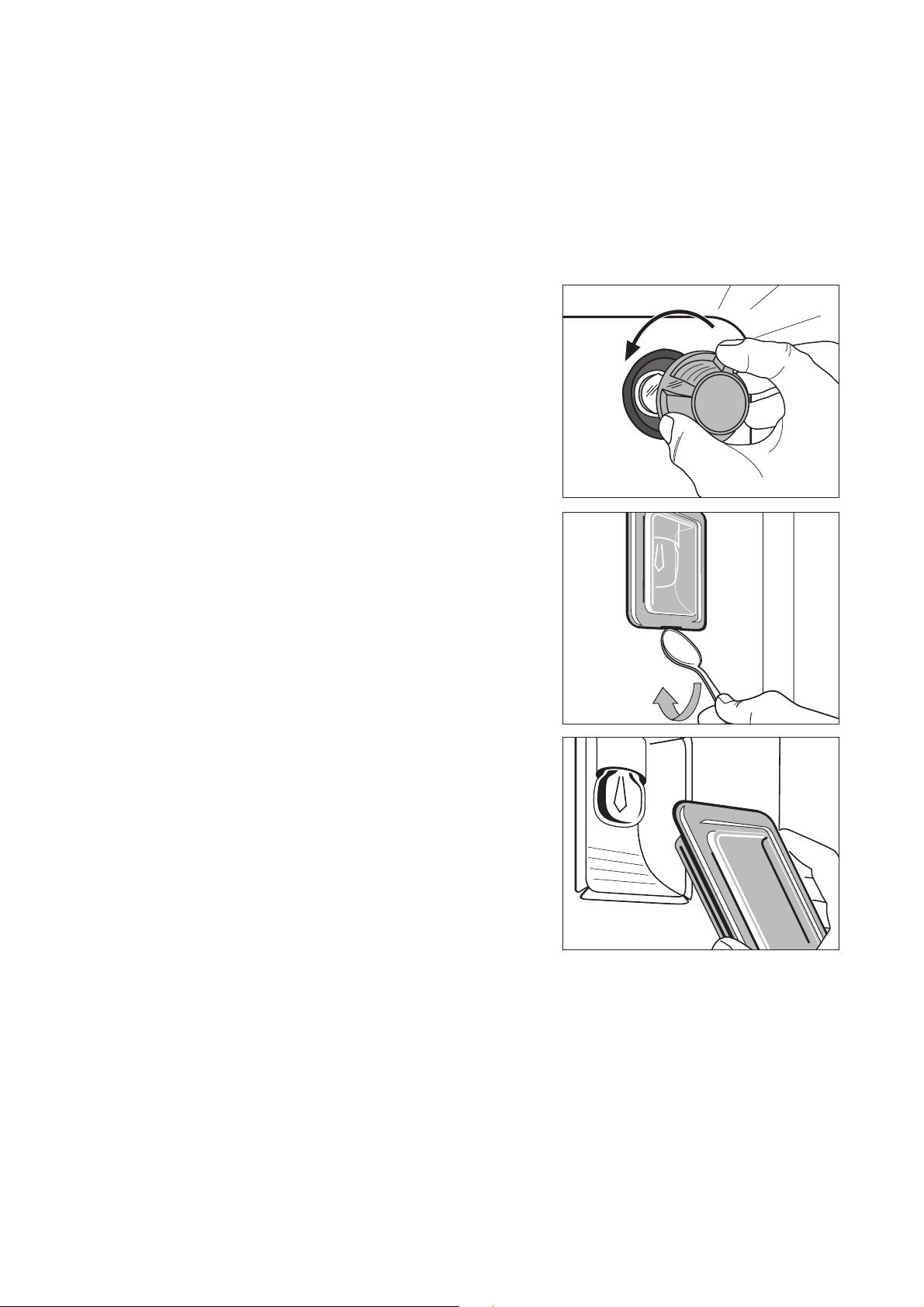

Changing the oven light bulb/cleaning
the glass cover
1. Remove the glass cover by turning it anti-clock-
wise and then clean it.
2. If necessary: replace with
25 watt, 230 V, 300 °C heat-resistant oven lighting.
3. Refit the glass cover.
Changing side oven light/Cleaning glass
cover
1. Remove the left shelf support rail.
2. Remove the glass cover with the aid of a narrow,
blunt implement (e.g., teaspoon) and clean it.
3. If necessary:
replace bulb with a 25 watt, 230 V, 300 °C heatresistant, oven light bulb.
4. Refit the glass cover.
5. Insert the shelf support rail.
39
Page 40

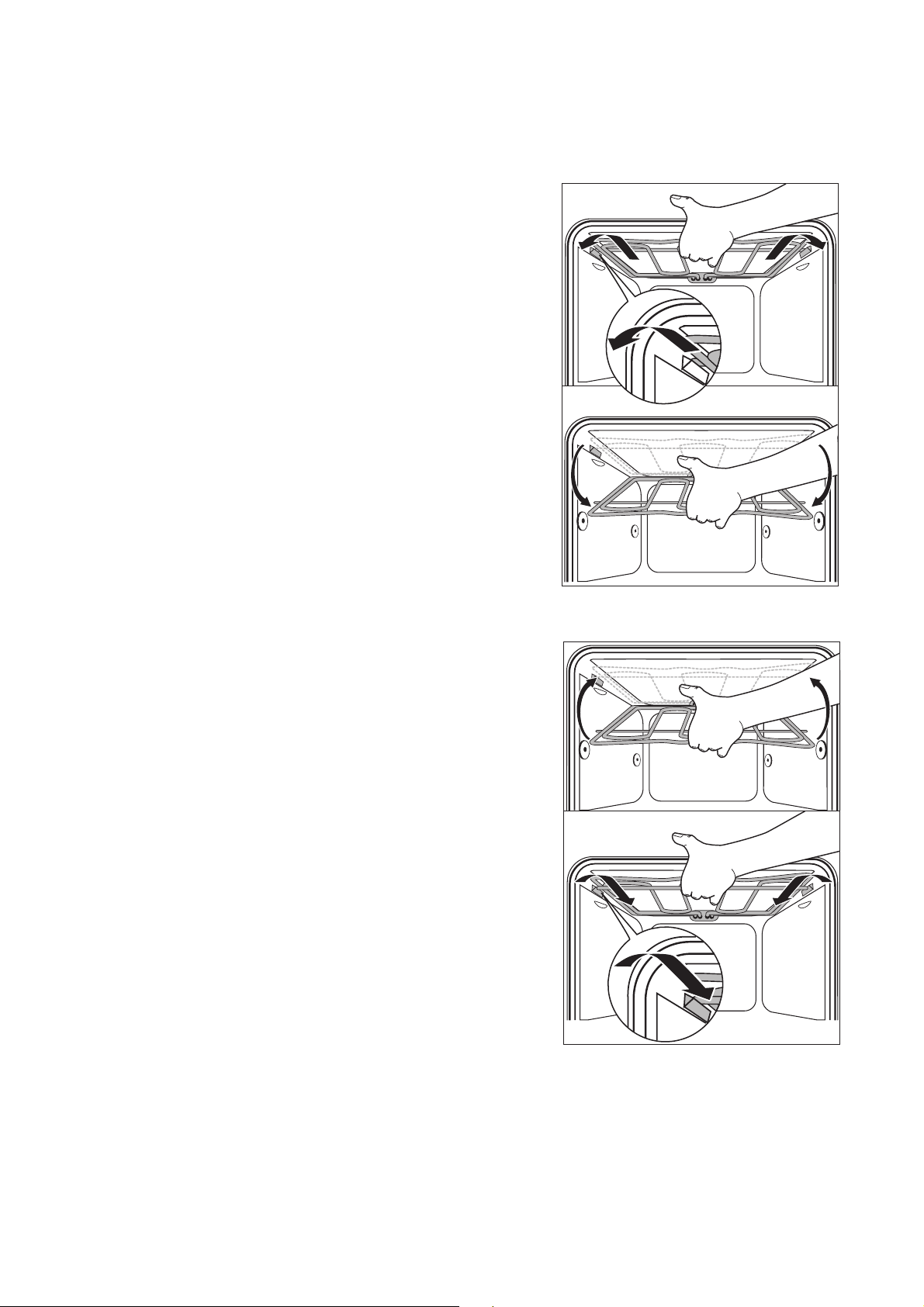

Oven Ceiling
The upper heating element can be folded down to
make it easier to clean the oven ceiling.
Folding down the heating element
1 Warning: Only fold down the heating element
when the oven is switched off and there is no
risk of being burnt!
1. Remove the side shelf support rails.
2. Grip the heating element at the front and pull it for-
wards and out over the support lug on the inner
wall of the oven.
3. The heating element will now fold down.
1 Caution: Do not use force to press the heating
element down! The heating element might
break.
Cleaning the oven ceiling
Repositioning the heating element
1. Move the heating element back up towards the
oven ceiling.
2. Pull the heating element forwards against the
spring pressure and guide it over the oven support
lug.
3. Settle it onto the support.
4. Insert shelf support rail.
1 Important: The heating element must be posi-
tioned correctly and securely on both sides
above the support lug on the inner wall of the
oven.
40
Page 41

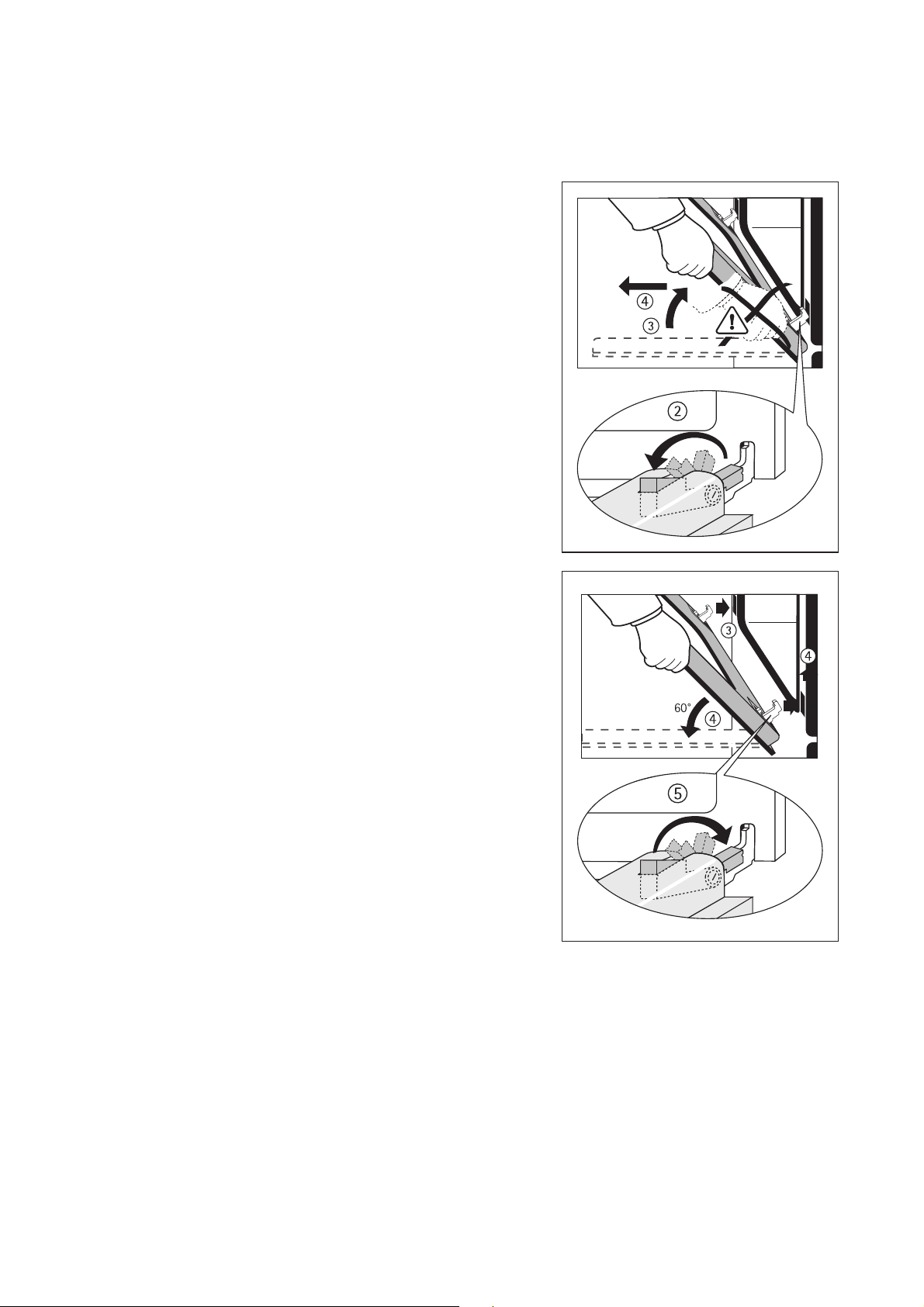

Oven Door
The door of your appliance may be removed for
cleaning.
Removing the oven door
1. Open the oven door completely.
2. Completely fold back the clamping levers on
both door hinges.
3. Grip the oven door with both hands and close it
about 3/4 going past the point of resistance.
4. Pull the door away from the oven (Caution: the
door is heavy!)
5. Place the door, outer surface downwards, on a
soft, flat surface, (for example on a blanket) to
avoid scratches.
Hanging the oven door
1. From the side of the door on which the handle is
positioned, take hold of the sides of the door with
both hands.
2. Hold the door at an angle of approx. 60°.
3. Insert the door hinges as far as possible into the
two slots on the right and left at the bottom of the
oven at the same time.
4. Lift the door up until resistance is met and then
open it fully.
5. Fold the clamping levers on both door hinges back
into their original position.
6. Close the oven door
41
Page 42
Oven Door Glass
The oven door is fitted with three glass panels
mounted one behind the other. The inner panels may
be removed for cleaning.
1 Warning: Carry out the following steps only
when the oven door is unhinged! When left on
its hinges, the door could rise rapidly due to
the lighter weight when the glass is removed
and could cause injury.
1 Important: Using force, especially on the edg-
es of the front glass panel, may break the
glass.
Removing the top door glass
1. Unhinge the oven door and place it on a soft, flat
surface with the handle facing down.
2. Take hold of the upper glass panel at the lower
edge and slide it against the spring pressure in the
direction of the oven door handle until it is free at
the base (
3. Raise the panel gently at the base and pull out (
á ).
à ).
Removing the middle door glass
1. Grip the bottom edge of the middle glass panel
and push it in the direction of the oven door handle
until it is free at the base (
2. Raise the panel gently at the base and pull out (
á ).
à ).
Clean the glass door panels
42
Page 43

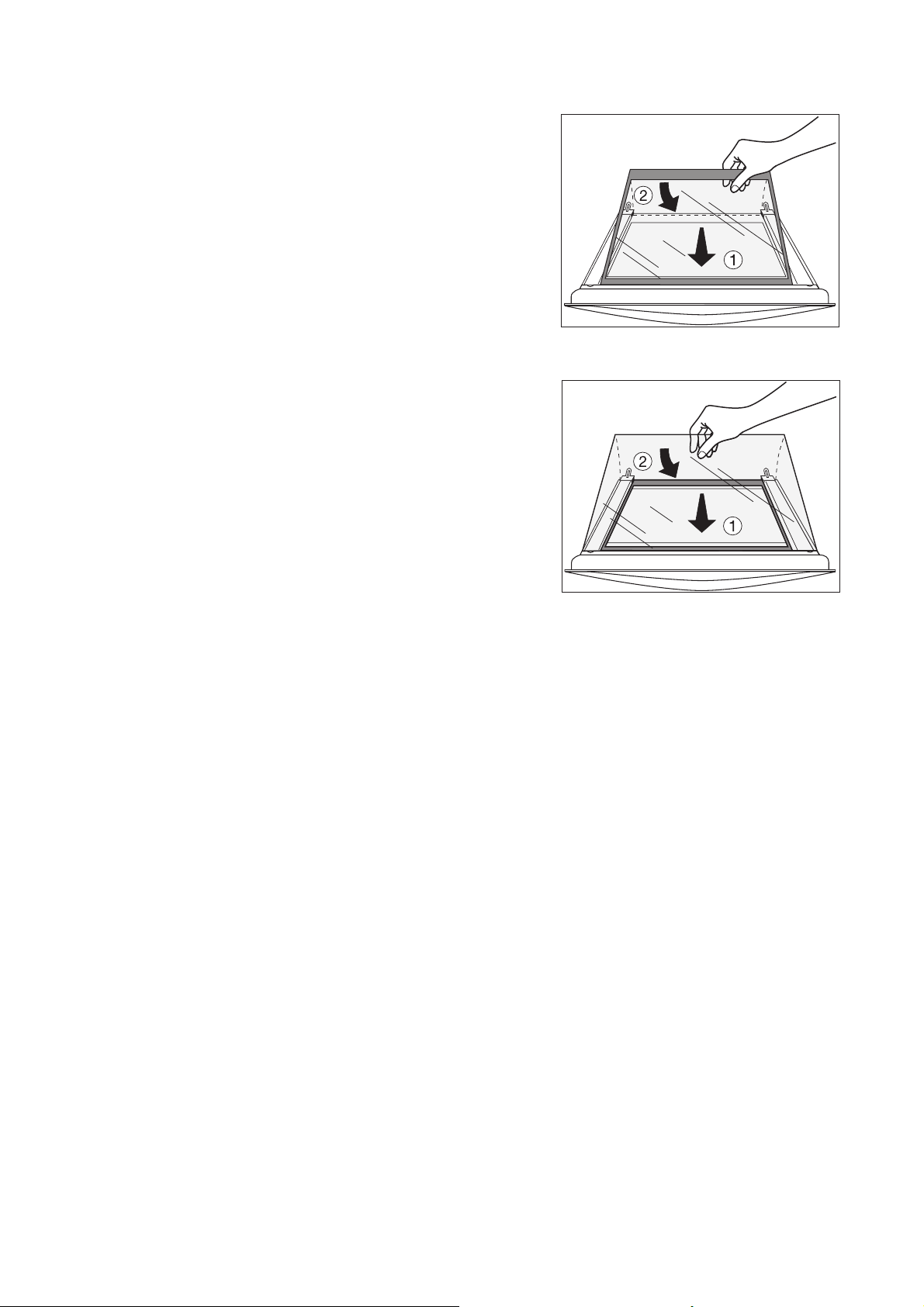

Inserting the middle door glass
1. Insert the middle glass panel at an angle from
above into the section of the door in which the
handle is located (
2. Lower the middle glass panel and slide it under the
lower bracket towards the lower door edge as far
as it will go (
á ).
à ).
Inserting the upper door glass
1. Insert the upper glass panel at an angle from
above into the section of the door in which the
handle is located (
2. Lower the glass panel. Lay the panel against the
spring on the lower door edge in front of the retaining section on the handle side, and slide it under
the retaining section (
The glass panel must be firmly in position!
á ).
à ).
Re-hang the oven door
43
Page 44
What to do if …
Fault Possible cause Remedy
The cooking zones are not functioning.
The oven will not heat. The oven has not been switched
The oven light will not come on. The bulb has blown. Replace the bulb.
If you cannot remedy the fault using the measures described above, please contact your local
dealer or our Customer Service.
The relevant cooking zone is not
switched on.
The fuse in the domestic wiring
system (fuse box) has been tripped.
on.
The correct time has not been set. Set the correct time.
The required settings have not
been made.
The fuse in the domestic wiring
system (fuse box) has been tripped.
Switch on the cooking zone.
Check the fuse.
Switch the oven on.
Check the settings.
Check the fuse.
If the fuses are tripped repeatedly,
please call a qualified electrician.
1 Caution: repairs to the appliance should only
be carried out by specialised repair techni-
cians. Inappropriate repairs may result in seri-
ous injury to the user.
In the event of damage caused by inappropriate re-
pairs, the guarantee may not cover the work carried
out by Customer Service technicians or by your
dealer.
3 Advice on cookers with metal
fronts:
Because of the cold surface at the front of the
cooker, opening the oven door during (or just
after) baking or roasting may cause the glass
to steam up.
44
Page 45

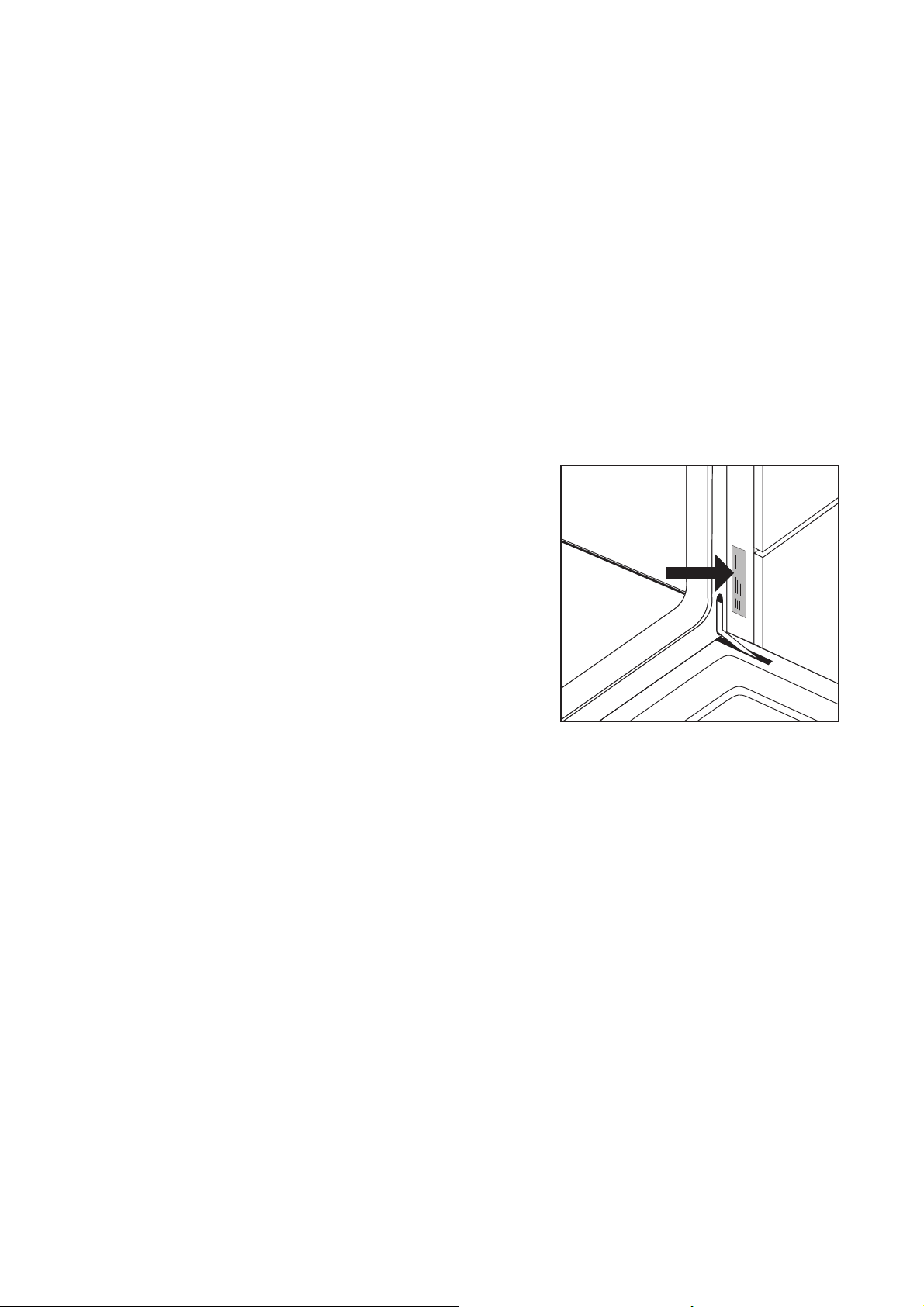

Technical Data
Oven Interior Dimensions
Height x Width x Depth 31 cm x 41 cm x 41 cm
Capacity (usable capacity)
Regulations, Standards,
Directives
This appliance meets the following standards:
• EN 60 335-1 and EN 60 335-2-6
relating to the safety of electrical appliances for
household use and similar purposes and
• EN 60350, or DIN 44546 / 44547 / 44548
relating to the operating features of electric cookers, hobs, ovens, and grills for household use.
• EN 55014-2
• EN 55014
• EN 61000-3-2
• EN 61000-3-3
• relating to basic requirements for electro-magnetic
compatibility protection (EMC).
52 l
5 This appliance complies with the following EU
Directives:
• 73/23/EWG dated 19.02.1973 (Low Voltage Direc-
tive)
• 89/336/EWG dated 03.05.1989 (EMC Directive in-
cluding Amending Directive 92/31/EWG).
45
Page 46
Index
A
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
B
Baking tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
C
Cleaning
accessories
initial cleaning
oven Ceiling
oven light bulb
shelf support rails
Clock
Changing the time
Countdown
Length
Clock Functions
Combination shelf
Control panel
Conventional
Cooking
D
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . 6
Door Lock
F
Fat Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 37
G
General purpose pan . . . . . . . . . . . . . . . . . . . . . . . . . 8, 15
M
Meat probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 22
O
Oven
accessories
functions
light bulb
P
Preserving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Preserving Table
R
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Ring
use
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
S
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Shelf support rails
T
Tables and tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
U
Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
W
What to do if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
46
Page 47
Service
In the “What to do if …” section a number of malfunctions are listed that you can rectify yourself Look
there first if a fault occurs.
Is it a technical fault?
If so, please contact your customer service centre.
(You will find addresses and telephone numbers in
the section “Customer Service Centres”.)
Always prepare in advance for the discussion. This
will make diagnosis of the problem easier and also
make it easier to decide if a customer service visit is
necessary:
Please make a note of the following information as
accurately as possible:
• What form does the fault take?
• Under what circumstances does the fault occur?
Prior to the telephone call it is important that you
make a note of the following appliance code numbers that are given on the rating plate:
• model description,
• PNC code (9 digits),
• S No code (8 digits).
We recommend that you record the code numbers
here so that you always have them to hand:
Model: . . . . . . . . . . .
PNC: . . . . . . . . . . .
S-No: . . . . . . . . . . .
When do you incur costs even during the
warranty period?
• if you could have remedied the fault yourself using
the fault table (see section “What to do if …”),
• if the customer service technician has to make
several journeys because he was not provided with
all the relevant information before his visit and
therefore, forexample, has to fetch spare parts.
These multiple trips can be avoided if you prepare
your phone call as described above.
47
Page 48
822 947 924-B-120405-07 Subject to change without notice
The Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products
(such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
Loading...
