Doro PhoneEasy® 100w/105wr

Doro PhoneEasy 105wr, PhoneEasy 100w User Manual

M1 M2	R
D

.1	2	3
	2	D E F
	A B C

	4	5	6
	G H I	J K L	M N O
	7	8	9
	P Q R S	T U V	W X Y Z
6	L		#	7
6	* NNNNNN0			7

PhoneEasy 105wr

14

English

1.Audio boost

2.Direct memories (fast dial)

3.Menu key/OK

4.Talk key/ Speaker phone

5.Down/Redial

6.* and keypad lock

7.# and ring signal On / Off

8.End call and on / off key

9.Back/Clear/Internal call

10.R Recall key (PBX features)

11.Volume up/Volume down

12.Up / missed call

13.LED indicator.

Only for PhoneEasy105wr:

14.Paging

15.Answering machine functions. Detailed in Answering machine section.

16.Message indication/display

X 2

105wr

100w

+1, +2,...

Doro

Model: S004

LV0600045

LV0600030

UK only: S004

LB0600045

LB0600030

AAA

1.2V

6VDC

500mAh

450mA

300mA

Ni-MH

ø 3,5

ø 5,5

Use only original battery and original power adapter.

English

Contents

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Date/Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Hearing loop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Making a call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Receiving a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Call timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Temporary silent mode . . . . . . . . . . . . . . . . . . . . . . . . . 9 Silent mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Redial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Handset power On/Off . . . . . . . . . . . . . . . . . . . . . . . . . 9 Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Toggle phone numbers . . . . . . . . . . . . . . . . . . . . . . . . . 9 Keypad lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Phonebook (Contacts) . . . . . . . . . . . . . . . . . . . . . . . . 11 Fast dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Call log (Incoming numbers/Caller ID)* . . . . . . . . . . . . 15

English

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Base settings (BS SET) . . . . . . . . . . . . . . . . . . . . . . . 17 Handset settings (HS SET) . . . . . . . . . . . . . . . . . . . . . 18 Other settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Expanded system

(Two or more handsets e.g. duo, trio..) . . . . . . . . . . . . . 22

Answering machine (only PhoneEasy 105wr) . . . . . . . . . . 23

On/Off from the base unit . . . . . . . . . . . . . . . . . . . . . . 23 On/Off from the handset . . . . . . . . . . . . . . . . . . . . . . . 23 Outgoing message from the handset . . . . . . . . . . . . . . 24 Use of answering machine (base unit) . . . . . . . . . . . . . 25 Use of answering machine (handset) . . . . . . . . . . . . . . 26 Answering machine settings (handset) . . . . . . . . . . . . . 28 Remote activation . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Remote access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Warranty and other information . . . . . . . . . . . . . . . . . . . 33

This device is intended for the analogue telephone network lines in AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES, FI, FR, GB, GR, HU, IE, IS, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SI, SK, SE.

English

Installation

Connection

1.Connect the telephone line cord to a network wall socket and to the Ksocket on the base unit.

2.Connect the mains adapter to the wall socket and to the y socket on the base unit.

3.Insert the batteries into the handset (1.2V NiMH AAA) in accordance with the markings.

4.Place the handset in the base unit with the keypad facing

QWVYCTFU %JCTIG VJG JCPFUGV HQT JQWTU VJG ƂTUV VKOG

Language

1.Press w 0 (left menu key).

2.Scroll / to HS SET.

3.Press w 0.

4.Scroll to LANGUAGE. Press w 0.

5.Scroll to ENGLISH. Press w 0.

6.Press L or C several times to exit the menu.

English

Please note!

Use the telephone line cord supplied, an existing line cord from a previous phone may not be compatible.

The mains adapter is the disconnect device between the product and mains power. The mains socket outlet must be close to the equipment and easily accessible.

If the PhoneEasy 105wr base unit’s display is showing -- the answering machine is disconnected, or time/date is not set.

Date/Time

1.Press w 0 (left menu key on the handset).

2.Scroll / to CLOCK. Press w 0.

3.Scroll to SET TIME. Press w 0.

4.Enter time of day (HH--MM). Press w 0.

5.Scroll to SET DATE. Press w 0.

6.Enter date (DD--MM--YY). Press w 0.

7.Press L or C several times to exit the menu.

The format of date/time can also be adjusted. See Settings, clock.

Please note!

You need to set the correct date and time to gain full functionality of the Call log and the answering machine (only PhoneEasy 105wr).

English

Range

The telephone’s range depends on whether or not the radio waves carrying the call are restricted by obstacles in their path, and is usually between 50 and 300 metres. Coverage can be improved by turning one’s head so that the handset is aligned with the base unit. Sound quality declines as the limit is

TGCEJGF WPVKN VJG ECNN KU ƂPCNN[ KPVGTTWRVGF

The !symbol is shown when the phone is within range and

IQGU QWV ƃCUJGU YJGP KV KU QWV QH TCPIG

Eco Functionality

We have introduced the ECO FUNCTIONALITY label to help customers identify products within our assortment having a lower impact on the enviornment. Products carrying this label feature:

r Reduced power consumption in both operational and standby modes. r Adaptive transmission power depending on range on base unit.

Battery

When the batteries are relatively new (less than 6 months) and fully charged (10 hours) they will last for approx 100 hours standby time or approx 10 hours call time. Full battery capacity will not be reached until the batteries have been charged 4–5 times. It is not possible to overcharge or damage the batteries by charging them for too long. It may take up to 10 minutes charging before display illuminates, if batteries are totally empty.

English

Warning!

Risk of explosion if battery is replaced by an incorrect type. Use only original batteries. The use of non-original batteries may be dangerous and may invalidate the phone’s guarantee.

Note!

When the battery is low or when there is too great a distance to the base unit the telephone will be unable to connect to a line. Do not place the base unit close to other electrical equipment, in direct sunlight or other heat sources! This

is to minimize the risk of any interference. It is normal for the device to become warm during charging and this is not dangerous. Dispose of used batteries according to the instructions.

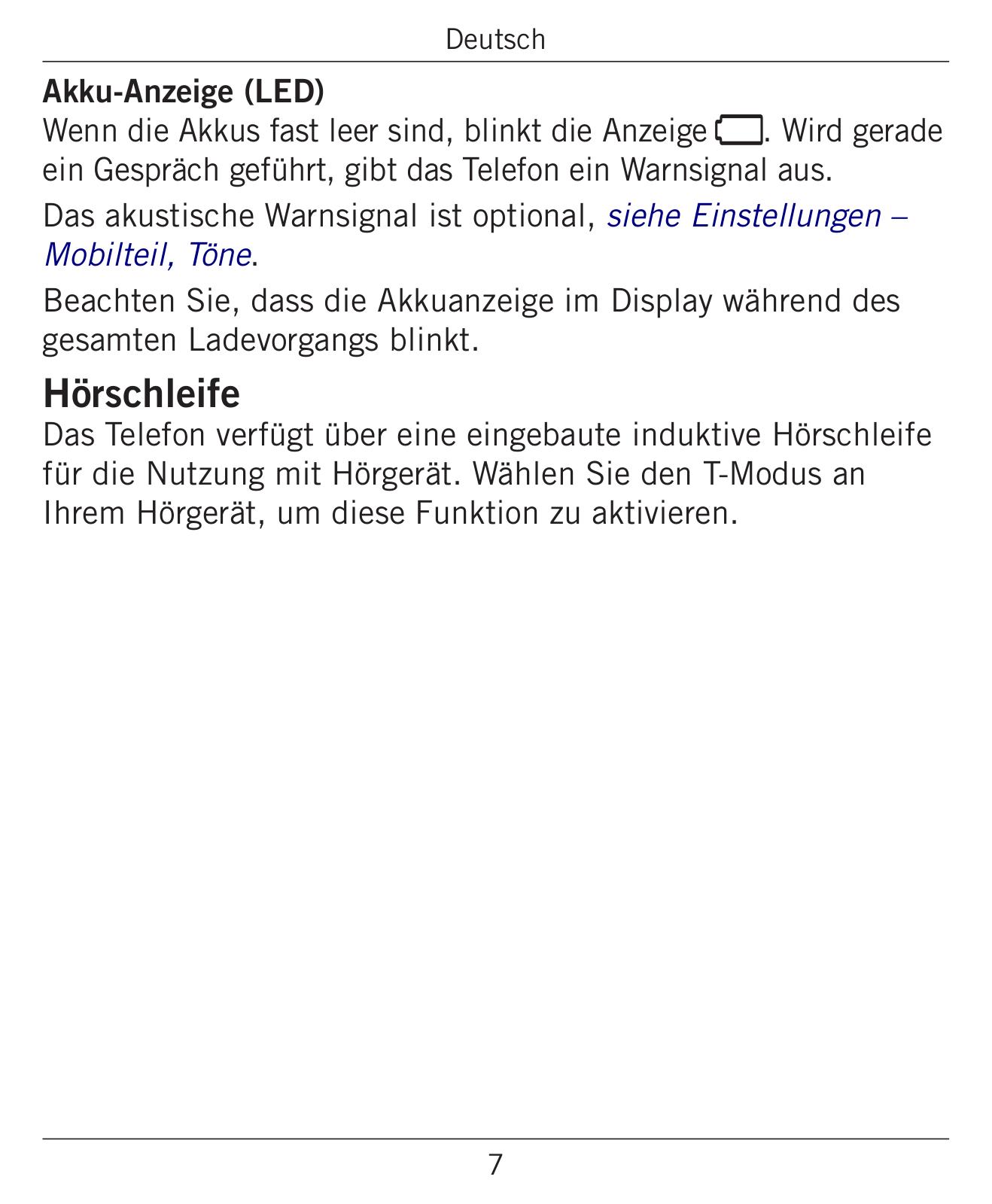

Battery LED

When the batteries are running low, YKNN ƃCUJ CPF C YCTPKPI tone will be heard when a call is in progress.

The warning tone is optional, see Handset settings, tone.

Please note that the complete battery indicator in the display

YKNN ƃCUJ CU NQPI CU VJG JCPFUGV KU EJCTIKPI

Hearing loop

The handset has a built-in hearing loop for those who wish to use their hearing aids while using the telephone. Select the T mode on your hearing aid to enable this feature.

English

The display

Icon	Function	Icon	Function
	Battery charge indicator		New TAM message /
			new call received
	Shown when in range of base		Ringer signal de-activated
	unit
	During calls. Flashes when		Alarm activated
	there is an incoming call
	During intercom call. Flashes		Keypad lock activated
	when there is an incoming
	internal call or an internal
	call put on hold.
	Speaker on		Message indication*

Only PhoneEasy 105wr:
Icon	Function

Answer machine on. Flashes when new TAM message received.

* Only functions in certain countries. To remove the message indicator: Press and then hold down 4.

In order to save the batteries, the display is very dark on standby, press L once to illuminate. During calls, use M1 or M2.

English

Operation

Making a call

1.Enter the required number. Delete if necessary with C.

2.Press q to make the call. Press L to end the call.

Please note!

To switch between handset/speaker press q. Please remember that in speaker mode, it is only possible for one person at a time to talk. When batteries are low the speaker mode and backlight will not work in order to save the batteries.

Speed dial (M1,M2)

This telephone has 2 speed dial memories (M1 and M2).

Once a number has been saved in a memory location, you only need to press and hold one key to make the call, see Handset settings, MEM KEY.

Receiving a call

On incoming calls, the LED indicator (number 13) on the

JCPFUGV YKNN ƃCUJ

1.Press q to answer. Press q again to answer in speaker mode.

2.Press L to end the call.

If the Auto answer function is enabled, just pick up the handset from the base unit to answer. See Settings/Auto ans.

Call timer

During a call the display will show a timer HH-MM-SS, indicating the call duration.

English

Temporary silent mode

When someone calls, you can press C to turn off the handset ring signal.

Silent mode

Press and hold # in standby to turn on/off the handset ring signal.

Redial

Press . Scroll among the 5 most recently dialled numbers with / . If the number is already in the phone book, the corresponding name will also be displayed.

Press q to call the displayed entry, L or C to return to the main menu, or w 0 for the submenu. Please refer to,

Phonebook.

Paging

Press J on the base unit to page the handset/s. The handset/s will ring and PAGING is displayed. To cancel, press J again, or press q or L on the handset.

Handset power On/Off

Press and hold L in standby to power on/off the handset.

Mute

The microphone can be switched on/off during a call with C.

Toggle phone numbers

+PEQOKPI ECNNU KU UJQYP QP VJG FKURNC[ 1PN[ VJG ƂTUV FKIKVU

(including area code) is shown. Press # to toggle to the last digits of the number.

English

Keypad lock

Press and hold * to activate/deactivate the keypad lock. Incoming calls can be answered by pressing q even if the keypad is locked. During the call, the keypad is unlocked. When the call is ended or rejected, the keypad is locked again.

Please note!

The emergency numbers 999, 112 and 911 can be dialled without unlocking the keypad.

Volume control

During a normal or speakerphone call, press {/} on the side of the handset, to adjust the sound volume of the handset or speaker. Alternatively use / .

The volume level is indicated on the display. When you end the call, the setting will remain at the last selected level.

Boost

Press Boost on the side of the handset, to activate/ deactivate audio boost. When Boost is On the LED indicator (number 13) on the handset illuminates. The boost is deactivated at the end of each call to avoid harming people with normal hearing.

Warning!

The maximum handset volume can be very loud. Boost should only be used by persons with impaired hearing.

English

Phonebook (Contacts)

You can save 20 numbers/names. If you subscribe to a caller ID service, the name allocated to the caller in the phonebook will be shown for incoming calls. It is possible to choose between various ringers for the numbers saved in the Phonebook *only functions if you subscribe to a caller ID service. Phonebook entries are stored alphabetically by name.

Keypad characters

Press each numerical key repeatedly until the desired character is displayed, then wait a few seconds before entering the next character. Press C to delete. Press and hold C to delete the entire text string.

Save name/number in phonebook

1.Press w 0. Scroll to CONTACTS. Press w 0.

2.Press w 0. Scroll to ADD. Press w 0.

3.Enter a name using the numerical keypad. Press w 0.

4.Enter the telephone number, including the area code. Delete if necessary with C. Press w 0.

5.Select the required ringer. Press w 0.

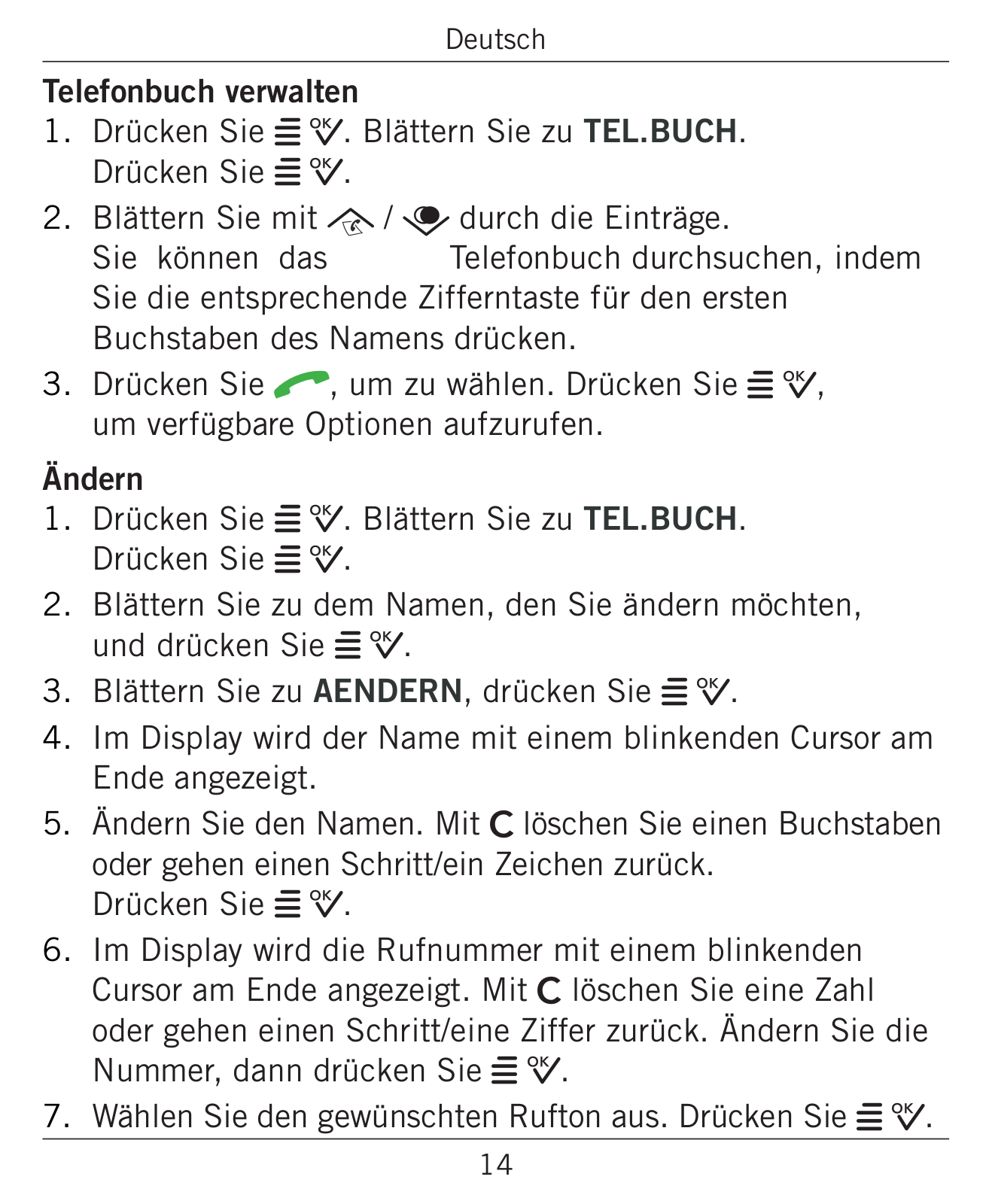

Managing the phonebook

1.Press w 0. Scroll to CONTACTS. Press w 0.

2.Scroll between entries with / .

You can quick search the phonebook by pressing the

EQTTGURQPFKPI PWODGT MG[ HQT VJG ƂTUV NGVVGT

3.Press q to dial or press w 0 for various options.

English

Edit

1.Press w 0. Scroll to CONTACTS. Press w 0.

2.Scroll to the name you choose to edit, press w 0.

3.Scroll to EDIT, press w 0.

4.0COG YKNN CRRGCT YKVJ EWTUQT ƃCUJKPI CV VJG GPF QH VJG name.

5.Edit the name. Delete/ backspace if necessary with C. Press w 0.

6.0WODGT YKNN CRRGCT YKVJ EWTUQT ƃCUJKPI CV VJG GPF QH VJG number. Press C to backspace/delete number. Edit the number, press w 0.

7.Select the required ringer. Press w 0.

Delete number

1.Press w 0. Scroll to CONTACTS. Press w 0.

2.Scroll to the contact you choose to delete, press w 0.

3.Scroll to DELETE/DEL ALL, press w 0.

Capacity

Here you can check how many phonebook entries that are stored and available storage capacity.

English

Fast dial

Once a number has been saved as FASTDIAL you only need to press one button to make the call.

Please note!

The contact must be stored in the phonebook before assigning a fast dial key.

Save contact as fast dial number

1.Press w 0. Scroll to CONTACTS. Press w 0.

2.Press w 0 again.

3.Scroll / to FASTDIAL, press w 0.

4.Select a numerical key using / (KEY 2 - KEY 9). Press w 0.

5.Select an entry from the phonebook and press w 0.

6.The numerical key you selected is shown again.

7.Press L or C several times to exit the menu or press w 0 for various options.

Making a fast dial call

To dial a fast dial number press and hold the equivalent 2-9 key until the phone number is displayed.

English

Edit fast dial numbers

1.Press w 0. Scroll to CONTACTS. Press w 0.

2.Press w 0 again.

3.Scroll / to FASTDIAL, press w 0.

4.Select a numerical key using / (KEY 2 - KEY 9). Press w 0.

5.Press w 0. Scroll to EDIT. Press w 0.

6.Select an entry from the phonebook and press w 0.

7.The numerical key you selected is shown again.

8.Press L or C several times to exit the menu.

Delete a fast dial number

1.Select a numerical key using / (KEY 2 - KEY 9). Press w 0.

2.Scroll to DELETE. Press w 0.

English

Call log (Incoming numbers/Caller ID)*

If Caller ID service is subscribed, the phone number of incoming calls is shown on the display. The last 10 incoming answered and unanswered calls are stored along with the date and time of the calls. CALLS will be shown in standby mode and in the list indicates a missed call.

*This function requires a subscription from your service provider.

Retrieving and dialling

1.Press . Or press w 0 and select CALL LOG.

2.Scroll to the desired entry with .

3.Press q to dial or press w 0 for various options. STORE Store number in Phonebook

DELETE Delete this number DEL ALL Delete all numbers

DETAILS The date for the missed call is displayed. Press

# (toggle) to also see the time for the missed call. CATEGORY Select to save information about MISSED calls (unanswered) in the Call log or if to save information about ALL incoming calls (answered and unanswered).

4.Press L or C several times to exit the menu.

Please note!

As default the last 10 incoming answered and unanswered calls are stored along with the date and time of the calls. To save memory storage you can select to save only MISSED calls (unanswered).

English

Deleting new calls/number log

1.Press . Scroll to the desired entry with . Press w 0.

2.Scroll to DELETE, press w 0.

To delete all numbers, scroll to DEL ALL, press w 0.

3.CONFIRM? is displayed, press w 0.

%CNNGT KFGPVKƂECVKQP OGUUCIGU

In addition to number display, the following messages will be shown occasionally:

OUT AREA	Unknown number, e.g. international call.
WITHHELD	Information about the number is blocked. Number
	cannot be shown.
a	MSG indication from your network operator*.

* Only functions in certain countries.

To remove the message indicator: Press and then hold down 4.

English

Settings

Base settings (BS SET)

System PIN is 0000 on delivery.

1.Press w 0. Scroll to BS SET. Press w 0.

2.Scroll to desired function. Press w 0.

3.Enter the desired setting. Press w 0.

RINGER	The base unit’s ringer melody can be adjusted.
	RING 1, 2, 3, 4 or 5.
RING VOL	The base unit’s ringer volume
	1 =lowest, 2, 3, 4, 5=highest or OFF.
DEL HS	De-register a handset.
	WARNING: A de-registered handset can no longer
	be used with the system!
FLASH	Recall time.
	LONG=New Zealand.
	MEDIUM=France/Portugal.
	SHORT=others incl. UK/AUS.
CHG PIN	The PIN-code (default code is 0000) can be
	changed.

English

Handset settings (HS SET)

1.Press w 0. Scroll to HS SET. Press w 0.

2.Scroll to desired function e.g. LANGUAGE. Press w 0.

3.Scroll to desired setting. Press w 0.

RINGER The handset’s ringer melody.

INT RING=internal call (10 selectable melodies) EXT RING=external call (10 selectable melodies) RING VOL=the handset’s ringer volume.

1 =lowest, 2, 3, 4, 5=highest, or OFF

Please note!

RING 6 - RING 10 will continue for up to 9 seconds if the call is answered in another phone. Select 1 - 5 if you want to avoid this.

TONE Any of the following warning tones can be disabled:

KEY TONE, LOW BATT and OUTRANGE. Select ON or OFF to enable/disable.

EQLIZER NATURAL, BASS, TREBLE. Natural is default.

SEL BASE Only used in systems with more than one base unit.

LANGUAGE The language of the display texts.

HS NAME The text/name shown in standby mode.

DISPLAY Choose to display time or handset name in standby.

English

AUTO ANS ON =the call is answered when the handset is lifted from the base.

OFF=the call is answered by pressing q.

MEM KEY Scroll to M1. Press w 0.

Enter the telephone number, including the area code. Delete if necessary with C.

Press w 0.

Repeat to save information for M2.

MAILBOX (Voice mail) Only functions in certain countries. If voice messaging services are subscribed through the network operator, a indication can be displayed when a message is received. Enter the phone number to your MAILBOX.

Press w 0. To listen to your messages press and hold 1. Please contact your network operator for more information about the available network services.

Please note!

Current setting is indicated with an asterisk at the rightmost of the display.

English

Other settings

CLOCK

1.Press w 0, scroll to CLOCK and press w 0.

2.Select DATE FMT and press w 0. Select DDMMYY or MMDDYY and press w 0.

3.Select TIME FMT and press w 0. Select 24 HR or 12 HR. Press w 0.

4.Select SET TIME and press w 0. Enter the time (HH-MM), then press OK.

5.Select SET DATE and press w 0. Enter the date (DD-MM- YY), then press w 0.

ALARM

1.Press w 0, scroll to ALARM and press w 0.

2.To disable an alarm select OFF, to enable it select ON, then press w 0.

3.Enter the alarm time using the keypad, then press w 0.

4.Press w 0 again to select SNOOZE ON or OFF. Press w 0. When the alarm is activated will be shown in standby mode.

English

Please note!

When the alarm goes off, a signal will be heard for 45 seconds. The signal can be turned off with any key. If SNOOZE is activated the alarm will go off again approx.

7 minutes later. Turn the alarm off via the menu or by holding L down for a few seconds. The volume is determined by the handset ringer volume. If the handset ringer is set to OFF, the alarm still sounds at VOLUME 1 level.

All handsets included in the package are already registered to the base unit. Only for separate handsets/service measures. You can register up to 5 handsets to one base unit.

Please note!

6JKU OQFGN KU )#2 )GPGTKE #EEGUU 2TQƂNG EQORCVKDNG which means that the handset and the base unit can both be used with most other GAP compatible units irrespective of manufacturer. However the GAP protocol cannot guarantee that all functions may be accessed.

1.Hold down J DCUG WPKV WPVKN KPFKECVQT ƃCUJGU

2.Press w 0. Scroll to REGISTER. Press w 0.

3.Select the base unit (1, 2, 3 or 4) you wish to register. Press w 0.

4.Enter the base unit’s PIN code (e.g. 0000). Press w 0.

5.If the registration is successful the unit will return to standby mode within one minute.

English

Default

You can reset the phone to default settings. Select DEFAULT and press w 0. Enter the PIN-code (default code is 0000) and press w 0. Press w 0 CICKP VQ EQPƂTO

Expanded system

(Two or more handsets e.g. duo, trio..)

The call number for internal calls will be shown in the display in standby mode. The base unit should be positioned centrally so that the coverage area is roughly equal for all handsets.

Intercom/internal call

1.Press C (right menu key).

2.If using more than 2 handsets: Enter call number 1-5 for the desired handset or press 9 for all.

A tone will be heard if an external call comes in while an internal call is in progress. End the internal call with L and then answer the external call with q.

Transferring calls/Conference between handsets

1.When an external call is connected;

2.Press w 0. Scroll to INTERCOM. Press w 0.

3.If using more than 2 handsets: Enter call number 1-5 for the desired handset or press 9 for all.

4.To transfer: press L,

for conference: hold * pressed down.

English

Answering machine (only PhoneEasy 105wr)

When the answering machine is switched on calls are answered after a set number of rings, your outgoing message is heard and the caller can leave a message. Total memory capacity is up to 15 minutes. Most functions can be accessed from both base unit and handset.

Please note!

You need to set the correct date and time to gain full functionality of the answering machine. See Settings, clock.

On/Off from the base unit

Press ! to switch the answering machine on/off. If the base

WPKVoU FKURNC[ KU ƃCUJKPI UJQYKPI -- the answering machine is disconnected, or time/date is not set.

On/Off from the handset

1.Press w 0. Scroll to TAM*. Press w 0.

2.Scroll to ON/OFF. Press w 0.

3.Scroll to desired setting. Press w 0.

If the handset’s display shows with a steady light the answering machine is switched on. If there are new messages, the

KPFKECVQT YKNN ƃCUJ YJGVJGT VJG CPUYGTKPI OCEJKPG KU QHH QT QP

Please note!

Even when answering machine is OFF it will still answer after 10 rings, see Remote activation.

*TAM = Telephone Answering Machine

English

Outgoing message from the handset

The outgoing message OGM SET (max 3 min) is heard by incoming callers. There are two separate outgoing messages, one for Answer only ANSONLY (callers cannot leave a message) and one for normal answering function ANS&REC. Please

also select desired answer mode ANS MODE. See Answering machine settings (handset).

1.Press w 0. Scroll to TAM. Press w 0.

2.Scroll to SETTINGS. Press w 0.

3.Scroll to OGM SET. Press w 0.

4.Scroll to ANS&REC or ANSONLY. Press w 0.

5.Scroll to RECORD. Press w 0.

6.After the long beep you can record your message (speaking 20 cm from the handset). Press w 0 to end recording.

7.The message will be played back to you.

Important!

Do not press L or C during playback. The message is not saved until the message has been played back to you.

Repeat the above to change.

Please note!

A pre-recorded message is used until you make your own recording, and that message can also be restored if required. To restore this, press C during playback of outgoing message.

English

Use of answering machine (base unit)

6JG PWODGTU QP VJG UGIOGPV .'& QP VJG DCUG WPKV YKNN ƃCUJ when there are new messages (01-59 messages).

Icon	Function

9	Start playback
	Stop playback
88 / 99	Skip to previous/Skip forward
X	Delete current message
+ / -	Increase/decrease volume

Delete all old messages

After playback: Hold down X until you hear a beep.

Screening

Incoming messages will be heard on the loudspeaker of the base unit as they are received. If nothing can be heard, check that the volume is turned up and that the function has been activated, see Answering machine settings, (handset). You can also press w 0 on the handset while recording is in progress. The call can be intercepted by pressing q or lifting the receiver of another telephone connected to the same line.

English

Use of answering machine (handset)

New messages are indicated by ƃCUJKPI KP VJG FKURNC[ KP standby mode. Playback always starts with new messages.

1.Press w 0. Scroll to TAM. Press w 0.

2.Scroll to PLAYBACK. Press w 0.

3.During playback the following commands are available (see table below).

4.End by pressing L.

Icon			Function
2	( X )		Delete current playback
4	(	88 )	Skip to previous
5	(	)	Stop playback
6	(	99 )	Skip forward
q			Speaker OFF/ON
}/{			(side keys) Volume control

Delete all old messages

1.Press w 0. Scroll to TAM. Press w 0.

2.Scroll to DEL ALL. Press w 0.

3.%QPƂTO D[ RTGUUKPI w 0.

English

Personal message (Memo)

1.Press w 0. Scroll to TAM. Press w 0.

2.Scroll to MEMO. Press w 0.

3.After the long beep you can record your message (speaking 20 cm from the handset). Press w 0 to end recording.

4.The message will be played back to you.

5.Memos are played back in the same way as ordinary incoming messages.

Important!

Do not press L or C during playback. The message is not saved until the message has been played back to you.

Out of memory

The memory has room for up to 59 messages (including the outgoing message) max. 15 minutes. When TAM FULL is shown QT VJG DCUG WPKV ƃCUJGU FF, no new messages can be recorded until the old ones have been played back and deleted. In that case, the telephone answering machine responds with the outgoing message for Answer Only.

Please note!

Remember to delete messages regularly!

+ 90 hidden pages
