Panasonic TXL32U2B, TXL37U2B, TXL42U2B Operating Instructions

Model No.

TX-L32U2B

TX-L37U2B

TX-L42U2B

Operating Instructions

LCD Television

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.

“B” model no. suffix denotes UK model.

English U.K. Standard

Features

DVB-T tuner built-in

Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts

Easily select the programme or set Timer Programming by using TV Guide. (p. 18 - 20) Instantly call up favourite channels with Favourites Edit. (p. 37)

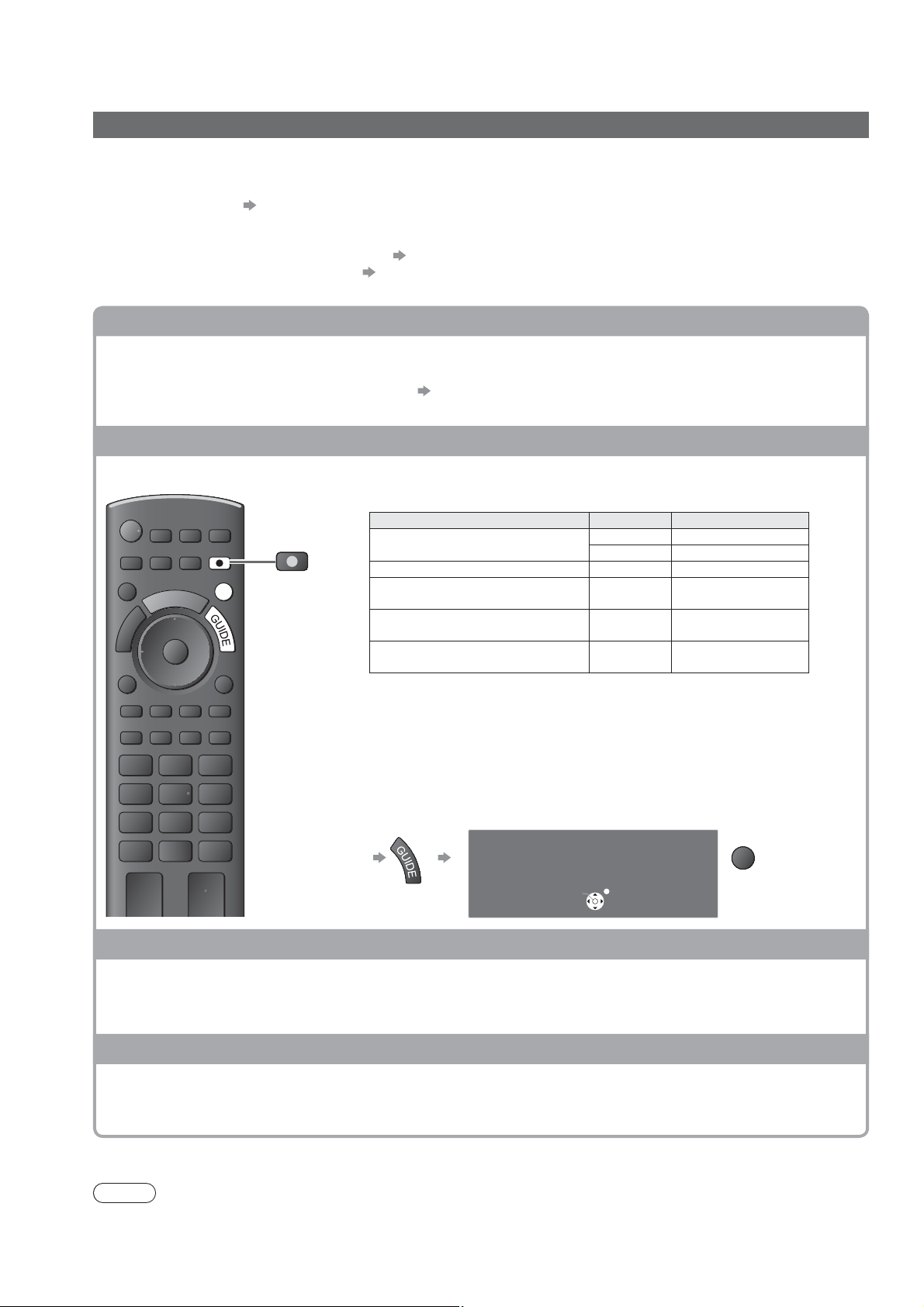

GUIDE Plus+ (p. 18)

This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system.

Sharp pictures and clear sound with HDMI connection (p. 64)

Enjoy high definition digital picture and high quality sound by using an HDMI cable.

This TV incorporates HDMI (Version 1.4 with Audio Return Channel) technology.

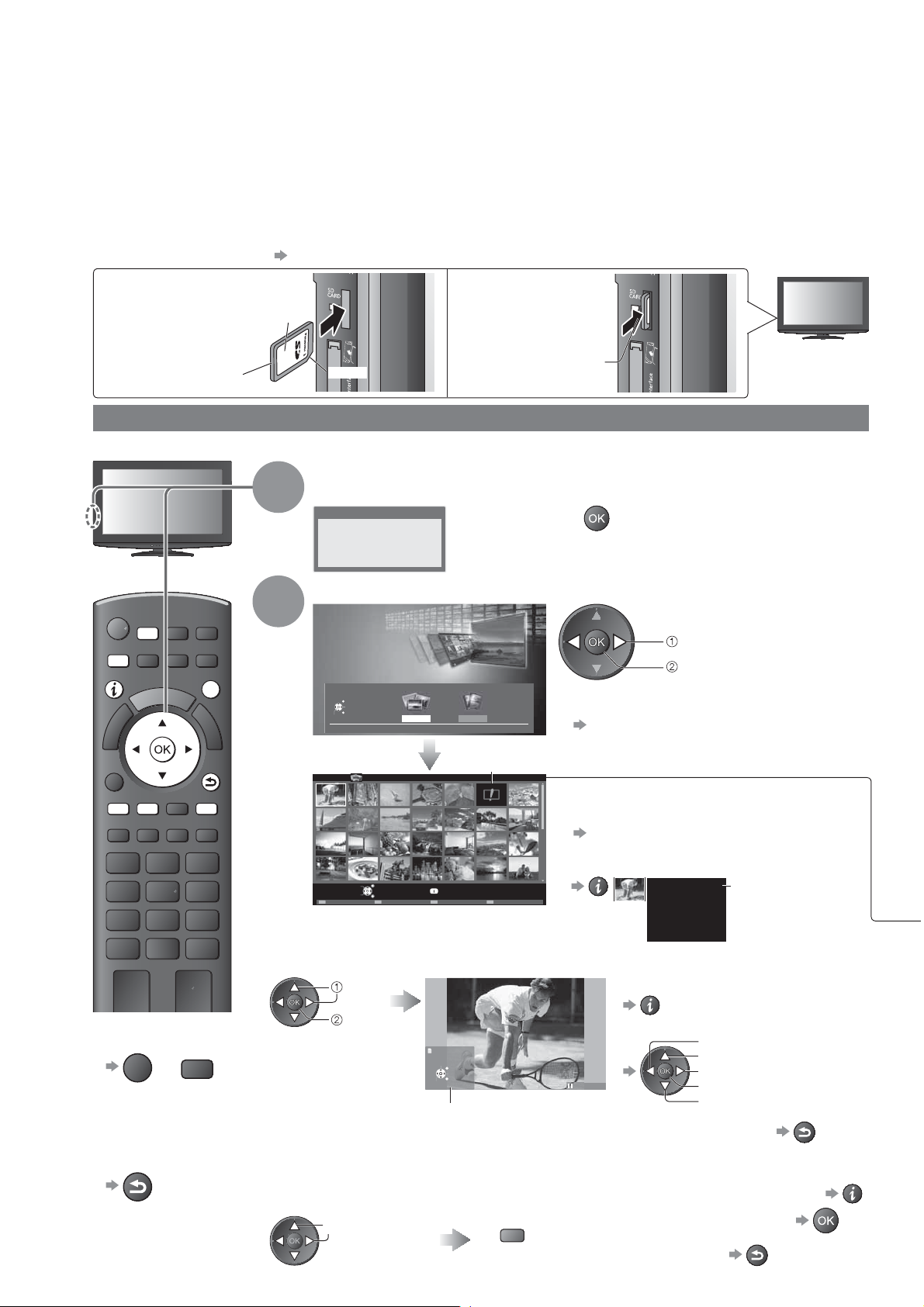

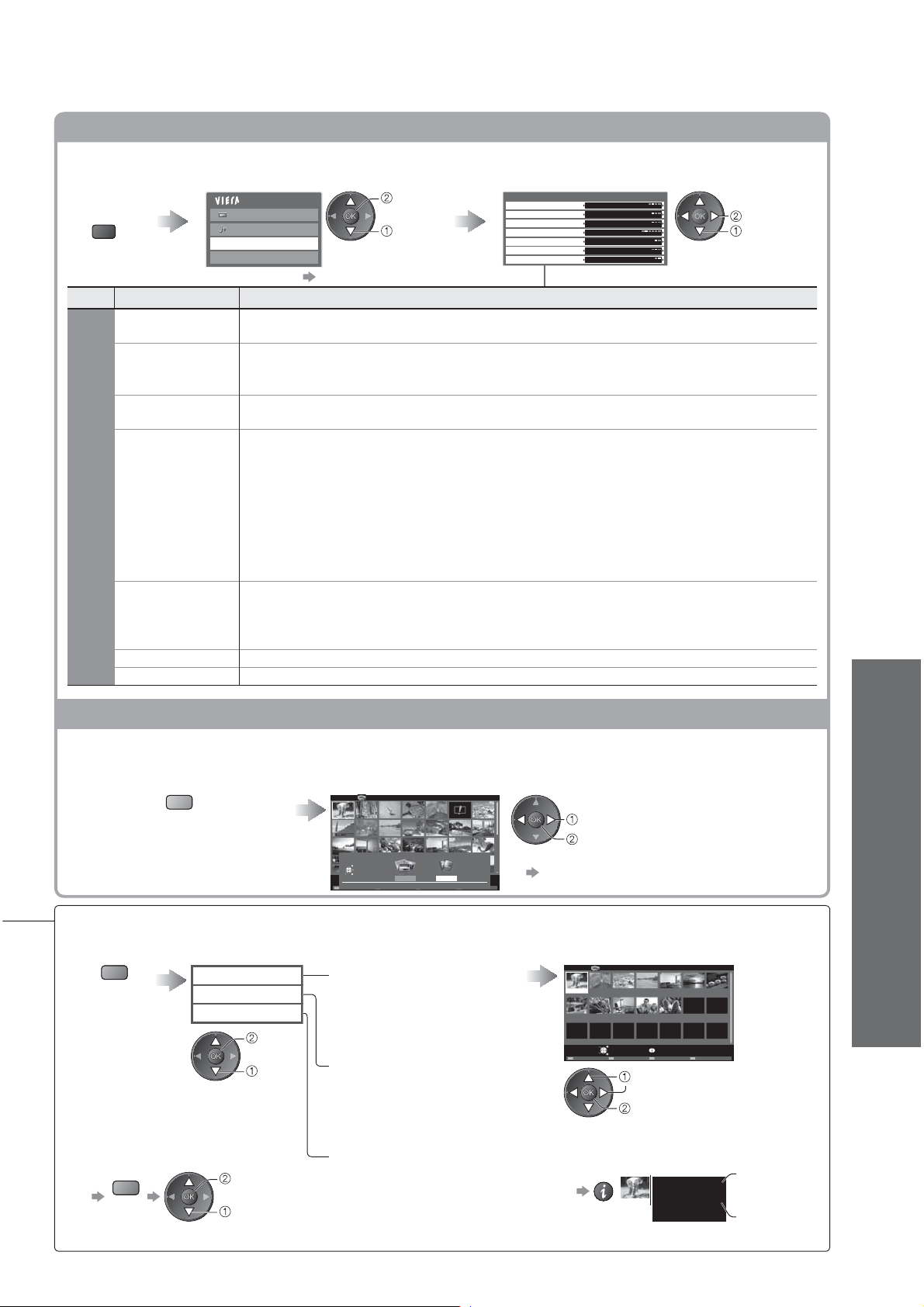

VIERA IMAGE VIEWER - Media Player (p. 48 - 51)

Enjoy your photos or videos recorded on an SD Card on the TV screen.

SDXC Card

This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.

AVCHD

It is possible to play moving pictures recorded on an SD Card in AVCHD format. AVCHD is a high definition video recording format. (p. 50)

Dolby Digital decoder

It is possible to decode Dolby Digital audio track (multi-channel sound) and output as a Dolby Digital multi-channel sound signal from the DIGITAL AUDIO OUT terminal.

Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 52 - 59) Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.

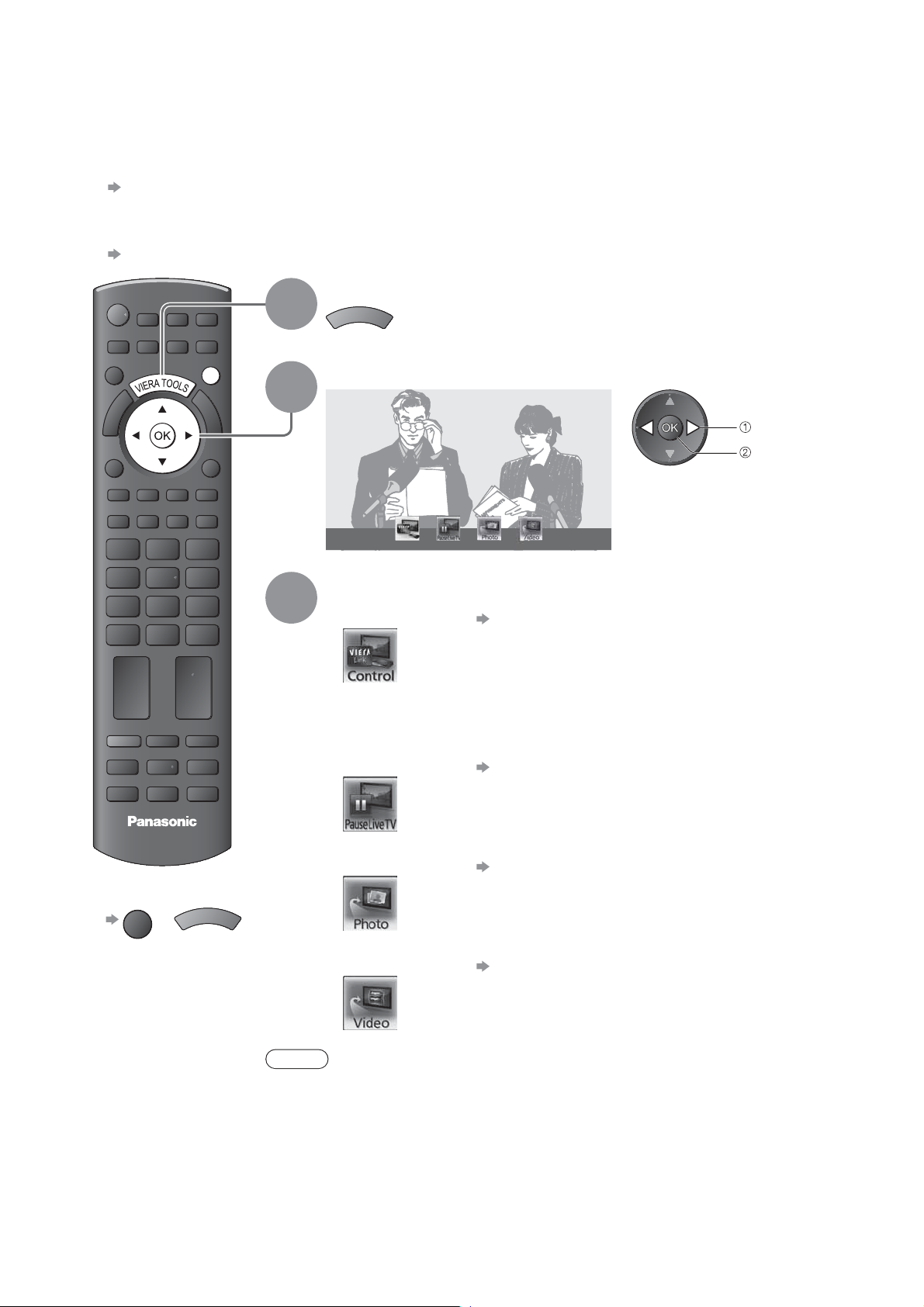

VIERA TOOLS - Display special feature icons for easy accessibility (p. 26)

Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS button.

Owner ID (p. 45)

Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to determine the owner in the case of theft.

Supports Audio Description signal (p. 15 and p. 29)

Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.

You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of the main volume.

Digital Switchover for Terrestrial broadcasts

Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region.

If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing.

You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.

To retune your TV “Auto Setup” in “DVB Tuning Menu”-DVB mode (p. 34)

Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)

Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels.

2

FULL HD

This TV uses a high definition panel to produce high definition pictures close to their original resolution.

IPS panel

(TX-L32U2B, TX-L37U2B)

This TV uses IPS (In Plane Switching) panel.

Eco Mode

Adjusts picture settings automatically dependent on ambient lighting conditions.

24p Movie Playback

Can support 1080p, 24 frames per second source materials.

Contents

Be Sure to Read

Safety Precautions (Warning / Caution) ················· 4

Quick Start Guide

Accessories / Options ·······························6

Identifying Controls ···································8

Basic Connection····································10

Auto Setup ··············································12

Provides suitable images for playing games

Selecting “Game” in Viewing Mode provides fast response to the input signal and you can enjoy playing games. (p. 28)

V-Audio

Utilises Panasonic’s advanced digital amplification technology. (p. 28)

digital tick

The digital tick logo indicates that a digital tuner is built-in.

Freeview

Freeview is the way to enjoy digital TV for free.

Turn your living room into a home theatre!

Enjoy rich multi-media

Enjoy your TV!

Basic Features

Watching TV ························································· 14Using TV Guide ···················································· 18Viewing Teletext···················································· 21Watching External inputs······································ 24How to Use VIERA TOOLS ·································· 26How to Use Menu Functions ································ 27

Advanced Features

Retuning from Setup Menu ·································· 34Tuning and Editing Channels ······························· 36Timer Programming·············································· 40Child Lock····························································· 42Input Labels·························································· 43Shipping Condition ··············································· 44Owner ID ······························································ 45Using Common Interface······································ 46Updating the TV Software ···································· 47Using Media Player ·············································· 48

Link Functions ····················································· 52 (Q-Link / VIERA Link)

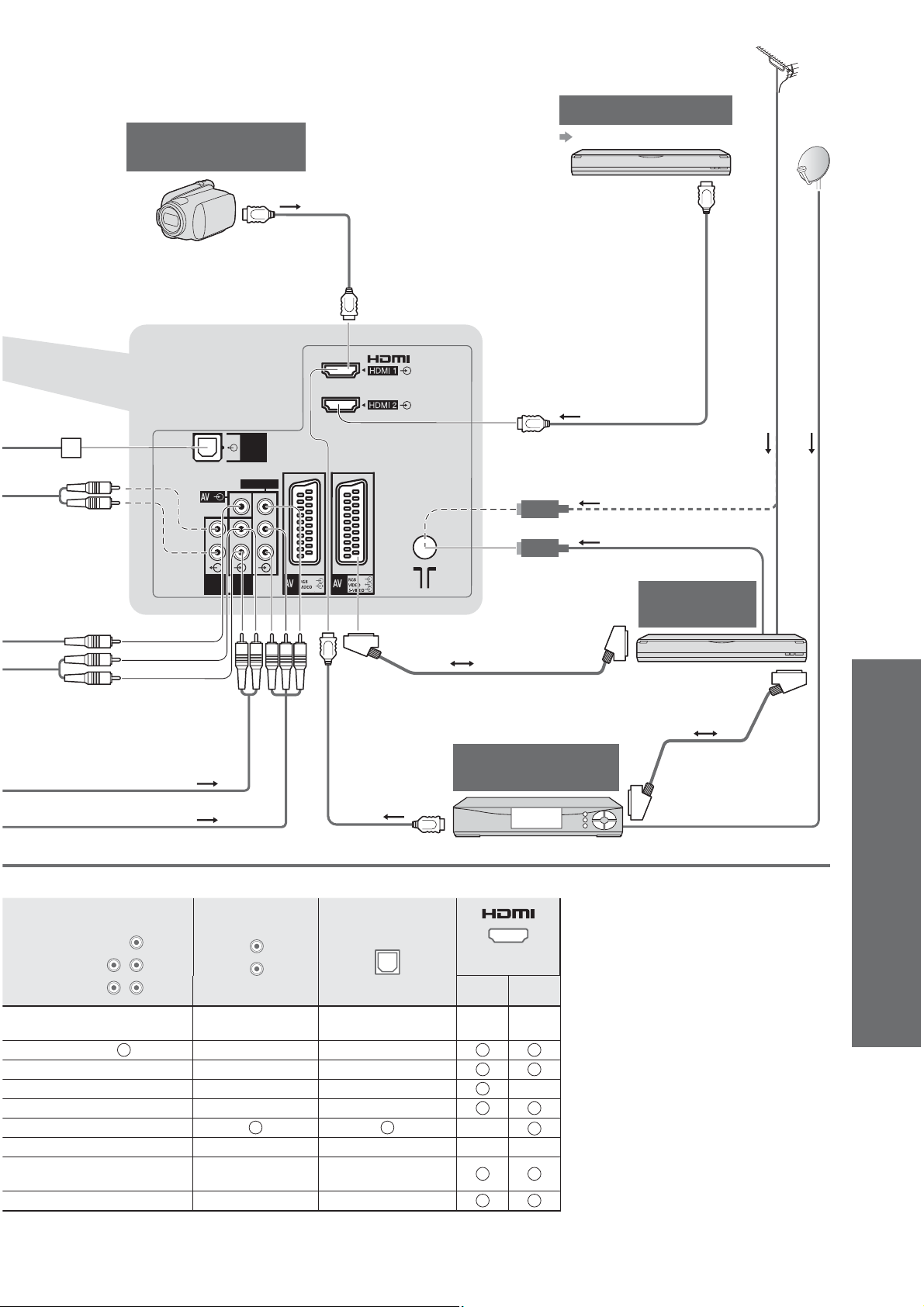

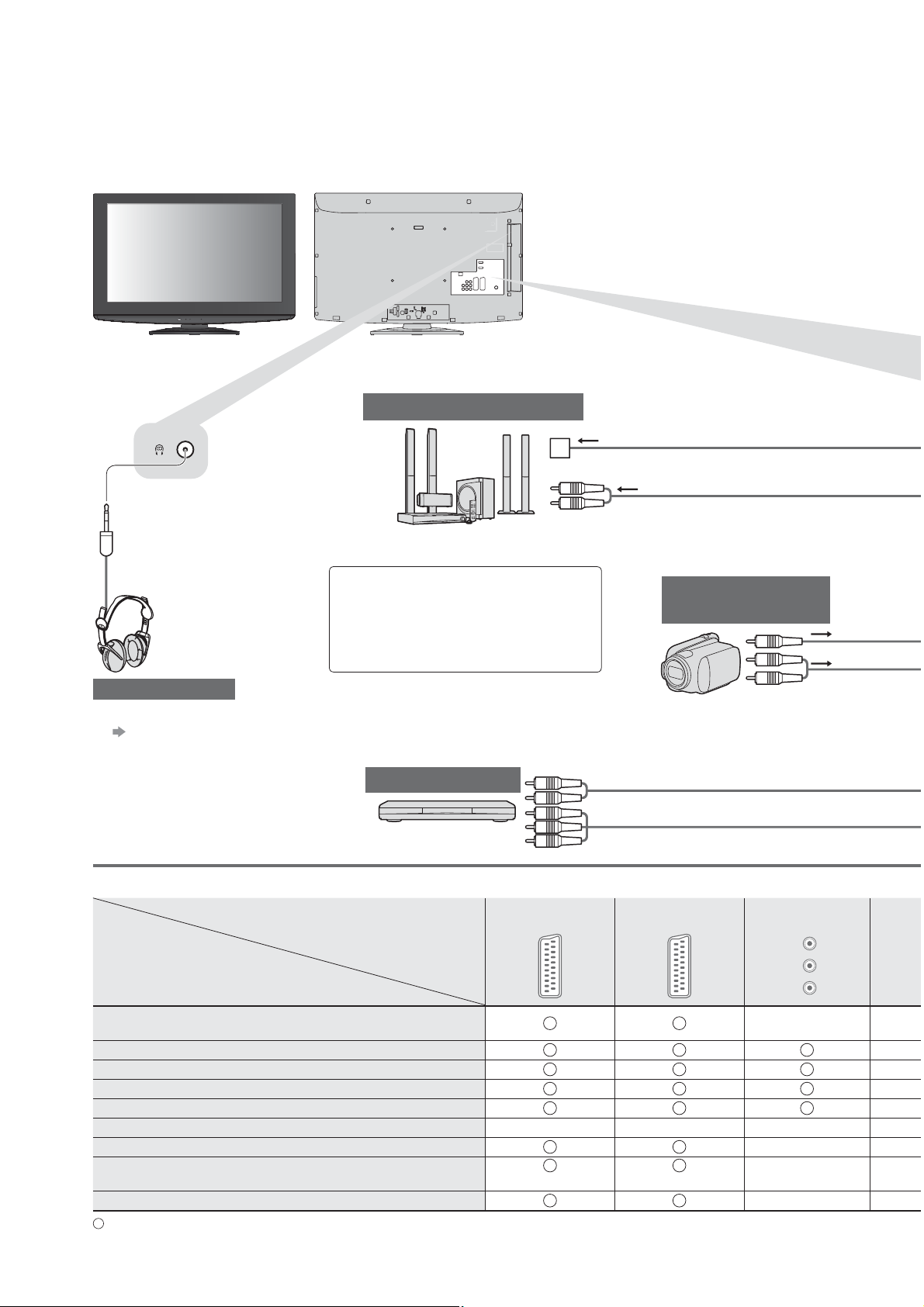

External Equipment ·············································· 60

	Quick
Quick
Guide	Start
Start
Guide
Basic

Advanced

Amplifier with Speaker system

DVD Recorder

VCR

SD Card

Camcorder

Satellite receiver

DVD player

FAQs, etc.

Technical Information ··········································· 62FAQs ···································································· 66On screen messages ··········································· 68Glossary ······························································· 69Maintenance························································· 70Licence ································································· 70Index····································································· 70Specifications ······················································· 71

.etc.etcFAQs,FAQs,

3

Safety Precautions

Warning

Mains plug and lead

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

This TV is designed to operate on AC 220-240 V, 50 Hz.

Insert the mains plug fully into the socket outlet.

Ensure that the mains plug is easily accessible.

Remove the mains plug when cleaning the TV.

Do not touch the mains plug with a wet hand.

Do not damage the mains lead.

• Do not place a heavy object on the lead.

• Do not place the lead near a high temperature object.

• Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.

•Do not move the TV with the lead plugged into a socket outlet.

•Do not twist the lead, bend it excessively or stretch it.

•Do not use a damaged mains plug or socket outlet.

•Ensure the TV does not crush the mains lead.

If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.

AC 220-240 V

50 Hz

IMPORTANT: THE MOULDED MAINS PLUG

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark ASA or the BSI mark on the body of the fuse.

If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.

A replacement fuse cover may be purchased from your local dealer.

If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains plug is inserted into any 13 amp socket.

If a new mains plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

IMPORTANT: – The wires in this mains lead are coloured in accordance with the following code: – Blue: Neutral Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your mains plug, proceed as follows. The wire which is coloured BLUE must be connected to the terminal in the mains plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the mains plug which is marked with the letter L or coloured RED.

Under no circumstances should either of these wires be connected to the Earth terminal of the three pin mains plug, marked with the letter E or the earth symbol .

How to replace the fuse

For plug type shown in example 1:

Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).

For plug type shown in example 2:

Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).

Example 1

Example 2

4

Warning

Take care

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:

Do not remove covers and never modify the TV yourself as live parts are accessible when they are removed. There are no user serviceable parts inside.

Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Do not expose the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.

Do not place the TV on sloped or unstable surfaces.

Do not insert foreign objects into the TV through the air vents.

Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.

Do not apply strong force or impact to the display panel.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

Small object

This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.

Keep the dangerous parts out of reach of young children.

Do not allow children to handle SD Card. As with any small object, the SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.

Caution

Ventilation

Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.

Whether you are using the pedestal or not, always ensure the vents in the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

Moving the TV

Before moving the TV, disconnect all cables.

Transport only in upright position.

When not in use for a long time

Minimum distance

10

10

10

10

(cm)

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.

Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

Excessive volume

Do not expose your ears to excessive volume from the headphones.

Irreversible damage can be caused.

5

Accessories / Options

Standard accessories

Remote Control	MENU ASPECT N DIRECTEXITTV REC
		SD CARD INPUT
N2QAYB000487		TV AV
	OPTION	RETURN
	TEXT STTL INDEX HOLD
		abc def
		ghi jkl mno
		pqrs tuv wxyz
		LAST VIEW
		PROGRAMME
		REC

TV

Operating Instructions

Product Registration Leaflet

Check that you have the accessories and items shown

Batteries for the Remote Control (2)

R6 (UM3)

Pedestal		Assembly screw
TBL0E0108	TX-L32U2B	for Pedestal (4)
TBL0E0122		XYN4+F12FJK
TBL0E0109
TBL0E0123 TX-L37U2B
TBL0E0107
TBL0E0124	TX-L42U2B
p. 7

Optional accessories

Wall-hanging bracket

TY-WK3L2RW

Please contact your nearest Panasonic dealer to purchase the recommended wall-hanging bracket. For additional details, please refer to the wall-hanging bracket installation manual.

		Screw for fixing the TV onto the
	Rear of the TV	wall-hanging bracket
		(not supplied with the TV)
	200 mm	Depth of screw:
		minimum 9 mm, maximum 12 mm
		200 mm

Diameter: M6

Holes for wall-hanging
bracket installation	(View from the side)

Warning

Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.

Carefully read the instructions accompanying optional accessories, and be sure to take steps to prevent the TV from falling off.

Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage which will void your warranty.

Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.

Take care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by metal within the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.

To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of time.

Installing / removing remote’s batteries

	1	Pull	2	Close
		open
		Hook	Note the correct
	Caution		polarity (+ or -)
	Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
	Do not mix old and new batteries.
	Replace only with same or equivalent type. Do not mix different battery types (such as alkaline and manganese batteries).
	Do not use rechargeable (Ni-Cd) batteries.
	Do not burn or break up batteries.
	Batteries must not be exposed to excessive heat such as sunshine, fire, etc.
	Make sure you dispose of batteries correctly.
6	Ensure batteries are replaced correctly, there is danger of explosion and fire if battery is reversed.
	Do not disassemble or modify the remote control.

Attaching the pedestal

To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:

Warning

Do not disassemble or modify the pedestal.

Caution

Do not use with any other TVs or displays.

Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.

During setup, make sure that all screws are securely tightened.

Ensure that the TV does not suffer any impact during installation of the pedestal.

Ensure that children do not climb onto the pedestal.

Install or remove the TV from the pedestal with at least two people.

Assembly screw (4)				Assembly screw (4)	Bracket (1)	Base (1)
XSS4+16FNK				XYN4+F12FJK	TUX0E197	TBL0E0108
					(TX-L32U2B)	(TX-L32U2B)
					TUX0E198	TBL0E0109
					(TX-L37U2B)	(TX-L37U2B)
					TUX0EA007	TBL0E0107
					(TX-L42U2B)	(TX-L42U2B)

Assembling the pedestal

Use the four assembly screws to fasten the bracket to the base securely.

Forcing the assembly screws the wrong way will strip the threads.

Make sure that the screws are securely tightened.

A

C

Front

Securing the TV	B
Use only the supplied assembly screws to fasten	B
the pedestal securely to the TV.
Make sure that the screws are securely tightened.
Carry out the work on a horizontal and level surface.
Foam mat or thick soft cloth

Options / Accessories Guide Start Quick

7

Identifying Controls

Remote Control

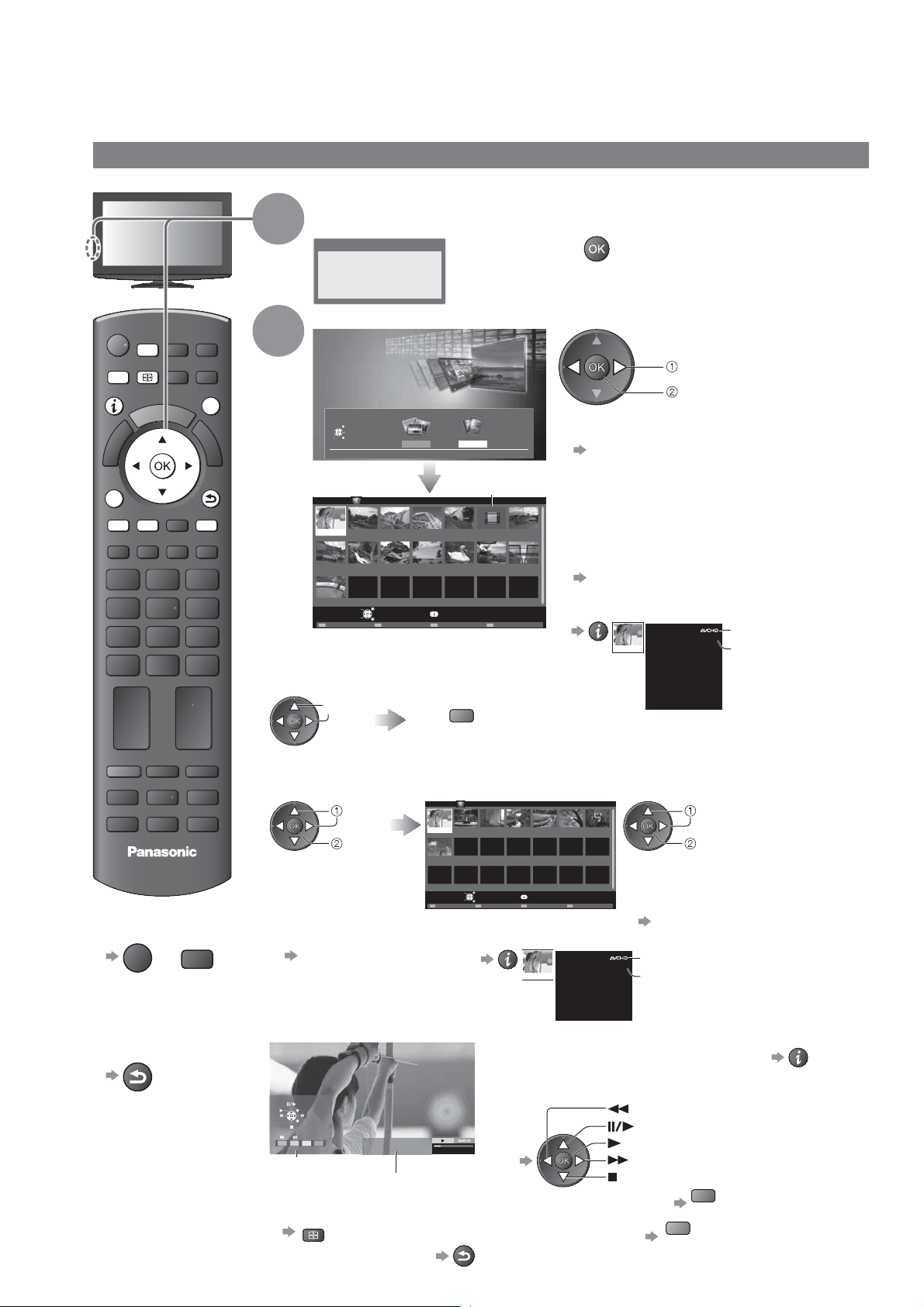

Media Player (p. 48)

Switches to SD Card viewing mode (VIERA IMAGE VIEWER)

Standby On / Off switch

Switches TV On or Off standby

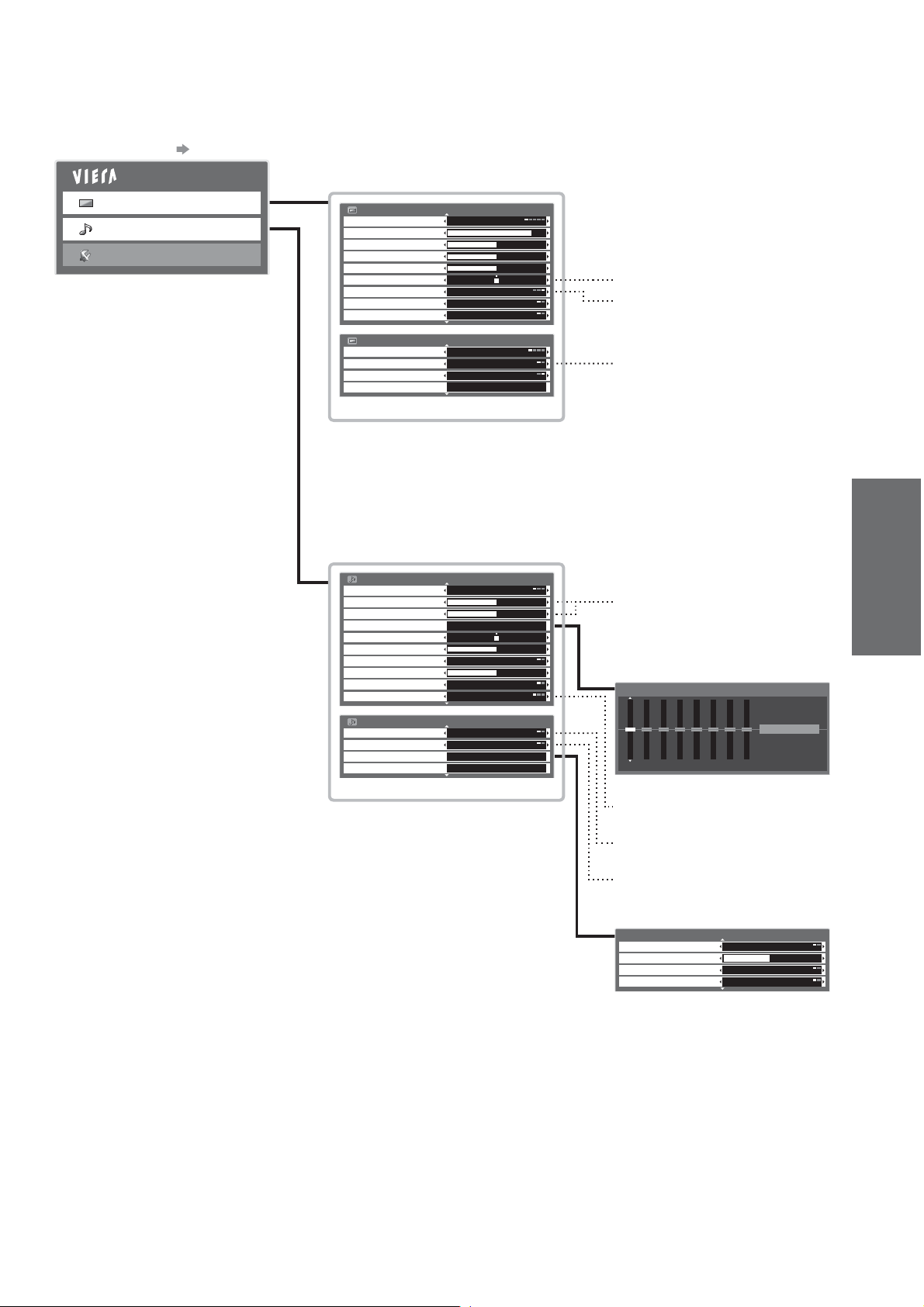

Main Menu (p. 27)

Press to access the Picture, Sound and Setup Menus

Aspect (p. 16)

Channel / Programme Information (p. 15)

Displays channel and programme information

VIERA Link Menu (p. 56)

Accesses VIERA Link Menu

OK

Confirms selections and choicesPress after entering channel position

by using numeric buttons to change a channel quickly

Option Menu (p. 17)

Easy setting for viewing and sound options

Coloured buttons (red-green-yellow-blue)

Used for the selection, navigation and operation of various functions

Teletext (p. 21)

Switches to teletext mode

Subtitles (p. 15)

Displays subtitles

Numeric buttons

Changes channel and teletext pagesSets characters

When in Standby mode, switches TV On (Press for about 1 second)

Sound Mute

Switches sound mute On or Off

Volume Up / Down

SD CARD INPUT

TV AV

MENU ASPECT N DIRECT TV REC

Input mode selection

TV - switches between DVB and Analogue modes (p. 14)

AV - switches to AV input mode from Input Selection list (p. 24)

Direct TV Recording (p. 54 and p. 56)

Records programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection

Normalise (p. 27)

Resets picture and sound settings to their default levels

Exit

EXIT Returns to the normal viewing screen

VIERA TOOLS (p. 26)

Easily accesses special features such as

VIERA Link and Media Player

OPTION

RETURN

TEXT STTL INDEX HOLD

abc def

ghi

jkl

mno

pqrs tuv wxyz

LAST VIEW

PROGRAMME

REC

TV Guide (p. 18)

Displays TV Guide

Cursor buttons

Makes selections and adjustments

Return

Returns to the previous menu / page

Hold

Freeze / unfreeze picture (p. 15)Holds the current teletext page (teletext

mode) (p. 22)

Index (p. 23)

Returns to the teletext index page (teletext mode)

Last view (p. 17)

Switches to previously viewed channel or input mode

Channel Up / Down

Selects channel in sequence

Connected equipment operations

(p. 25 and p. 58)

TV

8

TV

SD Card slot (p. 48)

Function select

Volume / Contrast / Brightness / Colour / Sharpness /

Tint (NTSC signal) / Bass (“Music” or “Speech” mode in the

Sound Menu) / Treble (“Music” or “Speech” mode in the Sound Menu) / Balance / Auto Setup (p. 34 and p. 35)

Increases or decreases the channel position by one.

When a function is already displayed, press to increase

or decrease the selected function. When in Standby mode, switches TV On (Press for about 1 second).

Changes the input mode

Mains power On / Off switch

•Switch On to turn on the TV or turn

the TV to standby mode by the remote control

CI Slot	Power and Timer LED
(p. 46)
	Red: Standby
	Green: On
	Orange: Timer Programming On
	Orange (flash): Ext Rec. of Timer Programming or Direct TV Recording in progress
	Red with orange flash: Standby with Timer Programming On or Direct TV Recording
	The LED blinks when the TV receives a command from the remote control.

Headphones	C.A.T.S. (Contrast Automatic Tracking System) sensor
jack (p. 60)	Senses brightness to adjust picture quality when “C.A.T.S.” in the Picture Menu is set
	•to “On” (p. 28).

Remote control signal receiver

•Do not place any objects between the TV remote control signal receiver and remote control.

Auto power standby function

The TV will automatically go to Standby mode in the following conditions:

•no signal is received and no operation is performed for 30 minutes in Analogue TV mode

•“Off Timer” is active in the Setup Menu (p. 17)

•no operation is performed for the period selected in “Auto Standby” (p. 30)

This function does not affect Ext Rec. of Timer Programming and Direct TV Recording.

Using the On Screen Displays

Many features available on this TV can be accessed via the On Screen Display menu.

How to use remote control

MENU	Open the main menu	EXIT
	Move the cursor / select the menu item
	Access the menu / store settings after adjustments	RETURN
	have been made or options have been set

ON SCREEN HELP Instructions box - Operation guide

(example: Owner ID)

Owner ID

Please enter new PIN

PIN

*

* * *

Exit the menu system and return to the normal viewing screen

Move the cursor / adjust levels / select from a range of options

Return to the previous menu

EXIT

0 9 PIN entry

Operation guide will help you.

RETURN

Controls Identifying Guide Start Quick

9

Basic Connection

External equipment and cables shown are not supplied with this TV.

Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.

Example 1		Example 2
Connecting aerial		Connecting DVD Recorder / VCR
TV only		TV, DVD Recorder or VCR
Rear of the TV	Terrestrial	Rear of the TV	Terrestrial
	aerial		aerial
	AC 220-240 V		AC 220-240 V
	50 Hz		50 Hz

Mains lead

Mains lead

RF cable

		COMPONENT
3	V	Y
		PB
L	L	PR
R	R
AUDIO	AUDIO		1	2
OUT		IN

Aerial

input terminal

		COMPONENT
3	V	Y
		PB
L	L	PR
R	R

AUDIO AUDIO

OUT IN

1

2

Aerial

input terminal

RF cable

Fully wired

SCART cable

RF OUT

DVD Recorder or VCR

RF IN

RF cable

Note

Connect to the TV”s AV2 for a DVD Recorder / VCR supporting Q-Link (p. 54).

Connect to the TV”s AV1 for a Satellite Receiver.

For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable

(p. 60 and p. 61).

Q-Link connection p. 52

VIERA Link connection p. 52 and p. 53

Please also read the manual of the equipment being connected.

10

Example 3

Connecting DVD Recorder / VCR and Satellite receiver

TV, DVD Recorder / VCR and Satellite receiver

Rear of the TV

AC 220-240 V	Terrestrial
50 Hz
	aerial

Mains lead

				2
				(ARC)(ARC)
		DIGITAL
		AUDIO
		OUT
		COMPONENT
3	V	Y
		PB
L	L	PR
R	R
AUDIO	AUDIO		1	2
OUT		IN

RF cable

Aerial

input terminal

Satellite receiver	RF IN
	RF IN
Fully wired
SCART cable
	RF OUT
DVD Recorder or VCR
	RF IN
Fully wired HDMI	RF cable
compliant cable
Fully wired
SCART cable
	RF OUT
	RF cable
	RF cable

Connection Basic Guide Start Quick

11

Auto Setup

Search and store TV channels automatically.

These steps are not necessary if the setup has been completed by your local dealer.

Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.

Plug the TV into mains socket and switch On

1							If the red LED shows on the TV, press the
							Standby On / Off switch on the remote
							control for at least 1 second to turn the TV
							On.
							Auto Setup will start to search for TV
	Auto Setup - DVB and Analogue
	DVB Scan			CH 21		68	channels and store them in the numbered
	This will take about 6 minutes.					68
	Analogue Scan			CH 21
	CH			Channel Name	Type	Quality	order as specified by the broadcasters.
	62		CBBC Channel		Free TV	10
	62		BBC Radio Wales		Free TV	10	Actual number of channels may differ due
	62		Cartoon Nwk		Free TV	10
	62		E4		Free TV	10
							to channel duplication.
	33		BBC1		Analogue	-
	29				Analogue	-
	Free TV: 8		Pay TV: 0 Radio: 0		Data: 0 Analogue: 2
				Searching

(Takes a few seconds to be displayed)

TV AV

EXIT

RETURN

abc def

ghi jkl mno

pqrs tuv wxyz

TV

2

3

Sending Preset Data

Please wait!

0%

Remote control unavailable

If Q-Link, or similar technology (p. 52), 100% compatible recorder with analogue tuner

is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.)

If downloading has failed, you can download later through the Setup Menu.

“Q-Link Download” (p. 29)

Input Owner ID

Owner ID
Please enter new PIN
PIN	* * * *

Please enter your own choice of PIN number, name, etc. (p. 13) to help the police to crack crime.

Make a note of the PIN number in case you forget it. The PIN number cannot be reset.

You can input or change the Owner ID later.

“Owner ID” (p. 45)

To skip this step

This step will be skipped in the Auto

Setup after “Shipping Condition” (p. 44) is performed. EXIT

Select “Home”

Please select your viewing environment.

Home Shop

select

set

Select “Home” viewing environment (highlight “Home” in yellow) to use in your home environment.

Auto Setup is now complete and your TV is ready for viewing.

To check channel list at-a-glance

“Using TV Guide” (p. 18)To edit or hide (skip) channels

“Tuning and Editing Channels” (p. 36 - 39)If tuning has failed, check the connection of the RF cable, and then, follow the on screen

instructions.

12

How to input Owner ID

Enter the PIN number (4 digits)

Owner ID		abc	def	Enter the PIN number twice at first setting.
Please enter new PIN	ghi	jkl	mno
PIN
	* * * *
	pqrs	tuv	wxyz

Enter your name, house number, and postcode, in that order

Select the item (NAME / HOUSE NO / POSTCODE)

Owner ID-Data Entry
PIN

NAME

HOUSE NO

POSTCODE

Set characters one by one

User input

NAME

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

!

:

#

a

b

c

d

e

f

g

h

i

j

k

l

m

n

o

p

q

r

s

t

u

v

w

x

y

z

(

)

+

-

.

*

_

1

2

3

.!:#

abc

def

4

5

6

ghi

jkl

mno

7

8

9

pqrs

tuv

wxyz

0

Return to select other items

Exit to go to next step

EXIT

access

select

select

set

RETURN

You can set characters by using numeric buttons.

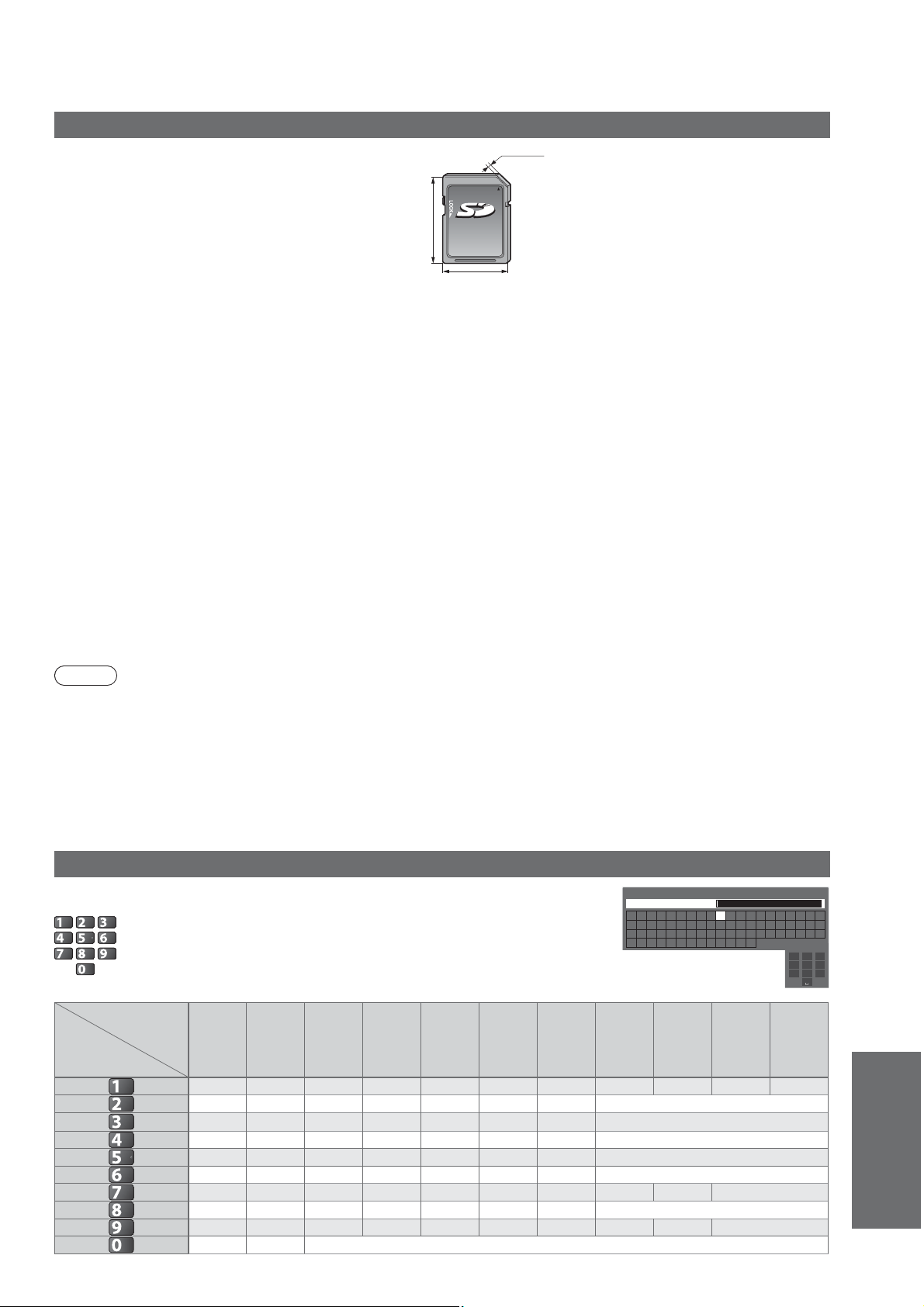

“Characters table for numeric buttons” (p. 63)

Select the next item and repeat the operations.

“Shop” viewing environment (for shop display only)

“Shop” viewing environment is the demonstration mode to explain main features of this TV.

Select “Home” viewing environment to use in your home environment.

You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.

Return to viewing environment selection screen

Shop
	You have selected shop mode				RETURN
Automatic Demo
	Off		On

Select “Home”

Please select your viewing environment.

Home	Shop	select
		set

Auto Setup is complete

To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.

“Shipping Condition” (p. 44)

Note

If tuning has failed or to retune all channels “Auto Setup” (p. 34 and p. 35)

To re-initialise all settings “Shipping Condition” (p. 44)

If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.

Setup Auto Guide Start Quick

13

Watching TV

INPUT

TV AV

MENU ASPECT

EXIT

OPTION

STTL HOLD

abc def

ghi jklmno

pqrs tuv wxyz

LAST VIEW

1	Turn power on
	(Press for about 1 second)
		Mains power On / Off switch should be On. (p. 8)
2	Select DVB or Analogue
	TV	Also possible by pressing the TV button on the side panel of the

TV. (p. 9)

1 BBC ONE WALES		19:35	All DVB Channels		Information banner appears
Coronation Street			For info press
19:30 - 20:00		Now			whenever you select a channel
					For details p. 15

3	Select a channel
	up		abc	def
	or	ghi	jkl	mno
	down	pqrs	tuv	wxyz

DVB channel position numbers run from 1 onwards.

Analogue channel position numbers run in the ranges 0 - 99.

To select a two or three-digit channel position number, e.g. 399

def wxyz wxyz

Volume

TV

Note

To watch pay-TV

“Using Common Interface” (p. 46)

Select a channel using Information banner (p. 15)

It is possible to confirm the channel name and programme information by using the Information banner before changing channels.

Display Information banner if it is not displayed

While the banner is displayed, select the channel

select channel

watch

Possible to set display timeout in “Banner Display Timeout” (p. 30).

Select a channel using TV Guide (p. 18)

It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.

Display	Select a current	Select “View”
TV Guide	programme or channel	(DVB mode)
	select		Eastender					select
		19:3020:00
	access		View		Timer Programming			watch
		To use Timer Programming p. 19

14

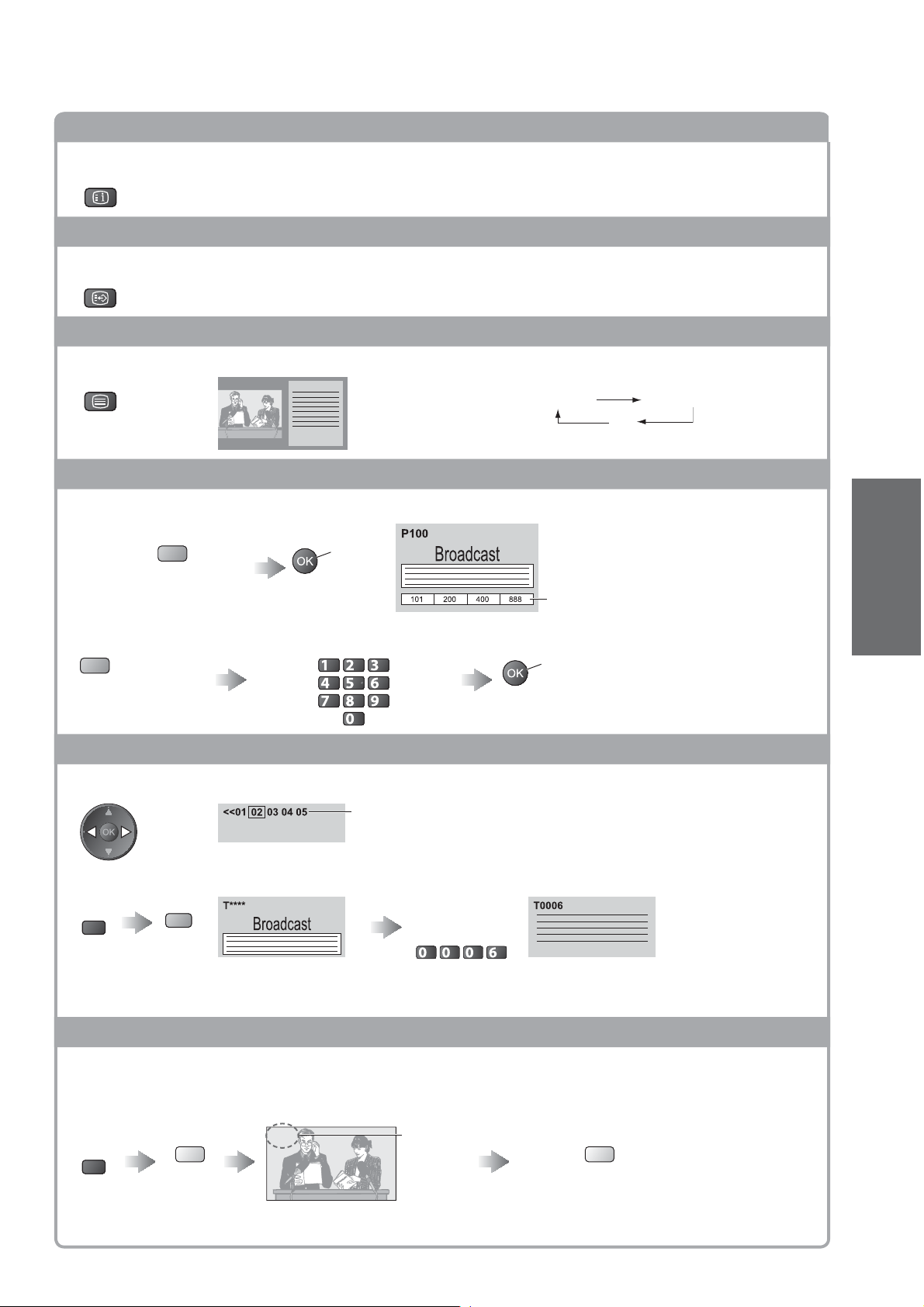

Other useful functions

Hold

HOLD

Freeze / unfreeze picture

Display Information banner

Display Information banner

Also appears when changing a channel

Channel position and name

“All DVB Channels” or “Favourites1-4” (p. 37)

To switch

Channel type

blue

(if it is Radio or Data channel)

Example (DVB):

Current time

Programme

1 BBC ONE Wales

Radio

19:35

All DVB Channels

Coronation Street

Select favourites

19:30 - 20:00

Now

For info press

Mute

Encrypted

AD

STTL TEXT Multi Audio 45

Programme Start /

Progress

time indicator of the selected programme

Finish time

Features available / Message meanings

Example (Analogue):

	3 ITV		Radio	19:35	All Analogue Channels
	itv1
	CH23				For info press
	Mute	Encrypted	AD	Subtitles TEXT NICAM		45

Channel number

To confirm another tuned channel name

To watch the channel listed in the banner

Mute

Sound mute On

Bad signal

Poor TV signal quality

Encrypted

Scrambled programme

AD

Audio Description service available

This function can aid visually-impaired viewers by adding an additional audio track to describe events on screen.

For settings p. 29

Information on the next programme (DVB)

EXIT

To hide

Extra information (press again to hide the

(DVB)

banner)

To set display timeout

“Banner Display Timeout” (p. 30)

STTL

Subtitle service available

TEXT

Teletext service available

Multi Audio

Multiple audio available

Stereo, Mono, NICAM

Audio mode

1 - 90

Off Timer remaining timeFor settings p. 17

“AD”, “STTL”, “TEXT”, “Multi Audio” indications are displayed as	Example:
	1 BBC ONE Wales			19:35		All DVB Channels
available on particular programmes, but may not be available for all
	Coronation Street					Select favourites
individual programmes being broadcast.	19:30 - 20:00				Now	Exit info
Display the extra information to confirm availability of these				[AD]
functions.
					AD

Basic

TV Watching

15

Watching TV

Other useful functions

Display subtitles

DVB mode
Display / hide subtitles (if available)	STTL
To change the language for DVB (if available)
“Preferred Subtitles” (p. 30)
Analogue mode
Display subtitles	STTL
EXIT
To hide subtitles

Note

This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 23)

You cannot change the channel when this function is active.

Aspect

ASPECT

Change the aspect ratio (image size)

Enjoy viewing the image at its optimum size and aspect.

Programmes usually contain an Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the Aspect Control Signal (p. 62).

If you would like to change the aspect ratio manually

Display Aspect Selection list

While the list is displayed, select the mode

ASPECT	Aspect Selection
	Auto		store
	16:9
	4:3
	14:9
	Zoom1
	Zoom2
	Zoom3
	Select	EXIT
	Change
		RETURN	select

Aspect Selection list

To change the mode using the ASPECT button only

ASPECT (Press repeatedly until you reach the desired mode)

Auto

The best ratio is chosen and the image expanded to fill the screen.

For details p. 62

16:9

Zoom1

Directly displays the image at 16:9 without distortion (anamorphic).

Displays a 16:9 letterbox or 4:3 image without distortion.

14:9

Zoom2

Displays the image at the standard 14:9 without distortion.

Displays a 16:9 letterbox (anamorphic) image full-screen without distortion.

4:3

Zoom3

Displays the image at the standard 4:3 without distortion.

Displays a 2.35:1 letterbox (anamorphic) image full-screen without distortion.

At 16:9, displays the image at its maximum (with slight enlargement).

Note

Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu.

Not available when the subtitle function is active.

Not available in teletext service.

Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.

16

Other useful functions

Display the selectable settings for the current programme

Check or change the current	OPTION
programme status instantly	To change
					change
					select

Multi Audio (DVB mode)

Allows you to select between alternative language for sound tracks (if available)

This setting is not memorized and it will return to the default setting once you exit the current programme.

Monaural Audio (DVB mode)

Allows you to select stereo / monaural (if available)

Subtitle Language (DVB mode)

Allows you to select the language in which subtitles should appear (if available)

Note

NICAM (Analogue mode)

Switches NICAM sound (if available)

Sound Menu (p. 29)

Volume Correction

Adjusts volume of individual channel or input mode

Audio Description (DVB mode)

Set to “Auto” if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen

To adjust the volume for Audio Description “Audio Description Menu” (p. 29)

Also possible to change the settings in Menu list (p. 28 - 30).

Last view

Switch to previously viewed	Press again to return to the present view.
channel or input mode easily	LAST VIEW

Note

Switching channel is not available while Ext Rec. of Timer Programming or Direct TV Recording is in progress.

Watching less than 10 sec. is not regarded as the previously viewed channel or input mode.

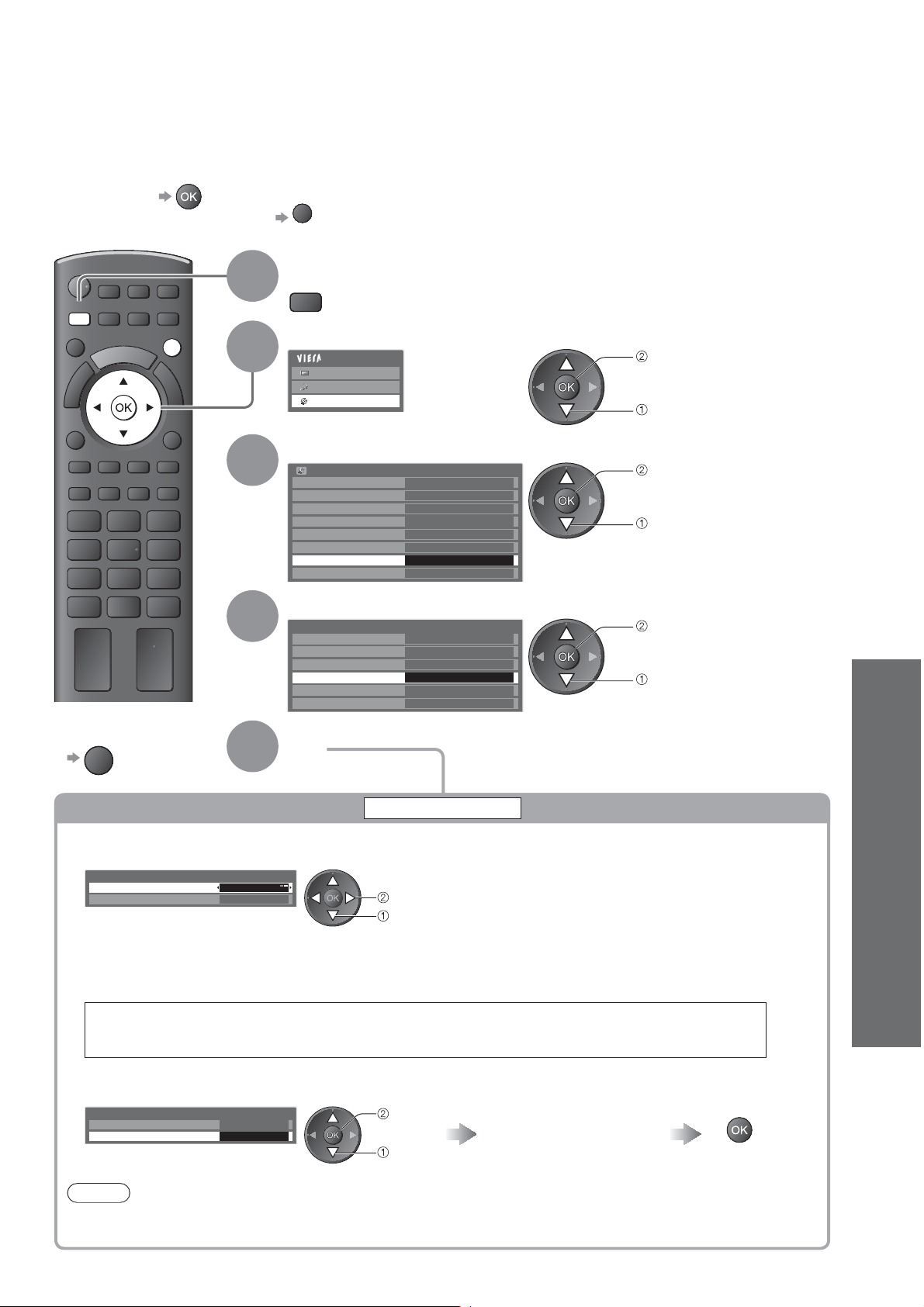

Off Timer

Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)

Display the menu	Select “Setup”		Select “Off Timer” and set the time
MENU	Main Menu	access	Setup Menu
	Picture		Timer Programming
			Off Timer	Off	set
	Sound
			Link Settings
	Setup
		select	Child Lock		select
			DVB Tuning Menu

Display Settings

System Menu

Other Settings

To cancel Set to “Off” or turn the TV off.

To display the remaining time Information banner (p. 15)

Note

When the remaining time is within 3 minutes, the remaining time will flash on the screen.

Basic

TV Watching

17

Using TV Guide

TV Guide Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).

This TV supports the GUIDE Plus+ system.

The Gemstar branding partner will supply the rating informations in the programme information and the recommended group in the Search list.

DVB and Analogue channels are displayed on the same TV Guide screen. “D” means DVB channel and “A” means Analogue channel. There will be no programme listings for Analogue channels.

When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before the TV Guide is completely shown.

INPUT

TV AV

EXIT

OPTION

RETURN

To return to TV

EXIT

or

1Select DVB or AnalogueTV

2 View TV Guide

Current date and time

Logo of the

Example:

TV Guide date

Programme

Gemstar branding partner

TV Guide

Wed 28 Oct 2009

Search

All Channels

Wed 28 Oct

10:46

1 BBC ONE

TV Guide time

20:00 - 20:30 DIY SOS : We open in the Battersbys

Time:

19:30

20:00

20:30

21:00

D

1

BBC ONE

Eastender

DIY SOS

Holiday News

D

7

BBC THREE

Hot Wars

Holiday Program

D

14

E4

Emmerdal.

Coronation Street

The Bill

Advertisement

D

70

BBC FOUR

10 O’ clock News BBC

Pepsi Char.

Good bye

D

72

BBC 2W

Panorama

Spring watch

Coast

D: DVB

D

105

BBCi

I’m A Celebrity

Pop Idol

News

D

719

BBC Radi

Rugby

15 To 1

Sports

Channel position

A: Analogue

Select channel

Info

EXIT

GUIDE RETURN

Page up

and name

Timer Programming

Select programme

Page down

RETURN

OPTION Select Advert

-24 hours

+24 hours

Search

Category

To watch the

programme

Select a current

Select “View”

programme or channel

(DVB mode)

select

Eastender

select

19:3020:00

access

View

Timer Programming

watch

To use Timer Programming p. 19

To view a	Category		(Category list)			To the previous day
	All Channels
channel list of the				Only Analogue channels		(DVB mode)
selected category	All Channels			are listed
	All DVB Channels					red
	All Analogue Channels				select category
blue	Free DVB Channels
	TV/Data DVB Channels				view
	Favourites1
	Favourites2
	Favourites3				To list favourite channels	p. 39
	Favourites4
To search			(Search list)			To the next day
	Search
programme types						(DVB mode)
and view a channel	Search Titles...				select type
	Movie					green
list of the searched
	News and Factual				view
programmes	Entertainment
	Sport
(DVB mode)	Children’s
	.
	.
yellow	.
To search			(Search list)			Set characters one by one Search
	Search
programme titles						(maximum: 19 characters)
and view a list	Search Titles...				select	select
	Movie
of the searched						green
	News and Factual				“Search Titles...”
programmes	Entertainment				access	set
	Sport
(DVB mode)						You can set characters by using
	Children’s
	.					numeric buttons.
	.
yellow	.					“Characters table for numeric
	.

	buttons” (p. 63)
18	All the programme titles including the word you set will be listed.
	Searching without any characters will list all programmes including current programmes.

Other useful functions

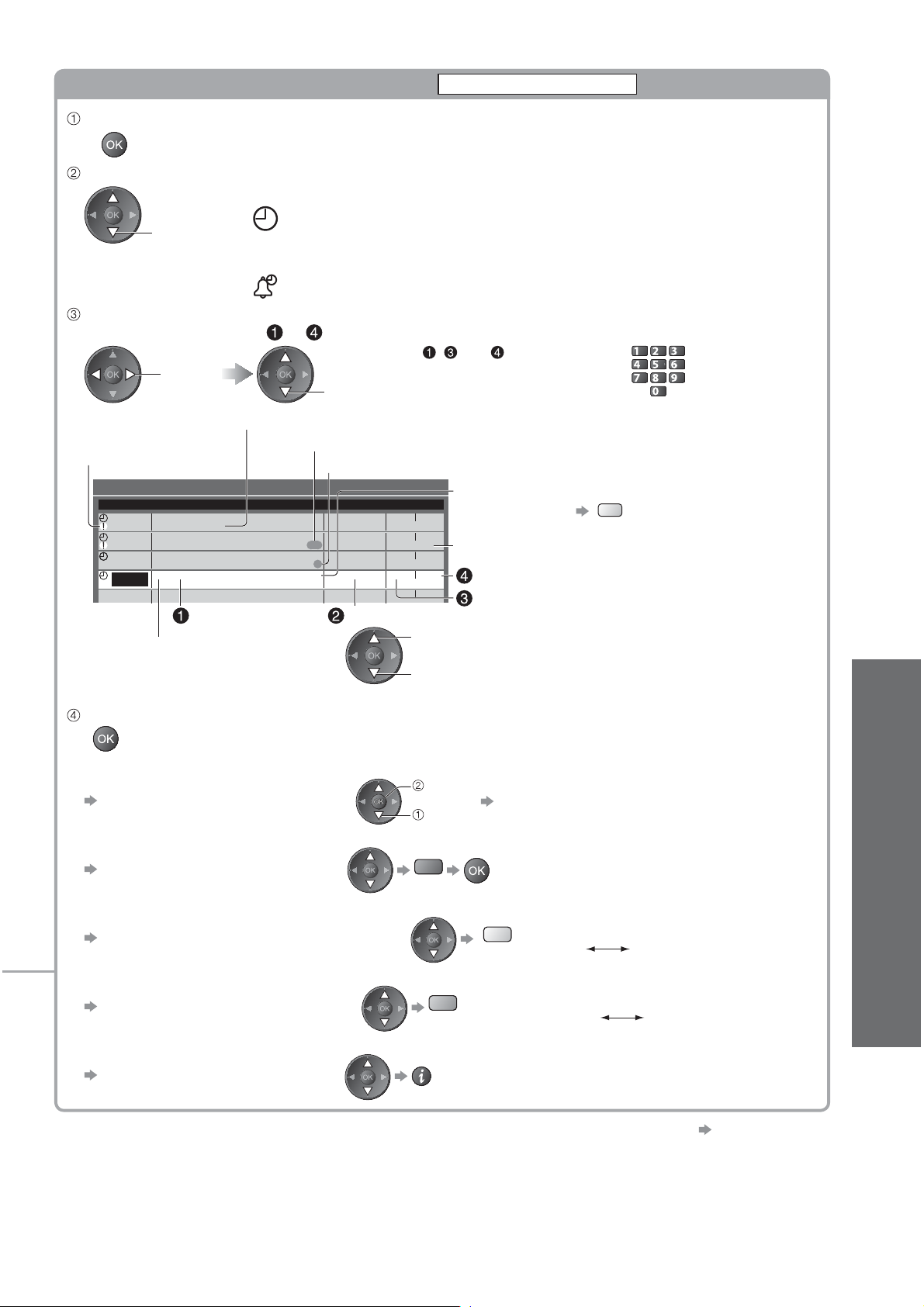

Timer Programming (DVB mode)

Timer Programming can remind you to watch a programme or record one on an external recorder.

Select the	Select the function
forthcoming	(Reminder or Ext Rec.)
programme									store
	Function		No.	Channel Name		Date	Start	End
	Timer Programming					Wed 28 Oct 2009 10:46
select
		Ext Rec.	D 1	BBC ONE		Wed 28 Oct	20:00	20:30
				DIY SOS	Guide		(30 min.)		select
	---		---			--/--	(---	min.)
							--:--	--:--
	---		---			--/--	--:--	--:--
set							(--- min.)
	---		---			--/--	--:--	--:--
							(--- min.)
	---		---			--/--	--:--	--:--
							(--- min.)

(Timer Programming screen)

LED

LED will turn to orange if Timer Programming is set.

(Orange LED will flash if Ext Rec. of Timer Programming is in progress.)

Ext Rec. : to record the programme to the recorder

When the start time comes, the channel will be switched automatically and the video and audio signals will be output. 2 mins. before the starting time, a reminder message appears if you are watching TV.

Reminder : to remind you to watch the programme

When you are watching TV, a reminder message appears 2 mins. before

the start time. Press the OK button to switch to the programmed channel.

To check / change / cancel a timer programming event “Timer Programming” (p. 41)

To return to TV Guide	RETURN

If you select a current programme

A confirmation screen asking whether you wish to watch or record the programme will appear.

Select “Timer Programming” and set “Ext Rec.” to record from the time		Eastender					select
you finish programming the timer event setting.	19:3020:00
		View		Timer Programming			access

Note

This function is not available in Analogue mode.

Timer Programming can store up to 15 events.

Timer Programming reminder messages will remain displayed until one of the following occurs:

•You press the OK button to view the programme or the EXIT button to cancel the reminder.

•The timer programming event that the reminder is set for ends.

No other channel can be selected while Ext Rec. of Timer Programming is in progress.

When recording programmes, be sure to make the proper settings on the recorder connected to the TV. If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 54) and the “Link

Settings” (p. 29) are completed, no setting of the recorder is required. Also read the manual of the recorder.

Guide link programming (Timer Programming from the TV Guide signal)

Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer programming event will follow the change.

A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes.

Note that Guide link programming (including Split Programme programming) only works reliably if correct information is received from broadcasters.

Timer Programming						Wed 28 Oct 2009 10:46
Function			No.	Channel Name		Date	Start	End
	Ext Rec.	D	1	BBC ONE		Wed 28 Oct	20:00	20:30
				DIY SOS	Guide		(30	min.)
	Reminder	D	14	E4		Wed 28 Oct	21:00	22:30
				The Bill	Guide		(90	min.)
	Ext Rec.	D	72	BBC 2W		Wed 28 Oct	22:45	23:00
				<TIMER>			(15	min.)
	Ext Rec.	D	1	BBC ONE		Thu 29 Oct	10:30	11:30
				Red Cap	S/P		(60	min.)
---			---			--/--	--:--	--:--
							(---	min.)

(Timer Programming screen)

“Guide” is displayed if the timer is set from the TV Guide

(Guide link programming)

“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme

“” or “” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.

			TV Guide
Wed 28 Oct 2009		Wed 28 Oct		Search	All Channels
10:46
1 BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
		Time:	19:30	20:00	20:30	21:00
D	1	BBC ONE	Eastender	DIY SOS	Holiday News
D	7	BBC THREE	Hot Wars		Holiday Program
D	14	E4	Emmerdal.	Coronation Street		The Bill
D	70	BBC FOUR	10 O’ clock News BBC		Pepsi Char.	Good bye
D	72	BBC 2W	Panorama	Spring watch		Coast
D	105	BBCi	I’m A Celebrity		Pop Idol	News
D	719	BBC Radi	Rugby	15 To 1		Sports

Note

If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no longer follow the broadcaster’s changes to the start or end time. The start and end times will become fixed.

Whilst making the Split Programme programming event for Ext Rec., you cannot record any channels between the interrupted programmes.

The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.

The Split Programme programming event for Reminder will switch to the programmed channel by pressing

Basic

Guide TV Using

the OK button even if it is between the interrupted programmes.	19
The Split Programme programming does not work if the separated parts are broadcast on different channels.

Using TV Guide

Other useful functions

View details of the programme (DVB mode)

Select the programme	View details	10:46	Wed 28 Oct 2009		TV Guide
		Wed 28 Oct 2009
select			DIY SOS
			BBC ONE
			20:00 - 20:30, 30 min.
										Details
				EXIT	Return to list
		Timer Programming		RETURN

Press again to return to TV Guide.

View advertisement

Enter your postcode when using this function for the first time “Postcode” in “GUIDE Plus+ Settings” (p. 30)

If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12), you do not have to enter it again.

If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.

Display advertisement information

OPTION

To display the latest advertisement, you will need to update the information.

To update the information continuously, the TV must be left in Standby mode at night.

To change advertisements

OPTION	RETURN
To return to TV Guide	or

Note

Some advertisements are for future programmes.

In this case it is possible to use the Guide link programming function (p. 19).

The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.

20

Viewing Teletext

You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)

The availability of teletext services for a programme is indicated by “TEXT” in the information banner.

Information banner (p. 15)

1 BBC ONE Wales		19:35	All DVB Channels
Coronation Street			Select favourites
19:30 - 20:00		Now	For info press

TEXT	Displayed if programme has teletext service

Digital teletext (MHEG)

Digital teletext services

Digital teletext services differ greatly from analogue teletext.

When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.

	1	Select DVB
		TV	DVB programmes have digital teletext services (MHEG).
INPUT	2	SwitchTEXT	to Teletext 17:51 28 Feb
TV

		3	How to use
			In all cases, it is possible to navigate the pages using buttons on the
TEXT			remote control, but because the commands available must apply to all
			manufacturers of digital equipment, some on screen commands may
	abc	def	not correspond exactly to the remote control buttons.
			For example:
ghi	jkl	mno	When “select” or “go” is displayed
pqrs	tuv	wxyz	When “ ”, “ ”, “ ”, “ ” symbol is displayed
			When the key words are displayed on colour bar			red green yellow blue
			When options with numbers are displayed		abc	def
				ghi	jkl	mno
				pqrs	tuv	wxyz

					TEXT
					To return to TV
		TV			Note
					As soon as you switch to a digital channel with links to a teletext service,
					software is downloaded in the background to enable the teletext function.
					This means that when switching to a digital channel, you should wait for
					approximately 5 seconds before pressing the TEXT button - this will allow
					the software to download. If you press the TEXT button before download is
					complete, it will be ignored and you will have to press the TEXT button again
					when the download is complete.
					While navigating digital teletext, you will find there is a short delay when
					moving between pages while the page downloads. There is often a prompt
					shown somewhere on the page (for example “Loading”) to let you know that
					this is happening.

Basic

Teletext Viewing Guide TV Using

21

Viewing Teletext

Analogue teletext

Analogue teletext services

Analogue teletext services are the text information provided by the broadcasters.

The features may vary depending on the broadcasters.

What is FASTEXT mode?

In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.

What is List mode?

In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 23)

To change mode “Teletext” in the Setup Menu (p. 30)

INPUT

TV AV

MENU N

EXIT

RETURN

1

2

Select Analogue

TV

Switch to Teletext

Sub page number

TEXT

Displays the

Current

<< 01 02 03 04 05 06 07

>>

index page

17:51 28 Feb

Time / date

(content varies

page

TELETEXT

number

depending on the

INFORMATION

broadcasters)

TEXT STTL INDEX HOLD			3	Select the page					Colour bar
	abc	def			abc	def		up
				ghi	jkl	mno	or	or	red green yellow blue
ghi	jkl	mno		pqrs	tuv	wxyz
								down	(Corresponds to the colour bar)
pqrs	tuv	wxyz

As the blue bar is displayed

To adjust contrast	MENU
	(press twice)

EXIT

To return to TV

PROGRAMME

Reveal hidden data

Reveal hidden words e.g. quiz page answers

MENU	To rehide red
red

FULL / TOP / BOTTOM

(TOP)

(BOTTOM)

Normal (FULL)

MENU

green

(Expand the TOP half)

(Expand the BOTTOM half)

HOLD

Stop automatic updating

(If you wish to hold the current page without updating)

HOLD	To resume	HOLD

22
