Panasonic AG-AC160AP, AG-AC160AEJ, AG-AC160AEN User Guide

		This product is eligible for the AVCCAM
		3 Year Warranty Repair Program. For	Operating Instructions
		details, see page 9.		Vol.1
			Memory Card Camera-Recorder

		Model No. AG-AC160AP
		AG-AC160AEJ
Volume	1	AG-AC160AEN

Note that Operating Instructions Vol.1 describes basic operations of the Memory Card Camera-Recorder.

For instructions on advanced operations of the Memory Card Camera-Recorder, refer to Operating Instructions Vol.2 (pdf file) contained in the supplied CD-ROM. (Page 13)

Before operating this product, please read the instructions carefully and save this manual for future use.

SS0412SI0 -YI	ENGLISH
Printed in Japan	VQT4J51 (E)

Read this first!

indicates safety information.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER TO SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

•To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.

•To reduce the risk of fire or electric shock hazard, keep this equipment away from all liquids. Use and store only in locations which are not exposed to the risk of dripping or splashing liquids, and do not place any liquid containers on top of the equipment.

WARNING:

Always keep memory cards or accessories (coin battery, microphone holder screws, microphone holder adaptor, INPUT terminal covers) out of the reach of babies and small children.

CAUTION:

Danger of explosion or fire if battery is incorrectly replaced or mistreated.

•Do not disassemble the battery or dispose of it in fire.

•Do not store in temperatures over 60°C (140°F).

•Do not expose the battery to excessive heat such as sunshine, fire or the like.

For Battery Pack

•Use specified charger.

•Replace only with same or specified type.

For Battery of Remote Controller

•Replace battery with part No. CR2025 only.

•Do not recharge the battery.

CAUTION:

In order to maintain adequate ventilation, do not install or place this unit in a bookcase, built-in cabinet or any other confined space.

To prevent risk of electric shock or fire hazard due to overheating, ensure that curtains and any other materials do not obstruct the ventilation.

CAUTION:

Do not lift the unit by its handle while the tripod is attached. When the tripod is attached, its weight will also affect

the unit’s handle, possibly causing the handle to break and hurting the user. To carry the unit while the tripod is attached, take hold of the tripod.

CAUTION:

Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION:

To reduce the risk of fire or electric shock and annoying interference, use the recommended accessories only.

CAUTION:

Do not jar, swing, or shake the unit by its handle while the conversion lens or another accessory is attached.

Due to the added weight of the conversion lens, any strong jolt to the handle may damage the unit or result in personal injury.

CAUTION:

The mains plug of the power supply cord shall remain readily operable.

The AC receptacle (mains socket outlet) shall be installed near the equipment and shall be easily accessible.

To completely disconnect this equipment from the AC mains, disconnect the power cord plug from the AC receptacle.

CAUTION:

Do not leave the unit in direct contact with the skin for long periods of time when in use.

Low temperature burn injuries may be suffered if the high temperature parts of this unit are in direct contact with the skin for long periods of time. When using the equipment for long periods of time, make use of the tripod.

CAUTION:

Keep metal objects (such as necklaces and hairpins) away from the battery.

Short-circuiting may occur across the terminals, causing the battery to heat up, and you may seriously burn yourself if you touch the battery in this state.

2

For AG-AC160AP Only

indicates safety information.

CAUTION:

This apparatus can be operated at a voltage in the range of 110-240 V AC. Voltages other than 120 V are not intended for U.S.A. and Canada.

Operation at a voltage other than 120 V AC may require the use of a differentAC plug. Please contact either a local or foreign Panasonic authorized service center for assistance in selecting an alternate AC plug.

FCC NOTICE (USA)

Declaration of Conformity

Model Number:	AG-AC160AP
Trade Name:	Panasonic
Responsible Party:	Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094
Support contact:	1-800-524-1448

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

To assure continued compliance, follow the attached installation instructions and do not make any unauthorized modifications.

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

The user may find the booklet “Something About Interference” available from FCC local regional offices helpful.

FCC Warning:

To assure continued FCC emission limit compliance, follow the attached installation instructions and the user must use only shielded interface cables when connecting to host computer or peripheral devices. Also any unauthorized changes or modifications to this equipment could void the user's authority to operate this device.

NOTIFICATION (Canada)

This class B digital apparatus complies with Canadian ICES-003.

Cet appareil numéique de la classe B est conforme à la norme NMB-003 du Canada.

3

IMPORTANT SAFETY INSTRUCTIONS

1)Read these instructions.

2)Keep these instructions.

3)Heed all warnings.

4)Follow all instructions.

5)Do not use this apparatus near water.

6)Clean only with dry cloth.

7)Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9)Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)Only use attachments/accessories specified by the manufacturer.

12)Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,

or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

IMPORTANT

“Unauthorized recording of copyrighted television programs, video tapes and other materials may infringe the right of copyright owners and be contrary to copyright laws.”

A lithium ion/polymer battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY for information on how to recycle this battery.

For USA-California Only

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

4

For AG-AC160AEJ Only

indicates safety information.

Caution for AC Mains Lead

For battery charger

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This product is equipped with 2 types of AC mains cable. One is for continental Europe, etc. and the other one is only for U.K.

Appropriate mains cable must be used in each local area, since the other type of mains cable is not suitable.

TYPE C	TYPE BF
(FOR CONTINENTAL EUROPE, ETC.	(FOR U.K. ONLY)
Not to be used in the U.K.)

FOR U.K. ONLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

How to replace the fuse

1.Open the fuse compartment with a screwdriver.

2.Replace the fuse.

Fuse

EEE Yönetmeliğine Uygundur.

EEE Complies with Directive of Turkey.

EU

5

For AG-AC160AEJ Only

indicates safety information.

Caution for AC Mains Lead

For AC adaptor

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This product is equipped with 2 types of AC mains cable. One is for continental Europe, etc. and the other one is only for U.K.

Appropriate mains cable must be used in each local area, since the other type of mains cable is not suitable.

FOR CONTINENTAL EUROPE, ETC.	FOR U.K. ONLY
Not to be used in the U.K.

FOR U.K. ONLY

This appliance is supplied with a moulded		How to replace the fuse
three pin mains plug for your safety and		1. Open the fuse compartment with a
convenience.		screwdriver.
A 13 amp fuse is fitted in this plug.
Should the fuse need to be replaced please
ensure that the replacement fuse has a rating
of 13 amps and that it is approved by ASTA
or BSI to BS1362.
Check for the ASTA mark	or the BSI mark
on the body of the fuse.
If the plug contains a removable fuse cover		2. Replace the fuse.
you must ensure that it is refitted when the
fuse is replaced.

	If you lose the fuse cover the plug must	Fuse
	not be used until a replacement cover is
	obtained.
	A replacement fuse cover can be purchased
	from your local Panasonic Dealer.

WARNING:

This equipment must be earthed

To ensure safe operation, the three-pin plug must be inserted only into a standard three-pin power point which is effectively earthed through normal house-hold wiring.

Extension cords used with the equipment must have three cores and be correctly wired to provide connection to the earth. Wrongly wired extension cords are a major cause of fatalities.

The fact that the equipment operates satisfactorily does not imply that the power point is earthed or that the installation is completely safe. For your safety, if you are in any doubt about the effective earthing of the power point, please consult a qualified electrician.

6

For AG-AC160AEN Only

indicates safety information.

Caution for AC Mains Lead

AC adaptor (Battery charger)

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY. This product is equipped with 2 types of AC mains cable, Type C and Type BF.

Appropriate mains cable must be used in each local area, since the other type of mains cable is not suitable.

TYPE C	TYPE BF

For AG-AC160AEJ/AG-AC160AEN Only

EMC NOTICE FOR THE PURCHASER/USER OF THE APPARATUS

1.Applicable standards and operating environment The apparatus is compliant with:

•standards EN55103-1 and EN55103-2 2009, and

•electromagnetic environments E1, E2, E3 and E4.

2.Pre-requisite conditions to achieving compliance with the above standards

<1> Peripheral equipment to be connected to the apparatus and special connecting cables

•The purchaser/user is urged to use only equipment which has been recommended by us as peripheral equipment to be connected to the apparatus.

•The purchaser/user is urged to use only the connecting cables described below.

<2>Fortheconnectingcables,useshieldedcableswhichsuittheintendedpurposeoftheapparatus.

•Video signal connecting cables

Use double-shielded coaxial cables, which are designed for 75-ohm type high-frequency applications, for SDI (Serial Digital Interface).

Coaxial cables, which are designed for 75-ohm type high-frequency applications, are recommended for analog video signals.

•Audio signal connecting cables

If your apparatus supports AES/EBU serial digital audio signals, use cables designed for AES/EBU. Use shielded cables, which provide quality performance for high-frequency transmission applications, for analog audio signals.

•Other connecting cables (IEEE1394, USB)

Use double-shielded cables, which provide quality performance for high-frequency applications, as connecting cables.

•When connecting to the DVI signal terminal, use a cable with a ferrite core.

•If your apparatus is supplied with ferrite core(s), they must be attached on cable(s) following instructions in this manual.

3.Performance level

The performance level of the apparatus is equivalent to or better than the performance level required by these standards.

However, the apparatus may be adversely affected by interference if it is being used in an EMC environment, such as an area where strong electromagnetic fields are generated (by the presence of signal transmission towers, cellular phones, etc.). In order to minimize the adverse effects of the interference on the apparatus in cases like this, it is recommended that the following steps be taken with the apparatus being affected and with its operating environment:

1.Place the apparatus at a distance from the source of the interference.

2.Change the direction of the apparatus.

3.Change the connection method used for the apparatus.

4.Connecttheapparatustoanotherpoweroutletwherethepowerisnotsharedbyanyotherappliances.

7

Brazil Only

Brasil Apenas

Manuseio de baterias usadas

BRASIL

Após o uso, as pilhas e /ou baterias poderão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada.

Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento. O contato entre partes metálicas pode causar vazamentos, gerar calor, romper a blindagem e produzir fogo.

Não desmonte, não remova o invólucro, nem amasse a bateria. O gás liberado pela bateria pode irritar a garganta, danificar o lacre do invólucro ou o vazamento provocar calor, ruptura da blindagem e produzir fogo devido ao curto circuito dos terminais. Não incinere nem aqueça as baterias, elas não podem ficar expostas a temperaturas superiores a 100°C (212°F). O gás liberado pela bateria pode irritar a garganta, danificar o lacre do invólucro ou o vazamento provocar calor, ruptura da blindagem e produzir fogo devido ao curto circuito dos terminais provocado internamente.

Evite o contato com o liquido que vazar das baterias. Caso isto ocorra, lave bem a parte afetada com bastante água. Caso haja irritação, consulte um médico.

To remove the battery

Para remover a bateria

Main Power Battery (Lithium ion Battery) Bateria Principal de Energia

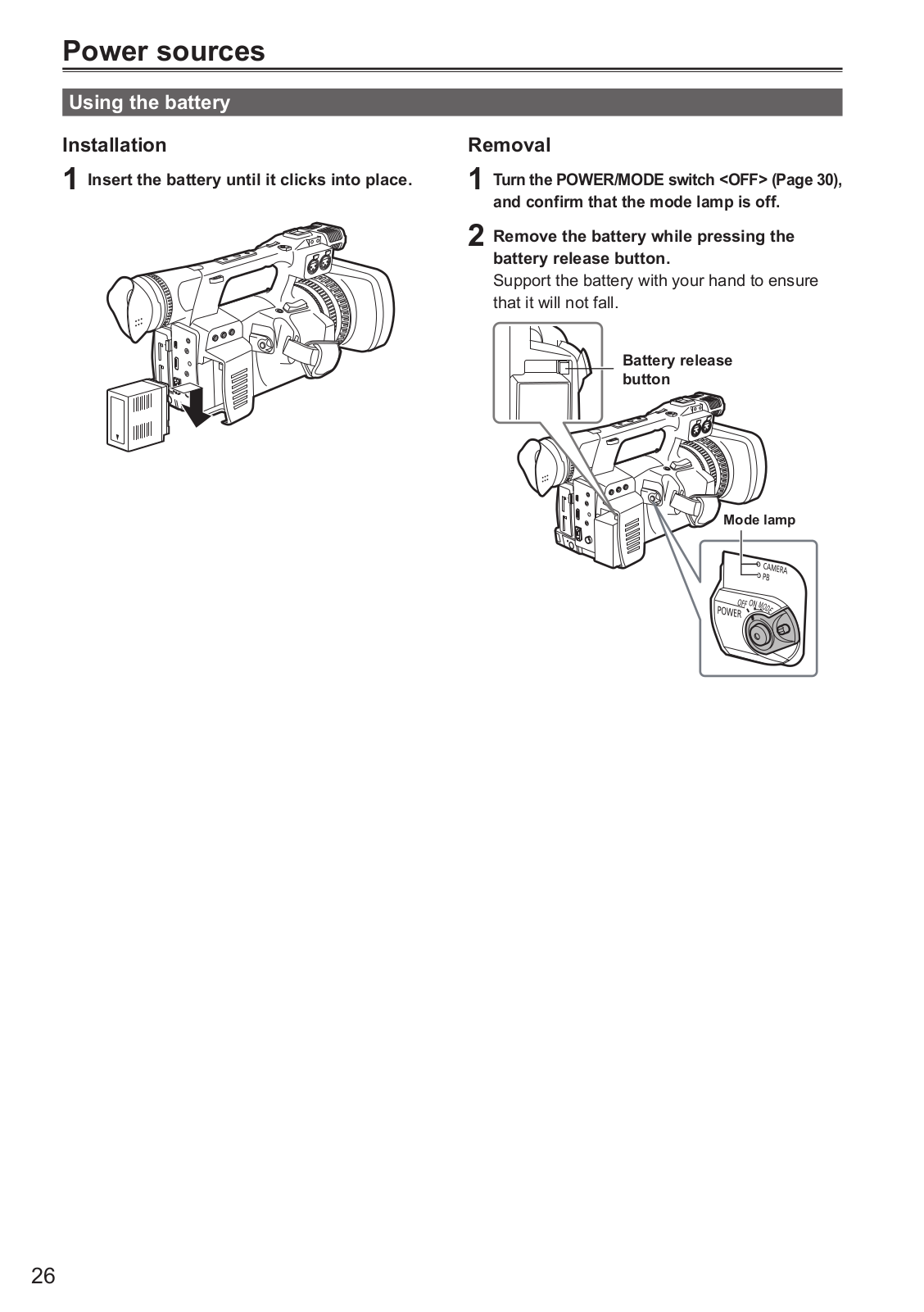

(Refer to page 26 for the detail.)

Press the battery release button. Pressione o botão para liberar a bateria.

Battery release button Botão de liberação da bateria

Back-up Battery (Lithium Battery)

•For the removal of the battery for disposal at the end of its service life, please consult your dealer.

Remote Control Battery (Lithium Battery) Bateria do Controle Remoto

1)Push the catch in the direction shown by arrow 1 to remove the holder.

Empurre a trava na direção exibida pela seta

1 para remover o suporte.

2)Remove the button-type battery from the battery holder.

Remova a bateria tipo botão do suporte da bateria.

8

■Batteries that may be used with this product (Correct as of September 2011)

Panasonic CGA-E/625 (bundled) and VW-VBG6 (optional) batteries may be used with this product. The CGA-E/625 (bundled) and VW-VBG6 (optional) batteries contain a function to enable verification as to whether they may be safely used with this product.

It has been found that counterfeit battery packs which look very similar to the genuine product are made available to purchase in some markets. Some of these battery packs are not adequately protected with internal protection to meet the requirements of appropriate safety standards. There is a possibility that these battery packs may lead to fire or explosion. Please be advised that we are not

liable for any accident or failure occurring as a result of use of a counterfeit battery pack. To ensure that safe products are used we would recommend that a genuine Panasonic battery pack is used.

Battery Charger / AC Adaptor

The rating plate is on the underside of the Battery Charger and AC Adaptor. Disconnect the AC mains plug from the AC mains socket when not in use.

AVCCAM 3 Year Warranty Repair Program*1

Thank you for purchasing this Panasonic AVCCAM device.

Register as a user for this device to receive a special service warranty up to three years of free warranty repairs.

Customers who register as users on the website will receive an extended warranty repair valid for up to three years.

1st year

2nd year

3rd year

AVCCAM device	*	2	Basic warranty	*	3	*	4
						Extended warranty repair

*1: Please note that this extended warranty is not available in some countries/regions. *2: Not all models eligible for extended warranty coverage. *3: The basic warranty period may vary depending on the country/region. *4: Not all repair work is covered by this extended warranty.

Purchase	Register online			“Registration Notice”
AVCCAM product	within 1 month			e-mail sent

Details about user registration and the extended warranty:

Free 3 years of Warranty Repairs

Make sure to save the “Registration Notice” e-mail during the warranty period.

http://panasonic.biz/sav/pass_e

Please note, this is a site that is not maintained by Panasonic Canada Inc. The Panasonic Canada Inc. privacy policy does not apply and is not applicable in relation to any information submitted. This link is provided to you for convenience.

9

••The SDHC logo and SDXC logo are trademarks of SD-3C, LLC.

••“AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation.

••The “DV” is a registered trademark.

••Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

••HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

••Microsoft®, Windows®, and Windows Vista® are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

••Screenshots are used in accordance with Microsoft Corporation guidelines.

••IBM and PC/AT are registered trademarks of International Business Machines Corporation.

••Intel® is a registered trademark or a trademark of Intel Corporation in the United States and/or other countries.

••Apple®, Macintosh®, and Mac OS® are trademarks or registered trademarks of Apple Inc. in the United

States and/or other countries.

••Other model names, company names, and product names listed in these operating instructions are trademarks or registered trademarks of their respective companies.

••This product is licensed under the AVC Patent Portfolio License for the personal and non-commercial use of a consumer, and no license is granted or shall be implied for any use other than the personal uses detailed below.

-To encode video in compliance with the AVC standard (“AVC Video”)

-To decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity

-To decode AVC Video that was obtained from a video provider licensed to provide AVC Video

Additional information may be obtained from MPEG LA, LLC (http://www.mpegla.com).

-Separate license contracts must be obtained from MPEG LA where SD Memory Cards containing information recorded with this product are to be distributed to end users for commercial purposes. “End user” refers to persons or organizations handling such contents for personal use.

■■How to read this document

Illustrations

••Illustrations of the camera, menu screens, and other items, may vary from the actual items.

••In order to identify the terminals on the camera body, the supplied protective caps are not illustrated except in “Description of parts” (Pages 22, 23).

Reference pages

••Reference pages in this document are indicated by (Page 00).

SD/SDHC/SDXC memory cards

••SD/SDHC/SDXC memory cards are all described as memory cards. Each name is described when explained individually.

Notations

••The menu items displayed on the screen are enclosed in square brackets like [Menu items], and characters printed on camera and the remote control are enclosed in angle brackets as in <item name>.

Menu display language

••[English] is set in the factory settings. You can change the display language in [LANGUAGE] item of the [OTHER FUNCTIONS] screen.

10

How to use the camera

This camera is equipped with a 1/3, 2.2 mega pixel 3MOS sensor and an optical 22X cam-type zoom lens. It supports simultaneous and relay recording using two memory card slots. In addition, it is a hand-held camera-recorder that supports commercial HD mode (AVCHD)/SD mode (DV) recording that can deliver diverse image representations by supporting slow/quick motion.

••In this document, “HD mode” is referred to as “AVCHD mode” and “SD mode” is referred to as “DV mode”.

Video equipment/television/monitor	DV tape equipment/memory card
	camera-recorder/computer, etc.

HDMI cable

(can only be

used in

AVCHD mode)

Video pin cable

Audio pin cable

Data can be transferred for backup/dubbing/editing.

IEEE1394 (DV) cable
(can only be used in DV mode)	Computer

BNC Cable (SDI)

Memory card

AG-AC160A

Saves and reads the setting

LOCK	values of scene files or user
	files on the memory card.

AVCHD mode

Speed class 6 or higher can be used when in PS mode.

Speed class 4 or higher can be used when in PH/HA mode.

Speed class 2 or higher can be used when in PM/HE mode.

Speed class 6 or higher can be used during VFR recording.

DV mode

Speed class 6 or higher can be used.

USB2.0 connection cable

*The AG-AC160AEJ cannot write to a memory card from a computer.

11

Contents

Volume 1 (This Book)

Read this first!.................................................	2
How to use the camera.................................	11
Please read before use.................................	14
Compatible memory card for this camera.....	14
(SD speed class 4).......................	15
(SD speed class 6).......................	15

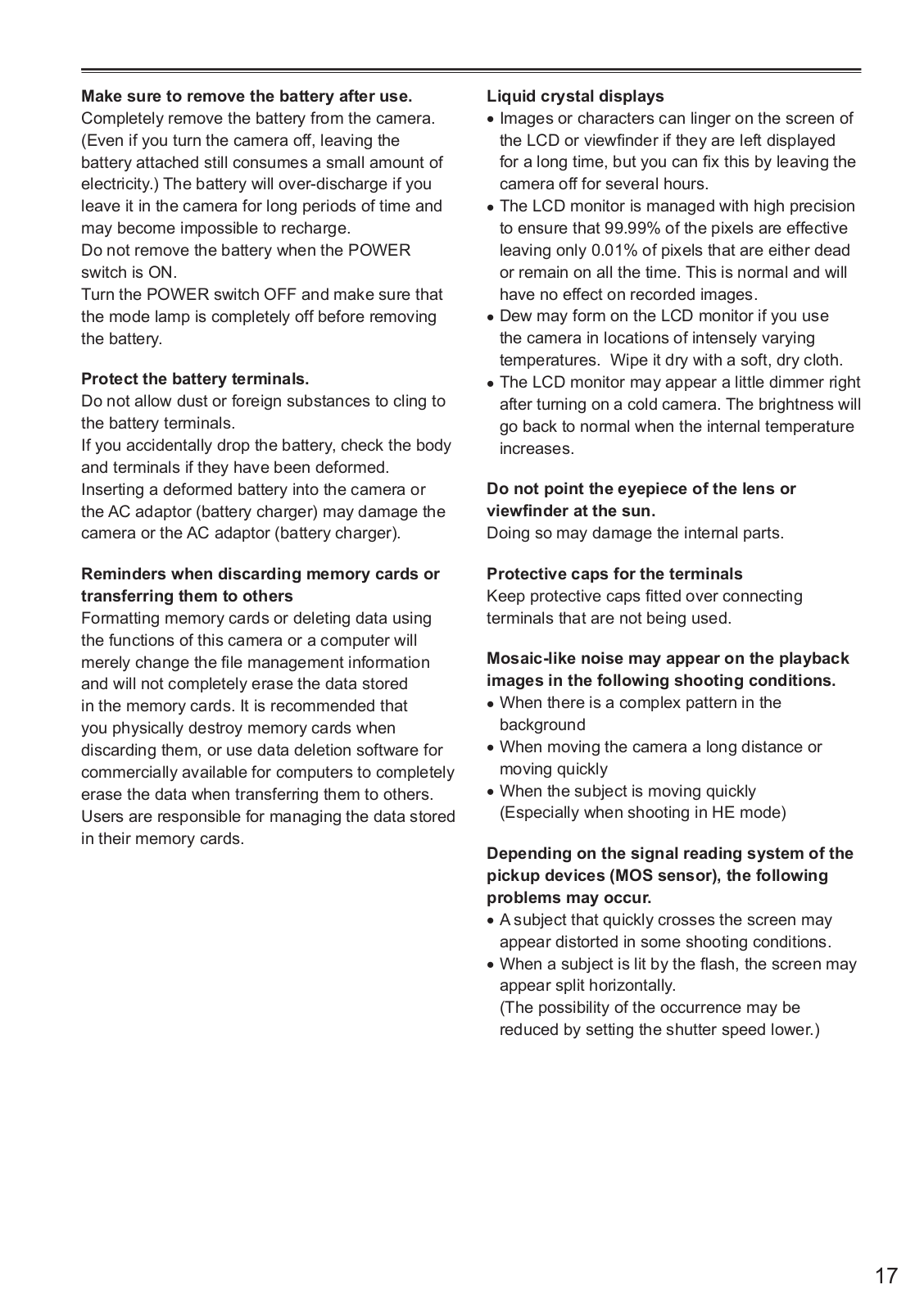

Operating precautions..................................	16

Before use

Menu
Setup menu structure...................................	35
<CAMERA> mode menu...............................	35
Playback <PB> mode menu..........................	37
Reference

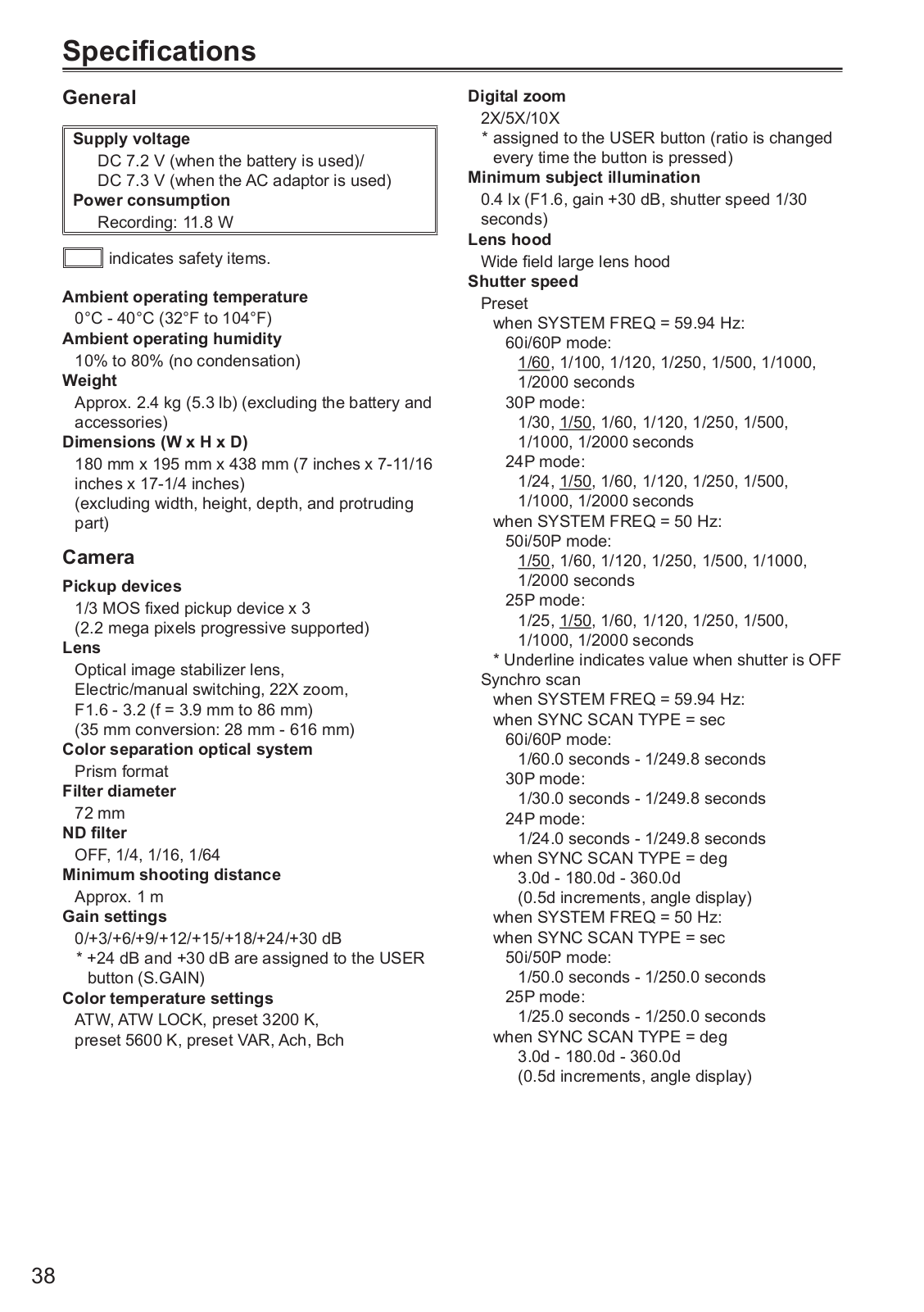

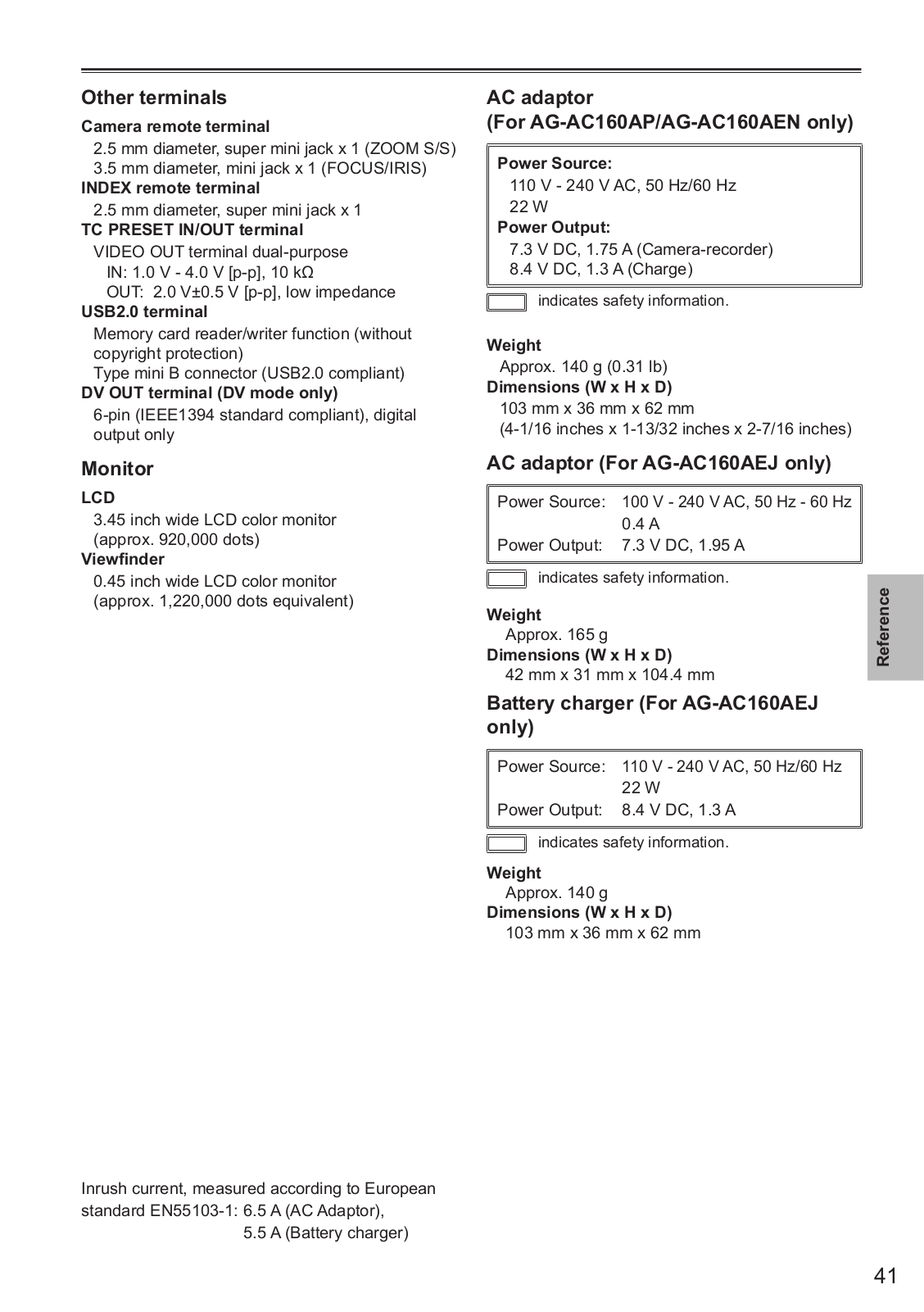

Specifications................................................	38

Before using the camera..............................	18
Accessories...................................................	20
Optional accessories....................................	20
Description of parts
Description of parts......................................	21
Left side.........................................................	21

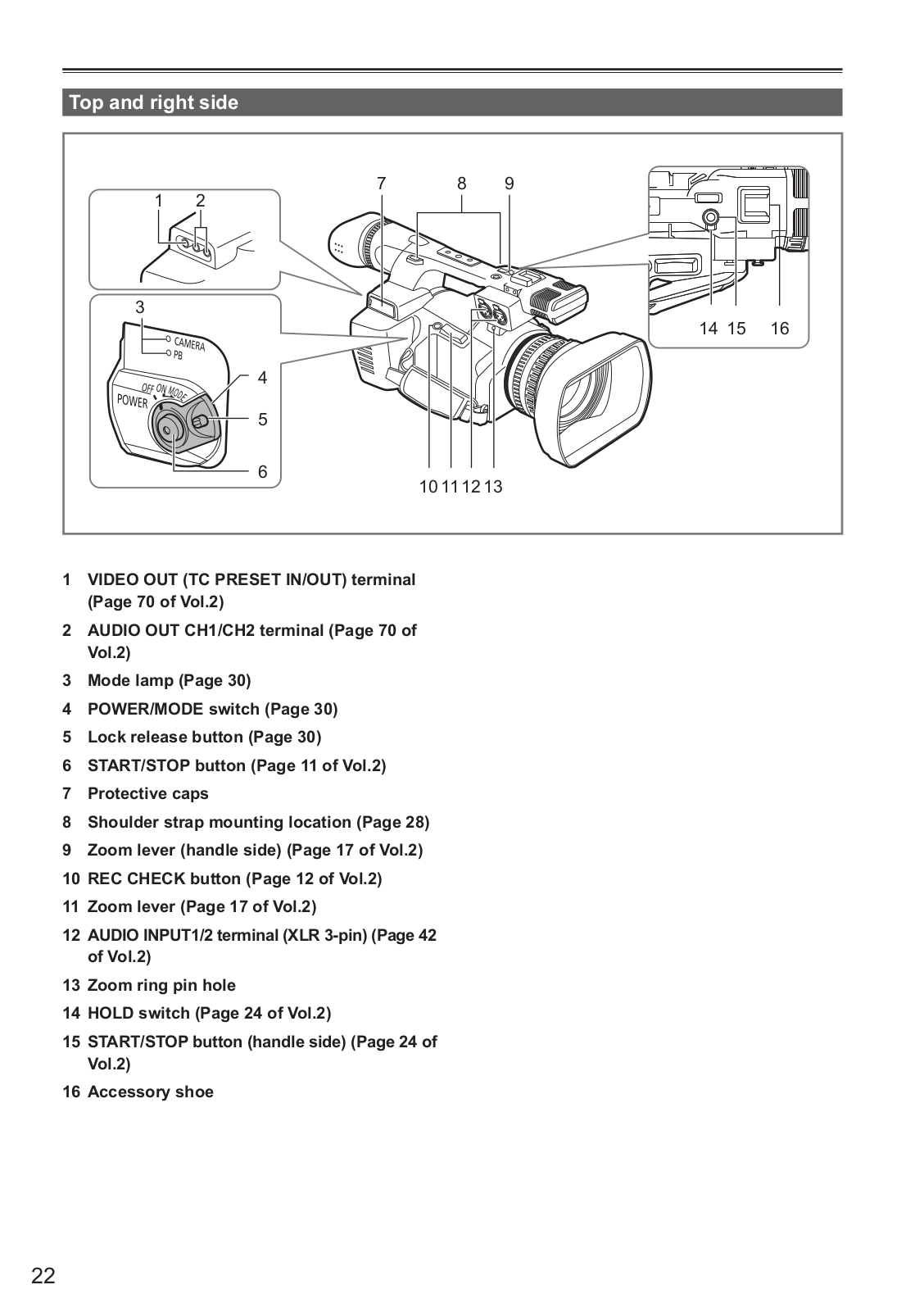

Top and right side..........................................	22

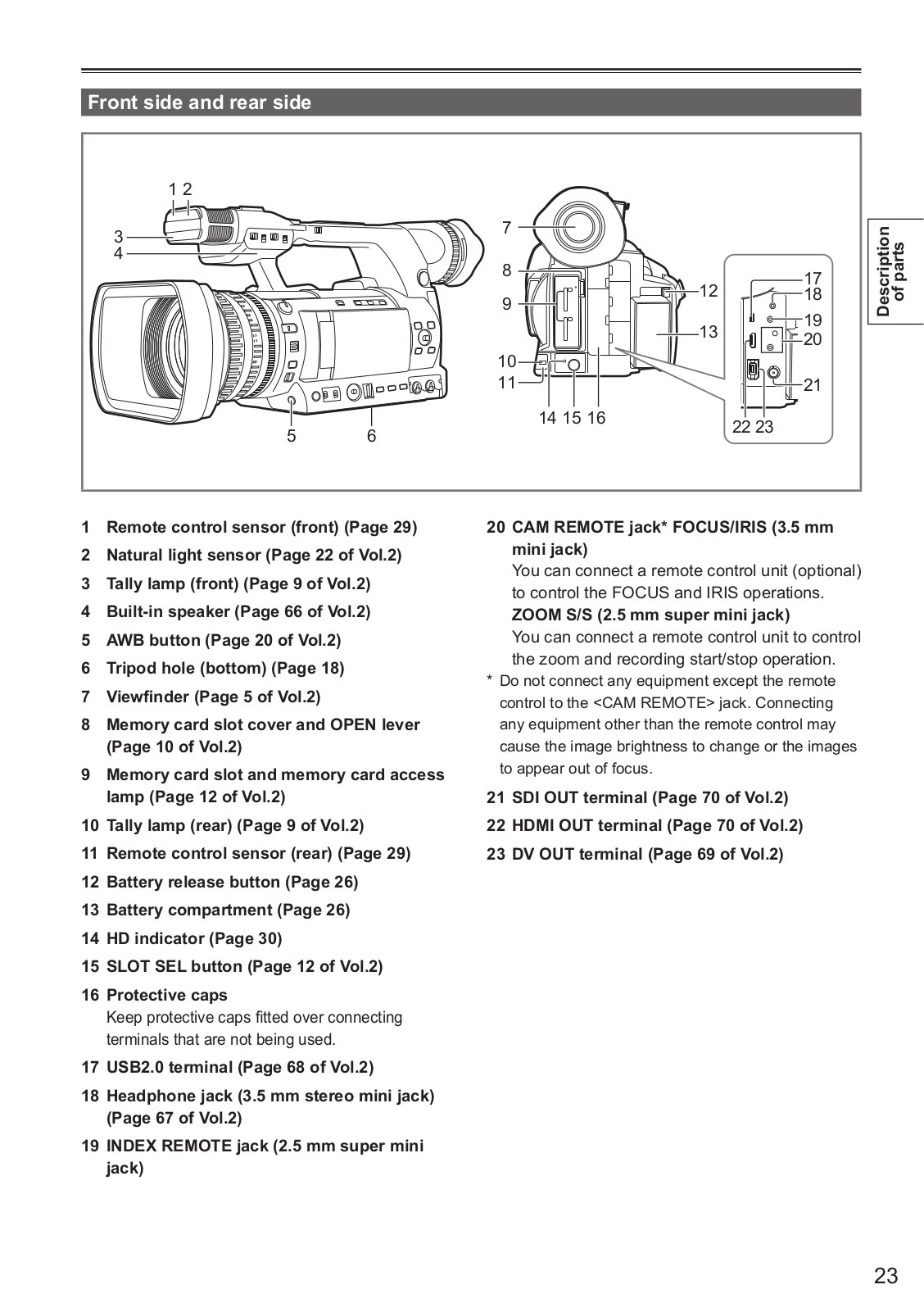

Front side and rear side................................	23

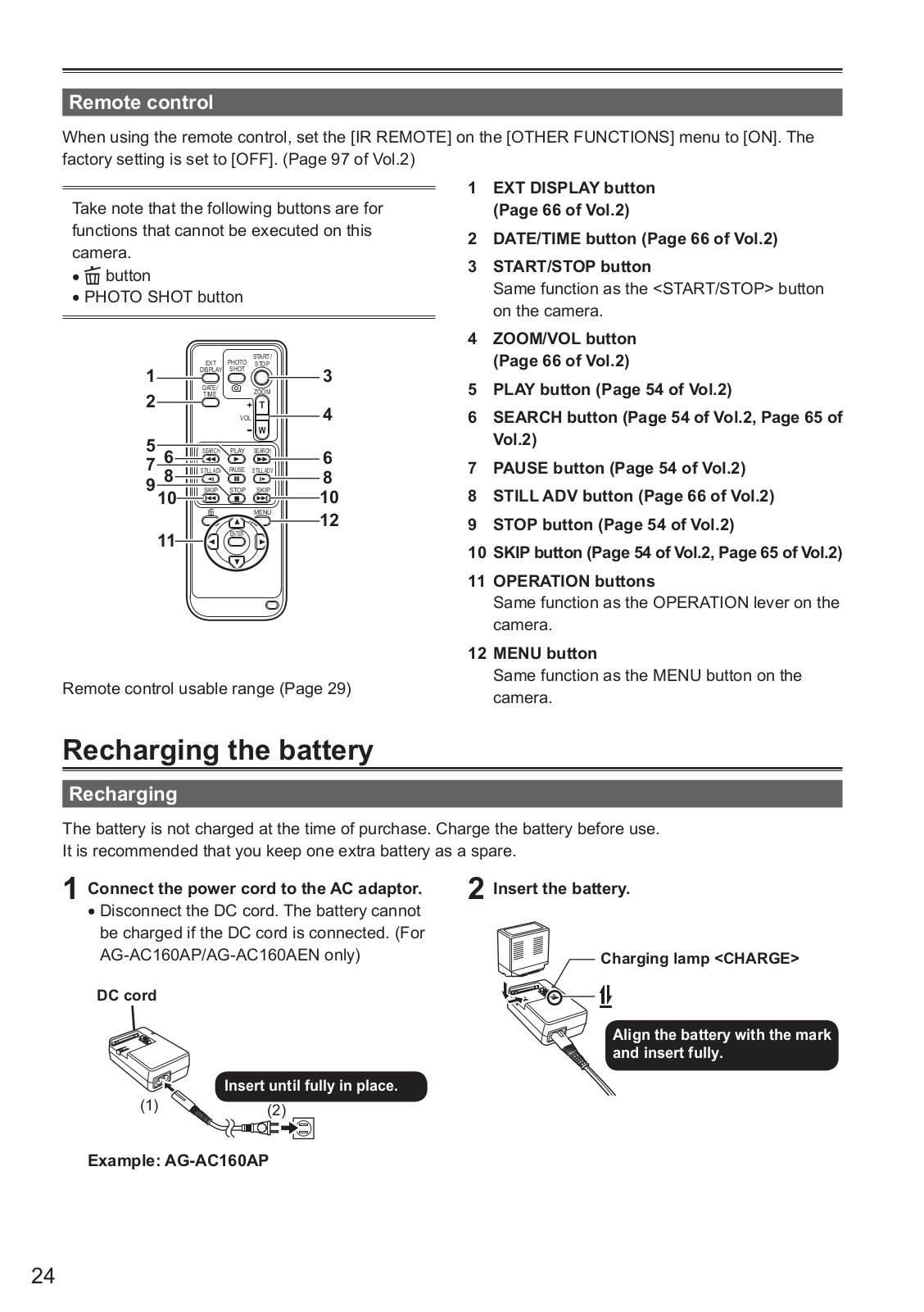

Remote control..............................................	24
Preparation
Recharging the battery.................................	24
Recharging....................................................	24
Power sources...............................................	26
Using the battery...........................................	26

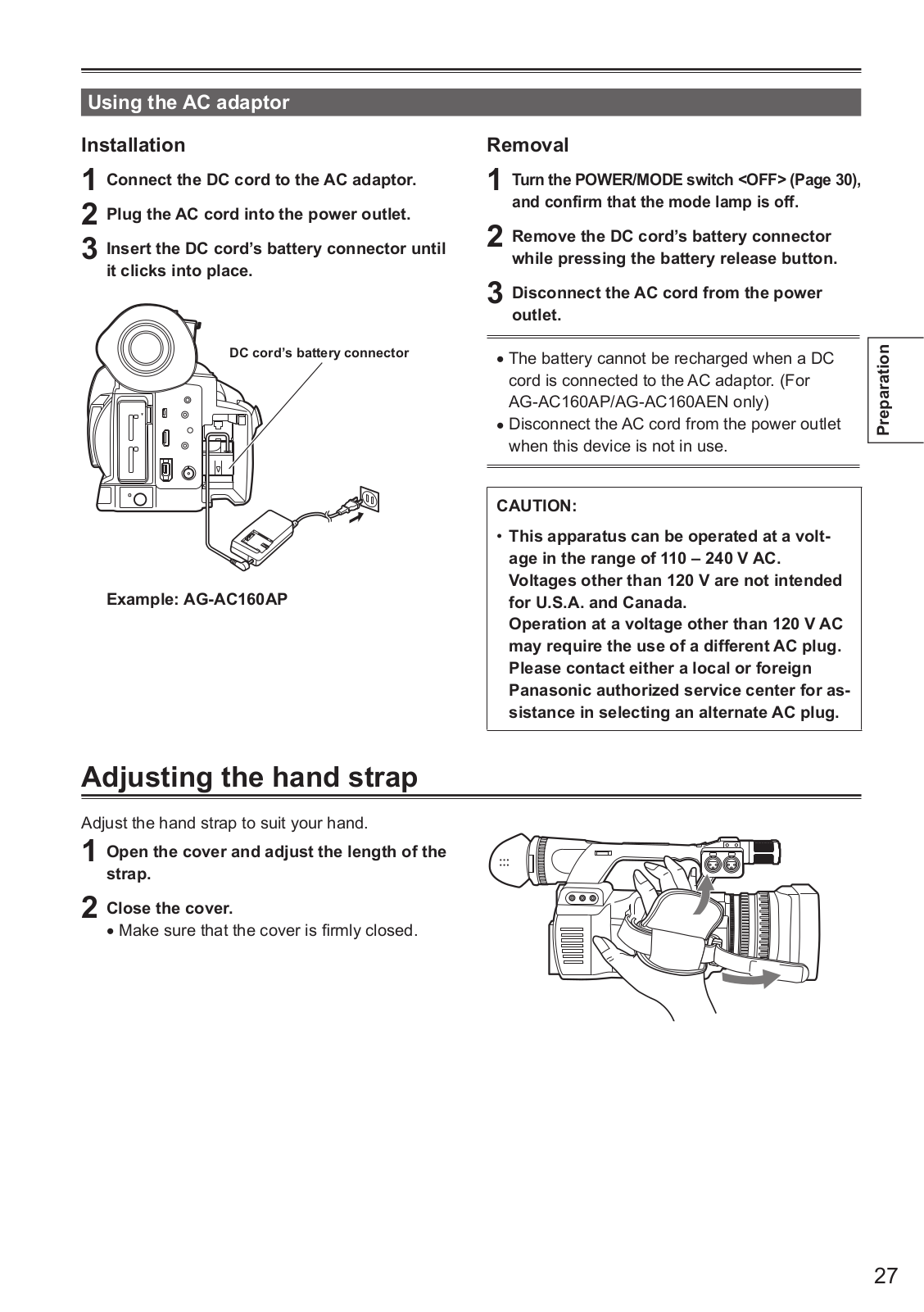

Using the AC adaptor....................................	27
Adjusting the hand strap..............................	27
Attaching the shoulder strap.......................	28
Attaching/removing the lens hood..............	28
Attaching/removing the lens cap.................	28
Fitting the eye cup........................................	29
The remote control........................................	29
Inserting the battery.......................................	29
Remote control usable range........................	29
Turning the camera ON/OFF........................	30
Switching to AVCHD mode/DV mode............	30

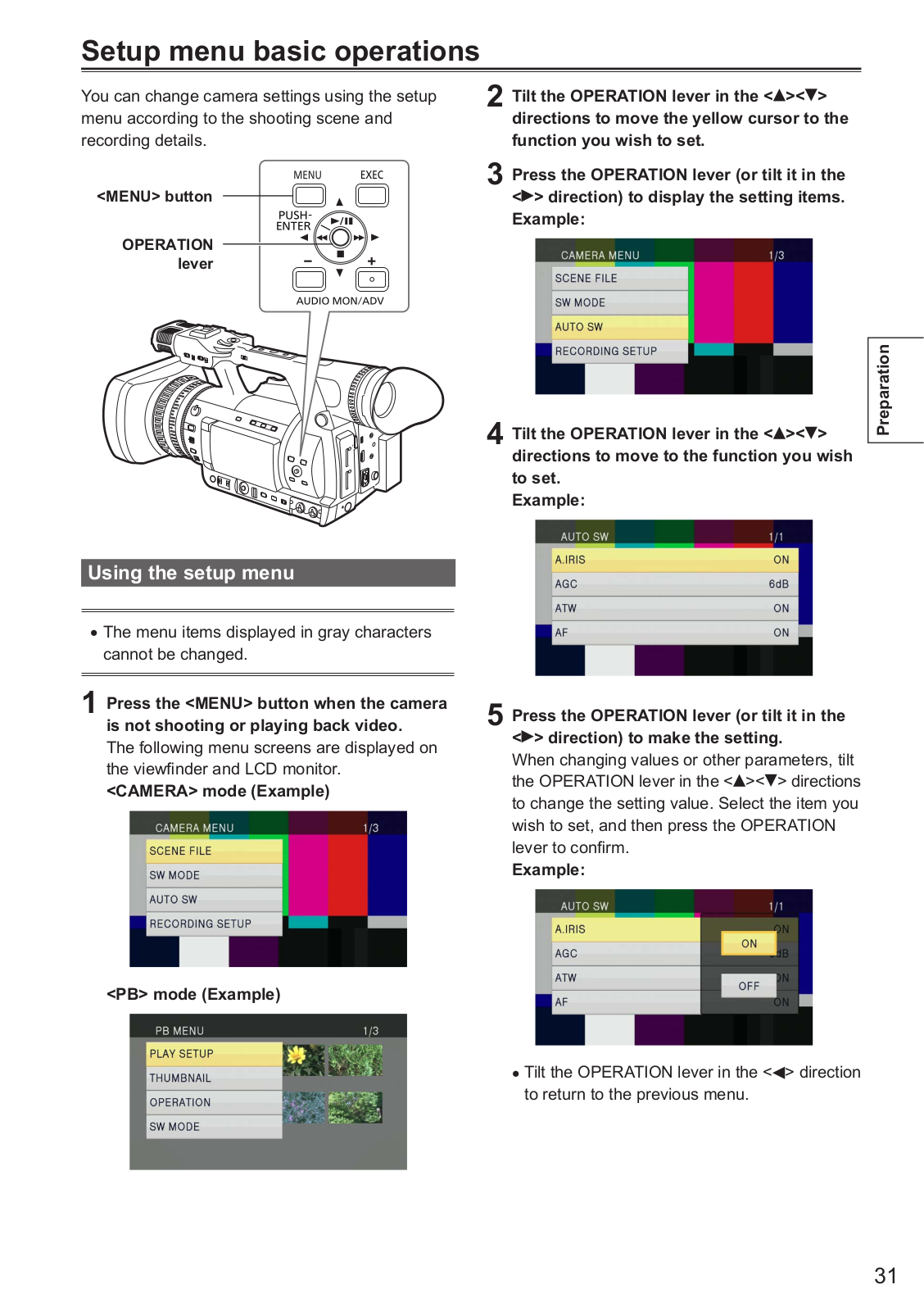

Setup menu basic operations......................	31
Using the setup menu...................................	31

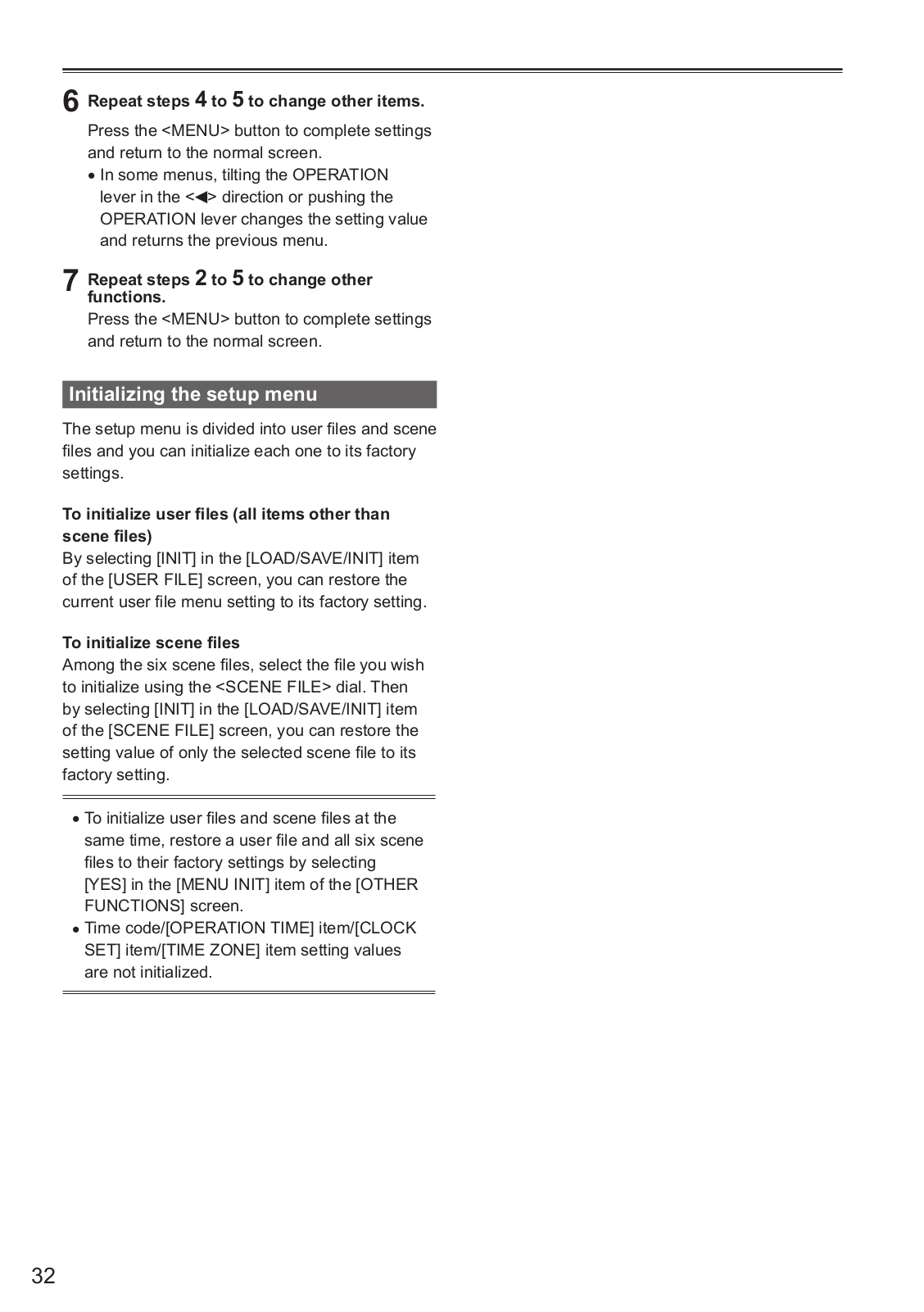

Initializing the setup menu.............................	32
Setting the calendar......................................	33

12

Volume 2 (CD)

Shooting

Using the viewfinder Tally lamp

Basic shooting operations Using the zoom function Shooting in manual mode

Shooting in 1080i/480i/576i progressive mode

Using convenient shooting functions Using special functions for recording Adjusting the shutter speed Changing audio input

Using shooting settings (scene files) Storing scene files and other settings on

memory cards

Clip metadata (AVCHD mode only) Using the counter

Charging the built-in battery/setting the time code

Playback

Basic playback operations Thumbnail screen

Playback settings [PLAY SETUP] Thumbnail operations

Useful playback functions

Editing

Connecting external devices Nonlinear editing

How to handle data recorded on the memory card

Dubbing

Displays

Screen displays

Menu

Setup menu list

Reference

Before calling for service

Updating the firmware incorporated into the unit

Cleaning

Storage precautions Recording format list Index

How to open the operating instruction manual PDF files

Discontinue installation if the installation screen of the software opens as a result of inserting the CD-ROM. When [INDEX.pdf] on the CD-ROM is opened, a list of the operating instruction manuals will be displayed. Click on the document name of the manual to be opened.

Adobe® Reader® is required to read PDF files.

It can be downloaded from the home page of Adobe Systems.

13
