Owner’s Manual
2015 Model
Pub. No. MH995249
OWNER AND VEHICLE INFORMATION
OWNER NAME:
USER/COMPANY NAME:
MAILING ADDRESS:
CITY, STATE: |
|
ZIP: |
VEHICLE IDENTIFICATION NUMBER:
DATE OF DELIVERY (WARRANTY START DATE): |
/ |
|
/ |
|
|
|
MO. |
|
DAY |
|
YR. |
SELLING DEALER IMPRINT HERE
Foreword
Thank you for purchasing a Mitsubishi Fuso FE, FG Truck.
This Owner’s Manual explains proper vehicle handling, simple maintenance practices, and the periodic maintenance schedule to ensure that you are able to drive your vehicle safely and comfortably.
As improper use of the vehicle may result in a breakdown or cause an accident, we urge you to read this handbook thoroughly before operating the vehicle.
Please keep this manual in the vehicle so it is always available for reference. If you sell the vehicle, make sure the next owner receives this manual and is aware of its contents.
© 2014 Mitsubishi Fuso Truck & Bus Corporation Printed in Japan
Reading the handbook
The information in this manual is accurate as of the time of printing. Because of differences in specifications and improvements that may be added after preparation of this manual, some of the explanations and illustrations in this handbook may not apply to your vehicle.
The following symbols are used throughout this handbook:
: optional equipment
: requests that reader should refer to the page of the number indicated.
This manual contains important cautionary instructions and supplementary information under the following four headings which identify the nature of the instructions and information:
DANGER
WARNING
CAUTION
NOTE:
Precautions that should be taken when handling dangerous substances such as battery fluid in order to prevent a serious injury or death
Precautionary instructions, which, if not observed, could result in serious injury or death.
Precautionary instructions, which, if not observed, could result in damage to or destruction of equipment or parts.
Suggestions or supplementary information for more efficient use of equipment or better understanding.
California Proposition 65 Warning
DANGER
THIS PRODUCT CONTAINS OR EMITS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
CONTENTS
1. |
Recommendation to drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 1-1 |
2. |
Warning labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
2-1 |
3. |
Opening and closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
3-1 |
4. |
Seat and steering wheel adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
4-1 |
5. |
Switches and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5-1 |
6. |
Instruments and warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
6-1 |
7. |
Starting and driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7-1 |
8. |
4WD operation <FG models> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8-1 |
9. |
Heating and air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9-1 |
10. Interior equipment and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
10-1 |
|
11. In cold weather . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11-1 |
|
12. Simple inspection and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12-1 |
|
13. Useful advice for emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13-1 |
|
14. Service data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14-1 |
|
15. Maintenance schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15-1 |
|
16. Alphabetical index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
16-1 |
|
17. MAINTENANCE RECORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
17-1 |
Each chapter has a table of contents on its first page.
1-1
Chassis and engine numbers ............................................................................................ |
1-2 |
Vehicle identification number (VIN) .................................................................................... |
1-3 |
Maintenance ...................................................................................................................... |
1-4 |
Fuels .................................................................................................................................. |
1-5 |
DEF (Diesel exhaust fluid) ................................................................................................. |
1-8 |
Handling of the new vehicle ............................................................................................. |
1-13 |
Reporting safety defects .................................................................................................. |
1-14 |
Obtaining service ............................................................................................................. |
1-14 |
1-2 |
Recommendation to drivers |
|
|
|
|
Chassis and engine numbers |
|
|
1 |
Chassis number |
|
|
The chassis number |
is indicated on the left |
|
|
frame, near the left front wheel. |
||
|
|
Example: FEC52 - |
|
|
|
|
Chassis number |
|
|
|
Vehicle model |
|
2 |
Engine number |
|
|
The engine number |
is indicated on the front side |
|
|
of the cylinder head. |
|
|
|
|
Example: 4P10 - |
|
|
Z21444 |
|
Engine number |
|
|
Engine model |
|
|
|
|
|
|
A label indicating the vehicle information includ- |
||
|
ing the vehicle model, chassis number, and engine |
||
|
model is affixed to the pillar of the assistant driver’s |
||
|
door. |
|
Z21326
1-3
The VIN is stamped on a plate that is located as shown in the illustration.
The VIN comprises 17 numbers and letters, the meanings of which are listed below.
Z11959
<Crew-cab model>
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Z11769 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
J L 6 C R |
G 1 A |
|
|
|
|
F K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||
Country |
J: |
|
|
Japan |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
, Vehicle type |
L, 6: Incomplete vehicle |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross vehicle weight / |
A: |
|
|
10,001 to 14,000 lbs. / Hydraulic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Brake system |
B: |
|
|
14,001 to 16,000 lbs. / Hydraulic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C: |
|
|
16,001 to 19,500 lbs. / Hydraulic |
|||||||||||||||||||||||||||||||||||||||||||||||
Line |
M: |
|
|
FEC52S |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
N: |
|
|
FEC72S |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P: |
|
|
FEC72W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
R: |
|
|
FEC92S |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S: |
|
|
FGB72S |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
T: |
|
|
FECX2S |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
Series (wheel base) |
C: |
|
|
2.6 to 2.89 m (8.53 to 9.48 ft.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
E: |
|
|
3.2 to 3.49 m (10.49 to 11.44 ft.) |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G: |
|
|
3.8 to 4.09 m (12.46 to 13.41 ft.) |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
H: |
|
|
4.1 to 4.39 m (13.45 to 14.40 ft.) |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
K: |
|
|
4.7 to 4.99 m (15.41 to 16.37 ft.) |
|||||||||||||||||||||||||||||||||||||||||||||||
Cab chassis type |
1: |
|
|
|
Chassis cab for Mitsubishi Fuso |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
and make |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
Engine |
A: |
|
|
2.998 L Diesel turbo charged and charge air cooled |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Check digit |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
Model year |
F: |
2015 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||
Plant |
K: |
|
|
Kawasaki |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||
Plant sequential number |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1-4 |
Recommendation to drivers |
4,000 km
(2,500 miles)
Checking your vehicle at regular intervals is very important for maximizing performance and extending service life. It is recommended that you make a habit of performing the following inspections.
This manual describes simple maintenance checks and procedures that can be carried out by the owner. If you have difficulty or your vehicle needs maintenance work that is not shown in this manual, please refer to an authorized dealer.
1First maintenance at 4,000 km (2,500 miles)
After you have driven the first 4,000 km (2,500 miles), your vehicle requires a special inspection and adjustments to compensate for the initial settlement of various parts. When the distance has been reached, have your vehicle inspected by an authorized dealer by showing them this Owner’s Manual.
Z21323
Z01367 |
2 Pre-operational check
Make a habit of checking your vehicle at the start of every day’s operation. This will ensure safe and
comfortable operation. |
P. 12-12 |
3 Periodic inspection
In addition to maximizing the vehicle’s working life, regular inspections also help prevent accidents. Periodic inspection is based on either the distance traveled (odometer reading) or period of use (months/years).
The intervals between and content of periodic inspections are as shown in the Maintenance Schedule section. Please adhere to the maintenance schedule carefully.
1-5
Use only diesel fuels conforming to the following recommendations, without any additives, for diesel engines installed in Mitsubishi Fuso trucks.
1 Diesel-fuel properties
The following recommendations concerning diesel fuel used with Mitsubishi Fuso diesel engines are given for optimum fuel economy and performance.
Use condition |
Recommendation |
|
|
|
|
Normal operation at |
ASTM D-975 |
|
temperatures above |
Grade Ultra Low Sulfur |
|
–12°C (10°F). |
Grade 2-D* |
|
|
|
|
Operation at tempera- |
ASTM D-975 |
|
tures below –12°C |
||
Grade Ultra Low Sulfur |
||
(10°F), or long-hour no- |
||
load operation. |
Grade 1-D* |
|
|
||
|
|
Biodiesel fuel can be used if it has a 5% or lower blend ratio and complies with ASTM D-6751.
NOTE:
* ASTM is an acronym for the American Society for Testing and Materials which recommends fuel containing 0.0015% – basis 15 ppm sulfur or less sulfur content.
Note that a sulfur content exceeding 0.0015% – basis 15 ppm sulfur deteriorates the performance of emission control device.
To meet fuel requirements, it is necessary to obtain cooperation from a reputable fuel oil supplier. Both fuel suppliers and users are responsible for keeping fuel clean.
2 Diesel fuel to be used in your engine
Use only a ultra low sulfur diesel fuel (with a sulfur content of 15 ppm or lower) for refueling your Mitsubishi Fuso diesel engine. Otherwise, the catalyst inside the diesel particulate filter (DPF) will not work effectively and the DPF’s performance of removing small particles (particulate matter or PM) in exhaust gases will be degraded. Furthermore, your truck will not meet emission regulations if you replenish it with a non-approved fuel.
1-6 |
Recommendation to drivers |
3Danger of fire and explosion by using mixed fuel
Fuel containing 5% gasoline has a flash point as low as 0°C (32°F), which can lead to a fire or explosion while the engine is running.
DANGER
NEVER MIX DIESEL FUEL WITH GASOLINE,
GASOHOL OR ALCOHOL.
USE OF FUEL MIXED WITH ONE OR MORE
OF THESE COULD LEAD TO A FIRE OR
EXPLOSION INVOLVING SERIOUS INJURY,
DEATH OR PROPERTY DAMAGE. IF YOU
ACCIDENTALLY USE GASOLINE OR ALCO-
HOL WHEN REFUELING THE VEHICLE,
REMOVE ALL OF IT FROM THE FUEL SYS-
TEM.
4 Adverse effects of mixed fuel on engine
Using diesel fuel mixed with gasoline, alcohol, or both, has the following adverse effects on the engine:
•Fuel viscosity becomes lower, resulting in excessive wear, damage, and failure of fuel system parts.
•Difficulty in starting the engine will result due to a reduced cetane number.
CAUTION
•The lower the cetane number, the more likely internal engine damage will occur.
•Do not add antifreeze agents or other substances to the fuel. They could damage the engine’s fuel injection system.
•If the fuel tank cap and breather (air hole) become so dirty that the breather gets blocked, the fuel tank may deform and the fuel injection system may fail. Be sure to clean them regularly.
1-7
5 Refueling
WARNING
•Stop the engine before fueling.
•Never smoke when fueling since diesel fuel could ignite or explode.
Never operate lighters or other items that emit sparks.
•If you inadvertently put gasoline in the fuel tank, pump it all out. Running the engine with gasoline in the tank could cause a fire or explosion endangering your or other people’s lives.
CAUTION
Be careful not to allow the engine to run out of fuel. Engine stall resulting from an empty tank could cause damage to the fuel injection system.
NOTE:
If the vehicle runs out of fuel, air will enter the fuel system. Simply refueling the vehicle will not make the engine startable ; the air must be bled out of the
fuel system. |
P. 13-31 |
1-8 |
Recommendation to drivers |
|
|
|
|
|
• 113-liter fuel tank |
|
|
|
|
The fuel tank is at the rear of the vehicle. To open |
||
|
|
the fuel tank cap, slowly turn it counterclockwise. To |
||
|
|
close the cap, turn it clockwise until you hear a click. |
||
|
|
|
Fuel tank capacity |
|
|
|
|
113 liters (29.8 gallons) |
|
|
|
• 125-liter fuel tank |
|
|
|
|
The fuel tank is on the left-hand side of the vehicle. |
||
|
|
To open the cap, slowly turn it counterclockwise. To |
||
|
|
close the cap, turn it fully clockwise. |
||
|
|
|
Fuel tank capacity |
|
|
|
|
125 liters (33 gallons) |
|
|
|
|
WARNING |
|
|
Z23257 |
• When filling the fuel tank using a gun-type |
||
|
|
fuel pump, do not continue pumping after |
||
|
|
|
||
|
|
|
the pump automatically stops. (The tank is |
|
|
|
|
full at this point.) When filling the fuel tank |
|
|
|
|
using any other method, stop as soon as |
|
|
|
|
the surface of the fuel becomes visible |
|
|
|
|
through the opening of the fuel filler. If you |
|
|
|
|
supply so much fuel that it comes up to |
|
|
|
|
the opening, fuel may leak though the |
|
|
|
|
check valve |
when the vehicle starts |
|
|
|
moving and when it stops moving. If fuel |
|
|
|
|
leaks, carefully wipe it all up to prevent the |
|
|
|
• |
risk of fire. |
|
|
|
If the pointer of the fuel gauge is above the |
||
|
|
|
“F” mark, do not add the fuel any more. |
DEF is injected into the exhaust gas inside the muffler in order to break down NOx (oxides of nitrogen) in the exhaust gas into water and nitrogen, and thus
reduces the amount of NOx. |
P. 5-49 |
1-9
WARNING
DEF is a colorless, transparent, odorless and harmless water solution (urea 32.5%, water 67.5%; Freezing temperature -11°C (12°F)), so no problem will occur if you get it on your skin. However, some persons with delicate skin may in very rare cases get a rash, so carry out the following procedure.
•If DEF gets on your skin, wash it off with water. If there is any change in your skin or it is painful, promptly see a doctor to receive treatment.
•In the event that you accidentally ingest DEF, drink one to two cupfuls of water or milk, and promptly see a doctor to receive treatment.
•If DEF gets into your eyes, immediately wash your eyes with a copious amount of water, then see a doctor to receive treatment.
1 DEF used
Be sure to use DEF that conforms to ISO 22241. ISO: International Organization for Standardization.
CAUTION
Do not carry out the following when using DEF because this may cause damage to the BlueTec® exhaust gas aftertreatment.
•Do not dilute the DEF.
•Do not mix the DEF with another reagent.
•Do not use DEF that does not conform to ISO 22241.
2 Replenishing DEF
WARNING
Do not pour anything other than DEF into the DEF tank. Particularly, never pour diesel fuel or gasoline into the DEF tank, because this may cause a fire or damage the BlueTec® exhaust gas aftertreatment.
If you accidentally fill the DEF tank with any fluid other than DEF, immediately turn the starter switch to the “LOCK” position, and contact an authorized dealer to have the incorrectly added fluid drained off and the vehicle inspected.
1-10 Recommendation to drivers
CAUTION
Do not rest your foot on the DEF tank or step on it, because this may damage the tank and/or the sensors on it.
NOTE:
•Replenish the DEF well before it is used up.
•It is recommended that you obtain portable DEF for use in the event that the DEF tank becomes
Z24913 |
empty. |
|
||
|
|
• |
You can obtain DEF at any of the following |
|
|
|
|
places: |
|
|
|
|
• Authorized dealer |
|
|
|
|
• Authorized Parts and Service Center (PSC) |
|
|
|
|
• Old World Industries distributor |
|
|
|
|
• Exxon Mobil service station |
|
|
|
|
|
|
|
|
|
DEF tank capacity |
12 liters (3 gallon) |
|
|
|
|
|
1. |
Turn the starter switch to the “LOCK” position to |
|||
|
|
|
stop the engine. |
|
2. |
Wipe away dirt, mud, or other contamination in |
|||
|
|
|
the vicinity of the replenishment port. |
|
|
3. |
Turn the cap counterclockwise and remove it. |
||
|
||||
|
4. |
While observing the level gauge , replenish |
||
|
|
|
the DEF to the FULL line on the tank. |
|
|
|
• |
CAUTION |
|
|
|
Do not use a steel container to hold DEF. |
||
|
|
|
DEF reacts with steel and produces a corro- |
|
|
|
|
sive material. If the tank is refilled with DEF |
|
|
|
|
containing this corrosive material, the |
|
Z24914 |
|
BlueTec® exhaust gas aftertreatment will be |
||
|
|
• |
damaged. |
|
|
|
|
||
|
|
Containers and appliances used to handle |
DEF must not have been used for other purposes. Impurities that may remain in them could adversely affect the quality of DEF and prevent the engine from starting.
5. Install the cap securely by turning it clockwise.
NOTE:
If you spill the DEF during replenishment, wipe it away with a cloth, or the like, and then wash the area with water.
6.If the DEF tank becomes empty, a driving restriction automatically engages, locking the gear in first or reverse, so the vehicle can be driven only slowly.
1-11
3Method for canceling the driving restriction that has engaged due to an empty DEF tank
If the DEF tank becomes empty, a driving restriction automatically engages, locking the gear in first or reverse, so the vehicle can be driven only slowly.
In the event of a driving restriction, replenish the DEF and then disengage the restriction as follows.
1.After refilling the tank with DEF, turn the starter switch from “LOCK” to “ON”.
2.Wait until the following changes in state have
completed.
• The warning lamp and DEF level warning lamp go out.
• The DEF level indicator lamp stops flashing.
• The buzzer stops sounding.
Do not turn the starter switch to the “ACC” or Z22085 “LOCK” position before all the above changes
have completed.
NOTE:
•It may take a while after placing the starter switch to “ON” for the warning lamp to go out and for the buzzer to stop sounding.
•If the DEF tank becomes empty in cold weather, perform the driving restriction canceling procedure immediately after refilling the tank with DEF.
4 Storing the DEF
Seal the DEF container, and store it indoors in a well-ventilated place away from direct sunlight. The temperature of the storage place should be between –5°C (23°F) and 25°C (77°F).
WARNING
Do not store DEF in a high temperature location.
If the temperature is high, DEF may release ammonia, which is toxic. When storing the container, seal it. Also, open it outdoors in a well-ventilated area. If a pungent odor is emitted from the container, do not carelessly go near it.
1-12 Recommendation to drivers
NOTE:
•You can use frozen DEF after allowing it to thaw, without loss of quality.
•If you seal the container so as to prevent the water from evaporating, the quality of the DEF will not change.
•Although DEF is a non-flammable liquid, it may emit a pungent odor if it is heated due to a fire, for example. In the event that a fire breaks out, promptly move the container to a safe place.
•It is strongly recommended to store or carry DEF in the original container in which it was sold. If unavoidable, you can also use a polypropylene tank usually used for drinking water or the like instead, after thoroughly cleaning the inside with DEF and making sure that it contains absolutely no water or other impurities.
CAUTION
Do not store DEF in a non-specified container. If DEF is stored in a steel container and then used for replenishing, corrosive material produced by chemical reactions will damage the BlueTec® exhaust gas aftertreatment.
•DEF must be handled as industrial waste when discarding it.
CAUTION
Do not discard DEF in a lake or marsh, in the sea, or in a river because this may cause environmental destruction.
1-13
4000 km |
(2500 miles) |
Z18524 |
The way the vehicle is handled when new greatly affects its subsequent performance and service life. Observe the following precautions when handling the new vehicle.
1 Maintenance
The “first maintenance at 4,000 km (2,500 miles)” is very important for extending the service life of your vehicle. We strongly recommend that you have this inspection carried out by an authorized dealer. Be sure to give the dealer this manual at that time.
2Maximum engine speed during run-in period
To avoid overburdening a new engine, limit engine RPM to that indicated below for the first 1,000 km (600 miles).
Then, run in your vehicle step by step at various speeds, beginning with low gears.
|
Maximum engine RPM during run-in period |
Z21323 |
|
2,800 rpm |
|
|
|
1-14 Recommendation to drivers
If you believe that your vehicle has a defect that could cause a crash or could cause injury or death, you should immediately inform both the National Highway Traffic Safety Administration (NHTSA) and the Mitsubishi Fuso Truck of America, Inc. (MFTA). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or MFTA.
To contact NHTSA, you may either call the Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-800-424- 9153) or write to: Administrator, U.S. Department of Transportation National Highway Traffic Safety Adminstration Office of Defects Investigation -NVS- 210 1200 New Jersey Ave. SE West Building Washington, DC 20590.
You can also obtain other information about motor vehicle safety from the Vehicle Safety Hotline.
For further information, please visit the following NHTSA website:
http://www.safercar.gov
At Mitsubishi Fuso Truck of America, Inc. (MFTA), we are proud of the quality and workmanship that is built into every MFTA Truck. We are equally proud of our corporate commitment to promote the highest possible degree of customer satisfaction with our products and services.
Today’s trucks are extremely complex and are comprised of an enormous number of individual parts. Occasionally, a failure of one of these parts may occur. Should you experience such a failure, we are confident that you will find an Authorized Dealer prepared to provide you with high quality service. Every Authorized Dealer has trained personnel, plus the tools and equipment necessary to provide for your various service needs. In the event that a problem arises, we ask you to follow the procedure outlined as follows, and in the sequence listed:
1-15
STEP 1: Contact your Nearest Authorized Dealer
This is the most direct and expedient way to obtain service. Each Authorized Dealer has the ultimate responsibility for providing the services and repairs you may need. We recommend that you contact the Service Manager of your nearest Authorized Dealer for assistance. In the event that you feel additional assistance is required, ask to speak to the General Manager of the Authorized Dealer.
STEP 2: Contact MFTA
After the completion of Step 1, and in the event that your nearest Authorized Dealer has been unable to satisfactorily resolve the problem, please contact MFTA’s Customer Service Representative at 1-877- 711-0707.
Please be prepared to provide the following information when you call:
•Your Name, Company Name, Address, Telephone Number
•Vehicle Model
•Vehicle Model Year
•Vehicle Identification Number
•Mileage
•Name of Dealer contacted under Step 1, if applicable
•Details of the Complaint/Comment
You also may correspond with the Customer Service Representative in writing, addressed to:
MITSUBISHI FUSO TRUCK OF AMERICA, INC. CUSTOMER SERVICE REPRESENTATIVE 2015 CENTER SQUARE RD.
LOGAN TOWNSHIP, NJ 08085
2-1
Labels inside the cab ......................................................................................................... |
2-3 |
Exterior labels .................................................................................................................... |
2-5 |
2-2 |
Warning labels |
•The caution and warning labels show important information. Be sure to read them before using the vehicle.
•If any label has peeled so it is difficult to read, is scratched or otherwise damaged, or has peeled off completely, please inform an authorized dealer. The warning and caution labels apply only to the vehicle itself, not to any equipment mounted on the vehicle. For information on caution and warning labels that apply to equipment mounted on the vehicle, please refer to the Owner’s Manual supplied by the manufacturer of the equipment.
•The locations of these labels and the information on them may vary with the vehicle model. Check the information on each label on your vehicle.
2-3
1 Around the driver’s seat
|
|
|
Z23258 |
Location |
Category |
Information |
Ref. page |
|
WARNING |
High temperatures of exhaust system components |
5-51 |
|
WARNING |
Handling of DPF system with regeneration control |
5-51 |
|
WARNING |
Handling of DEF |
1-8 |
|
WARNING |
Use of specified fuses |
13-10 |
|
WARNING |
Engine oil level check |
12-22 |
|
WARNING |
Fuel to use |
1-5 |
|
WARNING |
DPF indicator lamp |
5-51 |
2-4 |
Warning labels |
2 On driver’s door and door pillar
|
|
|
|
Z21446 |
|
|
|
|
|
|
Location |
Category |
Information |
Ref. page |
|
|
|
|
|
|
|
CAUTION |
Handling of PTO <option> |
5-46 |
|
|
|
|
|
|
|
WARNING |
Handling of DUONIC® |
5-20 |
|
|
WARNING |
4WD <FG> |
8-1 |
|
|
|
|
|
|
|
CAUTION |
Towing precautions |
13-32 |
|
|
|
|
|
|
|
Standard value |
Tire pressure |
12-67 |
|
|
|
|
|
|
|
WARNING |
113-liter fuel tank refilling precaution |
1-5 |
|
|
|
|
|
|
|
WARNING |
Precautions for vehicles with limited slip differential |
12-70 |
|
|
<FE: option; FG: standard> |
2-5
1 On frame and exterior equipment
Z24666 |
Location |
Category |
Information |
Ref. page |
|
|
|
|
|
DANGER |
High temperatures of exhaust system components |
5-51 |
|
|
|
|
|
CAUTION |
Use of diesel fuel |
1-5 |
|
|
|
|
|
WARNING |
Fuel to use |
1-5 |
|
|
|
|
|
WARNING |
113-liter fuel tank refilling precautions |
1-5 |
|
|
|
|
|
CAUTION |
Prohibition against standing on DEF tank |
1-8 |
|
|
|
|
|
CAUTION |
Use of DEF |
1-8 |
|
|
|
|
|
CAUTION |
Oil to use for limited slip differential <option> |
12-33 |
|
|
|
|
|
DANGER |
Precautions when handling the battery |
12-83 |
|
|
|
|
|
WARNING |
Use of specified fuses |
13-10 |
|
|
|
|
2-6 |
Warning labels |
2 On cab outside and engine
|
|
|
|
|
|
|
|
Z21197 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Location |
|
|
Category |
Information |
Ref. page |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
WARNING |
Handling of cab tilt function (Vehicles other than |
12-6 |
||
|
|
|
|
Crew-cab models) |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
WARNING |
Handling of pressure cap |
12-57 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
CAUTION |
Inspection and replacement of engine oil |
12-22 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
CAUTION |
Oil to use for clutch and transmission |
12-27 |
||
|
|
|
|
|
|
|
|
|
3-1

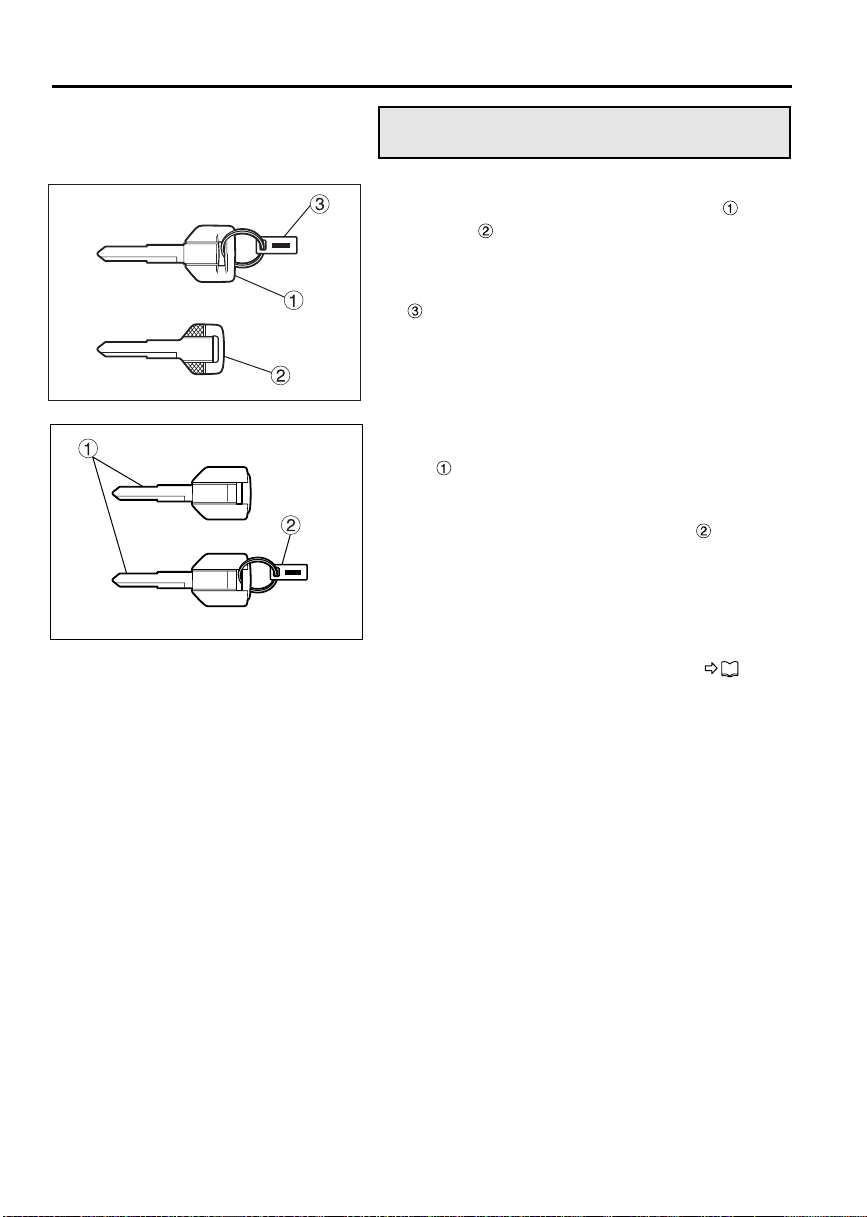

Starter key .......................................................................................................................... |
3-2 |
Engine immobilizer (theft prevention device) ..................................................................... |
3-3 |
Doors ................................................................................................................................. |
3-6 |

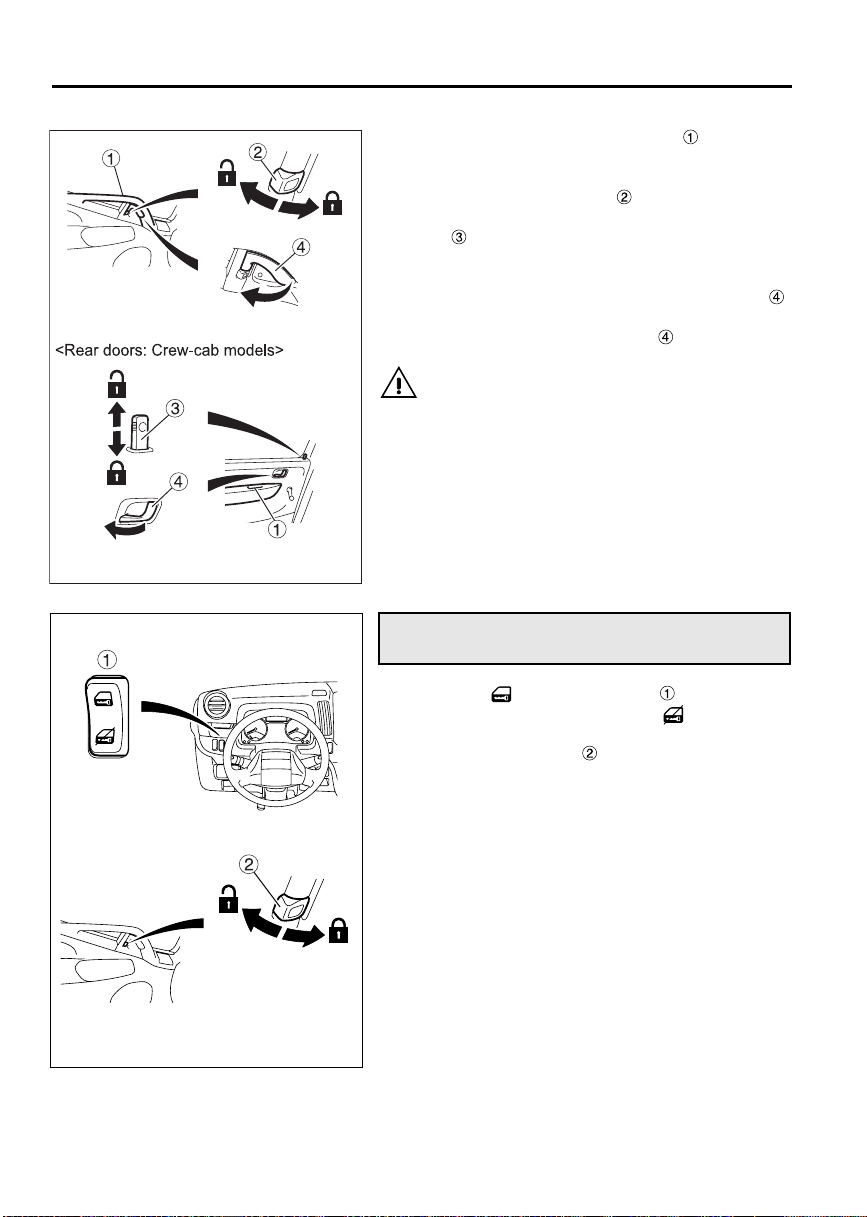

Central door locks .............................................................................................................. |
3-8 |
Keyless entry system ......................................................................................................... |
3-9 |
Entering and leaving the vehicle ...................................................................................... |
3-13 |
Door window glass ........................................................................................................... |
3-15 |
