KMM-203 KMM-103GY KMM-123Y KMM-103RY KMM-103AY
DIGITAL MEDIA RECEIVER
INSTRUCTION MANUAL
ЦИФРОВОЙ МЕДИА-РЕСИВЕР
ИHCTPУKЦИЯ ПO ЭKCПЛУATAЦИИ
© 2016 JVC KENWOOD Corporation |
B5A-1341-00 (EN/E2N) |
Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for countries that have adopted separate waste collection systems)
Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.
Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.
Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.
Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.
Declaration of Conformity with regard to the RE Directive 2014/53/EU Declaration of Conformity with regard to the RoHS Directive 2011/65/EU
Manufacturer:
JVC KENWOOD Corporation
3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan
EU Representative:
JVCKENWOOD NEDERLAND B.V.
Amsterdamseweg 37, 1422 AC UITHOORN, The Netherlands
Декларация соответствия относительно Директивы 2014/53/EU RE Декларация соответствия относительно Директивы 2011/65/EU об ограничении содержания вредных веществ
Производитель:
ДжейВиСи КЕНВУД Корпорейшн
3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Япония
Представительство в EC:
ДжейВиСиКЕНВУД Нидерланд Би.Ви. Amsterdamseweg 37, 1422 AC UITHOORN, Нидерланды
English
Hereby, JVCKENWOOD declares that the radio equipment “KMM-203/KMM-123Y/KMM-103AY/KMM-103GY/ KMM-103RY” is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.kenwood.com/cs/ce/eudoc/
Français
Par la présente, JVCKENWOOD déclare que l’équipement radio « KMM-203/KMM-123Y/KMM-103AY/KMM-103GY/ KMM-103RY » est conforme à la directive 2014/53/UE. L’intégralité de la déclaration de conformité UE est disponible à l’adresse Internet suivante : http://www.kenwood.com/cs/ce/eudoc/
Deutsch
Hiermit erklärt JVCKENWOOD, dass das Funkgerät “KMM-203/KMM-123Y/KMM-103AY/KMM-103GY/ KMM-103RY” der Richtlinie 2014/53/EU entspricht.
Der volle Text der EU-Konformitätserklärung steht unter der folgenden Internetadresse zur Verfügung: http://www.kenwood.com/cs/ce/eudoc/
Nederlands
Hierbij verklaart JVCKENWOOD dat de radioapparatuur “KMM-203/KMM-123Y/KMM-103AY/KMM-103GY/ KMM-103RY” in overeenstemming is met
Richtlijn 2014/53/EU.
De volledige tekst van de EU-verklaring van overeenstemming is te vinden op het volgende internetadres: http://www.kenwood.com/cs/ce/eudoc/
Italiano
Con la presente, JVCKENWOOD dichiara che l΄apparecchio radio “KMM-203/KMM-123Y/KMM-103AY/KMM-103GY/ KMM-103RY” è conforme alla Direttiva 2014/53/UE.
Il testo integrale della dichiarazione di conformità UE è disponibile al seguente indirizzo internet: http://www.kenwood.com/cs/ce/eudoc/
Español
Por la presente, JVCKENWOOD declara que el equipo de radio “KMM-203/KMM-123Y/KMM-103AY/KMM-103GY/ KMM-103RY” cumple la Directiva 2014/53/EU.
El texto completo de la declaración de conformidad con la UE está disponible en la siguiente dirección de internet: http://www.kenwood.com/cs/ce/eudoc/
Português
Deste modo, a JVCKENWOOD declara que o equipamento de rádio “KMM-203/KMM-123Y/KMM-103AY/ KMM-103GY/KMM-103RY” está em conformidade com a Diretiva 2014/53/UE.
O texto integral da declaração de conformidade da UE está disponível no seguinte endereço de internet: http://www.kenwood.com/cs/ce/eudoc/
Polska
Niniejszym, JVCKENWOOD deklaruje, że sprzęt radiowy “KMM-203/KMM-123Y/KMM-103AY/KMM-103GY/ KMM-103RY” jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności EU jest dostępny pod adresem:
http://www.kenwood.com/cs/ce/eudoc/
Český
Společnost JVCKENWOOD tímto prohlašuje, že rádiové zařízení “KMM-203/KMM-123Y/KMM-103AY/ KMM-103GY/KMM-103RY” splňuje podmínky směrnice 2014/53/EU.
Plný text EU prohlášení o shodě je dostupný na následující internetové adrese: http://www.kenwood.com/cs/ce/eudoc/
Magyar
JVCKENWOOD ezennel kijelenti, hogy a „KMM-203/ KMM-123Y/KMM-103AY/KMM-103GY/KMM-103RY“ rádióberendezés megfelel a 2014/53/EU irányelvnek. Az EU konformitási nyilatkozat teljes szövege az alábbi weboldalon érhető el: http://www.kenwood.com/cs/ce/eudoc/
i
Svenska
Härmed försäkrar JVCKENWOOD att radioutrustningen “KMM-203/KMM-123Y/ KMM-103AY/KMM-103GY/KMM-103RY” är i enlighet med direktiv 2014/53/EU.
Den fullständiga texten av EU-försäkran om överensstämmelse finns på följande Internetadress: http://www.kenwood.com/cs/ce/eudoc/
Suomi
JVCKENWOOD julistaa täten, että radiolaite “KMM-203/KMM-123Y/KMM-103AY/ KMM-103GY/KMM-103RY” on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutusvaatimus löytyy kokonaisuudessaan seuraavasta internetosoitteesta: http://www.kenwood.com/cs/ce/eudoc/
Slovensko
S tem JVCKENWOOD izjavlja, da je radijska oprema »KMM-203/KMM-123Y/KMM-103AY/ KMM-103GY/KMM-103RY« v skladu z
Direktivo 2014/53/EU.
Celotno besedilo direktive EU o skladnosti je dostopno na tem spletnem naslovu: http://www.kenwood.com/cs/ce/eudoc/
Slovensky
Spoločnosť JVCKENWOOD týmto vyhlasuje, že rádiové zariadenie „KMM-203/KMM-123Y/ KMM-103AY/KMM-103GY/KMM-103RY“ vyhovuje smernici 2014/53/EÚ.
Celý text EÚ vyhlásenia o zhode nájdete na nasledovnej internetovej adrese: http://www.kenwood.com/cs/ce/eudoc/
Dansk
Herved erklærer JVCKENWOOD, at radioudstyret “KMM-203/KMM-123Y/KMM-103AY/ KMM-103GY/KMM-103RY” er i overensstemmelse med Direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde ordlyd er tilgængelig på følgende internetadresse: http://www.kenwood.com/cs/ce/eudoc/
Ελληνικά
Με το παρόν, η JVCKENWOOD δηλώνει ότι ο ραδιοεξοπλισμός «KMM-203/KMM-123Y/ KMM-103AY/KMM-103GY/KMM-103RY» συμμορφώνεται με την Οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης
της ΕΕ είναι διαθέσιμο στην ακόλουθη διεύθυνση στο διαδίκτυο: http://www.kenwood.com/cs/ce/eudoc/
Eesti
Käesolevaga JVCKENWOOD kinnitab, et „KMM-203/KMM-123Y/KMM-103AY/ KMM-103GY/KMM-103RY“ raadiovarustus on vastavuses direktiiviga 2014/53/EL.
ELi vastavusdeklaratsiooni terviktekst on kättesaadav järgmisel internetiaadressil: http://www.kenwood.com/cs/ce/eudoc/
Latviešu
JVCKENWOOD ar šo deklarē, ka radio aparatūra „KMM-203/KMM-123Y/KMM-103AY/ KMM-103GY/KMM-103RY” atbilst direktīvas 2014/53/ES prasībām.
Pilns ES atbilstības deklarācijas teksts ir pieejams šādā tīmekļa adresē: http://www.kenwood.com/cs/ce/eudoc/
Lietuviškai
Šiuo JVCKENWOOD pažymi, kad radijo įranga „KMM-203/KMM-123Y/KMM-103AY/ KMM-103GY/KMM-103RY“ atitinka 2014/53/EB direktyvos reikalavimus.
Visą EB direktyvos atitikties deklaracijos tekstą galite rasti šiuo internetiniu adresu: http://www.kenwood.com/cs/ce/eudoc/
Malti
B’dan, JVCKENWOOD jiddikjara li t-tagħmir tar-radju “KMM-203/KMM-123Y/KMM-103AY/ KMM-103GY/KMM-103RY” huwa konformi madDirettiva 2014/53/UE.
It-test kollu tad-dikjarazzjoni ta’ konformità huwa disponibbli fl-indirizz intranet li ġej: http://www.kenwood.com/cs/ce/eudoc/
HRVATSKI / SRPSKI JEZIK
JVCKENWOOD ovim izjavljuje da je radio oprema “KMM-203/KMM-123Y/KMM-103AY/ KMM-103GY/KMM-103RY” u skladu s Direktivom 2014/53/EU.
Cjeloviti tekst deklaracije Europske unije o usklađenosti dostupan je na sljedećoj internet adresi: http://www.kenwood.com/cs/ce/eudoc/
ROMÂNĂ
Prin prezenta, JVCKENWOOD declară că echipamentul radio “KMM-203/KMM-123Y/ KMM-103AY/KMM-103GY/KMM-103RY” este în conformitate cu Directiva 2014/53/UE.
Textul integral al declarației de conformitate UE este disponibil la urmatoarea adresă de internet: http://www.kenwood.com/cs/ce/eudoc/
БЪЛГАРСКИ
С настоящото JVCKENWOOD декларира, че радиооборудването на “KMM-203/KMM-123Y/ KMM-103AY/KMM-103GY/KMM-103RY” е в съответствие с Директива 2014/53/ЕС. Пълният текст на ЕС декларацията за съответствие е достъпен на следния интернет адрес: http://www.kenwood.com/cs/ce/eudoc/
Turkish
Burada, JVCKENWOOD “KMM-203/KMM-123Y/ KMM-103AY/KMM-103GY/KMM-103RY” radyo ekipmanının 2014/53/AB Direktifine uygun olduğunu bildirir.
AB uyumluluk deklarasyonunun tam metni aşağıdaki internet adresinde mevcuttur. http://www.kenwood.com/cs/ce/eudoc/
Русский
JVCKENWOOD настоящим заявляет, что радиооборудование «KMM-203/KMM-123Y/ KMM-103AY/KMM-103GY/KMM-103RY» соответствует Директиве 2014/53/EU. Полный текст декларации соответствия ЕС доступен по следующему адресу в сети Интернет: http://www.kenwood.com/cs/ce/eudoc/
Українська
Таким чином, компанія JVCKENWOOD заявляє, що радіообладнання «KMM-203/KMM-123Y/ KMM-103AY/KMM-103GY/KMM-103RY» відповідає Директиві 2014/53/EU.
Повний текст декларації про відповідність ЄС можна знайти в Інтернеті за такою адресою: http://www.kenwood.com/cs/ce/eudoc/
ii
CONTENTS
BEFORE USE |
2 |
BASICS |
3 |
GETTING STARTED |
3 |
1Select the display language and cancel the demonstration
2 Set the clock and date
3 Set the initial settings
RADIO |
5 |
USB/iPod/ANDROID |
7 |
AUX |
9 |
AUDIO SETTINGS |
10 |
DISPLAY SETTINGS |
11 |
TROUBLESHOOTING |
12 |
REFERENCES |
13 |
Maintenance |
|
More information |
|
SPECIFICATIONS |
15 |
INSTALLATION/ |
|
CONNECTION |
16 |
BEFORE USE
IMPORTANT
•To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.
•Please keep the manual in a safe and accessible place for future reference.
WARNING
• Do not operate any function that takes your attention away from safe driving.
Caution
Volume setting:
•Adjust the volume so that you can hear sounds outside the car to prevent accidents.
•Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.
General:
•Avoid using the external device if it might hinder safe driving.
•Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
•Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
•Depending on the types of cars, the antenna will automatically extend when you turn on the unit with the antenna control wire connected (
17). Turn off the unit or change the source to STANDBY when parking at a low ceiling area.
How to read this manual
•Operations are explained mainly using buttons on the faceplate of
.
•English indications are used for the purpose of explanation. You can select the display language from the [FUNCTION] menu. (
5)
•[XX] indicates the selected items.
•(
XX) indicates references are available on the stated page.
2ENGLISH
BASICS |
GETTING STARTED |
Faceplate |
|
Display window
Volume
knob
1 |
Select the display language and cancel the demonstration
Detach button
Attach |
Detach |
|
|
How to reset
Your preset adjustments will be erased except stored radio stations.
To |
On the faceplate |
|
Turn on the power |
Press |
. |
• Press and hold to turn off the power.
When you turn on the power (or after you reset the unit), the display shows: “SEL LANGUAGE”
“PRESS”
“VOLUME KNOB”
1Turn the volume knob to select [ENG] (English), [RUS] (Russian) or [SPA] (Spanish), then press the knob.
[ENG] is selected for the initial setup.
Then, the display shows: “CANCEL DEMO”
“PRESS”
“VOLUME KNOB”.
2Press the volume knob.
[YES] is selected for the initial setup.
3Press the volume knob again.
“DEMO OFF” appears.
Adjust the volume |
Turn the volume knob. |
|
Select a source |
Press |
repeatedly. |
|
|
|
Change the display information |
Press DISP repeatedly. ( 14) |
|
|
|
|
ENGLISH 3
GETTING STARTED
2Set the clock and date
1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select [CLOCK], then press the knob.
To adjust the clock
3 Turn the volume knob to select [CLOCK ADJUST], then press the knob.
4Turn the volume knob to make the settings, then press the knob.
Hour
Minute
5 Turn the volume knob to select [CLOCK FORMAT], then press the knob. 6 Turn the volume knob to select [12H] or [24H], then press the knob.
To set the date
7 Turn the volume knob to select [DATE FORMAT], then press the knob.
8Turn the volume knob to select [DD/MM/YY] or [MM/DD/YY], then press the knob.
9 Turn the volume knob to select [DATE SET], then press the knob.
10Turn the volume knob to make the settings, then press the knob.
Day
Month
Year or Month
Day
Year
11Press and hold
to exit.
To return to the previous setting item, press
.
3Set the initial settings
1 Press
repeatedly to enter STANDBY.
2Press the volume knob to enter [FUNCTION].
• Pressing AUD enters [AUDIO CONTROL] directly.
3Turn the volume knob to select an item (see the following table), then press the knob.
4 Repeat step 3 until the desired item is selected or activated. 5 Press and hold
to exit.
To return to the previous setting item, press
.
|
|
|
Default: XX |
AUDIO CONTROL |
|
|
|
|
|
|
|
SWITCH PREOUT |
REAR/SUB-W or REAR/SUBWOOFER: Selects whether rear speakers |
||
|
or a subwoofer are connected to the line out terminals on the rear |
||
|
(through an external amplifier). ( 17) |
||
SP SELECT |
OFF/5/4/6×9/6/OEM: Selects according to the speaker size (5 inches |
||
|
or 4 inches, 6×9 inches or 6 inches) or OEM speakers for optimum |
||
|
performance. |
|
|
|
|
|
|
DISPLAY |
|
|
|
|
|
|
|
EASY MENU |
(For |
|
) |
|
|||
|
When entering [FUNCTION]... |
||
|
ON: ZONE 1 illumination changes to white color. ; |
||
|
OFF: ZONE 1 illumination remains as [COLOR SELECT] color. ( 11) |
||

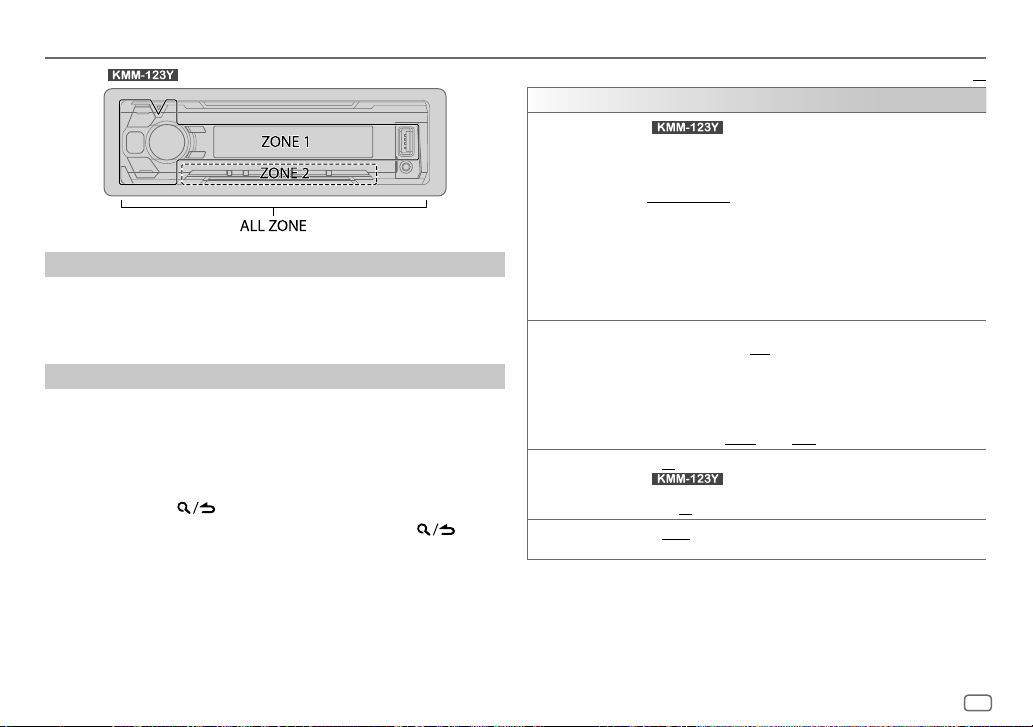

•ZONE 2 illumination changes to white color when you enter [FUNCTION], irregardless of the [EASY MENU] setting.
•Refer to the illustration on page 11 for ZONE identification.
TUNER SETTING
PRESET TYPE |
NORMAL: Memorizes one station for each preset button in each band |
|
|
|
(FM1/FM2/FM3/MW/LW). ; MIX: Memorizes one station for each preset |
|
|
button, regardless of the selected band. |
|
|
|
SYSTEM |
|
|
|
|
|
KEY BEEP |
ON: Activates the keypress tone. ; OFF: Deactivates. |
|
|
|
|
SOURCE SELECT |
|
|
|
|
|
|
BUILT-IN AUX |
ON: Enables AUX in source selection. ; OFF: Disables. ( 9) |
P-OFF WAIT |
Applicable only when the demonstration mode is turned off. |
|
|
|
Sets the duration when the unit will automatically turn off (while in |
|
|
standby mode) to save the battery. |
|
|
20M: 20 minutes ; 40M: 40 minutes ; 60M: 60 minutes ; |
|
|
OFF – – – or WAIT TIME – – –: Cancels |
4ENGLISH
GETTING STARTED
F/W UPDATE
|
UPDATE SYSTEM |
|
||
|
|
|
|
|
|
|
F/W UP xxxx |
YES: Starts upgrading the firmware. ; NO: Cancels |
|
|
|
|
(upgrading is not activated). |
|
|
|
|
For details on how to update the firmware, see |
|
|
|
|
<www.kenwood.com/cs/ce/>. |
|
CLOCK |
|
|||
|
|
|
|
|
CLOCK DISPLAY |
ON: The clock time is shown on the display even when |
|||
|
|
|
the unit is turned off. ; OFF: Cancels. |
|
|
|
|
|
|
ENGLISH |
Select the display language for [FUNCTION] menu and |
|||
|
|
|
||
РУССКИЙ |
music information if applicable. |
|||
|
|
|
By default, [ENGLISH] is selected. |
|
ESPANOL |
||||
|
||||
RADIO
Search for a station
1 Press
repeatedly to select TUNER.
2 Press
repeatedly to select FM1/FM2/FM3/MW/LW. 3 Press S / T to search for a station.
•To change the searching method for S / T: Press
repeatedly.
AUTO1 : Automatically search for a station. AUTO2 : Search for a preset station. MANUAL : Manually search for a station.
•To store a station: Press and hold one of the number buttons (1 to 6).
•To select a stored station: Press one of the number buttons (1 to 6).
Other settings
1 Press the volume knob to enter [FUNCTION].
2 Turn the volume knob to select an item (
6), then press the knob.
3Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item.
4 Press and hold
to exit.
To return to the previous setting item, press
.
ENGLISH 5
RADIO
Default: XX
TUNER SETTING
LOCAL SEEK |
ON: Searches only stations with good reception. ; OFF: Cancels. |
|
• Settings made are applicable only to the selected source/station. Once you change |
|
the source/station, you need to make the settings again. |
AUTO |
YES: Automatically starts memorizing 6 stations with good reception. ; NO: Cancels. |
MEMORY |
• Selectable only if [NORMAL] is selected for [PRESET TYPE]. ( 4) |
|
|
MONO SET |
ON: Improves the FM reception, but the stereo effect may be lost. ; OFF: Cancels. |
|
|
NEWS SET |
ON: The unit will temporarily switch to News Programme if available. ; OFF: Cancels. |
REGIONAL |
ON: Switches to another station only in the specific region using the “AF” control. ; |
|
OFF: Cancels. |
AF SET |
ON: Automatically searches for another station broadcasting the same program |
|
in the same Radio Data System network with better reception when the current |
|
reception is poor. ; OFF: Cancels. |
|
|
TI |
ON: Allows the unit to temporarily switch to Traffic Information if available |
|
(“TI” lights up). ; OFF: Cancels. |
|
|
PTY SEARCH |
1 Turn the volume knob to select the available Program Type. (See the following.) |
|
2 Turn the volume knob to select the PTY language (ENGLISH/FRENCH/ |
|
GERMAN), then press the knob. |
|
3 Press S / T to start searching. |
CLOCK |
|
|
|
TIME SYNC |
ON: Synchronizes the unit’s time to the Radio Data System station time. ; |
|
OFF: Cancels. |
Available Program Type for [PTY SEARCH]
SPEECH : NEWS, AFFAIRS, INFO (information), SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, DOCUMENT
MUSIC : POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music)
The unit will search for the Program Type categorized under
[SPEECH] or [MUSIC] if selected.
•[LOCAL SEEK]/[MONO SET]/[NEWS SET]/[REGIONAL]/[AF SET]/[TI]/
[PTY SEARCH] is selectable only when the band is FM1/FM2/FM3.
•If the volume is adjusted during reception of traffic information or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information or news bulletin is turned on.
6ENGLISH
USB/iPod/ANDROID
Start playback
The source changes automatically and playback starts.
USB input terminal
USB
CA-U1EX (max.: 500 mA) (optional accessory)
iPod/iPhone (for
)
KCA-iP102/KCA-iP103 (optional accessory)*1 or accessory of the iPod/ iPhone*2
ANDROID*3
Micro USB 2.0 cable*2 (commercially available)
*1 |
|
|
|
|
|
|
|
|
|
KCA-iP102 : 30-pin type, KCA-iP103 : Lightning type |
||||
*2 |
Do not leave the cable inside the car when not using. |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
To |
|
|
|
|
On the faceplate |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
Playback/pause |
|
Press |
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Reverse/Fast-forward*4 |
|
Press and hold S / T. |
||||||||||||||||||||||||||||||||||
Select a file |
|
Press S / T. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Select a folder*5 |
|
Press J / K. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
Repeat play*6 |
|
Press |
|
repeatedly. |
||||||||||||||||||||||||||||||||
|
|
|
|
|
FILE REPEAT/FOLDER REPEAT/ALL REPEAT: MP3/WMA/WAV/FLAC file |
|||||||||||||||||||||||||||||||
|
|
|
|
|
FILE REPEAT/FOLDER REPEAT/REPEAT OFF: iPod or ANDROID |
|||||||||||||||||||||||||||||||
Random play*6 |
|
Press |
repeatedly. |
|||||||||||||||||||||||||||||||||
|
|
|
|
|
FOLDER RANDOM/RANDOM OFF: MP3/WMA/WAV/FLAC file, iPod or |
|||||||||||||||||||||||||||||||
|
|
|
|
|
|
ANDROID |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press and hold |
|
|
|
to select ALL RANDOM. |
|||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
*3 |
When connecting an Android device, “Press [VIEW] to install KENWOOD MUSIC PLAY APP” is shown. Follow the instructions |
|||||||||||||||||||||||||||||||||||
|
to install the application. You can also install the latest version of KENWOOD MUSIC PLAY application on your Android |
|||||||||||||||||||||||||||||||||||
*4 |
device before connecting. For more information, visit <www.kenwood.com/cs/ce/>. |
|||||||||||||||||||||||||||||||||||
For ANDROID: Applicable only when [BROWSE MODE] is selected. ( 8) |
||||||||||||||||||||||||||||||||||||
*5 |
Only for MP3/WMA/WAV/FLAC files. This does not work for iPod/ANDROID. |
|||||||||||||||||||||||||||||||||||
*6 |
For iPod/ANDROID: Applicable only when [MODE OFF]/[BROWSE MODE] is selected. ( 8) |
|||||||||||||||||||||||||||||||||||
ENGLISH 7
USB/iPod/ANDROID
Select control mode
While in iPod source, press 5 repeatedly.
MODE ON : Control iPod using the iPod itself. However, you can still play/ pause, file skip, fast-forward or reverse from this unit.
MODE OFF : Control iPod from this unit.
While in ANDROID source, press 5 repeatedly.
BROWSE MODE : Control Android device from this unit via KENWOOD MUSIC PLAY application installed in the Android device.
HAND MODE : Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause and file skip from this unit.
Select music drive
While in USB source, press 5 repeatedly.
Stored songs in the following drive will be played back.
•Selected internal or external memory of a smartphone (Mass Storage Class).
•Selected drive of a multiple drives device.
Select a file from a folder/list
For iPod/ANDROID, applicable only when [MODE OFF]/[BROWSE MODE] is selected.
1 |
Press |
. |
2 |
Turn the volume knob to select a folder/list, then press the knob. |
|
3 |
Turn the volume knob to select a file, then press the knob. |
|
Quick Search (applicable only for USB and ANDROID source)
If you have many files, you can search through them quickly.
Turn the volume knob quickly to browse through the list quickly.
Skip Search (applicable only for iPod and ANDROID source)
Press S / T to search at a preset skip search ratio. (
9,
[SKIP SEARCH])
• Pressing and holding S / T searches at a 10% ratio.
Alphabet search (applicable only for iPod and ANDROID source)
You can search for a file according to the first character.
For iPod source
1 Turn the volume knob quickly to enter character search.
2Turn the volume knob to select the character.
•Select “*” to search for a character other than A to Z, 0 to 9.
3 Press S / T to move to the entry position.
•You can enter up to 3 characters.
4 Press the volume knob to start searching.
For ANDROID source
1 Press J / K to enter character search.
2Turn the volume knob to select the character. ^A^: Upper case letters (A to Z)
_A_: Lower case letters (a to z) -0-: Numbers (0 to 9)
***: Character other than A to Z, 0 to 9
3 Press the volume knob to start searching.
• To return to the root folder/first file/top menu, press 5.
• To return to the previous setting item, press
.
• To cancel, press and hold
.
8ENGLISH
USB/iPod/ANDROID |
AUX |
||||
Listen to TuneIn Radio/TuneIn Radio Pro/Aupeo |
Preparation: |
||||
Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. ( 4) |
|||||
(for |
) |
|
|||
|
|
||||
While listening to TuneIn Radio, TuneIn Radio Pro or Aupeo, connect the |
Start listening |
||||
iPod/iPhone to the USB input terminal of the unit. |
1 Connect a portable audio player (commercially available). |
||||
• The unit will output the sound from these applications. |
|||||
|
|||||
|
|
|
|
Auxiliary input jack |
|
Other settings |
|
Portable audio player |
|||
|
|
||||
1 |
Press the volume knob to enter [FUNCTION]. |
|
|||
2 |
Turn the volume knob to select an item (see the following table), |
|
|||
|
then press the knob. |
|
|
||
3 |
Repeat step 2 until the desired item is selected or activated. |
3.5 mm stereo mini plug with “L” shaped connector |
|||
4 |
Press and hold |
to exit. |
|||
(commercially available) |
|||||
|
|
|
|
||
To return to the previous setting item, press
.
2 |
Press |
repeatedly to select AUX. |
Default: XX 3 |
Turn on the portable audio player and start playback. |
|
USB
MUSIC DRIVE |
DRIVE CHANGE: The next drive ([DRIVE 1] to [DRIVE 5]) is selected |
|
automatically and playback starts. |
|
Repeat steps 1 to 3 to select the following drives. |
SKIP SEARCH |
0.5%/1%/5%/10%: While listening to iPod or ANDROID source, selects |
|
the skip search ratio over the total files. |
Set the AUX name
While listening to a portable audio player connected to the unit...
1 |
Press the volume knob to enter [FUNCTION]. |
|
2 |
Turn the volume knob to select [SYSTEM], then press the knob. |
|
3 |
Turn the volume knob to select [AUX NAME SET], then press the knob. |
|
4 |
Turn the volume knob to select an item, then press the knob. |
|
5 |
AUX (default)/DVD/PORTABLE/GAME/VIDEO/TV |
|
Press and hold |
to exit. |
|
To return to the previous setting item, press
.
ENGLISH 9
Loading...
