Version 1.0
Published August 2013
Copyright©2013 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to
infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
The terms HDMITM and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate”
ASRock Website: http://www.asrock.com
H81M-HDS
Motherboard Layout
Keyboard |
PS2 |
Mous e |
PS2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PWR_FAN1 |
|
|
|
|
|
|
|
|
|
|
|
ATX12V1 |
|
|
|
|
|
|
|
|
|
|
|
|
VGA1 |
|
DVI1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HDMI1 |
|
|
|
|
|
|
|
|
|
|
|
|
240-pinmodule) |
240-pinmodule) |
|
ATXPWR1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
bit, |
bit, |
|
|
|
USB 2.0 |
|
|
|
CPU_FAN1 |
|
|
|
|
|
|
(64 |
(64 |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
T: USB0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
B: USB1 |
|
|
|
|
|
|
|
|
|
|
DDR3 A1 |
DDR3 B1 |
|
|
|
||
USB 3.0 |
|
|
|
|
|
|
|
|
|
|
Fast RAM |
SATA 1 SATA 3 |
SATA 0 SATA 2 |
|
|||
T: USB0 |
|
|
|
|
|
|
|
|
|
|
|
||||||
B: USB1 |
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
USB 2.0 |
|
|
|
|
|
|
|
|
CLRCMOS1 |
X |
|
|
|
|
|
||
|
Top: |
|
|
XFastLAN |
|
|
|
1 |
|
|
|
|
|
||||
T: USB2 |
|
|
|
XFastUSB |
|
|
|
|
|
|
|
|
|||||
|
RJ-45 |
|
LAN |
|
|
|
|
|
|
|
|
||||||
B: USB3 |
|
|
|
CMOS |
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
Battery |
|
|
|
|
|
USB3 2 3 |
|
|||
MI Bottom: CI N |
FRON Center: T |
|
|
LINE Top: IN |
|
HD_AUDIO1 |
|
|
|
|
|
|
|
||||
|
|
1 |
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
PCIE1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Front USB 3.0 |
|
|
|
|
|
|
|
Audio |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
CODEC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
IR1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CHA_FAN1 |
|
|
|
Intel |
|
|
32Mb |
|
|
|
|
|
|
|
|
|
TPMS1 |
|
|
|
|
|
|
HDLED RESET |
|||
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
BIOS |
|||
|
|
|
|
Super |
|
|
|
|
|
|
|
|
|
|
PWRBTNPLED |
||
|
|
|
|
I/O |
|
|
|
|
|
|
|
H81 |
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PANEL1 |
|
|
|
|
|
|
|
|
PCIE2 |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
H81M-HDS |
RoHS |
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
COM1 |
|
|
|
|
USB4_5 |
|
USB6_7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
CI1 |
|
SPEAKER1 |
|
|
|
|
|
1 |
|
|
|
1 |
|
1 |
|
|
1 |
|
|
1 |
|
|
|
|
|
|
|
LPT1 |
|
|
|
|
|
|
|
|
|
|
|
English
1
No. Description
1ATX 12V Power Connector (ATX12V1)
2Power Fan Connector (PWR_FAN1)
32 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
4ATX Power Connector (ATXPWR1)
5SATA2 Connector (SATA_3)
6SATA2 Connector (SATA_2)
7SATA3 Connector (SATA_0)
8SATA3 Connector (SATA_1)
9USB 3.0 Header (USB3_2_3)
10Clear CMOS Jumper (CLRCMOS1)
11System Panel Header (PANEL1)
12Chassis Speaker Header (SPEAKER1)
13Chassis Intrusion Header (CI1)
14USB 2.0 Header (USB6_7)
15USB 2.0 Header (USB4_5)
16Chassis Fan Connector (CHA_FAN1)
17Print Port Header (LPT1)
18COM Port Header (COM1)
19TPM Header (TPMS1)
20Infrared Module Header (IR1)
21Front Panel Audio Header (HD_AUDIO1)
22CPU Fan Connector (CPU_FAN1)
English
2
H81M-HDS
I/O Panel
|
|
|
4 |
1 |
2 |
3 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
12 |
|
11 |
|
|
|
10 |
|
9 |
8 |
|
|
|
|
7 |
|
|
|
6 |
||||||||
No. |
|
Description |
|
|
|
|
|
|
No. |
Description |
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
1 |
|
PS/2 Mouse Port |
|
|
7 |
|
USB 2.0 Ports (USB23) |
|
|||||||||||||||||||
2 |
|
D-Sub Port |
|
|
|
|
|
|
8 |
|
USB 3.0 Ports (USB3_01) |
|
|||||||||||||||
3 |
|
LAN RJ-45 Port* |
|
|
9 |
|
USB 2.0 Ports (USB01) |
|
|||||||||||||||||||
4 |
|
Line In (Light Blue) |
|
|
10 |
|
HDMI Port |
|
|
|
|
|
|
||||||||||||||
5 |
|
Front Speaker (Lime) |
|
|
11 |
|
DVI-D Port |
|
|
|
|
|
|
||||||||||||||
6 |
|
Microphone (Pink) |
|
|
12 |
|
PS/2 Keyboard Port |
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED SPEED LED
LAN Port |
|
|
|
|
|
|
Activity / Link LED |
|
Speed LED |
|
|
||
Status |
|
Description |
|
Status |
|
Description |
Off |
|
No Link |
|
Off |
|
10Mbps connection |
|
|
|
||||
Blinking |
|
Data Activity |
|
Orange |
|
100Mbps connection |
On |
|
Link |
|
Green |
|
1Gbps connection |
English
3
Chapter 1 Introduction
Thank you for purchasing ASRock H81M-HDS motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.
Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.
1.1 Package Contents
•ASRock H81M-HDS Motherboard (Micro ATX Form Factor)
•ASRock H81M-HDS Quick Installation Guide
•ASRock H81M-HDS Support CD
•2 x Serial ATA (SATA) Data Cables (Optional)
•1 x I/O Panel Shield
English
4
H81M-HDS
1.2 Specifications
Platform |
• Micro ATX Form Factor |
|
• All Solid Capacitor design |
CPU |
• Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® / |
|
Pentium® / Celeron® in LGA1150 Package |
|
• 4 Power Phase Design |
|
• Supports Intel® Turbo Boost 2.0 Technology |
Chipset |
• Intel® H81 |
Memory |
• Dual Channel DDR3 Memory Technology |
|
• 2 x DDR3 DIMM slots |
|
• Supports DDR3 1600/1333/1066 non-ECC, un-buffered |
|
memory |
|
• Max. capacity of system memory: 16GB |
|
(see CAUTION) |
|
• Supports Intel® Extreme Memory Profile (XMP)1.3/1.2 |
Expansion |
• 1 x PCI Express 2.0 x16 slot (PCIE1: x16 mode) |
Slot |
• 1 x PCI Express 2.0 x1 slot |
Graphics |
• Intel® HD Graphics Built-in Visuals and the VGA outputs can |
|
be supported only with processors which are GPU integrated. |
|
• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick |
|
Sync Video with AVC, MVC (S3D) and MPEG-2 Full |
|
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD |
|
Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600 |
|
• Pixel Shader 5.0, DirectX 11.1 |
|
• Max. shared memory 1792MB |
|
• Three VGA Output options: D-Sub, DVI-D and HDMI |
|
• Supports HDMI Technology with max. resolution up to |
|
1920x1200 @ 60Hz |
|
• Supports DVI-D with max. resolution up to 1920x1200 @ |
|
60Hz |
English
5

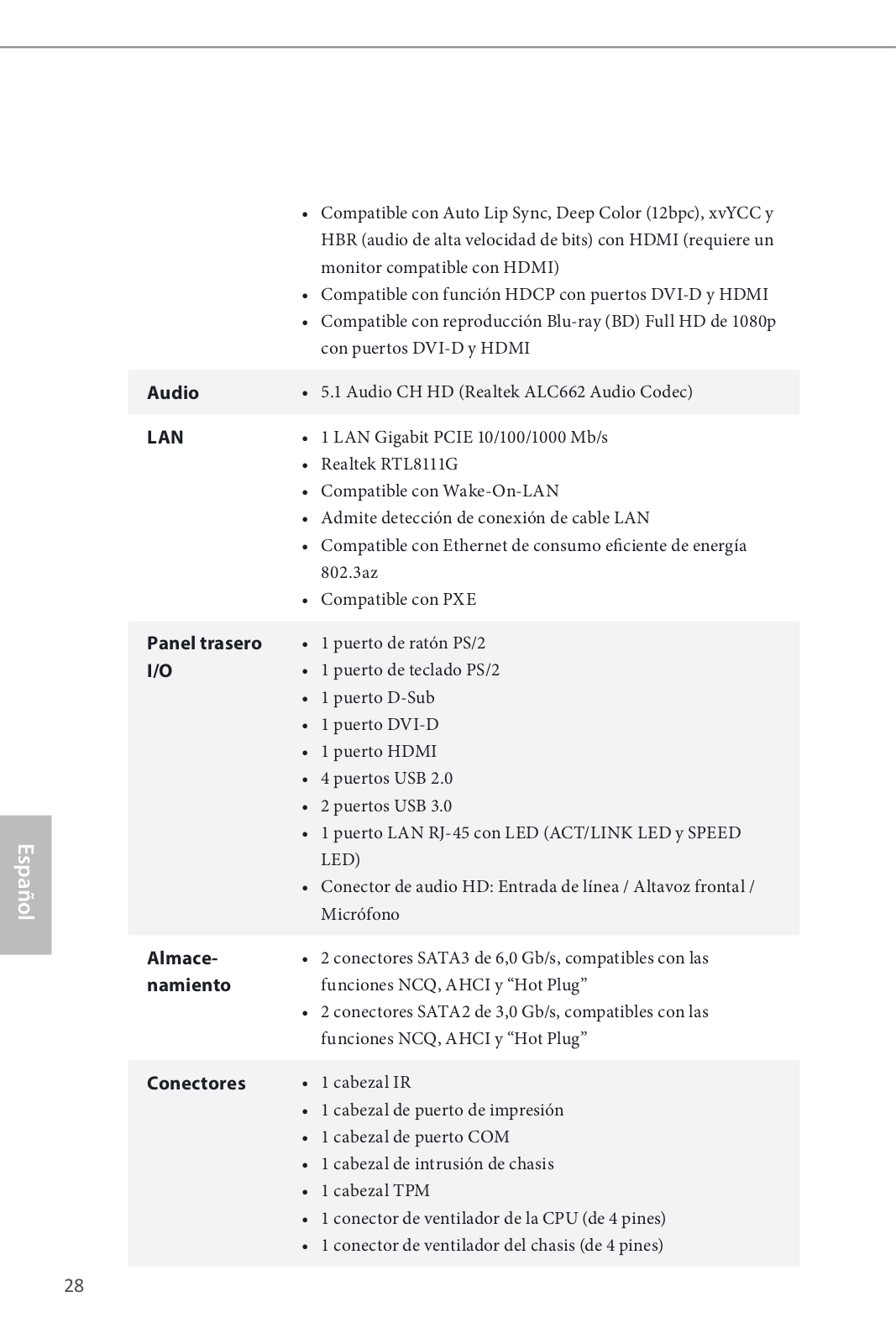

• Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
|
|
HBR (High Bit Rate Audio) with HDMI (Compliant HDMI |
|
|
monitor is required) |
|
• Supports HDCP function with DVI-D and HDMI ports |
|
|
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D |
|
|
|
and HDMI ports |
Audio |
• |
5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
LAN |
• |
PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
|
• |
Realtek RTL8111G |
|
• Supports Wake-On-LAN |
|
|
• Supports LAN Cable Detection |
|
|
• Supports Energy Efficient Ethernet 802.3az |
|
|
• |
Supports PXE |
Rear Panel |
• |
1 x PS/2 Mouse Port |
I/O |
• |
1 x PS/2 Keyboard Port |
|
• 1 x D-Sub Port |
|
|
• 1 x DVI-D Port |
|
|
• 1 x HDMI Port |
|
|
• 4 x USB 2.0 Ports |
|
|
• 2 x USB 3.0 Ports |
|
|
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED |
|
|
|
LED) |
|
• HD Audio Jack: Line in / Front Speaker / Microphone |
|
Storage |
• |
2 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and “Hot |
|
|
Plug” functions |
• 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and “Hot Plug” functions
English
6
H81M-HDS

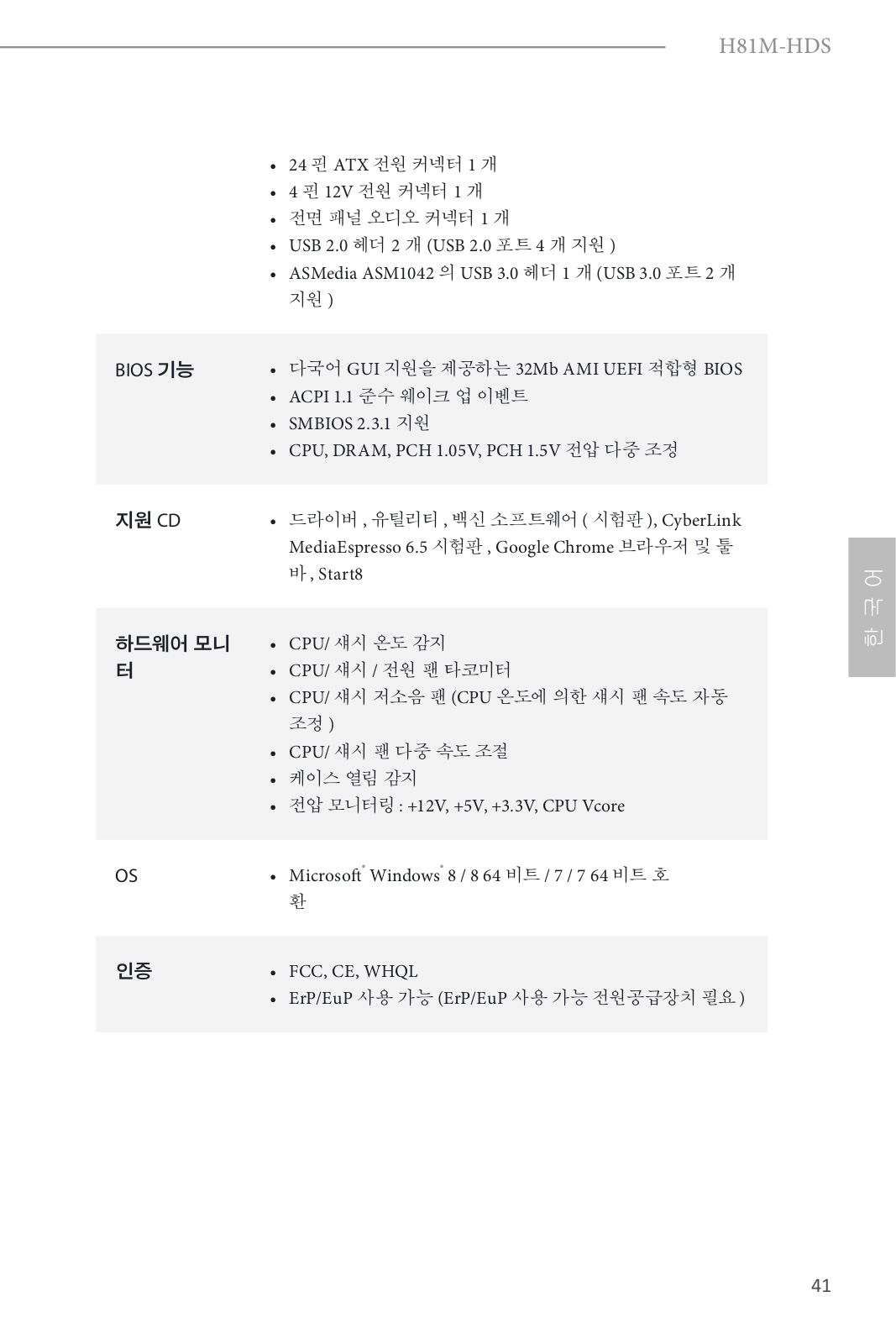

Connector |
• |
1 x IR header |
|
• 1 x Print Port header |
|
|
• 1 x COM port header |
|
|
• 1 x Chassis Intrusion header |
|
|
• 1 x TPM header |
|
|
• 1 x CPU Fan connector (4-pin) |
|
|
• 1 x Chassis Fan connector (4-pin) |
|
|
• 1 x Power Fan connector (3-pin) |
|
|
• 1 x 24 pin ATX power connector |
|
|
• 1 x 4 pin 12V power connector |
|
|
• 1 x Front panel audio connector |
|
|
• 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
|
|
• 1 x USB 3.0 header by ASMedia ASM1042 (supports 2 USB 3.0 |
|
|
|
ports) |
BIOS |
• |
32Mb AMI UEFI Legal BIOS with Multilingual GUI support |
Feature |
• |
ACPI 1.1 Compliance Wake Up Events |
|
• |
SMBIOS 2.3.1 Support |
|
• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjust- |
|
|
|
ment |
Support |
• |
Drivers, Utilities, AntiVirus Software (Trial Version), Cyber- |
CD |
|
Link MediaEspresso 6.5 Trial, Google Chrome Browser and |
|
|
Toolbar, Start8 |
Hardware |
• |
CPU/Chassis Temperature Sensing |
Monitor |
• |
CPU/Chassis/Power Fan Tachometer |
|
• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto- |
|
|
|
Adjust by CPU Temperature) |
|
• CPU/Chassis Fan Multi-Speed Control |
|
|
• |
CASE OPEN detection |
|
• Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
|
OS |
• |
Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit compliant |
Certifica- |
• |
FCC, CE, WHQL |
tions |
• |
ErP/EuP Ready (ErP/EuP ready power supply is required) |
* For detailed product information, please visit our website: http://www.asrock.com
English
7
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using thirdparty overclocking tools. Overclocking may affect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit operating systems. Windows® 64-bit operating systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.
English
8
H81M-HDS
1.3 Unique Features
ASRock A-Tuning
A-Tuning is ASRock’s multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM, Dehumidifier, Good Night LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more.
ASRock Instant Flash
ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update the system BIOS in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Just save the new BIOS file to your USB storage and launch this tool by pressing <F6> or <F2> during POST to enter the BIOS setup menu to access ASRock Instant Flash. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file system.
ASRock APP Charger
Simply by installing the ASRock APP Charger makes your iPhone/iPad/iPod Touch charge up to 40% faster than before on your computer. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports continuous charging when your PC enters into Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5).
ASRock XFast USB
ASRock XFast USB can boost the performance of your USB storage devices. The performance may depend on the properties of the device.
ASRock XFast LAN
ASRock XFast LAN provides faster internet access, which includes the benefits listed below. LAN Application Prioritization: You can configure your application’s priority ideally and add new programs to the list. Lower Latency in Game: After setting online game’s priority higher, it can lower the latency in games. Traffic Shaping: You can watch Youtube HD videos and download simultaneously. RealTime Analysis of Your Data: With the status window, you can easily recognize which data streams you are currently transferring.
English
9
English
10
ASRock XFast RAM
ASRock XFast RAM is included in A-Tuning. It fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. ASRock XFast RAM shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
ASRock Crashless BIOS
ASRock Crashless BIOS allows users to update their BIOS without fear of failing. If power loss occurs during the BIOS updating process, ASRock Crashless BIOS will automatically finish the BIOS update procedure after regaining power. Please note that BIOS files need to be placed in the root directory of your USB disk. Only USB 2.0 ports support this feature.
ASRock OMG (Online Management Guard)
Administrators are able to establish an internet curfew or restrict internet access at specified times via OMG. You may schedule the starting and ending hours of internet access granted to other users. In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required.
ASRock Internet Flash
ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you without entering Windows® OS. Please setup network configuration before using Internet Flash.
ASRock System Browser
ASRock System Browser shows the overview of your current PC and the devices connected.
ASRock Dehumidifier Function
Users may prevent motherboard damages due to dampness by enabling “Dehumidifier Function”. When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
ASRock Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically.
H81M-HDS
ASRock Interactive UEFI
ASRock Interactive UEFI is a blend of system configuration tools, cool sound effects and stunning visuals. The unprecedented UEFI provides a more attractive interface and more amusment.
ASRock Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds to logon to Windows 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.
ASRock Restart to UEFI
Windows® 8 brings the ultimate boot up experience. The lightning boot up speed makes it hard to access the UEFI setup. ASRock Restart to UEFI allows users to enter the UEFI automatically when turning on the PC. By enabling this function, the PC will enter the UEFI directly after you restart.
ASRock USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Just plug in the USB Key and let your computer log in to windows automatically!
ASRock FAN-Tastic Tuning
ASRock FAN-Tastic Tuning is included in A-Tuning. Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.
ASRock Good Night LED
ASRock Good Night LED technology offers you a better sleeping environment by extinguishing the unessential LEDs. By enabling Good Night LED in the BIOS, the Power/HDD/LAN LEDs will be switched off when the system is powered on. Good Night LED will automatically switch off the Power and Keyboard LEDs when the system enters into Standby/Hibernation mode as well.
English
11
1.4 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper |
|
|
|
(CLRCMOS1) |
Default |
Clear CMOS |
|
(see p.1, No. 10) |
|||
|
|
CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed.
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear Status” to clear the record of previous chassis intrusion status.
English
12
H81M-HDS
1.5 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
System Panel Header
(9-pin PANEL1)
(see p.1, No. 11)
PLED+ PLED-
PWRBTN#
GND
1
GND RESET#
GND HDLED-
HDLED+
Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.
English
13
Serial ATA2 Connectors (SATA_2:
see p.1, No. 6) (SATA_3: see p.1, No. 5)
SATA 3 |
SATA 2 |
These two SATA2 connectors support SATA data cables for internal storage devices with up to 3.0 Gb/s data transfer rate.
Serial ATA3 Connectors (SATA_0:
see p.1, No. 7) (SATA_1: see p.1, No. 8)
SATA 1 |
SATA 0 |
These two SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB4_5)
(see p.1, No. 15)
(9-pin USB6_7)
(see p.1, No. 14)
USB_PWR
P- P+ GND DUMMY
1
GND
USBP_-PWRP+
Besides four USB 2.0 ports on the I/O panel, there are two headers on this motherboard. Each USB 2.0 header can support two ports.
USB 3.0 Header
(19-pin USB3_2_3)
(see p.1, No. 9)
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
Vbus
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PB_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
1
Besides two USB 3.0 ports on the I/O panel, there
is one header on this motherboard. Each USB 3.0 header can support two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 21)
GND PRESENCE#
MIC_RET
OUT_RET
1
OUT2_L J_SENSE
OUT2_R MIC2_R
MIC2_L
This header is for connecting audio devices to the front audio panel.
English
14
H81M-HDS
1.High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2.If you use an AC’97 audio panel, please install it to the front panel audio header by the steps below:
A.Connect Mic_IN (MIC) to MIC2_L.
B.Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C.Connect Ground (GND) to Ground (GND).
D.MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to connect them for the AC’97 audio panel.
E.To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adjust “Recording Volume”.
Chassis Speaker Header |
DUMMY |
SPEAKER |
Please connect the chassis |
||
(4-pin SPEAKER1) |
1 |
|
|
|
speaker to this header. |
|
|
|
|||
(see p.1, No. 12) |
|
+5V |
DUMMY |
|
|
|
|
|
|
|
|
Chassis and Power Fan
Connectors
(4-pin CHA_FAN1)
(see p.1, No. 16)
(3-pin PWR_FAN1)
(see p.1, No. 2)
CHA_FAN_SPEED
+12V FAN_SPEED_CONTROL GND
Please connect fan cables to the fan connectors and match the black wire to the ground pin.
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.1, No. 22)
GND +12V
CPU_FAN_SPEED FAN_SPEED_CONTROL
This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
ATX Power Connector |
12 |
24 |
This motherboard pro- |
|
(24-pin ATXPWR1) |
vides a 24-pin ATX power |
|||
|
|
|||
(see p.1, No. 4) |
|
|
connector. To use a 20-pin |
|
|
|
|
ATX power supply, please |
|
|
|
|
plug it along Pin 1 and Pin |
|
|
1 |
13 |
13. |
English
15
English
ATX 12V Power |
|
|
|
|
|
|
This motherboard pro- |
Connector |
|
|
|
|
|
|
vides an 8-pin ATX 12V |
(4-pin ATX12V1) |
|
|
|
|
|
|
power connector. To use a |
(see p.1, No. 1) |
|
|
|
|
|
|
4-pin ATX power supply, |
|
|
|
|
|
|
|
please plug it along Pin 1 |
|
|
|
|
|
|
|
and Pin 5. |
|
|
|
|
|
|
|
|
Infrared Module Header |
|
|
IRTX |
This header supports an optional |
|||
(5-pin IR1) |
|
|
|
+5VSB |
wireless transmitting and |
||
|
|
|
|
DUMMY |
|||
(see p.1, No. 20) |
1 |
|
GND |
receiving infrared module. |
|||
|
|||||||
|
|
|
|||||
|
|
|
|
|
|||
|
|
|
IRRX |
|
|||
|
|
|
|
|
|
|
|
Serial Port Header |
|
|
DDTR#1 |
This COM1 header |
|||
(9-pin COM1) |
|
RRXD1 |
supports a serial port |
||||
|
|
|
DDSR#1 |
||||
|
|
|
|
|
CCTS#1 |
|
|
(see p.1, No. 18) |
1 |
|
|
|
|
RRI#1 |
module. |
|
|
|
|
||||
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
RRTS#1 |
|
|
|
|
|
|
GND |
|
||
|
|
|
TTXD1 |
|
|||
|
|
DDCD#1 |
|
||||
Chassis Intrusion Header
(2-pin CI1)
(see p.1, No. 13)
1
GND Signal
This motherboard supports CASE OPEN detection feature that detects if the chassis cove has been removed. This feature requires a chassis with chassis intrusion detection design.
TPM Header |
This connector supports |
(17-pin TPMS1) |
Trusted Platform Module |
(see p.1, No. 19) |
(TPM) system, which can |
|
securely store keys, digital |
|
certificates, passwords, |
|
and data. A TPM system |
|
also helps enhance |
|
network security, protects |
|
digital identities, and |
|
ensures platform integrity. |
16
Loading...
