ASRock H67M Motherboard

English

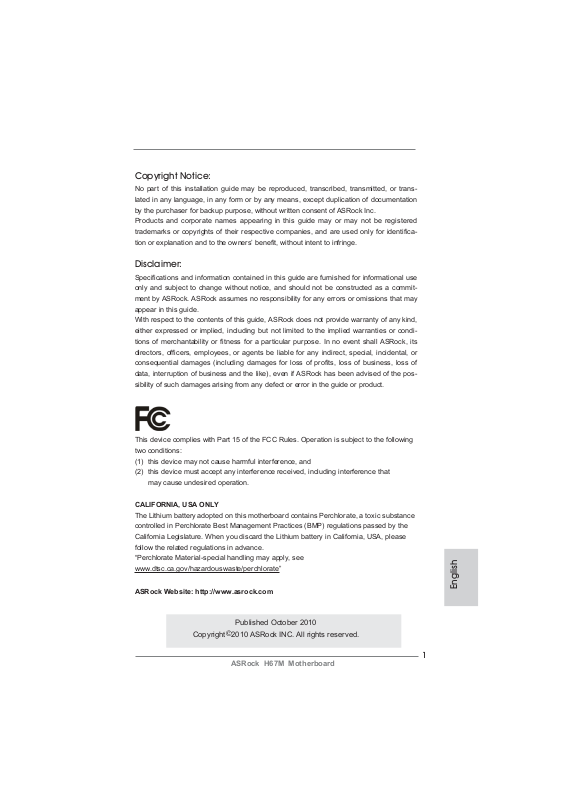

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁ ca-

tion or explanation and to the owners’ beneﬁ t, without intent to infringe.

Disclaimer:

Speciﬁ cations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁ tness for a particular purpose. In no event shall ASRock, its

directors, ofﬁ cers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁ ts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published October 2010

ASRock H67M Motherboard

Motherboard Layout

English

1 CPU Fan Connector (CPU_FAN1) 19 USB 2.0 Header (USB8_9, Blue)

2 ATX 12V Power Connector (ATX12V1) 20 USB 2.0 Header (USB10_11, Blue)

3 1155-Pin CPU Socket 21 Chassis Speaker Header

4 2 x 240-pin DDR3 DIMM Slots (SPEAKER 1, White)

(Dual Channel: DDR3_A1, DDR3_B1, Blue) 22 USB 2.0 Header (USB6_7, Blue)

5 ATX Power Connector (ATXPWR1) 23 Consumer Infrared Module Header

6 Infrared Module Header (IR1) (CIR1)

7 SATA3 Connector (SATA3_0, White) 24 Print Port Header (LPT1, White)

8 SATA3 Connector (SATA3_1, White) 25 Floppy Connector (FLOPPY1)

9 Clear CMOS Jumper (CLRCMOS1) 26 COM Port Header (COM1)

10 64Mb SPI Flash 27 Front Panel Audio Header

11 Intel H67 Chipset (HD_AUDIO1, White)

12 SATA2 Connector (SATA2_3, Blue) 28 HDMI_SPDIF Header

13 SATA2 Connector (SATA2_2, Blue) (HDMI_SPDIF1, White)

14 SATA2 Connector (SATA2_4, Blue) 29 PCI Slot (PCI1)

15 SATA2 Connector (SATA2_5, Blue) 30 PCI Express 2.0 x1 Slot (PCIE3, White)

16 Power LED Header (PLED1) 31 PCI Express 2.0 x1 Slot (PCIE2, White)

17 Chassis Fan Connector (CHA_FAN1) 32 PCI Express 2.0 x16 Slot (PCIE1, Blue)

18 System Panel Header (PANEL1, White) 33 Power Fan Connector (PWR_FAN1)

Intel

H67

H67M

ATXPWR1

Designed inTaipei

21.8cm (8.6in)

24.4cm (9.6in)

DDR3_A1 (64bit, 240-pin module)

DDR3_B1 (64bit, 240-pin module)

Dual Channel

PCIE1

PCIE2

PCIE3

PCI1

Top:

RJ-45

USB2.0

T:USB4

B:USB5

USB2.0

T:USB0

B:USB1

PS2

Keyboard

VGA1

DVI_CON1

HDMI1

USB3.0

T:USB2

B:USB3

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Super

I/O

CMOS

Battery

ATX12V1

DX10.1

DDR3

SATA3 6Gb/s

PWR_FAN1

CPU_FAN1

PCI Express2.0

ErP/EuP Ready

HDMI 1.4a

LAN

PHY

HD_AUDIO1

HDMI_SPDIF1

AUDIO

CODEC

COM1

RoHS

USB8_9

IR1

USB10_11

USB6_7

CIR1

CLRCMOS1

64Mb

BIOS

PLED1

SATA2_5 SATA2_4

SATA3_1

SATA3_0

HDLED RESET

PLEDPWRBTN

PANEL1

SPEAKER1

CHA_FAN1

FLOPPY1

LPT1

Gigabit LAN

SATA2_3 SATA2_2

ASRock H67M Motherboard

English

I/O Panel

If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 8) (No. 5) (No. 4) Side Speaker

(No. 7)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

1 USB 2.0 Ports (USB01) ** 8 Front Speaker (Lime)

2 VGA/D-Sub Port 9 Microphone (Pink)

* 3 LAN RJ-45 Port 10 USB 2.0 Ports (USB45)

4 Central / Bass (Orange) 11 USB 3.0 Ports (USB23)

5 Rear Speaker (Black) 12 VGA/HDMI Port

6 Optical SPDIF Out Port 13 VGA/DVI-D Port

7 Line In (Light Blue) 14 PS/2 Keyboard Port (Purple)

ASRock H67M Motherboard

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will ﬁ nd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

English

ASRock H67M Motherboard

1. Introduction

Thank you for purchasing ASRock H67M motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁ cations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁ cations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁ nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁ c information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock H67M Motherboard

(Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm)

ASRock H67M Quick Installation Guide

ASRock H67M Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1 x 3D Red/Cyan Anaglyph Glasses (Optional)

English

ASRock Reminds You...

To get better performance in Windows

7 / 7 64-bit / Vista

/ Vista

64-

bit, it is recommended to set the BIOS option in Storage Conﬁ guration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

ASRock H67M Motherboard

English

1.2 Specifications

Platform - Micro ATX Form Factor: 9.6-in x 8.6-in, 24.4 cm x 21.8 cm

- All Solid Capacitor design

CPU - Supports 2nd Generation Intel

Core

i7 / i5 / i3 in

LGA1155 Package

- 4 + 1 Power Phase Design

- Supports Intel

Turbo Boost 2.0 Technology

- Supports K-Series unlocked CPU

- Supports Hyper-Threading Technology (see CAUTION 1)

Chipset - Intel

H67

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 2)

- 2 x DDR3 DIMM slots

- Supports DDR3 1333/1066 non-ECC, un-buffered

memory

- Max. capacity of system memory: 16GB (see CAUTION 3)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)

- 2 x PCI Express 2.0 x1 slots

- 1 x PCI slot

Graphics * * Requires a Processor with Intel

Graphics Technology

- Intel

HD Graphics 2000/3000

- Pixel Shader 4.1, DirectX 10.1

- Max. shared memory 1759MB (see CAUTION 4)

- Three VGA Output options: D-Sub, DVI-D and HDMI

(see CAUTION 5)

- Supports HDMI 1.4a Technology with max. resolution up to

1920x1200 @ 60Hz

- Supports DVI with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @

75Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI

(Compliant HDMI monitor is required) (see CAUTION 6)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI and HDMI ports

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

ASRock H67M Motherboard

English

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efﬁ cient Ethernet 802.3az

Rear Panel I/O I/O Panel

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 4 x Ready-to-Use USB 2.0 Ports

- 2 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone (see CAUTION 7)

SATA 3 - 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 10, RAID 5 and Intel Rapid Storage), NCQ,

AHCI and "Hot Plug" functions

USB3.0 - 2 x USB 3.0 ports by Etron EJ168A, support

USB 1.0/2.0/3.0 up to 5Gb/s

Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 10, RAID 5 and Intel Rapid Storage), NCQ,

AHCI and Hot Plug functions

- 2 x SATA3 6.0Gb/s connectors

- 1 x Floppy connector

- 1 x IR header

- 1 x CIR header

- 1 x Print port header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

BIOS Feature - 64Mb AMI BIOS

- AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

ASRock H67M Motherboard

English

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage

Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), ASRock

Software Suite (CyberLink DVD Suite - OEM and Trial;

Creative Sound Blaster X-Fi MB - Trial)

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 8)

- Instant Boot

- ASRock Instant Flash (see CAUTION 9)

- ASRock AIWI (see CAUTION 10)

- ASRock APP Charger (see CAUTION 11)

- SmartView (see CAUTION 12)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 13)

- Boot Failure Guard (B.F.G.)

- Combo Cooler Option (C.C.O.) (see CAUTION 14)

- Good Night LED

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed

Auto-Adjust by CPU or MB Temperature)

- CPU Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft

Windows

7 / 7 64-bit / Vista

/ Vista

64-bit

/ XP / XP 64-bit compliant

Certiﬁ cations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 15)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or

using the third-party overclocking tools. Overclocking may affect your system

stability, or even cause damage to the components and devices of your system.

It should be done at your own risk and expense. We are not responsible for possible

damage caused by overclocking.

ASRock H67M Motherboard

English

CAUTION!

1. About the setting of “Hyper Threading Technology”, please check page

43 of “User Manual” in the support CD.

2. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 15 for proper installation.

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows

7 /

Vista

/ XP. For Windows

OS with 64-bit CPU, there is no such limita-

tion.

4. The maximum shared memory size is deﬁ ned by the chipset vendor and

is subject to change. Please check Intel

website for the latest informa-

tion.

5. You can choose to use two of the three monitors only. D-Sub, DVI-D and-

HDMI monitors cannot be enabled at the same time. Besides, with the

DVI-to-HDMI adapter, the DVI-D port can support the same features as

HDMIport.

6. xvYCC and Deep Color are only supported under Windows

7 64-bit /

7. Deep Color mode will be enabled only if the display supports 12bpc

in EDID. HBR is supported under Windows

7 64-bit / 7 / Vista

64-bit /

Vista

7. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-chan-

nel, 6-channel, and 8-channel modes. Please check the table on page 3

for proper connection.

8. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ﬁ ne-tune

different system functions in a user-friendly interface, which is including

Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In

Hardware Monitor, it shows the major readings of your system. In Fan

Control, it shows the fan speed and temperature for you to adjust. In

Overclocking, you are allowed to overclock CPU frequency for optimal

system performance. In OC DNA, you can save your OC settings as a

proﬁ le and share with your friends. Your friends then can load the OC

proﬁ le to their own system to get the same OC settings. In IES (Intelligent

Energy Saver), the voltage regulator can reduce the number of output

phases to improve efficiency when the CPU cores are idle without

sacrificing computing performance. Please visit our website for the

operation procedures of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

9. ASRock Instant Flash is a BIOS ﬂ ash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems ﬁ rst like MS-DOS or Windows

. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS ﬁ le to your USB ﬂ ash drive, ﬂ oppy disk or hard

ASRock H67M Motherboard

English

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional ﬂ oppy diskette or other complicated ﬂ ash utility. Please

be noted that the USB ﬂ ash drive or hard drive must use FAT32/16/12 ﬁ le

system.

10. To experience intuitive motion controlled games is no longer only avail-

able at Wii. ASRock AIWI utility introduces a new way of PC gaming

operation. ASRock AIWI is the world's ﬁ rst utility to turn your iPhone/iPod

touch as a game joystick to control your PC games. All you have to do is

just to install the ASRock AIWI utility either from ASRock ofﬁ cial website

or ASRock software support CD to your motherboard, and also download

the free AIWI Lite from App store to your iPhone/iPod touch. Connecting

your PC and apple devices via Bluetooth or WiFi networks, then you can

start experiencing the exciting motion controlled games. Also, please do

not forget to pay attention to ASRock ofﬁ cial website regularly, we will

continuously provide you the most up-do-date supported games!

ASRock website: http://www.asrock.com/Feature/Aiwi/index.asp

11. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful

solution for you - ASRock APP Charger. Simply installing the APP Char-

ger driver, it makes your iPhone charged much quickly from your com-

puter and up to 40% faster than before. ASRock APP Charger allows you

to quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

12.

SmartView, a new function of internet browser, is the smart start page for

IE that combines your most visited web sites, your history, your Facebook

friends and your real-time newsfeed into an enhanced view for a more

personal Internet experience. ASRock motherboards are exclusively

equipped with the SmartView utility that helps you keep in touch with

friends on-the-go. To use SmartView feature, please make sure your

OS version is Windows

7 / 7 64 bit / Vista

/ Vista

64 bit, and your

browser version is IE8. ASRock website: http://www.asrock.com/Feature/

SmartView/index.asp

13. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC sys-

tem.

14. Combo Cooler Option (C.C.O.) provides the ﬂ exible option to adopt three

different CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156.

Please be noticed that not all the 775 and 1156 CPU Fan can be used.

ASRock H67M Motherboard

English

15. EuP, stands for Energy Using Product, was a provision regulated by Eu-

ropean Union to deﬁ ne the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard

of 5v standby power efﬁ ciency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.

ASRock H67M Motherboard

2. Installation

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the car-

pet or the like. Also remember to use a grounded wrist strap or

touch a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the moth-

erboard to the chassis, please do not over-tighten the screws!

Doing so may damage the motherboard.

2.1 CPU Installation

For the installation of Intel 1155-Pin CPU,

please follow the steps below.

Before you insert the 1155-Pin CPU into the socket, please check if the

CPU surface is unclean or if there is any bent pin on the socket. Do not

force to insert the CPU into the socket if above situation is found. Other-

wise, the CPU will be seriously damaged.

1155-Pin Socket Overview

ContactArray

SocketBody

LoadLever

LoadPlate

English

ASRock H67M Motherboard

English

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Remove PnP Cap (Pick and Place Cap).

1. It is recommended to use the cap tab to handle and avoid kicking

off the PnP cap.

2. This cap must be placed if returning the motherboard for after

service.

Step 3. Insert the 1155-Pin CPU:

Step 3-1. Hold the CPU by the edges where

are marked with black lines.

Step 3-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the

two orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

black line

Pin1

alignment key

Pin1

1155-Pin CPU

1155-Pin Socket

orientation key notch

ASRock H67M Motherboard

Step 3-3. Carefully place the CPU into the

socket by using a purely vertical mo-

tion.

Step 3-4. Verify that the CPU is within the sock-

et and properly mated to the orient

keys.

Step 4. Close the socket:

Step 4-1. Rotate the load plate onto the IHS.

Step 4-2. While pressing down lightly on load

plate, engage the load lever.

2.2 Installation of CPU Fan and Heatsink

For proper installation, please kindly refer to the instruction manuals of your CPU

fan and heatsink.

Below is an example to illustrate the installation of the heatsink for 1155-Pin CPU.

Step 1. Apply thermal interface material onto center of

IHS on the socket surface.

Step 2. Place the heatsink onto the socket. Ensure

fan cables are oriented on side closest to the

CPU fan connector on the motherboard (CPU_

FAN1, see page 2, No. 1).

Step 3. Align fasteners with the motherboard through-

holes.

Step 4. Rotate the fastener clockwise, then press

down on fastener caps with thumb to install

and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise, the

heatsink cannot be secured on the motherboard.

Step 5. Connect fan header with the CPU fan connector on the motherboard.

Step 6. Secure excess cable with tie-wrap to ensure cable does not interfere with

fan operation or contact other components.

ApplyThermal

InterfaceMaterial

Fancables on side

closestto MB header

Fastenerslots

pointingstraight out

PressDown

(4Places)

Please be noticed that this motherboard supports Combo Cooler

Option (C.C.O.), which provides the ﬂ exible option to adopt three dif-

ferent CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156.

The white throughholes are for Socket LGA

1155/1156 CPU fan.

English

ASRock H67M Motherboard

English

2.3 Installation of Memory Modules (DIMM)

This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots,

and supports Dual Channel Memory Technology. For dual channel configuration,

you always need to install two identical (the same brand, speed, size and chip-

type) memory modules in the DDR3 DIMM slots to activate Dual Channel Memory

Technology. Otherwise, it will operate at single channel mode.

1. It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot;otherwise, this motherboard and DIMM may be

damaged.

2. If you install only one memory module or two non-identical

memory modules, it is unable to activate the Dual Channel

Memory Technology.

3. Some DDR3 1GB double-sided DIMMs with 16 chips may not

work on this motherboard. It is not recommended to install them

on this motherboard.

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

notch

break

notch

break

ASRock H67M Motherboard

The DIMM only ﬁ ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into the slot

at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

English

ASRock H67M Motherboard

English

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 1 PCI slot and 3 PCI Express slots on this motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE slots:

PCIE2 / PCIE3 (PCIE x1 slot; White) is used for PCI Express cards with

x1 lane width cards, such as Gigabit LAN card, SATA2 card, etc.

PCIE1 (PCIE x16 slot; Blue) is used for PCI Express x16 lane width

graphics cards.

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

in a chassis).

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press ﬁ rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.

ASRock H67M Motherboard

English

HDMI port

2. If you have installed onboard VGA driver from our support CD to your system

already, you can freely enjoy the beneﬁ ts of dual monitor function after your

system boots. If you haven’t installed onboard VGA driver yet, please install

onboard VGA driver from our support CD to your system and restart your

computer.

2.5 Dual Monitor and Surround Display Features

Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal VGA output sup-

port (DVI-D, D-Sub and HDMI), you can easily enjoy the beneﬁ ts of dual monitor

feature without installing any add-on VGA card to this motherboard. This mother-

board also provides independent display controllers for DVI-D, D-Sub and HDMI to

support dual VGA output so that DVI-D, D-sub and HDMI can drive same or different

display contents.

To enable dual monitor feature, please follow the below steps:

1. Connect DVI-D monitor cable to VGA/DVI-D port on the I/O panel, connect D-Sub

monitor cable to VGA/D-Sub port on the I/O panel, or connect HDMI monitor

cable to HDMI port on the I/O panel.

VGA/D-Sub port

VGA/DVI-D port

D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time.

You can only choose the combination: DVI-D + HDMI, DVI-D + D-Sub,

or HDMI + D-Sub.

ASRock H67M Motherboard

English

Surround Display Feature

This motherboard supports surround display upgrade. With the internal VGA output

support (DVI-D, D-Sub and HDMI) and external add-on PCI Express VGA cards,

you can easily enjoy the beneﬁ ts of surround display feature.

Please refer to the following steps to set up a surround display environment:

1. Install the PCI Express VGA card on PCIE1 slot. Please refer to page 17 for

proper expansion card installation procedures for details.

2. Connect DVI-D monitor cable to VGA/DVI-D port on the I/O panel, connect D-Sub

monitor cable to VGA/D-Sub port on the I/O panel, or connect HDMI monitor

cable to HDMI port on the I/O panel. Then connect other monitor cables to the

corresponding connectors of the add-on PCI Express VGA card on PCIE1 slot.

3. Boot your system. Press <F2> or <Del> to enter BIOS setup. Enter “Onboard

VGA Share Memory” option to adjust the memory capability to [32MB], [64MB],

[128MB], [256MB] or [512MB] to enable the function of VGA/D-sub. Please make

sure that the value you select is less than the total capability of the system

memory. If you do not adjust the BIOS setup, the default value of “Onboard VGA

Share Memory”, [Auto], will disable VGA/D-Sub function when the add-on VGA

card is inserted to this motherboard.

4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to

your system. If you have installed the drivers already, there is no need to install

them again.

5. Set up a multi-monitor display.

For Windows

XP / XP 64-bit OS:

Right click the desktop, choose “Properties”, and select the “Settings” tab

so that you can adjust the parameters of the multi-monitor according to

the steps below.

A. Click the “Identify” button to display a large number on each monitor.

B. Right-click the display icon in the Display Properties dialog that you

wish to be your primary monitor, and then select “Primary”. When

you use multiple monitors with your card, one monitor will always be

Primary, and all additional monitors will be designated as Secondary.

C. Select the display icon identiﬁ ed by the number 2.

D. Click “Extend my Windows desktop onto this monitor”.

E. Right-click the display icon and select “Attached”, if necessary.

F. Set the “Screen Resolution” and “Color Quality” as appropriate for the

second monitor. Click “Apply” or “OK” to apply these new values.

G. Repeat steps C through E for the diaplay icon identiﬁ ed by the number

one, two, three and four

ASRock H67M Motherboard

English

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Right click the desktop, choose “Personalize”, and select the “Display

Settings” tab so that you can adjust the parameters of the multi-monitor

according to the steps below.

A. Click the number ”2” icon.

B. Click the items “This is my main monitor” and “Extend the desktop onto

this monitor”.

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icon identiﬁ ed by the number

three and four.

6. Use Surround Display. Click and drag the display icons to positions representing

the physical setup of your monitors that you would like to use. The placement

of display icons determines how you move items from one monitor to another.

HDCP Function

HDCP function is supported on this motherboard. To use HDCP

function with this motherboard, you need to adopt the monitor

that supports HDCP function as well. Therefore, you can enjoy

the superior display quality with high-deﬁ nition HDCP

encryption contents. Please refer to below instruction for more

details about HDCP function.

What is HDCP?

HDCP stands for High-Bandwidth Digital Content Protection,

a speciﬁ cation developed by Intel

for protecting digital

entertainment content that uses the DVI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP speciﬁ cation is designed to

protect the integrity of content as it is being transmitted.

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.

ASRock H67M Motherboard

English

2.6 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 9)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just ﬁ nish updating the BIOS, you must boot

up the system ﬁ rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default proﬁ le, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

Clear CMOSDefault

ASRock H67M Motherboard

English

the red-striped side to Pin1

2.7 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

FDD connector

(33-pin FLOPPY1)

(see p.2 No. 25)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Serial ATAII Connectors These four Serial ATAII

(SATA2_2: see p.2, No. 13)

(SATAII) connectors support

(SATA2_3: see p.2, No. 12)

SATA data cables for internal

(SATA2_4: see p.2, No. 14)

storage devices. The current

(SATA2_5: see p.2, No. 15)

SATAII interface allows up to

3.0 Gb/s data transfer rate.

Serial ATA3 Connectors These two Serial ATA3 (SATA3)

(SATA3_0: see p.2, No. 7)

connectors support SATA data

(SATA3_1: see p.2, No. 8)

cables for internal storage

devices. The current SATA3

interface allows up to 6.0 Gb/s

data transfer rate.

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional)

SATA / SATAII / SATA3 hard

disk or the SATAII / SATA3

connector on this motherboard.

SATA2_5 SATA2_4

SATA2_3 SATA2_2

SATA3_1

SATA3_0

ASRock H67M Motherboard

English

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB6_7)

ports on the I/O panel, there

(see p.2 No. 22)

are three USB 2.0 headers on

this motherboard. Each

USB 2.0 header can support

two USB 2.0 ports.

(9-pin USB8_9)

(see p.2 No. 19)

(9-pin USB10_11)

(see p.2 No. 20)

USB_PWR

P-8

GND

DUMMY

USB_PWR

P+8

GND

P-9

P+9

USB_PW R

P-10

GND

DUMMY

USB_PW R

P+10

GND

P-11

P+11

Print Port Header This is an interface for print

(25-pin LPT1)

port cable that allows

(see p.2 No. 24)

convenient connection of printer

devices.

Infrared Module Header This header supports an

(5-pin IR1)

optional wireless transmitting

(see p.2 No. 6)

and receiving infrared module.

IRTX

+5VSB

DUMMY

IRRX

GND

Consumer Infrared Module Header This header can be used to

(4-pin CIR1)

connect the remote

(see p.2 No. 23)

controller receiver.

ATX+5VSB

IRTX

GND

IRRX

AFD#

ERROR#

PINIT#

GND

SLIN#

STB#

SPD0

SPD1

SPD2

SPD3

SPD4

SPD5

SPD6

SPD7

ACK#

BUSY

SLCT

ASRock H67M Motherboard

English

J_SENSE

OUT2_L

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1)

panel audio cable that allows

(see p.2 No. 27)

convenient connection and

control of audio devices.

1. High Deﬁ nition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic.

For Windows

XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1)

several system front panel

(see p.2 No. 18)

functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may conﬁ gure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

is on when the system is operating. The LED keeps blinking when the sys-

tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep

state or powered off (S5).

ASRock H67M Motherboard

English

Chassis Speaker Header Please connect the chassis

(4-pin SPEAKER 1)

speaker to this header.

(see p.2 No. 21)

Power LED Header Please connect the chassis

(3-pin PLED1)

power LED to this header to

(see p.2 No. 16)

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1 state. The LED is

off in S3/S4 state or S5 state

(power off).

PLED+

PLED-

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED

is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly

consists of power switch, reset switch, power LED, hard drive activity LED,

speaker and etc. When connecting your chassis front panel module to this

header, make sure the wire assignments and the pin assign-ments are

matched correctly.

Chassis and Power Fan Connectors Please connect the fan cables

(3-pin CHA_FAN1)

to the fan connectors and

(see p.2 No. 17)

match the black wire to the

ground pin.

(3-pin PWR_FAN1)

(see p.2 No. 33)

CPU Fan Connectors Please connect the CPU fan

(4-pin CPU_FAN1)

cable to the connector and

(see p.2 No. 1)

match the black wire to the

ground pin.

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

Pin 1-3 Connected

GND

+12V

CHA_FAN_SPEED

GND

+12V

CPU_FAN_SPEED

FAN_SPEED_CONTROL

1 2 3 4

GND

+12V

PWR_FAN_SPEED

ASRock H67M Motherboard

English

ATX Power Connector Please connect an ATX power

(24-pin ATXPWR1)

supply to this connector.

(see p.2 No. 5)

20-Pin ATX Power Supply Installation

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

ATX 12V Power Connector Please connect an ATX 12V

(8-pin ATX12V1)

power supply to this connector.

(see p.2 No. 2)

4-Pin ATX 12V Power Supply Installation

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power

supply, please plug your power supply along with Pin 1 and Pin 5.

8 5

4 1

8 5

4 1

HDMI_SPDIF Header HDMI_SPDIF header, providing

(2-pin HDMI_SPDIF1)

SPDIF audio output to HDMI

(see p.2 No. 28)

VGA card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

this header.

SPDIFOUT

GND

Serial port Header This COM1 header supports a

(9-pin COM1)

serial port module.

(see p.2 No. 26)

ASRock H67M Motherboard

2.8 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive ﬁ rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

2.9 Installing Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP / XP 64-bit With RAID Functions

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP / XP 64-

bit on your SATA / SATAII / SATA3 HDDs with RAID functions, please refer to the

document at the following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

2.10 Installing Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP

/ XP 64-bit Without RAID Functions

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit / XP / XP 64-

bit OS on your SATA / SATAII / SATA3 HDDs without RAID functions, please follow

below procedures according to the OS you install.

2.10.1 Installing Windows

XP / XP 64-bit Without RAID

Functions

If you want to install Windows

XP / XP 64-bit OS on your SATA / SATAII / SATA3

HDDs without RAID functions, please follow below steps.

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen SATA Conﬁ guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

XP / XP 64-bit OS on your system.

Using SATA / SATAII / SATA3 HDDs without NCQ function

English

ASRock H67M Motherboard

2.10.2 Installing Windows

7 / 7 64-bit / Vista

/ Vista

64-bit

Without RAID Functions

If you want to install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS on your SATA

/ SATAII / SATA3 HDDs without RAID functions, please follow below steps.

Using SATA / SATAII / SATA3 HDDs with NCQ function

STEP 1: Set Up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen SATA Conﬁ guration.

B. Set the option “SATA Mode” to [AHCI].

STEP 2: Install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS on your

system.

Using SATA / SATAII / SATA3 HDDs without NCQ function

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY Advanced screen SATA Conﬁ guration.

B. Set the option “SATA Mode” to [IDE].

STEP 2: Install Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS on your

system.

English

ASRock H67M Motherboard

English

3. BIOS Information

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up

the computer, please press <F2> or <Del> during the Power-On-Self-Test (POST)

to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you

wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl>

+ <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS

Setup program is designed to be user-friendly. It is a menu-driven program, which

allows you to scroll through its various sub-menus and to select among the prede-

termined choices. For the detailed information about BIOS Setup, please refer to the

User Manual (PDF ﬁ le) contained in the Support CD.

4. Software Support CD information

This motherboard supports various Microsoft

Windows

operating systems: 7 / 7

64-bit / Vista

/ Vista

64-bit / XP / XP 64-bit. The Support CD that came with the

motherboard contains necessary drivers and useful utilities that will enhance moth-

erboard features. To begin using the Support CD, insert the CD into your CD-ROM

drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your

computer. If the Main Menu does not appear automatically, locate and double-click

on the ﬁ le “ASSETUP.EXE” from the BIN folder in the Support CD to display the

menus.

ASRock H67M Motherboard

1. Einführung

Wir danken Ihnen für den Kauf des ASRock H67M Motherboard, ein zuverlässiges

Produkt, welches unter den ständigen, strengen Qualitätskontrollen von ASRock ge-

fertigt wurde. Es bietet Ihnen exzellente Leistung und robustes Design, gemäß der

Verpﬂ ichtung von ASRock zu Qualität und Halbarkeit. Diese Schnellinstallationsan-

leitung führt in das Motherboard und die schrittweise Installation ein. Details über

das Motherboard ﬁ nden Sie in der Bedienungsanleitung auf der Support-CD.

Da sich Motherboard-Speziﬁ kationen und BIOS-Software verändern

können, kann der Inhalt dieses Handbuches ebenfalls jederzeit geändert

werden. Für den Fall, dass sich Änderungen an diesem Handbuch

ergeben, wird eine neue Version auf der ASRock-Website, ohne weitere

Ankündigung, verfügbar sein. Die neuesten Graﬁ kkarten und unterstützten

CPUs sind auch auf der ASRock-Website aufgelistet.

ASRock-Website: http://www.asrock.com

Wenn Sie technische Unterstützung zu Ihrem Motherboard oder speziﬁ sche

Informationen zu Ihrem Modell benötigen, besuchen Sie bitte unsere

Webseite:

www.asrock.com/support/index.asp

1.1 Kartoninhalt

ASRock H67M Motherboard

(Micro ATX-Formfaktor: 24.4 cm x 21.8 cm; 9.6 Zoll x 8.6 Zoll)

ASRock H67M Schnellinstallationsanleitung

ASRock H67M Support-CD

Zwei Serial ATA (SATA) -Datenkabel (optional)

Ein I/O Shield

Ein 3D-Rot-Grün-Anaglyphenbrille (optional)

ASRock erinnert...

Zur besseren Leistung unter Windows

7 / 7, 64 Bit / Vista

/ Vista

64 Bit empfehlen wir, die Speicherkonﬁ guration im BIOS auf den AHCI-

Modus einzustellen. Hinweise zu den BIOS-Einstellungen ﬁ nden Sie in

der Bedienungsanleitung auf der mitgelieferten CD.

Deutsch

+ 223 hidden pages
