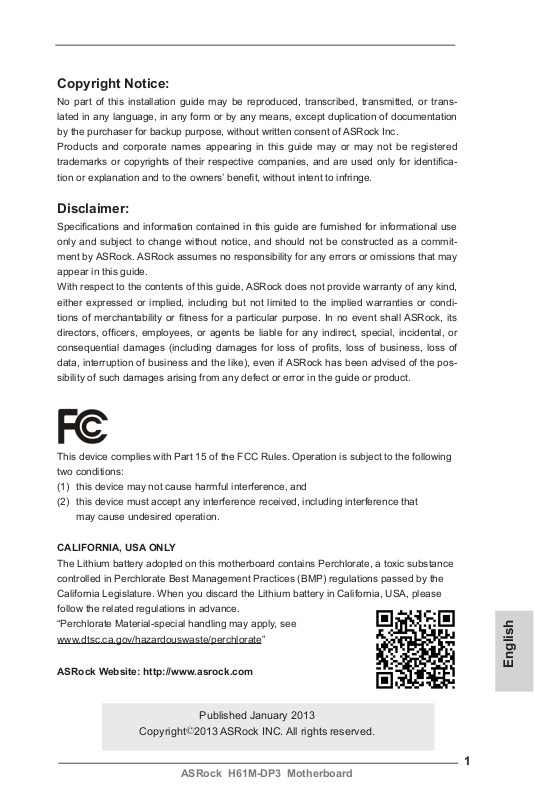

Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this guide are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the guide or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com
Published January 2013
Copyright©2013 ASRock INC. All rights reserved.
1
English
ASRock H61M-DP3 Motherboard
English
Motherboard Layout
|
|
|
|
|
1 |
2 |
3 |
4 |
5 |
|
|
Keyboard |
PS2 |
Mous e |
PS2 |
|
|
|
CPU_FAN1 |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
FastLAN |
|
ATX12V1 |
|
RoHS |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
VGA1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
X |
|
|
|
pinmodule) |
pinmodule) |
|
|
DVI1 |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
- |
- |
|
|
USB 2.0 |
|
|
|
|
|
|
DDR3 A1(64bit,240 |
DDR3 B1(64bit,240 |
ATXPWR1 |
|
|
T: USB0 |
|
|
|
|
|
|
6 |
||||
B: USB1 |
|
|
|
|
|
|
|
||||
|
|
|
|
LAN |
|
|
|
|
|||
|
|
|
|
PHY |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|||
USB 2.0 |
|
Top: |
XFast USB |
|
XFast RAM |
|
|
|
|||
T: USB2 |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||
B: USB3 |
|
RJ-45 |
|
|
|
|
|
|
|
||
MI Bottom: CI N |
FRON Center: T |
|
LINE IN |
Top: |
|
PWR_FAN1 H61M-DP3 |
|
|
|
|
|
|
AUDIO |
|
|
|
|
|
|
||||
|
CODEC |
|
|
|
PWRBTN |
RESET |
|
||||
|
|
|
|
|
7 |
||||||
|
|
|
|
|
|
|
|
|
PLED |
1 HDLED |
|
26 |
|
|
|
|
|
|
PCIE1 |
|
|
||
|
|
|
|
|
|
|
|
|
|
PANEL1 |
|
|
|
|
|
Super |
|
|
|
|
|
|
|
|
|
|
|
I/O |
|
|
CMOS |
Intel |
|
|
|
25 |
|
|
|
|
|
PCIE2 |
Battery |
|
8 |
||
|
|
|
|
|
|
H61 |
|
||||
|
|
|
|
|
|
|
|
||||
24 |
|
|
|
|
|
|
CLRCMOS1 |
SPEAKER1 |
9 |
||
|
|
|
|
|
|
1 |
|
1 |
|
||
|
|
|
|
|
|
|
CI1 |
|
|
|
|
23 |
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
32Mb |
10 |
|
|
|
|
|
|
|
|
|
|
|
BIOS |
|
22 |
|
|
|
|
|
|
PCI1 |
|
|
|
11 |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
SATA_3 |
SATA_1 |
|
|
|
|
|
|
|
|
LPT1 |
USB4_5 |
|
|
|
12 |
|
HD_AUDIO1 |
|
|
|
COM1 |
|
|
|
|||
|
|
|
|
|
|
1 |
|
USB6_7 |
CHA_FAN1 |
|
|
1 |
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
1 |
1 |
|
|
|
|
|
|
|
|
|
|
CIR1 |
SATA_2 |
SATA_0 |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
21 |
20 |
19 |
18 17 |
16 |
15 |
14 |
13 |
1 |
Power Fan Connector (PWR_FAN1) |
|
14 |
|
SATA2 Connector (SATA_0) |
|||
2 |
ATX 12V Power Connector (ATX12V1) |
15 |
|
SATA2 Connector (SATA_2) |
||||
3 |
1155-Pin CPU Socket |
|
|
16 |
|
USB 2.0 Header (USB6_7) |
||
4 |
CPU Fan Connector (CPU_FAN1) |
|
17 |
|
USB 2.0 Header (USB4_5) |
|||
5 |
2 x 240-pin DDR3 DIMM Slots |
|
18 |
|
Consumer Infrared Module Header (CIR1) |
|||
|
(Dual Channel: DDR3_A1, DDR3_B1) |
|
19 |
|
COM Port Header (COM1) |
|||
6 |
ATX Power Connector (ATXPWR1) |
|
20 |
|
Print Port Header (LPT1) |
|||
7 |
System Panel Header (PANEL1) |
|
21 |
|
Front Panel Audio Header (HD_AUDIO1) |
|||
8 |
Intel H61 Chipset |
|
|
22 |
|
PCI Slot (PCI1) |
|
|
9 |
Chassis Speaker Header (SPEAKER1) |
23 |
|
Chassis Intrusion Header (CI1) |
||||
10 |
32Mb SPI Flash |
|
|
24 |
|
Clear CMOS Jumper (CLRCMOS1) |
||
11 |
SATA2 Connector (SATA_3) |
|
25 |
|
PCI Express 2.0 x1 Slot (PCIE2) |
|||
12 |
SATA2 Connector (SATA_1) |
|
26 |
|
PCI Express 3.0 x16 Slot (PCIE1) |
|||
13 |
Chassis Fan Connector (CHA_FAN1) |
|
|
|
|
|
||
2
ASRock H61M-DP3 Motherboard
I/O Panel
1 |
2 |
3
4
5
10 |
9 |
8 |
|
7 |
6 |
|
1 |
PS/2 Mouse Port (Green) |
6 |
USB 2.0 |
Ports (USB23) |
||
* 2 |
LAN RJ-45 Port |
7 |
USB 2.0 |
Ports (USB01) |
||
3 |
Line |
In (Light |
Blue) |
8 |
DVI-D Port |
|
** 4 |
Front Speaker (Lime) |
9 |
D-Sub Port |
|||
5 |
Microphone (Pink) |
10 |
PS/2 Keyboard Port (Purple) |
|||
*There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.
LAN Port LED Indications
Activity/Link LED |
|
SPEED LED |
ACT/LINK |
SPEED |
|||||
|
LED |
LED |
|||||||
|
|
|
|
|
|||||
Status |
Description |
Status |
Description |
||||||
|
|
|
|
||||||
|
|
|
|
||||||
Off |
No Link |
|
Off |
10Mbps connection |
|
|
|
|
|
|
|
|
|
||||||
Blinking |
Data Activity |
|
Orange |
100Mbps connection |
|
|
|
|
|
On |
Link |
|
Green |
1Gbps connection |
|
|
|
|
|
|
|
|
|
LAN Port |
|
|
|
|
|
|
|
** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front |
|
||||
panel audio header. Please refer to below steps for the software setting of Multi-Streaming. |
|
||||
For Windows® XP: |
|
|
|
|
|
After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer |
|
||||
ToolBox” |
, click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or |
|
|||
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker |
English |
||||
and Front Speaker, or select “Realtek HDAAudio 2nd output” to use front panel audio. Then |
|||||
reboot your system. |
|||||
For Windows® 8 / 7 / VistaTM:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device advanced settings”, choose “Make front and rear output devices playbacks two different audio streams simultaneously”, and click “ok”. Then reboot your system.
3
ASRock H61M-DP3 Motherboard
1. Introduction
Thank you for purchasing ASRock H61M-DP3 motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.
This Quick Installation Guide contains introduction of the motherboard and step-by- step installation guide. More detailed information of the motherboard can be found in the user manual presented in the Support CD.
Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. www.asrock.com/support/index.asp
1.1 Package Contents
ASRock H61M-DP3 Motherboard (Micro ATX Form Factor)
ASRock H61M-DP3 Quick Installation Guide
ASRock H61M-DP3 Support CD
2 x Serial ATA (SATA) Data Cables (Optional)
1 x I/O Panel Shield
ASRock Reminds You...
To get better performance in Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit, it is recommended to set the BIOS option in Storage Configuration to AHCI mode. For the BIOS setup, please refer to the “User Manual” in our support CD for details.
English
4
ASRock H61M-DP3 Motherboard
1.2 Specifications
Platform |
- Micro ATX Form Factor |
|
- All Solid Capacitor design |
CPU |
- Supports 3rd and 2nd Generation Intel® CoreTM i7 / i5 / i3 in |
|
LGA1155 Package |
|
- Supports Intel® Turbo Boost 2.0 Technology |
|
- Supports K-Series CPU |
Chipset |
- Intel® H61 |
|
- Supports Intel® Rapid Start Technology and Smart Connect |
|
Technology |
Memory |
- Dual Channel DDR3 Memory Technology |
|
- 2 x DDR3 DIMM slots |
|
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered |
|
memory (DDR3 1600 with Intel® Ivy Bridge CPU, DDR3 |
|
1333 with Intel® Sandy Bridge CPU) |
|
- Max. capacity of system memory: 16GB (see CAUTION 1) |
|
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 with |
|
Intel® Ivy Bridge CPU |
Expansion Slot |
- 1 x PCI Express 3.0 x16 slot (PCIE1 @ x16 mode) |
|
* PCIE 3.0 is only supported with Intel® Ivy Bridge CPU. With |
|
Intel® Sandy Bridge CPU, it only supports PCIE 2.0. |
|
- 1 x PCI Express 2.0 x1 slot |
|
- 1 x PCI slot |
Graphics |
* Intel® HD Graphics Built-in Visuals and the VGA outputs can |
|
be supported only with processors which are GPU |
|
integrated. |
|
- Supports Intel® HD Graphics Built-in Visuals: Intel® Quick |
|
Sync Video 2.0, Intel® InTruTM 3D, Intel® Clear Video HD |
|
Technology, Intel® InsiderTM, Intel® HD Graphics 2500/4000 |
|
with Intel® Ivy Bridge CPU |
|
- Supports Intel® HD Graphics Built-in Visuals: Intel® Quick |
|
Sync Video, Intel® InTruTM 3D, Intel® Clear Video HD |
|
Technology, Intel® HD Graphics 2000/3000, Intel® Advanced |
|
Vector Extensions (AVX) with Intel® Sandy Bridge CPU |
|
- Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. |
|
Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge |
|
CPU. |
|
- Max. shared memory 1760MB with Intel® Ivy Bridge CPU. |
|
Max. shared memory 1759MB with Intel® Sandy Bridge |
|
CPU. |
English
5
ASRock H61M-DP3 Motherboard
English
|
|
|
- Dual VGA Output: support DVI and D-Sub ports by |
|
independent display controllers |
|
- Supports DVI with max. resolution up to 1920x1200 @ |
|
60Hz |
|
- Supports D-Sub with max. resolution up to 2048x1536 @ |
|
75Hz |
|
- Supports HDCP function with DVI port |
|
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback |
|
with DVI port |
Audio |
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s |
|
- Realtek RTL8111E |
|
- Supports LAN Cable Detection |
|
- Supports Energy Efficient Ethernet 802.3az |
|
- Supports PXE |
Rear Panel I/O |
I/O Panel |
|
- 1 x PS/2 Mouse Port |
|
- 1 x PS/2 Keyboard Port |
|
- 1 x D-Sub Port |
|
- 1 x DVI-D Port |
|
- 4 x Ready-to-Use USB 2.0 Ports |
|
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED |
|
LED) |
|
- HD Audio Jack: Line in / Front Speaker / Microphone |
Connector |
- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and |
|
Hot Plug functions |
|
- 1 x CIR header |
|
- 1 x Print Port header |
|
- 1 x COM port header |
|
- 1 x Chassis Intrusion header |
|
- 1 x CPU Fan connectors (4-pin) |
|
- 1 x Chassis Fan connector (4-pin) |
|
- 1 x Power Fan connector (3-pin) |
|
- 24 pin ATX power connector |
|
- 4 pin 12V power connector |
|
- Front panel audio connector |
|
- 2 x USB 2.0 headers (support 4 USB 2.0 ports) |
BIOS Feature |
- 32Mb AMI UEFI Legal BIOS with GUI support |
|
- Supports “Plug and Play” |
|
- ACPI 1.1 Compliance Wake Up Events |
|
- Supports jumperfree |
|
|
6
ASRock H61M-DP3 Motherboard
|
- SMBIOS 2.3.1 Support |
Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), |
|
CyberLink MediaEspresso 6.5 Trial, Google Chrome |
|
Browser and Toolbar |
Hardware |
- CPU Temperature Sensing |
Monitor |
- Chassis Temperature Sensing |
|
- CPU Fan Tachometer |
|
- Chassis Fan Tachometer |
|
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by |
|
CPU Temperature) |
|
- CPU/Chassis Fan Multi-Speed Control |
|
- CASE OPEN detection |
|
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
OS |
- Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / VistaTM / |
|
VistaTM 64-bit / XP / XP 64-bit compliant |
Certifications |
- FCC, CE, WHQL |
|
- ErP/EuP Ready (ErP/EuP ready power supply is required) |
* For detailed product information, please visit our website: http://www.asrock.com
WARNING
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
CAUTION!
1.Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 8 / 7 / VistaTM / XP. For Windows® OS with 64bit CPU, there is no such limitation. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.
English
7
ASRock H61M-DP3 Motherboard
1.3 Pin Header Easy Installation Guide
ASRock motherboard is equipped with pin headers with obvious colors which indicate you to recognize the crucial headers more easily. Please refer to below illustrations for the pin definition of onboard headers. If you want to have more information about the usage of these headers, please refer to “Jumpers Setup“ and “Onboard Headers and Connectors“ for details.
English
8
GND
PRESENCE#
MIC_RET
OUT_RET
1 |
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
Front Panel Audio Header
PLED+ |
PLED- |
PWRBTN# |
GND |
1 |
DUMMY REST# GND HDLED- |
HDLED+ |
System Panel Header
1
SPEAKER DUMMY
+5VDUMMY
Chassis Speaker Header
USB_PWR
P-
P+GND
DUMMY
1 |
GND |
P+ |
P-
USB_PWR
USB 2.0 Header
ASRock H61M-DP3 Motherboard
1.4 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when jumper cap is placed on these 2 pins.
Jumper |
Setting |
Description |
Clear CMOS Jumper |
|
|
(CLRCMOS1) |
|
|
(see p.2, No. 23) |
Default |
Clear CMOS |
|
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time and user default profile will be cleared only if the CMOS battery is removed.
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear Status” to clear the record of previous chassis intrusion status.
English
9
ASRock H61M-DP3 Motherboard
1.5 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard!
Serial ATA2 Connectors
(SATA_0: see p.2, No. 13) (SATA_1: see p.2, No. 11) (SATA_2: see p.2, No. 14) (SATA_3: see p.2, No. 10)
SATA_3 SATA_1
SATA_2 SATA_0
These four Serial ATA2 (SATA2) connectors support SATA data cables for internal storage devices. The current SATA2 interface allows up to 3.0 Gb/s data transfer rate.
Serial ATA (SATA) |
Either end of the SATA data |
Data Cable |
cable can be connected to the |
(Optional) |
SATA2 hard disk or the SATA2 |
|
connector on this motherboard. |
|
|
USB 2.0 Headers |
Besides four default USB 2.0 |
(9-pin USB4_5) |
ports on the I/O panel, there |
(see p.2 No. 16) |
are two USB 2.0 headers on |
|
this motherboard. Each |
|
USB 2.0 header can support |
|
two USB 2.0 ports. |
(9-pin USB6_7) |
|
(see p.2 No. 15) |
|
English
Consumer Infrared Module Header |
This header can be used to |
(4-pin CIR1) |
connect the remote |
(see p.2 No. 17) |
controller receiver. |
10
ASRock H61M-DP3 Motherboard
Loading...
