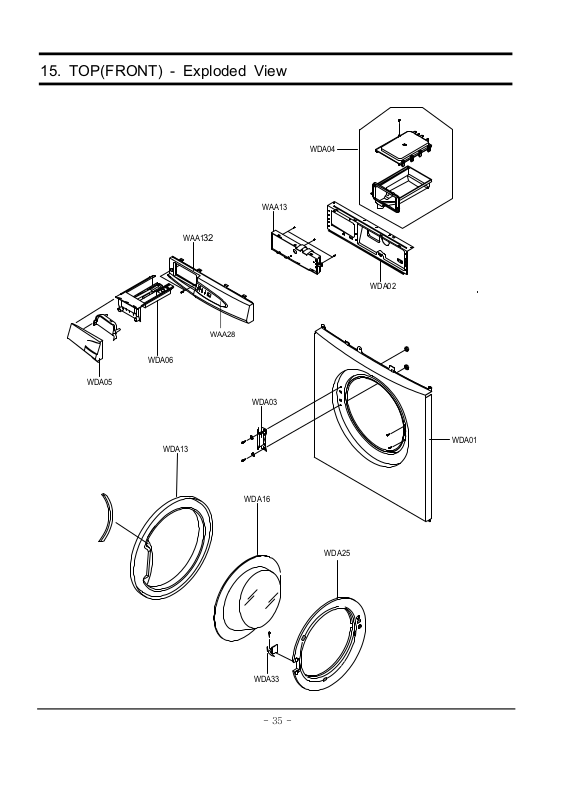

15. TOP(FRONT) - Exploded View

WDA04

WAA13

WAA1232

WDA02

WAA28

WDA06

WDA05

WDA03

WDA01

WDA13

WDA16

WDA25

WDA33

- 35 -

SAMSUNG S821 Schematics

15. TUB - Exploded View

WDB46

WDB12

WDB31

WDB35

WDB10

WDB38

WDB32

WDB34

WDB33

WDB06

WDB46

WDB02

WDB37

WDB26

WDB08

WDB39

WDB03

WDB42

WDB40

WDB17

WDB41

WDB29
