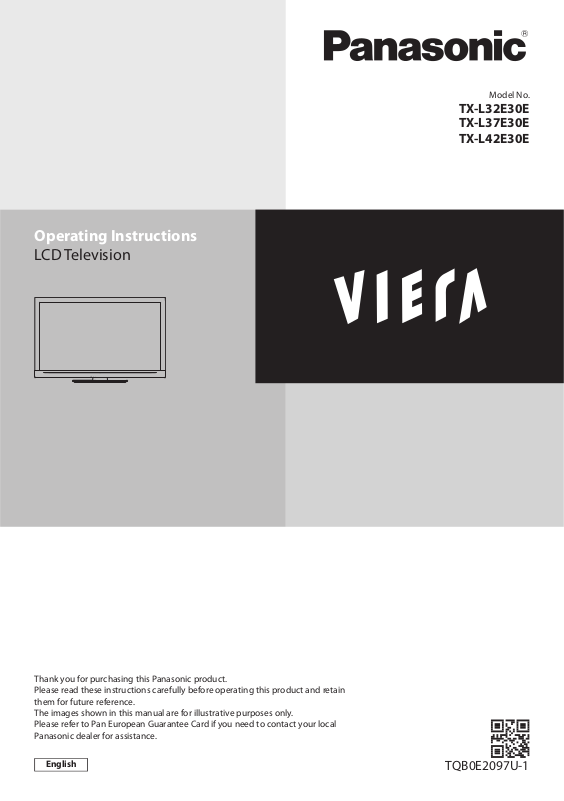

Operating Instructions
LCD Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
English
Model No.
TX-L32E30E TX-L37E30E
TX-L42E30E
TQB0E2097U-1
Experience an amazing level of multimedia excitement
Enjoy rich multimedia
USB device
Camcorder
SD Card
Network
Personal computer
Amplifier with
Speaker system
Set top box
DVD Recorder
VCR
DVD Player
USB HDD
Blu-ray Disc Player
Notice for DVB / Data broadcasting / IPTV functions
•This TV is designed to meet the standards (as of August, 2010) of DVB-T (MPEG2 and MPEG4-AVC(H.264)) digital terrestrial services and DVB-C (MPEG2 and MPEG4-AVC(H.264)) digital cable services.
Consult your local dealer for availability of DVB-T services in your area.
Consult your cable service provider for availability of DVB-C services with this TV.
•This TV may not work correctly with the signal which does not meet the standards of DVB-T or DVB-C.
•Not all the features are available depending on the country, area, broadcaster and service provider.
•Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
•This TV may not work correctly with CI module that is not approved by the service provider.
•Additional fees may be charged depending on the service provider.
•The compatibility with future services is not guaranteed.
•Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/
2
Transport only in upright position
Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/ or performance from usage of such other maker’s peripheral devices.
The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.
This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/
OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS,
OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY
INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
Be Sure to Read
Safety Precautions····································································4
Maintenance ··············································································5
Quick Start Guide
Accessories / Options······························································6
Identifying Controls·································································8
Basic Connection··································································· 10
Auto Setup··············································································· 12
Enjoy your TV!
Basic Features
Using “VIERA Connect”························································ 16
Watching TV ············································································ 17 Using TV Guide······································································· 21 Viewing Teletext····································································· 24
Watching External Inputs ··················································· 26 How to Use VIERA TOOLS ··················································· 28 How to Use Menu Functions············································· 29
Advanced Features
Retuning from Setup Menu··············································· 37 Tuning and Editing Channels (DVB) ······························· 39 Tuning and Editing Channels (Analogue)····················· 42 Timer Programming ····························································· 44 Child Lock················································································· 46 Input Labels············································································· 48 Using Common Interface ··················································· 49
Shipping Condition ······························································ 50 Updating the TV Software·················································· 51 Displaying PC Screen on TV··············································· 52 USB HDD Recording ····························································· 53 Using Media Player ······························································· 57 Using Network Services (DLNA / VIERA Connect)··········· 69 Link Functions (Q-Link / VIERA Link)······························· 80 External Equipment······························································ 89
FAQs, etc.
Technical Information·························································· 92 FAQs ··························································································· 99 Licence ····················································································101
Specifications········································································102
3
Precautions Safety
Warning
Handling the mains plug and lead
•Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause fire.)
•Ensure that the mains plug is easily accessible.
•Do not touch the mains plug with a wet hand. This may cause electrical shock.
•Do not damage the mains lead, damaged lead may cause fire or electrical shock.
•Do not move the TV with the lead plugged into a socket outlet.
•Do not place a heavy object on the lead or place the lead near a high temperature object.
•Do not twist the lead, bend it excessively or stretch it.
•Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.
•Do not use a damaged mains plug or socket outlet.
•Ensure the TV does not crush the mains lead.
If you find any |
AC 220-240 V |
abnormality, |
50 / 60 Hz |
remove the mains plug |
|
immediately! |
|
Power source / Installation
•This TV is designed for:
•AC 220-240 V, 50 / 60 Hz
•Table-top use
Do not remove covers and
NEVER modify the TV yourself
•High voltage components may cause serious electrical shock, do not remove the rear cover as live parts are accessible when it is removed.
•There are no user serviceable parts inside.
•Have the TV checked, adjusted or repaired at your local Panasonic dealer.
Do not expose the TV to direct sunlight and other sources of heat
•Avoid exposing the TV to direct sunlight and other sources of heat.
To prevent the spread of fire, keep candles or other open flames away from this product at all times
Do not expose to rain or excessive moisture
•To prevent damage which might result in electric shock or fire, do not expose this TV to rain or excessive moisture.
•This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.
Do not place foreign objects inside the TV
•Do not allow any objects to drop into the TV through the air vents as fire or electric shock may result.
Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base
•The TV may fall or tip over.
Use only original dedicated pedestal / mounting equipment
•Using an unapproved pedestal or other fixtures may make the TV unstable, risking injury. Be sure to ask your local Panasonic dealer to perform the setup or installation.
•Use approved pedestals (p. 7) / wall-hanging brackets
(p. 6).
Do not allow children to handle SD Card or dangerous parts
•As with any small object, the SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of children.
•This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children.
4
Caution
When cleaning the TV, remove the mains plug
•Cleaning an energized TV may cause electric shock.
Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time
•This TV will still consume some power even in the Off mode, as long as the mains plug is still connected.
Do not expose your ears to excessive volume from the headphones
•Irreversible damage can be caused.
Do not apply strong force or impact to the display panel
•This may cause damage resulting in injury.
Do not block the rear air vents
•Adequate ventilation is essential to prevent failure of electronic components.
•Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table cloths and curtains.
•We recommend that a gap of at least 10 cm is left all around this TV even when placed inside a cabinet or between shelves.
•When using the pedestal, keep the space between the bottom of the TV and the surface where the TV is set.
•If pedestal is not used, ensure the vents in the bottom of the TV are not blocked.
Minimum distance
10
10 |
10 |
10 |
(cm)
First, remove the mains plug from the socket outlet.
Display panel, Cabinet, Pedestal
Regular care : |
For stubborn dirt : |
Gently wipe the surface of the display panel, cabinet, |
Dampen a soft cloth with clean water or diluted neutral detergent |
or pedestal by using a soft cloth to clean the dirt or |
(1 part detergent to 100 parts water). Then wring the cloth and |
fingerprints. |
wipe the surface. Finally, wipe away all the moisture. |
Caution
•Do not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.
•Take care not to subject the TV’s surfaces to water or detergent. A liquid inside the TV could lead to product failure.
•Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.
•The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
•Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.
Maintenance | Precautions Safety
5
Options / Accessories Guide Start Quick
Accessories / Options |
|
|
Standard accessories |
|
|
Remote Control |
Batteries for the |
Pedestal |
•N2QAYB000490 |
Remote Control (2) |
(p. 7) |
or |
R6 |
|
•N2QAYB000672 |
• (p. 7) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating Instructions |
|
|
|
Pan European Guarantee Card |
|
|
|
||
|
|
|
•Accessories may not be placed all together. Take care not to throw them away unintentionally.
•This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children.
Optional accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.
Wireless LAN Adaptor
•DY-WL10E-K |
Caution |
|
•To use the Wireless LAN Adaptor, an access point needs to be obtained. |
|
•It is recommended to use the Wireless LAN Adaptor with the extension cable. |
•To avoid malfunctions caused by radio wave interference, keep the TV away from the devices such as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when using the Wireless LAN Adaptor.
•Depending on the area, this optional accessory may not be available.
•Additional information for Wireless LAN Adaptor and access point may be on the following website.
(English only) http://panasonic.jp/support/global/cs/tv/
Communication Camera
•TY-CC10W |
Caution |
|
•This camera can be used on VIERA Connect (p. 16, 79). |
|
•Please also read the manual of the camera. |
|
•Depending on the area, this optional accessory may not be available. |
|
For details, consult your local Panasonic dealer. |
Wall-hanging bracket
•TY-WK3L2RW
The angle of wall-hanging bracket can be adjusted in “zero tilting (vertical)” and “10-degree tilting” for this TV.
Rear of the TV |
Screw for fixing the TV onto the wall-hanging |
|
|
200 mm |
bracket (not supplied with the TV) |
|
|
|
Depth of screw : |
200 mm |
minimum 4 mm, |
|
maximum 17 mm |
|
Diameter : M6 |
|
(View from the side) |
Holes for wall-hanging bracket installation |
Warning
•Failure to use a Panasonic bracket or choosing to mount the unit yourself will be done at the risk of the consumer. Always be sure to ask a qualified technician to carry out set up. Incorrect fitting may cause equipment to fall, resulting in injury and product damage. Any damage resulting from not having a professional installer mount your unit will void your warranty.
•When any optional accessories or wall hanging brackets are used, always ensure that the instructions provided are followed fully.
•Do not mount the unit directly below ceiling lights (such as spotlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.
•Take care when fixing wall brackets to the wall. Wall mounted equipment shall not be grounded by metal within the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
•To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.
6
Attaching the pedestal
Warning
Do not disassemble or modify the pedestal.
•Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any pedestal other than the one provided with this TV.
•Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
•If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately.
During assembly, use only screws supplied and make sure that all screws are securely tightened.
•If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV. It might fall over and become damaged and personal injury may result.
Ensure that the TV does not fall over.
•If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.
Two or more people are required to install and remove the TV.
•If two or more people are not present, the TV may be dropped, and personal injury may result.
A |
Assembly screw (4) |
C Bracket |
D Base |
|
|
•TBL5ZA3017 |
•TBL5ZX0140 (TX-L32E30E) |
|
|
TX-L32E30E |
•TBL5ZX0144 (TX-L37E30E) |
|
M5 × 15 |
(TX-L37E30E ) |
•TBL5ZX0149 (TX-L42E30E) |
B |
Assembly screw (4) |
•TBL5ZA3014 |
|
(TX-L42E30E) |
|
||
|
M4 × 30 |
|
|
1 |
Assembling the pedestal |
2 Securing the TV |
|
Use the assembly screws A to fasten the bracket C to the base D securely.
•Make sure that the screws are securely tightened.
•Forcing the assembly screws the wrong way will strip the threads.
A
C Hold the bracket not to
fall over
D
Use the assembly screws B to fasten securely.
•Tighten the four assembly screws loosely at first, then tighten them firmly to fix securely.
•Carry out the work on a horizontal and level surface.
B
B |
Front
|
Foam mat or thick soft cloth |
Installing / removing remote’s batteries |
|
1 |
Caution |
Pull open |
•Incorrect installation may cause battery leakage and corrosion, resulting |
|
in damage to the remote control. |
Hook |
•Do not mix old and new batteries. |
2 |
•Replace only with same or equivalent type. Do not mix different battery |
types (such as alkaline and manganese batteries). |
|
Close |
•Do not use rechargeable (Ni-Cd) batteries. |
|
•Do not burn or break up batteries. |
|
•Do not expose batteries to excessive heat such as sunshine, fire or the like. |
Note the correct |
•Make sure you dispose of batteries correctly. |
polarity (+ or -) |
•Ensure batteries are replaced correctly, there is danger of explosion and |
fire if battery is reversed.
•Do not disassemble or modify the remote control.
Options / Accessories Guide Start Quick
7
Remote Control
|
1 |
|
SD CARD |
|
|
INPUT |
15 |
|||
|
2 |
|
|
|
|
TV |
AV |
|||
|
MENU ASPECT |
|
|
|
DIRECT TV REC |
16 |
||||
|
3 |
|
|
|
||||||
|
|
|
|
|
|
|
|
|||
|
4 |
|
|
|
|
|
|
EXIT |
17 |
|
Quick |
5 |
|
|
|
T |
|
|
|
18 |
|
6 |
|
V |
|
|
S |
|
||||
|
RA |
O |
|
|||||||
|
|
in |
|
|
OL |
U |
|
|||
|
|
|
IE |
|
|
|
||||
|
7 |
|
k |
|
|
|
|
G |
19 |
|
Start |
A |
L |
|
|
|
|
I |
|||
|
|
|
|
|
|
D |
|
|||
|
R |
|
|
|
|
|
|
|
||
|
|
E |
|
|
|
|
|
E |
|
|
|
|
I |
|
|
|
|
|
|
||
|
8 |
V |
|
|
|
|
|
|
20 |
|
Guide |
|
|
|
|
|
|
BACK/ |
|||
9 |
OPTION |
|
|
|
|
21 |
||||
|
|
|
|
|
|
RETURN |
|
|||
Identifying |
|
|
|
|
|
|
|
|
22 |
|
10 |
TEXT STTL INDEX HOLD |
23 |
||||||||
|
||||||||||
|
|
|
|
|
|
|
|
|||
|
11 |
|
|
|
|
|
|
|
24 |
|
Controls |
|
|
|
|
abc |
|
def |
|
||
12 |
|
ghi |
|
jkl |
|
mno |
|
|||
|
|
|
|
|
||||||
|
|
|
pqrs |
|
tuv |
|
wxyz |
|
||
|
13 |
|
|
|
|
|
|
|
25 |
|
|
|
|
|
|
|
|
|
LAST VIEW |
|
|
|
14 |
|
|
|
|
|
|
|
26 |
REC PROGRAMME
27
DVD/VCR TV
TV
1Standby On / Off switch
•Switches TV On or Off standby
2 |
[Media Player] |
(p. 57) |
|
•Switches to SD Card and USB device viewing / |
|
|
listening mode |
|
3 |
[Main Menu] |
(p. 29) |
|
•Press to access Picture, Sound, Timer and Setup |
|
|
Menus |
|
4 |
Aspect (p. 20) |
|
•Changes aspect ratio |
||
5 |
Information |
(p. 18) |
•Displays channel and programme information |
||
6 |
VIERATOOLS |
(p. 28) |
|
•Displays some special feature icons and accesses |
|
|
easily |
|
7 |
[VIERA Link Menu] (p. 84) |
8OK
•Confirms selections and choices
•Press after selecting channel positions to quickly change channel
•Displays the Channel List
9[Option Menu] (p. 19)
•Easy optional setting for viewing, sound, etc.
10 Teletext (p. 24)
•Switches to teletext mode
11Subtitles (p. 18)
•Displays subtitles
12Numeric buttons
•Changes channel and teletext pages
•Sets characters
•When in Standby mode, switches TV On (Press for about 1 second)
13Sound Mute
•Switches sound mute On or Off
14Volume Up / Down
15Input mode selection
•TV - switches DVB-C / DVB-T / Analogue mode
(p. 17)
•AV - switches to AV input mode from Input Selection list (p. 26)
16Direct TV Recording (p. 82, 84)
•Records programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection
17[VIERA Connect] (p. 16, 79)
•Displays VIERA Connect home screen
18Exit
•Returns to the normal viewing screen
19TV Guide (p. 21)
20Cursor buttons
•Makes selections and adjustments
21Return
•Returns to the previous menu / page
22Coloured buttons (red-green-yellow-blue)
•Used for the selection, navigation and operation of various functions
23Hold
•Freeze / unfreeze picture (p. 19)
•Holds the current teletext page (teletext mode)
(p. 24)
24Index (p. 24)
•Returns to the teletext index page (teletext mode)
25Last view (p. 20)
•Switches to previously viewed channel or input mode
26Channel Up / Down
27Connected equipment operations (p. 27, 56, 58, 76, 87)
8
TV
1 |
|
|
F |
2 |
|
|
7 |
|
|
|
|
3 |
|
|
8 |
|
|
TV |
|
|
|
|
|
4 |
|
|
AV 9 |
|
|
|
|
5 |
11 |
12 |
13 |
|
|
10 |
|
6 |
|
|
|
|
|
|
1 AV2 terminals (p. 91)
2 Headphones jack (p. 91)
3 CI slot (p. 49)
4 SD Card slot (p. 57)
5 HDMI4 terminal (p. 91)
6 USB 3 port (p. 91)
7Function select
•[Volume] / [Contrast] / [Brightness] / [Colour] /
[Sharpness] / [Tint] (NTSC signal) / [Bass] / [Treble] /
[Balance] / [Auto Setup] (p. 37, 38)
[Music] or [Speech] mode in the Sound Menu
8Channel Up / Down, Value change (when using the F button), Switching the TV On (press either button for about 1 second when in Standby mode)
9 Changes the input mode
10Mains power On / Off switch
•Use to switch the mains power.
If you turned the TV Off during Standby mode by the remote control last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.
11Remote control signal receiver
•Do not place any objects between the TV remote control signal receiver and remote control.
12C.A.T.S. (Contrast Automatic Tracking System) sensor
•Senses brightness to adjust picture quality when [Eco Mode] in the Picture Menu is set to [On] (p. 30)
13Power and Timer LED
•Red : Standby
Green : On
Orange : Timer Programming On
Orange (flash) :
Recording of Timer Programming, Direct TV
Recording or One Touch Recording in progress
Red with orange flash :
Standby with Timer Programming On, Direct TV Recording or One Touch Recording
•The LED blinks when the TV receives a command from the remote control.
Controls Identifying Guide Start Quick
Using the On Screen Displays - Operation guide
Many features available on this TV can be accessed via the On Screen Display menu.
Operation guide
Operation guide will help you to operate by using the remote control.
Example : [Sound Menu]
Main Menu |
|
|
|
1/2 |
|||
|
|
|
|
|
|
|
|
|
Picture |
Mode |
Music |
|
|
||
|
Bass |
|
|
|
0 |
||
|
Sound |
Treble |
|
|
|
0 |
|
|
Balance |
|
|
|
0 |
||
|
|
|
|
|
|
|
|
|
Timer |
Headphone Volume |
|
|
|
11 |
|
|
|
Surround |
Off |
|
|
||
|
Setup |
Auto Gain Control |
Off |
|
|
||
|
|
Volume Correction |
|
|
|
0 |
|
|
|
Speaker Distance to Wall |
Over 30cm |
|
|
||
|
|
|
|
|
|
|
|
Select |
Selects the basic sound mode. |
|
|
||||
Change |
EXIT |
Page up |
|||||
|
|
|
Page down
RETURN
Operation guide
How to use remote control
MENU
Open the main menu
Move the cursor / select the menu item / select from a range of options
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options have been set
BACK/ |
Return to the |
EXIT |
Exit the menu system |
RETURN |
|
and return to the |
|
|
previous menu |
|
|
|
|
normal viewing screen |
|
|
|
|
Auto power standby function
The TV will automatically go to Standby mode in the following conditions :
•no signal is received and no operation is performed for 30 minutes in Analogue TV mode
•[Off Timer] is active in the Timer Menu (p. 19)
•no operation is performed for the period selected in [Auto Standby] (p. 33)
•This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.
9
Guide Start Quick
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Example 1 |
|
Example 2 |
|
Connecting aerial |
|
Connecting DVD Recorder / VCR |
|
TV only |
|
TV, DVD Recorder or VCR |
|
Rear of the TV |
Terrestrial aerial |
Rear of the TV |
Terrestrial aerial |
|
Cable |
|
Cable |
Connection Basic
RF cable
|
|
AC 220-240 V |
|
|
|
|
50/ 60 Hz |
|
|
■How to use the clamper |
|
|
|
|
bundling the mains lead |
|
|
|
|
To loosen : |
|
Mains lead |
|
|
|
|
|
||
AC 220-240 V |
|
RF cable |
|
|
50/ 60 Hz |
|
|
||
Keep pushing the |
|
Fully wired |
|
|
knob |
|
|
||
knob |
|
SCART cable |
|
|
Bundle the cables |
|
|
|
|
Mains lead |
|
|
|
|
|
|
RF OUT |
DVD Recorder or VCR |
|
|
Set the tip in the |
|
|
|
|
|
|
|
|
hooks |
hooks |
|
|
RF cable |
|
RF IN |
|
||
|
|
|
|
To remove from the TV:
snaps
Keep pushing both side snaps
•Do not bundle the RF cable and mains lead together (could cause distorted image).
•Fix cables with clampers as necessary.
•When using the optional accessory, follow the option’s assembly manual to fix cables.
Note
•Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p. 82).
•For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI cable (p. 89).
•Q-Link and VIERA Link connec (p. 80, 81)
•Please also read the manual of the equipment being connected.
•Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,
distortion of image / sound may occur or operation of other equipment may be interfered.
10
Example 3
Connecting DVD Recorder / VCR and Set top box
TV, DVD Recorder / VCR and Set top box
Rear of the TV |
|
|
|
|
|
|
|
Terrestrial aerial |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cable
RF cable
AC 220-240 V
50/ 60 Hz
|
|
Fully wired |
|
Fully wired |
SCART cable |
Fully wired HDMI |
SCART cable |
|
compliant cable |
|
|
Mains lead
Set top box |
DVD Recorder or |
|
|
VCR |
RF IN |
||
|
|||
|
RF cable |
RF OUT |
|
|
|
Connection Basic Guide Start Quick
■Connecting to the network environment (Network connections)
To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network |
|||
environment. |
|
|
|
•If you do not have any broadband network services, please consult your retailer for assistance. |
|
||
•Connect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection). |
|
||
•Setup of the network connection will start after the tuning (when first using the TV) |
(p. 13 - 15) |
|
|
Rear of the TV |
Wired connection |
|
Internet |
|
|
|
|
|
LAN cable (Shielded) |
|
environment |
|
|
|
|
|
•Use the Shielded Twist Pair (STP) LAN cable. |
|
|
|
Wireless connection |
|
|
|
Wireless LAN Adaptor and Extension cable |
Internet |
|
|
“Optional accessories” (p. 6) |
|
|
|
|
environment |
|
|
•Connect to the USB 1, 2 or 3 port. |
|
|
|
Access point |
|
|
|
|
|
|
Note |
|
|
|
•For more information of the network connec |
(p. 70) |
|
|
11
Setup Auto Guide Start Quick
Search and store TV channels automatically.
•These steps are not necessary if the setup has been completed by your local dealer.
•Please complete connections (p. 10, 11) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the manual of the equipment.
1 |
Plug the TV into mains socket and switch On |
|||||||||
|
|
|
|
•Takes a few seconds to be displayed |
|
|
||||
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|||||
|
|
|
|
•If the red LED shows on the TV, press the Standby On / Off switch on the |
||||||
|
|
|
|
|
remote control for about 1 second. |
|
|
|||
|
|
|
|
|
|
|
||||
2 |
Select the language |
|
|
|||||||
|
Menüsprache |
|
|
|
|
select |
||||
|
|
|
|
|
|
|
||||
|
|
|
Deutsch |
Dansk |
Polski |
Srpyski |
|
|
|
|
|
|
|
|
English |
Svenska |
čeština |
Hrvatski |
|
|
set |
|
|
|
Français |
Norsk |
Magyar |
Slovenščina |
|
|
||
|
|
|
|
Italiano |
Suomi |
Slovenčina |
Latviešu |
|
|
|
|
|
|
Español |
Türkçe |
Български |
eesti keel |
|
|
|
|
|
|
|
Português |
Еλληνικά |
Română |
Lietuvių |
|
|
|
|
|
|
|
Nederlands |
|
|
|
|
|
|
3 |
Select your country |
|||
|
Country |
|
|
|
|
|
|
|
|
|
|
Germany |
Denmark |
Poland |
|
|
Austria |
Sweden |
Czech |
|
|
France |
Norway |
Hungary |
|
|
Italy |
Finland |
Slovakia |
|
|
Spain |
Luxembourg |
Slovenia |
|
|
Portugal |
Belgium |
Croatia |
|
|
Switzerland |
Netherlands |
Estonia |
|
|
Malta |
Turkey |
Lithuania |
|
|
Andorra |
Greece |
Others |
select set
•Depending on the country you select, select your Region or store the Child LockPIN number (“0000” cannot be stored) by following the on screen instructions.
4 |
Select the mode you want to tune |
||||
|
TV Signal Selection |
|
|
select |
|
|
|
|
|
||
|
|
DVB-C |
|
|
|
|
|
DVB-T |
|
|
tune / skip tuning |
|
|
Analogue |
|
|
|
|
|
Start Auto Setup |
: tune (search for the available channels) |
||
|
|
|
: skip tuning |
5 |
Select [Start Auto Setup] |
select |
|
TV Signal Selection |
|
|
DVB-C |
|
|
DVB-T |
access |
Analogue
Start Auto Setup
•Auto Setup will start to search for TV channels and store them.
|
|
The stored channels and sorted channel order vary depending on the country, area, |
|
|
|
TV |
|
broadcasting system and conditions of signal reception. |
|
|
Auto Setup screen varies depending on the country you select.
12
5 |
1 [DVB-C Network Settings] |
|
|
|
|
|
|
||
•Depending on the country you select, select your cable provider beforehand by following the on screen instructions. |
|||||||||
|
|
DVB-C Network Settings |
|
|
|
select |
|
abc |
def |
|
|
|
|
|
|
|
|
|
|
|
|
Frequency |
Auto |
|
|
[Start Auto Setup] |
ghi |
jkl |
mno |
|
|
|
|
|
|
|
|||
|
|
Network ID |
Auto |
|
|
pqrs |
tuv |
wxyz |
|
|
|
|
|
access |
|
|
|
||
|
|
Start Auto Setup |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Normally set [Frequency] and [Network ID] to [Auto].
If [Auto] is not displayed or if necessary, enter [Frequency] and [Network ID] specified by your cable provider with numeric buttons.
2 [DVB-C Auto Setup] |
|
|
|
|
|
|
|
3 [DVB-T Auto Setup] |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DVB-C Auto Setup |
|
|
|
|
|
|
DVB-T Auto Setup |
|
|
|
|
|
|
|||||||
|
Progress |
0% |
|
|
|
|
|
|
100% |
|
|
Progress |
|
CH 5 |
|
|
|
|
69 |
|
|
|
This will take about 3 minutes. |
|
|
|
|
|
|
|
|
This will take about 3 minutes. |
|
|
|
|
|
|
|||||
|
No. |
Channel Name |
|
Type |
Quality |
|
|
CH |
|
Channel Name |
Type |
|
Quality |
|
|||||||
|
1 |
CBBC Channel |
Free TV |
100 |
|
|
62 |
CBBC Channel |
Free TV |
|
100 |
|
|
||||||||
|
2 |
BBC Radio Wales |
Free TV |
100 |
|
|
62 |
BBC Radio Wales |
Free TV |
|
100 |
|
|
||||||||
|
3 |
E4 |
Free TV |
100 |
|
|
62 |
E4 |
Free TV |
|
100 |
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
62 |
Cartoon Nwk |
Free TV |
|
100 |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Free TV: 3 |
Pay TV: 0 |
|
Radio: 0 |
|
|
|
|
Free TV: 4 |
|
Pay TV: 0 |
Radio: 0 |
|
||||||||
|
|
Searching |
|
|
|
|
|
|
|
|
|
|
Searching |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
•Depending on the country you select, the channel selection screen will |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
be displayed after DVB-T Auto Setup if multiple channels have the same |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
logical channel number. Select your preferred channel or exit the screen |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
for automatic selections. |
|
|
|
|
|||||
4 [Analogue Auto Setup] |
|
|
|
5 Preset Download |
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
If Q-Link, VIERA Link or similar technology (p. 82, 83) compatible |
||||||||||||
|
Analogue Auto Setup |
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
recorder is connected, channel, language, country / region settings are |
|||||||||||
|
Scan |
CH 2 |
|
|
78 |
CC 1 |
|
|
41 |
|
|
||||||||||
|
This will take about 3 minutes. |
|
|
|
|
|
|
|
|
automatically downloaded to the recorder. |
|||||||||||
|
CH |
Channel Name |
|
|
|
|
|||||||||||||||
|
CH 29 |
|
|
|
|
|
|
|
|
|
|
Sending Preset Data |
|
|
|
|
|
|
|||
|
CH 33 |
BBC1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
Please wait! |
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
0% |
|
|
|
|
100% |
|
|
|||
|
Analogue: 2 |
|
|
|
|
|
|
|
|
Remote control unavailable |
|
|
|
|
|
|
|||||
|
|
Searching |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
•If downloading has failed, you can dow |
nload later through the Setup |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
Menu. [Download] (p. 34) |
|
|
|
|
|||||
6 Setup the network connection |
|
|
|
|
|
|
|
|
|
Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p. 16, 69).
•To setup the wireless connection, the Wireless LAN Adaptor (optional accessory) is required. Please note that this TV does not support wireless public access points.
•Ensure the network connections (p. 11) and network environment are completed before starting setup.
Select the network type
Network Setup |
|
|
[Wired] |
“Wired connection” (p. 11) |
|||||||
Select Wired or Wireless |
|
|
[Wireless] |
“Wireless connection” (p. 11) |
|||||||
|
|
|
|
|
|
•To setup later on or skip this step |
|||||
|
Wired |
|
Wireless |
|
Set later |
|
|
|
|
select |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
access |
EXIT |
|
Select [Set later] or |
||
|
■[Wired]
1. Select [Auto] |
|
|
|
|
Connection Test |
||
|
|
|
|
|
|
|
Check network cable connection. |
Acquire IP Address |
|
|
|
|
|||
|
|
|
|
Check acquired IP address. |
|||
|
Auto |
|
Manual |
|
|
Check for devices using same IP address. |
|
|
|
|
|
|
|
|
Check gateway connection. |
|
|
|
|
|
|
|
Check server connection. |
|
|
select |
|
Automatically setup is done and the test of the network |
|||
|
|
|
|||||
|
|
access |
|
||||
2. Go to the next step |
|
connection starts. |
|||||
7 |
•To set manually, select [Manual] and set each item. For |
||||||
|
|
|
|
||||
|
|
|
|
details |
(p. 72) |
(Press twice)
: succeeded
The test is successful and the TV is connected to the network.
: failed
Check the settings and connections, and then select [Retry].
Setup Auto Guide Start Quick
13
Setup Auto Guide Start Quick
6 |
■[Wireless] |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
Select the connection type |
|
|
|
|
|
|
|
|
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
select |
|
|
|
|
Connection Type |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
Please select network connection type. |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
access |
|
|
|
|
|
|
|
|
|
Search for access point |
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
WPS(Push button) |
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
[Search for access point] |
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
Access points found automatically are listed. |
|
|
|
|
|||||||||||||||||||||||||
|
|
1. Select your desired access point |
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
select |
|
||
|
|
Available Access Points |
|
|
|
|
|
|
|
||||||||||||||||||||||
|
|
|
|
|
|
|
|
||||||||||||||||||||||||
|
|
No. |
SSID |
|
Wireless type Encrypt Reception |
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
1 |
Access Point A |
|
11n(2.4GHz) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
2 |
Access Point B |
|
11n(5GHz) |
|
|
|
|
|
|
|
|
|
|
|
|
|
access |
|
|||||||||||
|
|
3 |
Access Point C |
|
11n(5GHz) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
: Encrypted access point |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•For the information of the |
•To set manually (p. 75) |
||||||
|
|
•To search access points again |
|||||||||||||||||||||||||||||
|
|
|
|
|
(yellow) |
highlighted access point |
(red) |
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
|
2. Access the encryption key input mode |
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Encryption Key Setting |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
|
Connection will be made with the following settings:- |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
|
SSID : Access Point A |
|
•If the selected access point is not encrypted, the confirmation screen |
|||||||||||||||||||||||||||
|
|
Authentication type : WPA-PSK |
|
||||||||||||||||||||||||||||
|
|
Encryption type : TKIP |
|
||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
Please input the encryption key. |
|
will be displayed. It is recommended to select the encrypted access |
|||||||||||||||||||||||||||
|
|
|
point. |
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
Encryption key |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
3. Enter the encryption key of the access point |
|
|
|
|
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Set characters |
Store |
|||||||
|
|
Access Point Settings |
|
||||||||||||||||||||||||||||
|
|
Encryption key |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
select |
BACK/ |
|||||||
|
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
R |
S |
T |
|
|
|
|
|
|
|
|
RETURN |
|
|
|
U |
V |
W |
X |
Y |
Z |
|
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
! |
: |
# |
|
|
|
|
|
|
|
|
|
|
|
|
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
l |
m |
n |
o |
p |
q |
r |
s |
t |
|
|
|
|
|
|
set |
|
||
|
|
u |
v |
w |
x |
y |
z |
( |
) |
+ |
- |
. |
* |
_ |
|
|
|
|
|
|
|
|
•You can set characters by using numeric buttons. |
||||||||
|
|
4. Select [Yes] |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
Access Point Settings |
|
|
|
|
|
|
select |
|
|||||||||||||||||||||
|
|
Encryption key is set to:- |
|
|
|
|
|
|
|
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
XXXXXXXX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
set |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
Select 'Yes' to confirm. |
|
•To re-enter the encryption key, select [No]. |
|||||||||||||||||||||||||||
|
|
Select 'No' to change. |
|
||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•If the connection has failed, check the encryption key, settings |
|||||||||||||||
|
|
|
|
|
|
Yes |
|
|
|
|
|
|
|
No |
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
and positions of your access point. And then, follow the on screen |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
instructions. |
|
||||||
|
|
5. After the access point setting is finished, perform the connection test |
|
||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
Connection Test |
|
|
|
|
|
|
: succeeded |
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
Check access point connection. |
|
|
|
|
|
|
The test is successful and the TV is connected to the |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
Check acquired IP address. |
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
Check for devices using same IP address. |
|
|
network. |
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
Check gateway connection. |
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
Check server connection. |
|
|
|
|
|
|
: failed |
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Check the settings and connections, and then select |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[Retry]. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•To set manually, select [Manual] and set each item. For |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
details (p. 72) |
|
|
|
6. Go to the next step |
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
|
|
7 |
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
(Press twice) |
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14
6[WPS(Push button)]
1. Press the WPS button on the access point until the light flashes 2. Connect the Wireless LAN Adaptor and the access point
WPS(Push button)
1) Please press the ‘WPS’ button on the access point until its light flashes.
|
|
|
2) When the light is flashing select ‘Connect’ on |
•Ensure that your access point supports WPS for this setup. |
|||||||
|
|
|
TV. |
|
|
|
|||||
|
|
|
If you are unsure, please check the instruction |
•WPS : Wi-Fi Protected Setup™ |
|||||||
|
|
|
manual of the access point. |
|
|
|
•If the connection has failed, check the settings and positions of your |
||||
|
|
|
|
Connect |
|
access point. And then, follow the on screen instructions. |
|||||
|
|
3. After the access point setting is finished, perform the connection test |
|||||||||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
Connection Test |
|
|
|
: succeeded |
|||
|
|
|
|
Check access point connection. |
|
|
|
The test is successful and the TV is connected to the |
|||
|
|
|
|
Check acquired IP address. |
|
|
|
||||
|
|
|
|
Check for devices using same IP address. |
|
network. |
|||||
|
|
|
|
Check gateway connection. |
|
|
|
||||
|
|
|
|
Check server connection. |
|
|
|
: failed |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4. Go to the next step |
|
|
|
|
|
|
Check the settings and connections, and then select |
||
|
|
7 |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
[Retry]. |
|
|
|
(Press twice) |
|
|
|
|
|
|
•To set manually, select [Manual] and set each item. For |
|
|
|
|
|
|
|
|
|
|
|
|
details (p. 72) |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
Select [Home] |
|
|
|
|
|
|
|
|||
|
Select [Home] viewing environment to use in your home environment. |
||||||||||
|
|
Please select your viewing environment. |
|
|
select |
||||||
|
|
|
Home |
|
Shop |
|
|
||||
|
|
|
|
|
|
set
■[Shop] viewing environment (for shop display only)
[Shop] viewing environment is the demonstration mode to explain main features of this TV.
Select [Home] viewing environment to use in your home environment.
•You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.
1 Return to viewing environment selection |
2 Select [Home] |
|
|
|
|
|||
screen |
|
|
|
|
|
|
|
|
|
|
|
Please select your viewing environment. |
|
|
select |
||
Shop |
|
|
|
Home |
Shop |
|
|
|
|
|
|
|
|
||||
You have selected shop mode |
|
BACK/ |
|
|
|
|
set |
|
|
|
|
|
|
|
|||
|
|
|
RETURN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Automatic Demo |
|
|
|
|
|
|
|
|
Off |
On |
|
|
|
|
|
|
|
To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
[Shipping Condition] (p. 50)
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the RF cable, and then, follow the on screen instructions.
Note
•To check channel list at-a-gl |
“Using TV Guide” (p. 21) |
|
•To edit or hide (skip) channe |
“Tuning and Editing Channels” (p. 39 - 43) |
|
•To retune all channe |
[Auto Setup] (p. 37, 38) |
|
•To add the available |
ode l |
[Add TV Signal] (p. 34, 35) |
•To initialise all settin |
[Shipping Condition] (p. 50) |
If you connect the Wireless LAN Adaptor later on, the confirmation screen will be displayed for the setup.
•To setup the wireless connec |
(p. 73 - 75) |
Wireless LAN adaptor connection
Wireless LAN adaptor connected, do you want to set it up?
No - Exit
Current network type : Wireless
Yes |
No |
Setup Auto Guide Start Quick
15
Connect” Using“VIERA
Using“VIERA Connect”
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as photos, videos, games, etc. from VIERA Connect home screen.
•This TV has no full browser function and all features of websites may not be available.
1 Turn power on
•Press for about 1 second
•Mains power On / Off switch should be On. (p. 9)
Enjoy selected internet content with VIERA Connect. Every time you turn on the TV, VIERA Connect introduction Simply press the OK / INTERNET button
banner appears. The banner is subject to change.
|
|
|
|
|
|
|
2 |
Access VIERA Connect |
•The button design varies |
||||||||||||||
|
|
|
|
|
|
|
|
While the banner is displayed |
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
INTERNET |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
or |
|
depending on the remote |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
control. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Example : |
|
|
|
|
|
|
• |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
Welcome to VIERA Connect™ |
|
|
|
|
|
|
Depending on the usage conditions, it may take a |
||||||
|
|
|
|
|
|
|
|
|
|
VIERA Connect™ home screen is subject to change without notice. |
|
|
|
while to read all the data. |
|||||||||
|
|
|
|
|
|
|
|
|
The services through VIERA Connect™ are operated by their respective service providers, and service may |
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
porarily or permanently without notice. Therefore, Panasonic will make no |
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
be discontinued eitherwtearrmanty for the content or the continuity of the services. |
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
All features of websites or content of the service may not be available. |
|
|
|
•Messages might be displayed before VIERA Connect |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
home screen. |
|
|
|
|
|
|
|
|
|
|
|
|
Don’t show this message again |
|
|
|
|
|
|
|
|
Please read these instructions carefully and follow the |
|||
■To exit from |
|
|
|
|
|
|
ENTER |
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
Some content may be inappropriate for some viewers. |
|
|
|
|
|
|
|
on screen instructions. |
|||||||||||
|
|
|
Some content may only be available for specific countries and may be presented in specific languages. |
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
VIERA Connect |
|
|
|
Example : VIERA Connect home screen |
•To go to the next level |
|||||||||||||||||
EXIT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[MORE] |
•To set the VIERA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•To back to the previous level |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[BACK] |
||||||
|
Connect instruction |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
banner display off |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
[VIERA Connect |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
Banner] (p. 36) |
|
|
|
|
|
|
|
|
|
MORE |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
BACK |
|
|
|
||||||||
■How to operate VIERA Connect (current as of January, 2011) |
|
•To return to the previous screen |
|||||||||||||||||||||
•To move the cursor / select the item |
|
|
|
|
|
•To access |
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
BACK/ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RETURN |
• |
When the key words are displayed on colour bar |
When options with |
•To return to VIERA Connect home |
||||||||||||||||||||
|
|
(red) |
(green) |
(yellow) |
|
(blue) |
•numbers are displayed |
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
screen |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
abc |
def |
|
INTERNET |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ghi |
jkl |
mno |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
pqrs |
tuv |
wxyz |
|
|
•Video communication (ex. Skype™) requires an exclusive Communication Camera TY-CC10W.
“Optional accessories” (p. 6)
For details, read the manual of the Communication Camera.
•You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect. You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features. For more information
“USB connection” (p. 97)
Note
•If you cannot access VIERA Connect, c |
the network connections (p. 11) and settings (p. 13 - 15). |
•For more information of VIERA Conne |
(p. 79) |
16
1 Turn power on
•Press for about 1 second
•Mains power On / Off switch should be On. (p. 9)
■VIERA Connect introduction banner appears
You can access to VIERA Connect and enjoy the various contents.
(p. 16)
•To remove this banner, leave for about 5 seconds or press any
buttons (except the buttons to access VIERA Connect).
•To set this banner display off [VIERA Connect Banner] (p. 36)
2 Select the mode |
•The selectable modes vary depending on the |
TV |
|
|
stored channels (p. 12). |
TV Selection
DVB-C
DVB-T
Analogue
select access
•Also possible to select the mode pressing the TV button repeatedly on the remote control or side panel of the TV. (p. 9)
•If [TV Selection] menu is not displayed, press the TV button to switch the mode.
|
|
|
|
|
|
|
1 |
|
|
Coronation Street |
|
|
|
20:35 |
|
Information banner (p. 18) |
|||
|
|
|
|
|
|
|
|
|
Now |
Info |
|
|
Change category |
|
|||||
|
|
|
|
|
|
|
BBC ONE WALES |
20:00 - 20:55 |
|
|
|
All DVB-T Channels |
|
|
|
|
|
||
Vo |
|
lume |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
3 |
Select a channel |
|
def •To select a more than two-digit channel position |
|||||||||||||||
|
|
||||||||||||||||||
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
up |
|
|
or |
|
abc |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
ghi |
jkl |
mno |
number, e.g. 399 |
||||
|
|
|
|
|
|
|
|
|
down |
|
|
|
pqrs |
tuv |
wxyz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
def |
wxyz |
wxyz |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■To select from the Channel List
All DVB-T Channels |
Sorting 123... |
6 Cartoon Nwk
7 BBC Radio Wales
8 BBC Radio Cymru
1 BBC ONE Wales
2BBC THREE
3BBCi
4CBBC Channel
select channel watch
•To sort channel names in alphabetical order (red)
•To change the category (blue)
■Select a channel using Information banner (p. 18)
1 Display Information banner if it is not displayed 2 While the banner is displayed, select the channel
■Select a channel using TV Guide (p. 21)
1 Display TV Guide |
2 Select the current |
|
G |
programme or channel |
|
select |
||
U |
||
D |
||
I |
|
|
E |
|
|
|
access |
|
|
|
select channel |
|||
|
|
|||||
|
|
|
watch |
|||
3 Select [View] (DVB mode) |
||||||
|
|
|
|
|
|
|
Das Erste |
|
|
|
|
|
select |
19:3020:00 |
|
|
|
|
|
watch |
|
|
|
|
|
|
|
View |
|
|
Timer Programming |
|||
|
|
|
|
|
||
|
|
|
|
|
|
|
•The postcode entry or update may be required depending on the country you select (p. 12). Follow the on screen instructions.
Note
•To watch pay- “Using Common Interface” (p. 49)
TV Watching
17
Other useful functions
Display Information banner
Display Information banner
|
•Also appears when changing a channel |
|
|
|
|
|
|
||||||
|
|
1 |
|
Example : DVB |
2 |
3 |
5 |
6 |
|
7 |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
1 |
HDTV |
|
Coronation Street |
|
|
|
20:35 |
|
|
|
|
|
|
|
|
|
All DVB-T Channels |
|
|||||
|
|
|
|
ZDF |
|
|
20:00 - 20:55 |
|
|
|
|
||
|
|
|
|
|
|
Now |
|
Info |
|
Change category |
|
||
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
Bad signal |
|
Dolby D+ |
|
|
|
|
45 |
|
|
1 Channel position and name |
|
|
|
|
5 Programme Start / Finish time (DVB) |
|||||||
|
2 Channel type ([Radio], [Data], [HDTV], etc.) / |
|
|
Channel number, etc. (Analogue) |
|
||||||||
|
Encrypted channel ( |
) / |
|
|
|
|
6 Progress time indicator of the selected programme |
||||||
|
TV mode ( |
, |
, |
) |
|
|
|
|
|
(DVB) |
|
|
|
|
3 Programme |
|
|
|
|
|
|
|
7 Category |
|
|
|
|
|
4 Current time |
|
|
|
|
|
|
|
•To change the category (DVB) |
select |
|||
|
|
|
|
|
|
|
|
|
|
(blue) |
|
|
|
TV Watching |
|
|
|
|
|
|
|
|
|
|
|
|
set |
Features available / Message meanings |
|
|
|
|
|
|
|
|
|||||
Sound mute On |
|
|
|
|
Teletext service available |
Multiple audio and video available |
|||||||
|
|
|
|
|
|||||||||
|
[Bad signal] |
|
|
|
|
|
|
|
|
|
[Stereo], [Mono] |
||
|
Poor TV signal quality |
|
|
Multiple audio available |
Audio mode |
|
|||||||
|
|
|
|
|
|
|
|
|
|
||||
|
[Dolby D+], [Dolby D], [HE-AAC] |
|
|
|
|
|
1 - 90 |
|
|
||||
|
Dolby Digital Plus, Dolby Digital or |
|
Multiple video available |
Off Timer remaining time |
|||||||||
|
HE-AAC audio track |
|
|
•For settings |
(p. 19) |
||||||||
|
|
|
|
|
|
|
|||||||
|
Subtitle service available |
|
|
|
|
|
|
|
|
||||
|
•To confirm another tuned channel |
•To watch the channel listed in the |
•Information on the next programme |
||||||||||
|
name |
|
|
|
|
|
banner |
|
|
|
(DVB) |
|
|
|
•To hide |
|
|
•Extra information (DVB) |
|
|
•To set display timeout |
|
EXIT |
[Banner Display Timeout] (p. 36) |
|
(Press again to hide the banner) |
Display subtitles
Display / hide subtitles (if available)
STTL |
•To change the language for DVB (if available) |
|
[Preferred Subtitles] (p. 35) |
Note
•If you press the STTL button in Analogue mode, it switches to teletext service and calls up a favourite page (p. 24). Press the EXIT button to return to TV mode.
18
Hold
Freeze / unfreeze picture
HOLD
Display the selectable settings for the current status
Check or change the current status instantly
OPTION |
•To change |
|
|
select / change |
|||
|
|
|
select |
|
|
||
|
|
|
|
|
|||
|
|
|
access |
|
|
store |
|
[Multi Video] (DVB mode) |
[Dual Audio] (DVB mode) |
[Teletext Language] (DVB mode) |
|||||
Allows you to select from a group of |
Allows you to select stereo / monaural |
Allows you to select between alternative |
|||||
multiple videos (if available) |
(if available) |
language for teletext (if available) |
|||||
•This setting is not memorized and it |
[Sub Channel] (DVB mode) |
[MPX] (Analogue mode) |
|||||
will return to the default setting once |
|||||||
you exit the current programme. |
Allows you to select the multifeed |
Selects multiplex sound mode (if |
|||||
|
|
|
|
programme - sub channel (if available) |
available) |
||
[Multi Audio] (DVB mode) |
[Subtitle Language] (DVB mode) |
[Sound Menu] (p. 32) |
|||||
Allows you to select between |
[Volume Correction] |
||||||
alternative language for sound tracks |
Allows you to select the language |
||||||
(if available) |
in which subtitles should appear (if |
Adjusts volume of individual channel or |
|||||
•This setting is not memorized and it |
available) |
input mode |
|||||
will return to the default setting once |
[Teletext Character Set] |
[Safely remove USB] |
|||||
you exit the current programme. |
|||||||
|
|
|
|
Sets the teletext language font |
Takes this operation to remove the |
||
|
|
|
|
[Setup Menu] (p. 35) |
connected USB device safely from the TV |
Off Timer
Turn the TV to Standby mode automatically after a fixed period 1 Display the menu
MENU
2 Select [Timer]
Main Menu |
select |
Picture |
access |
Sound |
|
Timer |
|
Setup |
|
3 Select [Off Timer] and set the time |
|
Timer Programming
Off Timer
Off
Auto Standby
15 minutes
30 minutes
45 minutes
60 minutes
75 minutes
90 minutes
select [Off Timer] |
select the time |
access |
store |
•To cancel Set to [Off] or turn the TV off.
•To confirm the remaining time “Display Information banner” (p. 18)
•When the remaining time is within 3 minutes, the remaining time will flash on the screen.
TV Watching
19
TV Watching
Aspect
Change the aspect ratio (image size)
ASPECT Enjoy viewing the image at its optimum size and aspect.
Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect
ratio automatically according to the “Aspect Control Signal” (p. 92).
■If you would like to change the aspect ratio manually
1 Display Aspect Selection list
ASPECT
Aspect Selection
Auto 16:9 14:9 Just 4:3 4:3 Full
Zoom1
Zoom2
Zoom3
Select
ChangeEXIT
RETURN
2 While the list is displayed, select the mode
select store
•You can also change the mode only using the ASPECT button.
ASPECT (Press repeatedly until you reach the desired mode)
Aspect Selection list
[Auto]
|
The best ratio is chosen and the image expanded to fill the screen. |
||
|
For details (p. 92) |
|
|
|
|
|
|
[16:9] |
|
[4:3 Full] |
|
|
Directly displays the image at 16:9 |
|
Displays a 4:3 image enlarged |
|
without distortion (anamorphic). |
|
horizontally to fit the screen. |
|
|
|
•HD signal only |
[14:9] |
|
[Zoom1] |
|
|
Displays the image at the standard 14:9 |
|
Displays a 16:9 letterbox or 4:3 image |
|
without distortion. |
|
without distortion. |
|
|
|
|
[Just] |
[Zoom2] |
||
|
Displays a 4:3 image full-screen. |
|
Displays a 16:9 letterbox (anamorphic) |
|
Stretching is only noticeable at the left |
|
image full-screen without distortion. |
|
and right edges. |
|
|
|
|
|
|
[4:3] |
|
[Zoom3] |
|
|
Displays the image at the standard 4:3 |
|
Displays a 2.35:1 letterbox (anamorphic) |
|
without distortion. |
|
image full-screen without distortion. |
|
|
|
At 16:9, displays the image at its |
|
|
|
maximum (with slight enlargement). |
|
|
|
Note
•Aspect is fixed to [16:9] when [Viewing Mode] is set to [Game] in the Picture Menu.
•Only [16:9] and [4:3] are available in PC input mode.
•Not available in teletext service.
•Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
Last view
Switch to previously viewed channel or input mode easily
•Press again to return to the present view.
LAST VIEW
Note
•Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is in progress.
•Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.
20
TV Guide - Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).
•This function varies depending on the country you select (p. 12).
•The postcode entry or update may be required to use the GUIDE Plus+ system depending on the country you select.
“View advertisement” (p. 22)
•DVB-T and Analogue channels are displayed on the same TV Guide screen. [D] means DVB-T channel and [A] means Analogue channel. There will be no programme listings for Analogue channels.
•When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.
■To return to TV
EXIT
1Select the mode
(p. 17)
|
TV |
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
View TV Guide |
|
|
|
|
|
|
|
|
|
||||
|
U |
• |
Press again to change the layout ([Landscape] / [Portrait]). |
|
||||||||||
|
G |
|
|
|||||||||||
|
D |
|
View [Landscape] to see many channels. |
|
|
|
|
|||||||
|
I |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
E |
|
View [Portrait] to see one channel at a time. |
|
|
|
|
|||||||
|
|
|
|
|
|
Using |
||||||||
|
Example : |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
[Landscape] (Displays by channel) |
|
|
|
|
|
|
|||||||
|
1 |
Wed 27.10.2010 |
|
|
TV Guide: Landscape |
|
|
|
|
|
1 |
Current date and time |
TV |
|
|
|
Wed 27.10.2010 |
|
|
All Types |
|
All Channels |
2 |
2 |
TV Guide date |
||||
|
10:46 |
1 BBC ONE |
Hot Wars |
|
|
Holiday Program |
Guide |
|||||||
|
D |
7 |
BBC THREE |
|
|
4 |
|
|
||||||
|
3 |
|
20:00 - 20:30 DIY SOS : We open in the Battersbys |
The Bill |
Red Cap |
|
3 |
TV Guide time |
|
|||||
|
|
D |
1 |
BBC ONE |
Das Erste |
|
DIY SOS |
|
|
|||||
|
|
|
|
|
Time: |
19:30 |
|
20:00 |
20:30 |
21:00 |
|
|
|
|
|
5 |
|
D |
70 |
BBC FOUR |
10 O’ clock News BBC |
Pepsi Char. |
Good bye |
|
4 |
Programme |
|
||
|
|
|
D |
14 |
E4 |
Emmerdal. |
|
Coronation Street |
The Bill |
|
5 |
|
|
|
|
|
|
D |
105 |
BBCi |
I’m A Celebrity |
Spring watch |
Pop Idol |
News |
|
Advertisement |
|
||
|
7 |
|
D |
72 |
BBC 2W |
Panorama |
|
|
Coast |
|
|
|
|
|
|
|
D |
105 |
BBC Radi |
Rugby |
|
15 To 1 |
|
The Bill |
6 |
6 |
Channel position and |
|
|
|
|
|
Select channel |
|
|
Info |
|
Page up |
|
|||||
|
|
|
|
|
EXIT |
|
GUIDE Change display mode |
|
|
name |
|
|||
|
|
|
|
|
Select programme |
Page down |
|
|
|
|||||
|
|
Timer Programming |
|
RETURN |
|
OPTION Select Advert |
|
|
7 |
[D] : DVB-T |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
-24 hours |
|
+24 hours |
|
|
Prog.Type |
|
Category |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
[A] : Analogue |
|
Example :
[Portrait] (Displays by time)
|
|
|
|
TV Guide: Portrait |
|
|
||||
Wed 27.10.2010 |
|
|
Wed 27.10.2010 |
|
All Types |
|
All Channels |
|
||
10:46 |
|
|
D 1 BBC ONE |
D |
7 BBC THREE |
D 14 E4 |
D 70 BBC FOUR |
|||
|
|
19:30-20:00 |
|
|
|
|
|
|
|
|
|
|
Das Erste |
|
|
|
|
|
|||
|
|
20:00-20:30 |
DIY SOS |
|
|
|
|
|
||
|
|
20:30-21:00 |
The Bill |
|
|
|
|
|
|
|
|
|
21:00-22:00 |
Red Cap |
|
|
|
|
|
||
|
|
22:00-23:00 |
Live junction |
|
|
|||||
|
|
23:00-23:30 |
POP 100 |
|
|
|
|
|
||
|
|
23:30-00:00 |
Rugby |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Select programme |
|
|
Info |
|
|
||||
|
|
|
EXIT |
|
|
Page up |
||||
|
|
|
|
|
GUIDE Change display mode |
|||||
|
|
|
Select channel |
|
Page down |
|||||
Timer Programming |
|
|
OPTION Select Advert |
|||||||
|
|
|
RETURN |
|
|
|
|
|
|
|
|
|
|
|
+24 hours |
|
Prog.Type |
Category |
Depending on the country you select, you can select the TV Guide type
[Default Guide] in [Display Settings] (p. 35)
If you select [Channel List], the channel list will appear when the GUIDE button is pressed.
■To watch the programme
1 Select the current programme or 2 Select [View] (DVB mode) channel
select
|
Das Erste |
|
|
|
|
select |
19:3020:00 |
|
|
|
|
watch |
|
access |
|
|
|
|
|
|
|
View |
|
Timer Programming |
•To use Timer Programming (p. 23) |
||
|
|
|
|
21
Guide TV Using
■To the previous day (DVB mode)
(red)
■To view a channel list of the selected type
(DVB mode)
(yellow)
(Type list) |
select type |
Prog.Type |
|
All Types |
view |
|
All Types
Movie
News
■To the next day (DVB mode)
(green)
■To view a channel list of the selected category
(blue) |
|
|
|
||
(Category list) |
|
|
select category |
||
|
|
||||
Category |
|
|
|
|
|
All Channels |
|
|
|
view |
|
|
|
|
|
|
|
|
|
|
|
|
|
All Channels |
|
|
|
||
|
|
|
|
|
|
All DVB-T Channels |
|
|
|
||
|
|
|
|
|
|
All Analogue Channels |
|
Only Analogue channels are listed |
|||
|
|
||||
|
|
|
|
|
|
Free TV
Pay TV
HDTV
Free Radio
Pay Radio
Favourites1
Favourites2 •To list favourite channels(p. 39)
Favourites3
Favourites4
Other useful functions
View details of the programme (DVB mode)
1 Select the programme |
2 View details |
||
|
|
select |
•Press again to return to TV Guide. |
|
|
||
|
|
|
View advertisement
Depending on the country you select, this TV supports the GUIDE Plus+ system in DVB-T or Analogue mode
The postcode entry or update is required. Follow the on screen instructions.
•Also possible to setup manually from the Setup Menu
[Update] / [Postcode] in [GUIDE Plus+ Settings] (p. 36)
•Enter your postcode when using this function for the first time. If you enter an incorrect postcode for your area, or no postcode is entered, advertisements may not be displayed correctly.
Display advertisement information |
|
OPTION •To display the latest advertisement |
|
[Update] in [GUIDE Plus+ Settings] (p. 36) |
|
■To change advertisements |
■To return to TV Guide |
BACK/ OPTION RETURN
or
Note
•To update the information continuously, the TV must be left in Standby mode.
22
Timer Programming (DVB mode)
Timer Programming is a timer to remind watching or record the programme to the external recorder or the USB HDD.
1 Select the forthcoming programme 2 Select the function ([Ext Rec.], [USB HDD Rec.] or [Reminder])
select |
|
(Timer Programming screen) |
select |
|||||
|
Timer Programming |
Wed 27.10.2010 10:46 |
|
|||||
set |
Function |
No. |
Channel Name |
Date |
Start |
End |
store |
|
Ext Rec. |
D 12 |
BBC ONE |
Wed 27.10.2010 |
20:00 |
20:30 |
|||
|
|
|
<TIMER> |
|
(30 min.) |
|
||
|
--- |
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
(--- min.) |
|
||
LED will turn to orange if |
--- |
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
(--- min.) |
|
|||
Timer Programming is set. |
--- |
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
(--- min.) |
|
|||
(Orange LED will flash if the recording of |
--- |
--- |
Remaining Capacity: |
--/-- |
--:-- |
--:-- |
|
|
Select timer |
|
(--- min.) |
|
|||||
Timer Programming is in progress.) |
Edit timer |
EXIT |
500GB (50%) |
0 9 |
|
1/1 |
|
|
|
RETURN |
|
|
|
|
|
||
|
[Ext Rec.] / [USB HDD Rec.] : |
|
|
|
||||
|
to record the programme to the external recorder or the USB HDD |
|||||||
|
When the start time comes, the channel will be switched automatically and the |
|||||||
|
video and audio signals will be output. 2 minutes before the starting time, a |
|||||||
|
reminder message appears if you are watching TV. |
|
||||||
|
[Reminder] : |
|
|
|
|
|||
LED |
to remind you to watch the programme |
|
||||||
When you are watching TV, a reminder message appears 2 minutes before the |
||||||||
|
||||||||
|
start time. Press the OK button to switch to the programmed channel. |
■To check / change / cancel a timer |
■To return to TV Guide |
programming event |
BACK/ |
“Timer Programming” (p. 44 - 46) |
RETURN |
|
■If you select the current programme
A confirmation screen asking whether you wish to watch or record the programme will appear.
Select [Timer Programming] and set [Ext Rec.] or [USB HDD Rec.] to record from the time you finish the timer programming event setting.
Das Erste |
|
|
|
select |
|
|
|
|
|||
19:3020:00 |
|
|
|
access |
|
|
|
|
|
||
View |
Timer Programming |
||||
|
|
|
|||
|
|
|
|
|
Note
•This function is not available in Analogue mode.
•Timer Programming only works reliably if correct time information is received via the signal from the broadcaster or service provider.
•No other channel can be selected while the recording of Timer Programming is in progress.
•When recording programmes to the external recorder, be sure to make the proper settings on the recorder connected to the
TV.
If a compatible recorder with Q-Link, VIERA Link or similar technologies is connected to the TV (p. 82, 83) and the [Link Settings] (p. 33) are completed, no setting of the recorder is required. Also read the manual of the recorder.
•When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording Setup] (p. 53).
Guide TV Using
23
Teletext Viewing
Teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FLOF (FASTEXT) mode?
In FLOF mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.
What is TOP mode? (in case of TOP text broadcasting)
TOP is a particular improvement of the standard teletext service that results in an easier search and effective guide.
•Fast overview of the teletext information available
•Easy to use step-by-step selection of the topical subject
•Page status information at the bottom of the screen
Available page up / down |
To select among subject blocks |
To select next subject within the subject |
||
(red) |
(green) |
(blue) |
block |
|
(After the last subject, it moves to the next |
||||
|
|
|
subject block.)
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be
altered and stored in the TV’s memory. |
“Store frequently viewed pages” (p. 25) |
||||||
■To change mode [Teletext] (p. 35) |
|
|
|
|
|||
1 |
TEXTSwitch to Teletext |
•Displays the index page (content varies |
|||||
|
|
|
|
|
|
|
depending on the broadcasters) |
|
|
Sub page number |
|
|
|||
|
|
<< 01 02 03 04 05 06 07 |
>> |
|
|||
|
|
|
|
|
17:51 28 Feb |
Time / date |
|
|
|
|
|
TELETEXT |
|
|
|
|
|
|
INFORMATION |
|
|
||
|
|
|
|
|
|
|
Colour bar |
|
Current page number |
|
|
||||
2 |
Select the page |
|
|
||||
|
|
abc |
def |
|
up |
|
or Coloured button |
|
pqrs |
tuv |
wxyz |
|
or |
|
|
|
ghi |
jkl |
mno |
|
|
|
|
|
|
|
|
|
down |
(Corresponds to the colour bar) |
|
|
■To adjust contrast |
|
As the blue bar is displayed |
||||
■To return to TV |
MENU |
|
|
|
|
||
|
|
|
|
|
|||
EXIT |
(Press three times) |
|
|
||||
|
|
|
|||||
Reveal hidden data |
|
|
|
|
|
|
INDEX |
Reveal hidden words e.g. quiz page answers |
Return to the main index page |
||||||
MENU |
•Press again to rehide. |
INDEX |
|||||
(red) |
|
|
|
|
|
|
|
HOLD |
|
|
|
|
|
|
Call up a favourite page |
Stop automatic updating |
|
|
|
|
|
View a favourite page stored |
|
(If you wish to hold the current page without updating) |
Call up the page stored on the blue button (List mode). |
||||||
HOLD •Press again to resume. |
|
|
|
|
|
STTL •Factory setting is “P103”. |
24
FULL / TOP / BOTTOM
MENU |
|
|
|
(green) |
|
(TOP) |
(BOTTOM) |
Normal (FULL) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(Expand the TOP half) |
|
|
|
(Expand the BOTTOM half) |
|
|
View in multi window
Watch TV and Teletext in two windows at once
MENU
Select Picture and text On or Off (Press twice)
•Operations can be made only in teletext screen.
Store frequently viewed pages
Store frequently viewed pages in the colour bar (List mode only)
As page is displayed
press and hold
(Corresponding coloured button)
The number changes to white.
■To change stored pages
Enter new page number |
press and hold |
abc def |
Coloured button you |
ghi |
jkl |
mno |
want to change |
pqrs |
tuv |
wxyz |
View sub page
View sub page (Only when Teletext is more than one page)
|
|
|
|
|
|
Appears at top of the screen |
•The number of sub pages varies depending on the |
||||||
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
broadcasters (up to 79 pages). |
||||
|
|
|
|
|
|
|
|
|
•It may take some time for searching, during which time |
||||
|
|
|
|
|
|
|
|
|
|||||
■To view specific sub page |
you can watch TV. |
||||||||||||
Enter the 4-digit number |
|
|
|
|
|||||||||
MENU |
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
||||||||
|
(blue) |
|
|
|
|
|
Example : P6 |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
mno |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Watch TV while waiting for update
View the TV picture while searching for a teletext page |
|
|
Teletext automatically updates itself when new information becomes available. |
||
|
Changes to TV screen temporarily |
|
MENU |
P108 |
Appears when updating |
|
||
|
(yellow) |
is completed |
|
|
(You cannot change the channel.)
•The news page provides a function that indicates arrival of latest news (“News Flash”).
View the updated page
(yellow)
Teletext Viewing
25
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input.
•To connect the equipment (p. 10, 11, 89 - 91)
The remote control is capable of operating some functions of selected external equipment.
“Operating the equipment with the TV remote control” (p. 27)
1 Turn the TV on
Inputs External Watching
TV
■To return to TV
TV
When connecting with SCART as example 2 or 3 (p. 10, 11)
Receives input signals automatically when playback starts
•Input signals are automatically identified by the SCART (pin 8) terminal.
•This function is also available for HDMI connections (p. 89).
If input mode is not switched automatically
Perform 2 and 3
•Check the setup of the equipment.
2 |
Display the input selection menu |
||
|
AV |
|
|
3 |
Select the input mode connected to the equipment |
||
|
Input Selection |
|
select |
|
|
AV1 |
|
|
AV2 |
watch |
|
COMPONENT |
||
|
PC
HDMI1
HDMI2
HDMI3
HDMI4
TV
SD Card/USB
•You can also select the input using the AV button on the remote control or the side panel of the TV (except [SD Card/USB]).
Press the button repeatedly until the desired input is selected.
•[SD Card/USB] : Switches to Media Player “Using Media Player” (p. 57)
•You can label or skip each input mode (except [SD Card/USB]). “Input Labels” (p. 48) Skipped inputs will not be displayed when the AV button is pressed.
4 View
AV1
Displays the selected mode
Note
•If the external equipment has an aspect adjustment function, set it to “16:9”.
•For details, see the manual of the equipment or ask your local dealer.
26
Operating the equipment with the TV remote control
The equipment connected to the TV can be directly operated with the below buttons of this TV remote control. |
|
||
|
|
Selection Switch for operating the connected equipment |
|
|
|
Select “DVD/VCR” to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc |
|
|
|
theatre or VCR |
|
DVD/VCR |
TV |
“How to change the code for the type of the equipment” (see below) |
|
Select “TV” to use USB HDD Recording, Media Player or VIERA Link |
|
||
|
|
|
|
|
|
“USB HDD Recording” (p. 55) |
|
|
|
“Media Player” (p. 58) |
|
|
|
“Using DLNA® features” (p. 76) |
|
|
|
“VIERA Link Control” (p. 86) |
|
|
|
Standby |
|
|
|
Set to Standby mode / Turn on |
|
|
|
Play |
|
|
|
Playback videocassette / DVD / video content |
|
|
|
Stop |
|
|
|
Stop the operations |
|
|
|
Rewind / Skip / Search |
|
|
|
VCR : |
|
|
|
Rewind, view the picture rapidly in reverse |
|
|
|
DVD / video content : |
Watching |
|
|
Skip to the previous track, title or chapter |
|
|
|
Press and hold to search backward |
|
|
|
Fast-forward / Skip / Search |
|
|
|
VCR : |
|
|
|
External |
|
|
|
Fast-forward, view the picture rapidly forward |
|
|
|
DVD / video content : |
|
|
|
Skip to the next track, title or chapter |
|
|
|
Press and hold to search forward |
Inputs |
|
|
Pause |
|
|
|
Pause / Resume |
|
|
|
|
|
|
|
DVD : Press and hold to play at slow speed |
|
PROGRAMME |
Channel Up / Down |
|
|
|
|
Select channel |
|
REC |
Record |
|
|
|
|
Start recording |
|
How to change the code for the type of the equipment
Each type of the Panasonic equipment has its own remote control code. Please change the code according to the equipment you want to operate.
1 Set the position to “DVD/VCR”
DVD/VCR TV
2 Press and hold during the following operations
Enter the appropriate code, see table below
|
abc |
def |
ghi |
jkl |
mno |
pqrs |
tuv |
wxyz |
Press
Type of the equipment |
Code |
DVD Recorder, DVD Player, Blu-ray Disc Player |
70 (default) |
Player theatre, Blu-ray Disc theatre |
71 |
VCR |
72 |
Note
•Confirm if the remote control works correctly after changing the code.
•The codes may be reset to default values if batteries are replaced.
•Some operations may not be possible on some equipment models.
27
You can access some special features easily by using the VIERA TOOLS function.
|
1 |
Display icons of the feature |
||
|
|
T |
|
|
|
|
ERA OO |
||
|
|
VI |
|
LS |
|
2 |
Select a feature |
||
■To return to TV |
|
|
|
|
EXIT |
|
VIERA Link Control |
||
or |
A TO |
|
|
|
VIER OLS |
|
|
|
select access
TOOLS VIERA Use to How
■Follow the operations of each feature
[VIERA Link Control] |
[Music] |
“VIERA Link Control” (p. 86) |
“Music mode” (p. 67) |
When two or more compatible equipment are |
|
connected, a selection screen will be displayed. |
|
Please select the correct description and access. |
|
[Photo] |
[VIERA Connect] |
“Photo mode” (p. 59) |
“VIERA Connect” (p. 79) |
[Video] |
[Media Server] |
“Video mode” (p. 63) |
“Using DLNA® features” (p. 76) |
[Recorded TV] |
|
“Recorded TV mode” (p. 65) |
|
When two or more available devices are connected, a selection screen will be displayed. Please select the correct description and access.
Note
•If the selected feature is not available, the demonstration to explain how to use it can be displayed. Press the OK button to view the demonstration after selecting the unavailable feature.
28
Various menus allow you to make settings for the picture, sound, and other functions.
TV
■To return to TV at any time
EXIT
■To return to the previous screen
BACK/
RETURN
■To change menu pages
up
down
1 |
Display the menu |
|
|
||
MENU •Displays the functions that can be set (varies according to the input signal) |
|||||
2 |
Select the menu |
|
|
||
|
Example : [Picture Menu] |
|
|
||
|
|
|
|
select |
|
|
|
Main Menu |
|
|
|
|
|
|
|
||
|
|
Picture |
|
|
access |
|
|
Sound |
|
|
|
|
|
Timer |
|
|
|
|
|
Setup |
|
|
|
3 |
Select the item |
|
|
||
|
Example : [Picture Menu] |
|
|
|
1/2 |
|
|
select |
||
|
|
|
||||
Viewing Mode |
Dynamic |
|
|
|
||
Contrast |
|
|
60 |
|
|
access |
Brightness |
|
|
0 |
|||
|
|
|
|
|||
Colour |
|
|
30 |
|
|
|
Sharpness |
|
5 |
|
|
|
|
Tint |
|
0 |
|
|
|
|
Colour Balance |
Warm |
|
|
|
||
Vivid Colour |
Off |
|
|
|
||
Eco Mode |
Off |
|
|
|
■Choose from among alternatives
|
|
|
|
|
|
|
|
|
|
|
|
Cool |
|
|
|
|
|
|
|
|
|
|
|
select |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
Normal |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Colour Balance |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
Warm |
|
|
|
|
|
|
|
|
|
|
|
store |
|
|||||
■Adjust using the |
|
|
|
|
|
|
|
|||||||||||||||||||||||
slide bar |
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||
Sharpness |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
|
|
|
change |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Moved |
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
store |
|
||||||
■Go to the next screen |
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||
Child Lock |
|
|
|
|
|
Access |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
Displays the |
|
next screen |
|
|
|
|
|
|
|
access |
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
■Enter characters by free input menu |
|
|||||||||||||||||||||||||||||
You can enter names or numbers freely for some items. |
|
|||||||||||||||||||||||||||||
|
User input |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Set characters one by one |
Store |
|||||||||||
|
Name |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
select |
BACK/ |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S |
|
|
|
|
|
|
|
|
RETURN |
||
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
R |
T |
|
|
|
|
|
|
|
||||
|
U |
V |
W |
X |
Y |
Z |
|
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
! |
: |
# |
|
|
|
set |
|
|||||
|
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
l |
m |
n |
o |
p |
q |
r |
s |
t |
|
|
|
|
||||||
|
u |
v |
w |
x |
y |
z |
( |
) |
+ |
- |
. |
* |
_ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 97)
■To reset the settings
•To reset the picture settings only
[Reset to Defaults] in the Picture Menu (p. 31)
•To reset the sound settings only
[Reset to Defaults] in the Sound Menu (p. 33)
•To initialise all settings
[Shipping Condition] in the Setup Menu (p. 36)
Functions Menu Use to How
29
Menu list
Menu Item
Viewing Mode
|
|
|
|
Use to How |
|
Contrast, Brightness, |
|
Menu |
|
||
|
Colour, Sharpness |
||
Functions |
Picture |
||
Tint |
|||
|
|
||
|
|
Colour Balance |
|
|
|
Vivid Colour |
|
|
|
Reversal Film Effect |
|
|
|
Eco Mode |
|
|
|
P-NR |
|
|
|
3D-COMB |
|
|
|
Screen Display |
Adjustments / Configurations (alternatives)
Basic picture mode
[Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] / [Photo]
In each Viewing Mode and input, [Contrast], [Brightness], [Colour], [Sharpness], [Tint], [Colour Balance], [Vivid Colour], [Eco Mode], [P-NR] and [3D-COMB] can be adjusted and stored to suit your particular viewing requirement.
•Set for each input signal.
[Dynamic] :
Provides enhanced picture contrast and sharpness when viewing in a bright room.
[Normal] :
Recommended for viewing under normal ambient room lighting conditions.
[Cinema] :
For watching movies in a darkened room with the improved performance of contrast,
black and colour reproduction
[True Cinema] :
Precisely reproduces the original quality of the image without any revision.
[Game] :
Fast response signal specifically to provide suitable images for playing games
•Not valid on TV mode
•A continuous record of time spent using Game mode can be displayed in the top right of the screen. [Playing Time Display] (p. 36)
[Photo] :
Set [Reversal Film Effect] to [On] to provide the suitable image quality for photos
•For HDMI input, Media Player and network service operations
Increases or decreases the levels of these options according to your personal preference
With an NTSC signal source connected to the TV, the picture hue can be adjusted to suit your taste
•For NTSC signal reception only
Allows you to set the overall colour tone of the picture [Cool] / [Normal] / [Warm]
•Not valid when [Viewing Mode] is set to [True Cinema].
Automatically adjusts colours to vivid ones [Off] / [On]
•Not valid on PC signal
Provides the picture effect such as the reversal film [Off] / [On]
•This function is available when [Viewing Mode] is set to [Photo].
Automatic Brightness Control function
Adjusts picture settings automatically dependent on ambient lighting conditions
[Off] / [On]
Picture Noise Reduction
Automatically reduces unwanted picture noise and flicker noise in the contoured parts of a picture [Off] / [Min] / [Mid] / [Max]
•Not valid on PC signal
Makes still or slow moving pictures look more vivid [Off] / [On]
•Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen. Set to [On] to display sharper and more accurate colours.
•For PAL or NTSC signal reception only
•Not valid on RGB, Component, PC, HDMI and Media Player
Turns the screen off when you select [Off]
[Off] / [On]
•The sound is active even if the screen turns off.
•Press any buttons (except Standby) to turn the screen on.
•This function is effective in reducing power consumption when listening to the sound without watching the TV screen.
30
