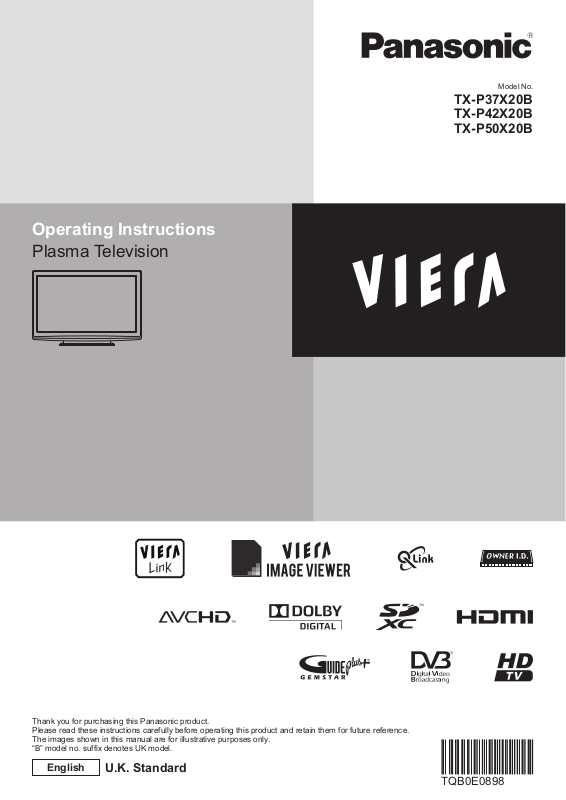

Model No.
TX-P37X20B
TX-P42X20B
TX-P50X20B
Operating Instructions
Plasma Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only.
“B” model no. suffix denotes UK model.
English U.K. Standard
TQB0E0898
Features
■DVB-T tuner built-in
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts
Easily select the programme or set Timer Programming by using TV Guide. (p. 18 - 20) Instantly call up favourite channels with Favourites Edit. (p. 39)
■GUIDE Plus+ (p. 20)
This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system.
■HD TV
This TV supports high definition TV signals.
■Sharp pictures and clear sound with HDMI connection (p. 67)
Enjoy high definition digital picture and high quality sound by using an HDMI cable.
●This TV incorporates HDMI (Version 1.4 with Audio Return Channel) and HDMI (Version 1.3a with x.v.Colour™) technology.
■VIERA IMAGE VIEWER - Media Player (p. 50 - 53)
Enjoy your photos or videos recorded in SD Card on the TV screen.
■SDXC Card
This TV supports SDXC Card. SDXC is the latest standards of SD Card and a higher storage capacity card.
■AVCHD
Possible to play the moving pictures recorded in SD Card by AVCHD format. AVCHD is a high definition video recording format. (p. 52)
■Dolby Digital decoder
Possible to decode Dolby Digital audio track (multi-channel sound) and output as Dolby Digital multi-channel sound signal from DIGITAL AUDIO OUT terminal.
■Link up and control the connected equipment with “Q-Link” and “VIERA Link” (p. 54 - 61) Easy recording and playback, create home theatre without complicated settings, etc.
■VIERA TOOLS - Display special feature icons for easy accessibility (p. 26) VIERA TOOLS is the easy way to access the special features with the VIERA TOOLS button.
■Owner ID (p. 47)
Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to determine the owner.
■Supports Audio Description signal (p. 15 and p. 29)
This function can add an additional sound track to describe events on screen (narration) and aids understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description sound track.
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region.
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. ●To retune your TV
“Auto Setup” in “DVB Tuning Menu”-DVB mode (p. 36)
Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new position.)
●Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels.
2
Contents
100Hz Double Scan
100Hz Double Scan is a function of this TV that reduces large area flicker.
0.001 msec Panel Response Time
Extremely fast response time to minimise picture lag.
2,000,000:1 Dynamic Contrast
A wide contrast ratio will deliver pictures with a deep black level and a brighter white level for greater image depth.
Provides suitable images for playing games
Selecting “Game” in Viewing Mode provides fast response to the input signal and you can enjoy playing games. (p. 28)
V-Audio Surround
Utilises Panasonic’s advanced digital amplification technology. (p. 29)
digital tick
The digital tick logo indicates that a digital
tuner is built-in.
Freeview
Freeview is the way to enjoy digital TV for free. There are up to 48 digital TV channels.
Be Sure to Read
●Safety Precautions (Warning / Caution) ················· 4
Quick Start Guide
●Accessories / Options ·······························6
●Identifying Controls ···································8
●Basic Connection ····································10
●Auto Setup ··············································12
Enjoy your TV!
Basic Features
●Watching TV ························································· 14
●Using TV Guide ···················································· 18
●Viewing Teletext···················································· 21
●Watching External inputs······································ 24
●How to Use VIERA TOOLS ·································· 26
●How to Use Menu Functions ································ 27
Guide Start Quick
Basic
■Do not display a still picture for a long time
This causes the image to remain on the plasma screen (“image retention”).
This is not considered a malfunction and is not covered by the warranty.
Typical still images
●Channel number and other logos ●Image displayed in 4:3 mode ●Video game
●Computer image
To prevent image retention, contrast is lowered automatically after a few minutes if no signals are sent or no operations are performed. (p. 68)
■Keep the TV away from these types of equipment
●Electronic equipment
In particular, do not place video equipment near the TV. Electromagnetic interference may distort images / sound.
●Equipment with an infrared sensor
This TV also emits infrared rays. This may affect operation of other equipment.
Advanced Features
●Retuning from Setup Menu ·································· 36
●Tuning and Editing Channels ······························· 38
●Timer Programming·············································· 42
●Child Lock····························································· 44
●Input Labels·························································· 45
●Shipping Condition ··············································· 46
●Owner ID ······························································ 47
●Using Common Interface······································ 48
●Updating the TV Software ···································· 49
●Using Media Player ·············································· 50
●Link Functions ····················································· 54 (Q-Link / VIERA Link)
●External Equipment ·············································· 62
FAQs, etc.
●Technical Information ··········································· 64
●FAQs ···································································· 68
●On screen messages ··········································· 71
●Maintenance························································· 73
●Glossary ······························································· 73
●Index····································································· 74
●Licence ································································· 74
●Specifications ······················································· 75
Advanced
.etc FAQs,
3
Safety Precautions
Warning
■Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
●This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.
●Insert the mains plug fully into the socket outlet. ●Ensure that the mains plug is easily accessible. ●Remove the mains plug when cleaning the TV.
●Do not touch the mains plug with a wet hand.
●Do not damage the mains lead.
• Do not place a heavy object on the lead.
• Do not place the lead near a high temperature object.
mains supply switch
If you detect
anything unusual,
immediately switch
off the mains supply switch and remove the mains plug
• Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.
•Do not move the TV with the lead plugged into a socket outlet.
• Do not twist the lead, bend it excessively or stretch it.
• Do not use a damaged mains plug or socket outlet.
• Ensure the TV does not crush the mains lead.
●Do not use any mains lead other than that provided with this TV.
●Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
•An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark ASA or the BSI mark on the body of the fuse.
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local Panasonic dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician. If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING: – THIS TV MUST BE EARTHED.
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
4
Warning
■Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
●Do not remove covers and never modify the TV yourself as live parts are accessible when they are removed. There are no user serviceable parts inside.
●Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.
●Do not expose the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.
●Do not place the TV on sloped or unstable surfaces.
●Do not insert foreign objects into the TV through the air vents.
●Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved pedestals / wall-hanging brackets.
●Do not apply strong force or impact to the display panel.
To prevent the spread of fire, keep candles or other open flames away from this product at all times
■Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young
children accidentally.
●Keep the dangerous parts out of reach of young children.
●Do not allow children to handle SD Card. As with any small object, the SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.
Caution
■Ventilation |
|
|
|
Allow sufficient space around the TV in order to help prevent excessive |
Minimum distance |
|
|
heat, which could lead to early failure of some electronic components. |
10 |
|
|
●Ventilation should not be impeded by covering the |
10 |
10 |
7 |
ventilation openings with items such as newspapers, |
|||
table cloths and curtains. |
|
|
|
●Whether you are using the pedestal or not, always ensure the vents in the |
|
|
|
bottom of the TV are not blocked and there is sufficient space to enable |
|
|
(cm) |
adequate ventilation. |
|
|
■Moving the TV
Before moving the TV, disconnect all cables.
●The TV is heavy. Move the TV with at least two people. Support as shown to avoid injury by the TV tipping or falling.
●Transport only in upright position. Transporting the TV with its display panel facing upward or downward may cause damage to the internal circuitry.
■When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.
●Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
■Excessive volume
Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.
5
Accessories / Options
Standard accessories Check that you have the accessories and items shown
□Remote Control |
TV AV |
□Batteries for the |
□Mains Lead |
|
●N2QAYB000487 |
|
Remote Control (2) |
●K2CT3YY00021 |
|
|
abc def |
●R6 |
|
p. 11 |
|
ghi jkl mno |
|
|
|
|
pqrs tuv wxyz |
|
|
|
|
TV |
□Pedestal |
|
|
□Operating Instructions |
|
|
||
□Product Registration Leaflet |
TX-P37X20B: |
TX-P42X20B: |
TX-P50X20B: |
|
●TBLX0148 |
●TBLX0138 |
●TBLX0139 |
||
|
|
●TXFBL01LNUU |
●TXFBL01LGUE |
●TXFBL01LNUU |
|
|
p. 7 |
|
|
Optional accessories |
Please contact your nearest Panasonic dealer to purchase the recommended |
|||
Wall-hanging bracket |
wall-hanging bracket. For additional details, please refer to the wall-hanging |
|||
bracket installation manual. |
||||
●TY-WK4P1RW |
||||
|
|
|
||
Rear of the TV |
|
Screw for fixing the TV onto the wall-hanging bracket |
||
|
|
|
||
|
400 mm |
|
(not supplied with the TV) |
|
|
|
Depth of screw: |
||
|
|
|
||
|
|
300 mm |
minimum 15 mm, maximum 30 mm |
|
|
|
|
||
Holes for wall-hanging |
(View from the side) |
|
|
bracket installation |
|
Warning
●Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
●Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.
●Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
●Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
●To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.
|
Installing / removing remote’s batteries |
|
||
1 |
Pull |
2 |
Close |
|
open |
||||
|
||||
|
|
|||
|
Hook |
Note the correct |
Caution |
|
|
|
polarity (+ or -) |
●Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control. ●Do not mix old and new batteries.
●Do not mix different battery types (such as alkaline and manganese batteries). ●Do not use rechargeable (Ni-Cd) batteries.
●Do not burn or breakup batteries.
Batteries must not be exposed to excessive heat such as sunshine, fire or the like. ●Do not disassemble or modify the remote control.
6
Attaching the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:
Warning
●Do not disassemble or modify the pedestal.
Caution
●Do not use any other TV and displays.
●Do not use the pedestal if it becomes warped or physically damaged. If it occurs, contact your nearest Panasonic dealer immediately.
●During setup, make sure that all screws are securely tightened. ●Ensure that the TV is not knocked.
●Ensure that children do not climb onto the pedestal with the TV installed. ●Install or remove the TV with at least two people.
Assembly screw (4) |
Assembly screw (4) |
(silver) |
(black) |
●XYN5+F18FN |
●THEL080N |
|
(TXTX--P50X20BP37X20B) |
|
●THEL079N |
|
(TX-P42X20B) |
Pole (2)
●R :TBLA3679 (TXTX--P37X20BP50X20B) TBLA3689 (TX-P42X20B)
●L :TBLA3680 (TXTX--P37X20BP50X20B) TBLA3690 (TX-P42X20B)
Base
●TBLX0148 (TX-P37X20B)
●TBLX0138 (TX-P42X20B)
●TBLX0139 (TX-P50X20B)
M5 × 18 |
M5 × 30 |
■Assembling the pedestal
Use the assembly screws
to fasten the left and right poles
to the base
securely.
●Make sure that the screws are securely tightened. ●Forcing the assembly screws the wrong way will strip
the threads.
●“L” or “R” mark is stamped on the bottom of the pole.
L R
A
- R
Front
D
- L
Options / Accessories● Guide Start Quick
■Securing the TV
Use the assembly screws to fasten securely. |
|
●Make sure that the screws are securely tightened. |
B |
●Carry out the work on a horizontal and level surface. |
Arrow mark
View from the bottom
Hole for pedestal installation
7
Identifying Controls
Remote Control
Media Player (p. 50)
●Switches to SD Card viewing mode (VIERA IMAGE VIEWER)
Standby On / Off switch
●Switches TV On or Off standby
Main Menu (p. 27)
●Press to access Picture, Sound and Setup Menus
Aspect (p. 16)
●Changes aspect ratio from Aspect Selection list
●Also possible by pressing this button repeatedly until you reach the desired aspect
SD CARD |
INPUT |
|
|
TV |
AV |
MENU ASPECT |
N |
DIRECT TV REC |
Channel / Programme Information (p. 15)
●Displays channel and programme information
VIERA Link Menu (p. 58)
●Accesses VIERA Link Menu
OK
●Confirms selections and choices OPTION ●Press after selecting channel positions
to quickly change channel
Option Menu (p. 17) |
|
●Easy setting for viewing and |
TEXT |
sound options |
|
EXIT
RETURN
STTL INDEX HOLD
Coloured buttons
●Used for the selection, navigation and operation of various functions
Teletext (p. 21)
●Switches to teletext mode
Subtitles (p. 15)
●Displays subtitles
Numeric buttons
●Changes channel and teletext pages ●Sets characters
●When in Standby mode, switches TV On (Press for about 1 second)
Sound Mute
●Switches sound mute On or Off
Volume Up / Down
abc
def
ghi |
jkl |
mno |
pqrs
tuv
wxyz
LAST VIEW
PROGRAMME
REC
Input mode selection
●TV - switches DVB / Analogue mode (p. 14)
●AV - switches to AV input mode from Input Selection list (p. 24)
Direct TV Recording (p. 56 and p. 58)
●Records programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection
Normalise (p. 27)
●Resets picture and sound settings to their default levels
Exit
●Returns to the normal viewing screen
VIERA TOOLS (p. 26)
●Displays some special feature icons and accesses easily
TV Guide (p. 18)
●Displays TV Guide
Cursor buttons
●Makes selections and adjustments
Return
●Returns to the previous menu / page
Hold
●Freeze / unfreeze picture (p. 14) ●Holds the current teletext page (teletext
mode) (p. 22)
Index (p. 23)
●Returns to the teletext index page (teletext mode)
Last view (p. 17)
●Switches to previously viewed channel or input mode
Channel Up / Down
●Selects channel in sequence
Connected equipment operations
(p. 25 and p. 60)
TV
8
TV
Remote control signal receiver
●Do not place any objects between the TV remote control signal receiver and remote control.
|
|
|
|
|
|
|
C.A.T.S. (Contrast Automatic Tracking System) sensor |
|
|
|
|
|
|
|
|
●Senses brightness to adjust picture quality when “C.A.T.S.” |
|
|
|
|
|
|
|
|
in the Picture Menu is set to “On” (p. 28) |
|
|
|
|
|
|
|
|
|
Power and Timer LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
●Red: Standby |
|
|
|
|
|
Function select |
|
|
Green: On |
|
|
|
|
|
|
|
Orange: Timer Programming On |
|
Common |
●Volume / Contrast / Brightness / Colour / Sharpness / |
Orange (flash): Ext Rec. of Timer Programming or |
||||||
Interface |
Tint (NTSC signal) / Bass (“Music” or “Speech” mode |
Direct TV Recording in progress |
||||||
|
|
F |
in the Sound Menu) / Treble (“Music” or “Speech” |
Red with orange flash: Standby with Timer Programming |
||||
|
|
|
|
|
|
|||
|
|
|
|
|
mode in the Sound Menu) / Balance / Auto Setup |
On or Direct TV Recording |
||
|
|
|
|
|
(p. 36 and p. 37) |
|
|
●The LED blinks when the TV receives a command from |
|
|
|
|
|
|
|
|
the remote control. |
|
TV |
Changes the input mode |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
AV |
Increases or decreases the channel position by one. |
||||||
|
|
|||||||
|
|
|
|
|
|
|||
|
|
|
|
|
CI slot (p. 49) |
When a function is already displayed, press to increase or decrease |
||
|
|
|
|
|
the selected function. |
|||
|
|
|
|
|
|
|||
|
|
|
|
|
SD Card slot (p. 50) |
When in Standby mode, switches TV On (Press for about 1 second). |
||
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HDMI3 terminal (p. 63) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HDMI 3
Headphones jack (p. 63)
AV 3
V
L
AV3 terminals (p. 63)
R
Mains power On / Off switch
●Switch On to turn on the TV or turn the TV to Standby mode by the remote control
Using the On Screen Displays
Many features available on this TV can be accessed via the On Screen Display menu.
■How to use remote control
|
|
Move the cursor / select the menu item |
|
Move the cursor / adjust levels / select from |
||||||
|
|
|
a range of options |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Access the menu / store settings after |
RETURN |
Return to the previous menu |
||||||
|
|
adjustments have been made or options |
|
|||||||
|
|
have been set |
|
|
|
EXIT |
|
|||
|
MENU |
Open the main menu |
|
|
|
Exit the menu system and return to the |
||||
|
|
|
|
|
|
normal viewing screen |
||||
|
|
|
|
|
|
|
|
|
|
|
■ON SCREEN HELP Instructions box - Operation guide |
|
|||||||||
Example (Owner ID): |
|
|
|
|
|
|
|
|
||
Owner ID |
|
|
|
|
|
|
|
|
|
|
|
Please enter new PIN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PIN |
|
* |
* * * |
|
|
|
|
|
|
|
|
EXIT |
9 PIN entry |
|
|
|
|
|
||
|
|
0 |
|
|
Operation guide will help you. |
|||||
|
|
RETURN |
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
■Auto power standby function
●The TV will automatically go to Standby mode in the following conditions:
•no signal is received and no operation is performed for 30 minutes in Analogue TV mode
•“Off Timer” is active in the Setup Menu (p. 17)
•no operation is performed for the period selected in “Auto Standby” (p. 32)
●This function does not affect Ext Rec. of Timer Programming and Direct TV Recording.
Controls Identifying● Guide Start Quick
9
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. When disconnecting the mains lead, be absolutely sure to disconnect the mains plug at the socket outlet first.
Example 1 |
|
Example 2 |
|
Connecting aerial |
|
Connecting DVD Recorder / VCR |
|
TV only |
|
TV, DVD Recorder or VCR |
|
Rear of the TV |
Terrestrial |
Rear of the TV |
Terrestrial |
|
aerial |
|
aerial |
AC 220-240 V |
AC 220-240 V |
50 / 60 Hz |
50 / 60 Hz |
|
RF cable |
Mains lead |
Mains lead |
(supplied) |
(supplied) |
HDMI 1 |
HDMI 1 |
DIGITAL |
|
|
RGB |
RGB |
|
HDMI 2 |
AUDIO OUT |
|
|
AV 1 VIDEO |
AV 2 |
(ARC) |
|
COMPONENT |
VIDEO |
|||||
|
|
S VIDEO |
|
|
||
|
|
|
|
|
|
|
AUDIO |
AUDIO |
Y |
|
|
|
|
OUT |
IN |
|
|
|
|
|
L L PB
R R PR
Aerial input terminal
DIGITAL |
|
|
RGB |
RGB |
|
HDMI 2 |
AUDIO OUT |
|
|
AV 1 VIDEO |
AV 2 |
(ARC) |
|
COMPONENT |
VIDEO |
|||||
|
|
S VIDEO |
|
|
||
|
|
|
|
|
|
|
AUDIO |
AUDIO |
Y |
|
|
|
|
OUT |
IN |
|
|
|
|
|
L L PB
R R PR
Fully wired HDMI |
Aerial input |
|
compliant cable |
||
terminal |
||
|
Fully wired
SCART cable
HDMI AV
RF cable
RF OUT
DVD Recorder or VCR
RF cable
RF IN
Note
●Connect to the TV’s AV2 for a DVD Recorder / VCR supporting Q-Link (p. 56). ●Connect to the TV’s AV1 for a Satellite receiver.
●For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3) by using HDMI cable (p.
●Q-Link connection p.
●VIERA Link connection p. 54 and p. 55
10 ●Please also read the manual of the equipment being connected.
Example 3
Connecting DVD Recorder / VCR and Satellite receiver
TV, DVD Recorder / VCR and Satellite
Rear of the TV
AC 220-240 V
50 / 60 Hz
Mains lead (supplied)
Push until both side tabs click
●To remove from the TV:
Terrestrial
aerial
Make sure that the mains lead is securely fixed.
tabs
Press both tabs and pull on mains connector to release
HDMI 1
DIGITAL |
|
RGB |
AUDIO OUT |
|
|
COMPONENT VIDEO |
||
AUDIO |
AUDIO |
Y |
OUT |
IN |
|
L |
L |
PB |
R |
R |
PR |
Fully wired HDMI compliant cable
AV 1 |
RGB |
AV 2 |
HDMI 2 |
VIDEO |
(ARC) |
||
|
S VIDEO |
|
|
|
|
|
RF cable |
Aerial input terminal
Fully wired HDMI compliant cable
Fully wired |
Fully wired |
Fully wired |
SCART cable |
SCART cable |
|
|
SCART cable |
|
HDMI TV/AV Recorder/AV
AV
2
AV
1
HDMI
Satellite receiver |
DVD Recorder or VCR |
|
RF OUT |
||
|
||
RF OUT |
RF cable |
|
RF IN |
||
|
RF cable |
Connection Basic● Guide Start Quick
RF IN
11
Auto Setup
Search and store TV channels automatically.
●These steps are not necessary if the setup has been completed by your local dealer.
●Please complete connections (p. 10 and p. 11) and settings (if necessary) of the connected equipment before starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.
1
TV AV
EXIT |
|
RETURN |
2 |
abc def
ghi jkl
mno
pqrs tuv wxyz
3
TV
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
Auto Setup - DVB and Analogue
DVB Scan |
|
CH 21 |
|
|
68 |
Analogue Scan |
|
CH 21 |
|
|
68 |
This will take about 6 minutes. |
|
|
|
|
|
CH |
|
Channel Name |
|
Type |
Quality |
62 |
CBBC Channel |
|
|
Free TV |
10 |
62 |
BBC Radio Wales |
|
Free TV |
10 |
|
62 |
E4 |
|
|
Free TV |
10 |
62 |
Cartoon Nwk |
|
|
Free TV |
10 |
29 |
|
|
|
Analogue |
- |
33 |
BBC1 |
|
|
Analogue |
- |
Free TV: 8 |
Pay TV: 0 |
Radio: 0 |
Data: 0 |
Analogue: 2 |
|
|
|
Searching |
|
|
|
Auto Setup will start to search for TV channels and store them in the numbered order as specified by the broadcasters. ●If tuning has failed, check the connection
of the RF cable, and then, follow the on screen instructions.
●Actual number of channels may differ due to channel duplication.
Sending Preset Data
Please wait!
0%
Remote control unavailable
If Q-Link, or similar technology (p. 56), 100% compatible recorder with analogue tuner
is connected, analogue channel setting is automatically downloaded to the recorder. (Digital channel setting is not downloaded.) ●If downloading has failed, you can download
later through the Setup Menu.
“Q-Link Download” (p. 30)
Input Owner ID
Owner ID |
|
Please enter new PIN |
|
PIN |
* * * * |
Select “Home”
Please select your viewing environment.
Please enter your own choice of PIN number, name, etc. to help the police to crack crime. ●Make a note of the PIN number in case you
forget it.
●You can input or change the Owner ID later.
“Owner ID” (p. 47)
●To skip this step |
EXIT |
|
●This step will be skipped in the Auto Setup after “Shipping Condition” (p. 46) is performed.
Home |
Shop |
select
set
Select “Home” viewing environment to use in your home environment.
Auto Setup is now complete and your TV is ready for viewing.
●To check channel list at-a-glance
“Using TV Guide” (p. 18) ●To edit or hide (skip) channels
“Tuning and Editing Channels” (p. 38 - 41)
12
■How to input Owner ID
Enter the PIN number (4 digits) |
|
●Enter the PIN number twice at first setting. |
|||
Owner ID |
|
|
abc |
def |
|
|
|
|
|||
Please enter new PIN |
|
ghi |
jkl |
mno |
|
PIN |
* * * * |
|
|||
|
|
|
|
||
|
|
pqrs |
tuv |
wxyz |
|
Enter your name, address, and postcode, in that order
Select the item (NAME / HOUSE NO / POSTCODE)
Owner ID-Data Entry |
|
PIN |
NAME
HOUSE NO
POSTCODE
Set characters one by one
User input
NAME
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
R |
S |
T |
|||
U |
V |
W |
X |
Y |
Z |
|
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
! |
|
: |
|
# |
|
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
l |
m |
n |
o |
p |
q |
r |
s |
t |
|||
u |
v |
w |
x |
y |
z |
( |
) |
+ |
- |
. |
* |
_ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
1 |
2 |
3 |
||||||||||||||
|
|
|
|
|
|
|
.!:# |
|
abc |
|
def |
|||||||||||
|
|
|
|
|
|
|
4 |
|
5 |
|
6 |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ghi |
|
|
jkl |
|
mno |
|
|
|
|
|
|
|
7 |
|
8 |
|
9 |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
pqrs |
|
tuv |
|
wxyz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Return to select other items
Exit to go to next step
EXIT
access
select
select
set
RETURN
●You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 66)
●Select the other item and repeat the operations.
■“Shop” viewing environment (for shop display only)
“Shop” viewing environment is the demonstration mode to explain main features of this TV.
Select “Home” viewing environment to use in your home environment.
●You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.
Return to viewing environment selection screen
Shop
|
|
RETURN |
Automatic Demo |
|
|
Off |
On |
|
Please select your viewing environment. |
|
|
Home |
Shop |
select |
|
|
|
set
Auto Setup is complete
●To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
“Shipping Condition” (p. 46)
Note
●If tuning has failed or |
retune all channels “Auto Setup” (p. 36 and p. 37) |
●To initialise all settings |
“Shipping Condition” (p. 46) |
●If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On with Mains power On / Off switch.
Setup Auto● Guide Start Quick
13
Watching TV
INPUT TV AV
MENU ASPECT
EXIT
OPTION
STTL |
HOLD |
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
LAST VIEW
1 Turn power on
(Press for about 1 second)
●Mains power On / Off switch should be On. (p. 9)
2 |
Select DVB or Analogue |
|
TV |
●Also possible by pressing the TV button on the side panel of the |
|
|
|
TV. (p. 9) |
1 BBC ONE WALES |
19:35 |
All DVB Channels |
Information banner appears |
|
Coronation Street |
|
For info press |
||
19:30 - 20:00 |
Now |
|
|
|
|
|
|
whenever you select a channel |
|
|
|
|
●For details |
p. 15 |
3 |
Select a channel |
|
|
|
up |
|
abc |
def |
|
|
or |
ghi |
jkl |
mno |
|
down |
pqrs |
tuv |
wxyz |
DVB channel position numbers run from 1 onwards.
Analogue channel position numbers run in the ranges 0 - 99.
●To select a two or three-digit channel position number, e.g. 399
def |
wxyz |
wxyz |
Volume
TV
Note
watch pay-TV
“Using Common Interface” (p. 48)
■Select a channel using Information banner (p. 15)
Possible to confirm the channel name and programme before changing channels.
Display Information banner if it is not displayed
While the banner is displayed, select the channel
select channel
watch
●Possible to set display timeout in “Banner Display Timeout” (p. 31).
■Select a channel using TV Guide (p. 18)
Possible to confirm the TV Guide (EPG) before changing channels.
Display |
Select the current |
Select “View” |
|
TV Guide |
programme or channel |
(DVB mode) |
|
|
select |
Eastender |
select |
|
|
||
|
|
19:3020:00 |
|
|
|
|
|
|
|
View |
Timer Programming |
|
access |
|
watch |
|
|
●To use Timer Programming p. 19 |
|
14
■Other useful functions
Hold
Freeze / unfreeze picture |
HOLD |
|
Display Information banner
Display Information banner
●Also appears when changing a channel
|
|
Channel position and name |
“All DVB Channels” or “Favourites1-4” (p. 39) |
|
|||||||||||||
|
|
|
|
|
|
|
●To switch |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Channel type |
|
|
|
|
blue |
|
|||
|
|
|
|
|
|
|
|
(if it is Radio or Data channel) |
|
|
|
||||||
|
|
Example (DVB): |
|
|
|
|
Current time |
|
|
||||||||
|
|
|
|
|
|
|
|||||||||||
|
|
|
1 BBC ONE Wales |
|
|
|
|
|
|
|
|
||||||
Programme |
|
|
Radio |
19:35 |
All DVB Channels |
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Coronation Street |
|
|
|
|
|
Select favourites |
|
||||||||||
|
|
|
|
|
|
|
|||||||||||
|
|
|
19:30 - 20:00 |
|
|
|
|
|
|
Now |
|
|
For info press |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
Mute |
|
|
Encrypted |
|
|
AD |
STTL TEXT Multi Audio 45 |
|
||||||
Programme |
|
Start / |
Progress |
time indicator of the selected programme |
|
||||||||||||
Finish time |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Example (Analogue):
|
3 ITV |
|
Radio |
19:35 |
All Analogue Channels |
|
|
|
|
|
|
|
|
|
|
|
itv1 |
|
|
|
|
|
|
|
CH23 |
|
|
|
For info press |
||
|
|
|
|
||||
|
Mute |
Encrypted |
AD |
Subtitles TEXT NICAM |
45 |
|
|
|
|
|
|
|
|
|
|
Channel number
●To confirm another tuned channel name
●To watch the channel listed in the banner
●Information on the next programme
(DVB)
EXIT |
|
●To hide |
|
●Extra information |
(press again to hide the |
(DVB) |
banner) |
●To set display timeout
“Banner Display Timeout” (p. 31)
Features available / Message meanings
Mute
Sound mute On
Bad signal
Poor TV signal quality
Encrypted
Scrambled programme
AD
Audio Description service available
●This function can aid visually-impaired viewers by adding an additional audio track to describe events on screen.
●For settings
p. 29
STTL
Subtitle service available
TEXT
Teletext service available
Multi Audio
Multiple audio available
Stereo, Mono, NICAM
Audio mode
1 - 90
Off Timer remaining time ●For settings
p. 17
●“AD”, “STTL”, “TEXT”, “Multi Audio” indications are displayed as |
Example: |
|
|
|
|
|
||
1 BBC ONE Wales |
19:35 |
All DVB Channels |
||||||
available on particular programmes, but may not be available for all |
|
|
|
|
|
|
|
|
|
Coronation Street |
|
|
Select favourites |
||||
individual programmes being broadcast. |
19:30 - 20:00 |
|
|
|
Now |
Exit info |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Display the extra information to confirm availability of these functions. |
|
|
|
[AD] |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AD |
|
|
|
Basic
TV Watching●
15
Watching TV
■Other useful functions
Display subtitles
■DVB mode |
|
|
Display / hide subtitles (if available) |
STTL |
|
●To change the language for DVB (if available) |
|
|
“Preferred Subtitles” (p. 31) |
|
|
|
|
|
■Analogue mode |
|
|
Display subtitles |
STTL |
|
●To hide subtitles |
EXIT |
|
|
|
|
Note
●This is the same as switching to Analogue teletext service and selecting “P888” (subtitle service). (p. 23) ●You cannot change the channel when this function is active.
Aspect
Change the aspect ratio (image size) |
ASPECT |
|
Enjoy viewing the image at its optimum size and aspect.
Normally programmes have the Aspect Control Signal (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the Aspect Control Signal (p. 64).
■If you would like to change the aspect ratio manually
Display Aspect Selection list |
While the list is displayed, select the mode |
|
ASPECT |
Aspect Selection |
|
|
Auto |
store |
|
16:9 |
|
|
4:3 |
|
|
14:9 |
|
|
Zoom1 |
|
|
Zoom2 |
|
|
Zoom3 |
|
|
Select |
|
|
Change EXIT |
select |
|
RETURN |
|
Aspect Selection list
●To change the mode using the ASPECT button only
ASPECT (Press repeatedly until you reach the desired mode)
Auto
16:9
14:9
4:3
The best ratio is chosen and the image expanded to fill the screen.
For details
p. 64
|
Zoom1 |
|
Directly displays the image at 16:9 |
|
Displays a 16:9 letterbox or 4:3 image |
without distortion (anamorphic). |
|
without distortion. |
|
|
|
|
Zoom2 |
|
Displays the image at the standard 14:9 |
|
Displays a 16:9 letterbox (anamorphic) |
without distortion. |
|
image full-screen without distortion. |
|
|
|
|
Zoom3 |
|
Displays the image at the standard 4:3 |
|
Displays a 2.35:1 letterbox (anamorphic) |
|
||
without distortion. |
|
image full-screen without distortion. |
|
|
At 16:9, displays the image at its maximum |
|
|
(with slight enlargement). |
Note
●Aspect is fixed to “16:9” when “Viewing Mode” is set to “Game” in the Picture Menu. ●Not available when the subtitle function is active.
●Not available in teletext service.
●Aspect mode can be memorized separately for SD (Standard definition) and HD (High definition) signals.
16
■Other useful functions
Display the selectable settings for the current programme
Check or change the current |
OPTION |
programme status instantly |
●To change |
|
change |
|
select |
Multi Audio (DVB mode)
Allows you to select between alternative language for sound tracks (if available)
●This setting is not memorized and it will become the default setting once you exit the current programme.
Dual Audio (DVB mode)
Allows you to select stereo / monaural (if available)
Subtitle Language (DVB mode)
Allows you to select the language in which subtitles should appear (if available)
NICAM (Analogue mode)
Switches NICAM sound (if available)
Sound Menu (p. 29)
Volume Correction
Adjusts volume of individual channel or input mode
Audio Description (DVB mode)
Set to “Auto” if the programme has Audio Description service, then you will hear an additional audio track to describe events on screen
●To adjust the volume for Audio Description
“Audio Description Menu” (p. 29)
Last view
Switch to previously viewed |
●Press again to return to the present view. |
channel or input mode easily |
LAST VIEW |
|
Note
●Switching channel is not available while Ext Rec. of Timer Programming or Direct TV Recording is in progress. ●Watching less than 10 sec. is not regarded as the previously viewed channel or input mode.
Off Timer
Turn the TV off automatically after a fixed period
Display the menu |
Select “Setup” |
Select “Off Timer” and set the time |
MENU |
Main Menu |
access |
Setup Menu |
|
|
|
Picture |
|
Timer Programming |
|
|
|
|
Off Timer |
Off |
set |
|
|
Sound |
|
|||
|
|
Link Settings |
|
||
|
Setup |
|
|
||
|
select |
Child Lock |
|
select |
|
|
|
|
|||
|
|
DVB Tuning Menu |
|
||
|
|
|
Display Settings |
|
|
|
|
|
System Menu |
|
|
|
|
|
Other Settings |
|
|
●To cancel
Set to “Off” or turn the TV off.
●To display the remaining time
Information banner (p. 15)
Note
●When the remaining time is within 3 minutes, the remaining time will flash on the screen.
Basic
TV Watching●
17
Using TV Guide
TV Guide―Electronic Programme Guide (EPG) provides an on screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters).
●This TV supports the GUIDE Plus+ system.
●The Gemstar branding partner will supply the rating informations in the programme information and the recommended group in the Search list.
●DVB and Analogue channels are displayed on the same TV Guide screen. “D” means DVB channel and “A” means Analogue channel. There will be no programme listings for Analogue channels.
●When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before the TV Guide is completely shown.
INPUT
TV AV
EXIT
OPTION |
RETURN |
1
2
Select DVB or Analogue
TV
View TV Guide
|
|
|
|
|
|
|
Current date and time |
|
|
Logo of the |
||||||||||
|
|
Example: |
|
|
|
TV Guide date |
|
Programme |
|
Gemstar branding partner |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
TV Guide |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
Wed 28 Oct 2009 |
|
|
|
|
|
|
|
|
|
Search |
|
|
All Channels |
|
|||
|
|
|
|
|
|
|
Wed 28 Oct |
|
|
|
|
|
|
|||||||
|
|
|
10:46 |
|
|
1 BBC ONE |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
TV Guide time |
|
|
|
|
|
20:00 - 20:30 DIY SOS : We open in the Battersbys |
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
Time: |
19:30 |
|
|
20:00 |
|
20:30 |
21:00 |
|
|
|||
|
|
|
|
|
|
|
D |
1 |
BBC ONE |
Eastender |
|
DIY SOS |
Holiday News |
|
|
|
||||
|
|
|
|
|
|
|
D |
7 |
BBC THREE |
Hot Wars |
|
|
|
Holiday Program |
|
|||||
|
|
|
|
|
|
|
D |
14 |
E4 |
Emmerdal. |
|
Coronation Street |
The Bill |
|
||||||
Advertisement |
|
|
|
|
|
D |
70 |
BBC FOUR |
10 O’ clock News BBC |
Pepsi Char. |
Good bye |
|
||||||||
|
|
|
|
|
D |
72 |
BBC 2W |
Panorama |
|
Spring watch |
|
|
Coast |
|
||||||
D: DVB |
|
|
|
|
|
D |
105 |
BBCi |
I’m A Celebrity |
|
|
Pop Idol |
News |
|
||||||
|
|
|
|
|
|
|
D |
719 |
BBC Radi |
Rugby |
|
15 To 1 |
|
|
Sports |
Channel position |
||||
A: Analogue |
|
|
|
|
Select channel |
|
|
|
Info |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
EXIT |
|
|
GUIDE RETURN |
|
|
Page up |
and name |
||||||
|
|
|
|
Timer Programming |
|
Select programme |
|
|
Page down |
|||||||||||
|
|
|
|
|
RETURN |
|
|
OPTION Select Advert |
|
|
|
|||||||||
|
|
|
|
-24 hours |
|
|
|
|
+24 hours |
|
|
|
Search |
|
Category |
|
||||
■To watch the programme
|
Select the current |
Select “View” |
|
|
■To return to TV |
programme or channel |
(DVB mode) |
|
|
select |
Eastender |
Timer Programming |
select |
|
EXIT |
|
View |
||
|
|
19:3020:00 |
|
|
or |
access |
●To use Timer Programming |
watch |
|
|
|
p. 19 |
||
■To view a channel list of the selected category
blue
All Channels |
(Category list) |
■To the previous day |
||||
Category |
|
|||||
|
|
|
Only Analogue channels |
(DVB mode) |
||
|
|
|||||
All Channels |
||||||
|
are listed |
|
||||
All DVB Channels |
|
red |
||||
All Analogue Channels |
|
|
select category |
|||
|
|
|
||||
Free DVB Channels |
|
|
|
|||
|
|
|
|
|||
TV/Data DVB Channels |
|
|
view |
|
||
Favourites1 |
|
|
|
|||
Favourites2 |
|
|
|
|
|
|
|
|
|
|
|
||
Favourites3 |
|
|
|
●To list favourite channels |
p. 39 |
|
|
|
|
||||
Favourites4 |
|
|
|
|||
|
|
|
|
|
||
|
■To search |
|
(Search list) |
■To the next day |
|
Search |
|||
|
programme types |
|
|
(DVB mode) |
|
and view a channel |
Search Titles... |
select type |
|
|
Movie |
green |
||
|
list of the searched |
|
|
|
|
News and Factual |
view |
||
|
|
|||
|
programmes |
Sport |
|
|
|
|
Entertainment |
|
|
|
(DVB mode) |
|
|
|
|
Children’s . |
|
|
|
|
|
. |
|
|
|
yellow |
. |
|
|
|
|
|
|
|
|
■To search |
|
(Search list) |
Set characters one by one Search |
|
|
Search |
|
|
|
programme titles |
|
|
(maximum: 19 characters) |
|
and view a channel |
Search Titles... |
select |
select |
|
list of the searched |
Movie |
green |
|
|
News and Factual |
“Search Titles...” |
||
|
Sport |
set |
||
|
programmes |
access |
||
|
|
Entertainment |
|
|
|
(DVB mode) |
|
|
You can set characters by using |
|
Children’s . |
|
||
|
|
. |
|
numeric buttons. |
|
yellow |
. |
|
“Characters table for numeric |
|
. |
|
||
|
●All the programme titles including the word you set will be listed. |
buttons” (p. 66) |
||
18 |
|
|||
●Searching without any characters will list all programmes including current programmes. |
||||
■Other useful functions
Timer Programming (DVB mode)
Timer Programming is a timer to remind watching or record the programme to the external recorder.
Select the |
Select the function |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
forthcoming |
(Reminder or Ext Rec.) |
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
programme |
Function |
No. Channel Name |
|
|
|
Date |
Start |
End |
|
store |
|
|
|
|
|
|
|
|
||||
|
Timer Programming |
|
|
Wed 28 Oct 2009 10:46 |
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
select |
|
|
|
|
DIY SOS |
Guide |
|
(30 |
min.) |
|
|
|
|
|
|
|
|
|
LED |
|||
|
|
Ext Rec. |
D 1 BBC ONE |
|
|
|
Wed 28 Oct |
20:00 |
20:30 |
|
|
|
LED will turn to orange if |
|
|
|
|
|||||
|
|
|
--- |
--- |
|
|
|
--/-- |
(--- |
min.) |
|
select |
|
|
|
|
||||||
|
|
|
|
|
--:-- |
--:-- |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
--- |
--- |
|
|
|
--/-- |
--:-- |
--:-- |
|
|
|
Timer Programming is set. |
|
|
|
|
||||
set |
|
|
|
|
|
|
|
|
|
(--- |
min.) |
|
|
|
|
|
|
|
|
|
|
|
|
--- |
--- |
|
|
|
--/-- |
--:-- |
--:-- |
|
|
|
(Orange LED will flash if Ext Rec. of |
||||||||||
|
--- |
--- |
|
|
|
--/-- |
--:-- |
--:-- |
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
(--- |
min.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(--- |
min.) |
|
|
|
Timer Programming is in progress.) |
|||||||
|
|
|
|
|
(Timer Programming screen) |
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
Ext |
Rec. : to record the programme to the recorder |
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
When the start time comes, the channel will be switched automatically and |
|||||||||||||||||
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
the video and audio signals will be output. 2 mins. before the starting time, |
|
|
|||||||||||||||
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
a reminder message appears if you are watching TV. |
|
|
|
|
|||||||||||||
|
Reminder : to remind watching the programme |
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
When you are watching TV, a reminder message appears 2 mins. before |
|
|
|||||||||||||||
|
|
|
|
|
the start time. Press the OK button to switch to the programmed channel. |
|
|
|||||||||||||||
|
|
|
|
|
No signals will be output from any terminals. |
|
|
|
|
|
|
|
||||||||||
■To check / change / cancel a timer programming event |
“Timer Programming” (p. 43) |
|
|
|
|
|||||||||||||||||
■To return to TV Guide |
RETURN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
■If you select the current programme |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
A confirmation screen whether you wish to watch or record it will appear. |
|
|
|
|
|
|
|
|
||||||||||||||
Select “Timer Programming” and set “Ext Rec.” to record from the time |
|
|
|
|
|
|
|
|
|
|||||||||||||
|
Eastender |
|
|
|
|
select |
||||||||||||||||
you finish the timer programming event setting. |
|
|
|
|
|
19:3020:00 |
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
View |
|
Timer Programming |
|
|
access |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
Note
●This function is not available in Analogue mode. ●Timer Programming can be stored up to 15 events.
●A timer programming event for Reminder will be cleared in the following conditions:
•Off or Standby mode from the start time to the end time.
•Pressing the OK button to view or the EXIT button to cancel while a reminder message appears.
•Not pressing the OK or EXIT button from the start time to the end time.
●No other channel can be selected while Ext Rec. of Timer Programming is in progress.
●When recording programmes, be sure to make the proper settings on the recorder connected to the TV. If a compatible recorder with Q-Link or similar technologies is connected to the TV (p. 56) and the “Link
Settings” (p. 30) are completed, no setting of the recorder is required. Also read the manual of the recorder.
Guide link programming (Timer Programming from the TV Guide signal)
Guide link programming is a Timer Programming controlled by information from the TV Guide.
Programme start and end times may be changed by broadcasters and sent to the TV for the timer programming event to follow the change.
Split Programme programming is one of the Guide link programming. Split Programme is a programme which is interrupted by one or more other programmes.
Guide link programming and Split Programme programming are subject to signals being sent by broadcasters.
Timer Programming |
|
Wed 28 Oct 2009 10:46 |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Function |
|
No. |
Channel Name |
|
|
Date |
Start |
End |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ext Rec. |
D |
1 |
BBC ONE |
|
|
Wed 28 Oct |
20:00 |
20:30 |
|
|
|
|
|
|
|
DIY SOS |
Guide |
|
|
(30 |
min.) |
|
|
|
|
Reminder |
D |
14 |
E4 |
|
|
Wed 28 Oct |
21:00 |
22:30 |
|
|
|
|
|
|
|
The Bill |
Guide |
|
|
(90 |
min.) |
|
|
|
|
Ext Rec. |
D |
72 |
BBC 2W |
|
|
Wed 28 Oct |
22:45 |
23:00 |
|
|
|
|
|
|
|
<TIMER> |
|
|
|
(15 |
min.) |
|
|
|
|
Ext Rec. |
D |
1 |
BBC ONE |
|
|
Thu 29 Oct |
10:30 |
11:30 |
|
|
|
|
|
|
|
Red Cap |
S/P |
|
(60 |
min.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
--- |
|
--- |
|
|
|
--/-- |
--:-- |
--:-- |
|
|
|
|
|
|
|
|
|
|
|
|
(--- |
min.) |
|
|
(Timer Programming screen)
“Guide” is displayed if the timer is set from the TV Guide
(Guide link programming)
“S/P” is displayed if the timer is set from the TV Guide and the programme is a Split Programme
“
” or “
” will be displayed in the TV Guide if Timer Programming is set as the Guide link programming.
TV Guide
Wed 28 Oct 2009 |
|
|
Wed 28 Oct |
|
Search |
|
All Channels |
10:46 |
1 BBC ONE |
|
|
|
|
||
|
|
|
|
|
|||
|
20:00 - 20:30 DIY SOS : We open in the Battersbys |
|
|
||||
|
|
|
Time: |
19:30 |
20:00 |
20:30 |
21:00 |
|
D |
1 |
BBC ONE |
Eastender |
DIY SOS |
Holiday News |
|
|
D |
7 |
BBC THREE |
Hot Wars |
|
Holiday Program |
|
D |
14 |
E4 |
Emmerdal. |
Coronation Street |
The Bill |
|
D |
70 |
BBC FOUR |
10 O’ clock News BBC |
Pepsi Char. |
Good bye |
|
D |
72 |
BBC 2W |
Panorama |
Spring watch |
|
Coast |
D |
105 |
BBCi |
I’m A Celebrity |
|
Pop Idol |
News |
D |
719 |
BBC Radi |
Rugby |
15 To 1 |
|
Sports |
Note
●If you edit the start time or end time of Guide link programming event more than 10 minutes after setting, it will no longer be performed as Guide link programming. The programming will be performed according to the time setting in Timer Programming screen.
●Whilst making the Split Programme programming event for Ext Rec., you cannot record any channels between the interrupted programmes.
●The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.
●The Split Programme programming event for Reminder will switch to the programmed channel by pressing the OK button even if it is between the interrupted programmes.
●The Split Programme programming does not work if the separated parts are broadcast on differing channels.
Basic
Guide TV Using●
19
Using TV Guide
■Other useful functions
View details of the programme (DVB mode)
Select the programme |
View details 10:46 |
Wed 28 Oct 2009 |
TV Guide |
|
Wed 28 Oct 2009 |
|
|
select |
|
DIY SOS |
|
|
BBC ONE |
|
|
|
20:00 - 20:30, 30 min. |
|
|
|
|
|
Details |
|
|
EXIT |
Return to list |
|
Timer Programming |
RETURN |
|
●Press again to return to TV Guide.
View advertisement
Enter your postcode when using this function for the first time
“Postcode” in “GUIDE Plus+ Settings” (p. 32)
If you have already entered your postcode in “Auto Setup” - when first using the TV (p. 12), you do not have to enter again.
If you enter an incorrect postcode for your area, or no postcodes are entered, advertisement may not be displayed correctly.
Display advertisement information
OPTION
●To display the latest advertisement, you will need to update the information.
To update the information continuously, the TV must be left in Standby mode at night.
■To change advertisements
■To return to TV Guide |
OPTION or RETURN |
Note
●Some advertisements are for future programmes.
In this case it is possible to use the Guide link programming function (p. 19).
●The advertisements displayed on the TV Guide are sent from the GUIDE Plus+ system so that they cannot be deleted manually or will not be lost even when the TV is turned Off with Mains power On / Off switch.
20
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
●The availability of teletext services for a programme is indicated by “TEXT” in the information banner.
1 BBC ONE Wales |
19:35 |
All DVB Channels |
Coronation Street |
|
Select favourites |
19:30 - 20:00 |
Now |
For info press |
|
TEXT |
|
Information banner (p. 15)
Displayed if programme has teletext service
Digital teletext (MHEG)
Digital teletext services
Digital teletext services differ greatly from analogue teletext.
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a manner decided by the broadcaster.
|
|
1 |
Select DVB |
|
|
|
TV |
●DVB programmes have digital teletext services (MHEG). |
|
|
|
|
||
INPUT |
2 |
Switch to Teletext |
||
ASPECT MENU N |
DIRECT TV REC |
|||
TV |
AV |
|
|
|
|
EXIT |
TEXT |
17:51 28 Feb |
|
OPTION |
|
3 |
How to use |
|
|
|
|
|
|
|
|
||
|
|
In all cases, it is possible to navigate the pages using buttons on the |
||||
TEXT STTL INDEX HOLD |
remote control, but because the commands available must apply to all |
|||||
|
|
|
manufacturers of digital equipment, some on screen commands may |
|||
|
abc |
def |
not correspond exactly to the remote control buttons. |
|||
|
For example: |
|
|
|
||
|
|
|
|
|
|
|
ghi |
jkl |
mno |
●When “select” or “go” is displayed |
|
|
|
|
|
|
|
|
|
|
pqrs |
tuv |
wxyz |
●When “◄”, “►”, “▲”, “▼” symbol is displayed |
|
|
|
|
|
|
|
|
|
|
|
|
|
●When the key words are displayed on colour bar |
|
red green yellow blue |
|
|
PROGRAMME |
●When options with numbers are displayed |
|
abc |
def |
|
|
ghi |
jkl |
mno |
|||
|
|
|
|
pqrs |
tuv |
wxyz |
|
|
|
|
|
■To return to TV |
TEXT |
|
|
|
|
|
|
|
|
|
TV |
|
Note |
|
|
|
|
|
|
|||
|
|
|
|
|||
|
|
|
●As soon as you switch to a digital channel with links to a teletext service, |
|||
|
|
|
|
|
||
|
|
|
|
|
software is downloaded in the background to enable the teletext function. |
|
|
|
|
|
|
This means that when switching to a digital channel, you should wait for |
|
|
|
|
|
|
approximately 5 seconds before pressing the TEXT button - this will allow |
|
|
|
|
|
|
the software to download. If you press the TEXT button before download is |
|
|
|
|
|
|
complete, it will be ignored and you will have to press the TEXT button again |
|
|
|
|
|
|
when the download is complete. |
|
|
|
|
|
|
●While navigating digital teletext, you will find there is a short delay when |
|
|
|
|
|
|
moving between pages while the page downloads. There is often a prompt |
|
|
|
|
|
|
shown somewhere on the page (for example “Loading”) to let you know that |
|
|
|
|
|
|
this is happening. |
|
Basic
Teletext Viewing● Guide TV Using●
21
Viewing Teletext
Analogue teletext
Analogue teletext services
Analogue teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters.
What is FASTEXT mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be altered and stored in the TV’s memory. (“Store frequently viewed pages”, p. 23)
■To change mode
“Teletext” in the Setup Menu (p. 31)
INPUT
TV AV MENU N
EXIT
RETURN
TEXT STTL INDEX HOLD
abc
def
ghi
jkl
mno
pqrs
tuv
wxyz
1
2
3
Select Analogue
TV
Switch to Teletext |
|
Sub page number |
|
|||
TEXT |
|
●Displays the |
|
<< 01 02 03 04 05 06 07 |
>> |
|
|
|
|
Current |
|||
|
|
|
|
|||
|
|
|
index page |
17:51 28 Feb Time / date |
||
|
|
|
(content varies |
page |
TELETEXT |
|
|
|
|
number |
|
||
|
|
|
depending on the |
|
INFORMATION |
|
|
|
|
broadcasters) |
|
|
|
Select the page |
|
Colour bar |
|
|||
|
|
|
||||
|
abc |
def |
up |
|
|
|
ghi |
jkl |
mno |
or |
or |
red green yellow |
blue |
pqrs |
tuv |
wxyz |
||||
|
|
|
down |
(Corresponds to the colour bar) |
||
|
|
|
MENU |
|
As the blue bar is displayed |
|
|
|
|
|
|
|
|
■To adjust contrast |
(press twice) |
|
|
|||
EXIT
■To return to TV
Reveal hidden data
Reveal hidden words e.g. quiz page answers
MENU |
●To rehide red |
red |
FULL / TOP / BOTTOM
(TOP) |
(BOTTOM) |
Normal (FULL) |
MENU
green
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(Expand the TOP half) |
|
|
|
(Expand the BOTTOM half) |
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||
HOLD
Stop automatic updating
(If you wish to hold the current page without updating)
HOLD |
●To resume |
HOLD |
|
|
22
INDEX
Return to the main index page
INDEX
Subtitles
View a favourite page stored
STTL |
●Factory setting is “P888” (subtitle service) on the blue button (List mode). |
|||||||||
View in multi window |
|
|
|
|
|
|||||
Watch TV and Teletext in two windows at once |
|
|
|
|
|
|||||
TEXT |
|
|
|
●Operations can be made only in Teletext screen. |
||||||
|
|
|
||||||||
|
|
|
|
●Each time pressed: Teletext |
|
|
|
TV and Teletext |
||
|
|
|
|
|||||||
|
|
|
|
|
|
|
TV |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
Store frequently viewed pages |
|
|
|
|
|
|||||
Store frequently viewed pages in the colour bar |
|
|
|
|
(List mode only) |
|||||
As page is |
|
press |
|
Corresponding |
and |
||
displayed |
|||
hold |
|||
|
coloured button |
■To change stored pages
Enter new page number
|
|
abc |
def |
Coloured button |
ghi |
jkl |
mno |
you want to change |
pqrs |
tuv |
wxyz |
●If you wish to use Subtitles, do not change number on blue button.
The number changes to white.
press and hold
View sub page
View sub page (Only when teletext is more than one page)
|
Appears at top of |
|
|
the screen |
|
■To view specific sub page |
Enter the |
|
MENU |
||
4-digit number |
||
blue |
example: P6 |
mno
●Sub pages:
The number of sub pages varies depending on the broadcasters (up to 79 pages). It may take some time for searching, during which time you can watch TV.
Watch TV while waiting for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available. Changes to TV screen temporarily
P108 |
Appears when |
|
MENU |
updating is |
|
yellow |
completed |
yellow |
|
(You cannot change the channel.)
●The news page provides a function that indicates arrival of latest news (“News Flash”).
Basic
Teletext Viewing●
23
Loading...
