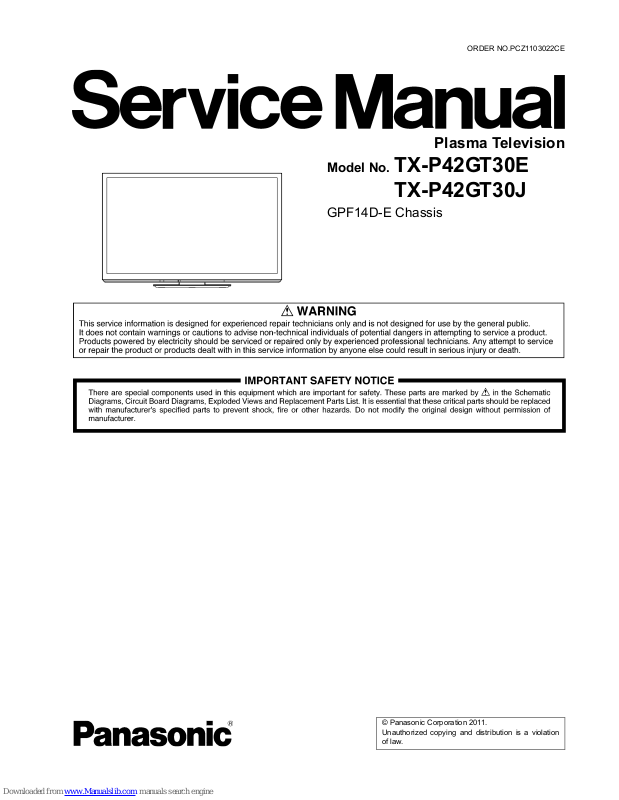

ORDER NO.PCZ1103022CE
Plasma Television
Model No. TX-P42GT30E
TX-P42GT30J
GPF14D-E Chassis
Page 2
2
TABLE OF CONTENTS
PAG E PAG E
1 Safety Precautions -----------------------------------------------3
1.1. General Guidelines ----------------------------------------3
1.2. Touch-Current Check--------------------------------------3
2Warning--------------------------------------------------------------4
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatically Sensitive (ES) Devices ----------4
2.2. About lead free solder (PbF) ----------------------------5
3 Service Navigation------------------------------------------------6
3.1. PCB Layout --------------------------------------------------6
3.2. Applicable signals ------------------------------------------7
4 Specifications ------------------------------------------------------8
5 Technical Descriptions---------------------------------------- 10
5.1. Specification of KEY for CI Plus, DTCP-IP,
WIDEVINE and One-to-One -------------------------- 10
5.2. USB HDD Recording ------------------------------------ 10
6 Service Mode ----------------------------------------------------- 11
6.1. How to enter into Service Mode ---------------------- 11
6.2. Option - Mirror--------------------------------------------- 13
6.3. Service tool mode ---------------------------------------- 13
6.4. Hotel mode------------------------------------------------- 14
6.5. Data Copy by SD Card --------------------------------- 15
7 Troubleshooting Guide---------------------------------------- 18
7.1. Check of the IIC bus lines------------------------------ 18
7.2. Power LED Blinking timing chart --------------------- 19
7.3. No Power--------------------------------------------------- 19
7.4. No Picture --------------------------------------------------20
7.5. Local screen failure -------------------------------------- 21
8 Disassembly and Assembly Instructions --------------- 22
8.1. Remove the Rear cover -------------------------------- 22
8.2. Remove the AC inlet ------------------------------------ 22
8.3. Remove the P-Board ------------------------------------ 22
8.4. Remove the Terminal covers and the shield
metals -------------------------------------------------------22
8.5. Remove the A-Board ------------------------------------ 23
8.6. Remove the Side unit assy ---------------------------- 23
8.7. Remove the SN-Board---------------------------------- 23
8.8. Remove the SS-Board ---------------------------------- 24
8.9. Remove the SS2-Board -------------------------------- 24
8.10. Remove the Fan------------------------------------------ 24
8.11. Remove the Speakers ----------------------------------24
8.12. Remove the Stand bracket----------------------------- 25
8.13. Remove the K-Board ------------------------------------ 25
8.14. Remove the S-Board ------------------------------------ 25
8.15. Remove the V-Board ------------------------------------ 25
8.16. Remove the Bottom cabinet assy -------------------- 25
8.17. Remove the Plasma panel section from the
Cabinet assy----------------------------------------------- 26
8.18. Remove the Contact metals ---------------------------26
8.19. Remove the C1-Board ---------------------------------- 26
8.20. Remove the C2-Board ---------------------------------- 27
8.21. Replace the Plasma panel ----------------------------- 27
9 Measurements and Adjustments -------------------------- 28
9.1. Adjustment ------------------------------------------------- 28
10 Block Diagram --------------------------------------------------- 37
10.1. Main Block Diagram ------------------------------------- 37
10.2. Block (1/4) Diagram ------------------------------------- 38
10.3. Block (2/4) Diagram ------------------------------------- 39
10.4. Block (3/4) Diagram ------------------------------------- 40
10.5. Block (4/4) Diagram ------------------------------------- 41
11 Wiring Connection Diagram -------------------------------- 43
11.1. Caution statement. -------------------------------------- 43
11.2. Wiring (1) -------------------------------------------------- 43
11.3. Wiring (2) -------------------------------------------------- 44
11.4. Wiring (3) -------------------------------------------------- 45
11.5. Wiring (4) -------------------------------------------------- 46
12 Schematic Diagram
13 Printed Circuit Board
14 Exploded View
Page 3
3
1 Safety Precautions
1.1. General Guidelines
1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials.
2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the
wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead.
3. When conducting repairs and servicing, do not twist the Fasten connectors but plug them straight in or unplug them straight
out.
4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.
1.2. Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground
such as a water pipe, as shown in Figure 1.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUCH CURRENT) expressed as voltage U
1
and U2, does not exceed the following values:
For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For d. c.: U
1
= 1.0 V,
Note:
The limit value of U
2
= 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0
mA d. c.
The limit value U
1
= 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz.
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be
repaired and rechecked before it is returned to the customer.
Figure 1
Page 4
4
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient
to damage an ES device).
Page 5
5
2.2. About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it's manufacture due to environmental conservation issues. For service and repair work, we'd
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB.
Caution
• Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please
use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
• Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
• After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the
opposite side. (see figure below)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.
Page 6
6
3 Service Navigation
3.1. PCB Layout
Board Name Function Board Name Function
P Power Supply C1 Data Driver (Lower Right)
A Main AV input, processing C2 Data Driver (Lower Left)
K Remote receiver, Power LED, C.A.T.S. sensor SN Scan Drive
S Power switch SS Sustain Drive
V 3D Eyewear transmitter SS2 Sustain out (Lower)
Page 7
7
3.2. Applicable signals
COMPONENT (Y, PB, PR), HDMI
* Mark: Applicable input signal
PC (from HDMI terminal)
Applicable input signal for PC is basically compatible to HDMI standard timing.
Note
• Signals other than above may not be displayed properly.
• The above signals are reformatted for optimal viewing on your display.
• PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.
Signal name COMPONENT HDMI
525 (480) / 60i, 60p * *
625 (576) / 50i, 50p * *
750 (720) / 60p, 50p * *
1,125 (1,080) / 60i, 50i * *
1,125 (1,080) / 60p, 50p, 24p *
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 × 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00
Page 8
8
4 Specifications
Power Source AC 220-240 V, 50 / 60 Hz
Power Consumption
Rated Power Consumption 325 W
On mode Average Power
Consumption
130 W
(based on IEC 62087 Ed.2 measurement method)
Standby Power Consumption 0.30 W
30.00 W (With monitor out recording)
Display panel
Aspect Ratio 16:9
Visible screen size 106 cm (diagonal)
921 mm (W) × 518 mm (H)
Number of pixels 2,073,600 (1,920 (W) × 1,080 (H)) [5,760 × 1,080 dots]
Sound
Speaker (140 mm × 35 mm) × 2, 6 Ω
Audio Output 20 W (10 W + 10 W)
Headphones M3 (3.5 mm) stereo mini Jack × 1
Receiving Systems / Band name
PAL B, G, H, I, SECAM B, G, SECAM L, L
'
VHF E2 - E12 VHF H1 - H2 (ITALY)
VHF A - H (ITALY) UHF E21 - E69
CATV (S01 - S05) CATV S1 - S10 (M1 - M10)
CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband)
PAL D, K, SECAM D, K
VHF R1 - R2 VHF R3 - R5
VHF R6 - R12 UHF E21 - E69
PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR)
M.NTSC Playback from M. NTSC Video recorders (VCR)
NTSC (AV input only) Playback from NTSC Video recorders (VCR)
DVB-T Digital terrestrial services (MPEG2 and MPEG4-AVC(H.264))
DVB-C Digital cable services (MPEG2 and MPEG4-AVC(H.264))
DVB-S / S2 Digital satellite services (MPEG2 and MPEG4-AVC(H.264))
Receiver frequency range - 950 MHz to 2,150 MHz
LNB Power and Polarisation - Vertical: +13 V
Horizontal: +18 V
Current: Max. 500 mA
(overload protection)
22 kHz Tone - Frequency: 22 kHz ± 2 kHz
Amplitude: 0.6 V ± 0.2 V
Symbol Rate - Max. 30 MS/s
FEC Mode - 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Demodulation - QPSK, 8PSK
DiSEqC - Version 1.0
• Check the latest information on the available services at the following website. (English only)
http://panasonic.jp/support/global/cs/tv/
Satellite dish input Female F-type 75 Ω
Aerial input VHF / UHF
Operating Conditions
Temperature: 0 °C- 35 °C
Humidity: 20 % - 80 % RH (non-condensing)
Connection Terminals
AV1 (SCART) 21 Pin terminal (Audio/Video in, Audio/Video out, RGB in, Q-Link)
AV2 input VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω)
AUDIO L-R: RCA PIN Type × 2 0.5 V [rms]
COMPONENT input Y: 1.0 V [p-p] (including synchronization)
P
B
, PR: ±0.35 V [p-p]
HDMI1 / 2 / 3 / 4 input TYPE A Connectors
HDMI1 / 3 / 4 : HDMI (Version 1.4 with 3D, Content Type), Deep Colour,
x.v.Colour™
HDMI2 : HDMI (Version 1.4 with 3D Content Type, Audio Return Chan-
nel, Deep Colour, x.v.Colour™
• This TV supports " HDAVI Control 5 " function.
Card slot SD CARD slot × 1
Common Interface slot (complies with Cl PLus) × 1
ETHERNET RJ45, IEEE802.3 10BASE-T / 100BASE-TX
USB 1 / 2 / 3 USB2.0 DC 5 V, Max. 500mA
AUDIO OUT RCA PIN Type × 2 0.5 V [rms] (high impedance)
Page 9
9
DIGITAL AUDIO OUT PCM / Dolby Digital / DTS, Fiber optic
Dimensions (W × H × D) 993 mm × 649 mm × 320 mm (With Pedestal)
993 mm × 615 mm × 58 mm (TV only)
Mass 23.0 kg Net (With Pedestal)
19.5 kg Net (TV only)
Note
• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
• This equipment complies with the EMC standards listed below.
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024
Page 10
10
5 Technical Descriptions
5.1. Specification of KEY for CI Plus, DTCP-IP, WIDEVINE and One-to-One
5.1.1. General information:
1. EEPROM (IC8902) for spare parts has the seed of KEY for each.
2. The final KEY data will be generated by Peaks IC (IC8000) when SELF CHECK was done and are stored in both Peaks IC
(IC8000) and EEPROM (IC8902).
Three KEY are not generated for all models.
The necessary KEY are only generated and stored depend on the feature of models.
5.1.2. Replacement of ICs:
When Peaks IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time.
When EEPROM (IC8902) is replaced, Peaks IC (IC8000) is not necessary to be replaced the same time.
After the replacement of IC, SELF CHECK should be done to generate the final KEY data.
How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more
than 3 seconds.
TV will be forced to the factory shipment setting after this SELF CHECK.
5.1.3. Model and Keys:
5.2. USB HDD Recording
5.2.1. General information:
Digital TV programmes can be recorded in USB HDD.
A One-to-One key generated in A-board by SELF CHECK binds TV and USB-HDD for communication.
That key is only one key for them. If the key is difference, TV can not access USB-HDD.
Caution:
New key will be generated by following SELF CHECK and previous TV programmes recorded in USB HDD will not be
viewed.
SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for
more than 3 seconds.
Model No. Keys
One-to-One
(For USB Rec.)
CI Plus DTCP-IP WIDEVINE
TX-P42GT30E Yes Yes Yes Yes
TX-P42GT30J Yes Yes Yes Yes
Page 11
11
6 Service Mode
6.1. How to enter into Service Mode
6.1.1. Purpose
After exchange parts, check and adjust the contents of adjustment mode.
While pressing [VOLUME ( - )] button of the main unit, press [0] button of the remote control three times within 2 seconds.
Note:
Service Mode can not be entered when 3D signal input.
Input 2D signal to enter Service Mode.
6.1.2. Key command
[1] button...Main items Selection in forward direction
[2] button...Main items Selection in reverse direction
[3] button...Sub items Selection in forward direction
[4] button...Sub items Selection in reverse direction
[RED] button...All Sub items Selection in reverse direction
[GREEN] button...All Sub items Selection in forward direction
[VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - )
6.1.3. How to exit
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
Page 12
12
6.1.4. Contents of adjustment mode
• Value is shown as a hexadecimal number.
• Preset value differs depending on models.
• After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Sample Data Remark
ADJUST CONTRAST 158
COLOR 36
TINT 00
SUB-BRT 800
H-POS 0
H-AMP 0
V-POS 0
V-AMP 0
WB-ADJ R-CUT 80
G-CUT 80
B-CUT 80
R-DRV E4
G-DRV FF
B-DRV 8D
ALL-CUT 80
ALL-DRV FF
OPTION Panel-Type 42FHD Factory Preset
Boot ROM
STBY-SET 00
EMERGENCY ON
Y/C Delay 0
OPT 1 00010100
OPT 2 11101110
OPT 3 00000001
OPT 4 00010000
EDID-CLK MID
MIRROR 00 (See Option-Mirror)
AMR-SELECT OFF
VSUS LOW See Vsus selection

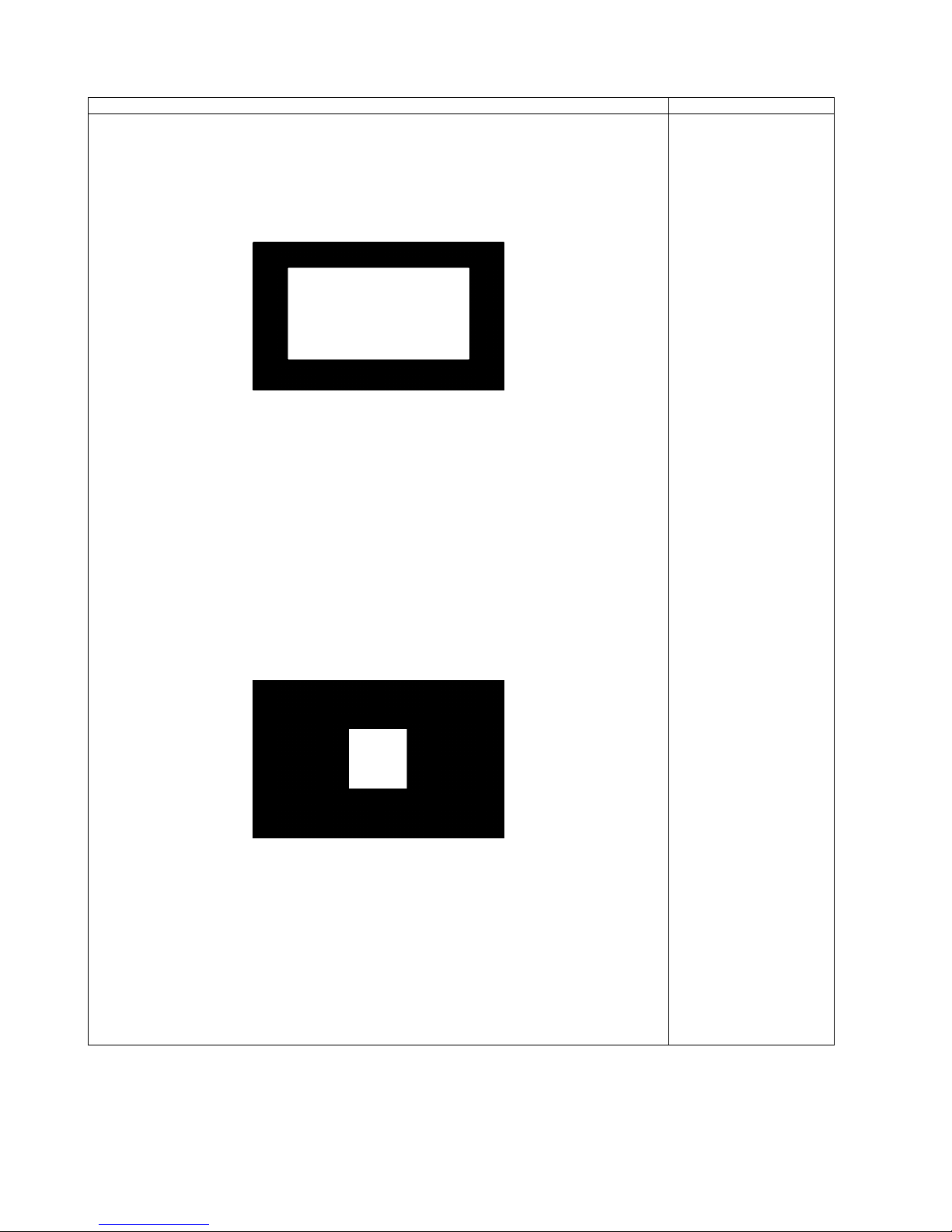

AGING ALL WHITE Built-in test patterns can be
displayed.
ALL BLUE WITH WHITE OUTSIDE FRAME
ALL GREEN
ALL RED
LOW STEP WHITE
LOW STEP BLUE
LOW STEP GREEN
LOW STEP RED
WHITE DIAGONAL STRIPE
RED DIAGONAL STRIPE
GREEN DIAGONAL STRIPE
BLUE DIAGONAL STRIPE
A-ZONE & B-ZONE
1% WINDOW
COLOR BAR
9 POINTS BRIGHT MEASURE
2 DOT OUTSIDE FRAME
ALL BLUE
DOUBLE FIXED 1% WINDOW
VERTICAL LINE SCROLL
ON/OFF OR WHITE
R/G/B/W ROTATION
HALF FIXED ALL WHITE
ALL WHITE WITH COUNT DISPLAY
SRV-TOOL See Service tool mode
Destination
Check sum 9063
Page 13
13
6.2. Option - Mirror
Picture can be reversed left and right or up and down.
00 : Default (Normal picture is displayed)
01 : Picture is reversed left and right.
02 : Picture is reversed up and down.
Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in
A-board.
6.3. Service tool mode
6.3.1. How to access
1. Select [SRV-TOOL] in Service Mode.
2. Press [OK] button on the remote control.
6.3.2. Display of SOS History
SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication will be cleared by [Self-check indication and forced to factory shipment setting].
6.3.3. POWER ON Time, On/Off
Note : To display TIME/COUNT menu, highlight position, then press MUTE for 3 sec.
Time : Cumulative power on time, indicated hour : minute by decimal
On/Off : Number of On/Off switching by decimal
Note : This indication will not be cleared by either of the self-checks or any other command.
6.3.4. Exit
1. Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.
Page 14
14
6.4. Hotel mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu
In order to display the Hotel mode setup menu:
While pressing [VOLUME (-)] button of the main unit,
press [AV] button of the remote control three times within
2 seconds.
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu
Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu
Item Function
Hotel Mode Select hotel mode On/Off
Initial INPUT Select input signal modes.
Set the input, when each time power is switched
on.
Selection :
Off/Analogue/DVB-S/DVB-C/DVB-T/AV1/AV2/
COMPONENT/HDMI1/HDMI2/HDMI3/HDMI4
• Off: give priority to a last memory. However,
Euro model is compulsorily set to TV.
• AVnS/AVnC: only Euro model selectable
Initial POS Select programme number.
Selection :
Off/0 to 99
• Off: give priority to a last memory
Initial VOL Level Adjust the volume when each time power is
switched on.
Selection/Range :
Off/0 to 100
• Off: give priority to a last memory
Maximum VOL
Level
Adjust maximum volume.
Range :
0 to 100
Button Lock Select local key conditions.
Selection :
Off/SETUP/MENU/ALL
• Off: altogether valid
• SETUP: only F-key is invalid
(Tuning guide (menu) can not be selected.)
• MENU: only F-key is invalid
(only Volume/Mute can be selected.)
• ALL: altogether invalid.
Remote Lock Select remote control key conditions.
Selection :
Off/SETUP/MENU
• Off: altogether valid
• SETUP: only Setup menu is invalid
• MENU: Picture/Sound/Setup menu are invalid
Private Information Select private information for VIERA Cast is Keep
or Reset if Hotel mode is set to [On] when TV
power on.
Selection :
Keep/Reset
• Keep: private information for VIERA Cast is
keep
• Reset: private information for VIERA Cast is
reset
Page 15
15
6.5. Data Copy by SD Card
6.5.1. Purpose
(a) Board replacement (Copy the data when exchanging A-board):
When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.
(b) Hotel (Copy the data when installing a number of units in hotel or any facility):
When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other
TVs.
6.5.2. Preparation
Make pwd file as startup file for (a) or (b) in a empty SD card.
1. Insert a empty SD card to your PC.
2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by default
(New Text Document.txt).
3. Right-click the new text document that you just created and select rename, and then change the name and extension of the
file to the following file name for (a) or (b) and press ENTER.
File name:
(a) For Board replacement : boardreplace.pwd
(b) For Hotel : hotel.pwd
Note:
Please make only one file to prevent the operation error.
No any other file should not be in SD card.
Page 16
16
6.5.3. Data copy from TV set to SD Card
1. Turn on the TV set.
2. Insert SD card with a startup file (pwd file) to SD slot.
On-screen Display will be appeared according to the startup file automatically.
3. Input a following password for (a) or (b) by using remote control.
(a) For Board replacement : 2770
(b) For Hotel : 4850
Data will be copied from TV set to SD card.
It takes around 2 to 6 minutes maximum for copying.
4. After the completion of copying to SD card, remove SD card from TV set.
5. Turn off the TV set.
Note:
Following new folder will be created in SD card for data from TV set.
(a) For Board replacement : user_setup
(b) For Hotel : hotel
Page 17
17
6.5.4. Data copy from SD Card to TV set
1. Turn on the TV set.
2. Insert SD card with Data to SD slot.
On-screen Display will be appeared according to the Data folder automatically.
3. Input a following password for (a) or (b) by using remote control.
(a) For Board replacement : 2771
(b) For Hotel : 4851
Data will be copied from SD card to TV set.
4. After the completion of copying to SD card, remove SD card from TV set.
(a) For Board replacement : Data will be deleted after copying (Limited one copy).
(b) For Hotel : Data will not be deleted and can be used for other TVs.
5. Turn off the TV set.
Note:
1. Depending on the failure of boards, function of Data copy for board replacement does not work.
2. This function can be effective among the same model numbers.
Page 18
18
7 Troubleshooting Guide
Use the self-check function to test the unit.
1. Checking the IIC bus lines
2. Power LED Blinking timing
7.1. Check of the IIC bus lines
7.1.1. How to access
7.1.1.1. Self-check indication only:
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control
for more than 3 seconds.
7.1.1.2. Self-check indication and forced to factory shipment setting:
Caution:
New key will be generated and previous TV programmes recorded in USB HDD will not be viewed. (See Chap.5)
Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds.
7.1.2. Screen display
7.1.3. Check Point
Confirm the following parts if NG was displayed.
7.1.4. Exit
Disconnect the AC cord from wall outlet or switch off the power with [ Power ] button on the main unit.
DISPLAY Check Ref. No. Description Check P.C.B.
TUN TU6775 TUNER A-BOARD
STBY IC8000 PEAKS-LDA3 (STM) A-BOARD
MEM1 IC8902 PEAKS EEPROM A-BOARD
MEM2 IC8901 STM EEPROM A-BOARD
AVSW IC3001 AUDIO/VIDEO SW A-BOARD
TEMP IC2001 TEMP SENSOR A-BOARD
LAN IC8601 ETHERPHY A-BOARD
SAT-TU TU6775 SAT TUNER A-BOARD
ID A-BOARD
ID2 A-BOARD
LP1 IC9300 LP1 A-BOARD
LP1 2ND IC9500 LP1 2ND A-BOARD
HDMI-SW IC4700 HDMI SW A-BOARD
IRDRV IC5901 IR LED DRIVER A-BOARD
Page 19
19
7.2. Power LED Blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.
7.3. No Power
First check point
There are following 3 states of No Power indication by power LED.
1. No lit
2. Green is lit then turns red blinking a few seconds later. (See 7.2.)
3. Only red is lit.
Blinking Times Contents Check point
1 Panel information SOS
LP1 Start SOS
-
3 P+ 3.3V SOS A-Board
4 Power SOS P-Board
5 P+ 5V SOS A-Board
6 Driver SOS1
(SN Energy recovery circuit)
(A-SN FPC DET)
SN-Board
A-SN FPC
7 Driver SOS2
(SN Connector DET)
(SN Scan and Logic IC)
SN-Board
8 Driver SOS3
(SS FPC DET)
(SS Energy recovery circuit)
SS-Board
SS2-Board
SS FPC
SS2 FPC
9 Discharge Control SOS A-Board
10 Sub 5V SOS
Sub 3.3V SOS
Tuner power SOS
A-Board
SN-Board
SS-Board
P-Board
11 FAN SOS A-Board
FAN
12 Sound SOS A-Board
Speaker
13 Emergency SOS A-Board
14 IR LED SOS A-Board
Page 20
20
7.4. No Picture
Page 21
21
7.5. Local screen failure
Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area.
Fig-1
Page 22
22
8 Disassembly and Assembly Instructions
8.1. Remove the Rear cover
1. See PCB Layout (Section 3)
8.2. Remove the AC inlet
Caution:
To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.

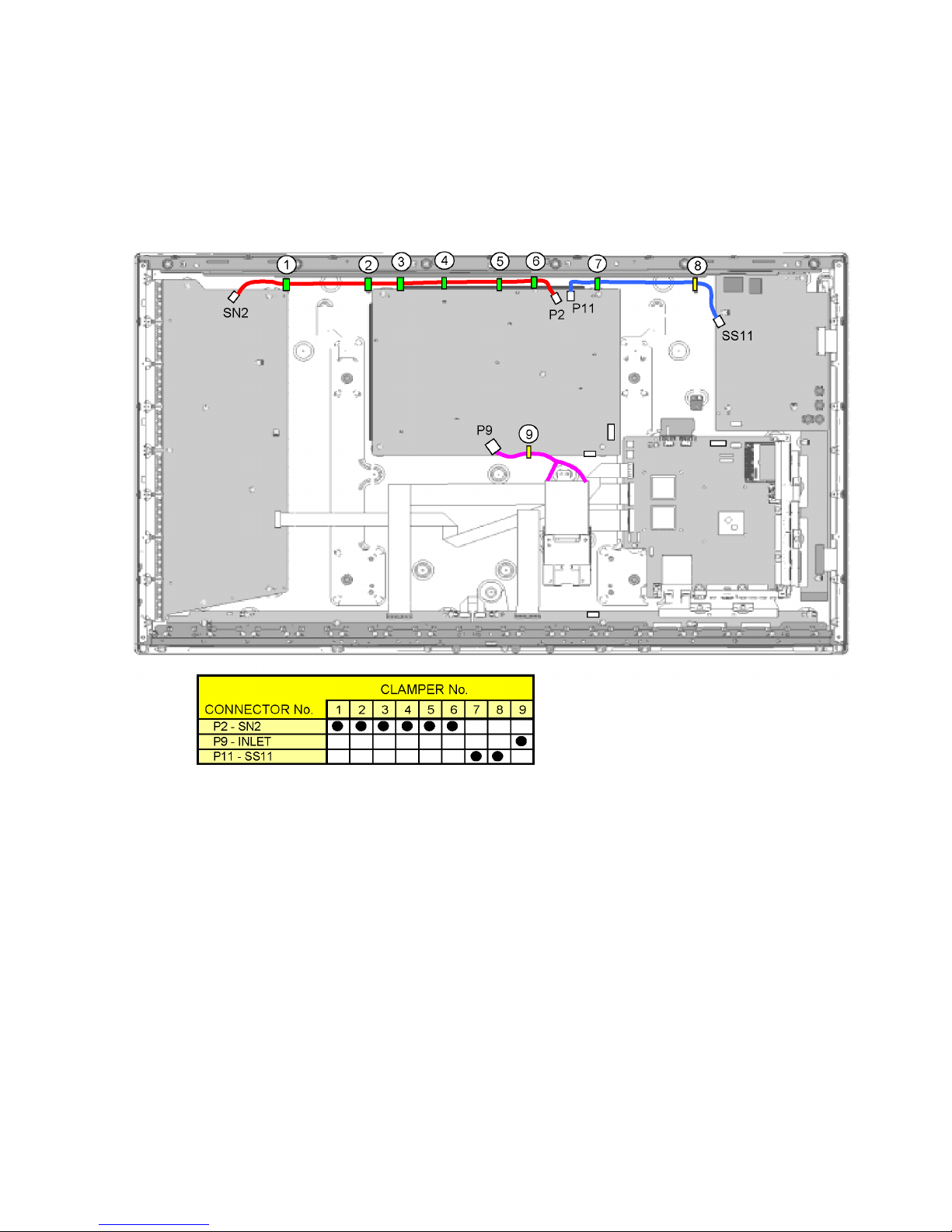

1. Unlock the cable clampers to free the cable.
2. Disconnect the connector (P9).
3. Remove the screws (×2 ) and remove the Inlet metal.
4. Remove the screw (×1 ) and remove the AC inlet.
8.3. Remove the P-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors.
1. Unlock the cable clampers to free the cable
2. Disconnect the connectors (P2, P6, P11, P34 and P35).
3. Remove the screws (×5 ) and remove the P-Board.
8.4. Remove the Terminal covers
and the shield metals
1. Remove the claw (×1 ).
2. Remove the Side terminal cover.
3. Remove the claw (×1 ).
4. Remove the Bottom terminal cover.
5. Remove the screw (×1 ).
6. Remove the USB terminal cover and USB shield metal.
7. Remove the screws (×2 ).
8. Remove the Bottom shield metal.
9. Remove the screw (×1 ).
10. Remove the Side shield metal.
Page 23
23
8.5. Remove the A-Board
1. Remove the Terminal covers and the Shield metals. (See
section 8.4.)
2. Unlock the cable clampers to free the cable.
3. Disconnect the connectors (A1, A6, A8, A11 and A14).
4. Disconnect the flexible cables (A20, A31, A32 and A40).
5. Remove the screw (×1 ) and remove the A-Board.
8.6. Remove the Side unit assy
1. Disconnect the connector (C14).
2. Remove the claws (×2 ) and remove the Side unit
assy.
3. Remove the screw (×1 ).
4. Remove the Side unit mount metal.
8.7. Remove the SN-Board
1. Disconnect the flexible cables (SN1, SN2, SN3, SN4,
SN5, SN6, SN7 and SN8) connected to the SN-Board.
2. Disconnect the connector (SN2).
3. Disconnect the flexible cable (SN20).
4. Remove the screws (×9 ) and remove the SN-Board.
Page 24
24
8.8. Remove the SS-Board
1. Disconnect the connector (SS11).
2. Disconnect the flexible cable (SS33).
3. Disconnect the flexible cable (SS61).
4. Remove the screws (×4 , ×3 ) and remove the SS-
Board.
8.9. Remove the SS2-Board
1. Disconnect the Terminal covers and the Shield metals
(See section 8.4.).
2. Remove the SS-Board (See section 8.8.).
3. Disconnect the flexible cable (SS66).
4. Remove the screws (×2 ) and remove the SS2-Board.
8.10. Remove the Fan
1. Unlock the cable clampers to free the cable.
2. Remove the screws (×2 ).
3. Remove the Relay connector and remove the Fan.
8.11. Remove the Speakers
1. Unlock the cable clampers to free the cable.
2. Remove the screws (×2 , ×5 ) and remove the SP
shield metal L.
3. Remove the screws (×2 , ×5 ) and remove the SP
shield metal R.
4. Disconnect the Relay connector.
5. Remove the screws (×2 each) and remove the Speakers (L, R).
Page 25
25
8.12. Remove the Stand bracket
1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
2. Unlock the cable clampers to free cable.
3. Remove the Stand bracket fastening screws (×9 , ×4
) and the Stand bracket.
8.13. Remove the K-Board
1. Remove the SP shield metal L. (See section 8.11.)
2. Remove the Stand bracket. (See section 8.12.)
3. Remove the screw (×1 ).
4. Remove the claws (×3 ).
5. Disconnect the connector (K1) and remove the K-Board
from the LED panel.
8.14. Remove the S-Board
1. Remove the SP shield metal L. (See section 8.11.)
2. Remove the screws (×2 ).
3. Disconnect the connector (S10) and remove the S-Board.
8.15. Remove the V-Board
1. Remove the SP shield metal R. (See section 8.11.)
2. Remove the Stand bracket. (See section 8.12.)
3. Remove the screw (×1 ) and remove the claws (×3
).
4. Disconnect the connector (V14) and remove the V-Board
from the 3D LED panel.
8.16. Remove the Bottom cabinet
assy
1. Remove the Speakers. (See section 8.11.)
2. Remove the Stand bracket. (See section 8.12.)
3. Remove the K, S and V-Board. (See section 8.13 - 15.)
4. Remove the screws (×2 ) and remove the Bottom cabinet assy.
Page 26
26
8.17. Remove the Plasma panel section from the Cabinet assy
1. Place the Cabinet assy on a flat surface of a table (covered by a soft cloth) and a cushion.
2. Remove the Bottom cabinet assy. (See section 8.16.)
3. Remove the screws (×6 , ×13 ).
4. Remove the Plasma panel section from the Cabinet assy.
8.18. Remove the Contact metals
1. Remove the Cabinet assy. (See section 8.17.)
2. Remove the Tape from the Contact metals.
3. Remove the screws (×6 ).
4. Remove the Contact metal side (L, R).
5. Remove the screws (×6 ).
6. Remove the Contact metal top.
7. Remove the screws (×15 ).
8. Remove the Contact metal bottom.
8.19. Remove the C1-Board
1. Remove the Contact metal bottom. (See section 8.18.)
2. Disconnect the flexible cables (CB1, CB2, CB3, CB4,
CB5, CB6 and CB7).
3. Disconnect the flexible cables (C10 and C11).
4. Disconnect the connector (C14).
5. Remove the screws (×4 ) and remove the C1-Board.
Page 27
27
8.20. Remove the C2-Board
1. Remove the Contact metal bottom. (See section 8.18.)
2. Disconnect the flexible cables (CB8, CB9, CB10, CB11,
CB12, CB13, CB14 and CB15).
3. Disconnect the flexible cables (C20 and C21).
4. Disconnect the connector (C25).
5. Remove the screws (×4 ) and remove the C2-Board.
8.21. Replace the Plasma panel
Caution:
Place the Plasma panel on a flat surface of a table (covered by a soft cloth) and a cushion.
A new Plasma panel itself without Contact metals is fragile.
To avoid the damage to new Plasma panel, carry a new
Plasma panel taking hold of the Contact metals.
1. Place a carton box packed a new Plasma panel on the
flat surface of the work bench.
2. Open a box and without taking a new Plasma panel.
3. Attach the Cabinet assy and each P.C.Board and so on,
to the new Plasma panel.
Page 28
28
9 Measurements and Adjustments
9.1. Adjustment
9.1.1. Vsus selection
Caution:
When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH.
Procedure
1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed.
2. Press [OK] button to go to TEST stage.
White pattern without On-Screen Display will be displayed during TEST and CONF stage. Press [5] button to display the
On-Screen Display.
3. Press [VOL (-)] button to set to LOW.
4. In LOW setting
a. If no several dead pixel is visible remarkably in white pattern, press [3] button to go to CONF stage.
b. If the several dead pixels are visible remarkably in white pattern, Set to HIGH by press [VOL (+)] button. Press [3] button
to go to CONF stage if the symptom is improved.
5. Press [OK] button in CONF stage to store LOW or HIGH.
6. Exit Service Mode by pressing [Power] button.
Page 29
29
9.1.2. Sub-Contrast adjustment
Name of measuring instrument Connection Remarks
RF generator
Base Band signal generator
HD signal generator
Steps Remarks
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
Adjustment of TV (RF system)
Note:
In adjustment, you must setting to modulation of signal at 90%.
1. Receive a RF PAL 100% Full White or Split Colour bar shown as below.
2. Goes into service mode.
3. Push a [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ CONTRAST ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
When [NG] is displayed, adjustment failure.
4. End.
Note:
Sub-contrast adjustment is unadjusted
for AV/ HD input.
But, when needing the adjustment chosen manually, please refer to [ alternative method ].
Steps Remarks
Another procedure
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
Adjustment of AV system
1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below.
2. Goes into service mode.
3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
When [NG] is displayed, adjustment failure.
4. End.
Page 30
30
Steps Remarks
Another procedure
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
Adjustment of HD system
1. At 1080i 100% Full White or Split colour bar receive component signal, as shown below.
2. Goes into service mode.
3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ].
Adjustment
1. The colour key yellow button of remote control is pushed.
2. The OSD character of sub-contrast becomes red.
(Inside under automatic adjustment)
3. The OSD character of sub-contrast returns to black.
When [NG] is displayed, adjustment failure.
4. End.
Page 31
31

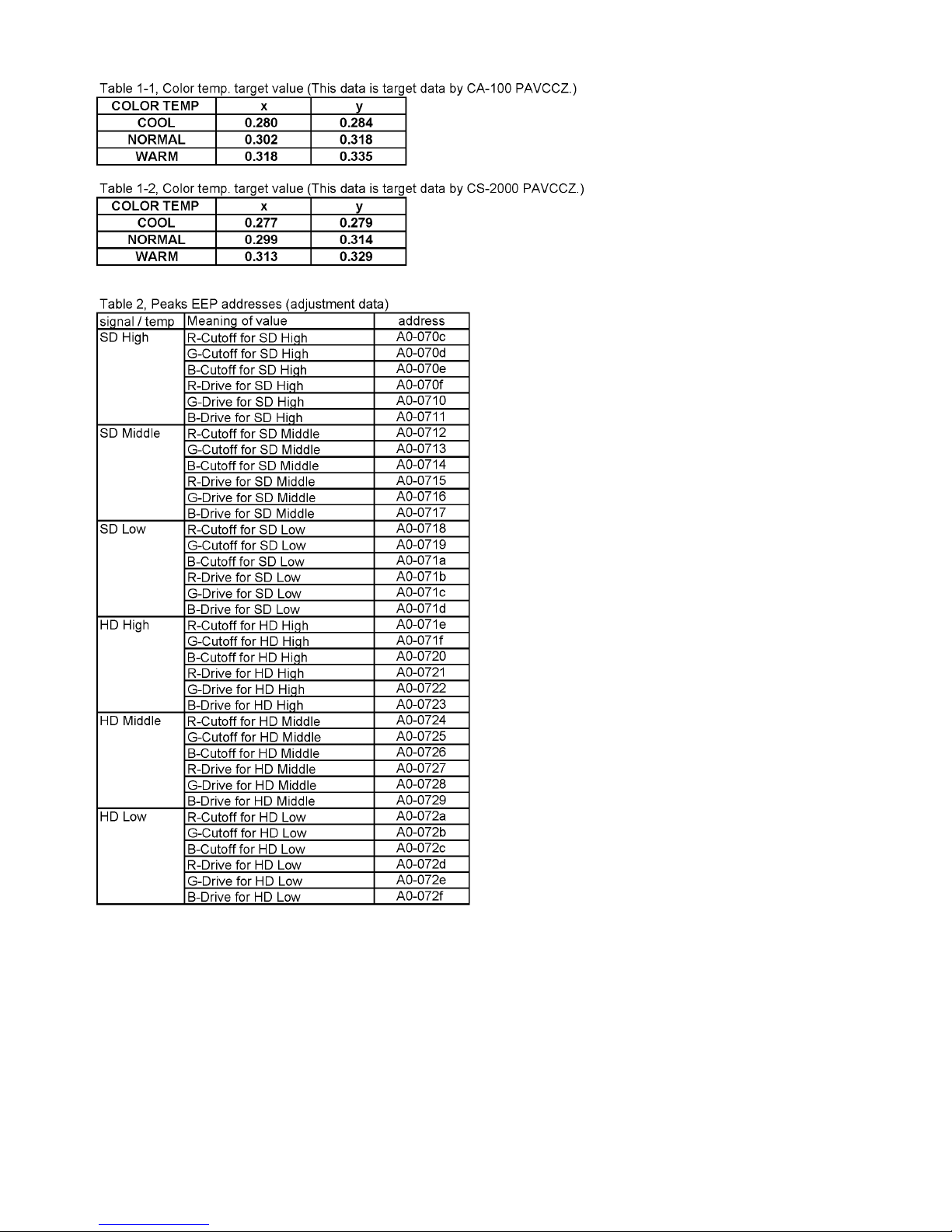

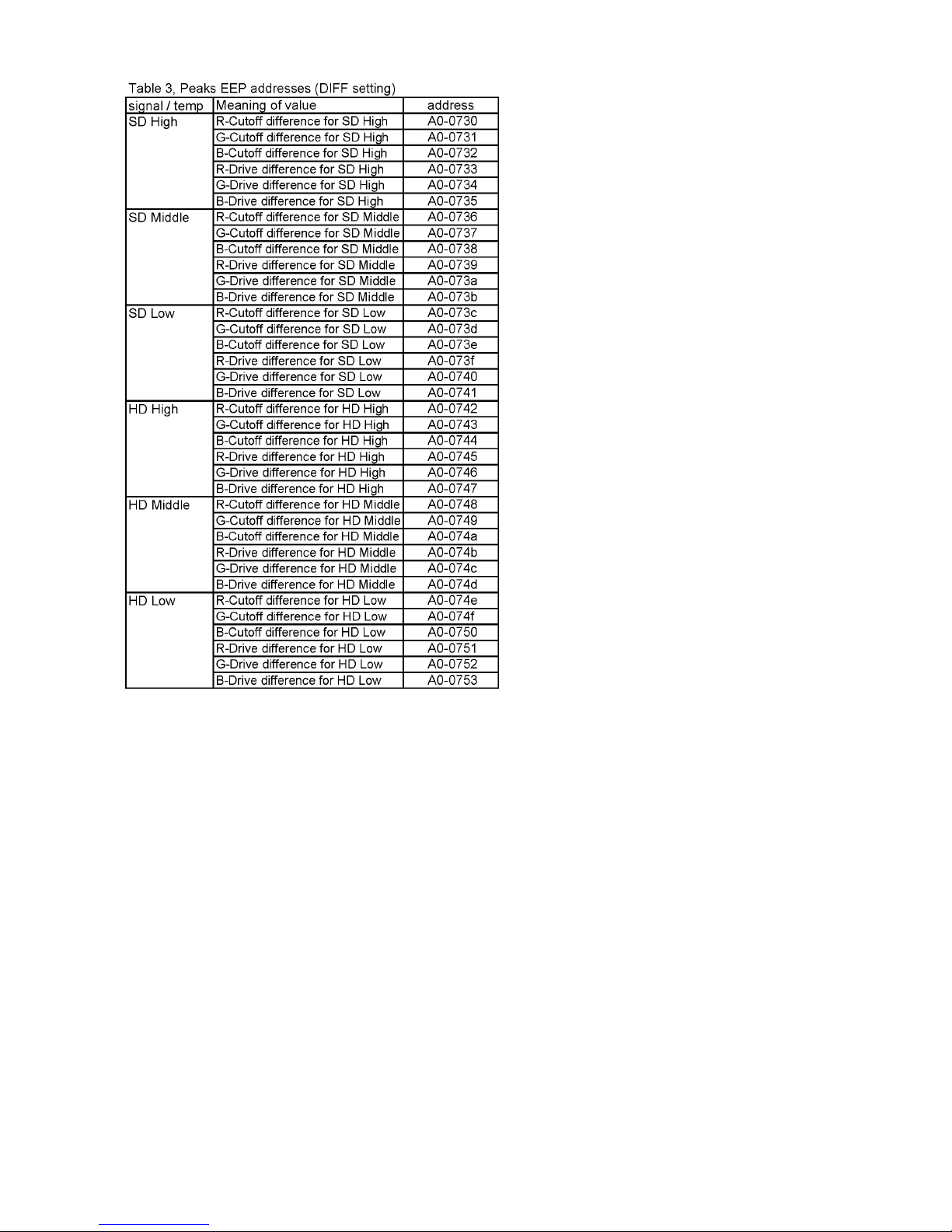

9.1.3. THX white balance adjustment
The adjusting method is different according to the PEAKS EEPROM version.
[copy adjustment] : Peaks EEPROM ver.1.00[Differential (Normal) + copy + WARM adjustment] : Peaks EEPROM ver.1.**-
Name of measuring instrument Connection Remarks
W/ B pattern
Color analyzer
(Minolta CA-100 or equivalent)
Panel surface
Steps Remarks
[copy adjustment]
Connect IIC cable (bus controller-cable) after banner OSD appear.
And after SRQ-L, begin an adjustment 2 seconds later.
• Make sure the front panel to be used on the final set is fitted.
• Make sure a color signal is not being shown before adjustment.
• Put the color analyzer where there is little color variation.
Note:
Copy Adjustment method in service mode.
When you push [OK] key in each item,
Adjustment data is copied between HD data and SD data.
Picture menu : Dynamic
ASPECT : 16:9
Condition is same at
alternative method too.
Page 32
32
Steps Remarks
1. Enter the Service mode.
Please receive the Analog-RF.
Or, please select CVBS/YUV/HDMI. (No inputting is possible.).
(Forbid Analog-RF with no signal.)
2. A number key [1] or [2] are operated and [WB-ADJ] is displayed.
Check that the color temp is [COOL].
3. A number key [0] is operated and select [METHOD 01].
4. A number key [5] is operated and [INNER PATTERN] is displayed.
[INNER PATTERN]
5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-].
Also, [B-CUTOFF] and [R-CUTOFF] set to [80].
6. Set [G-DRIVE] at [D0].
7. Touch the signal receiver of color analyzer to the INNER PATTERN center, and adjust B drive and R drive
so x, y become the [COLOR TEMP COOL] in the below table1.
8. All RGB drive increase so that the maximum drive value of RGB may become [FF].
([ALL-DRIVE] set to [FF].)
9. Set color balance to [NORMAL] using [7] key.
10. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].
11. Set [G-DRIVE] at [D0].
12. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN x, y become the [COLOR TEMP NORMAL] in the
table 1.
13. All RGB drive increase so that the maximum drive value of RGB may become [FF].
([ALL-DRIVE] set to [FF].)
14. Set color balance to [WARM] using [7] key.
15. Set Picture menu to [CINEMA] using [9] key.
16. A number key [5] is operated and [INNER PATTERN] is displayed.
[INNER PATTERN]
17. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].
18. Set [G-DRIVE] at [D0].
19. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN x, y become the [COLOR TEMP WARM] in the
table 1.
20. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to
[FF].)
21. Confirm [METHOD=01].
Please refer table2-3 to address.
22. Asking matter to execute white balance difference adjustment.
Please feed back the DAC value in the adjusted each color temperature in an internal pattern.
METHOD=01
copy adjustments
Page 33
33
Steps Remarks
[Differential (Normal) + copy + WARM adjustment]
Adjustment of [COOL], [WARM] by data shift from [NORMAL] adjust.
And only [WARM] is readjusted.
Execute adjustment for color temp. [NORMAL], and set data for color temp. [COOL], [WARM] by data shift WB
of HD (or PAL) copies the adjustment data from an adjusted format side.
Note:
The adjustment does color temp. [NORMAL] first.
A adjustment value difference from [NORMAL] is written to EEPROM as for [COOL] and [WARM] by
operating a [OK] key.
As for WB of HD (or RF), the adjustment data from an adjusted format side is copied simultaneously.
Text color of the adjusted value changes into red -> black at the same time too. And only [WARM] is
readjusted.
1. Enter the Service mode.
Please receive the Analog-RF.
Or, please select CVBS/YUV/HDMI. (No inputting is possible.).
(Forbid Analog-RF with no signal.)
2. A number key [1] or [2] are operated and [WB-ADJ] is displayed.
Check that the color balance is [NORMAL].
3. A number key [0] is operated and select [METHOD=03].
4. A number key [5] is operated and [INNER PATTERN] is displayed.
[INNER PATTERN]
5. Select [G-CUTOFF] item, using the number-key [3] or [4], and set to [80], using the volume-key [+] or [-].
Also, [B-CUTOFF] and [R-CUTOFF] set to [80].
6. Set [G-DRIVE] at [D0].
7. Touch the signal receiver of color analyzer to the highlight window center, and adjust B drive and R drive
so x, y become the [COLOR TEMP NORMAL] in the table 1.
8. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to
[FF].)
9. A number key [0] is operated and select [METHOD=01].
10. Set color balance to [WARM] using [7] key.
11. Set Picture menu to [CINEMA] using [9] key.
12. A number key [5] is operated and [INNER PATTERN] is displayed.
[INNER PATTERN]
13. Fix G-CUTOFF, B-CUTOFF and R-CUTOFF at [80].
14. Set [G-DRIVE] at [D0].
15. Adjust B-DRIVE and R-DRIVE so the INNER PATTERN x, y become the [COLOR TEMP WARM] in the
table 1.
16. All RGB drive increase so that the maximum drive value of RGB may become [FF]. ([ALL-DRIVE] set to
[FF].)
17. Confirm [METHOD=01].
Please refer table2-3 to address.
METHOD=03
Differential (Normal) + copy +
WARM adjustment
METHOD=01
copy adjustment
Page 34
34
Page 35
35
Page 36
36
Page 37
37

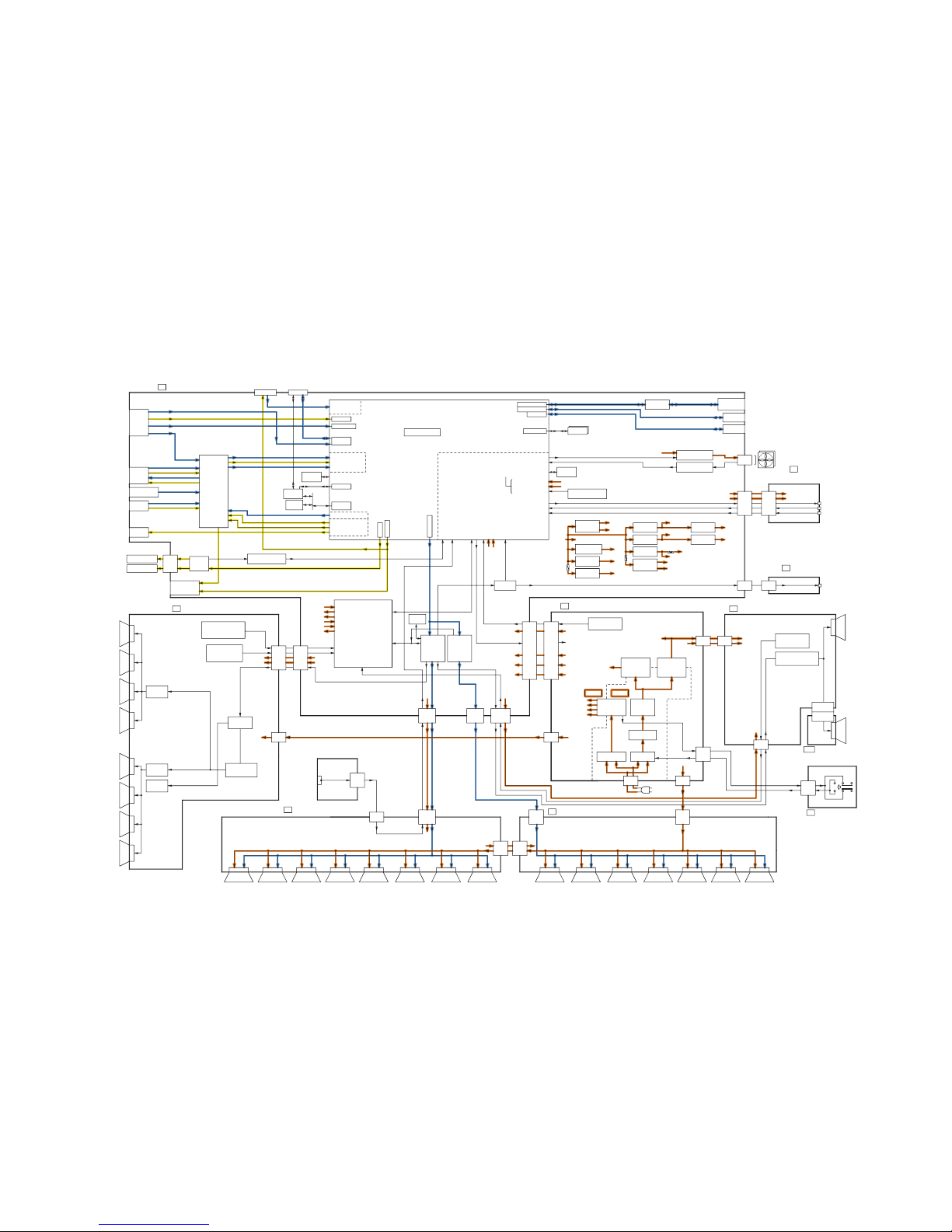

10 Block Diagram
10.1. Main Block Diagram
P
P11
KEY1
C2
DATA
DRIVER
P+15V
SUSTAIN
VOLTAGE
CONVERTER
MAIN SW1
MAIN SW2
VIDEO DATA
VSUS
KEY
ZA16101
P+5V
RELAY
VIDEO DATA
AC CORD
POWER
FACTOR
CONTROL
SUSTAIN CONTROL
P+3.3V
P35
ZA16111
KEY1
ZA16112
STB5V
P+15V
F15V
C25
SIDE UNIT ASSY
ZA16102
POWER SWITCH
P34
POWER SW
P-BOARD
SOS DETECT
S
VSUS
STANDBY
VOLTAGE
CONVERTER
POWER SUPPLY
(LOWER)
SS33
SS-BOARD
SOS DETECT
VDA
VDA
C14
VSUS
C20
DATA
DRIVER
RECTIFIER
PROCESS
VOLTAGE
CONVERTER
DATA
DRIVER
DATA
DRIVER
VDA
OUT
SS11
C10
SS
VE GEN.
VDA
P9
P+3.3V
DATA
DRIVER
ENERGY RECOVERY
DATA
DRIVER
C11
C1
DATA
DRIVER
SOS8_SS
VSUS
RECTIFIER
SUSTAIN
DATA
DRIVER
P2
DATA
DRIVER
VIDEO DATA
DATA
DRIVER
SOUND15V
P+3.3V
Vda
SS2
SUSTAIN DRIVE
DATA
DRIVER
SUSTAIN CONTROL
VSUS GEN.
DATA
DRIVER
DATA
DRIVER
DATA
DRIVER
ON
DATA
DRIVER
S10
P+15V
P
DATA DRIVER (RIGHT)
C21
VIDEO DATA
AC CORD
DATA DRIVER (LEFT)
HDMI1-4
C.A.T.S. SENSOR
STM
EEPROM
LO2_L/R
V
PANEL_SOS
HP L/R
P+3.3V_DET
Y/PR/PB
HP_L/R
A14
PWMS
F15V
P+1.1V_M
F15V
IR_LED_SOS
IR_LR
Y/PR/PB
LO1_L/R
SOS4_PS
SPEAKER(R)
SUB1.8V
LED1-4
DCDC
PEAKS
EEPROM
SUB1.8V
ETHERPHY
SD CARD DATA
ETHERNET
SUB3.3V
CI DATA
LAN CON I/F
MAIN AV INPUT,PROCESSING
CPU BUS
I/F
STM
A
AUDIO
ETHERNET DATA
CI
BUFFER
C.A.T.S_SENSOR
CPU BUS
SUB1.2V
DCDC
Parallel_
TS(CI)
P+5V
SUB5V
DCDC
SUB5V
DIGITAL
AUDIO OUT
TUNER I/F
FAN CONT.
F15V
SOUND_SOS
NAND
FLASH
USB5V
SUB1.5V
RGB_CVBS
CI I/F
F15V
ARC
(HDMI2)
FAN_A-B
FAN_SOS DET
Y/PB/PR
P+5V
TS I/F
DIGITAL_AUDIO_OUT
VIDEO
DATA
IFD_OUT
FAN ON
SUB5V_SENSE
LEDDRV_5V
TRANSMITTER
LO2_L/R
DCDC
SPEAKER(L)
LED_R/G
P+1.1V_S
SOS7_SC2
V
DVB_CVBS
3D EYEWEAR
STB1.2V
AUDIO
TUNER5V
ARC
(HDMI2)
LO1_L/R
OUT
DCDC
DDR3
TUNER_POWER_SOS
HDMI I/F
PEAKS-LDA3
V
AMP
SOS7_SC2
Parallel_
TS(SAT)
TUNER5V
SOS8_SS
P+5V
A32
P+5V
TU5V
SUB9V
SOS8_SS
VDAC
P+3.3V
DCDCIN
LVDS DATA
L/R
RECEIVER
L/R OUT
L/R OUT
A20
REMOTE RECEIVER
AUDIO OUT
VIDEO DATA
P+15V
3D EYEWEAR
TRANSMITTER
C.A.T.S_SENSOR
SCAN CONTROL
HEAD_
PHONE
PANEL_SOS
DCDC
V/R/G/B
USB5V
P+3.3V
KEY1
V14
SUB5V
KEY1
USB I/F
SUSTAIN
CONTROL
SOS6_SC1
K1
DCDC
LED_R/G
SOS_DCC
SOUND_SOS DET
STB3.3V
SIF I/F
SUB3.3V_SENSE
L/R
R
DCDC
SUB1.5V
SUB1.2V
V OUT
STB3.3V
POWER LED
IECOUT
DDR3 I/F
VIDEO OUT
SUB3.3V
TMDS DATA
P+1.1V_M
USB_1-3
USB
COMPONENT
AV2
A31
FAN SOS
HP_L/R
FAN ON
CI SLOT
PWMS
ANALOG-ASIC
LVDS I/F
SUB3.3V
PANEL_MAIN_ON
SPI
FLASH
STB3.3V
TUNER
SOS6_SC1
K
A1
REMOTE_RECEIVER
IR LED
DRIVER
P+5V_DET
A11
P+2.5V
P+2.5V
SUB3.3V
L/R
SUB3.3V
DCDC
A8
AV1
P+3.3V
P+1.1V_S
LP1 2ND
L
LEDDRV_5V
P+3.3V
STB5V
TUNER_POWER_SOS
AV SW
SD CARD
LP1
AV IN
REMOTE_IN
A40
DCDC
SIF_OUT
L/R
V
SD CARD I/F
SOS8_SS
P+5V
PANEL_MAIN_ON
STB5V
P6
P+15VP+15V
SOUND15V
F15V
STB5V
A6
SOUND15V
PANEL MAIN ON
PS SOS4
F15V
SOS4_PS
OPERATION
KEYS
SN2
SN-BOARD
ENERGY RECOVERY
SOS DETECT
SCAN
DRIVER
SOS7_SC2
SN-BOARD
FLOATING PART
SOS DETECT
SCAN DRIVE
BUFFER
P+5V
P+15V
SN20
VSUS
SCAN CONTROL
SCAN
DRIVER
SN
CONTROL
PULSE
VAD GEN.
SOS6_SC1
VSCAN GEN.
(LED:4 TIMES)
COLD HOT
(LED:8TIMES)
(LED:14TIMES)
(LED:8TIMES)
(LED:5TIMES)
(LED:12TIMES)
(LED:4TIMES)
(LED:12TIMES)
(LED:7TIMES)
(LED:10TIMES)
(LED:11TIMES)
(LED:11TIMES)
(LED:3TIMES)
(LED:6TIMES)
(LED:9TIMES)
(LED:10TIMES)
(LED:6TIMES)
(LED:7TIMES)
Page 38
38

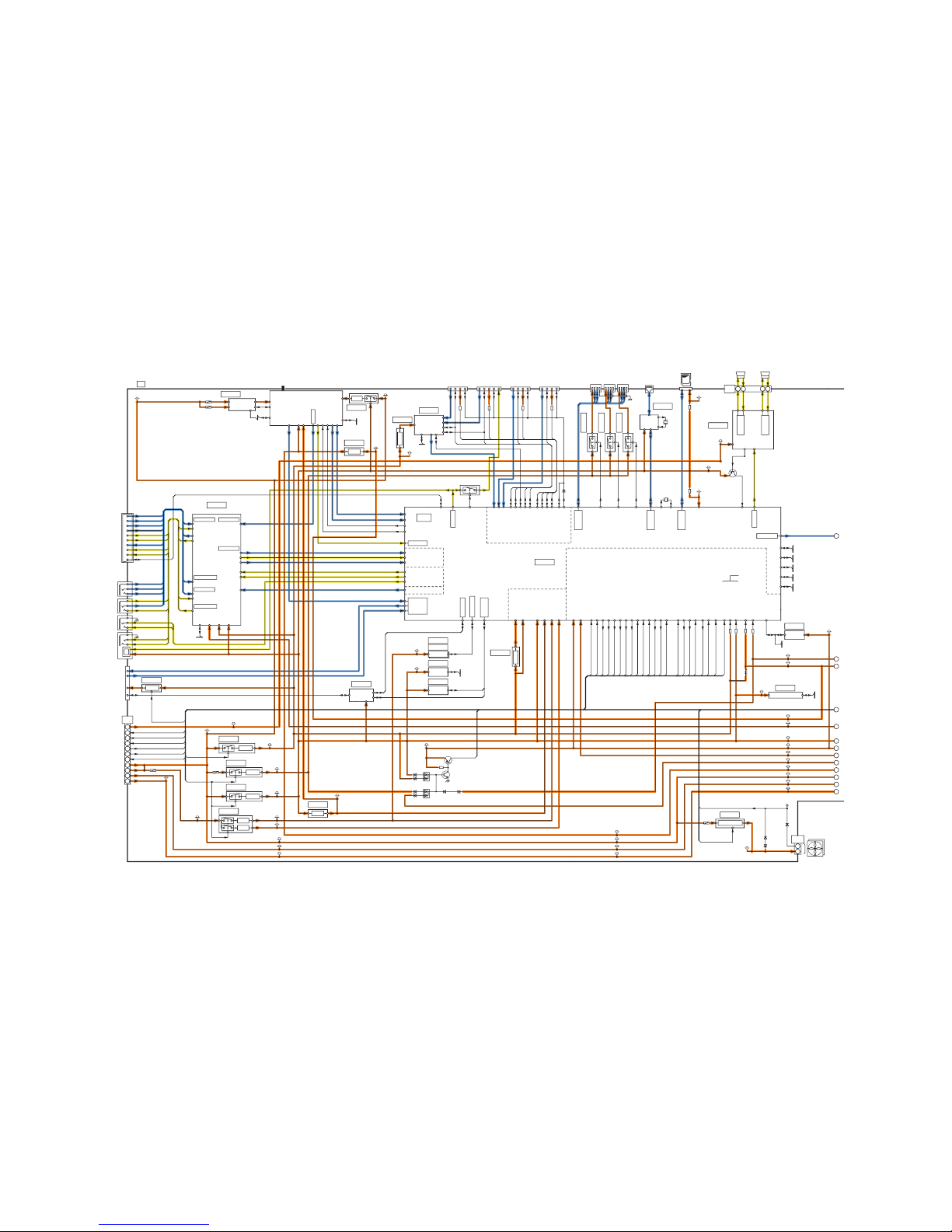

10.2. Block (1/4) Diagram
P
F15V
SUB5V
D8713
STB1.2V
SUB1.8V
SUB3.3V
SUB9V
F15V
X8600
STB3.3V
STB3.3V
D8712
D8711
SUB1.2V
Q8709
SOUND15V
P+5V
Q8711
P+15V
SUB1.5V
F15V
P+15V
P+15V
STB5V
STB5V
P+3.3V
DCDCIN
SUB3.3V
SOUND15V
PA2005
STB3.3V
SUB1.5V
SD3.3V
F15V
D5202
TP5600
D5203
USB5V
STB5V STB5V
D8721
D8720
D8719
LEDDRV_5V
PA5201
PA5440
SUB5V
SUB3.3V
FANVCC
B2_3.3V
B2_3.3V
F15V
VJ8702
X8300
SUB3.3V
P+5V
P+5V
F15V
Q8710
SUB3.3V
D8709 D8708
PA6779
PA6780
CI
BUFFER
VCC
LP1_XRSTSYS
5V
6
AV1_QLINK
Parallel_TS(CI_OUT)
9V
AV1_RIN
3.3V
IIC0
CI DATA
AV1_LOUT
SOUND SOS
11
AV1
C.A.T.S_SENSOR
9
SUB5V_SENSE
SW_OFF_DET
AUDIO AMP
PANEL_MAIN_ON
PANEL_SOS
DRVRST
Y/PR/PB
LO2_L/R
IC4900
AV1_LIN
Parallel_TS(CI_IN)
VDDSD1.8V3.3V
11
F15V
4
VDDSD
18V33V
PR
V
OVERVOLTAGE
DETECTION
P_S0
3
SPEAKER_L
2
RF_CVBS
CPU BUS
I/F
DCDCEN2
P+5V_DET
AV1_VOUT
CI SLOT
STB5V_SW_ON
PWMS
JK3708
R_OUT
V
TUNER_SUB_ON
AV1_ROUT
R(+)
F15V
V
HEADPHONE
L/R
C.A.T.S
LO1_L/R
SOUND15V
13
TUNER_SUB_ON
AV SW
IIC1
+1.5V
SPEAKER_R
Y
15
LVDS I/F
SD DATA:4bit
CI_5V
IC8900
1.8V
CN8400
2
SW_OFF_DET
Q4512
IIC3
IIC1
+1.2V
LIN
IC8601
STM
PEAKS
EEPROM
1
1
STM
EEPROM
7
SUB3.3V
DVB_CVBS
SUB1.2V
IC8701
IIC3
POWER_DET
+5V
ARC_OFF
PANEL_MAIN_ON
STB
IIC
SUB5V
XRST
DDR3
+1.8V
HP_L/R
DMD_
IIC0
4
4
CI_POWER_ON
DMD_
IIC0
CN8600
IIC1
IC8100
IIC0
P+3.3V_DET
SBI0
SBO0
IIC3
LP1_XRSTSYS
XRSTSTM
TEMP SENSOR
XRSTSTM
5
2
15V
L/R
XRST
AV1_BLUE
DRVRST
SUB1.5V
SUB1.5V
AV1_RED
PEAKS-LDA3
REMOTE_IN
A6
10
L/R
IC8902
IFD_OUT2
HDMI3.3V
STB5V_SW_ON
HP_R
CI I/F
12
5
L(-)
V/R/G/B
P+15V
L/ROUT
A11
TUNER_SUB_ON
PWMS L/R
AV1_VIN
SDVOLC
P_S1
SDVOLC
R(-)
SUB3.3V
SOS4_PS
P_S1
DCDCEN
SBI0
SBO0
SOS4_PS
L_OUT
6
SD CARD
I/F
CPU BUS
SUB5V
CI_POWER_ON
3
L/R
3
SD CARD
IF_AGC
IC2001
TS I/F
10
MAIN
ANT IN
IC8702
VDD1.0V
AVDDH
IC8201
STM
IIC
PANEL_SOS
SUB1.8V
IC8200
HDMI3.3V
B2_3.3V
TUNER_SUB_ON
LO2_L/R
SPEAKER
DVB_CVBS
V
IFD_OUT1
Y/PR/PB
PB
IC3001
DMD_
IIC0
JK3003
SIF I/F
SIF_OUT
REMOTE_IN
VIDEO
STB1.2V
FE_XRST
SUB3.3V_SENSE
Y/PB/PR
LO1_L/R
FE_XRST
PANEL_MAIN_ON
TU6775
IC8901
SOS4_PS
PANEL_MAIN_ON
TUNER
SOS4_PS
TUNER
NAND
FLASH
JK8301
IC8000
HP_L
IC8404
ETHERNET
IIC3
RF
CI_POWER_ON
SOS
AV1_GREEN
IC8706
RGB_CVBS
SUB1.2VP6STB3.3V
IFD1
RIN
LVDS DATA
P_S0
ETHERPHY
STB5V
IFD2
SPEAKER
L(+)
1
LAN CON
I/F
TUNER_POWER_SOS
VOUT
25MHz
POWER_DET
IF_AGC
RX0
RX2
+5V
DDC_IIC1
TMDS DATA
CLOCK
TMDS DATA
CLOCK
HDMI_CEC
HDMI_CEC
DDC_IIC2
DDC_IIC0
HDMI_CEC
DDC_IIC1
RX1
+5V
HDMI_CEC
+5V
DDC_IIC3
TMDS DATA
CLOCK
ARC
+5V
DDC_IIC4
DDC_IIC0
JK4700JK4701
HDMI IN 4HDMI IN 3
TMDS DATA
CLOCK
JK4702
HDMI IN 2
HDMI_
5VDET0
HDMI_
5VDET1
HDMI_
5VDET2
HDMI_
5VDET3
HDMI_5VDET0
HDMI_5VDET1
HDMI_5VDET2
HDMI_5VDET3
HDMI_CEC
HDMI_CEC_
PULL_ON
HDMI I/F RECEIVER
AV1
Parallel_TS
IC6778
Parallel_TS(SAT)
FAN A-B
IC5200
FAN ON
FAN SOS
FAN CONT.
D5201
D5205
D5206
D5207
A8
SOS DET
OVER
VOLTAGE
FAN STOP
IC6776
3.3V
IR_DCDC_ON
IR_DCDC_ON
KEY1
KEY1
QLINK1
USB5V
+5V
IC5441
USB5V
LEDDRV_5V
COMPONENT
JK3707
JK3100
L/ROUT
AUDIO OUT
JK3709
LOUT
ROUT
DIGITAL
AUDIO OUT
DIGITAL AUDIO OUT
VCC
LNB POWER
SUPPLY
DISEQC
IC6777
VDD1.0V
1.0V
B1
IIC3
DDC_IIC3
DDC_IIC4
SUB5V
IC8403
13
FAN_SOS
FAN_ON
FAN_ON
FAN_SOS
DDR3 I/F
IR_LED_SOS
IR_LED_SOS
VIDEO OUT
AUDIO
OUT
VDAC
AV IN
IECOUT
R_LED_ON
R_LED_ON
G_LED_ON
G_LED_ON
AXO
24.576MHz
AXI
IC8602
USB I/F
USB1
USB2
USB1VBUS
IC8603
JK8601
USB2VBUS
JK8602
IC8606
JK8603
USB3
USB0VBUS
IC4700
IIC3
IC4701
3.3V
TMDS DATA CLOCK
DDC_IIC2
7
8
USB SW
USB SW
USB SW
HDMI SW
MAIN AV INPUT,PROCESSING
A
TUNER_POWER_SOS
TUNER_
POWER_SOS
TUNER
I/F
COMPONENT
AV2
JK4703
HDMI IN 1
AV2
AUDIO OUT
+3.3V
IC8709
SUB3.3V
P+3.3V
VSW
(LED:5TIMES)
(LED:3TIMES)
(LED:12TIMES)
(LED:10TIMES)
(LED:4TIMES)
(LED:11TIMES)
(LED:11TIMES)
(LED:14TIMES)
Page 39
39

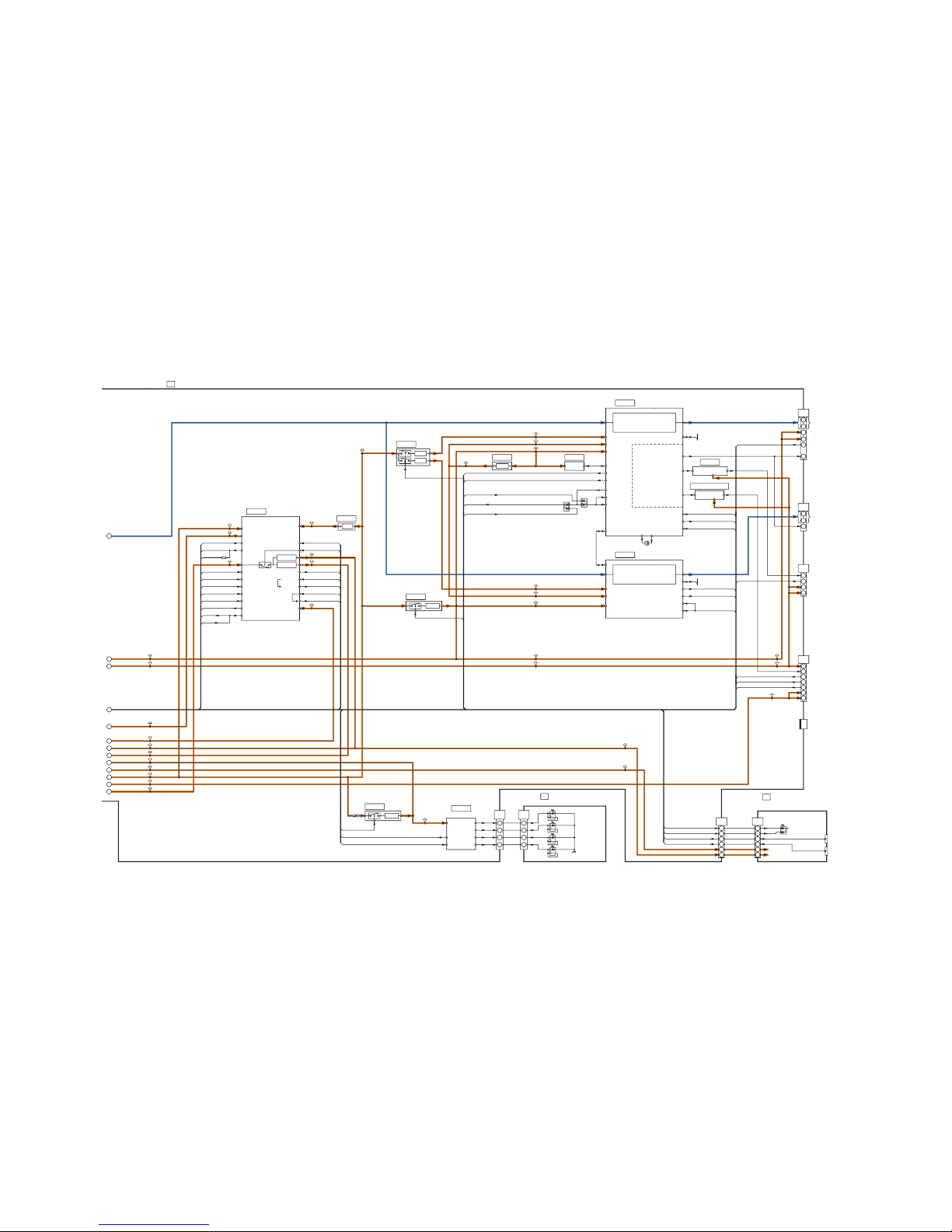

10.3. Block (2/4) Diagram
G
R
STB3.3V
P+5V
D9807
P+5V
SUB9V
LEDDRV_5V
P+3.3V
F15V
D2853
B2_3.3V
F15V
STB3.3V
P+15V
D2820
STB1.2V
TUNER5V
STB1.2V
SUB9V
B2_3.3V
P+3.3V
SUB3.3V
D2851
F15V
P+3.3V
SUB3.3V
P+15V
STB5V
D2850
STB5V
P+5V
LEDDRV_5V
D2852
D9806
X9300
STB3.3V
P+3.3V
P+3.3V
P+2.5V
P+2.5V
P+2.5V
P+1.1V_M
P+1.1V_S
PA5900
SOS6_SC1
8
SC_UHZ
IR_LED_SOS
PWM
C.A.T.S
PLASMA AI
CPG
H/V Sync Control
Sub Filed Processor
9
IC9304
IC5000
5
2
11
P_S1
A20
P_S0
POWER_DET
SOS7_SC2
K
C.A.T.S SENSOR
+2.5V
5
SOS8_SS
2.5V
PDP_DRVRST
REMOTE_IN
+5V
SUSTAIN CONTROL
IC5901
UHZ
1
P_S1
IIC0
18
3
SOS8_SS
DATA DRIVER CONTROL
SN2810
LED3
A32
DATA DRIVER CONTROL
SUB_AI3.3V
DATA DRIVER CONTROL
4
5
SOS_DCC_M
P+3.3V
3D EYEWEAR
C21
SOS6_SC1
SOS_DCC_M
R_LED_ON
14
IC9500
G_LED_ON
LP1 2ND
P+1.1V_S
SOS6_SC1
SOS_DCC_S
+1.1V
IIC0
IIC1
STM_IIC
SBO0/SBI0
SCAN CONTROL
1.1V_S
STB3.3V
SS33
SOS7_SC2
SOS7_SC2
P+15V
ANALOG-ASIC
PDP_DRVRST
LP1
IR_LR
C11
VBAT
LEDDRV5V
1
19
52
IC5900
RM2810
D_UHZ
XRSTSTM
LED1
IIC0
8
POWER_DET
LED2
POWER LED
29
2
P+5V
P+5V
20
1
DCDCEN
2
SUB5V
DCDCEN0
LED4
P_S0
SN20
DTV15V
PANEL_SOS
3.3V
FAULT
2
D_UHZ
3.3V
SI/SO
POWER LED
16
SUB9V
1.1V_M
6
2.5V
SOS_DCC_S
DCDC_CTL
DISCHARGE CONTROL
TU5V
SCAN DATA
BUFFER
TRANSMITTER
PANEL_SOS
FLASH I/F
DCDCEN
IC4800
3D EYEWEAR
SOS7_SC2
XRST
UHZ
IC8704
XRST
XRSTSYS
DRVRST_
IN
OFF_FLAG
1
FOR
FACTORY
USE
3
C.A.T.S
IC9300
3
STB5V_SW_ON
KEYSCAN
13
SC_UHZ
LVDS DATA
4
4
VIDEO DATA
6
LVDS DATA
12
1
10
LP1_XRSTSYS
SUSTAIN CONTROL
A31
IR_LR
SOS_DCC_S
IR_LR
3
PDP_DRVRST
VIDEO DATA
LED3
SOS8_SS
5
LVDS DATA
DRVRST
2
LP1_XRSTSYS
3
K1
SOS6_SC1
C.A.T.S. SENSOR
6
DCC_SOS_M
VIDEO DATA
IC9400,01,02
+1.1V
SD_UHS
XRSTSYS
STB+1.2V
15
LED2
STB+3.3V
SW_OFF_DET
5
CN0100
P+5V
4
SPI
FLASH
SDVOLC
STBRST
V14
30
REMOTE
RECEIVER
X1X0
SOS8_SS
DRVRST_
OUT
SOS_DCC_S
P+1.1V_M
VIDEO DATA
P+15V
IC9860
P+3.3V
BUFF_EN
A1
A40
40
1
G_LED_ON
SCAN CONTROL
R_LED_ON
TRANSMITTER
2
2
V
UHZ
PLASMA AI
CPG
H/V Sync Control
Sub Filed Processor
LED4
LED1
A14
REMOTE_IN
SOS_DCC_M
IR_DCDC_ON
REMOTE RECEIVER
DCDCEN0
KEY1
+3.3V
P+3.3V
IC8707
DCDCEN
7
8
XRST
DTV_RST
DCDCEN2
SBI1
SBO1
MAIN AV INPUT,PROCESSING
A
IR LED DRIVER
IC9501
SUSTAIN DATA
BUFFER
(LED:14TIMES)
(LED:9TIMES)
(LED:7TIMES)
(LED:6TIMES)
(LED:8TIMES)
(LED:9TIMES)
Page 40
40

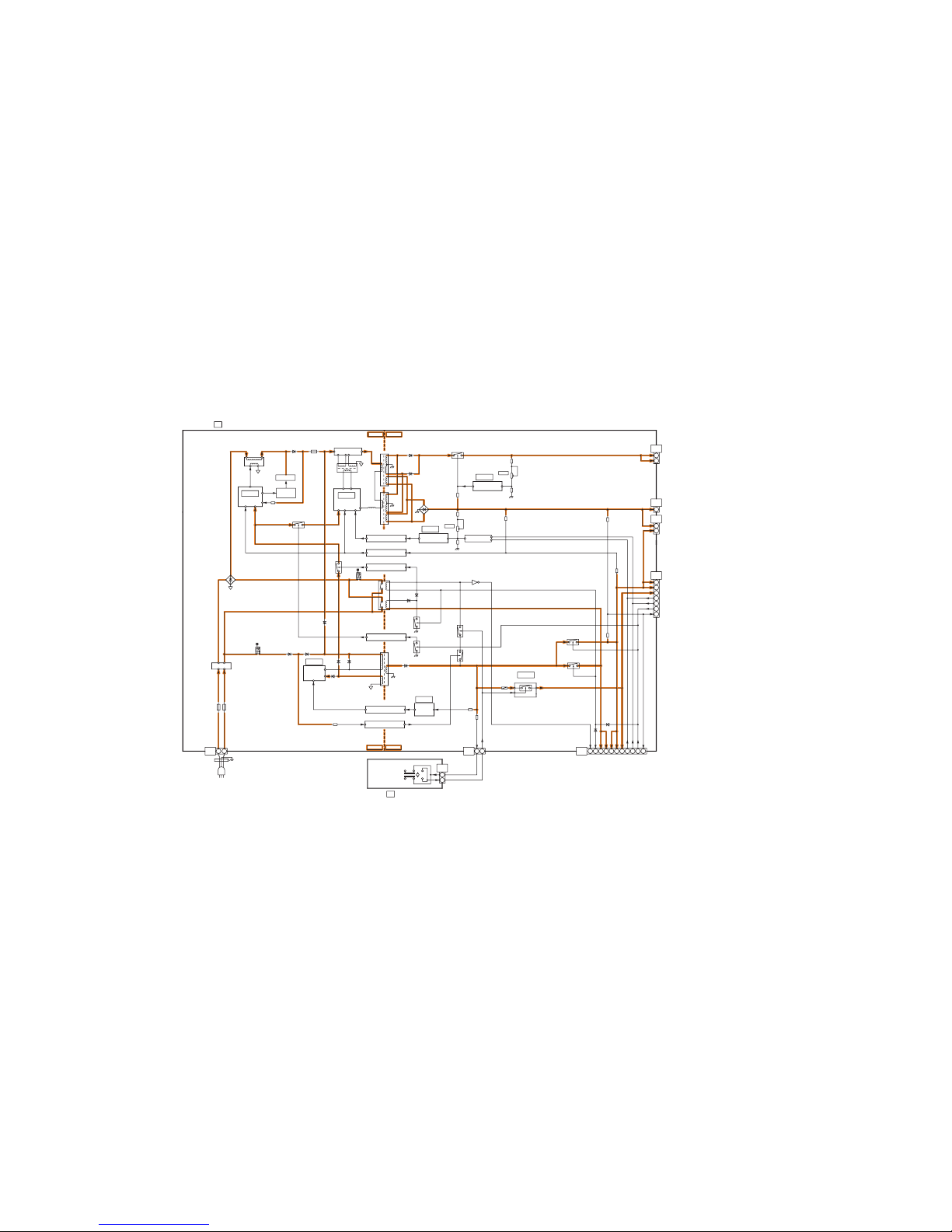

10.4. Block (3/4) Diagram
F101F100
F102
F501
R227
R100
SOUND+15V
1
SS11
7
10
8
9
P34
P+15V
1 623
P6
5
Q300-Q303
2
15
1
1
P35
C25
P11
11
LIVE
T301
1
P+15V
PFC
P2
LF100,LF101
D201
P25
2
NO USE
PANEL_MAIN_ON
RL100
4
F+15V
D100
STBY5V
A6
P+15V
PC200
Vda
IC100
PHOTO COUPLER
NEUTRAL
S0
P9
12 3
F+15V
Vda
T302
1
S1
P+15V
Vsus
Vsus
SN2
RESONANCE
P
POWER SUPPLY
RECTIFIER
AC CORD
FILTER
D105
D106
T200
AC DET
STB
CONTROL
IC200
PHOTO COUPLER
PC201
L100
D505
IC400
10 13
STB5V_ON
5
SOS_P4
4
STB5V
S0
S1
PANEL_MAIN_ON
SOS_P4
D601
F_STBY
ERROR
DET
D202
L100
Q102,03
Q100,01
FET
DRIVER
CONTROL
GD2
IC300
VCC
RESONANCE
CONTROL
OC
SS
L300
GD1
T300
RT
D600
D700
VR600
IC600
Vda
Vda
ERROR DET
Q600
PHOTO COUPLER
PC700
PC400
PHOTO COUPLER
PC401
PHOTO COUPLER
VR251
IC700
Vsus
Vsus
ERROR DET
Vsus Adj
Q404,Q405
Q107
IC500
STB+5V
F_STB_ON
7
F_STBY(F15V)
Q500
P+15V
Q502
Q406
POWER SWITCH
POWER SWITCH
S
SW2890
ON
1
MAIN SW2
S10
MAIN SW1
Q307
PC402
PHOTO COUPLER
Q424
Q409
Q417,418
Q408
3
D501
HOT COLD
COLDHOT
Page 41
41

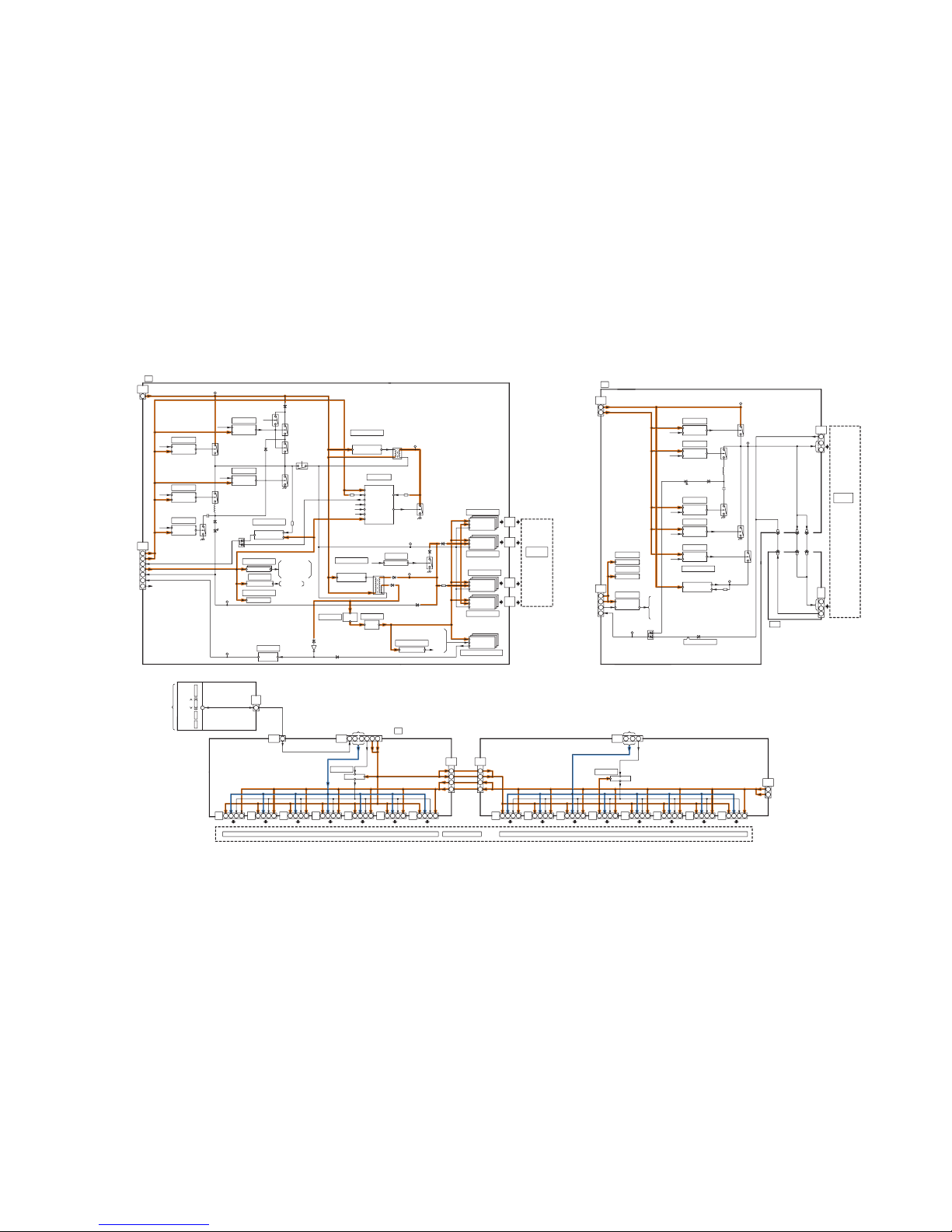

10.5. Block (4/4) Diagram
A40
D16791
TPVAD
TPVSUS
TPSN1
TPSOS6
D16618
TPSOS7
D16583
D16473
D16493
TPVFG
ZA16106
TPSS1
TPSOS8
D16254
D16255
D16282
ZA16112
TPVSUS
ZA16102
ZA16111
ZA16116
ZA16101
D16825
D16728
TPVE
CB1
IC17102
CB7CB2
BUFFER
CB4
VDA
P35
CB
12
CB
11
A31
1
C25
C21
2
CB3
CB
10
CB6 CB8CB5
CB
14
CB
13
A32
CB
15
CB9
16
120
C10
5
C11
C20
1654
VDA
P+3.3V
5554
P+3.3V
VIDEO DATA
CONTROL DATA
DATA DRIVER DATA DRIVERPLASMA PANEL
CONTROL DATA
VIDEO DATA
DATA DRIVER (RIGHT)
C1
42 4
2
18 3
19
BUFFER
IC17201
P+3.3V
VDA
VDA
P+3.3V
VFG
CERS
Vfo
CMH
Q16422
18
CRC2
VSCN-F
IC16724
SIU
Q16451
CIS
35
CEL
20
IPD CIRCUIT
IC14801-03
IC14901,02,04
IC16786,87
SN2
CERS
IC14604-06
SHUNT REG
VSCN GEN.
D16714
PC16897
+5V
SHUNT REG
UHZ
(SC)
SIU
P+5V
VAD GEN.
CRC1
SOS6
SN
VHIZ
CEL
7
Q16401
Q16421
Q16471
PDP SCAN
SCNR_PRO
SEL
IC16471
SCAN DRIVE
PDP SCAN
DRIVER
PC16723
T16471
SHUNT
REG
6
DRIVER
LOGIC IC
P+15V
5V_F
CPH1
BUFFER
PDP SCAN
SCAN CONTROL
DRIVER
DRIVER
CLK
A20
Q16600
21
IC16561,62
SCAN
CONTROL
INVERTER
CML
P+15V
Q16607
CSH
IC14601-03
PDP SCAN
OC1
PLASMA
PANEL
PANEL
SCAN
ELECTRODE
LED(G)
P2
VHIZ GEN.
SOS7
Q16402
Vsus
VOL
IC16563
Q16441
CLK
OC1
SEL
OC2
CSL
IC14804-06
IC16784,85
IC16691
IPD CIRCUIT
OC2
NAND
IC16792,93
1
SN
20
SN21
SN22
SN23
SN24
SN25
SN26
SN27
SN28
D16713
T16472
VFG
Q16601
CPH1
IC16684
BUFFER
CMH
SUSTAIN H
BUFFER
IC16501
IC16502
CSH
BUFFER
RECOVERY H
CSL
RECOVERY L
IC16522
BUFFER
MID
CML
IC16521
BUFFER
SUSTAIN L
CIS
Q16621
Q16622
IC16490,91
VSET DET
OR
IC16564,65
SEPA
Q16660
Q16661
IGBT CONTROL
IC16921
CRC2
CRC1
CEL
PANEL
SUSTAIN
ELECTRODE
SUSTAIN DRIVE
IC16244
SUSTAIN CONTROL
UML
SS
RECOVERY L
SS
61
1
BUFFER
BUFFER
13
BUFFER
2
BUFFER
INV
IPD CIRCUIT
FPC PROTECTOR
LED(G)
PLASMA
PANEL
SOS8_SS
2
20
1
P11
P+5V
SS
11
Vsus
SS
33
4
IC16241
P+15V
RECOVERY H
MAIN H
MAIN L
BUFFER
UMH
Q16042
IC16243
AND
UEH
2
USL
13
USH
1
UML
UMH
IC16304,12
PC16301
VE GEN.
Q16052
USL
IC16152
USH
IC16151
BUFFER
IC16131
Q16001
Q16002
Q16021
Q16022
IC16132
UEH
IC16191
SS
66
SS2
(LOWER)
SUSTAIN OUT
Q16101
Q16102
SHUNT REG
1
C14
KEY1
52
KEY1
1
P+5V
MID
IC16795
F15V
Q16403
Q16423
Q16623
SIDE UNIT ASSY
OPERATION KEYS
AV
F
+
TV
--
+
(LED:6 TIMES)
(LED:7 TIMES)
(LED:8 TIMES)
Page 42
42
Page 43
43
11 Wiring Connection Diagram
11.1. Caution statement.
Caution:
Please confirm that all flexible cables are assembled correctly.
Also make sure that they are locked in the connectors.
Verify by giving the flexible cables a very slight pull.
11.2. Wiring (1)
Page 44
44

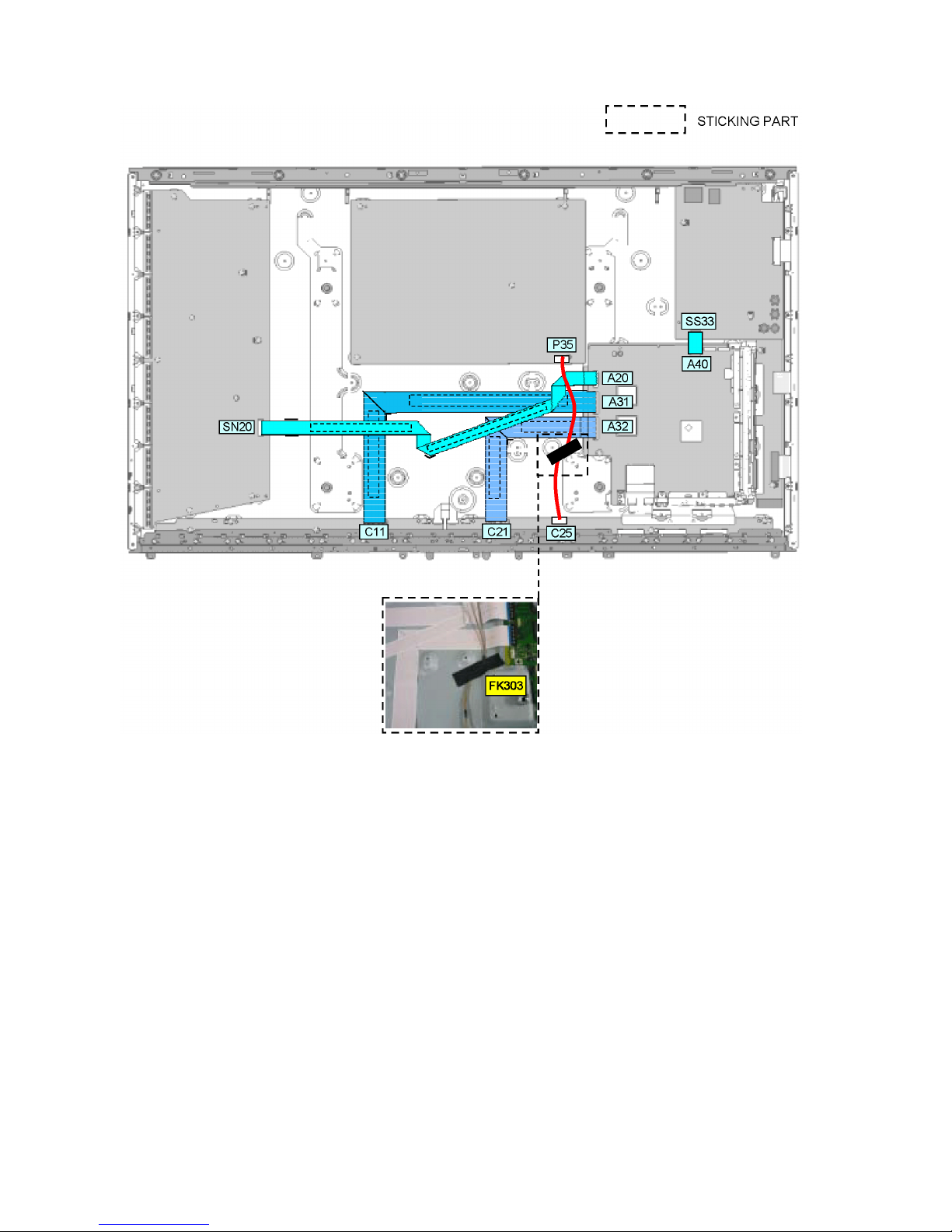

11.3. Wiring (2)
Page 45
45

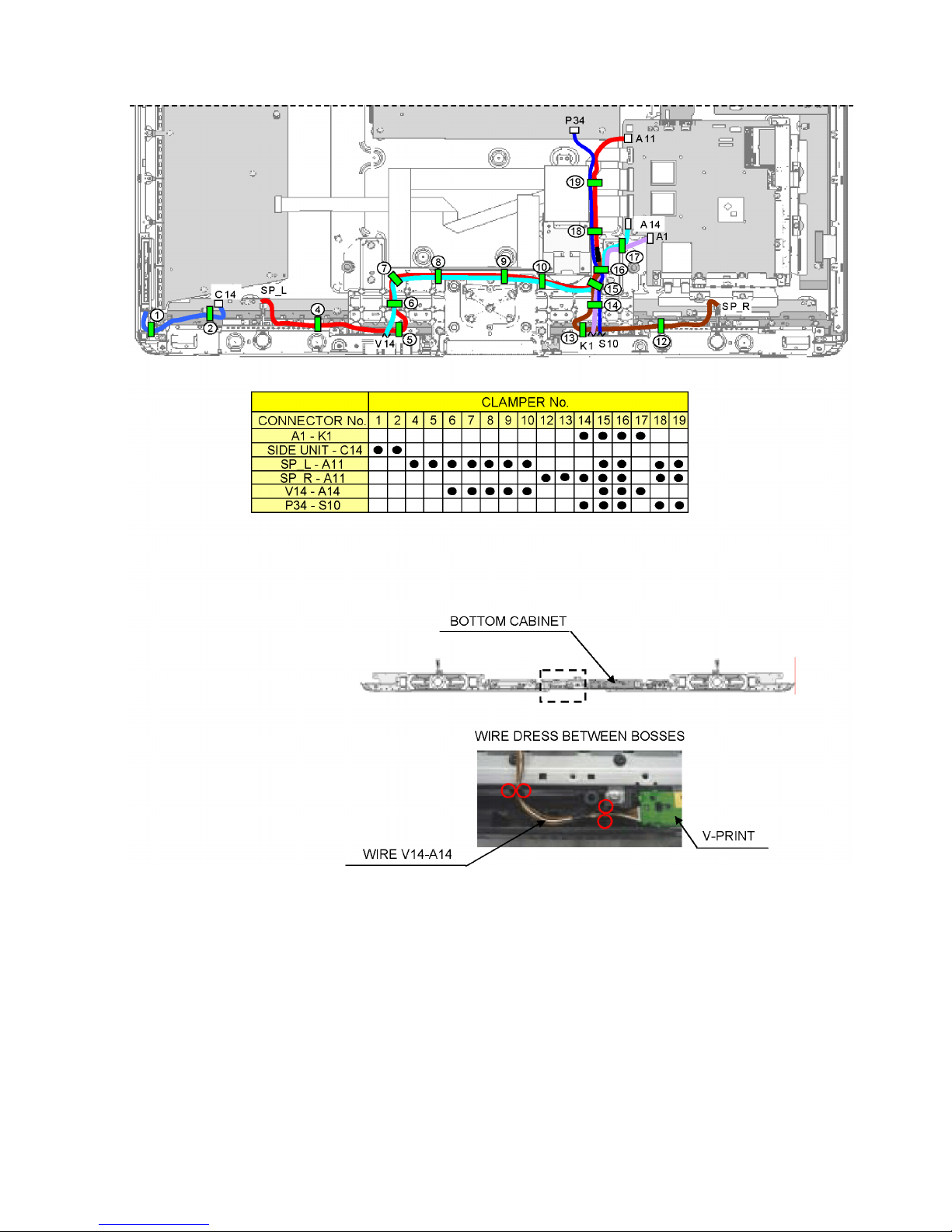

11.4. Wiring (3)
Page 46
46

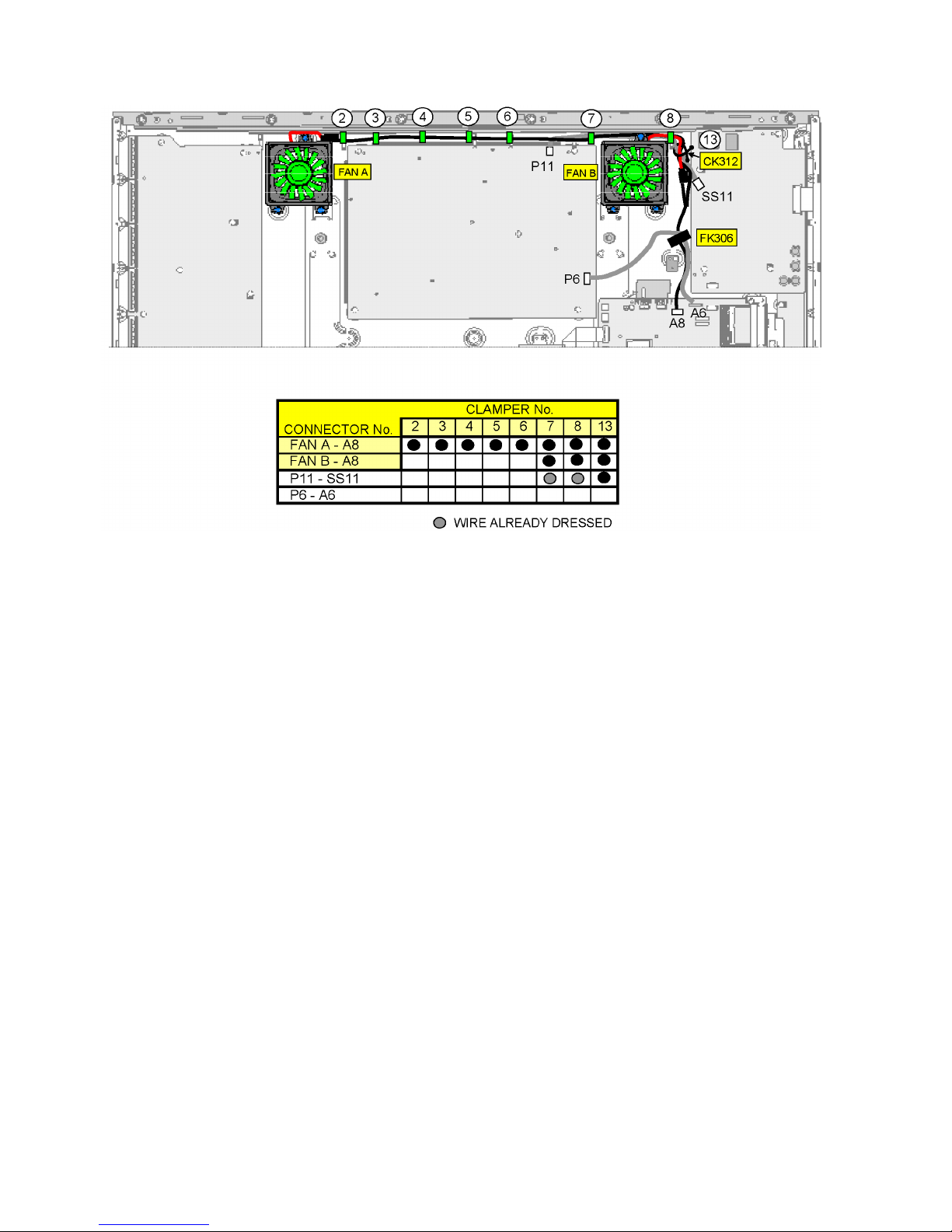

11.5. Wiring (4)
Page 47

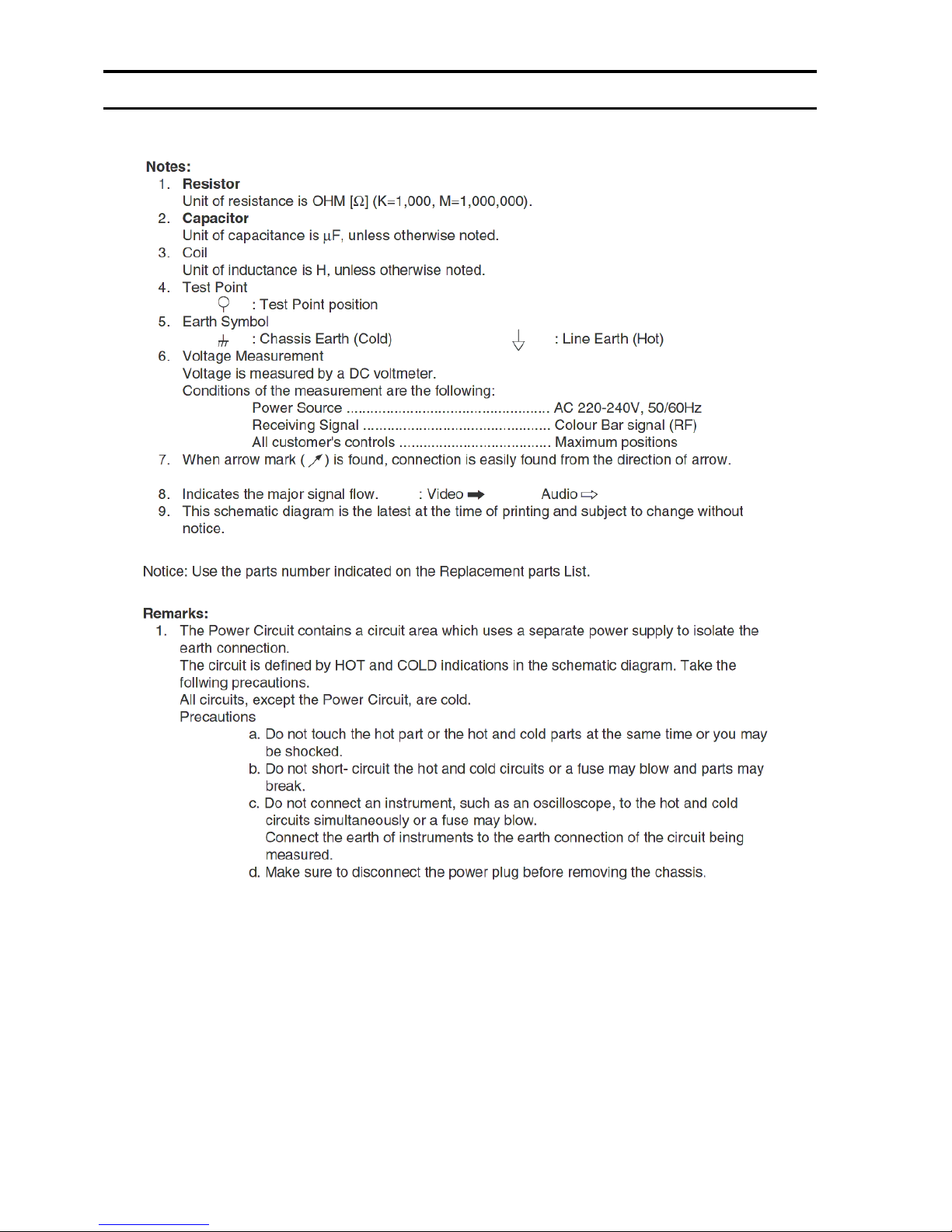

Model No. : TX-P42GT30E/J Schematic Diagram Note
S-1
Page 48

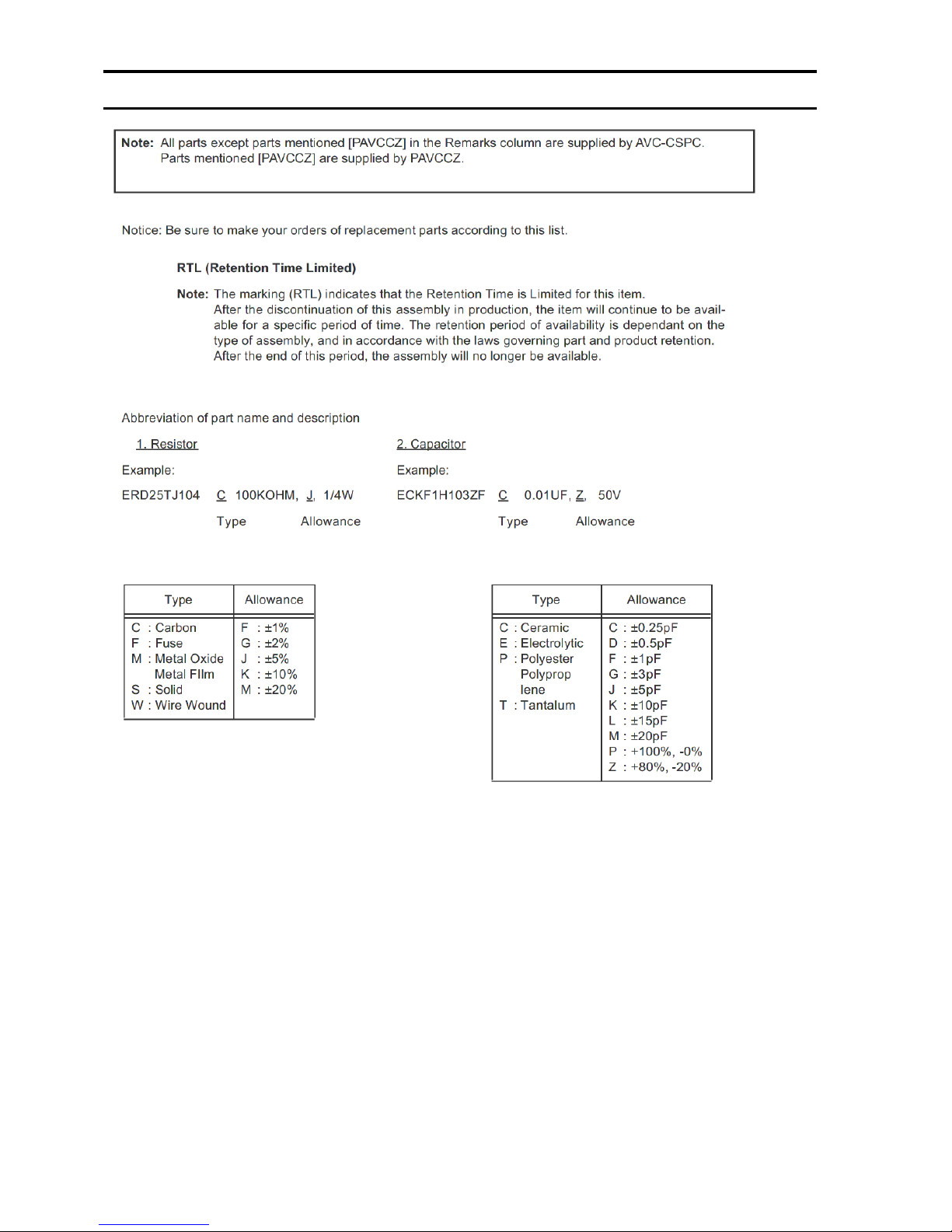

Model No. : TX-P42GT30E/J Replacement Parts List Note
S-2
Page 49

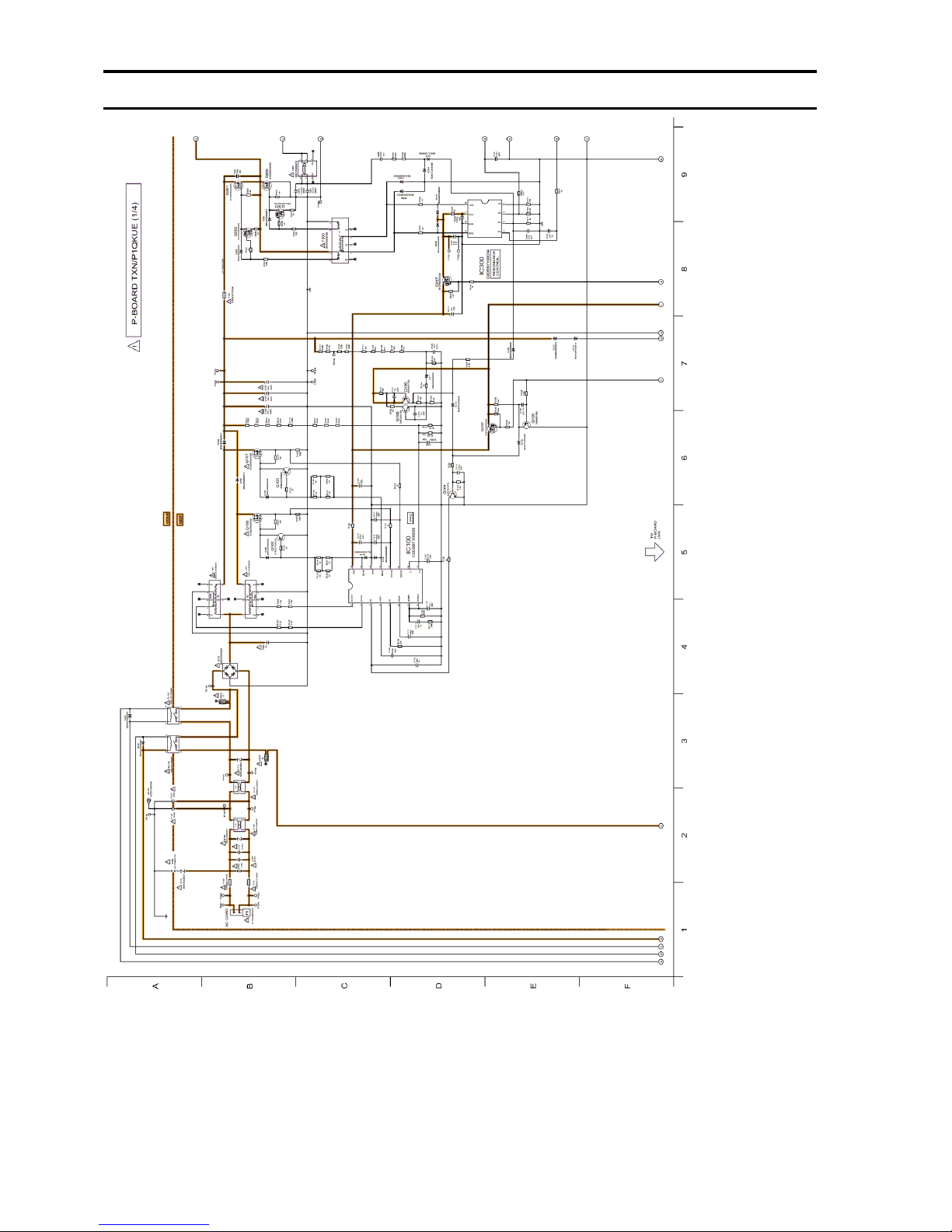

Model No. : TX-P42GT30E/J P-Board (1/4)
S-3
Page 50

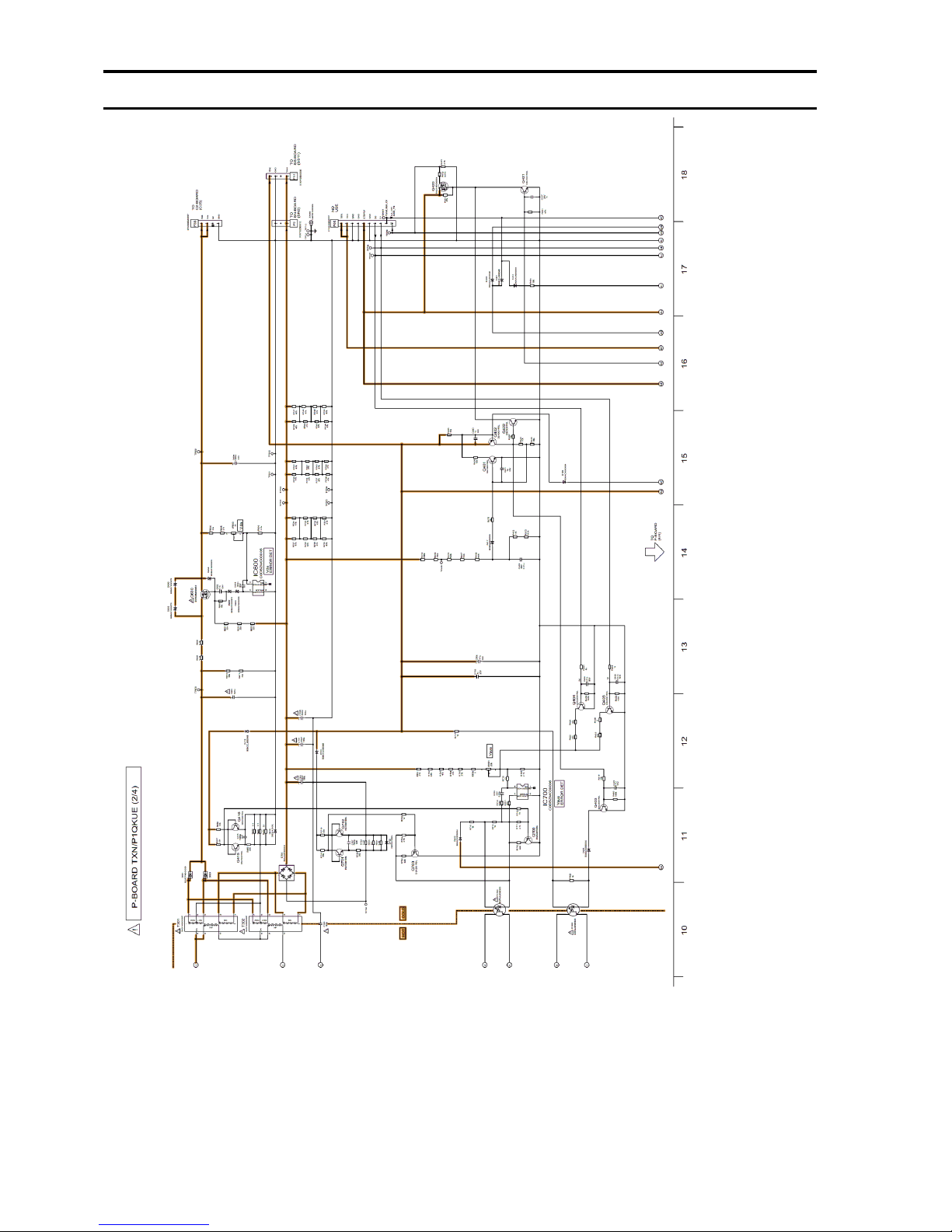

Model No. : TX-P42GT30E/J P-Board (2/4)
S-4
Page 51

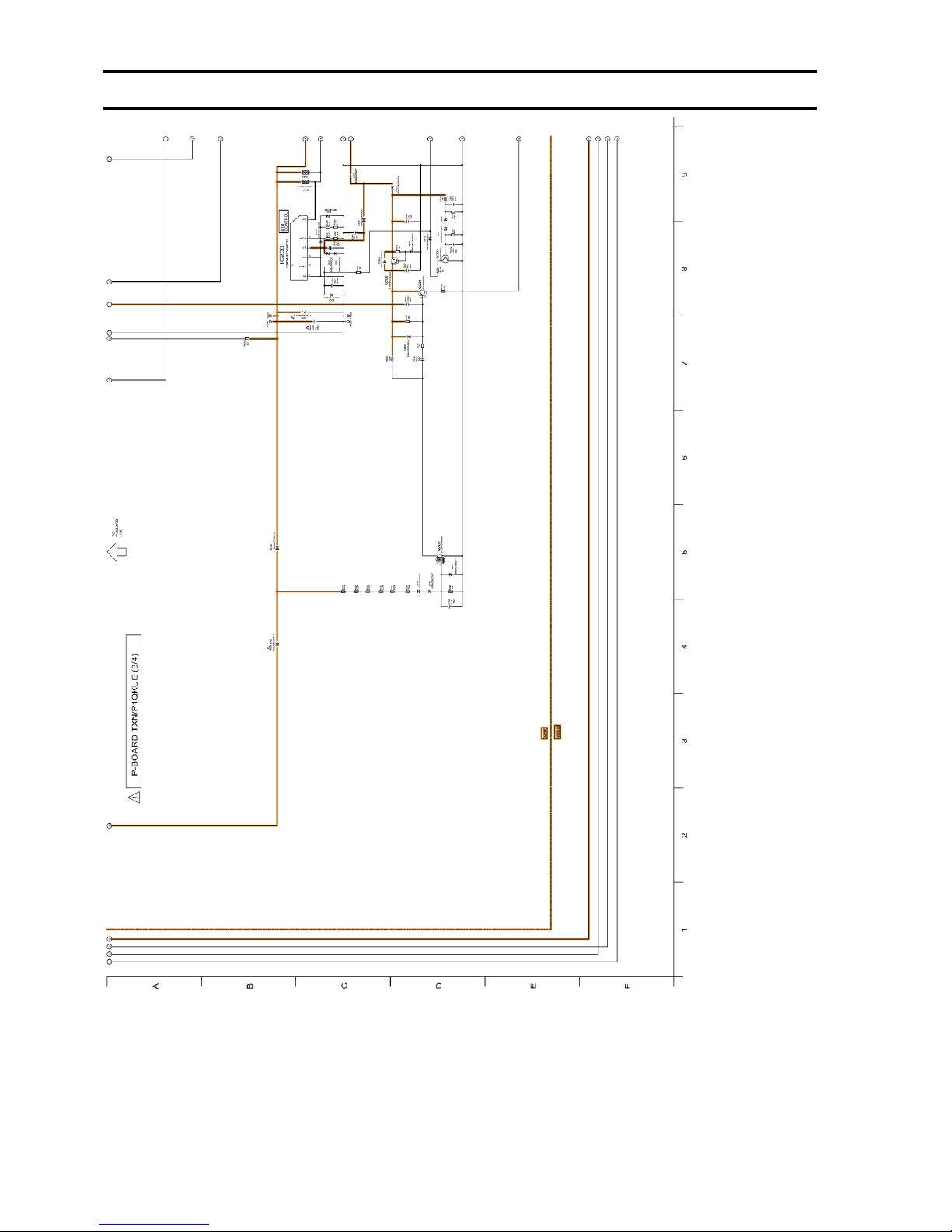

Model No. : TX-P42GT30E/J P-Board (3/4)
S-5
Page 52

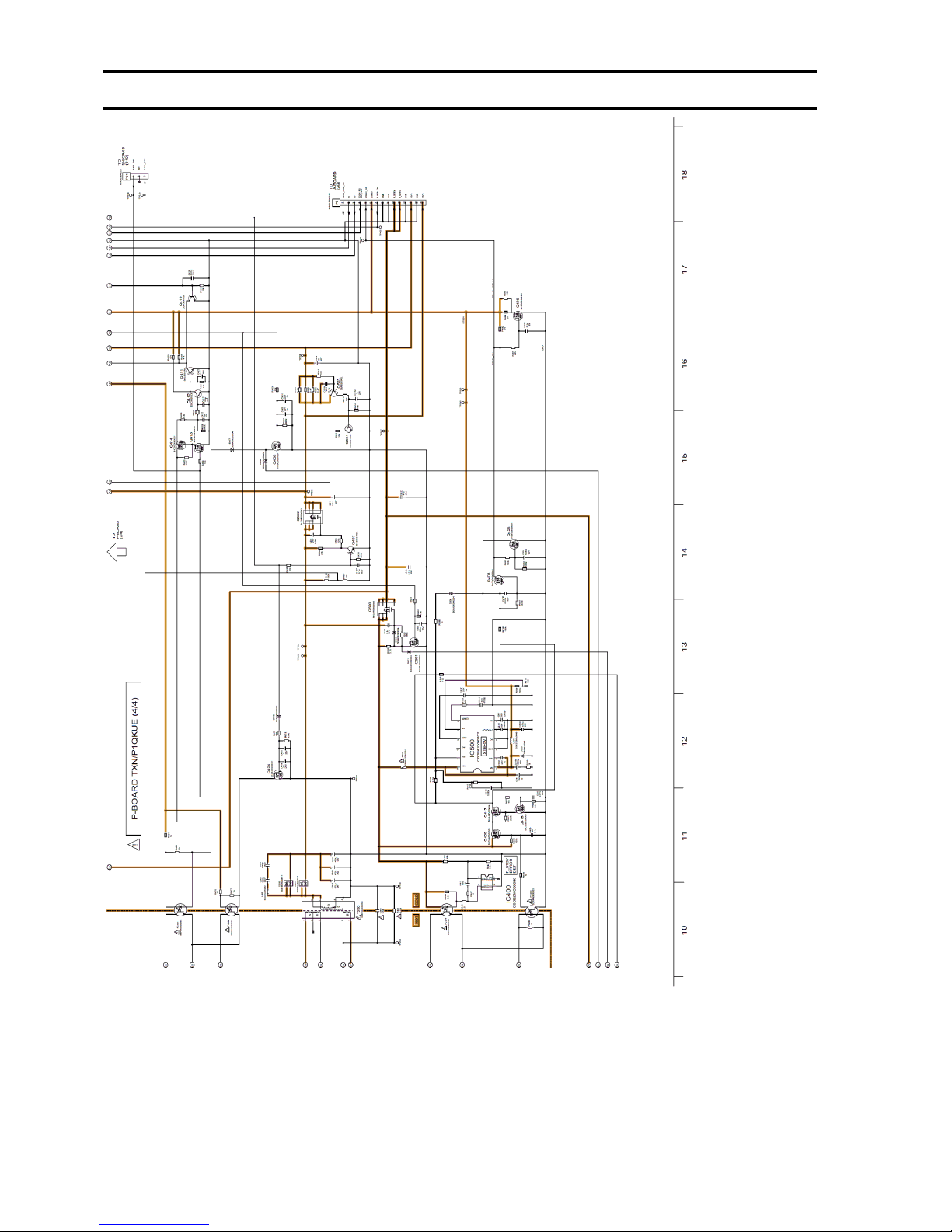

Model No. : TX-P42GT30E/J P-Board (4/4)
S-6
Page 53

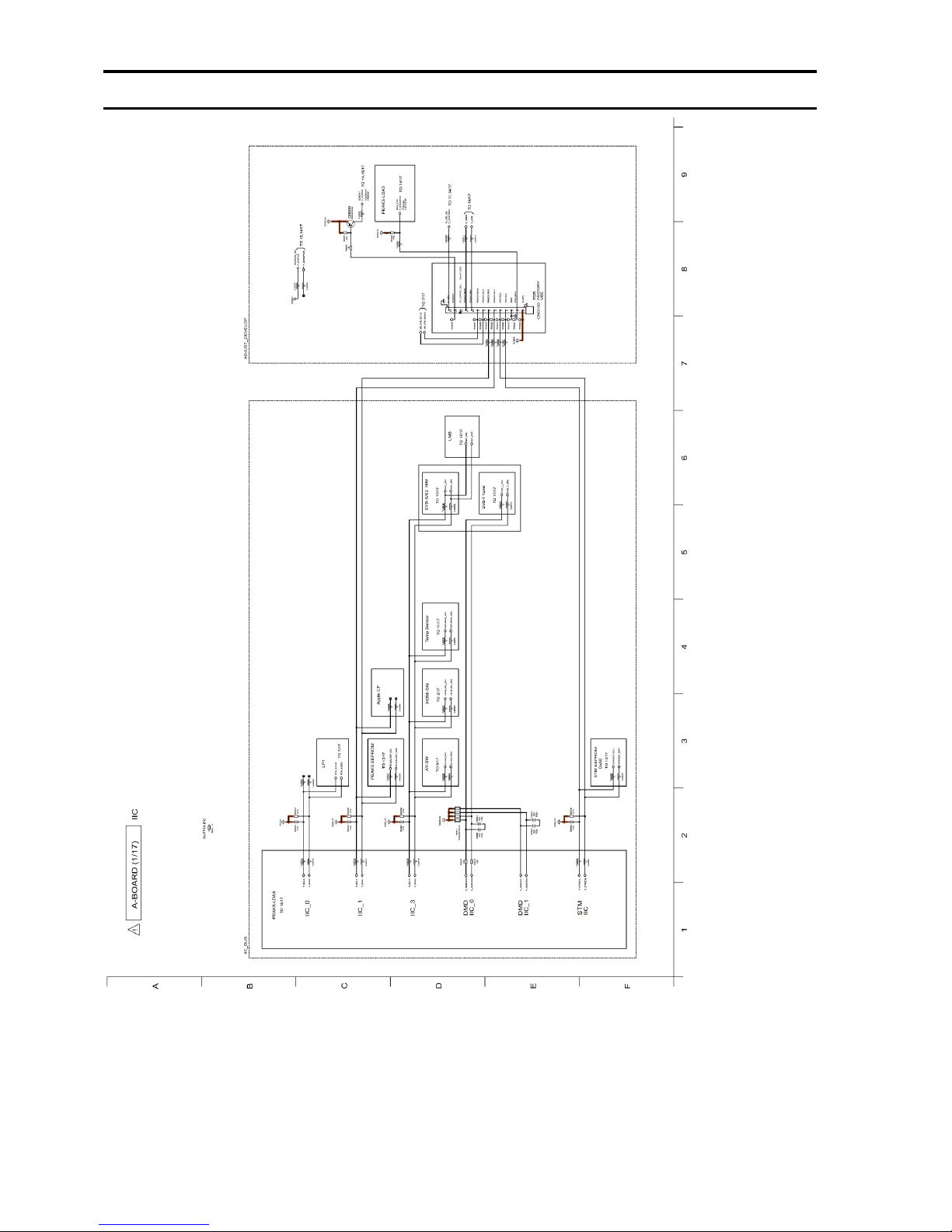

Model No. : TX-P42GT30E/J A-Board (1/17)
S-7
Page 54

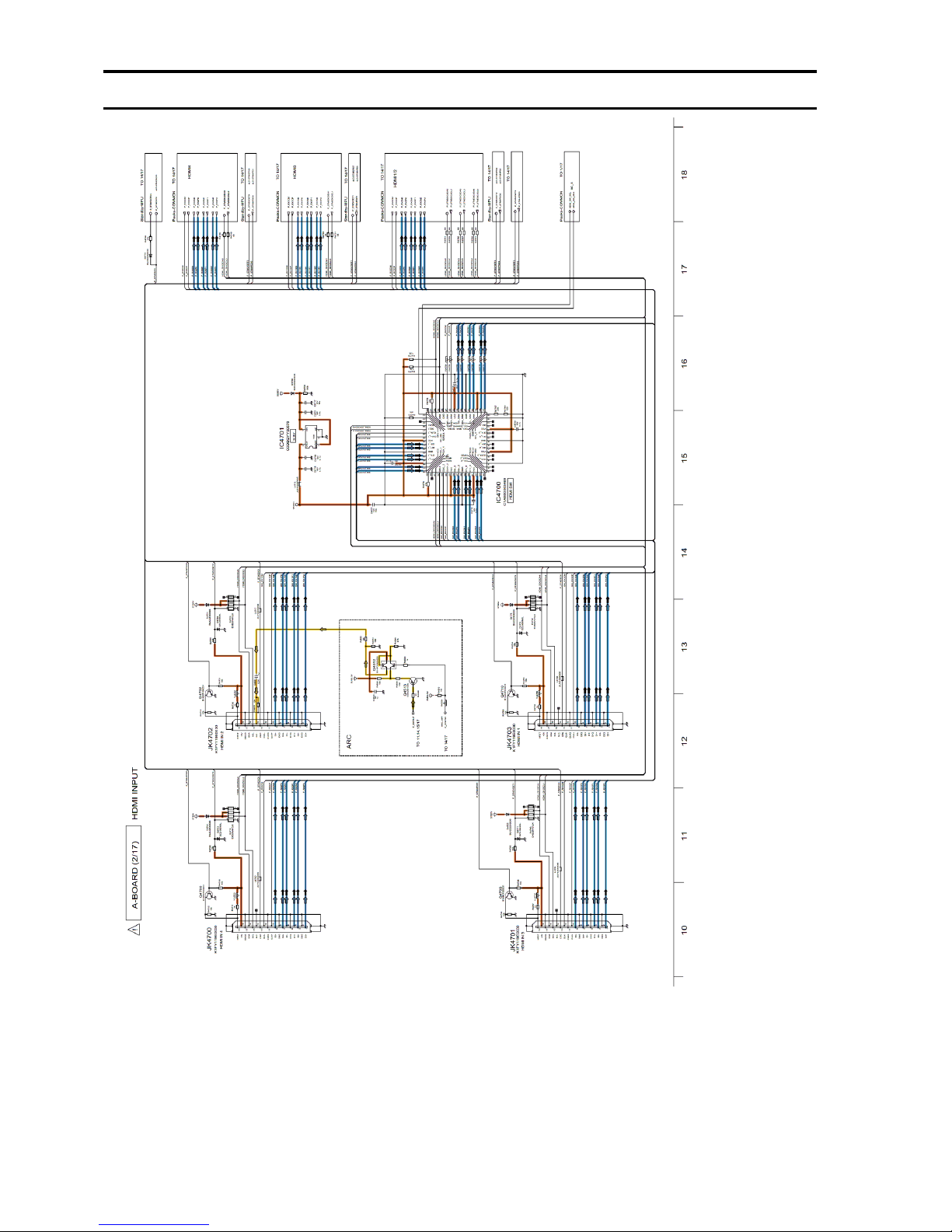

Model No. : TX-P42GT30E/J A-Board (2/17)
S-8
Page 55

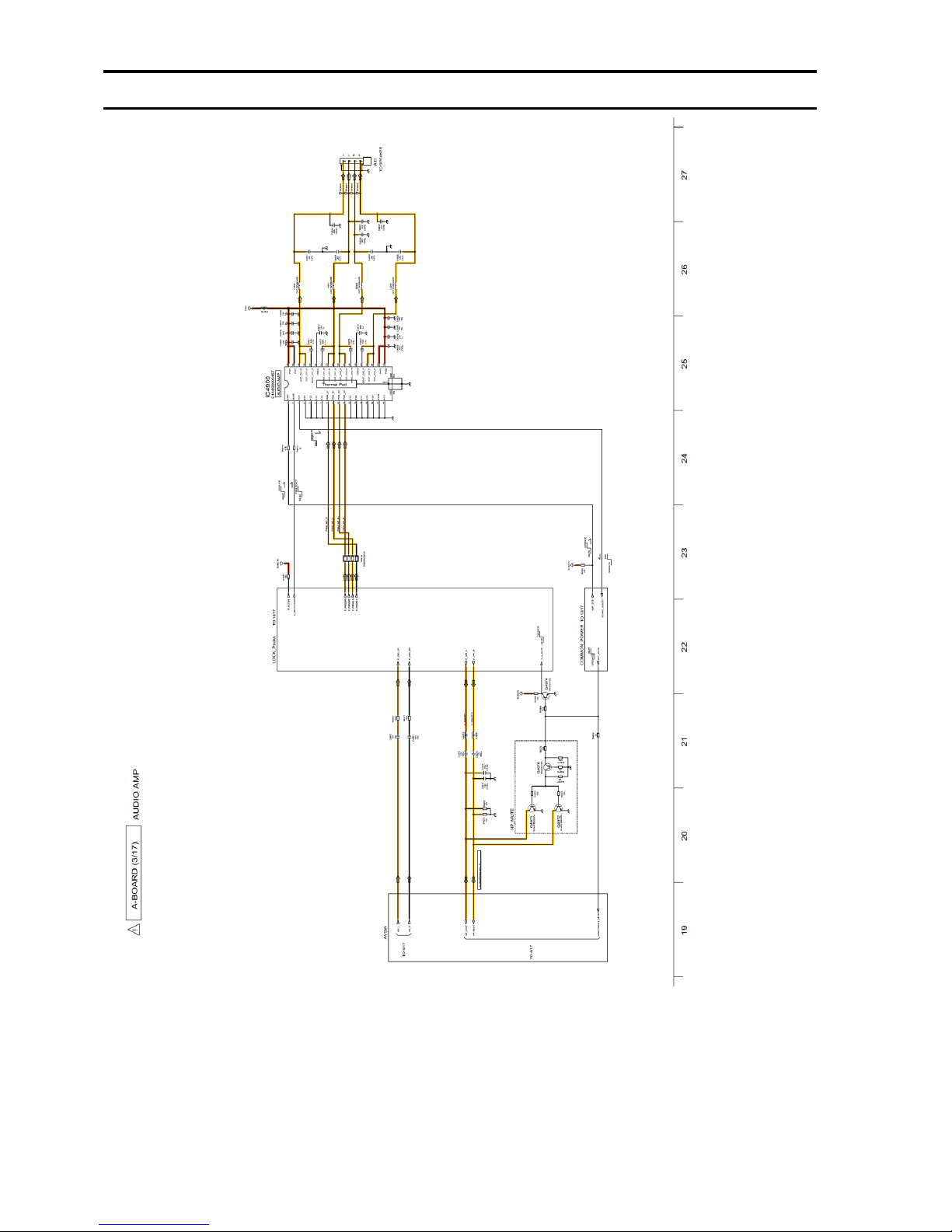

Model No. : TX-P42GT30E/J A-Board (3/17)
S-9
Page 56

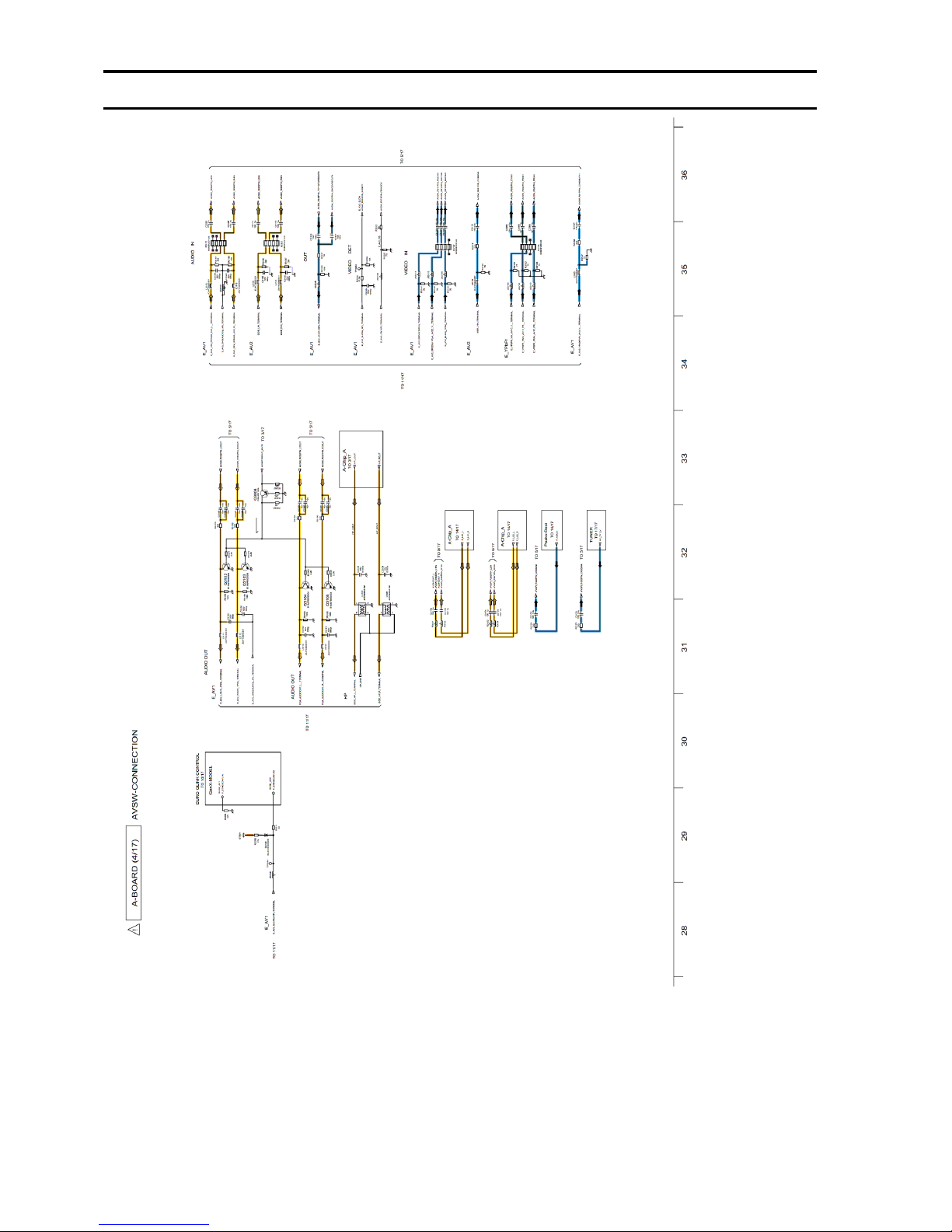

Model No. : TX-P42GT30E/J A-Board (4/17)
S-10
Page 57

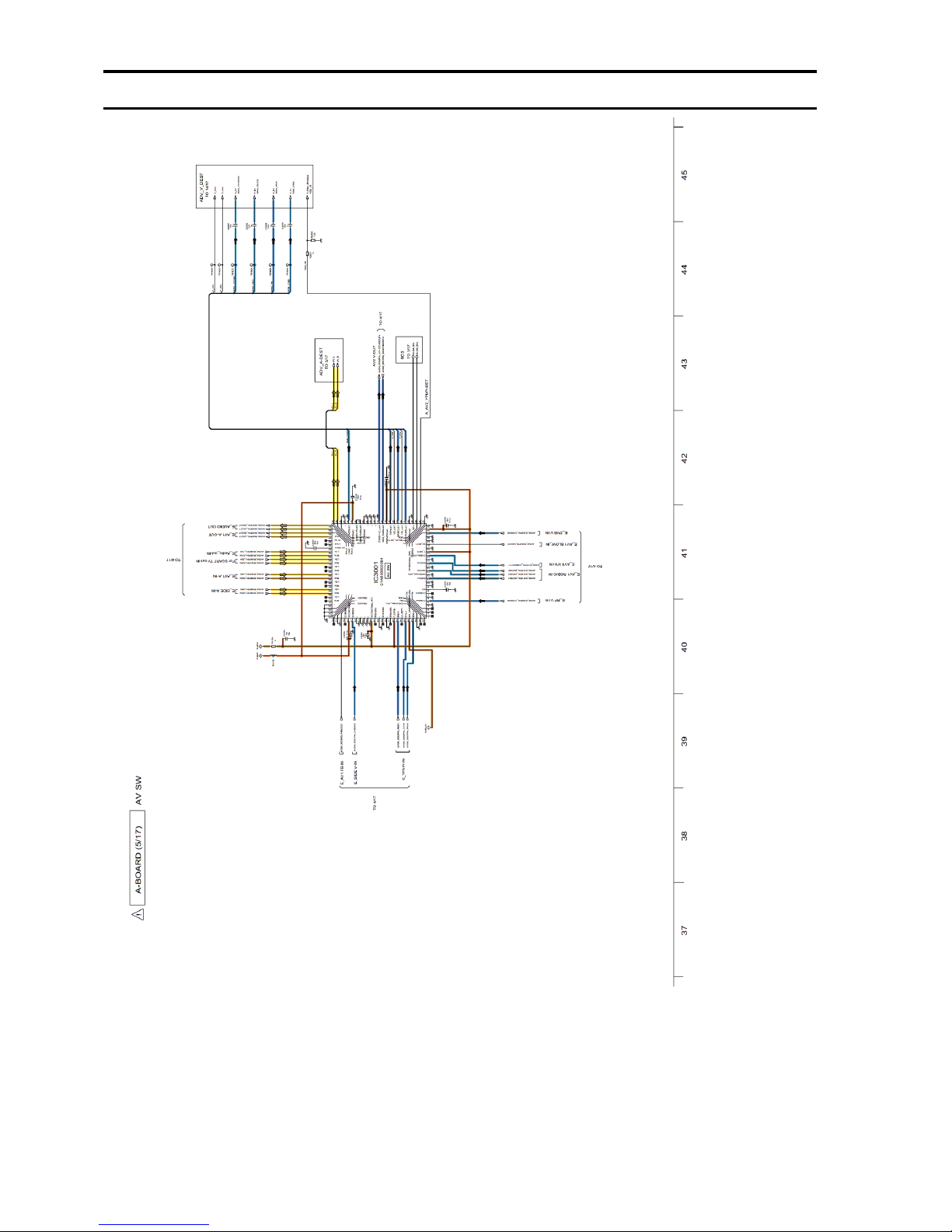

Model No. : TX-P42GT30E/J A-Board (5/17)
S-11
Page 58

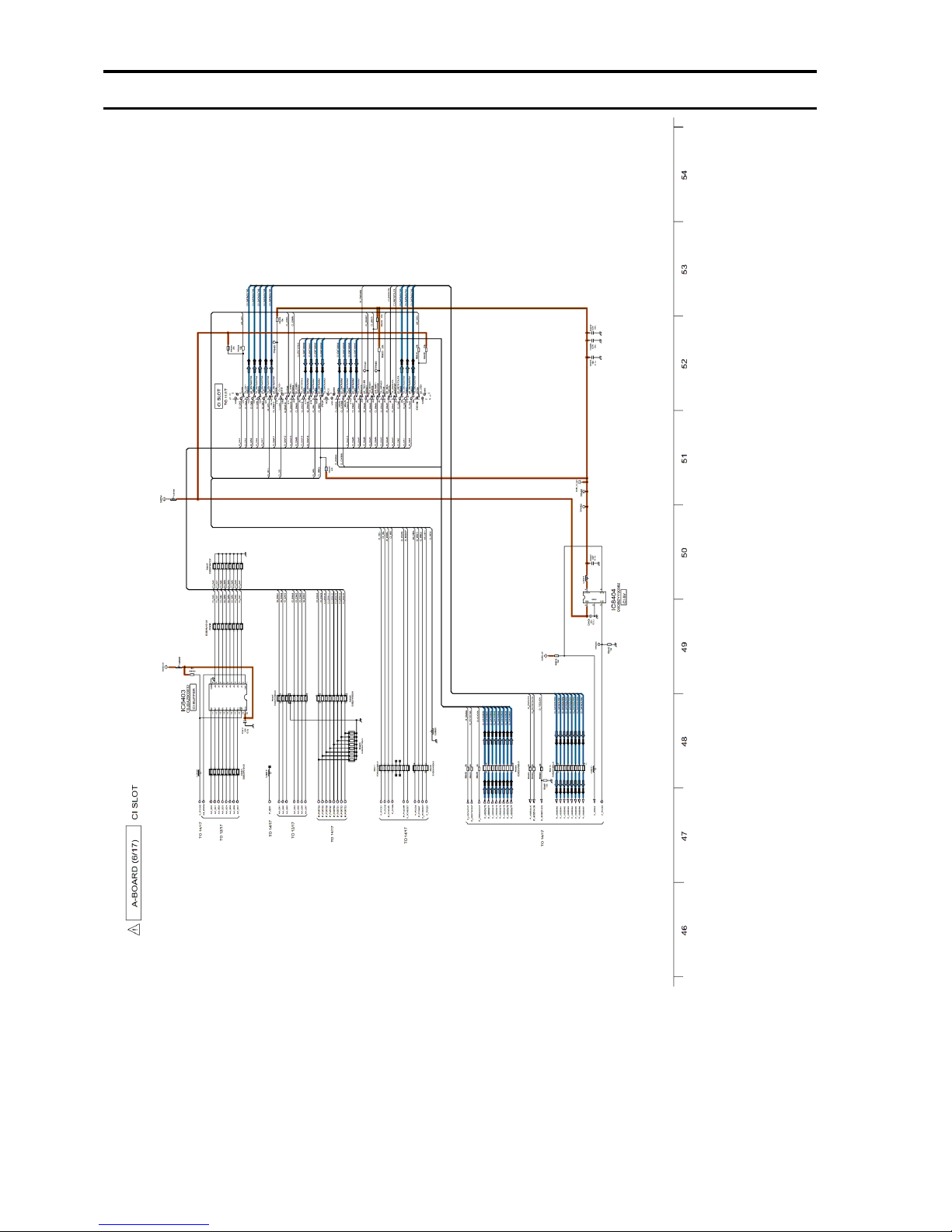

Model No. : TX-P42GT30E/J A-Board (6/17)
S-12
Page 59

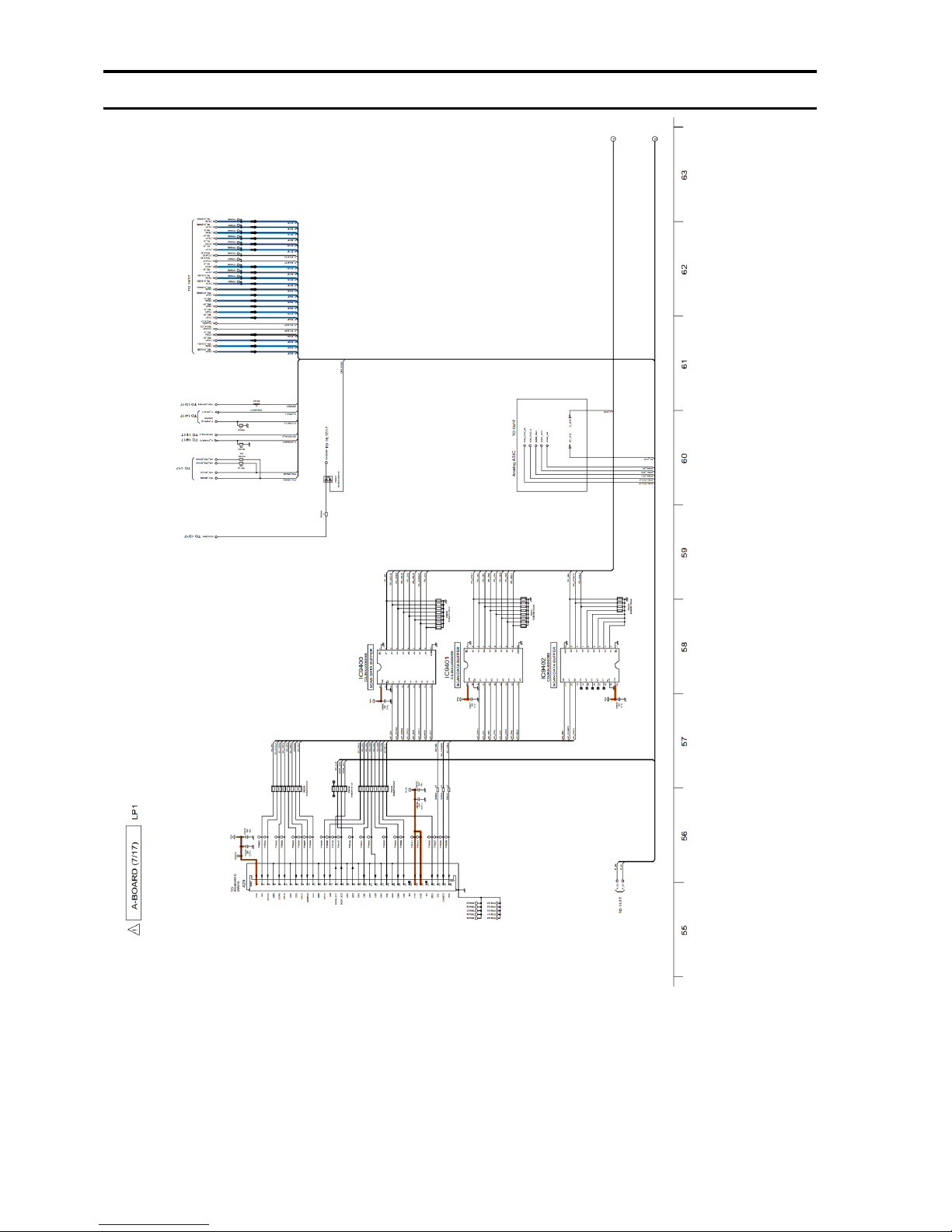

Model No. : TX-P42GT30E/J A-Board (7/17)
S-13
Page 60

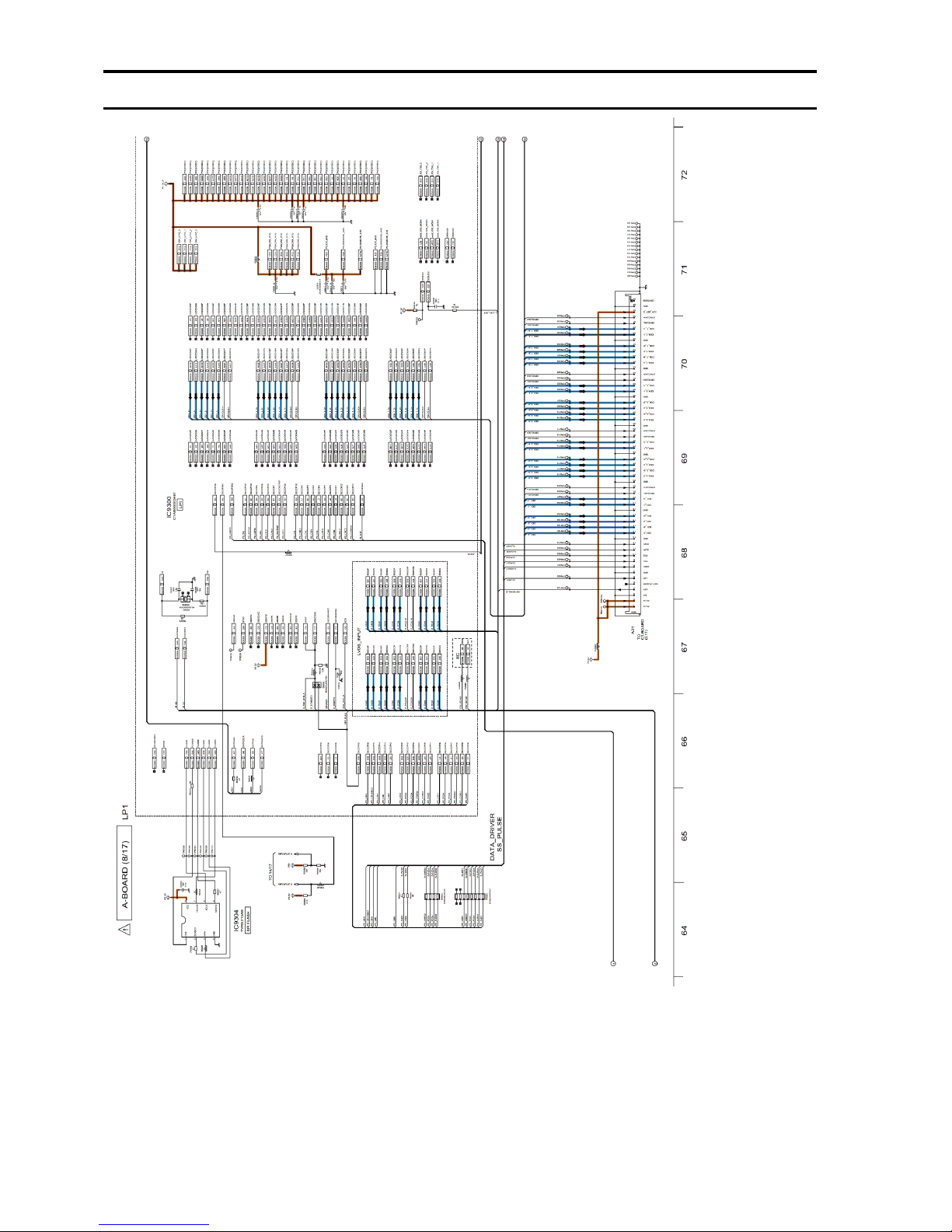

Model No. : TX-P42GT30E/J A-Board (8/17)
S-14
Page 61

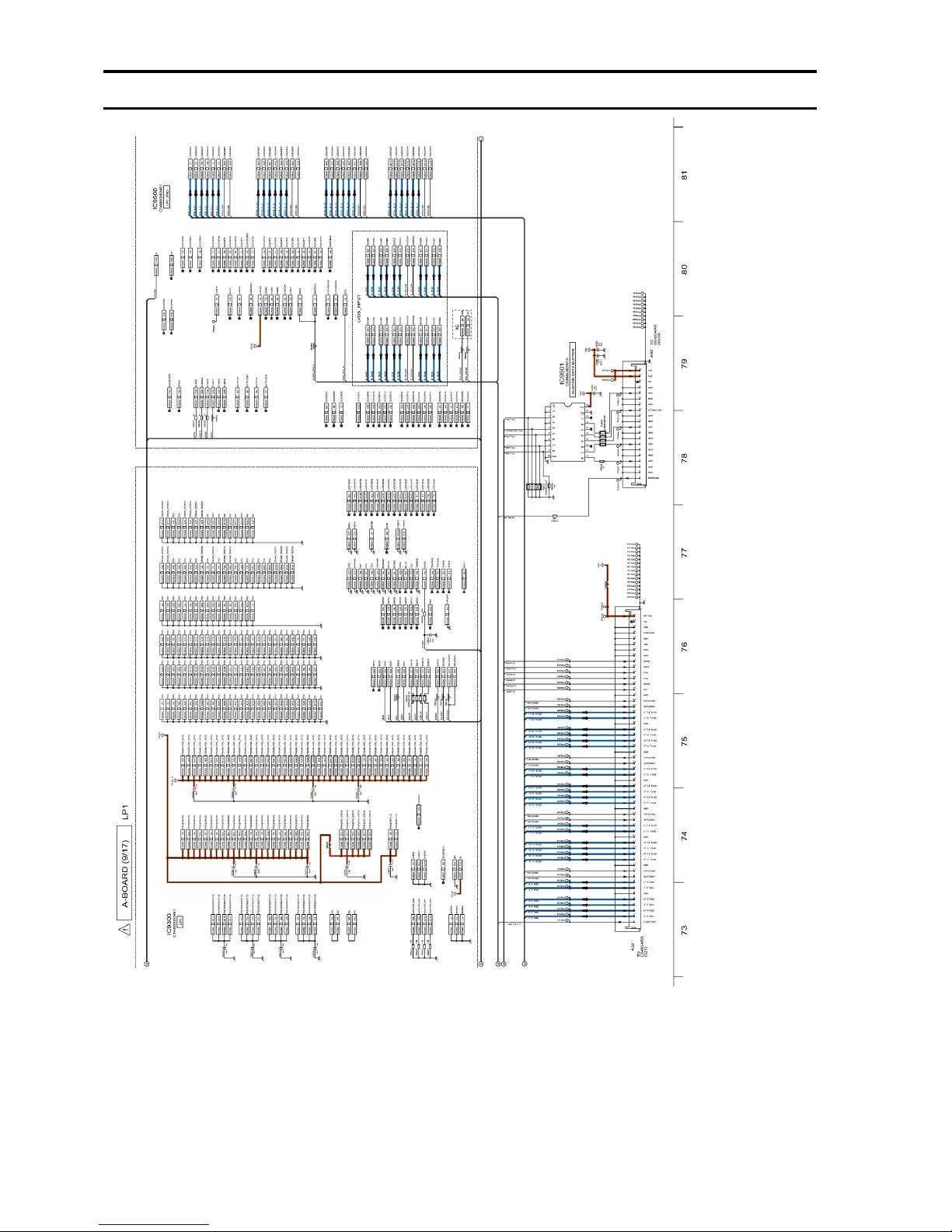

Model No. : TX-P42GT30E/J A-Board (9/17)
S-15
Page 62

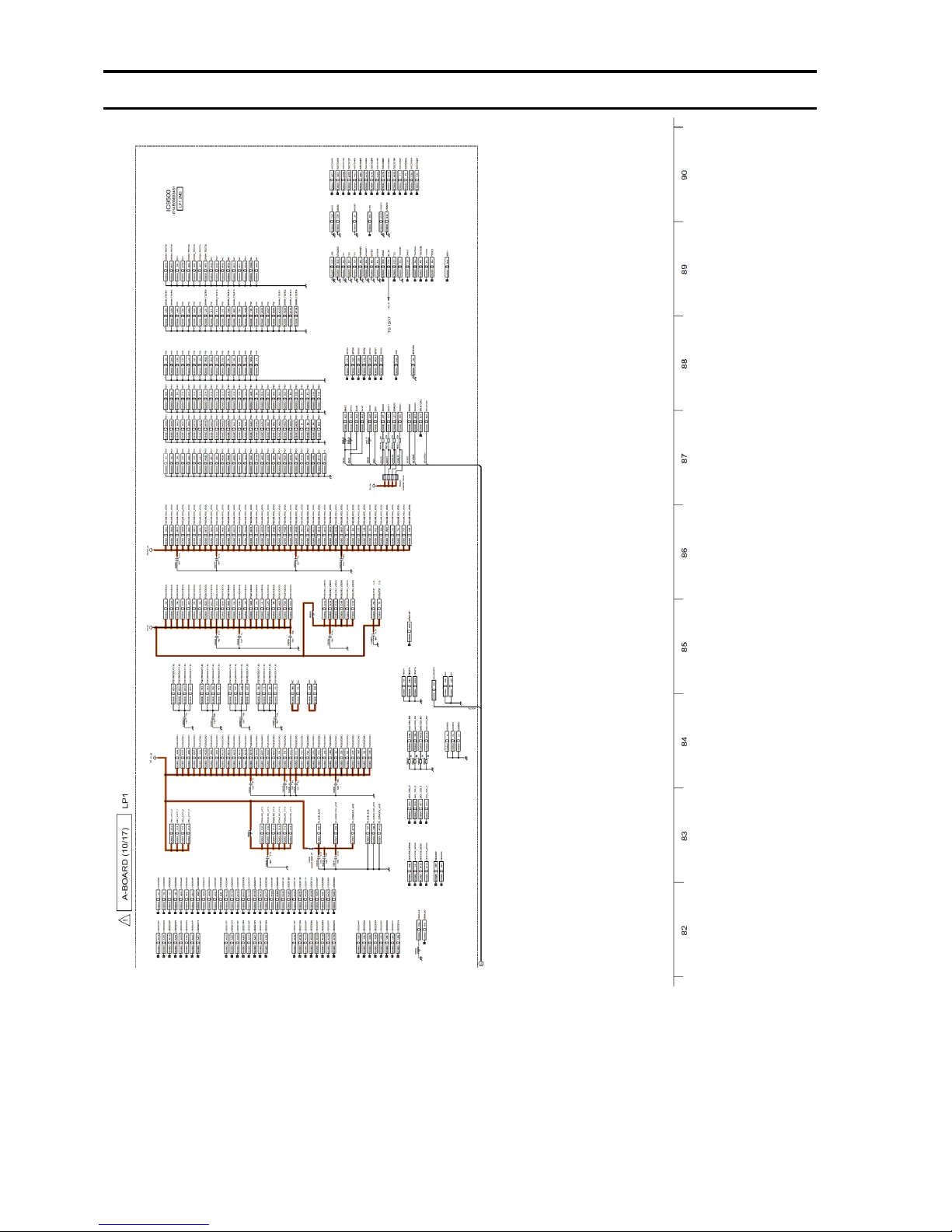

Model No. : TX-P42GT30E/J A-Board (10/17)
S-16
Page 63

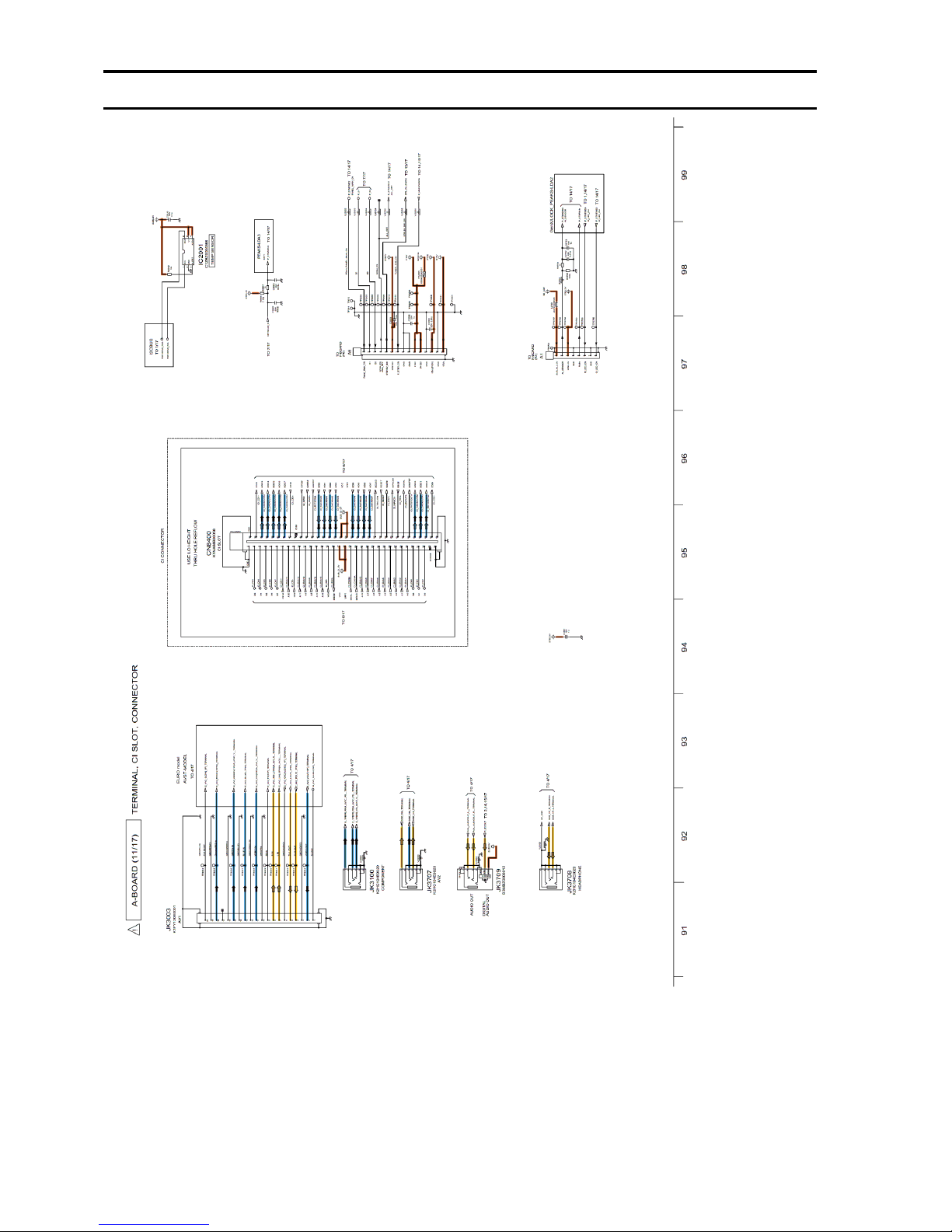

Model No. : TX-P42GT30E/J A-Board (11/17)
S-17
Page 64

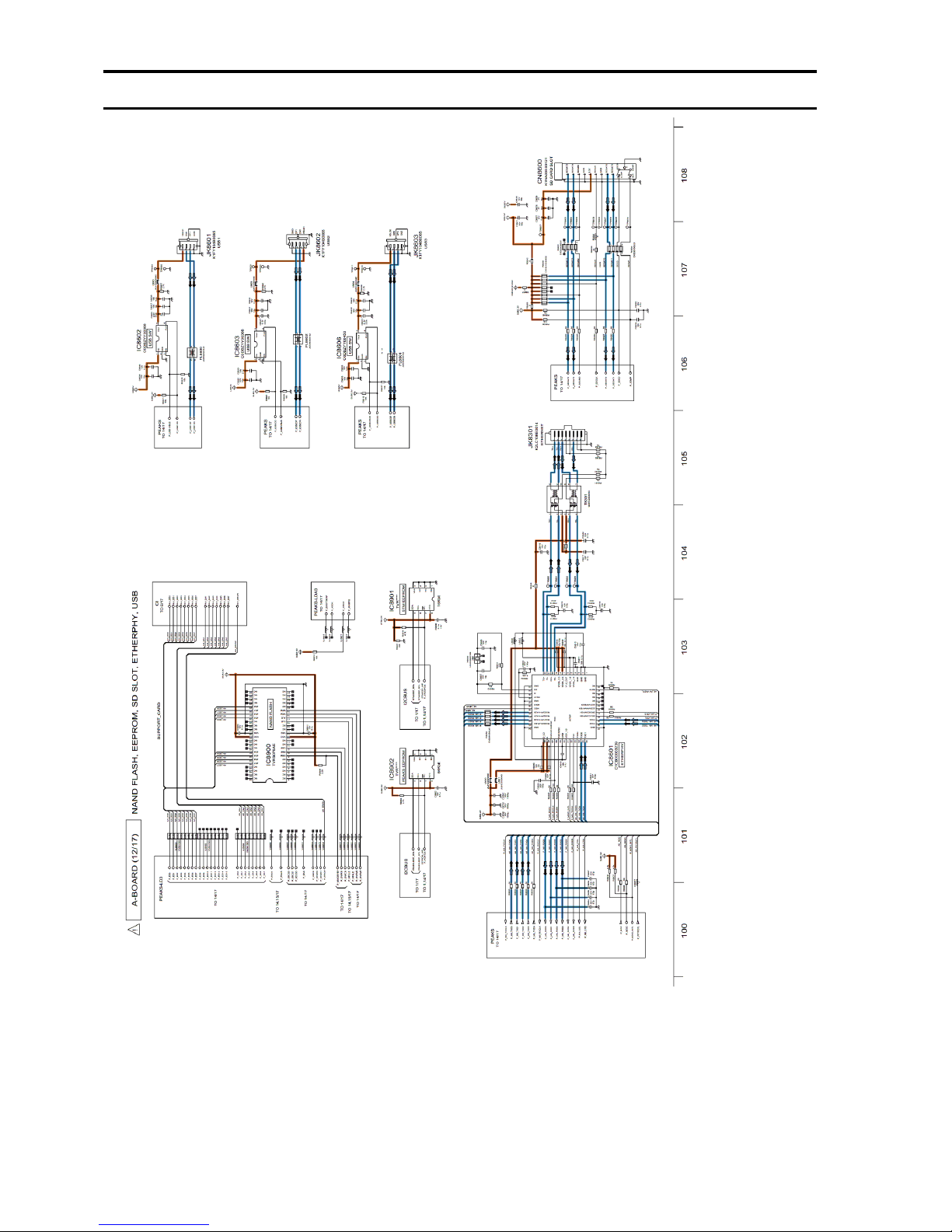

Model No. : TX-P42GT30E/J A-Board (12/17)
S-18
Page 65

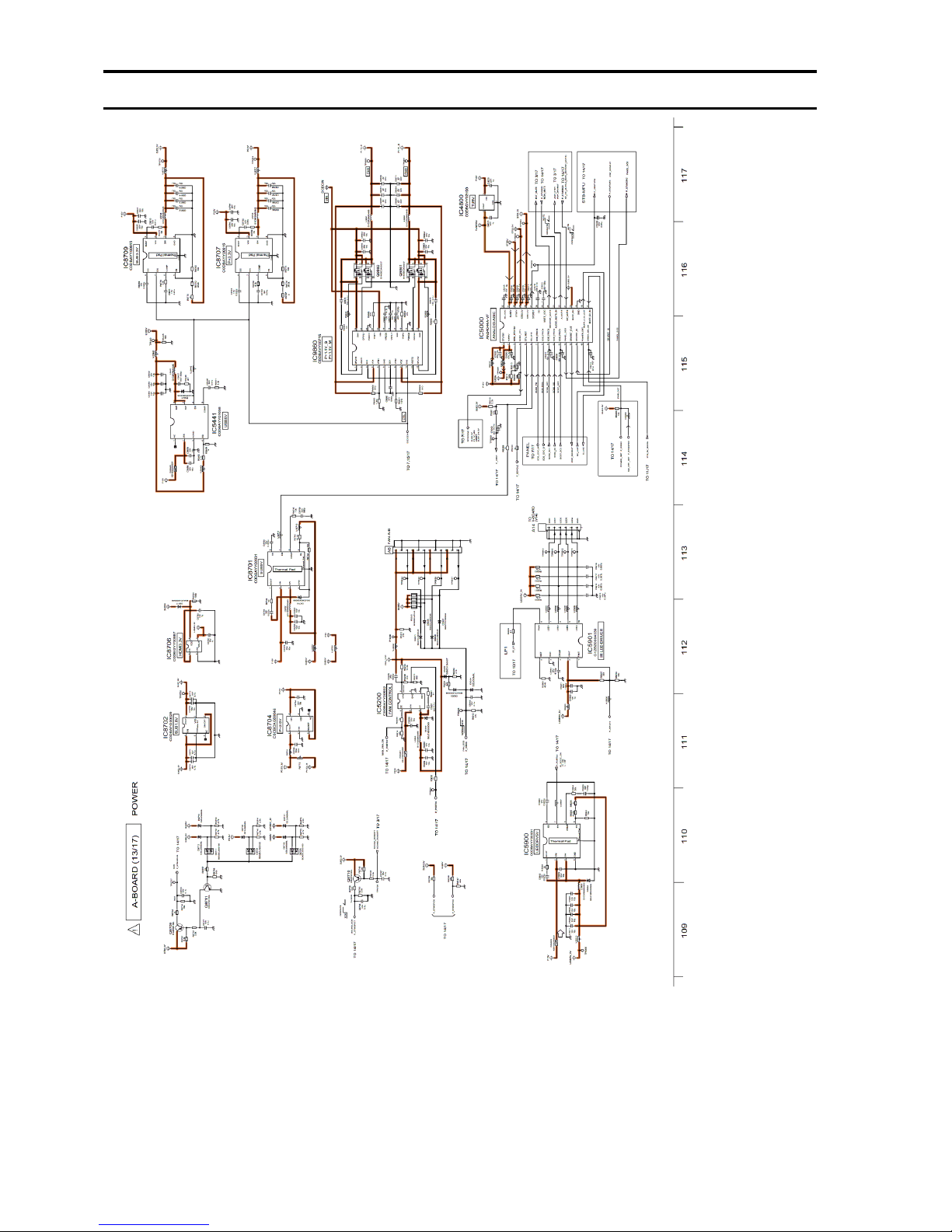

Model No. : TX-P42GT30E/J A-Board (13/17)
S-19
Page 66

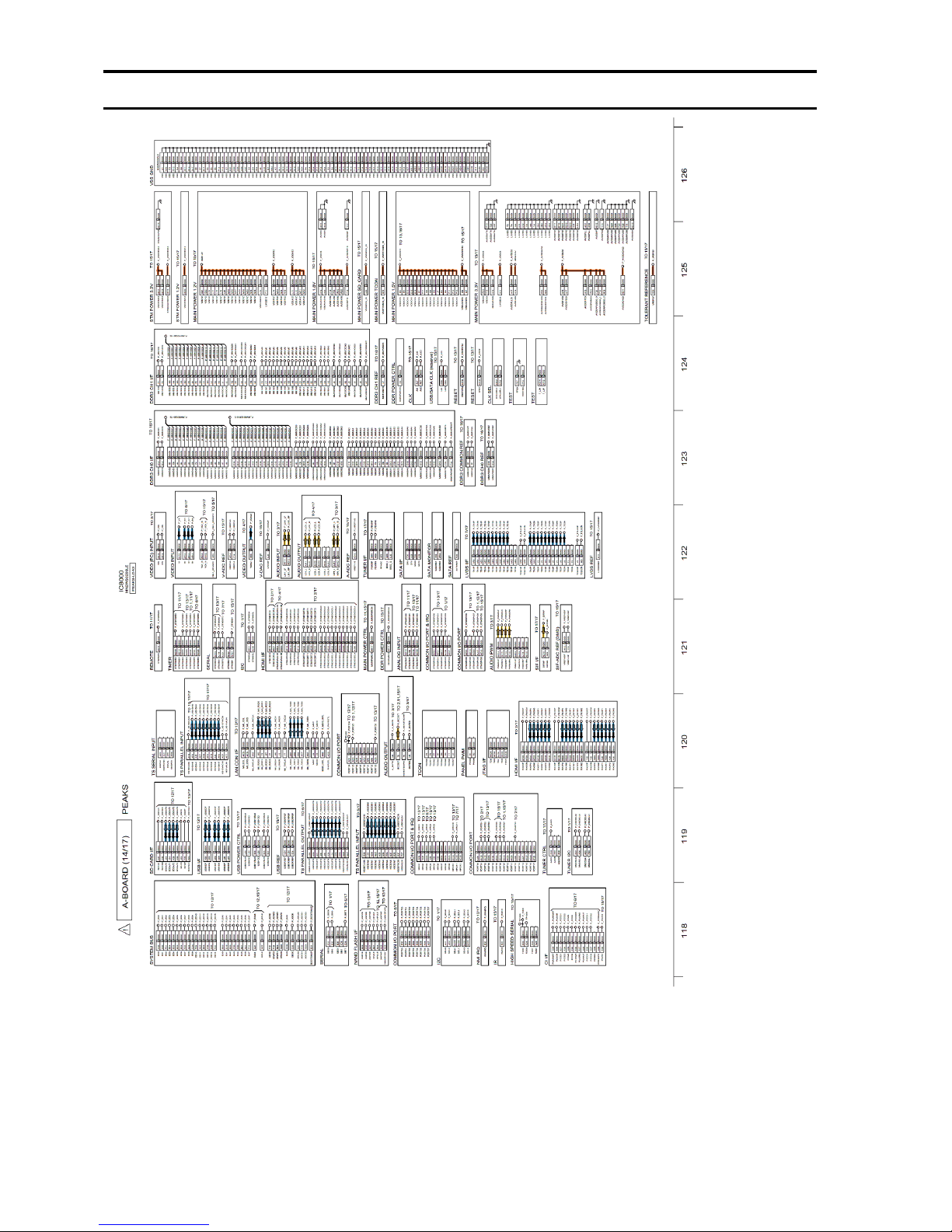

Model No. : TX-P42GT30E/J A-Board (14/17)
S-20
Page 67

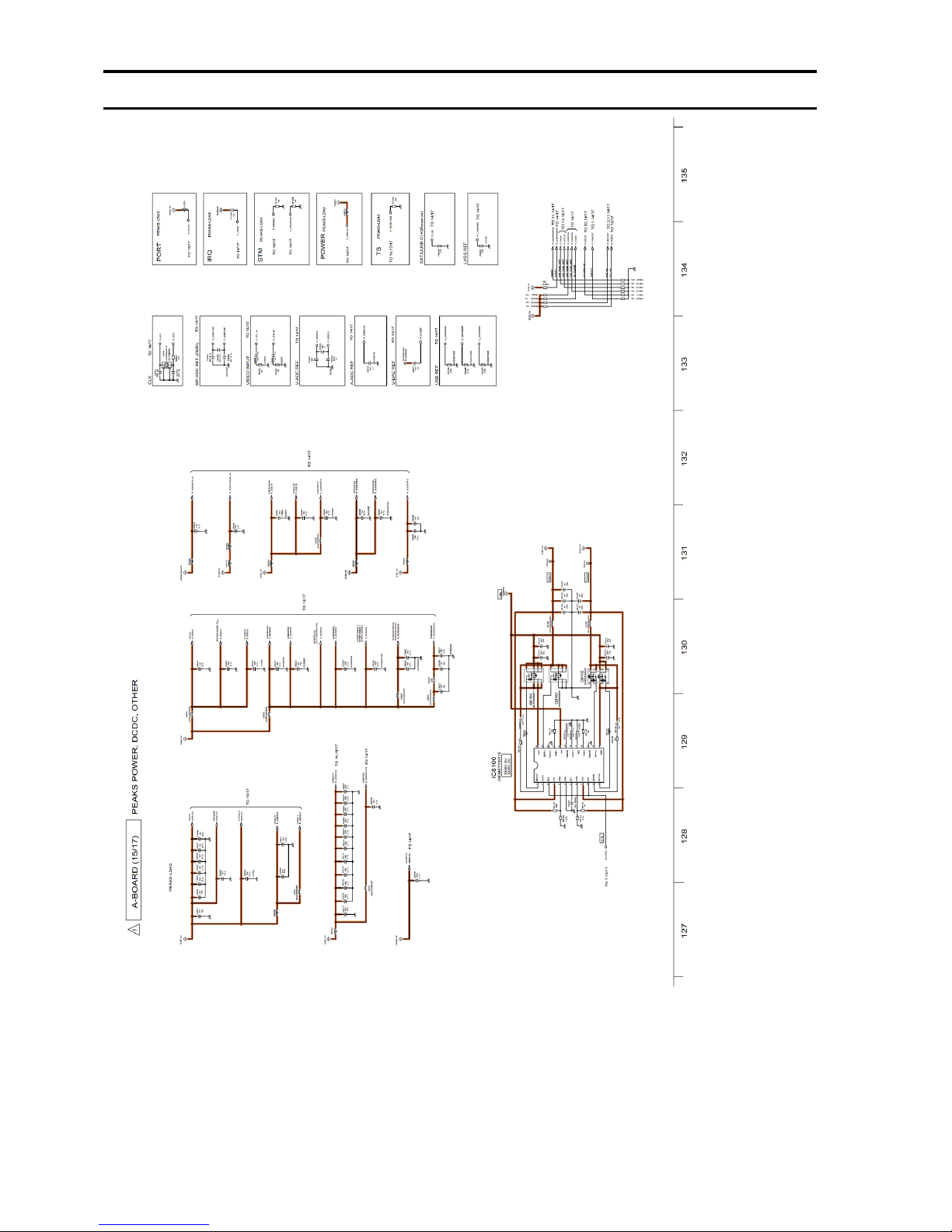

Model No. : TX-P42GT30E/J A-Board (15/17)
S-21
Page 68

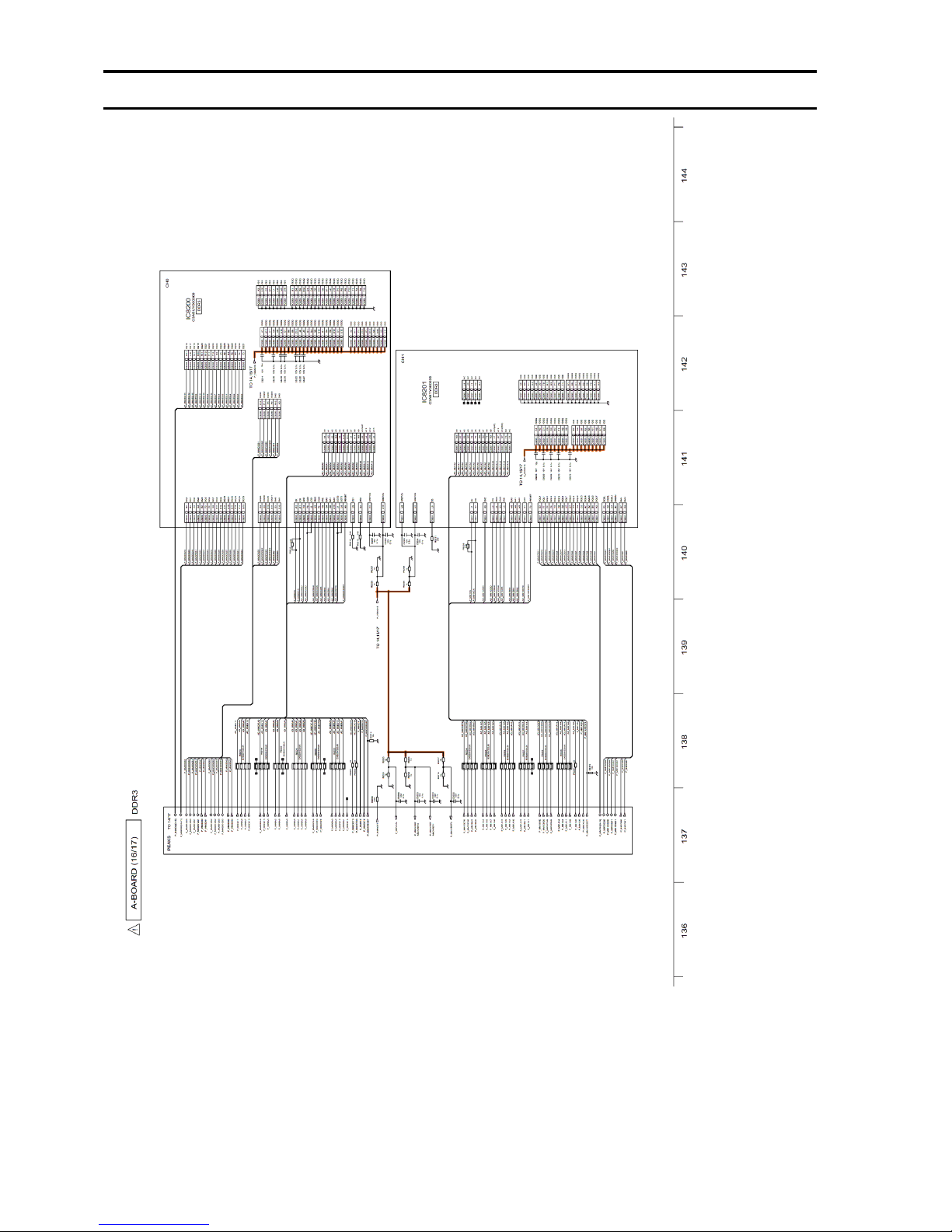

Model No. : TX-P42GT30E/J A-Board (16/17)
S-22
Page 69

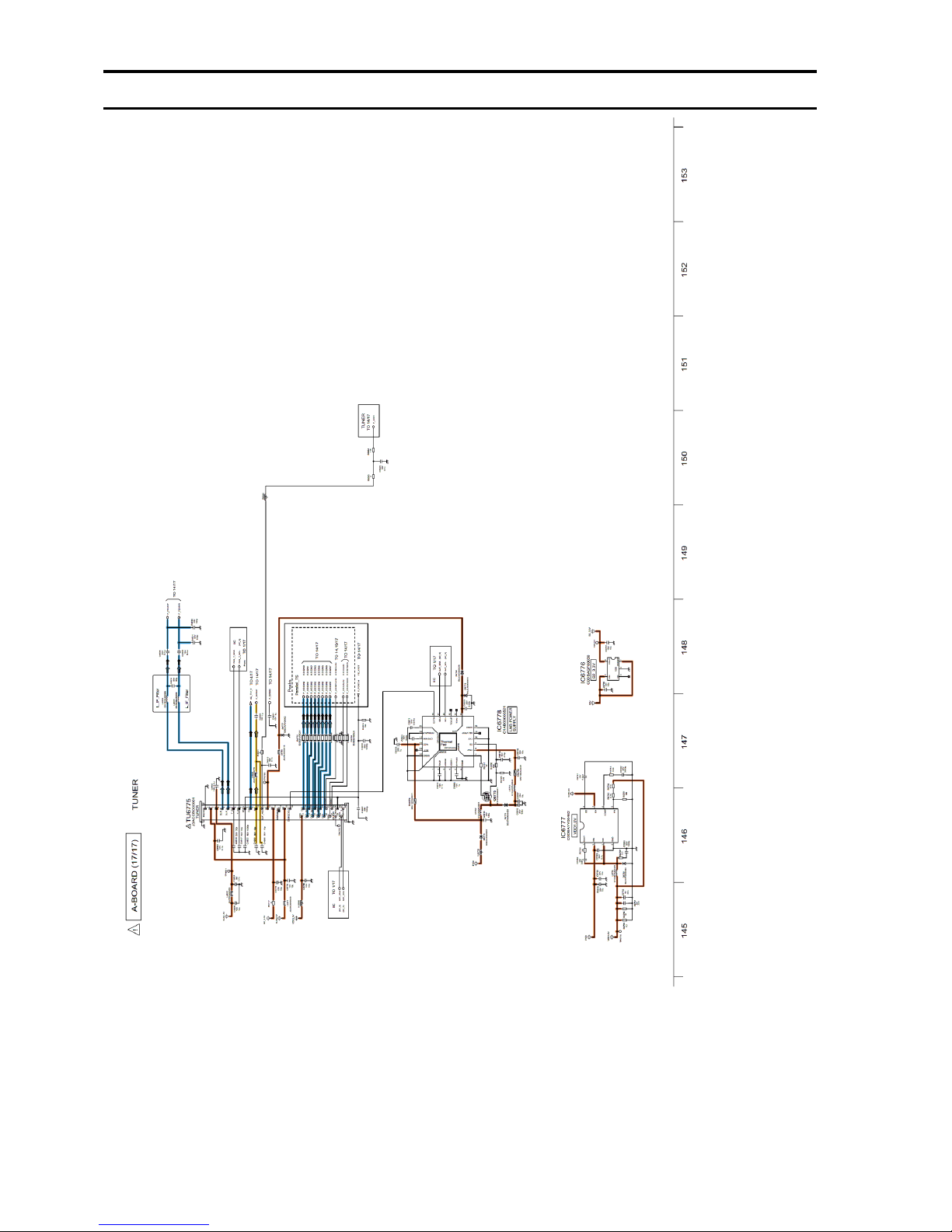

Model No. : TX-P42GT30E/J A-Board (17/17)
S-23
Page 70

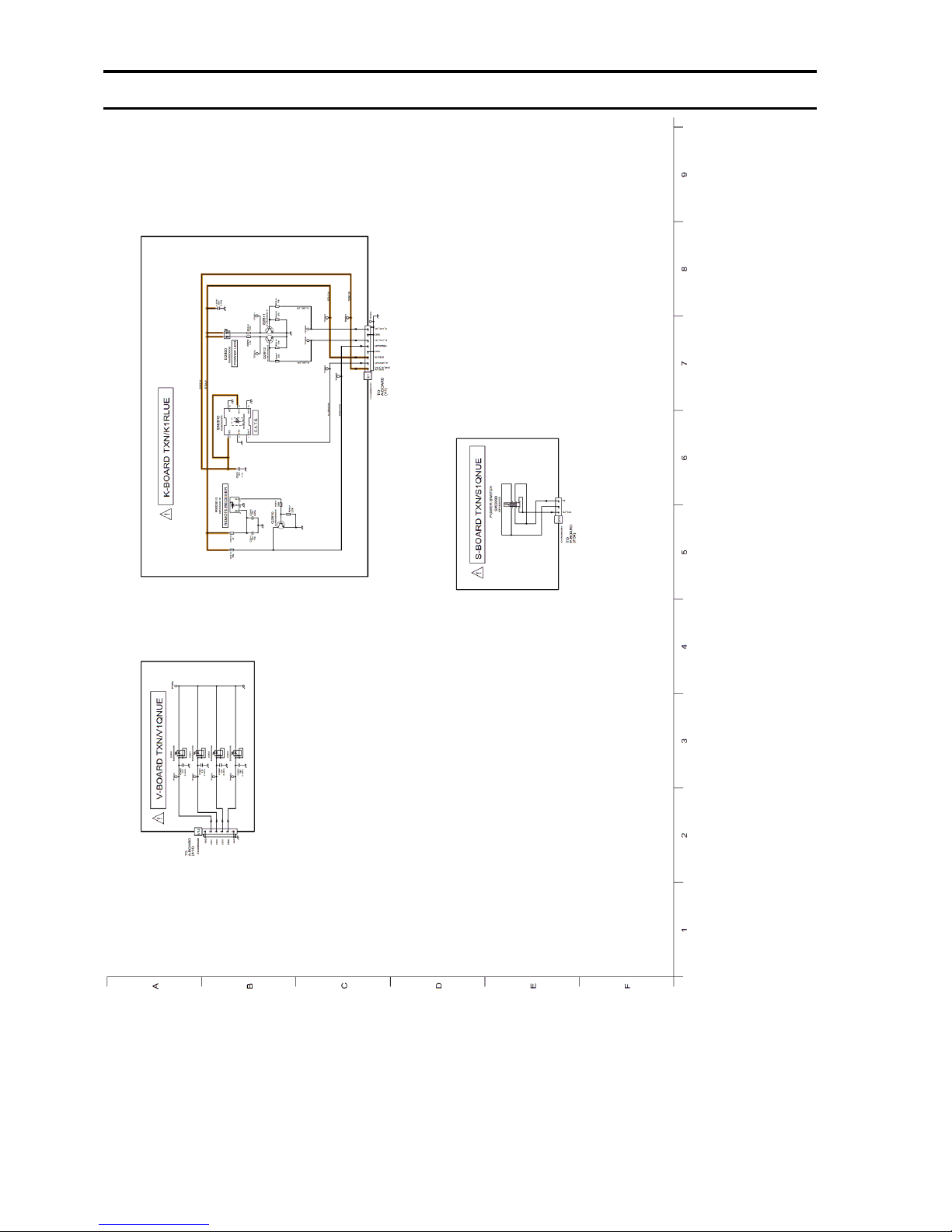

Model No. : TX-P42GT30E/J K, S and V-Board
S-24
Page 71

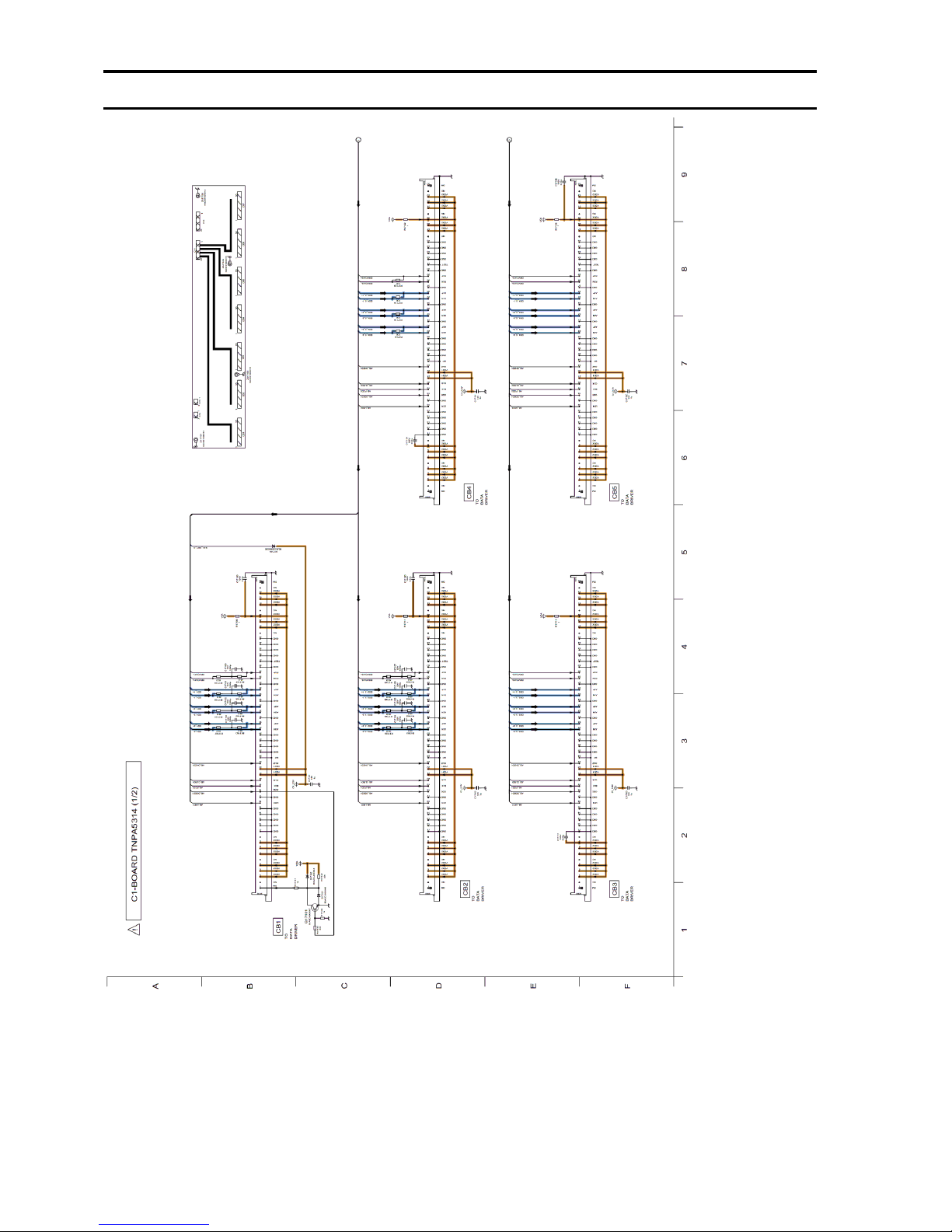

Model No. : TX-P42GT30E/J C1-Board (1/2)
S-25
Page 72

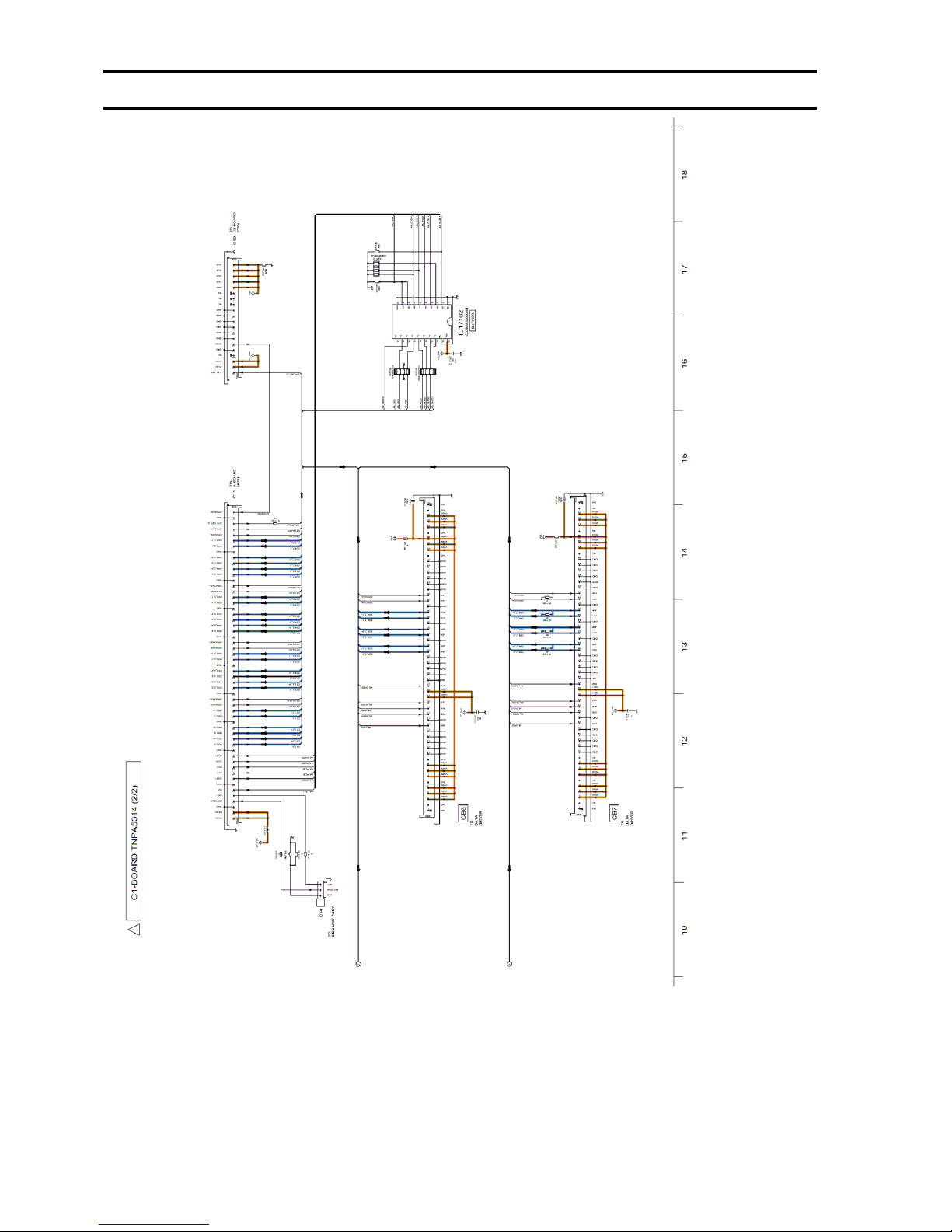

Model No. : TX-P42GT30E/J C1-Board (2/2)
S-26
Page 73

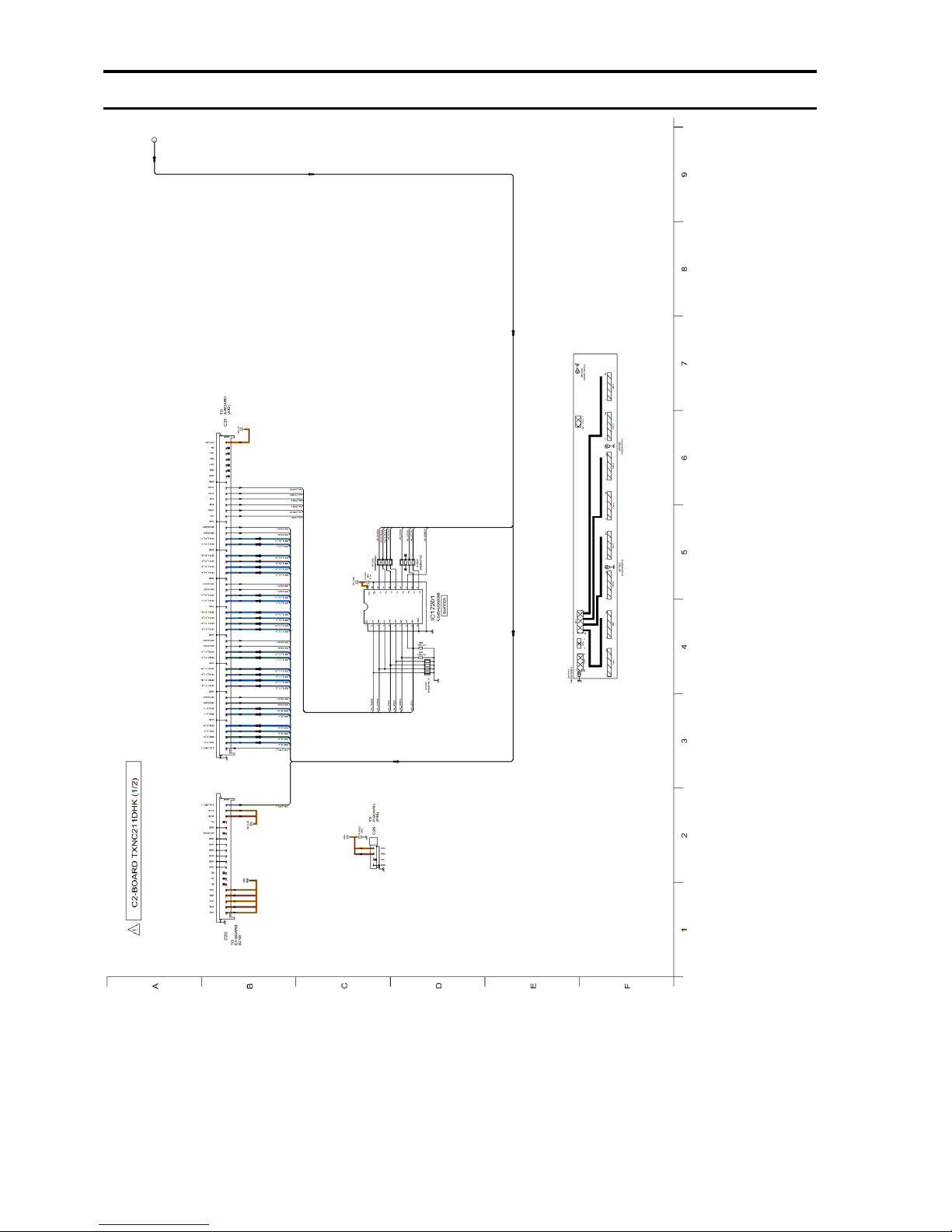

Model No. : TX-P42GT30E/J C2-Board (1/2)
S-27
Page 74

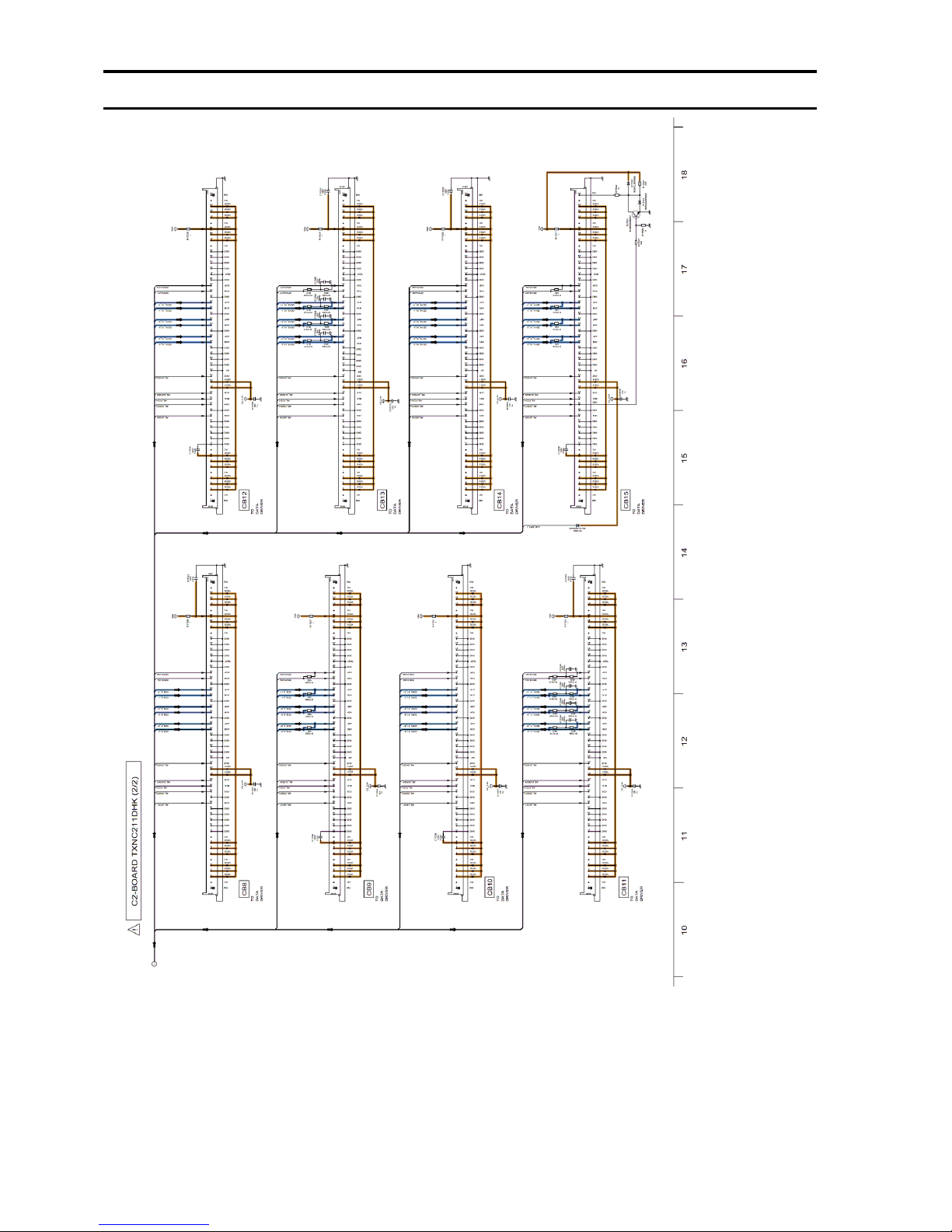

Model No. : TX-P42GT30E/J C2-Board (2/2)
S-28
Page 75

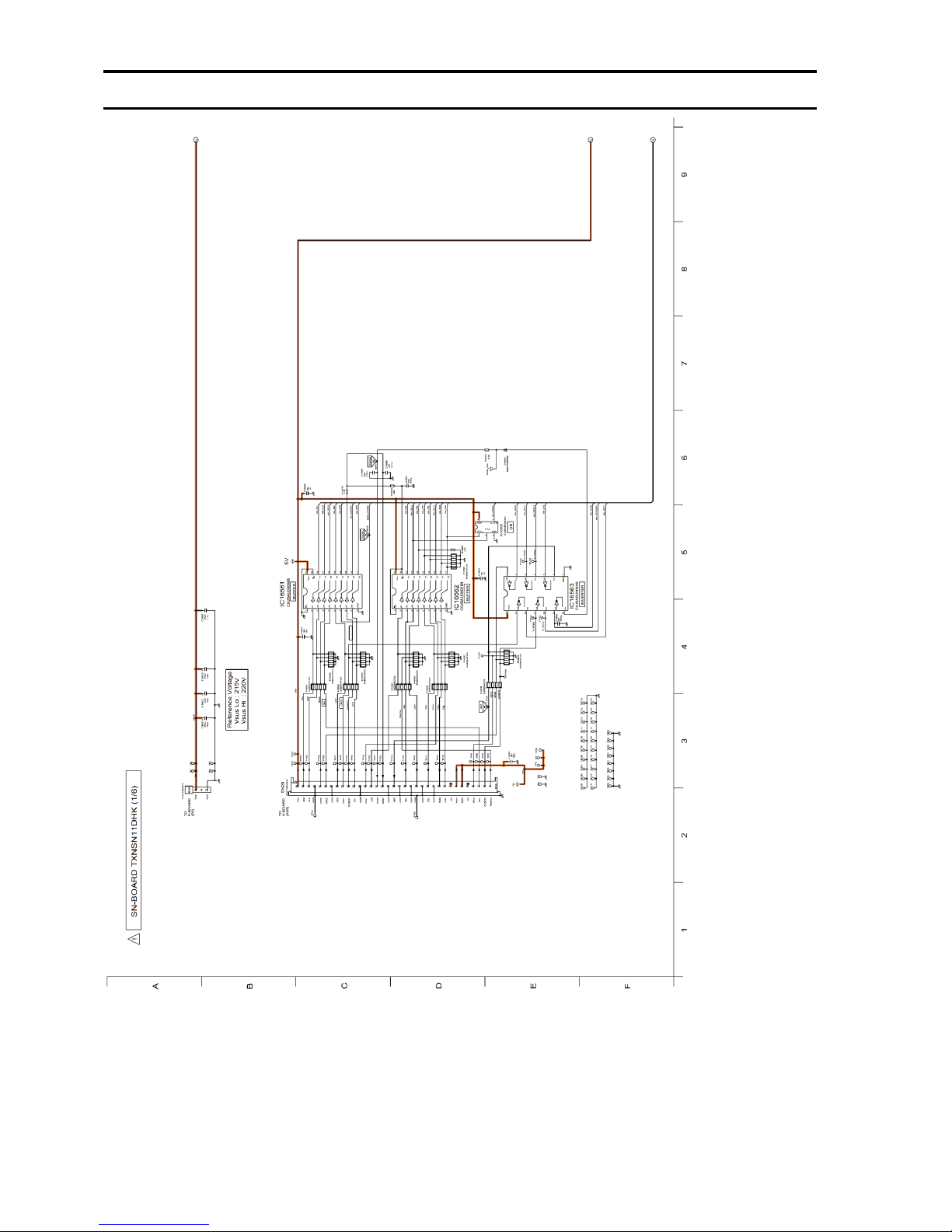

Model No. : TX-P42GT30E/J SN-Board (1/6)
S-29
Page 76

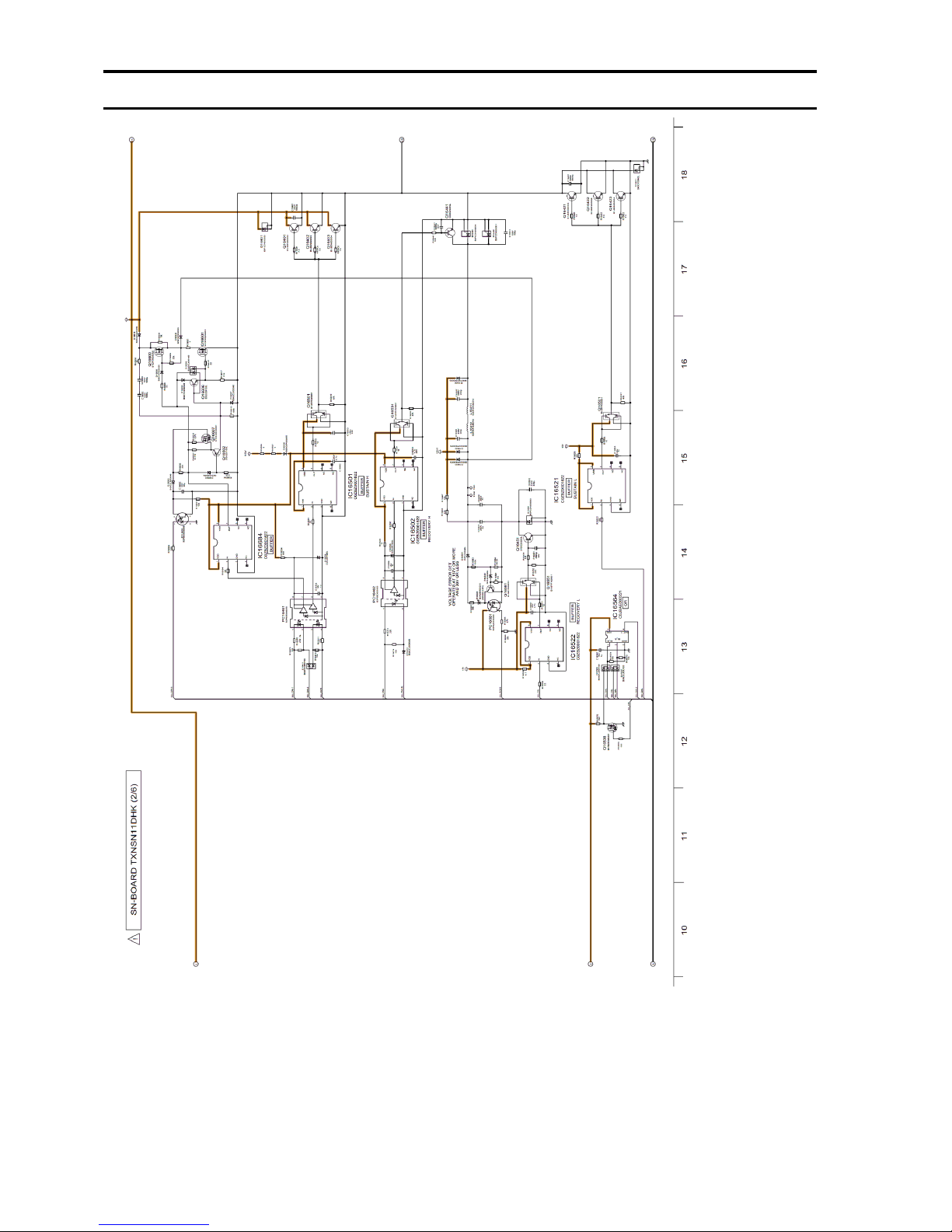

Model No. : TX-P42GT30E/J SN-Board (2/6)
S-30
Page 77

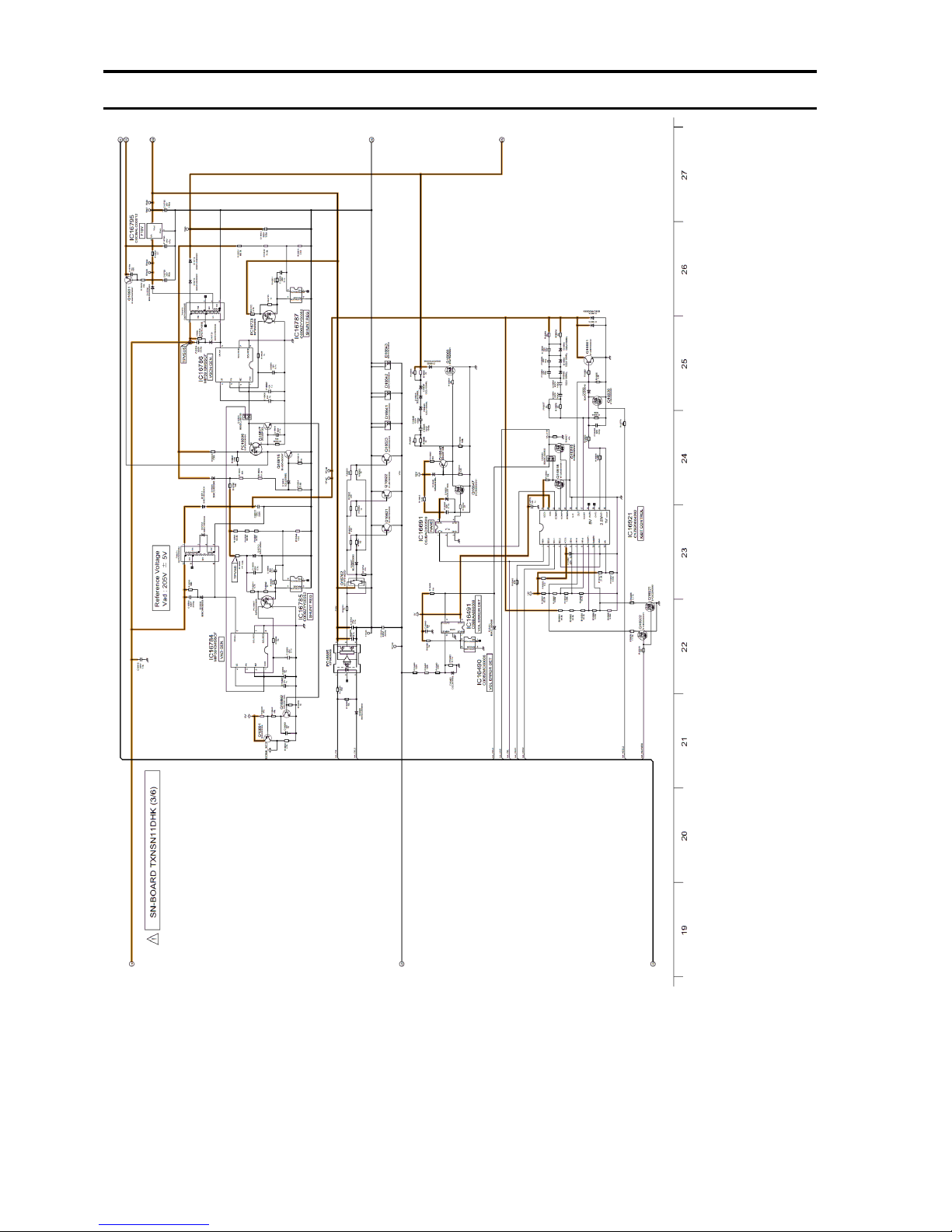

Model No. : TX-P42GT30E/J SN-Board (3/6)
S-31
Page 78

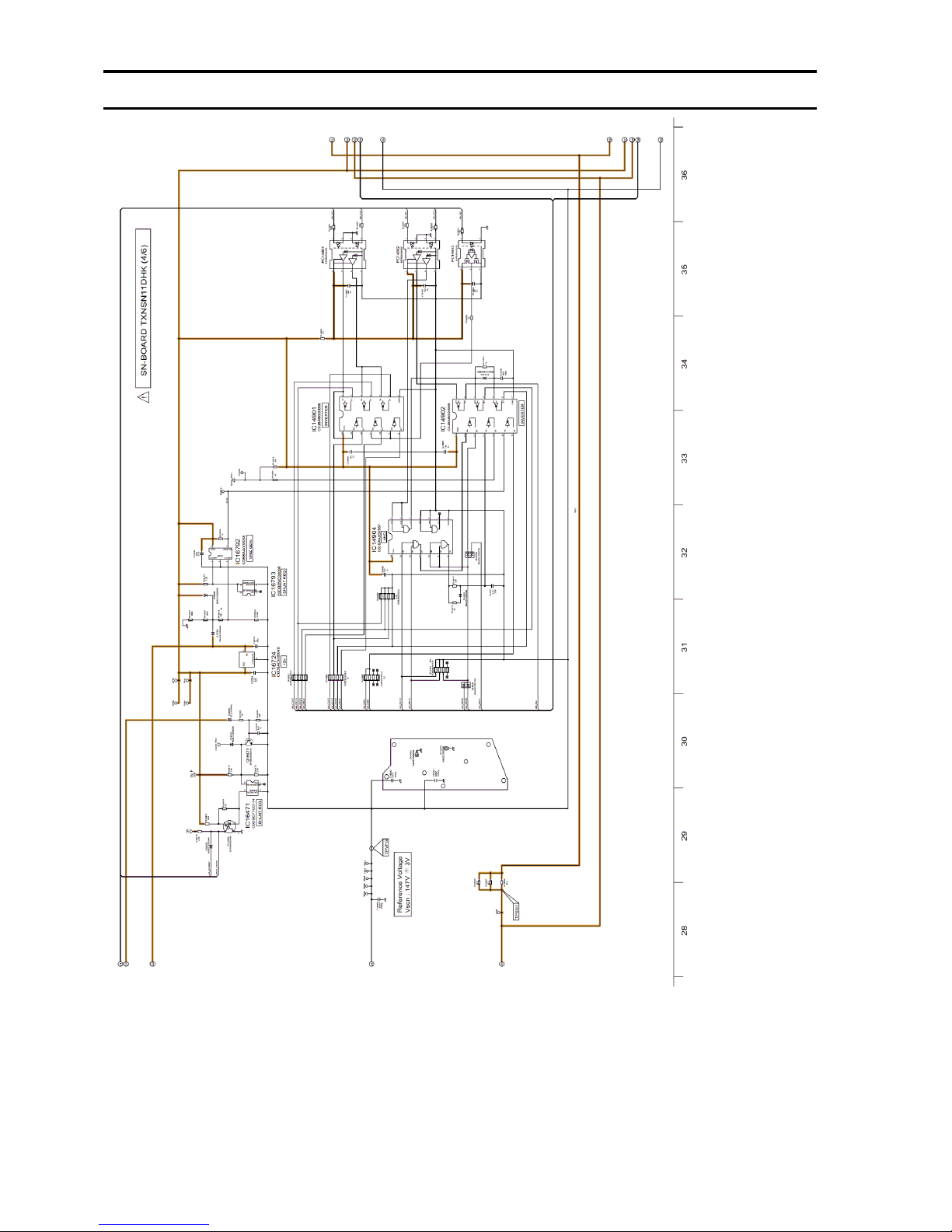

Model No. : TX-P42GT30E/J SN-Board (4/6)
S-32
Page 79

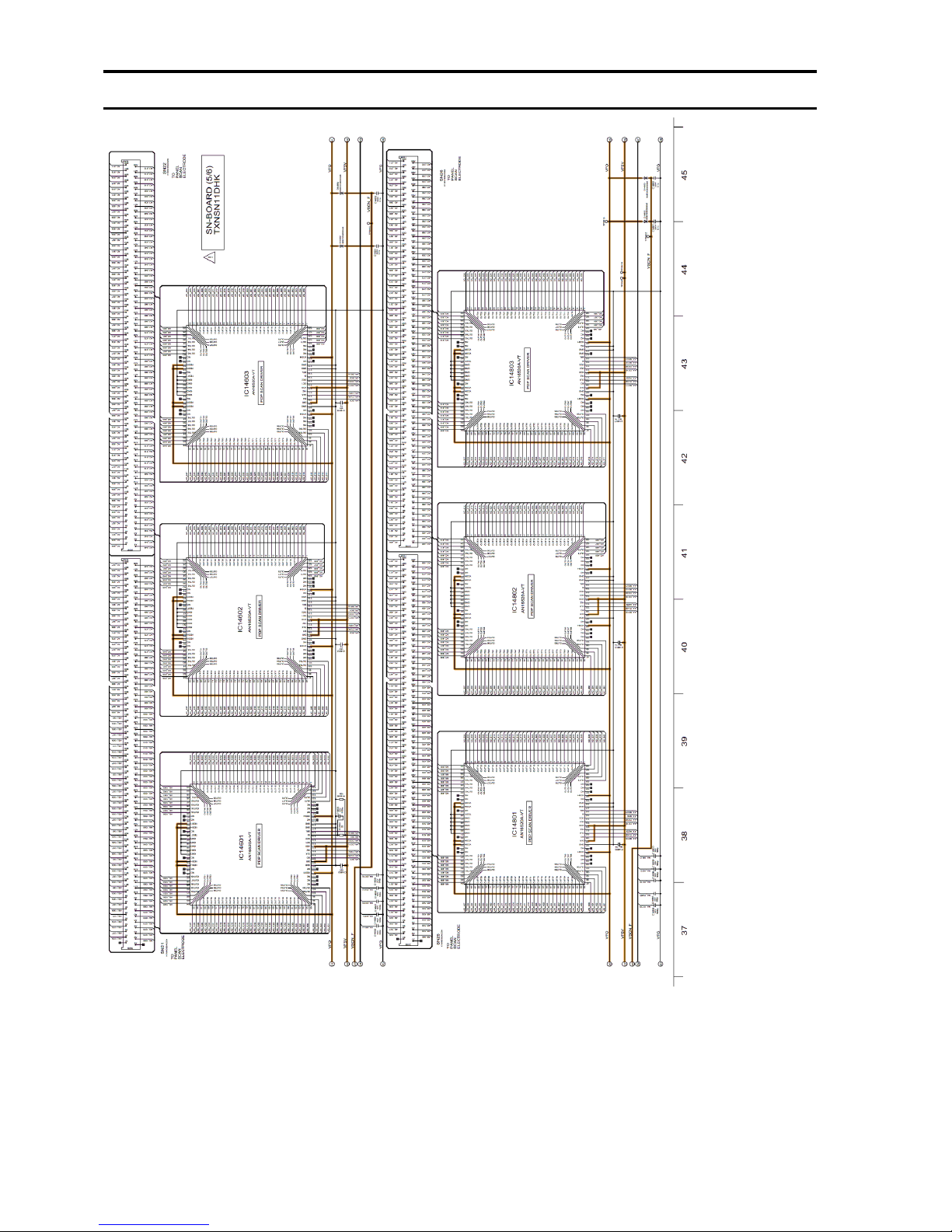

Model No. : TX-P42GT30E/J SN-Board (5/6)
S-33
Page 80

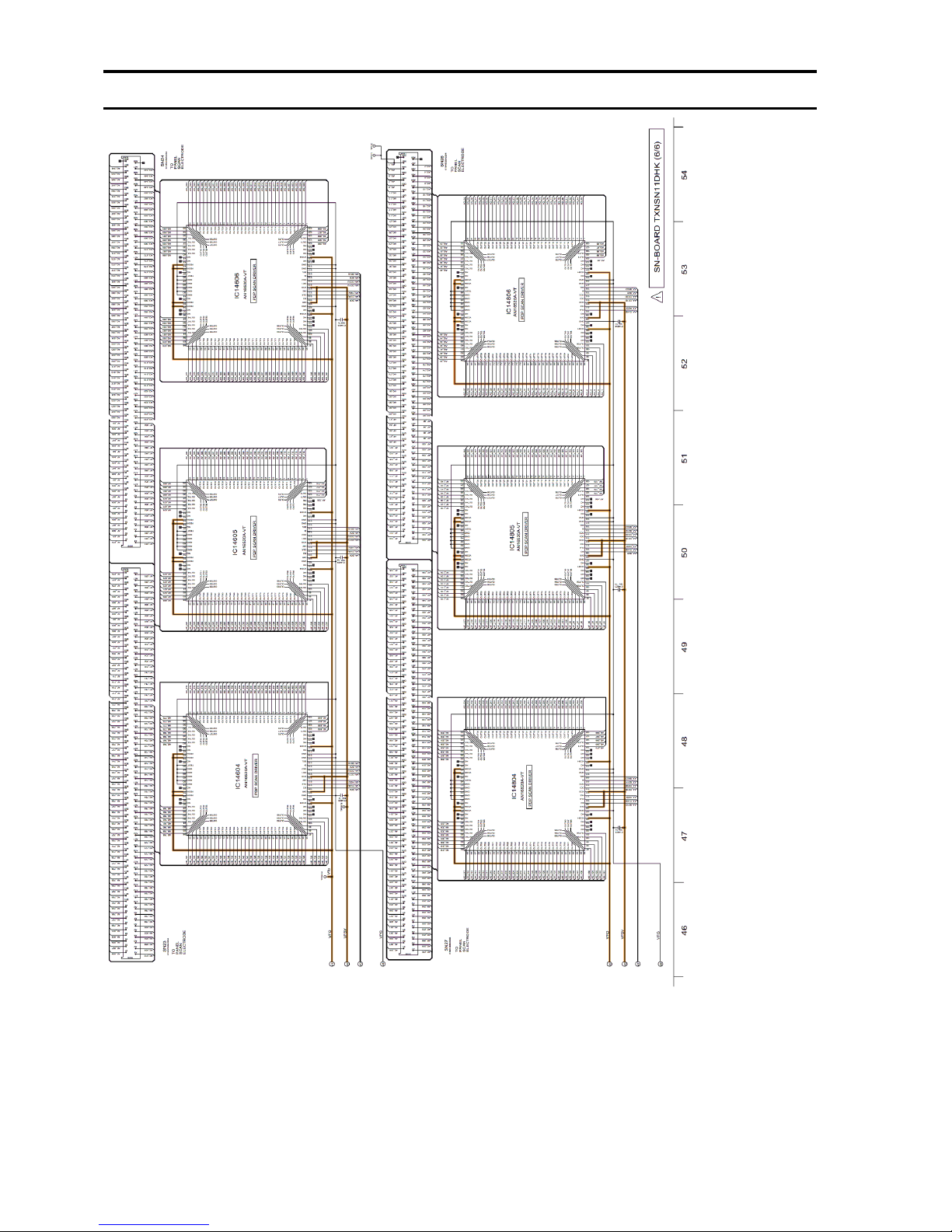

Model No. : TX-P42GT30E/J SN-Board (6/6)
S-34
Page 81

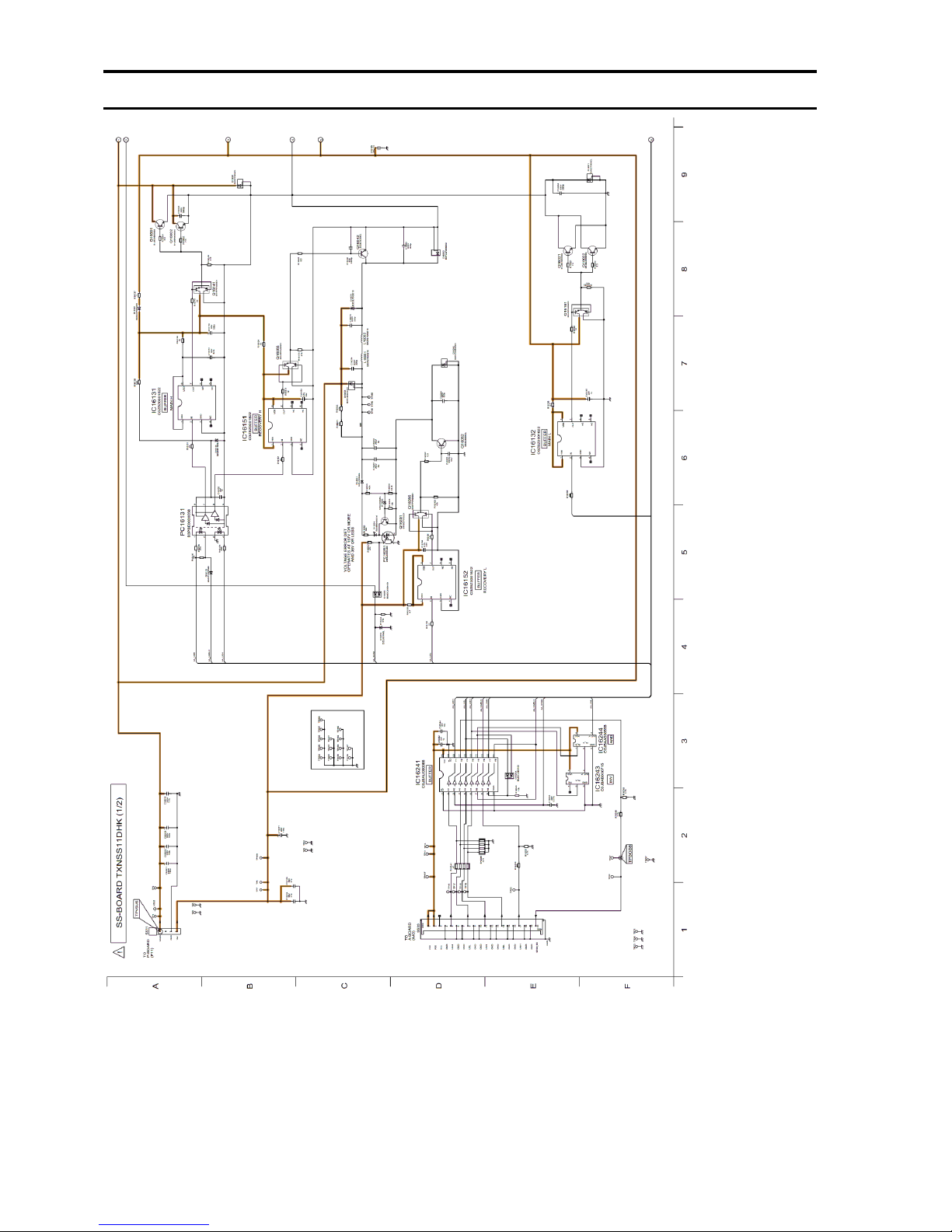

Model No. : TX-P42GT30E/J SS-Board (1/2)
S-35
Page 82

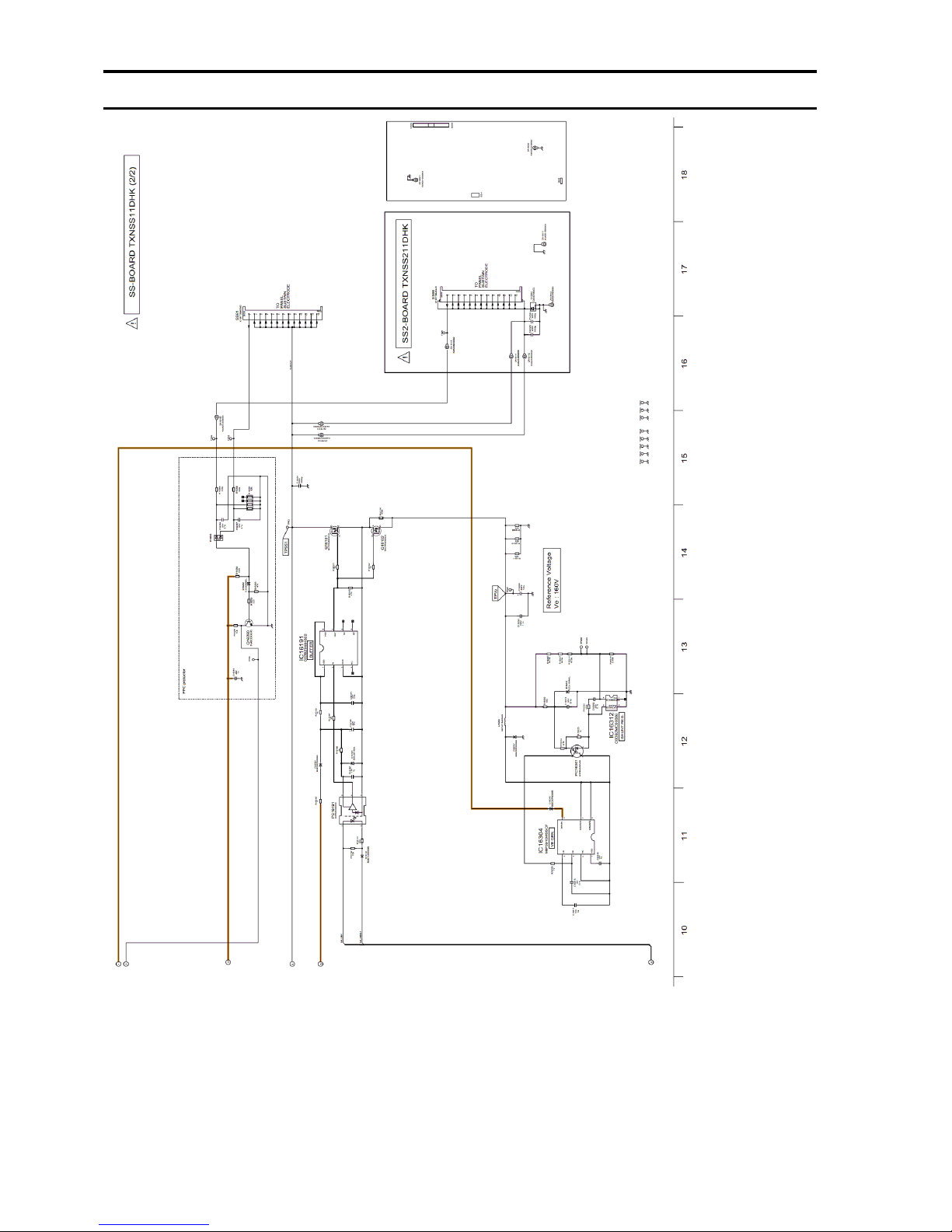

Model No. : TX-P42GT30E/J SS-Board (2/2) and SS2-Board
S-36
Page 83

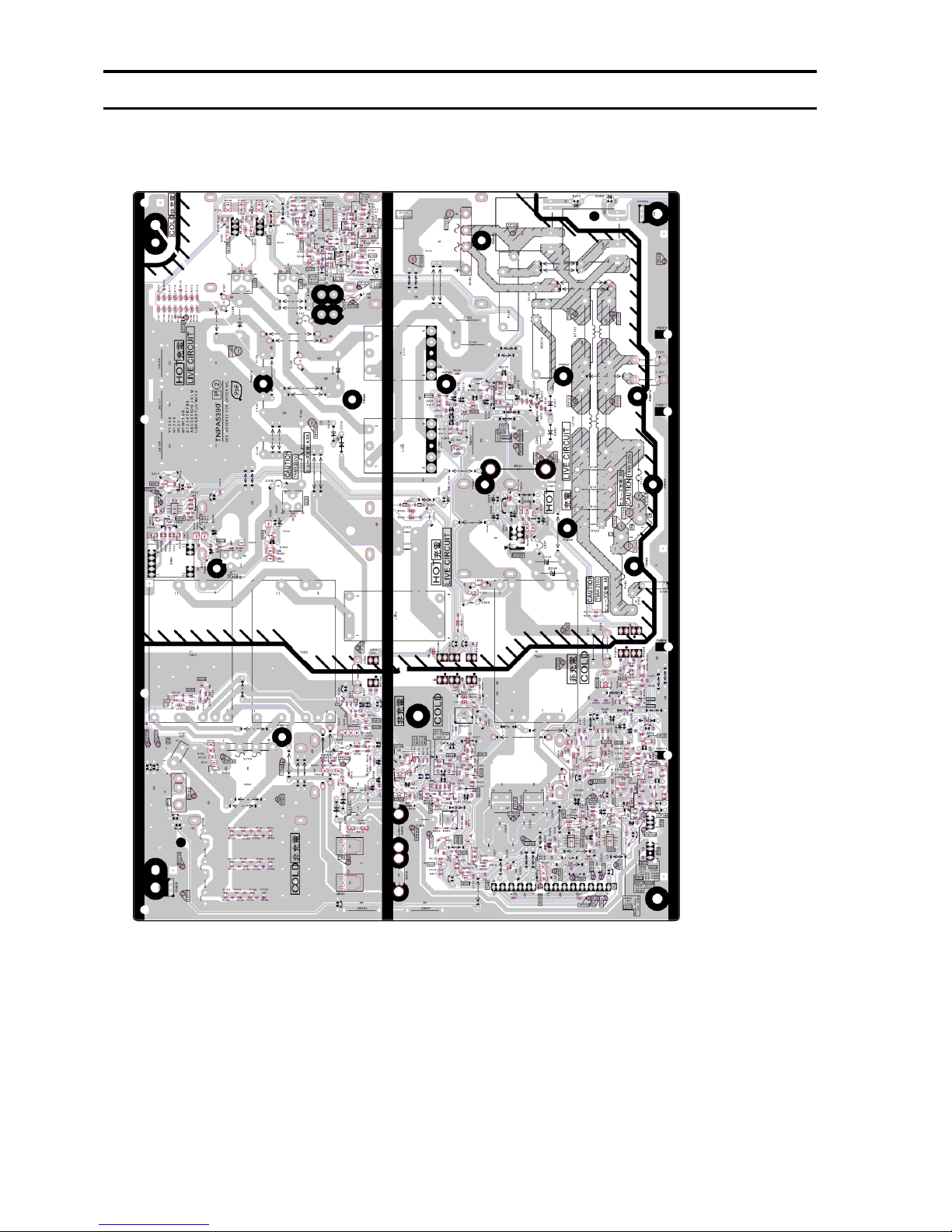

Model No. : TX-P42GT30E/J P-Board (Foil side)
S-37
Page 84

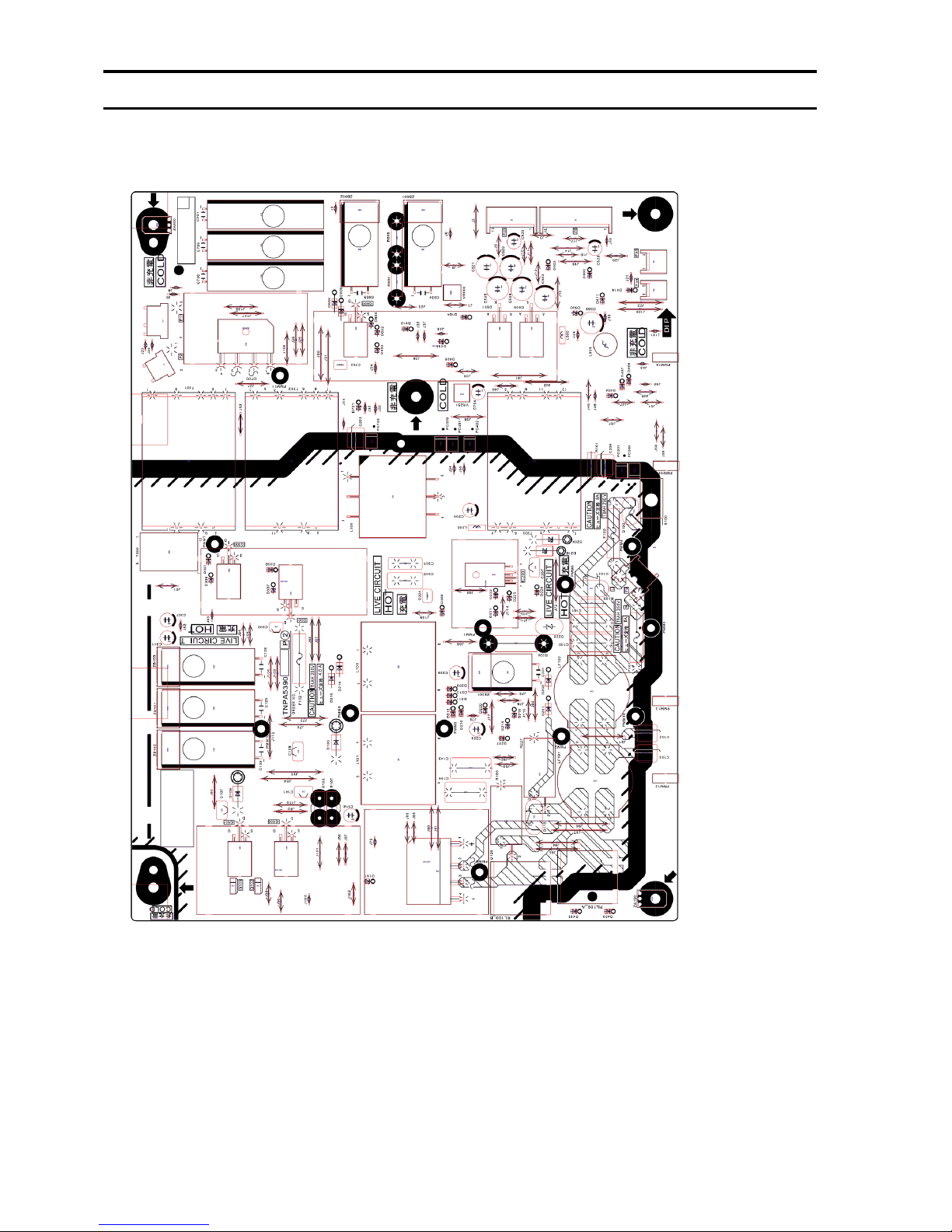

Model No. : TX-P42GT30E/J P-Board (Component side)
S-38
Page 85

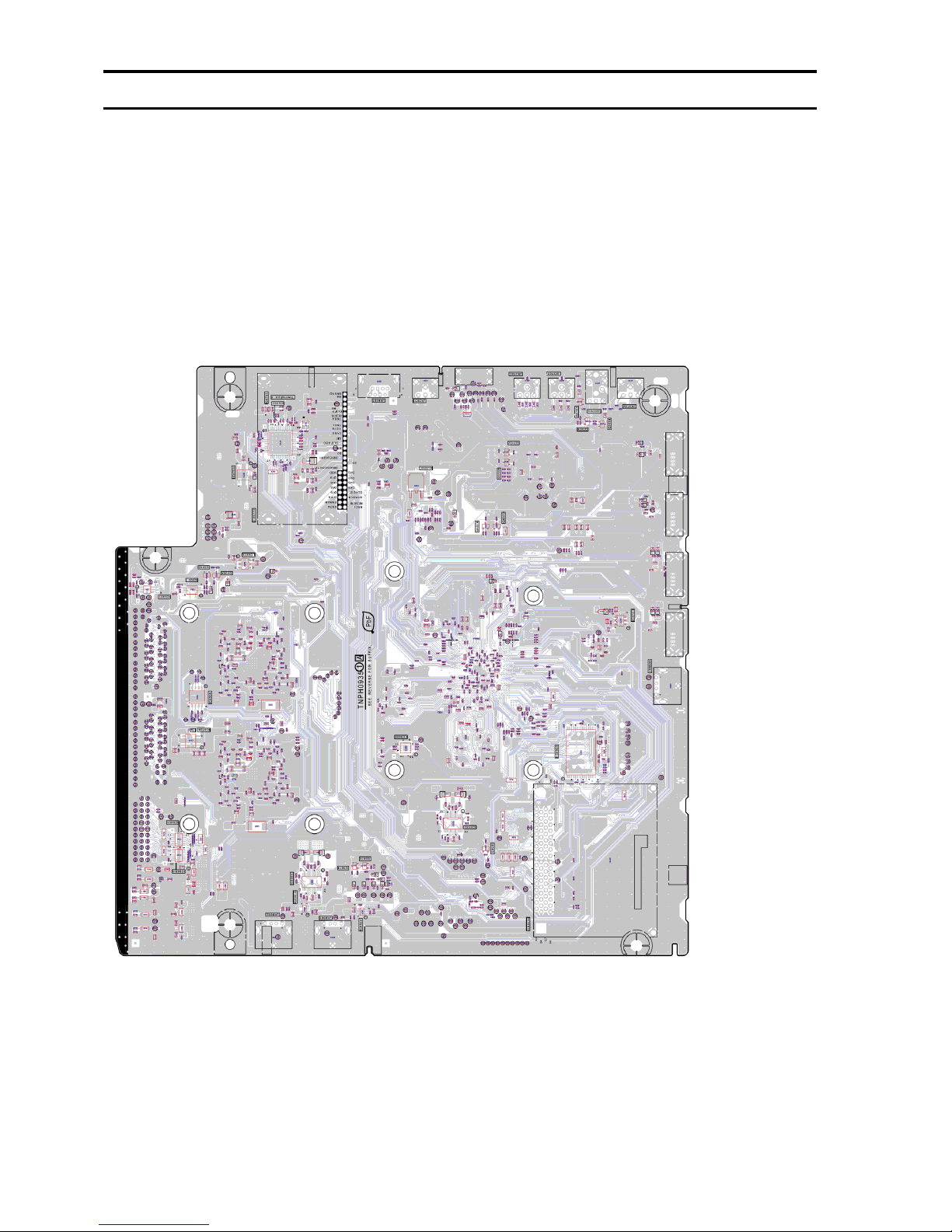

Model No. : TX-P42GT30E/J A-Board (Foil side)
S-39
Page 86

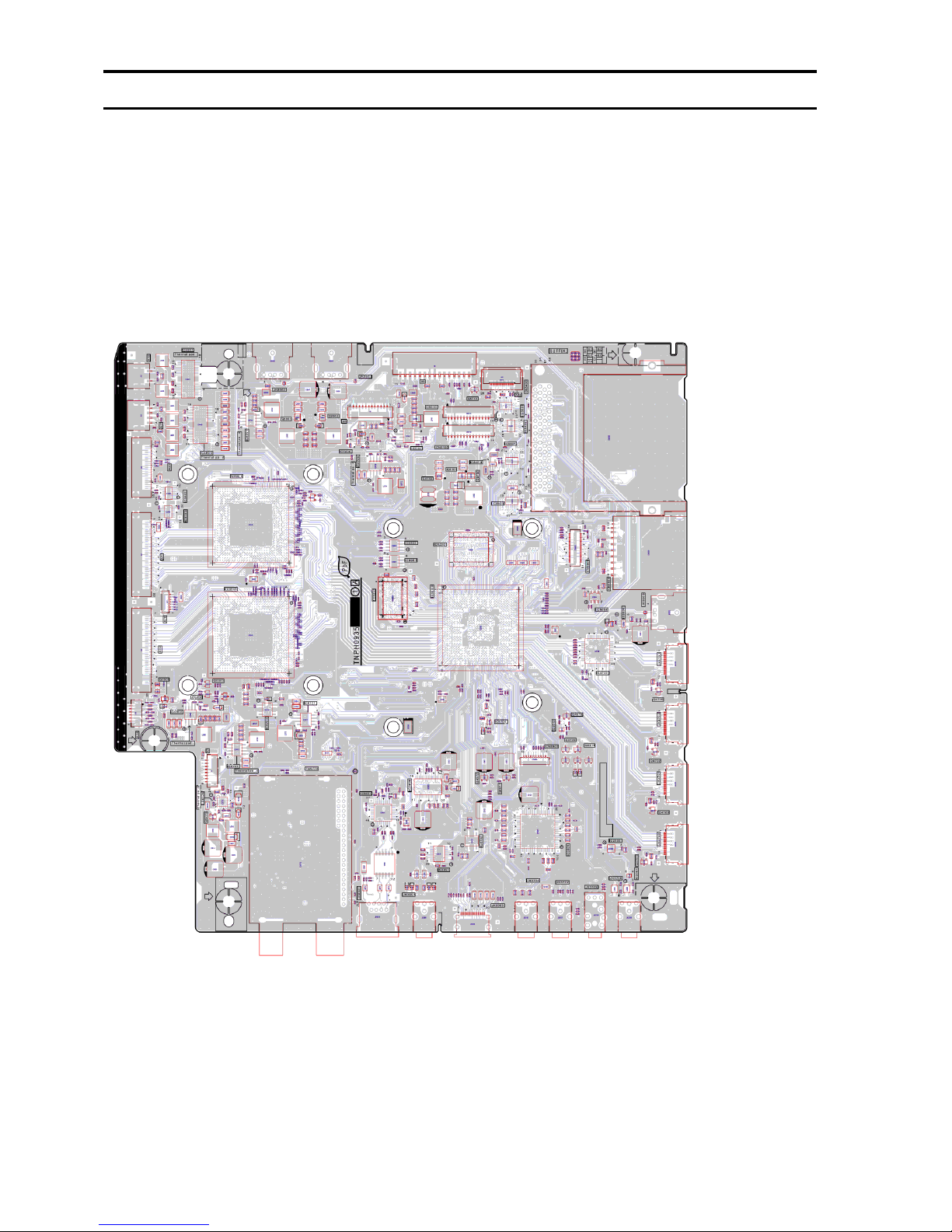

Model No. : TX-P42GT30E/J A-Board (Component side)
S-40
Page 87

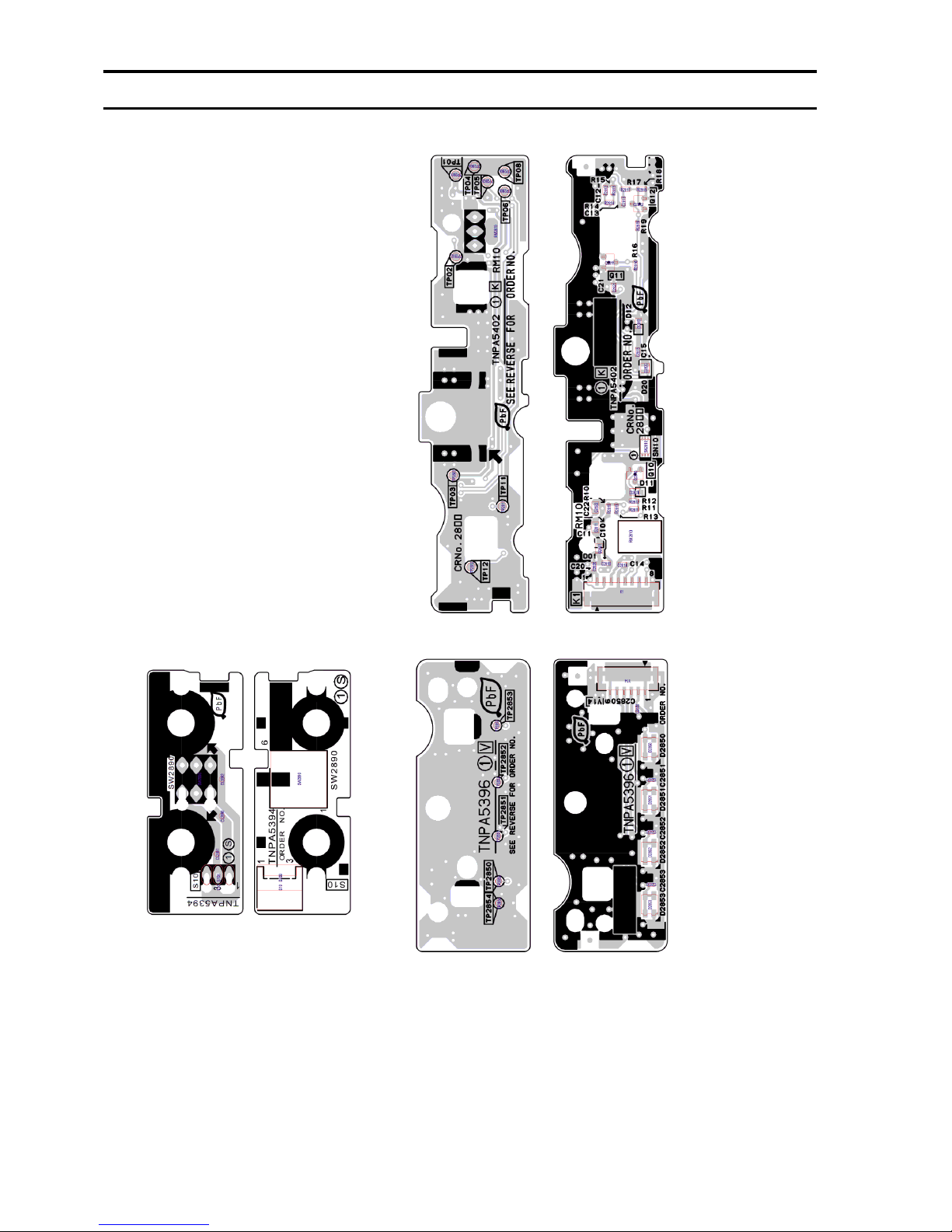

Model No. : TX-P42GT30E/J K, S and V-Board
S-41
Page 88

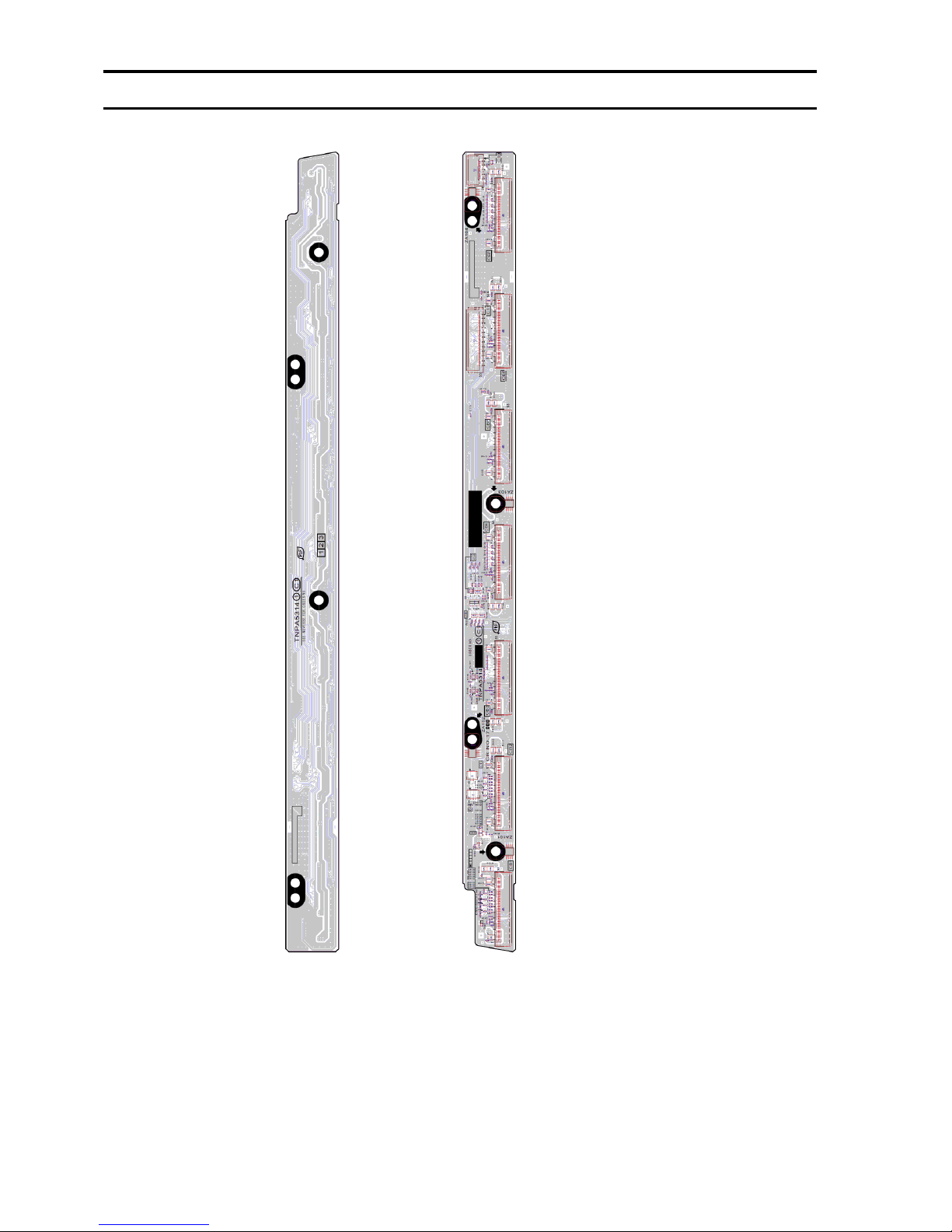

Model No. : TX-P42GT30E/J C1-Board
S-42
Page 89

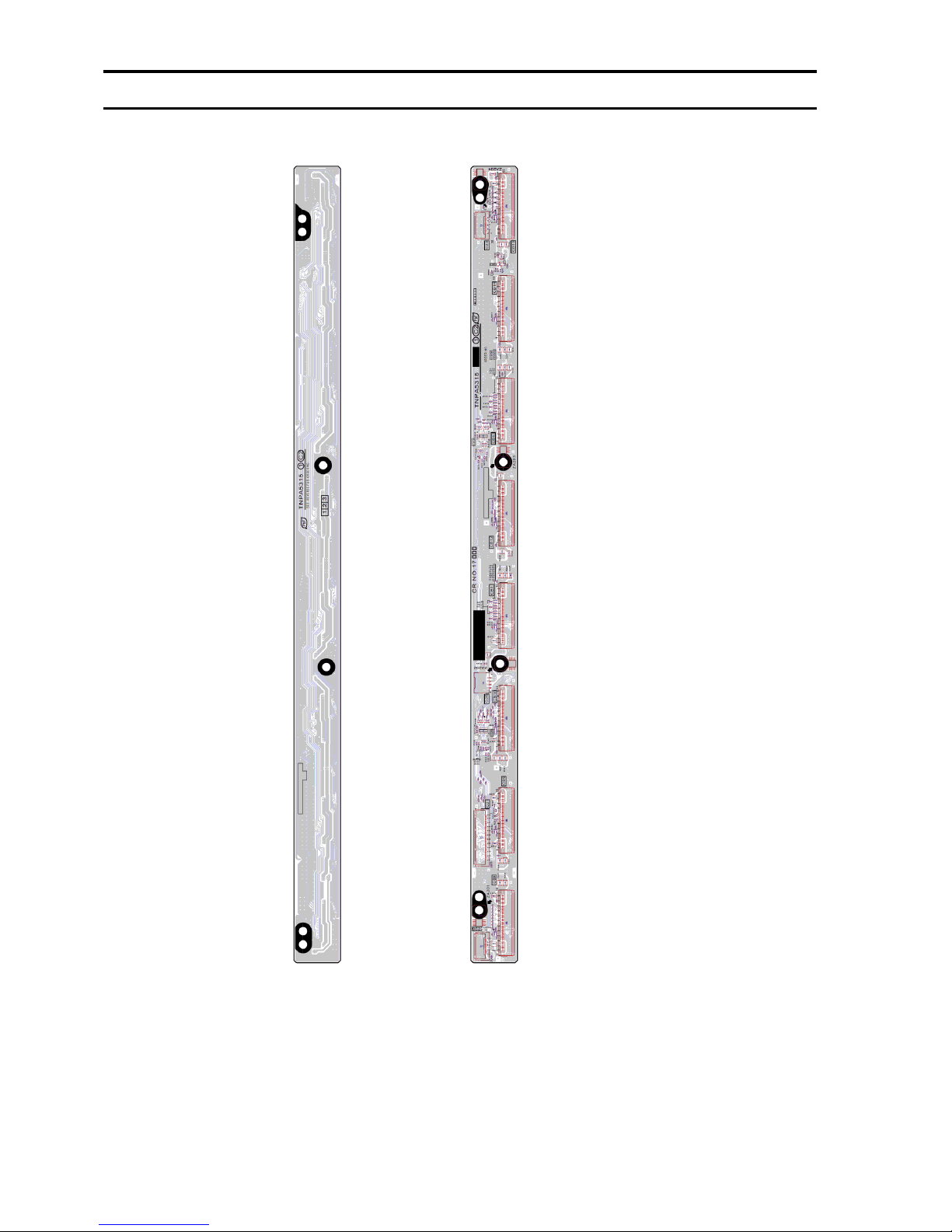

Model No. : TX-P42GT30E/J C2-Board
S-43
Page 90

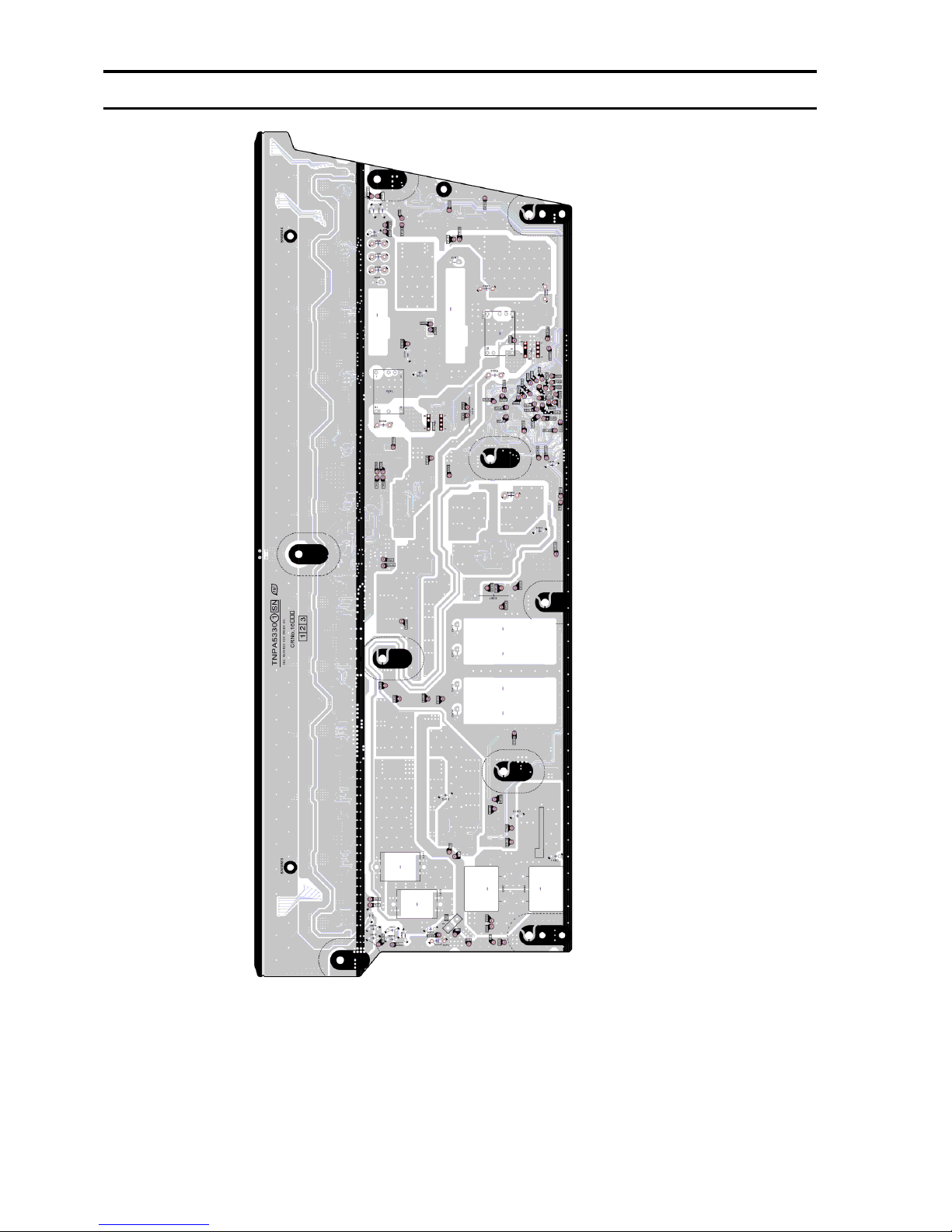

Model No. : TX-P42GT30E/J SN-Board (Foil side)
S-44
Page 91

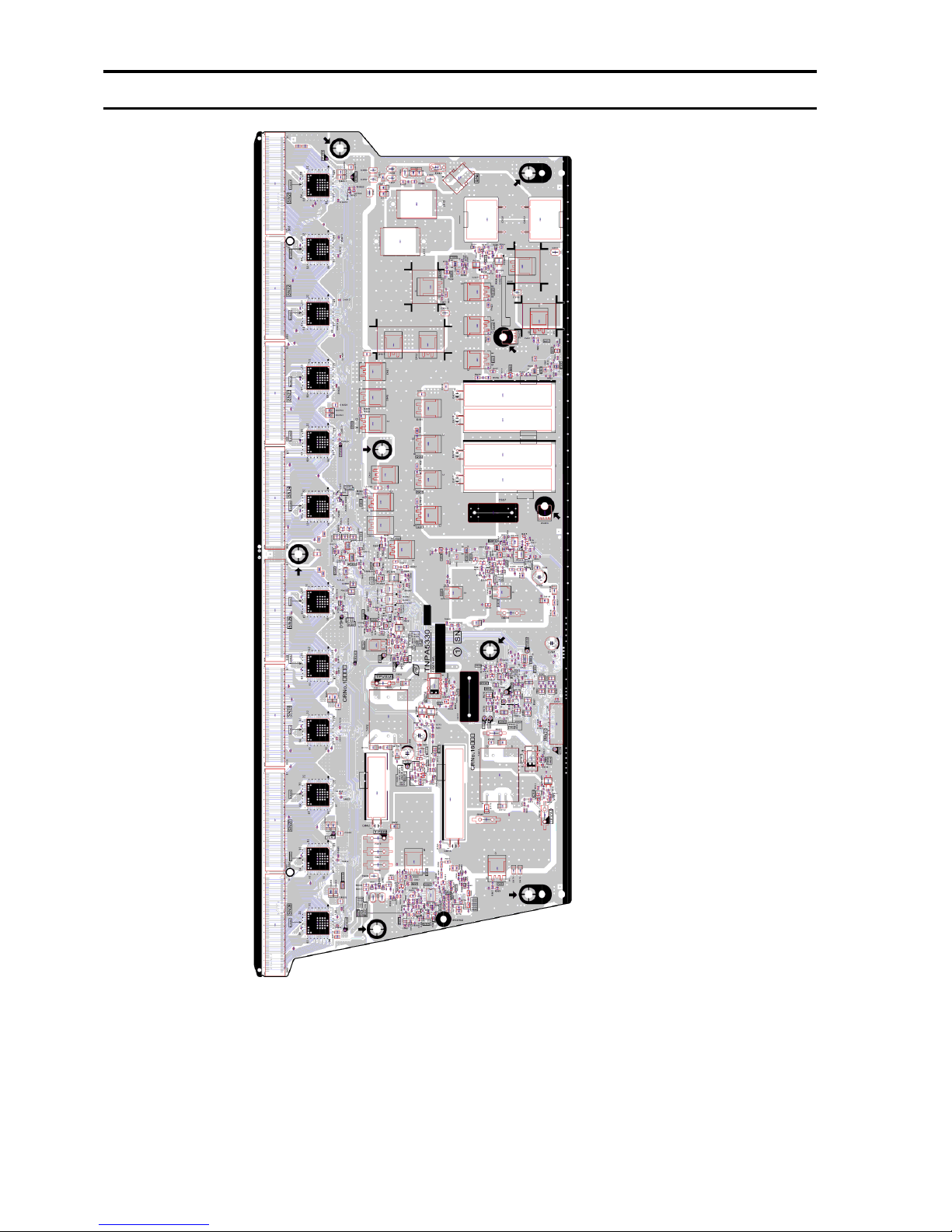

Model No. : TX-P42GT30E/J SN-Board (Component side)
S-45
Page 92

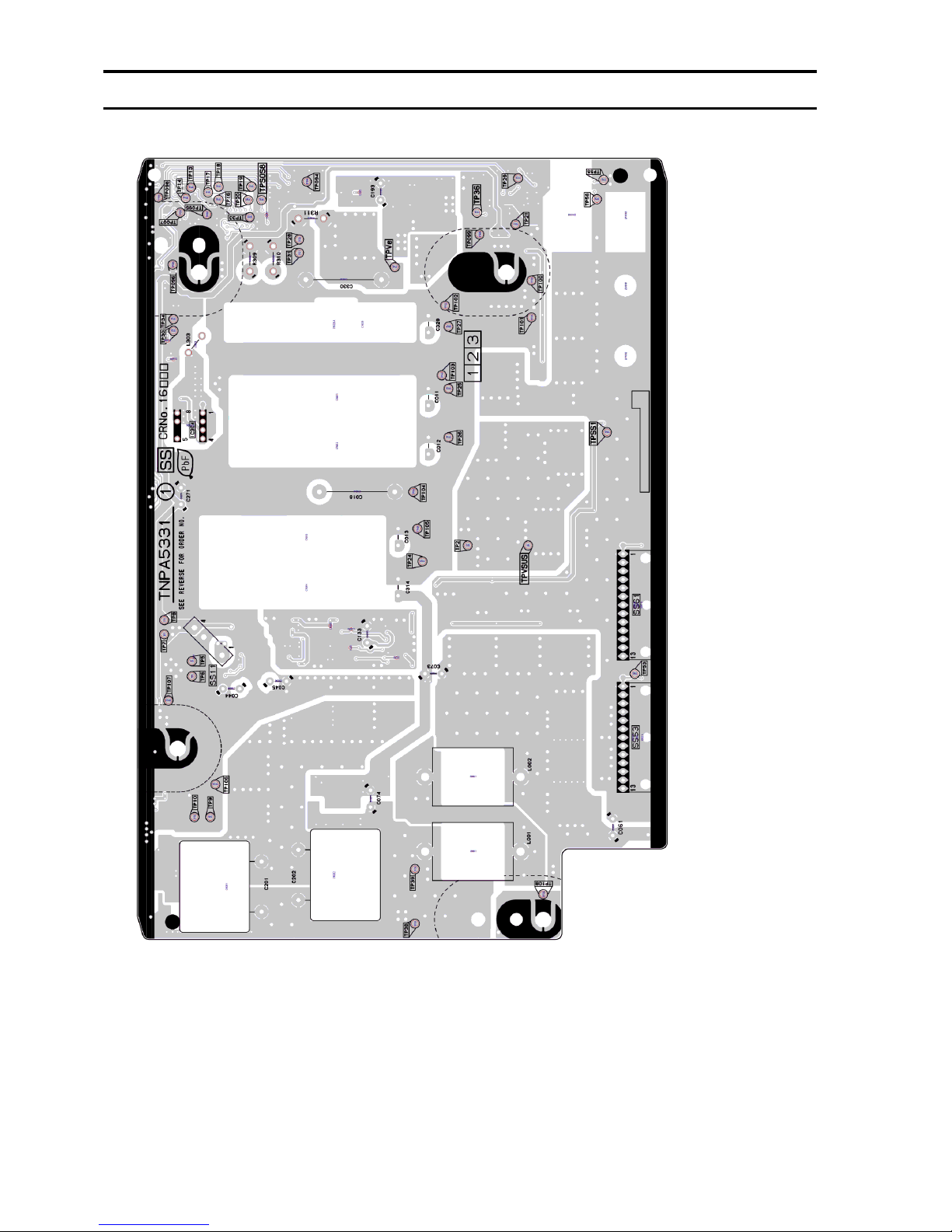

Model No. : TX-P42GT30E/J SS-Board (Foil side)
S-46
Page 93

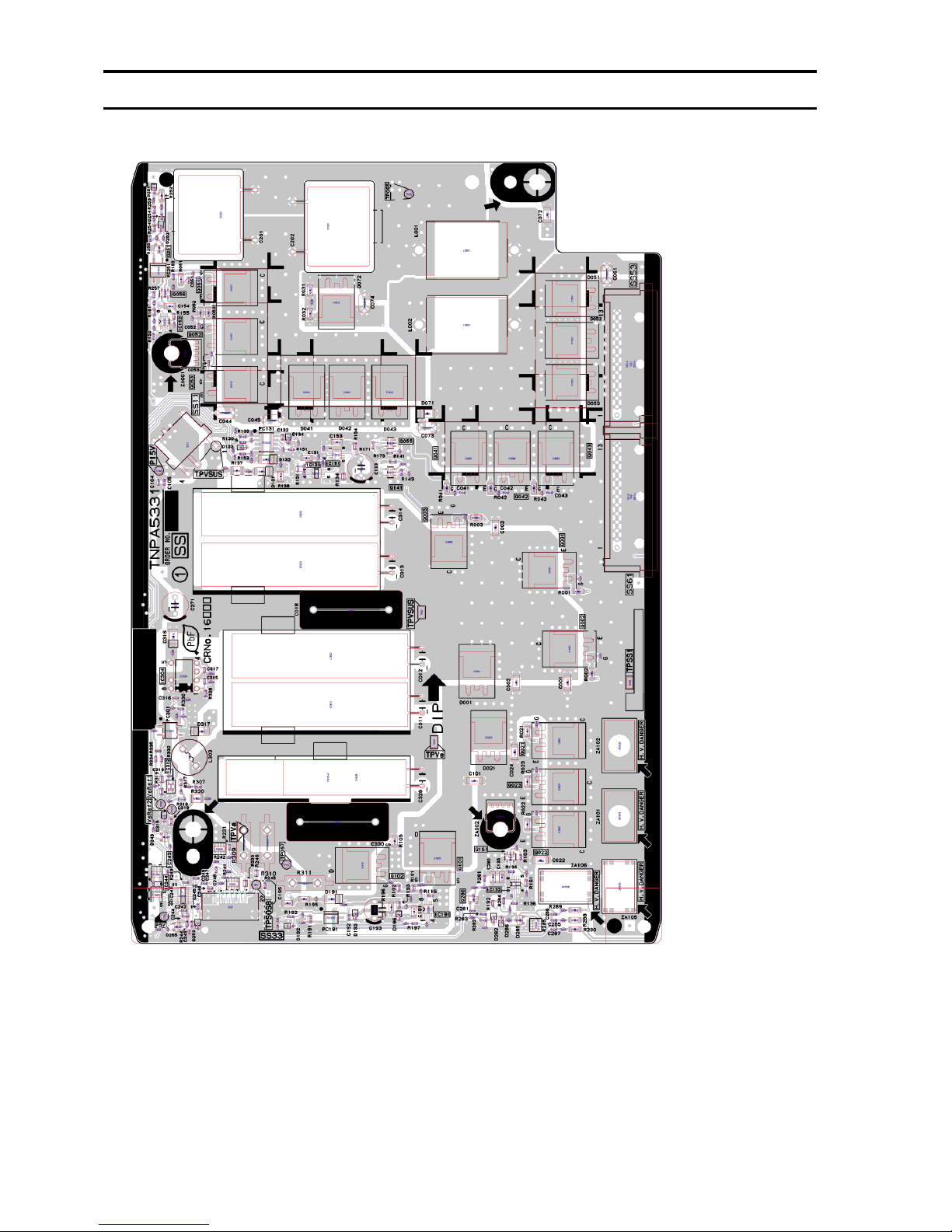

Model No. : TX-P42GT30E/J SS-Board (Component side)
S-47
Page 94

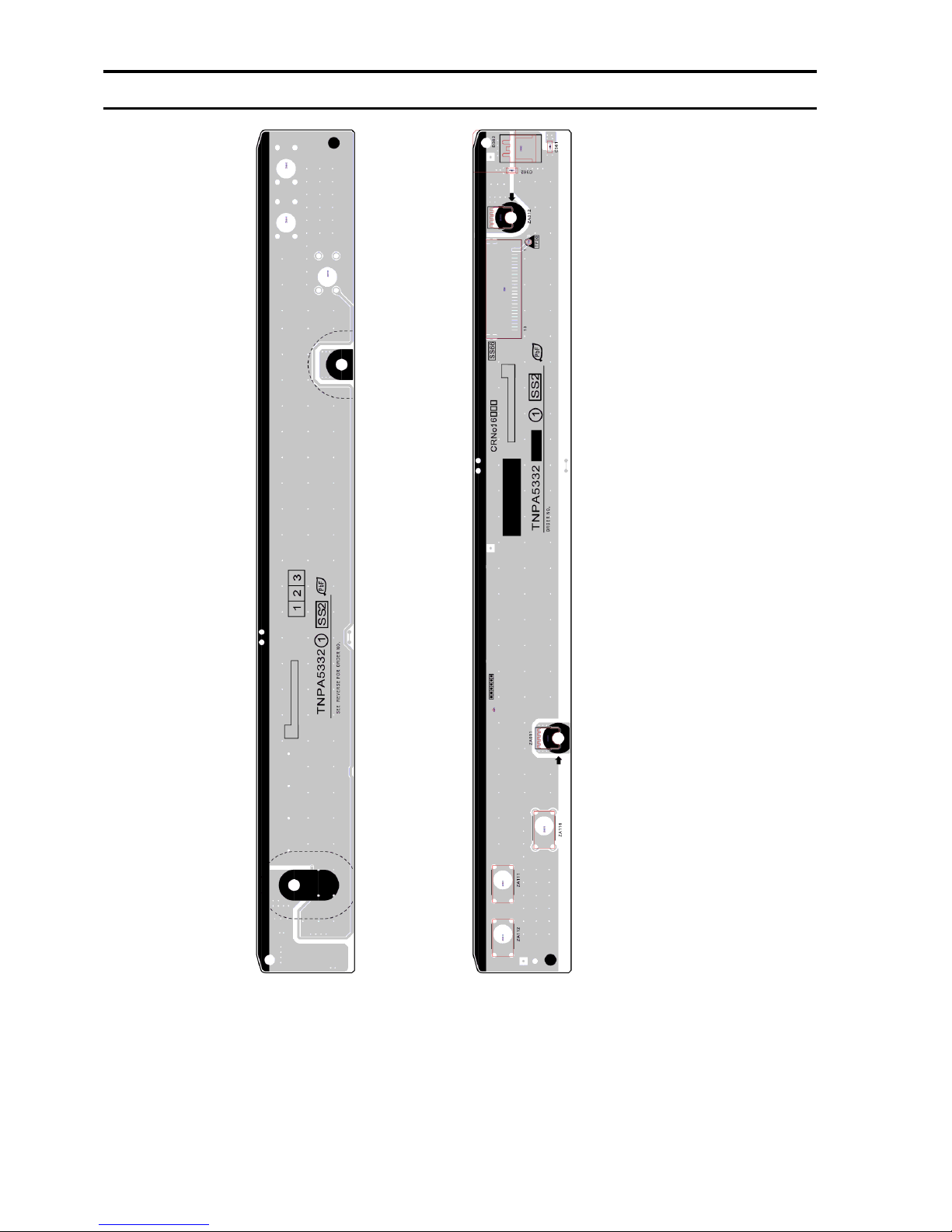

Model No. : TX-P42GT30E/J SS2-Board
S-48
Page 95
Model No. : TX-P42GT30E/J Parts List
Safety
Ref.
No.
Part No. Part Name & Description Q'ty Remarks
PCB A-P42GT30E CIRCUIT BOARD A 1 (RTL)PAVCCZ P42GT30E
PCB A-P42GT30J CIRCUIT BOARD A 1 (RTL)PAVCCZ P42GT30J
PCB TXN/P1QKUE CIRCUIT BOARD P 1 (RTL)PAVCCZ
PCB TXN/K1RLUE CIRCUIT BOARD K 1 (RTL)PAVCCZ
PCB TXN/S1QNUE CIRCUIT BOARD S 1 (RTL)PAVCCZ
PCB TXN/V1QNUE CIRCUIT BOARD V 1 (RTL)PAVCCZ
PCB TNPA5314 CIRCUIT BOARD C1 1 (RTL)
PCB TXNC211DHK CIRCUIT BOARD C2 1 (RTL)PAVCCZ
PCB TXNSN11DHK CIRCUIT BOARD SN 1 (RTL)PAVCCZ
PCB TXNSS11DHK CIRCUIT BOARD SS 1 (RTL)PAVCCZ
PCB TXNSS211DHK CIRCUIT BOARD SS2 1 (RTL)PAVCCZ
A1 K1KY08AA0719 8P CONNECTOR 1
A6 K1KY15B00006 15P CONNECTOR 1 PAVCCZ
A8 K1KY12AA0719 12P CONNECTOR 1
A11 K1KY04B00013 4P CONNECTOR 1 PAVCCZ
A14 K1KY06AA0719 6P CONNECTOR 1
A20 K1MY35BA0345 35P CONNECTOR 1
A31 K1MY55BA0345 55P CONNECTOR 1
A32 K1MY55BA0345 55P CONNECTOR 1
A40 K1MN20BA0231 20P CONNECTOR 1
C100 F0CAF334A105 C 0.33UF, 250V 1 PAVCCZ
C101 F0CAF334A105 C 0.33UF, 250V 1 PAVCCZ
C102 F1BAF221A088 C 220PF, 250V 1 PAVCCZ
C103 F1BAF221A088 C 220PF, 250V 1 PAVCCZ
C104 ECWF2W105KAC C 1UF, 450V 1 PAVCCZ
C109 ECJ1VB1H102K C 1000 pF 50 V 1
C110 F1J1E105A231 C 1 UF 25V 1
C111 F1H1H681A970 C 680 PF, 50V 1 PAVCCZ
C112 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C113 F1J1E105A231 C 1 UF 25V 1
C114 ECJ1VB1H103K C 0.01UF, 50V 1
C115 ECJ1VB1H102K C 1000 pF 50 V 1
C117 ECJ1VB1H102K C 1000 pF 50 V 1
C118 ECJ1VB1H103K C 0.01UF, 50V 1
C119 ECJ1VB1H103K C 0.01UF, 50V 1
C120 ECJ1VB1H102K C 1000 pF 50 V 1
C121 F1J1E105A231 C 1 UF 25V 1
C122 F1J1E105A231 C 1 UF 25V 1
C123 ECJ1VB1H103K C 0.01UF, 50V 1
C128 F2A2W8200009 E 82UF 450V 1 PAVCCZ
C129 F2A2W8200009 E 82UF 450V 1 PAVCCZ
C130 F2A2W8200009 E 82UF 450V 1 PAVCCZ
C136 F1J1E105A231 C 1 UF 25V 1
C145 F1J1E105A231 C 1 UF 25V 1
C200 ECJ1VB1H103K C 0.01UF, 50V 1
C201 F2A2W3300021 E 33UF 450V 1 PAVCCZ
C202 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C203 F1J1H222A721 C 2200pF, 50V 1
C204 F2A1V470A092 C 47UF 35V 1
C206 F1BAF221A088 C 220PF, 250V 1 PAVCCZ
C208 F2A1V470A092 C 47UF 35V 1
C209 F2A1V470A092 C 47UF 35V 1
C210 ECJ1VB1H103K C 0.01UF, 50V 1
C211 ECJ1VB1H103K C 0.01UF, 50V 1
C212 ECJ1VB1H103K C 0.01UF, 50V 1
C213 ECJ1VB1H102K C 1000 pF 50 V 1
C300 ECKD3A101KBP C 100PF, 1KV 1
C301 ECWH8103RHA C 0.01UF, Z, 800V 1 PAVCCZ
C302 ECWH8223RHA C 0.022UF, Z, 800V 1 PAVCCZ
C303 F1BAF101A088 C 100PF, 250V 1 PAVCCZ
S-49
Page 96
Model No. : TX-P42GT30E/J Parts List
Safety
Ref.
No.
Part No. Part Name & Description Q'ty Remarks
C304 ECKD3A221KBP C 220PF, K, 1KV 1
C307 F2A1V470A092 C 47UF 35V 1
C308 F1J1H102A721 C 1000pF, 50V 1
C309 F1J1H104A717 C 0.1UF, 50V 1
C311 F2A1V470A092 C 47UF 35V 1
C312 F1J1E105A231 C 1 UF 25V 1
C313 ECJ1VB1H103K C 0.01UF, 50V 1
C400 F1J1E105A231 C 1 UF 25V 1
C401 F1J1E105A231 C 1 UF 25V 1
C403 ECJ1VB1H103K C 0.01UF, 50V 1
C404 ECJ1VB1H103K C 0.01UF, 50V 1
C405 ECJ1VB1H103K C 0.01UF, 50V 1
C406 F1J1E105A231 C 1 UF 25V 1
C407 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C408 ECJ1VB1H103K C 0.01UF, 50V 1
C409 F1J1H104A717 C 0.1UF, 50V 1
C411 F1J1E105A231 C 1 UF 25V 1
C412 F1H1H1010005 C 100PF, 50V 1
C413 F1J1A106A043 C 10UF, 10V 1
C415 ECJ1VB1H102K C 1000 pF 50 V 1
C416 ECJ1VB1H103K C 0.01UF, 50V 1
C417 F1H1E1050008 C 1U 25V 1 PAVCCZ
C418 ECJ1VB1H103K C 0.01UF, 50V 1
C419 F1J1E105A231 C 1 UF 25V 1
C420 F1J1E105A231 C 1 UF 25V 1
C421 F1J1E105A231 C 1 UF 25V 1
C422 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C423 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C424 ECJ1VB1H102K C 1000 pF 50 V 1
C425 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C500 F2A1E471B730 E 470UF, 25V 1 PAVCCZ
C501 F1J1H222A721 C 2200pF, 50V 1
C502 F1J1E105A231 C 1 UF 25V 1
C503 F2A1E471B730 E 470UF, 25V 1 PAVCCZ
C504 F2A1E471B730 E 470UF, 25V 1 PAVCCZ
C505 F2A1E471B730 E 470UF, 25V 1 PAVCCZ
C506 F1J2E1020002 C 1000PF, 250V 1 PAVCCZ
C507 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C508 F1J1C2250009 C 2.2 UF 16V 1 PAVCCZ
C509 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C510 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C511 F1J1E3340003 C 0.33UF, 25V 1
C512 F1J1H223A623 C 0.022UF, 50V 1 PAVCCZ
C513 F1J1H472A702 C 4700PF, 50V 1 PAVCCZ
C514 F1J1E105A231 C 1 UF 25V 1
C515 F1J1H102A721 C 1000pF, 50V 1
C516 F1J1H102A721 C 1000pF, 50V 1
C517 F1J1E105A231 C 1 UF 25V 1
C518 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C519 F1J1E105A231 C 1 UF 25V 1
C522 F1J2E1020002 C 1000PF, 250V 1 PAVCCZ
C523 F2A1V470A092 C 47UF 35V 1
C524 F2A1V470A092 C 47UF 35V 1
C601 F1H1H3910006 C 390PF, 50V 1 PAVCCZ
C602 F1H1H104A903 C 0.1UF, 50V 1 PAVCCZ
C603 F2AZZ8210003 E 820UF, 1 PAVCCZ
C604 F2A1J152A574 E 1500UF, 63V 1 PAVCCZ
C700 F2A2E191A265 E 190UF, 250V 1 PAVCCZ
C701 F2A2E191A265 E 190UF, 250V 1 PAVCCZ
C703 F1J1E3340003 C 0.33UF, 25V 1
C704 F2A1V470A092 C 47UF 35V 1
C705 F1J1E105A231 C 1 UF 25V 1
S-50
Page 97
Model No. : TX-P42GT30E/J Parts List
Safety
Ref.
No.
Part No. Part Name & Description Q'ty Remarks
C706 F2A2E191A265 E 190UF, 250V 1 PAVCCZ
C707 ECJ1VB1H102K C 1000 pF 50 V 1
C0900 F1G1H101A565 C 100PF 50V 1
C0901 F1G1H101A565 C 100PF 50V 1
C0902 F1G1H101A565 C 100PF 50V 1
C0903 F1G1H101A565 C 100PF 50V 1
C2000 F1G1E1030005 C 0.01UF 25V 1
C2003 F1J1A106A087 C 10UF, 10V 1
C2004 F1J1E105A231 C 1 UF 25V 1
C2010 F1G1C104A077 C 0.1UF 16V 1
C2752 F1G1E1030005 C 0.01UF 25V 1
C2753 F1G1A105A047 C 1UF 10V 1
C2810 ECJ1VB1H103K C 0.01UF, 50V 1
C2811 F1J1A106A087 C 10UF, 10V 1
C2815 ECJ1VB1H103K C 0.01UF, 50V 1
C2821 ECJ1XB1C104K C 0.1UF, Z, 16V 1
C2850 F1G1A473A032 C0.047UF, 10V 1
C2851 F1G1A473A032 C0.047UF, 10V 1
C2852 F1G1A473A032 C0.047UF, 10V 1
C2853 F1G1A473A032 C0.047UF, 10V 1
C3001 F1G1A105A047 C 1UF 10V 1
C3002 F1G1A105A047 C 1UF 10V 1
C3003 F1G1C104A077 C 0.1UF 16V 1
C3004 F1G1C104A077 C 0.1UF 16V 1
C3005 F1G1A105A047 C 1UF 10V 1
C3006 F1G1A105A047 C 1UF 10V 1
C3011 F1J1A106A043 C 10UF, 10V 1
C3016 F1G1C104A077 C 0.1UF 16V 1
C3018 F1G1C104A077 C 0.1UF 16V 1
C3019 F1G1C104A077 C 0.1UF 16V 1
C3020 F1J1A106A043 C 10UF, 10V 1
C3084 F1J1A106A043 C 10UF, 10V 1
C3085 F1J1A106A043 C 10UF, 10V 1
C3086 F1J1A106A043 C 10UF, 10V 1
C3105 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ
C3106 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ
C3108 F1G1E333A091 C 0.033UF 25V 1
C3109 F1G1E333A091 C 0.033UF 25V 1
C3111 F1G1A105A047 C 1UF 10V 1
C3112 F1G1A105A047 C 1UF 10V 1
C3113 F1J1A106A043 C 10UF, 10V 1
C3120 F2H1A101A040 C 100UF, 10V 1 PAVCCZ
C3121 F2H1A101A040 C 100UF, 10V 1 PAVCCZ
C3124 F1J1A106A087 C 10UF, 10V 1
C3130 F1J1A106A043 C 10UF, 10V 1
C3131 F1J1A106A043 C 10UF, 10V 1
C3132 F1J1A106A043 C 10UF, 10V 1
C3135 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ
C3136 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ
C3139 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ
C3140 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ
C3145 F1J1A106A043 C 10UF, 10V 1
C3146 F1J1A106A043 C 10UF, 10V 1
C3147 F1J1A106A043 C 10UF, 10V 1
C3148 F1J1A106A043 C 10UF, 10V 1
C3151 F1G1A105A047 C 1UF 10V 1
C3152 F1G1A105A047 C 1UF 10V 1
C3153 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ
C3154 F1G1H5610004 C 560 pF 50 V 1 PAVCCZ
C3159 F1J1A106A043 C 10UF, 10V 1
C3160 F1J1A106A043 C 10UF, 10V 1
C3161 F1J1A106A043 C 10UF, 10V 1
S-51
Page 98
Model No. : TX-P42GT30E/J Parts List
Safety
Ref.
No.
Part No. Part Name & Description Q'ty Remarks
C3162 F1J1A106A043 C 10UF, 10V 1
C3163 F1J1A106A043 C 10UF, 10V 1
C3166 F1G1H1020008 C 1000PF 50V 1
C3172 F1G1A105A047 C 1UF 10V 1
C3173 F1G1A105A047 C 1UF 10V 1
C3174 F1G1A105A047 C 1UF 10V 1
C3175 F1G1A105A047 C 1UF 10V 1
C3178 F1J1A106A043 C 10UF, 10V 1
C3179 F1J1A106A043 C 10UF, 10V 1
C3851 ECJ1VB1A105K C 1UF, 10V 1
C4546 F1G1A105A047 C 1UF 10V 1
C4551 ECJ1VB0J105K C 1UF, 6.3V 1
C4713 F1G1C104A077 C 0.1UF 16V 1
C4716 F1G1C104A077 C 0.1UF 16V 1
C4717 F1J1A106A087 C 10UF, 10V 1
C4718 F1J1A475A087 C 4.7UF, 10V 1
C4719 F1G1C104A077 C 0.1UF 16V 1
C4721 F1G1C104A077 C 0.1UF 16V 1
C4722 F1G1C104A077 C 0.1UF 16V 1
C4723 F1G1C104A077 C 0.1UF 16V 1
C4727 F1J1A106A087 C 10UF, 10V 1
C4800 F1G1A105A047 C 1UF 10V 1
C4801 F1G1A105A047 C 1UF 10V 1
C4804 F1G1C104A077 C 0.1UF 16V 1
C4805 F1G1C104A077 C 0.1UF 16V 1
C4808 F1G1C104A077 C 0.1UF 16V 1
C4809 F1J1A106A043 C 10UF, 10V 1
C4813 F1G1C104A077 C 0.1UF 16V 1
C4816 F1G1H220A565 C 22PF, 50V 1
C4817 F1G1H330A565 C 33PF, 50V 1
C4818 F1G1H330A565 C 33PF, 50V 1
C4820 F1J1E105A231 C 1 UF 25V 1
C4821 ECJ1VB1A105K C 1UF, 10V 1
C4822 F1G1H1020008 C 1000PF 50V 1
C4830 F1G1H101A565 C 100PF 50V 1
C4831 F1G1H101A565 C 100PF 50V 1
C4898 F1G1H150A565 C 15PF, 50V 1
C4899 F1G1H150A565 C 15PF, 50V 1
C4900 ECJ1XC1H102J C 1000PF, J, 50V 1
C4901 F1G1C104A077 C 0.1UF 16V 1
C4902 F1G1H1020008 C 1000PF 50V 1
C4903 F1G1C104A077 C 0.1UF 16V 1
C4908 F1G1H1020008 C 1000PF 50V 1
C4909 F1J1E105A231 C 1 UF 25V 1
C4910 F1K1E106A136 C 10UF, 25V 1
C4911 F1H1H104A970 C 0.1UF, 50V 1
C4912 F1J1E105A231 C 1 UF 25V 1
C4913 F1H1H104A970 C 0.1UF, 50V 1
C4914 F1J1E105A231 C 1 UF 25V 1
C4915 F1H1H104A970 C 0.1UF, 50V 1
C4916 F1K1E106A136 C 10UF, 25V 1
C4917 F1H1H104A970 C 0.1UF, 50V 1
C4918 F1J1E105A231 C 1 UF 25V 1
C4919 F1G1H1020008 C 1000PF 50V 1
C4921 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ
C4922 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ
C4924 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ
C4925 F1J1E4740001 C 0.47UF, 25V 1 PAVCCZ
C4934 F1G1H1020008 C 1000PF 50V 1
C4935 F1G1H1020008 C 1000PF 50V 1
C4936 F1G1H1020008 C 1000PF 50V 1
C4937 F1G1H1020008 C 1000PF 50V 1
S-52
Page 99
Model No. : TX-P42GT30E/J Parts List
Safety
Ref.
No.
Part No. Part Name & Description Q'ty Remarks
C4938 F1K1E106A136 C 10UF, 25V 1
C4939 F1K1E106A136 C 10UF, 25V 1
C4970 F1J1A106A087 C 10UF, 10V 1
C4971 F1J1A106A087 C 10UF, 10V 1
C4972 F2H1A101A040 C 100UF, 10V 1 PAVCCZ
C4973 F2H1A101A040 C 100UF, 10V 1 PAVCCZ
C4974 F1G1E333A091 C 0.033UF 25V 1
C4975 F1G1E333A091 C 0.033UF 25V 1
C5000 F1G1E1030005 C 0.01UF 25V 1
C5002 F1K1E106A136 C 10UF, 25V 1
C5003 F1H1C105A145 C 1 uF 16 V 1
C5007 F1G1C104A077 C 0.1UF 16V 1
C5009 F1G1C104A077 C 0.1UF 16V 1
C5011 F1G1C104A077 C 0.1UF 16V 1
C5012 EEEHB1C101UP C 100PF, J, 16V 1
C5013 ECJ1VB1A105K C 1UF, 10V 1
C5014 ECJ1VB1A105K C 1UF, 10V 1
C5015 ECJ1VB1A105K C 1UF, 10V 1
C5016 ECJ1VB1A105K C 1UF, 10V 1
C5017 ECJ1VB1A105K C 1UF, 10V 1
C5018 F1G1C104A077 C 0.1UF 16V 1
C5020 F1G1E1030005 C 0.01UF 25V 1
C5200 F1K1E106A136 C 10UF, 25V 1
C5201 F1G1C104A077 C 0.1UF 16V 1
C5202 F1J1A106A043 C 10UF, 10V 1
C5203 F1G1C104A077 C 0.1UF 16V 1
C5204 F1J1A106A043 C 10UF, 10V 1
C5205 F1G1E6820007 C 6800pF 25V 1
C5449 F1G1H103A509 C 0.01PF, 50V 1 PAVCCZ
C5452 F1J1A106A043 C 10UF, 10V 1
C5453 F1J1A106A043 C 10UF, 10V 1
C5454 F1J1A106A043 C 10UF, 10V 1
C5455 F1K1E106A136 C 10UF, 25V 1
C5456 F1K1E106A136 C 10UF, 25V 1
C5457 F1G1H821A459 C 820 pF 50 V 1 PAVCCZ
C5900 F1J1A106A043 C 10UF, 10V 1
C5901 F1J1A106A043 C 10UF, 10V 1
C5902 F1J1A106A043 C 10UF, 10V 1
C5905 F1G1C223A081 C 0.022UF, 16V 1
C5906 F1K1E106A136 C 10UF, 25V 1
C5908 F1G1A333A032 C0.033UF, 10V 1
C5909 F1G1H1020008 C 1000PF 50V 1
C5911 F1J1A106A043 C 10UF, 10V 1
C5912 F1G1E472A086 C 4700pF 25V 1
C5913 F1G1A473A032 C0.047UF, 10V 1
C5915 F1G1A473A032 C0.047UF, 10V 1
C5917 F1G1A473A032 C0.047UF, 10V 1
C5919 F1G1A473A032 C0.047UF, 10V 1
C5921 F1G1H1020008 C 1000PF 50V 1
C5923 ECJ1VB1A105K C 1UF, 10V 1
C6776 F1J1A106A087 C 10UF, 10V 1
C6778 F1J1A106A087 C 10UF, 10V 1
C6780 F1J1A106A087 C 10UF, 10V 1
C6781 F1J0G2260001 C 22 UF 4 V 1
C6782 F1J0G2260001 C 22 UF 4 V 1
C6787 F1J1A106A087 C 10UF, 10V 1
C6788 F1J1A106A087 C 10UF, 10V 1
C6789 F1G1C1030008 C 0.01UF 16V 1
C6790 F1K1E106A136 C 10UF, 25V 1
C6791 F1G1C1030008 C 0.01UF 16V 1
C6792 F1G1E392A123 C 3900pF 25V 1
C6793 ECJ1VB1E104K C 0.1 UF, 25V 1
S-53
Page 100
Model No. : TX-P42GT30E/J Parts List
Safety
Ref.
No.
Part No. Part Name & Description Q'ty Remarks
C6808 F1J1E105A171 C 1 UF 25V 1
C6809 ECJ1VB1A105K C 1UF, 10V 1
C6810 F1G1H152A571 C 1500PF, 50V 1
C6811 F1H1H473A918 C 0.047UF, 50V 1 PAVCCZ
C6812 F1G1C104A077 C 0.1UF 16V 1
C6813 F1J1E2240015 C 0.22UF, 25V 1 PAVCCZ
C6814 F2G1E1010028 E 100PF, 25V 1 PAVCCZ
C6815 EEEFPE101XAP C 100UF, Z, 25V 1 PAVCCZ
C6816 F1G1H471A731 C 470PF, 50V 1
C6817 F1K1E106A136 C 10UF, 25V 1
C6818 F1K1E106A136 C 10UF, 25V 1
C6819 F1K1E106A136 C 10UF, 25V 1
C6830 ECJ1XC1H102J C 1000PF, J, 50V 1
C6925 F1G1C104A077 C 0.1UF 16V 1
C8001 F1G1C104A077 C 0.1UF 16V 1
C8002 F1J1A106A087 C 10UF, 10V 1
C8003 F1G1C104A077 C 0.1UF 16V 1
C8004 F1G1C104A077 C 0.1UF 16V 1
C8005 F1G1C104A077 C 0.1UF 16V 1
C8006 F1G1C104A077 C 0.1UF 16V 1
C8007 F1G1C104A077 C 0.1UF 16V 1
C8008 F1G1C104A077 C 0.1UF 16V 1
C8009 F1J1A106A087 C 10UF, 10V 1
C8011 F1G1C104A077 C 0.1UF 16V 1
C8013 F1G1C104A077 C 0.1UF 16V 1
C8014 F1G1C104A077 C 0.1UF 16V 1
C8015 F1G1C104A077 C 0.1UF 16V 1
C8016 F1G1C104A077 C 0.1UF 16V 1
C8017 F1J1A106A087 C 10UF, 10V 1
C8018 F1G1C104A077 C 0.1UF 16V 1
C8019 F1G1C104A077 C 0.1UF 16V 1
C8020 F1G1C104A077 C 0.1UF 16V 1
C8021 F1G1C104A077 C 0.1UF 16V 1
C8022 F1J1A106A087 C 10UF, 10V 1
C8023 F1J1A106A087 C 10UF, 10V 1
C8024 F1J0G2260001 C 22 UF 4 V 1
C8026 F1G1C104A077 C 0.1UF 16V 1
C8027 F1G1C104A077 C 0.1UF 16V 1
C8028 F1G1C104A077 C 0.1UF 16V 1
C8030 F1G1C104A077 C 0.1UF 16V 1
C8032 F1G1C104A077 C 0.1UF 16V 1
C8036 F1G1C104A077 C 0.1UF 16V 1
C8039 F1G1C104A077 C 0.1UF 16V 1
C8041 F1G1H1020008 C 1000PF 50V 1
C8042 F1G1C104A077 C 0.1UF 16V 1
C8043 F1G1C104A077 C 0.1UF 16V 1
C8044 F1G1C104A077 C 0.1UF 16V 1
C8045 F1G1C104A077 C 0.1UF 16V 1
C8047 F1G1C104A077 C 0.1UF 16V 1
C8048 F1G1C104A077 C 0.1UF 16V 1
C8049 F1J1A106A087 C 10UF, 10V 1
C8050 F1G1C104A077 C 0.1UF 16V 1
C8051 F1J1A106A087 C 10UF, 10V 1
C8052 F1G1C104A077 C 0.1UF 16V 1
C8053 F1G1C104A077 C 0.1UF 16V 1
C8054 F1G1C104A077 C 0.1UF 16V 1
C8055 F1G1C104A077 C 0.1UF 16V 1
C8056 F1G1C104A077 C 0.1UF 16V 1
C8057 F1G1C104A077 C 0.1UF 16V 1
C8100 F1G1E682A123 C 6800 pF 25 V 1
C8102 F1J1A475A087 C 4.7UF, 10V 1
C8104 F1H1C105A145 C 1 uF 16 V 1
S-54
Loading...
