Model No.
TX-L19X5B
TX-L24X5B
Operating Instructions
LCD Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
English
Contents |
|
SAFETY PRECAUTIONS..................................................................................................... |
3 |
Warning ................................................................................................................................................................................................... |
3 |
Caution.............................................................................................................................. |
5 |
Maintenance..................................................................................................................... |
6 |
Display panel, Cabinet, Pedestal..................................................................................................................................................... |
6 |
Mains plug .............................................................................................................................................................................................. |
6 |
Standard Accessories....................................................................................................... |
6 |
Attaching the Pedestal.................................................................................................... |
7 |
Installing Pedestal |
7 |
Uninstalling Pedestal .......................................................................................................................................................................... |
7 |
Wall-hanging (Not supplied)............................................................................................................................................................ |
8 |
PART NAMES AND FUNCTIONS....................................................................................... |
9 |
TV Controls/ Indicators....................................................................................................................................................................... |
9 |
TV (Side / Back)...................................................................................................................................................................................... |
9 |
Connections.................................................................................................................... |
10 |
Computer Connection..................................................................................................................................................................... |
10 |
Video Equipment Connection ...................................................................................................................................................... |
10 |
AC Power Cord Connection........................................................................................................................................................... |
11 |
Aerial or Cable Connection............................................................................................................................................................ |
11 |
Remote Control Batteries Installation.......................................................................... |
11 |
Remote Control.............................................................................................................. |
12 |
Turning On/Off LCD TV.................................................................................................. |
13 |
Selecting Input Source................................................................................................... |
13 |
ASPECT............................................................................................................................ |
13 |
Initial Setup.................................................................................................................... |
14 |
On-Screen Display.......................................................................................................... |
16 |
Picture ................................................................................................................................................................................................... |
16 |
Sound .................................................................................................................................................................................................... |
17 |
Timer...................................................................................................................................................................................................... |
18 |
Setup...................................................................................................................................................................................................... |
18 |
Media Player........................................................................................................................................................................................ |
20 |
TROUBLESHOOTING....................................................................................................... |
22 |
SPECIFICATIONS............................................................................................................. |
23 |
Input Signal Compatibility Chart.................................................................................. |
24 |
COMPONENT (Y, PB, PR), HDMI..................................................................................................................................................... |
24 |
PC (from D-sub terminal/ HDMI terminal)................................................................................................................................ |
24 |
Multi-media Supported Specification.......................................................................... |
25 |
Photo ..................................................................................................................................................................................................... |
25 |
Music...................................................................................................................................................................................................... |
25 |
Movie ..................................................................................................................................................................................................... |
25 |
LICENSE........................................................................................................................... |
26 |
2
SAFETY PRECAUTIONS
Warning
Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
•This TV is designed to operate on AC 220-240 V, 50 Hz.
•Insert the mains plug fully into the socket outlet.
•Ensure that the mains plug is easily accessible.
•Remove the mains plug when cleaning the
•Do not touch the mains plug with a wet hand.
•Do not damage the mains lead
−−Do not place a heavy object on the lead.
−−Do not place the lead near a high temperature object.
−−Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.
AC 220-240 V
50 Hz
−−Do not move the TV with the lead plugged into a socket outlet.
−−Do not twist the lead, bend it excessively or stretch it.
−−Do not use a damaged mains plug or socket outlet.
−−Ensure the TV does not crush the mains lead.
•Do not use any mains lead other than that provided with this TV.
•Do not place foreign objects inside the TV
−−Do not allow any objects to drop into the TV through the air vents as fire or electrical shock may result.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience.
A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark |
|
|
or the BSI mark |
on the body of the fuse. |
|
|
|||
If the mains plug contains a |
removable fuse cover, you must ensure that it is refitted when the fuse is replaced. |
|||
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained. A replacement fuse cover may be purchased from your local dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician. If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
How to replace the fuse
For plug type shown in example 1:
Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit securely into the mains plug (see example 1).
For plug type shown in example 2:
Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse, then press the fuse cover down securely (see example 2).
Example 1
Example 2
3
Warning
Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
•Do not remove covers and never modify the TV yourself as live parts are accessible when they are removed. There are no user serviceable parts inside.
•Do not expose the TV to rain or excessive moisture. This TV must not be
exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.
•Do not expose the TV to direct sunlight and other sources of heat. To prevent fire never place any type of candle or naked flame on top or near the TV.
•Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base.
•Do not insert foreign objects into the TV through the air vents.
•Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.
•Do not apply strong force or impact to the display panel.
•This TV is designed for Table-top use.
To prevent the spread of fire, keep candles or other open flames away from this product at all times
Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.
•Keep the dangerous parts out of reach of young children.
Radio waves
•Do not use the TV in any medical institutions or locations with medical equipment. Radio waves from the TV may interfere with the medical equipment and cause accidents due to the malfunction.
•Do not use the TV near any automatic control equipment such as automatic doors or fire alarms. Radio waves from the TV may interfere with the automatic control equipment and cause accidents due to the malfunction.
4
Caution
Ventilation
Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.
Minimum distance |
|
|
•Ventilation should not be impeded by covering the |
10 cm |
|
ventilation openings with items such as newspapers, |
|
|
tablecloths and curtains. |
10 |
10 cm |
10 cm |
||
•Whether you are using the pedestal or not, always ensure the vents in the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.
Moving the TV
Before moving the TV, disconnect all cables.
When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.
•Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
Excessive volume
Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.
Notice for DVB functions
This TV is designed to meet the standards (as of August, 2010) of DVB-T (MPEG2 and MPEG4 AVC(H.264)) digital terrestrial services and DVB-C (MPEG2 and MPEG4-AVC(H.264)) digital cable services.
Consult your local dealer for availability of DVB-T services in your area.
•This TV may not work correctly with the signal which does not meet the standards of DVB-T or DVB-C.
•Not all the features are available depending on the country, area, broadcaster and service provider.
•Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
•This TV may not work correctly with CI module that is not approved by the service provider.
•Additional fees may be charged depending on the service provider.
•The compatibility with future DVB services is not guaranteed.
•Check the latest information on the available services at the following website. (English only) http://panasonic.jp/support/global/cs/tv/Consult your cable service provider for availability of DVB-C services with this TV.
Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker’s peripheral devices.
5
Maintenance
First, remove the mains plug from the socket outlet.
Display panel, Cabinet, Pedestal
Regular care :
Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to clean the dirt or fingerprints.
For stubborn dirt :
Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water). Then wring the cloth and wipe the surface. Finally, wipe away all the moisture.
Caution
•Do not use a hard cloth or rub the surface too hard. This may cause scratches on the surface.
•Take care not to subject the TV’s surfaces to water or detergent. Liquid inside the TV could lead to product failure.
•Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.
•The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
•Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may lead to fire or electrical shock.
Standard Accessories
Check you have all the items shown.
Remote Control |
|
Batteries (R03 AAA) |
||||||
(TZZ00000007A) |
|
|
x 2 |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Neck and Base |
Screws x 3 |
|
(Assembly screws for neck and |
|
base) |
Power Cord
6
Attaching the Pedestal
Warning
Do not disassemble or modify the pedestal.
•Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any pedestal other than that provided with this TV.
•Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically
•If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic dealer immediately.damaged.
During assembly, use only screws supplied and make sure
•If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong
enough to support the TV. It might fall over and become damaged and personal injury may result.that all screws are securely tightened.
•If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal injury may result.Ensure that the TV does not fall over.
Two or more people are required to install and remove
•If two or more people are not present, the TV may be dropped, and personal injury may result.the TV.
Caution
Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally
•Keep the dangerous parts out of reach of young children.
Installing Pedestal
1.Place the LCD TV screen facing down on a flat surface place where maintained with soft materials (such as a blanket) for protecting the display screen.
2.Use the assembly screw to fasten the neck to the base securely.
3.Use only the supplied assembly screws to fasten the pedestal securely to the TV.
Uninstalling Pedestal
1.Place the LCD TV screen facing down on a flat surface place where maintained with soft materials (such as a blanket) for protecting the display screen.
2.Remove screws in two holes with screw driver.
7
Wall-hanging (Not supplied)
Wall-hanging Insets
|
Depth of screw : minmum 6 mm |
|
maximum 7 mm |
|
Diameter : M4 |
|
Screw for xing the TV onto the |
|
wall-hanging bracket |
|
(not supplied with the TV) |
|
(View from the side) |
TV Size |
VESA standard interface |
24 inch |
75 x 75 mm |
19 inch |
75 x 75 mm |
Wall-hanging bracket (Optional)
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories.
For additional details, please refer to the manual of the optional accessories.
Warning
•Using other wall-hanging brackets, or installing a wall hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licenced contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
•Do not mount the unit directly below ceiling lights (such as spotlights, floodlights or halogen lights) which typically give off high heat. Doing so may warp or damage plastic cabinet parts.
•Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
•To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.
8
|
PART NAMES AND FUNCTIONS |
||
TV Controls/ Indicators |
|
|
|
|
|
1 |
Remote Control Signal Receiver |
|
|
•Do not place any objects between the TV remote |
|
|
|
control signal receiver and remote control. |
|
|
|
2 |
Power Indicator |
|
3 |
|
Red: Standby |
|
|
|
Green: On |
|
|
|
Green blink: Receiving a command from the |
|
4 |
3 |
remote control |
|
VOL +/- |
||
|
|
•Used to change volume. |
|
|
|
•Used to adjust the value of the selected item on On- |
|
|
5 |
Screen Menu. |
|
|
4 |
CH a/b |
|
|
|
||
|
6 |
•Used to change channels. |
|
|
7 |
•Used to select item on On-Screen Menu. |
|
|
5 |
MENU |
|
|
|
•Open or close the On-Screen Menu. |
|
1 |
2 |
6 |
INPUT/OK |
|
|
•Use to select an input source. |
|
|
|
•Confirm and enter a selection. |
|
|
|
7 |
(POWER) |
|
|
•Use to turn the TV On or Off. |
|

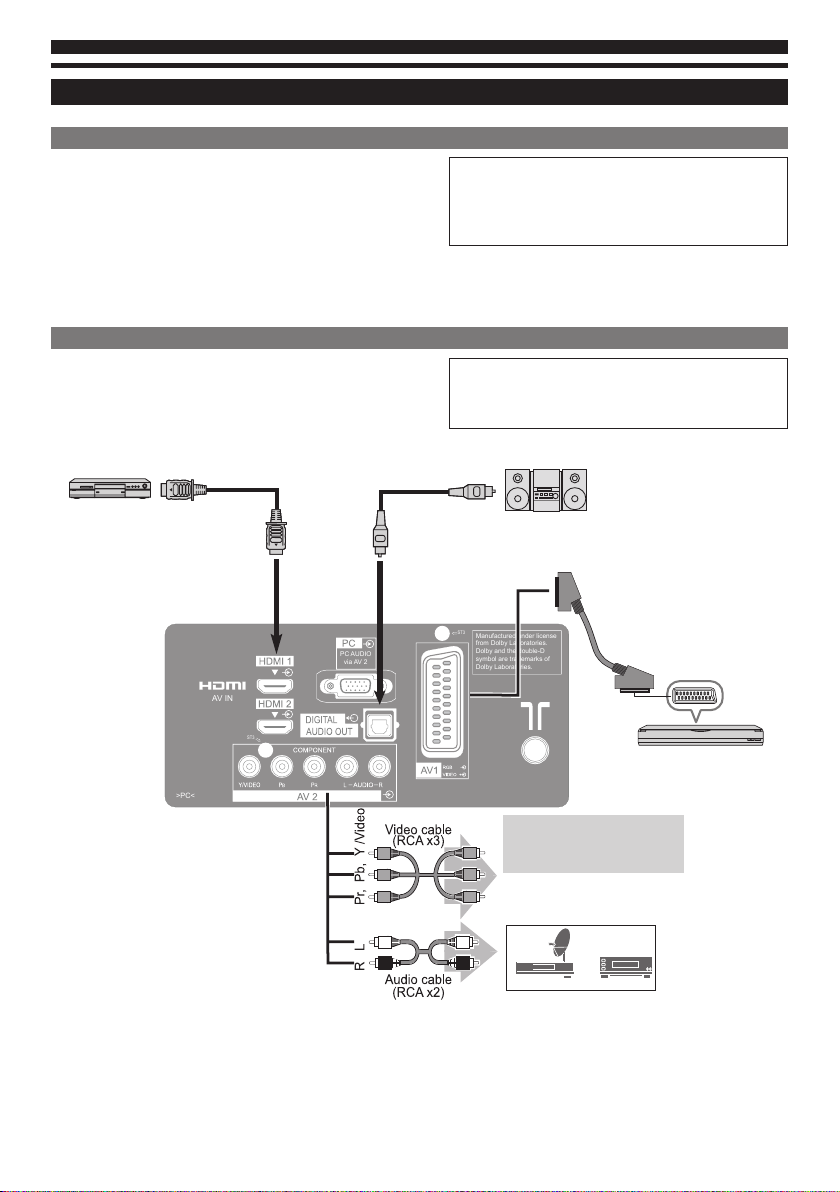

TV (Side / Back)
1 HDMI 1/HDMI 2
•Connect all kinds of HDMI output equipment.
•When connecting a DVI device using an HDMI-DVI adapter, connect the device to the HDMI1 jack.
2 AV 2
•Connect video and audio output from video equipment.
3 DIGITAL AUDIO OUT
•Connect an audio amplifier to this jack.
4 PC
•Connect computer outputs to this terminal.
7 •Connect an audio cable to L/R jacks of AV2 and audio out jack on the computer.
|
|
|
|
|
|
|
5 |
AV 1 |
|
|
|
|
|
|
|
8 |
•Full SCART, which transmits RGB, S-Video and CVBS in, |
|
|
|
|
|
|
|
|
|
and audio/video out (Analogue only). |
|
|
|
|
|
|
ST3 |
Manufactured under license |
9 |
6 |
Aerial Jack |
|
|
|
PC AUDIO |
|
|
Connects to TV RF signals (aerial/CATV). |
|
|||
|
|
|
|
Dolby and the double-D |
|
||||
|
|
|
|
|
from Dolby Laboratories. |
•7 |
|
|
|
|
|
via AV 2 |
|
|
symbol are trademarks of |
|
Common Interface |
|
|
|
|
|
|
Dolby Laboratories. |
|
|
|||
|
AV IN |
|
|
|
|
10 •The Common Interface Module menu provides access |
|
||
|
ST3 |
|
|
|
|
|
to software contained on Common Interface (CI) |
|
|
|
|
|
|
|
|
Modules. |
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
8 |
ETHERNET |
|
>PC< |
|
|
|
|
|
>PC< |
•This terminal is for access to the MHEG interactive |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
services and features through an internet. |
|
|
1 |
2 |
34 |
5 |
|
6 |
|
•Please contact broadcasters for availability of services. |
|
|
|
|
9 |
Headphone |
|
|||||
|
|
|
|
|
|
|
•Connect a headphone (stereo) to this jack and the TV |
|
|
|
|
|
|
|
|
|
speaker out will be muted. |
|
|
|
|
|
|
|
|
|
10USB |
|
|
|
|
|
|
|
|
|
•Connect USB memory stick to this terminal to play |
|
|
|
|
|
|
|
|
|
Multimedia. |
9 |
|
|
|
|
|
|
|
|
|
|
|
Loading...
