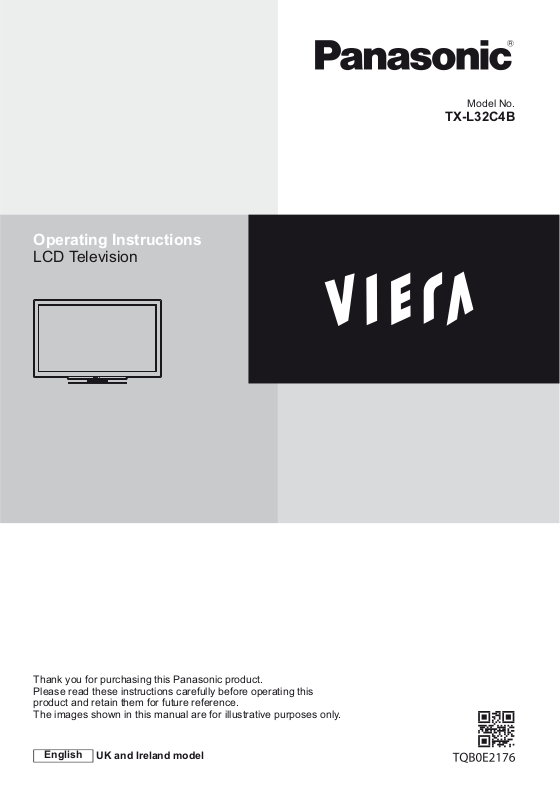

Model No.
TX-L32C4B
Operating Instructions
LCD Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
English UK and Ireland model
Features
DVB-T tuner built-in
* $ ) " ! $ ) " !! ) ! " (! $ ) )
DVB-T2 tuner built-in
DVB-T2 is an advanced digital terrestrial system for more efficient transmission.
Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.
GUIDE Plus+ +/
This TV supports the TV Guide services sent from the GUIDE Plus+ system.
Sharp pictures and clear sound with HDMI connection 45
Enjoy high definition digital picture and high quality sound by using an HDMI cable.This TV supports Audio Return Channel.
Timer Programming +68 9+
Timer Programming enables you to use functions such as programme reminder and programme recording to the external recorder.
VIERA IMAGE VIEWER - SD Card viewer in Media Player :+ Enjoy your photos or videos recorded on an SD Card on the TV screen.
SDXC Card
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.
AVCHD
It is possible to play moving pictures recorded on an SD Card in AVCHD format. AVCHD is a high% ! $ ! % ! 6
Link up and control the connected equipment with “Q-Link” and “VIERA Link” :/
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.
VIERA TOOLS - Display special feature icons for easy accessibility ;$ " % ! ) ) $ ) <=* > ? @" J ! $ ( $$ )) ) "J (J )
the VIERA TOOLS button.
Dolby Digital Plus decoder
< ) )) (" $ "(J " @" ) ! $? " $ " ) ) "(J Digital multi-channel sound signal from the DIGITAL AUDIO OUT terminal.
Owner ID 9/
Owner ID is an anti-theft function. Entering the PIN number and owner’s personal information will help the Police to determine the owner in the case of theft.
Supports Audio Description signal +:8 5 )$! & (! $ ) ) " ) ! $? )$! ( ) )$!!! ) !) Z J 8 ! $ " !"J % ! ) ""J ! & !)
You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack independently of the main volume.
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by
TV region.
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital TV channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently turned off, it will not be possible to recover them.
To retune your TV
Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels! ! " # ! " $ " % ! & ' (" ! "" ) ! $ ) & "" $ &)
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite good reception of analogue channels.
2
Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker’s peripheral devices.
This product is licensed under the AVC patent portfolio license for the personal and non-commercial
) % $ ) ! $ $ " $ & ' ! | ' } ` ! decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE
FOR THE ACCURACY OF THE PROGRAM
SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS
REPRESENTING LOSS OF PROFITS, LOSS
OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES
RELATING TO THE GUIDE PLUS+ SYSTEM. http://www.europe.guideplus.com/
Contents
Be Sure to Read
Safety Precautions ·····································9
Quick Start Guide
Accessories / Options·································6
Identifying Controls·····································/
Basic Connection······································10
Auto Setup················································12
Enjoy your TV!
Basic Features
Watching TV ·············································+9
Using TV Guide ········································+/
Viewing Teletext········································21
Watching External Inputs··························;9
How to Use VIERA TOOLS ······················26
How to Use Menu Functions ····················27
Advanced Features
Retuning from Setup Menu·······················
Tuning and Editing Channels ··················· 4
Timer Programming··································9+
Child Lock·················································9
Input Labels··············································99
Setup for Internet Connection···················9:
Shipping Condition ···································94
Owner ID ··················································9/
Using Common Interface··························96
Updating the TV Software ························50
Using Media Player ··································51
> ? ^ $ ) _ > ? ` <=* > ? ·······:/
External Equipment ··································66
Notice for DVB / Data broadcasting / IPTV functions
) ) ) ) ! ) ) %) 8 ;5+5 % " ) ! $ )
The compatibility with future services is not guaranteed.
Check the latest information on the available services at the following website. http://panasonic.jp/support/global/cs/tv/
FAQs, etc.
Technical Information································ / FAQs·························································72 On screen messages································49
Glossary ···················································76
Maintenance·············································77
Licence ·····················································77
Index·························································4/ Specifications ···········································79
3
Precautions Safety
Safety Precautions
Warning
Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:) ) ) ! ' ;;5 ;95 8 :5 •€
Insert the mains plug fully into the socket outlet.Ensure that the mains plug is easily accessible.
Remove the mains plug when cleaning the TV.
Do not touch the mains plug with a wet hand.
Do not damage the mains lead.
Do not place a heavy object on the lead.
Do not place the lead near a high temperature object.
Do not pull on the lead.
Hold onto the mains plug body when disconnecting the plug.
If you detect anything unusual, immediately switch off the mains supply switch and remove the mains plug.
AC 220-240 V
50 Hz
Do not move the TV with the lead plugged into a socket outlet.Do not twist the lead, bend it excessively or stretch it.
Do not use a damaged mains plug or socket outlet.
Ensure the TV does not crush the mains lead.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience.
A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the ! " $ % ) ) ! % : ) ) ! (J ! < + ; Check for the ASTA mark or the BSI mark on the body of the fuse.
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.
If the fitted moulded mains plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the mains plug cut off and disposed of safety. There is a danger of severe electrical shock if the cut off mains plug is inserted into any 13 amp socket.
If a new mains plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
IMPORTANT: – The wires in this mains lead are coloured in accordance with the |
Example 1 |
|
following code: –Blue: Neutral Brown: Live |
||
|
||
As the colours of the wire in the mains lead of this appliance may not correspond with |
|
|
the coloured markings identifying the terminals in your mains plug, proceed as follows. |
|
|
The wire which is coloured BLUE must be connected to the terminal in the mains |
|
|
plug which is marked with the letter N or coloured BLACK. |
|
|
The wire which is coloured BROWN must be connected to the terminal in the |
|
|
mains plug which is marked with the letter L or coloured RED. |
|
|
Under no circumstances should either of these wires be connected to the Earth |
|
|
terminal of the three pin mains plug, marked with the letter E or the earth symbol . |
Example 2 |
|
How to replace the fuse |
|
|
For plug type shown in example 1: |
|
|
Lift out the removable fuse compartment with a screwdriver and replace the fuse, |
|
|
! % ) $ ! "J ) " ) • " + |
|
|
For plug type shown in example 2: |
|
|
Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace |
|
|
% ) 8 ! )) % ) $ ! & ) $ ! "J ) • " ; |
|
4
Warning
Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:Do not remove covers and never modify the TV yourself as live parts are
accessible when they are removed. There are no user serviceable parts inside.
Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.
Do not expose the TV to direct sunlight and other sources of heat.
To prevent fire never place any type of candle or naked flame on top or near the TV.
Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not hang over the edge of the base.
Do not insert foreign objects into the TV through the air vents.
Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.
Do not apply strong force or impact to the display panel.
To prevent the spread of fire, keep candles or other open flames away from this product at all times
Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.
Keep the dangerous parts out of reach of young children.Do not allow children to handle SD Card. As with any small object, the
SD Card could be swallowed by young children. Please remove SD Card immediately after use and store out of reach of young children.
Caution
Ventilation
Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.
Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.
Whether you are using the pedestal or not, always ensure the vents in the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.
Moving the TV
Minimum distance
|
10 |
|
10 |
10 |
10 |
$
Before moving the TV, disconnect all cables.
Transport only in upright position.
When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still
connected to a live socket outlet.
Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
Excessive volume
Do not expose your ears to excessive volume from the headphones.
Irreversible damage can be caused.
Precautions Safety
5
Accessories / Options
Options / Accessories Guide Start Quick
Standard accessories
Remote Control |
Batteries for the |
Pedestal |
Assembly screw |
‚;_ # 5559/4 |
Remote Control (2) |
>:ƒ„5;+9 |
for Pedestal (4) |
|
R6 |
>:ƒ„5;+ |
„#‚9†^+;^‡ˆ |
|
(see below) |
(p. 7) |
|
|
|
|
9 ‰ +; |
TV |
|
|
|
Operating Instructions |
|
Product Registration Leaflet |
Accessories may not be placed all together. Take care not to throw them away unintentionally.
Optional accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please refer to the manual of the optional accessories.
Wall-hanging bracket |
|
|
# Šˆ >;*Š |
Rear of the TV |
Depth of screw : minimum 7 mm, |
|
200 mm |
maximum 15 mm |
|
200 mm |
Diameter : M4 |
|
|
Screw for fixing the TV onto the wall-hanging |
|
|
(! $? ) " & |
& %! )
Holes for wall-hanging bracket installation
Warning
Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself has the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
Carefully read the instructions accompanying optional accessories, and be sure to take steps to prevent the TV from falling off.
Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage which will void your warranty.
! $ "J ( " & $ " " ) ) $ ) ) " ) ! " " ) & $ J $ ""J give off high heat. Doing so may warp or damage plastic cabinet parts.
Take care when fixing wall brackets to the wall. Wall mounted equipment must not be grounded by metal within the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of time.
Installing / removing remote’s batteries
1 |
2 |
Close |
|
Pull open |
|
Hook |
|
Note the correct |
Caution |
|
" ! J † ! |
|
|
Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control.
Do not mix old and new batteries.* " $ "J & ) ! ‹ " J • %% ! ( !J J ) ) $ ) "? "
) ( ! )) ! $ ! (" ‚ ' ( ! )Do not burn or break up batteries.
Batteries must not be exposed to excessive heat such as sunshine, fire, etc.
Make sure you dispose of batteries correctly.
Ensure batteries are replaced correctly, there is danger of explosion and fire if battery is reversed.
6Do not disassemble or modify the remote control.
Attaching the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:
Warning
Do not disassemble or modify the pedestal.
Caution
Do not use any pedestal other than the one provided with this TV.
Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.
During setup, make sure that all screws are securely tightened.
Ensure that the TV does not suffer any impact during installation of the pedestal.Ensure that children do not climb onto the pedestal.
Install or remove the TV from the pedestal with at least two people.
A Assembly screw (4) |
B Assembly screw (4) |
C Bracket |
D Base |
„ 9†+ ^‡ˆ |
„#‚9†^+;^‡ˆ |
>9; +95 |
>:ƒ„5;+ |
9 ‰ + |
9 ‰ +; |
|
|
1Assembling the pedestal
Use the assembly screws A to
fasten the bracket C to the base D securely.
Make sure that the screws are securely tightened.
Forcing the assembly screws the wrong way will strip the threads.
A
C
Front
2Securing the TV
Use only the supplied assembly screws B to fasten
the pedestal securely to the TV.
Tighten the four assembly screws loosely at first, then tighten them firmly to fix securely.
Carry out the work on a horizontal and level surface.
B B
Foam mat or thick soft cloth
D
Options / Accessories Guide Start Quick
7
Controls Identifying Guide Start Quick
Identifying Controls
Remote Control |
|
|
1 |
15 |
|
2 |
||
16 |
||
3 |
||
4 |
17 |
|
5 |
18 |
|
6 |
|
|
7 |
19 |
|
8 |
20 |
|
9 |
21 |
|
|
22 |
|
10 |
23 |
|
11 |
24 |
12
13 25
14 |
26 |
27
1Standby On / Off switch
Switches TV On or Off standby
2[Media Player] (p. 51)
Switches to SD Card viewing / listening mode
3[Main Menu] (p. 27)
Press to access Picture, Sound and Setup Menus
4Aspect (p. 17)
Changes aspect ratio
5Information (p. 15)
Displays channel and programme information
6VIERA TOOLS (p. 26)
Displays some special feature icons and accesses easily
7 [VIERA Link Menu](p. 62)
8OK
Confirms selections and choices
Press after selecting channel positions to
quickly change channel
9[Option Menu] (p. 16)
Easy optional setting for viewing, sound, etc.
10Teletext (p. 21)
Switches to teletext mode
11Subtitles (p. 17)
Displays subtitles
12Numeric buttons
Changes channel and teletext pages
Sets characters
When in Standby mode, switches TV On
@! )) % ! ( + ) $
13Sound Mute
Switches sound mute On or Off
14Volume Up / Down
15Input mode selection
TV - switches between DVB and Analogue modes (p. 14)
AV - switches to AV input mode from Input
Selection list (p. 24)
16Direct TV Recording (p. 60, 62)
Records programme immediately in DVD Recorder / VCR with Q-Link or VIERA Link connection
17Normalise (p. 27)
Resets picture and sound settings to their default levels
18Exit
Returns to the normal viewing screen
19TV Guide (p. 18)
20Cursor buttons
Makes selections and adjustments
21Return
Returns to the previous menu / page
22Coloured buttons
(red-green-yellow-blue)
Used for the selection, navigation and operation of various functions
23Hold
Freeze / unfreeze picture (p. 16)
• " ) $ !! " • " • (p. 22)
24Index (p. 23)
* ! ) " • • " •
25Last view (p. 15)
Switches to previously viewed channel or input mode
26Channel Up / Down
27Connected equipment operations (p. 25, 55, 64)
8
TV
F |
1 |
|
2 |
TV
3
AV
4 |
|
|
|
|
5 |
|
|
|
|
|
Rear |
|
|
|
|
of the |
7 |
8 |
9 |
6 |
TV |
|
This LED is not indicated |
|
|
|
for this model.
1Function select
[Volume] / [Contrast] / [Brightness] / [Colour]
` ! )) ` ‚ ' ) " `
[Bass] / [Treble] / [Balance] / [Auto Setup]
(p. 36)
[Music] or [Speech] mode in the Sound Menu
2' " • ` & 8 " $ &
) ^ ( 8 & $ ‘
! )) ! ( % ! ( + ) $ &(J
3 Changes the input mode
4Standby On / Off switch
Switches TV On or Off standby
To completely Off the TV, please switch off the wall socket or remove the mains plug from the wall socket.
5 Headphones jack (p. 67)
6 SD Card slot (p. 51)
7 CI slot (p. 49)
8Remote control signal receiver
Do not place any objects between the TV remote control signal receiver and remote control.
9Power and Timer LED
Red : Standby
Green : On
Orange : Timer Programming On
Orange (flash) :
Recording of Timer Programming or
Direct TV Recording in progress
Red with orange flash :
Standby with Timer Programming On or Direct TV Recording
The LED blinks when the TV receives a command from the remote control.
Using the On Screen Displays - Operation guide
Many features available on this TV can be accessed via the On Screen Display menu.
Operation guide
Operation guide will help you to operate by using the remote control.
Example : [Owner ID]
Owner ID
Please enter new PIN
PIN |
* |
* * * |
EXIT |
9 |
PIN entry |
0 |
||
RETURN |
|
|
Operation guide
Auto power standby function
How to use remote control
MENU
Open the main menu
Move the cursor / select the menu item
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options have been set
RETURN
Return to the previous menu
EXIT |
Exit the menu system and return to the |
|
normal viewing screen |
The TV will automatically go to Standby mode in the following conditions :) " ) ! $ ! ) !% ! % ! 5 ) "
‘%% ! ) $ +! ) !% ! % ! ! ) " $ (J ;
This function does not affect the recording of Timer Programming and Direct TV Recording.
Controls Identifying Guide Start Quick
9
Connection Basic Guide Start Quick
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Example 1 |
|
Example 2 |
|
Connecting aerial |
Connecting DVD Recorder / VCR |
||
TV only |
|
TV, DVD Recorder or VCR |
|
Rear of the TV |
Terrestrial aerial |
Rear of the TV |
Terrestrial aerial |
|
' ;;5 ;95 |
|
' ;;5 ;95 |
|
50 Hz |
|
50 Hz |
|
Mains lead |
Mains lead |
|
|
Aerial input |
Aerial input |
RF cable |
|
|
||
|
terminal |
terminal |
|
AV2 COMPONENT
V Y
LPB
RPR
AUDIO IN
|
DIGITAL |
AV1 |
AUDIO |
OUT |
AV2 |
COMPONENT |
V |
Y |
L |
PB |
R |
PR |
AUDIO IN |
|
|
DIGITAL |
AV1 |
AUDIO |
OUT |
RF cable
Fully wired
SCART cable
Fully wired HDMI compliant cable
AV HDMI
DVD Recorder or VCR
RF IN
RF OUT |
RF cable
Note
' $ “) + % ! * $ ! ! ` '* ) ! _ > ? 5
^ ! • < $ (" ‹ 8 ) )) (" $ $ • < ! ") • <+ ` • <; (J) • < $ (" 4
Q-Link and VIERA Link connection (p. 58, 59)
Please also read the manual of the equipment being connected.
10
Example 3
Connecting DVD Recorder / VCR and Satellite receiver
TV, DVD Recorder / VCR and Satellite
Rear of the TV |
Terrestrial aerial |
' ;;5 ;95
50 Hz
Mains lead
Aerial input terminal
AV2 COMPONENT
V Y
LPB
RPR
AUDIO IN
|
DIGITAL |
AV1 |
AUDIO |
OUT |
Fully wired
HDMI compliant cable
|
|
|
Fully wired |
|
|
|
|
SCART |
|
Fully wired HDMI |
|
|
cable |
|
Fully wired |
|
|
RF cable |
|
compliant cable |
|
|
||
|
SCART cable |
|
|
|
HDMI Recorder/AV |
AV 2 |
AV 1 HDMI |
RF OUT |
|
|
|
|
|
|
Satellite |
|
|
DVD Recorder |
RF IN |
|
|
or VCR |
|
|
receiver |
|
|
|
|
|
|
|
|
|
|
RF OUT |
|
|
RF cable |
|
RF IN |
|
|
RF cable |
Connection Basic Guide Start Quick
11
Setup Auto Guide Start Quick
Auto Setup
Search and store TV channels automatically.
These steps are not necessary if the setup has been completed by your local dealer.@" ) $ " $ $ ) +58 ++ ) ) % $ )) !J % $ $ ‹ ( % !
starting Auto Setup. For details of settings for the connected equipment, read the appropriate manual.
1 Plug the TV into mains socket and switch On
Takes a few seconds to be displayed.
2
TV
Select your country
Country Selection
United Kingdom Ireland
Example :
Auto Setup - DVB and Analogue
DVB Scan |
|
CH 21 |
|
|
/ |
Analogue Scan |
CH 21 |
|
|
/ |
|
This will take about 6 minutes. |
Channel Name |
|
Type |
Quality |
|
CH |
|
|
|||
62 |
CBBC Channel |
|
Free TV |
10 |
|
62 |
BBC Radio Wales |
|
Free TV |
10 |
|
62 |
=9 |
|
|
Free TV |
10 |
62 |
Cartoon Nwk |
|
|
Free TV |
10 |
29 |
|
|
|
Analogue |
- |
|
BBC1 |
|
|
Analogue |
- |
^! ” / |
Pay TV: 0 |
Radio: 0 |
Data: 0 |
Analogue: 2 |
|
|
|
Searching |
|
|
|
Example :
Auto Setup - DVB and Analogue
DVB Scan |
|
CH 5 |
99H: 21 |
69 |
Analogue Scan |
CH 1 |
9+ |
||
This will take about 6 minutes. |
|
|
|
|
CH |
Channel Name |
Type |
Quality |
|
62 |
CBBC Channel |
|
Free TV |
10 |
62 |
BBC Radio Wales |
|
Free TV |
10 |
62 |
=9 |
|
Free TV |
10 |
62 |
Cartoon Nwk |
|
Free TV |
10 |
CH29 |
|
|
Analogue |
- |
'• |
BBC1 |
|
Analogue |
- |
^! ” / |
Pay TV: 0 |
Radio: 0 |
Analogue: 2 |
|
|
|
Searching |
|
|
Sending Preset Data
Please wait!
0% 100%
Remote control unavailable
select set
Auto Setup will start to search for
TV channels and store them in the numbered order as specified by the broadcasters.
Actual number of channels may differ due to channel duplication.
If Q-Link or similar technology5 $ (" ! $ ! ! & analogue tuner is connected, analogue channel setting is automatically downloaded to the ! $ ! ! " $ " ) )
& "
If downloading has failed, you can download later through the Setup
Menu.
“Q-Link Download” (p. 31)
3 Input Owner ID
Owner ID |
|
|
Please enter your own choice of PIN |
Please enter new PIN |
|
|
number, name, etc. to help the police |
|
|
|
|
PIN |
* |
* * * |
to crack crime. |
|
|
|
Make a note of the PIN number in case you forget it. The PIN number cannot be reset.
You can input or change the Owner ID later.[Owner ID] (p. 48)
To skip this step
EXIT
This step will be skipped in the Auto Setup after [Shipping Condition]
94 ) !% !
12
3 |
How to input Owner ID |
|
|
|
|
|
1 Enter the PIN number (4 digits) |
|
|
mno Enter the PIN number twice at first setting. |
|
|
Owner ID |
|
ghi |
jkl |
|
|
|
|
|
abc |
def |
|
Please enter new PIN |
|
|
|
|
|
PIN |
* * * * |
pqrs |
tuv |
wxyz |
|
|
|
|
2 Select the item (NAME / HOUSE NO / POSTCODE)
Owner ID-Data Entry |
select |
PIN |
|
NAME |
access |
HOUSE NO |
|
POSTCODE |
|
3 Enter your name, house number and postcode
Set characters
User input
NAME
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
P |
Q |
R |
S |
T |
|||
U |
V |
W |
X |
Y |
Z |
|
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
! |
|
: |
|
# |
|
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
l |
m |
n |
o |
p |
q |
r |
s |
t |
|||
u |
v |
w |
x |
y |
z |
( |
) |
+ |
- |
. |
* |
_ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
1 |
2 |
3 |
||||||||||||||
|
|
|
|
|
|
|
.!:# |
|
abc |
|
def |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
5 |
|
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ghi |
|
|
jkl |
|
mno |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
8 |
|
9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
pqrs |
|
tuv |
|
wxyz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Return to select other items select RETURN
set
Select the next item and repeat the operations.
You can set characters by using numeric buttons.
“Characters table for numeric buttons” (p. 70) 4 Exit to go to next step
EXIT
4 Select [Home]
" $ • & ! " • J "" & ) J ! !
Please select your viewing environment. |
select |
|
Home |
Shop |
set
[Shop] viewing environment (for shop display only)
[Shop] viewing environment is the demonstration mode to explain main features of this TV.
Select [Home] viewing environment to use in your home environment.
You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic Demo Off / On selection screen.
1 Return to viewing environment selection screen
Shop
You have selected shop mode
Automatic Demo |
|
Off |
On |
2 Select [Home]
Please select your viewing environment. |
select |
|
Home |
Shop |
set
RETURN
To change viewing environment later on, you will need to initialise all settings by accessing
Shipping Condition. [Shipping Condition] (p. 47)
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the RF cable, and then, follow the on screen instructions.
To check channel list at-a-glance “Using TV Guide” (p. 18)
! )? $ ") “Tuning and Editing Channels” (p. 37 - 40)
To retune all channels [Auto Setup] (p. 36)
To initialise all settings [Shipping Condition] (p. 47)
Setup Auto Guide Start Quick
13
TV Watching
Watching TV
1Turn power on
@! )) % ! ( + )$
SD CARD |
INPUT |
2 Select DVB or Analogue |
|
TV AV |
|
|
|
MENU ASPECT |
N DIRECT TV REC |
TV |
|
|
") )) (" ) "$ |
|||
|
|
|
EXIT |
|
|
|||
|
|
|
|
|
|
! )) ( ) |
||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
" % 6 |
|
OPTION |
|
|
RETURN |
|
|
|
|
|
TEXT |
STTL INDEX HOLD |
1 BBC ONE WALES |
19:50 |
All DVB Channels |
< % ! ( ! |
(p. 15) |
||
|
|
|
|
Coronation Street |
|
For info press |
||
|
|
|
|
19:30 - 20:00 |
Now |
|
|
|
|
|
abc |
def |
|
|
|
|
|
ghi |
jkl |
mno |
3 |
Select a channel |
|
|
|
$" ) ( !) ! %! |
|
|
|
|
|
|
|
|
|||
pqrs |
tuv |
wxyz |
|
|
|
|
|
|
+ & ! ) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
abc |
def |
"$" ) ( !) ! |
|
|
LAST VIEW |
|
or |
ghi |
jkl |
mno |
! ) 5 66 |
|
|
|
|
|
& |
pqrs |
tuv |
wxyz |
) "$& ! !$" |
) ( !8 66
def wxyz wxyz
Volume
Select a channel using Information banner (p. 15)
< ) )) ("$% !$" ! ! % ! (J ) < % ! ( !
( % !$ $")
1 Display Information banner if it is not displayed
2 While the banner is displayed, select the channel
) "$ $" &$
Select a channel using TV Guide (p. 18)
< ) )) ("$% !$" ! ! % ! (J ) =@ ( % ! $ $")
1 Display TV |
2 Select a current |
3 Select [View] |
|
Guide |
programme or channel |
|
|
|
) "$ |
= ) ! |
) "$ |
|
|
||
|
|
+6” 5 ;5”55 |
|
|
$$)) |
&$ |
|
|
& |
||
|
|
! @! ! |
Note
&$J “Using Common Interface” (p. 49)
14
Other useful functions
Display Information banner
Display Information banner
") !) &$ $"
1 |
|
=• " ” |
7 |
2 |
|
8 |
3 |
|
|
|
|
|
|
4 |
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
1 BBC ONE WALES |
|
|
|
|
|
|
|
|
|
All DVB Channels |
|
|
|
|
|
|
|
|
|
|||||||||
5 |
|
|
Radio |
|
19:50 |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
Coronation Street |
|
|
|
|
|
|
Also in |
|
Select favourites |
|
|
|
|
|
|
|
|
|||||||||||||
6 |
|
|
19:30 - 20:00 |
|
|
|
|
|
Now |
|
|
|
|
|
|
|
For info press |
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
Mute |
Encrypted |
AD |
|
STTL |
TEXT |
Multi Audio |
45 |
|
|
|
|
|
|
|
|
|
||||||||||||
1 ' " ) |
|
|
|
|
|
|
6 @! ! |
! ` ^ ) |
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
' " ( !8$" |
|
|
|
|||||||||||||||
|
2 ' " J * 8 8 • 8$ |
7 @! ! ))$! % ) "$ |
|
|
|
|||||||||||||||||||||||||||
3 ' !! |
|
|
|
|
|
|
|
|
|
|
|
! ! |
|
|
|
|
|
|
|
|
|
|
||||||||||
4 "" ' ") ! ^ ! )+ 9 / |
8 |
|
! ! " (" ) • (!$) |
|||||||||||||||||||||||||||||
)&$ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
) " J • ! % ! % ! ") |
||||||||||||||||||||
(" |
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
5 @! ! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Features available / Message meanings |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
[Mute] |
|
|
|
|
|
[AD] |
|
|
|
|
|
|
|
|
|
|
|
[TEXT] |
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
‘ |
|
)$! ) !$ |
|
|
" • ) !$" (" |
|
|
||||||||||||||||||||||||
|
|
|
|
|
|
" (" |
|
|
|
|
|
|
|
|
|
|
|
[Multi Audio] |
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
) %$ $) ""J |
|
|
|
|
|
|||||||||||||||||||
|
[Bad signal] |
|
|
|
|
|
" " " (" |
|
|
|
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||
|
|
|
|
|
|
! & !) (J |
|
[Stereo], [Mono], [NICAM] |
|
|||||||||||||||||||||||
|
@ ! ) " ‹ " J |
|
" !$? |
|
|
|||||||||||||||||||||||||||
|
|
|
|
|
|
)$! ( ) )$! |
|
|
|
|
|
|
|
|||||||||||||||||||
|
|
|
|
|
|
^ ! ) ) |
(p. 30) |
|
1 - 90 |
|
|
|
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
[Encrypted] |
|
|
|
|
|
[STLL] |
|
|
|
|
|
|
|
|
|
|
|
‘%% ! ! |
|
|
|||||||||||
$! (" ! ! |
|
|
( " ) !$" (" |
|
|
|
^ ! ) ) |
(p. 16) |
|
|
||||||||||||||||||||||
$% ! ! |
|
&$ $" " ) |
< % ! • |
|
|
|||||||||||||||||||||||||||
$" |
|
|
|
( ! |
|
|
|
|
|
|
|
|
|
! ! |
|
|
|
|||||||||||||||
|
|
|
|
|
=• ! % ! |
|
) ) " J |
|
|
|||||||||||||||||||||||
|
EXIT |
|
|
|
@! )) |
|
|
[Banner Display Timeout] |
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
(p. 32) |
|
|
|
|
|||||||||||||||||||
|
|
|
|
|
|
( ! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
8 > 8 =„ 8 "$) ! ) " J ) |
|
|
|
=• " ” |
|
|
|
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 BBC ONE WALES |
19:50 |
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
All DVB Channels |
||||||||||
|
" (" !$" ! ! ! )8 ( J ( " (" % ! "" |
|
19:30 - 20:00 |
|
|
|
Now |
|
Exit info |
|||||||||||||||||||||||
|
" ! ! ) ( (!$) ) " J • ! % ! |
|
Coronation Street |
|
|
|
|
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||
|
$% ! " ( " J % ) %$) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AD |
|
|
Last view
Switch to previously viewed channel or input mode easily
@! )) ! ! ! ) &
LAST VIEW
Note
&$ $" ) " (" & " !$! % ! @! ! ! !$*$! ) ! ! ))
Š$" )) +5 )$) ) ! ! ) ! )"J &$" !
TV Watching
15
TV Watching
Hold
Freeze / unfreeze picture
HOLD
Display the selectable settings for the current status
Check or change the current status instantly
OPTION $
) "$ $
[Audio Description]
% ! ! ) )$! ) !$8 J & "" ! " !$? )$! ( ) )$!
Z ) " % ! )$!
[Audio Description Menu] (p. 30)
[Multi Audio]
""&)J) " $( & " ! " % ! ) !$?) % " (") ) ) ! ) & "" ! !
% " )$J •$!!
! !
[Monaural Audio]
""&)J) " $) ! ` ! "
% " ("
) ) ) ! ) & "" ! ! % " )$J •$!! ! !
[Subtitle Language]
""&)J) " $" &$ ) ( " ) ) " ! % " (") ) ) ! ) & "" ! !
% " )$J •$!!
! !
[Teletext Character Set]
) " • " %
[Setup Menu] (p. 31)
[Teletext Language]
""&)J) " $( & " ! " % ! " • % " ("
[NICAM]
" &$) ‚<' ) % " (" [Sound Menu] (p. 29)
[Volume Correction]
Z ) ) " % "$" !
Off Timer
Turn the TV off automatically after a fixed period ‘%% ` +: ` 5 ` 9: ` 5 ` 4: ` 65 )
1 Display the menu
MENU
2 Select [Setup]
Main Menu |
) "$ |
$$))
Sound
Setup
3 Select [Off Timer] and set the time
Setup Menu
! @! !
)
‘%% ! ‘%%
> ? )
' " >$?
) " J )
‚ & !?
J)
+`; |
) "$ |
|
|
|
) |
$ $" ‘%% ! ! %%) " J !
“Display Information banner” (p. 15)
Š ! ) & )8 !
& "" %" ) )$!
16
Aspect
Change the aspect ratio (image size)
ASPECT = Z J & ) )€)$
@! ! ) ) ""J$| )$' ! " "} Š )$! ) "8$8
& ""$) )$!$""J$$! | )$' ! " "} /
If you would like to change the aspect ratio manually
1 Display Aspect Selection list
ASPECT
Aspect Selection
+”6 +9”6 9” ƒ+ ƒ;
ƒ
"$ '=„<
*= •*‚
)$ "$" )
2 While the list is displayed, select the mode
) "$ #$")$
"J ) @=' (
) !
ASPECT@! )) ! "J "
J !$) !
|
( ) ! )$) • % "" )$! |
||
|
^ ! ") / |
|
|
|
|
|
|
+ ”6 |
ƒ+ |
||
|
!$"J ) " J) + ”6 |
|
) " J) + ”6 " !( • ! 9” |
|
|
||
|
& ) ! !$ |
|
& ) ! |
|
|
|
|
+9”6 |
ƒ; |
||
|
) " J) |
|
) " J) + ”6 " !( • |
|
|
||
|
) ! +9”6 & ) ! |
|
!$% "" )$! |
|
|
|
& ) ! |
9” |
ƒ |
||
|
) " J) |
|
) " J) ; :”+ " !( • |
|
) ! 9” & ) ! |
|
!$% "" )$! |
|
|
|
& ) ! + ”68 ) " J) |
|
|
|
) • & |
|
|
|
|
|
|
)" " ! |
Note
)$) % • + ”6 & & ) ) @$!‚ " (" " • ) !$
)$ $( ! ) ) ! "J % ! ! % • • %
) ")
Display subtitles
DVB mode
Display / hide subtitles % " ("
STTL $" % ! % " ("
[Preferred Subtitles] (p. 31)
Analogue mode |
|
Display subtitles |
Hide subtitles |
STTL |
EXIT |
Note
) ) ) ) )&$" " • ) !$) "$|@///} ) ( " ) !$ ;
#$ $ $" & ) %$)$
TV Watching
17
Guide TV Using
Using TV Guide
¡="$!$@! ! =@ ! ) )$! " ) % ! ! )$!! "J
(!$) % !$(!$) ) ! • ) J) (!$) !)
) ) ! ) •< = @" )† )J)* (! ! ! & "" ) "J ! % ! ! ! % !
!$! !$" ) "$") ! ) " J ) )$! )$"
) "$" ! & "" ( ! ! " ) ) % ! "$")Š ) ) ! % ! % !) 8 ! ) )&$%% % ! ! & ?8 J ?
) ( % ! )$" "J ) &
SD CARD INPUT |
1 Select DVB or Analogue |
TV AV |
TV |
MENU ASPECT |
N DIRECT TV REC |
2 |
View TV Guide |
|
|
|
|
|
|
|
|
||||||
|
|
|
EXIT |
|
7 |
8 |
|
9 |
1 |
' !! |
|||||||
|
|
|
|
|
|
|
=• " ” |
6 |
|
|
|||||||
|
|
|
|
|
|
1 |
|
+ ' ‘‚= |
|
|
|
") |
2 |
|
|
||
|
|
|
|
|
|
Š ;4 ‘$ ;5+5 |
|
|
|
|
3 |
! ) |
|||||
|
|
|
|
|
|
|
|
|
Š ;4 ‘$ |
|
!$ |
"" ' ") |
|
|
|
||
|
|
|
|
|
|
|
+5”9 |
|
” |
+6” 5 |
;5”55 |
|
;5” 5 |
;+”55 |
4 |
” |
|
|
|
|
|
|
|
2 |
|
;5”55 ;5” 5 <# ‘ |
” Š !)(J) |
|
|
” " |
|||||
|
|
|
|
|
|
|
D |
4 ' •*== |
• Š !) |
<# |
‘ |
• " J @! ! |
|||||
|
|
|
|
|
|
|
D |
+ ' ‘‚= |
= ) ! |
• " J ‚ &) |
|
|
|||||
OPTION |
|
|
RETURN |
|
|
3 |
|
D |
+9 =9 |
= ! " |
' ! ! |
"" |
5 |
' " ) |
|||
|
|
|
|
|
|
|
D |
45 ' ^‘•* |
+5 ‘“$"$? ‚ &) ' |
|
@ ) ' ! |
(J |
|||||
|
|
|
|
|
|
4 |
|
D |
4; ' ;Š |
@ ! |
! &$ |
|
' ) |
|
|
||
|
|
|
|
|
|
|
D |
+5: ' |
<“ ' " (! J |
|
@ < " |
‚ &) |
6 |
||||
|
|
|
|
|
|
|
"$ $" |
* (J |
0 - 9 |
= ! ' " |
! ) |
|
|
||||
|
|
|
|
|
|
|
D |
4+6 ' * |
+: + |
|
|
|
|
|
|||
TEXT |
STTL INDEX HOLD |
|
|
5 |
|
|
=„< |
|
< % |
|
|
@ |
|
|
|
||
|
|
|
|
|
|
|
! @! ! |
"$! ! |
GUIDE *= •*‚ |
|
@ & |
|
|
|
|||
|
|
|
|
|
|
|
*= •*‚ |
|
OPTION "$! |
|
|
|
|
||||
|
|
|
|
|
|
|
;9 !) |
|
†;9 !) |
|
!$ |
|
' !J |
|
|
|
|
|
|
abc |
def |
|
7 |
! ! ) J ") ( (!$) • |
|
|
|||||||||
|
|
|
|
|
|
|
To return to TV |
#$) "$• ! (!$) ( % ! & ! ) ! |
|
EXIT! |
@! ! |
|
8 @! ! |
||
|
9> % * (! ! !
To change the layout of TV Guide [TV Guide View] (p. 30)
To watch the programme
1 Select a current programme or channel
) "$
$$))
!
abc def
ghi |
jkl |
mno |
2 Select [View] |
|
<% ! ! • ) ) ( • |
|||||||||||||||
= ) ! |
|
|
|
|
|||||||||||||
|
+6” 5 ;5”55 |
|
|
|
|
(!$) )8 & ‘ ) )$! & "" |
|||||||||||
|
|
|
|
|
|
|
|
|
( ) " J ) "$• ! (!$) |
||||||||
|
& |
|
! @! ! |
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
) "$ |
|||||
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
) "$ |
|
|
|
|
DIY SOS |
|
View Options |
|
|
|
||||
|
|
|
|
|
101 |
BBC ONE |
19:30-20:00 |
Wed 27 Oct 2010 |
&$ |
||||||||
|
|
|
|
||||||||||||||
&$ |
|
|
|
|
119 |
BBC HD |
19:30-20:00 |
Wed 27 Oct 2010 |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
pqrs tuv wxyz |
) ! @! ! |
|
|
|
|
|
|
|
|
|
||
|
|
|
(p. 19) |
To view a channel list of the selected category |
||||||||
To the previous day |
||||||||||||
! |
|
(" |
|
|
|
|
|
|
||||
To the next day |
|
' !J " ) |
|
|
||||||||
|
Category |
|
|
|
|
|
||||||
! |
|
|
All Channels |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|||
View details of the programme |
|
All Channels |
|
|
|
|
||||||
|
All DVB Channels |
|
|
|
|
|||||||
1 Select the programme |
2 View details |
|
All HD Channels |
|
|
|
|
|||||
|
|
) "$ |
@! )) |
|
All Analogue Channels |
|
|
|
|
‘ "J "$") |
||
|
|
|
|
|
|
|
||||||
|
|
|
Free DVB Channels |
|
|
! " ) |
||||||
|
|
|
! ! |
|
|
|
|
|
|
|
||
|
|
|
|
TV/Data DVB Channels |
|
|
|
|||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Favourites1 |
|
|
" ) % !$") |
||||
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
Favourites2 |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
(p. 38) |
||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
Favourites3 |
|
|
|
||||
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
18 |
Favourites4 |
|
To search programme types and view a channel list of the searched programmes J "" &
!$" ) |
|
J " ) |
) "$J |
Search |
|
Prog.Type |
|
|
|
All Types |
& |
|
|
|
|
Search Titles... |
All Types |
|
|
Movie |
Movie |
|
|
News and Factual |
News |
. |
|
. |
|
|
|
. |
|
. |
|
. |
|
. |
|
To search programme titles and view a list of the searched programmes
J "" &
!$" )
Search
Search Titles...
Movie
News and Factual
...
1 Select |
2 Set characters |
3 Start |
[Search |
• ” +6 |
[Search] |
Titles...] |
$!$!) |
! |
) "$ |
) "$ |
|
$$)) |
) |
|
|
) !$( ) |
|
“Characters table for numeric buttons” (p. 70)
Timer Programming (DVB mode)
"" ! ! " )$" & ! J ) & "" (
" )
!$& J$!$!) & "" " ) "" ! ! )
$"$!!
! ! )
! @! !$! J &$! ! ! !$! • ! " !$! !
1 Select the forthcoming |
2 Select the function ([Ext Rec.] or [Reminder]) |
programme |
|
) "$ |
! @! ! )$! |
) "$ |
|||||
) |
Timer Programming |
|
Wed 27.10.2010 10:46 |
) ! |
|||
Ext Rec. |
D 1 BBC ONE |
|
Wed 27 Oct |
20:00 20:30 |
|||
|
Function |
No. Channel Name |
Date |
Start End |
|
||
|
|
DIY SOS |
|
|
(30 min.) |
|
|
|
--- |
--- |
|
--/-- |
--:-- --:-- |
|
|
>= & "" ! ! % ! |
|
|
|
|
(--- min.) |
|
|
--- |
--- |
|
--/-- |
--:-- --:-- |
|
||
|
|
|
|
|
(--- min.) |
|
|
@! ! ) ) |
[Ext Rec.] |
: |
|
|
|
||
‘! >= & "" %" ) % |
!$! ! ! • ! " !$! ! =• *$ |
||||||
!$! % ! @! ! |
|||||||
Š ) !$)8$" & "" ( )&$ |
|||||||
) ! ! )) |
|||||||
$""J ) ") & "" ( ; |
|||||||
|
|||||||
|
) ( % ! ) ! 8 ! ! )) !) % |
||||||
|
J ! &$ |
|
|
||||
|
[Reminder] |
|
: |
|
|
||
|
! J &$! ! |
|
|||||
|
Š J ! &$8 ! ! )) !) ; |
||||||
|
) ( % ! ) ! @! )) ‘ˆ ( )&$ |
||||||
>= |
! !$" |
|
|
To check / change / cancel a timer |
|
To return to TV Guide |
|
|
|
|
|
|
|||||||||||||
|
programming event |
|
RETURN |
|
|
|
|
|
|
|
|
|
|
||||||||
|
“Timer Programming” (p. 41) |
|
If a programme exists in both HD and SD |
||||||||||||||||||
If you select a current programme |
|
||||||||||||||||||||
|
|
|
broadcasts |
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|||||||||||||
$% ! )$! )? & ! J & ) |
! ‘ ) )$! & "" ( ) " J |
||||||||||||||||||||
&$! !$! ! ! & "" ! |
) "$• ! (!$) |
|
|
|
|
|
|||||||||||||||
"$! @! ! ) =• *$ |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
Timer Options |
|
|
|
|
|
|
|
|
|||||||||
!$! %! J % ) ! ! |
|
DIY SOS |
|
|
|
|
|
|
|
|
) "$ |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
101 |
BBC ONE |
19:30-20:00 |
Wed 27 Oct 2010 |
|
|
|
|
|||||||||||||
! ) |
|
|
|
|
|
|
|
) |
|||||||||||||
|
|
|
|
|
119 |
BBC HD |
19:30-20:00 |
Wed 27 Oct 2010 |
|
|
|||||||||||
|
|
|
|
|
|
|
) "$ |
! @! ! )$! |
|
|
|
||||||||||
= ) ! |
|
|
|
|
|
|
|
||||||||||||||
|
+6” 5 ;5”55 |
|
|
|
|
|
Timer Programming |
|
Wed 27.10.2010 10:46 |
|
|
|
|||||||||
|
|
|
|
|
|
|
$$)) |
|
Function |
No. Channel Name |
|
Date |
Start |
End |
|
|
|
||||
|
& |
|
! @! ! |
|
|
|
|
|
Ext Rec. |
D |
1 BBC ONE |
|
Wed 27 Oct |
20:00 |
20:30 |
|
|
|
|||
|
|
|
|
|
|
|
|
|
DIY SOS |
|
|
|
(30 min.) |
|
|
|
|||||
|
|
|
|
|
|
|
|
--- |
|
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(--- min.) |
|
|
|
||
|
|
|
|
|
|
|
|
--- |
|
--- |
|
--/-- |
--:-- |
--:-- |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(--- min.) |
|
|
|
Guide TV Using
19
Guide TV Using
Note
) %$) " (" "! @! ! ! ! )) ) & "" ! ) " J " % % "" &$$!) ”
# ! )) ‘ˆ ( & ! ! ! =„< ($ $" ! !
! ! ! ! ! ) ) % ! )
‚ !$"$( ) "$& " !$! % ! @! ! ) ! ! ))Š !$! ! ! )8 ( ) ! ? ! ! ) ) !$! !$ $
(p. 41)
Guide link programming (Timer Programming from the TV Guide signal)
" ? ! ! ) ! @! ! &$)$! "" (J % ! %! ¢ %
! ! ) ! ) !$(J (!$) !8 ! ! ! & "" % "" &$
" @! ! ! ! ) " ? ! ! &$) !! (J ! ! ! ! ! )
‚ " ? ! !$" " @! ! ! ! "J & !?) ! " ("J % $!!$% ! ) !$%! (!$) !)
|
|
! @! ! )$! |
=• " ” |
|
|
|
|
|
|||||
Timer Programming |
Wed 27 Oct 2010 10:46 |
|
|
|
|
|
|
|
|||||
Function |
|
No. |
Channel Name |
Date |
Start |
End |
Š ;4 ‘$;5+5 |
Š ;4 ‘$ |
|
!$ |
"" ' ") |
||
|
|
|
|
|
|
|
+5”9 |
|
|
|
|
|
|
Ext Rec. |
D |
1 |
BBC ONE |
Wed 27 Oct |
20:00 |
20:30 |
+ ' ‘‚= |
|
|
|
|
||
|
|
|
DIY SOS |
Guide |
(30 min.) |
;5”55 ;5” 5 <# |
‘ ” Š !)(J) |
|
|||||
Reminder |
D |
14 |
E4 |
Wed 27 Oct |
21:00 |
22:30 |
D |
|
” |
+6” 5 |
;5”55 |
;5” 5 |
;+”55 |
|
|
|
The Bill |
Guide |
(90 min.) |
+ ' ‘‚= |
= ) ! |
<# ‘ |
• " J ‚ &) |
|
|||
Ext Rec. |
D |
72 |
BBC 2W |
Wed 27 Oct |
22:45 |
23:00 |
D |
4 |
' •*== |
• Š !) |
|
• " J @! ! |
|
|
|
|
<TIMER> |
|
(15 min.) |
D |
+9 |
=9 |
= ! " |
' ! |
! |
"" |
|
Ext Rec. |
D |
1 |
BBC ONE |
Thu 28 Oct |
10:30 |
11:30 |
D |
45 |
' ^‘•* |
+5 ‘“$"$? ‚ &) ' |
@ ) ' ! |
(J |
|
|
|
|
Red Cap |
S/P |
(60 min.) |
D |
4; ' ;Š |
@ ! |
! &$ |
|
' ) |
||
--- |
|
--- |
|
--/-- |
--:-- |
--:-- |
|
||||||
|
|
D +5: ' |
<“ ' " (! J |
|
@ < " |
‚ &) |
|||||||
|
|
|
|
|
(--- min.) |
|
|||||||
|
|
|
|
|
D 4+6 |
' * |
* (J |
+: + |
|
! ) |
|||
|
|
|
|
|
|
|
|
Change function |
1/1 |
|
Store timer EXIT |
|
|
|
|
|
Select |
0 9 |
| } ! | } & "" ( ) " J |
RETURN |
||
Delete |
Subtitles auto |
|
| |
`@} ) ) " J % ! ) ) %! |
% ! @! ! ) ) ) |
! ! ) " @! ! |
" ? ! ! |
|
| } ) ) " J % ! ) ) %! |
|
|
|
" ? ! ! |
|
Note
<% J ) ! ! % " ? ! ! (J ! +5 )8 & "" " ! % "" & (!$) !“)$) ) ! ! ) ! ) & "" ($% •Š ") ? " @! ! ! ! % ! =• *$8 J$!$! J$")
( & !! ! ! )
" @! ! ! ! % ! * ! & "" ($" ! (J ! )) ‘ˆ ($&
" @! ! ! ! % ! * ! & "" )&$! !$" (J ! )) ‘ˆ ( % ) ( & !! ! ! )
" @! ! ! ! ) & !? % ) ! ! ) ! (!$) %% !$")
View advertisement
= ! J ! )$& ) ) %$% ! % !)
[Guide Plus+ Postcode] in [TV Guide Settings] (p. 30)
<% J "! J ! J ! )$| } & % !) ) +;8 + 8 J
! <% J !$!!$)$% ! J ! ! 8 ! )$) ! 8 ! ) ) J (
) " J$!!$"J
Display advertisement information
OPTION ) " J " ) ! ) 8 J & "" % !
% !$)"J8 ) ( " % (J
To change advertisements |
To return to TV Guide |
|
|
OPTION |
RETURN |
|
|
! |
Note
! ) ) ! % ! % ! ! ! ) < )$) ) )) (" ) " ? ! ! %$
! ) ) ) " J ! ) %! •< = @" )† )J) ) J$
20 ( " ""J ! & "" ( " ) & ) ! ‘%% & ) & ! ‘ ` ‘%% )&$
Viewing Teletext
#$Z J &)8 & ! % !$) ) ) ( " )8$(!$) !" ( " J % " • ) !$) % ! ! ! )$(J =„ % ! ( !
1 BBC ONE Wales |
19:50 |
All DVB Channels |
Coronation Street |
|
Select favourites |
19:30 - 20:00 |
Now |
For info press |
|
TEXT |
< % ! ( ! (p. 15)
) " J % ! ! ) " • ) !$
(!$) !8 " " • •= ) !$) J ( " (" < )$) 8
! % " • ) !$) J ( ) ) " " • ) !$) ;;
Digital teletext (MHEG)
" " • ) !$) %% ! ! "J %! " " •
Š J )&$" " • ) !$8 ) J )$ $!$) • 8 "
$! "" !$(J (!$) !
SD CARD |
INPUT |
1 Select DVB |
! ! ) " " • |
|
|
TV |
AV |
TV |
|
MENU ASPECT |
N |
DIRECT TV REC |
|
) !$) •= |
|
|
|
EXIT |
2 |
Switch to Teletext |
=• " ” |
|
|
|
TEXT |
|
|
|
|
|
17:51 28 Feb |
OPTION |
RETURN |
|
|
|
TEXT |
STTL INDEX HOLD |
|
|
|
abc def
ghi jklmno
pqrs tuv wxyz
LAST VIEW
To return to TV
TEXT
How to operate services
< ""$) )8 ) )) (" ) ) ( ) ! $! "8 ( ($)$) " (" ) "J "" %$! !) % " ‹ 8 ) )$!$) J$!! ) •$"J
!$! " ( )
"$8 |
J ( " ” |
$? ? J |
' " !$!$!) |
Š ) & ( !) |
||
RETURN |
|
! ) " J |
||
|
|
abc |
def |
|
|
' " ! ( |
pqrs |
tuv |
wxyz |
|
|
ghi |
jkl |
mno |
Note
) ) ) J )&$"$" & " ?) " • ) !$8 ) % & ! ) & " ($? ! (" " • %$) ) & )&$"$"8
J ) " & % ! ! • "J : )$) ( % ! ! )) =„ ( ) & "" "" &
) % & ! & " <% J ! )) =„ ( ( % ! & " )$" 8 & "" ( ! J & "" ! )) =„ ( & & " )$"
Š " " " • 8 J & "" % ! ) ) ! " J & ( & ) & "
& " ) ! ) % ! ) & ) & ! % ! • " |> }
" J ? & ) )
Teletext Viewing
21
Teletext Viewing
Analogue teletext
" " • ) !$) ! • % ! ! (J (!$) !) % ! ) J !J (!$) !)
What is FASTEXT mode?
< ^ =„ 8 % ! %% ! "J$" ! ) (Z$) ! ) ( % )$!$$))
! % ! ( % ) ) (Z$)8 ! )) ! ! "J$" ! ( ) %$" J (" ) % )$$)) % ! ) (Z$) ) &
What is List mode?
< > ) 8 % ! %% ! "J$" ! ( !) ! ) ( % )$! =$% ) ( !)$( " ! ) ! “) !J“Store frequently viewed pages” (p. 23)
To change mode [Teletext] (p. 31)
SD CARD |
INPUT |
1 |
Select Analogue |
|
|
|||||
|
TV |
AV |
|
TV |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
MENU ASPECT |
N |
DIRECT TV REC |
2 |
Switch to Teletext |
|
|
||||
|
|
EXIT |
|
) " J) •$ |
||||||
|
|
TEXT |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
! ) |
|
|
|
|
|
|
|
|
|
|
(!$) !) |
OPTION |
|
RETURN |
|
|
( ( ! |
|
|
|
||
|
|
|
<< 01 02 03 04 05 06 07 |
>> |
|
|
||||
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
17:51 28 Feb |
` |
||
TEXT STTL INDEX HOLD |
|
|
|
|
TELETEXT |
|
|
|
||
|
|
|
|
|
|
INFORMATION |
|
|
||
|
abc |
def |
|
|
|
|
|
|
|
' " ! ( ! |
ghi |
jkl |
mno |
|
' !! ( ! |
|
|
|
|||
pqrs |
tuv |
wxyz |
3 |
Select the page |
|
|
||||
|
|
LAST VIEW |
|
|
||||||
|
|
|
|
|
abc |
def |
|
|
|
|
|
|
|
|
pqrs |
tuv |
wxyz |
or |
|
|
or ' " ! ( |
|
|
|
|
ghi |
jkl |
mno |
|
|
|
|
|
|
|
|
|
|
|
|
& |
' !! ) )$" ! ( ! |
|
To return to TV |
|
To adjust contrast |
|
|
||||||
|
|
|
|
|||||||
EXIT |
|
|
|
MENU |
|
|
|
|
) (" ( ! ) ) " J |
@! )) &$
FULL / TOP / BOTTOM
MENU |
|
‘@ |
|
|
|
‘ ‘ |
|
|
|
‚ ! " ^•>> |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
=• ‘@ "% =• ‘ ‘ "% |
|||||||||||
Reveal hidden data |
|
|
|
|
|
HOLD |
|
|
|
|
|
||
Reveal hidden words e.g. quiz page answers |
|
Stop automatic updating |
|||||||||||
MENU |
@! )) |
|
|
<% J & ) "$!! & |
|||||||||
! |
! |
|
|
|
@! )) ! ) |
||||||||
|
|
|
|
HOLD |
|||||||||
|
|
|
|
|
22
INDEX |
Subtitles |
Return to the main index page |
View a favourite page stored |
INDEX STTL
^$!J ) ) |@///} ) ( " ) !$(" ( > )
View in multi window
Watch TV and Teletext in two windows at once
TEXT |
|
‘ ! )$( "J " • )$! |
||
|
|
=$! )) ” " • |
" • |
|
|
|
|
|
|
Store frequently viewed pages |
|
|
|
|
Store frequently viewed pages in the colour bar > ) "J |
|
|||
) ) ) " J |
|
|
|
<% J & ) ) |
|
! )) " |
|||
' !! ) |
|
|
|
( " )8 |
|
|
|
$( ! |
|
$" ! |
|
|
|
|
( |
|
|
|
(" ( |
|
|
|
|
|
|
|
|
( !$) |
|
To change stored pages |
|
|
& |
|
= ! & ( ! |
|
|||
|
! )) " |
|||
' " ! ( J & |
|
|
|
|
ghi |
jkl |
mno |
|
|
|
|
abc |
def |
|
$ |
pqrs |
tuv |
wxyz |
|
View sub page
View sub page (Only when teletext is more than one page)
!) % |
( ! % ) ( ) ! ) |
)$! |
(!$) !) 46 ) |
|
< J ? ) % ! ) !$8 ! |
|
&$J$&$ |
To view specific sub page |
= ! 9 ( ! |
MENU |
|
(" |
• " ” @ |
|
mno |
Watch TV while waiting for update
View the TV picture while searching for a teletext page
" •$""J ) ) "% & & % ! ($) " ("
MENU |
' ) )$! ! ! "J |
& |
|
P108 |
!) & |
|
|
J "" & |
|
||
|
) |
J "" & |
|
|
|
||
|
|
$" |
|
|
#$ $ $" |
|
&) ! ) %$ $) !! " % " ) &) |‚ &) ^" ) }
Teletext Viewing
23
Inputs External Watching
Watching External Inputs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.
To connect the equipment |
(p. 10, 11, 66, 67) |
|||
The Remote Control is capable of operating some functions of selected external equipment. |
||||
“Operating the equipment with the TV remote control” (p. 25) |
||||
SD CARD |
INPUT |
1 |
Turn the TV on |
|
|
TV |
AV |
|
|
MENU ASPECT |
N |
DIRECT TV REC |
|
When connecting with SCART as example 2 or 3 (p. 10, 11) |
|
|
EXIT |
|
|
|
|
|
|
Receives input signals automatically when playback starts |
|
|
|
|
Input signals are automatically identified by the SCART (pin 8) |
|
|
|
|
terminal. |
|
|
|
|
This function is also available for HDMI connections (p. 67). |
OPTION |
|
RETURN |
|
If input mode is not switched automatically |
Perform 2 and 3
Check the setup of the equipment.
TEXT STTL INDEX HOLD
|
|
|
2 |
Display the input selection menu |
||
|
abc |
def |
AV |
|
|
|
|
|
Select the input mode connected to the |
||||
ghi |
jkl |
mno |
3 |
|||
pqrs |
tuv |
wxyz |
|
equipment |
|
select |
|
|
|
|
Input Selection |
|
|
|
|
LAST VIEW |
|
AV1 |
|
|
|
|
|
AV2 |
|
watch |
|
|
|
|
|
COMPONENT |
|
|
|
|
|
|
|
|
|
|
|
|
|
HDMI1 |
|
|
|
|
|
|
HDMI2 |
|
|
|
|
|
|
TV |
|
|
|
PROGRAMME |
|
SD Card |
|
|
|
|
|
|
|
You can also select the input using the AV button on the remote control |
||
|
|
REC |
|
or the side panel of the TV (except [SD Card]). |
||
|
|
|
Press the button repeatedly until the desired input is selected. |
|||
|
|
|
|
|||
|
|
|
|
[SD Card] : Switches to Media Player |
“Using Media Player” (p. 51) |
|
|
TV |
|
|
You can label or skip each input mode (except [SD Card]). |
||
|
|
|
“Input Labels” (p. 44) |
|
||
To return to TV |
|
Skipped inputs will not be displayed when the AV button is pressed. |
||||
4 |
View |
|
|
|||
TV |
|
|
Displays the selected mode |
|||
|
|
|
AV1 |
|||
|
|
|
|
Terminal |
AV1 |
AV2 |
COMPONENT |
HDMI1 |
HDMI2 |
|
|
||||||
Manual input |
AV1 |
|
|
|
|
|
(default setting |
AV2 |
COMPONENT |
HDMI1 |
HDMI2 |
||
AV1-RGB |
||||||
in “Input Labels”) |
|
|
|
|
||
|
|
|
|
|
||
Auto input |
EC/AV1 |
|
|
EC/HDMI1 |
EC/HDMI2 |
|
|
|
Applicable for |
Applicable |
|||
(EC mode or |
¡ |
¡ |
||||
EC/AV1-RGB |
EC mode and |
for |
||||
VIERA Link) |
|
|
||||
|
|
|
VIERA Link |
VIERA Link |
||
|
|
|
|
If the above information is permanently displayed on the top left of the screen, press the button to clear.
Note
If the external equipment has an aspect adjustment function, set it to [16:9]. 24 For details, see the manual of the equipment or ask your local dealer.
