Operation Manual
Automatic Drum Washing Machine
HVS1200
HVS1000
EN
Please read this manual carefully before use. Keep this manual in a safe place.
Engligh
Table of Contents
Before using the appliance |
|
|
|
|
|
|
Name of parts..................................................................................................... |
|
|
|
inside front cover |
||
Matters needing attention......................................................................................................... |
|
|
|
1-3 |
||
Installation ................................................................................................................................ |
|
|
|
4-5 |
||
Function.................................................................................................................................... |
|
|
|
6-8 |
||
How to operate the wasing machine |
|
|
|
|
|
|
Program description table............................................................................................................ |
|
|
|
9 |
||
Preparation................................................................................................................................ |
|
|
|
10 |
||
Washing Procedure .............................................................................................................. |
|
|
|
11-12 |
||
Maintenance |
|
|
|
|
|
|
Maintenance.............................................................................................................................. |
|
|
|
13 |
||
Technical Specifications ............................................................................................................ |
|
|
|
15 |
||
Wiring Circuit ............................................................................................................................. |
|
|
|
16 |
||

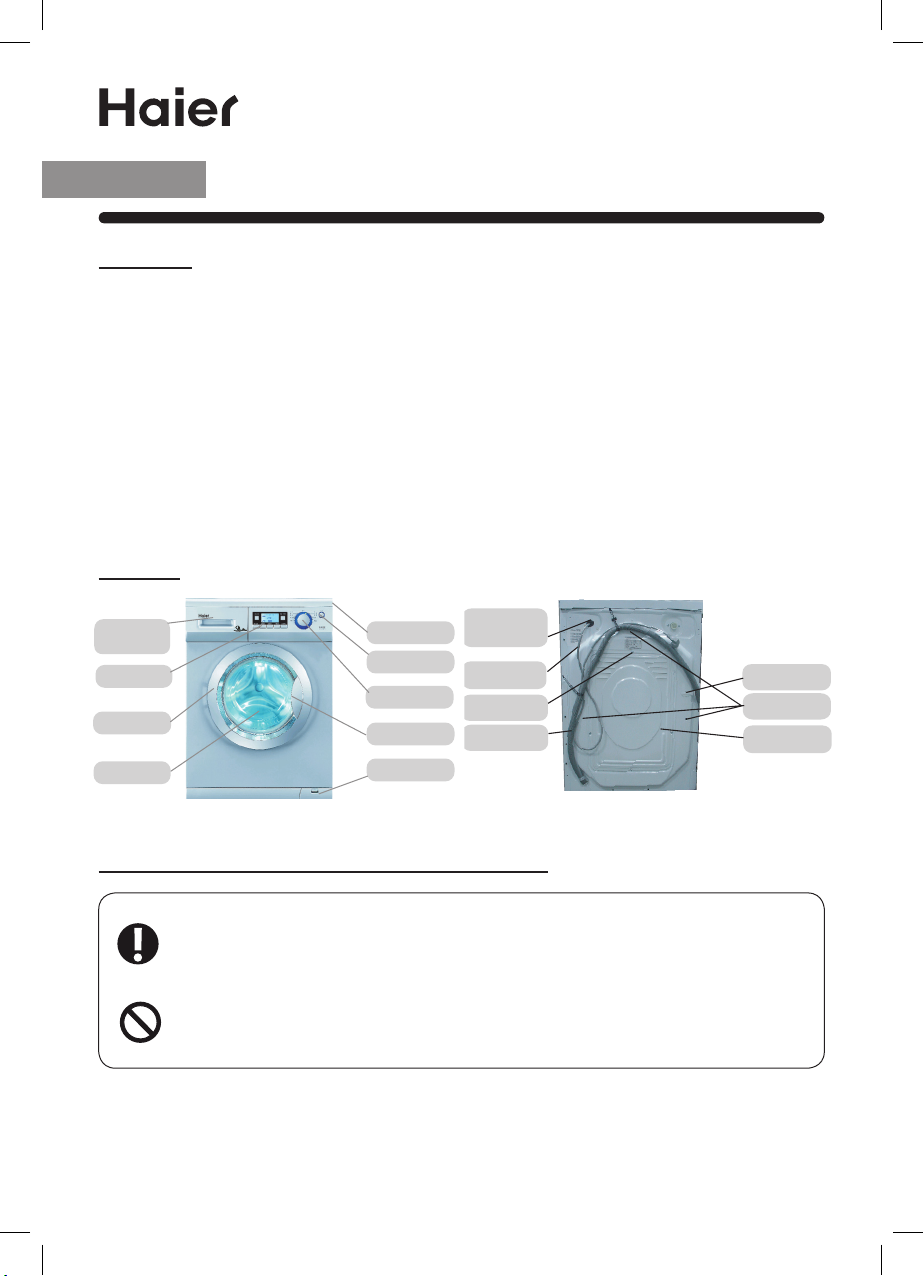

Name of Parts |
|
|
|
|
|
|
Detergent |
Top |
Spare earth |
|
|
|
|
terminal |
|
|
|
|
||
dispenser |
|
|
|
|
|
|
|
ON/OFF |
|
|
|
|
|
Function |
button |
Power cable |
|
|
|
Hose clip |
selector |
Program |
|
|
|
||
|
|
|
|
Packing bolts |
||
|
selector |
Screw (4 pcs) |
|
|
||
Door |
|
. |
|
|
(3 pcs) |
|
|
|
|
|
|||
|
|
|
|
|
||
Handle |
|
|
|
|
|
|
|
Drainage hose |
|
|
Back plate |
||
|
|
|
|
|||
Porthole |
Bottom |
|
|
|
|
|
panel |
|
|
|
|
|
Caution and Warning symbols
For you safely,any instructions in this manual with this „Warning“sign must be followed strictly.
For your safety and to prevent damage to the washing machine,any instructions in this manual with this „Stop“ sign must be followed strictly.
This diagram may be slightly different from the layout of the washing machine you have just purchased due to techincal improvements.
English

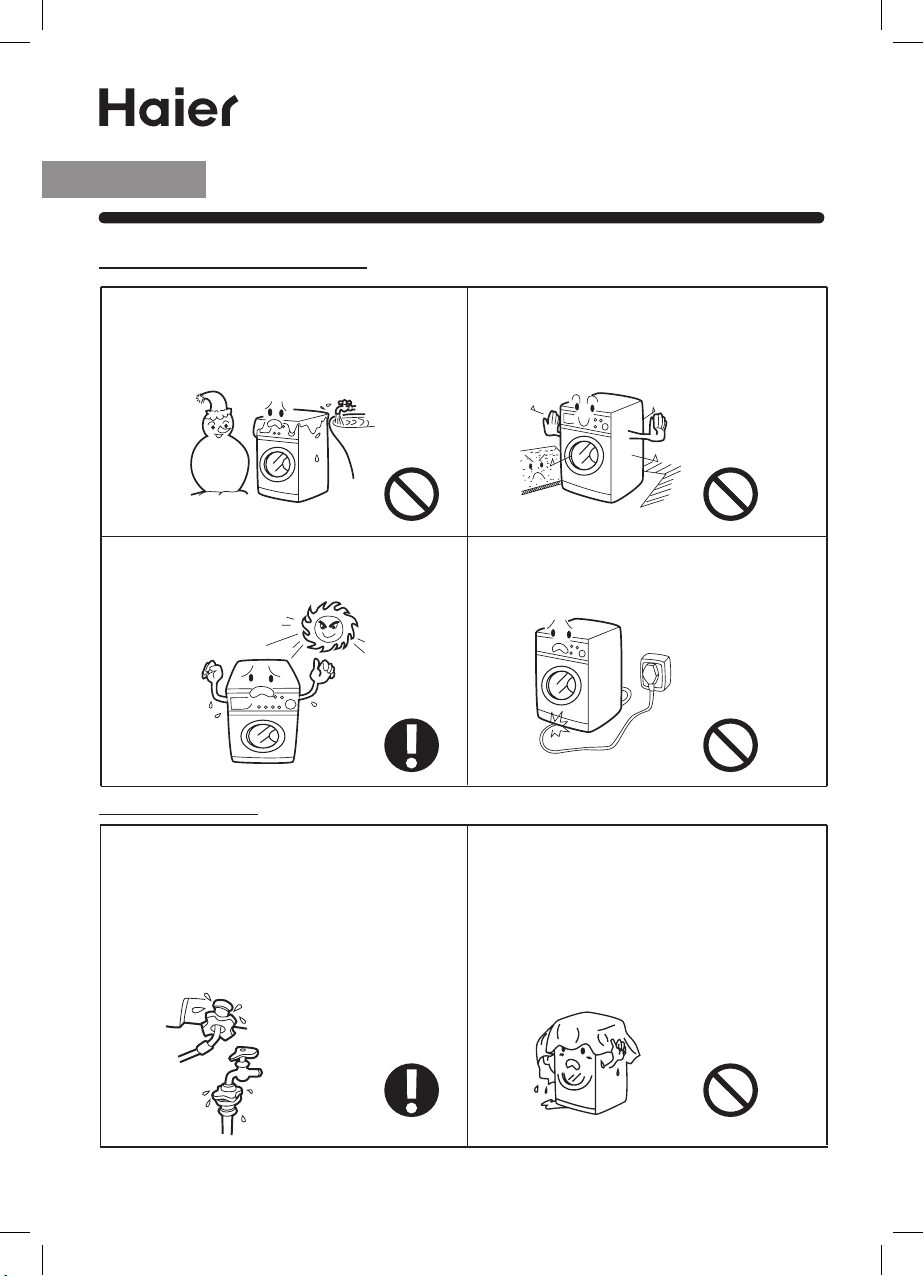

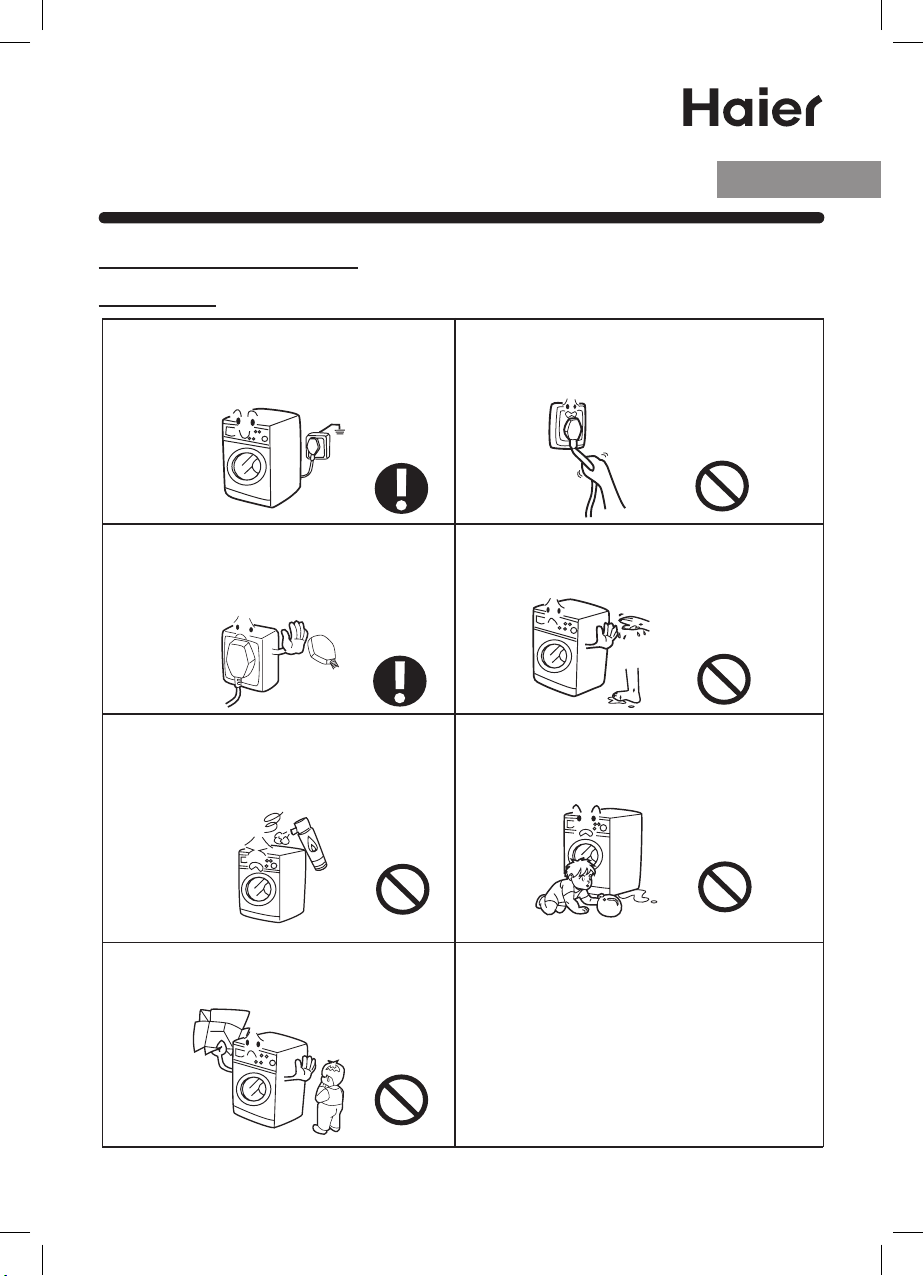

Matters Needing Attention
• Safety
1. A separate earthed socket is required for the |
2. Hold the plug and not the electric cable when |
power supply. The washing machine must be |
unplugging the washing machine. |
positioned so that the plug is accessible.
3. Fuses in the power circuit should be rated |
4. Do not touch or use the washing machine |
|
for 15A. |
barefooted or when the hands or feet are wet. |
|
If the supply cord is damaged, it must be |
|
|
replaced by the manufacturer, its service agent |
|
|
or similarly qualified persons in order to avoid |
|
|
a hazard. |
|
|
5. Do not use flammable detergent or dry clean |
6. The door of the washing machine will become |
|
ing agent; do not use flammable spray in close |
hot during the heating process. Avoid contact |
|
vicinity to the washing machine; do not remove |
with the door during the heating process. For |
|
or insert the plug in the presence of flammable |
safety, keep children away from the washing |
|
gas. |
||
machine. |
||
|
7. Keep children away from the packing materials after unpacked.
1 - EN
Engligh
Matters Needing Attention
8. The washing machine should not be installed |
9. The carpet must not obstruct the ventilation |
outdoors or in a damp place. In the event of |
openings in the base of the washing machine. |
water leakage or splashes allow the machine to |
|
dry naturally. |
|
10. Keep away from heat sources and |
11. During installation, ensure that the electric |
direct sunlight to prevent plastic and rubber |
cable is not trapped by the washing machine |
components from aging. |
and avoid damage to the electric cable. |
• During Use
1. Before use, check the joints of the filling hose, the tap and the drainage hose for possible problems from water pressure fluctuations.
If joints are loose or there is leakage, turn off the tap and repair. Do not use the washing machine until the hoses are properly fixed.
The appliance is to be connected to the water mains using new hose-sets and that old hose -sets should not be reused.
2. Keep the door slightly open when the washing machine is not in use to prevent formation of odors; do not cover the washing machine with plastic cover so that inside dampness cannot be kept in.
2 - EN
English
Matters Needing Attention
3. Do not place heavy, heating source or wet |
4. Do not hot wash foam rubber or sponge-like |
articles on the top of the washing machine. |
materials. |
5. Before washing, do up zippers, buttons and |
6. Do not open the detergent distribution |
clothes straps and put small articles, such as |
drawer during the wash cycle. |
socks, laces or bras, into a washing bag or a |
|
pillow. |
|
Steel wires in bras will pop out during washing; never wash bras containing steel wires.
7. The door is fitted with a self-lock device |
8. After each wash program, turn off the tap |
and will not open until 2~3 minutes after the |
to prevent leakage; and unplug the washing |
washing machine stops. Do not force the door |
machine and wipe clean the lower part of the |
open. Do not open the door if water level can |
porthole. |
reach the porthole. |
|
9. Keep the door slightly open when the washing machine is not in use to prevent formation of doors; do not cover the washing machine with plastic cover so that inside dampness cannot be kept in.
3 - EN
Engligh
Installation
●Remove all the packing materials (including the EPE base)to prevent vibration during use, as shown in the right picture. Upon opening of the package, water drops may be seen on
the plastic bag and the porthole. This is normal phenomenon resulting from water test in the factory.
● Check attachments and materials with reference to the following
Qty Name Operation |
Water |
Drainage Warrantly |
Plastic |
||
Model |
manual |
hose |
holder |
card |
plugs |
|
|
|
|
|
|
HVS1200 |
1 |
1 |
1 |
1 |
3 |
HVS1000 |
|||||
|
|
|
|
|
Fig. 1 |
●Dismantle the packing bolts as shown in Fig. 2.
The packing bolts are designed for clamping anti-vibration components inside of the washing machine during the transportation process.
Before use:
1.Remove the back plate;
2.Remove the three packing bolts on the back plate and take out the rubber hose;
3.Replace the back plate;
4.Fill the holes left by the packing bolts with plastic plugs.
(Attention: The packing bolts and rubber hose should be kept in a safe place for later use)
Fig. 2 |
● Adjusting the washing machine |
There are adjustable feet under the bottom of the washing |
machine. Before use, the washing machine should be |
adjusted, as shown in Fig. 3, so that it is level. |
Fig. 3 |
4 - EN
English
Installation
Connection of water inlet hose and washing machine
Water inlet hose nut
1.Place the water inlet hose nut on the connector of the water inlet valve.
2.Slightly shake the water inlet hose nut to see if it is tightly and properly fixed.
Connector of water inlet valve
Water drainage hose
•The height of the terminal of the water drainage hose should be between 80cm-100cm, the water drainage hose must be securely placed on the clip on the back of the washing machine.
•Use the water drainage support supplied as an accessory for proper
installation of the water drainage hose. Fix the water drainage hose support with waterproof string. Do not use an excessively long water drainage hose and contract the authorized technician if the water drainage hose needs to be extended. the water drainage hose should not be extended more tha 250cm.(longer extension will result in concurrent water inflow and outflow). The diameter of the extension hose should be the same as the original hose.
caution: water drainage hose must not be immersed in water.the original and extension hoses should be tightly connected.
• The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should no be reused.
Connection of power supply
Check the following itemps before connection to the power supply.
•The socket conforms to the maximum power load (The maximum current load of the socket and power supply cable should not be less than 15A).
•Power supply voltage conforms to the required value.
•The power supply socket and the plug of the washing machine should be compatible. If they are not compatible, refer to a washing machine technician or a Haier designated service point for power cable replacement. The washing machine should be connected to the earth before use.
•Supplementary earth cable should not be necessary if the socket is connected to the earth.
•Supplementary earth cable should be installed on the upper back of the washing machine and connected to an earth if the power supply socket has no earth connection.
Caution: the supplementary earth cable should not be connected to water or heating pipes.
5 - EN
Engligh
Operational Functions
Control Panel Function Description
|
|
|
|
|
|
? ? |
|
? ? |
|
|
|
|
|
? ? |
Slik |
? ? |
Power |
|
|
|
|
|
Silk |
Powe r |
||
|
|
|
|
|
Cashmere? ? |
|
Quicick washk wash |
|
|
|
|
|
|
WoolWool |
|
Singingle lewashwas h |
|
Delay time |
|
|
|
Start/Pause |
? ? |
|
? |
|
|
|
|
|
|
Syntthetichetic |
|
RinsRinse |
|
|
|
|
|
|
? ? |
|
? ? ? |
|
|
|
|
|
|
CottonCott on |
|
DraiDrainn |
|
|
|
|
|
|
?Cott? ? on |
|
? ? |
|
|
|
|
|
|
Cottonprewprewashash |
|
SpinSpin |
|
Rinse hold |
Temp. |
Speed |
Time |
Baby care |
|
|
|
|
|
|
|
|
|
|
|
|
HVSSlim10005 |
|
|
|
|
|
|
|
|
HVS1000 |
|
|
|
|
K |
|
|
|
|
Display Information Introduction
Pre-wash |
Wash |
Rinse |
Spin-dry |
|
|
|
|
|
Start/Pause |
Progress Indication Bar |
|
|
|
Rinse Hold |
Servation Time Display |
|
|
|
Baby Care |
|
|
|
Foaming Indicator |
|
|
|
|
|
|
Temperature |
|
Spin Speed Display |
Load Selection Display |
|
|
|
|
|
Safety Child Lock Indicator
Remaining Time Display
A.Power On/Off Key
Press the key and the washer will be automatically energized, release the key and power is disconnected.
B.Program Selection Knob
Turn the knob clockwise/counterclockwise to select the desired program. (please refer to Program Setting Guidance Table for details)
C.Detergent Distribution BoxSee Figure a for the drawertype Detergent Dispens er
Open the dispenser box and you will see four detergent compartment of 1, 2, 3:
Compartment 1: Pre-wash Detergent |
2 |
3 1 |
|
Compartment 2: Washing Detergent |
|||
Fig. a |
|||
Compartment 3: Softener , Conditioner and Perfume |
D.Reservation Selection Key
Press the key to select the desired time when the washing progress completes. When setting this feature, the indicator lamp on the upper left corner of the key will illuminate.
Time reservation range is from 1 to 24 hours. The reserved time will increase by one hour at each press of the key. When the feature is set, press Start/Pause key and the reserve time will be displayed and countdown will start. At the same time, reservation indicator lamp will start blinking and will go off after th e washer enters into normal washing progress.
6 - EN
English
Functions
Note.
If Program key is turned after reservation time is set and before program starts, the reservation will be autom atically cancelled.
When reservation feature is activated, the washing start time is fixed. There will be some difference between the reserved time and the actual program completion time due to different water inlet time and load distribution condition during spin-dry process.
E. LCD
LCD is a window to display information including washing status, washing progress, reservation time, remaining time, heating temperature, spin-dry speed, load selection and error etc. as well as to display additional features such as power clean, super clean rinse and foaming auto-check etc.
F. Start/Pause Key
When the washer is energized, select the desired washing program and press the Start/Pause key. The indicator lamp on the upper left corner of the key will illuminate to indicate that the washer has started operation. If it needs to pause the washing process, simply press th e Start/ Pause key and the indicator lamp and remining time display will blink and the washer enters into condition. Press the Start/Pause key again to resume washing process.
(Note: Press the Start/Pause key only after the desired program and feature are set.
G. Rinse Hold Key
Press the key lightly,the screen displays the symbol.The washing machine does not drain the water after the last rinse,but the laundry remains in a soak.To spin the laundry ,press this key again. The symbol disappears from the screen and the program continues to the end .The function is used to prevent the laundry creasing when left in the drum for a long time.
H. Temperature Selection Key
Press the key and LCD will display the selected heating temperature, which is adjustable as needed. Note: 20oC means cold water washing and no heating is involved.
I. Spin Speed Selection Key
Press the key and LCD will display the selected spin-dry revolution speed, which is adjustable as needed. (When No Spindry -feature is selected, the time will decrease correspondingly.)
J. Load Selection key
Turn the Program Knob to select the desired program (see Program Setting Guidance Table). Press the key and manually select different programs and power-saving and water-seaving feature based on the volume of load. LCD will display L-1(2,3,4,5), indicating the washing load is 1 (2,3,4,5) kg and program time will change accordingly. (The feature is not available in Wool, Cashmere, Silk, Speedy,
Drainage Only and Spin Only Program. Only L – 1, 2, 3 are available for Chemical Fiber program.)
K. Super-clean Rinse Key
Press the key and super -clean icon in the LCD will illuminate. When the program comes to softening process, the washer will add an extra rinse process. (This feature is not available in some programs. Please see Program Setting Guidance Table for details.)
7 - EN
Engligh
Introduction of Other Functions
A.Power-off Memory Function:Thewasher has power-off memory function.In case of abrupt power failure or the power must be cut off during a program cycle, the present settings will be saved and the preset operation will resume when the power is rezumed. If it needs to cancel this feature, press Start/Pause key so that the washer will will stop temporarily. Turn off the power key and restart the washer after a few seconds and the feature will be cancelled.
B.Safety Child Lock Function: During the operation of the program, press down Temperature key and
Load Selection key concurrently and hold for 3 seconds.“ “ will be displayed indicating that the program is locked. Repeat the above procedure s to unlock.
C.Foaming Auto-check Function: The washer offers foaming autocheck function, which is is a solution to incomplete rinse due to over-dispensing of detergent. The washer can sense the volume of foam formed automatically. When foaming is detected, the Foaming icon in the LCD will
illuminate and an extra rinse cycle will be added before the program completes. Program time duration will increase automatically.
D.Auto-shower function: With automatic shower rinse technology, it can efficiently reduce the residual detergent and make the rinse process more efficient and thorough. This function operates without any intervention from human.
E.Display messages:
Err1: Door is not properly shut. Correction: Shut the door properly.
Err2: Drainage error, water not emptied within 4 min.
Correction: Clean the filter and check the drain hose for blockage. If error still exists, please contact the maintenance personnel.
Err3: Temperature sensor short circuit or open circuit. Correction: contact the maintenance personnel.
Err4: water heating element damage.
Correction: Contact the maintenance personnel.
Err5: Water fails to meet the specified level within 8 minutes.
Correction: Check the tap and the water pressure, if error still exists, please contact the maintenance personnel.
Err6: Moter do not work.
Correction: Contact the maintenance personnel.
Err7: Moter overheat protection or damage.
Correction: Restart the power key if still display Err7, contact the maintenance personnel.
Err8: Water exceeds protective level.
Correction: Contact the maintenance personnel.
End: End of a wash cycle.
Unb: After the last rinsing cycle finishes, spinning fails completely due to and imbalance of the laundry.
1:25: Status information: Remaining program time.
8 - EN
|
|
|
|
|
|
|
|
|
|
|
|
|
|
English |
|||
Program Setting Guidance Table |
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Program |
|
Default Program |
Temperature |
|
|
Super |
|
Detergent Usage |
|
||||||||
Recommended |
Rinse |
Load |
|
|
|
Method |
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|||||||||
Setting |
Laundry |
|
|
|
|
Adjustment |
Hold |
Selection |
Clean |
Reserve |
|
|
|
|
|
|
|
|
Tempe- |
Speed |
Total |
Compart- |
Compart- |
Compart- |
|
||||||||||
Mode |
Capacity |
Range |
Rinse |
|
|
||||||||||||
|
|
rature |
(rpm) |
Time |
|
|
|
|
|
ment 1 |
|
ment 2 |
|
ment 3 |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Heavily- |
|
|
|
|
_ _-40- |
|
|
|
|
|
|
|
|
|
|
|
Cotton |
soiled |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
60 |
1000 |
3:12 |
50-60- |
YES |
YES |
YES |
YES |
|
|
|
|
|
|
|||
Prewash |
Cotton |
|
|
|
|||||||||||||
|
|
|
|
90 |
|
|
|
|
|
|
|
|
|
|
|
||
|
Fabrics |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cotton |
|
|
|
|
_ _-40- |
|
|
YES |
YES |
|
|
|
|
|
|
|
Cotton |
5 |
60 |
1000 |
2:58 |
50-60- |
YES |
YES |
x |
|
|
|
|
|
||||
Fabrics |
|
|
|
||||||||||||||
|
|
|
|
|
90 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Synthetic |
Fsat-colour |
3 |
60 |
800 |
1:42 |
_ _-40- |
YES |
YES |
YES |
YES |
x |
|
|
|
|
|
|
|
Fiber |
|
|
|
|
50-60 |
|
|
|
|
|
|
|
|
|
|
|
Wool |
Wool |
/ |
40 |
600 |
1:10 |
_ _-40 |
YES |
NO |
YES |
YES |
x |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cash- |
Cashmere |
/ |
40 |
400 |
1:10 |
_ _-40 |
YES |
NO |
YES |
YES |
x |
|
|
|
|
|
|
mere |
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Slik |
Silk |
/ |
40 |
400 |
1:05 |
_ _-40 |
YES |
NO |
YES |
YES |
x |
|
|
|
x |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Quick |
Slightly- |
|
|
|
|
|
|
NO |
NO |
YES |
|
|
|
|
|
|
|
soiled |
/ |
-- |
800 |
0:29 |
_ _-40 |
YES |
x |
|
|
|
|
|
|||||
wash |
|
|
|
||||||||||||||
Textiles |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Single |
Slightly- |
|
|
|
|
_ _-40- |
|
|
|
|
|
|
|
|
|
|
|
soiled |
5 |
40 |
0 |
1:33 |
NO |
YES |
NO |
YES |
x |
|
|
|
x |
|
|||
wash |
Textiles |
|
|
|
|
50-60 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Slightly- |
|
-- |
800 |
0:25 |
/ |
YES |
YES |
YES |
YES |
|
|
|
|
|
|
|
Rinse |
soiled |
5 |
x |
|
x |
|
|
|
|||||||||
|
Textiles |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Drain |
/ |
/ |
/ |
/ |
0:03 |
/ |
NO |
NO |
NO |
YES |
x |
|
x |
|
x |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Spin |
/ |
/ |
/ |
1000 |
0:09 |
/ |
NO |
NO |
NO |
YES |
x |
|
x |
|
x |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note: means that it needs to add perfume such as softener means that it needs to add detergent otherwise the desired washing result will not be achieved. x means it must not add detergent. The data in Speed column is default spin speed of corresponding model (when speed is not selected.)
Note: 1. Washing temperature refers to the highest temperature allowable during the whole washing process. The washing time varies according to the type of clothes, selected temperature and feature. The total operation time provid ed in the above table is for reference only (There will be a slight difference due to different water temperature.)
2.For clothes made of special materials such as woolens, cashmere and wool, please check if the clothes has a machine-washing tag and the requests to the temperature.
9 - EN
Engligh
Preparation
1 Power supply |
2. Water supply |
Plug in the power supply |
Turn on the tap ensure that the water in clear. |
(220 -240) V~ /50HZ |
Caution: Before staring the washing machine turn on |
|
the water faucet to ensure the water faucet and the |
|
water inlet hose are connected correctly and do not |
|
leak |
3. Detergent selection |
4. |
Laundry treatment |
Only special low foam detergent should |
• |
Sort out clothes according to type and extent of dirt. |
be used in automatic drum washing |
|
There are three types of clothes:cotton,synthetical |
mashine,form blended or wool fabrics |
|
and woolen (silk) fabrics. |
special deter-gent should ne used.dry |
• |
Separate white clothes from colored.If whites and |
clearning solvent should not be used such |
|
coloreds are combimed for one load,make sure the |
as trichhloroethy-lene or alike (caution : |
|
coloreds are colorfast |
load the required amount of detergent |
|
|
only). |
|
|
-Clothing with frayed edges or yams should be put in a wash bag or special bag before washing
-repair damged clothing,lose buttons or damaged zips and hooks before washing.
-Bed sheets and table ware should be loosely loaded and not folded.
•This washing mashine is for househould use and designed for mechanically washable clothes.
When washing,separate unwashable clothes with reference to clothes labels.
5. Wash load
Type |
Cotton fabricse |
Synthetic fabrics |
Wool/cashmare/ |
|
silk fabrics |
||||
|
|
|
||
Max load |
5 kg |
3 kg |
3 kg |
10 - EN
English

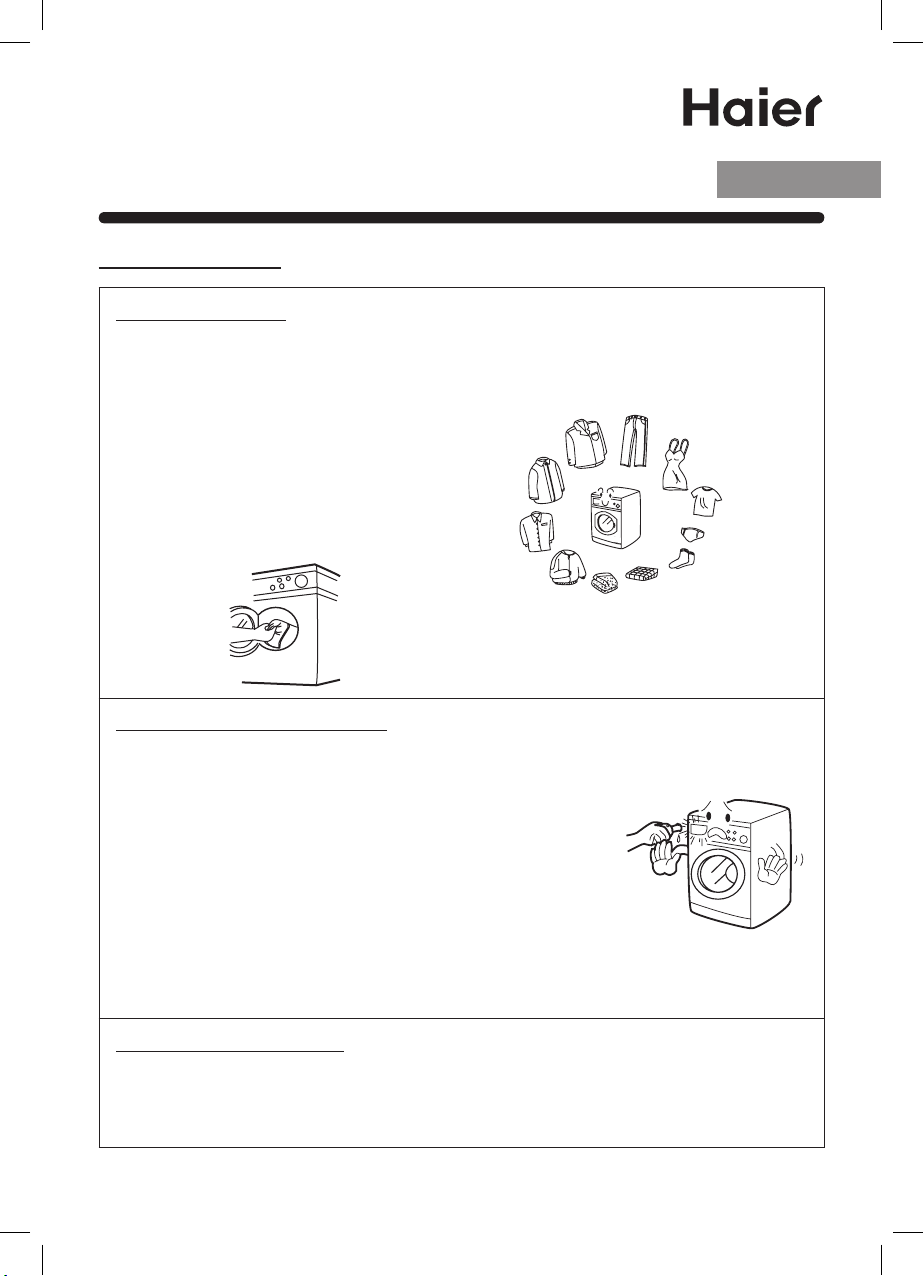

Washing Procedure
1. Loading
Open the door, put in the laundry piece by piece.
Close the door tightly.
Notes:
1)When first using the washing machine,let it run unloaded for one program to prevent the laundry from being tainted by oil or dirty water from the washing machine.
2)Do not overload the washing machine.
Load Reference
• Overalls |
|
• Jeans (800g) |
|
(cotton appr |
|
• Pajamas |
|
950g) |
|
||
• Blended fabric |
|
(appr 200g) |
|
|
• Shirts |
||
clothes |
|
||
|
(appr 300g) |
||
(appr 800g) |
|
||
|
|
||
• T-shirt |
|
• Underwear |
|
|
(blended fabrics |
||
(cotton appr |
|
appr 70g) |
|
300g) |
|
• Socks (blended |
|
• Jackets |
|
fabrics appr 50g) |
|
• Woolen |
• Single bed sheets |
||
(cotton |
|||
(cotton appr 800g) |
|||
appr 800g) |
blankets |
||
|
|||
|
(appr 3000) |
|
2. Adding detergent
Slide out the detergent drawer and put the required detergent and softening agent into the corresponding boxes. Push back the drawer gently.
Caution:
1) For pre-washing program, detergent should be added to both
compartments 1 and 2. Compartment 2 allows only solid detergents.
For other programs, do not add detergent to compartment 1.
2)Do not overuse softener; otherwise, it will damage the artificial
fibers. Refer to the instructions during use.
3)The softener can not exceed the „MAX“ on the siphon hat. And the softener should not be too ropy.
4)If select the delay-time function,make sure the compartment is dry,or the detergent will remain in the compartment.
3. Selecting washing program
To get the best washing effect, an appropriate washing program should be selected according to the laundry type.
Note: The above operations refer to conditions without power-off memory. Or the washing machine will continue operation from where the program was broken. To clear memory, press the Start/Pause button. Turn off the power for a few seconds and turn on again, all the settings will be renewed.
11 - EN
Engligh
Washing Procedure, Hints for Saving Energy
4. Setting washing temperature
Press the temperature button until „ -- „ is displayed if heating is not needed; otherwise, select an appropriate temperature as required (refer to the „Guide to Operational Program Selection“).
5. Function selecting button
Select functions as required (refer to the „Operational Functions“ section).
6. Washing
Press Start/Pause key and the LCD will display „ “, which means the washer has started operation. The LCD will display program remaining time.
The following functions cannot be re-selected.
1)Temperature Selection Key
2)Reserve Time Key
3)Power Clean Key
4)All the functions alrea dy completed.
7. Finish
The washing machine will stop operation automatically when a wash cycle ends. The „End“ sign will appear. Open the door and take out the laundry. Then turn off the tap and unplug the power cable.
• Hints for saving energy
During operation
1.Collect clothes for one full wash load.
2.Do not overload the washing machine.
3.Pre-wash heavily soiled clothes.
4.Reduce the amount of detergent or choose standard or delicate wash programs for slightly soiled clothes.
5.Choose a proper washing temperature. Only exceed 60° for heavily soiled clothes.
6.Do not use more detergent than required.
7.Softening agent makes clothes feel softer and easier to iron.
12 - EN
|
|
|
|
|
English |
|
Maintenance |
|
|
|
|
||
|
|
|
|
|
|
|
1. Turn of the water and electricity supply |
2. |
Uplug the machine during cleaning and |
||||
after every wash. Open the door to prevent |
maintenance. Use a soft cloth dampened with |
|||||
the formation of moisture and odors. If |
soapy. Liquid to clean the machine case and rubber |
|||||
the washing machine is left idle for a long |
components. Do not use corrosive or abrasive |
|||||
period, drain any remaining water in the |
chemicals or solvents. |
|||||
machine and replace the drainage hose. |
|
|
|
|
||
|
|
|
|
|
|
|
3. Clean the detergent compartment |
4. |
Clean the filter Cleaning methods |
||||
regularly. For the detergent compartment |
|
(once a month) |
||||
similar to figure (a), raise the compartment |
1) |
Pick up the bottom cover lightly (Fig. 1); |
||||
slightly to remove and replace after |
2) |
Screw out filter by turning counterclockwise |
||||
cleaning. |
|
(Fig. 2); |
||||
|
|
|
3) |
Flash clean with running water; |
||
|
|
|
4) |
Replace the filter by turning clockwise and |
||
|
|
|
|
remount the cover. |
||
|
|
|
Caution: The filter must be in place, or it may lead |
|||
|
|
|
|
to leakage. (Fig. 3) |
Obr. (a)
Fig. 1 |
Fig. 2 |
Fig. 3 |
5. To prevent blockages to the water supply or the ingress of contaminants, clean the water inlet and inlet water filter regularly.
7. If the washing machine is left idle for a long period turn off the water and electricity supply and open the door slightly to prevent the formation of moisture and odors.
6. If the machine is to be moved a distance location, replace the vibration mounting locks which were removed during installation as snown below.
Remove the |
Remove the |
Insert the bolts. |
back cover. |
rubber plugs. |
|
|
|
|
|
|
|
|
|
Tighten the bolts |
Replace the |
||
with the spanner. |
rear panel. |
13 - EN
Engligh
Troubleshooting
The following circumstances do not constitute problems. Do not contact the maintenance service until the problem has been confirmed.
Problem |
Possible cause |
|
|
|
|
|
Poor connection to power sup ply |
|
The washing machine fails |
Power failure |
|
to operate |
Door is not properly closed (It will show E1) |
|
|
Machine has not been switched on |
|
|
|
|
|
Water tap is not turned on (It will show E4) |
|
|
Water pressure is less than 0.03M pa |
|
Washing machine cannot |
The inlet hose is kinked |
|
Water supply failure |
||
be filled with water |
||
The program dial is not properly set |
||
|
||
|
The door is not properly clos ed |
|
|
The inlet hose filter is blocked |
|
|
|
|
The machine is draining while |
The height of the drainage hose is below 80cm |
|
(it should be within 80-100cm) |
||
is being filled |
||
The drainage hose end is in wa ter |
||
|
||
|
|
|
|
Drainage hose is blocked (It will show E2) |
|
Drainage failure |
Drainage hose end is exceed 100cm above the floor level |
|
|
The filter is blocked |
|
|
|
|
|
Not all packing bolts have been removed |
|
Strong vibration during spin drying |
Washing machine is located on an uneven surface |
|
|
Machine load is over 5 kg. |
|
|
|
|
Operation stops before completion |
Water or electricity failure |
|
of a wash cycle |
Washing machine is in soak cycle |
|
|
|
|
Operation stops for a period of |
Washing machine is in soak cycle |
|
time |
Washing machine gives an error message. |
|
|
|
|
Excessive foam in the drum, |
The detergent is not a low-foaming type or for manual wash |
|
which is is spilled to the |
||
Excessive use of detergent |
||
distribution drawer |
||
|
||
|
|
14 - EN
English
Technical Specifications
Model |
HVS1000 |
HVS1200 |
|
|
|
Power supply |
(220-240)V~/(50Hz) |
(220-240)V~/(50Hz) |
|
|
|
Power (Max) |
2000 |
2000 |
|
|
|
Water pressure (MPa) |
0,03≤p≤1 |
0,03≤p≤1 |
|
|
|
Rated load (kg) |
1-5 |
1-5 |
|
|
|
Spinning speed (MAX) (r/min) |
1000 |
1200 |
|
|
|
Wash program |
11 |
11 |
|
|
|
Heating power (W) |
1800 |
1800 |
|
|
|
Net weight (kg) |
82 |
82 |
|
|
|
Anti-Electric shock |
I |
I |
|
|
|
Anti-Water class |
IPX4 |
IPX4 |
|
|
|
Noise level |
72 dB |
72 dB |
|
|
|
|
15 - EN |
|
Engligh
Wiring Circuit
Slim 5
HVS1000
I1 - Switch
M – Motor
PCB – Printed Circuit Board
MR – Door Lock
R – Heating Element
PS – Drainage Pump
EVF, EVJ, EVP – Water Inlet Magnetic Valve
P – Pressure Switch
FA – Interference Suppresser
NTS – Temperature Sencor
The changes in user´s manual are reserved.
16 - EN
