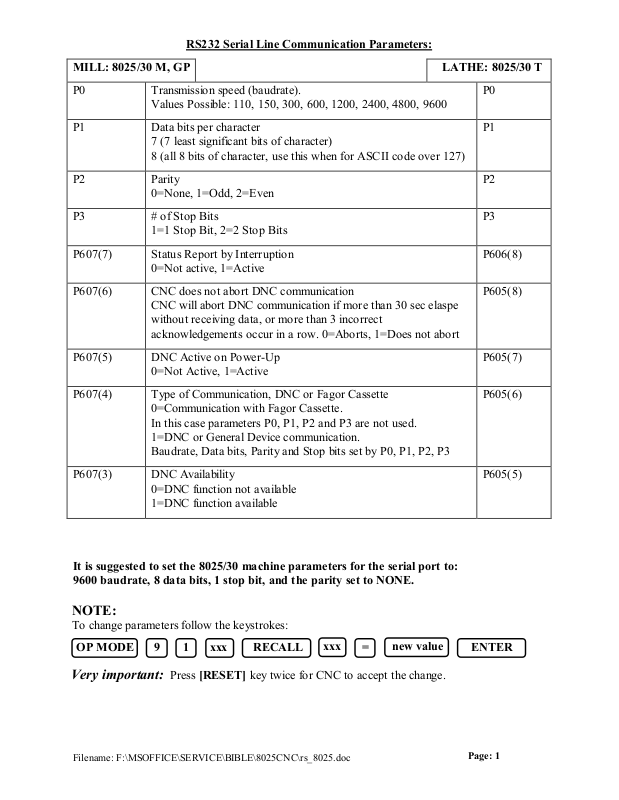

RS232 Serial Line Communication Parameters: |
|
MILL: 8025/30 M, GP |
LATHE: 8025/30 T |
|
P0 |
Transmission speed (baudrate). |
P0 |
|
Values Possible: 110, 150, 300, 600, 1200, 2400, 4800, 9600 |
|
P1 |
Data bits per character |
P1 |
|
7 (7 least significant bits of character) |
|
|
8 (all 8 bits of character, use this when for ASCII code over 127) |
|
P2 |
Parity |
P2 |
|
0=None, 1=Odd, 2=Even |
|
P3 |
# of Stop Bits |
P3 |
|
1=1 Stop Bit, 2=2 Stop Bits |
|
P607(7) |
Status Report by Interruption |
P606(8) |
|
0=Not active, 1=Active |
|
P607(6) |
CNC does not abort DNC communication |
P605(8) |
|
CNC will abort DNC communication if more than 30 sec elaspe |
|
|
without receiving data, or more than 3 incorrect |
|
|
acknowledgements occur in a row. 0=Aborts, 1=Does not abort |
|
P607(5) |
DNC Active on PowerUp |
P605(7) |
|
0=Not Active, 1=Active |
|
P607(4) |
Type of Communication, DNC or Fagor Cassette |
P605(6) |
|
0=Communication with Fagor Cassette. |
|
|
In this case parameters P0, P1, P2 and P3 are not used. |
|
|
1=DNC or General Device communication. |
|
|
Baudrate, Data bits, Parity and Stop bits set by P0, P1, P2, P3 |
|
P607(3) |
DNC Availability |
P605(5) |
|
0=DNC function not available |
|
|
1=DNC function available |
|
It is suggested to set the 8025/30 machine parameters for the serial port to: 9600 baudrate, 8 data bits, 1 stop bit, and the parity set to NONE.
NOTE:
To change parameters follow the keystrokes:
OP MODE 9 1 xxx RECALL xxx = new value ENTER
Very important: Press [RESET] key twice for CNC to accept the change.
