Dell Precision™ M90 Mobile

Workstation

Quick Reference Guide

Model PP05XA

w w w . d e l l . c o m | s u p p o r t . d e l l . c o m

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Abbreviations and Acronyms

For a complete list of abbreviations and acronyms, see Glossary in your User’s Guide.

If you purchased a Dell™ n Series computer, any references in this document to Microsoft® Windows® operating systems are not applicable.

____________________

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Dell Precision, and ExpressCharge are trademarks of Dell Inc.; Intel is a registered trademark of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation; Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by Dell Inc. under license.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model PP05XA

February 2006

P/N ND243

Rev. A00

Finding Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	5
Setting Up Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	8
About Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	9
Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	9
Left Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	10
Right Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	10
Back View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	11
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	12
Using a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	13
Battery Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . .	13
Checking the Battery Charge . . . . . . . . . . . . . . . . . . . . . . . .	14
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . .	16
Replacing the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . .	16
Storing a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	17
Lockups and Software Problems . . . . . . . . . . . . . . . . . . . . . .	17
Dell Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	19
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	23

Contents 3

4 Contents

Finding Information

NOTE: Some features or media may be optional and may not ship with your computer. Some features or media may not be available in certain countries.

NOTE: Additional information may ship with your computer.

What Are You Looking For?	Find It Here

• A diagnostic program for my computer	Drivers and Utilities CD (also known as ResourceCD)
• Drivers for my computer	NOTE: The Drivers and Utilities CD may be optional and may
• My computer documentation	not ship with your computer.
• My computer documentation
• My device documentation	Documentation and
• Notebook System Software (NSS)	drivers are already
	installed on your
	computer. You can use the
	CD to reinstall drivers or
	to run the Dell Diagnostics
	(See "Dell Diagnostics" on
	page 19).
	Readme files may be
	included on your CD to
	provide last-minute
	updates about technical changes to your computer or
	advanced technical-reference material for technicians or
	experienced users.
	NOTE: Drivers and documentation updates can be found at
	support.dell.com.

• Warranty information	Dell™ Product Information Guide
• Terms and Conditions (U.S. only)
• Safety instructions
• Regulatory information
• Ergonomics information
• End User License Agreement

• How to remove and replace parts	Dell Precision™ User’s Guide
• Specifications	Microsoft Windows XP Help and Support Center
• How to configure system settings	1	Click Start→ Help and Support→ Dell User and
• How to troubleshoot and solve problems		System Guides→ System Guides.
	2	Click the User’s Guide for your computer.

Quick Reference Guide

What Are You Looking For?	Find It Here

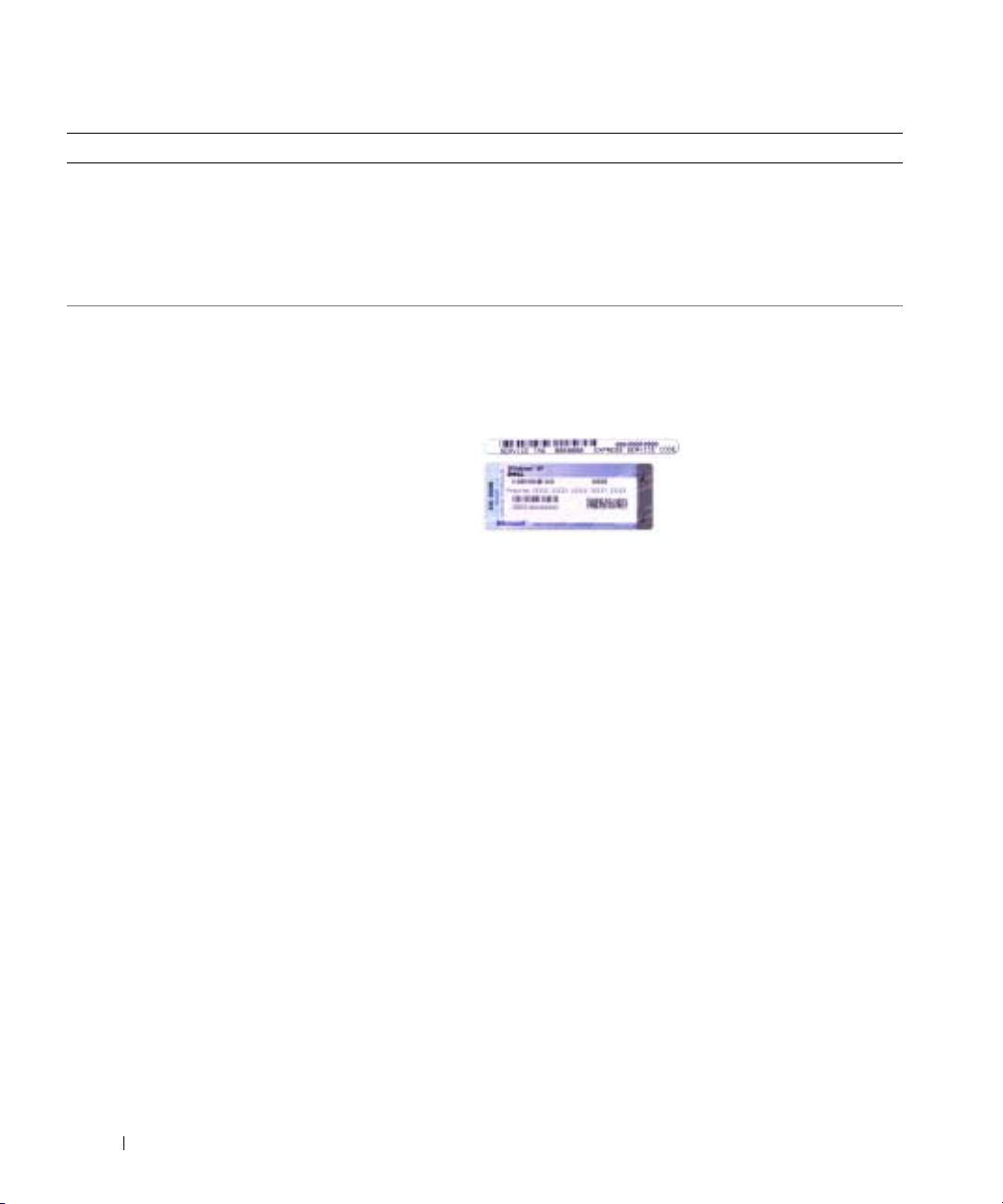

• Service Tag and Express Service Code	Service Tag and Microsoft® Windows® License
• Microsoft Windows License Label	These labels are located on your computer.
	• Use the Service Tag to identify your computer when you
	use support.dell.com or contact technical support.
	•Enter the Express Service
	Code to direct your call
	when contacting technical
	support.

•Solutions — Troubleshooting hints and tips, articles from technicians, and online courses, frequently asked questions

•Community — Online discussion with other Dell customers

•Upgrades — Upgrade information for components, such as memory, the hard drive, and the operating system

•Customer Care — Contact information, service call and order status, warranty, and repair information

•Service and support — Service call status and support history, service contract, online discussions with technical support

•Reference — Computer documentation, details on my computer configuration, product specifications, and white papers

•Downloads — Certified drivers, patches, and software updates

•Notebook System Software (NSS)— If you reinstall the operating system for your computer, you should also reinstall the NSS utility. NSS provides critical updates

for your operating system and support for Dell™ 3.5-inch USB floppy drives, Intel® processors, optical drives, and USB devices. NSS is necessary for correct operation of your Dell computer. The software automatically detects your computer and operating system and installs the updates appropriate for your configuration.

Dell Support Website — support.dell.com

NOTE: Select your region to view the appropriate support site.

To download Notebook System Software:

1 Go to support.dell.com, select your region or business segment, and enter your Service Tag.

2 Select Drivers & Downloads and click Go.

3 Click your operating system and search for the keyword

Notebook System Software.

NOTE: The support.dell.com user interface may vary depending on your selections.

6 Quick Reference Guide

	What Are You Looking For?	Find It Here

	• Software upgrades and troubleshooting hints —	Dell Support Utility
	Frequently asked questions, hot topics, and general	The Dell Support Utility is an automated upgrade and
	health of your computing environment	The Dell Support Utility is an automated upgrade and
	health of your computing environment	notification system installed on your computer. This
		notification system installed on your computer. This
		support provides real-time health scans of your computing
		environment, software updates, and relevant self-support
		information. Access the Dell Support Utility from the
		icon in the taskbar. For more information, see "Dell Support
		Utility" in your User’s Guide.

	• How to use Windows XP	Windows Help and Support Center
	• How to work with programs and files	1 Click the Start button and click Help and Support.
	• How to personalize my desktop	2 Type a word or phrase that describes your problem and
		click the arrow icon.
		3 Click the topic that describes your problem.
		4 Follow the instructions on the screen.

	• How to reinstall my operating system	Operating System CD
		NOTE: The Operating System CD may be optional and may
		not ship with your computer.
		The operating system is already installed on your computer.
		To reinstall your operating system, use the Operating
		System CD. See "Reinstalling Windows XP" in your User’s
		Guide.
		After you reinstall your
		operating system, use the
		Drivers and Utilities CD
		(ResourceCD) to reinstall
		drivers for the devices that
		came with your computer.
		Your operating system
		product key label is located
		on your computer.
		NOTE: The color of your CD varies based on the operating
		system you ordered.

Quick Reference Guide

Setting Up Your Computer

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

1Unpack the accessories box.

2Set aside the contents of the accessories box, which you will need to complete the setup of your computer.

The accessories box also contains user documentation and any software or additional hardware (such as PC Cards, drives, or batteries) that you have ordered.

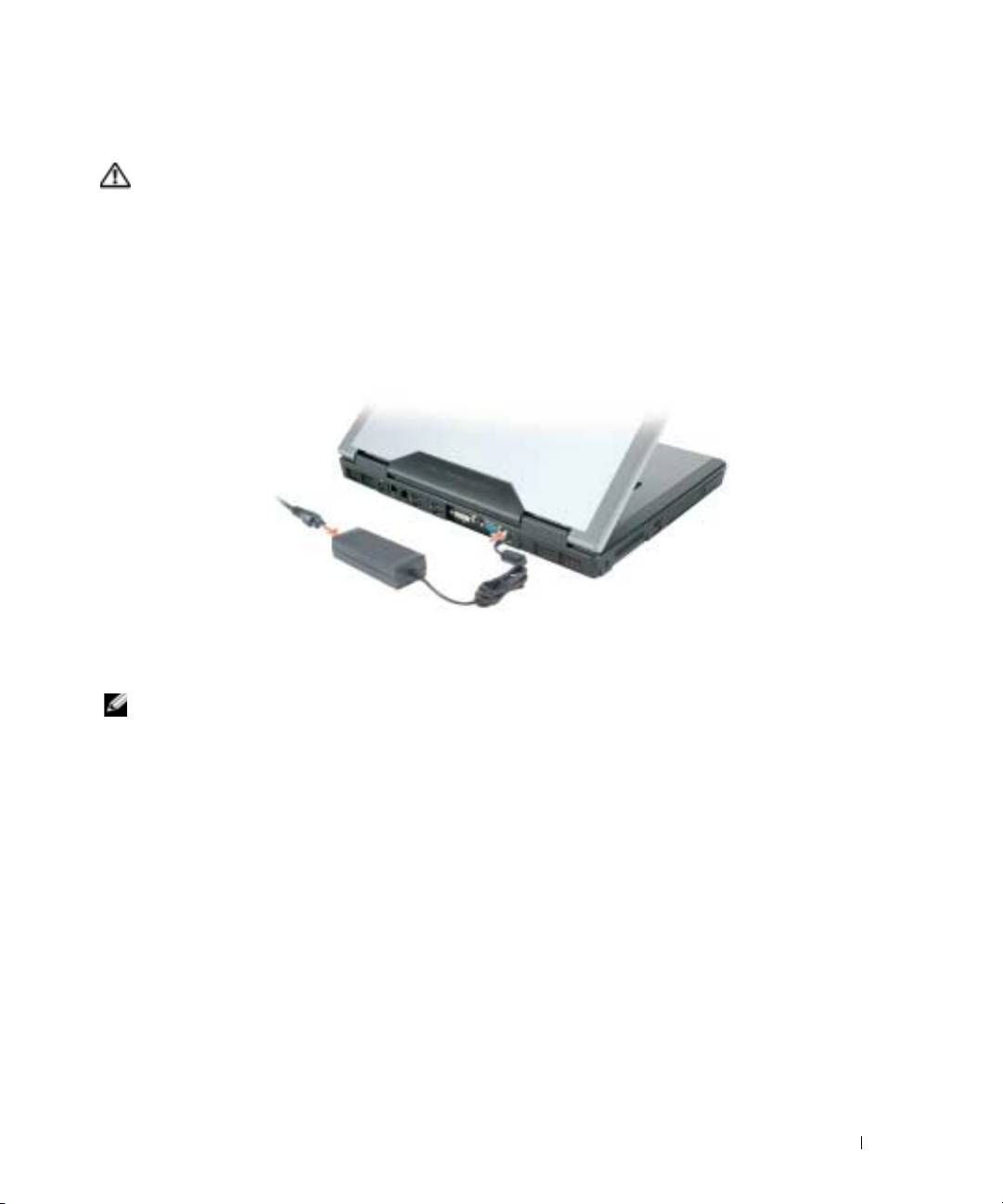

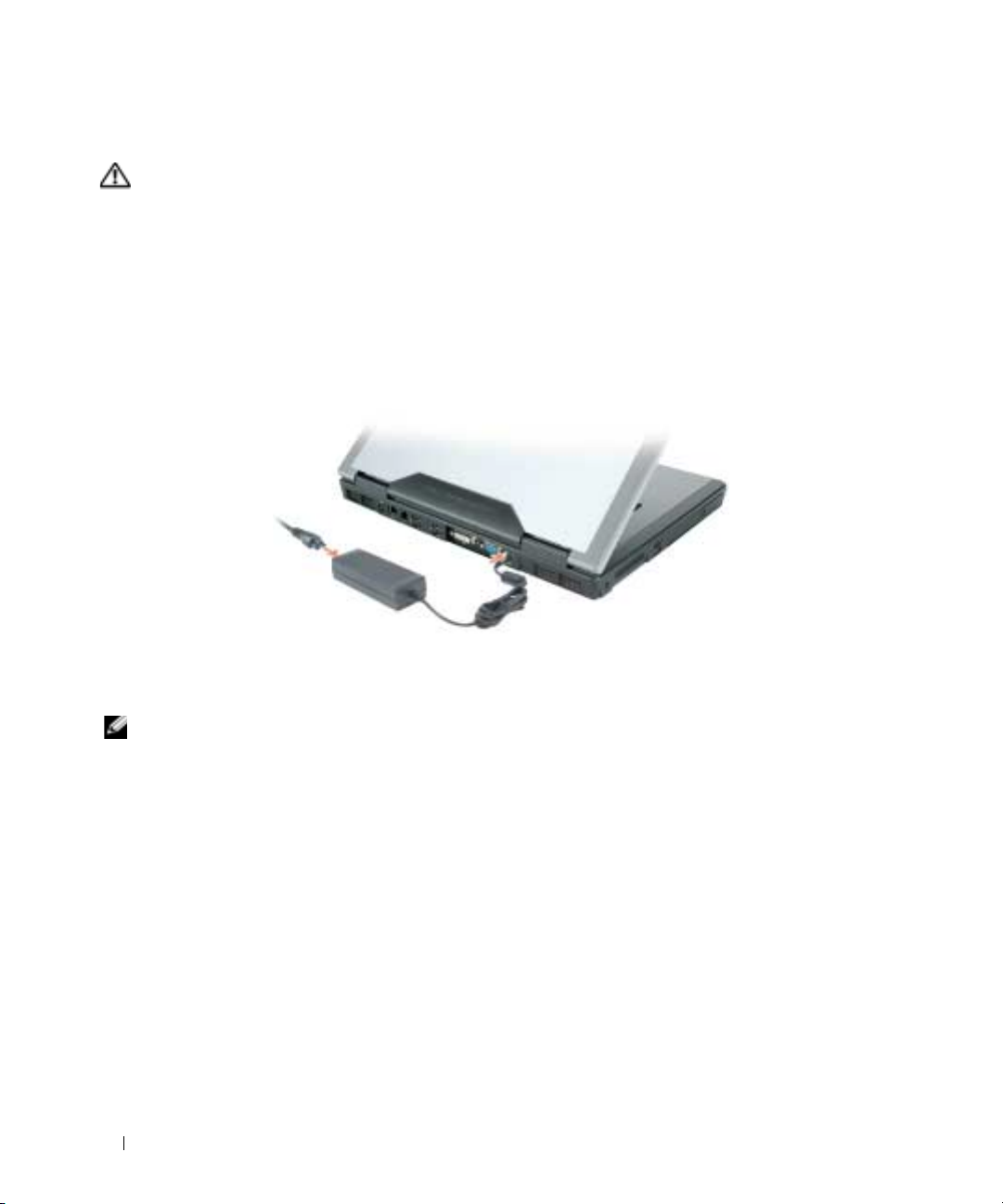

3Connect the AC adapter to the AC adapter connector on the computer and to the electrical outlet.

4Open the computer display and press the power button to turn on the computer (see "Front View" on page 9).

NOTE: It is recommended that you turn on and shut down your computer at least once before you install any cards or connect the computer to a docking device or other external device, such as a printer.

8 Quick Reference Guide

About Your Computer

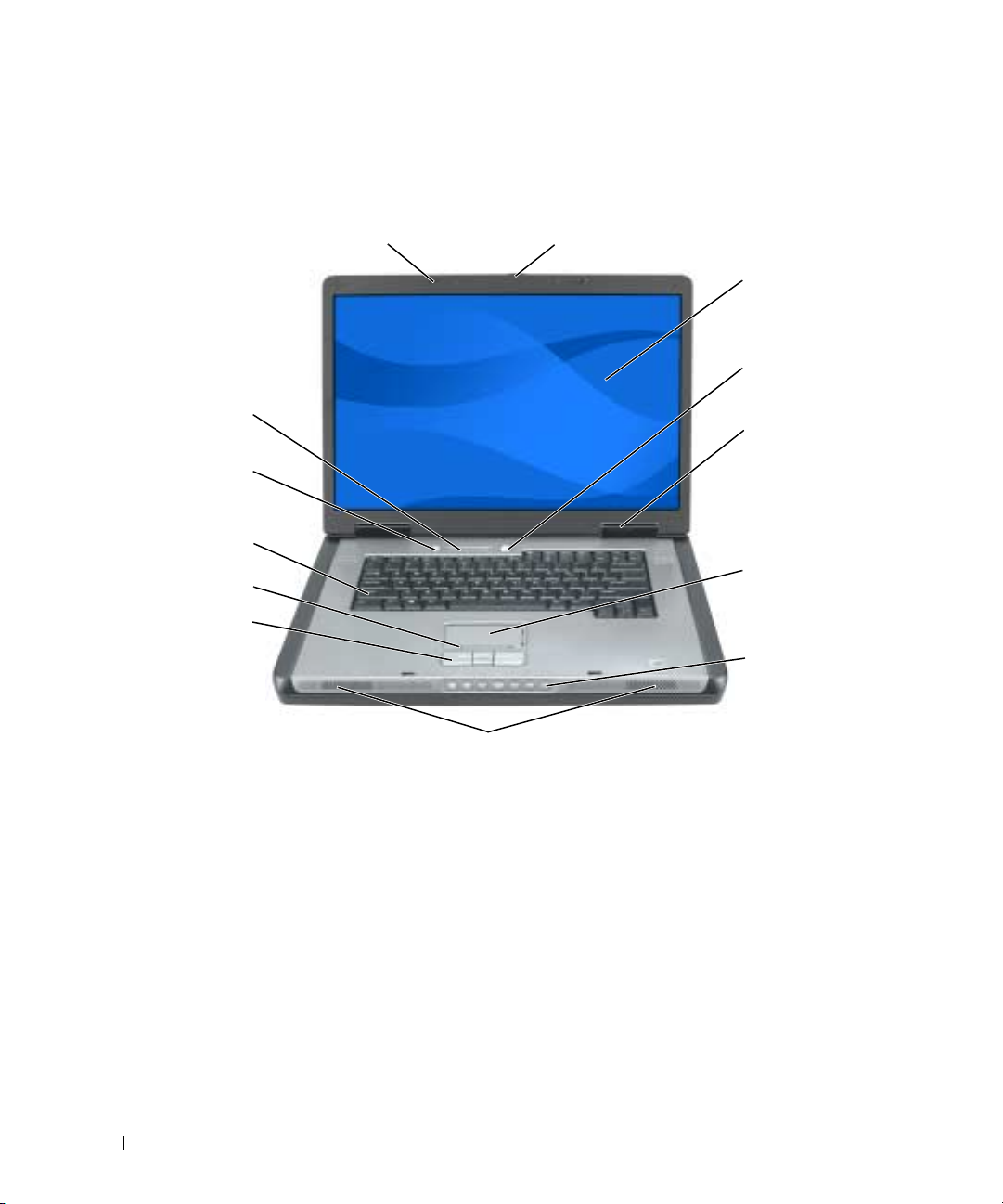

Front View

	1		2
					3
					4
	13				5
					5
	12
	11
	10				6
	10
	9
					7
			8
1	display latches (2)	6	touch pad	11	keyboard
2	display latch release	7	media control buttons	12	media button
3	display	8	speakers (2)	13	keyboard and wireless
					status lights
4	power button	9	touch pad buttons
5	device status lights	10	touch-pad scroll zone

Quick Reference Guide

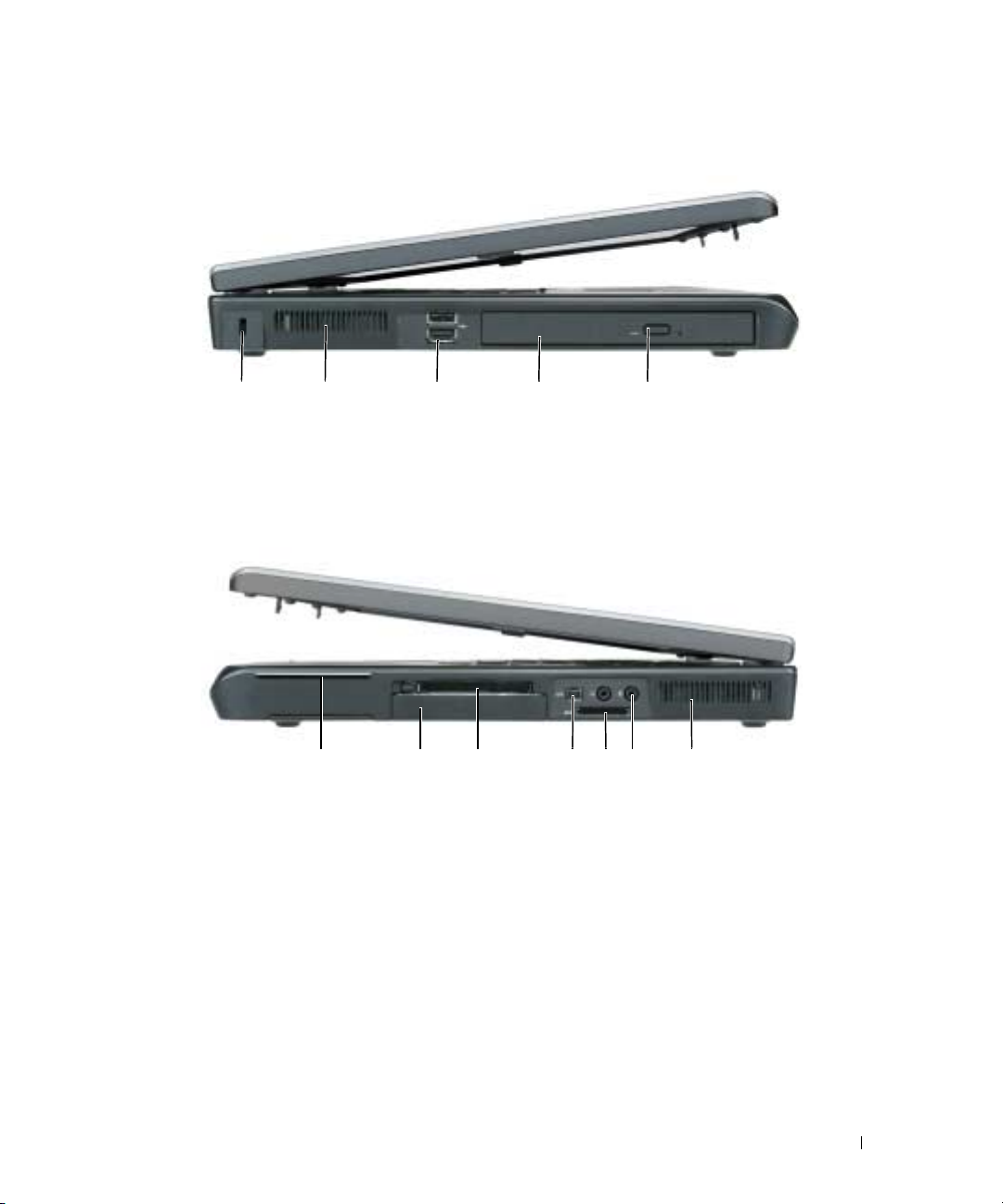

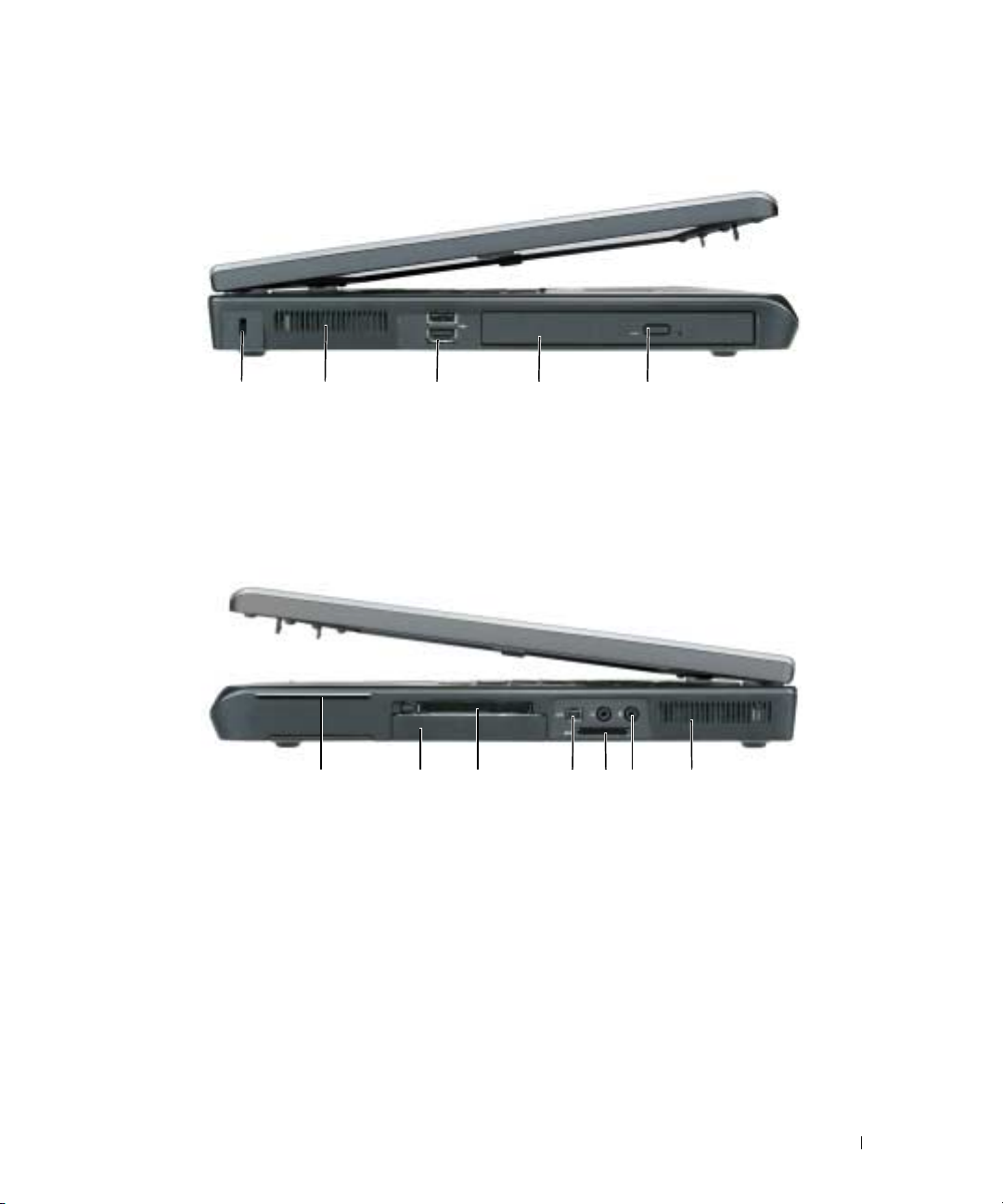

Left Side View

	1	2		3	4		5
1	security cable slot		3	USB connectors (2)		5	optical-drive-tray eject
							button
2	air vent		4	optical drive

Right Side View

	1	2	3	4	5	6	7
1	smart card slot	4	IEEE 1394 connector			7	air vent
2	hard drive	5	5-in-1 media memory card
			reader
3	ExpressCard slot	6	audio connectors (2)

10 Quick Reference Guide

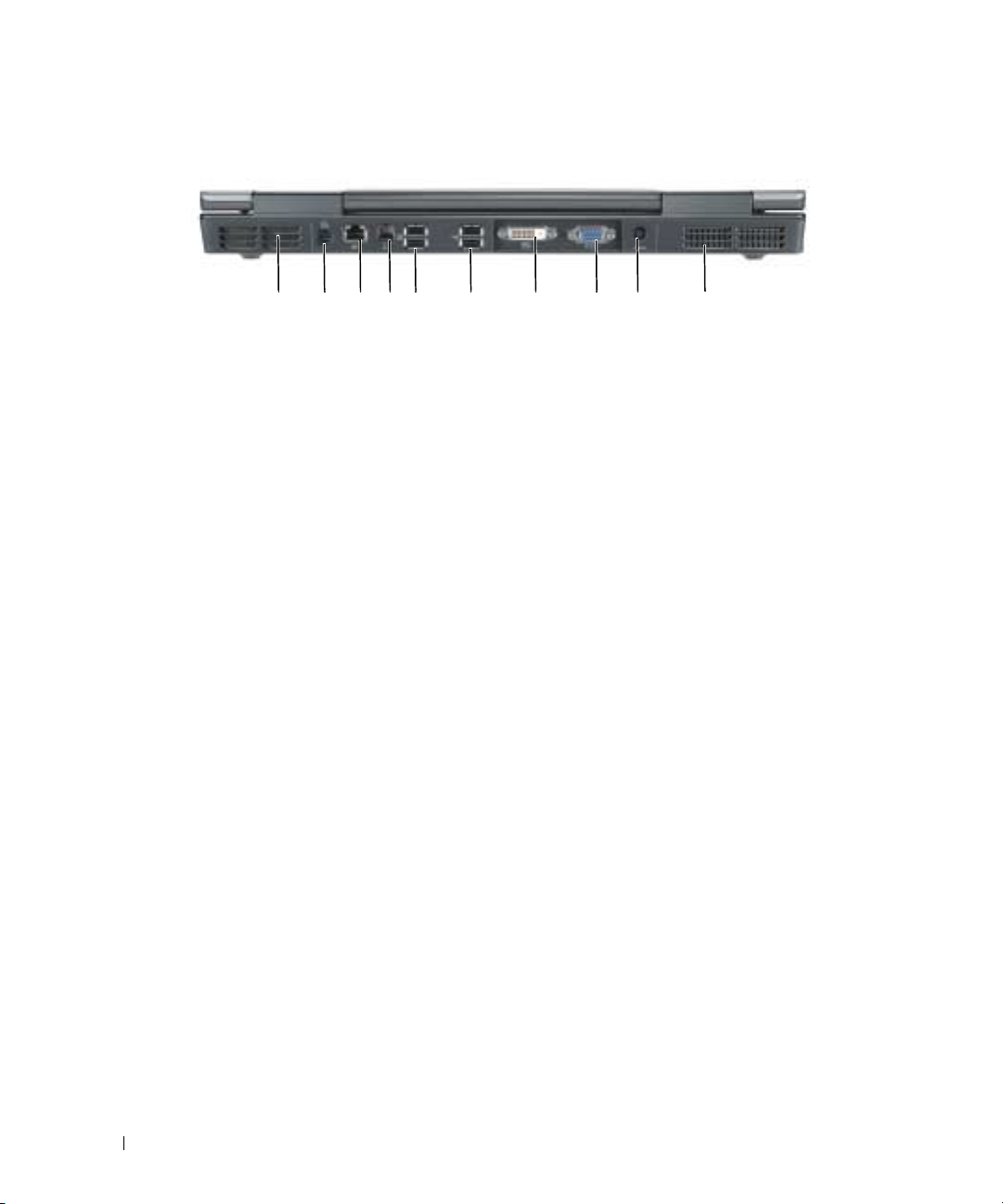

Back View

	1	2	3	4	5	6	7	8	9	10
1	air vent			5		USB connectors (2)			9	AC adapter connector
2	S-video TV-out connector			6		USB connectors (2)			10	air vent
3	network (RJ-45) connector			7		Digital-Video Interface
						(DVI) connector
4	modem (RJ-11) connector			8		video (VGA) connector

Quick Reference Guide

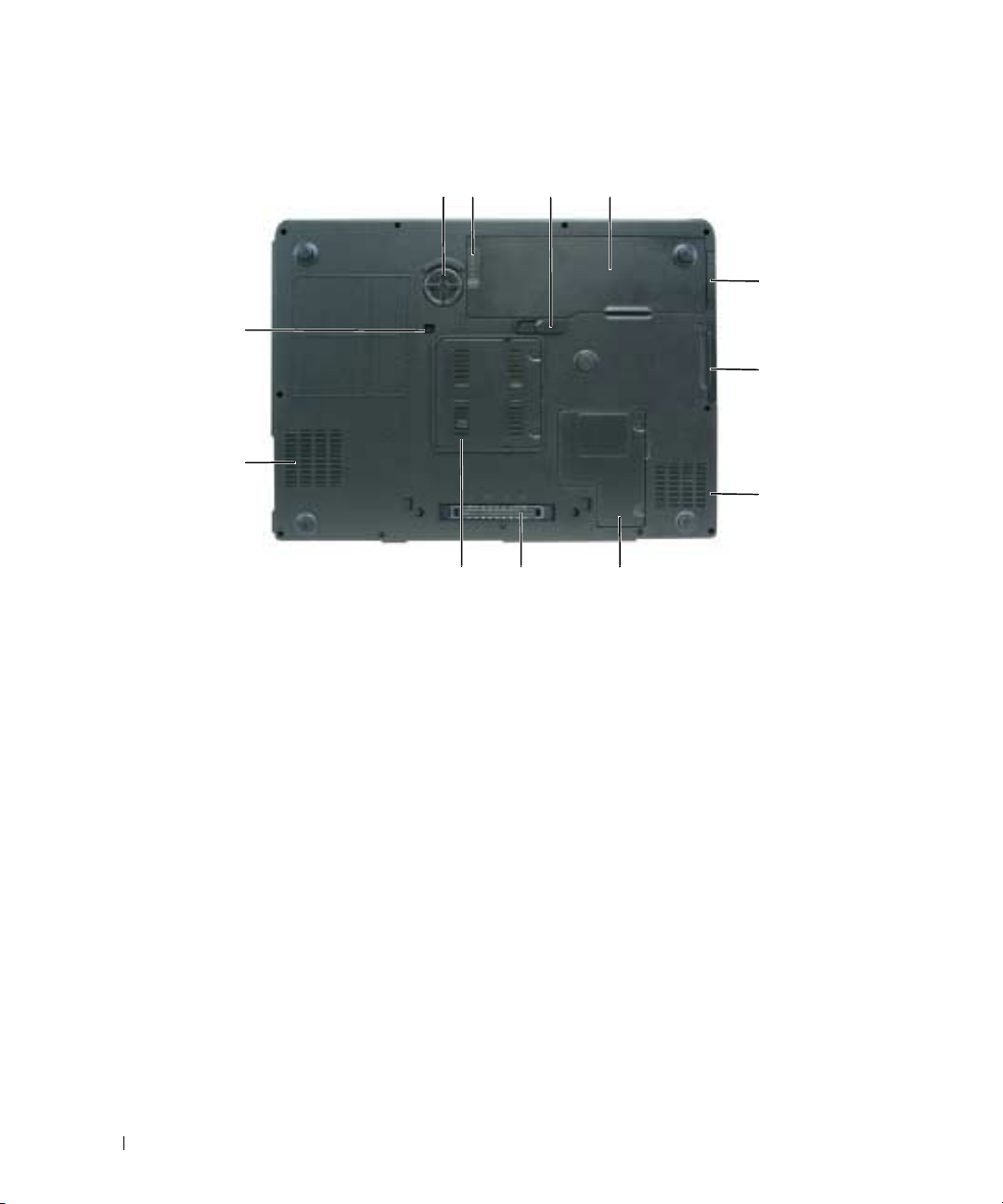

Bottom View

			1	2	3	4
								5
	12
								6
	11
								7
				10	9		8
1	subwoofer	5	cover for optional internal				9	docking-device connector
			card with Bluetooth®
			wireless technology
2	battery charge/health	6	hard drive				10	memory module cover
	gauge
3	battery-bay latch release	7	air vent				11	air vent
4	battery	8	Mini-Card/modem cover				12	optical-drive security screw

12 Quick Reference Guide

Using a Battery

Battery Performance

NOTE: For information about the Dell warranty for your computer, see the Product Information Guide or separate paper warranty document that shipped with your computer.

For optimal computer performance and to help preserve BIOS settings, operate your Dell™ portable computer with the battery installed at all times. One battery is supplied as standard equipment in the battery bay.

NOTE: Because the battery may not be fully charged, use the AC adapter to connect your new computer to an electrical outlet the first time you use the computer. For best results, operate the computer with the AC adapter until the battery is fully charged. To view battery charge status, click Start→ Control Panel→ Power Options, and click Power Meter tab.

NOTE: Battery operating time (the time the battery can operate the computer) decreases over time. Depending on how often the battery is used and the conditions under which it is used, you may need to purchase a new battery during the life of your computer.

Battery operating time varies depending on operating conditions. Operating time is significantly reduced when you perform operations including, but not limited to, the following:

•Using optical drives.

•Using wireless communications devices, ExpressCards, or USB devices.

•Using high-brightness display settings, 3D screen savers, or other power-intensive programs such as complex 3D graphics applications.

•Running the computer in maximum performance mode. See "Configuring Power Management Settings" on in your User’s Guide for information about accessing Windows Power Options Properties or Dell QuickSet, which you can use to configure power management settings.

NOTE: It is recommended that you connect your computer to an electrical outlet when writing to a CD or DVD.

You can check the battery charge before you insert the battery into the computer. You can also set power management options to alert you when the battery charge is low. For more information, see "Checking the Battery Charge" on page 14.

CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased from Dell. The battery is designed to work with your Dell computer. Do not use a battery from other computers with your computer.

CAUTION: Do not dispose of batteries with household waste. When your battery no longer holds a charge, call your local waste disposal or environmental agency for advice on disposing of a lithium-ion battery. See "Battery Disposal" in the Product Information Guide.

CAUTION: Misuse of the battery may increase the risk of fire or chemical burn. Do not puncture, incinerate, disassemble, or expose the battery to temperatures above 65°C (149°F). Keep the battery away from children. Handle damaged or leaking batteries with extreme care. Damaged batteries may leak and cause personal injury or equipment damage.

Quick Reference Guide

Checking the Battery Charge

The Dell QuickSet Battery Meter, the Microsoft Windows Power Meter window and icon, the battery charge gauge and health gauge, and the low-battery warning provide information on the battery charge.

NOTE: Dell QuickSet may not be available on your computer.

Dell™ QuickSet Battery Meter

If Dell QuickSet is installed, press <Fn><F3> to display the QuickSet Battery Meter. The Battery Meter displays status, battery health, charge level, and charge completion time for the battery in your computer.

For more information about QuickSet, right-click the icon in the taskbar, and click Help.

Microsoft® Windows® Power Meter

The Windows Power Meter indicates the remaining battery charge. To check the Power Meter, doubleclick the icon on the taskbar.

If the computer is connected to an electrical outlet, a icon appears.

Charge Gauge

By pressing (or pressing and holding) the status button on the charge gauge on the battery, you can check:

•Battery charge (check by pressing and releasing the status button)

•Battery health (check by pressing and holding the status button)

The battery operating time is largely determined by the number of times it is charged. After hundreds of charge and discharge cycles, batteries lose some charge capacity—or battery health. That is, a battery can show a status of "charged" but maintain a reduced charge capacity (health).

Check the Battery Charge

To check the battery charge, press the status button on the battery charge gauge to illuminate the chargelevel lights. Each light represents approximately 20 percent of the total battery charge. For example, if the battery has 80 percent of its charge remaining, four of the lights are on. If no lights appear, the battery has no charge.

14 Quick Reference Guide

Check the Battery Health

NOTE: You can check battery health either by using the charge gauge on the battery as described below, or by using the Battery Meter in Dell QuickSet. For information about QuickSet, right-click the icon in the taskbar, and click Help.

To check the battery health using the charge gauge, press and hold the status button on the battery charge gauge for at least 3 seconds. If no lights appear, the battery is in good condition, and more than 80 percent of its original charge capacity remains. Each light represents incremental degradation. If five lights appear, less than 60 percent of the charge capacity remains, and you should consider replacing the battery. See "Specifications" in your User’s Guide for more information about the battery operating time.

Low-Battery Warning

NOTICE: To avoid losing or corrupting data, save your work immediately after a low-battery warning. Then connect the computer to an electrical outlet. If the battery runs completely out of power, hibernate mode begins automatically.

A pop-up window warns you when the battery charge is approximately 90 percent depleted. The computer enters hibernate mode when the battery charge is at a critically low level.

You can change the settings for the battery alarms in QuickSet or the Power Options Properties window. See "Configuring Power Management Settings" in your User’s Guide for information about accessing QuickSet or the Power Options Properties window.

Conserving Battery Power

Perform the following actions to conserve battery power:

•Connect the computer to an electrical outlet when possible because battery life is largely determined by the number of times the battery is used and recharged.

•Place the computer in standby mode or hibernate mode when you leave the computer unattended for long periods of time. See "Power Management Modes" in your User’s Guide for more information about standby and hibernate modes.

•Use the Power Management Wizard to select options to optimize your computer’s power usage. These options can also be set to change when you press the power button, close the display, or press <Fn><Esc>. See "Configuring Power Management Settings" in your User’s Guide for more information on using the Power Management Wizard.

NOTE: See "Configuring Power Management Settings" in your User’s Guide.

Quick Reference Guide

Charging the Battery

NOTE: With Dell™ ExpressCharge™, when the computer is turned off, the AC adapter charges a completely discharged battery to 80 percent in about 1 hour and to 100 percent in approximately 2 hours. Charge time is longer with the computer turned on. You can leave the battery in the computer for as long as you like. The battery’s internal circuitry prevents the battery from overcharging.

When you connect the computer to an electrical outlet or install a battery while the computer is connected to an electrical outlet, the computer checks the battery charge and temperature. If necessary, the AC adapter then charges the battery and maintains the battery charge.

If the battery is hot from being used in your computer or being in a hot environment, the battery may not charge when you connect the computer to an electrical outlet.The battery is too hot to start charging if the light flashes alternately orange and green. Disconnect the computer from the electrical outlet and allow the computer and the battery to cool to room temperature. Then connect the computer to an electrical outlet to continue charging the battery.

For more information about resolving problems with a battery, see "Power Problems" in your User’s Guide.

Replacing the Battery

CAUTION: Before performing these procedures, turn off the computer, disconnect the AC adapter from the electrical outlet and the computer, disconnect the modem from the wall connector and computer, and remove any other external cables from the computer.

NOTICE: You must remove all external cables from the computer to avoid possible connector damage.

CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased from Dell. The battery is designed to work with your Dell™ computer. Do not use a battery from other computers with your computer.

To remove the battery:

1If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.

2Ensure that the computer is turned off.

3Slide and hold the battery-bay latch release on the bottom of the computer, and then lift the battery from the bay.

16 Quick Reference Guide

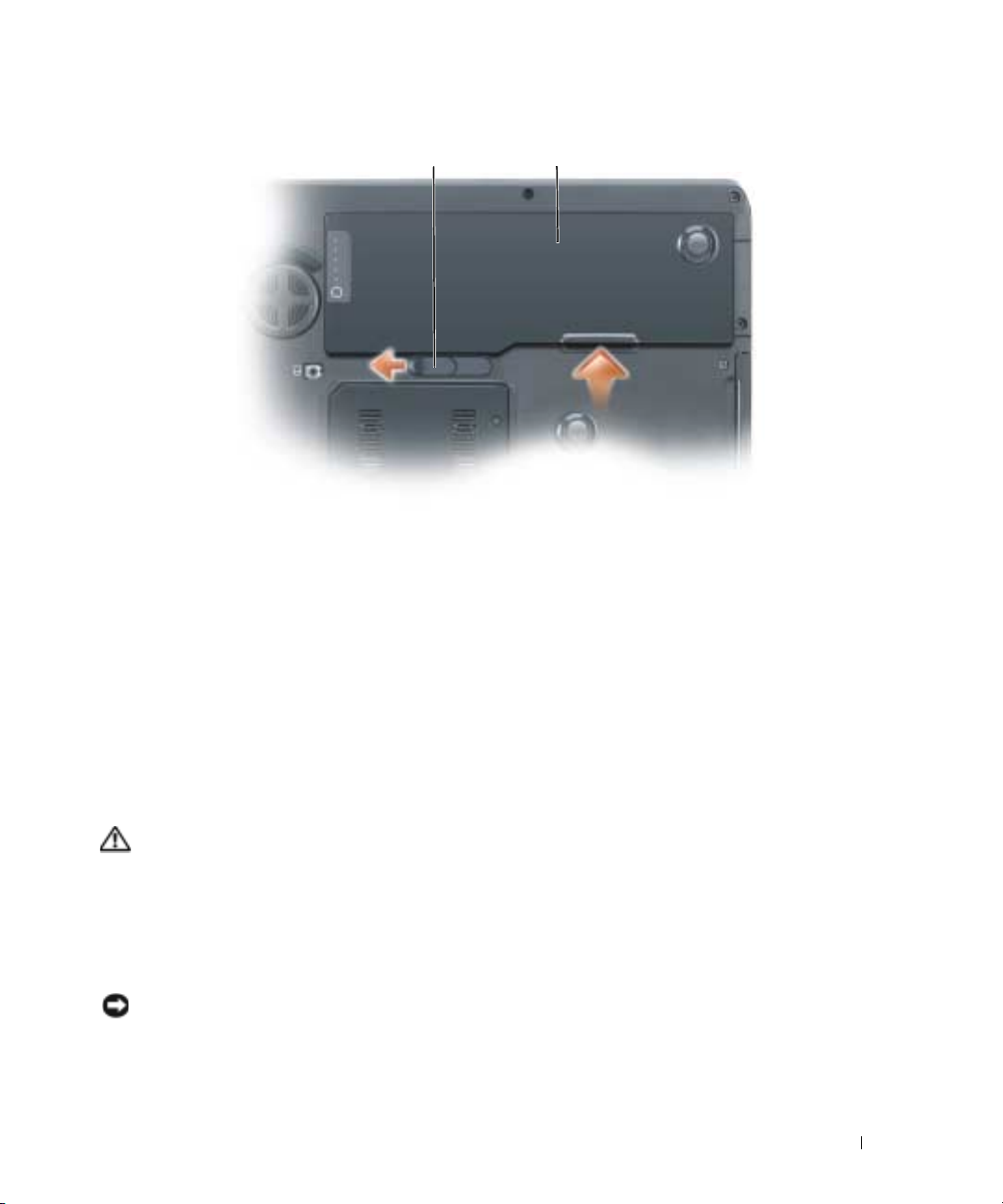

1 battery-bay latch release

battery

To replace the battery, follow the removal procedure in reverse order.

Storing a Battery

Remove the battery when you store your computer for an extended period of time. A battery discharges during prolonged storage. After a long storage period, recharge the battery fully before you use it. See "Charging the Battery" on page 16.

Troubleshooting

Lockups and Software Problems

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

The computer does not start up

ENSURE THAT THE AC ADAPTER IS FIRMLY CONNECTED TO THE COMPUTER AND TO THE ELECTRICAL OUTLET

The computer stops responding

NOTICE: You might lose data if you are unable to perform an operating system shutdown.

TURN THE COMPUTER OFF — If you are unable to get a response by pressing a key on your keyboard or moving your mouse, press and hold the power button for at least 8 to 10 seconds until the computer turns off. Then restart your computer.

Quick Reference Guide

WIZARD

A program stops responding or crashes repeatedly

NOTE: Software usually includes installation instructions in its documentation or on a floppy disk or CD.

END THE PROGRAM —

1Press <Ctrl><Shift><Esc> simultaneously.

2Click Task Manager.

3Click the program that is no longer responding.

4Click End Task.

CHECK THE SOFTWARE DOCUMENTATION — If necessary, uninstall and then reinstall the program.

A program is designed for an earlier Microsoft® Windows® operating system

RUN THE PROGRAM COMPATIBILITY — The Program Compatibility Wizard configures a program so it runs in an environment similar to non-Windows XP operating system environments.

1Click the Start button, point to All Programs→ Accessories, and then click Program Compatibility Wizard.

2In the welcome screen, click Next.

3Follow the instructions on the screen.

A solid blue screen appears

Dell Diagnostics

CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.

When to Use the Dell Diagnostics

If you experience a problem with your computer, perform the checks in "Lockups and Software Problems" on page 17 and run the Dell Diagnostics before you contact Dell for technical assistance.

It is recommended that you print these procedures before you begin.

NOTICE: The Dell Diagnostics works only on Dell computers.

NOTE: The Drivers and Utilities CD is optional and may not ship with your computer.

Enter system setup, review your computer’s configuration information, and ensure that the device you want to test displays in system setup and is active.

Start the Dell Diagnostics from either your hard drive or from the Drivers and Utilities CD (also known as the ResourceCD).

Starting the Dell Diagnostics From Your Hard Drive

1Turn on (or restart) your computer.

a When the DELL™ logo appears, press <F12> immediately. Select Diagnostics from the boot menu and press <Enter>.

NOTE: If you wait too long and the operating system logo appears, continue to wait until you see the Microsoft® Windows® desktop. Then shut down your computer and try again.

b Press and hold the <Fn> key while powering the system on.

NOTE: If you see a message stating that no diagnostics utility partition has been found, run the Dell Diagnostics from the Drivers and Utilities CD.

2 See "Contacting Dell" in your User’s Guide.

Quick Reference Guide

Starting the Dell Diagnostics From the Drivers and Utilities CD

1Insert the Drivers and Utilities CD.

2Shut down and restart the computer.

When the DELL logo appears, press <F12> immediately.

If you wait too long and the Windows logo appears, continue to wait until you see the Windows desktop. Then shut down your computer and try again.

NOTE: The next steps change the boot sequence for one time only. On the next start-up, the computer boots according to the devices specified in the system setup program.

3When the boot device list appears, highlight CD/DVD/CD-RW Drive and press <Enter>.

4Select the Boot from CD-ROM option from the menu that appears and press <Enter>.

5Type 1 to start the ResourceCD menu and press <Enter> to proceed.

6Select Run the 32 Bit Dell Diagnostics from the numbered list. If multiple versions are listed, select the version appropriate for your computer.

7When the Dell Diagnostics Main Menu appears, select the test you want to run.

Dell Diagnostics Main Menu

1After the Dell Diagnostics loads and the Main Menu screen appears, click the button for the option you want.

Option	Function

Express Test	Performs a quick test of devices. This test typically takes 10 to
	20 minutes and requires no interaction on your part. Run Express Test
	first to increase the possibility of tracing the problem quickly.

Extended Test	Performs a thorough check of devices. This test typically takes 1 hour or
	more and requires you to answer questions periodically.

Custom Test	Tests a specific device. You can customize the tests you want to run.

Symptom Tree	Lists the most common symptoms encountered and allows you to select
	a test based on the symptom of the problem you are having.

2If a problem is encountered during a test, a message appears with an error code and a description of the problem. Write down the error code and problem description and follow the instructions on the screen.

If you cannot resolve the error condition, contact Dell. See "Contacting Dell" in your User’s Guide.

NOTE: The Service Tag for your computer is located at the top of each test screen. If you contact Dell, technical support will ask for your Service Tag.

20 Quick Reference Guide

3If you run a test from the Custom Test or Symptom Tree option, click the applicable tab described in the following table for more information.

Tab	Function

Results	Displays the results of the test and any error conditions encountered.

Errors	Displays error conditions encountered, error codes, and the problem
	description.

Help	Describes the test and may indicate requirements for running the test.

Configuration	Displays your hardware configuration for the selected device.
	The Dell Diagnostics obtains configuration information for all devices
	from the system setup program, memory, and various internal tests,
	and it displays the information in the device list in the left pane of the
	screen. The device list may not display the names of all the
	components installed on your computer or all devices attached to your
	computer.

Parameters	Allows you to customize the test by changing the test settings.

4When the tests are completed, if you are running the Dell Diagnostics from the Drivers and Utilities CD, remove the CD.

5Close the test screen to return to the Main Menu screen. To exit the Dell Diagnostics and restart the computer, close the Main Menu screen.

Quick Reference Guide

22 Quick Reference Guide

Index

battery charging, 16

checking the charge, 14 performance, 13 power meter, 14 removing, 16

storing, 17

CDs

operating system, 7

computer crashes, 17-18

slow performance, 19 stops responding, 17

Dell

support site, 6

Dell Diagnostics about, 19

starting from the Drivers and Utilities CD, 20

starting from your hard drive, 19

diagnostics Dell, 19

documentation End User License

Agreement, 5 ergonomics, 5 online, 6

Product Information Guide, 5 regulatory, 5

safety, 5

User’s Guide, 5 warranty, 5

End User License

Agreement, 5

ergonomics information, 5

hardware

Dell Diagnostics, 19

Help and Support Center, 7

help file

Windows Help and Support Center, 7

labels

Microsoft Windows, 6 Service Tag, 6

Microsoft Windows label, 6

operating system CD, 7 reinstalling, 7

Operating System CD, 7

optical drive description, 10

problems

blue screen, 18 computer crashes, 17-18

computer does not start up, 17 computer stops responding, 17 Dell Diagnostics, 19

lockups, 17 program crashes, 18

program stops responding, 18 programs and Windows

compatibility, 18 slow computer

performance, 19 software, 17-18 spyware, 19

Product Information Guide, 5

Index 23

regulatory information, 5

ResourceCD

Dell Diagnostics, 19

safety instructions, 5

Service Tag, 6

software problems, 18

spyware, 19

support website, 6

troubleshooting Dell Diagnostics, 19

Help and Support Center, 7

User’s Guide, 5

warranty information, 5

Windows XP

Help and Support Center, 7 Program Compatibility

Wizard, 18 reinstalling, 7

wizards

Program Compatibility Wizard, 18

24 Index

Dell Precision™ M90 Mobiel

werkstation

Snelle Referentiegids

Model PP05XA

w w w . d e l l . c o m | s u p p o r t . d e l l . c o m

Opmerkingen, kennisgevingen en waarschuwingen

OPMERKING: Een OPMERKING duidt belangrijke informatie aan voor een beter gebruik van de computer.

KENNISGEVING: Een KENNISGEVING duidt mogelijke beschadiging van de hardware of gegevensverlies aan en geeft aan hoe u dergelijke problemen kunt voorkomen.

LET OP: Een WAARSCHUWING duidt het risico van schade aan eigendommen, lichamelijk letsel of overlijden aan.

Afkortingen en acroniemen

Een volledige lijst met afkortingen en acroniemen vindt u in de Terminologielijst van de Handleiding.

Als u een Dell™ computer uit de n-serie hebt aangeschaft, zijn de verwijzingen naar de Microsoft® Windows® besturingssystemen in dit document niet van toepassing.

____________________

Verveelvoudiging van dit materiaal, op welke wijze dan ook, is alleen toegestaan na uitdrukkelijke schriftelijke toestemming van Dell Inc.

Handelsmerken in dit document: Dell, het DELL-logo, Dell Precision, en ExpressCharge zijn handelsmerken van Dell Inc.; Intel is een gedeponeerd handelsmerk van Intel Corporation; Microsoft en Windows zijn gedeponeerde handelsmerken van Microsoft Corporation; Bluetooth is een handelsmerk van Bluetooth SIG, Inc. en wordt door Dell Inc. onder licentie gebruikt.

Andere handelsmerken en handelsnamen die mogelijk in dit document worden gebruikt, dienen ter aanduiding van de rechthebbenden met betrekking tot de merken en namen of ter aanduiding van hun producten. Dell Inc. claimt op geen enkele wijze enig eigendomsrecht ten aanzien van andere merken of handelsnamen dan haar eigen merken en handelsnamen.

Model PP05XA

Februari 2006

O/N ND243

Rev. A00

Inhoud

Informatie zoeken . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	29
De computer uitpakken en installeren . . . . . . . . . . . . . . . . . . . . .	33
Over de computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	34
Vooraanzicht . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	34
Linkerzijaanzicht . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	35
Rechterzijaanzicht . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	35
Achteraanzicht . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	36
Onderkant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	37
Batterijen gebruiken . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	38
Batterijprestatie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	38
De lading van de batterij controleren. . . . . . . . . . . . . . . . . . . .	39
De batterij opladen . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	41
De batterij vervangen . . . . . . . . . . . . . . . . . . . . . . . . . . . .	41
Een batterij opslaan. . . . . . . . . . . . . . . . . . . . . . . . . . . . .	42
Probleemwijzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	42
Vergrendelingen en softwareproblemen . . . . . . . . . . . . . . . . .	42
Dell Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	44
Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	47

Inhoud 27

28 Inhoud

Informatie zoeken

OPMERKING: Sommige kenmerken of media zijn optioneel en zijn misschien niet meegeleverd met deze computer. Sommige kenmerken of media zijn niet beschikbaar in bepaalde landen.

OPMERKING: Mogelijk werd er bij uw computer bijkomende informatie geleverd.

	Waar bent u naar op zoek?	Hier kunt u het vinden

	• Een diagnoseprogramma voor de computer	Drivers and Utilities CD (Stuuren hulpprogramma's-cd)
	• Stuurprogramma's voor de computer	(ook wel de Resource-cd)
	• Stuurprogramma's voor de computer	OPMERKING: De Drivers and Utilities CD (Stuuren
	• Documentatie over mijn computer	OPMERKING: De Drivers and Utilities CD (Stuuren
	• Documentatie over mijn computer	hulpprogramma's-cd) kan optioneel zijn en niet meegeleverd
	• Documentatie over dit apparaat	hulpprogramma's-cd) kan optioneel zijn en niet meegeleverd
	• Documentatie over dit apparaat	zijn met deze computer.
	• Notebook System Software (NSS)	zijn met deze computer.
	• Notebook System Software (NSS)	De documentatie en
		De documentatie en
		stuurprogramma's zijn
		reeds op de computer
		geïnstalleerd. U kunt de cd
		gebruiken om de
		stuurprogramma's
		opnieuw te installeren, of
		om de Dell Diagnostics
		(Dell-diagnose) (zie "Dell
		Diagnostics" op pagina 44)
		te starten.
		Mogelijk bevat de cd leesmij-bestanden met de laatst
		beschikbare informatie over technische wijzigingen aan de
		computer of geavanceerd technisch naslagmateriaal voor
		technici en gevorderde gebruikers.
		OPMERKING: Updates van de stuurprogramma's en
		documentatie vindt u op support.dell.com.

	• Garantie-informatie	DELL™ Productinformatiegids

•Algemene voorwaarden (alleen Verenigde Staten)

•Veiligheidsinstructies

•Informatie over regelgeving

•Ergonomische informatie

•Licentieovereenkomst voor eindgebruikers

Snelle Referentiegids

Waar bent u naar op zoek?	Hier kunt u het vinden

• Onderdelen verwijderen en vervangen	Dell Precision™ Handleiding
• Specificaties	Microsoft Windows XP Help en Support Center
• Systeeminstellingen configureren	1 Klik op Start→ Help and Support (Hulp en
• Problemen vaststellen en oplossen	ondersteuning)→ Dell User and System Guides (Dell
	Gebruikersen systeeminformatiehandleiding)→ System
	Guides (Systeeminformatiehandleiding).
	2 Klik op de Handleiding voor deze computer.

• Servicelabel en express-servicecode	Servicelabel en Microsoft® Windows® -licentie
• Microsoft Windows-licentielabel	Deze labels bevinden zich op de computer.

• Maak gebruik van het servicelabel om uw computer te identificeren als u gebruik maakt van support.dell.com of contact opneemt met de technische ondersteuning.

• Voer de expressservicecode in zodat uw telefonisch verzoek naar de juiste medewerker van de technische ondersteuning wordt doorgeleid.

30 Snelle Referentiegids

+ 114 hidden pages
