UPS OPERATING INSTRUCTIONS
PROTECT A.
PROTECT A. 1000
PROTECT A. 1400
2
Thank you for deciding to purchase the PROTECT A. UPS from AEG Power Solutions.
The following safety instructions are an important part of the operating instructions are will protect you against problems from operating errors and possible dangers. Please read these instructions carefully prior to commissioning!
3
1Notes on these Operating Instructions
Duty to provide information
These operating instructions will help you to install and operate the Uninterruptible Power Supply (UPS), PROTECT A. 1000 or PROTECT A. 1400 - referred to as PROTECT A. in this document - safely and properly, and for its intended purpose. These operating instructions contain important information for avoiding dangers.
Please read these instructions carefully prior to commissioning!
These operating instructions are a composite part of PROTECT A.
The owner of this unit is obliged to communicate the full content of these operating instructions to all personnel transporting or starting the PROTECT A. or performing maintenance or any other work on the unit, without the information having to be requested.
Validity
These operating instructions comply with the current technical specifications of PROTECT A. at the time of publication. The contents do not constitute subject matter of the contract, but serve for information purposes only.
Warranty and liability
We reserve the right to alter any specifications given in these operating instructions, especially with regard to technical data and operation, prior to start-up or as a result of service work.
Claims in connection with supplied goods must be submitted within one week of receipt, along with the packing slip. Subsequent claims cannot be considered.
The warranty does not apply for damage caused by noncompliance with these instructions (such damage also includes damage to the warranty seal). AEG will accept no liability for consequential damage. AEG will rescind all
4
obligations such as warranty agreements, service contracts, etc. entered into by AEG or its representatives without prior notice in the event of maintenance and repair work being carried out with anything other than original AEG parts or spare parts purchased from AEG.
Handling
PROTECT A. is designed and constructed so that all necessary steps for start-up and operation can be performed without any internal manipulation of the unit. Maintenance and repair work may only be performed by trained and qualified personnel.
Illustrations are provided to clarify and facilitate certain steps.
If danger to personnel and the unit cannot be ruled out in the case of certain work, it is highlighted accordingly by pictographs explained in the safety regulations of chapter 3.
Hotline
If you still have questions after having read these operating instructions, please contact your dealer or our hotline:
Tel.: |
+49 (0) 1805 234 787 |
Fax: |
+49 (0) 1805 234 789 |
Internet: |
www.AEGpartnerNet.com |
Copyright
No part of these operating instructions may be transmitted, reproduced and/or copied by any electronic or mechanical means without the express prior written permission of AEG.
© Copyright AEG 2009. All rights reserved.
5
Table of Contents
1 |
Notes on these Operating Instructions.............................. |
4 |
|
2 |
System Overview .............................................................. |
7 |
|
|
2.1 |
Brief Overview............................................................ |
7 |
|
2.2 |
Principle of Operation................................................. |
8 |
3 |
Safety .............................................................................. |
10 |
|
|
3.1 |
General Safety Instructions...................................... |
10 |
|
3.2 |
Safety Instructions for PROTECT A......................... |
10 |
|
3.3 |
CE Certificate ........................................................... |
14 |
|
3.4 |
Technical Data ......................................................... |
15 |
4 |
Set-up.............................................................................. |
17 |
|
|
4.1 |
Unpacking and Inspection........................................ |
17 |
|
4.2 |
Installation Site......................................................... |
18 |
|
4.3 |
Connections, Operating and Display Elements ....... |
19 |
5 |
Installation and Operation ............................................... |
20 |
|
|
5.1 |
Test .......................................................................... |
20 |
|
5.2 |
Installation ................................................................ |
20 |
|
5.3 |
Charging................................................................... |
21 |
|
5.4 |
Connecting the Load (e.g. computer) ...................... |
21 |
5.5RJ11 and RJ45 Data Line Protection
(Modem / Phone / Fax / Network) ................................ |
22 |
5.6Communication Connection, Connection
with USB or Serial Cable ......................................... |
22 |
|
5.7 Operation ................................................................. |
23 |
|
5.7.1 |
Normal Operation ............................................. |
23 |
5.7.2 |
Battery Operation / Autonomous Operation ..... |
24 |
5.7.3 |
System Diagnosis / Fault Test .......................... |
25 |
5.7.4 |
Shutdown and UPS Management Software ..... |
25 |
6
6 |
Displays and Troubleshooting......................................... |
26 |
|
|
6.1 |

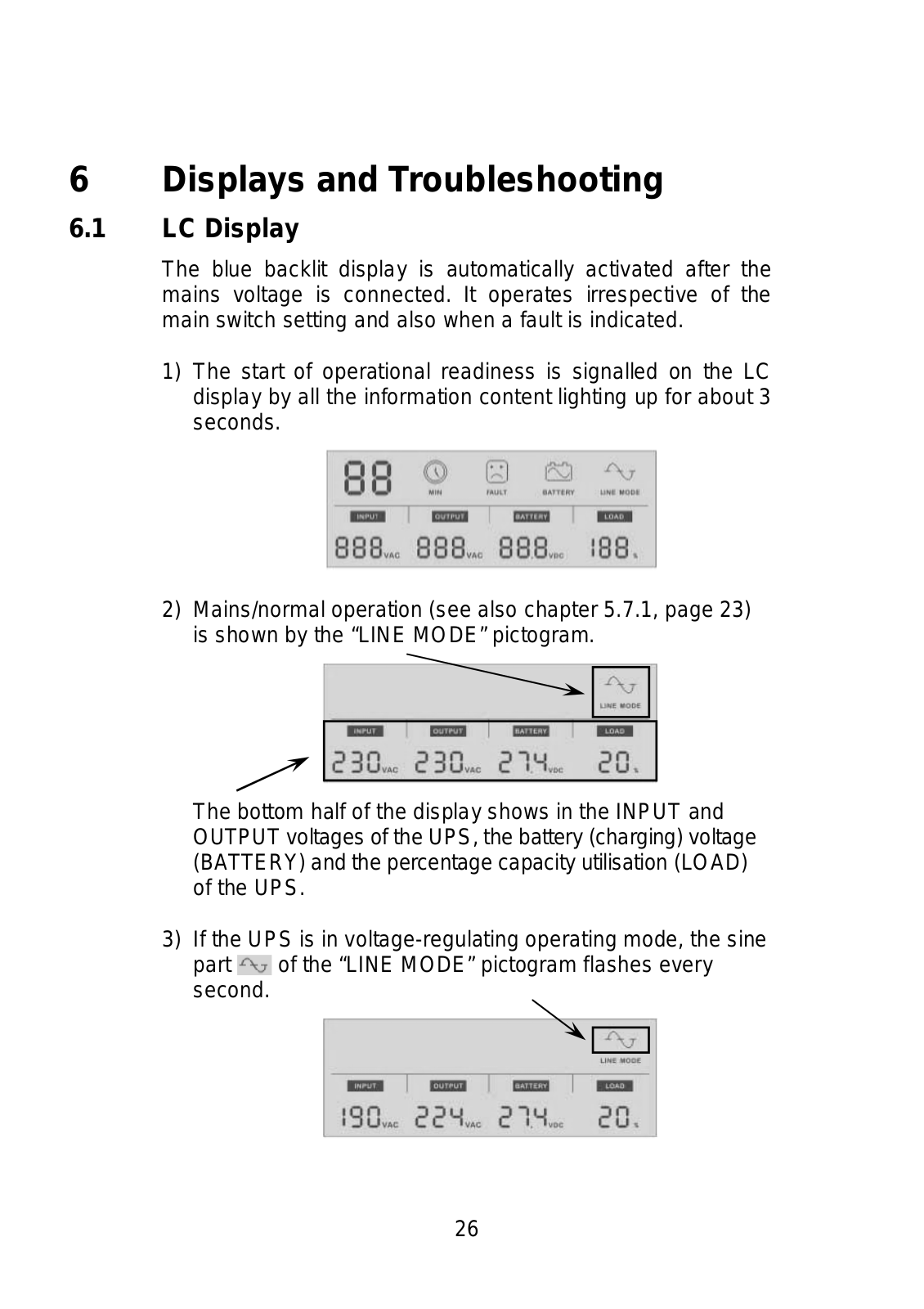

LC Display................................................................ |
26 |
|
6.2 |
Warning Sounds....................................................... |
29 |
|
6.3 |
General Troubleshooting and Fault Rectification..... |
29 |
7 |
Maintenance.................................................................... |
31 |
|
|
7.1 |
Battery Replacement................................................ |
32 |
8 |
Storage and Disposal ...................................................... |
34 |
|
9 |
List of Terms.................................................................... |
35 |
|
|
9.1 |
Technical Terminology............................................. |
35 |
2 System Overview
i |
PROTECT A. is an uninterruptible power supply |
|
(UPS) for essential loads such as PCs, workstations, |
||
|
||
|
relatively small-scale telecommunication equipment |
|
|
and similar devices. |
The PROTECT A. series is a compact, interactively operating UPS available with nominal power output ratings 500, 700, 1000 and 1400 VA.
This document describes both types, PROTECT A. 1000 and PROTECT A.1400.
2.1Brief Overview
The LED display and a pushbutton switch are located on the front of the UPS for straightforward monitoring and operation. The display unit clearly shows the various operating modes using simple pictograms and displays the voltage values and utilisation level of the UPS in numerical format. In addition, the remaining standby time in battery operation is shown in numerical format.
The connections for the mains and the loads are located on the rear of the PROTECT A., as are the communication interfaces and connections for telephone lines/ network cables.
7
Important UPS data is monitored permanently and transferred to the computer via USB or the RS232 interface and using the CompuWatch software.
Features of the PROTECT A.:
♦VI (line – interactive) protection technology
♦Automatic voltage regulation against mains voltage deviations (AVR)
♦Microprocessor control for high reliability
♦Modern battery management with integrated protection against exhaust. discharge and overloading
♦User-friendly LC display with optimum legibility
♦Intelligent monitoring system with USB and RS232 interfaces
♦Overvoltage protection (RJ11/RJ45) for fax, modem, phone and network
♦CompuWatch software for shutdown, status messages and measurement values for all major operating systems (incl. Windows, Mac, Linux)
♦Compact design
2.2Principle of Operation
The UPS is connected to a shockproof socket between the public utility’s mains and the loads to be protected.
Under normal operating conditions, i.e. if PROTECT A. is supplied with mains voltage, the battery charger will ensure that the batteries are always completely charged.
During this operating status, the loads connected to PROTECT A. are supplied with voltage via mains filters which provide effective protection against mains voltage peaks and high-frequency faults.
In case of sustained mains undervoltage or overvoltage within defined ranges, the automatic voltage regulator (AVR) further stabilises the load voltage. As a result, voltage fluctuations in the public utility’s mains are reduced to a level which is acceptable for the loads. This is performed without recourse to
8
the internal energy storage, something which in turn has a positive effect on battery availability.
Mains |
Line |
A. V. R. |
|
|
|
filter |
|
|
|
|
<![if ! IE]> <![endif]>Staticbypass |
<![if ! IE]> <![endif]>switch |
Load |
|
|
|
|||
|
|
|
||
|
Rectifier |
Inverter |
|
|
|
|
Battery |
|
|
UPS Block diagram PROTECT A.
The static bypass switch is activated in the event of a mains failure. The inverter then takes over the voltage supply of the connected loads, in order to prevent the risk of data loss or damage to the loads. PROTECT A. supplies voltage until the batteries are discharged or your IT system has been shut down and switched off properly.
The standby time mainly depends on the connected loads. If the mains power supply is back to normal values, the UPS will switch back the loads to mains supply. The battery charger will then recharge the batteries.
For safety reasons (as required by German standards, VDE), the mains input in the unit will be disconnected by a two-pole switch in the event of a mains failure. Energy backfeed to the mains and voltage supply to the pins of the mains connector are thus reliably avoided.
Furthermore, additional measures ensure effective protection for the data/network interface.
9
3 Safety
3.1General Safety Instructions
Read these operating instructions carefully prior to commissioning of the PROTECT A. UPS and observe the safety instructions!
Only use the unit if it is in a technically perfect condition and always in accordance with its intended purpose, while being aware of safety and danger aspects, and in accordance with the operating instructions! Immediately eliminate any faults that could be detrimental to safety.
The following pictograms are used in these operating instructions to identify dangers and important information:
|
Danger! |
|
Identifies risk of fatal injury to the operator. |
|
Attention! |
|
Identifies risk of injury and risk of damage to the |
|
device and parts of the device. |
i |
Information! |
Useful and important information for operating |
|
the UPS. |
3.2Safety Instructions for PROTECT A.
This chapter contains important instructions for the PROTECT A. UPS. These must be followed during assembly, operation and maintenance of the uninterruptible power supply and the batteries.
The UPS is live, and the voltage can be dangerous. The unit may only be opened by trained and qualified personnel. Repairs may only be carried out by qualified customer service staff!
10
The output may be live, even if the UPS is not connected to the mains supply, as the UPS has its own internal power supply (battery)!
For health and safety reasons, the unit must be earthed correctly!
PROTECT A. may only be operated with or connected to a 220 / 230 / 240 VAC mains with protective grounding using a mains connection cable with PE conductor (included in the delivery) that has been tested in accordance with German standards (VDE).
Risk of burning!
The battery has powerful short-circuit currents. Incorrect connection or isolation faults can lead to melting of the plug connections, sparking potential and severe burns!
The unit has a warning signal that sounds when the battery voltage of PROTECT A. is exhausted or when the UPS is not working in its normal mode.
Observe the following safety instructions to ensure permanent operational safety of and safe work with the UPS:
♦Do not dismantle the UPS!
♦(The UPS does not contain any parts that require regular maintenance. Bear in mind that the warranty will be invalidated if the unit is opened!)
♦Do not install the unit in direct sunshine or in close proximity of heaters!
♦The unit is designed to be installed inside in heated rooms. Never install the UPS in the vicinity of water or in an excessively damp environment!

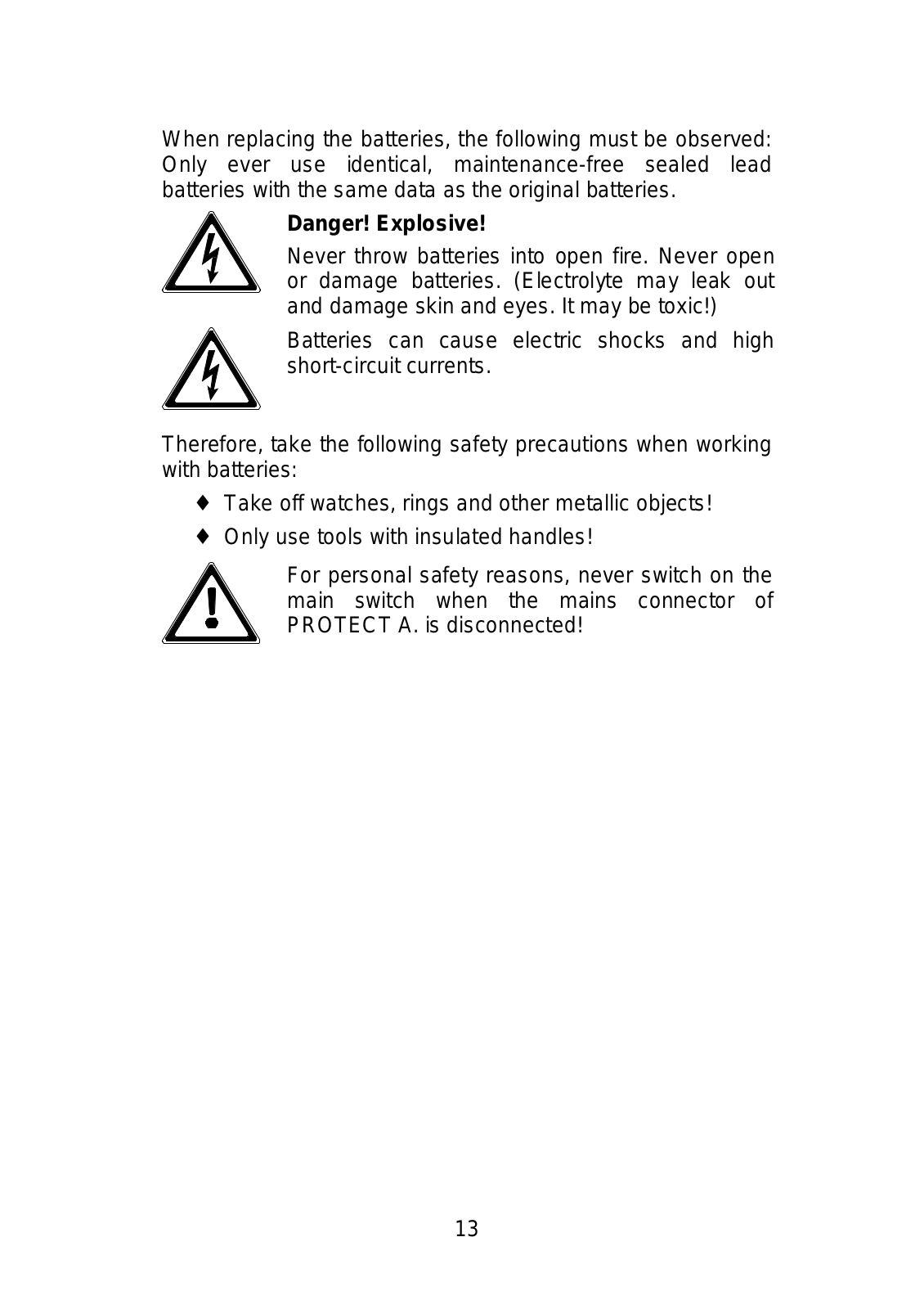

11
