1
1

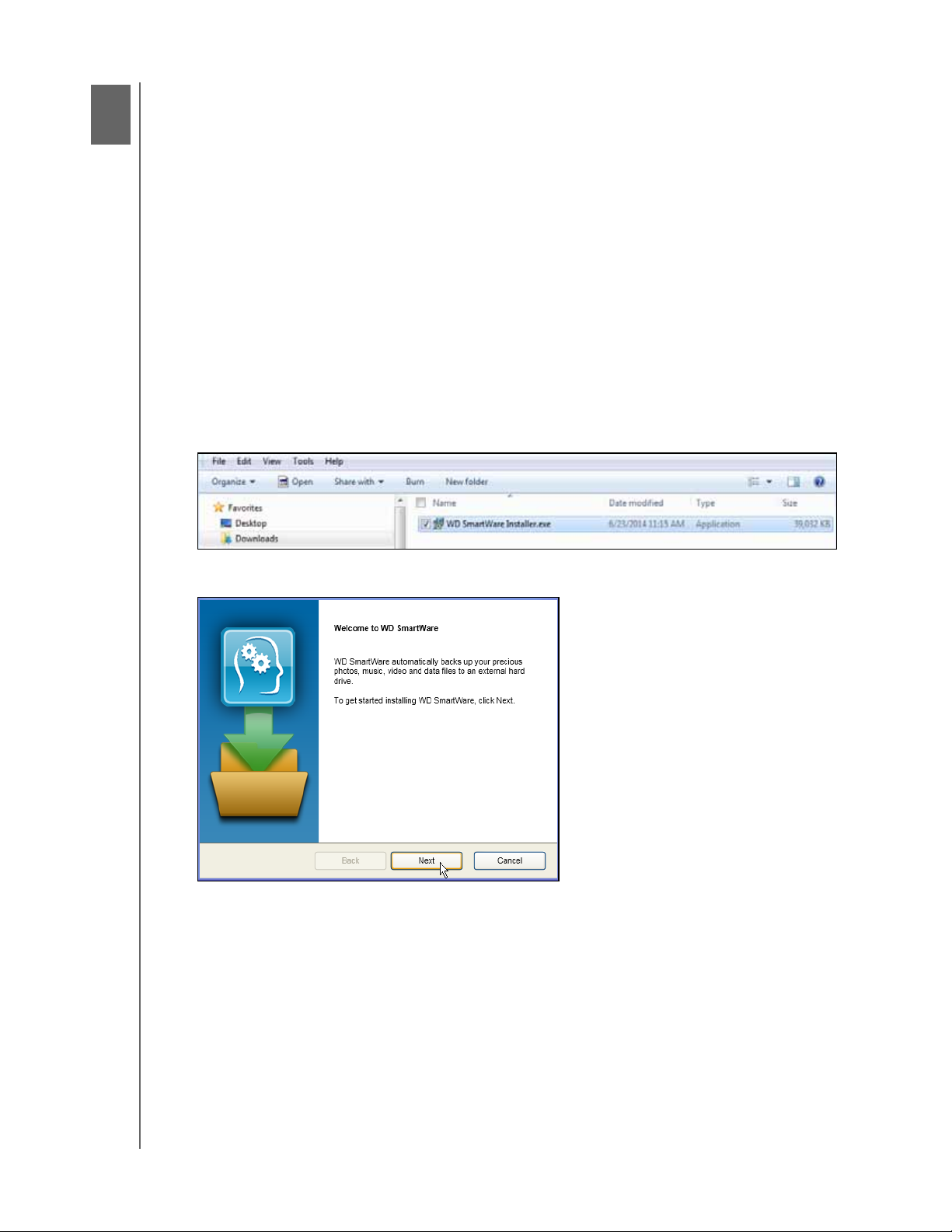

WD SMARTWARE SOFTWARE
USER MANUAL
WD SmartWare™ software is an easy-to-use backup application that gives you the power to:
Protect your data automatically—Continuous backup instantly makes a second copy whenever you add or change a file. Scheduled backups run on the days and times you select.
See your backup as it happens—Category-mode backup organizes and displays your files in categories. File-mode backup lets you select specific files and folders. Both show the progress of your backup.
Bring back lost files effortlessly—Easily retrieve your data whether you have lost everything, deleted a folder, or just overwritten an important file.
Take control—Customize your backup, run diagnostics, manage the power settings, and more for supported WD devices.
The WD SmartWare software provides the drive settings functions for older
My Book® and My Passport® drives. For newer drives, these functions are provided by the WD Drive Utilities™ software.
Secure your encryption-enabled WD drive—Password protection and 256-bit hardware-based encryption protects your data from unauthorized access or theft.
The WD SmartWare software provides the security functions for older My Book and My Passport drives. For newer drives, these functions are provided by the
WD Security™ software.
Upgrade to the WD SmartWare Pro software—Extend the backup function to nonWD drives, unsupported WD devices, and supported cloud services.
A Dropbox™ account is required for cloud backup. Cloud accounts can be changed, terminated, or interrupted without notice at any time.
The WD SmartWare software is compatible with the following Windows® operating systems:
Windows Vista®
Windows 7
Windows 8
Compatibility can vary, depending on hardware configuration and operating system. For highest performance and reliability, use the Windows Update service to download and install the latest updates and service pack (SP).
ABOUT THE WD SMARTWARE SOFTWARE – 1
WD SMARTWARE SOFTWARE
USER MANUAL
The WD SmartWare software supports the following directand network-attached WD external devices:
My Book® direct-attached drives
-My Book
-My Book Essential™
-My Book Elite™
-My Book Duo
-My Book for Mac (reformatted for Windows operating systems)
-My Book Studio™ (reformatted for Windows operating systems)
My Passport® direct-attached drives
-My Passport
-My Passport Essential™
-My Passport Essential SE
-My Passport Elite™
-My Passport Edge™
-My Passport Ultra™
-My Passport Ultra Metal Edition
-My Passport Slim™
-My Passport for Mac (reformatted for Windows operating systems)
-My Passport SE for Mac (reformatted for Windows operating systems)
-My Passport Edge for Mac (reformatted for Windows operating systems)
-My Passport Air (reformatted for Windows operating systems)
-My Passport Studio™ (reformatted for Windows operating systems)
Note: You must reformat Mac drives for compatibility with Windows operating systems to use them with this version of the WD SmartWare software. For information about reformatting your My Book or My Passport drive, see answer ID 3865 in the WD Knowledge Base at http://support.wd.com.
WD Network-attached devices
-My Book Live™
-My Book Live Duo
-WD My Cloud™
-WD My Cloud EX2
-WD My Cloud EX4
-WD My Cloud Mirror
-My Net™ N600
-My Net N750
-My Net N900
-My Net N900 Central
ABOUT THE WD SMARTWARE SOFTWARE – 2
WD SMARTWARE SOFTWARE
USER MANUAL
The WD SmartWare Pro software upgrade extends the backup function to:
Direct-attached non-WD drives (USB)
Unsupported WD devices
Supported cloud services
Upgrading to the WD SmartWare Pro software requires purchase of an activation code. Or you can upgrade for a free 30-day trial.
The upgraded WD SmartWare Pro software supports Dropbox cloud services.
All operational features and capabilities of the WD SmartWare software are presented in five tab-selected screen displays where:
The . . . tab display |
Provides . . . |
|
|
|
|
Home |
Device icons and content gauges showing the total capacity and |
|
category structure of the selected backup source device and each |
|
available backup target device. |
|
If the selected backup source device has more than one internal |
|
hard drive or multiple hard drive partitions, or if an available backup |
|
target device has multiple partitions or network shares, the |
|
WD SmartWare software displays a selector box that you can use |
|
to specify the one you want to work with. |
|
See “Home Tab Display” on page 4. |
|
|
Backup |
One of two backup dialogs, depending on the backup mode that |
|
you select: |
|
The by-category dialog provides content gauges showing the |
|
total capacity and category structure of the selected backup |
|
source and backup target devices. |
|
The by-file dialog provides a folder view of the selected backup |
|
source device for selecting the files and folders that you want |
|
to back up. |
|
See “Backup Tab Displays” on page 11. |
|
|
Retrieve |
Three full-screen dialogs for selecting the: |
|
Backed up volume that you want to retrieve files from |
|
Destination where you want to copy the retrieved files |
|
Files that you want to retrieve |
|
See “Retrieve Tab Displays” on page 15. |
|
|
|
(Continued) |
ABOUT THE WD SMARTWARE SOFTWARE – 3
|
WD SMARTWARE SOFTWARE |
|
USER MANUAL |
|
|
The . . . tab display |
Provides . . . |
|
|
|
|
Settings |
One of two dialogs, depending on the type and model of the |
|
selected backup target device: |
|
For most supported WD drives and network-attached devices, |
|
the Settings tab display provides buttons for displaying |
|
Software Settings and Drive Settings screens. |
|
For some supported WD drives, unsupported WD devices, and |
|
all non-WD drives, the Settings tab display provides only the |
|
Software Settings screen. |
|
See “Settings Tab Displays” on page 17. |
|
|
Help |
Instant access to: |
|
Detailed information about backing up and retrieving files and |
|
making your software and drive setup selections |
|
WD Customer Support services |
|
See “Help Tab Display” on page 20. |
|
|
In each display, the WD SmartWare software changes the names and graphic images to match the hardware configuration of the connected device.
Note: In addition to the detailed Help tab information, each WD SmartWare display provides easy access to online help to quickly guide you through your backup, retrieve, and settings tasks. Whenever you are uncertain about what to do, click the info/online help icon in the upper-right corner of the display:
To close the info/online help screen after reading the online help, click the X close window icon in the upper-right corner of the screen.
Use the Home tab display to view device content gauges and select:
The source device or drive partition that has the files you want to back up
The target device or device partition/network share that you want to back up files to, retrieve files from, or set up
See Figure 1 on page 5 and Table 1 on page 6 for a brief functional description of the Home tab display.
ABOUT THE WD SMARTWARE SOFTWARE – 4
WD SMARTWARE SOFTWARE USER MANUAL
Computer Icon |
Backup Source |
Selector |
Backup Source |
Device Selector |
Backup Source |
Content Gauge |
Figure 1. Home Tab Display
Backup Target
Device Icons
Activation Code
Required Icon
Backup Target
Content Gauges
ABOUT THE WD SMARTWARE SOFTWARE – 5
WD SMARTWARE SOFTWARE
USER MANUAL
Table 1. Home Tab Functional Description
Display Component |
Description |
Activation code required icon
Signifies that the device is either a non-WD device or an unsupported WD device that requires a valid activation code and upgrade to the WD SmartWare Pro software for access.

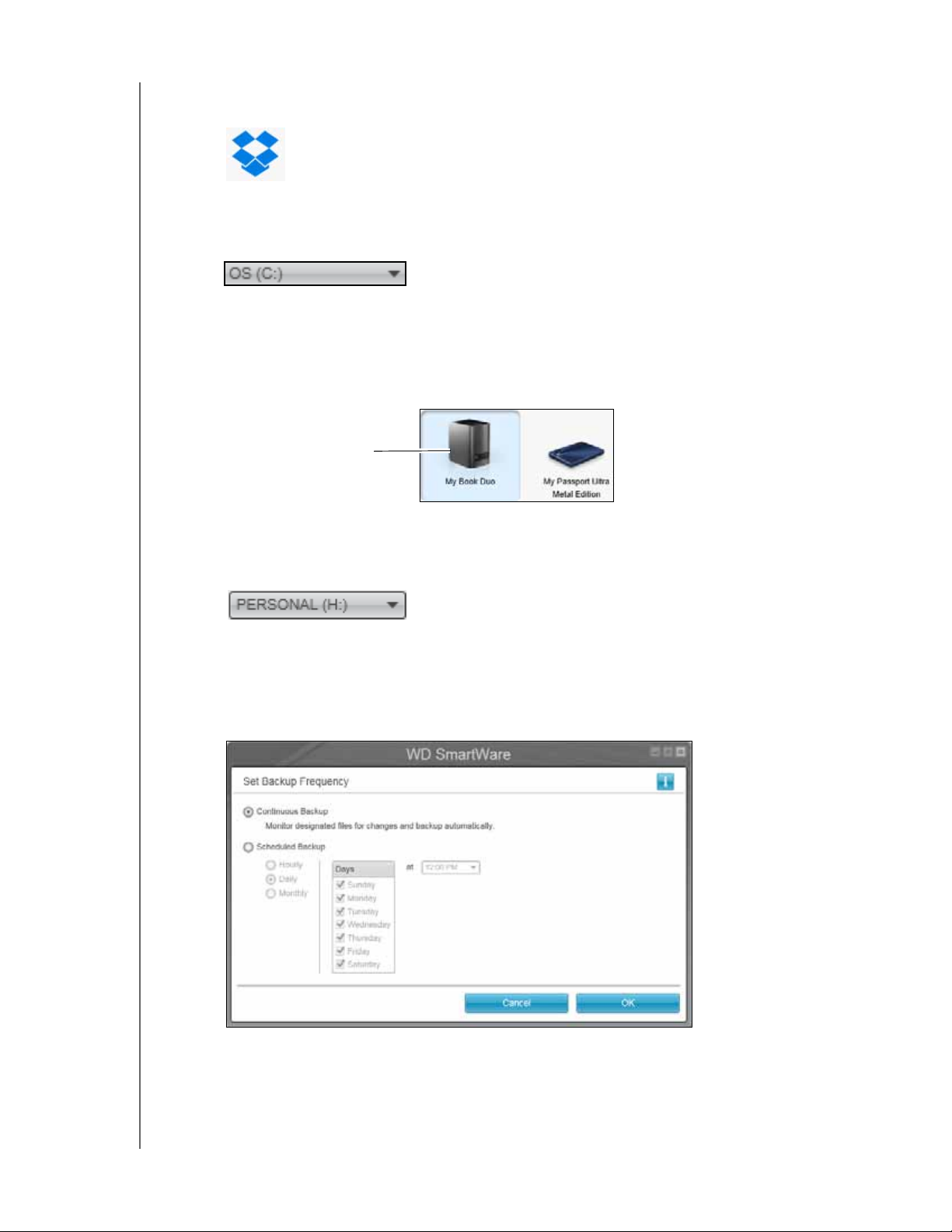

Backup source Dropbox Not shown in Figure 1 on page 5: icon
Signifies that you have selected the Dropbox option for backup operations.
Right-clicking the icon and selecting Select Account displays the Dropbox Login Required dialog for configuring your Dropbox account for access by the WD SmartWare Pro software:
Backup source computer |
Signifies that you have selected the computer option for backup |
icon |
operations and provides the name of the selected drive or drive |
|
partition. |
|
Right-clicking the icon displays a menu with the following options: |
Open—Displays the computer’s file management utility listing.
Properties—Displays the Windows System Properties dialog for the selected drive or drive partition.
(Continued)
ABOUT THE WD SMARTWARE SOFTWARE – 6
|
|
WD SMARTWARE SOFTWARE |
|
|
|
USER MANUAL |
|
Table 1. Home Tab Functional Description (Continued) |
|
|
|
|
|
|
|
Display Component |
Description |
|
|
|
|
|
|
|
|
||
Backup source content |
The content gauge for the selected backup source device shows all |
|
|
gauge |
of the files that are available for a category-type backup against a |
||
|
blue background in six categories where: |
||
|
This file category |
Includes files with these extensions |
|
|
Documents |
.doc, .txt, .htm, .html, .ppt, .xls, .xml, and |
|
|
|
other document extensions |
|
|
.mail, .msg, .pst., and other mail extensions |
||
|
Music |
.mp3, .wav, .wma, and other music |
|
|
|
extensions |
|
|
Movies |
.avi, .mov, .mp4, and other movie |
|
|
|
extensions |
|
|
Pictures |
.gif, .jpg, .png, and other picture extensions |
|
|
Other |
Others that do not belong in the five main |
|
|
|
categories |
|
|
For a complete list of all included file extensions, search for answer |
||
|
ID 3644 in the WD Knowledge Base at http://support.wd.com. |
||
|
Note that: |
|
|
|
The System category, shown against a dark gray background, |
||
|
includes all of your operating system files that are not available |
||
|
for a category-type backup, including: system files, program |
||
|
files, applications, working files like .tmp and .log files, and any |
||
|
files that are stored in a Temp folder. |
||
|
When you select and run a file-type backup, the name of the |
||
|
System category changes to Excluded and it then includes all of |
||
|
the files that are not included in your file backup. |
||
|
The Retrieved category, also shown against a dark gray |
||
|
background, includes the files that you have retrieved from a |
||
|
prior backup. They, too, are not available for a category-type |
||
|
backup. |
|
|
|
Because they change so frequently, Outlook .pst files are only |
||
|
backed up once every 24 hours for a continuous backup. This |
||
|
exclusion does not apply to other mail application files. For a |
||
|
scheduled backup, Outlook .pst files are backed up according |
||
|
to the schedule. |
|
|
|
Hovering the pointer over a category displays the number of |
||
|
files in the category. |
|
|
|
|
|
|
Backup source device |
When the computer option is selected, lists all of your computer’s |
||
selector |
internal hard drives, hard drive partitions, and direct-attached drives |
||
|
that are available as a backup source device. |
||
|
|
|
|
|
|
(Continued) |
ABOUT THE WD SMARTWARE SOFTWARE – 7
|
WD SMARTWARE SOFTWARE |
|
|
USER MANUAL |
|
Table 1. Home Tab Functional Description (Continued) |
||
|
|
|
Display Component |
Description |
|
|
|
|
|
|
|
Backup source selector |
Provides options for selecting the type of source device you want to |
|
|
back up: |
|
|
Selecting the computer option displays your computer icon and |
|
|
lists all of your computer’s internal hard drives, hard drive |
|
|
partitions, and direct-attached drives in the device selector. |
|
|
Selecting the Dropbox option displays the Dropbox icon and |
|
|
hides the backup source device selector. |
|
|
|
|
Backup target content |
After installing the WD SmartWare software—before running your |
|
gauge |
first backup or copying any files to the device—the backup target |
|
|
content gauge shows only a small number of files in the Additional |
|
|
Files category. These are the system files and hidden files that your |
|
|
computer’s operating system put there when you installed the |
|
|
device. |
|
|
After running a backup or copying files to the device, the backup |
|
|
target content gauge shows: |
|
|
All of the files that have been backed up in the same categories |
|
|
as the content gauge for the backup source device (see |
|
|
“Backup source content gauge” on page 7) |
|
|
Any other files that you have copied or saved to the device in |
|
|
the Additional Files category |
|
|
|
|
|
(Continued) |
ABOUT THE WD SMARTWARE SOFTWARE – 8
|
|
|
|
WD SMARTWARE SOFTWARE |
||
|
|
|
|
USER MANUAL |
||
Table 1. Home Tab Functional Description (Continued) |
||||||
|
|
|
|
|
|
|
Display Component |
|
Description |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Backup target device icon |
|
Provides the name of the backup target device connected to your |
|
|||
|
|
computer. |
||||
|
|
If you have more than one supported device connected to your |
||||
|
|
computer, left-click the one that you want to use for backup and |
||||
|
|
retrieve functions. The WD SmartWare software highlights your |
||||
|
|
selection with a light-blue background: |
||||
|
|
Selected My Book Drive |
|
|
||
|
|
|
|
|||
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Right-clicking a direct-attached drive icon displays a menu with the |
||||
|
|
following options: |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Open—Displays the device listing in your computer’s file management utility
Properties—Displays the Windows Drive Properties dialog
Safely remove—Prepares your system to disconnect the drive
The Safely remove option is not available for non-WD drives.
Right-clicking a network-attached device icon displays a menu with the following options:
Open—Displays the device listing in your computer’s file management utility
Dashboard—Displays the Web interface for configuring the device
Map—Displays the Windows Map Network Drive dialog
Create Shortcut—Adds a shortcut to the device to your desktop display
Alerts—Displays the WD SmartWare WD Alerts reports
Properties—Displays the Device Details and Troubleshooting information for the device
If you have upgraded to the WD SmartWare Pro software, rightclicking the Dropbox icon displays a link to the Dropbox login Required Dialog for configuring your Dropbox account for access by the WD SmartWare Pro software.
(Continued)
ABOUT THE WD SMARTWARE SOFTWARE – 9
WD SMARTWARE SOFTWARE
USER MANUAL
Table 1. Home Tab Functional Description (Continued)
Display Component |
Description |
|||
|
|
|
|
|
|
|
|
|
|
Backup target device |
Not shown in Figure 1 on page 5: |
|||
selector |
|
|
|
|
|
The backup target device selector appears under the icon for each |
|||
|
supported backup target device that has more than one drive |
|||
|
partition or network share. The drive partition or network share that |
|||
|
you select is the target for subsequent backup operations and the |
|||
|
source for subsequent retrieve operations. |
|||
|
|
|
|
|
Device display scroll |
Not shown in Figure 1 on page 5. |
|||
pointers |
One installation of the WD SmartWare software supports as many |
|||
|
||||
|
external devices as your system can handle. When the number of |
|||
|
connected devices exceeds the display capacity, the |
|||
|
WD SmartWare software displays left/right device display scroll |
|||
|
pointers so you can see them all: |
|||
|
|
|
|
|
|
|
|
|
|
Scroll Pointers

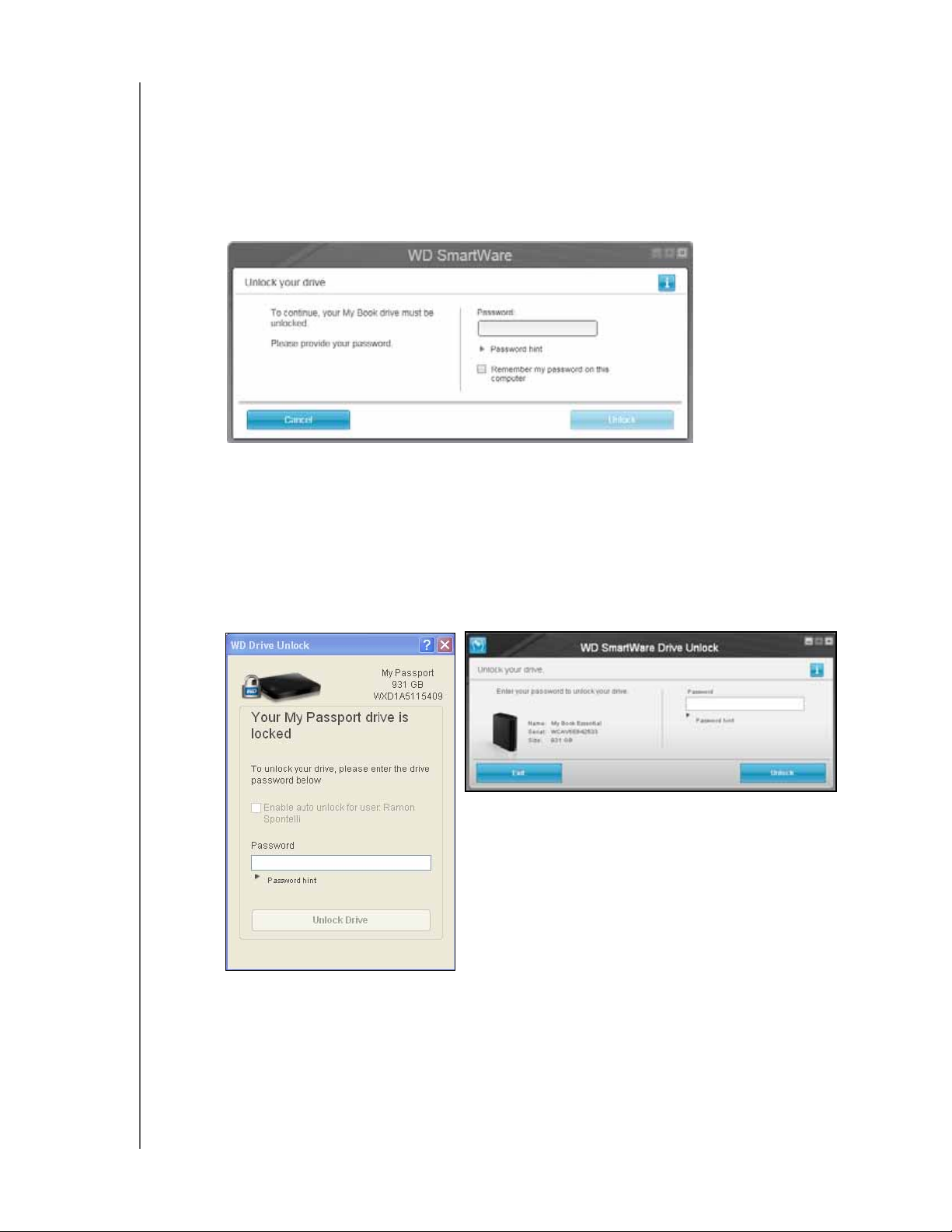

Device locked icon |
Not shown in Figure 1 on page 5: |

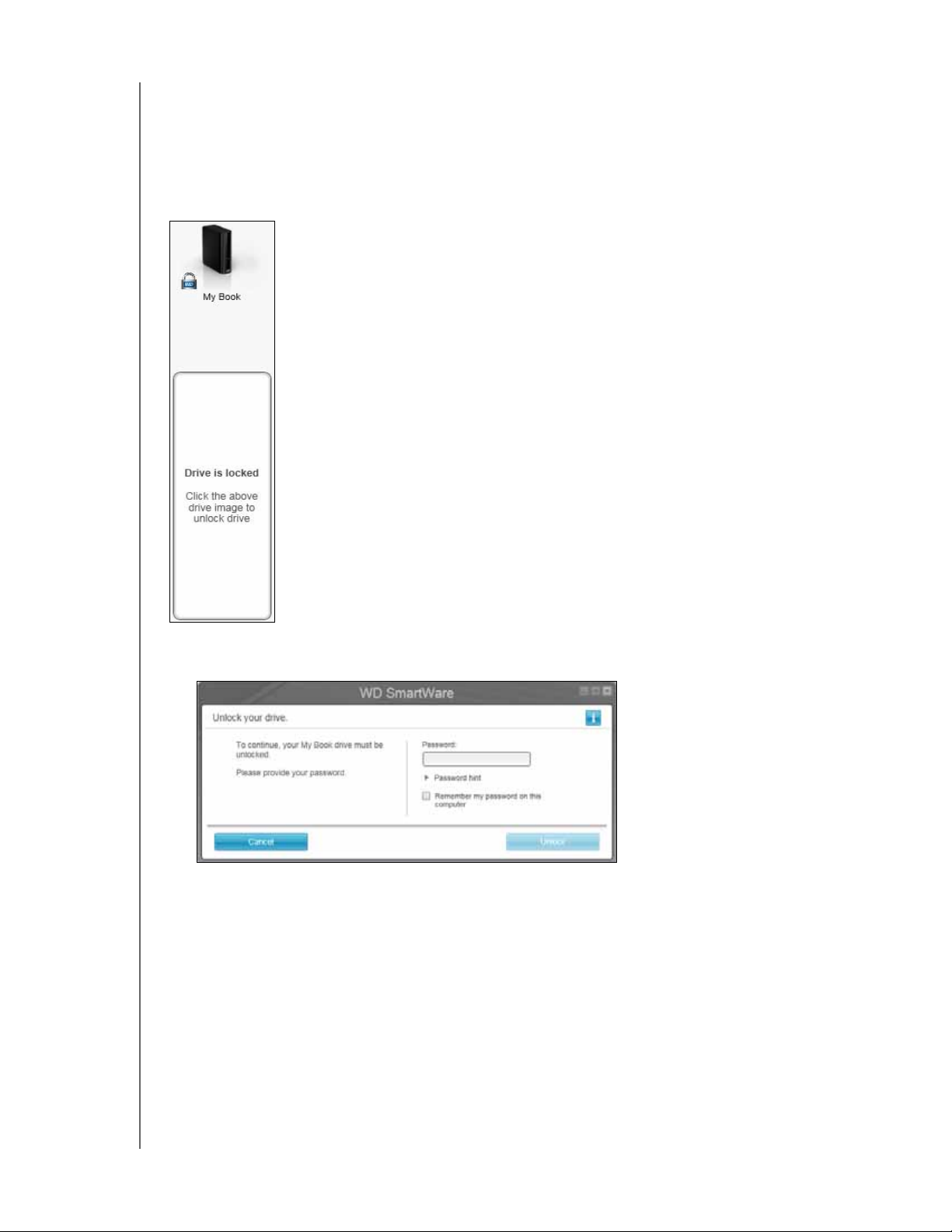

Signifies that the device is password protected and locked.

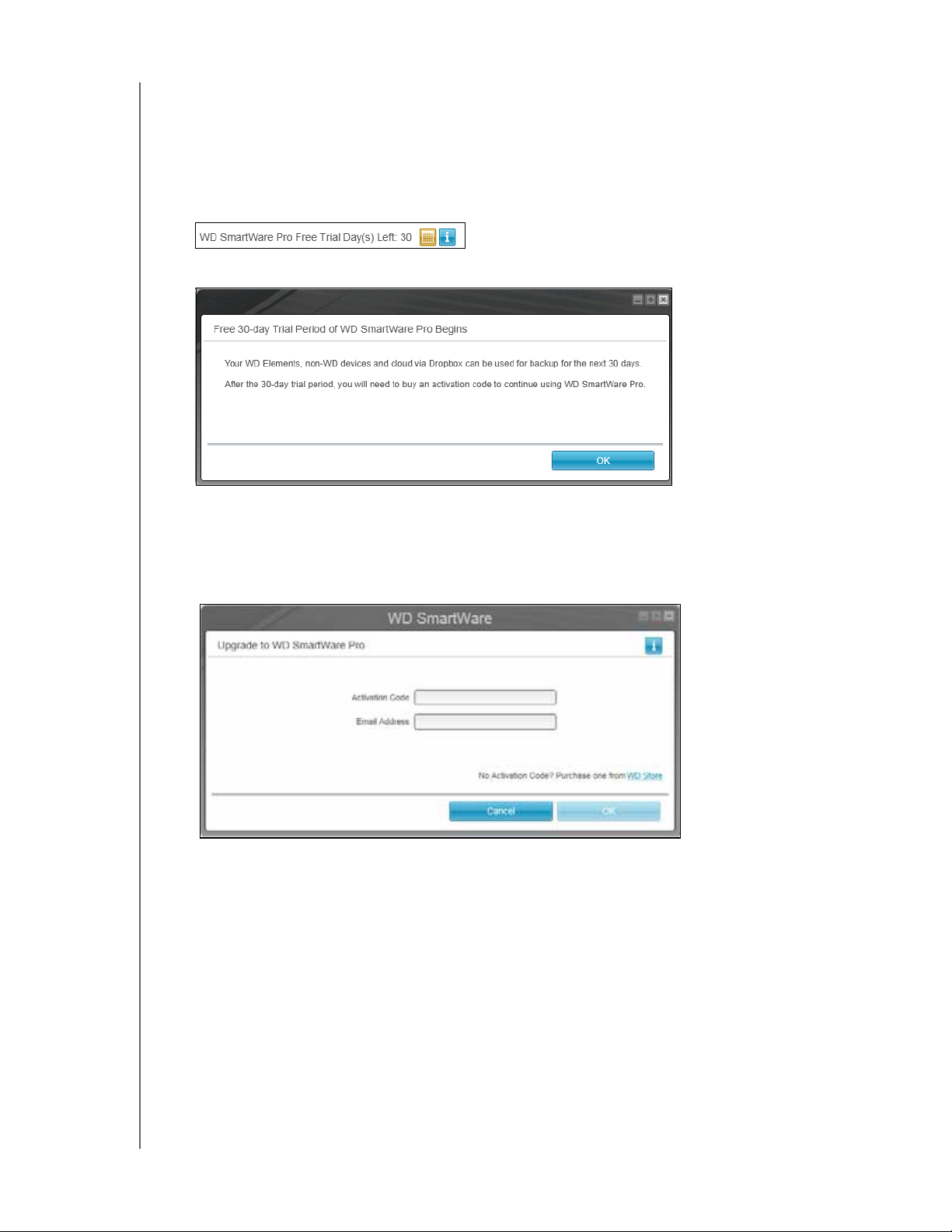

Free-trial countdown icon Not shown in Figure 1 on page 5:
Signifies that non-WD devices, unsupported devices, or cloud services are being accessed by a 30-day free trial of the
WD SmartWare Pro software upgrade.
No writable partition icon Not shown in Figure 1 on page 5:
Appears when the WD SmartWare software cannot find a valid volume or share on the device. You must configure the device before you can select it for WD SmartWare backup and retrieve functions.
(Continued)
ABOUT THE WD SMARTWARE SOFTWARE – 10
|
WD SMARTWARE SOFTWARE |
|
|
USER MANUAL |
|
Table 1. Home Tab Functional Description (Continued) |
||
|
|
|
Display Component |
Description |
|
|
|
|
|
|
|
Upgrade to WD SmartWare |
Appears in the upper-right corner of each WD SmartWare tab |
|
Pro software button |
display to remind you of the WD SmartWare Pro software upgrade: |
Clicking the button displays a dialog for buying and activating the
WD SmartWare Pro software upgrade or starting a free 30-day trial.

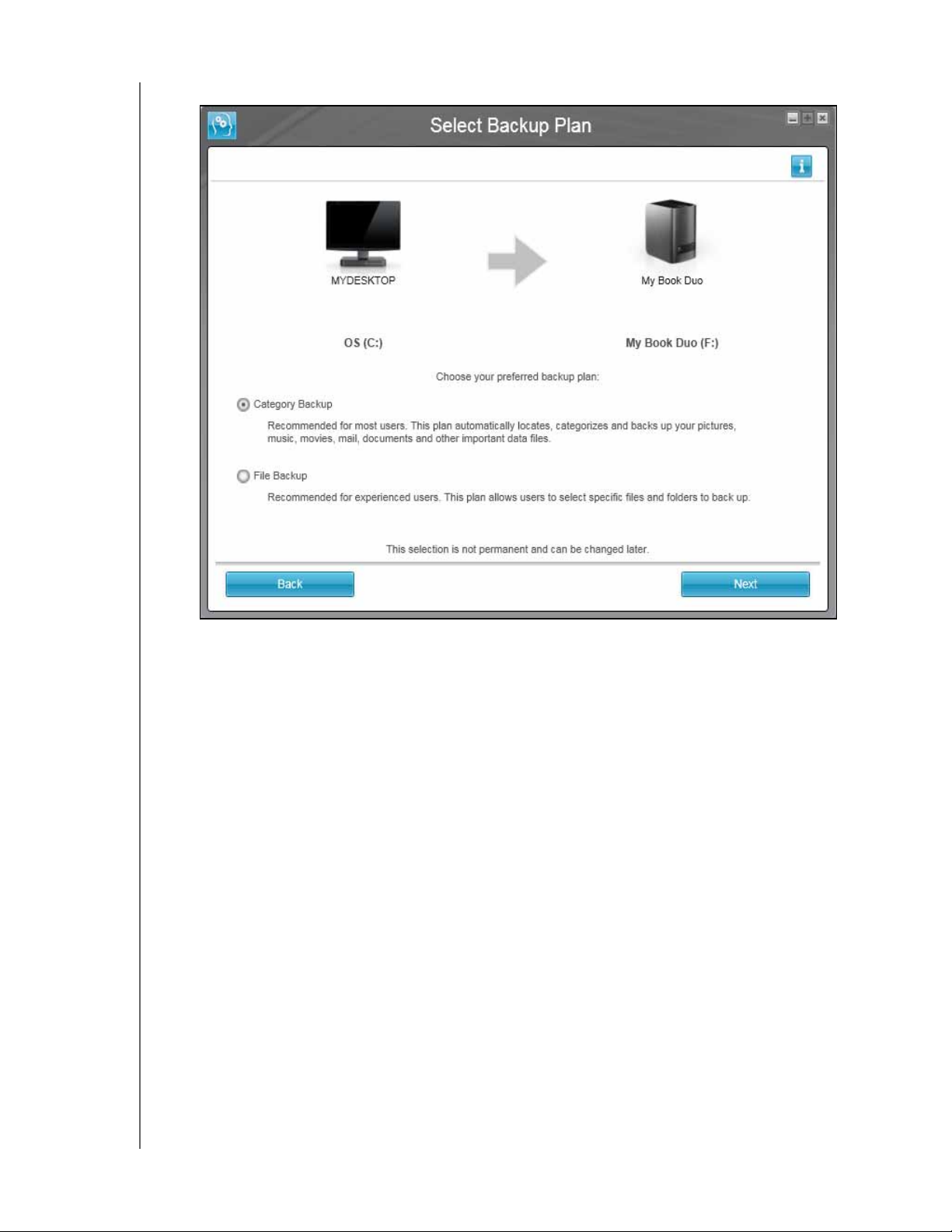

The WD SmartWare software provides two different Backup tab displays, depending on how you want to select files to back up:
By category—As shown in the content gauges
By file—As shown in the folder structure of the selected backup source device
Use the Backup tab displays to select the files or categories of files that you want to back up and control the backup operation.
See Figure 2 on page 12 and Table 2 on page 13 for a brief functional description of the Backup tab displays.
ABOUT THE WD SMARTWARE SOFTWARE – 11
WD SMARTWARE SOFTWARE
USER MANUAL
Backup by Category Display |
Backup by Files Display |
|
|
||
Backup Source |
Advanced Backup Area |
Backup Target |
|||
Content Gauge |
|||||
|
Content Gauge |
||||
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
Category/File Backup |
Set Backup Frequency |
Enable/Disable Backup |
|
Toggle Button |
Button |
||
Toggle Button |
|||
|
|
||
Figure 2. Backup Tab Displays |
|
|
ABOUT THE WD SMARTWARE SOFTWARE – 12
|
|
WD SMARTWARE SOFTWARE |
|
|
|
USER MANUAL |
|
Table 2. Backup Tab Functional Description |
|||
|
|
|
|
Display Component |
Description |
||
|
|
|
|
|
|
|
|
Advanced backup area |
In category mode, the initial/default configuration of the |
|
|
|
WD SmartWare software is to back up all categories of your files. In |
||
|
this configuration, the advanced backup area is blank. |
||
|
Clicking Advanced View displays a backup files selection box that |
||
|
you can use to specify the categories of files that you want to back |
||
|
up: |
||
|
|
|
|
|
|
|
|
Clicking Apply Changes in the backup files selection box creates a custom backup plan and updates the content gauges.
Clicking Switch to File Backup displays a folder structure view that you can use to specify individual files or folders that you want to back up:
Note: The folder structure view displaces the backup source device content gauge on the Backup tab display.
In file mode, the initial/default configuration of the WD SmartWare software is with none of the files/folders selected for backup. After selecting the files or folders that you want to back up, clicking:
Apply Changes creates a custom backup plan using your recent selections
Revert clears your recent selections and redisplays the prior applied configuration
(Continued)
ABOUT THE WD SMARTWARE SOFTWARE – 13
WD SMARTWARE SOFTWARE
USER MANUAL
Table 2. Backup Tab Functional Description (Continued)
Display Component |
Description |
Backup schedule reminder Not shown in Figure 2 on page 12: button
|
For scheduled backups, clicking the button displays a status dialog |
|
that: |
|
Shows the date and time of your next scheduled backup, the |
|
last backup that might have been missed, and the last |
|
completed backup |
|
Provides a Backup Now button for bypassing the schedule and |
|
running the backup now |
|
|
Backup source content |
Same as the content gauge for the selected backup source device |
gauge |
on the Home tab display. (See “Backup source content gauge” on |
|
page 7.) |
|
|
Backup target content |
Same as the content gauge for the selected backup target device |
gauge |
on the Home tab display. (See “Backup target content gauge” on |
|
page 8.) |
|
|
Category/File Backup |
Switches the backup mode between category and file: |
toggle button |
Category mode—Backs up files according to their categories, |
|
|
|
as shown in the content gauges. |
|
The button name is Switch to File Backup when the backup |
|
mode is category. |
|
File mode—Backs up files according to their folder structure on |
|
the selected backup source drive. |
|
The button name is Switch to Category Backup when the |
|
backup mode is file. |
|
|
Enable/Disable Backup |
Starts and stops the backup. |
toggle button |
|
|
|
Set Backup Frequency |
Opens the Set Backup Frequency dialog for selecting either |
button |
continuous or scheduled backups. A continuous backup runs all the |
|
time. A scheduled backup runs only on specified days at specified |
|
times. |
|
|
Upgrade to WD SmartWare |
Appears in the upper-right corner of each WD SmartWare tab |
Pro software button |
display to remind you of the WD SmartWare Pro software upgrade: |
Clicking the button displays a dialog for buying and activating the
WD SmartWare Pro software upgrade or starting a free 30-day trial.
ABOUT THE WD SMARTWARE SOFTWARE – 14
WD SMARTWARE SOFTWARE
USER MANUAL
Three Retrieve tab displays guide you through finding backup files and copying them to the selected retrieve location:
Selecting the backup volume to retrieve from
Selecting the destination for retrieved files
Selecting the files to retrieve
See Figure 3 below and Table 3 on page 16 for a brief functional description of the Retrieve tab displays.
Backed Up Volumes Selection Box
Select a Volume to Retrieve From Display
Retrieve Destination Option Buttons
Change Retrieve Folder Box
and Browse Button
Select a Destination for Retrieved Files Display
Retrieve Files Option Buttons
Retrieve Some Files Selection Box
Start/Cancel Retrieving
Toggle Button
Select Content to Retrieve Display
Figure 3. Retrieve Tab Displays
ABOUT THE WD SMARTWARE SOFTWARE – 15
|
WD SMARTWARE SOFTWARE |
||
|
|
USER MANUAL |
|
Table 3. Retrieve Tab Functional Description |
|||
|
|
|
|
Display Component |
Description |
||
|
|
|
|
|
|
|
|
Backed Up Volumes |
Lists the backed up volumes that are available to retrieve files from |
|
|
selection box |
on the selected backup target device. |
||
|
You must select a backup volume before you can click Next to |
||
|
continue with the retrieve operation. |
||
|
|
|
|
Change retrieve folder box |
By default, the WD SmartWare software creates and uses a folder |
||
and browse button |
named Retrieved Contents in the My Documents folder for your |
||
|
user name. If you want to specify a different folder, use the Browse |
||
|
function and click Apply. |
||
|
|
|
|
Retrieve destination |
Specify where you want to copy the retrieved files. Selecting: |
||
option buttons |
To the Original Places copies the retrieved files to the same |
||
|
|||
|
locations they were backed up from. |
||
|
To a Retrieved Content Folder copies the retrieved files to the |
||
|
specified Retrieved Content folder. |
||
|
|
|
|
Retrieve files option |
By default, the Retrieve Some Files option is selected and the |
||
buttons |
WD SmartWare software displays the Retrieve Some Files |
||
|
selection box that you can use to find and retrieve only selected |
||
|
files or folders. |
||
|
Selecting the Retrieve All Files option closes the Retrieve Some |
||
|
Files selection box and the WD SmartWare software retrieves all of |
||
|
the files from the selected backup volume on the selected backup |
||
|
target device. |
||
|
|
|
|

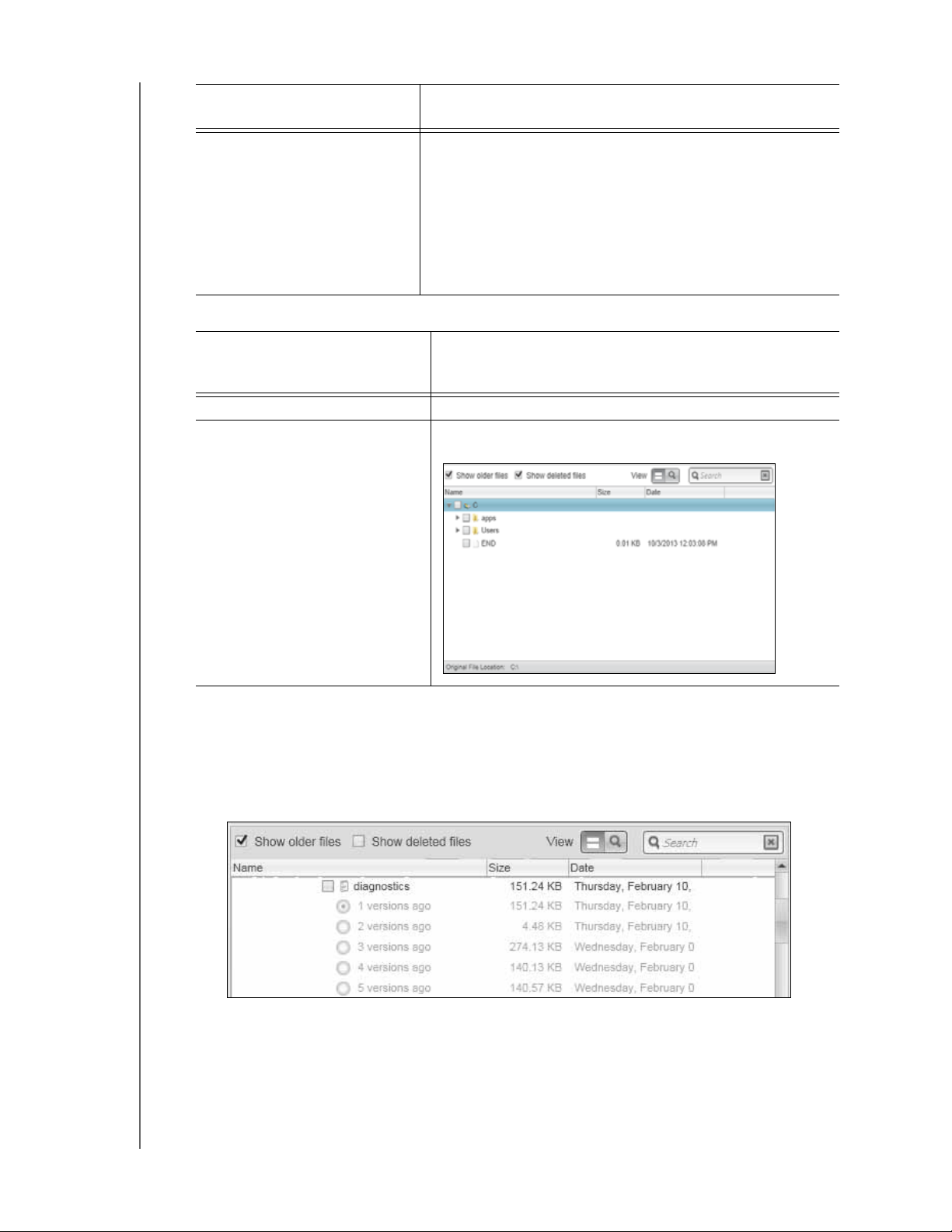

Retrieve Some Files |
Displays all of the files from the selected backed up volume in a |
||
selection box |
folder structure with check boxes for selecting individual files or |
||
|
folders: |
||
|
|
|
|
|
|
|
|
Start/Cancel Retrieving |
Starts and stops the retrieve operation. |
toggle button |
|
|
|
Upgrade to |
Appears in the upper-right corner of each WD SmartWare tab |
WD SmartWare Pro |
display to remind you of the WD SmartWare Pro software upgrade: |
software button |
|
Clicking the button displays a dialog for buying and activating the
WD SmartWare Pro software upgrade or starting a free 30-day trial.
ABOUT THE WD SMARTWARE SOFTWARE – 16
WD SMARTWARE SOFTWARE
USER MANUAL
The configuration of the Settings tab displays depends on the type and model of the selected backup target device:
For most supported WD drives and network-attached devices, the Settings tab display provides buttons that link to the:
-Software Settings screen
-Drive Settings screen for direct-attached WD drives
-Web user interface for network-attached WD devices
For WD drives that support the WD Security and WD Drive Utilities software, and all non-WD drives, the Settings tab displays only the Software Settings screen.
See Figure 4 on page 18 and Table 4 on page 19 for a brief functional description of the Settings tab displays.
ABOUT THE WD SMARTWARE SOFTWARE – 17
WD SMARTWARE SOFTWARE
USER MANUAL
Settings Tab Display
Software Settings Screen |
Drive Settings Screen |
Figure 4. Settings Tab Displays
ABOUT THE WD SMARTWARE SOFTWARE – 18
|
WD SMARTWARE SOFTWARE |
|
|
USER MANUAL |
|
Table 4. Settings Tab Functional Description |
||
|
|
|
Display Component |
Description |
|
|
|
|
|
|
|
Diagnostics button |
Displays the Run Diagnostics dialog for launching diagnostic/self- |
|
|
test utilities for checking drive health. |
|
|
|
|

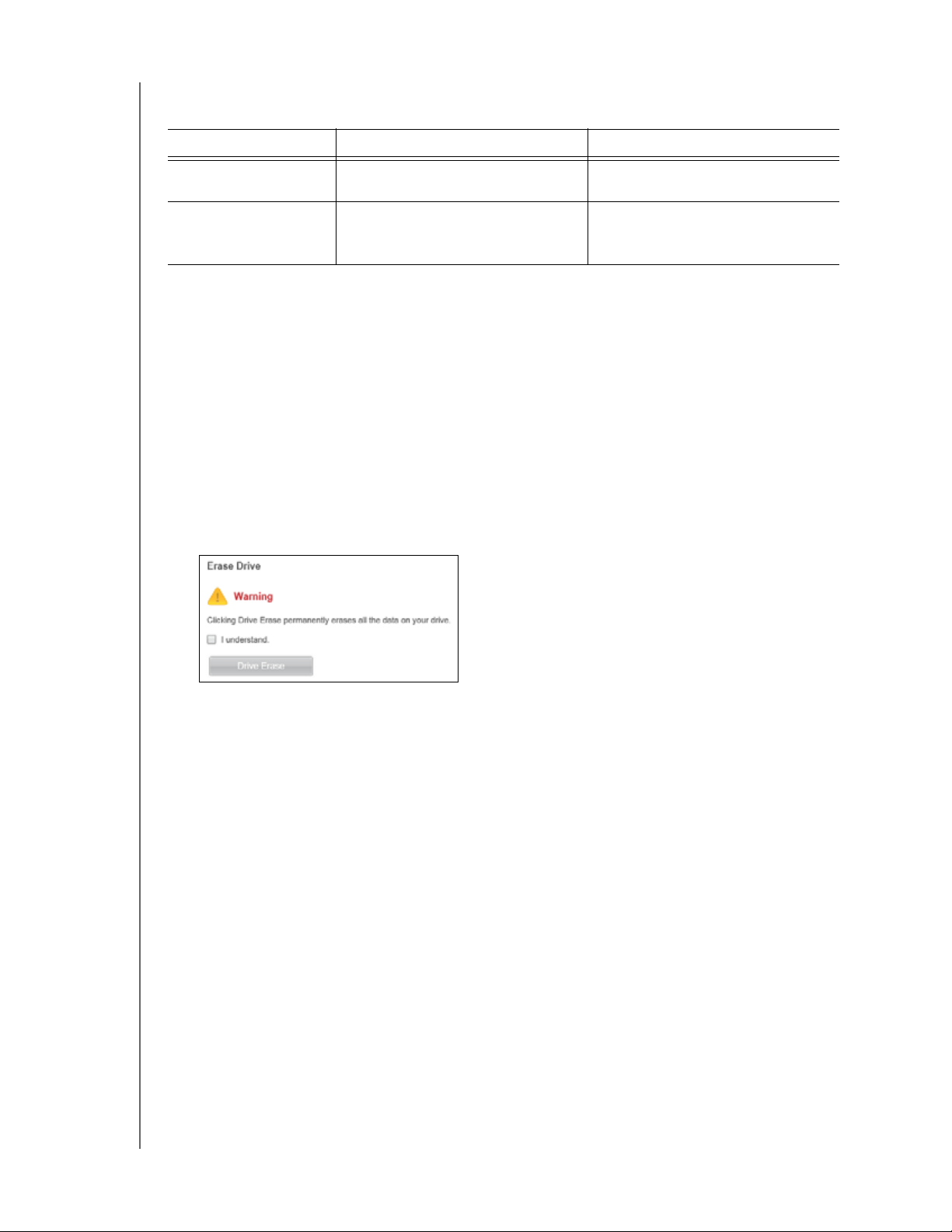

Drive Erase button |
Displays the Drive Erase dialog for erasing the drive when it is not |
|
|
locked. |
|
|
|
|
Dropbox Account button |
Displays the dialog for configuring a Dropbox account for access by |
|
|
the WD SmartWare Pro software. |
|
|
|
|
File History button |
Displays the Set File History dialog for specifying the number of |
|
|
backup versions that you want to keep for each file. |
|
|
|
|
Label button |
Not shown in Figure 4 on page 18. |
|
|
For My Book and My Passport drives that have a customizable |
|
|
label, displays the Set Label dialog for naming the drive. |
|
|
|
|
Registration button |
Displays the Register Drive dialog for registering supported WD |
|
|
drives. |
|
|
|
|

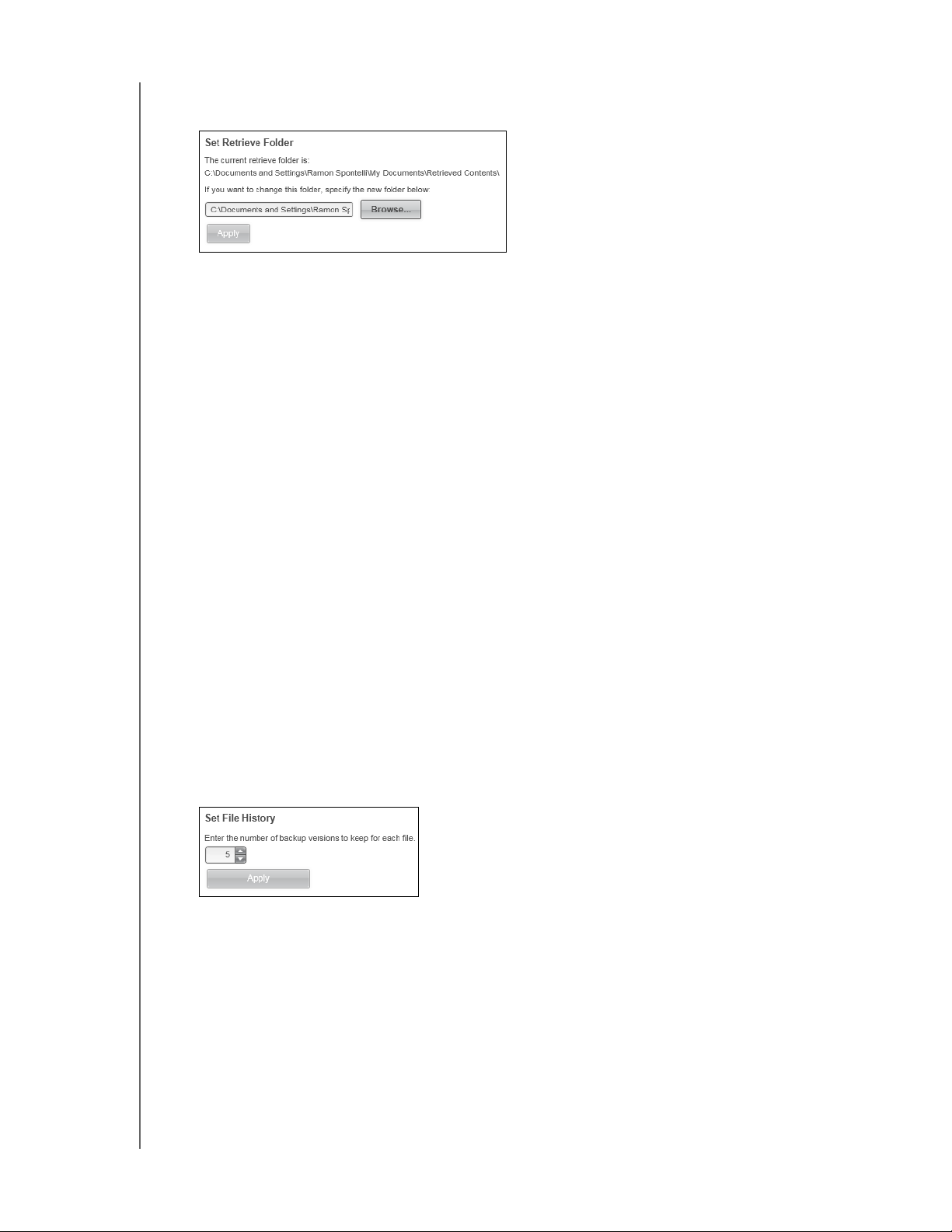

Retrieve Folder button |
Displays the Set Retrieve Folder dialog for specifying a different |
|
|
destination folder for retrieved files. |
|
|
|
|
Security button |
For encryption-enabled WD drives, depending on whether the drive |
|
|
is password protected or not, displays the: |
|
|
Set Security dialog for creating a password |
|
|
Your Drive is Secure dialog for changing your password or |
|
|
turning off the drive lock feature |
|
|
|
|

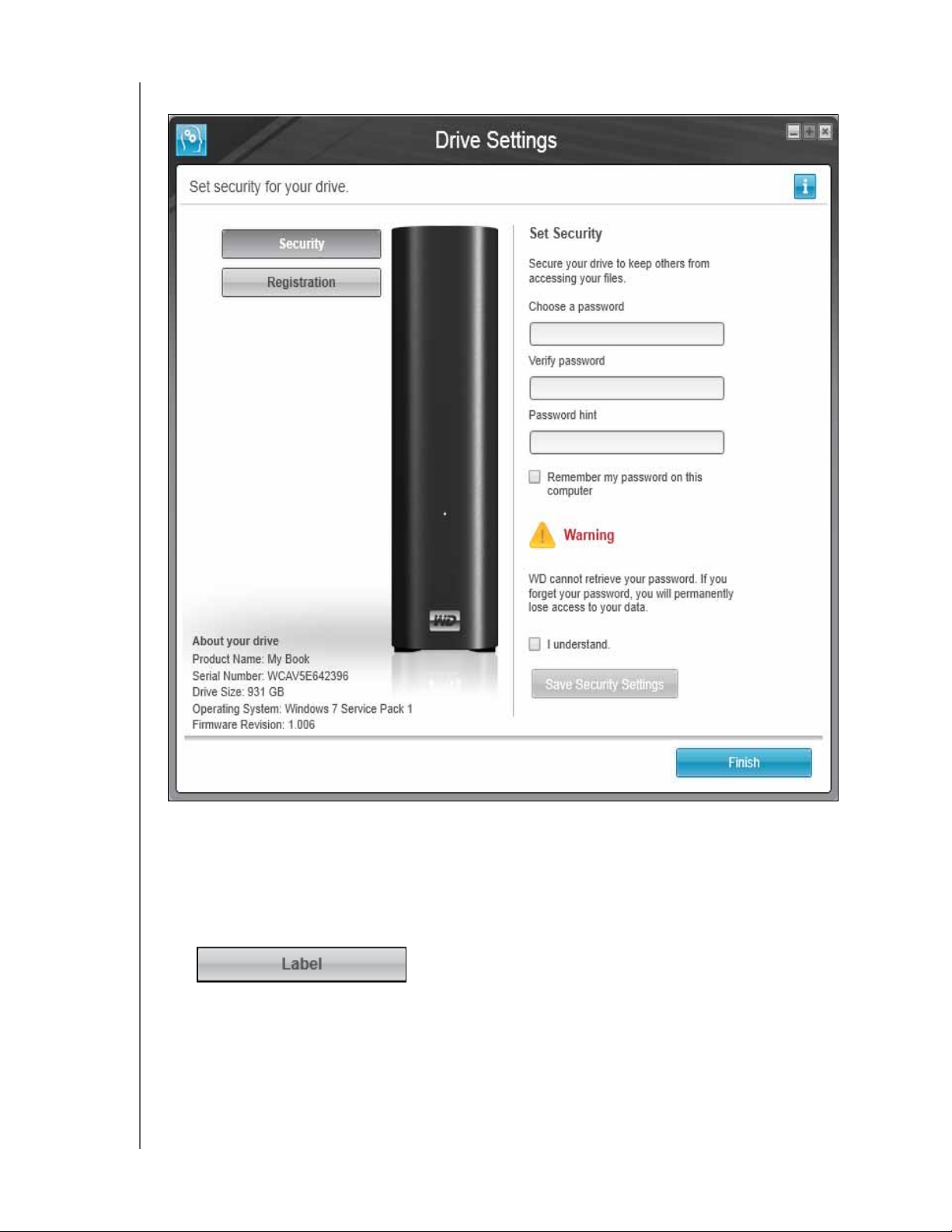

Set Up Drive button |
For supported direct-attached WD drives, displays the Drive |
|
|
Settings screen for securing and setting up the drive. |
|
|
For supported network-attached WD devices, uses your Web |
|
|
browser to display the Web interface for configuring the device. |
|
|
|
|
Set Up Software button |
Displays the Software Settings screen for managing and |
|
|
customizing the WD SmartWare software. |
|
|
|
|
Sleep Timer button |
Displays the Set Sleep Timer dialog for specifying the period of |
|
|
inactivity for turning off the drive. |
|
|
|
|

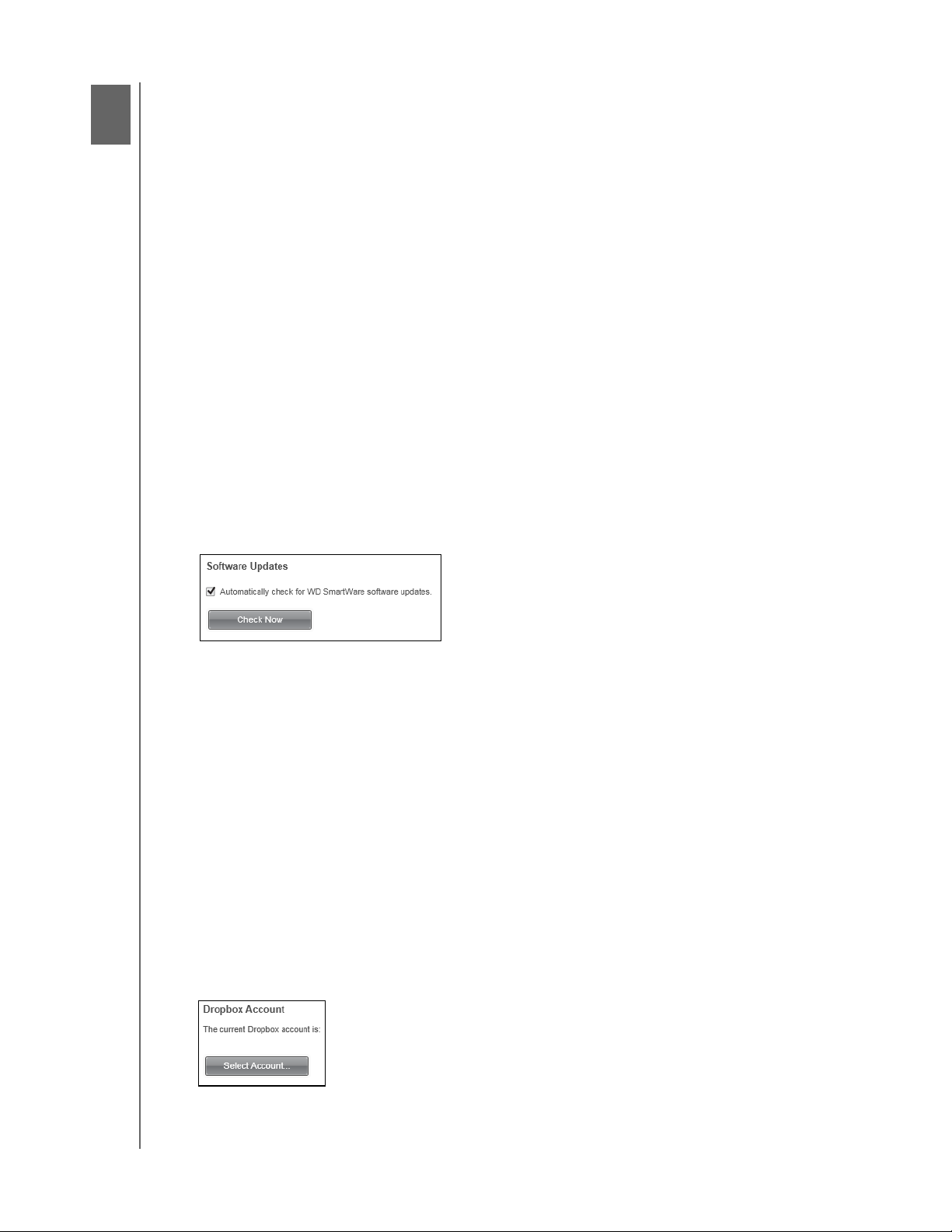

Software Updates button |
Displays the Software Updates dialog for enabling/disabling the |
|
|
option that automatically checks for software updates. |
|
|
|
|
Upgrade to WD SmartWare |
Appears in the upper-right corner of each WD SmartWare tab |
|
Pro software button |
display to remind you of the WD SmartWare Pro software upgrade: |
Clicking the button displays a dialog for buying and activating the
WD SmartWare Pro software upgrade or starting a free 30-day trial.
(Continued)
ABOUT THE WD SMARTWARE SOFTWARE – 19
WD SMARTWARE SOFTWARE
USER MANUAL
Table 4. Settings Tab Functional Description (Continued)
Display Component |
Description |
|
|
|
|
Virtual CD button |
Not shown in Figure 4 on page 18: |
|
|
|
|
|
|
|
For My Book and My Passport drives that provided the
WD SmartWare software on the virtual CD, clicking the Virtual CD button on the Drive Settings screen displays the Virtual CD Settings dialog for showing or hiding the virtual CD icon and drive listing in your computer’s file management utility displays.
The Help tab display provides quick access to Learning Center topics and links to online support services.
See Figure 5 below and Table 5 on page 21 for a brief functional description of the Help tab display.
Learning Center
Topic Buttons
|
Contact Us Link |
WD Store Link |
Support Link |
Online User Manuals Link |
Figure 5. Help Tab Display
ABOUT THE WD SMARTWARE SOFTWARE – 20
