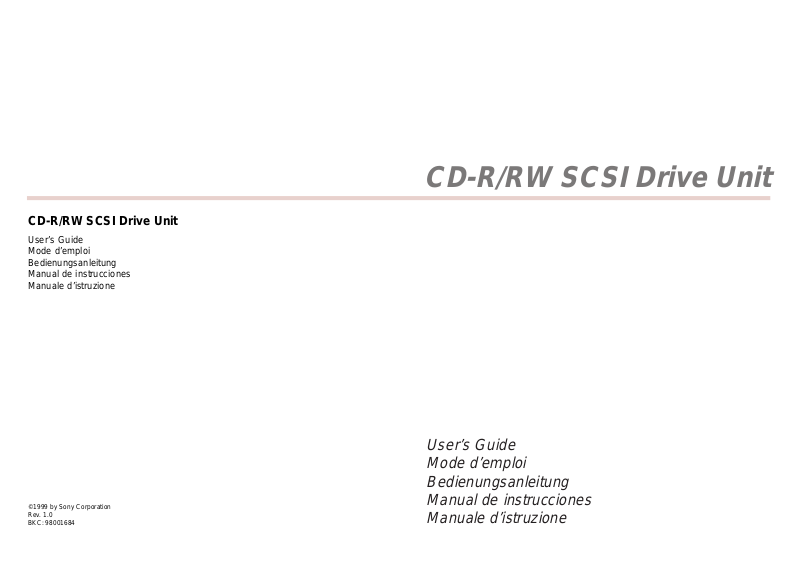

CD-R/RW SCSI Drive Unit
CD-R/RW SCSI Drive Unit
User’s Guide
Mode d’emploi
Bedienungsanleitung
Manual de instrucciones
Manuale d’istruzione
©1999 by Sony Corporation Rev. 1.0
BKC: 98001684
User’s Guide Mode d’emploi
Bedienungsanleitung
Manual de instrucciones
Manuale d’istruzione
Owner’s Record
The model and serial numbers are located on the top of the drive. Record these numbers in the spaces provided below. Refer to them whenever you call upon your sales representative regarding this product.
Model No. __________________ |
Serial No. ___________________ |
Safety Regulations
WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
Caution:
As the laser beam in this CD-R/RW drive is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
The use of optical instruments with this product will increase eye hazard.
The use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation.
DANGER |
|
||
INVISIBLE LASER RADIATION WHEN OPEN. |
|
||
AVIOD DIRECT EXPOSIRE TOP BEAM |
|
This label is located on the drive unit’s internal chassis. |
|
VORSICHT |
|||
|
|||
UNSICHTBARE LASERSTRAHLUNG. WENN ABDECKUNG |
|
||
GEOFFNET |
|
||
NICHT DEMSTRAHL AUSSETZEN. |
|
||
DANGER INVISIBLE LASER RADIATION WHEN OPEN.
AVOID DIRECT EXPOSURE TO BEAM.
DANGER RADIATIONS INVISIBLES DU LASER EN CAS D'OUVERTURE.
EVITER TOUTE EXPOSITION DIRECTE AU FAISCEAU.
VORSICHT UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET.
NICHT DEM STRAHL AUSSETZEN.
ADVARSEL USYNLIG LASERSTRÅLING VED ÅBNING.
UNDGÅ UDS/ETTELSE FOR STRÅLING.
ADVARSEL USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES. UNNGÅ EKSPONERING FOR STRÅLEN.
VARNING OSYNLIG LASERSTRÅLING NÅR DENNA DEL AR ÖPPNAD. STRÅLEN ÄR FARLIG.
VAROI NÄKYMÄTÖN AVATTAESSA OLET ALTTINA LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEN.
This label is located on the bottom of the drive unit enclosure.
This unit uses CD-R discs and CD-RW discs with the following mark.
This unit uses CD-ROM discs with the following mark.
When you use this unit as a CD player, use compact discs with the following mark.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
CLASS 1 |
This CD-R/RW drive unit is classified as a CLASS 1 LASER |
|
PRODUCT. |
||
LASER PRODUCT |
||
LASER KLASSE 1 |
The CLASS 1 LASER PRODUCT label is located at the |
|
PRODUKT |
bottom of the enclosure. |
|
|
Trademarks
●MS-DOS/Windows/Windows 95/98/NT are registered trademarks of Microsoft Corporation.
●Pentium is a trademark of Intel Corporation.
●IBM PC, PC/XT and PC/AT are registered trademarks of International Business Machines Corporation.
●PHOTO CD is a registered trademark of Eastman Kodak Company.
English
2 |
3 |
Contents |
|
Introduction |
5 |
Features.......................................................................................................... |
5 |
System Requirements for WINDOWS 95/98/NT ............................................ |
5 |
Location and Function of Parts and Controls |
6 |
Front Panel / Rear Panel ................................................................................ |
6 |
Precautions |
7 |
Hardware Installation |
7 |
Installing the Drive Unit into the Computer..................................................... |
7 |
Getting started ................................................................................................ |
7 |
Step 1: Opening the Computer....................................................................... |
8 |
Step 2: SCSI Configuration ............................................................................ |
8 |
Step 3: Finding the Connector........................................................................ |
9 |
Step 4: Choosing the Configuration................................................................ |
9 |
Step 5: Setting the Jumpers ......................................................................... |
10 |
Step 6: Connecting the Drive........................................................................ |
12 |
Step 7: Mounting the Drive ........................................................................... |
13 |
Step 8: Connecting the Power Cable ........................................................... |
13 |
Step 9: Installation Review ........................................................................... |
14 |
Step 10: Closing the Computer .................................................................... |
14 |
Software Installation |
15 |
Using Discs |
15 |
Storing Discs................................................................................................. |
15 |
Care of Discs ................................................................................................ |
15 |
Operating the Drive |
16 |
Starting Up.................................................................................................... |
16 |
Troubleshooting |
18 |
Checklist ....................................................................................................... |
18 |
Additional Installation Cases......................................................................... |
18 |
Technical Support ......................................................................................... |
19 |
Specifications |
20 |
Dimension diagram .......................................................... |
Last page of manual |
Introduction
Features
This CD-R/RW drive has the following features:
General
●5 1/4 inch half-height drive form factor.
●Fast SCSI bus interface embedded (based on SCSI-2).
●Integrated buffer memory.
●Power tray loading and ejection (manual eject too).
●Housed in an airtight frame casing.
Supported formats and modes
●CD-ROM (mode 1), CD-ROM XA (Mode 2 form 1 & 2 data)
●PHOTO-CD (read only) & Video-CD, CD-I (Mode 2, form 1 and 2)
●CD-DA, CD-EXTRA and CD-I Ready (read only)
●CD-TEXT, CD-Recordable & CD-ReWritable
Audio
●Outputs 16-bit digital audio data over SCSI interface.
●Audio CD playback via Audio Out and headphones jack.
Note:
Please read this manual thoroughly before attempting installation.
System Requirements for WINDOWS 95/98/NT
●System requirements of format software
●SCSI host adapter card (Bus Mastering)
●150 MB or more free hard disc space
●3.5" floppy disk drive
●Mouse (Microsoft-compatible)
●32 MB of RAM or more
4 |
Introduction |
5 |
Location and Function of Parts and Controls |
Precautions |
Front Panel
■ Installation
|
|
|
|
|
● |
Avoid placing the drive in a location subject to: |
|
|
|
|
|
|
|
– high humidity |
|
|
|
|
|
|
|
– high temperature |
|
|
|
|
|
|
|
– excessive dust |
|
|
|
|
|
|
|
– mechanical vibration |
|
|
|
|
|
|
|
– direct sunlight. |
|
|
|
|
|
|
Only horizontal drive operation recommended, not vertical or tilted. |
||
|
|
|
|
|
■ Operation |
|
|
|
|
|
|
|
● |
Do not move drive during operation, it may cause an error. |
|
|
|
|
|
|
● |
Avoid sudden temperature changes, condensation may form inside |
|
|
|
|
|
|
|
the drive. Should ambient temperature suddenly change, wait at |
|
Headphone |
Headphone |
Busy |
Disc Drawer |
Emergency |
Eject |
least 1 hour before turning off power. Operation immediately after |
|
temperature change may cause a malfunction. |
|||||||
Jack |
Volume |
Indicator |
|
Eject Hole |
Button |
||
|
Control |
|
|
|
■ Transportation |
|
|
|
|
|
|
|
|
||
● Keep the original packing materials for future transport of the drive.
Rear Panel
|
|
|
|
|
|
|
|
|
|
ACTIVE TERM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TEST |
|
|
|
|
|
|
|
|
|
|
|
|
|
AUDIO OUT |
|
|
|
|
|
|
|
|
|
ID SELECT |
DC INPUT |
R GND L |
0 1 2 |
|
|
5V±5% GND 12V±10% |
|||||||
INTERFACE CONNECTOR
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Jumper block for SCSI bus |
Power-in connector |
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Audio output connector |
SCSI bus interface connector |
||||||||||||||||||||||||||
Hardware Installation
Installing the Drive Unit into the Computer
This example assumes an IBM-PC/AT* compatible computer,
a SCSI adapter card and a SCSI interface cable (50 pin flat) are at-hand.
Getting Started
Assure SCSI adapter is operational before installing CD-R/RW drive.
●Prepare the necessary parts and tools not supplied:
–a screwdriver
–Two mounting rails if computer has mounting racks.
6 Location and Function of Parts and Controls |
Precautions/Hardware Installation |
7 |
