Introduction
This manual assists you with the 4x write / 8x read CDU948S drive which uses CD-R media storing up to 650 Mbytes of data.
Features
The drive unit has the following features:
General
●5 1/4 inch half-height drive form factor.
●Fast SCSI bus interface embedded (Based on SCSI-2).
●2 Mbytes of buffer memory.
●Power loading and power eject.
●Emergency eject function allows manual caddy ejection.
Supported disc formats
●Reads and writes data in both CD-ROM, CD-ROM XA (additional hardand software) standard formats.
●Reads and writes CD-BRIDGE format, includes PHOTO-CD.
●Reads standard CD-DA (“Red Book”) encoded discs, reads and writes CD-R discs conforming to “Orange Book Part II”.
Performance
●Supports read and write operation at standard, double, and quadruple speeds along with read-only at 8x speed.
●Fast access time assures high-speed reading and writing.
Audio
●Outputs 16-bit digital audio data over SCSI interface.
●Audio CD playback via Audio Out and headphones jack.
Note:
Please read this manual thoroughly before attempting installation.
System Requirements for WINDOWS 95/NT
●System requirements of format software
●SCSI host adapter card
●20 MB or more free Hard Disc space
●3.5" floppy disk drive
●Mouse (Microsoft-compatible)
●16 MB of RAM or more
4 |
Introduction |
5 |
Location and Function of Parts and Controls

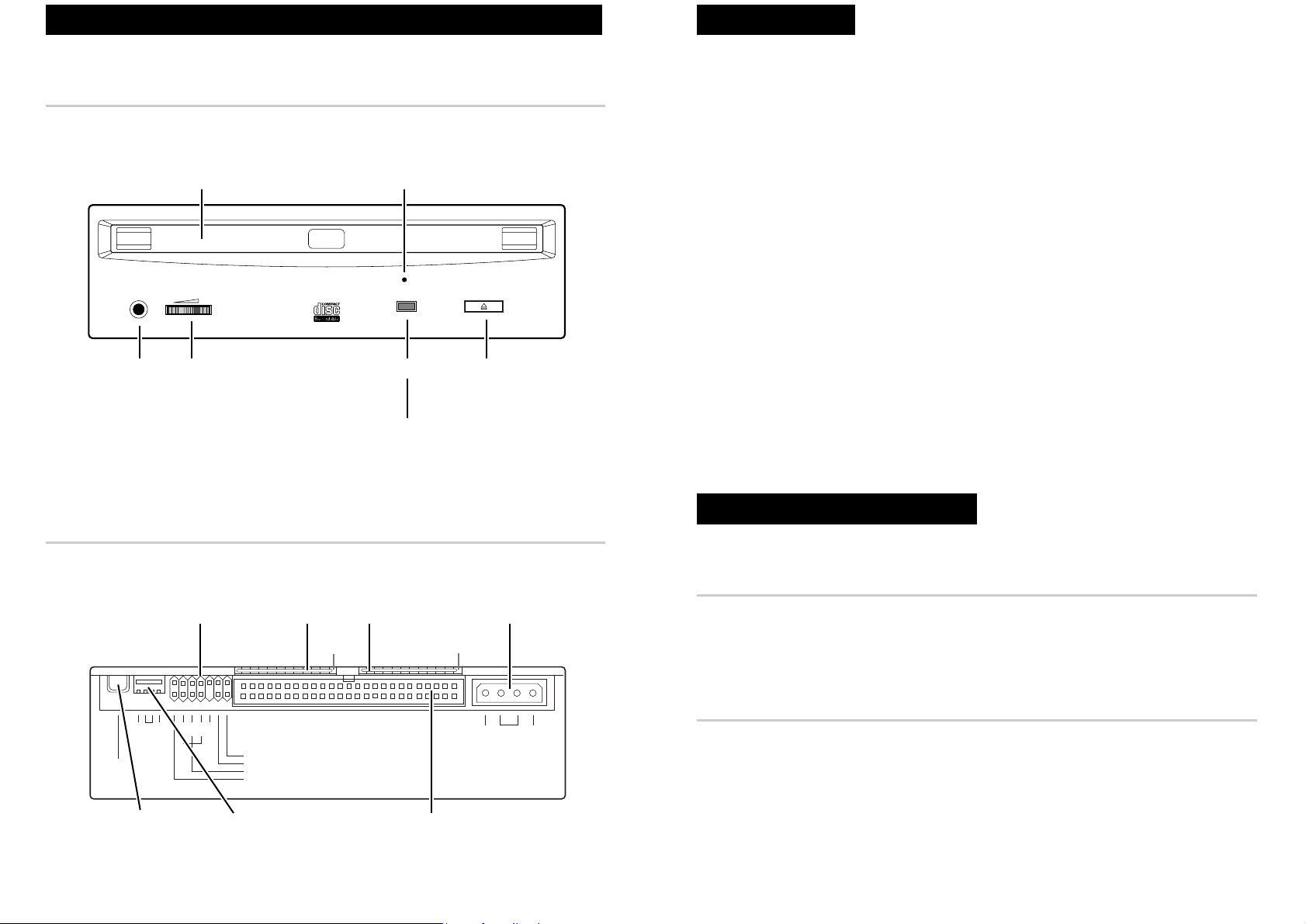

Front Panel
Caddy insertion slot |
Emergency eject hole |
CD Caddy
Headphones jack Volume control Busy indicator Eject button
This indicator shows the unit’s status in various phases of operation.
● Seek, read and write: |
Flashes amber |
● Error: |
Lights up amber and stays lit |
When the power is turned on, the indicator lights up green.
Rear Panel

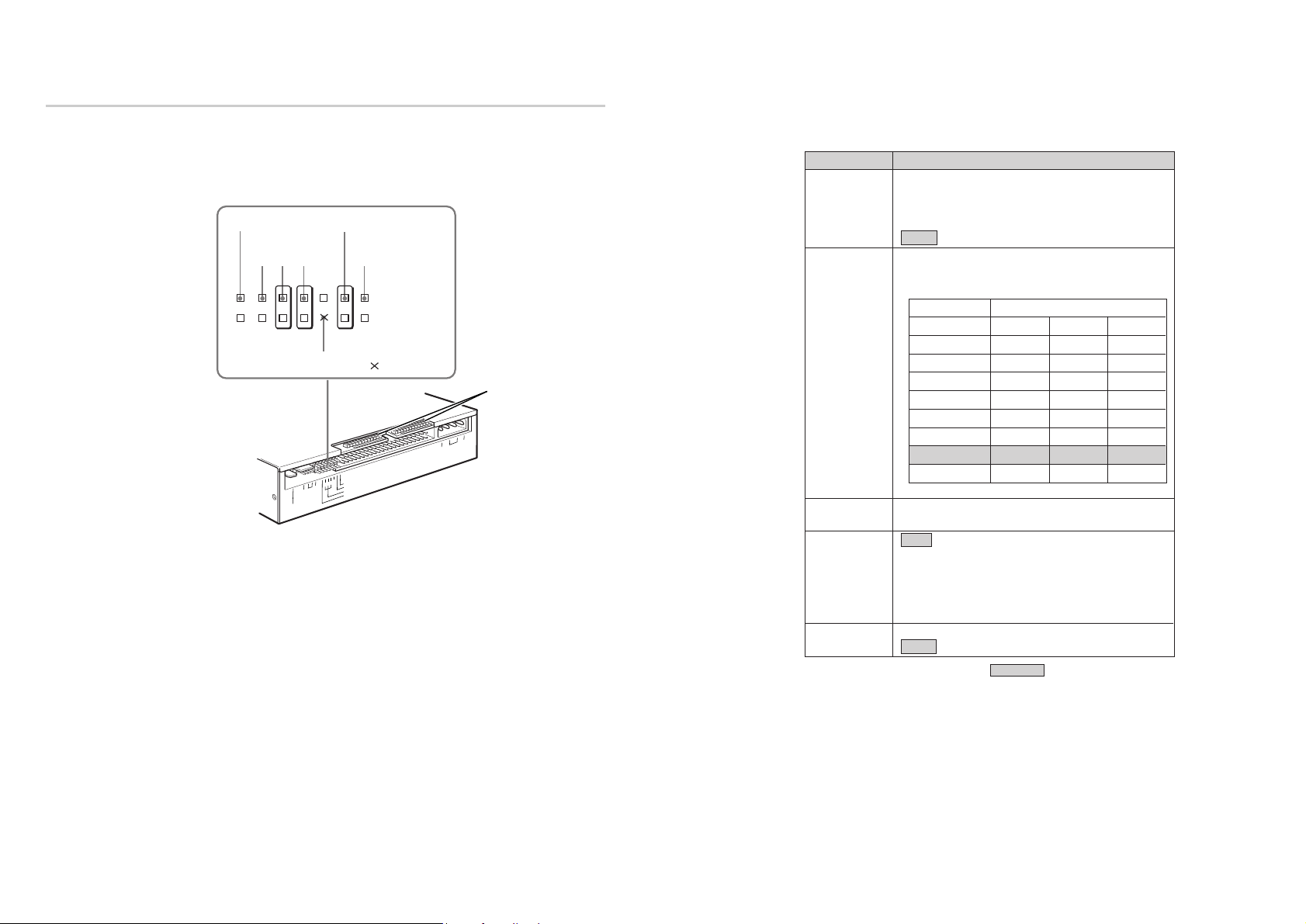

Jumper block for SCSI bus |
Terminators |
Power-in connector |
|
GND |
GND |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
INTERFACE CONNECTOR |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
0 1 2 |
|
|
|
|
|
|
|
|
|
|
||||||||||
|
L GND R |
|
|
|
|
|
|
|
|
|
|
|
5V±5% GND 12V±10% |
|||||||||||||
|
AUDIO OUT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TEST MODE |
|
|
|
DC INPUT |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
F-GND |
|
|
|
|
|
|
|
|
|
PREVENT/ALLOW |
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
ID SELECT |
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DEVICE TYPE |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Frame ground tab Audio output connector SCSI bus interface connector
Precautions
■ Installation
●Avoid placing the drive in a location subject to:
–high humidity
–high temperature
–excessive dust
–mechanical vibration
–direct sunlight.
Only horizontal drive operation recommended, not tilted.
■ Operation
●Do not move drive during operation, it may cause an error.
●Avoid exposing the drive to sudden temperature changes as condensation may form on a lens inside the drive. Should the surrounding temperature suddenly rise during operation, wait at least 1 hour before turning off power. Operation immediately after a temperature rise may cause a malfunction as well.
■Transportation
●Keep the original packing materials for future transport of the drive.
●Remove caddy before moving or repackaging drive.
Hardware Installation

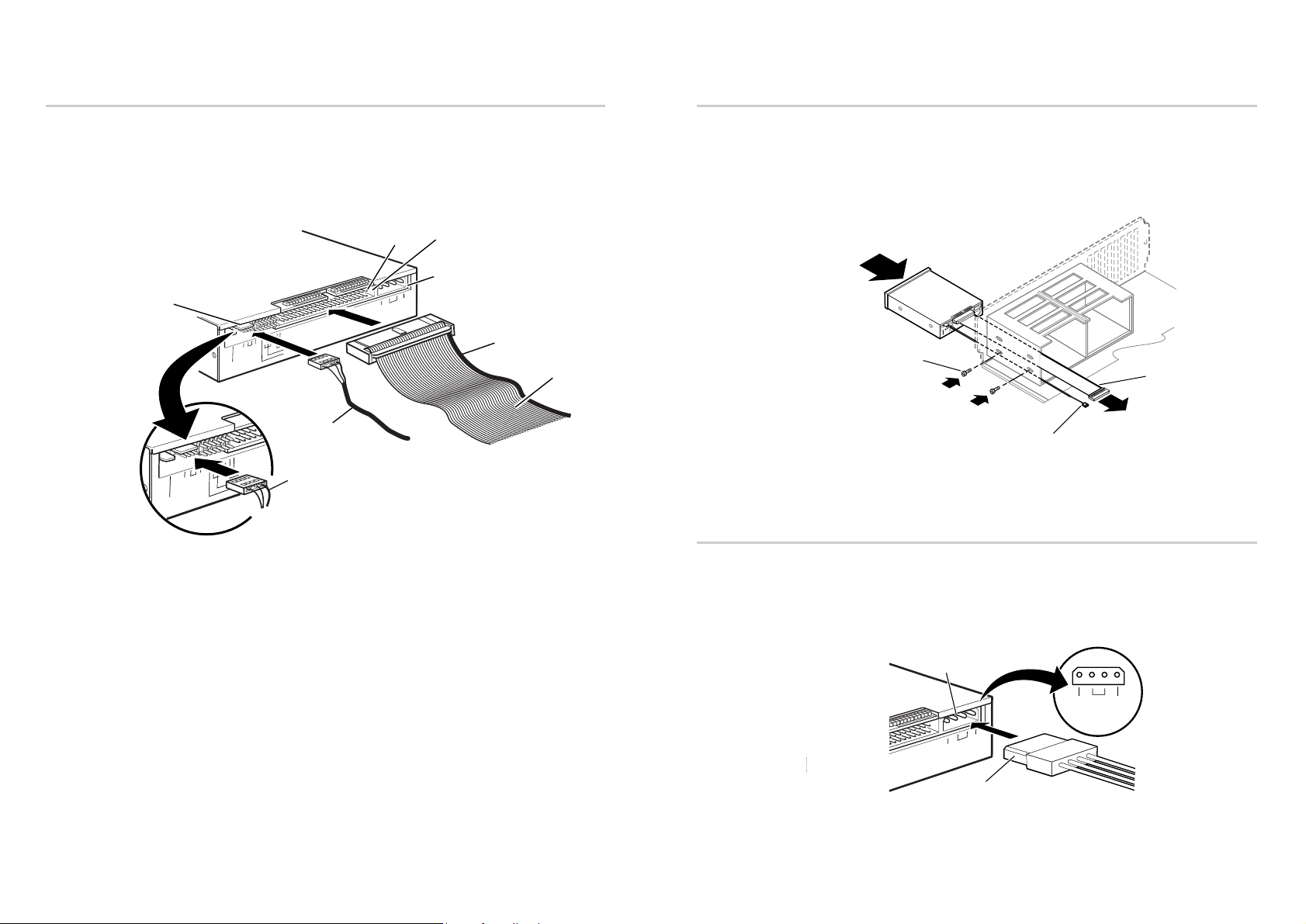

Installing the Drive Unit into the Computer
Before starting this section, you may wish to consult your computer’s manual for a more detailed description of installing new hardware. Our example assumes an IBM-PC/AT compatible computer, a SCSI adapter card and a SCSI interface cable (50 pin flat) are supplied.

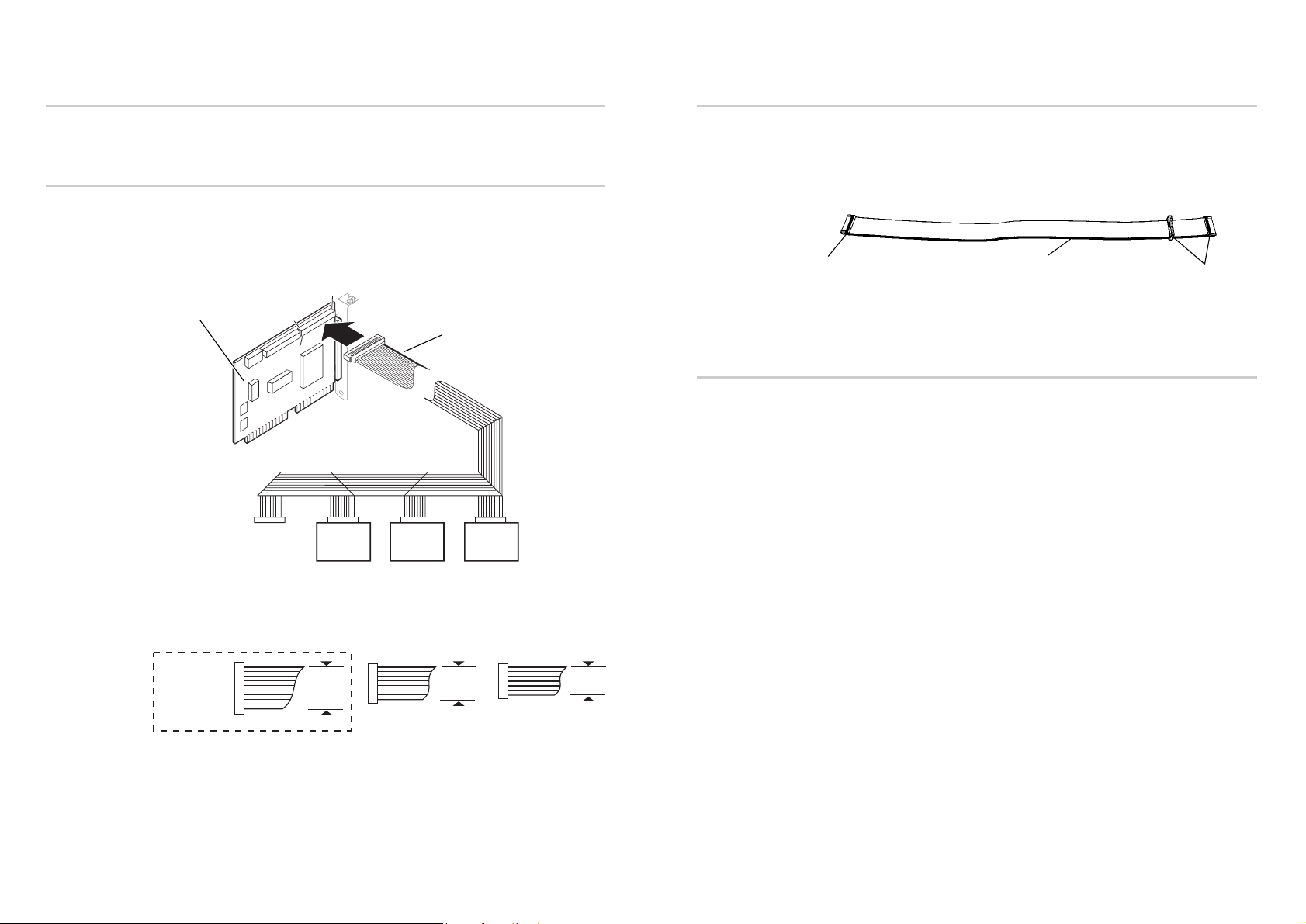

Getting Started
Assure a SCSI adapter is installed before installing the CD-R drive.
●Prepare the necessary parts and tools not supplied:
–a screwdriver
–Two mounting rails if computer has mounting tracks.
●Unplug and disconnect any attached computer cables for your own safety. Restore power only after completing installation.
6 Location and Function of Parts and Controls |
Precautions/Hardware Installation |
7 |
