Video Camera Recorder

Operating Instructions

Before operating the unit, please read this manual thoroughly, and retain it for future reference.

3-865-333-62 (1)

CCD-TRV46

CCD-TRV36/TRV46 CCD-TRV16

Welcome!

Congratulations on your purchase of this Sony Handycam VisionTM camcorder. With your Handycam Vision, you can capture life’s precious moments with superior picture and sound quality. Your Handycam Vision is loaded with advanced features, but at the same time it is very easy to use. You will soon be producing home video that you can enjoy for years to come.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

WARNING

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Certain countries may regulate disposal of the battery used to power this product. Please consult with your local authority.

Table of contents

Before you begin

Using this manual ................................... 4

Checking supplied accessories.............. 5

Getting started

Installing and charging the battery

pack .................................................... 6

Inserting a cassette ................................ 10

Basic operations

Camera recording ................................. 11

Using the zoom feature ................. 13 Selecting the START/STOP

mode .......................................... 14

Shooting with the LCD screen...... 15 Letting the subject monitor the

shot (Mirror mode) .................. 16

Hints for better shooting ...................... 17

Checking the recorded picture............ 19

Playing back a tape ............................... 20 Searching for the end of the picture ... 23

Advanced operations

Using alternative power sources ........ 24

Using the house current ................ 25

Changing the mode settings................ 26

– for camera recording –

Shooting with backlighting ................. 30

Using the FADER function .................. 31

Shooting in the dark (NightShot) ....... 33

Using the wide mode function............ 34 Using the PROGRAM AE function .... 36

Focusing manually................................ 38

Enjoying picture effect ......................... 40

Adjusting the exposure ........................ 42

Superimposing a title ........................... 44

Making your own titles ........................ 46

Recording with the date/time ............ 47 Optimizing the recording condition .. 48 Using the built-in light (CCD-TRV36/

TRV46 only) .................................... 49

Releasing the STEADYSHOT

function (CCD-TRV46 only) ......... 51

– for playback/editing –

Watching on a TV screen ..................... 52

Editing onto another tape .................... 54

Additional information

Changing the lithium battery in the

camcorder ........................................ 55

Resetting the date and time ................. 57 Simple setting of clock by time

difference ......................................... 58 Usable cassettes and playback modes

........................................................... 59

Tips for using the battery pack ........... 60 Maintenance information and

precautions ...................................... 63

Using your camcorder abroad ............ 68

Trouble check ........................................ 69

Self-diagnosis display........................... 72

Specifications ......................................... 73

Identifying the parts ............................. 74

Warning indicators ............................... 82

Index ....................................................... 83

Before you begin

Using this manual

The instructions in this manual are for the three models listed below. Before you start reading this manual and operating the unit, check your model number by looking at the bottom of your camcorder. The CCD-TRV46 is the model used for illustration purposes. Otherwise, the model name is indicated in the illustrations. Any differences in operation are clearly indicated in the text, for example, “CCD-TRV46 only.” As you read through this manual, buttons and settings on the camcorder are shown in capital letters. e.g. Set the POWER switch to CAMERA. You can hear the beep sound to confirm your operation.

Types of differences

CCD- TRV16 TRV36 TRV46 System hH H Digital zoom 180× 330× 330× SteadyShot — — r Remote sensor — rr Laser link — — r Built-in light — rr

Note on TV color systems

TV color systems differ from country to country. To view your recordings on a TV, you need an NTSC system-based TV.

Precaution on copyright

Television programs, films, video tapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provision of the copyright laws.

Precautions on camcorder care

•The LCD screen is manufactured using high-precision technology. However, there may be some tiny black points and/or bright points (red, blue or green in color) that constantly appear on the LCD screen. These points are normal in the manufacturing process and do not affect the recorded picture in any way. Over

99.99% are operational for effective use.

•Do not let the camcorder get wet. Keep the camcorder away from rain and sea water. Letting the camcorder get wet may cause the unit to malfunction, and sometimes this malfunction cannot be repaired [a].

•Never leave the camcorder exposed to temperatures above 60°C, such as in a car parked in the sun or under direct sunlight [b].

[a] [b]

Checking supplied accessories

Check that the following accessories are supplied with your camcorder.

456

1 Wireless Remote Commander (1)

(p. 79) CCD-TRV36/TRV46 only

2 AC-L10A/L10B/L10C AC power adaptor

(1), Power cord (1) (p. 7, 24)

3 NP-F330 battery pack (1) (p. 6, 24) 4 CR2025 lithium battery (1) (p. 55)

The lithium battery is already installed in your camcorder.

Contents of the recording cannot be compensated if recording or playback is not made due to a malfunction of the camcorder, video tape, etc.

5 R6 (Size AA) battery for Remote

Commander (2) (p. 79) CCD-TRV36/TRV46 only

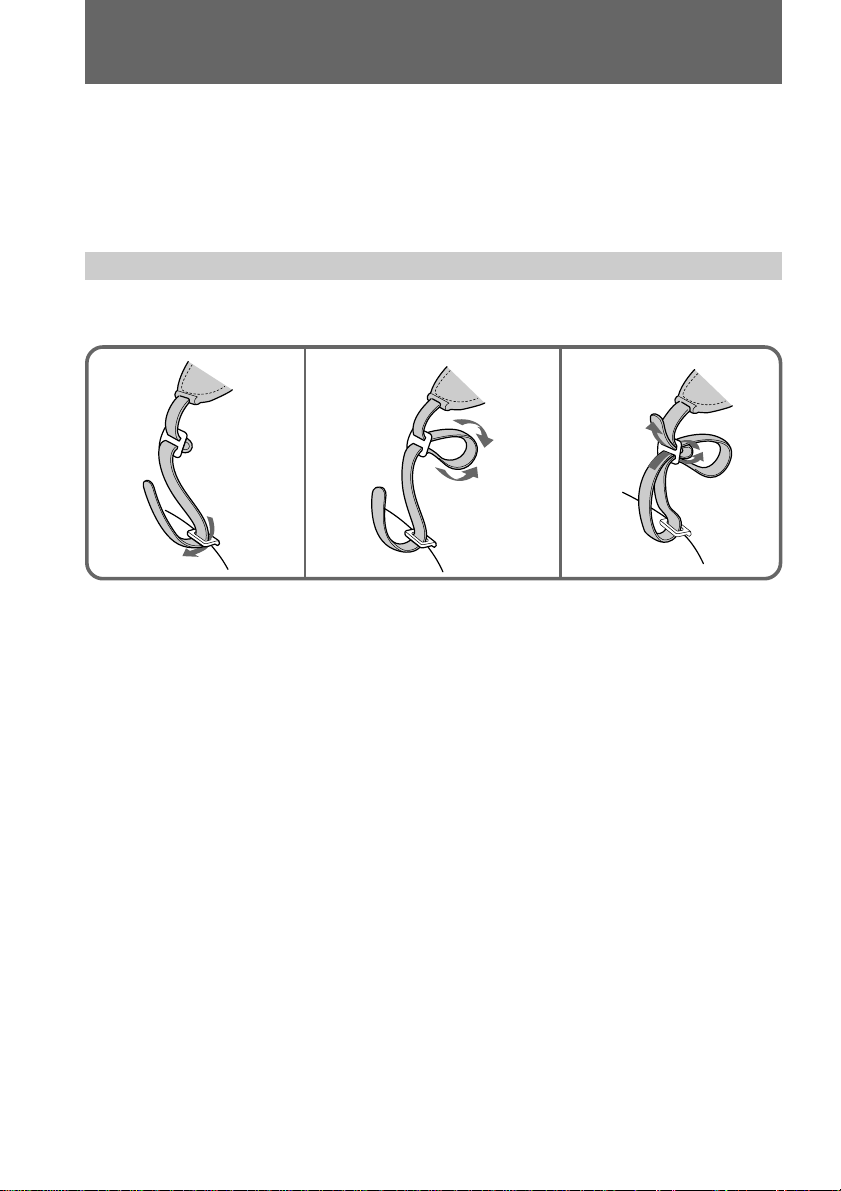

6 A/V connecting cable (1) (p. 52) 7 Shoulder strap (1) (p. 80)

Before you begin

Getting started

Installing and charging the battery pack

Before using your camcorder, you first need to install and charge the battery pack. This camcorder operates only with the “InfoLITHIUM” battery pack (L series). “InfoLITHIUM” is a trademark of Sony Corporation.

Installing the battery pack

Install the battery pack in the direction of the $ mark on the battery pack. Slide the battery pack down until it catches on the battery release lever and clicks. Attach the battery pack to the camcorder securely.

Note on the battery pack

Do not carry the camcorder by grasping the battery pack.

Installing and charging the battery pack

Charging the battery pack

Charge the battery pack on a flat surface without vibration. The battery pack is charged a little in the factory.

(1) Open the DC IN jack cover and connect the supplied AC power adaptor to the

DC IN jack with the plug’s 4 mark up.

(2) Connect the power cord to the AC power adaptor. (3) Connect the power cord to a wall outlet. (4) Slide the POWER switch to OFF. Remaining battery time is indicated by the

minutes on the display window. Charging begins.

When the remaining battery indicator becomes ı, normal charge is completed. For full charge, which allows you to use the battery longer than usual, leave the battery pack attached for about 1 hour after normal charge is completed until FULL appears in the display window. Before using the camcorder with the battery pack, unplug the AC power adaptor from the DC IN jack of the camcorder. You can also use the battery pack before it is completely charged.

POWER

CAMERA

OFF

PLAYER

Getting started

Notes

•“– – – min” appears in the display window until the camcorder calculates remaining battery time.

•Remaining battery time indication in the display window roughly indicates the recording time with the viewfinder. Use it as a guide. It may differ from the actual recording time.

•If there is a slight difference in shape between the plug of power cord and the terminal of AC power adaptor, it is ignorable for their mutual connection and power supply.

•Be sure to plug the power cord deeply into the terminal of AC power adaptor so that it is firmly locked. If there is a gap between the plug of power cord and the terminal of AC power adaptor, it does not affect the efficiency of the AC power adaptor.

Installing and charging the battery pack

Charging time

Battery F330 pack (NP-) (supplied)

Charging 150 210 300 390 time* (min.) (90) (150) (240) (330)

The time required for a normal charge is indicated in parentheses. * Approximate minutes to charge an empty battery pack using the supplied AC power

adaptor. (Lower temperatures require a longer charging time.)

F530/F550 F730/F750 F930/F950

Battery life

Upper numbers are the time when recording with the viewfinder. Lower numbers are the time when recording with the LCD screen. Using both will further reduce recording time.

CCD-TRV16/TRV36

Battery F330 pack (NP-) (supplied)

Continuous recording time*

Typical recording time**

Playing time on 100 (90) 165 (150) 200 (180) 335 (300) 410 (365) 535 (480) 630 (570) LCD

130 (115) 225 (200) 260 (230) 450 (405) 530 (480) 710 (640) 815 (730) 100 (90) 170 (155) 205 (185) 350 (310) 425 (380) 555 (500) 650 (590)

65 (60) 115 (105) 135 (120) 235 (210) 280 (250) 375 (335) 430 (385) 55 (45) 90 (85) 110 (100) 190 (170) 230 (205) 305 (275) 355 (320)

F530 F550 F730 F750 F930 F950

CCD-TRV46

Battery F330 pack (NP-) (supplied)

Continuous recording time*

Typical recording time**

Playing time on 100 (90) 165 (150) 200 (180) 335 (300) 410 (365) 535 (480) 630 (570) LCD

125 (110) 215 (190) 250 (220) 430 (385) 510 (460) 680 (610) 780 (700) 100 (90) 165 (150) 200 (180) 335 (300) 410 (365) 535 (480) 630 (570)

65 (55) 110 (100) 130 (115) 225 (200) 270 (240) 360 (320) 410 (370) 55 (45) 90 (80) 110 (95) 180 (165) 225 (200) 290 (260) 345 (310)

F530 F550 F730 F750 F930 F950

Numbers in parentheses indicate the time when you use a normally charged battery. Battery life will be shorter if you use the camcorder in a cold environment. * Approximate continuous recording time at 25°C. ** Approximate minutes when recording while you repeat recording start/stop,

zooming and turning the power on/off. The actual battery life may be shorter.

Installing and charging the battery pack

Notes on remaining battery time indication during recording

•Remaining battery time is displayed in the viewfinder or on the LCD screen. However, the indication may not be displayed properly, depending on using conditions and circumstances.

•When you close the LCD panel and open it again, it takes about 1 minute for the correct remaining time to be displayed.

To remove the battery pack

While pressing BATT RELEASE, slide the battery pack in the direction of the arrow.

BATT RELEASE

You can look at the demonstration of the functions available with this camcorder (p. 29).

Getting started

Inserting a cassette

PUSH

Make sure that the power source is installed. When you want to record in the Hi8 system, use Hi8 video cassette H (CCD-TRV36/TRV46 only).

(1) While pressing the small blue button on the EJECT switch, slide it in the

direction of the arrow. The cassette compartment automatically lifts up and opens.

(2) Insert a cassette with the window facing out. (3) Close the cassette compartment by pressing the “PUSH” mark on the cassette

compartment. The cassette compartment automatically goes down.

1 2

EJECT

To eject the cassette

While pressing the small blue button on the EJECT switch, slide it in the direction of the arrow.

To prevent accidental erasure

Slide the tab on the cassette to expose the red mark. If you insert the cassette with the red mark exposed and close the cassette compartment, the beeps sound for a while. If you try to record with the red mark exposed, the and 6 indicators flash, and you cannot record. To re-record on this tape, slide the tab back out covering the red mark.

Basic operations

Camera recording

Make sure that the power source is installed and a cassette is inserted and that the START/STOP MODE switch inside the LCD panel is set to . Before you record onetime events, you may want to make a trial recording to make sure that the camcorder is working correctly. When you use the camcorder for the first time, power on it and reset the date and time to your time before you start recording (p. 57). The date is automatically recorded for 10 seconds after you start recording (AUTO DATE feature). This feature works only once a day.

(1) While pressing the small green button on the POWER switch, set it to CAMERA. (2) Turn STANDBY up to STANDBY. (3) Press START/STOP. The camcorder starts recording. The “REC” indicator

appears. The red lamp lights up in the viewfinder when you record with the viewfinder. The camera recording/battery lamp located on the front of the camcorder also lights up.

Basic operations

POWER

CAMERA

OFF

PLAYER

START/STOP

40min

STBY

AUTO DATE

REC

JUL 4 1999

0:00:00

0:00:01

To stop recording momentarily [a]

Press START/STOP again. The “STBY” indicator appears in the viewfinder (Standby mode).

To finish recording [b]

Press START/STOP again. Turn STANDBY down to LOCK and set the POWER switch to OFF. Then, eject the cassette.

[a]

START/STOP

STBY 0:35:20

[b]

START/STOP

Camera recording

Note

Be sure to remove the battery pack from the comcorder after using.

To focus the viewfinder lens

If you cannot see the indicators in the viewfinder clearly, focus the viewfinder lens. Turn the viewfinder lens adjustment ring so that the indicators in the viewfinder come into sharp focus.

Note on Standby mode

If you leave the camcorder in Standby mode for 5 minutes while the cassette is inserted, the camcorder turns off automatically for saving battery power as well as for preventing the battery and tape from wearing down. To resume Standby mode, turn STANDBY down and up again. To start recording, press START/STOP.

Note on recording

When you record from the beginning of a tape, run the tape for about 15 seconds before starting the actual recording. Passing the tape lead will ensure that you will not miss any start-up scenes when you play back the tape.

Notes on the tape counter

•The tape counter indicates the recording or playback time. Use it as a guide. There will be a time lag of several seconds from the actual time. To set the counter to zero, press COUNTER RESET.

•If the tape is recorded in SP and LP modes mixed, the tape counter shows incorrect recording time. When you intend to edit the tape using the tape counter as a guide, record in same (SP or LP) mode.

Note on the beep sound

The beep sounds when you operate the camcorder. Several beeps also sound as a warning of any unusual condition of the camcorder. Note that the beep sound is not recorded on the tape. If you do not want to hear the beep sound, select “OFF” in the menu system.

Note on the AUTO DATE feature

The clock is set at the factory to Tokyo time for the models sold in Japan and to Hong Kong, New York or Panama time for other models. You can reset the clock in the menu system. You can change the AUTO DATE settings by selecting ON or OFF in the menu system. The AUTO DATE feature shows the date automatically once a day. However, the date may automatically appear more than once a day when: – you reset the date and time. – you eject and insert the tape again. – you stop recording within 10 seconds. – you set AUTO DATE to OFF once and set it to ON again in the menu system.

Camera recording

Using the zoom feature

Zooming is a recording technique that lets you change the size of the subject in the scene. For more professional-looking recordings, use the zoom function sparingly. “T” side: for telephoto (subject appears closer) “W” side: for wide-angle (subject appears further away)

Zooming speed (Variable speed zooming)

Move the power zoom lever a little for a slower zoom, move it further for a faster zoom.

When you shoot a subject using a telephoto zoom

If you cannot get a sharp focus while in extreme telephoto zoom, move the power zoom lever to the “W” side until the focus is sharp. You can shoot a subject that is at least about 80 cm away from the lens surface in the telephoto position, or about 1 cm away in the wide-angle position.

Basic operations

Notes on the digital zoom

•More than 18× zoom is performed digitally, but the picture quality deteriorates as you

move the lever toward the “T” side. If you do not want to use the digital zoom, set the D ZOOM function to OFF in the menu system.

•The right side [a] of the power zoom indicator shows the digital zooming zone, and the left side [b] shows the optical zooming zone. If you set the D ZOOM function to OFF, the [a] zone disappears.

[a][b]

Camera recording

Selecting the START/STOP mode

Your camcorder has three modes. These modes enable you to take a series of quick shots resulting in a lively video.

(1) While pressing OPEN, open the LCD panel. (2) Set START/STOP MODE to the desired mode.

: Recording starts when you press START/STOP, and stops when you press it again (factory setting). ANTI GROUND SHOOTING press down START/STOP so that you can avoid recording unnecessary scenes. 5SEC: When you press START/STOP, the camcorder records for 5 seconds and then stops automatically.

(3) Turn STANDBY up to STANDBY and press START/STOP.

Recording starts.

If you selected 5SEC, the tape counter disappears and five dots appear. The dots disappear at a rate of one per second as illustrated below.

: The camcorder records only while you

START/STOP MODE

5SEC

ANTI GROUND SHOOTING

START/STOP

STBY

•••••

REC

START/STOP

•••••

REC

To extend the recording time in 5SEC mode

Press START/STOP again before all the dots disappear. Recording continues for about 5 seconds from the moment you press START/STOP.

Notes on START/STOP mode

•If you have turned off the indicators on the LCD screen, the dots do not appear.

•You cannot use the fader function in the 5SEC or ANTI GROUND SHOOTING mode.

•

Camera recording

Shooting with the LCD screen

You can also record the picture while looking at the LCD screen. When using the LCD screen, the viewfinder turns off automatically. You cannot monitor the sound from the speaker during recording.

(1) While pressing OPEN, open the LCD panel. (2) Adjust the angle of the LCD panel.

The LCD panel moves about 90 degrees to this side and about 210 degrees to the other side. To adjust the brightness of the LCD screen, press LCD BRIGHT. + side: to brighten the LCD screen – side: to dim the LCD screen

The battery life is longer when the LCD panel is closed. Use the viewfinder instead of the LCD screen to save the battery power.

Basic operations

90°

210°

LCD BRIGHT

90°

Backlighting the LCD screen

If the LCD screen is insufficiently illuminated even after adjusting LCD BRIGHT, select LCD B. L. in the menu system and set to BRIGHT. You can select LCD B. L. only while using the battery pack as a power source.

Camera recording

Notes on the LCD panel

•When closing the LCD panel, turn it vertically until it clicks [a].

•When turning the LCD panel, turn it always vertically; otherwise, the camcorder body may be damaged or the LCD panel may not close properly [b].

•Close the LCD panel completely when not in use.

[a] [b]

Letting the subject monitor the shot (Mirror mode)

You can turn the LCD panel over so that it faces the other way and you can let the subject monitor the shot while shooting with the viewfinder.

Turn the LCD panel vertically first until it clicks, then turn it over. The indicator appears on the LCD screen (Mirror mode) and the date and remaining tape indicators disappear.

To cancel mirror mode

Turn the LCD panel back toward the viewfinder.

Notes on mirror mode

•The picture on the LCD looks as a mirror-image while recording in mirror mode. The STBY indicator appears as Pr and REC as r. The other indicators may not appear in mirror mode.

•While recording in mirror mode, you cannot operate the following buttons: TITLE, DATE, TIME and MENU.

•The date appears in reverse when the AUTO DATE feature is turned on. When recorded, it will be normal.

Hints for better shooting

For hand-held shots, you’ll get better results by holding the camcorder according to the following suggestions:

•Hold the camcorder firmly and secure it with the grip strap so that you can easily manipulate the controls with your thumb.

•Place your right elbow against your side.

•Place your left hand under the camcorder to support it. Be sure to not touch the built-in microphone.

•Place your eye firmly against the viewfinder eyecup.

•Use the viewfinder frame as a guide to determine the horizontal plane.

•You can also record in a low position to get an interesting angle. Lift the viewfinder up for recording from a low position [a].

•You can also record in a low position or even in a high position using the LCD panel [b].

•When you use the LCD screen outdoors in direct sunlight, the LCD screen may be difficult to see. If this happens, we recommend that you use the viewfinder.

Basic operations

[a]

[b]

Hints for better shooting

Place the camcorder on a flat surface or use a tripod

Try placing the camcorder on a table top or any other flat surface of suitable height. If you have a tripod for a still camera, you can also use it with the camcorder. When attaching a non-Sony tripod, make sure that the length of the tripod screw is less than 6.5 mm. Otherwise, you cannot attach the tripod securely and the screw may damage the camcorder.

Cautions on the viewfinder and the LCD

•Do not pick up the camcorder by the viewfinder or by the LCD panel [c].

•Do not place the camcorder so as to point the viewfinder or the LCD screen toward the sun. The inside of the viewfinder or the LCD screen may be damaged. Be careful when placing the camcorder under sunlight or by a window [d].

[c] [d]

Checking the recorded picture

Using EDITSEARCH, you can review the last recorded scene or check the recorded picture in the viewfinder or on the LCD screen.

(1) While pressing the small green button on the POWER switch, set it to

CAMERA.

(2) Turn STANDBY up to STANDBY. (3) Press the – (Œ) side of EDITSEARCH momentarily; the last few seconds of the

recorded portion play back (Rec Review). You can monitor the sound from the speaker or an earphone. Hold down the – side of EDITSEARCH until the camcorder goes back to the scene you want. The last recorded portion is played back. To go forward, hold down the + side (Edit Search).

POWER

CAMERA OFF

PLAYER

EDITSEARCH

START/STOP

Basic operations

EDITSEARCH

To stop playback

Release EDITSEARCH.

To go back to the last recorded point after edit search

Press END SEARCH. The last recorded point is played back for about 5 seconds (10 seconds in LP mode) and stops. Note that this function does not work once you eject the cassette after you recorded on the tape.

To begin re-recording

Press START/STOP. Re-recording begins from the point you released EDITSEARCH. Provided you do not eject the cassette, the transition between the last scene you recorded and the next scene you record will be smooth.

Playing back a tape

You can monitor the playback picture on the LCD screen.

(1) While pressing the small green button on the POWER switch, set it to

PLAYER.

(2) Insert the recorded tape with the window facing out. (3) While pressing OPEN, open the LCD panel. Adjust the angle of the LCD panel

or the brightness of the LCD screen if necessary.

(4) Press 0 to rewind the tape. (5) Press ( to start playback. (6) Adjust the volume using VOLUME and adjust the brightness of the LCD

screen using LCD BRIGHT.

You can also monitor the picture on a TV screen, after connecting the camcorder to a TV or VCR.

POWER

CAMERA OFF

PLAYER

To stop playback, press p. To rewind the tape, press 0. To fast-forward the tape rapidly, press ).

REW

PLAY

VOLUME

LCD BRIGHT

Playing back a tape

15°

When monitoring on the LCD screen

You can turn the LCD panel over and move back to the camcorder with the LCD screen facing out [a]. You can adjust the angle of the LCD screen by turning the LCD screen up to 15 degrees [b].

[a] [b]

Using the remote commander

– CCD-TRV36/TRV46 only

You can control playback using the supplied Remote Commander. Before using the Remote Commander, insert the R6 (size AA) batteries.

Note on DISPLAY button

Press DISPLAY to display the screen indicators on the LCD screen. To erase the indicators, press DISPLAY again. If the POWER switch is set to CAMERA, you can erase the indicator by pressing DISPLAY.

Using an earphone

Connect an earphone (not supplied) to the @ jack. You can adjust the volume using VOLUME. When you use an earphone, the sound does not come from the speaker.

Basic operations

To view the playback picture in the viewfinder

Close the LCD panel. The viewfinder turns on automatically. When using the viewfinder, you can monitor sound only by using an earphone. To view on the LCD screen again, open the LCD panel. The viewfinder turns off automatically.

Note on the lens cover

The lens cover does not open when the POWER switch is set to PLAYER. Do not open the lens cover manually. It may cause malfunction.

Playing back a tape

Various playback modes

You can enjoy clear pictures on the LCD screen during still, slow and picture search.

(Crystal-clear still/slow/picture search)

To view a still picture (playback pause)

Press P during playback. To resume playback, press P or (.

To locate a scene (picture search)

Keep pressing 0 or ) during playback. To resume normal playback, release the button.

To monitor the high-speed picture while advancing the tape or rewinding (skip scan)

Keep pressing 0 while rewinding or ) while advancing the tape. To resume normal playback, press (.

To view the picture at 1/5 speed (slow playback)

– CCD-TRV36/TRV46 only

Press & on the Remote Commander during playback. To resume normal playback, press (. If slow playback lasts for about 1 minute, it shifts to normal speed automatically.

Notes on playback

•Noise may appear when you use the crystal-clear still/slow/picture search function to play back the tape recorded in LP mode.

•Streaks appear and the sound is muted in the various playback modes.

•When playback pause mode lasts for 5 minutes, the camcorder automatically enters stop mode.

•Horizontal noise appears at the center, or top and bottom of the screen when you play back a tape in reverse. This is normal.

•You can play back the tapes recorded in the Hi8 video system on the standard 8 mm camcorder (CCD-TRV16 only).

Searching for the end of the picture

You can go to the end of the recorded portion after you record and play back the tape to make the transition between the last scene you recorded and the next scene smooth. The tape starts rewinding or fast-forwarding and the last 5 seconds (10 seconds in LP mode) of the recorded portion play back. Then the tape stops at the end of the recorded picture (End Search). Note that the End Search function does not work once you eject the cassette after you have recorded on the tape.

(1) While pressing OPEN, open the LCD panel. (2) Press END SEARCH.

This function works when the POWER switch is set to either CAMERA or PLAYER.

If you start recording after using END SEARCH

Occasionally, the transition between the last scene you recorded and the next scene may not be smooth.

END SEARCH

Basic operations

Advanced operations

Using alternative power sources

You can choose any of the following power sources for your camcorder: battery pack, house current and 12/24 V car battery. Choose the appropriate power source depending on where you want to use your camcorder.

Place Power source Accessory to be used Indoors Outdoors

In the car

Notes on power sources

•Disconnecting the power source or removing the battery pack during recording or playback may damage the inserted tape.

•The DC IN jack has power source priority. This means that the battery pack cannot supply any power if the power cord is connected to the DC IN jack, even when the power cord is not plugged into a wall outlet.

House current Battery pack

12 V or 24 V car battery

Supplied AC power adaptor Battery pack NP-F330 (supplied), NP-F530,

NP-F550, NP-F730, NP-F750, NP-F930, NP-F950 Sony DC adaptor/charger DC-V700 (not

supplied)

Using alternative power sources

Using the house current

(1) Open the DC IN jack cover, and connect the AC power adaptor to the DC IN

jack on the camcorder.

(2) Connect the power cord to the AC power adaptor. (3) Connect the power cord to a wall outlet.

WARNING

The power cord must only be changed at a qualified service shop.

PRECAUTION

The set is not disconnected from the AC power source (house current) as long as it is connected to the wall outlet, even if the set itself has been turned off.

Note

Keep the AC power adaptor away from the camcorder if the picture is disturbed.

This mark indicates that this product is a genuine accessory for Sony video products. When purchasing Sony video products, Sony recommends that you purchase accessories with this “GENUINE VIDEO ACCESSORIES” mark.

2, 3

Advanced operations

Changing the mode settings

You can change the mode settings in the menu system to further enjoy the features and functions of the camcorder.

(1) Press MENU to display the menu. (2) Turn the control dial to select the desired icon in the left side of the menu, then

press the dial to set.

(3) Turn the control dial to select the desired item, then press the dial to set. (4) Turn the control dial to select the desired mode, and press the dial to set. If you

want to change the other modes, repeat steps 3 and 4. If you want to change the other items, select to 4.

(5) Press MENU or select

CAMERA

CAMERA SET

D ZOOM 16 : 9WIDE STEADYSHOT N. S. LIGHT

RETURN and press the dial, then repeat steps from 2

icon to erase the menu display.

PLAYER

PLAYER SET

EDIT

CAMERA SET

D ZOOM 16 : 9WIDE

OTHERS

WORLD TIME BEEP COMMANDER DISPLAY REC LAMP

[MENU] : END [MENU] : END

OTHERS

WORLD TIME BEEP

Note on the menu display

Depending on the model of your camcorder, the menu display may be different from that in this illustration.

OTHERS
