manual user TV Plasma

Plasma TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model______________ Serial No.______________

© 2010 Samsung Electronics Co., Ltd. All rights reserved.	BN68-02692A-00

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Digital TV notice

1.Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2.DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment.

3.Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.

4.Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.

5.Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6.For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call centre whether it can be improved by reconfiguring TV setting or not.

User Instructions

•Screen Image retention

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

•Heat on the top of the Plasma TV

The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

•The product is making a “cracking” noise.

A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

•Cell Defects

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

•Avoid operating the TV at temperatures below 41°F (5°C)

•A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen.

Damages caused by the above effect are not covered by the Warranty.

•After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

•Warranty

Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

2English

Contents

Getting Started

4

Connections

8

Basic Features

10

Advanced Features

22

Other Information

32

4Accessories

5Viewing the Control Panel

6Viewing the Remote Control

7Connecting to an Antenna

7Plug & Play (Initial Setup)

8Connecting to an AV Device

9Connecting to an Audio Device

10Changing the Input Source

10How to Navigate Menus

11Using the INFO button (Now & Next guide)

11Planning Your Viewing

12Channel Menu

14 Picture Menu

16 Sound Menu

18 Setup Menu

20 Support Menu

22Connecting to a PC

23Media Play

29 Anynet+

32Analogue Channel Teletext Feature

33Installing the Wall Mount

34Securing the TV to the wall

35Troubleshooting

38Specifications

39Securing the Installation Space

40Index

Check the Symbol!

t

This function can be used by pressing the	Note	One -Touch Button
TOOLS button on the remote control.

ENGLISH

English 3

Getting Started

Accessories

Please make sure the following items are included with your PDP TV. If any items are missing, contact your dealer.The items’ colours and shapes may vary depending on the models.

Cables not included in the package contents can be purchased separately.

yy Remote Control & Batteries (AAA x 2)		yy	Cleaning Cloth
yy	Owner’s Instructions	yy	Power Cord
yy	Warranty Card / Safety Guide (Not available in some
	locations)

yy Blanking Bracket	yy Ferrite Core for Power Cord (2EA)
	(depending on the country)
See separate guide for installing the stand.

(M4 X L12)

yy Stand (1EA)

yy Guide Stand (1EA)

yy Screws (8EA)

Ferrite Core for Power Cord: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

xx Distance between the ferrite core and one end of the cord put into the TV set

	yy	A : below 50 mm		yy C : 100 ~ 150 mm
	yy	B : below 20 mm		yy D : below 15 mm
A	B		C	D

(Switzerland only)

4English

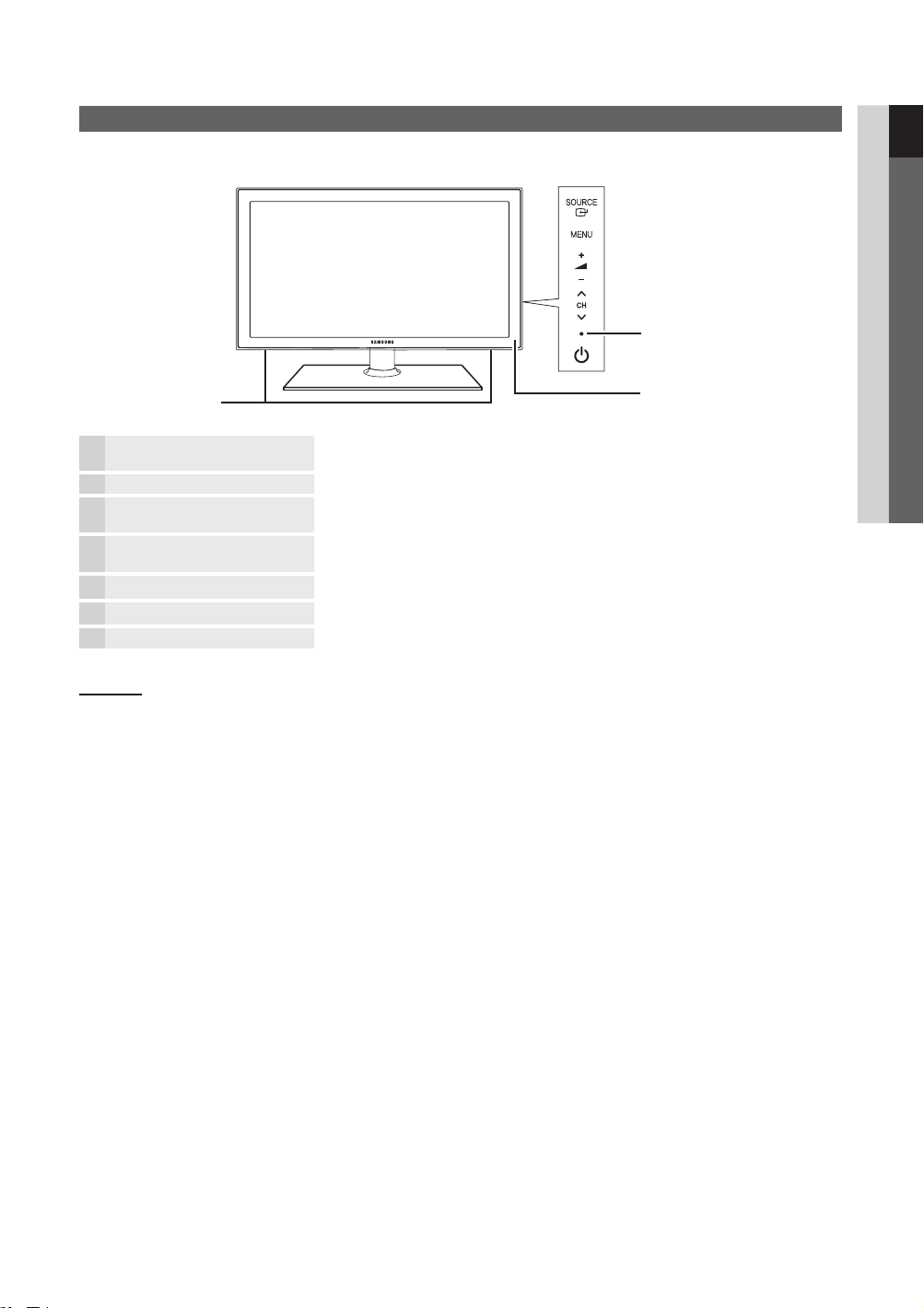

Viewing the Control Panel

The product colour and shape may vary depending on the model.

Speakers

SOURCEE

MENU

Y

z

Power Indicator

P(Power)

Remote control sensor

Standby mode

Power Indicator

Remote control sensor

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTEREbutton on the remote control.

Displays an on-screen the OSD (on screen display), of your TV’s features.

Adjusts the volume. In the OSD, use the Ybuttons as you would use the ◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the zbuttons as you would use the ▼ and ▲ buttons on the remote control.

Blinks and turns off when the power is on and lights up in standby mode. Turns the TV on or off.

Aim the remote control towards this spot on the TV.

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Started Getting 01

English 5

Getting Started

Turns the TV on and off.

Have direct access to channels.

Alternately selects Teletext, Double or Mix.

Adjusts the volume.

Opens the OSD.

Displays Media Play (USB) (p. 23).

Quickly select frequently used functions.

Returns to the previous menu.

These buttons are for the

Channel Manager,

Media Play (USB) menu, etc.

Use these buttons in Media Play (USB) and Anynet+ (HDMI-CEC) modes (p.

23, 29). ( : Controls recording for Samsung recorders that have the Anynet+ feature)

Installing batteries (Battery size: AAA)

6English

Viewing the Remote Control

SOURCE

TTX/MIX

CH LIST

MEDIA.P
			INFO
RETURN			ΕΧΙΤ
A	B	C	D
P.MODE		S.MODE	DUAL
AD		P.SIZE	SUBT.

Displays and selects the available video sources (p. 10).

Returns to the previous channel. Cuts off the sound temporarily.

Changes channels.

Displays channel lists on the screen (p. 12).

Displays the EPG (Electronic Programme Guide) (p. 11).

Displays information on the TV screen.

Selects the on-screen menu items and changes the values seen on the menu.

Exits the menu.

P.MODE: Press to select the picture mode (p. 14).

S.MODE: Press to select the sound mode (p. 16).

DUAL f-g: Sound effect selection (p. 18).

AD: Turns the audio description on and off (not available in some locations) (p. 17).

P.SIZE: Selects the picture size (p. 15). SUBT.: Displays digital subtitles (p. 19).

NOTE

xx Use the remote control within 23 feet from TV.

xx Bright light may affect the performance of the remote control. Avoid to use nearby special fluorescent light or neon sign.

xx The colour and shape may vary depending on the model.

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.Preset: Connecting the mains and antenna.

VHF/UHF Antenna

Cable

or

ANT OUT

Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWERPbutton. Plug & Play is available only when the Input source is set to TV.

To return to the previous step, press the Red button.

1	Selecting a language
2	Selecting Store Demo
	or Home Use
3	Selecting a country
4	Selecting an antenna
5	Selecting a channel
6	Setting the
	Clock Mode
7	Viewing the
	HD Connection Guide.
8	Enjoy your TV.

Press the ▲ or ▼ button, then press the ENTEREbutton.	POWER
Select the desired OSD (On Screen Display) language.	P
Press the ◄ or ► button, then press the ENTEREbutton.
yy Select the Home Use mode. Store Demo mode is for retail
environments.
yy To return the unit’s settings from Store Demo to Home Use
(standard): Press the volume button on the TV. When you see the
volume OSD, press and hold MENU for 5 sec.
Press the ▲ or ▼ button, then press the ENTEREbutton.

Select the appropriate country. If the desired country does not exist on the menu, select

Others.

After selecting the Country in the Country menu, some models may proceed with an additional option to setup the pin number.

When you input the PIN number, 0-0-0-0 is not available. Press the ▲ or ▼ button, then press the ENTEREbutton. Select Air or Cable.

Press the ▲ or ▼ button, then press the ENTEREbutton.

Select the channel source to memorise. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Store (p. 12).

Press the ENTEREbutton at any time to interrupt the memorization process. Set the Clock Mode automatically or manually.

Press the ▲ or ▼ button to select Auto, then press the ENTEREbutton. The connection method for the best HD screen quality is displayed.

Press the ENTEREbutton.

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to change the PIN number, use the Change PIN function.

English 7

Started Getting 01

Connections

Connecting to an AV Device

Using an HDMI or HDMI/DVI cable: HD connection (up to 720p/1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver

HDMI IN 1(DVI), 2, DVI AUDIO IN

		DVD / Blu-ray
R	W	player
Red	White
		HDMI OUT
		DVD / Blu-ray
		player
		DVI OUT
	R	AUDIO OUT
	W	R-AUDIO-L

xx When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. For the DVI cable connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the DVI AUDIO IN jacks for audio.

xx If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound / annoying flicker / abnormal colour).

xx If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request an upgrade.

xx It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a connection error may occur.

Using a Component (up to 720p/1080i) or Audio/Video (480i only) and Scart Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

Y

		W	R
R	W	Y

Red White Yellow

Y

R

W

VCR	VIDEO OUT AUDIO OUT
	R-AUDIO-L

VCR / DVD

R

W

R

B

G

R W R B G

R	W	R	B	G	Red White	Red Blue Green

EXT	AUDIO OUT	COMPONENT OUT DVD / Blu-ray player
	R-AUDIO-L	PR	PB	Y

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

8English

Connecting to an Audio Device

Using an Optical (Digital) or Headphone Connection

Available devices: digital audio system, amplifier, DVD home theatre

digital audio system

OPTICAL

DIGITAL AUDIO OUT (OPTICAL)

xx When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system.

xx 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

xx When the receiver (amplifier or DVD home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD home theatre. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the amplifier or DVD home theatre. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

Headphones H: You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

xx Sound function may be restricted when connecting headphones to the TV. xx Headphone volume and TV volume are adjusted separately.

CONNECTIONS COMMON INTERFACE Slot

To watch paid channels, the “CI or CI+ CARD” must be inserted.

yy If you don’t insert the “CI or CI+ CARD”, some channels will display the message “Scrambled Signal”.

yy The pairing information containing a telephone number, the “CI or CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

yy When the configuration of channel information has finished, the message “Updating Completed” is displayed, indicating the channel list is updated.

NOTE

xx You must obtain a “CI or CI+ CARD” from a local cable service provider.

xx When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI (CI+) CARD” may cause damage to it.

xx Insert the “CI or CI+ CARD” in the direction marked on the card.

xx The location of the COMMON INTERFACE slot may be different depending on the model.

xx “CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer. xx If you have any problems, please contact a service provider.

xx Insert the “CI or CI+ CARD” that supports the current antenna settings. The screen will be distorted or will not be seen.

English 9

Connections 02

Connections

Changing the Input Source

Source List

Use to select TV or other external input	SOURCE
sources such as DVD / Blu-ray players /
cable box / STB satellite receiver connected
to the TV.

■■ TV / Ext. / AV / Component / HDMI1/DVI / HDMI2 / USB

In the Source List, connected inputs will be highlighted.

Ext. always stay activated.

Basic Features

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

1						HDMI
							INFO
2
3	RETURN						ΕΧΙΤ	4

1 MENU button: Displays the main on-screen menu.

2ENTERE/ Direction button: Move the cursor and select an item. Confirm the setting.

3 RETURN button: Returns to the previous menu.

4 EXIT button: Exits the on-screen menu.

Edit Name

■■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier.

When connecting an HDMI/DVI cable to the HDMI IN 1(DVI) port, you should set to DVI PC or DVI Devices mode under Edit Name.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

1	MENU m
2	▲ / ▼
3	ENTER E
4	▲ / ▼
5	◄ / ►
6	ENTER E
7	EXIT e

The main menu options appear on the screen:

Picture, Sound, Channel, Setup, Input, Application, Support.

Select an icon with the ▲ or ▼ button.

Press ENTEREto access the sub-menu.

Select the desired submenu with the ▲ or ▼ button.

Adjust the value of an item with the ◄ or ► button. The adjustment in the OSD may differ depending on the selected menu.

Press ENTEREto complete the configuration.

Press EXIT.

10 English

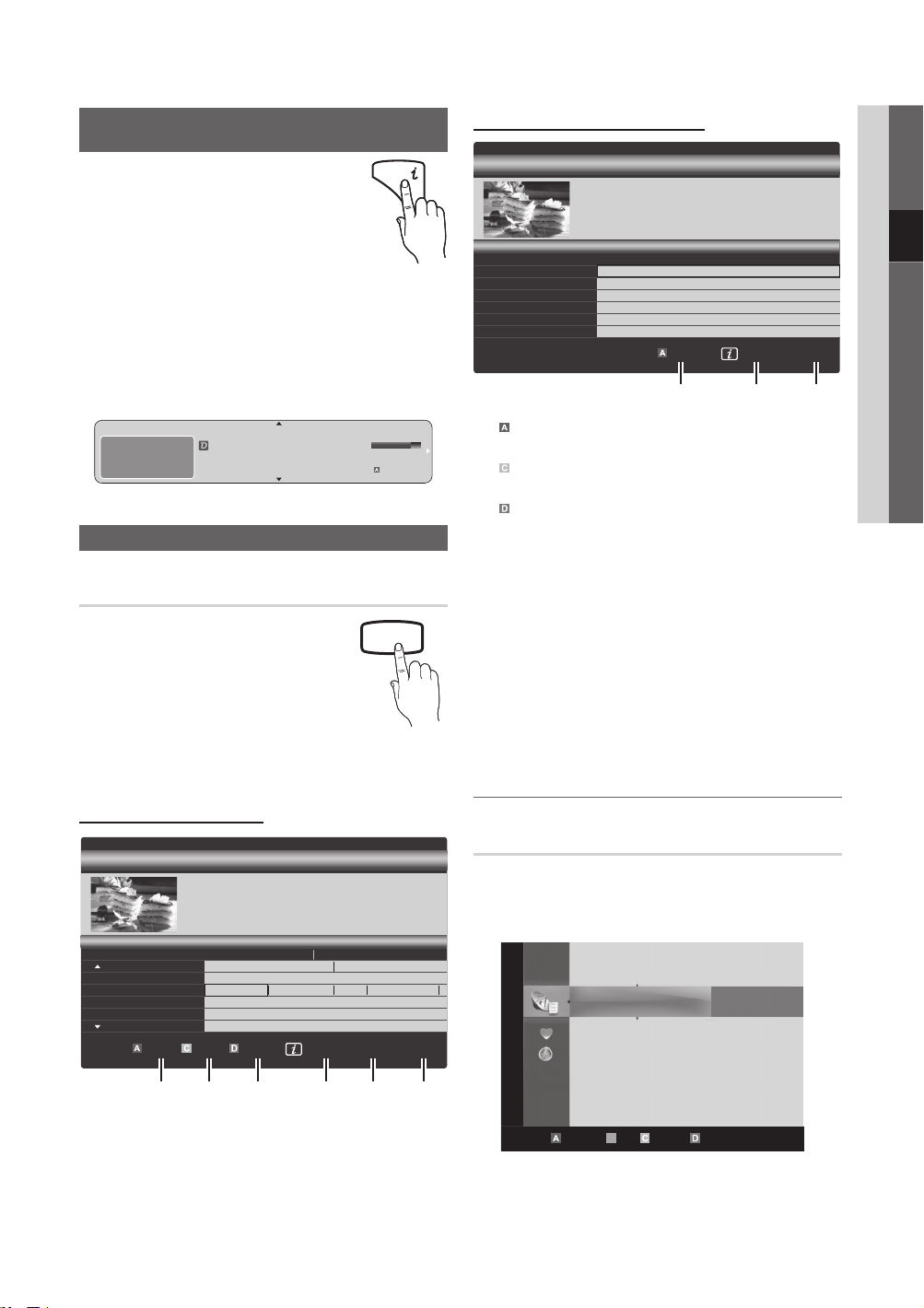

Using the INFO button (Now & Next guide)

The display identifies the current channel and

the status of certain audio-video settings.

The Now & Next guide shows daily TV programme information for each channel according to the broadcasting time.

yy Scroll ◄, ► to view information for a desired programme while watching the current channel.

yy Scroll ▲, ▼ to view information for other channels. If you want to move to the currently selected channel, press the ENTEREbutton.

DEF		18:11 Thu 6 Jan
DTV Air	Life On Venus Avenue	18:00 ~ 6:00
15	Unclassified	EWatch
	No Detaild Information	Information
	Planning Your Viewing
Guide
The EPG (Electronic Programme Guide)		GUIDE
information is provided by broadcasters.

Using programme schedules provided by broadcasters, you can specify programmes you want to watch in advance so that the channel automatically changes to the selected programme channel at the specified time.

Programme entries may appear blank or out of date depending on a channel status.

Using Channel View

Using Scheduled View

	Guide							2:10Tue 1 Jun
			DTV Air 800 five
			Family Affairs
			18:00 - 18:30
			Drama
	800 five		Tanya confesses all to a stunned Babs. Conrad is anxious to hear...
	Scheduled View
	18:30	Today		)Family Affairs			800	five
	19:15	Today		)Dark Angel			800	five
						View Mode	Information E Cancel

1 4 6

1 Red (View Mode): View the list of programmes that are playing now or coming up.

2 Yellow (+24 Hours): Viewing the list of programmes to be broadcasted after 24 hours.

3 Blue (Ch. Mode): Select the type of channels you want to display on the Channel View window. (All, TV,

Radio, Data/Other, My Channel 1~4)

4Information: Displays details of the selected programme.

5 k(Page): Move to next or previous page.

6ENTEREbutton

––When selecting the current programme, you can watch the selected programme.

––When selecting the future programme, you can reserve to watch the selected programme. To cancel the schedule, press the ENTEREbutton again and select Cancel Schedules.

Guide	2:10Tue 1 Jun
	DTV Air 800 five
	Home and Away
	18:00 - 18:30
	Drama
800 five	Dani is devastated when scott makes clear his views on marriage...

Channel View - TV

18:00 - 19:00

19:00 - 20:00

Today

27

Discovery

American Chopper

Tine Team

28

DiscoveryH&L

Programmes resume at 06:00

800

five

Home and...

)Family Affairs

Fiv...

)Dark Angel

24

price-drop.tv

No Information

16

QVC

QVC Selection

6

R4DTT

No Information

View Mode

+24 Hours

Ch. Mode

Information

kPage

E Watch

1

2

3

4

5

6

¦¦ Seeing Channels

Channel Manager

Delete or set favourites channels and use the programme guide for digital broadcasts. Select a channel in the

Channels, My Channels or Scheduled screen.

						c1			1futech
Channels			All			2			* 24ore.tv
			Radio			3			BBC World
			TV			15			abc1	r
			Data/Other			23			bid-up.tv
			Analogue			33			Boonerang
						32			Cartoon Nwk
						5			Class News
						4			\ Coming Soon
						27			Discovery
	Air		Antenna		Zoom		Select		Sort kPage T Tools

Features Basic 03

English 11

Basic Features

■■ Channels: Shows the channel list according to channel type.

■■ *My Channels: Shows the group of the channel.

■■ Scheduled: Shows all the currently reserved programmes.

Using the colour buttons with the Channel Manager xx Red (Antenna): Toggle among Air or Cable.

xx Green (Zoom): Enlarges or shrinks a channel number.

xx Yellow (Select): Selects multiple channel lists. Select desired channels and press the Yellow button to set all the selected channels at the same time. The cmark appears to the left of the selected channels.

xx Blue (Sort): Change the list ordered by channel name or channel number.

xx k(Page): Move to next or previous page.

xx T(Tools): Displays the Channel Manager option menu. (The options menus may differ depending on the situation.)

Channel Status Display Icons

Icons Operations

A An analogue channel.

cA channel selected.

*A channel set as a Favourite.

( A programme currently being broadcast.

\A locked channel.

)A reserved programme.

¦¦ Using Favourite Channels

* My Channels

(in Channel Manager) Shows all favourite channels.

■■ Edit My Channels t: You can set the selected channels to desired my channels group.

The “*” symbol will be displayed and the channel will be set as a My Channels.

1.Select a channel and press the TOOLS button.

2.Add or delete a channel in the my channel groups you want among 1, 2, 3 and 4.

xx One or more groups can be selected.

3.After you have changed the settings, the channel list for each group can be viewed in my channels.

						c1				1futech
Channels			All			2			* 24ore.tv
			Radio			3		Lock		BBC World	r
			TV			15		Edit My Channelsabc1
			Data/Other			23		Timer Viewing
										bid-up.tv
			Analogue			33		Edit Channel Number
								Delete		Boonerang
						32				Cartoon Nwk
						5		DeselectAll
										Class News
						4				d
									\ Coming Soon
						27				Discovery
	Air		Antenna		Zoom		Select		Sort	kPage T Tools

Channel List

You can see all the channels searched. CH LIST

Channel Menu

¦¦ Returning Channels

Antenna (Air / Cable) t

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

Country

The PIN input screen appears. Enter your 4 digit PIN number.

■■ Digital Channel: Change the country for digital channels.

■■ Analogue Channel: Change the country for analogue channels.

Auto Store

Scans for a channel automatically and stores in the TV.

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the PIN input window appears.

■■ Antenna Source (Air / Cable): Select the antenna source to memorise.

12 English

■■ Channel Source (Digital & Analogue / Digital / Analogue): Select the channel source to memorise.

When selecting Cable → Digital & Analogue or Digital: Provide a value to scan for cable channels.

Search Mode (Full / Network / Quick): Scans for all channels with active broadcast stations and stores them in the TV.

If you select Quick, you can set up the Network,

Network ID, Frequency, Modulation and

Symbol Rate manually by pressing the button on the remote control.

Network (Auto / Manual): Selects the Network ID setting mode among Auto or Manual.

Network ID: When Network is Manual, you can set up

Network ID using the numeric buttons.

Frequency: Displays the frequency for the channel. (differs in each country)

Modulation: Displays available modulation values. Symbol Rate: Displays available symbol rates.

Manual Store

Scans for a channel manually and stores in the TV.

■■ Digital Channel: When scanning has finished, channels are updated in the channel list.

When selecting Antenna → Air: Channel, Frequency, Bandwidth

When selecting Antenna → Cable: Frequency, Modulation, Symbol Rate

■■ Analogue Channel (Programme, Colour System, Sound System, Channel, Search): If there is abnormal sound or no sound, reselect the sound standard required.

Channel mode

xx P (programme mode): When tuning is complete, the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You

can select a channel by entering the position number in this mode.

xx C (aerial channel mode) / S (cable channel mode): These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

¦¦ Editing Channels

Channel Manager Option Menu

(in Channel Manager)

1.Select a channel and press the TOOLS button.

2.Edit the channel name or number using the

Edit Channel Name or Edit Channel Number menu.

■■ Edit Channel Name (analogue channels only): Assign your own channel name.

■■ Edit Channel Number (digital channels only): Edit the number by pressing the number buttons desired.

¦¦ Other Features

Cable Search Option

(depending on the country)

Sets additional search options such as the frequency and symbol rate for a cable network search.

■■ Freq.Start / Freq.Stop: Set the start or stop frequency (differs in each country)

■■ Symbol Rate: Displays available symbol rates. ■■ Modulation: Displays available modulation values.

Channel Manager

Channel Manager Option Menu

Set each channel using the Channel Manager menu options (Lock / Unlock, Timer Viewing, Sort, Delete, Select All / Deselect All). Option menu items may differ depending on the channel status.

1.Select a channel and press the TOOLS button.

2.Select a function and change its settings.

■■ Lock / Unlock: Lock a channel so that the channel cannot be selected and viewed.

NOTE

xx This function is available only when the Child Lock is set to On.

xx The PIN input screen appears. Enter your 4-digit PIN, the default of which is “0-0-0-0.” Change the PIN using the Change PIN option.

■■ Timer Viewing: You can set a desired channel to be displayed automatically at the reserved time. Set the current time first to use this function.

When a digital channel is selected, press the ► button to view the digital Programme.

■■ Sort (analogue channels only): This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

■■ Delete: You can delete a channel to display the channels you want.

■■ Select All / Deselect All: Select all the channels or deselect all the selected channels in the channel manager.

Channel List Transfer

The PIN input screen appears. Enter your 4 digit PIN number. Imports or exports the channel map. You should connect a USB storage to use this function.

■■ Import from USB: Import channel list from USB.

■■ Export to USB: Export channel list to USB. this function is available when USB is connected.

English 13

Features Basic 03

Basic Features

Scheduled

(in Channel Manager)

You can view, modify or delete a show you have reserved to watch.

■■ Change Info: Change a show you have reserved to watch.

■■ Cancel Schedules: Cancel a show you have reserved to watch.

■■ Information: Display a show you have reserved to watch. (You can also change the reservation information.)

■■ Select All / Deselect All: Select or deselect all reserved programmes.

Fine Tune

(analogue channels only)

If the signal is weak or distorted, fine tune the channel manually.

Fine tuned channels are marked with an asterisk “*.”To reset the fine-tuning, select Reset.

Picture Menu

¦¦ Changing the Preset Picture Mode

	Mode
	Select your preferred picture type.	P.MODE
	■■ Dynamic: Suitable for a bright room.

■■ Standard: Suitable for a normal environment.

■■ Movie: Suitable for watching movies in a dark room.

¦¦ Adjusting Picture Settings

Cell Light / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

NOTE

xx In analogue TV, Ext., AV modes of the PAL system, the Tint (G/R) function is not available.

xx Settings can be adjusted and stored for each external device connected to the TV.

xx Lowering picture brightness reduces power consumption.

¦¦ Economical Solutions

Eco Solution

■■ Energy Saving (Off / Low / Medium / High / Picture Off) t: This adjusts the brightness of the TV in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button except volume button to turn on the screen. Until the screen turns on again, a distorted picture will be displayed for about 4 seconds.

■■ Eco Sensor (Off / On): To enhance your power savings; the picture settings will automatically adapt to the light in the room.

If you adjust the Cell Light, the Eco Sensor will be set to Off.

Min Cell Light: When Eco sensor is On, the minimum screen brightness can be adjusted manually.

If Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity.

■■ No-Signal Power Off (Off / 15 min / 30 min / 60 min): To avoid unnecessary energy consumption, set how long you want the TV to remain on if it's not receiving a signal.

Disabled when the PC is in power saving mode.

¦¦ Changing the Picture Options

Advanced Settings

(available in Standard / Movie mode)

You can adjust the detailed setting for the screen including colour and contrast.

Advanced Settings

Black Tone	: Off	►
Dynamic Contrast	: Medium
Gamma	: 0
RGB Only Mode	: Off
Colour Space	: Native
White Balance
Flesh Tone	: 0
	▼
	UMove E Enter	R Return

14 English

■■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth.

■■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast.

■■ Gamma: Adjust the primary colour intensity.

■■ RGB Only Mode (Off / Red / Green / Blue): You can adjust Colour or Tint (G/R) of Red, Green or Blue for the picture from an external device (DVD player, home theatre, etc.).

■■ Colour Space (Auto / Native): Adjust the range of colours available to create the image.

■■ White Balance: Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness.

Reset: Resets the White Balance to it’s default settings. ■■ Flesh Tone: Emphasize pink “Flesh Tone.”

■■ Edge Enhancement (Off / On): Emphasize object boundaries.

Picture Options

Picture Options

Colour Tone	: Normal	►
Size	:Auto Wide
Screen Mode	: 16:9
Digital Noise Filter	:Auto
MPEG Noise Filter	:Auto
HDMI Black Level	: Normal
Film Mode	: Off
	▼
	UMove E Enter	R Return

■■ Colour Tone (Cool / Normal / Warm1 / Warm2)

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic.

Settings can be adjusted and stored for each external device connected to an input on the TV.

■■ Size: Your cable box/satellite receiver may	P.SIZE
have its own set of screen sizes as well.
However, we highly recommend you use
16:9 mode most of the time.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9 : Adjusts the picture size to 16:9 for DVDs or wide broadcasting.

Wide Zoom: Magnifies the picture size more than 4:3.Adjusts the Position by using ▲, ▼ buttons.

Zoom: Magnifies the 16:9 wide pictures vertically to fit the screen size.

Adjusts the Position or Size by using ▲, ▼ button.

4:3 : The default setting for a movie or normal broadcasting.

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention(screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

NOTE

xx Depending on the input source, the picture size options may vary.

xx The available items may differ depending on the selected mode.

xx Settings can be adjusted and stored for each external device connected to an input on the TV.

xx After selecting Screen Fit in HDMI (1080i / 1080p) or Component (1080i / 1080p) mode: Adjusts the Position or Size by using ▲, ▼, ◄, ► button.

xx If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

■■ Screen Mode (16:9 / Wide Zoom / Zoom / 4:3): Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size.

Not available in PC, Component or HDMI mode.

■■ Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation): When the broadcast signal is weak, some static and ghosting may appear. Select one of the options until the best picture is displayed.

Auto Visualisation: When changing analogue channels, displays the intensity of the current signal and defines the screen noise filter.

Only available for analogue channels.

Features Basic 03

English 15

Basic Features

■■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved picture quality.

■■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth.

Available only in HDMI mode (RGB signals).

■■ Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process film signals from all sources and adjust the picture for optimum quality.

Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

■■ Screen Burn Protection: To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. The Time setting allows you to programme the time between movement of the picture in minutes.

Pixel Shift (Off / On): Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen.

Optimum condition for pixel shift

	Item	TV/AV/Component/
		HDMI
Horizontal	0~4	4
Vertical	0~4	4
Time (minute)	1~4 min	4 min

The Pixel Shift value may differ depending on the monitor size (inches) and mode.

This function is not available in the Screen Fit mode.

Auto Protection Time (10 min / 20 min / 40 min / 1 hour / Off): If the screen remains idle with a still image for a certain period of time defined by the user,

the screen saver is activated to prevent the formation of ghost images on the screen.

Scrolling: This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen, especially when you displayed a still image on the screen for a long time.

The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after-images on the screen. If the after-image is not removed after performing the function, repeat the function again.

Press any key on the remote control to cancel this feature.

Side Grey (Dark / Light): When you watch TV with the screen ratio set to 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

Sound Menu

¦¦ Changing the Preset Sound Mode

Mode

■■ Standard: Selects the normal sound

mode. S.MODE

■■ Music: Emphasizes music over voices.

■■ Movie: Provides the best sound for movies.

■■ Clear Voice: Emphasizes voices over other sounds.

■■ Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.

¦¦ Adjusting Sound Settings

Equalizer

Adjusts the sound mode (standard sound mode only).

■■ Balance L/R: Adjusts the balance between the right and left speaker.

■■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of specific bandwidth frequencies.

■■ Reset: Resets the equalizer to its default settings.

¦¦ Sound Systems, Etc.

Virtual Surround (Off / On)

(standard sound mode only)

This function provides a virtual 5.1 channel surround sound experience through a pair of speakers or headphones using HRTF (Head Related Transfer Function) technology.

16 English

Dialog Clarity (Off / On)

(standard sound mode only)

This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be heard more clearly.

Audio Language t

(digital channels only)

Change the default value for audio languages.

The available language may differ depending on the broadcast.

Audio Format

(digital channels only)

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

Audio Format option may differ depending on the broadcast. 5.1ch Dolby digital sound is only available when connecting an external speaker through an optical cable.

Audio Description

(not available in all locations)	AD
(digital channels only)

This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster.

■■ Audio Description (Off / On): Turn the audio description function on or off.

■■ Volume: Adjust the audio description volume.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

■■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

Speaker Select (External Speaker /

TV Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

When Speaker Select is set to External Speaker xx TV Speaker: Off, External Speaker: On

When Speaker Select is set to TV Speaker xx TV Speaker: On, External Speaker: On

If there is no video signal, both speakers will be mute.

Additional Setting

(digital channels only)

■■ DTV Audio Level (MPEG / HE-AAC): This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level.

According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB.

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

■■ SPDIF Output: SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.

Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.

By connecting to 5.1ch speakers in a Dolby Digital setup, maximize your interactive 3D sound experience.

Audio Delay: Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms).

Features Basic 03

English 17

Basic Features

■■ Dolby Digital Comp (Line / RF): This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time.

Line: Set the output level for signals greater or less than -31dB (reference) to either -20dB or -31dB.

RF: Set the output level for signals greater or less than -20dB (reference) to either -10dB or -20dB.

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

¦¦ Selecting the Sound Mode

When you set to Dual f-g, the current sound
mode is displayed on the screen.	DUAL

		Audio	Dual f-g	Default
		Type
	A2	Mono	Mono	Automatic
		Stereo	Stereo  Mono	change
	Stereo
		Dual	Dual f Dual g	Dual f
		Mono	Mono	Automatic
	NICAM	Stereo	Mono  Stereo	change
	Stereo	Dual	Mono  Dual f	Dual f
			 Dual g

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

Only activated in stereo sound signal.

Only available when the Input source is set to TV.

Setup Menu

¦¦ Setting the Time

Time

■■ Clock: Setting the clock is for using various timer features of the TV.

OO The current time will appear every time you press the INFO button.

If you disconnect the power cord, you have to set the clock again.

Clock Mode (Auto / Manual)

Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.

The antenna must be connected in order to set the time automatically.

Clock Set: Set the Day, Month, Year, Hour and Minute manually.

Available only when Clock Mode is set to

Manual.

Time Zone (depending on the country): Select your time zone.

When Country is set to Others, you can use this function.

This function is only available when the Clock Mode is set to Auto.

¦¦ Using the Sleep Timer

■■ Sleep Timer t: Automatically shuts down the TV after a preset period of time. (Off, 30, 60, 90, 120, 150 and 180 minutes).

To cancel Sleep Timer, select Off.

¦¦ Setting the On / Off Timer

■■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock first.

Timer 1

On Time

▲

00

00

Inactivate

▼

Off Time

Inactivate

00

00

Volume

Source

Antenna

Channel

10

TV

ATV

1

Repeat

Sun

Mon

Tue

Wed

Thu

Fri

Sat

Once

LMove

U Adjust

E Enter

R Return

18 English

On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate timer with the setting you’ve chosen, set to Activate.)

Volume: Set the desired volume level.

Source: Select TV or USB content to be played when the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Antenna (when the Source is set to TV): Select ATV or

DTV.

Channel (when the Source is set to TV): Select the desired channel.

Contents (when the Source is set to USB): Select a folder in the USB device containing music or photo files

to be played when the TV is turned on automatically.

NOTE

xx If there is no music file on the USB device or the folder containing a music file is not selected, the Timer function does not operate correctly.

xx When there is only one photo file in the USB device, the Slide Show will not play.

xx If a folder name is too long, the folder cannot be selected.

xx Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat,

Sat~Sun or Manual to set at you convenience. If you select Manual, you can set up the day you want to activate the timer.

The cmark indicates the day is selected.

Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

¦¦ Locking Programmes

Security

The PIN input screen appears before the setup screen.

Enter your 4-digit PIN, the default of which is “0-0-0-0.” Change the PIN using the Change PIN option.

■■ Child Lock (Off / On): Lock channels in Channel Manager, to prevent unauthorized users, such as children, from watching unsuitable programme.

Available only when the Input source is set to TV.

■■ Parental Lock (depending on the country): Prevent unauthorized users, such as children, from watching unsuitable programme with a user-defined 4-digit PIN code. If the selected channel is locked, the “\” symbol will be displayed.

Allow All: Unlock all TV ratings (Not supported in France).

When Parental Lock is set to 19, the PIN input screen appears before changing the channels (France only).

You can block TV programs by set up rating in Parental Lock as the I (children), T (All public), SC (Unclassified) and X (X rated). When

Parental Lock is set to X, the PIN input screen always before changing the channels (Spain only).

■■ Change PIN: Change your personal ID number required to set up the TV.

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to “0-0-0-0”: POWER (off) →

MUTE → 8 → 2 → 4 → POWER (on).

¦¦ Other Features

Language

■■ Menu Language: Set the menu language.

■■ Teletext Language: Set a desired language for teletext.

English is the default in cases where the selected language is unavailable in the broadcast.

■■ Preference (Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language / Primary Teletext Language / Secondary Teletext Language): Select a language, which will be the default language when a channel is selected.

	Subtitle
	Use this menu to set the Subtitle mode.	SUBT.
	■■ Subtitle (Off / On): Switches subtitles on
	or off.

■■ Mode (Normal / Hearing Impaired): Sets the subtitle mode.

■■ Subtitle Language: Sets the subtitle language.

If the programme you are watching does not support the Hearing Impaired function, Normal automatically activates even if the Hearing Impaired mode is selected.

English is the default in cases where the selected language is unavailable in the broadcast.

Digital Text (Disable / Enable)

(UK only)

If the programme broadcasts with digital text, this feature is enabled.

General

■■ Game Mode (Off / On): When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

English 19

Features Basic 03

Basic Features

NOTE

xx Precautions and limitations for game mode

––To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu.

––If you display the TV menu in Game Mode, the screen shakes slightly.

xx Game Mode is not available when the input source is set to TV.

xx After connecting the game console, set Game Mode to On. Unfortunately, you may notice reduced picture quality.

xx If Game Mode is On:

––Picture mode is set to Standard and Sound mode is set to Movie.

––Equalizer is not available.

■■ Menu Transparency (Bright / Dark): Set the Transparency of the menu.

■■ Melody (Off / Low / Medium / High): Set so that a melody plays when the TV is turned on or off.

¦¦ Picture In Picture (PIP)

PIP t

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

NOTE

xx For PIP sound, refer to the Sound Select instructions.

xx If you turn the TV off while watching in PIP mode, the PIP window will disappear.

xx You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

xx PIP settings

	Main picture	Sub picture
	Component, HDMI1/DVI,	TV
	HDMI2

■■ PIP (Off / On): Activate or deactivate the PIP function. ■■ Channel: Select the channel for the sub-screen.

■■ Size (Õ/ Ã): Select a size for the sub-picture.

■■ Position (Ã/ –/ —/ œ): Select a position for the sub-picture.

■■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode.

Common Interface

■■ CI Menu: This enables the user to select from the CAMprovided menu. Select the CI Menu based on the menu PC Card.

■■ Application Info: View information on the CAM inserted into the CI slot and on the “CI (CI+) CARD” which is inserted into the CAM. You can install the CAM anytime whether the TV is on or off.

1.Purchase a CI CAM module at your nearest dealer or by phone.

2.Firmly insert the “CI (CI+) CARD” into the CAM in the direction of the arrow.

3.Insert the CAM with the “CI (CI+) CARD” into the common interface slot, in the direction of the arrow so that it aligns parallel with the slot.

4.Check if you can see a picture on a scrambled signal channel.

Support Menu

Self Diagnosis

Self Diagnostic might take few seconds, this is part of the normal operation of the TV

■■ Picture Test (Yes / No): Use to check for picture problems.

■■ Sound Test (Yes / No): Use the built-in melody sound to check for sound problems.

If you hear no sound from the TV’s speakers, before performing the sound test, make sure

Speaker Select is set to TV Speaker in the Sound menu.

The melody will be heard during the test even if

Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

■■ Signal Information: (digital channels only) HDTV channel’s reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

■■ Troubleshooting: If the TV seems to have a problem, refer to this description.

If none of these troubleshooting tips apply, contact the Samsung customer service centre.

20 English

USB Drive

TV Side Panel

Software Upgrade

Software Upgrade can be performed via a broadcasting signal or downloading the latest firmware from “www. samsung.com,” to a USB memory device.

Software is represented as “Year/Month/Day_Version.”

Software Upgrade

	Current Version	2010/01/18_000322
	By USB	►
	By Channel
	Standby Mode Upgrade	: 2 Hours Later
	Alternative Software	2010/01/15_00321
		UMove E Enter R Return

Installing the Latest Version

■■ By USB: Insert a USB drive containing the firmware upgrade file, downloaded from “www. samsung.com,” into the TV. Please be careful not

to disconnect the power or remove the USB drive until upgrades are complete.

The TV will be turned off and on automatically after completing the firmware upgrade. When software is

upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade.

■■ By Channel: Upgrade the software using the broadcasting signal.

If the function is selected during the software transmission period, software will be automatically searched and downloaded.

The time required to download the software is determined by the signal status.

■■ Standby Mode Upgrade: A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the PDP product. This phenomenon may continue for more than 1 hour until the software upgrade is complete.

■■ Alternative Software (backup): If there is an issue with the new firmware and it is affecting operation, you can change the software to the previous version.

If software was changed, existing software is displayed.

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centres, and how to download products and software.

English 21

Features Advanced 04

Advanced Features

Connecting to a PC

Using an HDMI/DVI cable

DVI OUT

AUDIO OUT

Display Modes (HDMI/DVI Input)

Optimal resolution

yy PS42C430: 1024 X 768 @ 60Hz yy PS50C430: 1360 X 768 @ 60Hz

			Horizontal	Vertical	Pixel Clock	Sync Polarity
	Mode	Resolution	Frequency	Frequency	Frequency		PS42C430	PS50C430
						(H / V)
			(KHz)	(Hz)	(MHz)
	IBM	640 x 350	31.469	70.086	25.175	+/-	>	>
		720 x 400	31.469	70.087	28.322	-/+	>	>
	MAC	640 x 480	35.000	66.667	30.240	-/-	>	>
		832 x 624	49.726	74.551	57.284	-/-	>	>
	VESA CVT	720 x 576	35.910	59.950	32.750	-/+	>	>
		1280 x 720	56.456	74.777	95.750	-/+		>
		640 x 480	31.469	59.940	25.175	-/-	>	>
		640 x 480	37.500	75.000	31.500	-/-	>	>
		640 x 480	37.861	72.809	31.500	-/-	>	>
		800 x 600	37.879	60.317	40.000	+/+	>	>
		800 x 600	46.875	75.000	49.500	+/+	>	>
	VESA DMT	800 x 600	48.077	72.188	50.000	+/+	>	>
		1024 x 768	48.363	60.004	65.000	-/-	>	>
		1024 x 768	56.476	70.069	75.000	-/-	>	>
		1024 x 768	60.023	75.029	78.750	+/+	>	>
		1280 x 720	45.000	60.000	74.250	+/+		>
		1360 x 768	47.712	60.015	85.500	+/+		>
	VESA GTF	1280 x 720	52.500	70.000	89.040	-/+		>

NOTE

xx For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. xx The interlace mode is not supported.

xx The set may operate abnormally if a non-standard video format is selected.

xx Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

22 English

Media Play

MEDIA.P	Enjoy photos, music and/or movie fi les saved on a
	USB Mass Storage Class (MSC) device.

MediaPlay

Videos

SUM

Change Device

View Devices E Enter R Return

¦ Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie fi les to the USB jack on the side of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select

Media Play.

TV Side Panel

USB Drive

It might not work properly with unlicenced multimedia files.

Need-to-Know List before using Media Play (USB)

xMTP (Media Transfer Protocol) is not supported.

xThe file system supports FAT16, FAT32 and NTFS.

xCertain types of USB Digital camera and audio devices may not be compatible with this TV.

xMedia Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV’s USB port.

xBefore connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.

xConnect a USB HDD to the dedicated port, USB port.

xDo not disconnect the USB device while it is loading.

xThe higher the resolution of the image, the longer it takes to display on the screen.

xThe maximum supported JPEG resolution is 15360X8640 pixels.

xFor unsupported or corrupted files, the “Not Supported File Format” message is displayed.

xIf the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

xMP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM) is a technology that supports the creation of content, the distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

xIf more than 2 PTP devices are connected, you can only use one at a time.

xIf more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high power (more than 500mA or 5V) may not be supported.

Features Advanced 04

English 23

Advanced Features

xx If an over-power warning message is displayed while you are connecting or using a USB device, the device may not be recognized or may malfunction.

xx If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.

xx The power-saving mode of some external hard disk drives may be released automatically when connected to the TV. xx If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

xx If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played, connect the USB device to the PC, format the device and check the connection.

xx If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC to permanently delete the file.

¦¦ Screen Display

Move to the file you desired using the up/down/right/left buttons and then press the ENTEREor (Play) button. The file is played.

Supports the View Devices and Home in Media Play homepage.

Information: You can ascertain the selected

file name and the number of files and page.

Sort List Section: Displays sorting standard.

Sorting standard is different depending on the contents.

Videos			/Movie 01.avi					1/1 Page
			Movie 01.avi		Movie 02.avi
			Jan.10.2010					Jan.10.2010
			Movie 03.avi		Movie 04.avi
			Jan.10.2010					Jan.10.2010
			Movie 05.avi		Movie 06.avi
			Jan.10.2010					Jan.10.2010
			Movie 07.avi		Movie 08.avi
			Jan.10.2010					Jan.10.2010
			Movie 09.avi		Movie 10.avi
			Jan.10.2010					Jan.10.2010
SUM		Change Device			Select			Sorting T Tools

File List Section:

You can confirm the files and groups that is sorted by each category.

Operation Buttons

Red (Change Device): Selects a connected device.

Green (Preference): Sets the file preference. (not supported in Basic view)

Yellow (Select): Selects multiple files from file list. Selected files are marked with a symbol.

Blue (Sorting): Selects the sort list. TTools: Displays the option menu.

Using the (REW) or µ(FF) button, file list can move to next or previous page.

24 English

Videos

Playing Video

1.Press the ◄ or ► button to select Videos, then press the ENTEREbutton in the Media Play menu.

2.Press the ◄/►/▲/▼ button to select the desired file in the file list.

3.Press the ENTEREbutton or (Play) button.

––The selected file is displayed on the top with its playing time.

––If video time information is unknown, play time and progress bar are not displayed.

––During playing the video, you can search using the ◄ and ► button.

In this mode, you can enjoy movie clips contained on a Game,

but you cannot play the Game itself.

Movie 01.avi

00:04:03 / 00:07:38

1/1

yy Supported Subtitle Formats

Name

File extension

Format

MPEG-4 time-based text

.ttxt

XML

SAMI

.smi

HTML

SubRip

.srt

string-based

SubViewer

.sub

string-based

Micro DVD

.sub or .txt

string-based

SUM

EPause L Jump T Tools R Return

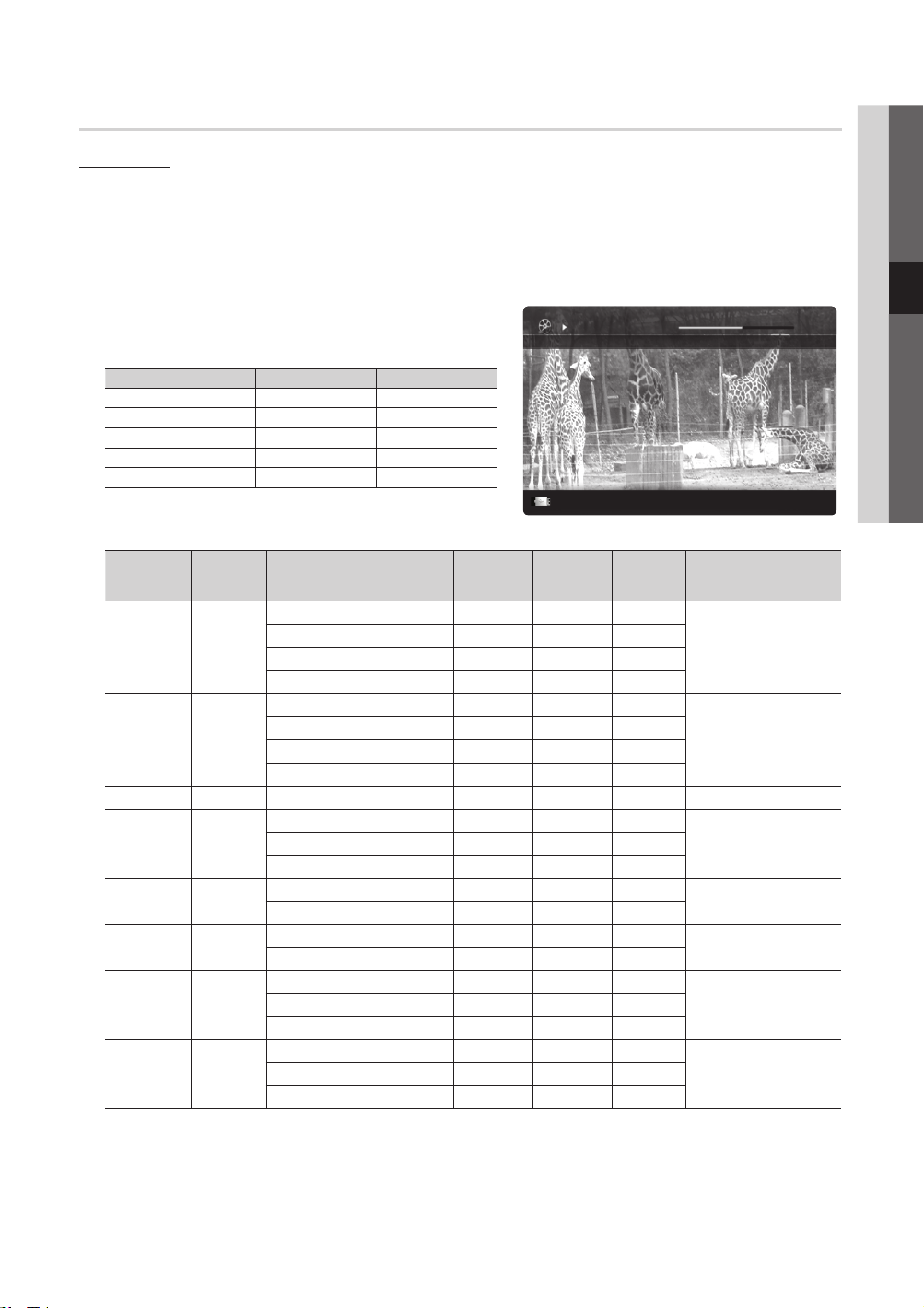

yy Supported Video Formats

File Extension

Container

Video Codec

Resolution

Frame rate

Bit rate

Audio Codec

(fps)

(Mbps)

Divx 3.11 / 4.x / 5.1 / 6.0

1920x1080

6

~ 30

8

*.avi

AVI

XviD

1920x1080

6

~ 30

8

MP3 / AC3 / LPCM /

*.mkv

MKV

H.264 BP / MP / HP

1920x1080

6

~ 30

25

ADPCM / DTS Core

MPEG4 SP / ASP

1920x1080

6

~ 30

8

Divx 3.11 / 4.x / 5.1 / 6.0

1920x1080

6

~ 30

8

*.asf

ASF

XviD

1920x1080

6

~ 30

8

MP3 / AC3 / LPCM /

H.264 BP / MP / HP

1920x1080

6

~ 30

25

ADPCM / WMA

MPEG4 SP / ASP

1920x1080

6

~ 30

8

*.wmv

ASF

Window Media Video v9

1920x1080

6

~ 30

25

WMA

H.264 BP / MP / HP

1920x1080

6

~ 30

25

*.mp4

MP4

MPEG4 SP / ASP

1920x1080

6

~ 30

8

MP3 / ADPCM / AAC

XVID

1920x1080

6

~ 30

8

*.3gp

3GPP

H.264 BP / MP / HP

1920x1080

6

~ 30

25

ADPCM / AAC / HE-AAC

MPEG4 SP / ASP

1920x1080

6

~ 30

8

*.vro

VRO

MPEG1

1920x1080

24 / 25 / 30

30

AC3 / MPEG / LPCM

VOB

MPEG2

1920x1080

24 / 25 / 30

30

MPEG1

1920x1080

24 / 25 / 30

30

*.mpg

PS

MPEG2

1920x1080

24 / 25 / 30

30

AC3 / MPEG / LPCM / AAC

*.mpeg

H.264

1920x1080

6 ~ 30

25

*.ts

MPEG2

1920x1080

24 / 25 / 30

30

AC3 / AAC / MP3 / DD+ /

*.tp

TS

H.264

1920x1080

6 ~ 30

25

HE-AAC

*.trp

VC1

1920x1080

6 ~ 30

25

Features Advanced 04

English 25

Advanced Features

Other RestrictionsNOTE

xx If there are problems with the contents of a codec, the codec will not be supported.

xx If the information for a Container is incorrect and the file is in error, the Container will not be able to play correctly.

xx Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec listed in the table above.

xx If the Index Table is in error, the Seek (Jump) function is not supported.

	Video Decoder		Audio Decoder
• Supports up to H.264, Level 4.1		• Supports up to WMA 7, 8, 9, STD
•	H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not	•	WMA 9 PRO does not support 2 channel excess multi channel or
	supported.		lossless audio.
•	GMC is not supported.	•	WMA sampling rate 22050Hz mono is not supported.

•H.263 is not supported.

Playing movie file continuously (Resume Play)

If you exit the playing videos function, it can be played later from the point where it was stopped.

1.Select the movie file you want to play continuously by pressing the ◄ or ► button to select it from the file list section.

2.Press the (Play) / ENTEREbutton.

3.Select Play Continuously (Resume Play) by pressing the Blue

button. The Movie will begin to play from where it was stopped.The Blue button is available when resuming play.

If the Cont. movie play help function is set to On in the

Settings menu, a pop-up message will appear when you resume play a movie file.

00:04:03 / 00:07:38

1/1

Movie 01.avi

Play continuously

Resumes playing from the last viewed scene.

SUM

Play continuously E Pause L Jump T Tools R Return

Music

Playing Music

1.Press the ◄ or ► button to select Music, then press the ENTEREbutton in the Media Play menu.

2.Press the ◄/►/▲/▼ button to select the desired file in the file list.

3.Press the ENTEREbutton or (Play) button.

––During playing the music, you can search using the ◄ and ► button.

––(REW) and µ(FF) buttons do not function during play.

Only displays the files with MP3 and PCM file extension. Other file extensions are not displayed, even if they are saved on the same USB device.

If the sound is strange when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file may cause a sound problem.)

	Playlist	3/15
I Love You	I Love you
Jhon	Jhon
1st Album	Music 1
	No Singer
Pop
	Music 2
2010
4.2MB	No Singer
	Music 3
	No Singer
01:10 / 04:02	Music 4
	No Singer
	Music 5
	No Singer
SUM	EPause L Jump T Tools	R Return

26 English

Photos

Viewing a Photo (or Slide Show)

1.Press the ◄ or ► button to select Photos, then press the ENTEREbutton in the Media Play menu.

2.Press the ◄/►/▲/▼ button to select the desired file in the file list.

3.Press the ENTEREbutton or (Play) button.

––While a photo list is displayed, press the (Play) / ENTEREbutton on the remote control to start slide show.

––All files in the file list section will be displayed in the slide show.

––During the slide show, files are displayed in order from currently being shown.

Music files can be automatically played during the Slide Show if the Background Music is set to On.

The BGM Mode cannot be changed until the BGM has finished loading.

Normal


1024x768

2010/2/1

3/15

SUM	EPause L Previous/Next T Tools R Return

¦¦ Playing the Multiple Files

Playing the selected video/music/photo files

1.Press the Yellow button in the file list to select the desired file.

2.Repeat the above operation to select multiple files.

NOTE

xx The cmark appears to the left of the selected files. xx To cancel a selection, press the Yellow button again.

xx To deselect all selected files, press the TOOLS button and select Deselect All.

3. Press the TOOLS button and select Play Selected Contents.

Playing the video/music/photo file group

1.While a file list is displayed, move to the any file in desired group.

2.Press the TOOLS button and select Play Current Group.

Videos		/Movie 01.avi		2 files selected			1/1 Page
		Movie 01.avi	Movie 02.avi
		Jan.10.2010				Jan.10.2010
		Movie 03.avi	Movie 04.avi
		Jan.10.2010				Jan.10.2010
		Movie 05.avi	Movie 06.avi
		Jan.10.2010				Jan.10.2010
		Movie 07.avi	Movie 08.avi
		Jan.10.2010				Jan.10.2010
		Movie 09.avi	Movie 10.avi
		Jan.10.2010				Jan.10.2010
SUM		Change Device		Select		Sorting	T Tools

¦¦ Media Play Additional Function

Sorting the file list

Press the Blue button in the file list to sort the files.

Category	Operations	Videos	Music	Photos
Basic View	It shows whole folder. You can view the photo by selecting the folder.	>	>	>
Title	It sorts and displays the file title in Symbol/Number/Alphabet/Special order.	>	>	>
Preference	It sorts and displays the file by preference. You can change the file preference in the file list	>	>	>
	section using the Green button.
Latest Date	It sorts and shows files by latest date.	>		>
Earliest Date	It sorts and shows files by earliest date.	>		>
Artist	It sorts the music file by artist in alphabetical.		>
Album	It sorts the music file by album in alphabetical order.		>
Genre	It sorts music files by the genre.		>
Mood	It sorts music files by the mood. You can change the music mood information.		>
Monthly	It sorts and shows photo files by month. It sorts only by month (from January to December)			>
	regardless of year.

Features Advanced 04

English 27

Advanced Features

Videos/Music/Photos Play Option menu

During playing a file, press the TOOLS button.

Category	Operations	Videos	Music	Photos
Title	You can move the other file directly.	>
Repeat Mode	You can play movie and music files repeatedly.	>	>
Picture Size	You can adjust the picture size for preference.	>
Picture Setting	You can adjust the picture setting (p. 14, 15, 16).	>		>
Sound Setting	You can adjust the sound setting (p. 16, 17, 18).	>	>	>
Subtitle Setting	You can play the video file with Subtitle. This function only works if the subtitles are the same	>
	file name as the video file.
Stop Slide Show /	You can start or stop a slide show.			>
Start Slide Show
Slide Show Speed	You can select the slide show speed during the slide show.			>
Background Music	You can set and select background music when watching a slide show.			>
Zoom	You can zoom into images in full screen mode.			>
Rotate	You can rotate images in full screen mode.			>
Information	You can see detailed information about the played file.	>	>	>

Settings

Using the Setup Menu

■■ Cont. movie play help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie playback.

■■ Get the DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web site and register the registration code with a personal account, you can download VOD registration file. If you play the VOD registration using Media Play, the registration is completed.

For more information on DivX® VOD, visit “www.DivX.com.”

■■ Get the DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.

■■ Information: Select to view information about the connected device.

28 English

Anynet+

What is Anynet+? t

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

To connect to Home Theatre

TV Rear Panel	Home Theatre	Anynet+
Anynet+ Device 1		Device 2
HDMI Cable		HDMI Cable
HDMI Cable
Optical Cable

1.Connect the HDMI IN (1(DVI), or 2) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

2.Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

NOTE

xx Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home Theatre.

xx When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theatre’s Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio,

connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / satellite box (i.e. Anynet Device 1 or 2) directly to the Amplifier or Home Theatre, not the TV.

xx Connect only one Home Theatre.

xx You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions. xx Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.

xx Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

Features Advanced 04

English 29

xx When multiple recording devices are connected, the recording devices are listed. Select one recording device in the Device List.

Advanced Features

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu	Description
View TV	Changes Anynet+ mode to TV broadcast mode.
Device List	Shows the Anynet+ device list.
(device_name) MENU	Shows the connected device menus. E.g. If a DVD recorder is connected, the disc menu of
	the DVD recorder will appear.
(device_name) INFO	Shows the play menu of the connected device. E.g. If a DVD recorder is connected, the
	play menu of the DVD recorder will appear.
Recording: (*recorder)	Starts recording immediately using the recorder. (This is only available for devices that
	support the recording function.)
Stop Recording: (*recorder)	Stops recording.
Receiver	Sound is played through the receiver.

If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is connected, it will be represented as (*device_name).

¦¦ Setting Up Anynet+

■■ Setup

Anynet+ (HDMI-CEC) (Off / On): To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On.

When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated. Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off.

The active source on the TV must be set to TV to use the Anynet+ function.Even if an external device is still recording, it may turn off.

¦¦ Switching between Anynet+ Devices

1.Anynet+ devices connected to the TV are listed.

If you cannot find a device you want, press the Red button to refresh the list.

2.Select a device and press the ENTEREbutton. You can switch to the selected device.

Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears.

Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching

operation.

If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the Device List.

¦¦ Recording

You can make a recording of a TV programme using a Samsung recorder.

1. Select Recording.

When there are more than two recording devices.

When the recording device is not displayed, select Device List and press the Red button to search devices. 2. Press the EXIT button to exit.

You can record the source streams by selecting Recording: (device_name).

Pressing the (REC) button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded.

Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual.

30 English
