Page 1

PLASMA DISPLAY TV

Chassis : F65A(P_HD)_B450 Model : PS42B451B2WXXU

SERVICE

PS50B451B2WXXU

Manual

PLASMA DISPLAY TV CONTENTS

1. Precaution

2. Product Specification

3. Disassembly & Reassembly

4. Troubleshooting

5. Exploded View & Part List

6. Wiring Diagram

PS42B451B2W PS50B451B2W

Refer to the service manual in the GSPN (see the rear cover) for the more information.

Page 2

GSPN (Global Service Partner Network)

Area Web Site North America service.samsungportal.com Latin America latin.samsungportal.com CIS cis.samsungportal.com Europe europe.samsungportal.com China china.samsungportal.com Asia asia.samsungportal.com Mideast & Africa mea.samsungportal.com

This Service Manual is a property of Samsung Electronics Co.,Ltd. Any unauthorized use of Manual can be punished under applicable International and/or domestic law.

Printed in Korea

AA82-05739A

Page 3

Table of Contents

Chapter 1 Precaution

■ 1-1 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

■ 1-2 Servicing Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

■ 1-3 Static Electricity Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

■ 1-4 Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Chapter 2 Product Specification

■ 2-1 Product Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

■ 2-2 Specifications Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

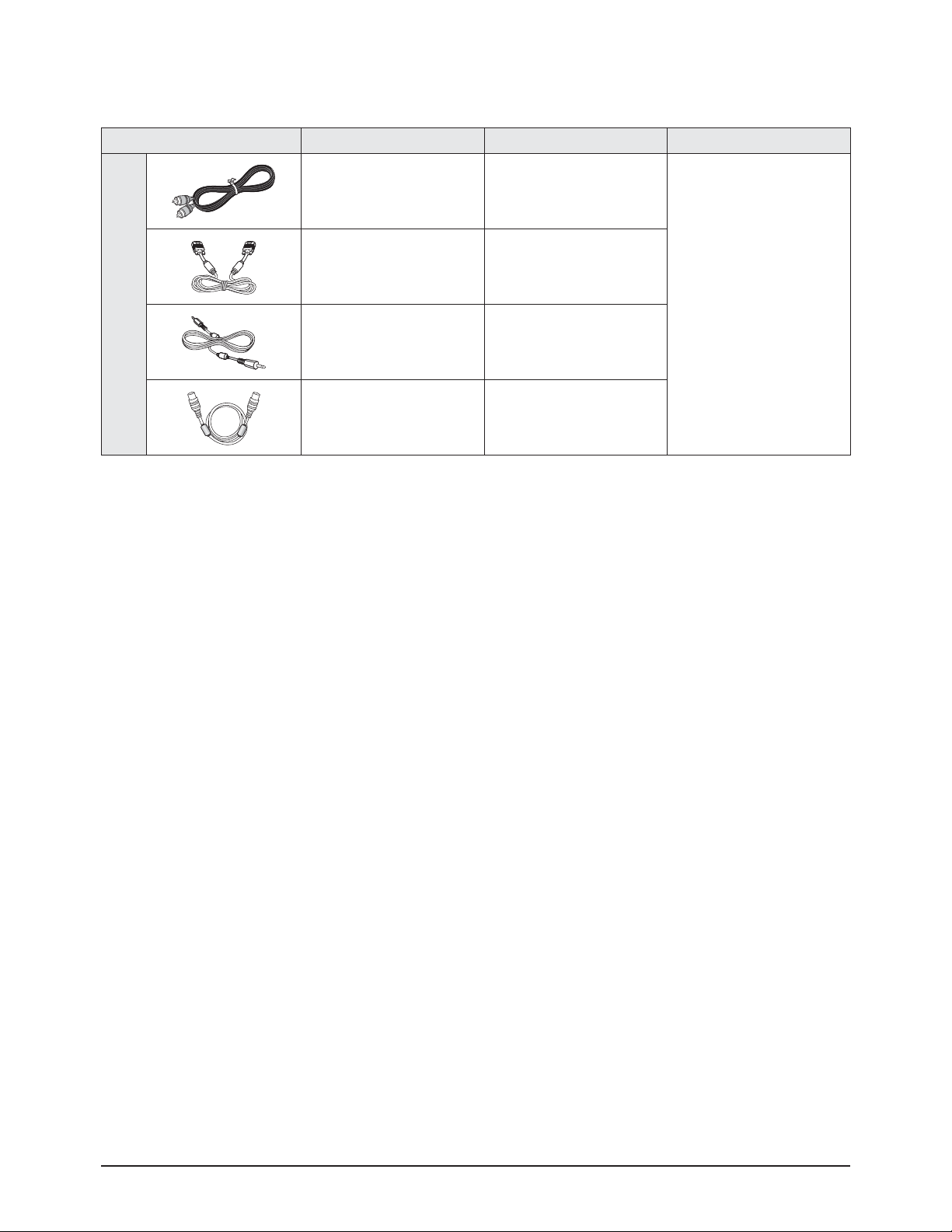

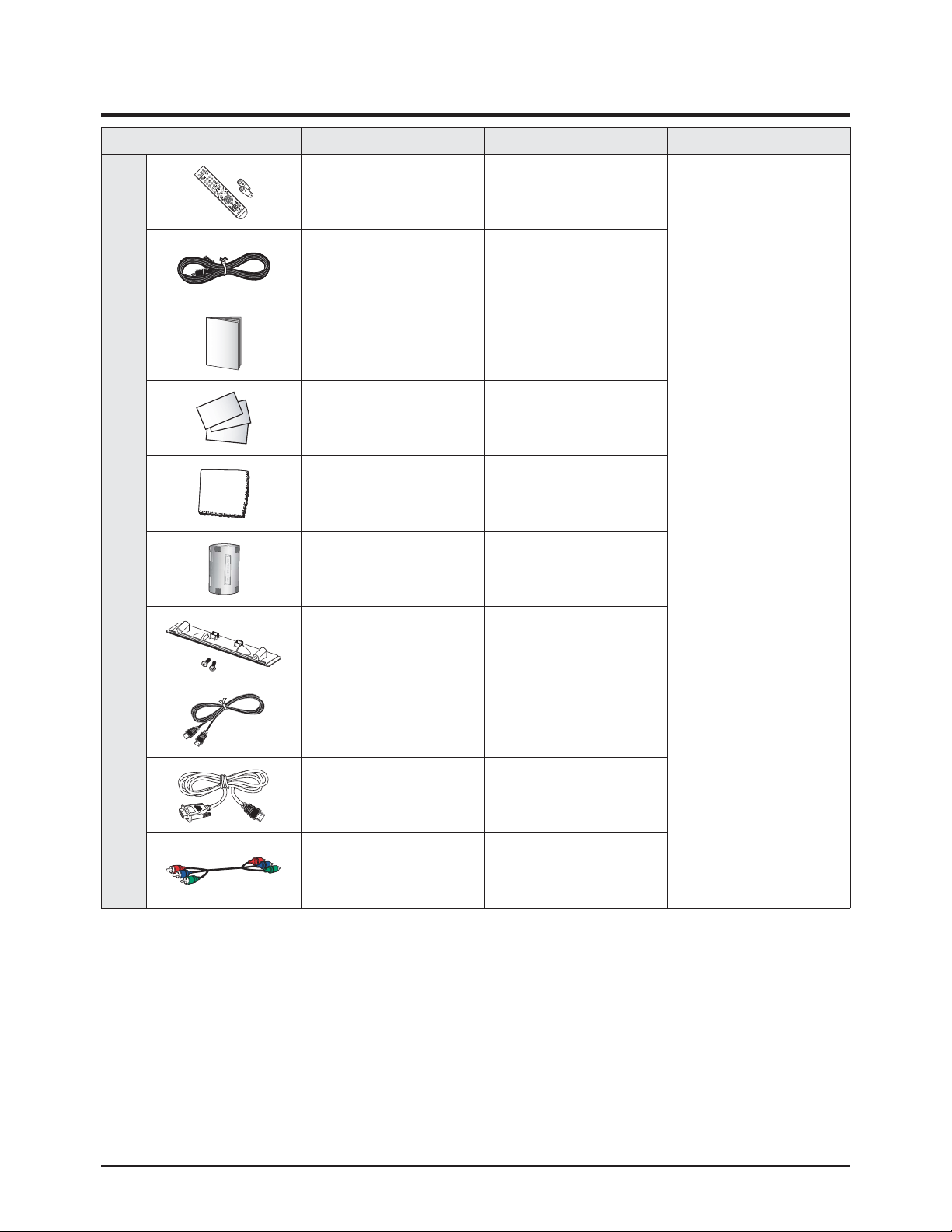

■ 2-3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Chapter 3 Disassembly & Reassembly

■ 3-1 Overall Disassembly & Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

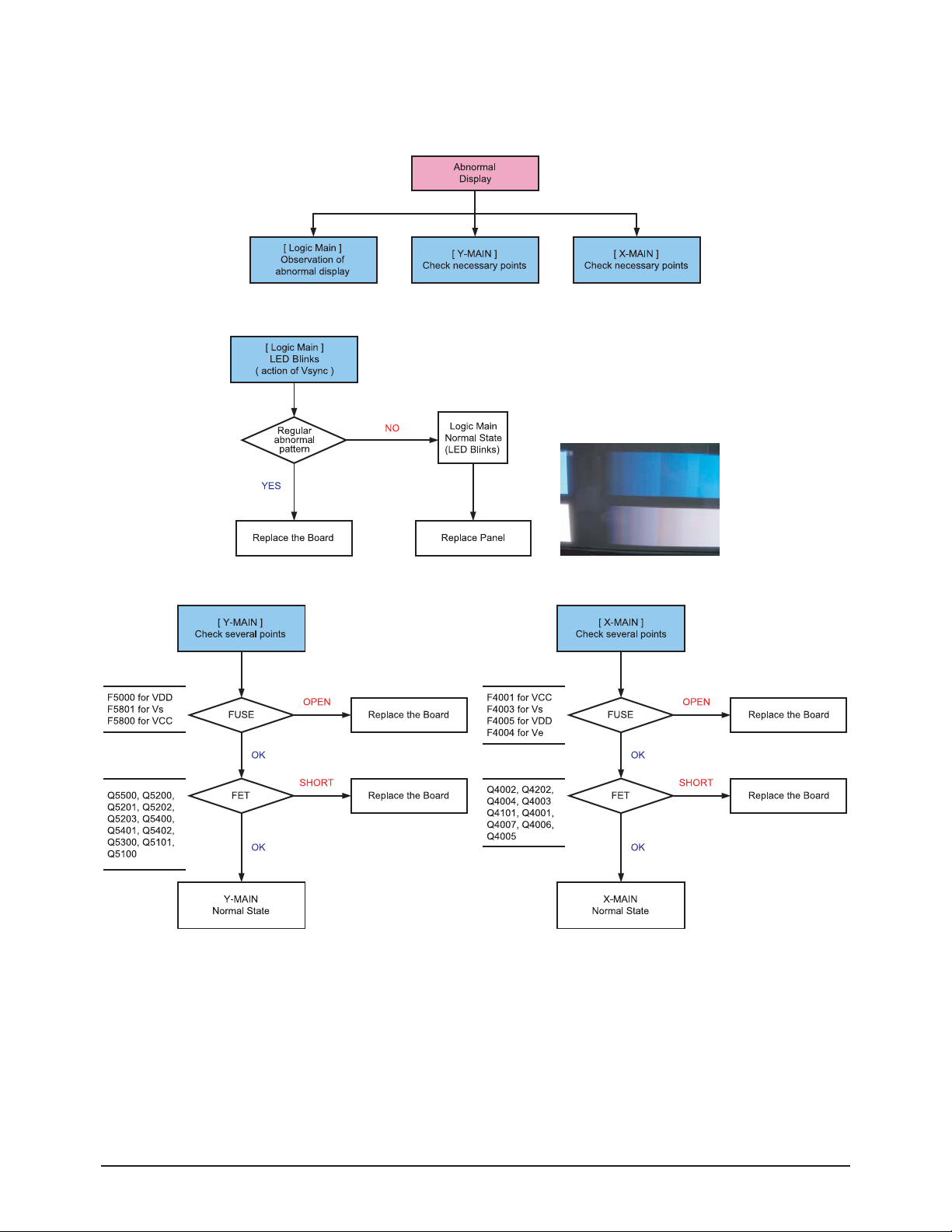

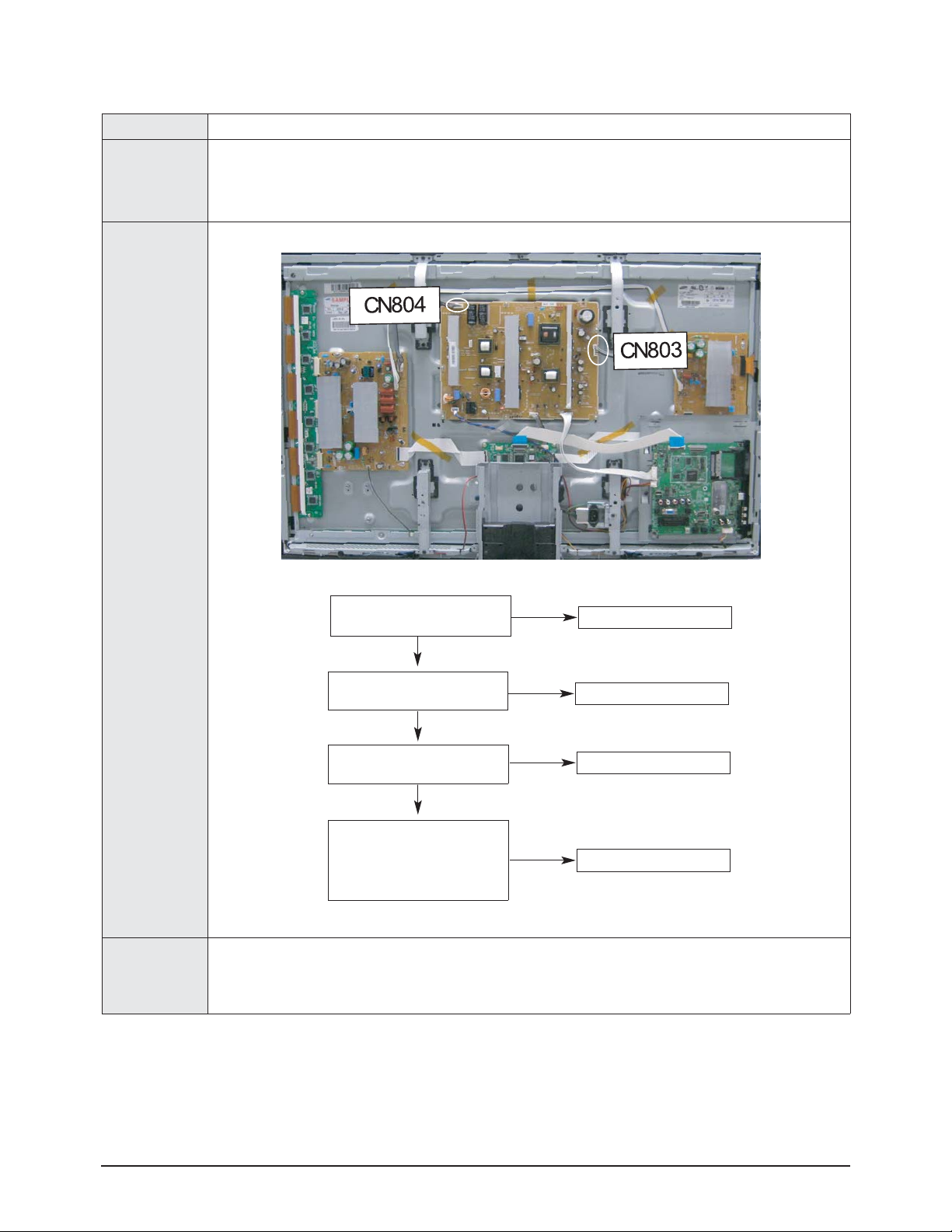

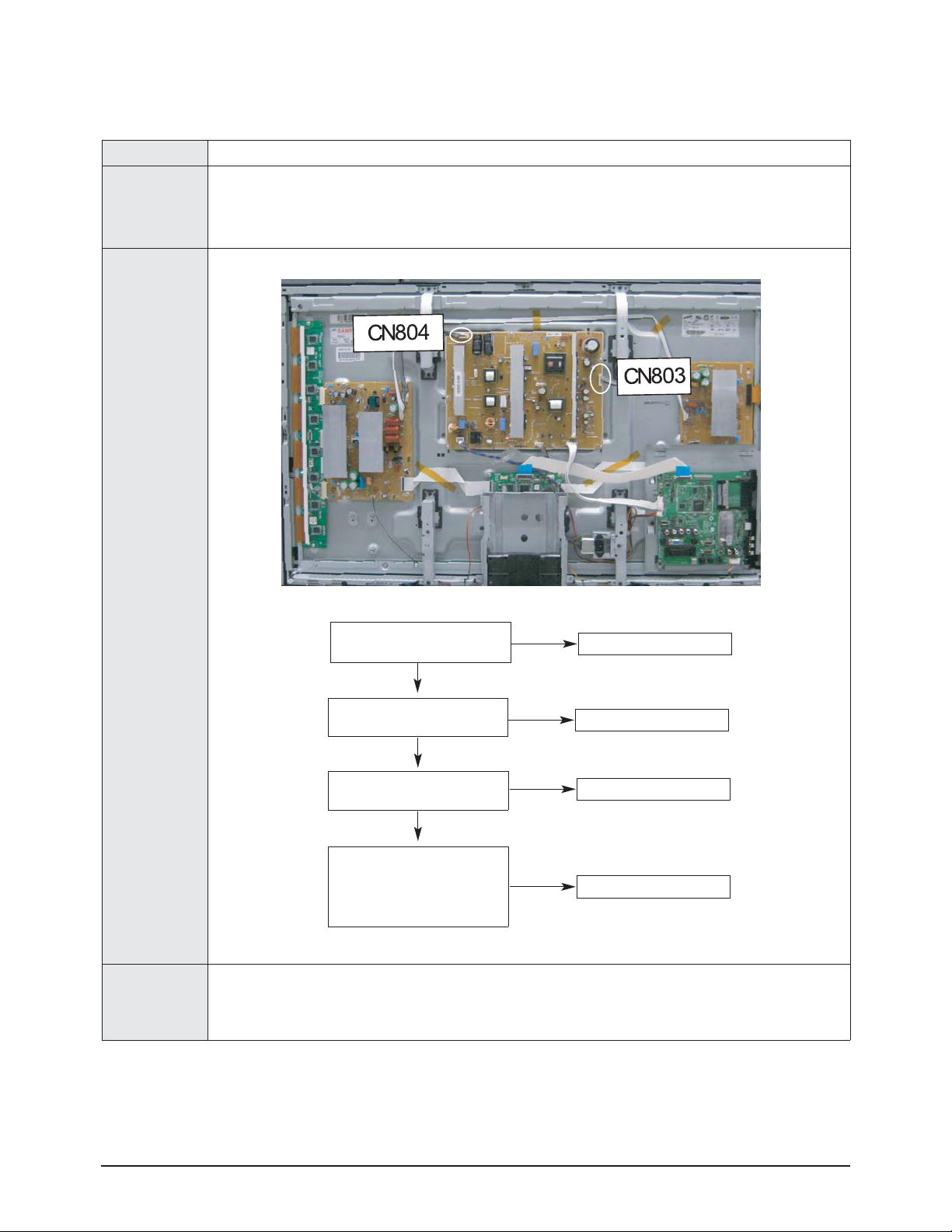

Chapter 4 Troubleshooting

■ 4-1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

■ 4-2 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

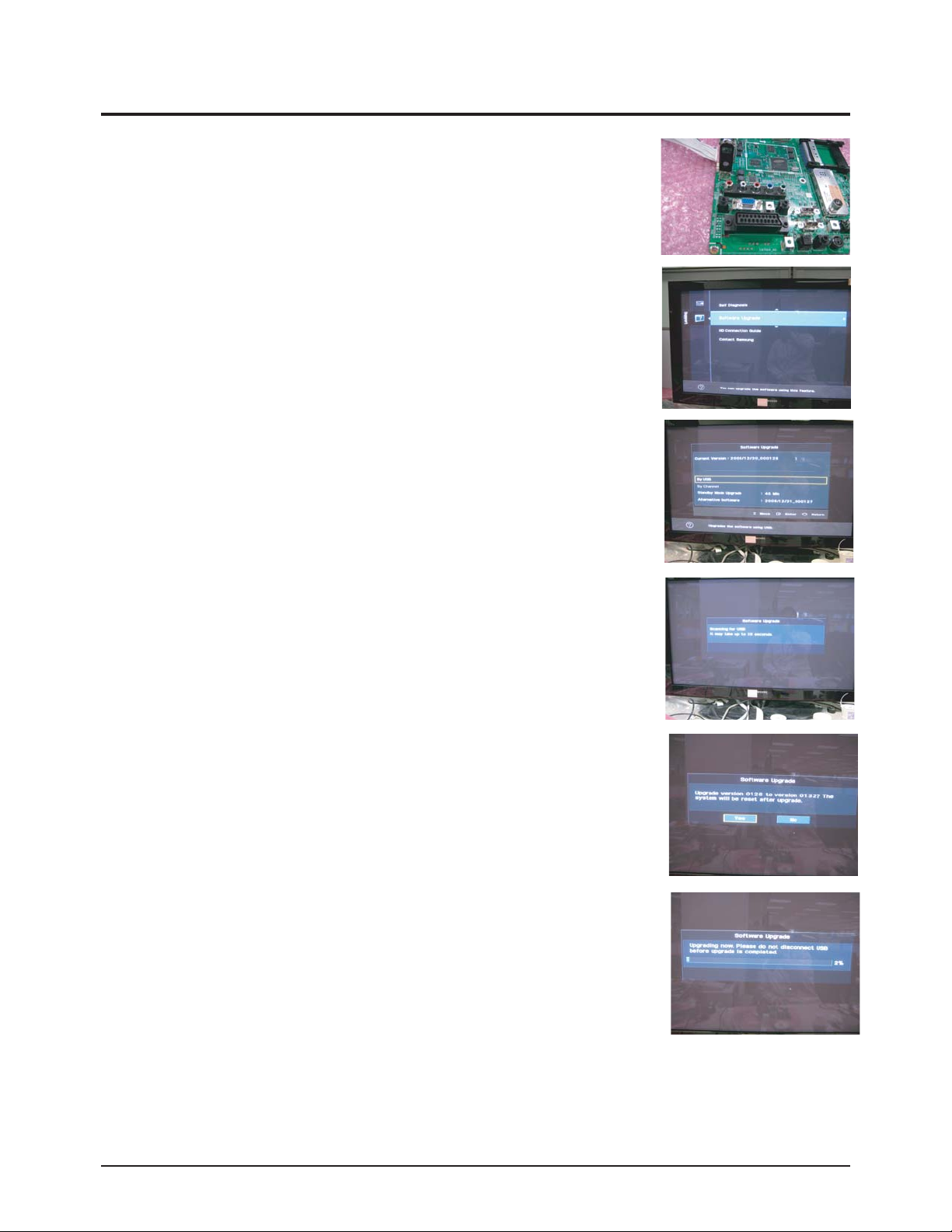

■ 4-3 Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37

Chapter 5 Exploded View & Part List

■ 5-1 PS42B451B2WXXU Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

■ 5-2 PS50B451B2WXXU Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

■ 5-3 PS42B451B2WXXU Service Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

■ 5-4 PS50B451B2WXXU Service Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

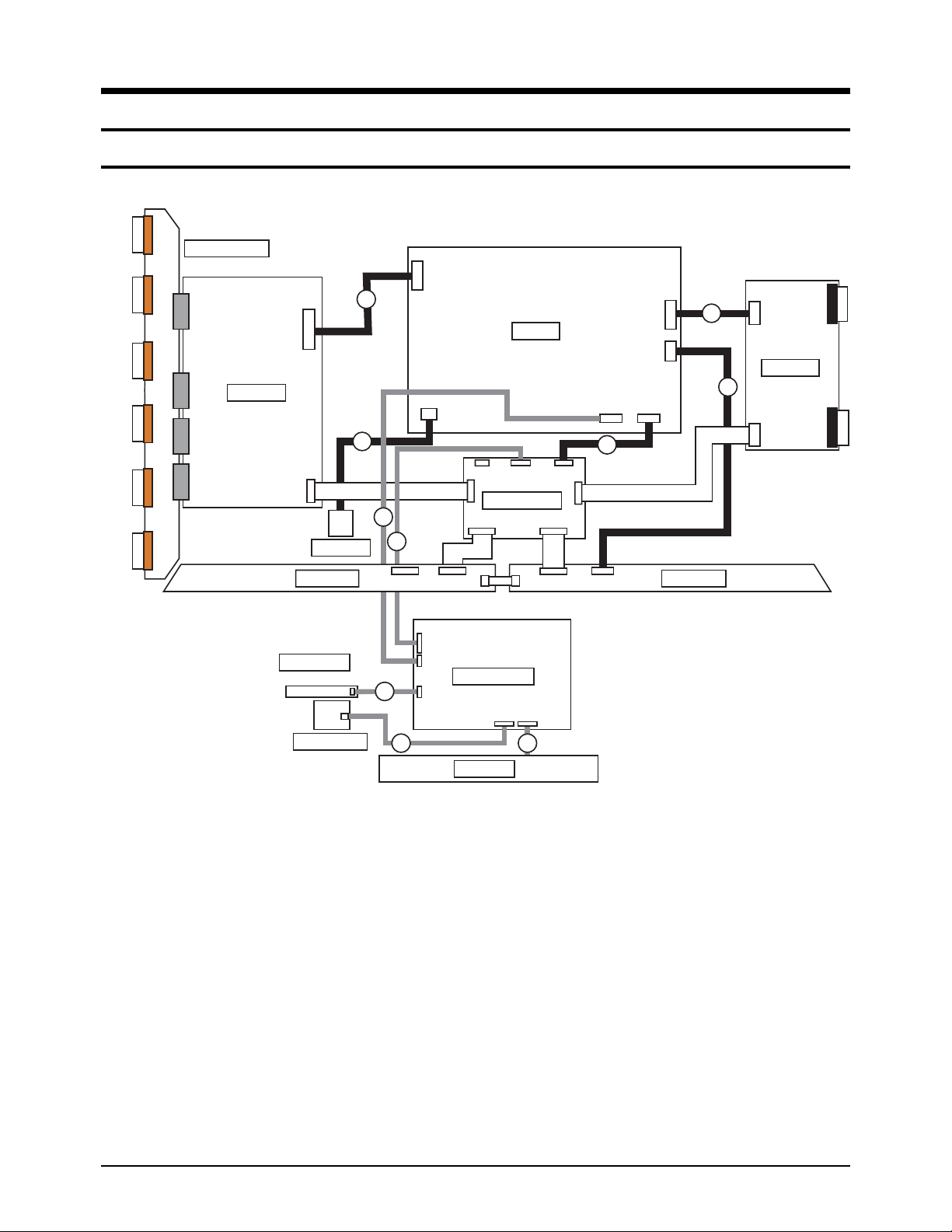

Chapter 6 Wiring Diagram

■ 6-1 Overall Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Page 4

Part Name Description Description Photo

Cover

Rear

Remove 17 screws. ( ) : BH,+,B,M4,L3,ZPC(BLK)

Remove 6 screws. ( ) : PH,+,WSP,S,M4,L35,ZPC(BLK)

Remove the rear cover.

: Please lay the PDP unit face down on a

soft surface when removing the stand.

Disassembly & Reassembly

Samsung Electronics 3-1

3. Disassembly & Reassembly

3-1 Overall Disassembly & Reassembly

3-1-1 Separation of ASSY COVER P-REAR

Notice

- Be sure to separate the power cord before disassembling the unit.

- Discharge the capacitors first when separating PCB's with high capacity capacitors such as SMPS, X Main Board, Y Main Board, etc. (A spark may be generated by the electric charge, and there is danger of electronic shock.)

- Check that the cables are properly connected referring to the circuit diagram when disassembling or assembling the unit taking care not to damage the cables.

- Take care not to scratch the Glass Filter in the front.

- Assemble the boards in the reverse order of the disassembly.

- The plasma must be layed down on a flat padded surface for disassembly and reassembly.

<42">

<50">

Page 5

Disassembly & Reassembly

3-2 Samsung Electronics

3-1-3 Separation of FILTER-EMI AC LINE

Part Name Description Description Photo

FILTER-

EMI

AC LINE

Detach connector from SMPS.

Remove 2 screw. ( ) : PH,+,WWP,M3,L8,NI PLT

Remove 1 screws.( ) : BH,+,S,M4,L10,ZPC(BLK)

Separate FILTER-EMI AC LINE from bracket.

3-1-2 Separation of ASSY PCB MISC-MAIN

Part Name Description Description Photo

Main

Board

Detach all connectors from the Main Board.

Remove 4 screws. : PH,+,WWP,M3,L8,NI PLT

Remove the Main Board.

The photo is for 42". 50" is very similiar with 42".

<42">

<50">

Page 6

Disassembly & Reassembly

Samsung Electronics 3-3

3-1-4 Separation of BRACKET-PCB

Part Name Description Description Photo

Bracket

PCB

Remove screw.( ) : BH,+,B,M4,L3,ZPC(BLK)

Remove the BRACKET-PCB.

3-1-5 Separation of ASSY BRACKET 42"/50"

Part Name Description Description Photo

Bracket

Remove 2 screws. ( ) : BH,+,PT,S Tite,M4,L10,ZPC(BLK)

Remove 2 screws. ( ) : BH,+,B,M4,L3,ZPC(BLK)

Remove Bracket.

Page 7

3-1-7 Separation of ASSY SPEAKER P

Part Name Description Description Photo

Speaker

Remove 4 screws.( ) : BH,+,WP,B,M4.0,L3,ZPC(BLK),

SWRCH18A

Remove the Speaker.

The photo is for 42". 50" is very similiar with 42".

Disassembly & Reassembly

3-4 Samsung Electronics

3-1-6 Separation of ASSY BRACKET P-WALL

Part Name Description Description Photo

42"

Wall

Bracket

Remove 2 screws. ( ) : BH,+,B,M4,L3,ZPC(BLK)

Remove 4 screws. ( ) : BH,+,S,M4,L10,ZPC(BLK)

Remove Wall Bracket.

: Please lay the PDP panel face down

on a soft surface when separating front cover.

50"

Wall

Bracket

Remove 2 screws. ( ) : BH,+,B,M4,L3,ZPC(BLK)

Remove 4 screws. ( ) : BH,+,S,M4,L10,ZPC(BLK)

Remove Wall Bracket.

Page 8

Disassembly & Reassembly

Samsung Electronics 3-5

3-1-8 Separation of SMPS-PDP TV

Part Name Description Description Photo

42"

SMPS

Detach all connectors from the SMPS.

Remove 6 screws. : PH,+,WWP,M3,L8,NI PLT

Remove the SMPS.

: Wear gloves when handling the power

board as there may be some remaining electrical charge in the capacitor. Specifically, avoid touching any part of the capacitor.

50"

SMPS

Detach all connectors from the SMPS.

Remove 6 screws. : PH,+,WWP,M3,L8,NI PLT

Remove the SMPS.

3-1-9 Separation of ASSY PDP MODULE P-LOGIC MAIN BOARD

Part Name Description Description Photo

Logic

Board

Detach all connectors from the Logic Main Board.

Remove 2 screws. : WSP,PH,+,M3,L8,NI PLT

Remove the Logic Main Board.

Page 9

Disassembly & Reassembly

3-6 Samsung Electronics

3-1-10 Separation of ASSY PDP MODULE P-X MAIN BOARD

Part Name Description Description Photo

42"

Flat able

Detach all Connectors from the X Main Board.

To separate the Flat Cable of the X-Board, press the upper and the lower sides of the connector.

: Pinch the sides, but then push down in the ribbon, it

should slide out after that.

42"

X-Main

Board

Remove 7 screws. : PH,+,WWP,M3,L8,NI PLT

Remove the X-Main Board.

50"

X-Main

Board

Remove the X-Main Board.

Page 10

Disassembly & Reassembly

Samsung Electronics 3-7

3-1-11 Separation of ASSY PDP MODULE P-Y MAIN BOARD

Part Name Description Description Photo

42"

Flat Cable

Detach the scan board connectors from the panel .

50"

Flat Cable

Detach the scan board connectors from the panel .

42"

Y-Scan

Board

Remove 2 screws. : PH,+,WWP,M3,L8,NI PLT

Page 11

3-1-12 Separation of ASSY PDP MODULE P-ADDRESS BUFFER BOARD

Part Name Description Description Photo

42" Buffer board shield

Remove 3 screws. : PH,+,WWP,M3,L8,NI PLT

Remove the still bar.

Before removing the still bar, you should lift up the panel a little.

50" Buffer board shield

Remove 3 screws. : PH,+,WWP,M3,L8,NI PLT

Remove the still bar.

Before removing the still bar, you should lift up the panel a little.

Disassembly & Reassembly

3-8 Samsung Electronics

Part Name Description Description Photo

50"

Y-Scan

Board

Remove 7 screws. : PH,+,WWP,M3,L8,NI PLT

Page 12

Disassembly & Reassembly

Samsung Electronics 3-9

3-1-13 Separation of ASSY PANEL BRACKETS

Part Name Description Description Photo

Panel

Brackets

Remove 7 screws. ( ) : BH,+,B,M4,L3,ZPC(BLK)

Remove the Side Panel Brackets.

Page 13

3-10 Samsung Electronics

MEMO

Page 14

Exploded View & Part List

5. Exploded View & Part List

5-1

PS42B451B2WXXU

M0013

M0014

Exploded View

FT532

M0523

M0412

T0289

T0044

M0149

T0175

M0027

M0150

M0146

M0175

T0603

T0456

T0003

M0112

Samsung Electronics5-1

Page 15

Exploded View & Part List

Loc. No. Code No. Description Specification Q'ty SA/SNA Remark

FT532 2901-001548 FILTER-EMI AC LINE 250V,6A,UL, CSA, VDE, 1 S.A M0013 BN96-10205D ASSY COVER P-REAR PB450 42,PCM,BKM-P703, 1 S.N.A M0014 BN94-02844A ASSY PCB MISC-MAIN PS42B450B1WXXC 1 S.N.A M0027 BN96-09927A ASSY STAND P-BASE 42/50(PB450) 1 S.A M0112 BN63-05331F COVER-FRONT 42PB450,ABS+PMMA,HB,CHARCOAL 1 S.A M0146 BN96-10229A ASSY BRACKET P-FILTER SIDE PB450 42,SECC 2 S.N.A M0149 BN96-10198A ASSY BRACKET P-FILTER TOP PB450 42,SECC 1 S.N.A M0150 BN96-10199A ASSY BRACKET P-FILTER BOTTOM PB450 42,SE 1 S.N.A M0175 BN96-10377B ASSY BOARD P-TOUCH FUNCTION&IR PS42B451B 1 S.A M0412 BN96-10232A ASSY BRACKET P-PCB PB450 42,SECC,T0.6 1 S.N.A M0523 BN96-10231A ASSY BRACKET P-SUPPORT STAND PB450 42,SE 1 S.N.A T0003 BN96-10203F ASSY COVER P-FRONT PB450 42,ABS+PMMA,HB, 1 S.N.A T0044 BN96-10452B ASSY PDP MODULE P SA42AX-YD11,PP42AB057B 1 S.A T0175 BN96-09464A ASSY SPEAKER P 8ohm,4pin,10W,R:850 / L:3 1 S.A T0289 BN63-05298A COVER-AV 50PB550,ABS HB,BLK(BK500) 1 S.A T0456 BN67-00248A GLASS-FILTER EMI 42" P450,With AR, Witho 1 S.A T0603 BN64-01013A WINDOW-RMC 42PB450,PC,VIOLET 1 S.N.A

5-2Samsung Electronics

Page 16

Exploded View & Part List

5-2

PS50B451B2WXXU

M0013

M0014

Exploded View

FT532

M0523

M0412

T0289

T0044

M0149

T0175

M0027

M0150

M0146

M0175

T0603

T0456

T0003

M0112

Samsung Electronics5-3

Page 17

Exploded View & Part List

Loc. No. Code No. Description Specification Q'ty SA/SNA Remark

FT532 2901-001557 FILTER-EMI AC LINE 250V,6A,UL, CSA, VDE, 1 S.A M0013 BN96-10206D ASSY COVER P-REAR PB450 50,PCM,BKM-P703, 1 S.N.A M0014 BN94-02845A ASSY PCB MISC-MAIN PS50B450B1WXXC 1 S.N.A M0027 BN96-09927A ASSY STAND P-BASE 42/50(PB450) 1 S.A M0112 BN63-05334F COVER-FRONT 50PB450,ABS+PMMA,HB,CHARCOAL 1 S.A M0146 BN96-10235A ASSY BRACKET P-FILTER SIDE PB450 50,SECC 2 S.N.A M0149 BN96-10233A ASSY BRACKET P-FILTER TOP PB450 50,SECC 1 S.N.A M0150 BN96-10234A ASSY BRACKET P-FILTER BOTTOM PB450 50,SE 1 S.N.A M0175 BN96-10377C ASSY BOARD P-TOUCH FUNCTION&IR PS42B451B 1 S.A M0412 BN96-10232B ASSY BRACKET P-PCB PB450 50,SECC,T0.6 1 S.N.A M0523 BN96-10231A ASSY BRACKET P-SUPPORT STAND PB450 42,SE 1 S.N.A T0003 BN96-10204F ASSY COVER P-FRONT PB450 50,ABS+PMMA,HB, 1 S.N.A T0044 BN96-09931A ASSY PDP MODULE P S50HW-YD11,PP50HB056B, 1 S.A T0175 BN96-09464B ASSY SPEAKER P 8ohm,4pin,10W,R:850 / L:3 1 S.A T0289 BN63-05298A COVER-AV 50PB550,ABS HB,BLK(BK500) 1 S.A T0456 BN67-00251A GLASS-FILTER EMI 50" P550,With AR, Witho 1 S.A T0603 BN64-01013A WINDOW-RMC 42PB450,PC,VIOLET 1 S.N.A

5-4Samsung Electronics

Page 18

Exploded View & Part List

5-3

PS42B451B2WXXU

Loc. No. Code No. Description Specification Q'ty Remark

M0013 BN96-10205D ASSY COVER P-REAR PB450 42,PCM,BKM-P703, 1 M0014 BN94-02844A ASSY PCB MISC-MAIN PS42B450B1WXXC 1 M0027 BN96-09927A ASSY STAND P-BASE 42/50(PB450) 1 M0154 BN96-09752A ASSY PDP P-Y-MAIN BUFFER BOARD S42AX-YB0 1 M2893 BN39-00802C LEAD CONNECTOR HPT4264H,UL1617#22,24P/24 1

T0003 BN96-10203F ASSY COVER P-FRONT PB450 42,ABS+PMMA,HB, 1 T0037 BN96-09753A ASSY PDP P-LOGIC MAIN BOARD S42AX-YB07,P 1 T0044 BN96-10452B ASSY PDP MODULE P SA42AX-YD11,PP42AB057B 1 T0045 BN96-09749A ASSY PDP P-X-MAIN BOARD S42AX-YB07,PL42A 1 T0045 BN96-09750A ASSY PDP P-X-MAIN BUFFER BOARD S42AX-YB0 1 T0074 BN59-00863A REMOCON LCD450,TM950,EUROPE,WHITE,48 1 T0262 BN96-09751A ASSY PDP P-Y-MAIN BOARD S42AX-YB07,PL42A 1 T0764 BN44-00273B SMPS-PDP TV 42U1_DY,AC/DC,314.23W,AC90~2 1 T0937 BN96-09754A ASSY PDP P-ADDRESS E-BUFFER BO S42AX-YB0 1 T0938 BN96-09755A ASSY PDP P-ADDRESS F- BUFFER B S42AX-YB0 1

Service Item

※ This is the list which is available to repair the real material at the time of service.

Samsung Electronics5-5

Page 19

Exploded View & Part List

5-4

PS50B451B2WXXU

Loc. No. Code No. Description Specification Q'ty Remark

M0013 BN96-10206D ASSY COVER P-REAR PB450 50,PCM,BKM-P703, 1 M0014 BN94-02845A ASSY PCB MISC-MAIN PS50B450B1WXXC 1 M0027 BN96-09927A ASSY STAND P-BASE 42/50(PB450) 1 M2893 BN39-00802S LEAD CONNECTOR LILY2 50",UL1007#26,24p/2 1

T0003 BN96-10204F ASSY COVER P-FRONT PB450 50,ABS+PMMA,HB, 1 T0037 BN96-09739A ASSY PDP P-LOGIC MAIN BOARD S50HW-YB04,P 1 T0039 BN96-09741A ASSY PDP P-ADDRESS F-BUFFER BO S50HW-YB0 1 T0044 BN96-09931A ASSY PDP MODULE P S50HW-YD11,PP50HB056B, 1 T0045 BN96-09736A ASSY PDP P-X-MAIN BOARD S50HW-YB04,PL50H 1 T0045 BN96-09737A ASSY PDP P-X-MAIN BUFFER BOARD S50HW-YB0 1 T0074 BN59-00863A REMOCON LCD450,TM950,EUROPE,WHITE,48 1 T0175 BN96-09464B ASSY SPEAKER P 8ohm,4pin,10W,R:850 / L:3 1 T0262 BN96-09738A ASSY PDP P-Y-MAIN BOARD S50HW-YB04,PL50H 1 T0764 BN44-00274B SMPS-PDP TV 50U1_DY,P0842A,AC/DC,439.03W 1 T0937 BN96-09740A ASSY PDP P-ADDRESS E-BUFFER BO S50HW-YB0 1

Service Item

※ This is the list which is available to repair the real material at the time of service.

5-6Samsung Electronics

Page 20

MEMO

Samsung Electronics5-7

Page 21

1. Precaution

To avoid possible damage, electric shocks or exposure to radiation, follow the instructions below with regard to safety, installation, service and ESD.

1-1 Safety Precautions

Precaution

1. Make sure all protective devices are properly installed including non-metallic handles and compartment covers when installing or re-installing the chassis or chassis assemblies.

2. Make sure that no gaps exist between the cabinets for children to insert their fingers in to prevent children from receiving electric shocks. Gaps mentioned above include ventilation holes between the PDP module and the cabinet mask, and the improper installation of the rear cabinet.

Errors may occur when the resistance is below 1.0 ㏁ or over 5.2 ㏁.

In these cases, make sure that the device is repaired before sending it back to the customer.

3. Check for Electricity Leakage (Figure 1-1) Warning: Do not use an insulated transformer for checking the leakage. Use only those current leakage testers or mirroring systems that comply with ANSIC 101.1 and the Underwriter Laboratory's specifications (UL1410,

59.7).

(READING SHOULD

DEVICE UNDER

TEST

EXPOSED METAL

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED)

TEST ALL

SURFACES

LEAKAGE CURRENT

TESTER

NOT BE ABOVE

0.5mA)

EARTH

GROUND

Fig. 1-1 AC Leakage Test

4. A high voltage is maintained within the specified limits using safety parts, calibration and tolerances. When voltage exceeds the specified limits, check each special part.

5. Warning for Engineering Changes: Never make any changes or additions to the circuit design or the internal part for this product. Ex: Do not add any audio or video accessory connectors. This might cause physical damage. Furthermore, any changes or additions to the original design/engineering will invalidate the warranty.

6. Warning - Hot Chassis: Some TV chassis are directly connected to one end of the AC power cord for electrical reasons. Without insulated transformers, the product can only be repaired safely when the chassis is connected to the earth end of the AC power source.

To make sure the AC power cord is properly connected, follow the instructions below. Use the voltmeter to measure the voltage between the chassis and the earth ground. If the measurement is over 1.0V, unplug the AC power cord and change the polarity before reinserting it. Measure the voltage between the chassis and the ground again.

7. Some TV chassis are shipped with an additional secondary grounding system. The secondary system is adjacent to the AC power line. These two grounding systems are separated in the circuit using an unbreakable/unchangeable insulation material.

8. When any parts, material or wiring appear overheated or damaged, replace them with new immediately. When any damage or overheating is detected, correct this immediately and make a regular check of possible errors.

9. Check for the original shape of the lead, especially that of the antenna wiring, any sharp edges, the AC power and the high voltage power. Carefully check if the wiring is too tight, incorrectly placed or loose. Never change the space between the part and the printed circuit board. Check the AC power cord for possible damages. Keep the part or the lead away from any heat-emitting materials.

Samsung Electronics 1-1

Page 22

Precaution

10. Safety Indication: Some electrical circuits or device related materials require special attention to their safety features, which cannot be viewed by the naked eye. If an original part is replaced with another irregular one, the safety or protective features will be lost even if the new one has a higher voltage or more watts.

Critical safety parts should be bracketed with ( ).

Use only regular parts for replacements (in particular, flame resistance and dielectric strength specifications). Irregular parts or materials may cause electric shock or fire.

1-2 Samsung Electronics

Page 23

1-2 Servicing Precautions

Warning 1: First carefully read the "Safety Instruction" in this service manual.

When there is a conflict between the service and the safety instructions, follow the safety instruction at all times.

Warning 2: Any electrolytic capacitor with the wrong polarity will explode.

Precaution

1. The service instructions are printed on the cabinet, and should be followed by any service personnel.

2. Make sure to unplug the AC power cord from the power source before starting any repairs. (a) Remove or re-install parts or assemblies. (b) Disconnect the electric plug or connector, if any. (c) Connect the test part in parallel with the electrolytic capacitor.

3. Some parts are placed at a higher position than the printed board. Insulated tubes or tapes are used for this purpose. The internal wiring is clamped using buckles to avoid contact with heat emitting parts. These parts are installed back to their original position.

4. After the repair, make sure to check if the screws, parts or cables are properly installed. Make sure no damage is caused to the repaired part and its surroundings.

5. Check for insulation between the blade of the AC plug and that of any conductive materials (i.e. the metal panel, input terminal, earphone jack, etc).

6. Insulation Check Process: Unplug the power cord from the AC source and turn the switch on. Connect the insulating resistance meter (500v) to the AC plug blade.

7. Any B+ interlock should not be damaged. If the metal heat sink is not properly installed, no connection to the AC power should be made.

8. Make sure the grounding lead of the tester is connected to the chassis ground before connecting to the positive lead. The ground lead of the tester should be removed last.

9. Beware of risks of any current leakage coming into contact with the high-capacity capacitor.

10. The sharp edges of the metal material may cause physical damage, so protect yourself by wearing gloves during the repair.

11. Due to the nature of plasma display panels, partial afterimages may appear if a still picture is displayed on the screen for a long period of time. This is caused by brightness deterioration due to the storage effect of the panel, and to prevent this from happening, we recommend that the brightness and contrast are reduced. (e.g.) Contrast: 25, Brightness: 50

The insulating resistance between the blade of the AC plug and that of the conductive material should be more

than 1 ㏁.

Samsung Electronics 1-3

Page 24

Precaution

1-3 Static Electricity Precautions

1. Some semi-conductive ("solid state") devices are vulnerable to static electricity. These devices are known as ESD. ESD includes the integrated circuit and the field effect transistor. To avoid any materials damage from electrostatic shock, follow the instructions described below.

2. Remove any static electricity from your body by connecting the earth ground before handling any semi-conductive parts or assemblies. Alternatively, wear a dischargeable wrist-belt. (Make sure to remove any static electricity before connecting the power source - this is a safety instruction for avoiding electric shock)

3. Remove the ESD assembly and place it on a conductive surface such as aluminum foil to prevent accumulating static electricity.

4. Do not use any Freon-based chemicals. Such chemicals will generate static electricity that causes damage to the ESD.

5. Use only grounded-tip irons for soldering purposes.

6. Use only anti-static solder removal devices. Most solder removal devices do not support an anti-static feature. A solder removal device without an anti-static feature can store enough static electricity to cause damage to the ESD.

7. Do not remove the ESD from the protective box until the replacement is ready. Most ESD replacements are covered with lead, which will cause a short to the entire unit due to the conductive foam, aluminum foil or other conductive materials.

8. Remove the protective material from the ESD replacement lead immediately after connecting it to the chassis or circuit assembly.

9. Take extreme caution in handling any uncovered ESD replacements. Actions such as brushing clothes or lifting your leg from the carpet floor can generate enough static electricity to damage the ESD.

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

1-4 Samsung Electronics

Page 25

1-4 Installation Precautions

Precaution

1. For safety reasons, more than two people are required for carrying the product.

2. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock.

3. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.

4. Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed to moisture. Otherwise, it may cause a fire or electric shock.

5. Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric shock.

6. Keep the antenna far away from any high-voltage cables and install it firmly. Contact with the high-voltage cable or the antenna falling over may cause fire or electric shock.

7. When connecting the RF antenna, check for a DTV receiving system and install a separate DTV reception antenna for areas with no DTV signal.

8. When installing the product, leave enough space (4") between the product and the wall for ventilation purposes. A rise in temperature within the product may cause fire.

9. When moving a PDP with removable speakers, detach the speakers first before moving the main body. Moving the PDP main body without separating the speakers may cause the speakers to detach, possibly causing damage or injury.

Samsung Electronics 1-5

Page 26

MEMO

1-6 Samsung Electronics

Page 27

Product Specification

2. Product Specification

2-1 Product Specification

Features

Block Specification Major IC Remark

RF Digital/Analog (DTV Built In)

PDP Module Samsung SDI U1P Module 42"HD/50"HD New Module

Power

Video

Sound SRS TruSuround HD, Dolby Digital NTP3200 Optical Output

Cabinet B450 Design

Model PS42B451B2W PS50B451B2W

Screen Size 42 Inches (16:9) 50 Inches (16:9)

Dimensions (WxHxD)

Weight

PC Resolution 1024 x 768 @ 75Hz 1360 x 768 @ 60Hz

Power consumption 330W 470W

Voltage AC 100 ~ 240V, 50/60HZ

ANTENNAinput

Samsung/Dong-yang electro mechanics SMPS

NTSC 3.58, ATSC HDMI Component, PC

Specification

41.5 x 2.9 x 28.3 inches (without stand)

41.5 x 12.4 x 28.3 inches (with stand)

53.1 lbs (without stand)

61.2 lbs (with stand)

※75Ω

Tuner DNOQ403SH151A SAMSUNG

SEMS12

48.0x 2.9x 29.4 inches (without stand)

48.0 x 12.4 x 31.8 inches (with stand)

69.0 lbs without stand

77.1 lbs with stand

ANTAIR IN

unbalanced AV

COMPONENT - 480i/480p/720p/1080i/1080p

Scart

VIDEO input

HDMI2(DVI Compatible) - 480p/720p/1080i/1080p

480i can be displayed on HDMI, however it is not contained in EDID data

＊

AUDIO input

Audio Output AUDIO (L/R)

Speaker Output 10W+10W (40dB+40dB)

New Features Anynet+

Samsung Electronics 2-1

HDMI1 : 480p/720p/1080i/1080p

HDMI3(SIDE AV) - 480p/720p/1080i/1080p

COMPONENT - 480i/480p/720p/1080i/1080p

Scart

DVI

Page 28

Product Specification

■

New Features explanation

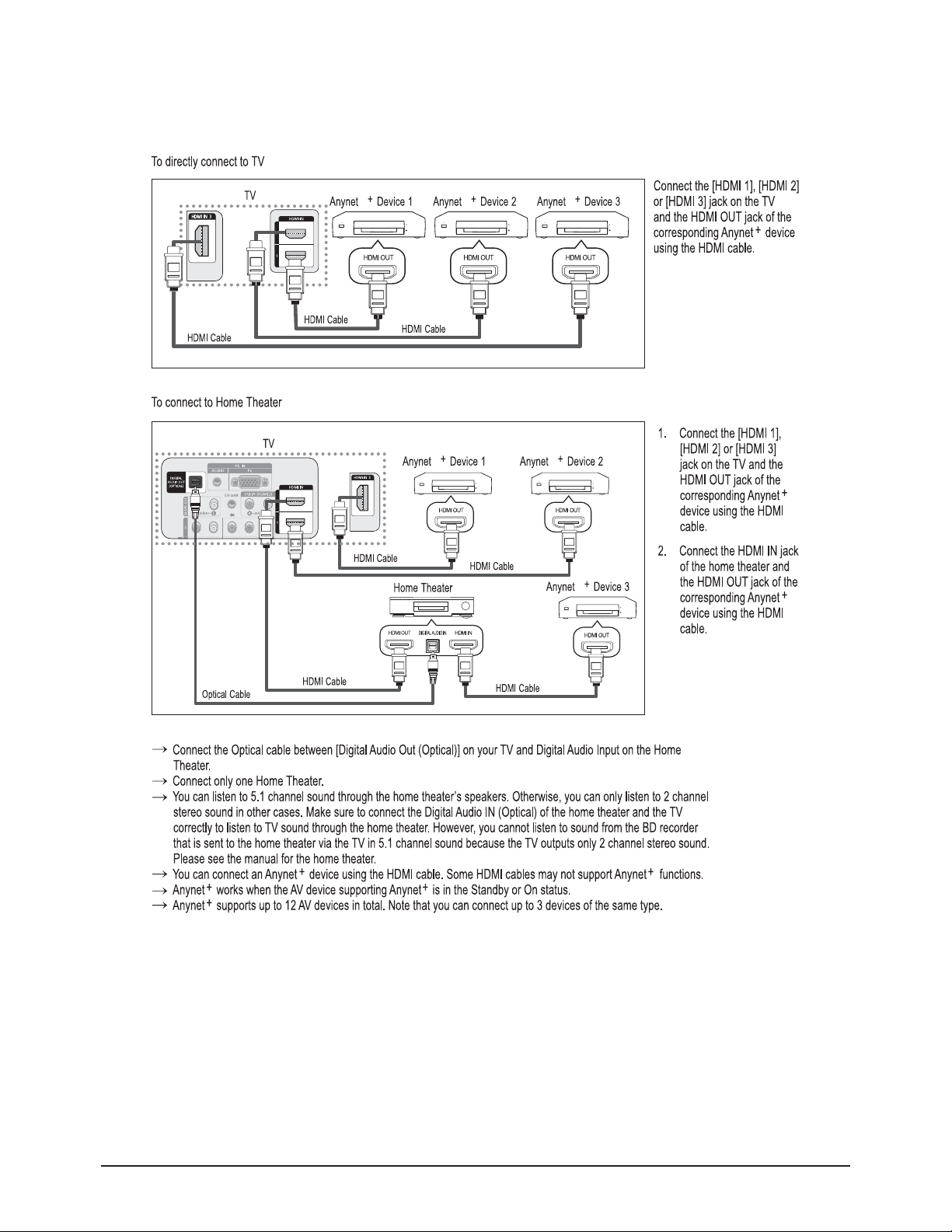

- Anynet+ : Anynet+ is an AV network system that enables you to control all connected Samsung AV devices with your Samsung TV's remote.

2-2 Samsung Electronics

Page 29

2-2 Specifications Analysis

Product Specification

※○: application, X: non-application

Items SubItems

Design

Basic Info

Additional

Feature

Audio

Chassis Name F65A F65A F51A F51A

Cabinet Name 50BB1 42BB1 P450 P450

IDTV / Ready IDTV IDTV IDTV IDTV

Motion Judder Canceller No No No No

Speaker Type (Hidden/Side/Array) 2/1 2/1 2/1 2/1

USB spec (Side) No No No No

F. Memory No No No No

DLNA No No No No

Woofer No No No No

Optical Link No No No No

Wheel Key No No No No

ACE2 Yes Yes Yes Yes 100Hz Yes Yes Yes Yes

1080p (24Hz) Input Yes Yes Yes Yes

H.264 Yes Yes No No

Finland Cable DTV No No No No

HDMI-CEC Yes Yes Yes Yes

HDMI Version (1,2/1.3) 1.2 1.2 1.2 1.2

HDMI Rear / Side 2/1 2/1 2/1 2/1

SORT TBD TBD TBD TBD

Picture Size(WSS) TBD TBD TBD TBD Clone Remote Controller Yes Yes Yes Yes Auto-Wallmount Support No No Yes Yes

Analog audio Out (L/R) 1 1 1 1

Remote Controller (Model Code) TM950 TM950 TM96 TM96

Resolution(Number of Pixels) 1365 x 768 1024 x 768 1365 x 768 1024 x 768

Brightness 1500cd/m2 1500cd/m2 1500cd/m2 1500cd/m2

Ultra FilterBright No No No No

Anti Reflection Yes Yes Yes Yes Contrast Ratio 15000:1 15000:1 15000:1 15000:1

Screen Aspect Ratio(16:9/4:3) 16:9 16:9 16:9 16:9

Viewing Angle over 175o (H/V) over 175o (H/V) over 175o (H/V) over 175o (H/V)

Number of colors(expressed) 281T 281T 281T 281T

Grey Level(Gradation) 65536 65536 65536 65536

Cinema Progressive (Film mode) Yes Yes Yes Yes

Digital Comb Filter 3D 3D 3D 3D

Digital Noise Reduction Yes Yes Yes Yes

Low Noise Amplifier No No No No

Sound Effect System SRS TruSurround XT SRS TruSurround XT SRS TruSurround XT SRS TruSurround XT

Speaker TBD TBD TBD TBD

Sound output (RMS) 10W x 2 10W x 2 10W x 2 10W x 2

B450 450P

PS42B451B2W PS50B451B2W PS-50A456P2D PS-42A456P2D

Inch 50" 42" 50" 42"

UI Smart Smart Smart Smart

DCM No No No No

RSS No No No No

Wi-Fi No No No No

3D Yes Yes No No

DNIe Yes Yes Yes Yes

Samsung Electronics 2-3

Page 30

Product Specification

2-3 Accessories

Accessories Item Item code Remark

SuppliedAccessories

Remote Control

Batteries

Power Cord 3903-000193

Owner's Instructions BN68-01936D

Warranty Card

Registration Card

Safety Guide Manual

Cloth-Clean BN63-01798A

Ferrite Core for

Power Cord

BN59-00863A

3301-001305

BN68-01349A

3301-001305

Samsung Service center

Sold Separately

Cover-Bottom Screws (2ea)

HDMI Cable

9.843 feet

HDMI/DVI cable

9.843 feet

Component Cables (RCA)

4.171 feet

BN63-05300A

6003-001621

BN39-00641A

BN39-00643A

BN39-00279A

Electronics Store/

Internal shopping mall

2-4 Samsung Electronics

Page 31

Product Specification

Accessories Item Item code Remark

Optical Cable None

Sold Separately

PC Cable

6.004 feet

PC Audio Cable

6.562 feet

Antenna Cable

9.843 feet

BN39-00115A

Electronics Store/

Internal shopping mall

BN39-00061B

BN39-00333A

Samsung Electronics 2-5

Page 32

MEMO

2-6 Samsung Electronics

Page 33

Troubleshooting

4. Troubleshooting

4-1 Troubleshooting

4-1-1 First Checklist for Troubleshooting

1. Check the various cable connections first.

- Check to see if there is a burnt or damaged cable.

- Check to see if there is a disconnected or loose cable connection.

- Check to see if the cables are connected according to the connection diagram.

2. Check the power input to the Main Board.

3. Check the voltage in and out between the SMPS ↔ Main Board, between the SMPS ↔ X, YMain Board, and between the Logic Boards.

Samsung Electronics 4-1

Page 34

Troubleshooting

■

4-1-2 Checkpoints by Error Mode

■

No Power (42")

- The LEDs on the front panel do not work when connecting the power cord.

Symptom

Major Checklist

- The SMPS relay does not work when connecting the power cord.

- The units appears to be dead. The SMPS relay or the LEDs on the front panel does not work when connecting the power cord if the cables

are improperly connected or the Main Board or SMPS is not functioning. In this case, check the following:

- Check the internal cable connection status inside the unit.

- Check the fuses of each part.

- Check the output voltage of SMPS.

- Replace the Main Board.

Troubleshooting

Procedures

①

②

Is the AC IN socket connector and

the SMPS CN800S connected?

Yes

Is the Fuse (F801S) of the SMPS

Power Input Part blown?

SMPS CN801

Pin 3 : STB 5V

Pin 2 PS-ON : Check to see if it is 0V

Yes

Replace the Main Board

Yes

Insert the AC in connector and the

SMPS CN800S connector

Replace Fuse (F801S)

Replace the SMPS

4-2 Samsung Electronics

Page 35

■

No Power (50")

Symptom

Major Checklist

Troubleshooting

- The LEDs on the front panel do not work when connecting the power cord.

- The SMPS relay does not work when connecting the power cord.

- The units appears to be dead. The SMPS relay or the LEDs on the front panel does not work when connecting the power cord if the cables

are improperly connected or the Main Board or SMPS is not functioning. In this case, check the following:

- Check the internal cable connection status inside the unit.

- Check the fuses of each part.

- Check the output voltage of SMPS.

- Replace the Main Board.

Troubleshooting

Procedures

①

②

Is the AC IN socket connector and

the SMPS CN800S connected?

Yes

Is the Fuse (F801S) of the SMPS

Power Input Part blown?

SMPS CN801

Pin 3 : STB 5V

Pin 2 PS-ON : Check to see if it is 0V

Yes

Replace the Main Board

Yes

Insert the AC in connector and the

SMPS CN800S connector

Replace Fuse (F801S)

Replace the SMPS

Samsung Electronics 4-3

Page 36

Troubleshooting

■

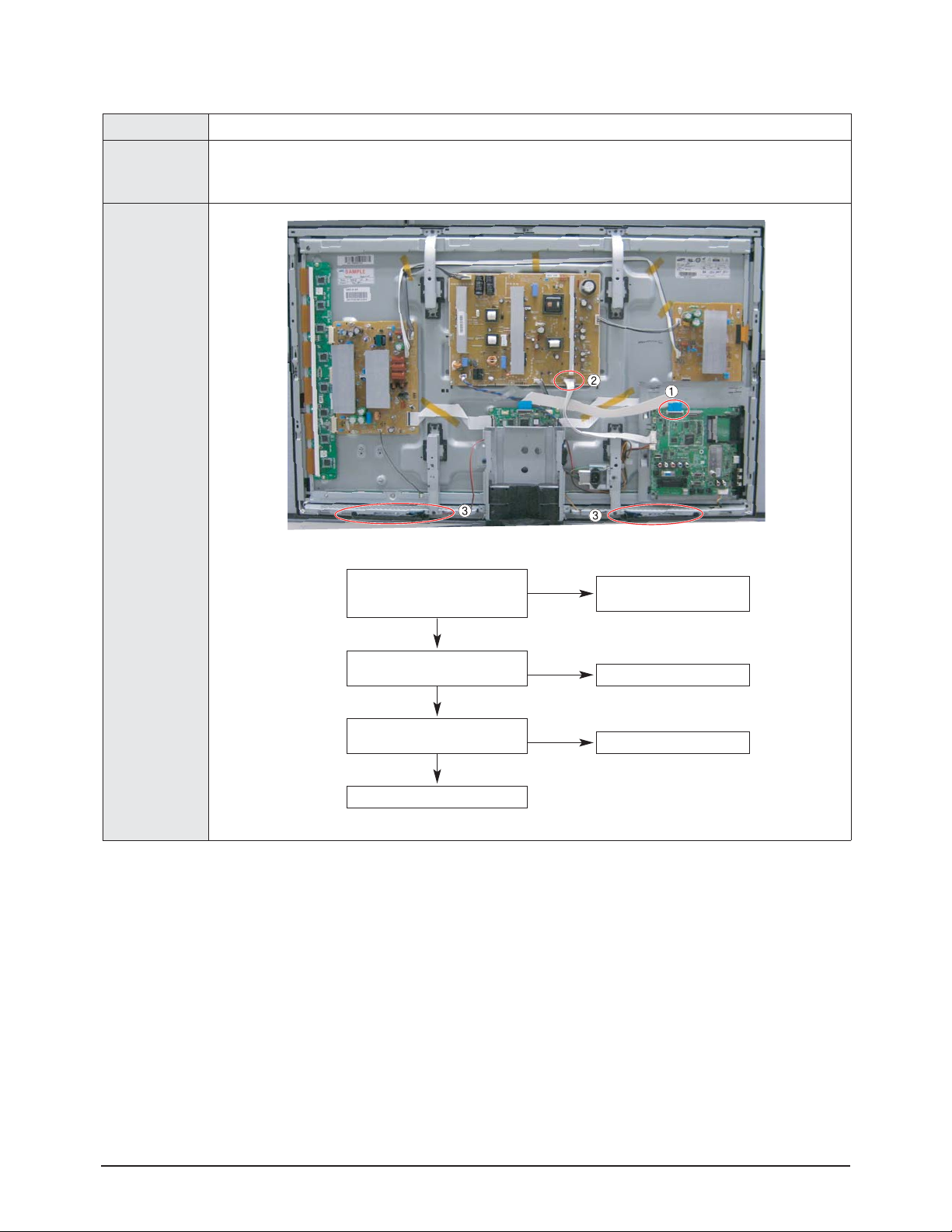

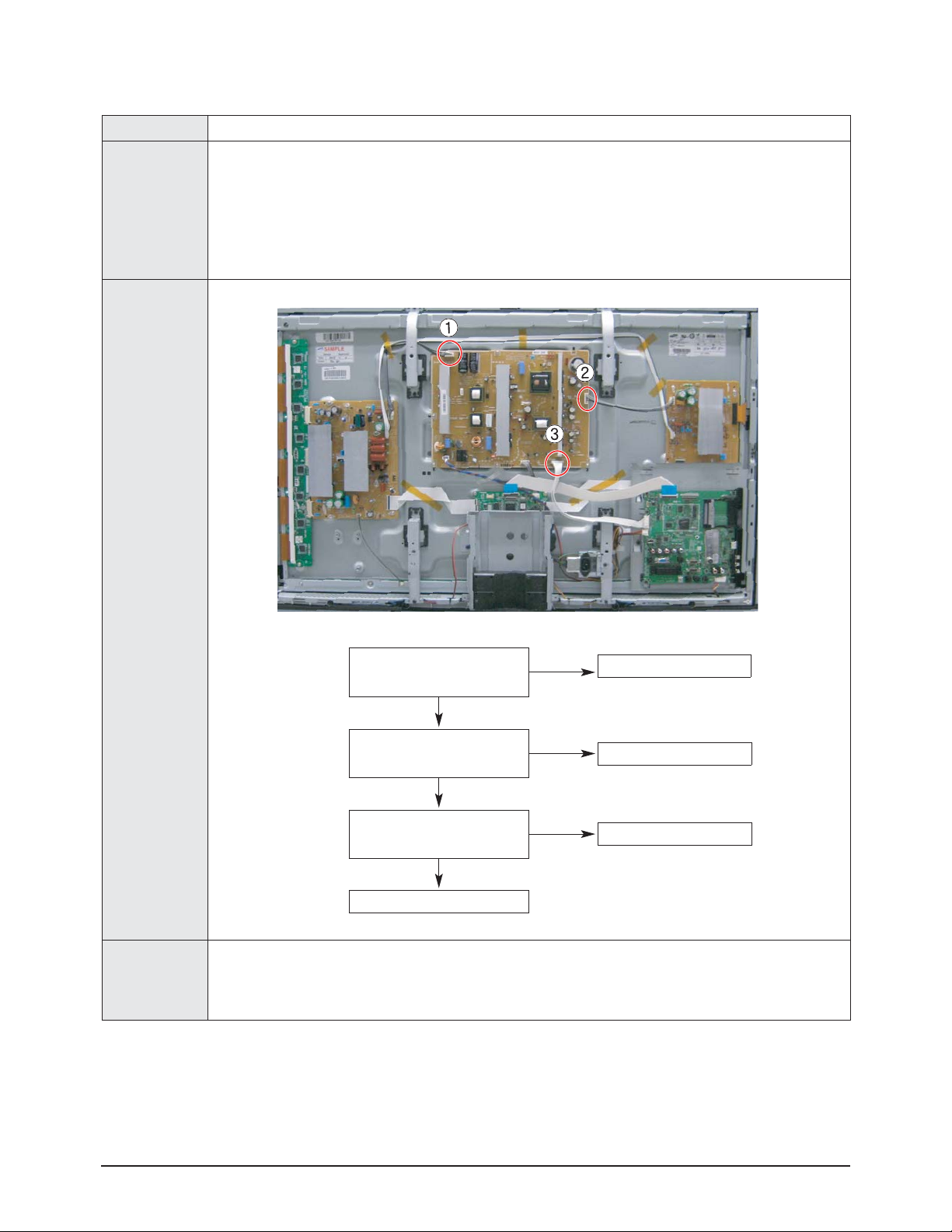

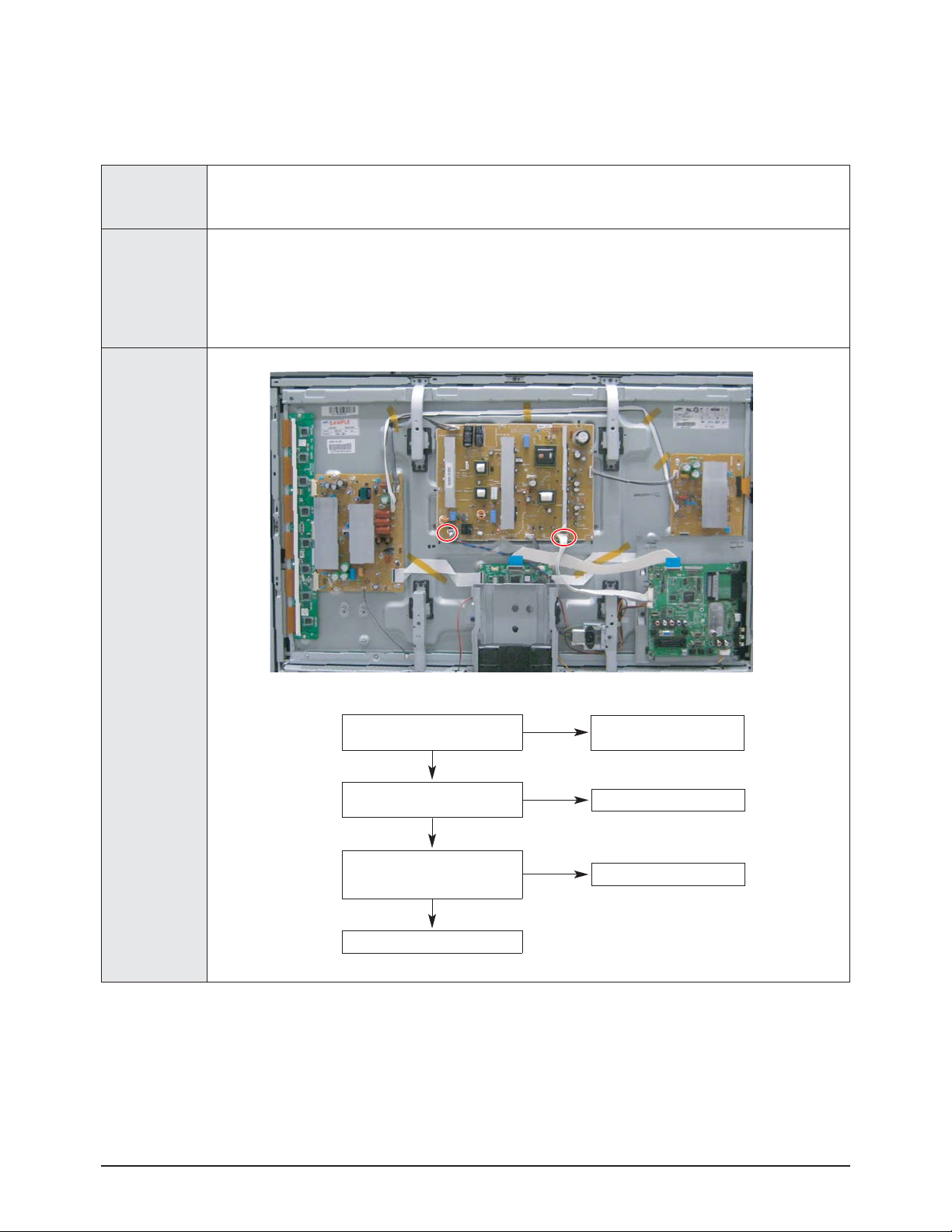

When the unit is repeatedly turned on and off (42")

Symptom - The SMPS relay is repeatedly turned on and off.

In general, the SMPS relay repeatedly turns on and off by the protection function due to a defect on a board connected to the SMPS.

- Disconnect all cables from the SMPS, operate the SMPS alone and check if the SMPS works properly and if

Major Checklist

each voltage output is correct.

- If the symptom continues even when SMPS is operated alone, replace the SMPS.

- If the symptom is not observed when operating the SMPS alone, find any defective assemblies by connecting the cables one by one.

Troubleshooting

Procedures

Caution

①

②

③

Does the symptom continue when

connecting the power after removing

CN810 from the SMPS?

Yes

Does the symptom continue when

connecting the power after removing

CN809 from the SMPS?

Yes

Does the symptom continue when

connecting the power after removing

CN807 from the SMPS?

Yes

Replace the SMPS

Replace the Y Main Board

Replace the X Main Board

Replace the Logic Board

When separating and connecting the cables such as CN810, CN809, CN808, CN807 of the Main SMPS, CN4701 of the X Main Board, and CN5707 of the Y Main Board, a spark may be generated by the electric charge of the high capacity capacitor. Therefore, wait some time after disconnecting the power cord from the unit.

4-4 Samsung Electronics

Page 37

■

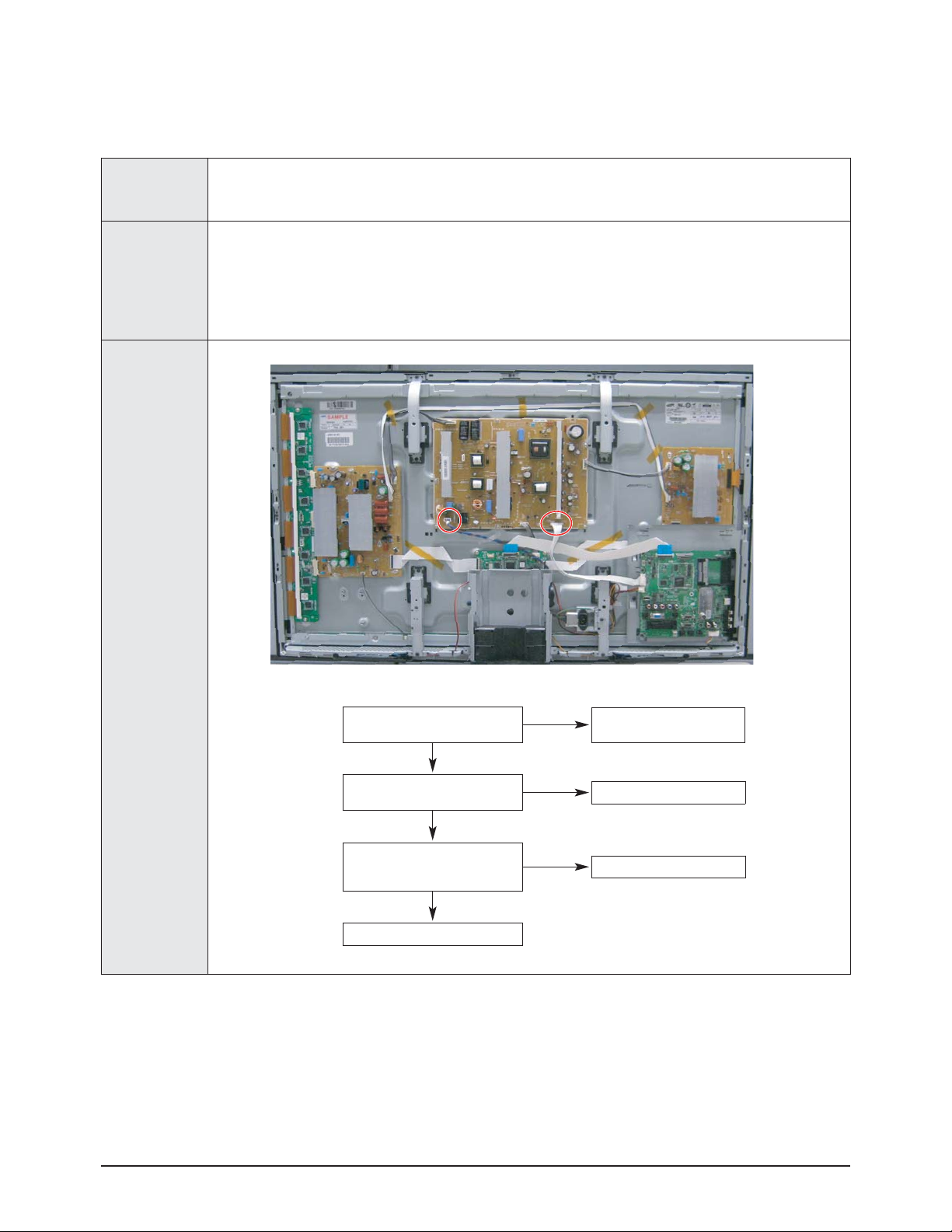

When the unit is repeatedly turned on and off (50")

Symptom - The SMPS relay is repeatedly turned on and off.

In general, the SMPS relay repeatedly turns on and off by the protection function due to a defect on a board connected to the SMPS.

- Disconnect all cables from the SMPS, operate the SMPS alone and check if the SMPS works properly and if

Major Checklist

each voltage output is correct.

- If the symptom continues even when SMPS is operated alone, replace the SMPS.

- If the symptom is not observed when operating the SMPS alone, find any defective assemblies by connecting the cables one by one.

Troubleshooting

Procedures

Caution

①

②

③

Does the symptom continue when

connecting the power after removing

CN804 from the SMPS?

Yes

Does the symptom continue when

connecting the power after removing

CN803 from the SMPS?

Yes

Does the symptom continue when

connecting the power after removing

CN802 from the SMPS?

Yes

Replace the SMPS

Replace the Y Main Board

Replace the X Main Board

Replace the Logic Board

Samsung Electronics 4-5

Page 38

Troubleshooting

■

No Picture (When audio is normal)_42"

Symptom - Audio is normal but no picture is displayed on the screen.

- This may happen when the Main Board is functioning but the X, YMain Board, Logic Board, or Y Buffer

Major Checklist

Boards are not.

- The output voltage of the Main SMPS.

- This may happen when the LVDS cable connecting the Main Board and the Logic Board is disconnected.

Troubleshooting

Procedures

Caution

Check the LED operation of Logic Board

Is it normally operating?

Yes

Check the output of LVDS

Is it normally operating?

Yes

Check the each output of the SMPS

Is it normally operating?

Yes

Check the each output of the SMPS after

disconnecting the power

cable from SMPS.

And replace X-main, Y-main Board,

Y-scan Board.

Replace the Logic Board

Replace the Main Board

Replace the SMPS

Replace the Y Scan Board

When separating and connecting the cables such as CN810, CN809, CN807 of the Main SMPS, CN4701 of the X Main Board, and CN5707 of the Y Main Board, a spark may be generated by the electric charge of the high capacity capacitor. Therefore, wait some time after disconnecting the power cord from the unit.

4-6 Samsung Electronics

Page 39

■

No Picture (When audio is normal)_50"

Symptom - Audio is normal but no picture is displayed on the screen.

- This may happen when the Main Board is functioning but the X, YMain Board, Logic Board, or Y Buffer

Major Checklist

Boards are not.

- The output voltage of the Main SMPS.

- This may happen when the LVDS cable connecting the Main Board and the Logic Board is disconnected.

Troubleshooting

Procedures

Caution

Check the LED operation of Logic Board

Is it normally operating?

Yes

Check the output of LVDS

Is it normally operating?

Yes

Check the each output of the SMPS

Is it normally operating?

Yes

Check the each output of the SMPS after

disconnecting the power

cable from SMPS.

And replace X-main, Y-main Board,

Y-scan Board.

Replace the Logic Board

Replace the Main Board

Replace the SMPS

Replace the Y Scan Board

Samsung Electronics 4-7

Page 40

Troubleshooting

■

No Sound (42")

Symptom - Video is normal but there is no sound.

- When the speaker connectors are disconnected or damaged.

Major Checklist

- When the sound processing part of the Main Board is not functioning.

- Speaker defect.

Troubleshooting

Procedures

Is the cable connection between the

①

②

③

Main Board and the speaker

properly connected?

Is the output voltage of SMPS normal?

(CN801 #13)

Is the speaker output terminal

of the Main Board normal?

Replace the Speaker

Yes

Connect the cable properly or

replace the cable, if necessary.

Replace the SMPS

Replace the Main Board

4-8 Samsung Electronics

Page 41

■

No Sound (50")

Symptom - Video is normal but there is no sound.

- When the speaker connectors are disconnected or damaged.

Major Checklist

- When the sound processing part of the Main Board is not functioning.

- Speaker defect.

Troubleshooting

Procedures

Is the cable connection between the

①

②

③

Main Board and the speaker

properly connected?

Is the output voltage of SMPS normal?

(CN801 #13)

Is the speaker output terminal

of the Main Board normal?

Replace the Speaker

Yes

Connect the cable properly or

replace the cable, if necessary.

Replace the SMPS

Replace the Main Board

Samsung Electronics 4-9

Page 42

Troubleshooting

■

No Video

Symptom - Anormal/cable network analog broadcast screen is blank or abnormal but OSD is OK.

- Check the antenna connection settings (Air: NTSC / ATSC, Cable: NTSC)

Major Checklist

- Check the CVBS cable connection.

- Check the power input of the Main board.

Troubleshooting

Procedures

①

Is the antenna connection setting

properly configured?

Yes

Check CN1001 pin2 for +5V

Yes

Replace the Main Board

Configure properly

Replace the SMPS

4-10 Samsung Electronics

Page 43

Troubleshooting

■

Drive Board Troubleshooting

1) Troubleshooting Summary Condition Name Description Related Board

No Voltage Output Operating Voltage don't exist PSU No Display Operating Voltage exist, but an Image doesn't exist on screen Y-MAIN, X-MAIN, Logic Main, Cable Abnormal Display Abnormal Image (not open or short) is no screen Y-MAIN, X-MAIN, Logic Main Sustain Open Some horizontal lines don't exist on screen Scan Buffer, FPC of X/Y Sustain Short Some horizontal lines appear to be linked on screen Scan Buffer, FPC of X/Y Address Open Some vertical lines don't exist on screen Logic Main, Logic Buffer, TCP Address Short Some vertical lines appear to be linked on screen Logic Main, Logic Buffer, TCP

Samsung Electronics 4-11

Page 44

Troubleshooting

2) Troubleshooting Procedure in Abnormal Conditions

① No Display

▶ No Display is related with Y-MAIN, X-MAIN, Logic Main and so on.

This page shows you how to check the boards, and the following pages show you how to find the defective board.

4-12 Samsung Electronics

Page 45

② Abnormal Display(Abnormal Image is on Screen.(except abnormality in Sustain or Address))

▶ Abnormal Display is related with Y-MAIN, X-MAIN, Logic Main and so on.

This page shows you how to check the boards, and the following pages show you how to find the defective board.

Troubleshooting

Samsung Electronics 4-13

Page 46

Troubleshooting

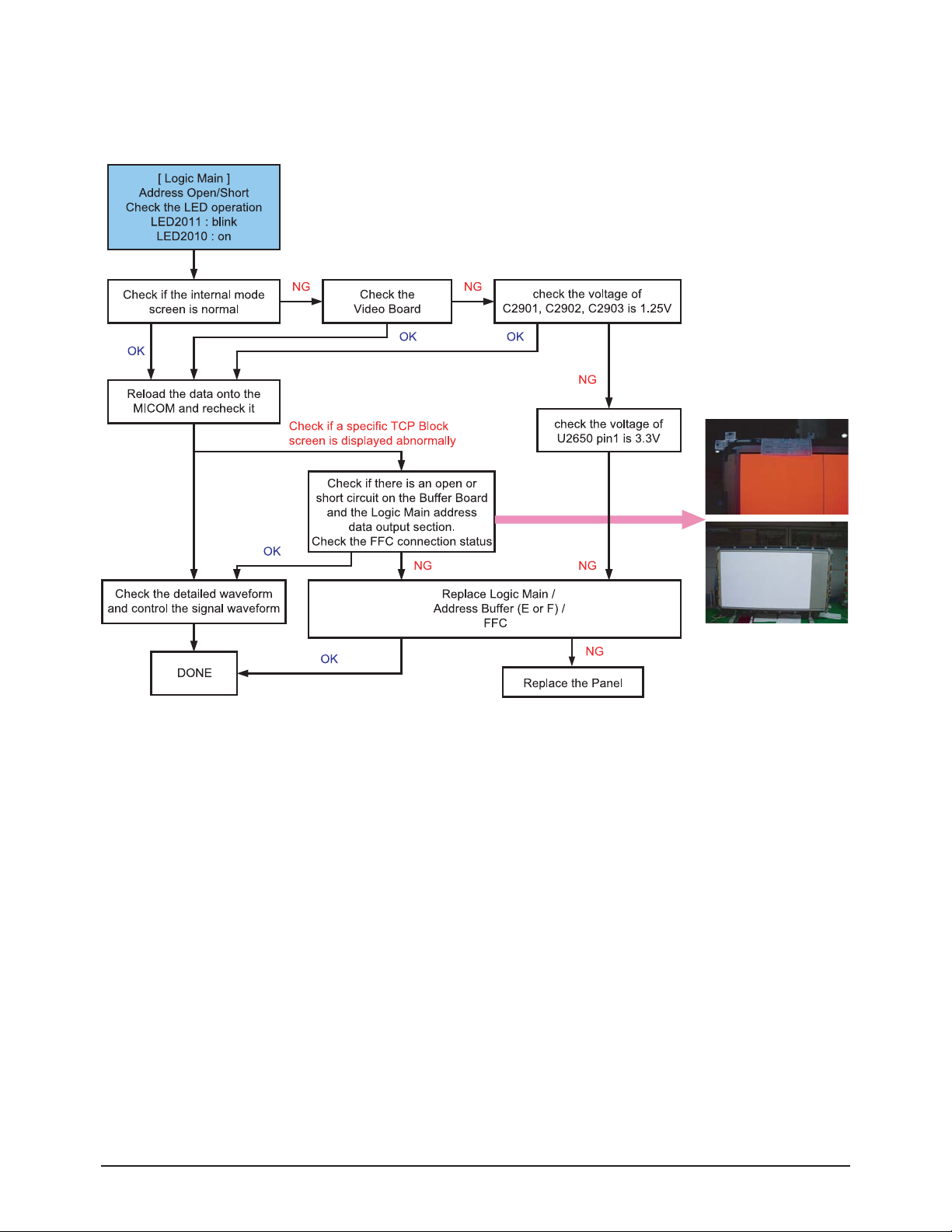

③ Address Open, Short

▶ Address Open and Short is related with Logic Main, Logic Buffer, FFC, TCP film and so on.

This page shows you how to check the boards, and the following pages show you how to find the defective board.

4-14 Samsung Electronics

Page 47

4-1-3 Troubleshooting

Symptom Related Image Causes and Countermeasures

Ablank vertical cell (block) appears on the screen.

Troubleshooting

Address buffer defect

- Replace the corresponding upper/lower buffers (E, F)

COF defect (burnt)

- Replace the module

Agreen screen appears when the TV is turned on.

The OSD box appears but there is no text.

Ablank upper (or lower) block appears on the screen.

The Scale is not reseting

- Replace the Main board

Incorrect program version

- Check the version of each program

- Replace the Main board

Upper/Lower Y Buffer defect

- Replace the corresponding upper/lower buffers (E, F)

Samsung Electronics 4-15

Page 48

Troubleshooting

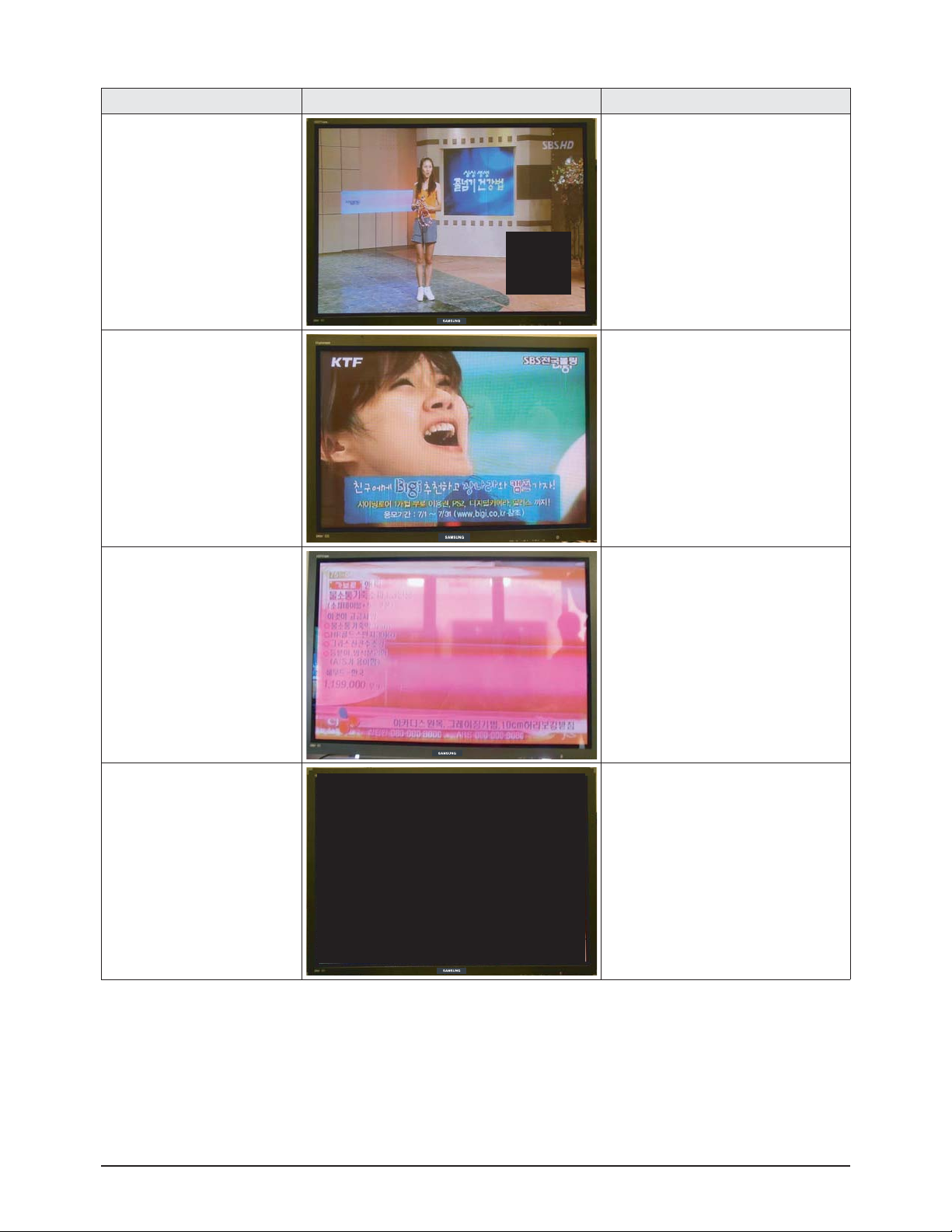

Symptom Related Image Causes and Countermeasures

Either the main or sub picture does not appear.

Replace the Main board

Avertical green line appears on the screen.

The SMPS voltage is incorrect

- Adjust the SMPS voltage according to the voltage printed on the module label

Dim screen (blurred in red) X-Main board defect

- Replace the X-Main board

Ablank screen appears - Replace the Y-Main board

4-16 Samsung Electronics

Page 49

4-1-4 Troubleshooting Procedures by assembly

No Assembly Major Symptoms

1 SMPS-PDPTV No power, Blank screen, the Relay repeats On and Off. 2 ASSYPDPMODULE P-X-MAIN Blank screen 3 ASSYPDPMODULE P-Y-MAIN Blank screen 4 ASSYPDPMODULE P-LOGIC MAIN Blank screen, Screen noise 5 ASSYPDPMODULE P-Y-MAIN SCAN BUFFER Row Bar screen is blank (42" Only) 6 ASSYPDPMODULE P-ADDRESS E BUFFER Corresponding Buffer Board block screen is blank. 7 ASSYPDPMODULE P-ADDRESS F BUFFER Corresponding Buffer Board block screen is blank. 8 ASSYPCB MISC-MAIN No Power, Abnormal screen for each input source, PIPscreen trouble, Sound trouble 9 ASSYBOARD P-FUNCTION The side function key does not work properly

Troubleshooting

Samsung Electronics 4-17

Page 50

Troubleshooting

4-2 Adjustment

4-2-1 Service Instruction

■ Before performing service

1. Check if the measurement and test equipment is working properly.

2. Secure sufficient work space for disassembling the product.

3. Prepare a soft pad for disassembling the product.

■ Service adjustment item after replacement of Board <If adjustment equipment is available>

① PDP Option of Factory Mode → set the Factory Data Type item as the suitable value of relevant model. ② Adjust Calibration of Factory Mode for each mode. ③ Adjust White Balance of Factory Mode.

① Write down the value of HDMI White Balance of Factory Mode before replacing Board. ② PDP Option of Factory Mode → set the Factory Data Type item as the suitable value of relevant model. ③ Set the value of HDMI White Balance with the value written down before.

4-18 Samsung Electronics

Page 51

Troubleshooting

4-2-2 How to Access Service Mode

1. General Remote

1) Stand by

- Europe: →→→

2. Factory Remote

1) You can enter as pushing Display + Factory in state of power-on.

2) Push Factory Key again, and you can enter Aging mode. Push Factory Key again, and you can go back Factory mode. (Factory ↔ Aging)

3) Push Display + 3 Speed Key, and you can enter aging mode.

3. Settings when entering Factory mode

- Sharp Screen (Dynamic), Color Tone (Cool1), Factory (Dynamic CE Off)

4. The contents to change when entering Service Mode

5. Adjustment Procedures No Item Mode Remark

1 Picture Mode Dynamic 2 Color Tone Mode Cool 1 3 Picture Size Wide 4 Dynamic Contrast Off 5 Digital NR Off 6 PIP Off 7 Gama Off OSD is ON

INFO POWER ONMENU MUTE

- Channel ▲▼Key: Select an item.

- Volume ◀▶ Key: Adjust the value up or down.

- MENU Key: Save the changes to the EEPROM and return to the higher-level mode.

- Using the Numeric (0~9) keys, you can select a channel.

- Using the SOURCE key, you can switch AV modes.

6. Initial SERVICE MODE DISPLAY State

Option ADC/WB Control Advanced Expert T-CRLPEUC-XXXX T-CRLPEUHC-XXXX T-CRLPEUS-XXXX DTP-LP-XXXX-XX DTP-LP-App-XXXX-XX Option : 2010 0100 ADC : HDMI X COMP X PC X AV X EDID : FAIL HDCP : SUCCESS PDP : P45E_42Sp Bulld Date : XX-XX-XXXX

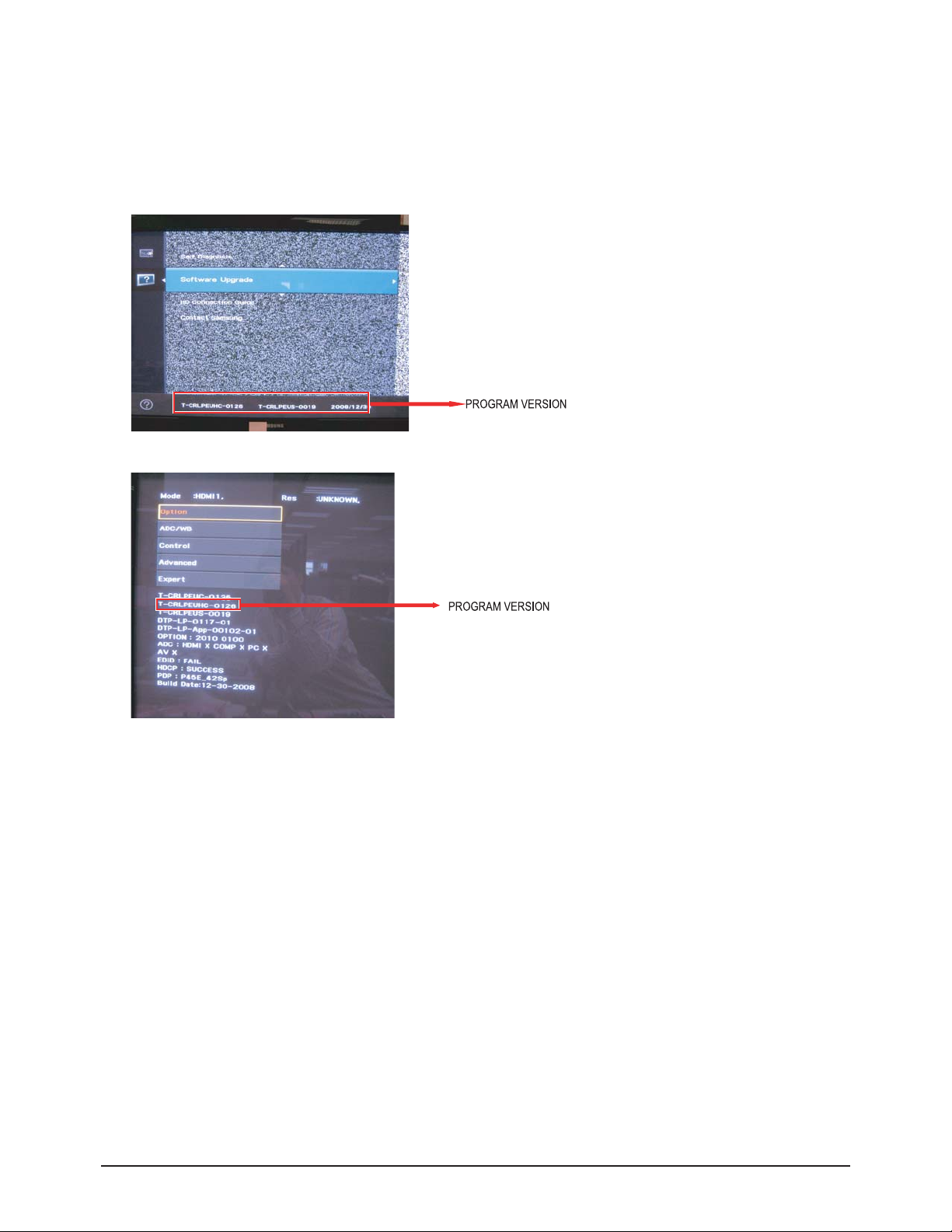

※ The version of the firmware displayed at the bottom of the screen may differ and the firmware is subject to change for the

improvement of product functions.

※ If you have adjusted the settings in Service Mode, you have to reset the product.

Samsung Electronics 4-19

Page 52

Troubleshooting

4-2-3 Factory Data

1. Option

Item Data Range

Factory Reast

Type 42FSpM3 50FSpL4/42HSnB3/50HSnB4/42HSpB3D/50HSpB4D/42FSpM3

Model PB450 PB530/PB430/PB450 TUNER Auto Sem_SL/Alps_SL/Auto Region EU ND/ASIA/CHN/EU/

DDR SAMSUNG Etron/SAMSUNG

Light Effect ON Off/ON

Inch

Ch SUWON SESK/SHE/TTSEC/SDMA/SERK/SEIN/ASVIA/SIEL/TSE/SUWON

Medialink Type

Local Set Others Russia/Others

PDP GROUP P45E_42SP

"P45E_50Sp/P45N_42Sp/P45N_50Sp/P45A_42Sp/P45A_50Sp/P43E_42Sn/P

43E_50Sn/P43N_42Sn/P43N_50Sn/P43A_42Sn/P43A_50Sn/P45E_Sp"

2. CONTROL

EDID

Item Default data Range

EDID ON/OFF Off on

EDID WRITE ALL Failure wait/Success

EDID WRITE PC Failure wait/Success

EDID WRITE DVI Failure wait/Success EDID WRITE HDMI1 Failure wait/Success EDID WRITE HDMI2 Failure wait/Success EDID WRITE HDMI3 Failure wait/Success EDID WRITE HDMI4 Failure wait/Success

EDID VERSION HDMI 1.2 HDMI 1.3

4-20 Samsung Electronics

Page 53

Sud Page

Item Default data Range

Mute Time(VIDEO) 4 5/6/7/8/9/10/0/1/2/3

ready Failure Success

TTX LIST Flof List

TTX On Off

TTX Group Lang OSD "W Europe/E Europe/Russia/Greek/Turkey/Arab/Farsi/Arabhdrw"

1 On Off

Hotplugcontrol On Off

Spread Specturm On Off

(Step1 149 0/255

(Step2 0 0/3 (Range1) 215 0/255 (Range2) 0 0/63

(DDR Spread) 2% Spread Off/1% Spread

Auto Power On Off

DDR Arab Off

NT Conversion Off

Mirror Off On HDMI EQ1 Middle High/Strong/Low HDMI EQ2 Middle High/Strong/Low HDMI EQ3 Middle High/Strong/Low HDMI EQ4

EER Count 24205

WM Calib OK

Panel Enter Key

Panel Display Time Ohr

CHECKSUM 0x0000 WAIT/0x4F7A

View Log

Font Date Viewer

Dimm Type INT INT_NEG/EXT_POS/EXT_NEG/EXT

Gamma Off 0.85/0.88/0.90/0.93/0.95/0.98

Carrier Mute Off On

Anynet+ On Off

HPD Polarity

High Devi Off On Volume Curve EU EA/ Hotplug Delay 9 0/63

HP Ident High Low PC Ident On Off

Language Chiha French/English

Info Live

Watchdog Off On

LVDS Format JEDIA VESA

OSD Resolution 1024*768

Bus Stop

OTACode Panel Auto Setting OTADuration Test

Alternate Del

Troubleshooting

Samsung Electronics 4-21

Page 54

Troubleshooting

PDP Option

Item Default data Range

PIXEL SHIFT TEST Off On

LOOGIC CIONNECT Off On

PATTERN SELECT

PANELVERSION VF1P

PANELINCH 50HD

PANELTYPE aOH

PANELTEMPERATURE 47

LOGIC SW VERSION 2008-12-02

LOGICSW CHECKSUM 9AB5H

SAPC_Timer On Off

APC_Speed Slow Fast

LOGIC USBD/L Off Success

Hotel Option

Item Default data Range

Hotle Mode Off On

Power On Channel 1 0/99

Power On Source ATV Scart/AV/Comp/PC/HDMI1/HDMI2/HDMI3/DTV

Power On Volume 10 0/100

Min Volume 0 0/100

Max Volume 100 0/100

Panel Butten Lock Off On/PowerSound

Pic Menu Lock Off On Video Mute Ch 1 0/99

Video Mute Ch On/Off Off On

Music Mode (AV) Off On Music Mode (PC) Off On

Music Mode (Comp) Off On

Music Mode Backlight Off On

Menu Display On Off

Power On Option Last Option Standby/Power On

Auto PC Off On

Energy Saving Off Low/Mid/High/Auto Cloning : TV to USB Cloning : USB to TV

4-22 Samsung Electronics

Page 55

Shop Option

Item Default data Range

Shop Mode Off On

USB DEMO ON(SEC)

USB DEMO OFF(SEC)

Sound

Item Default data Range

FM Prescsacle 28 0/40

AM Prescale 9 0/40

Nicam Prescale 32 0/40 A2 M2S Threshold 32 0/40 A2 S2M Threshold 0x0A 0x00/0x7F

A2 PilotPhaseOn 0x00 0x00/0x7F A2 PilotPhaseOff 0X00 0x00/0x7F

A2 IdentOn 0X00 0x00/0x7F

A2 IdentOff 0X00 0x00/0x7F A2 Carr1AmpOnThr 0X00 0XFF A2 Carr1AmpOffThr 0X14 0xFF

A2 Carr1SnOnThr 0x00 0xFF

A2 Carr1SnOffThr 0x00 0XFF A2 Carr2AmpOnThr 0X00 0XFF A2 Carr2AmpOffThr 0x00 0XFF A2 Carr2AmpOffThr 0x00 0XFF

A2 Carr2SnrOnThr 0x00 0XFF

A2 Carr2SnrOffThr 0x00 0XFF Nicam Sig Error On 0x16 0x7F Nicam Sig Error Off 0x14 0x7F Compression mode On Off

Dolby Test Mode On Off

DTV Level -12dB 0dB Master Vol 30 0/47

PWM Modulation 208 0/255

DRC1 Threshold 0x37 0xFF DRC2 Threshold 0x50 0xFF

SPEAKER EQ On Off

SC1 Vol 16 0/40 SC2 Vol 16 0/40

Audio delay 60ms 0ms/150ms

Troubleshooting

Samsung Electronics 4-23

Page 56

Troubleshooting

Config Option

Item Default data Range

AV Number 1 0/2

SVIDEO Number 0 1

COMP Number 1 0/2

HDMI Number 3 0/4

SCART Number 1 0/2

DVI Number 0 1

HP Number 0 1

USB PORT

LNASUPPORT Off On

MFT OFFSET

3. ADC Wb

ADC

Item Default data Range

AV Calibration Wait/Failure

COMP Calibration

PC Calibration

HDMI Calibration

ADC Target

Item Default data Range

1st_AV_Low 18 0/255

1st_AV_High 220 0/255

1st_AV_Delta 1 0/255

1st_Comp_Low 16 0/255

1st_Comp_High 235 0/255

1st_Comp_Delta 1 0/255

1st_PC_Low 2 0/255

1st_PC_High 235 0/255

1st_PC_Delite 1 0/255

2nd_Low 1 0/255

2nd_High 235 0/255

2nd_Delta 1 0/255

4-24 Samsung Electronics

Page 57

ADC RESULT

Item Default data Range

1st_AV_Gain 125 0/255

1st_AV_Offset 139 0/255

1st_Comp_Gain 73

1st_Comp_Gian_Cb 73

1st_Comp_Gian_Cr 73

1st_Comp_Offset 127

1st_Comp_Offset_Cb 127

1st_Comp_Offset_Cr 127

1st_PC_R_Gain 96 1st_PC_G_Gain 95

1st_PC_B_Gain 95 1st_PC_R_Offset 144 1st_PC_G_Offset 139 1st_PC_B_Offset 139

2nd_R_Offset 108 0/255 2nd_G_Offset 108 0/255 2nd_B_Offset 108 0/255

2nd_R_Gain 168 0/255 2nd_G_Gain 168 0/255 2nd_B_Gain 168 0/255

Troubleshooting

Item Default data Range

Sub Brigntness 128 0/255

R_Offset 128 0/255 G_Offset 128 0/255 B_Offset 128 0/255

Sud Contrast 128 0/255

R_Gain 128 0/255 G_Gain 128 0/255

B_Gain 128 0/255

Samsung Electronics 4-25

Page 58

Troubleshooting

4. Advanced FBE

Pattern Select

B-Slipe Gain

B-Tilt Min

B-Tiilt Max Lfunc-Basis Hfunc-Basic

Mean_Offset1 Mean_Offset2

Mean Slope

ACR Offset

ACR Th1 ACR Th2

Skin Enable

Skin Uv

Mskin Uv

Sub Color

Item Default data Range

WB Movie

Item Default data Range

WB Movie Off On

Color Mode Movie Standard/Dynamic

Color Tone Cool Normal/Warm1/Warm2

Msub Brigh 128 0/255

MsubContr 128 0/255

W1_Rgain 138 0/255

W1_Bgain 109 0/255 W1_ROFFS 128 0/255 W1_BOFFS 128 0/255 W2_RGAIN 144 0/255

W2_BGAIN 84 0/255 W2_ROFFS 128 0/255 W2_BOFFS 128 0/255

N_RGAIN 128 0/255

N_BGAIN 128 0/255 N_ROFFS 128 0/255 N_BOFFS 128 0/255

Movie Contr 100 0/100 Movie Brigh 45 0/100 Movie Color 55 0/100

Movie Sharp 75 0/100

Movie Tint 50 0/100

Move BkLight 10 0/10

M.Gamma Off 0.85/0.88/0.90/0.93/0.95/0.98/M1/M2/M3/M4

M_Sub Gamma 0 3/-3

4-26 Samsung Electronics

Page 59

EPAStandard

Item Default data Range

Std Contr 95 0/100 Std Bright 45 0/100 Std Sharp 50 0/100

Std Color 50 0/100

Std Tint 50 0/100

Std Backlight 4 0/10

ADJUST

Item Default data Range

Dynamic Dimming Off on

LNAPlus

(RF dB1 Level) 3 0/255 (RF dB2 Level) 6 0/255 (RF dB3 Level) 12 0/255 (RF dB4 Level) 31 0/255

Power Key Protect Off On

Uart Select Auto Wall Debug/MDC/On1/On2

Debug Mode DeBug Off Debug Smart/DeBug RunTi

Back End Mute

PDP FRC

Visual Test Disable Enable

Standby Mode Time 45 Min 2 Min

Delete alt.ver 2 Flash

OTAconfirm Time 90Min 2 Min

OTAlimit Time 3 hour 3 Min

Dynamic CE Off on

FWC Off on

1080p 48Hz On Off

PWM Max 100 1/100

Troubleshooting

Samsung Electronics 4-27

Page 60

Troubleshooting

YC_Delay

PAL BG 1 0/3 PAL DK 1 0/3

SECAM BG 4 0/7

SECAM DK 4 0/7

SECAM L 4 0/7

NTSC 358 1 0/3 NTSC 443 1 0/3

AV PAL 1 0/3

AV SECAM 4 0/7

AV NT358 1 0/3

AV NT443 1 0/3 AV PAL 6 0 1 0/3

SHARPNESS

H1 Gain 0x16 0x00/0x3f H2 Gain 0x18 0x00/0x3f H3 Gain 0x18 0x00/0x3f H4 Gain 0x12 0x00/0x3f V1 Gain 0x0D 0x00/0x3f

V2 Gain 0x0D 0x00/0x3f H overshoot 0x20 0x00/0FF V overshoot 0x20 0x00/0FF

H undershoot 0x20 0x00/0FF

V undershoot 0x20 0x00/0FF

Coring TH2 0x03 0x01/0x0F Coring TH1 0x01 0x01/0x0F

Item Default data Range

PAL I 1 0/3

Item Default data Range

Item Default data Range Skin_x 0x00 0x00/0x0A Skin_y 0x00 0x00/0x0A

B_slope 0x90 0xA0/0x9F

DLC_ML 0x70 0xA0/0x9F

DLC_MH 0x70 0xA0/0x9F

DLC_H 0xEB 0x00/0xFF

Skin_SAT 0x00 0x00/0x0F

Skin_HUE 0x40 0x00/0x7F

M_Skin_HUE 0x40 0x00/0x7F

M_Skin_X 0x00 0x00/0x0A M_Skin_Y 0x00 0x00/0x0A

Mid_color_level 0xB4 0x00/0xFF

4-28 Samsung Electronics

Page 61

PQ Others

Item Default data Range

7.5 IRE NTSC Off On

7.5 IRE 16 0/60

Color Space

Item Default data Range

Red Sat 0x10 0x00/0x1E

Red Hue 0x40 0x00/0x7F Green Sat 0x1A 0x00/0x1E GreenHue 0x70 0x00/0x7F

Blue Sat 0x19 0x00/xX1E

BlueHue 0x50 0x00/0x7F

Cyan Sat 0x19 0x00/0x1E

Cyan Hue 0x50 0x00/0x7F

Magenta Sat 0x10 0x00/0x1E

Magenta Hue 0x40 0x00/0x7F

Yellow Sat 0x15 0x00/0x1E

Yellow Hue 0x10 0x00/0x7F

FWC Blue 0x15 0x00/0x1E

FWC Red 0x0F 0x00/0x1E

Troubleshooting

EEPROM RESET

Item Default data Range

EEPROM RESET Off

NVR ALL Clear Off On

Expert

Item Default data Range

N/D ADJ OFF On/FIX

SOURCE Current All

Samsung Electronics 4-29

Page 62

Troubleshooting

■

4-2-4 Service Adjustment - You must perform Calibration in the Lattice Pattern before adjusting the White Balance.

■

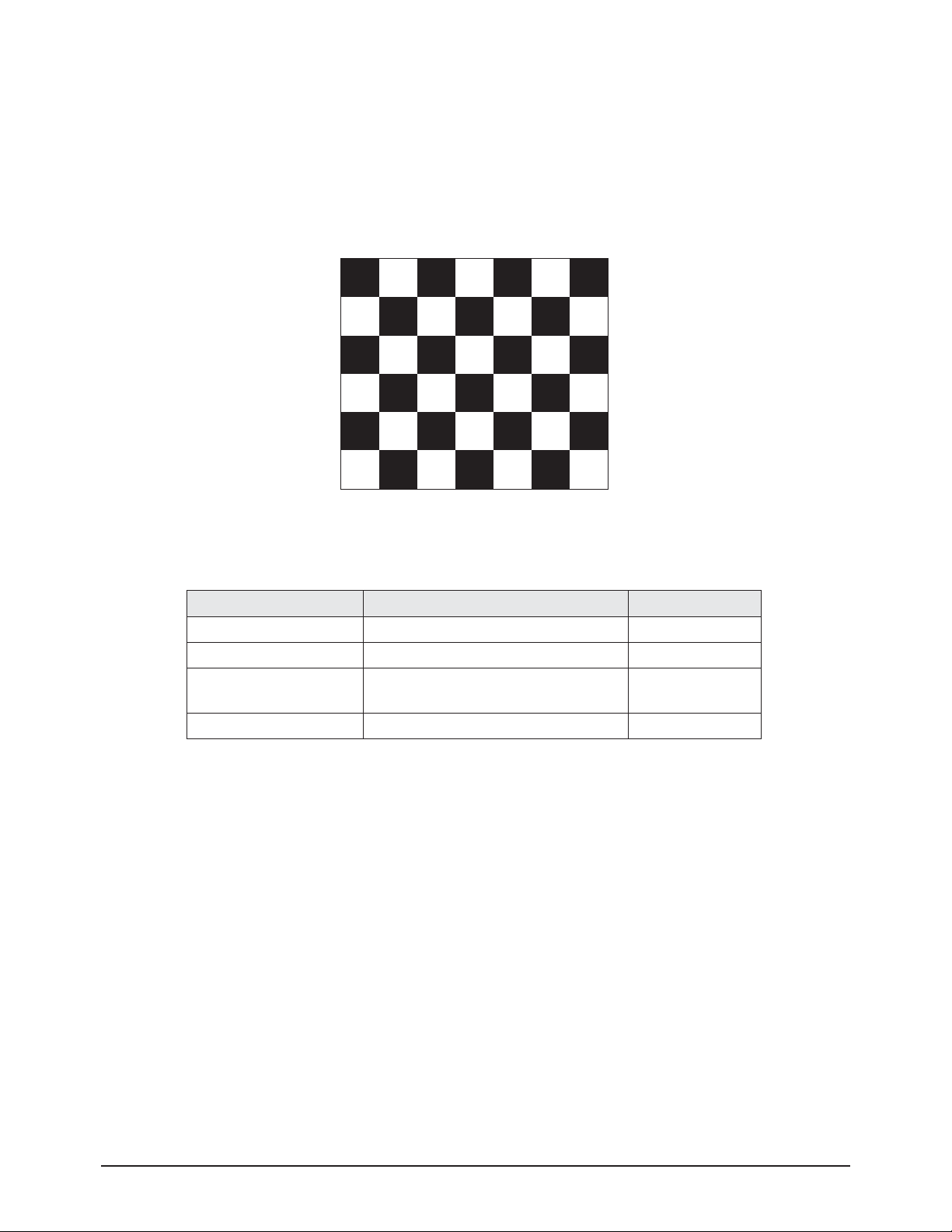

Color Calibration

Adjust spec.

1. Source : HDMI

2. Setting Mode : 1280*720@60Hz

3. Pattern : Pattern #24 (Chess Pattern)

( Chess Pattern )

4. Use Equipment : CA210 & Master MSPG925 Generator

※ Use other equipment only after comparing the result with that of the Master equipment.

Input mode Calibration Pattern

CVBS IN (Model_#1) Perform in NTSC B&W Pattern #24 Lattice

Component IN (Model_#6) Perform in 720p B&W Pattern #24 Lattice

PC Analog IN (Model_#21)

HDMI IN Perform in 720p B&W Pattern #24 Lattice

Perform in VESAXGA(1024x768)

B&W Pattern #24

Lattice

4-30 Samsung Electronics

Page 63

■ Method of Color Calibration (AV)

1) Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port

2) Press the Source key to switch to "AV1" mode

3) Enter Service mode

4) Select the "Calibration" menu

5) Select the "AV Calibration" menu.

6) In "AV Calibration Off" status, press the "▶" key to perform Calibration.

7) When Calibration is complete, it returns to the high-level menu.

8) You can see the change of the "AV Calibration" status from Failure to Success.

■ Method of Color Calibration (Component)

1) Apply the 720p Lattice (N0. 6) pattern signal to the Component IN 1 port

2) Press the Source key to switch to "Component1" mode

3) Enter Service mode

4) Select the "Calibration" menu

5) Select the "Comp Calibration" menu.

6) In "Comp Calibration Off" status, press the "▶" key to perform Calibration.

7) When Calibration is complete, it returns to the high-level menu.

8) You can see the change of the "Comp Calibration" status from Failure to Success.

■ Method of Color Calibration (PC)

1) Apply the VESAXGA Lattice (N0. 21) pattern signal to the PC IN port

2) Press the Source key to switch to "PC" mode

3) Enter Service mode

4) Select the "Calibration" menu

5) Select the "PC Calibration" menu.

6) In "PC Calibration Off" status, press the "▶" key to perform Calibration.

7) When Calibration is complete, it returns to the high-level menu.

8) You can see the change of the "PC Calibration" status from Failure to Success.

Troubleshooting

■ Method of Color Calibration (HDMI)

1) Apply the 720p Lattice (N0. 6) pattern signal to the HDMI1/DVI IN port

2) Press the Source key to switch to "HDMI1" mode

3) Enter Service mode

4) Select the "Calibration" menu

5) Select the "HDMI Calibration" menu.

6) In "HDMI Calibration Off" status, press the "▶" key to perform Calibration.

7) When Calibration is complete, it returns to the high-level menu.

8) You can see the change of the "HDMI Calibration" status from Failure to Success.

Samsung Electronics 4-31

Page 64

Troubleshooting

■

White Balance

Adjust spec.

1. Source : HDMI

2. Setting Mode : 1280*720@60Hz

3. Pattern : Pattern #92

4. Use Equipment : MIK-7256 (MSPG925L)

( SAMSUNG WHITE BALANCE Adjustment PATTERN with FPD )

5. Work order

① Connect HDMI (DVI) output terminal of MIK-7256 (MSPG925L) to the HDMI input in main set ② Set the input to HDMI mode ③ Enter the White Balance menu of service mode ④ Contact CA-210 sensor to glass filter

( Fixed Position of CA210 Probe )

⑤ Adjust the low light

- Adjust Sub-Bright (LBE) to set the 'Y' value

- Adjust R-Offset ('x') and B-Offset ('y') to the color coordinates. * Do not adjust G-Offset data

⑥ Adjust the high light.

- Adjust Sub-Contrast (LBE) to set the 'Y' value

- Adjust R-Gain ('x') and B-Gain ('y') to the color coordinates. * Do not adjust the G-gain data

4-32 Samsung Electronics

Page 65

Troubleshooting

CVBS

(NTSC)

COMP (720P)

HDMI

(720P)

Input mode

x Y(L) T(K), MPCD

H/L 278

L/L 278

H/L 278

L/L 278

H/L 278

L/L 278

(CA-210)

FIX

(Sub_CT:128)

10.5 cd/㎡ (3.0 Ft)

FIX

(Sub_CT:128)

10.3 cd/㎡ (3.0 Ft)

FIX

(Sub_CT:128)

10.3 cd/㎡ (3.0 Ft)

10,500 (± 0)

11,000 (-3)

10,500 (± 0)

11,000 (-6)

10,500 (± 0)

Samsung Electronics 4-33

Page 66

Troubleshooting

4-2-5 Replacements & Calibration

* PDP 42" Check items listed after changing each

Replaced assembly items Check Items ASSY PCB MISC-MAIN SMPS-PDP TV Vs, Va voltage check and adjust

ASSY PDP MODULE P-LOGIC MAIN ASSY PDP MODULE P-X-MAIN ASSY PDP MODULE P-Y-MAIN ASSY PDP MODULE P-Y-MAIN SCAN BUFFER ASSY PDP MODULE P-ADDRESS E BUFFER ASSY PDP MODULE P-ADDRESS F BUFFER ASSY BOARD P-SIDE HDMI A/V

* PDP 50" Check items listed after changing each

Replaced assembly items Check Items ASSY PCB MISC-MAIN SMPS-PDP TV Vs, Va voltage check and adjust

ASSY PDP MODULE P-LOGIC MAIN ASSY PDP MODULE P-X-MAIN ASSY PDP MODULE P-Y-MAIN ASSY PDP MODULE P-Y-MAIN SCAN BUFFER ASSY PDP MODULE P-Y-MAIN SCAN BUFFER ASSY PDP MODULE P-ADDRESS E BUFFER ASSY PDP MODULE P-ADDRESS F BUFFER ASSY BOARD P-SIDE HDMI A/V

1) Auto Program

2) White Balance Adjust

Not to be adjusted

1) Auto Program

2) White Balance Adjust

Not to be adjusted

※ When replacing the SMPS or PDP panel, you have to check the voltage printed on the panel sticker and adjust it.

4-34 Samsung Electronics

Page 67

Troubleshooting

■

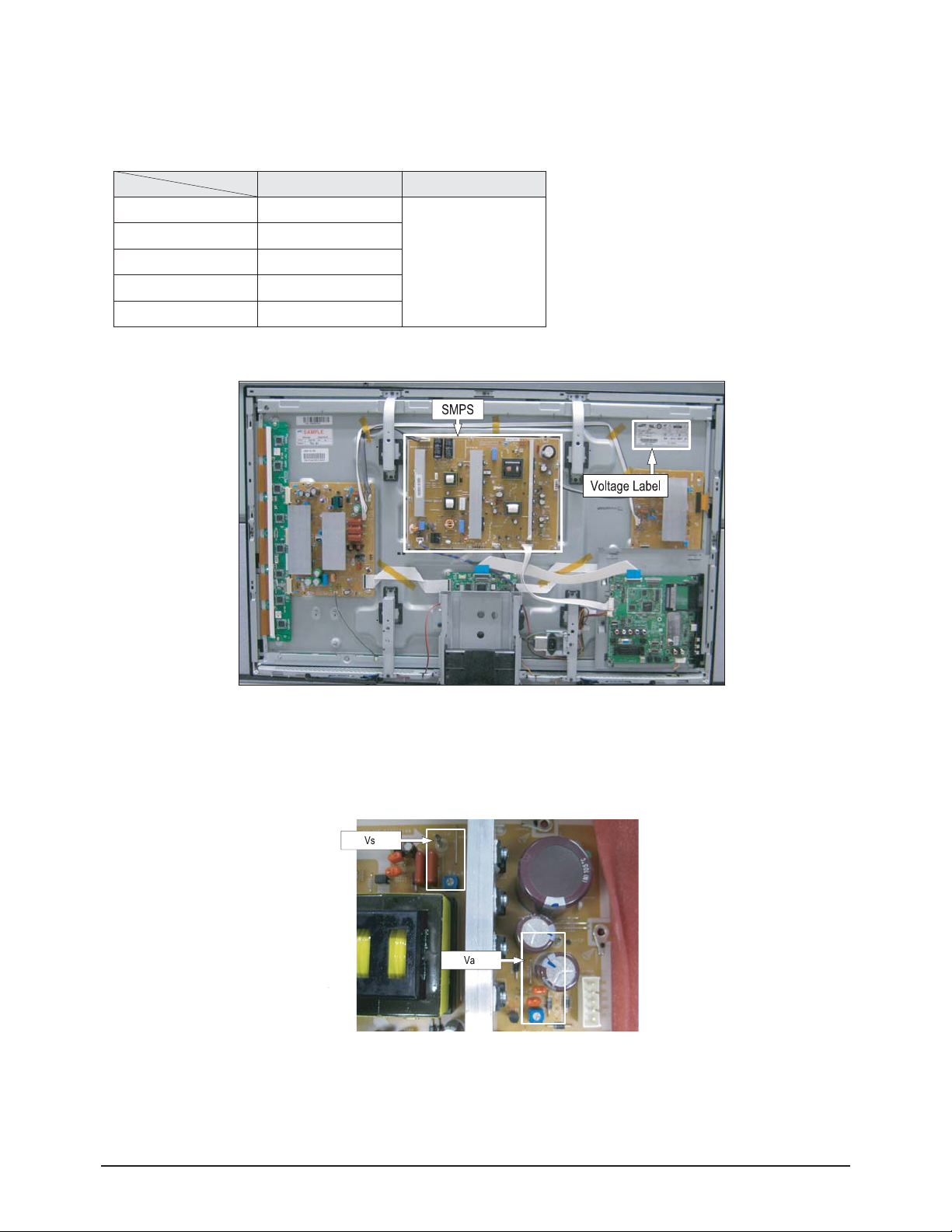

Voltage Adjustment

1. After replacing the SMPS or PDPpanel, you must adjust the voltage referring to the voltage label printed on the panel. (If you do not adjust the voltage, an abnormal discharge symptom may appear.)

Value Board Adjustment Vs 207 Va 54

Vset -

Ve 95

Vscan -190

SMPS

2. Apoint of adjusting SMPS-MAIN voltage.

Samsung Electronics 4-35

Page 68

Troubleshooting

■

Y-RR and Y-FR controls

Y-FR

<42">

Y-FR

<50">

Set the main reset (rising : 60usec, falling : 80usec) by change the value of variable resistor.

Rising ramp

60usec

80usec

variable resistor

Falling ramp

variable resistor

▶The picture is only for 50".

42" has only Falling ramp variable resistor.

4-36 Samsung Electronics

Page 69

4-3 Upgrade

4-3-1 USB Download Method

1. Copy the Upgrade Files into the path "T-CRLAUSC" in USB flash driver.

2. USB Download

① Insert the USB Memory Stick to the USB port in Stand-by mode. ② Turn the power on. ③ Press "MENU" and find "SW Upgrade" in Menu "SETUP". ④ Select the "SW Upgrade" from the menu. ⑤ Select "USB" from the menu. ⑥ The banner OSD "Scaning for USB..." is displayed. ⑦ The banner OSD "Upgrade version **** to version ****" is displayed.

Select "Yes".

⑧ The banner OSD "Upgrade version **** to version ****" is displayed.

It takes about 30 sec. (Warning: Don't remove USB flash driver during upgrade.)

⑨ The banner OSD "Upgrade is completed" is displayed when the upgrade is

completed.

⑩ Remove the USB flash driver from PDP TV and check the program version.

Troubleshooting

Samsung Electronics 4-37

Page 70

Troubleshooting

4-3-2 How to Check the Version of the Program

1. Procedures for checking in the User Menu

① Select the "Setup" menu in the Menu screen ② Place the cursor over the "SW Upgrade" of "Setup" and press the "info" key on the remote control. ③ The version of the program is displayed at the bottom of the Menu screen

2. How to check Program Version on factory mode.

4-38 Samsung Electronics

Page 71

MEMO

Samsung Electronics 4-39

Page 72

Wiring Diagram

Samsung Electronics 6-1

6. Wiring Diagram

6-1 Overall Wiring

<42" Overall Wiring>

CN5401

CN5402

CN5403

CN5501

CN5502

CN5503

Y-MAIN SCAN

CN5407

CN5408

Y-DRIVE

CN5409

CN5412

CN5707

CN5701

E-BUFFER

FUNCTION

AC-INLET

CN1

CN3

CN810

CN809

CN4701

CN4002

SMPS

CN808

X-DRIVE

CN800

CN2000CN2001CN2006

CN2002

LOGIC BOARD

CN2028

CN2004

CN801

CN2003

CN807

CN4001

CN4004

F-BUFFER

CN902 CN101

CN2500CN2509

CN2510

CN2600

CN2610

CN2609

MAIN BOARD

CN202P

CN201

CN401

POWER SW

8 9

SPEAKER

Page 73

<50" Overall Wiring>

※ The code number of cable(Lead-connector) can be changed, see "5. Exploded View & Part List."

Wiring Diagram

6-2 Samsung Electronics

Use

① LVDS ⑧ POWER CABLE ⑪ AC INLET

Code

42" - BN96-07158K 50" - BN96-07158F

BN39-00827A BN96-07190A


CN5401

CN5402

CN5403

CN5501

CN5502

CN5503

Y-MAIN SCAN(HIGH)

CN5407

CN5507

Y-MAIN SCAN(LOW)

AC-INLET

E-BUFFER

FUNCTION

CN3

CN810

CN809

CN4701

CN4002

SMPS

CN2609

X-DRIVE

CN4004

CN4001

CN4000

CN808

CN800

CN2000CN2001

CN2004

CN2500CN2509

CN2510

MAIN BOARD

CN201

CN2003

CN2005

CN2600

CN2610

CN401

CN1

CN2002

CN2006

LOGIC BOARD

CN902 CN101

CN202P

CN801

CN807

F-BUFFER

POWER SW

SPEAKER

Page 74

Wiring Diagram

Samsung Electronics 6-3

①

CN902(MAIN B'D) ↔ CN2001(LOGIC B'D)

Pin No. Signal Pin No. Signal

1 RxIN1b- 16 GND 2 RxIN1b+ 17 RxIN33 RxIN0b- 18 RxIN3+ 4 RxIN0b+ 19 GND 5 RxIN0- 20 I2C_READY 6 RxIN0+ 21 GND 7 GND 22 3D_SYNC 8 RxIN1- 23 GND

9 RxIN1+ 24 UART Tx 10 GND 25 GND 11 RxIN2- 26 UARTRx 12 RxIN2+ 27 Start_OPT 13 GND 28 SCL 14 RxCLKIN- 29 GND 15 RxCLKIN+ 30 SDA

②

CN101(MAIN B'D) ↔ CN801(MAIN SMPS)

Pin No. Signal Pin No. Signal

1 PS_ON 13 D5.3V 2 VS_ON 14 D5.3V 3 STBY 15 D5.3V 4 GND_STBY 16 D5.3V 5 GND_15Vamp 17 GND_15V 6 GND_15Vamp 18 GND_15V 7 15Vamp 19 D15V 8 15Vamp 20 GND_15V

9 GND_5.3V 21 D15V 10 GND_5.3V 22 D15V 11 GND_5.3V 23 AC_DET 12 GND_5.3V 24 NC[Vt]

6-1-1 Pin Connection

④

CN810(SMPS)

↔

CN5707_42"(Y B'D) CN5407_50"(Y B'D)

Pin No. Signal

1 Vs 2 Vs 3 GND 4 Vg 5 GND 6 Va

⑤

CN809(SMPS)

↔

CN4701(X B'D)

Pin No. Signal

1 Vs 2 Vs 3 GND 4 GND 5 Vg

⑦

CN807(SMPS)

↔

CN2000(LOGIC B'D)

Pin No. Signal

1 D5.3V 2 D5.3V 3 GND 4 GND 5 Vg

⑧

CN201(MAIN B'D)

↔

POWER&IR

Pin No. Signal

1 IR 2 GND 3 A5V 4 LED_STB 5 BUZZER 6 KEY_INPUT1 7 KEY_INPUT2 8 GND 9 NC

10 NC

⑨

CN401(MAIN B'D)

↔

SPEAKER

Pin No. Signal

1 R+_OUT 2 R-_OUT 3 L+_OUT 4 L-_OUT

⑪

CN800(SMPS)

↔

AC INLET

Pin No. Signal

1 AC Neutral 2 N/C 3 AC Live

Page 75

Wiring Diagram

6-4 Samsung Electronics

42" Loc. No. 50" Loc. No. Description

CN5401 CN5401 Horizontal Y-scan line(1~128) of Module and Y-Main Scan Connect CN5402 CN5402 Horizontal Y-scan line(129~256) of Module and Y-Main Scan Connect CN5403 CN5403 Horizontal Y-scan line(256~384) of Module and Y-Main Scan Connect

- CN5512 Y-Main Scan(High) and Y-Main Scan(Low) Connect CN5501 CN5501 Horizontal Y-scan line(384~512) of Module and Y-Main Scan Connect CN5502 CN5502 Horizontal Y-scan line(512~640) of Module and Y-Main Scan Connect CN5503 CN5503 Horizontal Y-scan line(640~768) of Module and Y-Main Scan Connect CN5407 CN5407 Upper Y-Drive and Y-Main Scan Connect CN5507 CN5507 Lower Y-Drive and Y-Main Scan Connect CN5707 CN5507 Vs(205V),Vg(15v) Power input connect(6Pin) of Y-Drive CN5701 CN5701 Y-Drive control signal from Logic Board

CN810 CN810 Vs(205V),Vg(15v) Power input connect(6Pin) of SMPS for Y-Drive CN809 CN809 Vs(205V),Vg(15v) Power input connect(6Pin) of SMPS for X-Drive CN808 CN808 Va(63V) ,5.3V Power input connect(3Pin) of SMPS for F-Buffer CN807 CN807 Power input connect(10pin) for Logic Board CN801 CN801 Image signal(LVDS) connect(41pin) from Main Board

CN800 CN800 AC Power input connect from AC-inlet CN4002 CN4002 Horizontal X-scan line of Module and X-scan Connect(first Block) CN4001 CN4001 Horizontal X-scan line of Module and X-scan Connect(second Block)

- CN4000 Horizontal X-scan line of Module and X-scan Connect(third Block) CN2000 CN2000 Power input connect(10pin) of Logic Board from SMPS CN2001 CN2001 Image signal(LVDS) connect(41pin) of Logic board from Main Board CN2002 CN2002 Y-Drive control signal of Logic Board CN2004 CN2005 Address Data(684th~1366th) connect for F-Buffer board CN2028 CN2004 Address Data(1st~683th) connect for E-Buffer board CN2500 CN2500 Address Data(1st~683th) connect from Logic Board CN2510 CN2510 Power input connect from F-Buffer Board CN2610 CN2610 Power input connect to E-Buffer Board CN2600 CN2600 Address Data(684th~1366th) connect from Logic board CN2609 CN2609 Va(63V) ,5.3V Power input connect(3Pin) from SMPS CN1101 CN1101 Power input connect(24Pin) from SMPS CN2202 CN2202 Image signal(LVDS) connect(41pin) for Logic board CN1605 CN1605 Function input(source,ch up/down...) connect on Main board CN1404 CN1404 Video signal input connect form Side AV ass'y CN1606 CN1606 Power SW input connect on Main Board CN1203 CN1203 Speak out connect on Main Board

CN101 CN101 Video signal input connect on Side AV ass'y

CN1 CN1 Function input(source,ch up/down...) connect to Main board CN3 CN3 Power SW input connect to Main Board

6-1-2 Connector role
