DTR6400T_6700T_9 avril 07 EN.book Page 1 Jeudi, 10. avril 2008 2:38 14
DIGITAL TERRESTRIAL
TV RECEIVER / RECORDER WITH
HARD DISK AND DOUBLE TUNER
DTR 6400T/6700T
Software version 0.7.7 and above
USER MANUAL
ENGLISH
DTR6400T_6700T_9 avril 07 EN.book Page 2 Jeudi, 10. avril 2008 2:38 14
DTR6400T_6700T_9 avril 07 EN.book Page I Jeudi, 10. avril 2008 2:38 14
CONTENTS |
|
1. INFORMED OVERVIEW ....................................................................................................... |
1 |
2. SAFETY RECOMMENDATIONS .......................................................................................... |
2 |
2-1. WHERE TO PUT YOUR TERMINAL? ........................................................................................ |
2 |
2-2. WARNINGS AND SAFETY INSTRUCTIONS ............................................................................. |
2 |
2-3. BATTERIES ................................................................................................................................ |
3 |
2-4. INTERFERENCE ........................................................................................................................ |
3 |
2-5. HARD DISK ................................................................................................................................ |
3 |
2-6. USB STORAGE DEVICES ......................................................................................................... |
3 |
2-7. CLEANING THE RECEIVER ...................................................................................................... |
3 |
3. ENVIRONMENT .................................................................................................................... |
4 |
3-1. MEANING OF LOGOS PRESENT ON THE PRODUCT OR ITS PACKAGING ......................... |
4 |
3-2. PRODUCT RECYCLING AND DISPOSAL ................................................................................. |
4 |
3-3. EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT |
|
(WEEE) ....................................................................................................................................... |
5 |
3-4. DIRECTIVE ON THE RESTRICTION OF USE OF CERTAIN HAZARDOUS SUBSTANCES IN |
|
ELECTRONIC EQUIPMENT (ROHS) ........................................................................................ |
5 |
3-5. ELECTRICAL CONSUMPTION OF THE RECEIVER ................................................................ |
5 |
4. PREPARATION..................................................................................................................... |
6 |
4-1. ACCESSORIES PROVIDED ...................................................................................................... |
6 |
4-2. TERRESTRIAL ANTENNA ......................................................................................................... |
6 |
5. REMOTE CONTROL............................................................................................................. |
7 |
6. QUICK INSTALLATION ........................................................................................................ |
8 |
6-1. FRONT PANEL OF THE RECEIVER ......................................................................................... |
8 |
6-2. CONNECTION OF THE RECEIVER TO THE TV SET .............................................................. |
8 |
6-3. PERIPHERAL CONNECTIONS .................................................................................................. |
9 |
6-4. FIRST INSTALLATION ............................................................................................................. |
10 |
7. INSTALLATION MENUS..................................................................................................... |
11 |
7-1. ACCESSING INSTALLATION MENUS ................................................................................... |
11 |
7-2. USER SETTINGS .................................................................................................................... |
11 |
7-3. INSTALLING FAVOURITE LISTS ........................................................................................... |
13 |
7-4. RECEIVER SETTINGS ............................................................................................................ |
14 |
8. INFORMATION.................................................................................................................... |
16 |
8-1. ANTENNA SIGNAL ................................................................................................................... |
16 |
8-2. RECEIVER ................................................................................................................................ |
16 |
8-3. HARD DISK .............................................................................................................................. |
16 |
- I - |
|
DTR6400T_6700T_9 avril 07 EN.book Page II Jeudi, 10. avril 2008 2:38 14
9. EVERYDAY USE................................................................................................................. |
17 |
9-1. SELECTING A TELEVISION CHANNEL .................................................................................. |
17 |
9-2. SELECTING A RADIO CHANNEL ............................................................................................ |
18 |
9-3. ADJUSTING THE AUDIO VOLUME ......................................................................................... |
18 |
9-4. CHANGING THE FAVOURITES LIST ...................................................................................... |
18 |
9-5. TEMPORARY SELECTING AUDIO LANGUAGES AND SUBTITLES ..................................... |
19 |
9-6. TELETEXT ................................................................................................................................ |
19 |
9-7. TV/VCR SWITCH ...................................................................................................................... |
19 |
9-8. ELECTRONIC PROGRAMME GUIDE .................................................................................... |
20 |
9-9. PICTURE IN PICTURE MODE ................................................................................................. |
21 |
9-10. LIVE MODE/DEFERRED MODE ............................................................................................ |
22 |
10. VIDEO RECORDING......................................................................................................... |
24 |
10-1. SIMPLE RECORDING (LIVE OR DEFERRED PROGRAMME) ............................................ |
24 |

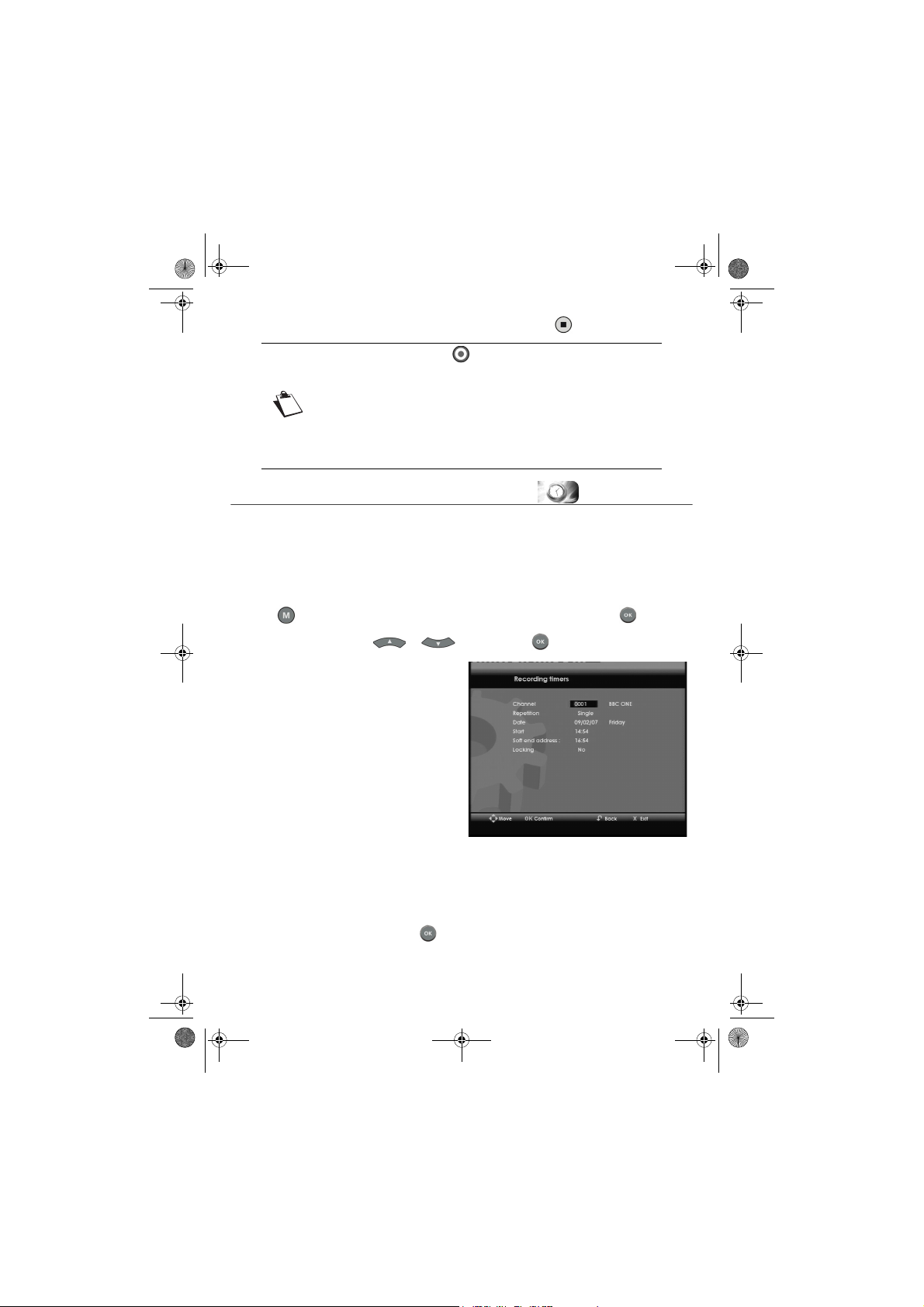

10-2. RECORDING PROGRAMMES USING THE MENU ............................................................. |
25 |
10-3. RECORDING PROGRAMMES USING THE PROGRAMME GUIDE ..................................... |
27 |
10-4. RECORDING LIST ................................................................................................................ |
28 |
10-5. MANAGING THE RECORDING LIST ..................................................................................... |
29 |
10-6. SAVE A RECORDING ON ANOTHER EQUIPMENT ............................................................ |
33 |
11. MULTIMEDIA .................................................................................................................... |
34 |
11-1. ACCESSING THE MEDIA LIST MANAGER ......................................................................... |
34 |
11-2. NAVIGATING IN THE MEDIA LIST MANAGER ..................................................................... |
35 |
11-3. MANAGING CONTENTS ........................................................................................................ |
36 |
11-4. VIEWING AND MANAGING PHOTO FILES .......................................................................... |
37 |
11-5. PLAYING AND MANAGING AUDIO FILES ............................................................................ |
38 |
11-6. PLAYLISTS ............................................................................................................................. |
40 |
11-7. ADVANCED OPTIONS ........................................................................................................... |
41 |
12. UPDATING THE SOFTWARE .......................................................................................... |
42 |
13. TROUBLESHOOTING ...................................................................................................... |
43 |
14. SPECIFICATIONS............................................................................................................. |
45 |
15. GUARANTEE .................................................................................................................... |
46 |
- II -
DTR6400T_6700T_9 avril 07 EN.book Page 1 Jeudi, 10. avril 2008 2:38 14
1. INFORMED OVERVIEW
CONGRATULATIONS!
This is a new generation of Sagem Communications receiver dedicated to Digital Terrestrial Television and equipped with a hard disk. With this technological advantage, you can make digital audio/video recordings.
Once you have connected your receiver and performed the initial installation, you will be able to enjoy all the services.
You can update your receiver if new functions or services become available.
The Sagem Communications Receiver follows a continuous development strategy. Therefore, we reserve the right to make changes and improvements to the product described in this user manual without any prior notice.
This product complies with EMC directive 89/336/EEC.
CE marking:
The CE marking certifies that the product complies with the essential requirements of the Directive 1999/ 5/CE of the European Parliament and Council concerning radio equipment and telecommunication equipment for the health and safety of users and concerning magnetic interference.
The CE declaration of conformity can be viewed in the support section of the Sagem Communications site www.sagem.com, or it can be obtained from the following address:
Sagem Communications - Customer relations department 4, rue du petit Albi - 95800 Cergy Saint Christophe - France SAGEM is a registred trademark of SAFRAN Group Copyright© Sagem Communications
All rights reserved
IMPORTANT NOTICE
Before unpacking this product further
Your receiver is supplied with default code 0000 or 1234 depending on software version.
Have you or your local store checked your Postcode for reception?
Telephone number for your local store is on your till receipt.
Should your Store be unable to help, please check the following Website Links for Digital Terrestrial signal coverage:
http://www.dtg.org.uk/consumer/freeview.html
http://www.freeview.co.uk
http://www.bbc.co.uk/digital
Please note: In order to receive quality digital signal you may need an aerial upgrade.
- 1 -
DTR6400T_6700T_9 avril 07 EN.book Page 2 Jeudi, 10. avril 2008 2:38 14
2. SAFETY RECOMMENDATIONS
Use of your receiver is subject to safety measures designed to protect users and their environment.
2-1 WHERE TO PUT YOUR TERMINAL?
In order to guarantee the correct operation of your receiver, you must:
•place it indoors to protect it from lightning, rain, and
sun rays,
• place it in a dry and well ventilated area,
• keep it away from heat sources such as radiators, candles, lamps, etc.
• protect it from dampness, place it on a flat surface from where it will not fall and is out of reach of the children,
• do not place anything on top of your receiver (as it would restrict ventilation): the ventilation slots located
on the casing prevent your receiver from overheating. If you place the receiver in a compartment, leave a
space of at least 10 cm on each side and 20 cm on the front and back of the receiver,
• connect it directly to the mains with the provided cords, the socket must be near the receiver and easy to
access. The use of an extension cable (with multi-points) is not recommended.
2-2 WARNINGS AND SAFETY INSTRUCTIONS
NEVER OPEN THE RECEIVER OR THE POWER SUPPLY UNIT! YOU RISK GETTING AN ELECTRIC SHOCK.
•Use only the power supply unit supplied with the receiver to connect it to the mains. Other practice may be dangerous.
•As a precaution, in case of danger, the power supply unit act as a disconnecting mechanism for the 230V power supply. That is why it is imperative that you connect the receiver to a power outlet located nearby and easily accessible.
•You must imperatively connect the power supply unit to the receiver before connecting the power supply unit to the power socket.
•To avoid short-circuits (fire or electrocution hazard), do not expose your receiver to dampness. Do not place any object containing liquid (vase for example) on the appliance. The receiver must not be splashed with liquid. If liquid is upset onto the receiver, unplug it immediately from the mains and consult your supplier.
•Take care not to allow liquids or metal objects to enter the receiver through the ventilation slots.
•Avoid reconnecting the receiver after it has been subjected to large changes in temperature.
•The receiver must be disconnected from mains supply (from the power outlet or rear panel) before any modification of connection between TV, VCR or antenna.
-2 -
DTR6400T_6700T_9 avril 07 EN.book Page 3 Jeudi, 10. avril 2008 2:38 14
•In the event of a storm, it is advisable to unplug the antenna. Even if the receiver and the television set are disconnected from the power supply, lightning can still damage them.
Only a personnel approved by the manufacturer can repair the receiver. The non-observance of these safety precautions can result in forfeiture of the guarantee.
2-3 BATTERIES
Batteries are easily swallowed by young children. Do not allow young children to play with the remote control.
To avoid damaging the remote control, only use identical batteries or batteries of equivalent type. The batteries provided are not rechargeable.
2-4 INTERFERENCE
Do not place the receiver near appliances that may cause electromagnetic interferences (for example loudspeakers). This could affect receiver operation and distort the picture or sound.
2-5 HARD DISK
This equipment contains a hard disk. Please wait for the receiver to go into standby mode before unplugging and moving it.
2-6 USB STORAGE DEVICES
Please wait until the receiver exits the multimedia list manager (multimedia file application) or is in standby mode before disconnecting your storage devices. Else, you could lose data or damage your storage device.
2-7 CLEANING THE RECEIVER
The case of the receiver can be cleaned with a soft and dry cloth. Do not use any type of abrasive pad, scouring powder or solvents, such as alcohol or turpentine, as they could damage the surface of the case.
- 3 -
DTR6400T_6700T_9 avril 07 EN.book Page 4 Jeudi, 10. avril 2008 2:38 14
3. ENVIRONMENT
Preservation of the environment is an essential concern of the manufacturer. The desire of the manufacturer is to operate systems observing the environment and consequently it has decided to integrate environmental performances in the life cycle of its products, from manufacturing to commissioning, use and elimination.
3-1 MEANING OF LOGOS PRESENT ON THE PRODUCT OR ITS PACKAGING
The crossed-out dustbin sign stuck on the product or its accessories means that at the end of its life, the product is subject to selective collection and must not be thrown away in unsorted household waste.
The looped arrow sign means that the packaging may be recycled and must not be disposed of with household waste.
The green logo means that a financial contribution is paid to an approved national organisation to improve packaging recovery and recycling infrastructures.
The logo with three arrows shown on the plastic parts means that they may be recycled and that they must not be disposed of with household waste.
3-2 PRODUCT RECYCLING AND DISPOSAL
To facilitate recycling, please respect the sorting rules set up locally for this kind of waste. If your product contains batteries, they must be disposed of at appropriate collection points.
European regulations ask you to dispose of products belonging to the family of electrical and electronic equipments (
) selectively:
-At the collection points made available to you locally (drop-off centre, selective collection, etc.),
-At sales points in the event of the purchase of similar equipment.
In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment Waste, which can have an effect on the environment and human health.
- 4 -
DTR6400T_6700T_9 avril 07 EN.book Page 5 Jeudi, 10. avril 2008 2:38 14
3-3 EUROPEAN DIRECTIVE ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
In the context of sustainable development, the reduction of wastes to be eliminated by reusing, recycling, composting and energy recovery is strongly advised.
In order to comply with this directive which is applicable to EEEs sold after 13/08/2005, your receiver will be taken back free of charge and recycled by the distributor of the EEE within the limits of the quantity and types of equipment bought from them. These appliances which contain substances potentially dangerous to human health and the environment will be recycled.
3-4 DIRECTIVE ON THE RESTRICTION OF USE OF CERTAIN HAZARDOUS SUBSTANCES IN ELECTRONIC EQUIPMENT (ROHS)
Your receiver along with the batteries supplied comply with the directive relating to the RoHS – dangerous materials such as lead, mercury or cadmium are not used. This avoids environmental hazards and any risks to the health of personnel at the recycling centres. The batteries of the remote control can be removed simply.
Note: When the batteries of the remote control are worn out, please dispose of them at a collection point and not with household waste.
3-5 ELECTRICAL CONSUMPTION OF THE RECEIVER
To reduce the consumption of your receiver, you are recommended to place it in standby mode when not in use. We recommend you to turn off the receiver or unplug it from the mains if you will not be using it for a prolonged period of time.
- 5 -
DTR6400T_6700T_9 avril 07 EN.book Page 6 Jeudi, 10. avril 2008 2:38 14
4. PREPARATION
4-1 ACCESSORIES PROVIDED
Your receiver is supplied with the following parts:
-1 remote control
-2 batteries (AAA) for the remote control
-1 AC/DC adapter and power cable
-1 user manual
-1 Scart lead for connection to the television set
-1 HDMI lead for connection to the television set (depending on model)
4-2 TERRESTRIAL ANTENNA
Very often to get the best reception, you may simply need to adjust your antenna. Alternatively, you can connect an indoor antenna to your system. For more information, please contact your specialised distributor.
4-2-1 Standard outdoor antenna
Preferably use an outside roof antenna that is designed to receive VHF channels (6 to 11) and UHF channels (21 to 69). However:
-if your building is equipped with an old antenna model, digital channels may be difficult or even impossible to receive. The problem can only be resolved by changing the antenna.
-if your building is equipped with a common antenna which contains selective filters devised for analogue channels, reception will most probably not work correctly. In this case, you will have to contact the administrator of the building.
-some antennas directed towards an analogue TV transmitter must be re-adjusted towards a digital TV transmitter. If you encounter reception problems, you can also try placing the antenna at different heights.
4-2-2 Indoor antenna
In ideal reception conditions, this type of antenna is sufficient. Here, however, are some useful tips:
-use an antenna designed to receive channels 6 to 11 and 21 to 69.
-install the antenna close to the window and direct it towards the digital TV transmitter.
-if possible, use an antenna with an amplifier. The receiver can provide remote power supply to your indoor antenna (see “Antenna signal”, page 16).
-6 -
DTR6400T_6700T_9 avril 07 EN.book Page 7 Jeudi, 10. avril 2008 2:38 14
5. REMOTE CONTROL
Keys |
Functions |
|
Switch on the receiver or put it in standby mode |
|
Manage the TV and AUX modes for the TV Scart output |
0-9 |
Access channels and various on-screen options |
|
Display programme information and options |
|
Display the programme guide (EPG) and a Help screen |
|
Increase or decrease the audio volume |
|
Turn the sound off/on |
|
Access menus |
|
Change channel |
|
Move in a page, a menu… |
|
Display the channel list, validate a function or an option |
|
Go back to the previous channel, screen or mode |
|
Exit a screen, a mode |
|
Previous or next index, rewind of fast forward, change day in |
|
the programme guide (EPG) |
|
Rewind of fast forward, increase or reduce the duration scale |
|
in the programme guide (EPG) |
|
Record |
|
Stop |
|
Play |
|
Pause |
|
On-screen options |
|
Display the recording list |
|
Display the multimedia application screen |
|
Access MP3 files |
|
Switch from TV mode to Radio mode |
|
Select audio tracks |
|
Select subtitles |
|
Display Teletext |
|
Mode picture in picture (PIP) |
|
|
.
Batteries: the remote control needs two batteries (AAA) to operate. The drawing in the battery compartment indicates how to install them. The batteries provided are not rechargeable.
- 7 -
DTR6400T_6700T_9 avril 07 EN.book Page 8 Jeudi, 10. avril 2008 2:38 14
6. QUICK INSTALLATION
Before connecting your device, please ensure that Digital Terrestrial Television (DTT) is available in your area.
6-1 FRONT PANEL OF THE RECEIVER
|
|
|
|
|
USB |
Channel |
On/Standby |
||
|
|
selection |
button |
|
|
|
buttons |
||
|
|
|
||
6-2 CONNECTION OF THE RECEIVER TO THE TV SET
Before installing your receiver, please check that the delivery is complete: instructions, remote control, batteries (X2), Scart lead and AC/DC adapter.
Please ensure that the appliances to be connected together (receiver, TV, VCR…) are unplugged before making any connections.
Connect the appliances together as shown in the diagrams and plug them back into the power socket.
For optimal quality, preferably connect the Scart lead to the TV Scart socket that is marked with 3 dots (RGB).
Television set
YPrPb Audio R/L
OR OR
FAN |
|
|
DTR6700T series |
|
||
|
|
|
||||
|
|
|||||
(depending |
|
|
|
|
|
|
on model) |
|
|
|
|
|
|
- 8 -
DTR6400T_6700T_9 avril 07 EN.book Page 9 Jeudi, 10. avril 2008 2:38 14
6-3 PERIPHERAL CONNECTIONS
6-3-1 Connection to an amplifier and/or a video recorder and/or an analogue decoder
|
Decoder |
Video recorder |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Television set
YPrPb
Audio R/L
Amplifier
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FAN |
|
|
|
|
|
|
|
|
|
|||
|
|
|
DTR6700T series |
|
|
|||||||
|
|
|
|
|
||||||||
|
|
|
|
|||||||||
|
|
|
||||||||||
(depending |
|
|
|
|
|
|
|
|
|
|||
on model) |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
Connecting auxiliary equipment (e.g. a video recorder) for a television set with a Scart socket.
Connecting an audio amplifier, using a lead (RCA) or using a fibre optic lead (IEC958). This connection is mandatory to benefit from a "Home Cinema" system.
Connecting an analogue decoder with a Scart socket.
To use an analogue decoder (Canal+ type) with a Scart socket, the receiver must be in standby mode.
- 9 -
DTR6400T_6700T_9 avril 07 EN.book Page 10 Jeudi, 10. avril 2008 2:38 14
6-4 FIRST INSTALLATION
After connecting the receiver correctly, a first time installation must be carried out. Switch on your receiver (do not forget to switch on your television set also). A welcome screen is displayed.
-When the receiver is ready, press
to launch the installation.
-Select the language and the country (UK) using the , keys and confirm by pressing
.
-The receiver automatically searches for the available channels.
-If no channels are found, the receiver proposes that you adjust the antenna.
-Enter a channel number (consult the list of channels that transmit in your area).
-Adjust the antenna until the level and quality signals become green.
-Press
to go back to the channel search.
-If problems persist, please contact your specialised distributor or the Sagem Communications Hotline.
UK Hotline: 0871 07 50 710*
*0.10 £/min, tariff cost effective from 27/06/2005
If you use an indoor antenna with an amplifier, it is possible to power the antenna from the receiver (+5VDC, 50mA).
In the Technical Information menu, set Antenna Power supply to Yes (see “Antenna signal”, page 16).
- 10 -
DTR6400T_6700T_9 avril 07 EN.book Page 11 Jeudi, 10. avril 2008 2:38 14
7. INSTALLATION MENUS
To move in the screens and change the various settings, simply use the keys
,
,
and
to indicate your selections,
to confirm, and
to quit the screens.
7-1 ACCESSING INSTALLATION MENUS
Recording timers |
Recording list |
Favourite lists |
Electronic programme guide |
User settings |
Receiver settings |
Media |
Technical information |
Radio channels list |
7-2 USER SETTINGS
To access the user settings screen, press
. In the main menu, select USER SETTINGS.
7-2-1 Language selection
In the USER SETTINGS menu, select LANGUAGE SETTINGS.
Select the desired language for the menus, the audio (main and alternative) and the subtitles (main and alternative).
- 11 -
DTR6400T_6700T_9 avril 07 EN.book Page 12 Jeudi, 10. avril 2008 2:38 14
7-2-2 User preferences
In the USER SETTINGS menu, select USER PREFERENCES.
-Banner time-out: you can set the display time of the information banner.
-Network monitoring: you can activate network monitoring. If activated, you will be informed of any new channel or service when it is available.
-Volume bar time-out: you can set the display time of the volume indicator.
-User country: displays your geographical location.
If you want to change country, please perform a reset to default settings (see “Return to default factory settings”, page 15).
If you make a wrong selection, some services or channels may become unavailable.
-Recording Type (depending on software version): you can specify the mode to be applied by default for recordings that you programme via the electronic programme guide: Programme or Timer mode.
If the recording type choice does not appear among the user preferences, it means that this mode is not available for your country. Only the fixed Timer recording mode is available to you (see “Recording modes: Timer or Programme”, page 27).
-EPG record margin settings (Timer mode): you can programme recording margins which will be automatically added to the recordings carried out via the electronic programme guide, in Timer mode. You can thus programme the receiver so that it starts to record a programme before its announced start time, and stops after its announced end time.
-Sleep Timer: you can set the receiver to automatically switch to standby mode at a specific time. When this is set, the receiver will be put automatically into standby mode at the specified time (24H format).
- 12 -
Loading...
