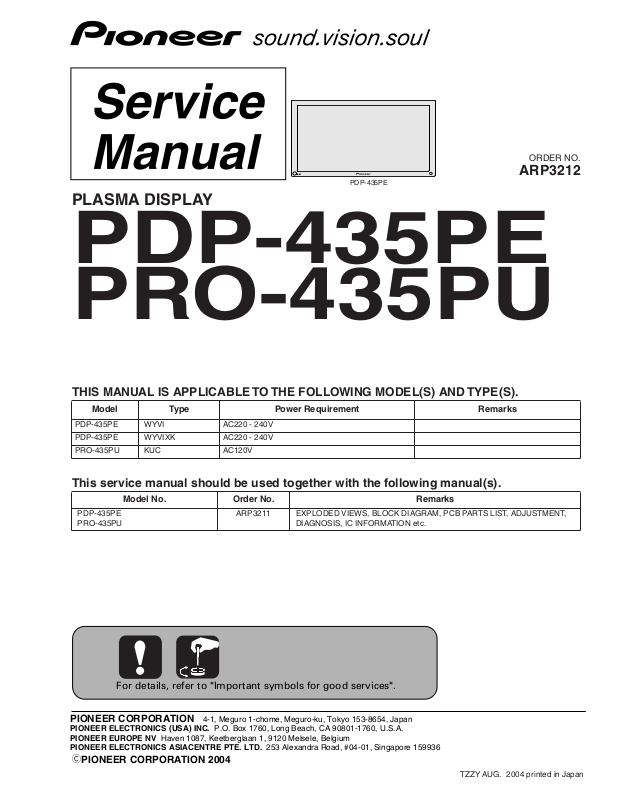

Pioneer PDP-435PE, PRO-435PU Schematic

4 (1)

ORDER NO.

ARP3212

PDP-435PE

PLASMA DISPLAY

PDP-435PE PRO-435PU

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model

Type

Power Requirement

Remarks









PDP-435PE

WYVI

AC220 - 240V











PDP-435PE

WYVIXK

AC220 - 240V











PRO-435PU

KUC

AC120V











This service manual should be used together with the following manual(s).

Model No.

Order No.

Remarks







PDP-435PE

ARP3211

EXPLODED VIEWS, BLOCK DIAGRAM, PCB PARTS LIST, ADJUSTMENT,

PRO-435PU



DIAGNOSIS, IC INFORMATION etc.







For details, refer to "Important symbols for good services".

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2004

TZZY AUG. 2004 printed in Japan

1

2

3

4

[Important Check Points for Good Servicing]

In this manual, procedures that must be performed during repairs are marked with the below symbol.

APlease be sure to confirm and follow these procedures.

1.Product safety

Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by following the safety instructions described in this manual.

1 Use specified parts for repair.

Use genuine parts. Be sure to use important parts for safety.

2 Do not perform modifications without proper instructions.

Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as radio/TV interference and foreign noise.

B

3 Make sure the soldering of repaired locations is properly performed.

When you solder while repairing, please be sure that there are no cold solder and other debris.

Soldering should be finished with the proper quantity. (Refer to the example)

4 Make sure the screws are tightly fastened.

Please be sure that all screws are fastened, and that there are no loose screws.

5 Make sure each connectors are correctly inserted.

Please be sure that all connectors are inserted, and that there are no imperfect insertion.

6 Make sure the wiring cables are set to their original state.

CPlease replace the wiring and cables to the original state after repairs. In addition, be sure that there are no pinched wires, etc.

7 Make sure screws and soldering scraps do not remain inside the product.

Please check that neither solder debris nor screws remain inside the product.

8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.

Damaged power cords may lead to fire accidents, so please be sure that there are no damages. If you find a damaged power cord, please exchange it with a suitable one.

9 There should be no spark traces or similar marks on the power plug.

When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure connections and suitable usage. Please exchange the power cord if necessary.

D

0 Safe environment should be secured during servicing.

When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries. Please pay attention to your surroundings and repair safely.

2. Adjustments

To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.

Adjustments should be performed in accordance with the procedures/instructions described in this manual.



3. Lubricants, Glues, and Replacement parts

E

Use grease and adhesives that are equal to the specified substance.

Make sure the proper amount is applied.

4. Cleaning

For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper cleaning should be performed to restore their performances.

5. Shipping mode and Shipping screws

To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be installed before shipment. Please be sure to follow this method especially if it is specified in this manual.

F

2

PDP-435PE

1

2

3

4





5

6

7

8

CONTENTS







3. SCHEMATIC DIAGRAM ....................................................................................................................................





4

3.1 OVERALL WIRING DIAGRAM





4

3.2 HD AUDIO AMP ASSY





6

3.3 HD SP TERMINAL ASSY





8

3.4

43 ADDRESS ASSY (1/3)





10

3.5

43 ADDRESS ASSY (2/3)





12

3.6

43 ADDRESS ASSY (3/3)





14

3.7

43 SCAN A ASSY





16

3.8

43 SCAN B ASSY





20

3.9

PANEL IF ASSY (1/2)





24

3.10

PANEL IF ASSY (2/2)





26

3.11 PANEL KEY, KEY CONTROL, PANEL LED, PANEL SENSOR and PANEL IR ASSYS

28

3.12 X CONNECTOR A ASSY





30

3.13 X CONNECTOR B ASSY





31

3.14

43 X DRIVE ASSY (1/4)





32

3.15

43 X DRIVE ASSY (2/4)





34

3.16

43 X DRIVE ASSY (3/4)





36

3.17

43 X DRIVE ASSY (4/4)





38

3.18

43 Y DRIVE ASSY (1/5)





40

3.19

43 Y DRIVE ASSY (2/5)





42

3.20

43 Y DRIVE ASSY (3/5)





44

3.21

43 Y DRIVE ASSY (4/5)





46

3.22

43 Y DRIVE ASSY (5/5)





48

3.23

DIGITAL VIDEO ASSY (1/6)





50

3.24

DIGITAL VIDEO ASSY (2/6)





52

3.25

DIGITAL VIDEO ASSY (3/6)





54

3.26

DIGITAL VIDEO ASSY (4/6)





58

3.27

DIGITAL VIDEO ASSY (5/6)





60

3.28

DIGITAL VIDEO ASSY (6/6)





62

3.29 POWER SUPPLY UNIT (1/2)





64

3.30 POWER SUPPLY UNIT (2/2)





66

4. PCB CONNECTION DIAGRAM





68

4.1 PANEL IR, KEY CONTROL, PANEL LED, PANEL KEY and PANEL SENSOR ASSYS

69

4.2

43 ADDRESS ASSY





70

4.3 X CONNECTOR A and X CONNECTOR B ASSYS



72

4.4

43 SCAN A ASSY





74

4.5

43 SCAN B ASSY





76

4.6 PANEL IF ASSY





78

4.7 HD AUDIO AMP and HD SP TERMINAL ASSYS



80

4.8

43 X DRIVE ASSY





82

4.9

43 Y DRIVE ASSY





86

4.10 DIGITAL VIDEO ASSY





90

A

B

C

D

E

F













3





PDP-435PE

7







5

6







8

1

2

3

4

3. SCHEMATIC DIAGRAM

3.1 OVERALL WIRING DIAGRAM

A

B

C

D

E

F

4

PDP-435PE

1

2

3

4

5

6

7

8

÷When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".

÷The > mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.

÷The encircled numbers denote measuring point in the Waveforms.

(Refer to Service Manual : ARP3211)

A

B

C

D

E

F







Domestic maker difference wire rod (substitute parts)





PDP-435PE

5







5

6

7

8

1

2

3

4

3.2 HD AUDIO AMP ASSY

HD AUDIO AMP ASSY

A

B

C

D

E

STB

F

6

PDP-435PE

1

2

3

4

5

6

7

8

A

B

SCREW/ VBB30P100FNI

C

D

E

F













7





PDP-435PE

7







5

6







8

1 2 3 4

3.3 HD SP TERMINAL ASSY

A HD SP TERMINAL ASSY

B

C

D

STB

E

F

8

PDP-435PE

1

2

3

4

5

6

7

8

A

B

C

D

E

F













9





PDP-435PE

7







5

6







8

1 2 3 4

3.4 43 ADDRESS ASSY (1/3)

43 ADDRESS ASSY (1/3)

A • ADR RESONECE BLOCK

B

C











1







2



D











2



E











1



F







10



PDP-435PE



1

2

3

4

5

6

7

8







A







B







STB



5







6





3

4











C

4







5







6









4











D

3







5







6









3



E













F





PDP-435PE

11







5

6

7

8

1 2 3 4

3.5 43 ADDRESS ASSY (2/3)

43 ADDRESS ASSY (2/3)

A • ADR LOGIC BLOCK (1/2)

B







C







D







E







F







12



PDP-435PE



1

2

3

4

5

6

7

8







A







B







C







D







E





STB

F





PDP-435PE

13







5

6

7

8

1 2 3 4

3.6 43 ADDRESS ASSY (3/3)

43 ADDRESS ASSY (3/3)

A • ADR LOGIC BLOCK (2/2)

B



2

C

2





1

D



E



F

14

PDP-435PE

1

2

3

4

5

6

7

8

A

B

C

D

E

F













15





PDP-435PE

7







5

6







8

Pioneer PDP-435PE, PRO-435PU Schematic

1

3.7 43 SCAN A ASSY

43 SCAN A ASSY (1/2)

A

Large size

SCH diagram

1/2

B

2/2

C

1/2

D

SJB

E

F

16

1

2

3

4





1



PDP-435PE



2

3

4

5

6

7

8

1













A







B







C







D







E







F





PDP-435PE

17







5

6

7

8

1

A

43 SCAN A ASSY (2/2)

B

C

Large size

SCH diagram

1/2

D

2/2

E

2/2

F

18

1

2

3

4



PDP-435PE



2

3

4

5

6

7

8







A







B







C







STB







D







E







F





PDP-435PE

19







5

6

7

8

1

3.8 43 SCAN B ASSY

43 SCAN B ASSY (1/2)

A

Large size

SCH diagram

1/2

B

2/2

C

1/2

D

STB

E

F

20

1

2

3

4



PDP-435PE



2

3

4

5

6

7

8







A







B







C







D







E







F





PDP-435PE

21







5

6

7

8

1

A

43 SCAN B ASSY (2/2)

B

C

Large size

SCH diagram

1/2

D

2/2

E

2/2

F

22

1

2

3

4



PDP-435PE



2

3

4

5

6

7

8







A







B







C







D







E







SJB







F





PDP-435PE

23







5

6

7

8

1

2

3

4

3.9 PANEL IF ASSY (1/2)

PANEL IF ASSY (1/2)

A • PANEL IF BLOCK

STB







B







C







D







E







F







24



PDP-435PE



1

2

3

4

5

6

7

8







A







B





2









3



1

3

4









1

2







C







D







E







F



PDP-435PE

25





5

6

7

8

1

2

3

4

3.10 PANEL IF ASSY (2/2)

PANEL IF ASSY (2/2)

A • TMDS RX BLOCK

B







C







D







E







F







26



PDP-435PE



1

2

3

4

5

6

7

8







A







STB







B







C







D







E







F





PDP-435PE

27







5

6

7

8

1

2

3

4

3.11PANEL KEY, KEY CONTROL, PANEL LED, PANEL SENSOR and PANEL IR ASSYS

A PANEL KEY, KEY CONTROL, PANEL LED, PANEL SENSOR and PANEL IR ASSYS

B

C

Chassis

D

Chassis

E

STB

F

28

PDP-435PE

1

2

3

4

Loading...
