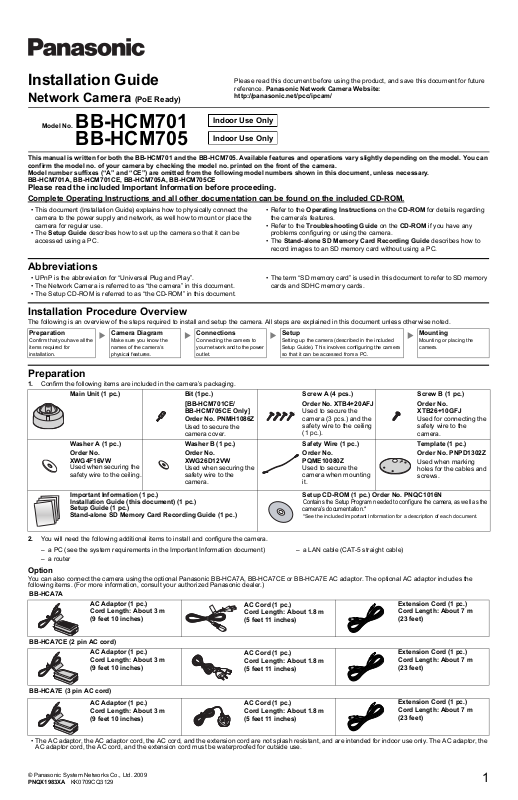

Installation Guide |
reference. Panasonic Network Camera Website: |
|||
Network Camera (PoE Ready) |
Please read this document before using the product, and save this document for future |
|||
http://panasonic.net/pcc/ipcam/ |
||||
|
|
|
||
Model No. BB-HCM701 |
|
|
Indoor Use Only |
||
|
||
BB-HCM705 |
|
|
|
||
Indoor Use Only |
||
|
||
|
|
This manual is written for both the BB-HCM701 and the BB-HCM705. Available features and operations vary slightly depending on the model. You can confirm the model no. of your camera by checking the model no. printed on the front of the camera.
Model number suffixes (“A” and “CE”) are omitted from the following model numbers shown in this document, unless necessary. BB-HCM701A, BB-HCM701CE, BB-HCM705A, BB-HCM705CE
Please read the included Important Information before proceeding.
Complete Operating Instructions and all other documentation can be found on the included CD-ROM.
•This document (Installation Guide) explains how to physically connect the camera to the power supply and network, as well how to mount or place the camera for regular use.
•The Setup Guide describes how to set up the camera so that it can be accessed using a PC.
•Refer to the Operating Instructions on the CD-ROM for details regarding the camera’s features.
•Refer to the Troubleshooting Guide on the CD-ROM if you have any problems configuring or using the camera.
•The Stand-alone SD Memory Card Recording Guide describes how to record images to an SD memory card without using a PC.
Abbreviations
•UPnP is the abbreviation for “Universal Plug and Play”.
•The Network Camera is referred to as “the camera” in this document.
•The Setup CD-ROM is referred to as “the CD-ROM” in this document.
•The term “SD memory card” is used in this document to refer to SD memory cards and SDHC memory cards.
Installation Procedure Overview
The following is an overview of the steps required to install and setup the camera. All steps are explained in this document unless otherwise noted.
Preparation
Confirm that you have all the items required for installation.
Camera Diagram
Make sure you know the names of the camera’s physical features.
Connections
Connecting the camera to your network and to the power outlet.
Setup |
|
Mounting |
Setting up the camera (described in the included |
|
Mounting or placing the |
Setup Guide). This involves configuring the camera |
|
camera. |
so that it can be accessed from a PC. |
|
|
Preparation
1.Confirm the following items are included in the camera’s packaging.
Main Unit (1 pc.) |
Bit (1pc.) |
Screw A (4 pcs.) |
Screw B (1 pc.) |
|
[BB-HCM701CE/ |
Order No. XTB4+20AFJ |
Order No. |
|
BB-HCM705CE Only] |
Used to secure the |
XTB26+10GFJ |
|
Order No. PNMH1086Z |
camera (3 pcs.) and the |
Used for connecting the |
|
Used to secure the |
safety wire to the ceiling |
safety wire to the |
|
camera cover. |
(1 pc.). |
camera. |
Washer A (1 pc.) |
Washer B (1 pc.) |
Safety Wire (1 pc.) |
Template (1 pc.) |
Order No. |
Order No. |
Order No. |
Order No. PNPD1302Z |
XWG4F16VW |
XWG26D12VW |
PQME10080Z |
Used when marking |
Used when securing the |
Used when securing the |
Used to secure the |
holes for the cables and |
safety wire to the ceiling. |
safety wire to the |
camera when mounting |
screws. |
|
camera. |
it. |
|
Important Information (1 pc.) |
|
Setup CD-ROM (1 pc.) Order No. PNQC1016N |
|
Installation Guide (this document) (1 pc.) |
Contains the Setup Program needed to configure the camera, as well as the |
||
Setup Guide (1 pc.) |
|
camera’s documentation.* |
|
Stand-alone SD Memory Card Recording Guide (1 pc.) |
*See the included Important Information for a description of each document. |
||
2.You will need the following additional items to install and configure the camera.
–a PC (see the system requirements in the Important Information document)
–a router
– a LAN cable (CAT-5 straight cable)
Option
You can also connect the camera using the optional Panasonic BB-HCA7A, BB-HCA7CE or BB-HCA7E AC adaptor. The optional AC adaptor includes the following items. (For more information, consult your authorized Panasonic dealer.)
BB-HCA7A
AC Adaptor (1 pc.) Cord Length: About 3 m (9 feet 10 inches)
AC Cord (1 pc.)
Cord Length: About 1.8 m (5 feet 11 inches)
Extension Cord (1 pc.) Cord Length: About 7 m (23 feet)
BB-HCA7CE (2 pin AC cord)
AC Adaptor (1 pc.) Cord Length: About 3 m (9 feet 10 inches)
AC Cord (1 pc.)
Cord Length: About 1.8 m (5 feet 11 inches)
Extension Cord (1 pc.) Cord Length: About 7 m (23 feet)
BB-HCA7E (3 pin AC cord)
AC Adaptor (1 pc.) Cord Length: About 3 m (9 feet 10 inches)
AC Cord (1 pc.)
Cord Length: About 1.8 m (5 feet 11 inches)
Extension Cord (1 pc.) Cord Length: About 7 m (23 feet)
•The AC adaptor, the AC adaptor cord, the AC cord, and the extension cord are not splash resistant, and are intended for indoor use only. The AC adaptor, the AC adaptor cord, the AC cord, and the extension cord must be waterproofed for outside use.
© Panasonic System Networks Co., Ltd. 2009 |
1 |
PNQX1983XA KK0709CQ3129 |
Camera Diagram |
|
|
|
|
|
||
Front View |
A Camera cover |
Rear View |
|
|
F |
Safety wire hole |
|
|
|
|
|
|
|||
|
A |
B Microphone |
|
|
|
G LAN port |
|
|
C Indicator*1 |
G H |
I |
J |
H DC IN jack |
||
|
|
||||||
|
|
D Lens |
F |
|
K |
I |
External INPUT interface |
|
B |
|
|
J |
Serial number and |
||
|
|
E Lens cover |
|
|
|
|
MAC address label |
|
C |
|
|
|
|
K Cable hook |
|
|
D |
|
|
|
|
|
|
|
E |
|
|
|
|
|
|
*1 |
See 1.1 Understanding the Camera Indicator in the Troubleshooting Guide on the CD-ROM for indicator meaning. |
||||||
Side View
L MN O
L RESTART button
MSD memory card slot
NFACTORY DEFAULT RESET button
OFUNCTION button/indicator
Connections
Before proceeding, confirm that your PC is connected to your router and can access the Internet. Also confirm that your router’s UPnP™ feature is enabled. (Most routers have UPnP™ turned off by default.) Refer to the operating instructions included with your router or to the Panasonic Network Camera website (http://panasonic.net/pcc/ipcam/) for more information.
When connecting the camera using PoE (Power over Ethernet)
Connect the camera to your PoE hub using a LAN cable (Cat-5 straight cable) as described below.
1 Connect a LAN cable to the camera and to the PoE hub.
•Your PoE hub must be connected to the router. Refer to the operating instructions included with the PoE hub for connection instructions.
2 Connect a LAN cable to a LAN port of the PoE hub and to a LAN port of the router.
•Confirm that the indicator lights green after about 1 minute. If the indicator does not light green, see 1.2 Camera Indicator Issues in the Troubleshooting Guide on the CD-ROM.
Green
• Use a 4-pair UTP/STP cable.
• Do not use a relay connector or a hub between the camera and the PoE hub. These devices may disturb the data or electricity transmission.
• If the PoE hub has indicators, the indicator lights as shown in the table below.
Indicator |
Description |
|
|
LINK |
Turns on when the data is transmitted from the camera. |
|
|
PoE |
Turns on when the electricity is supplied to the camera. |
|
|
• If the PoE hub is turned off or power supply is temporarily cut off by the disconnection of the LAN cable, it may take time for the PoE hub’s indicators to light.
• The indicator display differs depending on manufacturers, refer to the manuals of the PoE hub.
Caution
LAN cable
(Cat-5 straight cable) To the power supply
PoE indicator
PoE hub
LINK indicator
Router
Modem
Internet
PC
•The camera is to be connected only to PoE networks without routing to the outside plant.
When connecting the camera using the AC adaptor (Optional)
Connect the camera to your router and the power outlet as described below.
• If using an AC adaptor, use only the optional Panasonic AC adaptor.
1 Connect the LAN cable to the camera and the router.
2 Connect the AC adaptor cord to the DC IN jack.
3 Connect the AC cord to the AC adaptor, then plug the AC cord into the power outlet.
•Confirm that the indicator lights green after about
1 minute. If the indicator does not light green, see 1.2 Camera Indicator Issues in the Troubleshooting Guide on the CD-ROM.
LAN cable
(Cat-5 straight cable)
Green
•When you operate the camera, the power outlet should be near the camera and easily accessible.
•Use only specified Panasonic AC adaptor (Model No. BB-HCA7A, BB-HCA7CE, BB-HCA7E).
To the power outlet
AC cord
AC adaptor |
(BB-HCA7A, BB-HCA7CE, |
BB-HCA7E) |
Router
Modem |
Internet PC
After the camera’s indicator turns green, you may set up the camera. Continue by following the procedure described in the included Setup Guide.
• If the indicator does not turn green, see 1.2 Camera Indicator Issues in the Troubleshooting Guide on the included CD-ROM.
Read the following information after setting up the camera according to the procedure described in the Setup Guide.
