WorkCentre 7132 |
While Xerox has tried to make the documentation accurate, Xerox will have no liability arising |
|
out of any inaccuracies or omissions. |
Service Documentation |
|
WorkCentre 7132
705P01181 (EDOC/SGS)
Revision
January 2007
***Xerox Private Data***
All service documentation is supplied to Xerox external customers for informational purposes only. Xerox service documentation is intended for use by certified, product-trained service personnel only. Xerox does not warrant or represent that it will notify or provide to such customer any future change to this documentation. Customer performed service of equipment, or modules, components, or parts of such equipment may affect whether Xerox is responsible to fix machine defects under the warranty offered by Xerox with respect to such equipment. You should consult the applicable warranty for its terms regarding customer or third-party provided service.
If the customer services such equipment, modules, components or parts thereof, the customer releases Xerox from any and all liability for the customer actions, and the customer agrees to indemnify, defend and hold Xerox harmless from any third party claims which arise directly or indirectly from such service.
While Xerox has tried to make the documentation accurate, Xerox will have no liability arising out of any inaccuracies or omissions. Changes are periodically made to this document. Changes, technical inaccuracies, and typographical errors will be corrected in subsequent editions.
©Copyright 2007 Xerox Corporation. All rights reserved.
Global Knowledge & Language Services
800 Phillips Road - Bldg. 845-17S
Webster, New York 14580-9791
USA
Printed in the United States of America.
XEROX®, The Document Company®, the stylized X and the identifying product names and numbers herein are trademarks of XEROX CORPORATION.
All non-Xerox brands and product names are trademarks or registered trademarks of their respective companies
WARNING
This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions documentation, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to subpart B of part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user, at his own expense, will be required to correct the interference.
Preliminary Working Document |
0/0/00 |
Section Name |
|
|
|
No Product Name Assigned |
?-1 |
|
Introduction
About this Manual ........................................................................................................... |
iii |
Organization.................................................................................................................... |
iii |
How to Use this Documentation...................................................................................... |
iv |
Symbology and Nomenclature ........................................................................................ |
v |
Translated Warnings ....................................................................................................... |
viii |
Reversion 4.0 |
January 2007 |
Introduction |
|
|
|
WorkCentre 7132 |
i |
|
About this Manual
This Service Manual is part of the multinational documentation system for
WorkCentre 7132. The Service Documentation is used in order to diagnose machine malfunctions, adjust components and has information which is used to maintain the product in superior operating condition. It is the controlling publication for a service call. Information on its use is found in the Introduction of the Service Documentation.
This manual contains information that applies to NASG (XC) and ESG (XE) copiers.
Service Manual Revision
The Service Manual will be updated as the machine changes or as problem areas are identified.
Organization
This Service Manual is divided into eight sections. The titles of the sections and a description of the information contained in each section are contained in the following paragraphs:
Section 1: Service Call Procedures
This section contains procedures that determine what actions are to be taken during a service call on the machine and in what sequence they are to be completed. This is the entry level for all service calls.
Section 2: Status Indicator RAPs
This section contains the diagnostic aids for troubleshooting the Fault Code and non-Fault Code related faults (with the exception of image quality problems).
Section 3: Image Quality
This section contains the diagnostic aids for troubleshooting any image quality problems, as well as image quality specifications and image defect samples.
Section 4: Repairs/Adjustments
This section contains all the Adjustments and Repair procedures.
Repairs
Repairs include procedures for removal and replacement of parts which have the following special conditions:
When there is a personnel or machine safety issue.
When removal or replacement cannot be determined from the exploded view of the Parts List.
When there is a cleaning or a lubricating activity associated with the procedure. When the part requires an adjustment after replacement.
When a special tool is required for removal or replacement.
Use the repair procedures for the correct order of removal and replacement, for warnings, cautions, and notes.
Adjustments
Adjustments include procedures for adjusting the parts that must be within specification for the correct operation of the system.
Use the adjustment procedures for the correct sequence of operation for specifications, warnings, cautions and notes.
Section 5: Parts Lists
This section contains the Copier/Printer Parts List.
Section 6: General Procedures/Information
This section contains General Procedures, Diagnostic Programs, and Copier/Printer Information.
Reversion 4.0 |
January 2007 |
Introduction |
|
|
|
WorkCentre 7132 |
iii |
|
Section 7: Wiring Data
This section contains drawings, lists of plug/jack locations, and diagrams of the power distribution wire networks in the machine. This section also contains the Block Schematic Diagrams.
How to Use this Documentation
The Service Call Procedures in Section 1 describe the sequence of activities used during the service call. The call must be entered using these procedures.
Section 8: Options and Accessories
This section contains installation information for option and accessory.
Use of the Circuit Diagrams
All wirenets are shown on the Circuit Diagrams (CDs). Power distribution wirenets are shown in Section 7 (Wiring Data) of the Service Manual. The power distribution wirenets on the CDs will end at the terminal board for the power being distributed. Find the wirenet for that power and locate the terminal board on the wirenet. Use the wirenet to troubleshoot any power distribution wiring not shown on the CD.
Use of the Block Schematic Diagrams
Block Schematic Diagrams (BSDs) are included in Section 7 (Wiring Data) of the Service Manual. The BSDs show the functional relationship of the electrical circuitry to any mechanical, or non-mechanical, inputs or outputs throughout the machine. Inputs and outputs such as motor drive, mechanical linkages, operator actions, and air flow are shown. The BSDs will provide an overall view of how the entire subsystem works.
It should be noted that the BSDs no longer contain an Input Power Block referring to Chain 1. It will be necessary to refer to the Wirenets in order to trace a wire back to its source.
Introduction |
January 2007 |
Reversion 4.0 |
|
|
|
|
iv |
WorkCentre 7132 |
Symbology and Nomenclature
The following reference symbols are used throughout the documentation.
Warnings, Cautions, and Notes
Warnings, Cautions, and Notes will be found throughout the Service Documentation. The words WARNING or CAUTION may be listed on an illustration when the specific component associated with the potential hazard is pointed out; however, the message of the WARNING or CAUTION is always located in the text. Their definitions are as follows:
CAUTION
The use of controls or adjustments other than those specified in the Laser Safety Training Program may result in an exposure to dangerous laser radiation.
For additional information, review the Laser Safety Training program.
An arrow points to the location to install, to gain access to, or to release an object.
WARNING
A Warning is used whenever an operating or maintenance procedure, a practice, condition, or statement, if not strictly observed, could result in personal injury.
CAUTION
A Caution is used whenever an operating or maintenance procedure, a practice, condition, or statement, if not strictly observed, could result in damage to the equipment.
NOTE: A Note is used whenever it is necessary to highlight an operating or maintenance procedure, practice, condition, or statement.
Figure 2 Customer Access Label
This symbol indicates that a surface can be hot. Use caution when reaching in the machine to avoid touching the hot surfaces.
Machine Safety Icons
The following safety icons are displayed on the machine:
WARNING
This machine contains an invisible laser. There is no visual indication that the laser beam is present. During servicing, the machine is a Class 3B product because of the invisible laser. the laser beam could cause eye damage if looked at directly. Service procedures must be followed exactly as written without change. The service representative must observe the established local laser safety precautions when servicing the machine. Do not place tools with a reflective surface in the area of the ROS opening. Do not look in the area of the ROS window if the power is On and the laser is energized.
The following symbol and statement appear on a label in the machine. The symbol by itself, or the symbol and the statement may also appear in the service documentation and in the training program. When this symbol appears, the service representative is warned that conditions exist that could result in exposure to the laser beam.
WARNING
Do not try to bypass any laser interlocks for any reason. Permanent eye damage could result if the laser is accidentally directed into your eye.
Figure 1 Laser Hazard Symbol
Laser Hazard Statement
Figure 3 Heated Surface Label
Danger label indicates where electrical currents exist when the machine is closed and operating. Use caution when reaching in the machine.
Figure 4 Shock Hazard Label
These symbols indicate components that may be damaged by Electrostatic Discharge (ESD).
Figure 5 ESD warning Label
DANGER INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO
BEAM.
Reversion 4.0 |
January 2007 |
Introduction |
|
|
|
WorkCentre 7132 |
v |
|
Electrostatic Discharge (ESD) Field Service Kit
The purpose of the ESD Protection Program is to preserve the inherent reliability and quality of electronic components that are handled by the Field Service Personnel. This program is being implemented now as a direct result of advances in microcircuitry technology, as well as a new acknowledgment of the magnitude of the ESD problem in the electronics industry today.
This program will reduce Field Service costs that are charged to PWB failures. Ninety percent of all PWB failures that are ESD related do not occur immediately. Using the ESD Field Service Kit will eliminate these delayed failures and intermittent problems caused by ESD. This will improve product reliability and reduce callbacks.
The ESD Field Service Kit should be used whenever Printed Wiring Boards or ESD sensitive components are being handled. This includes activities like replacing or reseating of circuit boards or connectors. The kit should also be used in order to prevent additional damage when circuit boards are returned for repair.
The instructions for using the ESD Field Service Kit can be found in ESD Field Service Kit Usage in the General Procedures section of the Service Documentation.
Illustration Symbols
Figure 6 shows symbols and conventions that are commonly used in illustrations.
Figure 6 Illustration Symbols
Introduction |
January 2007 |
Reversion 4.0 |
|
|
|
|
vi |
WorkCentre 7132 |
Signal Nomenclature
Refer to Figure 7 for an example of Signal Nomenclature used in Circuit Diagrams and BSDs.
Figure 7 Signal Nomenclature
DC Voltage Measurements in RAPs
The RAPs have been designed so that when it is required to use the DMM to measure a DC voltage, the first test point listed is the location for the red (+) meter lead and the second test point is the location for the black meter lead. For example, the following statement may be found in a RAP:
There is +5 VDC from TP7 to TP68.
In this example, the red meter lead would be placed on TP7 and the black meter lead on TP68.
Another example of a statement found in a RAP might be:
There is -15 VDC from TP21 to TP33.
In this example, the red meter lead would be placed on TP21 and the black meter lead would be placed on TP33.
If a second test point is not given, it is assumed that the black meter lead may be attached to the copier frame.
Voltage Measurement and Specifications
Measurements of DC voltage must be made with reference to the specified DC Common, unless some other point is referenced in a diagnostic procedure. All measurements of AC voltage should be made with respect to the adjacent return or ACN wire.
Table 1 Voltage Measurement and Specifications |
|
VOLTAGE |
SPECIFICATION |
|
|
INPUT POWER 220 V |
198 VAC TO 242 VAC |
|
|
INPUT POWER 100 V |
90 VAC TO 135 VAC |
|
|
INPUT POWER 120 V |
90 VAC TO 135 VAC |
|
|
+5 VDC |
+4.75 VDC TO +5.25 VDC |
|
|
+24 VDC |
+23.37 VDC TO +27.06 VDC |
|
|
Logic Voltage Levels
Measurements of logic levels must be made with reference to the specified DC Common, unless some other point is referenced in a diagnostic procedure.
Table 2 Logic Levels |
|
VOLTAGE |
H/L SPECIFICATIONS |
|
|
+5 VDC |
H= +3.00 TO +5.25 VDC |
|
L= 0.0 TO 0.8 VDC |
|
|
+24 VDC |
H= +23.37 TO +27.06 VDC |
|
L= 0.0 TO 0.8 VDC |
|
|
Reversion 4.0 |
January 2007 |
Introduction |
|
|
|
WorkCentre 7132 |
vii |
|
Introduction
Symbology and Nomenclature
WARNING
A Warning is used whenever an operating or maintenance procedure, a practice, condition, or statement, if not strictly observed, could result in personal injury.
DANGER: Une note DANGER est utilisée à chaque fois qu'une procédure de maintenance ou qu'une manipulation présente un risque de blessure si elle n'a pas été strictement observée.
WARNING
This machine contains an invisible laser. There is no visual indication that the laser beam is present. During servicing, the machine is a Class 3B product because of the invisible laser. the laser beam could cause eye damage if looked at directly. Service procedures must be followed exactly as written without change. The service representative must observe the established local laser safety precautions when servicing the machine. Do not place tools with a reflective surface in the area of the ROS opening. Do not look in the area of the ROS window if the power is On and the laser is energized.
DANGER: L'équipement contient un faisceau laser invisible et aucune indication visible signale la présence du faisceau laser. De ce fait le produit est classé 3B pour tout ce qui concerne la maintenance. L'exposition directe des yeux au faisceau laser peut entraîner des lésions visuelles. Les procédures de maintenance doivent être réalisées sans aucun changement comme indiqué dans la documentation. Le représentant Xerox lors d'interventions sur l'équipement doit respecter les consignes de sécurité locales concernant les faisceaux laser. Ne pas placer d'objet réfléchissant dans la zone du ROS quand il est ouvert. Ne pas regarder dans la zone du ROS lorsque la machine est sous tension et que le laser est en fonctionnement.
The following symbol and statement appear on a label in the machine. The symbol by itself, or the symbol and the statement may also appear in the service documentation and in the training program. When this symbol appears, the service representative is warned that conditions exist that could result in exposure to the laser beam.
DANGER: Les symboles et instructions suivants sont indiqués sur des étiquettes dans la machine et sont identifiés dans la documentation technique et dans le manuel de formation. Quand ces symboles s'affichent le représentant Xerox est prévenu des risques encourus concernant une exposition au rayon laser.
WARNING
nance ou reglage avec le cordon d'alimentation branche.
Paper Transportation
REP 2.1.1 Feeder 1 Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 2.3.1 Tray Feed/Nudger/Retard Roll
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 2.4.1 Registration Unit
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 2.5.1 Take Away Roll
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 2.6.2 Left Hand (L/H) Upper Cover Unit
WARNING
Do not try to bypass any laser interlocks for any reason. Permanent eye damage could result if the laser is accidentally directed into your eye.
DANGER: Ne pas essayer de shunter les contacts laser pour quelques raisons que ce soit. Si le faisceau laser est dirigé accidentellement vers les yeux il peut en résulter des lésions oculaires permanentes.
4 Repairs and Adjustments
Drives
REP 1.1.1 Main Drive Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer mainte-
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
ROS
REP 3.1.1 ROS Unit
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
Xerographics/Development
Reversion 4.0 |
January 2007 |
Introduction |
|
|
|
WorkCentre 7132 |
ix |
|
REP 4.1.1 Xero/Developer Cartridge
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 4.1.2 Toner Cartridge
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
Electrical Components
REP 9.1.1 MCU PWB
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 4.2.1 Dispense Motor
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 9.2.1 ESS PWB
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
Fuser
REP 5.1.1 Fuser Unit
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
Covers
REP 10.1.1 Top Cover Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
Exit
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 10.2.1 Rear Lower Cover
REP 6.1.1 Exit 2 +OCT 2
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
MPT
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
IIT
REP 11.1.1 Platen Cushion
REP 7.1.1 MPT Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 11.1.2 Control Panel
REP 7.2.1 MPT Feed Roll/Retard Pad |
|
WARNING |
|
|
|
Introduction |
January 2007 |
Reversion 4.0 |
|
|
|
|
x |
WorkCentre 7132 |
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 11.3.1 Platen Glass
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 11.3.2 IIT/IPS PWB
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 11.4.1 Lens Kit Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 11.5.1 Carriage Cable
REP 11.6.2 Lamp Wire Harness
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
Tray Module -2T
REP 12.1.1 Tray 3 Feeder
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 12.1.2 Tray 3 Feeder (2TM)
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 12.3.1 Feed/Retard/Nudger Roll
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 11.5.2 Carriage Motor
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 12.6.1 2 Tray Module PWB
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 11.6.1 Exposure Lamp
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
Tray Module -TT
REP 13.1.1 Tray 3 Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 13.1.2 Tray 2 Assembly (2TTM)
Reversion 4.0 |
January 2007 |
Introduction |
|
|
|
WorkCentre 7132 |
xi |
|
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 13.3.1 Front/Rear Tray Cable
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 13.4.1 Tray 3 Feeder (TTM)
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 13.5.1 Tray 3 Feeder
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 13.6.1 Feed/Retard/Nudger Roll
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 13.8.1 Twin Tray Module PWB
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
DADF
REP 15.1.1 DADF Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.1.2 DADF Platen Cushion
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.2.1 DADF Document Tray
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.2.2 DADF Feeder Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.2.3 DADF Front Cover
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.2.4 DADF Rear Cover
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.3.1 DADF PWB
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.3.2 Left Counter Balance
Introduction |
January 2007 |
Reversion 4.0 |
|
|
|
|
xii |
WorkCentre 7132 |
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.3.3 Right Counter Balance
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.4.1 Retard Roll
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.4.2 Top Cover
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.6.1 Nudger Roll, Feed Roll
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 15.8.1 Registration Roll
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
Finisher
REP 16.1.1 H-Transport Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.3.1 H-Transport Belt
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.1.2 Finisher Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.4.1 Front Cover
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.4.2 Rear Cover
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.5.1 Stack Height Sensor Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.5.2 Eject Roll Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.6.1 Decurler Roll
Reversion 4.0 |
January 2007 |
Introduction |
|
|
|
WorkCentre 7132 |
xiii |
|
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.6.2 Finisher Drive Motor
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.7.1 Belt
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.8.1 Rail
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.8.2 Staple Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.9.1 Compiler Tray Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.10.1 Stacker Motor Assembly
nance ou reglage avec le cordon d'alimentation branche.
REP 16.10.2 Elevator Belt Assembly
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.11.1 Paddle Gear Shaft
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
REP 16.12.1 Finisher PWB
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
IIT
ADJ 11.6.1 Full/Half Rate carriage Position Adjustment
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer maintenance ou reglage avec le cordon d'alimentation branche.
8 Options and Accessories
8.1 FAX KIT
WARNING
Switch off the machine and disconnect the power cord.
DANGER: Mettre la machine sur ARRET et debrancher le cordon dalimentation.
8.2 Foreign Interface
WARNING
Switch off the machine and disconnect the power cord.
DANGER: Mettre la machine sur ARRET et debrancher le cordon dalimentation.
WARNING
To avoid personal injury or shock, do not perform repair or adjustment with electrical power applied to the machine.
DANGER: Afin d'eviter des blessures ou des chocs electriques, ne pas effectuer mainte-
Introduction |
January 2007 |
|
|
|
xiv |
Reversion 4.0
WorkCentre 7132
1 Service Call Procedures
Service Call Procedures.................................................................................................. |
1-3 |
Initial Actions ................................................................................................................... |
1-3 |
Call Flow ......................................................................................................................... |
1-4 |
Detailed Maintenance Activities (HFSI)........................................................................... |
1-6 |
Cleaning Procedures....................................................................................................... |
1-7 |
Final Actions.................................................................................................................... |
1-7 |
Reversion 4.0 |
January 2007 |
Service Call Procedures |
|
|
|
WorkCentre 7132 |
1-1 |
|
Service Call Procedures
Service Strategy
The service strategy for the WorkCentre 7132 is to perform any High Frequency Service Item (HFSI) actions before attempting to repair any problems. Some problems will be corrected by this strategy without the need to diagnose them. The Repair Analysis Procedures (RAPs) will be used for any remaining problems.
Problems that occur in the Basic Printer mode will be repaired before problems that occur when using the accessories.
Image Quality problems should be repaired after all other problems are repaired.
Service Call Procedures
The Service Call Procedures are a guide for performing any service on this machine. The procedures are designed to be used with the Service Manual. Perform each step in order.
Initial Actions
The Initial Actions gather information about the condition of the machine and the problem that caused the service call.
Call Flow
Call Flow summarizes the sequence of the Service Call Procedures.
Detailed Maintenance Activities
Detailed Maintenance Activities section provides the information needed to perform the High Frequency Service Item (HFSI) actions.
Cleaning Procedures
The Cleaning Procedures list what needs to be cleaned at each service call.
Final Actions
The Final Actions will test the copier/printer and return it to the customer. Administrative activities are also performed in the Final Actions.
Initial Actions
Purpose
The purpose of the Initial Action section of the Service Call Procedures is to determine the reason for the service call and to identify and organize the actions which must be performed.
Procedure
1.Gather the information about the service call and the condition of the copier/printer.
a.Question the operator(s). Ask about the location of most recent paper jams. Ask about the image quality and the copier/printer performance in general, including any unusual sounds or other indications.
b.After informing the customer, disconnect the machine from the customer’s network.
c.Check that the power cords are in good condition, correctly plugged in the power source, and free from any defects that would be a safety hazard. Repair or replace the power cords as required. Check that the circuit breakers are not tripped.
d.Inspect any rejected copies. Inquire as to, or otherwise determine, the paper quality and weight, the specified paper for optimum Image Quality, 24# Xerox Color Expressions (NASG) or ColorTech+90gsm (ESG). Look for any damage to the copies, oil marks, image quality defects, or other indications of a problem.
e.Record the billing meter readings.
f.Access Diagnostic Routines.
i.Enter UI Diagnostics (Entering UI Diagnostics in UI Diagnostic Mode).
ii.Access Diagnostic Routines (Accessing Diagnostic Routines in UI Diagnostic Mode).
NOTE: If a fault code is displayed while performing a diagnostics procedure, go to that fault code RAP and repair the fault. Return to Diagnostics and continue with the dC procedure that you were performing.
g.Print the HFSI Report and determine what HFSI action is required based on the customer output volume. Refer to the Detailed Maintenance Activities section for the detailed HFSI information. Record any items that require action.
h.Display and record the information in the Jam Counter, Fault Counter, and Shutdown History. Classify this information into categories:
Information that is related to the problem that caused the service call.
Information that is related to secondary problems.
Information that does not require action, such as a single occurrence of a problem.
i.Check the Service Log for any recent activities that are related to the problem that caused the service call or any secondary problem.
2.Perform any required HFSI activities identified above. Refer to the Detailed Maintenance Activities section.
3.Exit diagnostics. Try to duplicate the problem by running the same jobs that the customer was running.
4.Check the Image Quality in the Basic Copier Mode. Select the tray that is loaded with 11 x 17 or A3 paper, if unable to complete tray selection, go to Call Flow.
Set the copier/printer to the following setup:
• Output Color - Auto
Reversion 4.0 |
January 2007 |
Service Call Procedures |
|
Service Call Procedures, Initial Actions |
|
WorkCentre 7132 |
1-3 |
•Original Type - Photo and Text Halftone
•R/E - Auto
•Lighter/Darker - Auto Contrast
•Sharpness - Normal
•Preset Color Balance - Normal
•Color Shift - Normal
•Color Saturation - Normal
•Copy Position - No Shift
•Variable Color Balance - Normal
Run four copies of the Color Test Pattern.
Check the Image Quality. If the customer has identified any Image Quality Defects or problems, go to IQ1 IOT Image Quality Entry RAP.
5.Go to Call Flow.
Call Flow
This procedure should be performed at every service call.
Initial Actions
Ask the operator about the problem. If the problem appears to be related to operator error, or an attempt to perform a job outside of the machine specifications, assist the customer in learning the correct procedure.
Procedure
If the machine does not power up, Go to Power On RAP.
Ask the operator about the problem.
•If the problem is identified by a fault code (including Paper/Document Jams), refer to Chapter 2 for the procedure and then proceed with servicing.
•If the problem is noise or smell, select a mode (1 Sided/2Sided, Finisher etc.), find the cause of the problem and proceed with servicing.
The operator operated the machine correctly.
YN
Explain to the operator how to operate the machine correctly.
The UI display is normal.
Y N
|
|
|
Go to OF 6 Dark/Blank Display. Refer to BSDs (CH2.1-CH2.4). |
||||||
|
|
|
|
|
|
||||
|
The problem occurs only in Print mode. |
||||||||
|
Y |
N |
|
|
|
|
|
||
|
|
|
The problem occurs only in Copy mode. |
||||||
|
|
|
Y |
N |
|
|
|
||
|
|
|
|
|
The problem occurs only in Fax mode. |
||||
|
|
|
|
|
Y |
N |
|
||
|
|
|
|
|
|
|
The problem is an accessory or the Foreign Accessory. |
||
|
|
|
|
|
|
|
Y |
N |
|
|
|
|
|
|
|
|
|
|
Refer to Table 1 Other Faults and identify the problem and follow the cor- |
|
|
|
|
|
|
|
|
|
rective action. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If the cause of the problem is an accessory or the Foreign Interface, check that |
||
|
|
|
|
|
|
|
the machine settings are correct, refer to the appropriate service manual for the |
||
|
|
|
|
|
|
|
procedure and then proceed with servicing. |
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
The problem occurs only in certain modes such as Broadcast transmission. |
||||
|
|
|
|
|
Y |
N |
|
||
|
|
|
|
|
|
|
Perform a transmission test with the call center or station. The problem reoc- |
||
|
|
|
|
|
|
|
curs. |
||
|
|
|
|
|
|
|
Y |
N |
|
|
|
|
|
|
|
|
|
|
Ask the customer for permission to establish communications with |
|
|
|
|
|
|
|
|
|
the remote machine that is causing the problem. Perform a Send |
|
|
|
|
|
|
|
|
|
transmission test with the remote machine. Transmission was nor- |
|
|
|
|
|
|
|
|
|
mal. |
|
|
|
|
|
|
|
|
|
|
|
A |
B |
C |
D |
|
||||
Service Call Procedures |
January 2007 |
|
|
|
|
|
|
Reversion 4.0 |
|
Initial Actions, Call Flow |
|
|
|
|
|
|
|
||
1-4 |
|
|
|
|
|
|
|
WorkCentre 7132 |
|
A B C D
YN
Print the protocol trace to identify whether it is the remote machine or the machine that is causing the problem.
•If the problem lies in the machine:
Analyze the protocol trace, refer to Chapter 2 and then proceed with servicing.
•If the problem appears to lie in the remote machine:
Ask the customer to check the status of the remote machine.
There is a problem with Receive transmission test. Perform Receive transmission tests with other stations within the company. Check that there is no problem with the machine and then ask the customer to check the status of the remote machine.
Analyze the protocol trace, refer to Chapter 2 and then proceed with servicing.
Check the machine settings and if necessary, ask the customer for permission to test the machine in the mode in which the problem occurs.
Analyze the protocol trace when the problem reoccurs, refer to Chapter 2 and then proceed with servicing.
There is an image quality problem.
YN
If there is an alignment problem, obtain separate Platen/DADF output samples, refer to Chapter 4 Adjustments and then proceed with servicing.
Refer to Chapter 3 IQ1 IOT Image Quality Entry RAP and then proceed with servicing.
There is a problem with the network.
YN
There is a problem with the USB connection. Y N
There is an image quality problem. Y N
The problem lies in a certain Client PC. Y N
There is a problem with a certain application or programming language A. Obtain the latest information on restrictions and technical information. Proceed accordingly.
Check the settings of that particular Client PC and if necessary ask the user to reinstall the printer driver.
Refer to IQ1 IOT Image Quality Entry RAP and then proceed with servicing. If the problem persists, ask the user to reinstall the printer driver.
Check the machine settings and if necessary ask the user to reinstall the printer driver.
E
If the problem continues, replace the network cable. If the problem persists, replace the USB cable. Check the machine settings and discuss the problem with the customer's network administrator.
|
Table 1 Other Faults |
Problem |
Corrective Action |
|
|
Duplexing is not available as a |
Ensure the Duplex electrical connector is secure (PL |
selection on the display. |
10.1) |
|
|
Copies jam in the Finisher when |
Verify condition of paper. If good, check that part |
the output tray is near maximum |
655N128 can be used to support tray. |
capacity. |
|
|
|
ADF inoperative after PWB |
Reload Software ADJ 9.3.1. |
replacement. |
|
|
|
Can not make copies when |
Enter UI Diagnostic Mode. Select Copy on screen. |
Auditron is enabled. |
Machine will operate without auditron restriction. |
|
|
Loud snapping noise is heard. |
Enter Component Control [042-003] and press the Start |
|
button. If noise is present there is binding in toner auger |
|
drive system. Repair as required (PL 1.2) |
|
|
Sets are not offset in Center Tray. |
Perform Center Tray Offsetting. |
|
|
E-mail icon not visible in display on |
Perform E-Mail Icon. |
email enabled machine. |
|
|
|
Customer wishes to distinguish |
Perform FAX Output Separation. |
FAX output from prints or copies. |
|
|
|
E
Reversion 4.0 |
January 2007 |
Service Call Procedures |
|
Call Flow |
|
WorkCentre 7132 |
1-5 |
Detailed Maintenance Activities (HFSI)
Procedure
1.Access Diagnostic Routines.
a.Enter UI Diagnostics (Entering UI Diagnostics in UI Diagnostic Mode).
b.Access Diagnostic Routines (Accessing Diagnostic Routines in UI Diagnostic Mode).
2.Select NVM Read/Write.
3.Refer to Table 1 and enter a counter number for any High Frequency Service Item (HFSI) counters to be checked. Use the customer's output volume numbers to help determine which HFSI components should be serviced. Consider components near threshold as candidates for service.
4.Refer to Cleaning Procedures for detailed cleaning instructions.
Table 1 High Frequency Service Items
Counter |
Name |
Threshold |
Service Action to be performed |
|
|
|
|
954-800 |
Tray 1 Feed counter |
300K |
Replace the Feed Roll, Retard Roll, Nudger |
|
|
|
Roll. |
|
|
|
|
954-801 |
Tray 2 Feed counter |
300K |
Replace the Feed Roll, Retard Roll, Nudger |
|
|
|
Roll. |
|
|
|
|
954-802 |
Tray 3 Feed counter |
300K |
Replace the Feed Roll, Retard Roll, Nudger |
|
|
|
Roll. |
|
|
|
|
954-803 |
MSI Feed counter |
50K |
Replace the Feed Roll, Retard Pad. |
|
|
|
|
954-824 |
IBT Belt counter |
480K |
Replace the IBT Assembly. |
|
|
|
|
954-825 |
IBT Cleaner counter |
100K |
Replace the IBT Cleaner. |
|
|
|
|
954-826 |
2nd BTR Counter |
300K |
Replace the Bias Transfer Roll. |
|
|
|
|
954-830 |
K Developer Counter |
420K |
Replace the K Developer. |
|
|
|
|
954-831 |
Y Developer Counter |
420K |
Replace the Y Developer. |
|
|
|
|
954-832 |
M Developer Counter |
420K |
Replace the M Developer. |
|
|
|
|
954-833 |
C Developer Counter |
420K |
Replace the C Developer. |
|
|
|
|
954-837 |
Xero Drum Counter |
10M |
Replace the Xero Drum Assembly. |
|
|
|
|
954-842 |
Fuser Counter |
10M |
Replace the Fuser Assembly. |
|
|
|
|
956-802 |
Lamp Scan Counter |
6000K |
Replace the Exposure Lamp. |
|
|
|
|
956-803 |
Exposure Lamp Time |
7200K |
Replace the Exposure Lamp. |
|
Counter |
|
|
|
|
|
|
956-804 |
Exposure Lamp On |
6000K |
Replace the Exposure Lamp. |
|
Counter |
|
|
|
|
|
|
955-806 |
CVT Feed Counter |
200K |
Replace the Document Nudger Roll, Feed |
|
|
|
Roll, Retard Roll, Registration Roll. |
|
|
|
|
955-807 |
Simplex Feed Counter |
912K |
Replace the Document Nudger Roll, Feed |
|
|
|
Roll, Retard Roll, Registration Roll. |
|
|
|
|
955-808 |
Duplex Feed Counter |
912K |
Replace the Document Nudger Roll, Feed |
|
|
|
Roll, Retard Roll, Registration Roll. |
|
|
|
|
955-810 |
Platen Interlock |
260K |
Replace the Platen Interlock Switch. |
|
Counter |
|
|
|
|
|
|
Table 1 High Frequency Service Items
Counter |
Name |
Threshold |
Service Action to be performed |
|
|
|
|
955-829 |
Inverter Solenoid On |
500K |
Replace the Inverter Solenoid. |
|
Counter |
|
|
|
|
|
|
Service Call Procedures |
January 2007 |
Reversion 4.0 |
Detailed Maintenance Activities |
|
|
1-6 |
WorkCentre 7132 |
Cleaning Procedures
Purpose
To provide cleaning procedures to be performed at every service call.
Procedure
CAUTION
Do not use any solvents unless directed to do so by the Service Manual.
General Cleaning
Use a dry lint free cloth or a lint free cloth moistened with water for all cleaning unless directed otherwise by the Service Manual. Wipe with a dry lint free cloth if a moistened cloth is used.
1.Feed Components (Rolls and Pads)
Follow the General Cleaning procedure above.
2.Toner Dispense Units
Vacuum the Toner Dispense units.
3.Jam Sensors
Clean the sensors with a dry cotton swab.
4.Scanner
a.Switch off the power and allow the Exposure Lamp to cool off.
b.Using the optical Cleaning Cloth, clean the front and rear of the Document Glass, Document Cover, White Reference Strip, Reflector, and Mirror.
c.Clean the Exposure Lamp with a clean cloth and Film Remover.
d.Clean the Lens with Lens and Mirror Cleaner and lint free cloth.
5.DADF
Check the paper path for debris or damage. Clean the rolls with a clean cloth and Film Remover as required.
6.Document Glass and Constant Velocity Transport Glass
Follow the General Cleaning procedure above.
7.ROS Window
Remove and reinstall the ROS CLeaning Wand.
8.IBT Belt
Check the Transfer Belt System and wipe with a dry lint free cloth. If the surface is excessively dirty, replace the IBT Belt (PL 6.2)
NOTE: Do not rub the IBT CLeaning Blade. If it is necessary to clean the blade, use a soft brush or dry swab to remove any contamination. Rubbing the blade will remove the protective coating.
9.Finisher
Check the paper path for debris or damage. Clean the Finisher with a dry lint free cloth.
Final Actions
Purpose
To provide a guide for procedures to be done at the end of every service call.
Procedure
1.Ensure that the exterior of the copier/printer and the adjacent area are clean. Use a dry cloth or a cloth moistened with water to clean the copier/printer. Do not use solvents.
2.Check the supply of consumables. Ensure that an adequate supply of consumables is available according to local operating procedures.
3.Complete the Service Log.
4.Perform the following steps to make a copy of the Demonstration Original for the customer:
a.Load Tray 1 with 8.5 x 11 inch (A4) or 11 x 17 inch paper.
b.Place the Color Test Pattern on the glass with the short edge of the test pattern registered to the left edge of the glass. Select Tray 1 and make a single copy.
c.Print out the Machine Settings (Configuration Report). Store this report with the service log in the Inner Cover.
d.Ask the customer to verify the Print and Scan functions.
e.Present the copies to the customer.
5.Reconnect the machine to the customer network. Verify the function.
6.Issue copy credits as needed.
7.Discuss the service call with the customer to ensure that the customer understands what has been done and is satisfied with the results of the service call.
Reversion 4.0 |
January 2007 |
Service Call Procedures |
|
Cleaning Procedures, Final Actions |
|
WorkCentre 7132 |
1-7 |
001 Power RAP
Power On RAP................................................................................................................ |
2-17 |
002 HDD
002-770 Job Template Processing - HDD Full RAP ....................................................... |
2-19 |
003 IPS-ESS Communication
003-318 IIT Software RAP .............................................................................................. |
2-21 |
003-319 IIT Video Driver Detection RAP ........................................................................ |
2-21 |
003-320 IISS-ESS Communication 1 RAP ..................................................................... |
2-22 |
003-321 IISS-ESS Communication 2 RAP ..................................................................... |
2-22 |
003-322 IISS-ESS Communication 3 RAP ..................................................................... |
2-23 |
003-323 IISS-ESS Communication 4 RAP ..................................................................... |
2-23 |
003-324 IISS-ESS Communication 5 RAP ..................................................................... |
2-24 |
003-325 IISS-ESS Communication 6 RAP ..................................................................... |
2-24 |
003-326 IISS-ESS Communication 7 RAP ..................................................................... |
2-25 |
003-327 IISS-ESS Communication 8 RAP ..................................................................... |
2-25 |
003-328 IISS-ESS Communication 9 RAP ..................................................................... |
2-26 |
003-329 IISS-ESS Communication 10 RAP ................................................................... |
2-26 |
003-330 IISS-ESS Communication 11 RAP ................................................................... |
2-27 |
003-331 IISS-ESS Communication 12 RAP ................................................................... |
2-27 |
003-332 IISS-ESS Communication 13 RAP ................................................................... |
2-28 |
003-333 IISS-ESS Communication 14 RAP ................................................................... |
2-28 |
003-334 IISS-ESS Communication 15 RAP ................................................................... |
2-29 |
003-335 IISS-ESS Communication 16 RAP ................................................................... |
2-29 |
003-336 IISS-ESS Communication 17 RAP ................................................................... |
2-30 |
003-337 IISS-ESS Communication 18 RAP ................................................................... |
2-30 |
003-338 IISS-ESS Communication 19 RAP ................................................................... |
2-31 |
003-339 IISS-ESS Communication 20 RAP ................................................................... |
2-31 |
003-340 IISS-ESS Communication 21 RAP ................................................................... |
2-32 |
003-341 IISS-ESS Communication 22 RAP ................................................................... |
2-32 |
003-342 IISS-ESS Communication 23 RAP ................................................................... |
2-33 |
003-343 IISS-ESS Communication 24 RAP ................................................................... |
2-33 |
003-344 Hotline Power On.............................................................................................. |
2-34 |
003-345 PIO Unlatched 1 RAP ....................................................................................... |
2-34 |
003-346 PIO Unlatched 2 RAP ....................................................................................... |
2-35 |
003-750 Book Duplex Documents RAP .......................................................................... |
2-35 |
003-751 Panther Capacity RAP ...................................................................................... |
2-36 |
003-754 S2X Recovery RAP........................................................................................... |
2-36 |
003-755 S2X Command Error RAP ................................................................................ |
2-37 |
003-756 Blank Originals RAP ......................................................................................... |
2-37 |
003-760 Scan Settings RAP ........................................................................................... |
2-38 |
003-761 Incorrect Paper Tray Size RAP......................................................................... |
2-38 |
003-763 Adjustment Chart RAP...................................................................................... |
2-39 |
003-764 Image Overlay RAP .......................................................................................... |
2-39 |
003-780 Scanned Image Compression RAP .................................................................. |
2-40 |
003-795 AMS Limit RAP ................................................................................................. |
2-40 |
003-930 300 DPI Scan RAP ........................................................................................... |
2-41 |
2 Status Indicator RAPs |
|
003-931 400 DPI Scan RAP............................................................................................ |
2-41 |
003-932 600 DPI Scan RAP............................................................................................ |
2-42 |
003-933 300 DPI Scan RAP............................................................................................ |
2-42 |
003-934 400 DPI Scan RAP............................................................................................ |
2-43 |
003-935 600 DPI Scan RAP............................................................................................ |
2-43 |
003-940 Memory RAP..................................................................................................... |
2-44 |
003-942 Document Size Auto Detect RAP...................................................................... |
2-44 |
003-944 Image Repeat Count RAP................................................................................. |
2-45 |
003-946 Image Rotation (Copy APS) RAP ..................................................................... |
2-45 |
003-947 Return Documents Count RAP ......................................................................... |
2-46 |
003-948 Return Documents Mismatch RAP ................................................................... |
2-46 |
003-952 Document Color Mismatch RAP ....................................................................... |
2-47 |
003-955 Documents Size Exchange RAP....................................................................... |
2-47 |
003-956 Coping from the Platen Failure RAP ................................................................. |
2-48 |
003-963 APS Object Tray RAP....................................................................................... |
2-48 |
003-965 ATS/APS Paper Detect RAP............................................................................. |
2-49 |
003-966 ATS/APS Destination (IIT) RAP........................................................................ |
2-49 |
003-970 Fax Line Memory RAP...................................................................................... |
2-50 |
003-972 Maximum Stored Page RAP ............................................................................. |
2-50 |
003-973 Image Rotation RAP ......................................................................................... |
2-51 |
003-974 Next Original Specification RAP........................................................................ |
2-51 |
003-976 FAX Line Memory Overflow RAP...................................................................... |
2-52 |
003-977 Document Mismatch (Multiple Scan) RAP ........................................................ |
2-52 |
003-978 Color Document Miss Match (Multi Scan) RAP ................................................ |
2-53 |
003-980 Staple Position RAP.......................................................................................... |
2-53 |
003-981 Staple Size RAP................................................................................................ |
2-54 |
003-982 IIT HDD Access Error RAP ............................................................................... |
2-54 |
005 DADF |
|
005-110 Belt DADF Regi Sensor On Dynamic Jam RAP ............................................... |
2-55 |
005-111 Belt DADF Regi Sensor Off Dynamic Jam RAP ............................................... |
2-55 |
005-112 Belt DADF Regi Sensor On Dynamic Jam RAP (Document Reverse) ............. |
2-56 |
005-113 Belt DADF Regi Sensor Off Dynamic Jam RAP (Document Reverse) ............. |
2-56 |
005-115 Belt DADF Exit Sensor On Dynamic Jam ......................................................... |
2-57 |
005-116 Belt DADF Exit Sensor Off Dynamic Jam ......................................................... |
2-57 |
005-121 CVT Feed Sensor On Jam RAP ....................................................................... |
2-58 |
005-122 CVT Simplex/Side1 Pre-Registration On Jam RAP .......................................... |
2-59 |
005-123 CVT Simplex/Side1 Registration Jam RAP....................................................... |
2-60 |
005-124 CVT Lead Reg Sensor On Jam ........................................................................ |
2-61 |
005-125 CVT Registration Sensor Off Jam RAP ............................................................ |
2-61 |
005-126 CVT Out Sensor On Jam .................................................................................. |
2-62 |

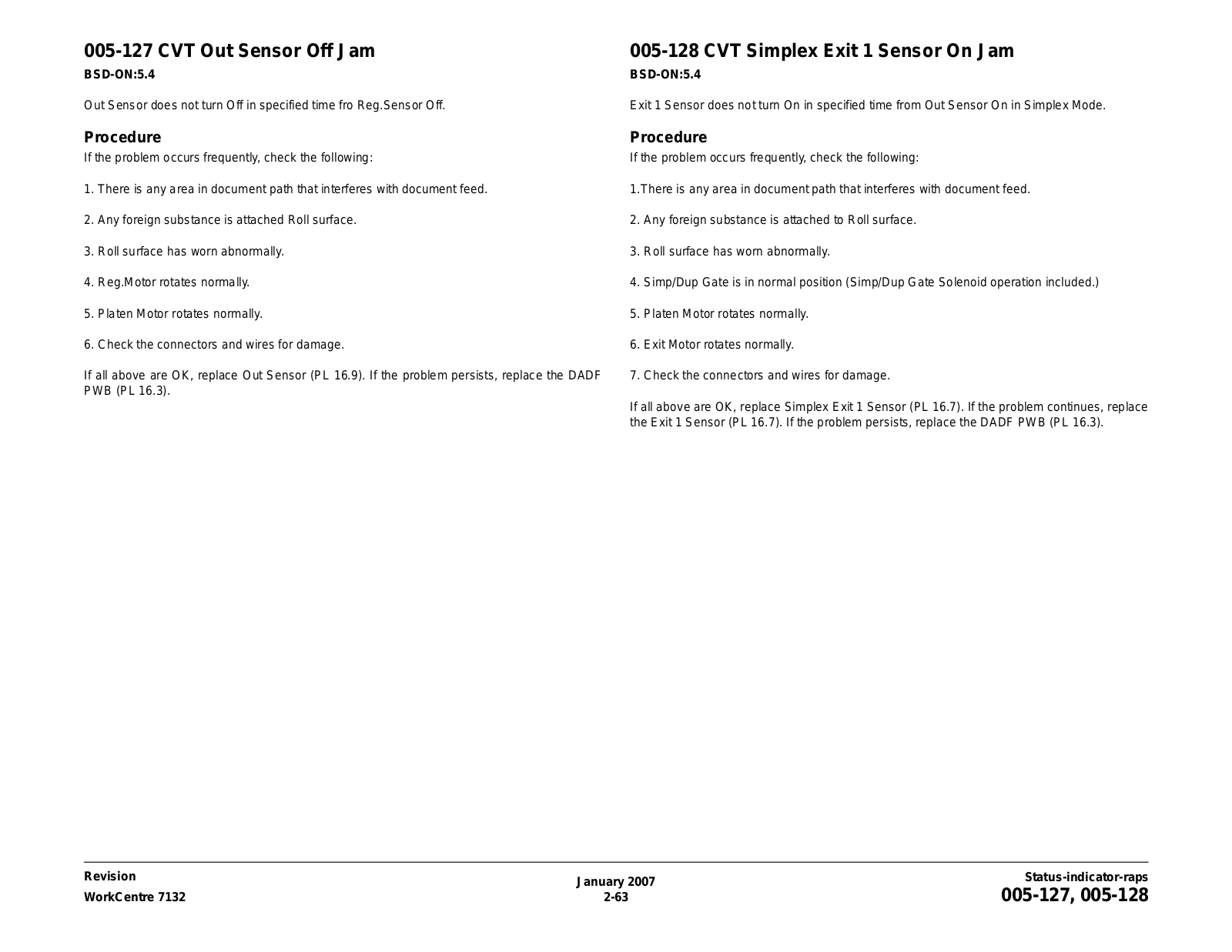

005-127 CVT Out Sensor Off Jam .................................................................................. |
2-63 |
005-128 CVT Simplex Exit 1 Sensor On Jam ................................................................. |
2-63 |
005-129 CVT Simplex Exit 1 Sensor Off Jam ................................................................. |
2-64 |
005-130 CVT Invert Sensor On Jam............................................................................... |
2-64 |
005-131 CVT Invert On Jam RAP ................................................................................... |
2-65 |
005-132 CVT Invert On Jam 2 RAP ................................................................................ |
2-66 |
005-133 CVT Invert Sensor Off Jam............................................................................... |
2-67 |
Revision |
January 2007 |
Status-indicator-raps |
|
|
|
WorkCentre 7132 |
2-1 |
|
005-134 CVT Invert Sensor Off Jam (Inverter) RAP....................................................... |
2-67 |
005-135 CVT Side2 Pre-Registration On Jam RAP........................................................ |
2-68 |
005-136 CVT Side2 Registration On Jam RAP .............................................................. |
2-69 |
005-137 CVT Exit 2 Sensor On Jam............................................................................... |
2-70 |
005-138 CVT Exit 1 Sensor On Jam (Side 2) ................................................................. |
2-71 |
005-139 CVT Invert Sensor Off Jam RAP ...................................................................... |
2-71 |
005-141 CVT Feed Sensor Off Jam................................................................................ |
2-72 |
005-142 CVT Exit 1 Sensor Off Jam (Side 2) ................................................................. |
2-73 |
005-143 CVT Exit 2 Sensor Off Jam............................................................................... |
2-73 |
005-144 CVT Pre Reg Sensor Jam ................................................................................ |
2-74 |
005-145 CVT Registration Sensor Off Jam (Invert) RAP................................................ |
2-74 |
005-146 CVT Pre Registration Sensor Off Jam RAP...................................................... |
2-75 |
005-147 CVT Pre Registration Sensor Off Jam (Invert) RAP ......................................... |
2-76 |
005-150 CVT Holed Paper Feed Sensor Off Jam........................................................... |
2-77 |
005-151 CVT Holed Paper Pre Reg Sensor Off Jam...................................................... |
2-78 |
005-152 CVT Holed Paper Reg Sensor Off Jam ............................................................ |
2-78 |
005-153 CVT Holed Paper Pre Reg Sensor Off Jam...................................................... |
2-79 |
005-154 CVT Holed Paper Out Sensor Off Jam ............................................................. |
2-79 |
005-155 CVT Holed Paper Simplex Exit 1 Sensor Off Jam ............................................ |
2-80 |
005-156 CVT Holed Paper Duplex Exit 1 Sensor Off Jam.............................................. |
2-80 |
005-157 CVT Holed Paper Invert Sensor Off Jam.......................................................... |
2-81 |
005-158 CVT Holed Paper Exit 2 Sensor Off Jam.......................................................... |
2-81 |
005-160 DADF Tray Lift Up Fail on running (Document Set).......................................... |
2-82 |
005-190 Feed Motor Logic Error Jam ............................................................................. |
2-82 |
005-194 Mixed Size Mismatch RAP................................................................................ |
2-83 |
005-195 Size Mismatch Jam........................................................................................... |
2-84 |
005-196 CVT Size Mismatch RAP .................................................................................. |
2-84 |
005-197 Prohibit Combine Size RAP .............................................................................. |
2-85 |
005-198 Document Length RAP ..................................................................................... |
2-86 |
005-199 Document Length RAP ..................................................................................... |
2-87 |
005-210 DADF Download Fail ........................................................................................ |
2-88 |
005-274 Original Size Sensor Fail .................................................................................. |
2-89 |
005-275 DADF RAM Failure RAP................................................................................... |
2-89 |
005-280 DADF EEPROM RAP ....................................................................................... |
2-90 |
005-281 DADF Tray Lift Down Failure ............................................................................ |
2-90 |
005-282 DADF Tray Lift Up Failure................................................................................. |
2-91 |
005-283 DADF Nudger Sensor RAP............................................................................... |
2-91 |
005-284 DADF APS Sensor Logic RAP.......................................................................... |
2-92 |
005-285 DADF Nudger Lift Up RAP................................................................................ |
2-93 |
005-286 DADF Feed Out Sensor RAP ........................................................................... |
2-94 |
005-301 DADF Top Cover Open..................................................................................... |
2-95 |
005-302 CVT Feeder Cover Interlock Open RAP ........................................................... |
2-96 |
005-304 CVT Platen Interlock Open RAP....................................................................... |
2-96 |
005-305 CVT Feeder Cover Interlock Open (running) RAP............................................ |
2-97 |
005-306 Tray Interlock Open while Running................................................................... |
2-97 |
005-307 CVT Platen Interlock Open on Running RAP ................................................... |
2-98 |
005-906 CVT Feed Sensor RAP..................................................................................... |
2-98 |
005-907 CVT Pre-Registration Sensor RAP ................................................................... |
2-99 |
005-908 CVT Registration Sensor RAP.......................................................................... |
2-99 |
005-309 Left Hand Interlock Open while Running .......................................................... |
2-100 |
005-900 No Belt DADF Applicable Sensor Static Jam.................................................... |
2-100 |
005-901 Belt DADF Doc Sensor Static Jam ................................................................... |
2-101 |
005-902 Belt DADF Regi Sensor Static Jam................................................................... |
2-101 |
|
005-903 Belt DADF Exit Sensor Static Jam.................................................................... |
2-102 |
|
005-904 Belt Dup Sensor Static Jam .............................................................................. |
2-102 |
|
005-909 DADF Lead Sensor Static Jam ......................................................................... |
2-103 |
|
005-910 DADF Out Sensor Static Jam ........................................................................... |
2-103 |
|
005-911 DADF Exit 1 Sensor Static Jam ........................................................................ |
2-104 |
|
005-912 DADF Exit 2 Sensor Static Jam ........................................................................ |
2-104 |
|
005-913 CVT Invert Sensor RAP .................................................................................... |
2-105 |
|
005-914 DADF APS1, 2, 3, Sensor Static Jam............................................................... |
2-105 |
|
005-915 CVT APS No1 Sensor RAP .............................................................................. |
2-106 |
|
005-916 CVT APS No2 Sensor RAP .............................................................................. |
2-106 |
|
005-917 CVT APS No3 Sensor RAP .............................................................................. |
2-107 |
|
005-918 CVT Invert Sensor Static Jam........................................................................... |
2-107 |
|
005-919 |
DADF Tray Lift Up Failure not during Job ......................................................... |
2-108 |
005-940 |
DADF No Original Failure ................................................................................. |
2-108 |
005-941 |
DADF Not Enough Documents Failure ............................................................. |
2-109 |
005-942 Document Loading RAP.................................................................................... |
2-109 |
|
005-943 |
DADF Tray Lift Up RAP .................................................................................... |
2-110 |
010 Fuser
010-311 Fuser Rear Thermistor Disconnected RAP....................................................... |
2-113 |
|
010-313 Control (Center) Thermistor RAP...................................................................... |
2-114 |
|
010-314 Rear Thermistor RAP........................................................................................ |
2-114 |
|
010-318 Hot-Sagging Recovery RAP.............................................................................. |
2-115 |
|
010-319 Fuser Center Thermistor Differential Amp RAP ................................................ |
2-115 |
|
010-320 Heat Roll Over Temperature RAP..................................................................... |
2-116 |
|
010-327 Fuser On Time RAP.......................................................................................... |
2-117 |
|
010-328 Fuser Warm-up Time RAP................................................................................ |
2-118 |
|
010-330 Fuser Motor Failure RAP .................................................................................. |
2-119 |
|
010-331 Fuser Rear Thermistor Over Temp RAP........................................................... |
2-119 |
|
010-332 Fuser Center Thermistor Disconnected RAP.................................................... |
2-120 |
|
010-333 Fuser Center Thermistor Overtemp RAP.......................................................... |
2-121 |
|
010-334 Fuser Center Thermistor Broken RAP .............................................................. |
2-122 |
|
010-335 Fuser Center Thermistor Out of Range RAP .................................................... |
2-123 |
|
010-336 |
Sub Lamp Disconnection Failure RAP.............................................................. |
2-124 |
010-398 |
Fuser Lock RAP................................................................................................ |
2-125 |
010-420 |
Fuser Near end of life RAP ............................................................................... |
2-126 |
010-421 |
Fuser end of life RAP........................................................................................ |
2-126 |
012 Finisher
012-111 Finisher H-Transport Entrance Sensor Off Jam RAP ....................................... |
2-127 |
|
012-112 Finisher H-Transport Entrance Sensor On Jam RAP ....................................... |
2-128 |
|
012-121 H-Transport Exit Sensor Off Jam RAP.............................................................. |
2-129 |
|
012-126 H-Transport Entrance Sensor OFF Jam B RAP ............................................... |
2-130 |
|
012-151 Compile Entrance Sensor Off Jam RAP ........................................................... |
2-131 |
|
012-152 |
Compile Entrance Sensor On Jam RAP ........................................................... |
2-132 |
012-161 |
Finisher Set Eject Jam RAP.............................................................................. |
2-133 |
012-162 H-Tra EXIT Sensor On Jam RAP...................................................................... |
2-134 |
|
012-211 |
Stacker Tray RAP ............................................................................................. |
2-135 |
012-212 |
Stacker Tray Upper Limit RAP .......................................................................... |
2-136 |
012-221 Front Tamper Home Sensor On RAP ............................................................... |
2-137 |
|
012-223 Front Tamper Home Sensor Off RAP ............................................................... |
2-138 |
|
Status-indicator-raps |
January 2007 |
Revision |
|
|
|
|
2-2 |
WorkCentre 7132 |
012-224 Rear Tamper Home Sensor Off RAP................................................................ |
2-139 |
012-260 Eject Clamp Home Sensor ON RAP................................................................. |
2-140 |
012-263 Rear Tamper Home Sensor ON RAP ............................................................... |
2-141 |
012-282 Eject Clamp Home Sensor Off RAP ................................................................. |
2-142 |
012-283 Set Clamp Home Sensor On RAP .................................................................... |
2-143 |
012-284 Set Clamp Home Sensor Off RAP .................................................................... |
2-144 |
012-285 Finisher Error .................................................................................................... |
2-145 |
012-291 Stapler RAP ...................................................................................................... |
2-145 |
012-293 Staple Front Corner Sensor On RAP................................................................ |
2-146 |
012-294 Staple Front Corner Sensor Off RAP................................................................ |
2-147 |
012-295 Staple Move Sensor On RAP ........................................................................... |
2-148 |
012-296 Staple Move Sensor Off RAP ........................................................................... |
2-149 |
012-301 Finisher Top Cover Open RAP ......................................................................... |
2-150 |
012-302 Finisher Front Cover Open RAP ....................................................................... |
2-151 |
012-303 Finisher H-Transport Cover Open RAP ............................................................ |
2-151 |
012-310 Front Tamper Home Sensor On Fail RAP ........................................................ |
2-152 |
012-311 Front Tamper Home Sensor Off Fail RAP ........................................................ |
2-153 |
012-312 Rear Tamper Home Sensor ON Fail RAP ........................................................ |
2-154 |
012-313 Rear Tamper Home Sensor Off Fail RAP......................................................... |
2-155 |
012-314 Eject Clamp Home Sensor On Failure RAP ..................................................... |
2-156 |
012-315 Eject Clamp Home Sensor Off Failure RAP ..................................................... |
2-157 |
012-316 Stapler Failure RAP .......................................................................................... |
2-158 |
012-317 Stapler Feed Ready Failure RAP...................................................................... |
2-159 |
012-318 Set Clamp Home Sensor On Failure RAP ........................................................ |
2-159 |
012-319 Set Clamp Home Sensor Off Failure RAP ........................................................ |
2-160 |
012-350 Finisher Communications Failure RAP ............................................................. |
2-161 |
012-500 ........................................................................................................................... |
2-162 |
012-600 Staple Mode Logic ............................................................................................ |
2-163 |
012-901 Finisher H-Transport Entrance Sensor RAP..................................................... |
2-163 |
012-902 H-Transport Exit Sensor RAP ........................................................................... |
2-164 |
012-903 Paper Remains at Compiler Entrance Sensor RAP.......................................... |
2-164 |
012-905 Compile Paper Sensor RAP ............................................................................. |
2-165 |
012-923 H-Transport Entrance Sensor B RAP ............................................................... |
2-165 |
012 a-finisher
012-132 (A-Finisher) Ent Sensor ON Jam ...................................................................... |
2-167 |
|
012-151 (A-Finisher) Compiler Exit Sensor OFF Jam .................................................... |
2-168 |
|
012-152 (A-Finisher) Compiler Exit Sensor ON Jam ...................................................... |
2-169 |
|
012-161 (A-Finisher) Set Eject Jam ................................................................................ |
2-170 |
|
012-211 (A-Finisher) Stacker Tray Fail ........................................................................... |
2-171 |
|
012-221 (A-Finisher) Front Tamper Home Sensor ON Fail ............................................ |
2-173 |
|
012-223 (A-Finisher) Front Tamper Home Sensor OFF Fail .......................................... |
2-174 |
|
012-224 (A-Finisher) Rear Tamper Home Sensor OFF Fail ........................................... |
2-175 |
|
012-259 (A-Finisher) Eject Home Sensor ON Fail .......................................................... |
2-176 |
|
012-263 (A-Finisher) Rear Tamper Home Sensor ON Fail............................................. |
2-177 |
|
012-280 (A-Finisher) Eject Home Sensor OFF Fail ........................................................ |
2-178 |
|
012-283 (A-Finisher) Set Clamp Home Sensor ON Fail ................................................. |
2-179 |
|
012-284 (A-Finisher) Set Clamp Home Sensor OFF Fail ............................................... |
2-180 |
|
012-291 |
(A-Finisher) Stapler Fail .................................................................................... |
2-181 |
012-301 |
(A-Finisher) Top Cover Interlock OPEN............................................................ |
2-182 |
012-302 |
(A-Finisher) Front Cover Interlock OPEN ......................................................... |
2-183 |
012-903 |
(A-Finisher) Paper Remains at Compiler Exit Sensor....................................... |
2-183 |
012-935 (A-Finisher) Paper Remains at Ent Sensor....................................................... |
2-184 |
016 FAX Service
016-210 Software Option (HDD Error) RAP.................................................................... |
2-185 |
016-211 Software Option (System Memory Low) RAP ................................................... |
2-185 |
016-212 Software Option (Page Memory Low) RAP....................................................... |
2-186 |
016-213 Software Option (Printer PWB) RAP................................................................. |
2-186 |
016-214 Serial Number Mismatch RAP .......................................................................... |
2-187 |
016-215 Software Option RAP........................................................................................ |
2-187 |
016-216 Software Option RAP........................................................................................ |
2-188 |
016-217 Software Option RAP........................................................................................ |
2-188 |
016-219 Software Option RAP........................................................................................ |
2-189 |
016-311 Scanner Install RAP .......................................................................................... |
2-189 |
016-315 IIT Interface RAP............................................................................................... |
2-190 |
016-316 Page Memory Not Detected RAP ..................................................................... |
2-190 |
016-317 Page Memory ErrorStandard RAP.................................................................. |
2-191 |
016-318 Page Memory ErrorOption RAP...................................................................... |
2-191 |
016-321 Fax Module RAP ............................................................................................... |
2-192 |
016-322 JBA Account Full RAP ...................................................................................... |
2-192 |
016-323 B Formatter RAP............................................................................................... |
2-193 |
016-450 SMB Host Name Duplicated RAP ..................................................................... |
2-193 |
016-454 DNS Dynamic Update RAP............................................................................... |
2-194 |
016-455 SMTP Server Time-out RAP............................................................................. |
2-194 |
016-456 SMTP time asynchronous RAP......................................................................... |
2-195 |
016-461 TBD RAP........................................................................................................... |
2-195 |
016-500 DIMM RAP ........................................................................................................ |
2-196 |
016-501 S2X RAP........................................................................................................... |
2-196 |
016-502 ROM Write RAP................................................................................................ |
2-197 |
016-503 SMTP Redirector RAP ...................................................................................... |
2-197 |
016-504 Redirector POP Server RAP............................................................................. |
2-198 |
016-505 Redirector POP Authentication RAP................................................................. |
2-198 |
016-506 Image Log RAP................................................................................................. |
2-199 |
016-507 Image Log Send RAP ....................................................................................... |
2-199 |
016-508 Image Log RAP................................................................................................. |
2-200 |
016-509 Image Log RAP................................................................................................. |
2-200 |
016-510 Image Log RAP................................................................................................. |
2-201 |
016-511 Image Log RAP................................................................................................. |
2-201 |
016-512 Image Log RAP................................................................................................. |
2-202 |
016-522 LDAP RAP ........................................................................................................ |
2-202 |
016-523 LDAP RAP ........................................................................................................ |
2-203 |
016-524 LDAP RAP ........................................................................................................ |
2-203 |
016-525 LDAP RAP ........................................................................................................ |
2-204 |
016-526 LDAP RAP ........................................................................................................ |
2-204 |
016-527 LDAP RAP ........................................................................................................ |
2-205 |
016-533 LDAP RAP ........................................................................................................ |
2-205 |
016-534 LDAP RAP ........................................................................................................ |
2-206 |
016-539 LDAP RAP ........................................................................................................ |
2-206 |
016-539 LDAP RAP ........................................................................................................ |
2-207 |
016-574 Host Name Error RAP....................................................................................... |
2-207 |
016-575 DNS Server Error in FTP RAP .......................................................................... |
2-208 |
016-576 Server Connection Error in FTP RAP ............................................................... |
2-208 |
016-577 FTP Service RAP .............................................................................................. |
2-209 |
Revision |
January 2007 |
Status-indicator-raps |
|
|
|
WorkCentre 7132 |
2-3 |
|
016-578 Login/Password Error RAP ............................................................................... |
2-209 |
016-733 Destination Address RAP.................................................................................. |
2-235 |
016-579 Scanning Picture Error RAP ............................................................................. |
2-210 |
016-734 Transmission Report RAP................................................................................. |
2-236 |
016-580 File Name Acquisition Failure RAP................................................................... |
2-210 |
016-735 Updating Job Template RAP............................................................................. |
2-236 |
016-581 File Name Suffix Limit Error RAP...................................................................... |
2-211 |
016-736 Remote Directory Lock RAP ............................................................................. |
2-237 |
016-582 File Creation Failure RAP ................................................................................. |
2-211 |
016-737 Remote Directory Removal RAP....................................................................... |
2-237 |
016-583 Lock Folder Creation Failure RAP .................................................................... |
2-212 |
016-741 Downloading Mode RAP................................................................................... |
2-238 |
016-584 Folder Creation Failure RAP............................................................................. |
2-212 |
016-742 TBD RAP........................................................................................................... |
2-238 |
016-585 File Delete Failure RAP .................................................................................... |
2-213 |
016-743 TBD RAP........................................................................................................... |
2-239 |
016-586 Lock Folder Delete Failure RAP ....................................................................... |
2-213 |
016-744 TBD RAP........................................................................................................... |
2-239 |
016-587 Folder Delete Failure RAP ................................................................................ |
2-214 |
016-745 TBD RAP........................................................................................................... |
2-240 |
016-588 Data Write-in Failure RAP................................................................................. |
2-214 |
016-746 Unsupported PDF File RAP .............................................................................. |
2-240 |
016-589 Data Read Failure RAP .................................................................................... |
2-215 |
016-747 Insufficient Memory........................................................................................... |
2-241 |
016-590 Data Reading Failure RAP................................................................................ |
2-215 |
016-748 HDD Full RAP ................................................................................................... |
2-241 |
016-591 Scan Filing Policy Injustice RAP ....................................................................... |
2-216 |
016-749 Post Script Font RAP ........................................................................................ |
2-242 |
016-592 NEXTNAME.DAT file access error RAP ........................................................... |
2-216 |
016-750 Print Job RAP.................................................................................................... |
2-242 |
016-593 Internal Scan Error RAP ................................................................................... |
2-217 |
016-751 PDF RAP........................................................................................................... |
2-243 |
016-594 TYPE Command Failure RAP........................................................................... |
2-217 |
016-752 PDF Memory Limit RAP .................................................................................... |
2-243 |
016-595 Port Command Failure RAP ............................................................................. |
2-218 |
016-753 PDF Password Mismatch RAP ......................................................................... |
2-244 |
016-596 CDUP Command Failure RAP.......................................................................... |
2-218 |
016-754 PDF LZW Not Installed RAP............................................................................. |
2-244 |
016-597 Same Name File Exists RAP ............................................................................ |
2-219 |
016-755 PDF Print Prohibited RAP ................................................................................. |
2-245 |
016-600 Key Operator Authentication Locked RAP........................................................ |
2-219 |
016-756 Auditron - Prohibit Service RAP........................................................................ |
2-245 |
016-601 Illegal Access Detection RAP ........................................................................... |
2-220 |
016-757 Auditron - Invalid User RAP .............................................................................. |
2-246 |
016-701 ART EX Memory Expended RAP ..................................................................... |
2-220 |
016-758 Auditron - Disabled Function RAP .................................................................... |
2-246 |
016-702 Out of Page Buffer RAP.................................................................................... |
2-221 |
016-759 Auditron - Reached Limit RAP .......................................................................... |
2-247 |
016-703 E-mail To Invalid Box RAP................................................................................ |
2-221 |
016-760 PostScript Decompose RAP ............................................................................. |
2-247 |
016-704 Mailbox Full RAP .............................................................................................. |
2-222 |
016-761 FIFO Empty RAP .............................................................................................. |
2-248 |
016-705 Secure Print RAP.............................................................................................. |
2-222 |
016-762 Print Language RAP ......................................................................................... |
2-248 |
016-706 Maximum Users Exceeded RAP....................................................................... |
2-223 |
016-764 SMTP Server Connection RAP ......................................................................... |
2-249 |
016-707 Sample Print RAP ............................................................................................. |
2-223 |
016-765 SMTP Server HDD Full RAP............................................................................. |
2-249 |
016-708 HDD Full Annotation/Watermark RAP .............................................................. |
2-224 |
016-766 SMTP Server File System RAP ........................................................................ |
2-250 |
016-709 ART EX Command RAP ................................................................................... |
2-224 |
016-767 Invalid E-mail Address RAP .............................................................................. |
2-250 |
016-710 Delayed Print RAP ............................................................................................ |
2-225 |
016-768 Invalid Sender Address RAP............................................................................. |
2-251 |
016-711 E-mail Transmission Size Limit RAP ................................................................ |
2-225 |
016-769 SMTP Server Unsupported DSN RAP.............................................................. |
2-251 |
016-712 Panther Capacity (I-Formatted) RAP ................................................................ |
2-226 |
016-770 FAX Function Cancelled RAP ........................................................................... |
2-252 |
016-713 Security Box Password RAP............................................................................. |
2-226 |
016-771 JBIG Parameter RAP ........................................................................................ |
2-252 |
016-714 Security Box Enable RAP ................................................................................. |
2-227 |
016-772 JBIG Parameter RAP ........................................................................................ |
2-253 |
016-716 TIFF Data Overflow RAP .................................................................................. |
2-227 |
016-773 JBIG Parameter RAP ........................................................................................ |
2-253 |
016-717 Fax/iFax Send RAP .......................................................................................... |
2-228 |
016-774 JBIG Parameter RAP ........................................................................................ |
2-254 |
016-718 PCL6 Memory RAP........................................................................................... |
2-228 |
016-775 JBIG Parameter RAP ........................................................................................ |
2-254 |
016-719 Out of PCL Memory RAP.................................................................................. |
2-229 |
016-776 JBIG Parameter RAP ........................................................................................ |
2-255 |
016-720 PCL Command RAP ......................................................................................... |
2-229 |
016-777 JBIG Parameter RAP ........................................................................................ |
2-255 |
016-721 Other Errors RAP.............................................................................................. |
2-230 |
016-778 JBIG Parameter RAP ........................................................................................ |
2-256 |
016-722 Staple Position RAP.......................................................................................... |
2-230 |
016-779 Scanned Image Conversion Error RAP ............................................................ |
2-256 |
016-724 Staple Position RAP.......................................................................................... |
2-231 |
016-780 Attached Document TIFF RAP.......................................................................... |
2-257 |
016-725 B-Formatter Image RAP ................................................................................... |
2-231 |
016-781 Scan Server Connect Error RAP....................................................................... |
2-257 |
016-726 PDL Auto Switch RAP....................................................................................... |
2-232 |
016-782 Scan Server Login Error RAP ........................................................................... |
2-258 |
016-727 Printer Request ................................................................................................. |
2-232 |
016-783 Invalid Server Path RAP ................................................................................... |
2-258 |
016-728 TIFF Data Unsupported RAP............................................................................ |
2-233 |
016-784 Server Write Error RAP..................................................................................... |
2-259 |
016-729 TIFF Data Size RAP ......................................................................................... |
2-233 |
016-785 Server HD Full RAP .......................................................................................... |
2-259 |
016-730 ART Command Unsupported RAP ................................................................... |
2-234 |
016-786 HD Full-Scan Write Error RAP .......................................................................... |
2-260 |
016-731 TIFF Data Invalid RAP ...................................................................................... |
2-234 |
016-787 Invalid Server IP ADD RAP............................................................................... |
2-260 |
016-732 Form Not Registered RAP ................................................................................ |
2-235 |
016-788 Retrieve to Browser RAP .................................................................................. |
2-261 |
|
|
|
|
Status-indicator-raps |
January 2007 |
Revision |
|
|
|
||
|
|
2-4 |
WorkCentre 7132 |
016-789 HD Full - Job Memory RAP............................................................................... |
2-261 |
018-768 LDAP RAP ........................................................................................................ |
|
2-286 |
016-790 Stapling Cancelled RAP.................................................................................... |
2-262 |
018-769 LDAP RAP ........................................................................................................ |
|
2-287 |
016-791 File Retrieve RAP ............................................................................................. |
2-262 |
018-770 LDAP RAP ........................................................................................................ |
|
2-287 |
016-792 Specified Job RAP ............................................................................................ |
2-263 |
018-771 LDAP RAP ........................................................................................................ |
|
2-288 |
016-793 MF I/O HD Full RAP.......................................................................................... |
2-263 |
018-780 LDAP RAP ........................................................................................................ |
|
2-288 |
016-798 No Trust Marking Option RAP .......................................................................... |
2-264 |
018-781 LDAP RAP ........................................................................................................ |
|
2-289 |
016-799 PLW Print Instruction RAP................................................................................ |
2-264 |
018-782 LDAP RAP ........................................................................................................ |
|
2-289 |
016-981 HDD access error RAP ..................................................................................... |
2-265 |
018-783 LDAP RAP ........................................................................................................ |
|
2-290 |
016-982 HDD access error 2 RAP .................................................................................. |
2-265 |
018-784 LDAP RAP ........................................................................................................ |
|
2-290 |
016-983 Log Image Storage Area on Disk Full RAP....................................................... |
2-266 |
018-785 LDAP RAP ........................................................................................................ |
|
2-291 |
016-985 Data size overflow (Scan to E-mail) RAP ......................................................... |
2-266 |
018-786 LDAP RAP ........................................................................................................ |
|
2-291 |
018 LDAP |
|
018-787 LDAP RAP ........................................................................................................ |
|
2-292 |
|
018-788 LDAP RAP |
|
2-292 |
|
018-505 SMB-DOS protocol error RAP |
2-267 |
|
||
018-789 LDAP RAP |
|
2-293 |
||
018-543 Shared name error in SMB server RAP |
2-267 |
|
||
018-790 LDAP RAP |
|
2-293 |
||
018-547 Number restriction over of SMB scan users RAP |
2-268 |
|
||
018-791 LDAP RAP |
|
2-294 |
||
018-595 LDAP protocol error RAP |
2-268 |
|
||
018-792 LDAP RAP |
|
2-294 |
||
018-701 LDAP RAP |
2-269 |
|
||
018-793 LDAP RAP |
|
2-295 |
||
018-702 LDAP RAP |
2-269 |
|
||
018-794 LDAP RAP |
|
2-295 |
||
018-703 LDAP RAP |
2-270 |
|
||
018-795 LDAP RAP |
|
2-296 |
||
018-704 LDAP RAP |
2-270 |
|
||
018-796 LDAP RAP |
|
2-296 |
||
018-705 LDAP RAP |
2-271 |
|
||
018-797 LDAP RAP |
|
2-297 |
||
018-706 LDAP RAP |
2-271 |
|
||
021 FAX |
|
|
||
018-707 LDAP RAP ........................................................................................................ |
2-272 |
|
|
|
018-708 LDAP RAP ........................................................................................................ |
2-272 |
021-360 EP Accessory Failure RAP ............................................................................... |
|
2-299 |
018-710 LDAP RAP ........................................................................................................ |
2-273 |
021-361 EP Accessory Kind Configuration Error RAP.................................................... |
|
2-299 |
018-711 LDAP RAP ........................................................................................................ |
2-273 |
021-731 EP Accessory - Function Disabled RAP ........................................................... |
|
2-300 |
018-712 LDAP RAP ........................................................................................................ |
2-274 |
021-732 EP Accessory - Service Canceled By Disable RAP.......................................... |
|
2-300 |
018-713 LDAP RAP ........................................................................................................ |
2-274 |
021-733 EP Accessory - Service Canceled By Color Mode Restriction RAP ................. |
2-301 |
|
018-714 LDAP RAP ........................................................................................................ |
2-275 |
021-750 Used Parts Request Failure (EP-SV) RAP ....................................................... |
|
2-301 |
018-716 LDAP RAP ........................................................................................................ |
2-275 |
021-751 Maintenance Request Failure (EP-SV) RAP..................................................... |
|
2-302 |
018-717 LDAP RAP ........................................................................................................ |
2-276 |
021-770 Used Parts Request Failure (EP-DX) RAP ....................................................... |
|
2-302 |
018-718 LDAP RAP ........................................................................................................ |
2-276 |
021-771 Maintenance Request Failure (EP-DX) RAP .................................................... |
|
2-303 |
018-719 LDAP RAP ........................................................................................................ |
2-277 |
021-772 EP-DX - Installation/Removal Failure RAP ....................................................... |
|
2-303 |
018-720 LDAP RAP ........................................................................................................ |
2-277 |
021-941 EP - Scan Service Paused By Disable RAP ..................................................... |
|
2-304 |
018-721 LDAP RAP ........................................................................................................ |
2-278 |
021-942 EP - Scan Service Paused By Color Mode RAP............................................... |
|
2-304 |
018-732 LDAP RAP ........................................................................................................ |
2-278 |
021-943 EP - Print Service Paused By Disable RAP ...................................................... |
|
2-305 |
018-733 LDAP RAP ........................................................................................................ |
2-279 |
021-944 EP - Print Service Paused By Color Mode RAP ............................................... |
|
2-305 |
018-734 LDAP RAP ........................................................................................................ |
2-279 |
021-945 EP - Service Paused By Disable RAP .............................................................. |
|
2-306 |
018-735 LDAP RAP ........................................................................................................ |
2-280 |
021-946 EP - Service Paused By Color Mode RAP........................................................ |
|
2-306 |
018-736 LDAP RAP ........................................................................................................ |
2-280 |
024 IOT-ESS Communication |
|
|
018-748 LDAP RAP |
2-281 |
|
|
|
024-340 IOT-ESS Communication 1 RAP |
|
2-307 |
||
018-749 LDAP RAP |
2-281 |
|
||
024-341 IOT-ESS Communication 2 RAP |
|
2-307 |
||
018-750 LDAP RAP |
2-282 |
|
||
024-342 IOT-ESS Communication 3 RAP |
|
2-308 |
||
018-751 LDAP RAP |
2-282 |
|
||
024-343 IOT-ESS Communication 4 RAP |
|
2-308 |
||
018-752 LDAP RAP |
2-283 |
|
||
024-345 IOT-ESS Communication 5 RAP |
|
2-309 |
||
018-753 LDAP RAP |
2-283 |
|
||
024-346 IOT-ESS Communication 6 RAP |
|
2-309 |
||
018-754 LDAP RAP |
2-284 |
|
||
024-347 IOT-ESS Communication 7 RAP |
|
2-310 |
||
018-764 LDAP RAP |
2-284 |
|
||
024-348 IOT-ESS Communication 8 RAP |
|
2-310 |
||
018-765 LDAP RAP |
2-285 |
|
||
024-349 IOT-ESS Communication 9 RAP |
|
2-311 |
||
018-766 LDAP RAP |
2-285 |
|
||
024-350 IOT-ESS Communication 10 RAP |
|
2-311 |
||
018-767 LDAP RAP |
2-286 |
|
||
|
|
|
||
|
|
|
|
|
Revision |
January 2007 |
Status-indicator-raps |
||
|
|
|
||
WorkCentre 7132 |
|
2-5 |
|
|
024-351 IOT-ESS Communication 11 RAP .................................................................... |
2-312 |
024-354 IOT-ESS Communication 14 RAP .................................................................... |
2-312 |
024-356 IOT-ESS Communication 16 RAP .................................................................... |
2-313 |
024-360 IOT-ESS Initialization RAP ............................................................................... |
2-313 |
024-362 Page Sync Start RAP........................................................................................ |
2-314 |
024-363 Page Sync Stop RAP........................................................................................ |
2-314 |
024-364 DMA Transfer RAP ........................................................................................... |
2-315 |
024-367 Decompression Synchronization RAP .............................................................. |
2-315 |
024-368 PCI RAP............................................................................................................ |
2-316 |
024-370 Marker Code Detection RAP............................................................................. |
2-316 |
024-371 IOT-ESS Communication 21 RAP .................................................................... |
2-317 |
024-372 IOT-ESS Communication 22 RAP .................................................................... |
2-317 |
024-373 IOT-ESS Communication 23 RAP .................................................................... |
2-318 |
024-375 IOT-ESS Communication 24 RAP .................................................................... |
2-318 |
024-600 Billing Master Counter RAP .............................................................................. |
2-319 |
024-601 Billing Backup Counter 1 RAP .......................................................................... |
2-319 |
024-602 Billing Backup Counter 2 RAP .......................................................................... |
2-320 |
024-603 Software Key Master Counter RAP .................................................................. |
2-320 |
024-604 Software Key Backup Counter 1 RAP .............................................................. |
2-321 |
024-605 Software Key Backup Counter 2 RAP .............................................................. |
2-321 |
024-747 Print Instruction RAP......................................................................................... |
2-322 |
024-910 Tray 1 size mismatch RAP................................................................................ |
2-323 |
024-911 Tray 2 size mismatch RAP................................................................................ |
2-324 |
024-912 Tray 3 size mismatch RAP................................................................................ |
2-325 |
024-916 Mix Full Stack RAP ........................................................................................... |
2-326 |
024-917 Stacker Tray Staple Set Over Count RAP ........................................................ |
2-327 |
024-919 Face UP Tray Close RAP ................................................................................. |
2-327 |
024-920 Face Down Tray 1 Paper Full RAP................................................................... |
2-328 |
024-922 Face Down Tray 1 Paper Full RAP................................................................... |
2-328 |
024-923 Y Toner Empty .................................................................................................. |
2-329 |
024-924 M Toner Empty ................................................................................................. |
2-329 |
024-925 C Toner Empty.................................................................................................. |
2-330 |
024-928 Scratch Sheet Compile RAP............................................................................. |
2-330 |
024-930 Stacker Tray Full RAP ...................................................................................... |
2-331 |
024-934 Paper Type Mismatch RAP............................................................................... |
2-332 |
024-946 Tray 1 Position RAP.......................................................................................... |
2-332 |
024-947 2TM Tray 2 Position RAP ................................................................................. |
2-333 |
024-947 TTM Tray 2 Position RAP ................................................................................. |
2-333 |
024-948 2TM Tray 3 Position RAP ................................................................................. |
2-334 |
024-948 TTM Tray 3 Position RAP ................................................................................. |
2-334 |
024-950 Tray 1 Empty RAP ............................................................................................ |
2-335 |
024-951 2TM Tray 2 Empty RAP .................................................................................... |
2-335 |
024-951 TTM Tray 2 Empty RAP.................................................................................... |
2-336 |
024-952 2TM Tray 3 Empty RAP .................................................................................... |
2-336 |
024-952 TTM Tray 3 Empty RAP.................................................................................... |
2-337 |
024-954 MSI Empty RAP ................................................................................................ |
2-337 |
024-958 MSI Size RAP ................................................................................................... |
2-338 |
024-959 Tray 1 Paper Size RAP..................................................................................... |
2-339 |
024-960 Tray 2 Paper Size RAP..................................................................................... |
2-340 |
024-961 Tray 3 Paper Size RAP..................................................................................... |
2-341 |
024-965 ATS/APS Paper (IOT detect) RAP.................................................................... |
2-342 |
024-966 ATS/APS Destination RAP ............................................................................... |
2-343 |
024-967 Mixed Width Paper (Staple Job) RAP............................................................... |
2-344 |
|
024-976 Staple Status Failed RAP.................................................................................. |
2-345 |
|
024-977 |
Stapler Feed Ready RAP.................................................................................. |
2-346 |
024-979 |
Stapler Near Empty RAP .................................................................................. |
2-346 |
024-980 |
Stacker Tray Full RAP....................................................................................... |
2-347 |
024-982 |
Stacker Lower Safety Warning RAP ................................................................. |
2-348 |
024-985 MSI Feed RAP .................................................................................................. |
2-349 |
|
024 IOT-ESS Communication-a-finisher
024-916 (A-Finisher) Mix Stack Full ................................................................................ |
2-351 |
|
024-917 (A-Finisher) Stacker Tray Staple Set Over Count............................................. |
2-352 |
|
024-928 (A-Finisher) Scratch Sheet Compile.................................................................. |
2-354 |
|
024-930 (A-Finisher) Stacker Tray Full Stack ................................................................. |
2-354 |
|
024-976 (A-Finisher) Staple NG...................................................................................... |
2-356 |
|
024-977 |
(A-Finisher) Stapler Feed Ready Fail................................................................ |
2-357 |
024-979 |
(A-Finisher) Stapler Near Empty ....................................................................... |
2-357 |
024-980 |
(A-Finisher) Stacker Tray Full Stack ................................................................. |
2-358 |
024-982 |
(A-Finisher) Stacker Lower Safety Warning...................................................... |
2-359 |
025 HDD Diagnostics
025-596 |
Diagnostic HDD Maintenance RAP................................................................... |
2-361 |
025-597 |
Diagnostic HDD Initialize RAP .......................................................................... |
2-361 |
026 Address Book
026-700 |
LDAP Protocol Max Error RAP ......................................................................... |
2-363 |
026-701 |
Address Book Request Overflow RAP.............................................................. |
2-363 |
026-702 |
Address Book Directory Service Overflow RAP................................................ |
2-364 |
027 MAIL
027-452 Duplicate IP Address RAP ................................................................................ |
2-365 |
027-500 SMTP Server Mail I/O RAP............................................................................... |
2-365 |
027-501 POP Server RAP............................................................................................... |
2-366 |
027-502 POP Authentication RAP .................................................................................. |
2-366 |
027-513 SMB Scan Client RAP....................................................................................... |
2-367 |
027-514 Host Name Solution Error RAP......................................................................... |
2-367 |
027-515 DNS Server Error in SMB RAP ......................................................................... |
2-368 |
027-516 Server Connection Error in SMB RAP .............................................................. |
2-368 |
027-518 Login/Password Error RAP ............................................................................... |
2-369 |
027-519 Scanning Picture Error RAP.............................................................................. |
2-369 |
027-520 File Name Acquisition Failure RAP................................................................... |
2-370 |
027-521 File Name Suffix Limit Error RAP...................................................................... |
2-370 |
027-522 File Creation Failure RAP ................................................................................. |
2-371 |
027-523 Lock Folder Creation Failure RAP .................................................................... |
2-371 |
027-524 Folder Creation Failure RAP............................................................................. |
2-372 |
027-525 File Delete Failure RAP..................................................................................... |
2-372 |
027-526 Lock Folder Delete Failure RAP........................................................................ |
2-373 |
027-527 Folder Delete Failure RAP ................................................................................ |
2-373 |
027-528 Data Write-in Failure RAP................................................................................. |
2-374 |
027-529 Data Read Failure RAP..................................................................................... |
2-374 |
027-530 Data Reading Failure RAP................................................................................ |
2-375 |
027-531 Scan Filing Policy Injustice RAP ....................................................................... |
2-375 |
027-532 NEXTNAME.DAT file access error RAP ........................................................... |
2-376 |
027-533 Internal Scan Error RAP.................................................................................... |
2-376 |
Status-indicator-raps |
January 2007 |
Revision |
|
|
|
|
2-6 |
WorkCentre 7132 |
027-543 Server Name Specification Error RAP .............................................................. |
2-377 |
027-547 SMB Protocol error 4-007 RAP......................................................................... |
2-377 |
027-548 SMB Protocol error 4-008 RAP......................................................................... |
2-378 |
027-549 SMB Protocol error 4-009 RAP......................................................................... |
2-378 |
027-564 SMB Protocol error 4-024 RAP......................................................................... |
2-379 |
027-565 SMB Protocol error 4-025 RAP......................................................................... |
2-379 |
027-566 SMB Protocol error 4-026 RAP......................................................................... |
2-380 |
027-569 SMB (TCP/IP) is not Started RAP..................................................................... |
2-380 |
027-572 SMB Protocol error 4-032 RAP......................................................................... |
2-381 |
027-573 SMB Protocol error 4-033 RAP......................................................................... |
2-381 |
027-574 SMB Protocol error 4-034 RAP......................................................................... |
2-382 |
027-576 SMB Protocol error 4-036 RAP......................................................................... |
2-382 |
027-578 SMB Protocol error 4-038 RAP......................................................................... |
2-383 |
027-584 SMB Protocol error 4-044 RAP......................................................................... |
2-383 |
027-585 SMB Protocol error 4-045 RAP......................................................................... |
2-384 |
027-586 SMB Protocol error 4-046 RAP......................................................................... |
2-384 |
027-587 SMB Protocol error 4-047 RAP......................................................................... |
2-385 |
027-588 SMB Protocol error 4-048 RAP......................................................................... |
2-385 |
027-589 SMB Protocol error 4-049 RAP......................................................................... |
2-386 |
027-590 SMB Protocol error 4-050 RAP......................................................................... |
2-386 |
027-591 SMB Protocol error 4-051 RAP......................................................................... |
2-387 |
027-599 SMB Protocol error 4-other codes RAP ............................................................ |
2-387 |
027-599 SMB Protocol error 4-other codes RAP ............................................................ |
2-388 |
027-706 Certificate RAP ................................................................................................. |
2-388 |
027-707 Certificate Expired RAP .................................................................................... |
2-389 |
027-708 Certificate Valid RAP ........................................................................................ |
2-389 |
027-709 Certificate Revoked RAP .................................................................................. |
2-390 |
027-710 Invalid S/MIME Mail RAP.................................................................................. |
2-390 |
027-711 S/MIME Mail Certificate RAP ............................................................................ |
2-391 |
027-712 S/MIME Mail Certificate RAP ............................................................................ |
2-391 |
027-713 S/MIME Mail Altered RAP................................................................................. |
2-392 |
027-714 S/MIME Mail Invalid RAP.................................................................................. |
2-392 |
027-715 S/MIME Mail Certificate Registration RAP........................................................ |
2-393 |
027-716 Email Signature RAP ........................................................................................ |
2-393 |
027-720 Extension Server Host RAP.............................................................................. |
2-394 |
027-721 Extension Server RAP ...................................................................................... |
2-394 |
027-722 Extension Server Time-out RAP ....................................................................... |
2-395 |
027-723 Extension Server Authentication RAP .............................................................. |
2-395 |
027-724 Extension Server Access RAP.......................................................................... |
2-396 |
027-725 Extension Server Operation RAP ..................................................................... |
2-396 |
027-726 Extension Server State RAP............................................................................. |
2-397 |
027-727 Extension Server Parameters RAP................................................................... |
2-397 |
027-728 Extension Server File RAP ............................................................................... |
2-398 |
027-737 Template Server Read RAP ............................................................................. |
2-398 |
027-739 Invalid Template Server Path RAP ................................................................... |
2-399 |
027-740 Template Server Login RAP ............................................................................. |
2-399 |
027-741 Template Server Connect RAP......................................................................... |
2-400 |
027-742 HDD File System RAP ...................................................................................... |
2-400 |
027-743 Template Server Install RAP............................................................................. |
2-401 |
027-744 Template Address RAP .................................................................................... |
2-401 |
027-745 Template Address Server RAP......................................................................... |
2-402 |
027-746 Job Template Pool Server RAP ........................................................................ |
2-402 |
027-750 Fax Document Inhibited RAP............................................................................ |
2-403 |
|
027-751 Job Template Analysis RAP.............................................................................. |
2-403 |
|
027-752 Required User Entry Not Entered RAP ............................................................. |
2-404 |
|
027-753 |
Job Flow Service Disabled RAP ....................................................................... |
2-404 |
027-754 |
Job Flow Service File Signature Mismatch RAP............................................... |
2-405 |
027-796 |
E-mail Not Printed RAP..................................................................................... |
2-405 |
027-797 |
Invalid Output Destination RAP......................................................................... |
2-406 |
033 FAX Control
033-363 Fax Control RAP ............................................................................................... |
2-407 |
033-710 Fax Control RAP ............................................................................................... |
2-407 |
033-712 Fax Control RAP ............................................................................................... |
2-408 |
033-713 Fax Control RAP ............................................................................................... |
2-408 |
033-715 Fax Control RAP ............................................................................................... |
2-409 |
033-716 Fax Control RAP ............................................................................................... |
2-409 |
033-717 Fax Control RAP ............................................................................................... |
2-410 |
033-718 Fax Control RAP ............................................................................................... |
2-410 |
033-719 Fax Control RAP ............................................................................................... |
2-411 |
033-721 Fax Control RAP ............................................................................................... |
2-411 |
033-722 Fax Control RAP ............................................................................................... |
2-412 |
033-724 Fax Control RAP ............................................................................................... |
2-412 |
033-725 Fax Control RAP ............................................................................................... |
2-413 |
033-726 Fax Control RAP ............................................................................................... |
2-413 |
033-727 Fax Control RAP ............................................................................................... |
2-414 |
033-728 Fax Control RAP ............................................................................................... |
2-414 |
033-731 Fax Control RAP ............................................................................................... |
2-415 |
033-732 Fax Control RAP ............................................................................................... |
2-415 |
033-733 Fax Control RAP ............................................................................................... |
2-416 |
033-734 Fax Control RAP ............................................................................................... |
2-416 |
033-735 Fax Control RAP ............................................................................................... |
2-417 |
033-736 Fax Control RAP ............................................................................................... |
2-417 |
033-737 Fax Control RAP ............................................................................................... |
2-418 |
033-738 Fax Control RAP ............................................................................................... |
2-418 |
033-740 Fax Control RAP ............................................................................................... |
2-419 |
033-741 Fax Control RAP ............................................................................................... |
2-419 |
033-742 Fax Control RAP ............................................................................................... |
2-420 |
033-743 Fax Control RAP ............................................................................................... |
2-420 |
033-744 Fax Control RAP ............................................................................................... |
2-421 |
033-745 Fax Control RAP ............................................................................................... |
2-421 |
033-746 Fax Control RAP ............................................................................................... |
2-422 |
033-747 Fax Control RAP ............................................................................................... |
2-422 |
033-749 Fax Control RAP ............................................................................................... |
2-423 |
033-750 Fax Control RAP ............................................................................................... |
2-423 |
033-751 Activity Report suspended RAP........................................................................ |
2-424 |
033-755 Fax printing is canceled Fax RAP ..................................................................... |
2-424 |
033-790 Fax Control RAP ............................................................................................... |
2-425 |
033-755 Fax Control RAP ............................................................................................... |
2-425 |
033-792 Fax Control RAP ............................................................................................... |
2-426 |
034 FAX Communication
034-211 Fax Communication RAP.................................................................................. |
2-427 |
034-212 Fax Communication RAP.................................................................................. |
2-427 |
Revision |
January 2007 |
Status-indicator-raps |
|
|
|
WorkCentre 7132 |
2-7 |
|
034-500 Fax Communication RAP.................................................................................. |
2-428 |
034-738 Fax Communication RAP |
.................................................................................. 2-454 |
034-501 Fax Communication RAP.................................................................................. |
2-428 |
034-739 Fax Communication RAP.................................................................................. |
2-454 |
034-505 Fax Communication RAP.................................................................................. |
2-429 |
034-740 Fax Communication RAP.................................................................................. |
2-455 |
034-506 Fax Communication RAP.................................................................................. |
2-429 |
034-741 Fax Communication RAP.................................................................................. |
2-455 |
034-507 Fax Communication RAP.................................................................................. |
2-430 |
034-742 Fax Communication RAP.................................................................................. |
2-456 |
034-508 Fax Communication RAP.................................................................................. |
2-430 |
034-743 Fax Communication RAP.................................................................................. |
2-456 |
034-509 Fax Communication RAP.................................................................................. |
2-431 |
034-744 Fax Communication RAP.................................................................................. |
2-457 |
034-510 Fax Communication RAP.................................................................................. |
2-431 |
034-745 Fax Communication RAP.................................................................................. |
2-457 |
034-511 Fax Communication RAP.................................................................................. |
2-432 |
034-746 Fax Communication RAP.................................................................................. |
2-458 |
034-512 Fax Communication RAP.................................................................................. |
2-432 |
034-747 Fax Communication RAP.................................................................................. |
2-458 |
034-513 Fax Communication RAP.................................................................................. |
2-433 |
034-748 Fax Communication RAP.................................................................................. |
2-459 |
034-514 Fax Communication RAP.................................................................................. |
2-433 |
034-749 Fax Communication RAP.................................................................................. |
2-459 |
034-515 Fax Communication RAP.................................................................................. |
2-434 |
034-750 Fax Communication RAP.................................................................................. |
2-460 |
034-519 Fax Communication RAP.................................................................................. |
2-434 |
034-751 Fax Communication RAP.................................................................................. |
2-460 |
034-520 Fax Communication RAP.................................................................................. |
2-435 |
034-752 Fax Communication RAP.................................................................................. |
2-461 |
034-522 Fax Communication RAP.................................................................................. |
2-435 |
034-753 Fax Communication RAP.................................................................................. |
2-461 |
034-523 Fax Communication RAP.................................................................................. |
2-436 |
034-754 Fax Communication RAP.................................................................................. |
2-462 |
034-528 Fax Communication RAP.................................................................................. |
2-436 |
034-755 Fax Communication RAP.................................................................................. |
2-462 |
034-529 Fax Communication RAP.................................................................................. |
2-437 |
034-756 Fax Communication RAP.................................................................................. |
2-463 |
034-530 Fax Communication RAP.................................................................................. |
2-437 |
034-757 Fax Communication RAP.................................................................................. |
2-463 |
034-550 Write to FaxCard-ROM error detection RAP..................................................... |
2-438 |
034-758 Fax Communication RAP.................................................................................. |
2-464 |
034-702 Fax Communication RAP.................................................................................. |
2-438 |
034-759 Fax Communication RAP.................................................................................. |
2-464 |
034-703 Fax Communication RAP.................................................................................. |
2-439 |
034-760 Fax Communication RAP.................................................................................. |
2-465 |
034-704 Fax Communication RAP.................................................................................. |
2-439 |
034-761 Fax Communication RAP.................................................................................. |
2-465 |
034-705 Fax Communication RAP.................................................................................. |
2-440 |
034-762 Fax Communication RAP.................................................................................. |
2-466 |
034-706 Fax Communication RAP.................................................................................. |
2-440 |
034-763 Fax Communication RAP.................................................................................. |
2-466 |
034-707 Fax Communication RAP.................................................................................. |
2-441 |
034-764 Fax Communication RAP.................................................................................. |
2-467 |
034-708 Fax Communication RAP.................................................................................. |
2-441 |
034-765 Fax Communication RAP.................................................................................. |
2-467 |
034-709 Fax Communication RAP.................................................................................. |
2-442 |
034-766 Fax Communication RAP.................................................................................. |
2-468 |
034-710 Fax Communication RAP.................................................................................. |
2-442 |
034-767 Fax Communication RAP.................................................................................. |
2-468 |
034-711 Fax Communication RAP.................................................................................. |
2-443 |
034-768 Fax Communication RAP.................................................................................. |
2-469 |
034-712 Fax Communication RAP.................................................................................. |
2-443 |
034-769 Fax Communication RAP.................................................................................. |
2-469 |
034-713 Fax Communication RAP.................................................................................. |
2-444 |
034-770 Fax Communication RAP.................................................................................. |
2-470 |
034-714 Fax Communication RAP.................................................................................. |
2-444 |
034-771 Fax Communication RAP.................................................................................. |
2-470 |
034-715 Fax Communication RAP.................................................................................. |
2-445 |
034-772 Fax Communication RAP.................................................................................. |
2-471 |
034-716 Fax Communication RAP.................................................................................. |
2-445 |
034-773 Fax Communication RAP.................................................................................. |
2-471 |
034-717 Fax Communication RAP.................................................................................. |
2-446 |
034-774 Fax Communication RAP.................................................................................. |
2-472 |
034-718 Fax Communication RAP.................................................................................. |
2-446 |
034-775 Fax Communication RAP.................................................................................. |
2-472 |
034-719 Fax Communication RAP.................................................................................. |
2-447 |
034-776 Fax Communication RAP.................................................................................. |
2-473 |
034-720 Fax Communication RAP.................................................................................. |
2-447 |
034-777 Fax Communication RAP.................................................................................. |
2-473 |
034-722 Fax Communication RAP.................................................................................. |
2-448 |
034-778 Fax Communication RAP.................................................................................. |
2-474 |
034-724 Fax Communication RAP.................................................................................. |
2-448 |
034-779 Fax Communication RAP.................................................................................. |
2-474 |
034-725 Fax Communication RAP.................................................................................. |
2-449 |
034-780 Fax Communication RAP.................................................................................. |
2-475 |
034-726 Fax Communication RAP.................................................................................. |
2-449 |
034-781 Fax Communication RAP.................................................................................. |
2-475 |
034-729 Fax Communication RAP.................................................................................. |
2-450 |
034-782 Fax Communication RAP.................................................................................. |
2-476 |
034-730 Fax Communication RAP.................................................................................. |
2-450 |
034-783 Fax Communication RAP.................................................................................. |
2-476 |
034-731 Fax Communication RAP.................................................................................. |
2-451 |
034-784 Fax Communication RAP.................................................................................. |
2-477 |
034-732 Fax Communication RAP.................................................................................. |
2-451 |
034-785 Fax Communication RAP.................................................................................. |
2-477 |
034-733 Fax Communication RAP.................................................................................. |
2-452 |
034-786 Fax Communication RAP.................................................................................. |
2-478 |
034-735 Fax Communication RAP.................................................................................. |
2-452 |
034-787 Fax Communication RAP.................................................................................. |
2-478 |
034-736 Fax Communication RAP.................................................................................. |
2-453 |
034-788 Fax Communication RAP.................................................................................. |
2-479 |
034-737 Fax Communication RAP.................................................................................. |
2-453 |
034-789 Fax Communication RAP.................................................................................. |
2-479 |
|
|
|
|
Status-indicator-raps |
January 2007 |
Revision |
|
|
|
||
|
|
2-8 |
WorkCentre 7132 |
034-790 Fax Communication Channel 0 RAP ................................................................ |
2-480 |
035-741 Fax Protocol RAP.............................................................................................. |
2-506 |
|
034-791 Fax Communication Channel 1 RAP ................................................................ |
2-480 |
035-742 Fax Protocol RAP.............................................................................................. |
2-507 |
|
034-792 Fax Communication Channel 2 RAP ................................................................ |
2-481 |
035-743 Fax Protocol RAP.............................................................................................. |
2-507 |
|
034-793 Fax Communication Channel 3 RAP ................................................................ |
2-481 |
035-744 Fax Protocol RAP.............................................................................................. |
2-508 |
|
034-794 Fax Communication Channel 4 RAP ................................................................ |
2-482 |
035-745 Fax Protocol RAP.............................................................................................. |
2-508 |
|
034-795 Fax Communication Channel 5 RAP ................................................................ |
2-482 |
035-746 Fax Protocol RAP.............................................................................................. |
2-509 |
|
034-796 Fax Communication Channel RAP ................................................................... |
2-483 |
035-747 Fax Protocol RAP.............................................................................................. |
2-509 |
|
035 FAX Network |
|
035-748 Fax Protocol RAP.............................................................................................. |
2-510 |
|
|
035-749 Fax Protocol RAP |
2-510 |
||
035-500 Fax Protocol RAP |
2-485 |
|||
035-750 Fax Protocol RAP |
2-511 |
|||
035-550 Write to FaxG3-ROM error detection RAP |
2-485 |
|||
035-751 Fax Protocol RAP |
2-511 |
|||
035-700 Fax Protocol RAP |
2-486 |
|||
035-752 Fax Protocol RAP |
2-512 |
|||
035-701 Fax Protocol RAP |
2-486 |
|||
035-762 Fax Protocol RAP |
2-512 |
|||
035-702 Fax Protocol RAP |
2-487 |
|||
036 FAX Parameter |
|
|||
035-703 Fax Protocol RAP ............................................................................................. |
2-487 |
|
||
035-704 Fax Protocol RAP ............................................................................................. |
2-488 |
036-500 Fax Parameter RAP .......................................................................................... |
2-513 |
|
035-705 Fax Protocol RAP ............................................................................................. |
2-488 |
036-501 Fax Parameter RAP .......................................................................................... |
2-513 |
|
035-706 Fax Protocol RAP ............................................................................................. |
2-489 |
036-502 Fax Parameter RAP .......................................................................................... |
2-514 |
|
035-707 Fax Protocol RAP ............................................................................................. |
2-489 |
036-503 Fax Parameter RAP .......................................................................................... |
2-514 |
|
035-708 Fax Protocol RAP ............................................................................................. |
2-490 |
036-504 Fax Parameter RAP .......................................................................................... |
2-515 |
|
035-709 Fax Protocol RAP ............................................................................................. |
2-490 |
036-505 Fax Parameter RAP .......................................................................................... |
2-515 |
|
035-710 Fax Protocol RAP ............................................................................................. |
2-491 |
036-506 Fax Parameter RAP .......................................................................................... |
2-516 |
|
035-711 Fax Protocol RAP ............................................................................................. |
2-491 |
036-507 Fax Parameter RAP .......................................................................................... |
2-516 |
|
035-712 Fax Protocol RAP ............................................................................................. |
2-492 |
036-508 Fax Parameter RAP .......................................................................................... |
2-517 |
|
035-713 Fax Protocol RAP ............................................................................................. |
2-492 |
036-509 Fax Parameter RAP .......................................................................................... |
2-517 |
|
035-714 Fax Protocol RAP ............................................................................................. |
2-493 |
036-510 Fax Parameter RAP .......................................................................................... |
2-518 |
|
035-715 Fax Protocol RAP ............................................................................................. |
2-493 |
036-511 Fax Parameter RAP .......................................................................................... |
2-518 |
|
035-716 Fax Protocol RAP ............................................................................................. |
2-494 |
036-512 Fax Parameter RAP .......................................................................................... |
2-519 |
|
035-717 Fax Protocol RAP ............................................................................................. |
2-494 |
036-513 Fax Parameter RAP .......................................................................................... |
2-519 |
|
035-718 Fax Protocol RAP ............................................................................................. |
2-495 |
036-514 Fax Parameter RAP .......................................................................................... |
2-520 |
|
035-719 Fax Protocol RAP ............................................................................................. |
2-495 |
036-515 Fax Parameter RAP .......................................................................................... |
2-520 |
|
035-720 Fax Protocol RAP ............................................................................................. |
2-496 |
036-516 Fax Parameter RAP .......................................................................................... |
2-521 |
|
035-721 Fax Protocol RAP ............................................................................................. |
2-496 |
036-517 Fax Parameter RAP .......................................................................................... |
2-521 |
|
035-722 Fax Protocol RAP ............................................................................................. |
2-497 |
036-518 Fax Parameter RAP .......................................................................................... |
2-522 |
|
035-723 Fax Protocol RAP ............................................................................................. |
2-497 |
036-519 Fax Parameter RAP .......................................................................................... |
2-522 |
|
035-724 Fax Protocol RAP ............................................................................................. |
2-498 |
036-520 Fax Parameter RAP .......................................................................................... |
2-523 |
|
035-725 Fax Protocol RAP ............................................................................................. |
2-498 |
036-521 Fax Parameter RAP .......................................................................................... |
2-523 |
|
035-726 Fax Protocol RAP ............................................................................................. |
2-499 |
036-522 Fax Parameter RAP .......................................................................................... |
2-524 |
|
035-727 Fax Protocol RAP ............................................................................................. |
2-499 |
036-523 Fax Parameter RAP .......................................................................................... |
2-524 |
|
035-728 Fax Protocol RAP ............................................................................................. |
2-500 |
036-524 Fax Parameter RAP .......................................................................................... |
2-525 |
|
035-729 Fax Protocol RAP ............................................................................................. |
2-500 |
036-525 Fax Parameter RAP .......................................................................................... |
2-525 |
|
035-730 Fax Protocol RAP ............................................................................................. |
2-501 |
036-526 Fax Parameter RAP .......................................................................................... |
2-526 |
|
035-731 Fax Protocol RAP ............................................................................................. |
2-501 |
036-527 Fax Parameter RAP .......................................................................................... |
2-526 |
|
035-732 Fax Protocol RAP ............................................................................................. |
2-502 |
036-528 Fax Parameter RAP .......................................................................................... |
2-527 |
|
035-733 Fax Protocol RAP ............................................................................................. |
2-502 |
036-529 Fax Parameter RAP .......................................................................................... |
2-527 |
|
035-734 Fax Protocol RAP ............................................................................................. |
2-503 |
036-530 Fax Parameter RAP .......................................................................................... |
2-528 |
|
035-735 Fax Protocol RAP ............................................................................................. |
2-503 |
036-531 Fax Parameter RAP .......................................................................................... |
2-528 |
|
035-736 Fax Protocol RAP ............................................................................................. |
2-504 |
036-532 Fax Parameter RAP .......................................................................................... |
2-529 |
|
035-737 Fax Protocol RAP ............................................................................................. |
2-504 |
036-533 Fax Parameter RAP .......................................................................................... |
2-529 |
|
035-738 Fax Protocol RAP ............................................................................................. |
2-505 |
036-534 Fax Parameter RAP .......................................................................................... |
2-530 |
|
035-739 Fax Protocol RAP ............................................................................................. |
2-505 |
036-535 Fax Parameter RAP .......................................................................................... |
2-530 |
|
035-740 Fax Protocol RAP ............................................................................................. |
2-506 |
036-536 Fax Parameter RAP .......................................................................................... |
2-531 |
|
|
|
|
|
|
Revision |
January 2007 |
Status-indicator-raps |
||
|
|
|||
WorkCentre 7132 |
|
2-9 |
|
|
036-537 Fax Parameter RAP.......................................................................................... |
2-531 |
036-745 Fax Parameter RAP |
.......................................................................................... 2-557 |
036-538 Fax Parameter RAP.......................................................................................... |
2-532 |
036-746 Fax Parameter RAP .......................................................................................... |
2-558 |
036-539 Fax Parameter RAP.......................................................................................... |
2-532 |
036-747 Fax Parameter RAP .......................................................................................... |
2-558 |
036-540 Fax Parameter RAP.......................................................................................... |
2-533 |
036-748 Fax Parameter RAP .......................................................................................... |
2-559 |
036-541 Fax Parameter RAP.......................................................................................... |
2-533 |
036-749 Fax Parameter RAP .......................................................................................... |
2-559 |
036-542 Fax Parameter RAP.......................................................................................... |
2-534 |
036-750 Fax Parameter RAP .......................................................................................... |
2-560 |
036-550 Fax Parameter RAP.......................................................................................... |
2-534 |
036-751 Fax Parameter RAP .......................................................................................... |
2-560 |
036-700 Fax Parameter RAP.......................................................................................... |
2-535 |
036-752 Fax Parameter RAP .......................................................................................... |
2-561 |
036-701 Fax Parameter RAP.......................................................................................... |
2-535 |
036-753 Fax Parameter RAP .......................................................................................... |
2-561 |
036-702 Fax Parameter RAP.......................................................................................... |
2-536 |
036-754 Fax Parameter RAP .......................................................................................... |
2-562 |
036-703 Fax Parameter RAP.......................................................................................... |
2-536 |
036-755 Fax Parameter RAP .......................................................................................... |
2-562 |
036-704 Fax Parameter RAP.......................................................................................... |
2-537 |
036-756 Fax Parameter RAP .......................................................................................... |
2-563 |
036-705 Fax Parameter RAP.......................................................................................... |
2-537 |
036-757 Fax Parameter RAP .......................................................................................... |
2-563 |
036-706 Fax Parameter RAP.......................................................................................... |
2-538 |
036-758 Fax Parameter RAP .......................................................................................... |
2-564 |
036-707 Fax Parameter RAP.......................................................................................... |
2-538 |
036-759 Fax Parameter RAP .......................................................................................... |
2-564 |
036-708 Fax Parameter RAP.......................................................................................... |
2-539 |
036-760 Fax Parameter RAP .......................................................................................... |
2-565 |
036-709 Fax Parameter RAP.......................................................................................... |
2-539 |
036-761 Fax Parameter RAP .......................................................................................... |
2-565 |
036-710 Fax Parameter RAP.......................................................................................... |
2-540 |
036-762 Fax Parameter RAP .......................................................................................... |
2-566 |
036-711 Fax Parameter RAP.......................................................................................... |
2-540 |
036-763 Fax Parameter RAP .......................................................................................... |
2-566 |
036-712 Fax Parameter RAP.......................................................................................... |
2-541 |
036-764 Fax Parameter RAP .......................................................................................... |
2-567 |
036-713 Fax Parameter RAP.......................................................................................... |
2-541 |
036-765 Fax Parameter RAP .......................................................................................... |
2-567 |
036-714 Fax Parameter RAP.......................................................................................... |
2-542 |
036-766 Fax Parameter RAP .......................................................................................... |
2-568 |
036-715 Fax Parameter RAP.......................................................................................... |
2-542 |
036-767 Fax Parameter RAP .......................................................................................... |
2-568 |
036-716 Fax Parameter RAP.......................................................................................... |
2-543 |
036-768 Fax Parameter RAP .......................................................................................... |
2-569 |
036-717 Fax Parameter RAP.......................................................................................... |
2-543 |
036-769 Fax Parameter RAP .......................................................................................... |
2-569 |
036-718 Fax Parameter RAP.......................................................................................... |
2-544 |
036-770 Fax Parameter RAP .......................................................................................... |
2-570 |
036-719 Fax Parameter RAP.......................................................................................... |
2-544 |
036-771 Fax Parameter RAP .......................................................................................... |
2-570 |
036-720 Fax Parameter RAP.......................................................................................... |
2-545 |
036-772 Fax Parameter RAP .......................................................................................... |
2-571 |
036-721 Fax Parameter RAP.......................................................................................... |
2-545 |
036-773 Fax Parameter RAP .......................................................................................... |
2-571 |
036-722 Fax Parameter RAP.......................................................................................... |
2-546 |
036-774 Fax Parameter RAP .......................................................................................... |
2-572 |
036-723 Fax Parameter RAP.......................................................................................... |
2-546 |
036-775 Fax Parameter RAP .......................................................................................... |
2-572 |
036-724 Fax Parameter RAP.......................................................................................... |
2-547 |
036-776 Fax Parameter RAP .......................................................................................... |
2-573 |
036-725 Fax Parameter RAP.......................................................................................... |
2-547 |
036-777 Fax Parameter RAP .......................................................................................... |
2-573 |
036-726 Fax Parameter RAP.......................................................................................... |
2-548 |
036-778 Fax Parameter RAP .......................................................................................... |
2-574 |
036-727 Fax Parameter RAP.......................................................................................... |
2-548 |
036-779 Fax Parameter RAP .......................................................................................... |
2-574 |
036-728 Fax Parameter RAP.......................................................................................... |
2-549 |
036-780 Fax Parameter RAP .......................................................................................... |
2-575 |
036-729 Fax Parameter RAP.......................................................................................... |
2-549 |
036-781 Fax Parameter RAP .......................................................................................... |
2-575 |
036-730 Fax Parameter RAP.......................................................................................... |
2-550 |
036-782 Fax Parameter RAP .......................................................................................... |
2-576 |
036-731 Fax Parameter RAP.......................................................................................... |
2-550 |
036-783 Fax Parameter RAP .......................................................................................... |
2-576 |
036-732 Fax Parameter RAP.......................................................................................... |
2-551 |
036-784 Fax Parameter RAP .......................................................................................... |
2-577 |
036-733 Fax Parameter RAP.......................................................................................... |
2-551 |
036-785 Fax Parameter RAP .......................................................................................... |
2-577 |
036-734 Fax Parameter RAP.......................................................................................... |
2-552 |
036-786 Fax Parameter RAP .......................................................................................... |
2-578 |
036-735 Fax Parameter RAP.......................................................................................... |
2-552 |
036-787 Fax Parameter RAP .......................................................................................... |
2-578 |
036-736 Fax Parameter RAP.......................................................................................... |
2-553 |
036-788 Fax Parameter RAP .......................................................................................... |
2-579 |
036-737 Fax Parameter RAP.......................................................................................... |
2-553 |
036-789 Fax Parameter RAP .......................................................................................... |
2-579 |
036-738 Fax Parameter RAP.......................................................................................... |
2-554 |
036-790 Fax Parameter RAP .......................................................................................... |
2-580 |
036-739 Fax Parameter RAP.......................................................................................... |
2-554 |
036-791 Fax Parameter RAP .......................................................................................... |
2-580 |
036-740 Fax Parameter RAP.......................................................................................... |
2-555 |
036-792 Fax Parameter RAP .......................................................................................... |
2-581 |
036-741 Fax Parameter RAP.......................................................................................... |
2-555 |
036-793 Fax Parameter RAP .......................................................................................... |
2-581 |
036-742 Fax Parameter RAP.......................................................................................... |
2-556 |
036-794 Fax Parameter RAP .......................................................................................... |
2-582 |
036-743 Fax Parameter RAP.......................................................................................... |
2-556 |
036-795 Fax Parameter RAP .......................................................................................... |
2-582 |
036-744 Fax Parameter RAP.......................................................................................... |
2-557 |
036-796 Fax Parameter RAP .......................................................................................... |
2-583 |
|
|
|
|
Status-indicator-raps |
January 2007 |
Revision |
|
|
|
||
|
|
2-10 |
WorkCentre 7132 |
036-797 Fax Parameter RAP.......................................................................................... |
2-583 |
061-325 SOS RAP .......................................................................................................... |
2-608 |
|
036-798 Fax Parameter RAP.......................................................................................... |
2-584 |
061-333 ROS Fan defect RAP........................................................................................ |
2-608 |
|
036-799 Fax Parameter RAP.......................................................................................... |
2-584 |
061-344 Video Processor RAP ....................................................................................... |
2-609 |
|
041 NVM |
|
061-345 +5 VDC Interlock RAP ...................................................................................... |
2-609 |
|
|
062 IIT |
|
||
041-310 IM Logic Failure ................................................................................................ |
2-585 |
|
||
041-311 MCU PWB Fuse F2 .......................................................................................... |
2-585 |
062-210 IIT Hot Line RAP ............................................................................................... |
2-611 |
|
041-312 MCU PWB Fuse F1 .......................................................................................... |
2-586 |
062-211 IIT/IPS PWB EEPROM RAP............................................................................. |
2-611 |
|
041-314 MCU PWB Fuse FA .......................................................................................... |
2-586 |
062-220 IIT/IPS PWB to ESS PWB RAP ........................................................................ |
2-612 |
|
041-319 MCU PWB Interlock Fuse F4............................................................................ |
2-587 |
062-277 IIT/IPS PWB DADF PWB Communication RAP................................................ |
2-612 |
|
041-320 MCU PWB Interlock Fuse F3............................................................................ |
2-587 |
062-278 IIT/IPS PWB RAP.............................................................................................. |
2-613 |
|
041-323 MCU PWB Fuse F5 .......................................................................................... |
2-588 |
062-300 Platen Interlock Open RAP ............................................................................... |
2-613 |
|
041-340 MCU PWB Data RAP........................................................................................ |
2-588 |
062-310 IIT/IPS PWB Controller Communication RAP ................................................... |
2-614 |
|
041-341 MCU PWB Access RAP.................................................................................... |
2-589 |
062-311 IIT/IPS Software RAP........................................................................................ |
2-614 |
|
041-342 MCU PWB Buffer RAP...................................................................................... |
2-589 |
062-345 IIT/IPS Subsystem RAP .................................................................................... |
2-615 |
|
041-500 ........................................................................................................................... |
2-590 |
062-357 CCD Fan Failure RAP....................................................................................... |
2-615 |
|
041-501 ........................................................................................................................... |
2-590 |
062-360 Carriage Position RAP ...................................................................................... |
2-616 |
|
042 Drives |
|
062-362 IIT/IPS PWB RAP.............................................................................................. |
2-617 |
|
|
062-371 Lamp Illumination RAP |
2-617 |
||
042-311 Auger Motor Failure RAP |
2-591 |
|||
062-380 Platen AGC CH1 RAP |
2-618 |
|||
042-313 Rear Cooling Fan Failure RAP |
2-591 |
|||
062-386 Platen AOC CH1 RAP |
2-618 |
|||
042-324 Drum Motor Drive Failure RAP |
2-592 |
|||
062-389 Carriage Over Run RAP |
2-619 |
|||
042-325 Main Motor Failure RAP |
2-592 |
|||
062-392 IIT/IPS PWB Memory Failure-1 RAP |
2-619 |
|||
042-400 Filter Life RAP |
2-593 |
|||
062-393 IIT/IPS PWB RAM RAP |
2-620 |
|||
|
|
|||
045 Marking |
|
062-500 IISS ROM RAP.................................................................................................. |
2-620 |
|
|
062-790 Prohibited Document Detection RAP |
2-621 |
||
045-310 Image RAP |
2-595 |
|||
|
|
|||
045-311 Controller Communications RAP ...................................................................... |
2-595 |
063 EXT PWB |
|
|
045-321 Marking Panel RAP........................................................................................... |
2-596 |
063-210 Extension EPROM RAP |
2-623 |
|
045-322 Marking Pitch RAP |
2-596 |
|||
063-220 IIT/IPS PWB Extension PWB Sync RAP |
2-623 |
|||
045-323 Marking Y RAP |
2-597 |
|||
063-230 Extension PWB DIMM RAP |
2-624 |
|||
045-324 Marking M RAP |
2-597 |
|||
063-240 Extension PWB Processing RAP |
2-624 |
|||
045-325 Marking C RAP |
2-598 |
|||
063-500 IISS Extension ROM RAP |
2-625 |
|||
045-326 Marking K RAP |
2-598 |
|||
065 CIS |
|
|||
045-327 Marking Y RAP ................................................................................................. |
2-599 |
|
||
045-328 Marking M RAP................................................................................................. |
2-599 |
065-210 Extension PWB DIMM RAP .............................................................................. |
2-627 |
|
045-329 Marking C RAP ................................................................................................. |
2-600 |
065-211 CIS Flash ROM RAP......................................................................................... |
2-627 |
|
045-330 Marking K RAP ................................................................................................. |
2-600 |
065-212 CIS Shading RAP.............................................................................................. |
2-628 |
|
045-331 Marking Reject RAP.......................................................................................... |
2-601 |
065-213 CIS Light RAP ................................................................................................... |
2-628 |
|
045-332 Marking Reject RAP.......................................................................................... |
2-601 |
065-215 Extension PWB DIMM 2 RAP ........................................................................... |
2-629 |
|
045-333 Marking Communication RAP........................................................................... |
2-602 |
065-216 Extension PWB DIMM 3 RAP ........................................................................... |
2-629 |
|
045-334 Marking Drive Communication RAP ................................................................. |
2-602 |
065-219 CIS Black/White RAP........................................................................................ |
2-630 |
|
045-335 Marking Fuser Communication RAP................................................................. |
2-603 |
065-220 IF PWB Sync RAP ............................................................................................ |
2-630 |
|
045-336 Marking ROS Communication RAP .................................................................. |
2-603 |
071 Tray 1 |
|
|
045-337 Marking Imaging Communication RAP |
2-604 |
|
||
071-100 Tray 1 Pre Feed RAP |
2-631 |
|||
047 Communication |
|
|||
|
071-101 Tray 1 Misfeed RAP .......................................................................................... |
2-632 |
||
047-211 OCT 2 RAP ....................................................................................................... |
2-605 |
071-105 Registration Sensor RAP .................................................................................. |
2-633 |
|
047-214 MCU Duplex Module RAP ................................................................................ |
2-605 |
071-211 Tray 1 RAP........................................................................................................ |
2-634 |
|
047-216 MCU Finisher Communication RAP.................................................................. |
2-606 |
071-212 Tray 1 Ready RAP ............................................................................................ |
2-634 |
|
061 ROS |
|
071-210 Tray 1 Lift Up RAP ............................................................................................ |
2-635 |
|
|
071-401 Tray 1 Feed Roll Life RAP |
2-636 |
||
061-320 ROS Motor RAP |
2-607 |
|||
071-402 Tray 1 Feed Roll Replacement RAP |
2-637 |
|||
|
|
|||
|
|
|
|
|
Revision |
January 2007 |
Status-indicator-raps |
||
|
|
|||
WorkCentre 7132 |
|
2-11 |
|
|
Loading...
