SCC-B2335(P)
SCC-B2035P
DIGITAL COLOR CAMERA
user manual
ITA SPA GER FRE ENG
imagine the possibilities
Thank you for purchasing this Samsung product. To receive more complete service,
please register your product at
www.samsungsecurity.com
Safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL..
This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product.
This symbol alerts you that important literature concerning operation and maintenance has been included with this product.
WARNING
•To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.
WARNING
1.Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product
2.Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or damage to the product.
3.Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat generation or fire.
4.Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5.When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury.
6.Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
7.Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
8.If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
9.If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)
10.W e
CAUT
1.D s
2.D 1
3.If o
4.R c
5.K
6.I
7.A d
8.A v
9.T
2 – DIGITAL COLOR CAMERA
Safety information
10.When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.
CAUTION
1.Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to excessive vibrationor magnetic interference.
2.Do not install in a location subject to high temperature (over 50°C), low temperature (below - 10°C), or high humidity. Doing so may cause fire or electric shock.
d of |
3. |
If you want to relocate the already installed product, be sure to turn off the power and then move |
|
||
|
|
or reinstall it. |
ce |
4. |
Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may |
|
cause fire or damage to the product. |
|
|
|
5.Keep out of direct sunlight and heat radiation sources. It may cause fire.
6.Install it in a place with good ventilation.
nce |
7. |
Avoid aiming the camera directly towards extremely bright objects such as sun, as this may |
|
|
|
||
|
|
damage the CCD image sensor. |
ENG |
|
8. |
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as |
|
|
|
||
|
|
vases, shall be placed on the apparatus. |
|
|
9. |
The Mains plug is used as a disconnect device and shall stay readily operable at any time. |
|
c |
|
|
|
d k,
ch
ed
English – 3
Important Safety Instructions
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8.Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
12.Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
13.Unplug this apparatus when a card is used. Use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
4 – DIGITAL COLOR CAMERA
es wide ult
ave y, or
Contents
Introduction
Features |
|
6 |
PRODUCT & ACCESSORIES |
|
7 |
Part Names and Functions |
|
8 |
Installation

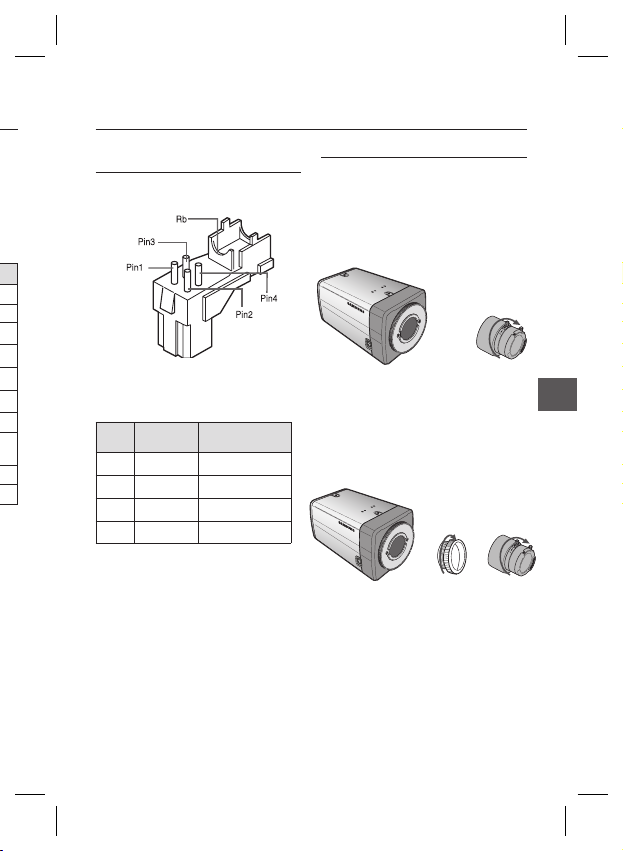

Connecting the Auto Iris Lens Connector |
|
11 |
Mounting the lens |
|
11 |
Connecting cables and checking operation |
|
12 |
How to use OSD Menu |
|
|
Using Icons in the Menu |
13 |
|
Main Menu |
13 |
|
Profile |
14 |
|
Camera Setup |
16 |
|
Intelligence |
23 |
ENG |
Privacy zone Setup |
25 |
|
Other Set |
26 |
|
Communication |
26 |
|
System Information |
27 |
|
Language |
27 |
|
Specifications |
|
|
Specifications |
28 |
|
English – 5
Introduction
FEATURES
High Resolution
• This camera has realized high resolution of 600 lines using the top-notch full digital image processing and special algorithm technologies.
VPS(Virtual Progressive Scan)
•This is an advanced technology that reproduces a sharp progressive image. This is appropriate to high quality recording and file transfer via the Internet.
Intelligent Motion Detection & Tracking
•This is an intelligent function that automatically detects a motion of an object. You can set a virtual fence so it sounds an alert if an object passes / enters /exits the virtual fence or virtual area.
WDR
•WDR extends the contrast range as it takes a picture of each of dark and bright areas before compositing the two, which is useful if you take a picture of windows inside a building. Namely, it improves the picture quality of the outdoor scenery as well as indoor.
XDR (eXtended Dynamic Range)
•Actively controls the gamma compensation in the way it operates the ambient luminance contrast in a certain pixel unit to determine the optimal visibility.
DAY/NIGHT
•This function can make the IR Cut filtering function inactive under the illumination below the normal value.
High Sensitivity
•It implements images of high sensitivity using the up-to-date SONY Super-HAD Progressive CCD.
Low Illumination
•It uses the digital signal technologies such as low illumination and Day/Night functions that make your camera identify objects even in the worst environment.
Superior Backlight Adjustment
•When an object has a bright illumination or sunlight behind it, this camera automatically improves the shaded object picture quality.
Digital Power Synchronization
•The full digital Line Lock function directly adjusts the vertical camera synchronization to enhance the operationability and reliability of this camera.
Output Signal Setting
•You can set the following Video output signals: Image reversion (Horizontal, Vertical, or both), Privacy, Horizontal/Vertical profiling, and digital zooming.
OSD(On Screen Display) Menu
•OSD menu is provided to display the status of camera and to configure the functions interactively.
Coaxial Cable Communication
•This is a remote control function that overlaps the coaxial cable (for a transfer of the video signal) with the control signal. In installation or repair, this helps you control the communication controller (optional) without additional cabling.
PR
P
•
•
Came
6 – DIGITAL COLOR CAMERA
Introduction
PRODUCT & ACCESSORIES
Product & Accessories
nd
• Main Product
t
ting ure
Camera |
ENG |
|
e.
• Accessories
a
Camera Holder(Mount) |
C Mount Adapter |
User’s Manual |
Auto Iris |
|
|
|
Lens Connector |
t
English – 7
Introduction
PART NAMES AND FUNCTIONS |
R |
Side View
Mount Adapter
Fixing Grooves
Auto Iris Lens |
Camera Lens |
|
Connector |
||
|
Auto Iris Lens
Control Cable
• Auto Iris Lens Connector
This groove is used for screwing the mount adapter, a part of the bracket where the camera will be installed.
•Auto Iris Lens Control Cable
This cable transmits the power and signals from the camera for controlling the Auto Iris Lens.
•Mount Adapter Fixing Grooves
These grooves are used when fixing screws of the mount adapter connected to the bracket when installing the camera on it.
Note :
–When the camera lens becomes dirty, softly clean it with a lens tissue or a cloth soaked in pure ethanol.
8 – DIGITAL COLOR CAMERA
Introduction
Rear Panel
|
<AC24/DC12V (SCC-B2335(P))> |
n |
o |
|
p |
q |
|
|
|
|
|
|
r |
|
|
|
|
s |
ENG |
|
|
|
|
lled. |
|
<AC220V~240V(SCC-B2035P)> |
|
|
|
|
ing n
o
p
s |
q |
|
English – 9
Introduction
nInput/Output Connector
This connector has input and output ports for RS-485 control signals, DAY/NIGHT switching, and alarm output signals.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
No. |
|
|
|
|
|
|
Function |
|
Description |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
ALARM OUT |
|
Alarm out port for motion detection. (Open collector type) |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
|
|
|
|
|
GND |
|
Grounding Port. |
|||
3 |
|
|
|
|
|
TRIGGER IN |
|
Displays the current still image when it receives the Trigger signal. |
||||
|
|
|
|
|
|
(Normal Open Type) |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
|
|
SHUTTER (S0) |
|
This is a port for selecting an external high speed shutter mode. |
||||
|
|
|
|
|
|
If connected in LOW (0V), it will become ON inside. |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
|
|
|
SHUTTER (S1) |
|
This is a port for selecting an external high speed shutter mode. |
||||
|
|
|
|
|
|
If connected in LOW (0V), it will become ON inside. |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
|
|
|
|
SHUTTER (S2) |
|
This is a port for selecting an external high speed shutter mode. |
||||
|
|
|
|
|
|
If connected in LOW (0V), it will become ON inside. |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
7 |
|
|
|
|
|
|
5V OUT |
|
Power supply port for RS-485 JIG. Use within typical DC +5V 100mA |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
This is a port for DAY&NIGHT conversion. |
8 |
|
|
|
|
|
DAY/NIGHT IN |
|
High(DC +3V~+5V) : DAY(COLOR) Mode, |
||||
|
|
|
|
|
|
|
|
|
|
|
|
Low(0V) : NIGHT(BW) Mode |
9 |
|
|
|
|
|
RS-485 DATA- |
|
This is a port for connection to RS-485 DATAsignal line. |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
|
|
|
|
RS-485 DATA+ |
|
This is a port for connection to RS-485 DATA+ signal line. |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
oSETUP Switch
This switch is used to set the function or property. When this switch is pressed for at least 2 seconds, the MAIN MENU appears.
ef(Left/Right) : By pressing this switch left or right, you can move left or right on the menu or change the displayed value.
cd(Up/Down) : By pressing this switch up or down, you can move up or down on the menu.
: When you press this switch in the menu, the selected function is confirmed. To enter a submenu, press this button.
pPower Display LED
When the power is normally connected, the red LED lights.
qVideo OUT Port
This is connected to the Video Input Port of the monitor and it outputs the Video signals.
rGND
This is a grounding port.
sPower Connection Port
This is connected to the Power cable.
