Operating Instructions

Air Conditioner

Model No. Indoor Unit

CS-E7RKDW CS-E9RKDW CS-E12RKDW CS-E15RKDW CS-E18RKDW CS-E24RKDW CS-E28RKDS CS-ME21RKD

Outdoor Unit Single Split Multi Split

CU-E7RKD CU-E9RKD CU-E12RKD CU-E15RKD CU-E18RKD CU-E24RKD CU-E28RKD

CU-2E15PBD CU-2E18PBD CU-4E27PBD CU-5E34PBD U-3E18JBE U-4E23JBE

i AUTO-X

Operating Instructions Air Conditioner

Thank you for purchasing Panasonic Air Conditioner. Installation instructions attached. Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

Инструкции по эксплуатации Кондиционер воздуха

Благодарим вас за приобретение кондиционера Panasonic.

Инструкции по монтажу прилагаются. Перед началом эксплуатации данного устройства внимательно прочитайте инструкции по эксплуатации и сохраните их.

Інструкція з експлуатації Кондиціонер

Дякуємо за придбання кондиціонера компанії Panasonic.

Інструкції зі встановлення додаються. Уважно прочитайте цю інструкцію перед експлуатацією кондиціонера і збережіть у майбутньому.

Пайдалану нұсқаулары Ауа желдеткіші

Panasonic ауа желдеткішін сатып алғаныңыз үшін рақмет. Орнату нұсқаулары бірге беріледі. Құрылғыны пайдаланбас бұрын осы пайдалану нұсқауларын мұқият оқыңыз жəне оларды болашақ анықтамалық үшін сақтап қойыңыз.

2-12

13-26

27-38

її для довідок

39-51

Қазақша Українська Руccкий English

F569880

Provide fast cooling, maximum comfort, clean air and optimise energy saving

i AUTO-X Cooling when it counts, Comfort when it matters

i AUTO-X with the new Panasonic Thermal Enhancement Technology (P-TECh) is a unique Panasonic compressor control technology which enable compressor to achieve maximum frequency in a short time.

i AUTO-X also comes with new AEROWINGS - twin ﬂ aps that works dynamically to adjust airﬂ ow directions. AEROWINGS gives you fast cooling at start up by directing airﬂ ow downwards*, and comfort of shower cooling by directing airﬂ ow upwards*.

So, you get to enjoy instant fast cooling satisfaction on a hot day and cooling comfort that goes on all day long.

*Applicable for horizontal ﬂ ap AUTO setting.

ECONAVI + INVERTER The Perfect Energy Saving Technology

ECONAVI detects where energy is normally wasted and adjusts cooling power depending on room conditions and activity levels. Then, INVERTER leverages ECONAVI sensor data and varies compressor rotation speed. This helps to optimize cooling operation and reduces wasteful cooling.

nanoe-G Puriﬁ es the air down to the smallest particles

Deactivates harmful micro-organisms such as viruses, bacteria, etc. to keep air clean. It also deactivates viruses and bacteria on the ﬁ lter to keep inside of the unit clean.

See “To learn more...” for details.

Multi air conditioner system

Multi air conditioner systems save space by letting you connect multiple indoor units to a single outdoor unit.

• For complete product features, please refer catalogue.

Indoor units

• It is possible to operate the indoor units individually or simultaneously. The priority of operation is placed on the ﬁ rst unit that turned on.

• During operation, HEAT and COOL modes cannot activate at the same time for different indoor units.

• The power indicator blinks to indicate the indoor unit is standing by for a different operation mode.

Indoor units

Outdoor unit

( CU-2E15PBD, CU-2E18PBD, CU-4E27PBD,

CU-5E34PBD, U-3E18JBE, U-4E23JBE)

Quick guide

RES

CANCEL

TIMER

RES

OFFS

CANCEL

TIMER

NANOE-G

AUTOCOMFO

UTO-X

TIMER

123

OFF

ETCHE

AIR CONDITIONER

IR CONDITIONE

iAUTO-X

2 3

SET

CANCEL

CLOCKSET CHECK RESET

MODE

Inserting the batteries

Pull out the back cover of

remote control Insert AAA or R03 batteries

(can be used ~ 1 year)

Close the cover

Clock setting

Press CLOCK

Set the time

Conﬁ rm

Basic operation

Select the desired mode

i AUTO-X AUTO HEAT

DRY COOL

Start/stop the operation

Table of contents

Safety precautions ...................4-5

How to use...............................6-7

To learn more... ......................8-9

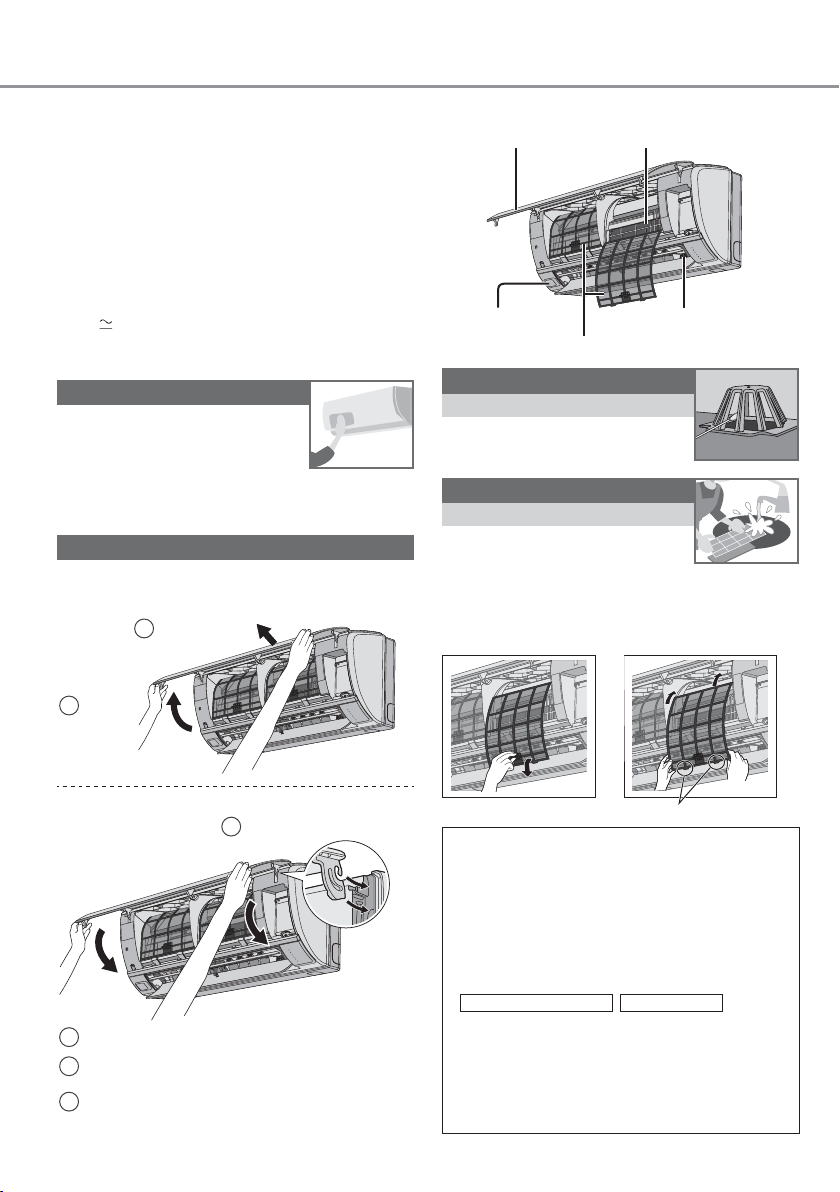

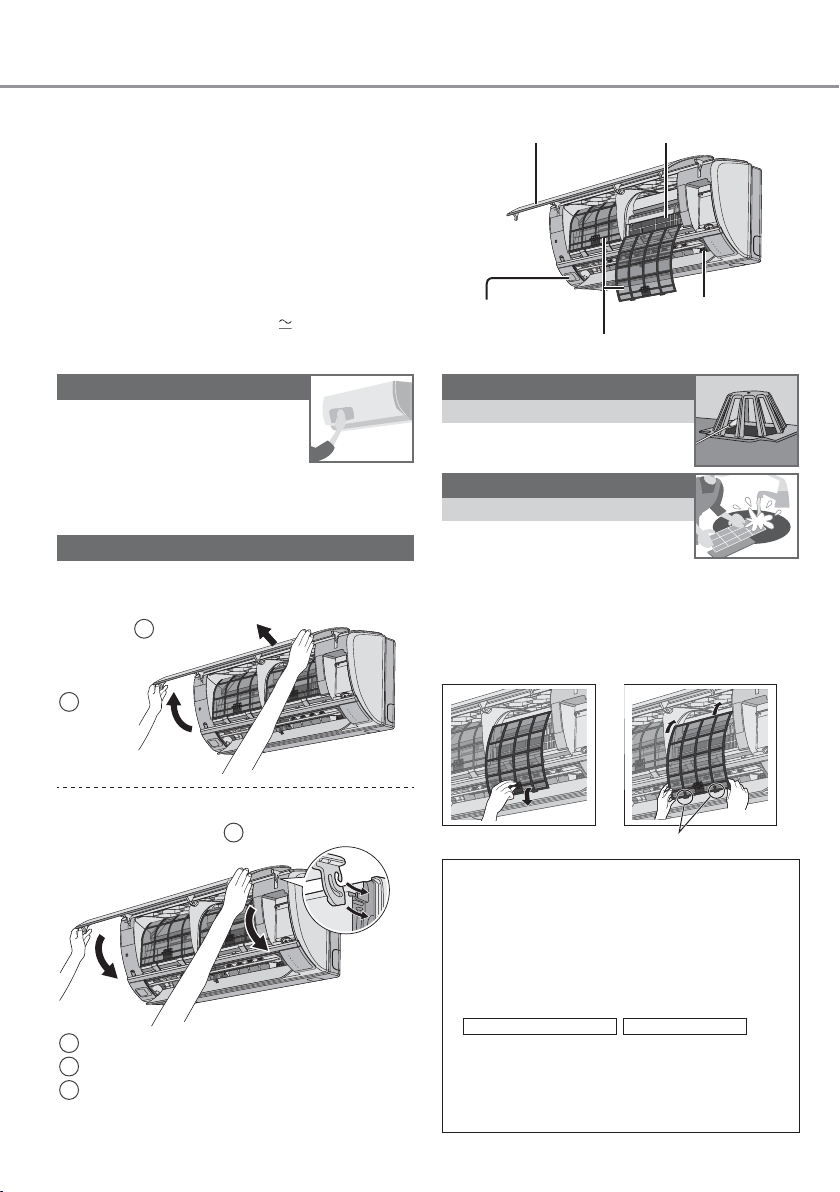

Cleaning instructions ................10

Troubleshooting ....................... 11

Information................................12

Accessories

• Remote control

• AAA or R03 batteries × 2

• Remote control holder

• Screws for remote control

holder × 2

i AUTO-X

AUTO-X

MODE

AUTO

COMFORT

QUIET

UIET

TIMER

SET CHECK RESET

ETCHE

ECONAVI

ECONAV

OFF/ON

NANOE-G

TEMP

AIR SWING

IR SWIN

FAN SPEED

AN SPEE

OFF

SET

CLOCK

CLOC

CANCEL

123

POWER

• Please note that the OFF indication is on to start.

Select the desired

temperature

• Selection range:

16 °C ~ 30 °C.

•

Operating the unit within the recommended temperature may save energy. HEAT : 20 °C ~ 24 °C. COOL: 26 °C ~ 28 °C. DRY : 1 °C ~ 2 °C lower than

room temperature.

• To dim or restore the unit’s

indicator brightness, press and hold for 5 seconds.

• Use remote control within 8 m from the remote control receiver of the indoor unit.

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement.

English

Safety precautions

Air inlet

Air outlet

To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classiﬁ ed as below:

This sign warns of

WARNING

CAUTION

The instructions to be followed are classiﬁ ed by the following symbols:

Indoor unit

death or serious injury.

This sign warns of injury or damage to property.

This symbol denotes an action that is PROHIBITED.

These symbols denote actions COMPULSORY.

Power supply

Air inlet

WARNING

Indoor unit and outdoor unit

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or ﬁ re.

Conﬁ rm with authorised dealer or specialist on usage of any speciﬁ ed refrigerant type. Using refrigerant type other than the speciﬁ ed may cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive or ﬂ ammable atmosphere. Failure to do so could result in ﬁ re.

Do not insert your ﬁ ngers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

Do not expose yourself directly to cold air for a long period to avoid excess cooling.

Do not sit or step on the unit, you may fall down accidentally.

Remote control

Air outlet

Outdoor unit

Air inlet

Air outlet

Remote control

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

Power supply

Do not use a modiﬁ ed cord, joint cord, extension cord or unspeciﬁ ed cord to prevent overheating and ﬁ re.

To prevent overheating, ﬁ re or electric shock:

•

Do not share the same power outlet with other equipment.

•

Do not operate with wet hands.

•

Do not over bend the power supply cord.

•

Do not operate or stop the unit by inserting or pulling out the power plug.

If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualiﬁ ed persons in order to avoid a hazard.

It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or ﬁ re.

To prevent overheating, ﬁ re or electric shock:

•

Insert the power plug properly.

•

Dust on the power plug should be periodically wiped with a dry cloth.

Stop using the product if any abnormality/ failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/ﬁ re/electric shock) Examples of abnormality/failure

•

The ELCB trips frequently.

•

Burning smell is observed.

•

Abnormal noise or vibration of the unit is observed.

•

Water leaks from the indoor unit.

•

Power cord or plug becomes abnormally hot.

•

Fan speed cannot be controlled.

•

The unit stops running immediately even if it is switched on for operation.

•

The fan does not stop even if the operation

is stopped. Contact your local dealer immediately for maintenance/repair.

This equipment must be earthed to prevent electrical shock or ﬁ re.

Prevent electric shock by switching off the power supply and unplug:

- Before cleaning or servicing,

- When extended non-use, or

- During abnormally strong lightning activity.

CAUTION

Indoor unit and outdoor unit

Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit.

Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc.

Do not use any combustible equipment in front of the airﬂ ow outlet to avoid ﬁ re propagation.

Do not expose plants or pet directly to airﬂ ow to avoid injury, etc.

Do not touch the sharp aluminium ﬁ n, sharp parts may cause injury.

Do not switch ON the indoor unit when waxing the ﬂ oor. After waxing, aerate the room properly before operating the unit.

Do not install the unit in oily and smoky areas to prevent damage to the unit.

Do not dismantle the unit for cleaning purpose to avoid injury.

Do not step onto an unstable bench when cleaning the unit to avoid injury.

Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock.

Do not open window or door for long time during operation.

Prevent water leakage by ensuring drainage pipe is:

- Connected properly,

- Kept clear of gutters and containers, or

- Not immersed in water After a long period of use or use with any

combustible equipment, aerate the room regularly.

After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down.

Remote control

Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control.

To prevent malfunction or damage of the remote control:

•

Remove the batteries if the unit is not going to be used for a long period of time.

•

New batteries of the same type must be inserted following the polarity stated.

Power supply

Do not disconnect the plug by pulling the cord to prevent electric shock.

Safety precautions

English

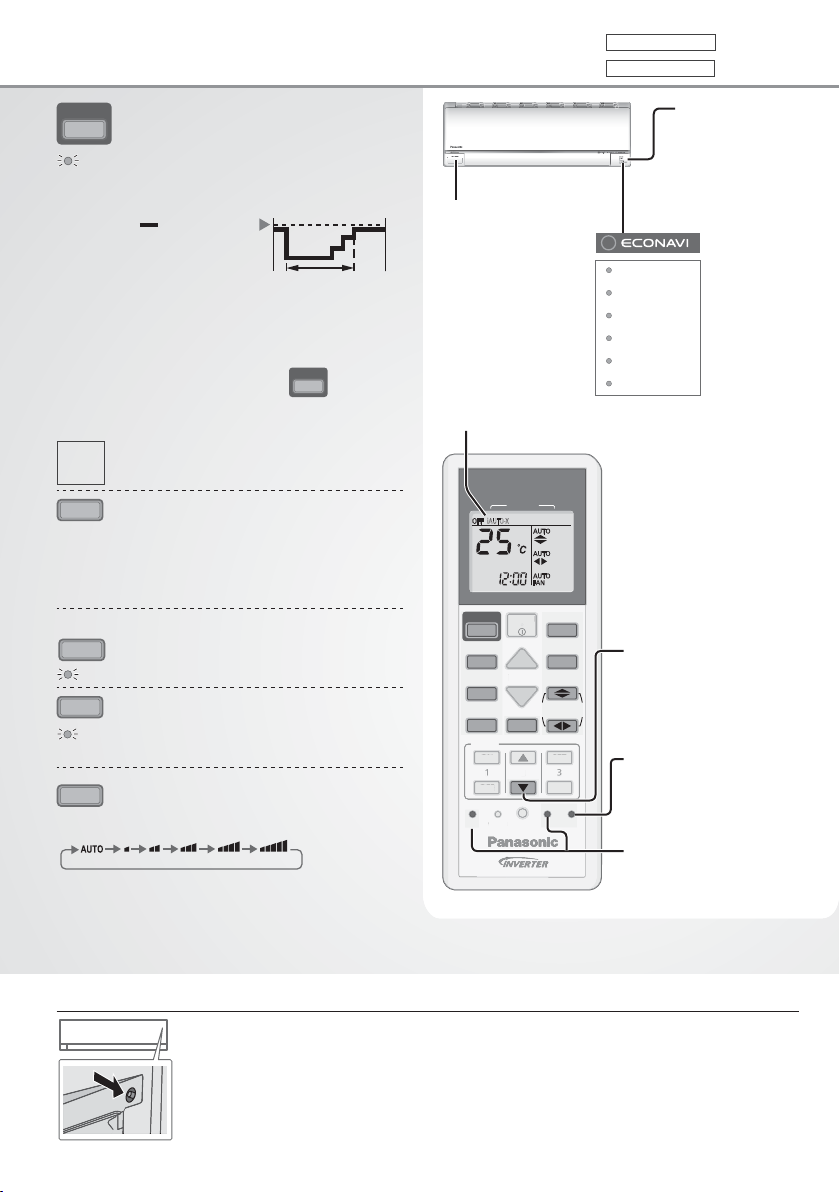

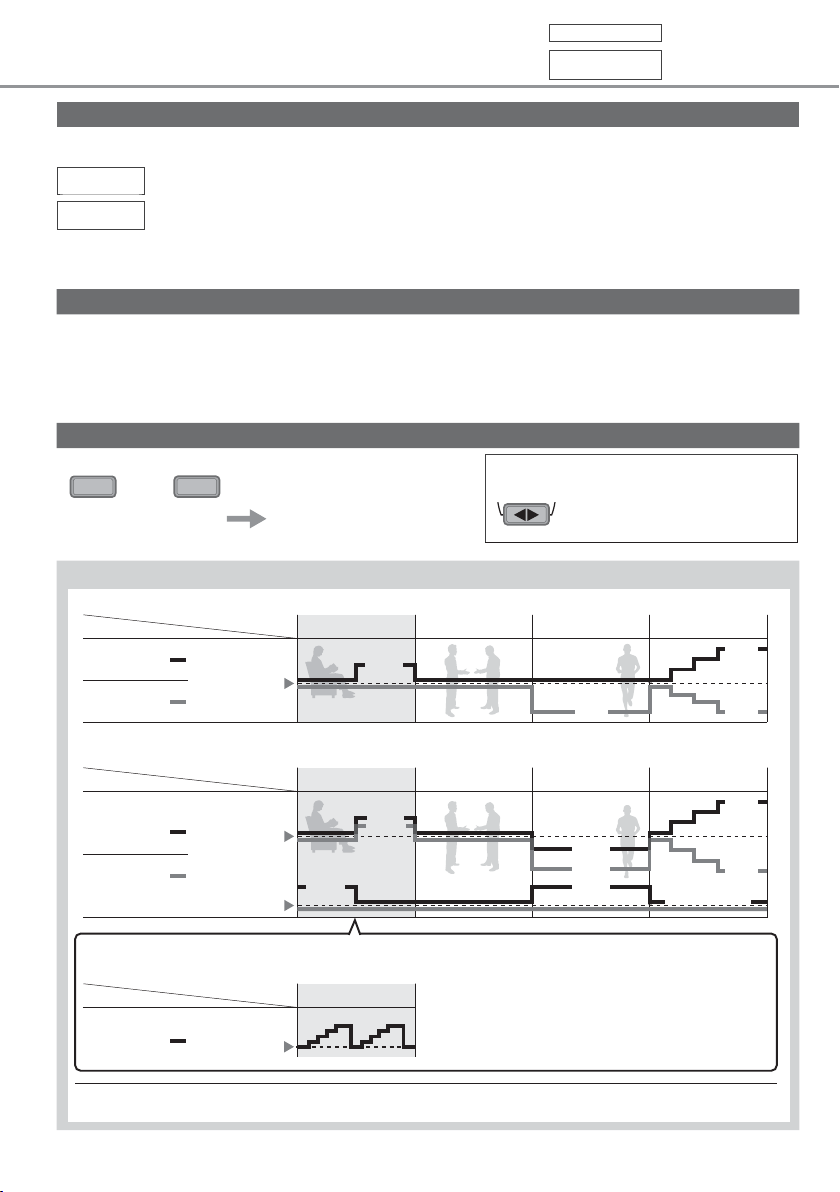

How to use

CHECK

OFFS

CANCEL

TIMER

TEMP

i AUTO-X

To reach temperature quickly

i AUTO-X

•

The unit controls set temperature according to room temperature to accelerate room cooling.

i AUTO-X

•

After max 4 hours, the set temperature is shifted according to AUTO COMFORT activity detection.

•

Fan speed is ﬁ xed at AUTO, fan speed selection is prohibited.

•

During unit is off, press i AUTO-X mode.

•

i AUTO-X mode can be cancelled by pressing the respective button again.

Multi

MODE

i AUTO-X - To reach temperature quickly AUTO - For your convenience HEAT - To enjoy warm air COOL - To enjoy cool air DRY - To dehumidify the environment

AUTO

COMFORT

AUTO COMFORT

QUIET

•

This operation reduces airﬂ ow noise.

FAN SPEED

(Remote control display)

Set temperature

i AUTO-X

•

Outdoor control of this function is disabled

-1°C

Max = 4 hours

will turn on the unit with

with multiple indoor connection.

To select operation mode

To maximise comfort

To enjoy quiet operation

To select fan speed

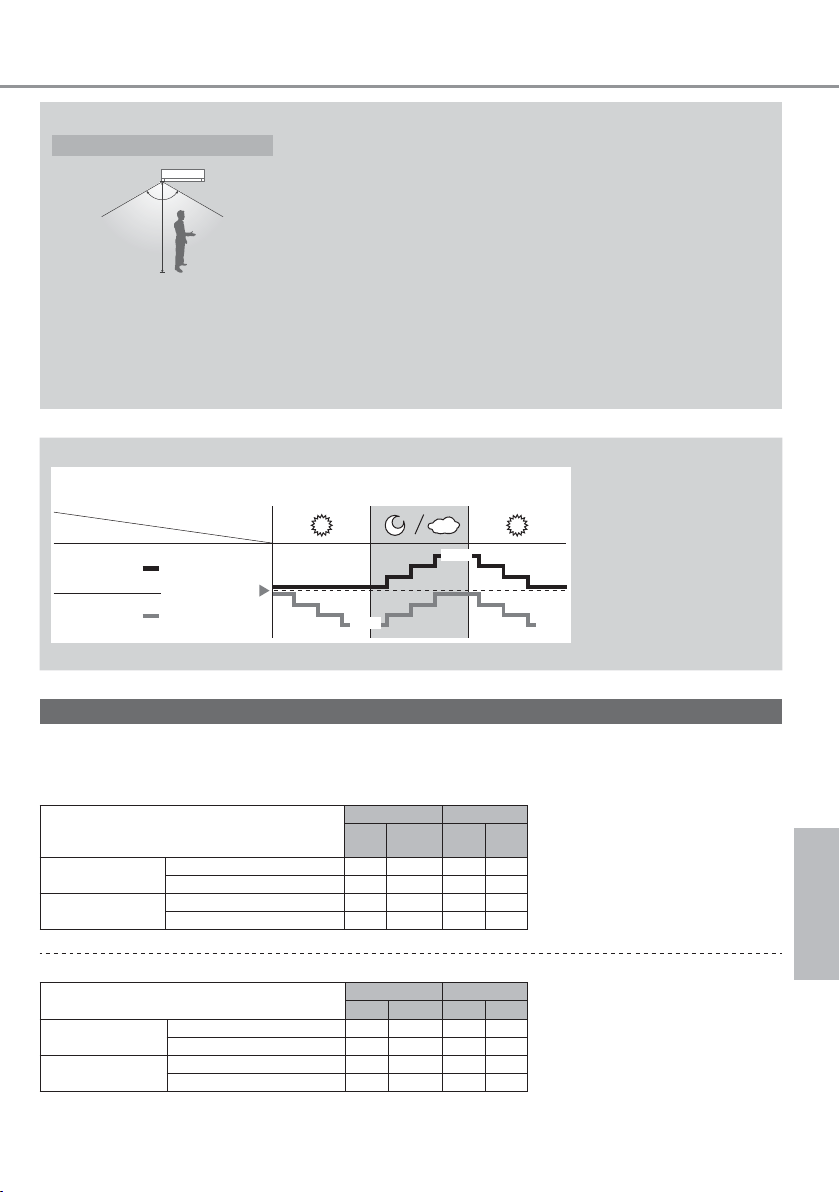

Human activity sensor

Remote control display

AIR CONDITIONER

MODE

iAUTO-X

i AUTO-X

MODE

AUTO

COMFORT

QUIET

TIMER

OFF

SET CHECK RESET

ECONAVI

OFF/ON

FF/

NANOE-G

TEMP

AIR SWING

FAN SPEED

SET

CLOCK

CLOC

CANCEL

123

Single

Single split system

Multi

Multi split system

Sunlight sensor and remote

i AUTO-X

control receiver

Indicator (Green)

POWER

TIMER

i AUTO-X

NANOE-G

AUTO COMFORT

QUIET

(Green) (Orange) (Orange) (Blue) (Green) (Orange)

Press and hold for approximately 10 seconds to show temperature setting in °C or °F.

Press to restore the remote control to default setting.

Not used in normal operations.

•

For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

•

If i AUTO-X mode is set, fan speed is ﬁ xed to AUTO. To adjust fan speed, cancel i AUTO-X mode.

Auto OFF/ON button

Use when remote control is misplaced or a malfunction occurs. Raise the front panel:

• To use in AUTO mode, press the button once.

• To use in COOL mode, press and hold the button until 1 beep is heard, then release.

• To use in HEAT mode, press and hold the button until 1 beep is heard, then release. And press again until 2 beeps are heard, then release.

• Press the button again to turn off.

See "To learn more..." for details.

CANCEL

TIMER

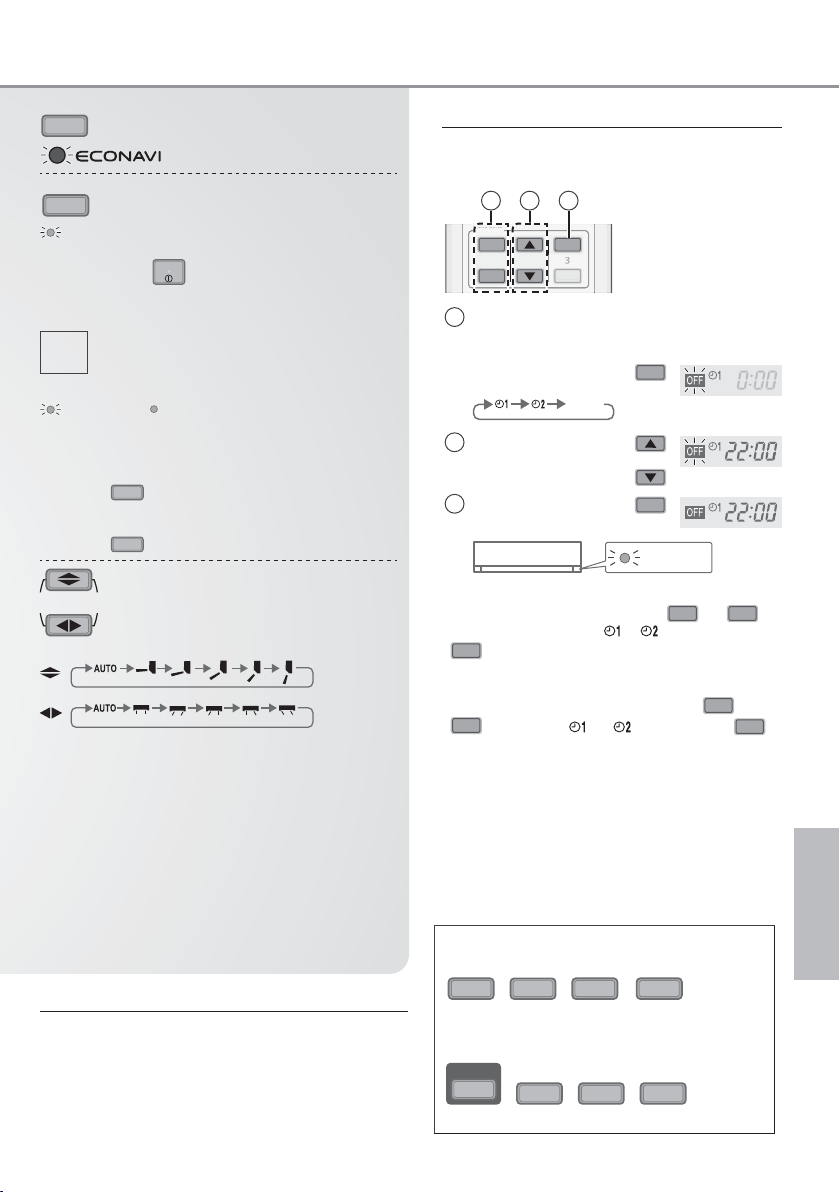

ECONAVI

NANOE-G

•

To optimise energy saving

To purify the air

NANOE-G

nanoe-G starts automatically when the unit is turned on

OFF/ON

with

Can be activated even when the unit is turned off. In this

condition, the unit will operate as a fan with AUTO fan speed and ﬂ ap swing.

•

Multi

This operation cannot be performed or will be stopped if other indoor unit is activating HEAT mode.

To deactivate viruses/bacteria on the ﬁ lter

NANOE-G

•

After the unit is turned off, the nanoe-G in-ﬁ lter deactivation may activate up to 150 minutes. Turning on the unit cancels this operation.

•

To disable this operation in the future, press and hold

NANOE-G

until a short beep sound is heard. This will not

disable the nanoe-G to purify the air.

•

To restore the nanoe-G in-ﬁ lter deactivation, press and

NANOE-G

hold

AIR SWING

(Remote control display)

•

Keeps the room ventilated.

•

In COOL/DRY mode, if AUTO is set, the ﬂ aps swings left/ right and up/down automatically.

•

In HEAT mode, if AUTO is set, the horizontal ﬂ ap is ﬁ xed at the predetermined position. The vertical ﬂ ap swings left/ right after the temperature rises.

•

In i AUTO-X mode, if AUTO is set, the horizontal ﬂ ap is ﬁ xed at the lower position and shift to the upper position after reaches set temperature. The vertical ﬂ ap movement depends on human activity sensor. If manual is set, the horizontal and vertical ﬂ ap are ﬁ xed at the predetermined position.

•

Do not adjust the ﬂ ap by hand.

POWER

until a long beep sound is heard.

To adjust airﬂ ow direction

Auto Restart Control

• If power is resumed after a power failure, the operation will restart automatically after a period of time with previous operation mode and airﬂ ow direction.

• This control is not applicable when TIMER is set.

To set the timer

2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset times.

1 2 3

TIMER

123

OFF

Select ON or OFF

timer

• Each time pressed:

Set the time

Conﬁ rm

SET

CANCEL

Example: OFF at 22:00

OFF

Cancel

SET

TIMER

• To cancel ON or OFF timer, press ON or to select respective or then press

• If timer is cancelled manually or due to power failure, you can restore the timer again by

pressing ON or

then press

OFF

to select respective or

SET

• The nearest timer setting will be displayed and will activate in sequence.

• When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time.

• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick guide.

OFF

CANCEL

Note

ECONAVI

QUIET

• Can be activated in HEAT, COOL and DRY mode and can be cancelled by pressing the respective button again.

i AUTO-X

ECONAVI

• Cannot be selected at the same time.

AUTO

COMFORT

QUIET

NANOE-G

COMFORT

AUTO

How to use

English

Single

To learn more...

Single split system

Multi

Multi split system

Operation mode

i AUTO-X: The fast cooling is ideal when you come home on a hot day.

AUTO: During operation mode selection the POWER indicator blinks.

• Unit selects operation mode every 10 minutes according to setting temperature and room temperature.

Single

• Unit selects operation mode every 3 hours according to setting temperature, outdoor temperature and room

Multi

HEAT : Unit takes a while to warm up. The POWER indicator blinks during this operation. COOL: Provides efﬁ cient comfort cooling to suit your needs. DRY : Unit operates at low fan speed to give a gentle cooling operation.

temperature.

nanoe-G in-ﬁ lter deactivation

Depending on the unit’s accumulated operation time, nanoe-G in-ﬁ lter deactivation may activate only once a day after the unit turned off.

To remove the moisture left in the internal parts, the fan will operate for 30 minutes with ﬂ ap opened slightly. This process only applicable when the unit is operated in COOL/DRY mode before turned off.Then, nanoe-G deactivates viruses/bacteria on the ﬁ lter for 2 hours with fan stopped and ﬂ ap closed.

Do not turn off the power supply during this operation. After power failure, this operation will not resume.

ECONAVI and AUTO COMFORT

ECONAVI

The unit will start to initialise (for approximately 1 minute)

Human activity sensor operation

ECONAVI ; Detecting human presence and activity, the unit controls room temperature to save energy. Mode

COOL/DRY

HEAT

AUTO

COMFORT

Set temperature

The human activity sensor and the sunlight sensor will start to detect.

Human

Low activity Normal activity

+1 °C

Note

AIR SWING

When manual AIR SWING is selected, the ECONAVI and AUTO COMFORT operations will be cancelled.

High activity Absent

+2 °C

-2 °C-2 °C

AUTO COMFORT ; Detecting human presence and activity, the unit controls room temperature to keep human comfortable consistently.

Mode

COOL/DRY

HEAT

ECONAVI and AUTO COMFORT

Precise control of temperature during low activity to maximise energy saving.

Mode

COOL/DRY

* During low activity, fan speed 1 tap up for first 15 minutes or until set temperature is reached. ** During human absence, maximum fan speed for COOL/DRY mode is medium fan.

Human

Set temperature

Set Fan Speed

Human

Set temperature

Low activity Normal activity

+1 °C

+0.3 °C

+1 tap*

Low activity

ECONAVI and AUTO COMFORT take advantage of the human nature that human being takes time to feel the temperature rise during low activity level; the unit adjusts temperature to maximise energy saving without sacrificing the comfort.

High activity Absent

-1 °C

-2 °C

+1 tap

+2 °C

-2 °C

0HGLXP)DQ

The human activity sensor will also scan for area of heat source and movement in a room.

Detection area

120º

• The human activity sensor may:

- mistakenly detect an object with heat source & movement similar to human, such as pets, etc.

- mistakenly detect as non-heat source & movement if a human stays motionless for certain period of time.

• Do not place large objects near the sensor and keep away heating units or humidiﬁ er from the sensor’s detection area. They may cause sensor malfunction.

• Based on area activeness horizontal airﬂ ow direction will adjust either ﬁ x at predetermined position or swing left/right periodically.

• The human activity sensor performance is inﬂ uenced by indoor unit location, movement speed, temperature range, etc.

Sunlight Sensor operation

ECONAVI ; Detecting sunlight intensity, the unit adjust temperature to save energy.

Mode

COOL/DRY

HEAT

• In a room without window or with thick curtain, the sunlight sensor will judge as cloudy/night.

Ambient condition

+1 °C

Set temperature

-1 °C -1 °C

ECONAVI is activated, the unit maintains set temperature until a high sunlight intensity is detected. The sunlight sensor detects sunlight intensity during weather or day/night changes, and the unit adjusts temperature.

Operation conditions

Use this air conditioner under the following temperature range. DBT : Dry bulb temperature

WBT : Wet bulb temperature

Single split outdoor unit

CU-E7RKD, CU-E9RKD, CU-E12RKD, CU-E15RKD, CU-E18RKD, CU-E24RKD, CU-E28RKD

COOL

HEAT

Max. 32 23 43 26

Min. 16 11 10 -

Max. 30 - 24 18

Min. 16 - -10 -

Multi split outdoor unit

CU-2E15PBD, CU-2E18PBD, CU-4E27PBD, CU-5E34PBD, U-3E18JBE, U-4E23JBE

COOL

HEAT

Max. 32 23 46 26

Min. 16 11 -10 -

Max. 30 - 24 18

Min. 16 - -15 -16

Indoor Outdoor

DBT WBT DBT WBT

°C (temperature)

Indoor Outdoor

DBT WBT DBT WBT

°C (temperature)

To learn more...

English

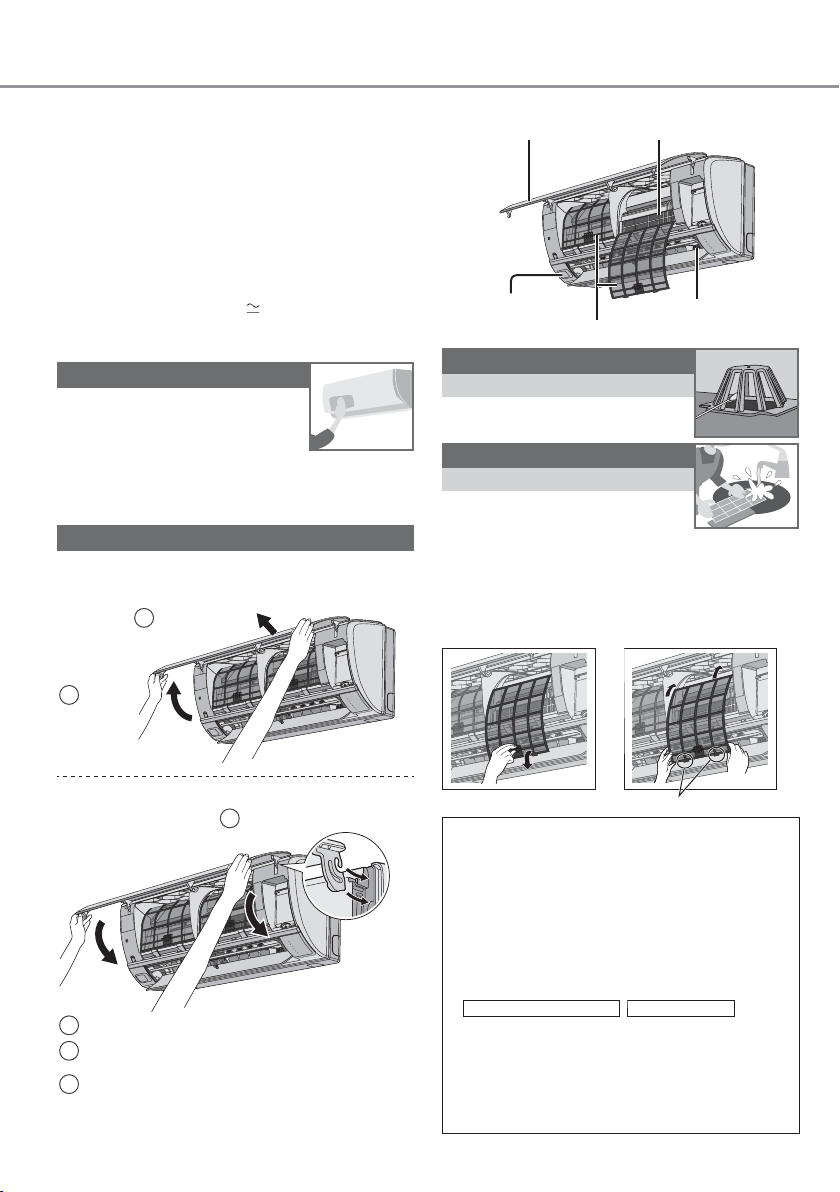

Cleaning instructions

To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see nanoe-G indicator blinks or error code “H99”. Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.

• Do not touch the aluminium ﬁ n, sharp parts may cause injury.

• Do not use benzine, thinner or scouring powder.

• Use only soap (

pH 7) or neutral household

detergent.

• Do not use water hotter than 40 °C.

Indoor unit

Wipe the unit gently with a soft, dry cloth.

Human activity sensor

Do not hit or violently press or poke it with a sharp object. This can lead to damage and malfunction.

Front panel

Wash gently and dry.

Remove the front panel

Pull out

Indoor unit

Aluminium ﬁ nFront panel

POWER

TIMER

i AUTO-X

NONOE-G

UTO COMFORT A

QUIET

Human activity sensor

Air ﬁ lters

nanoe-G Generator

Every 2 weeks

• Clean with dry cotton bud.

• Do not touch during operation.

Air ﬁ lters

Every 2 weeks

• Wash/rinse the ﬁ lters gently with water to avoid damage to the ﬁ lter surface.

• Dry the ﬁ lters thoroughly under shade, away from ﬁ re or direct sunlight.

• Replace any damaged ﬁ lters.

Remove air ﬁ lter Attach air ﬁ lter

Raise

Close it securely

Close down

Press both ends of the front panel

For CS-E18RKDW, CS-E24RKDW,

CS-E28RKDS, CS-ME21RKD: Press at center of the front panel.

POWER

TIMER

i AUTO-X

NONOE-G

AUTO COMFORT

QUIET

Insert at both sides1

Insert into the unit

For seasonal inspection after extended non-use

• Checking of remote control batteries.

• No obstruction at air inlet and air outlet vents.

• Use Auto OFF/ON button to select COOL/

POWER

TIMER

i AUTO-X

NONOE-G

AUTO COMFORT

QUIET

HEAT operation. After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents:

COOL: ≥ 8 °C HEAT: ≥ 14 °C

For extended non-use

•

Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.

• Turn off the power supply and unplug.

• Remove the remote control batteries.

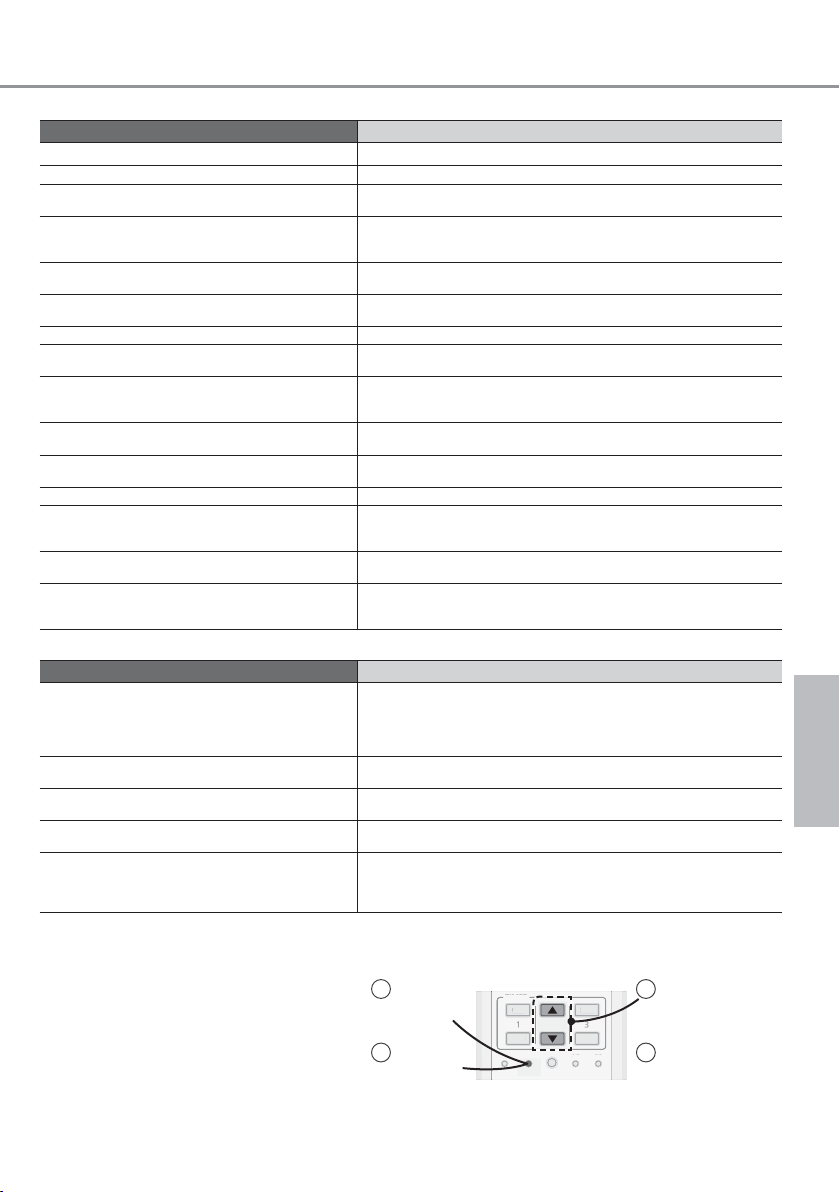

Troubleshooting

SETRES

CANCEL

TIMER

The following symptoms do not indicate malfunction.

Symptom Cause

Mist emerges from indoor unit. Water ﬂ owing sound during operation.

The room has a peculiar odour.

Indoor fan stops occasionally during automatic fan speed setting.

Airﬂ ow continues even after operation has stopped.• Extraction of remaining heat from the indoor unit

Operation is delayed a few minutes after restarting. Outdoor unit emits water/steam. TIMER indicator is always on. POWER indicator blinks during HEAT mode with no

warm air supply (and ﬂ ap is closed). Indoor fan stops occasionally during heating

operation. POWER indicator blinks before the unit is switched

on. Cracking sound during operation.

Discoloration of some plastic parts.

Louder noise at outdoor unit during early operation of i AUTO-X.

Dust may have collected around the front panel, grilles and wall surrounding the unit after extended use.

Check the following before calling for servicing.

Symptom Check

Operation in HEAT/COOL mode is not working efﬁ ciently.

Noisy during operation.

Remote control does not work. (Display is dim or transmission signal is weak.)

The unit does not work.

The unit does not receive the signal from the remote control.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY AND UNPLUG then please consult authorised dealer under the following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

• Switches or buttons are not functioning properly.

•

Condensation effect due to cooling process.

•

Refrigerant ﬂ ow inside the unit.

•

This may be due to damp smell emitted by the wall, carpet, furniture or clothing.

•

This helps to remove the surrounding odour.

(maximum 30 seconds).

•

The delay is a protection to the unit’s compressor.

•

Condensation or evaporation occurs on pipes.

•

The timer setting repeats daily once set.

•

The unit is in defrost mode (and AIR SWING is set to AUTO).

•

To avoid unintended cooling effect.

•

This is a preliminary step in preparation for the operation when the ON timer has been set.

•

Changes of temperature caused the expansion/contraction of the unit.

•

Discoloration is subject to material types used in plastic parts, accelerated when exposed to heat, sun light, UV light, or environmental factor.

•

The compressor and fan rotate at higher speed to boost cooling performance during initial operation.

•

The dust accumulation is due to air puriﬁ cation effect of negative ions from nanoe-G. Remove the dust regularly with a clean dampened cloth.

•

Set the temperature correctly.

•

Close all doors and windows.

•

Clean or replace the ﬁ lters.

•

Clear any obstruction at the air inlet and air outlet vents.

•

Check if the unit has been installed at an incline.

•

Close the front panel properly.

•

Insert the batteries correctly.

•

Replace weak batteries.

•

Check if the circuit breaker is tripped.

•

Check if timers have been set.

•

Make sure the receiver is not obstructed.

•

Certain ﬂ uorescent lights may interfere with signal transmitter. Please consult authorised dealer.

The unit stops and the TIMER indicator blinks.

Use remote control to retrieve error code.

Press for 5 seconds

Press for 5 seconds to quit checking

TIMER

123

OFF

CANCEL

CLOCKSET CHECK RESET

CLOC

SET

• For certain errors, you may restart the unit for limited operation with 4 beeps when operation starts.

Press until you hear beep sound, then write down the error code

Turn the unit off and reveal the error code to authorised dealer

Cleaning instructions / Troubleshooting

English

Information

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Declaration of Conformity

with the requirements of Technical Regulation on the Restriction Of the use of certain Hazardous

The Product is in conformity with the requirements of Technical Regulation on the Restriction Of the use of certain Hazardous Substances in electrical and electronic equipment (TR on RoHS).

The content of hazardous substance with the exemption of the applications listed in the Annex №2 of TR on RoHS:

1. Lead (Pb) – not over 0,1wt % or 1000wt ppm;

2. Cadmium (Cd) – not over 0,01wt % or 100wt ppm;

3. Mercury (Hg) – not over 0,1wt % or 1000wt ppm;

4. Hexavalent chromium (Cr

5. Polybrominated biphenyls (PBBs) – not over 0,1wt % or 1000wt ppm;

6. Polybrominated diphenyl ethers (PBDEs) – not over 0,1wt % or 1000wt ppm.

Substances in Electrical and Electronic Equipment

(adopted by Order №1057 of Cabinet of Ministers of Ukraine)

) – not over 0,1wt % or 1000wt ppm;

Инструкции по эксплуатации

Кондиционер

i AUTO-X

Модель №. Внутренний блок

CS-E7RKDW CS-E9RKDW CS-E12RKDW CS-E15RKDW CS-E18RKDW CS-E24RKDW CS-E28RKDS CS-ME21RKD

Наружный блок Сплит-система Мульти сплит-система

CU-E7RKD CU-E9RKD CU-E12RKD CU-E15RKD CU-E18RKD CU-E24RKD CU-E28RKD

CU-2E15PBD CU-2E18PBD CU-4E27PBD CU-5E34PBD U-3E18JBE U-4E23JBE

Название и адрес завода-изготовителя указаны на упаковке и на изделии.

Обеспечивается быстрое охлаждение, максимальный комфорт, чистый воздух и оптимальный экономии энергии

i AUTO-X

i AUTO-X с новой технологией температурной оптимизации от Panasonic (P-TECh) является уникальной технологией управления компрессором Panasonic, позволяющей компрессору достигать максимальной частоты за короткий промежуток времени.

Для i AUTO-X также предусмотрена новая технология AEROWINGS — две заслонки, динамично регулирующие направление потока воздуха. AEROWINGS обеспечивает быстрое охлаждение при включении, когда поток воздуха направлен вниз*, а также рассеянное охлаждение, когда поток воздуха направлен вверх*.

Это обеспечивает пользователю моментальную прохладу в жаркий день с возможностью ее сохранения в течение длительного времени.

*Применимо для АВТОМАТИЧЕСКОЙ настройки горизонтальной заслонки.

ECONAVI + INVERTER

ECONAVI определяет, где энергия напрасно растрачивается и регулирует мощность охлаждения в зависимости от комнатных условий и уровней активности. Затем ИНВЕРТОР использует сенсорный датчик ECONAVI и изменят скорость вращения компрессора. Благодаря этому обеспечивается оптимальный процесс охлаждения и сокращается нерациональный расход энергии.

nanoe-G

Поддерживает чистоту воздуха, устраняя из него вредные микроорганизмы, такие как вирусы, бактерии и т.д.

Также уничтожает вирусы и бактерии на фильтре для поддержания чистоты внутри аппарата.

Охлаждение и комфорт — там, где это дейсвительно важно

Превосходная технология энергосбережения

Очищает воздух и удаляет даже самые мелкие частицы пыли

Дополнительные сведения см. в разделе “Дополнительная информация...”.

Система с несколькими

Внутренние блоки

кондиционерами воздуха

Система с несколькими кондиционерами экономит место, позволяя вам подключить несколько внутренних блоков к одному наружному блоку.

• Чтобы ознакомиться со всеми функциями изделия, см. каталог.

Внутренние блоки

• Возможно индивидуальное или одновременное управление внутренними блоками. При выполнении функций приоритетным является первый включенный блок.

• Невозможно, чтобы разные внутренние блоки одновременно работали в режимах НАГРЕВА и ОХЛАЖДЕНИЯ.

• Мигание индикатора питания указывает на то, что внутренний блок находится в ожидании другого режима работы.

Наружный блок

( CU-2E15PBD, CU-2E18PBD, CU-4E27PBD,

CU-5E34PBD, U-3E18JBE, U-4E23JBE)

Краткая инструкция

RES

CANCEL

TIMER

RES

OFFS

CANCEL

TIMER

NANOE-G

AUTOCOMFO

UTO-X

Вставьте элементы питания

2 3

TIMER

OFF

ETCHE

SET

123

CANCEL

AIR CONDITIONER

IR CONDITIONE

iAUTO-X

CLOCKSET CHECK RESET

MODE

Потяните и снимите заднюю

крышку пульта дистанционного управления

Вставьте батарейки (AAA или R03)

(может использоваться ~ 1 год)

Закройте крышку

Установка часов

Нажмите кнопку CLOCK

Установите время

Подтверждение

Основные функции

Выберите необходимый режим

i AUTO-X AUTO HEAT

Включить/остановить работу

DRY COOL

Содержание

Меры предосторожности ...16-17

Как пользоваться ...............18-19

Дополнительная

информация... ..................20-21

Инструкции по чистке ............. 22

Устранение

неисправностей ......................23

Информация.......................24-26

Принадлежности

• Дистанционное управление

• Батарейки AAA или R03 × 2

• Держатель пульта дистанционного управления

• Винты для держателя

пульта дистанционного управления × 2

i AUTO-X

AUTO-X

MODE

AUTO

COMFORT

QUIET

UIET

TIMER

SET CHECK RESET

ETCHE

Иллюстрации в данном руководстве предназначены для пояснительных целей и могут отличаться для конкретного кондиционера. В связи с последующим совершенствованием конструкции могут вноситься изменения без предварительного уведомления.

ECONAVI

ECONAV

OFF/ON

NANOE-G

TEMP

AIR SWING

IR SWIN

FAN SPEED

AN SPEE

OFF

SET

CLOCK

CLOC

CANCEL

123

POWER

•

Обратите внимание на то, что для включения устройства индикация ВЫКЛЮЧЕНИЯ должна указывать

на .

Выберите необходимую

температуру

•

Диапазон выбора: 16 °C ~ 30 °C.

•

Использование кондиционера в диапазоне рекомендованных температур способствует экономии электроэнергии. НАГРЕВ: 20 °C ~ 24 °C. ОХЛАЖДЕНИЕ: 26 °C ~ 28 °C. ОСУШЕНИЕ: 1 °C ~ 2 °C

•

Нажмите и удерживайте в течение 5 секунд, чтобы уменьшить или

восстановить яркость индикатора блока.

•

Используйте пульт дистанционного управления в радиусе 8 метров от приемника сигнала дистанционного управления внутреннего блока.

ниже комнатной температуры.

Руccкий

Меры предосторожности

Воздухозаборник

Воздуховыпускное

отверстие

Воздуховыпускное

отверстие

Во избежание получения травм, нанесения телесных повреждений другим лицам и ущерба имуществу следует соблюдать следующие инструкции: Неправильная эксплуатация вследствие несоблюдения инструкций нанесет вред или ущерб, степень серьезности которых классифицируется следующим образом:

Этот символ предупреждает о

ПРЕДУПРЕЖДЕНИЕ

ПРЕДОСТЕРЕЖЕНИЕ

Инструкции, которые следует выполнять, обозначаются следующими символами:

смертельной опасности или о риске получения серьезной травмы.

Этот символ предупреждает об опасности травмы или нанесения вреда имуществу.

Этот символ обозначает действие как ЗАПРЕЩЕННОЕ.

Эти символы обозначают действия как ОБЯЗАТЕЛЬНЫЕ.

Электросна-

Внутренний

блок

Воздуховыпускное

отверстие

Воздухозаборник

бжение

Внутренний и наружный блоки

Данное устройство может использоваться лицами с ограниченными физическими, чувствительными или умственными способностями (включая детей) или лицами с отсутствием опыта или знания только при условии, что они находятся под надзором или получили от лица, ответственного за их безопасность, соответствующие инструкции по использованию изделия. Дети должны находиться под наблюдением. Необходимо следить за тем, чтобы они не играли с устройством.

Для чистки внутренних деталей, ремонта, установки, переноса и переустановки блока следует обращаться к официальному дилеру. Неправильная установка и обращение могут привести к утечке, поражению электрическим током или пожару.

Проконсультируйтесь с авторизованным дилером или специалистом относительно использования любого указанного типа хладагента. Использование хладагента другого типа привести к повреждению изделия, взрыву или телесным повреждениям и т. д.

Не устанавливайте блок в потенциально взрыво- или огнеопасной среде. Несоблюдение данного условия может привести к пожару.

Не вставляйте пальцы или другие предметы в наружный или внутренний блок кондиционера, поскольку вращающиеся части могут нанести травму.

Не прикасайтесь к наружному блоку кондиционера во время грозы, это может привести к поражению электрическим током.

Во избежание переохлаждения не подвергайте себя прямому воздействию холодного воздуха в течение длительного времени.

Не садитесь и не становитесь на устройство, вы можете упасть.

ПРЕДУПРЕЖДЕНИЕ

может

Дистанционное

управление

Наружный

блок

Воздухозаборник

Воздуховыпускное

отверстие

Дистанционное управление

Держите пульт ДУ вдали от грудных и маленьких детей, во избежание случайного проглатывания батарей.

Электроснабжение

Во избежание перегрева и возникновения пожара не используйте модифицированный шнур, сращенный шнур, удлинитель или шнур, не соответствующий техническим условиям.

+ 36 hidden pages
