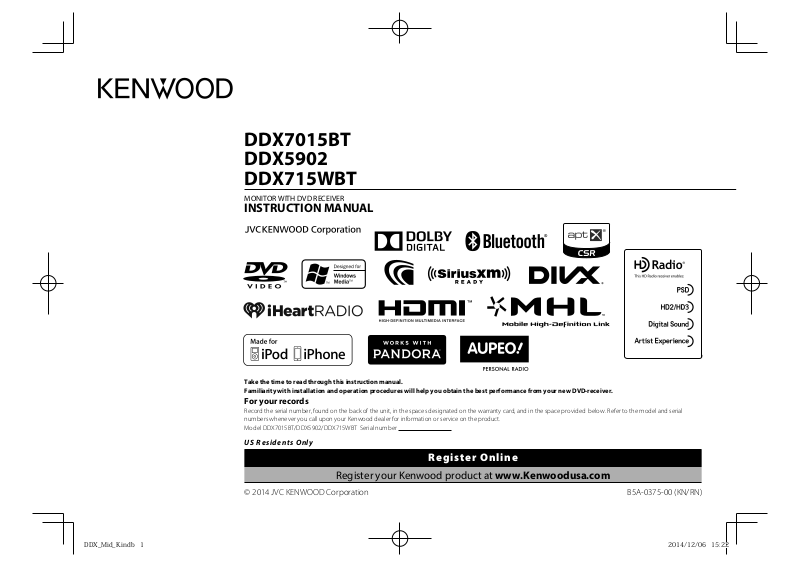

Kenwood DDX7015BT, DDX5902, DDX715WBT User Manual

4 (1)

DDX7015BT

DDX5902

DDX715WBT

MONITOR WITH DVD RECEIVER

INSTRUCTION MANUAL

Take the time to read through this instruction manual.

Familiarity with installation and operation procedures will help you obtain the best performance from your new DVD-receiver.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for information or service on the product.

Model DDX7015BT/DDX5902/DDX715WBT Serial number

U S R e s i d e n t s O n l y

R e g i s t e r O n l i n e

Register your Kenwood product at www.Kenwoodusa.com

© 2014 JVC KENWOOD Corporation

B5A-0375-00 (KN/RN)

CONTENTS

BEFORE USE............................................................

2

How to reset your unit....................................................

3

INITIAL SETTINGS ..................................................

4

BASICS ....................................................................

6

Component names and functions .............................

6

Common operations .......................................................

8

Common screen operations.........................................

9

Selecting the playback source...................................

11

DISCS ....................................................................

12

USB........................................................................

17

iPod/iPhone .........................................................

18

APPs......................................................................

22

Pandora¨ (Only for DDX5902) ............................

23

iHeartRADIO (Only for DDX5902).......................

25

AUPEO! .................................................................

27

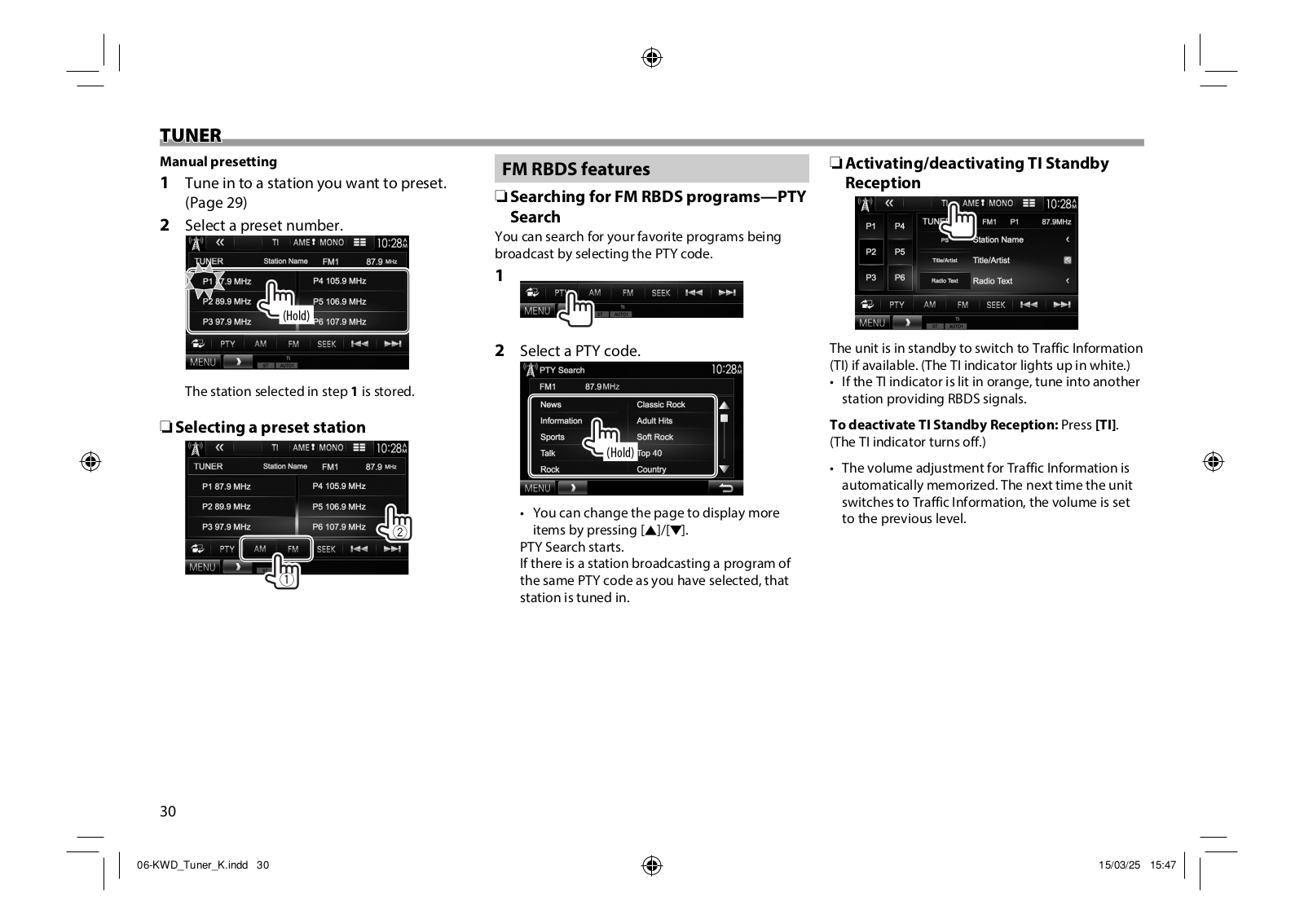

TUNER (Only for DDX7015BT/DDX715WBT) .....

29

HD Radioª tuner (Only for DDX5902)................

31

SiriusXM¨ Satellite Radio



(Only for DDX5902) .............................................

34

OTHER EXTERNAL COMPONENTS ......................

41

Using external audio/video playersÑAV-IN ........

41

Using a rear view camera ............................................

41

Using a smartphoneÑHDMI/MHL...........................

43

Using an external component via ADS adapterÑ

OEM Features (Only for DDX5902)...........................

43

BLUETOOTH .........................................................

44

SETTINGS..............................................................

52

Settings for using applications of iPod/iPhone/



Android ..............................................................................

52

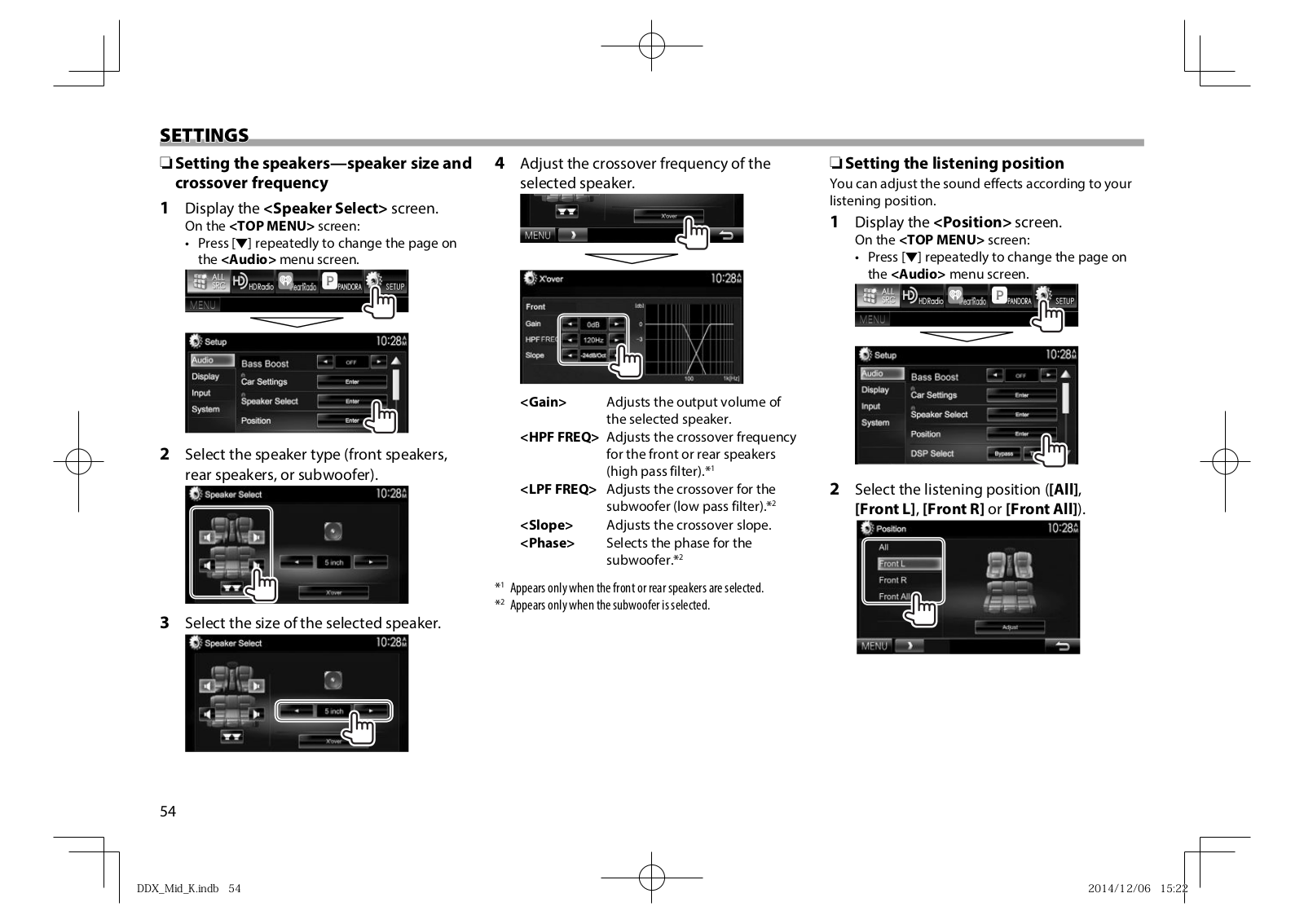

Sound adjustment .........................................................

53

Adjustment for video playback.................................

55

Changing the display design .....................................

57

Customizing the <TOP MENU> screen .................

58

Customizing the system settings .............................

58

Setting menu items .......................................................

60

REMOTE CONTROLLER ........................................

63

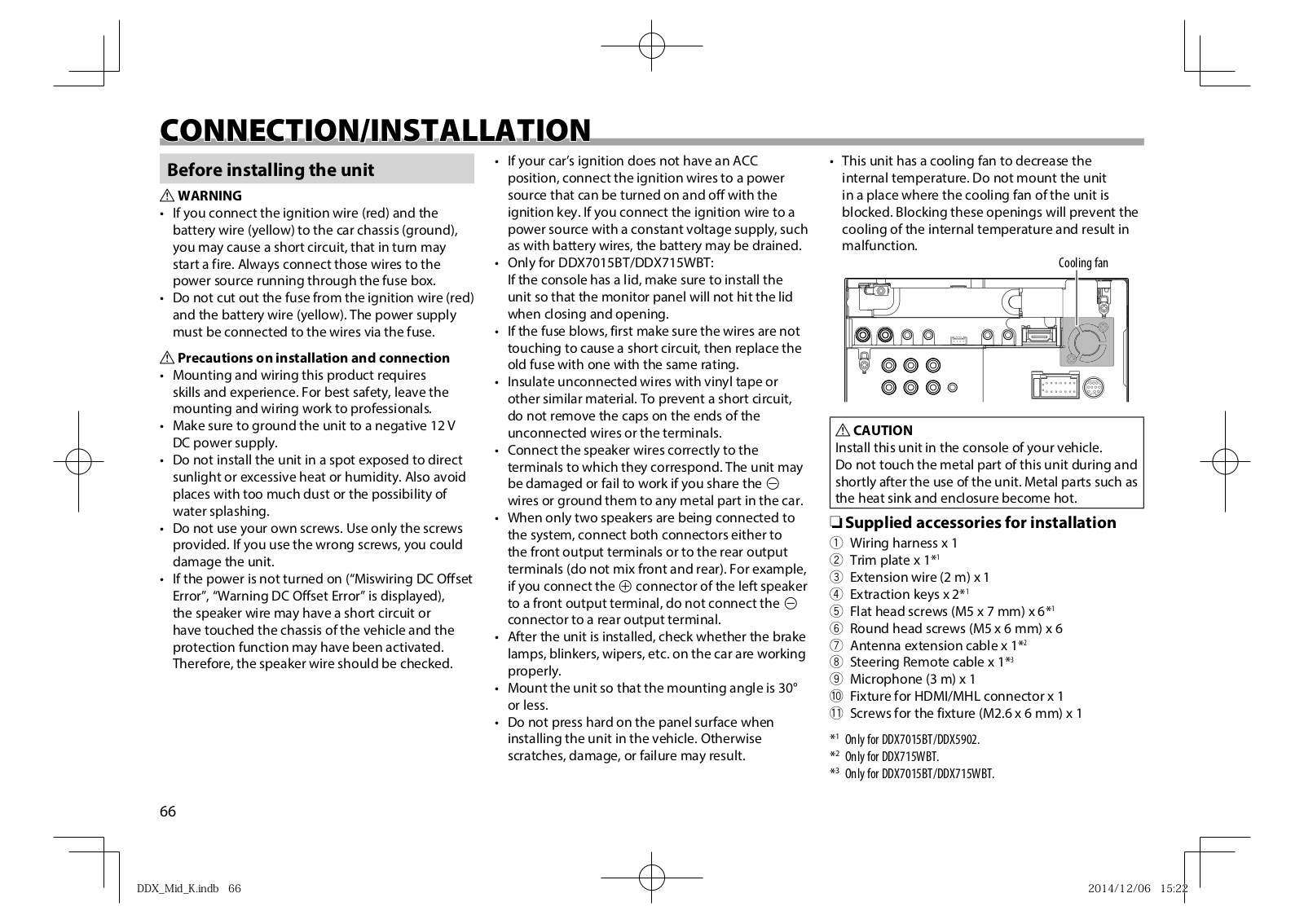

CONNECTION/INSTALLATION ............................

66

REFERENCES.........................................................

73

Maintenance ....................................................................

73

More information ...........................................................

73

Error message list ...........................................................

77

Troubleshooting .............................................................

78

Specifications...................................................................

80

BEFORE USE

IMPORTANT

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGS and CAUTIONS in this manual. Please keep the manual in a safe and accessible place for future reference.

!WARNINGS: (To prevent accidents and damage)

¥DO NOT install any unit or wire any cable in a location where;

Ðit may obstruct the steering wheel and gearshift lever operations.

Ðit may obstruct the operation of safety devices such as air bags.

Ðit may obstruct visibility.

¥DO NOT operate the unit while driving.

If you need to operate the unit while driving, be sure to look around carefully.

¥The driver must not watch the monitor while driving.

For DDX7015BT/DDX715WBT:

The marking of products using lasers

How to read this manual:

¥Illustrations of DDX5902 are mainly used for explanation. The displays and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual displays or panels.

¥This manual mainly explains operations using the buttons on the monitor panel and touch panel. For operations using the remote controller (RC-DV340: supplied only for DDX7015BT/DDX715WBT), see page!63.

¥< > indicates the various screens/menus/operations/settings that appear on the touch panel.

¥[ ] indicates the buttons on the touch panel.

¥Indication language: English indications are used for the purpose of explanation. You can select the indication language from the <Setup> menu. (Page!62)

¥Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from <http://www.kenwood.com/cs/ce/>.

The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

2

BEFORE USE

For DDX5902:

!CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, the following are reproductions of labels on, or inside the product relating to laser product safety.

JVC!KENWOOD Corporation

2967-3, ISHIKAWA-MACHI, HACHIOJI-SHI, TOKYO, JAPAN

THIS PRODUCT COMPLIES WITH DHHS RULES 21CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE.

Location : Top plate

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

FCC NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment may cause harmful interference to radio communications, if it is not installed and used in accordance with the instructions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

¥Reorient or relocate the receiving antenna.

¥Increase the separation between the equipment and receiver.

¥Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

¥Consult the dealer or an experienced radio/TV technician for help.

For DDX5902:

IC (Industry Canada) Notice

This device complies with Industry Canada licenseexempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

The term ÒIC: Ó before the certification/registration number only signifies that the Industry Canada technical specification were met.

CAUTION

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20 cm or more away from personÕs

body (excluding extremities: hands, wrists, feet and ankles). Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a

type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

¥Contains Transmitter Module FCC ID : YZP-RBFAC21XX

¥Contains Transmitter Module IC: 7414A-RBFAC21XX

!Cautions on the monitor:

¥The monitor built into this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not considered defective.

¥Do not expose the monitor to direct sunlight.

¥Do not operate the touch panel using a ball-point pen or similar tool with a sharp tip.

Touch the buttons on the touch panel with your finger directly (if you are wearing a glove, take it off).

¥When the temperature is very cold or very hot...

ÐChemical changes occur inside, causing malfunction.

ÐPictures may not appear clearly or may move slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.

For safety...

¥Do not raise the volume level too much, as this will make driving dangerous by blocking outside sounds, and may cause hearing loss.

¥Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Ρ How to reset your unit

If the unit fails to operate properly, press the reset

button.

DDX7015BT

DDX5902

DDX715WBT

ENGLISH 3

INITIAL SETTINGS

Initial setup

When you power on the unit for the first time or reset the unit, the initial setting screen appears.

¥You can also change the settings on the <Setup> screen. (Page!60)

1

*

<Demonstration>

Activate or deactivate the

(Page!61)

display demonstration.

<Language>

Select the text language

(Page!62)

used for on-screen



information.



¥ Set <GUI Language>



to display the operation



buttons and menu items



in the selected language



([Local]) or English

<Angle>*

([English]).

Adjust the panel angle.

(Page!8)



<R-CAM

Select [ON] when

Interrupt>

connecting the rear view

(Page!61)

camera.

<Panel Color>

Select the color of the

(Page!57)

buttons on the monitor



panel.

2 Finish the procedure.

The <TOP MENU> screen is displayed. * Only for DDX7015BT/DDX715WBT.

Setting the security function

Ρ Registering the security code (only for

DDX7015BT/DDX715WBT)

You can set a security code to protect your receiver system against theft.

1Display the <TOP MENU> screen.

On the source control screen:

2 Display the <System> setting screen.

3Display the <Security Code Set> screen.

¥Press [K] repeatedly to change the page on the <System> menu screen.

¥To clear the registered security code, perform steps 1 and 2, then press [CLR] in <Security Code>.

4Enter a four-digit number (1), then confirm the entry (2).

¥Press [Clear] to delete the last entry.

¥Press [Cancel] to cancel the setting.

5Repeat step 4 to confirm your security code.

Now, your security code is registered.

¥When the unit is being reset or disconnected from the battery, you are required to enter the security code. Enter the correct security code, then press

[Enter].

4

Kenwood DDX7015BT, DDX5902, DDX715WBT User Manual

INITIAL SETTINGS

Ρ Activating the security function

You can activate the security function to protect your receiver system against theft.

1Display the <System> setting screen.

On the <TOP MENU> screen:

¥Press [K] repeatedly to change the page on the <System> menu screen.

2

The security indicator on the monitor panel flashes when the vehicle ignition is off.

To deactivate the security function: Select [OFF] for <SI>.

Clock settings

1Display the <TOP MENU> screen.

On the source control screen:

2 Display the <Setup> screen.

3 Display the <Clock> screen.

4 Set the clock time.

<Radio Data

Synchronizes the clock time with

System>

FM RBDS.

<OFF>

Sets the clock manually. (See



below.)

When selecting <OFF>:

Adjust the hour (1), then adjust the minute (2). ¥ Press [Reset] to set the minute to Ò00Ó.

5 Finish the procedure.

ENGLISH 5

BASICS

Component names and functions

!Caution on the volume setting:

Digital devices produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

DDX7015BT

1Monitor panel*

2Screen (touch panel)

3Reset button/Power indicator/Security indicator

¥Resets the unit. (Page 3)

¥Lights up while the unit is turned on.

¥Flashes when the security function is activated. (Page 5)

4Volume K/Jbutton

Adjusts the audio volume. (Page 8)

5AV/AV OUT button

¥Displays the current source screen. (Press)

¥The function of the button when held varies depending on the <AV Key Long Press> setting. (Page 62)

6AUD/R-CAM button

¥Displays the <Equalizer> screen. (Press) (Page 53)

¥The function of the button when held varies depending on the <AUD Key Long Press> setting. (Page 62)

7B!MENU button

¥Displays the <TOP MENU> screen. (Press) (Page 10)

¥Turns on the power. (Press) (Page 8)

¥Turns off the power. (Hold) (Page 8)

8TEL/VOICE button

¥Displays the phone control screen. (Press) (Page 48)

¥Activates voice dialing. (Hold) (Page 49)

9M(Eject) button

¥Ejects the disc. (Tilts the monitor panel fully.)

¥Opens/closes the monitor panel.

*You can change the color of the buttons on the monitor panel. (Page 57)

DDX5902

1Reset button/Power indicator/Security indicator

¥Resets the unit. (Page 3)

¥Lights up while the unit is turned on.

¥Flashes when the security function is activated. (Page 5)

2M(Eject) button Ejects the disc.

3Loading slot

6

BASICS

4B!MENU button

¥Displays the <TOP MENU> screen. (Press) (Page 10)

¥Turns on the power. (Press) (Page 8)

¥Turns off the power. (Hold) (Page 8)

5AV/AV OUT button

¥Displays the current source screen. (Press)

¥The function of the button when held varies depending on the <AV Key Long Press> setting. (Page 62)

6TEL/VOICE button

¥Displays the phone control screen. (Press) (Page 48)

¥The function of the button when held varies depending on the <TEL Key Long Press> setting. (Page 62)

7Volume/ATT/AUDIO knob

¥Attenuates the sound. (Press) (Page 8)

¥Adjusts the audio volume. (Turn) (Page 8)

¥Displays the <Equalizer> screen. (Hold) (Page 53)

8Monitor panel*

9Screen (touch panel)

*You can change the color of the buttons on the monitor panel. (Page 57)

DDX715WBT

1Power indicator/Security indicator

¥Lights up while the unit is turned on.

¥Flashes when the security function is activated. (Page 5)

2Monitor panel*

3Screen (touch panel)

4TEL/VOICE button

¥Displays the phone control screen. (Press) (Page 48)

¥Activates voice dialing. (Hold) (Page 49)

5/ V.OFF button

¥Displays the phone book. (Press) (Page!48)

¥The function of the button when held varies depending on the <P.BOOK Key Long Press> setting. (Page 62)

6Volume +/− button

Adjusts the audio volume. (Page 8) ATT button

Attenuates the sound. (Page 8)

7M(Eject) button

¥Ejects the disc. (Tilts the monitor panel fully.)

¥Opens/closes the monitor panel.

8B!MENU button

¥Displays the <TOP MENU> screen. (Press) (Page 10)

¥Turns off the power. (Hold) (Page 8)

¥Turns on the power. (Press) (Page 8)

9AV/AV OUT button

¥Displays the current source screen. (Press)

¥Displays the screen of the external component connected to the AV-OUT terminal. (Hold) (Page!71)

pS/Tbutton

Functions the same as [S]/[T] on the touch panel when playing a source.

qAPPS button

Displays the App screen. (Page!22)

wAUDIO button

¥Displays the <Equalizer> screen. (Press) (Page 53)

*You can change the color of the buttons on the monitor panel. (Page 57)

ENGLISH 7

BASICS

Common operations

Ρ Turning on the power

DDX7015BT

DDX5902

DDX715WBT

Ρ Turning off the power

DDX7015BT

(Hold)

DDX5902

(Hold)

DDX715WBT

(Hold)

Ρ Adjusting the volume

To adjust the volume (00 to 35) DDX7015BT

Press Jto increase, and press Kto decrease.

¥Holding the button increases/decreases the volume continuously.

DDX5902

Turn to the right to increase, and turn to the left to decrease.

DDX715WBT

Press + to increase, and press Ð to decrease.

¥Holding the button increases/decreases the volume continuously.

To attenuate the sound (only for DDX5902/ DDX715WBT)

DDX5902

DDX715WBT

The ATT indicator lights up.

To cancel the attenuation: Press the same button again.

ΡAdjusting the panel angle (only for DDX7015BT/DDX715WBT)

1Display the <Angle Adjust> screen.

On the <TOP MENU> screen:

¥Press [K] repeatedly to change the page on the <Display> menu screen.

2Select an angle (0 Ð 6).

¥To set the current position as the power off position, select [Memory].

8

BASICS

Ρ Putting the unit in standby

1Display all <TOP MENU> items.

On the <TOP MENU> screen:

2

Ρ Turning off the screen

DDX7015BT*1

(Hold)

DDX5902*2

(Hold)

DDX715WBT*3

(Hold)

To turn on the screen: Press AV/AV!OUT on the monitor panel, or touch the display.

*1 This operation works only when <AUD Key Long Press> is set to [V-OFF]. (Page!62)

*2 This operation works only when <TEL Key Long Press> is set to [V-OFF]. (Page!62)

*3 This operation works only when <P.BOOK Key Long Press> is set to [V-OFF]. (Page!62)

Common screen operations

Ρ Common screen descriptions

You can display other screens any time to change the source, show the information, or change the settings, etc.

Source control screen

Performs source playback operations.

¥The operation buttons vary depending on the selected source.

1

2

3 4

Common operation buttons:

1Displays other operation buttons.

¥Disabled when there are no other buttons.

2Switches between the normal source control screen and easy control screen. (Page!10)

3Displays the <TOP MENU> screen. (Page!10)

¥Pressing B!MENU on the monitor panel also displays the <TOP MENU> screen.

4Displays/hides short-cut buttons. (Page!11)

Continued on the next page...

ENGLISH 9

BASICS

Easy control screen

<Setup> screen



Pressing [ ] switches between the normal source

Changes the detailed settings. (Page 60)



control screen and easy control screen.







The easy control screen allows you to control the







source easily with simple buttons.







¥ The displayed buttons vary depending on the



1

3

selected source.









2

4



Common operating buttons:





1

Selects the menu category.





2

Displays the <TOP MENU> screen.





3

Changes the page.





4

Returns to the previous screen.



<TOP MENU> screen

Displays the source control screen and settings screen.

¥You can arrange the items to display on the <TOP MENU> screen.(Page 58)

1

2

3

Common operating buttons:

1Changes the playback source. (Page 11)

2Displays all playback sources and items. (Page!11)

3Displays the <Setup> screen. (See the right column.)

Ρ Touch screen operations

1

3 4

2

1Displays the video control menu while playing a video.

2Displays the source control screen while playing a video.

¥ The operation buttons disappear when the screen is touched or when no operation is done for about 5 seconds.

3Goes to the previous chapter/track.*

4Goes to the next chapter/track.*

* Not available for video from an external component.

10

[PANDORA]*1
[iHeartRadio]*1
[AUPEO!]
[Bluetooth]
[APPs]

BASICS

Selecting the playback source

On the <TOP MENU> screen:

¥You can change the page to display more items by pressing [J]/[K].

[DISC]

Plays a disc. (Page 12)

[HD Radio]*1

Switches to the HD Radio

[TUNER]*2

broadcast. (Page 31)

Switches to the conventional radio

[iPod]

broadcast. (Page 29)

Plays an iPod/iPhone. (Page 18)

[USB]

Plays files on a USB device.

[HDMI/MHL]

(Page 17)

Plays a device connected to



the HDMI/MHL input terminal.

[SiriusXM]*1

(Page 43)

Switches to the SiriusXM¨ radio



broadcast. (Page 34)

Switches to the Pandora broadcast. (Page 23) Switches to the iHeartRADIO broadcast. (Page 25) Switches to the AUPEO! application. (Page 27)

Plays a Bluetooth audio player. (Page 50)

Switches to the App screen from the connected iPod touch/iPhone/ Android device. (Page 22)

[TEL] Displays the phone control screen. (Page 48)

[OEM Features]*1 Switches to the source connected via ADS adapter. (Page 43)

[AV-IN1][AV-IN2]

Switches to an external component connected to the AVIN1 or iPod/AV-IN2 input terminal. (Page 41)

*1 Only for DDX5902.

*2 Only for DDX7015BT/DDX715WBT.

ΡSelecting the playback source on the <TOP MENU> screen

¥You can change the items (other than [SETUP]) to display on the <TOP MENU> screen. (Page!58)

Ρ Using short-cut buttons

While displaying the source control screen or the <Setup> screen, you can use the short-cut buttons to go to the items on the <TOP MENU> screen indicated below.

To display the short-cut buttons

On the source control screen:

On the <Setup> screen:

To hide the short-cut buttons: Press [ ].

ENGLISH 11

DISCS

Playing a disc

¥If a disc does not have a disc menu, all tracks on it will be played repeatedly until you change the source or eject the disc.

¥For playable disc types/file types, see page 74.

Ρ Inserting a disc

Insert a disc with the label side facing up.

DDX7015BT

DDX5902

DDX715WBT

The source changes to ÒDISCÓ and playback starts. ¥ The IN indicator lights up while a disc is inserted.

¥If ÒÓ appears on the screen, the unit cannot accept the operation you have tried to do.

ÐIn some cases, without showing Ò,Ó operations will not be accepted.

¥When playing back a multi-channel encoded disc, the multi-channel signals are downmixed to stereo.

Ρ Ejecting a disc

DDX7015BT

DDX5902

DDX715WBT

¥When removing a disc, pull it horizontally.

¥You can eject a disc when playing another AV source.

¥If the ejected disc is not removed within

60 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.

Closing the monitor panel (only for DDX7015BT/ DDX715WBT)

After removing the disc, press Mon the monitor panel. The monitor panel closes.

Playback operations

When the operation buttons are not displayed on the screen, touch the area shown on the illustration.

¥To change settings for video playback, see page 55.

Ρ Indications and buttons on the source control screen

For video playback

1

2

3

4 5 6

Playback information

¥The information displayed on the screen differs depending on the type of disc/file being played back.

1Media type

2Current playback item information (title no./ chapter no./folder no./file no./track no.)

3Playing time

4Playback mode (Page!15)

5File type

6IN indicator

12

DISCS

Operation buttons

¥Available buttons on the screen and operations differ depending on the type of disc/file being played back.

[ ] [O] [N]

[S] [T]

[IW] [o]

[]

[MODE]

[] [] [Playlist]

[ ] []

[ ] [] [PBC]

[MENU]

Displays the folder/track list. (Page!14)

Reverse/forward search during playback.

¥Selects a chapter/track. (Press)

¥Reverse/forward search. (Hold)

Starts/pauses playback. Stops playback.

Displays other operation buttons.

¥Disabled when there are no other buttons.

Changes the settings for disc playback on the <DISC Mode> screen. (Page!16)

Selects playback mode. (Page!15)

Displays the Original Program/ Playlist screen.

Plays in frame-by-frame. Selects a folder.

Activates or deactivates the VCD PBC (Playback Control) function.

Displays the <TOP MENU> screen.

For audio playback

1 2 3 4 5

6 7 8

Playback information

¥The information displayed on the screen differs depending on the type of disc/file being played back.

1Media type

2Track/file information

¥Pressing [<] scrolls the text if not all of the text is shown.

3Current playback item information (folder no./file no./track no.)

4Playback status

5Playing time

6Playback mode (Page!15)

7File type

8IN indicator

Operation buttons

¥Available buttons on the screen and operations differ depending on the type of disc/file being played back.

[

]



Displays the easy control screen.







(Page!10)

[

]



Displays the folder/track list.

[S] [T]

(Page!14)

Selects a track.

[O] [N]

Reverse/forward search.

[IW]



Starts/pauses playback.

[

]



Displays other operation buttons.







¥ Disabled when there are no other

[MODE]



buttons.



Changes the settings for disc







playback on the <DISC Mode>







screen. (Page!16)

[

] [

]

Selects a folder.

[

] [

]

Selects playback mode. (Page!15)

[o]





Stops playback.

[MENU]



Displays the <TOP MENU> screen.

ENGLISH 13

DISCS

Ρ Selecting a folder/track on the list

1

2Select the folder (1), then the item in the selected folder (2).

¥Repeat the procedure until you select the desired track.

¥You can change the page to display more items by pressing [J]/[K].

¥Press [ ] to open the folder containing the current track.

¥Press [ ] to return to the root folder.

¥Press [ ] to return to the upper layer.

Ρ Video menu operations

You can display the video menu screen during video playback.

¥The operation buttons disappear when the screen is touched or when no operation is done for about 5 seconds.

For video playback except VCD

¥Available buttons on the screen and operations differ depending on the type of disc/file being played back.

[ZOOM]

Displays the picture size selection

[Aspect]

screen. (Page!56)

Selects the aspect ratio.

[PictureAdjust]

(Page!56)

Displays the picture adjustment

[Audio]

screen. (Page!55)

Selects the audio type (or channel

[Subtitle]

for DVD-VR).

Selects the subtitle type.

[Angle]

Selects the view angle.

[ !MENU]

Displays the disc menu.

[T MENU]

Displays the disc menu (DVD).

[Highlight]

Switches to the direct disc menu



mode. Touch the target item to



select.



¥ To restore the screen, press AV

[CUR]

on the monitor panel.

Displays the menu/scene



selection screen.



¥ [J] [K] [H] [I]: Selects an item.



¥ [Enter]: Confirms the selection.



¥ [Return]: Returns to the



previous screen.

14

DISCS

For VCD

[ZOOM]

Displays the picture size selection

[Aspect]

screen. (Page!56)

Selects the aspect ratio.

[PictureAdjust]

(Page!56)

Displays the picture adjustment

[Audio]

screen. (Page!55)

Selects the audio channel (ST:

[Return]

stereo, LL: left, RR: right).

Displays the previous screen or

[Direct]

menu.

Displays/hides the direct selection



buttons. (See the right column.)

To select a track directly on a VCD

¥When you enter a wrong number, press [CLR] to delete the last entry.

Ρ Selecting playback mode

[

]

Selects Repeat playback mode.

[

]

Selects Random playback mode.

¥Available playback modes differ depending on the type of disc/file being played back.

¥You cannot activate the repeat mode and the random mode at the same time.

¥Each time you press the button, the playback mode changes. (The corresponding indicator lights up.)

ÐAvailable items differ depending on the type of disc/file being played back.

C-REP

Repeats current chapter.

T-REP

Repeats current title/program.

REP

Repeats current track.

FO-REP

Repeats all tracks of the

FO-RDM

current folder.

Randomly plays all tracks of



the current folder, then tracks

RDM

of the next folders.

Randomly plays all tracks.

To cancel Repeat/Random playback: Press the button repeatedly until the indicator disappears.

ENGLISH 15

DISCS

Settings for disc playback

¥Available items shown on the <DISC Mode> screen differ depending on the type of disc/file being played back.

Ρ Setting items

<Menu

Select the initial disc menu language.

Language>*

(Initial: English) (Page!76)

<Subtitle

Select the initial subtitle language

Language>*

or turn subtitles off (Off). (Initial:



English) (Page!76)

<Audio

Select the initial audio language.

Language>*

(Initial: Original) (Page!76)

<Dynamic

You can change the dynamic range

Range

while playing using Dolby Digital

Control>*

software.



¥

Wide: Select this to enjoy a





powerful sound at a low volume





level with its full dynamic range.



¥

Normal: Select this to reduce the





dynamic range a little.



¥

Dialog (Initial): Select this to





reproduce movie dialog more





clearly.

<Angle

Select whether to display the angle

Mark>

mark.





¥

ON (Initial): Select this to display





the angle mark.





¥

OFF: Select this to hide the angle





mark.



<Screen

Select the monitor type to watch a

Ratio>*

wide screen picture on the external



monitor.





16:9 (Initial) 4:3 LB

4:3 PS

<Parental

Set the parental level.



Level>*

(See the right column.)



<CD Read>

Select the files to play on a disc



containing music files. You cannot



change the setting when a disc is



inserted.



¥1 (Initial): Automatically distinguishes between audio file discs and music CDs.

¥2: Forces to play as a music CD. No sound can be heard if an audio file disc is played.

* You can change these settings only while playback is stopped.

Setting the parental lock

The parental lock cannot be set during DVD playback.

1Display the <Parental Pass> screen.

On the <DISC Mode> screen:

¥Press [K] repeatedly to change the page on the <DISC Mode> screen.

2Enter the 4-digit parental pass code (1), and press [Enter] (2).

¥To clear the entry, press [Clear].

¥To cancel setting the code, press [Cancel].

3Adjust the parental level (<OFF>, <Level!1> to <Level 8>).

To deactivate the parental lock: Select [OFF] for <Parental Level>.

16

USB

Connecting a USB device

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player etc. to the unit.

¥For details about connecting USB devices, see page 70.

¥You cannot connect a computer or portable HDD to the USB input terminal.

¥For playable file types and notes on using USB devices, see page 75.

When a USB device is connected...

The source changes to ÒUSBÓ and playback starts.

¥All tracks in the USB device will be played repeatedly until you change the source.

To disconnect the USB device safely:

Press [M], then disconnect the USB device after ÒNo DeviceÓ appears.

Playback operations

When the operation buttons are not displayed on the screen, touch the area shown on the illustration.

¥To change settings for video playback, see page 55.

ΡIndications and buttons on the source control screen

1 2 3 4

5

6 7

Playback information

¥The information displayed on the screen differs depending on the type of file being played back.

1Track/file information

¥Pressing [<] scrolls the text if not all of the text is shown.

2Current playback item information (folder no./file no.)

3Playback status

4Playing time

5Jacket picture (Shown while playing if the file has tag data that includes the jacket picture)

6Playback mode (See the right column.)

7File type

Operation buttons

¥Available buttons on the screen and operations differ depending on the type of file being played back.

[

]

Displays the easy control screen.





(Page!10)

[

]

Displays the list selection screen.





(Page!18)

[S] [T] Selects a track.

[O] [N]

Reverse/forward search.

[IW]

Starts/pauses playback.

[

]

Displays other operation buttons.





¥ Disabled when there are no other

[MODE]

buttons.

Changes the picture display time





setting on the <USB Mode> screen.





(Page!18)

[

] [ ]

Selects a folder.

[

]

Selects repeat playback mode.*1 *2





¥ REP: Repeats the current track/file.





¥ FO-REP: Repeats all tracks/files





in the current folder or specified

[

]

category.

Activates random playback mode.*1 *2





¥ RDM:





Ð When selecting the track/file from





the folder, randomly plays all





tracks/files of the current folder,





then the tracks/files of the next





folder.





Ð When selecting the track/file from





the category, randomly plays





all tracks/files of the specified

[M]



category.



Disconnects the USB device safely.

[MENU]

Displays the <TOP MENU> screen.

*1 To cancel random or repeat mode, press the button repeatedly until the indicator disappears.

*2 You cannot activate the repeat mode and the random mode at the same time.

ENGLISH 17

USB

Ρ Setting <Picture Display Time>

Set the interval between slides during slide-shows of the picture files.

¥On the <Category List>/<Folder List>: You

can switch the file type to list: Press [ ] to list audio files, [ ] to list video files, or [ ] to list still picture files.

¥On the <Category List>/<Link Search>: To list the items in alphabetical order, press [A-Z], then select the first character.

From <Category List>:

Select the category (1), then the item in the selected category (2).

Ρ Selecting a track in a list

1

2 Select the list.

3Select the track.

¥You can change the page to display more items by pressing [J]/[K].

¥Press [ ] to return to the root folder.

¥Press [ ] to return to the upper layer.

¥Press [ ] to open the folder containing the current track.

¥If you want to play all tracks in the folder, press [I] on the right of the desired folder.

From <Link Search>:

Select the tag type (1) to display a list of content that contains the same tag as the track/ file currently being played, then the item (2).

From <Folder List>:

Select the folder (1), then the item in the selected folder (2).

iPod/iPhone

Preparation

Ρ Connecting iPod/iPhone

¥For details about connecting iPod/iPhone, see page 70.

¥For playable iPod/iPhone types, see page 76.

Connect your iPod/iPhone according to your purpose or the type of iPod/iPhone.

Wired connection

¥To listen to music: USB Audio cable for iPod/ iPhone

ÐFor iPod/iPhone except for iPod nano (7th Generation)/iPod touch (5th Generation)/iPhone 5S/iPhone 5C/iPhone 5: KCA-iP102 (optional accessory)

ÐFor iPod nano (7th Generation)/iPod touch (5th Generation)/iPhone 5S/iPhone 5C/iPhone 5: KCA-iP103 (optional accessory)

¥To watch video and listen to music: USB Audio and Video cable for iPod/iPhone

ÐFor iPod/iPhone except for iPod nano (7th Generation)/iPod touch (5th Generation)/iPhone 5S/iPhone 5C/iPhone 5: KCA-iP202 (optional accessory)

ÐFor iPod nano (7th Generation)/iPod touch (5th Generation)/iPhone 5S/iPhone 5C/iPhone 5, use the HDMI cable KCA-HD100 (optional accessory) and KCA-iP103 (optional accessory) through a Lightning-Digital AV adapter (accessory of the iPod/iPhone)

18

iPod/iPhone

Bluetooth connection

Pair the iPod/iPhone through Bluetooth. (Page!44)

¥For iPod nano (7th Generation)/iPod touch (5th Generation)/iPhone 5S/iPhone 5C/iPhone 5: To watch video, connect your iPod/iPhone to the HDMI/MHL input terminal using KCA-HD100 (optional accessory). (Page!70)

¥For iPod/iPhone except for iPod nano (7th Generation)/iPod touch (5th Generation)/iPhone 5S/iPhone 5C/iPhone 5: You cannot watch video with a Bluetooth connection.

Ρ Selecting the iPod/iPhone device to

3 Select the connection method (1), then

play and connection method

press [Next] (2).

When connecting the iPod/iPhone device for first time, the setup screen (for connection, etc.)

appears. Follow the procedure on the setup screen to configure the settings.

1Display the <iPod Settings> screen.

On the <TOP MENU> screen:

¥If [Enter] for <iPod Setup> cannot be selected, put the unit in standby. (Page!9)

2

¥If you do not need to change the settings, press [OK] to exit from the setup screen.

<USB +

Select this when the iPod/

AV-IN>

iPhone is connected using



KCA-iP202 (optional accessory).

<USB 1 Wire> Select this when the iPod/ iPhone is connected using KCA-iP102 (optional accessory) or KCA-iP103 (optional accessory).

<HDMI + Select this when the iPod/ Bluetooth> iPhone is connected using

HDMI cable KCA-HD100 (optional accessory) and KCA-iP103 (optional accessory) through a Lightning-Digital AV adapter (accessory of the iPod/ iPhone).

<Bluetooth> Select this when the iPod/ iPhone is connected via Bluetooth.

¥When selecting <USB + AV-IN> or <USB 1 Wire>, go to step 5.

Continued on the next page...

ENGLISH 19

iPod/iPhone

4When selecting <HDMI + Bluetooth> or

<Bluetooth> as the connection method, the device selection screen appears. Search for the available iPod/iPhone devices (1), select the target device from the list (2), then press [Next].

Ρ Selecting preference settings for iPod/ iPhone playback

When the source is ÒiPodÓ...

1

2

Playback operations

When the operation buttons are not displayed on the screen, touch the area shown on the illustration.

¥To change settings for video playback, see page 55.

ΡIndications and buttons on the source control screen

1 2 3 4

¥You can change the page to display more items by pressing [J]/[K].

¥If the device is already listed, skip step 1.

¥To stop searching, press [Cancel].

5 Confirm the settings.

<Audiobooks>

Select the speed of audio



books.

<Wide

¥ [ON]: Select this to display

Screen>*

video compatible with



wide-screen display in wide-



screen.

¥[OFF]: Select this to deactivate.

* You cannot change the setting when iPod/iPhone is connected.

5

6

Playback information

1Song/video information

¥Pressing [<] scrolls the text if not all of the text is shown.

2Track no./Total track number

3Playback status

4Playing time

5Artwork (Shown if the song contains artwork)

6Playback mode (Page!21)

20

iPod/iPhone

Operation buttons

[ ] Displays the easy control screen. (Page!10)

[

]

Displays the audio/video file list. (See





the right column.)

[S] [T] Selects an audio/video file.

[O] [N]

Reverse/forward search.

[IW]

Starts/pauses playback.

[

]

Displays other operation buttons.





¥ Disabled when there are no other

[MODE]



buttons.

Changes the settings for iPod/iPhone





playback on the <iPod Mode>





screen. (Page!20)

[

]

Selects repeat playback mode.





¥

1: Functions the same as







Repeat One.





¥

All: Functions the same as





¥

Repeat All.

[

]

: Cancels the repeat mode.

Selects random playback mode.*





¥

: Functions the same as Shuffle







Songs.





¥

Album: Functions the same as







Shuffle Albums.

[MENU]

Displays the <TOP MENU> screen.

*To cancel random mode, press the button repeatedly until the indicator disappears.

ΡSelecting an audio/video file from the menu

1

2Select the menu ( : audio or : video) (1), a category (2), then a desired item (3).

¥Select an item in each layer until you reach and select the desired file.

¥You can change the page to display more items by pressing [J]/[K].

¥Press [All E] to play all songs/videos.

¥Press [A-Z] to sort the list in alphabetical order.

¥Press [ ] to return to the top layer.

¥Press [ ] to return to the upper layer.

Audio menu:

Video menu:

¥Available categories differ depending on the type of your iPod/iPhone.

ENGLISH 21

APPs

You can use an App of the connected iPod touch/ iPhone/Android on this unit.

¥For Apps you can use on this unit, visit <http://www.kenwood.com/cs/ce>.

Preparation

1Connect the iPod touch/iPhone/Android.

¥For wired connection, see page!70 for iPod touch/iPhone or page!71 for Android.

ÐTo view video, connect the device using KCA-iP202 or KCA-HD100 (optional accessory).

¥For Bluetooth connection, see page 46.

2Select the iPod touch/iPhone/Android device to use and connection method on the <APP Settings> screen. (Page 52)

When connecting the device for the first time, the setup screen (for connection, etc.) appears. Follow the procedure on the setup screen to configure the settings.

Using an App

When the operation buttons are not displayed on the screen, touch the screen to show them.

¥To change settings for video playback, see page 55.

Ρ Playback operations

1Start the App on your iPod touch/iPhone/ Android.

2 Select ÒAPPsÓ as the source. (Page!11)

ΡOperation buttons on the source control screen

[I]

Starts playback.

[W]

Pauses playback.

[S] [T] Selects an audio/video file.

[O] [N]

Reverse/forward search.

[IW]

Starts/pauses playback.

[MENU]

Displays the <TOP MENU> screen.

¥You can operate some functions of the App on the touch panel.

¥For some applications such as navigation applications, the operation buttons and information are not shown. You can perform the operations on the touch panel, such as scrolling the map.

ÐIf ÒÓ appears on the screen, the unit cannot accept the touch operation you have tried to do.

¥You can also play back the audio/video using iPod/iPhone/Android itself instead of the unit.

Ρ Switching to the App screen while listening to another source

DDX7015BT*

(Hold)

DDX5902*

(Hold)

DDX715WBT

To return to the source control screen: Press the same button again.

*This operation works only when <AV Key Long Press> is set to [APPs]. (Page!62)

22

Pandora® (Only for DDX5902)













Operation buttons

You can stream Pandora from iPod touch/iPhone,



Playback operations











[

]

Displays the easy control screen.

Android or BlackBerry devices.

























(Page!10)

¥ Install the latest version of the Pandora



You can operate Pandora using the remote











[

]

Displays the list selection screen.

application on your iPod touch/iPhone/Android/



controller. Only playing, pausing, and skipping are

BlackBerry.



available.











(Page 24)









[

]

Thumbs down to the current track





Ρ Indications and buttons on the source









and skips to the next track.

Preparation







control screen







[

]

Registers the current track as a

Connect the device, then start the Pandora

1

2

3

4

favorite.

[IW]

application.











Starts/pauses playback.

1 Connect the device.











[T]

Skips the current track.















¥ Not available when the Pandora

¥ For Android/BlackBerry: Pair the Android/





























skip reaches its limit.

BlackBerry device through Bluetooth.

























[

]

Displays other operation buttons.

(Page!44)

























¥ Disabled when there are no other

¥ For iPod touch/iPhone: Connect iPod touch/





























buttons.

iPhone. (Page!18)

























[

]

Bookmarks the artist.

2 Select the device to use and connection













Playback information







[

]

Bookmarks the current track.

method on the <APP Settings> screen.

















[

]

Adds the current artist to the Station



1 Picture data







(Page!52)











2 Track information











List.

3 Select ÒPANDORAÓ as the source.



¥ Pressing [<] scrolls the text if not all of the text

[

]

Adds the current track to the Station

On the <TOP MENU> screen:



is shown.











List.





3 Playback status







[MENU]

Displays the <TOP MENU> screen.

4 Playing time

The Pandora application is started.

ENGLISH 23

Pandora®

Ρ Selecting a station from the list

1 Display the list selection screen.

2Select the list type.

<Station List> Selects from the station names (Station List).

<Genre List> Selects from the genre names (Genre List).

3Select a station from the list.

On the Station List

[Shuffle] Plays all the songs in the registered stations randomly.

[By Date] Sorts the list in reverse chronological order.

[By Name] Sorts the list in alphabetical order.

¥You can change the page to display more items by pressing [J]/[K].

¥The indicator appears on the left of the item when Shuffle is activated. (All songs on the registered stations are played randomly.)

¥The indicator appears on the right of the item when the station is shared.

On the Genre List

Select a genre (1), then a station (2).

¥You can change the page to display more items by pressing [J]/[K].

¥The selected station is added to the Station List.

Requirements for Pandora¨

iPhone or iPod touch

¥Install the latest version of the Pandora application on your iPhone or iPod touch. (Search for ÒPandoraÓ in the Apple iTunes App Store to find and install the most recent version.)

¥Connect iPod touch/iPhone to this unit with a cable or via Bluetooth.

ÐWhen connecting with a cable: Use KCA-iP202, KCA-HD100, KCA-iP102 (optional accessory) or KCA-iP103 (optional accessory).

ÐWhen connecting via Bluetooth, the following profiles must be supported.

ÐSPP (Serial Port Profile)

ÐA2DP (Advanced Audio Distribution Profile)

Androidª

¥Visit Google play and search for ÒPandoraÓ to install.

¥Bluetooth must be built in and the following profiles must be supported.

ÐSPP (Serial Port Profile)

ÐA2DP (Advanced Audio Distribution Profile)

BlackBerry¨

¥Visit www.pandora.com from the built in browser to download the Pandora application.

¥Bluetooth must be built in and the following profiles must be supported.

ÐSPP (Serial Port Profile)

ÐA2DP (Advanced Audio Distribution Profile)

NOTE

¥Ensure you are logged in to your smartphone application. If you do not have a Pandora account, you can create one for free from your smartphone or at www.pandora.com.

¥Pandora is available only in the U.S./Australia/New Zealand.

¥Because Pandora is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all of the services may become unavailable.

¥Some functions of Pandora cannot be operated from this unit.

¥For issues using the application, contact Pandora at pandora-support@pandora.com

¥Establish an Internet connection using LTE, 3G, EDGE, or WiFi.

24

iHeartRADIO (Only for DDX5902)

iHeartRADIO is a free, all-in-one digital radio service





Operation buttons



Playback operations

that lets you listen to your favorite Live Stations or



[

]

Displays the easy control screen.





create commercial-free, all-music Custom Stations









(Page!10)



You can operate iHeartRADIO using the remote





featuring songs from the artists you select and



[

]

Displays the <Station Search> screen or



controller. Only playing, pausing, and skipping are

similar music.



available.





the station list. (Page!26)





[

]

Thumbs down to the current track and

You can stream iHeartRADIO from iPod touch/



Ρ Indications and buttons on the source

iPhone or Android devices.







skips to the next track.



control screen

[

]

Registers the current track as a favorite.

¥ Install the latest version of the iHeartRADIO





Live station screen:

application on your iPod touch/iPhone/Android.



[

]

Adds the current track to the <My











Stations> list.

Preparation

Connect the device, then start the iHeartRADIO application.

1Connect the device.

¥For Android: Pair the Android device through Bluetooth. (Page!44)

¥For iPod touch/iPhone: Connect iPod touch/ iPhone. (Page!18)

2Select the device to use and connection method on the <APP Settings> screen. (Page!52)

3Select ÒiHeartRADIOÓ as the source.

On the <TOP MENU> screen:

2

1

3

Custom station screen:

2

1

3

[ ]*1

[SCAN]*1 [ ]*2

[T]*2

[IW]

[MENU]

Saves the current station to the <My Stations> list.

Scans stations randomly.

Displays the variety level selection screen. (Page!26)

Skips the current track. Starts/pauses playback.

Displays the <TOP MENU> screen.

*1 Appears only for the live station screen.

*2 Appears only for the custom station screen.

Playback information

1 Picture data

2 Playback status

3 Track information

¥ Pressing [<] scrolls the text if not all of the text is shown.

iHeartRADIO application is started.

ENGLISH 25

iHeartRADIO

Ρ Selecting the variety level for your custom station

You can adjust the amount of lesser-known music that gets pushed into your custom station.

1Display the variety type selection screen.

On the custom station screen:

2 Select the variety type.

<Familiar>

Distributes well-known

<Mixed>

tracks.

Distributes a mix of the



artists and track names.

<Less Familiar> Distributes a wide variety of tracks including lesserknown ones.

Ρ Searching for a station

1 Display the <Station Search> screen.

2 Select a station.

¥Press [ ] to return to the top layer.

¥Press [ ] to return to the upper layer.

ΡEditing the <My Stations> list

1Select <My Stations> on the <Station Search> screen. (See the left column.)

2 Display the <Station Edit> screen.

3Select stations (1), then press [ ] to delete the selected stations (2).

¥Press [ ] to return to the top layer.

¥Press [ ] to return to the upper layer.

Requirements for iHeartRADIO

iPhone or iPod touch

¥Install the latest version of the iHeartRADIO application on your iPhone or iPod touch. (Search for ÒiHeartRADIO for AutoÓ in the Apple iTunes App Store to find and install the most recent version.)

¥Connect iPod touch/iPhone to this unit with a cable or via Bluetooth. When connecting with a cable: Use KCA-iP202, KCA-HD100, KCA-iP102 (optional accessory) or KCA-iP103 (optional accessory).

ÐWhen connecting via Bluetooth, the following profiles must be supported.

ÐSPP (Serial Port Profile)

ÐA2DP (Advanced Audio Distribution Profile)

Androidª

¥Visit Google play and search for ÒiHeartRADIO for AutoÓ to install.

¥Bluetooth must be built in and the following profiles must be supported.

ÐSPP (Serial Port Profile)

ÐA2DP (Advanced Audio Distribution Profile)

NOTE

¥Ensure you are logged in to your smartphone application. If you do not have an iHeartRADIO account, you can create one for free from your smartphone or at http://www.iheart.com/.

¥Because iHeartRADIO is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may

be impaired or some or all of the services may become unavailable.

¥Some functions of iHeartRADIO cannot be operated from this unit.

¥For issues using the application, contact iHeartRADIO at http://www.iheart.com/.

¥Establish an Internet connection using LTE, 3G, EDGE, or WiFi.

26

Loading...
+ 58 hidden pages
